Rare-Earth-Doped Barium Molybdate Up-Conversion Phosphor with Potential Application in Optical Temperature Sensing

by
Jung-Hyun Wi
1,
Sang-Geon Park
2,*,
Young-Seok Shim
3,
Kwangjae Lee
4 and
Jae-Yong Jung
5,*
1
Department of Smart Manufacturing Engineering, Changwon National University, Changwon 51140, Korea
2
Department of Mechatronics Convergence Engineering, Changwon National University, Changwon 51140, Korea
3
School of Energy, Materials and Chemical Engineering, Korea University of Technology and Education, Cheonan 31253, Korea
4
Department of Information Security Engineering, SangMyung University, Hongjimum 2-gil, Seoul 03016, Korea
5
Research and Business Development Foundation, Engineering Building, Silla University, Busan 45985, Korea
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(22), 7917; https://doi.org/10.3390/ma15227917
Submission received: 14 October 2022 / Revised: 1 November 2022 / Accepted: 1 November 2022 / Published: 9 November 2022
(This article belongs to the Special Issue Synthesis, Characterization, and Degradation of Advanced Optical and Photo-Active Materials)
Browse Figures
Versions Notes

Abstract

:
A BaMoO4:[Er3+]/[Yb3+] up-conversion (UC) phosphor was synthesized by co-precipitation and calcination of the precursor at 800 °C. The main peak (112) for the synthesized phosphor was strongly detected in the XRD pattern and had a tetragonal structure. The doping of rare-earth ions affected the crystal lattice by shifting the main peak, decreasing the lattice constant, and shifting the position of the Raman signal. The synthesized upconverted phosphor exhibited strong green signals at 530 and 553 nm and weak red signals at 657 nm when excited at 980 nm. The green light emission intensity of the UC phosphor increased as the pump power of the laser increased due to the two-photon effect. The synthesized upconverted phosphor was prepared as a pellet and flexible composite. Thermal quenching led to a decrease in luminescence intensity as the temperature increased, which means that the phosphor can be applied to optical temperature sensing.

1. Introduction

Oxidizing compounds, including silicate, borate, aluminate, and molybdate, exhibit strong absorption in the ultraviolet region and are thus known as phosphor materials doped with rare-earth ions. Among them, molybdate is considered a good host crystal for light-emitting materials because it has a scheelite-type crystal structure and exhibits excellent chemical and thermal stability [1,2,3,4]. It has been used in a wide range of fields, such as phosphor materials doped with rare-earth ions using barium molybdate (BaMoO4) as a host and in LEDs, lasers, optical fibers, and catalysts [5,6]. BaMoO4 phosphors show strong absorbance in the ultraviolet region because they are doped with rare-earth ions such as terbium (Tb3+), europium (Eu3+), dysprosium (Dy3+), and samarium (Sm3+), and many studies have reported green and red phosphors in the visible region [7,8,9,10]. Jung et al. reported the fabrication of a flexible composite that can be applied to LEDs by observing the change in the luminescence characteristics based on the doping concentration of Tb3+ rare-earth ions using BaMoO4 as a host [11]. Lee et al. synthesized a white luminescent BaMoO4 phosphor by co-doping Dy3+ and Sm3+ rare-earth ions at room temperature via co-precipitation and reported the change in luminescence characteristics based on the concentration of Sm3+ ions [12]. In contrast to down-conversion phosphors that absorb strong light energy such as UV light and emit light in the visible region, up-conversion (UC) phosphors that absorb weak light energy in the infrared region and emit light in the visible region have also attracted attention [13,14]. They can be used in various fields such as bio-imaging, security, and energy harvesting in addition to display and lighting [15,16]. Rai et al. synthesized a BaMoO4:Pr3+ UC phosphor doped with praseodymium (Pr3+) rare-earth ions using a solid-state reaction method. The synthesized phosphor was excited with a diode laser at 808 nm to observe the emission spectrum in the 450–725 nm region [17]. Chung et al. synthesized BaMoO4 UC phosphors co-doped with erbium (Er3+) and ytterbium (Yb3+) rare-earth ions using the citrate gel method. The synthesized phosphor showed strong green emission at 530 and 550 nm and weak red emission at 660 nm when excited with a 980 nm laser. In addition, changes in the UC luminescence characteristics based on the excitation luminescence intensity were observed [18]. In this study, a UC phosphor was synthesized by preparing a BaMoO4 precursor doped with rare-earth ions ([Er3+]/[Yb3+]) using a co-precipitation method and heat treatment. In the present study, the structure and luminescence characteristics of the synthesized phosphor were investigated. The luminescence characteristics of the synthesized phosphor varied with the excitation energy power and temperature, suggesting that it could be used as a temperature sensor.

2. Materials and Methods

2.1. Synthesis of BaMoO4:[Er3+]/[Yb3+] UC Phosphor

Barium acetate ((CH3CO2)2Ba, Sigma-Aldrich, St. Louis, MO, USA), sodium molybdate dihydrate (Na2MoO4·2H2O, Sigma-Aldrich, St. Louis, MO, USA), ytterbium (III) nitrate pentahydrate (Yb(NO3)3·5H2O, Yb3+, St. Louis, MO, USA), and erbium(III) nitrate pentahydrate (Er(NO3)3·5H2O, Er3+, St. Louis, MO, USA) were used as starting materials. Two solutions were prepared in separate beakers. Solution ‘A’ was prepared by dissolving (CH3CO2)2Ba (10 mmol) in 50 mL of distilled water. Solution ‘B’ was prepared by dissolving Na2MoO4·2H2O (10 mmol) in 50 mL of distilled water (Figure 1). Once the solutions were completely dissolved, So-lution ‘B’ was slowly poured into the beaker containing Solution ‘A’. The mixture was stirred for approximately 10 min. Subsequently, the powder was recovered using a centrifuge (4000 rpm, 5 min), rinsed with distilled water two times to remove residual sodium, and then placed in a drying oven at 80 °C for 24 h. The UC phosphor was synthe-sized with BaMoO4 as a host. The precursor was prepared by simultaneously adding Yb(NO3)3·5H2O and Er(NO3)3·5H2O to Solution “A”. The prepared precursor was sintered at 800 °C for 1 h to produce BaMoO4:[Er3+]/[ Yb3+] phosphor. The concentration of rare-earth [RE] ions of Yb3+ was kept constant at 0.5 mmol, while the concentration of Er3+ added was varied ([Er3+]/[Yb3+] ~ 0.1, 0.2, 0.3, 0.4, 0.6, 0.8, 1) [19,20,21,22]. The number of moles of the reagent used and the amount of doped rare earth added are detailed in Table 1.

2.2. Characterization

TThe crystal structure of the synthesized phosphor powder was determined using an X-ray diffraction apparatus (XRD, X’Pert PRO MPD, 40 kV, 30mA) with CuKα radiation (wavelength: 1.5406 Å) at a scan rate of 4°/min and a diffraction angle of 10 to 70°. Field-emission scanning electron microscopy (FESEM) was used to characterize the size, microscopic surface, and shape of the crystal grains (FESEM, Brono, CZ, MIRA I LMH, TESCAN). A semicon-ductor pulse laser (TCLDM9, Thorlabs, Jessup, MD, USA) with an emission output of 100 mW at an excitation wavelength of 980 nm and a spectrometer (HR4000, Ocean Optics, Ostfildern, Germany) connected with a photomultiplier was used to measure the fluores-cence spectrum by UC and the emission spectrum. Raman spectroscopy (JP/NRS-3300, 532 nm, 100 mW solid-state primary laser) was mainly employed to understand the fluorescence mechanism of UC. The energy absorption and energy transfer processes in the excited state were analyzed by varying the intensity of the pulsed laser and meas-uring the changes in the fluorescence intensity using Raman spectroscopy.

2.3. Fabricated Pellet and Flexible Composite

The synthesized phosphor powder and an aqueous solution of 1 mL of polyvinyl alcohol (PVA, 10 wt.%, Sigma-Aldrich, St. Louis, MO, USA) were kneaded with a pestle and bowl. Pellets were prepared by placing them in a 1-inch mold and applying a pressure of 200 MPa. A flexible composite was prepared by mixing 0.1 g of the synthesized phosphor powder and 1 g of polydimethylsiloxane, pouring it into a square mold, and subsequently curing it in an oven at 80 °C for 1 h.

3. Results and Discussion

3.1. Structure and Surface Morphology of BaMoO4 UC Phosphor

XRD analysis was performed to investigate the change in the crystal structure of the BaMoO4 UC phosphor, which was synthesized by calcining the precursor prepared by the co-precipitation method at 800 °C, based on the rare-earth doping. The synthesized UC phosphor had a tetragonal (a = 5.580 Å, b = 5.580 Å, c = 12.821 Å, JCPDS Card No. 00-008-0455) structure irrespective of the rare-earth doping, and a (112) signal was detected corresponding to the main peak in the XRD pattern (Figure 2a). Except for the main peaks, (004), (200), (114), (204), (220), (116), (312), and (224) peaks were weakly detected. When the amount of BaMoO4 UC phosphor synthesized by doping with rare-earth elements was BaMoO4:[Er3+]/Yb3+] ~ 0.1 (0.3027 nm), the lattice constant of the main peak (112), calculated using Bragg’s equation [23], increased compared to that of the undoped host (0.3025 nm), as shown in Figure 2b. Because of the doping of the rare-earth element with a relatively large ionic radius, the primary peak shifted and the lattice constant (Ba2+ = 1.35 Å, Yb3+ = 0.868 Å, Er3+ = 0.89 Å) changed. Lovisa et al. synthesized a ZnMoO4 phosphor co-doped with Tb3+ and Pr3+ using a sonochemical method. In ZnMoO4, the primary peak (120) shifted, and the lattice constant changed because of the doped rare-earth element. In this study, it was reported that the change was caused by rare-earth elements with relatively large ionic radii [24].
Raman spectra were obtained by excitation of the sample with a 532 nm laser to observe the molecular frequency change caused by the rare-earth ions located in the doped BaMoO4 crystal lattice. The synthesized BaMoO4 had frequencies of 328, 362, 793, 840, and 893 cm−1. Figure S1 shows a slight shift in the position of frequencies in BaMoO4:[Er3+]/[Yb3+] samples doped with rare-earth ions. According to research studies, the vibrations of molecules are affected by the energy transferred from the outside by doping them with rare-earth ions [25].
The synthesized BaMoO4 had a size of about 11 μm in the longitudinal direction and about 3.4 μm in the transverse direction and a sharp shape. Rare-earth-doped BaMoO4:[Er3+]/[Yb3+] had an elliptical particle shape with a size of about 3 μm in the longitudinal direction and about 1.3 μm in the transverse direction, as shown in Figure 3. In the EDS analysis, the components of Ba, Mo, and O and the rare-earth Yb and Er were detected through mapping, and the doped components could be confirmed (Figure S2).

3.2. Luminescence Properties of BaMoO4 UC Phosphor

Figure 4a shows the photoluminescence (PL) spectrum and intensity changes according to the amount of Er3+ ions added to the BaMoO4 UC phosphor co-doped with Er3+ and Yb3+ rare-earth ions. In the UC phosphor powder excited with a semiconductor laser at 980 nm, strong green peaks at 530 and 553 nm and slightly weak red peaks at 657 nm were observed. The synthesized UC phosphor absorbed light energy at a wavelength of 980 nm emitted from the semiconductor laser by Yb3+ ions and showed UC properties by the excitation of Er3+ ions through energy transfer by another photon and absorption of the excited state [26]. The green emission (2H11/2 → 4I15/2, 4S3/2 → 4I15/2, and 2H3/2 → 4I15/2) was observed by the UC PL spectrum generated by the excitation pumping light due to the transition of Er3+ ions [27].
The intensity of emission increased as the doping concentration of Er3+ ions increased, with the strongest emission peak observed at [Er3+]/[Yb3+] ~ 0. However, when the doping concentration was further increased, the concentration of Er3+ ions became too high, resulting in decreased luminescence intensity owing to the cross-relaxation process between Er3+ ions and the concentration quenching phenomenon [28]. Furthermore, energy loss occurred when energy was transferred back to the Yb3+ ions distributed around the Er3+ ions, indicating that the light emission intensity decreases as a result of the upward conversion process (Figure 4b). The UC emission characteristic change was observed for the [Er3+]/[Yb3+] ~ 0.3 sample based on the intensity of the excitation pumping light source. The sample obtained the strongest emission intensity by changing the Er3+ concentration and fixing the intensity of the excitation pumping light source at 100 mW, as shown in Figure 5. The intensity of the UC PL increased when the intensity of the excitation light source at 980 nm was changed from 50 to 300 mW, as shown in Figure 5a,b. The UC process causes an energy transfer (ET) process in which the light energy absorbed by Yb3+ ions is transferred to Er3+ ions in addition to an excited state absorption (ESA) process by an additional energy transfer of the excited Er3+ ions (Figure 5c). The excitation process from the 4I11/2 level to the 4F7/2 level for green emissions is related to the following three processes [29]:
ESA: 4I11/2 + photon (980 nm) → 4F7/2
ET: 2F5/2(Yb3+) + 4I11/2 (Er3+) → 2F7/2(Yb3+) + 4F7/2(Er3+)
CR (cross-relaxation): 4I11/2(Er3+) + 4I11/2(Er3+) → 4F7/2(Er3+) + 4I15/2(Er3+)
The ESA process occurs for a single ion, whereas the ET process occurs when two ions are involved. The BaMoO4 UC phosphor doped with Er3+ and Yb3+ ions absorbed photons of excitation wavelength at 980 nm, and subsequently, Yb3+ ions at the 2F7/2 level were excited to the 2F5/2 level. The excited Yb3+ ions further excited the Er3+ ions to the 4I11/2 level, which then returned to the ground state to the adjacent Er3+ ions through the ET process (2F5/2 (Yb3+) + 4I15/2 (Er3+) → 2F7/2 (Yb3+) + 4I11/2 (Er3+)). When pumping with excitation light of wavelength 980 nm, the first step involves excitation of Er3+ ions to 4I11/2 level through ET1 and GSA processes. The lifetime of the 4I11/2 level was long, and the electrons were occupied at the 4F7/2 level of the Er3+ ion by the ET3 and ESA1 processes (2F5/2 (Yb3+) + 4I11/2 (Er3+) → 2F7/2 (Yb3+) + 4F7/2 (Er3+)) as a result of the excitation of the Yb3+ ion through the absorption of another photon. Another mechanism by which electrons could be occupied at the 4F7/2 level involves the cross-relaxation process between the adjacent Er3+ ions, in which one of the two Er3+ ions at the 4I11/2 level interacts with the other to gain energy and move to the 4F7/2 level. The other loses energy and transitions to the 4I15/2 level in the ground state. Using this mechanism, green light was emitted at 530 nm (2H11/2 → 4I15/2) and at 553 nm (4S3/2 → 4I15/2). In red fluorescence via UC, electrons undergo the ET2 and ESA2 processes and are occupied at the 4I11/2 level by a non-radiative transition from the 4I13/2 level. Red light at 657 nm wavelength (4F9/2 → 4I15/2) was emitted in the process of ESA2 after the 4F9/2 level was occupied by electrons [30,31]. The intensity of fluorescence (I) emitted by the UC is proportional to the intensity of fluorescence of the pump excitation light (P), which can be expressed by the following Equation [32]:
I v i s   ∝   P n
where Ivis is the up-conversion emission intensity, P is the intensity of the excitation light (mW), and n is the number of absorbed photons required to be excited at the emission level. Figure 5c shows the fitting of the fluorescence intensity of the PL spectrum obtained by changing the intensity of the excitation pumping light of the BaMoO4:[Er3+]/[Yb3+] ~ 0.3 UC phosphor. The slope of the green fluorescence peak at 553 nm changed according to the pump excitation light, which was estimated to be approximately 2.23. The green fluorescence emission was due to a two-photon process that involved two excitation photons. The slope of the red fluorescence peak at 657 nm was estimated to be approximately 2.01. This phenomenon occurs when an electron in the ground state absorbs the first photon, is excited to the 4I11/2 level, occupies the 4I13/2 level by nonradiative transition, and occupies the 4F (4F9/2 → 4I15/2) level through the ESA2 process, which absorbs the second photon as the ET2 process. This is a two-photon process [33].
The PL spectrum of the characteristic change in UC fluorescence with temperature is shown in Figure 6a,b. The intensity of UC PL decreased when the temperature was raised from room temperature to 250 °C. In the process where Yb3+ ions absorb the light energy of the excitation-pumping light source and transfer it to Er3+ ions, the host BaMoO4 does not transmit energy well due to the lattice vibration caused by heat. This thermal quenching expands the crystal lattice of the host and reduces the luminescence properties of the UC phosphor. Liao et al. reported that, as the temperature increased, the change in UC luminescence characteristics was positive, while the thermal expansion of the host was negative [34]. This phenomenon was attributed to the radiative trapping of Yb3+ because the lattice shrinkage reduces the distance of Yb3+/Er3+ at high temperatures and promotes the radiative trapping of Yb3+. In phosphorescent materials co-doped with Yb3+/Er3+, Yb3+ both acts as a radiation trap to store energy as well as a sensitizer to transfer energy to Er3+. These radiation traps may have promoted the release of Er3+ ions. In addition, the Yb3+/Er3+ distance decreases as the temperature increases. Generally, the ET process between the sensitizer (Yb3+) and activator (Er3+) is caused by dipole interactions. Since ET efficiency is proportional to r-6 (where r is the donor-acceptor distance), then we can infer that increasing the temperature can substantially improve the ET efficiency [34]. The BaMoO4:[Er3+]/[Yb3+] UC phosphor synthesized in this study exhibited a decrease in UC emission characteristics owing to the positive thermal expansion of the host by heat supplied from the outside. Sylwia et al. synthesized a UC phosphor doped with Er3+ ions using SrF2 as a host. As in this study, it was shown that the UC luminescence properties decreased as the temperature increased. The temperature-dependent green luminescence quenching related to intensified nonradiative relaxation processes at higher temperatures reported. The decrease in UC luminescence properties due to temperature increase is related to thermal expansion of the host as well as temperature-dependent lattice vibration-induced phonons that quenches the UC emission [35]. As shown in The UC phosphor powder was molded into pellets and heated directly as shown in Figure 6c. The sample in contact with the excitation light source at 980 nm showed green light emission. The decrease in the size of the emitted dot as the temperature increased at room temperature was visible to the naked eye. The present study suggests that the synthesized BaMoO4 UC phosphor can be used as a temperature sensor owing to its characteristics.

4. Conclusions

BaMoO4:[Er3+]/[Yb3+] up-conversion phosphors applicable to optical temperature sensing were synthesized by co-precipitation and calcination at 800 °C. The synthesized phosphor powder exhibited a tetragonal structure in the XRD analysis, and the main peak (112) phase was clearly observed. In addition, the position of the peak shifted as detected by rare-earth doping with a relatively large ion radius, and the lattice constant decreased. It was further confirmed that the Raman signal caused a slight change caused by rare-earth doping and influenced the crystal lattice. When excited by a 980 nm laser, the synthesized BaMoO4:[Er3+]/[Yb3+] phosphor emitted a strong green light, and the intensity of the light emission changed as the laser pump power increased. In addition, the luminescence intensity increases as the temperature decreases. This phenomenon was attributed to the two-photon process of the excited-state absorption process and the energy-transfer process. The synthesized phosphor was prepared as a pellet and flexible composite. It was observed that the luminescence intensity of the pellet and composite varied with temperature. It is therefore suggested that the synthesized phosphor can be used as temperature sensors.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma15227917/s1, Figure S1: Raman spectra of (a) BaMoO4 and (b) BaMoO4:[Er3+]/[Yb3+] under 532 nm laser; Figure S2: FE-SEM EDS mapping analysis of (a) BaMoO4 and (b) BaMoO4:[Er3+]/[Yb3+] under 532 nm laser.

Author Contributions

Conceptualization, J.-Y.J., Y.-S.S. and K.L.; methodology, J.-Y.J. and J.-H.W.; software, J.-Y.J., Y.-S.S. and K.L.; validation, J.-Y.J.; formal analysis, J.-Y.J., J.-H.W. and S.-G.P.; investigation, J.-Y.J., J.-H.W. and S.-G.P.; resources, J.-Y.J.; data curation, J.-Y.J.; writing—original draft preparation, J.-Y.J., J.-H.W., Y.-S.S. and K.L.; writing—review and editing, J.-Y.J. and S.-G.P.; visualization, J.-Y.J.; supervision, J.-Y.J. and S.-G.P.; project administration, J.-Y.J. and S.-G.P.; funding acquisition, S.-G.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by Ministry of Land, Infrastructure, and Transport (No. 21CTAP-C157556-02), Korea Carbon Industry Promotion Agency (KCarbon G2820220600013) and the Financial Program for Customized Research Capabilities in 2022.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hirotaka, T.; Yuta, M. Investigation on Luminescent Properties of Rare Earth Doped Mullite Phosphors and the Occupation Site of the Doped Rare Earths. J. Electrochem. Soc. 2019, 166, B3209. [Google Scholar] [CrossRef]
  2. Jung, J. White luminescent calcium molybdate phosphor synthesized at room temperature via the Co-precipitation method used in a LED flexible composite. Opt. Mater. 2022, 132, 112830. [Google Scholar] [CrossRef]
  3. Secu, M.; Secu, C.; Bartha, C. Optical Properties of Transparent Rare-Earth Doped Sol-Gel Derived Nano-Glass Ceramics. Materials 2021, 14, 6871. [Google Scholar] [CrossRef] [PubMed]
  4. Jung, J.Y.; Shim, Y.; Son, C.S.; Kim, Y.; Hwang, D. Boron Nitride Nanoparticle Phosphors for Use in Transparent Films for Deep-UV Detection and White Light-Emitting Diodes. ACS Appl. Nano Mater. 2021, 4, 3529–3536. [Google Scholar] [CrossRef]
  5. Al-Waisawy, S.; George, A.F.; Jadwisienczak, W.M.; Rahman, F. Preparation of balanced trichromatic white phosphors for solid-state white lighting. Luminescence 2017, 32, 791–799. [Google Scholar] [CrossRef]
  6. Smet, P.F.; Parmentier, A.B.; Poelman, D.; Liu, R. Selecting Conversion Phosphors for White Light-Emitting Diodes. J. Electrochem. Soc. 2011, 158, R37. [Google Scholar] [CrossRef] [Green Version]
  7. Marques, A.P.A.; Motta, F.V.; Cruz, M.A.; Varela, J.A.; Longo, E.; Rosa, I.L.V. BaMoO4:Tb3+ Phosphor Properties: Synthesis, Characterization and Photophysical Studies. Solid State Ion. 2011, 202, 54–59. [Google Scholar] [CrossRef]
  8. Yuhang, X.; Xiangyu, Z.; Hongbo, Z.; Mengjie, Z.; Shuo, M.; Chunhui, S.; Shao, J. Luminescence properties of Eu3+ doped BaMoO4 transparent glass ceramics. J. Non-Cryst. Solids 2018, 500, 243–248. [Google Scholar] [CrossRef]
  9. Jena, P.; Gupta, S.K.; Natarajan, V.; Sahu, M.; Satyanarayana, N.; Venkateswarlu, M. Structural characterization and photoluminescence properties of sol–gel derived nanocrystalline BaMoO4:Dy3+. J. Lumin. 2015, 158, 203–210. [Google Scholar] [CrossRef]
  10. Li, Z.; Wang, Y.; Cao, J.; Jiang, Y.; Zhao, X.; Meng, Z. Hydrothermal synthesis and luminescent properties of BaMoO4:Sm3+ red phosphor. J. Rare Earths 2016, 34, 143. [Google Scholar] [CrossRef]
  11. Jung, J. Changes in structure and luminescence properties according to the Tb3+ doping concentration of crystalline BaMoO4 synthesized at room temperature and application in LED color filters. MRS Commun. 2022, 12, 762–767. [Google Scholar] [CrossRef]
  12. Yi, S.; Jung, J. Barium molybdate white emitting phosphor synthesized at room temperature by co-precipitation. RSC Adv. 2022, 12, 21827–21835. [Google Scholar] [CrossRef] [PubMed]
  13. Zijlmans, H.J.M.A.A.; Bonnet, J.; Burton, J.; Kardos, K.; Vail, T.; Niedbala, R.S.; Tanke, H.J. Detection of Cell and Tissue Surface Antigens Using Up-Converting Phosphors: A New Reporter Technology. Anal. Biochem. 1999, 267, 30–36. [Google Scholar] [CrossRef] [PubMed]
  14. Rapaport, A.; Milliez, J.; Bass, M.; Cassanho, A.; Jenssen, H. Review of the properties of up-conversion phosphors for new emissive displays. JDT 2006, 2, 68–78. [Google Scholar] [CrossRef]
  15. Kundu, J.; Ghosh, Y.; Dennis, A.M.; Htoon, H.; Hollingsworth, J.A. Giant Nanocrystal Quantum Dots: Stable Down-Conversion Phosphors that Exploit a Large Stokes Shift and Efficient Shell-to-Core Energy Relaxation. Nano Lett. 2012, 12, 3031–3037. [Google Scholar] [CrossRef]
  16. Richards, B.S. Luminescent layers for enhanced silicon solar cell performance: Down-conversion. Sol. Energy Mater. Sol. Cells 2006, 90, 1189–1207. [Google Scholar] [CrossRef]
  17. Soni, A.; Rai, V. Upconversion luminescence in BaMoO4:Pr3+ phosphor for display devices. Adv. Mater. Radiat. Phys. 2015, 1675, 030073. [Google Scholar] [CrossRef]
  18. Chung, J.H.; Lee, S.Y.; Kang, S.H.; Kim, S.A.; Shim, K.B.; Cho, H.; Lee, J.; Ryu, J.H. Green Lighting Upconversion Luminescence of Yb3+, Er3+ Co-Doped BaMoO4. J. Nanosci. Nanotechnol. 2013, 13, 6089–6091. [Google Scholar] [CrossRef]
  19. Jung, J.; Kim, J.; Shim, Y.; Hwang, D.; Son, C.S. Structure and Photoluminescence Properties of Rare-Earth (Dy3+, Tb3+, Sm3+)-Doped BaWO4 Phosphors Synthesized via Co-Precipitation for Anti-Counterfeiting. Materials 2020, 13, 4165. [Google Scholar] [CrossRef]
  20. Jung, J. Fabicated Flexible Composite for a UV-LED Colir Filter and Anti-Counterfieting Application of Calcium Molybdate Phosphor Synthesized at Room Temperature. Materials 2022, 15, 2078. [Google Scholar] [CrossRef]
  21. Yi, S.; Jung, J. Up-conversion luminescence properties with temperature change of strontium tungstate phosphors. RSC Adv. 2022, 12, 24752–24759. [Google Scholar] [CrossRef] [PubMed]
  22. Jung, J. Synthesis of Barium Tungstate Up-Conversion Phosphor Applied in Temperature Sensing and Anti-Counterfeiting. ECS J. Solid State Sci. Technol. 2022, 11, 076005. [Google Scholar] [CrossRef]
  23. Pope, C.G. X-Ray Diffraction and the Bragg Equation. J. Chem. Educ. 1997, 74, 129. [Google Scholar] [CrossRef]
  24. Lovisa, L.X.; Fernandes, Y.L.R.L.; Garcia, L.M.P.; Barros, B.S.; Longo, E.; Paskocimas, C.A.; Bomio, M.R.D.; Motta, F.V. Tb3+/Pr3+ co-doped ZnMoO4 phosphor with tunable photoluminescence and energy transfer processes. Opt. Mater. 2019, 96, 109332. [Google Scholar] [CrossRef]
  25. Lim, C.S. Synthesis of BaMoO4:Er3+/Yb3+ particles by an MAM method and their upconversion photoluminescence properties. Mater. Chem. Phys. 2013, 140, 154–158. [Google Scholar] [CrossRef]
  26. Kumar, A.; Tiwari, S.P.; Swart, H.C.; Esteves da Silva, J.C.G. Infrared interceded YF3: Er3+/Yb3+ upconversion phosphor for crime scene and anti-counterfeiting applications. Opt. Mater. 2019, 92, 347–351. [Google Scholar] [CrossRef]
  27. Lu, W.; Cheng, L.; Zhong, H.; Sun, J.; Wan, J.; Tian, Y.; Chen, B. Dependence of upconversion emission intensity on Yb3+ concentration in Er3+/Yb3+ co-doped flake shaped Y2(MoO4)3 phosphors. J. Phys. D Appl. Phys. 2010, 43, 085404. [Google Scholar] [CrossRef]
  28. Solis, D.; De La Rosa, E.; Meza, O.; Diaz-Torres, L.A.; Salas, P.; Solis, D.; De La Rosa, E.; Meza, O.; Diaz-Torres, L.A.; Salas, P.; et al. Ultrabroadband terahertz conductivity of Si nanocrystal films. J. Appl. Phys 2010, 108, 211107. [Google Scholar] [CrossRef]
  29. Jung, J. Applied anti-counterfeiting with strontium molybdate up-conversion phosphor synthesized via co-precipitation at low sintering temperature. Bull. Mater. Sci. 2022, 45, 152. [Google Scholar] [CrossRef]
  30. Choudhary, A.K.; Dwivedi, A.; Bahadur, A.; Rai, S.B. Effect of the concentration of the dopants (Er3+, Yb3+ and Zn2+) and temperature on the upconversion emission behavior of Er3+/Yb3+ co-doped SrAl2O4 phosphor. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 185, 155–162. [Google Scholar] [CrossRef]
  31. Boyer, J.; Vetrone, F.; Cuccia, L.A.; Capobianco, J.A. Synthesis of Colloidal Upconverting NaYF4 Nanocrystals Doped with Er3+, Yb3+ and Tm3+, Yb3+ via Thermal Decomposition of Lanthanide Trifluoroacetate Precursors. J. Am. Chem. Soc. 2006, 128, 7444–7445. [Google Scholar] [CrossRef] [PubMed]
  32. Chung, J.W.; Kwak, M.; Yang, H.K. Improvement of luminescence properties of NaYF4:Yb3+/Er3+ upconversion materials by a cross-relaxation mechanism based on co-doped Ho3+ ion concentrations. Luminescence 2021, 36, 812–818. [Google Scholar] [CrossRef]
  33. Vetrone, F.; Naccache, R.; Mahalingam, V.; Morgan, C.G.; Capobianco, J.A. The Active-Core/Active-Shell Approach: A Strategy to Enhance the Upconversion Luminescence in Lanthanide-Doped Nanoparticles. Adv. Funct. Mater. 2009, 19, 2924–2929. [Google Scholar] [CrossRef]
  34. Liao, J.; Wang, M.; Lin, F.; Han, Z.; Fu, B.; Tu, D.; Chen, X.; Qiu, B.; Wen, H. Thermally boosted upconversion and downshifting luminescence in Sc2(MoO4)3:Yb/Er with two-dimensional negative thermal expansion. Nat. Commun. 2022, 13, 2090. [Google Scholar] [CrossRef] [PubMed]
  35. Ryszczyńska, S.; Trejgis, K.; Marciniak, Ł.; Grzyb, T. Upconverting SrF2:Er3+ Nanoparticles for Optical Temperature Sensors. ACS Appl. Nano Mater. 2021, 4, 10438–10448. [Google Scholar] [CrossRef]
Materials 15 07917 g001 550

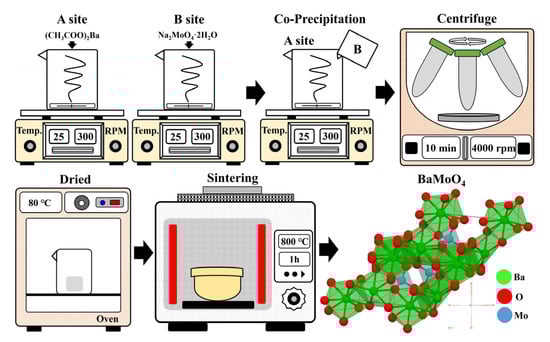

Figure 1. Experimental procedure for preparing the BaMoO4:[Er3+]/[Yb3+] up-conversion phosphors.
Figure 1. Experimental procedure for preparing the BaMoO4:[Er3+]/[Yb3+] up-conversion phosphors.
Materials 15 07917 g001
Materials 15 07917 g002 550

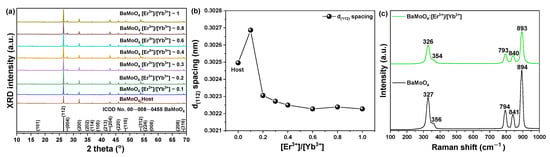

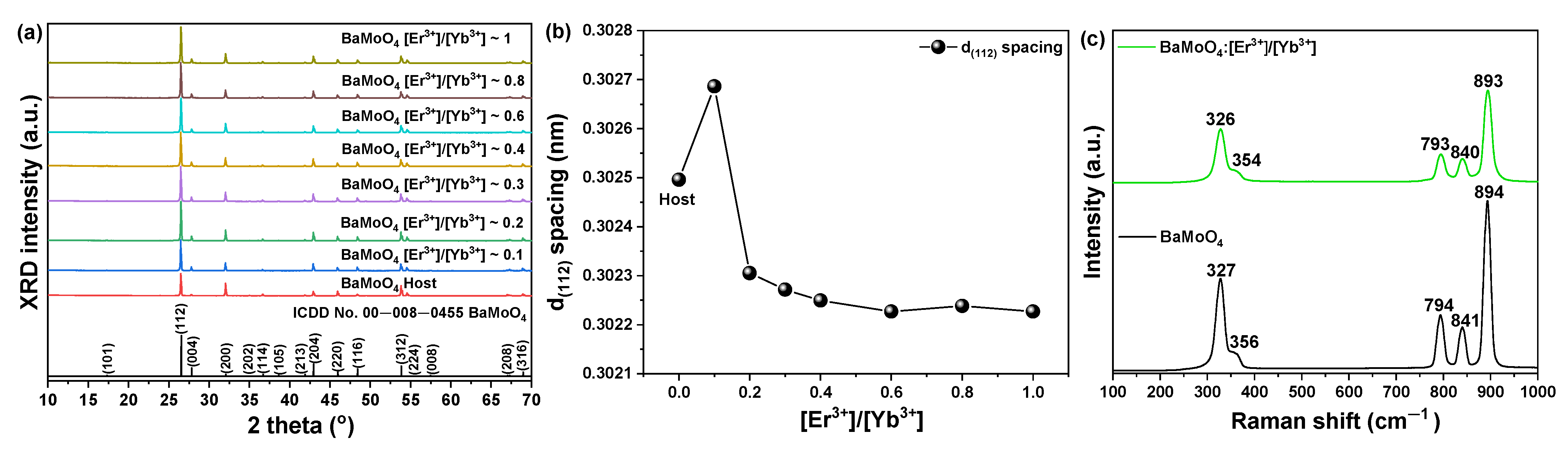

Figure 2. (a) XRD patterns of synthesized BaMoO4 and BaMoO4:[Er3+]/[Yb3+] powders, and (b) change in d(112) spacing and (c) Raman spectra of BaMoO4 (black line) and BaMoO4:[Er3+]/[Yb3+] (green line) under 532 nm laser.
Figure 2. (a) XRD patterns of synthesized BaMoO4 and BaMoO4:[Er3+]/[Yb3+] powders, and (b) change in d(112) spacing and (c) Raman spectra of BaMoO4 (black line) and BaMoO4:[Er3+]/[Yb3+] (green line) under 532 nm laser.
Materials 15 07917 g002
Materials 15 07917 g003 550

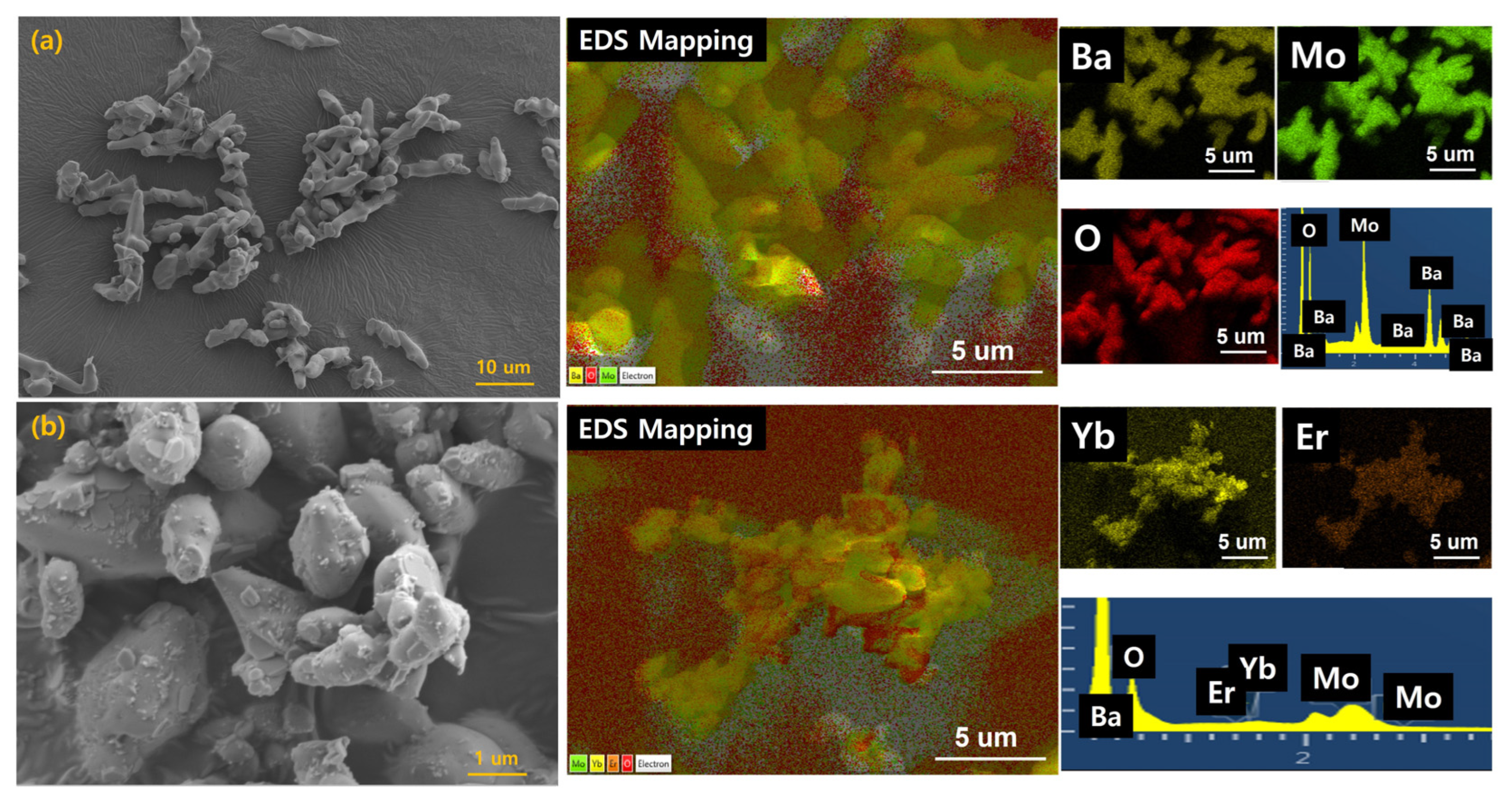

Figure 3. FE-SEM image and EDS Mapping analysis of (a) BaMoO4 and (b) BaMoO4:[Er3+]/[Yb3+] powder.
Figure 3. FE-SEM image and EDS Mapping analysis of (a) BaMoO4 and (b) BaMoO4:[Er3+]/[Yb3+] powder.
Materials 15 07917 g003
Materials 15 07917 g004 550

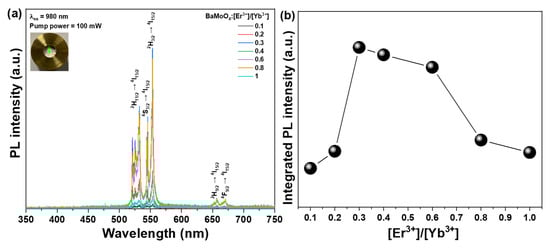

Figure 4. (a) PL spectra, and (b) change in PL intensity based on the Er3+ concentration under 980 nm at 100 mW in the BaMoO4:[Er3+]/[Yb3+] up-conversion phosphors.
Figure 4. (a) PL spectra, and (b) change in PL intensity based on the Er3+ concentration under 980 nm at 100 mW in the BaMoO4:[Er3+]/[Yb3+] up-conversion phosphors.
Materials 15 07917 g004
Materials 15 07917 g005 550

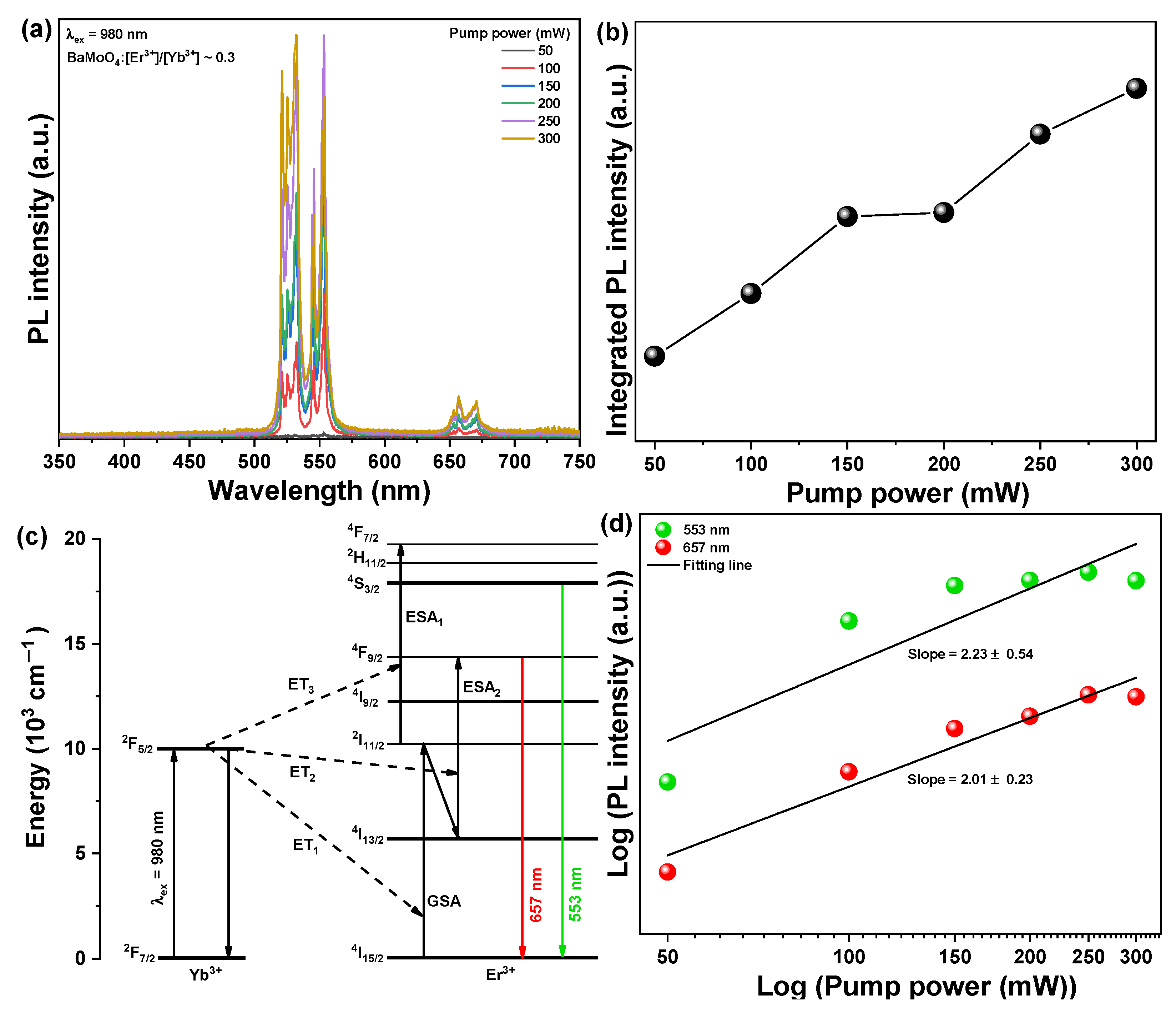

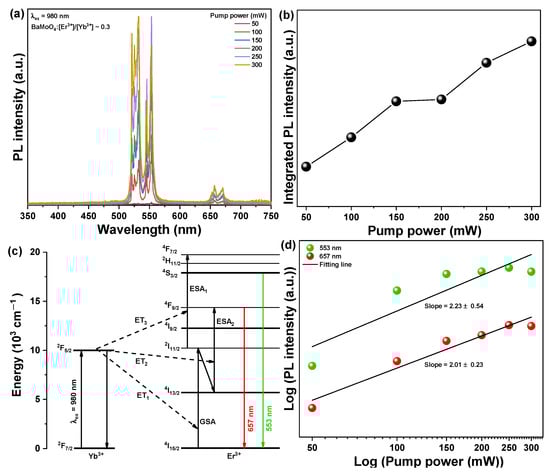

Figure 5. (a) PL spectra; (b) Change in integrated PL intensity; (c) Schematic energy transfer process; and (d) Linear fitting at 553 and 657 nm intensity according to pump power under 980 nm of BaMoO4:[Er3+]/[Yb3+] ~0.3 up-conversion phosphors.
Figure 5. (a) PL spectra; (b) Change in integrated PL intensity; (c) Schematic energy transfer process; and (d) Linear fitting at 553 and 657 nm intensity according to pump power under 980 nm of BaMoO4:[Er3+]/[Yb3+] ~0.3 up-conversion phosphors.
Materials 15 07917 g005
Materials 15 07917 g006 550

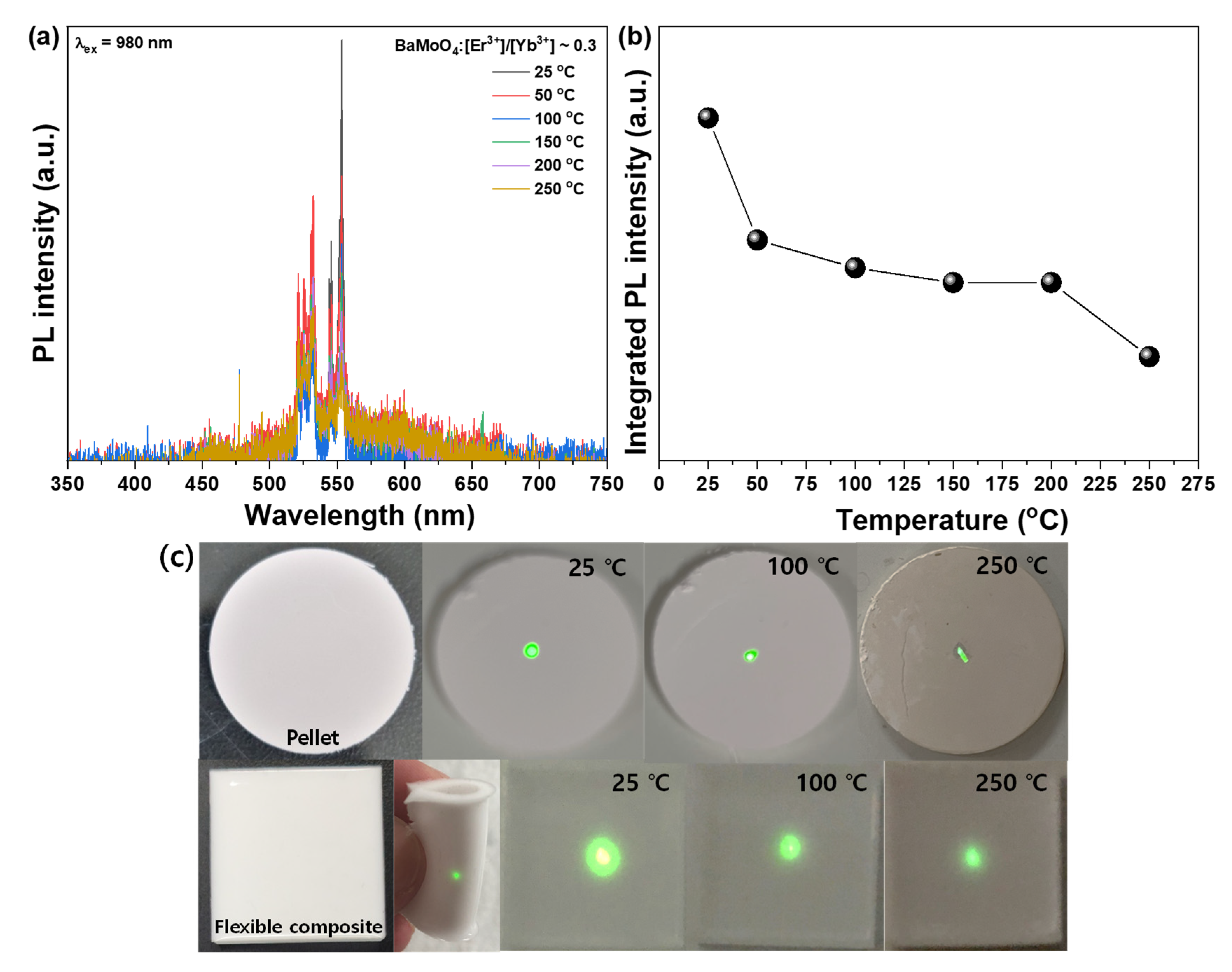

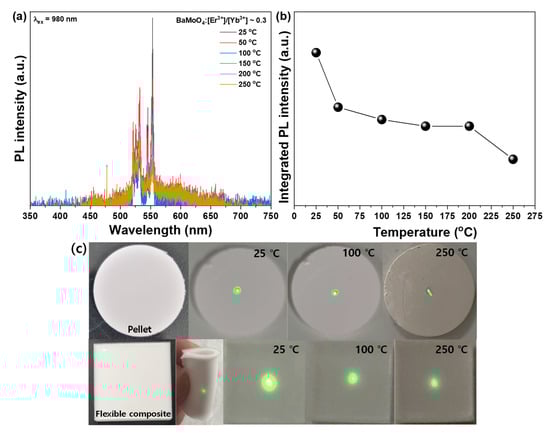

Figure 6. (a) PL spectra of changing temperature; (b) Integrated PL intensity; and (c) Photograph of pellet and flexible composite under 980 nm at 100 mW of BaMoO4:[Er3+]/[Yb3+] ~0.3 up-conversion phosphors.
Figure 6. (a) PL spectra of changing temperature; (b) Integrated PL intensity; and (c) Photograph of pellet and flexible composite under 980 nm at 100 mW of BaMoO4:[Er3+]/[Yb3+] ~0.3 up-conversion phosphors.
Materials 15 07917 g006
Table
Table 1. Reagents and moles used in the synthesis.
Table 1. Reagents and moles used in the synthesis.
BaMoO4 Up-Conversion Phosphor Synthesis
Reagents(CH3COO)2BaNa2MoO4·2H2OYb(NO3)3·5H2OEr(NO3)3·5H2O
Molecular Weight (g/mol)255.42241.95449.13443.35
Used mole (mmol)10100.50.05~0.5
[Er3+]/[Yb3+] Ratio
Reagents(CH3COO)2BaNa2MoO4·2H2OYb(NO3)3·5H2OEr(NO3)3·5H2O
Used mole (mmol)10100.50.05
10100.50.1
10100.50.15
10100.50.2
10100.50.3
10100.50.4
10100.50.5
