Synthesis of Rare-Earth-Doped Strontium Tungstate Phosphor at Room Temperature and Applied Flexible Composite

Abstract

In this study, we successfully synthesized rare-earth-doped crystalline SrWO₄ at room temperature by co-precipitation. The results from the X-ray diffraction analysis showed a main diffraction peak related to the (112) plane. Phosphors doped with either Dy³⁺ or Sm³⁺ ions showed strong light absorption in the UV region and blue-yellow and red light emission. To synthesize a white light phosphor, Dy³⁺ and Sm³⁺ ions were co-doped to produce a SrWO₄:[Sm³⁺]/[Dy³⁺] phosphor. When the Sm³⁺ ion concentration was increased and the Dy³⁺ concentration was maintained, the red light intensity increased while the blue-yellow light intensity decreased. The composites were combined with polydimethylsiloxane (PDMS), and a flexible composite material was fabricated. The composite exhibited various luminescence properties under UV and visible light, which suggested its potential for use as an LED color filter.

1. Introduction

Phosphors doped with rare earth (RE) tungstates have attracted significant research interest because they can be used as white-light-emitting diodes, solid-state lighting, displays, and in various lighting industries [1,2]. Tungstates such as barium tungstate (BaWO₄), strontium tungstate (SrWO₄), and calcium tungstate (CaWO₄) are chemically stable, have a broad absorption wavelength in the UV–vis region, and are capable of excellent energy transfer to rare earth ions [3,4,5]. Manufacturing a phosphor that emits a variety of colors with high luminescence intensity requires a thermally and chemically stable host structure doped with rare earth ions such as terbium (Tb³⁺), europium (Eu³⁺), dysprosium (Dy³⁺), and samarium (Sm³⁺), which possess many energy levels in the visible light region [6,7]. Among these rare earth ions, Dy³⁺ emits blue light via magnetic dipole transition (⁴F_9/2→⁶H_15/2) and yellow light via electric dipole transition (⁴F_9/2→⁶H_13/2) [8]. Sm³⁺ emits orange light via magnetic dipole (⁴G_5/2→⁶H_7/2) transition and red light via electric dipole transition (⁴G_5/2→⁶H_9/2) [9]. Hence, Dy³⁺ and Sm³⁺ are both compelling doping candidates for use in phosphor materials. Yu et al. synthesized a Ca_3−xLi_x(PO₄)_2−x(SO₄)_x:Dy³⁺, Sm³⁺ phosphor by the sol–gel method and investigated the effect of Sm³⁺ ion concentration on the crystal structure and luminescence intensity. The authors found that the co-doping of Dy³⁺ and Sm³⁺ emitted warm white light and proposed that it was an effective method to implement [10]. Jung et al. synthesized BaWO₄ and CaWO₄ using the co-precipitation method and doped Tb³⁺ and Eu³⁺ rare earth ions to produce green and red phosphors that can impart luminescent properties to the host [11,12]. Tan et al. synthesized a NaLa(WO₃)₂ phosphor doped with Dy³⁺ and Sm³⁺ using the thermal decomposition method. They found that when the doping concentration of Sm³⁺ increased, the intensity of the light emitted by Dy³⁺ decreased as energy was transferred from Dy³⁺ to Sm³⁺ [13]. Sun et al. also reported a color change due to energy transfer by the co-doping of Dy³⁺ and Sm³⁺ into Ca₃TeO₆ host crystals using the solid-state reaction method [14].

Herein, we report a successful synthesis of SrWO₄ by a co-precipitation method at room temperature. We investigated the effect of doping SrWO₄ with either Dy³⁺ or Sm³⁺, and co-doping SrWO₄ with both Dy³⁺ and Sm³⁺ as well as the effect of altering the Sm³⁺ concentration. This study also characterized the luminescence intensity, crystal structure, and particle shape of the synthesized phosphors. Finally, a flexible LED filter was produced by combing the synthesized phosphor with a polymer.

2. Materials and Methods

2.1. Synthesis of the Crystalline SrWO₄ and SrWO₄:RE³⁺ by Co-Precipitation

Starting materials: Strontium acetate ((CH₃CO₂)Sr, Sigma-Aldrich), sodium tungstate (Na₂WO₄·2H₂O, Sigma-Aldrich), dysprosium nitrate (Dy(NO₃)₃·xH2O, Dy³⁺, Sigma-Aldrich), and samarium nitrate (Sm(NO₃)₃·6H₂O, Sm³⁺, Sigma-Aldrich).

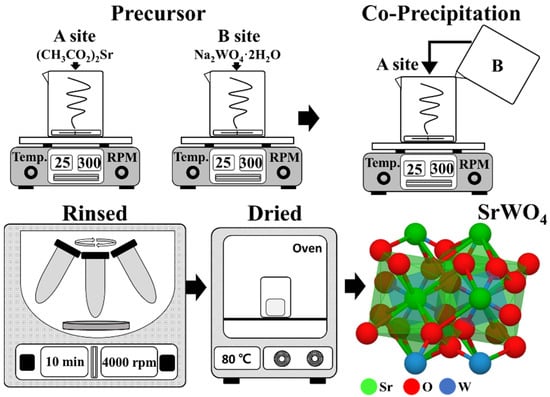

A total of 1 mmol of (CH₃CO₂)Sr and 1 mmol of Na₂WO₄·2H₂O were placed in beakers ‘A’ and ‘B’, respectively, and each beaker was combined with 100 mL of distilled water. The solutions in each beakers ‘A’ and ‘B’ were completely dissolved until the mixtures were transparent in color. Next, the two solutions were combined and stirred for 30 min at ambient temperature. After mixing, the final mixture changed to an opaque white color and formed a powder precipitate. The mixture was centrifuged at 4000 rpm to recover the powder. The recovered powder was washed twice with distilled water to remove side products and unreacted compounds and then centrifuged again. Finally, the powder was dried at 80 °C in an oven for 16 h (Figure 1). The phosphor was synthesized by adding 0.25 mmol each of Dy³⁺ and Sm³⁺ to beaker ‘A’, and the remaining steps were performed as above. White light phosphor was synthesized by co-doping Dy³⁺ and Sm³⁺ and fixing the amount of Dy³⁺ while altering the amount of Sm³⁺. The doping percentages for all samples are shown in

Table 1. Reagents and moles used in the synthesis.

SrWO4 Up-Conversion Phosphor Synthesis
Reagents	(CH3CO2)Sr	Na2WO4·2H2O	Dy(NO3)3·xH2O	Sm(NO3)3·6H2O
Molecular weight (g/mol)	205.93	329.85	348.51	444.47
Used mole (mmol)	1	1	0.25	0.025~0.25
[Dy3+]/[Sm3+] Ratio
Reagents	(CH3CO2)Sr	Na2WO4·2H2O	Dy(NO3)3·xH2O	Sm(NO3)3·6H2O
Used mole (mmol)	1	1	0.25	0.025
	1	1	0.25	0.05
	1	1	0.25	0.075
	1	1	0.25	0.1
	1	1	0.25	0.15
	1	1	0.25	0.2
	1	1	0.25	0.25

.

2.2. Fabricated Flexible Color Composite

To prepare the composite, 0.1 g of the synthesized powder, 2 g of polydimethylsiloxane (PDMS) polymer, and 0.2 g of curing agent were mixed until homogenous. Next, the mixture was poured into a square mold and placed in an oven at 80 °C for 1 h to form the composite. The composite was then irradiated with an ultraviolet lamp to observe any color change.

2.3. Characterization

X-ray diffraction analysis (XRD) (X’Pert PRO MPD, 40 kV, 30 mA, Cu–Kα radiation (wavelength: 1.5406 Å)) was used to characterize the crystal structure of the synthesized phosphor powder. The XRD analysis was carried out at a scan rate of 4° per minute at a diffraction angle of 10° to 70°. The crystal grains’ size and microscopic surface shape were characterized with a scanning electron microscope (CZ, MIRA I LMH, TESCAN), and a fluorescence photometer (FS-2, Scinco) with a xenon lamp as a light source was used for emission and absorption characteristics.

3. Results & Discussion

3.1. Characteristics of SrWO₄ and Single Doped SrWO₄

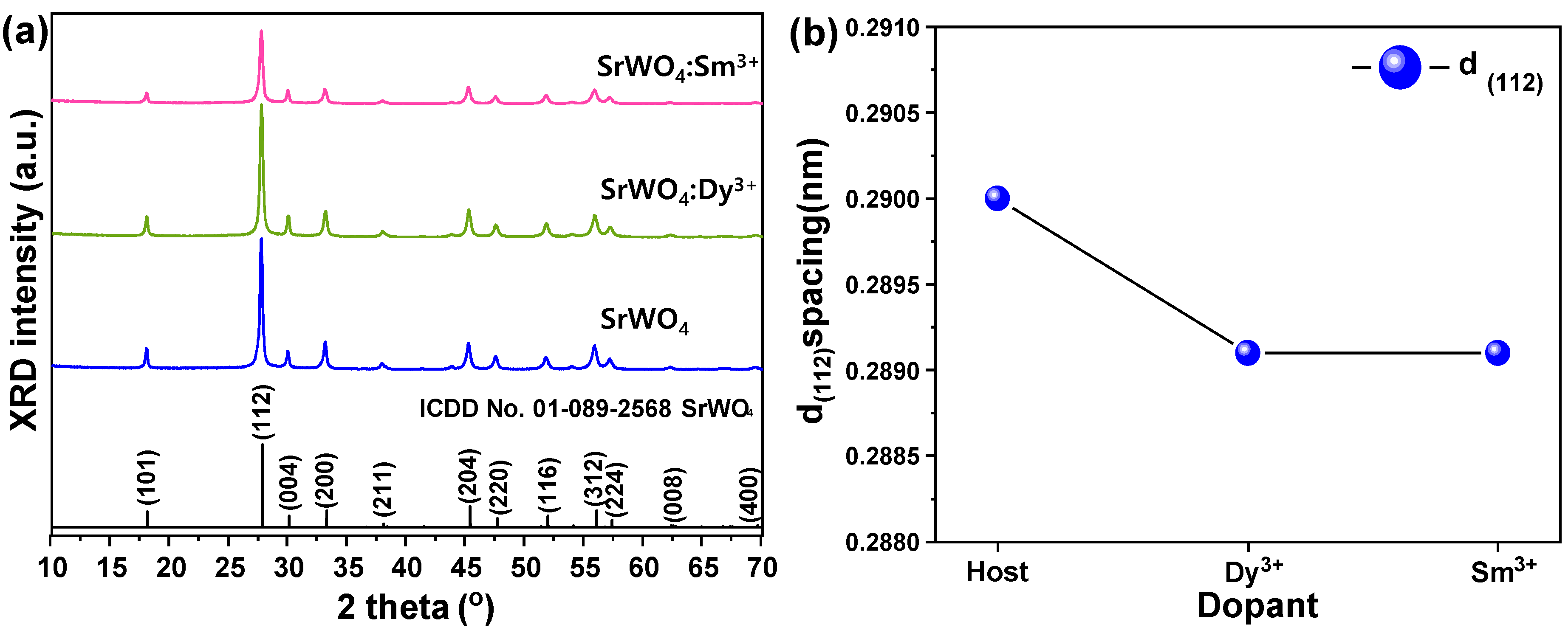

Figure 2a shows the XRD peaks of SrWO₄, SrWO₄:Dy³⁺, and SrWO₄:Sm³⁺. SrWO₄ showed a tetragonal (a = 5.400 Å, b = 5.400 Å, c = 11.910 Å) structure that was in good agreement with ICDD # 01-089-2568. The single-doped samples used 0.25 mmol of rare earth ions. The XRD analysis showed a main diffraction peak on the (112) plane. Likewise, the RE-doped SrWO₄ samples exhibited a strong (112) main peak.

Figure 2b shows the lattice constant change with and without RE doping along the (112) plane. The lattice constant of the (112) plane significantly changed due to the RE doping (SrWO₄: 0.290 nm, SrWO₄:Dy³⁺: 0.2891 nm, SrWO₄:Sm³⁺: 0.2891 nm). This change in the crystal lattice of SrWO₄ by RE doping was attributed to the relatively large ionic radius (Sr: 1.18 Å, W: 0.66 Å, Dy: 1.07 Å, Sm: 1.22 Å) of the RE dopants [15]. Figure 3 shows the absorption and emission spectra of each sample. The host SrWO₄ showed absorption from 220 nm to 340 nm and peaked at 277 nm. When the sample was excited at the highest peak (277 nm), a spectrum with a range of 350–650 nm peaking at 492 nm in a blue-white emission spectrum was observed (Figure 3a). Figure 3b shows the absorption and emission spectra of the SrWO₄:Dy³⁺ phosphor powder. In the absorption spectrum controlled with an emission wavelength of 572 nm, the charge transfer band (CTB) absorption signal generated between the Dy³⁺ cations and O^2- anions peaked at 253 nm. Moreover, several absorption narrow bands generated within the 4f-4f electron arrangement of Dy³⁺ ions were observed [16]. Among them, the absorption wavelength at 351 nm had the strongest absorption intensity and signaled the ⁶H_15/2→⁶P_7/2 transition of Dy³⁺. The absorption wavelengths at 325, 364, and 386 nm, which had relatively weaker absorptions, were identified as ⁶H_15/2→⁶P_3/2 transitions. These absorption signals were generated by the ⁶H_15/2→⁶P_5/2 and ⁶H_15/2→⁴I_13/2 transitions [17]. After excitation at 253 nm, the SrWO₄:Dy³⁺ phosphor powder exhibited a yellow emission spectrum with a peak at 572 nm due to the ⁴F_9/2→⁶H_13/2 electric dipole transition of Dy³⁺ ions. Furthermore, the blue emission band belonging to the host was also observed. Since the emission peak was strong due to the electric dipole transition, the Dy³⁺ ion doped in the SrWO₄ host lattice was in a non-inversion symmetric site [18]. For the phosphor doped with Sm³⁺ ions, when the emission wavelength was controlled at 643 nm, a CT band with a peak at 248nm and an absorption band with a peak at 297nm were observed. This absorption signal originated from the Sm³⁺ ions located within the host lattice. When the synthesized sample was excited at 248 nm, blue light emission by the SrWO₄ matrix, green light emission at 560 nm (⁴G_5/2→⁶H_15/2), orange light emission at 599 nm (⁴G_5/2→⁶H_9/2), and red light emission signals at 643 nm (⁴G_5/2→⁶H_11/2) were generated [19]. Since the intensity of the red emission caused by electric dipole transition was about 1.1 times stronger than that caused by magnetic dipole transition, the Sm³⁺ ions in the SrWO₄ host crystal were located in non-inversion symmetric sites [20]. In addition, as in the undoped SrWO4 sample, blue light emission was observed in the doped specimen due to absorption and emission by the matrix in a wide range of light absorptions.

The FE-SEM images of all samples showed that they all had long cylindrical shapes. For SrWO₄, the particle size was ~6.2 µm and ~1.92 µm in the longitudinal and transverse direction, respectively (Figure 4a). For the RE-doped SrWO₄:Dy³⁺, the particle size averaged ~5.09 µm (longitudinal) and ~1.49 µm (transverse) (Figure 4b), and for SrWO₄:Sm³⁺, the particles measured ~5.61 µm (longitudinal) and 1.49 µm (transverse) (Figure 4c).

3.2. Characteristics of [Sm³⁺]/[Dy³⁺] Co-Doped SrWO₄

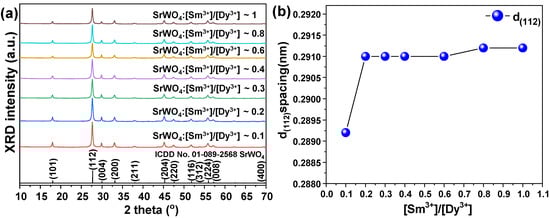

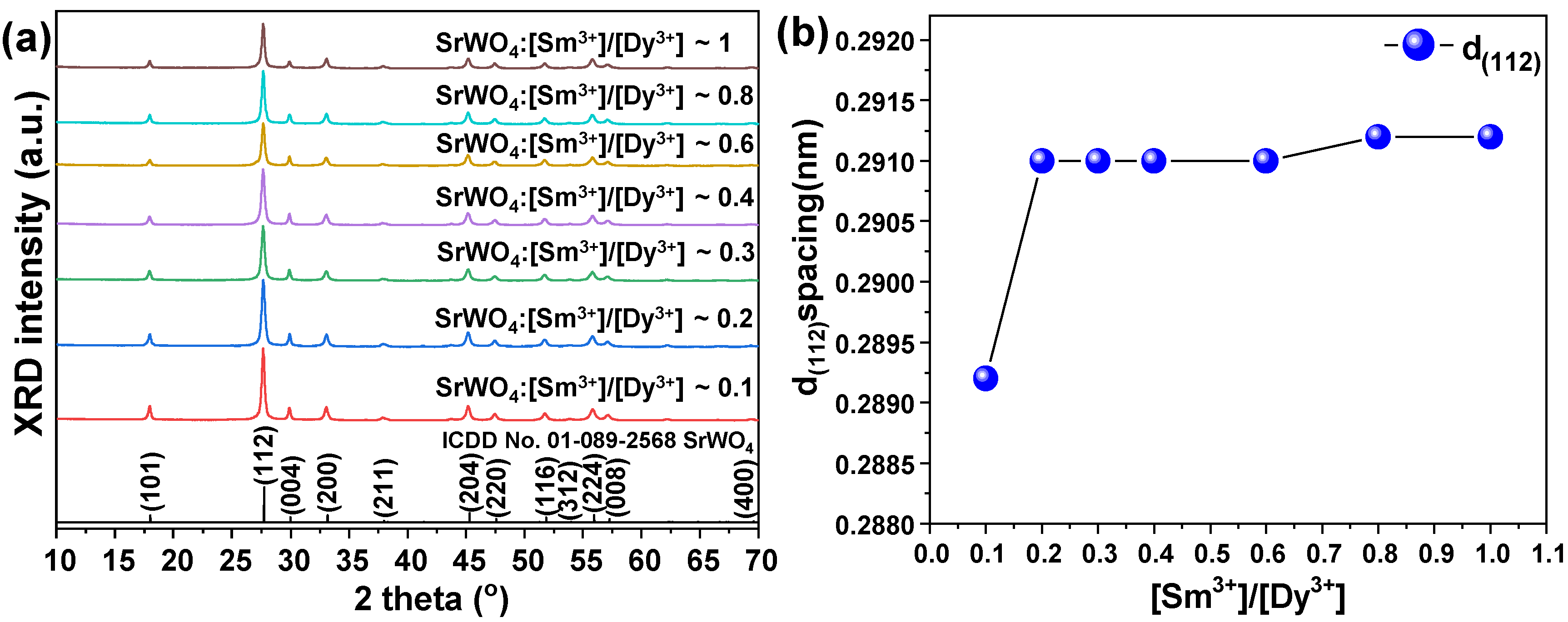

Figure 5a shows the XRD peaks of SrWO₄ co-doped with the rare earth ions Dy³⁺ and Sm³⁺ for synthesis as a white-light-emitting phosphor. The XRD pattern did not indicate a secondary phase caused by the RE doping but exhibited the diffraction signal of the main peak (112). Figure 5b shows the lattice constant change in the (112) plane, which was the main peak of the RE-co-doped SrWO₄:[Sm³⁺]/[Dy³⁺] samples. As reported above, the lattice constants of the SrWO₄:Dy³⁺ and SrWO₄:Sm³⁺ samples decreased compared to the un-doped sample. However, as seen in Figure 5b, the lattice constants of the SrWO₄:[Sm³⁺]/[Dy³⁺] sample increased. The higher lattice constants could have been caused by crystal lattice distortion or structural change induced by the additional amount of RE ions having a rather large ionic radius.

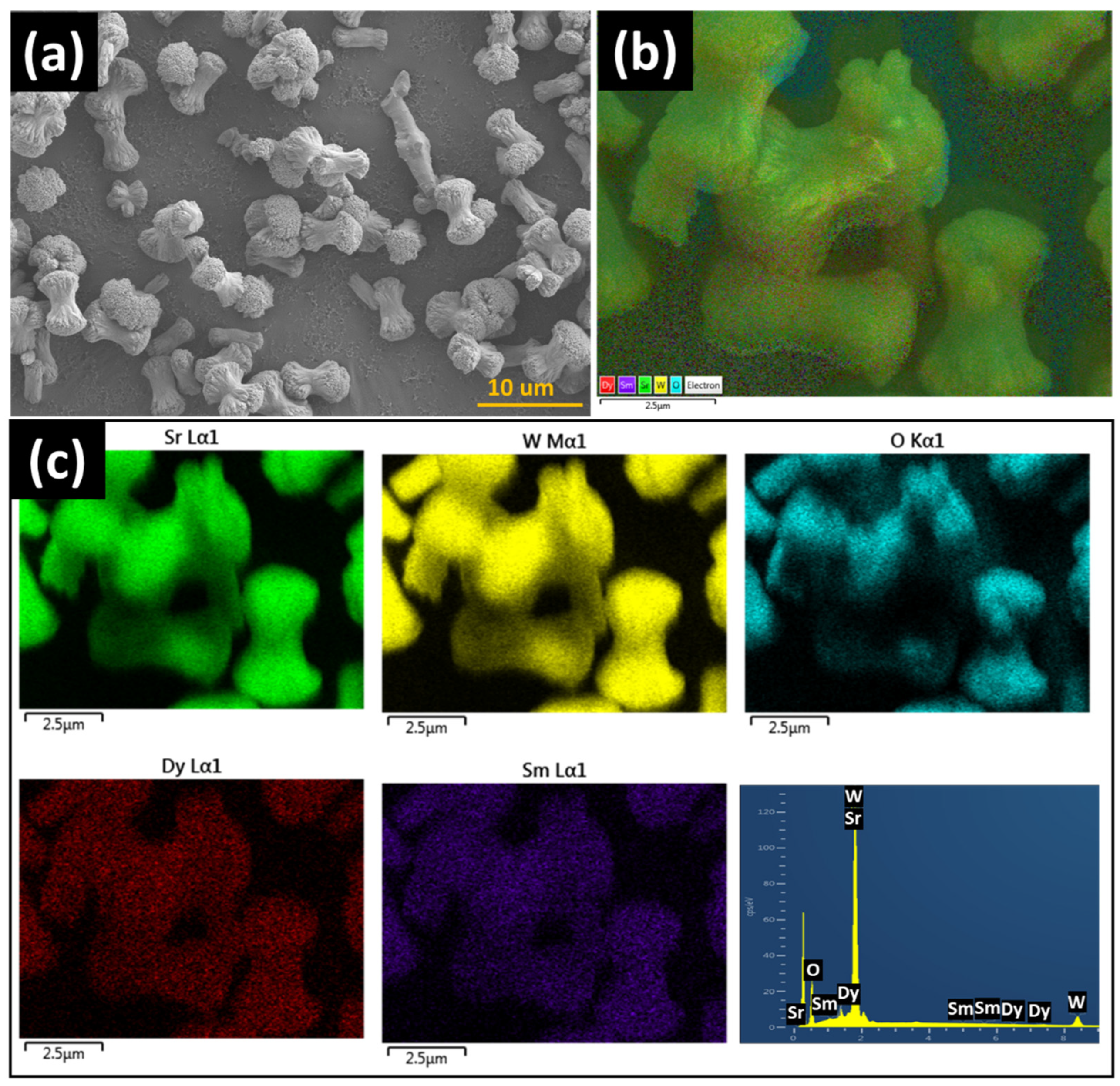

Figure 6 shows the FE-SEM image and EDS mapping component analysis of the synthesized SrWO₄:[Sm³⁺]/[Dy³⁺] phosphor. The particle shape grew in the longitudinal direction of a cylindrical shape and resembled a dumbbell, with an estimated size of 5.26 µm and 2.33 µm in the longitudinal and transverse directions, respectively. The EDS component analysis showed the presence of Sr, W, O, Dy, and Sm, which confirmed that the RE ions were doped (Figure 6b,c).

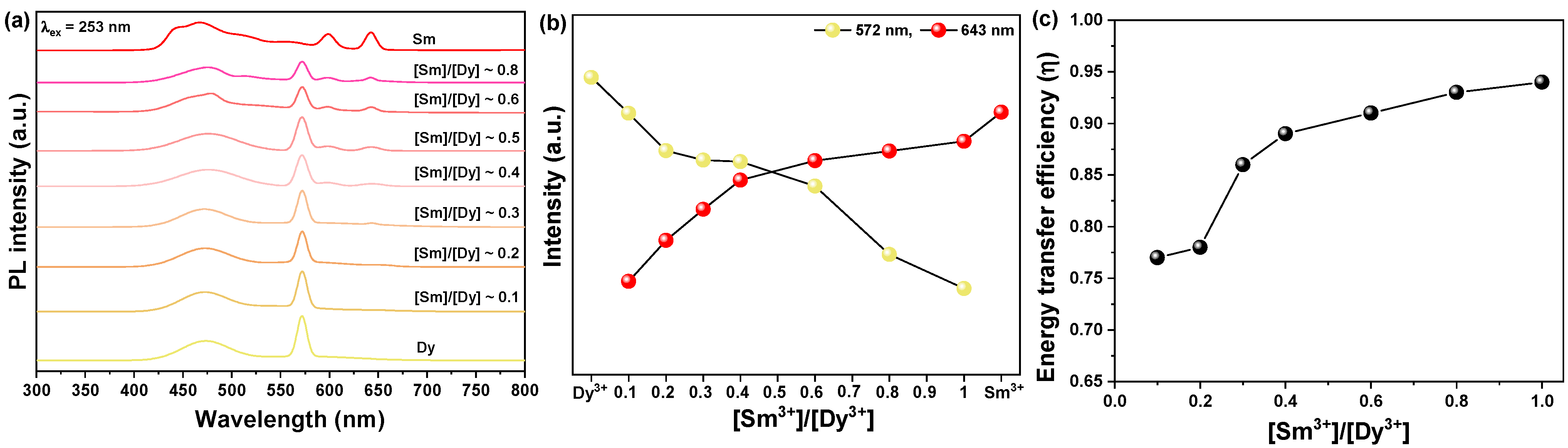

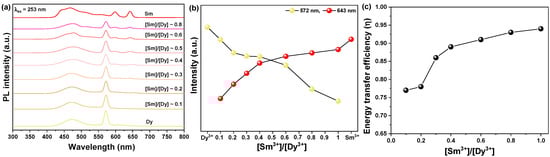

Figure 7a shows the emission spectrum of the SrWO₄:[Sm³⁺]/[Dy³⁺] phosphor powder co-doped while changing the Sm³⁺ ion concentration (the Dy³⁺ ion concentration was fixed). When excited at 253 nm and as the doping concentration of Sm³⁺ increased, the following were simultaneously observed: blue light at 492 nm, yellow light at 572 nm, orange light at 599 nm, and red light at 643 nm. As the concentration of Sm³⁺ ions increased, the intensity of yellow light emission by the Dy³⁺ ions decreased. The lower yellow light emission intensity meant that the emission energy was converted from the Dy³⁺ ions in the host lattice to the Sm³⁺ ions (Figure 7b). The energy transfer efficiency from the Dy³⁺ to Sm³⁺ ions can be expressed by Equation (1) [21].

$$\eta =1-I/I_0$$

(1)

where I is the emission intensity of Dy³⁺ ions in SrWO₄:[Sm³⁺]/[Dy³⁺] phosphors and I₀ is the emission intensity of Dy³⁺ ions in the SrWO₄:Dy³⁺ phosphors. As shown in Figure 7c, the energy transfer efficiency tended to increase as the amount of Sm³⁺ ions added increased. However, as the emission intensity decreased, a concentration-quenching phenomenon due to excessive rare earth doping was observed [22].

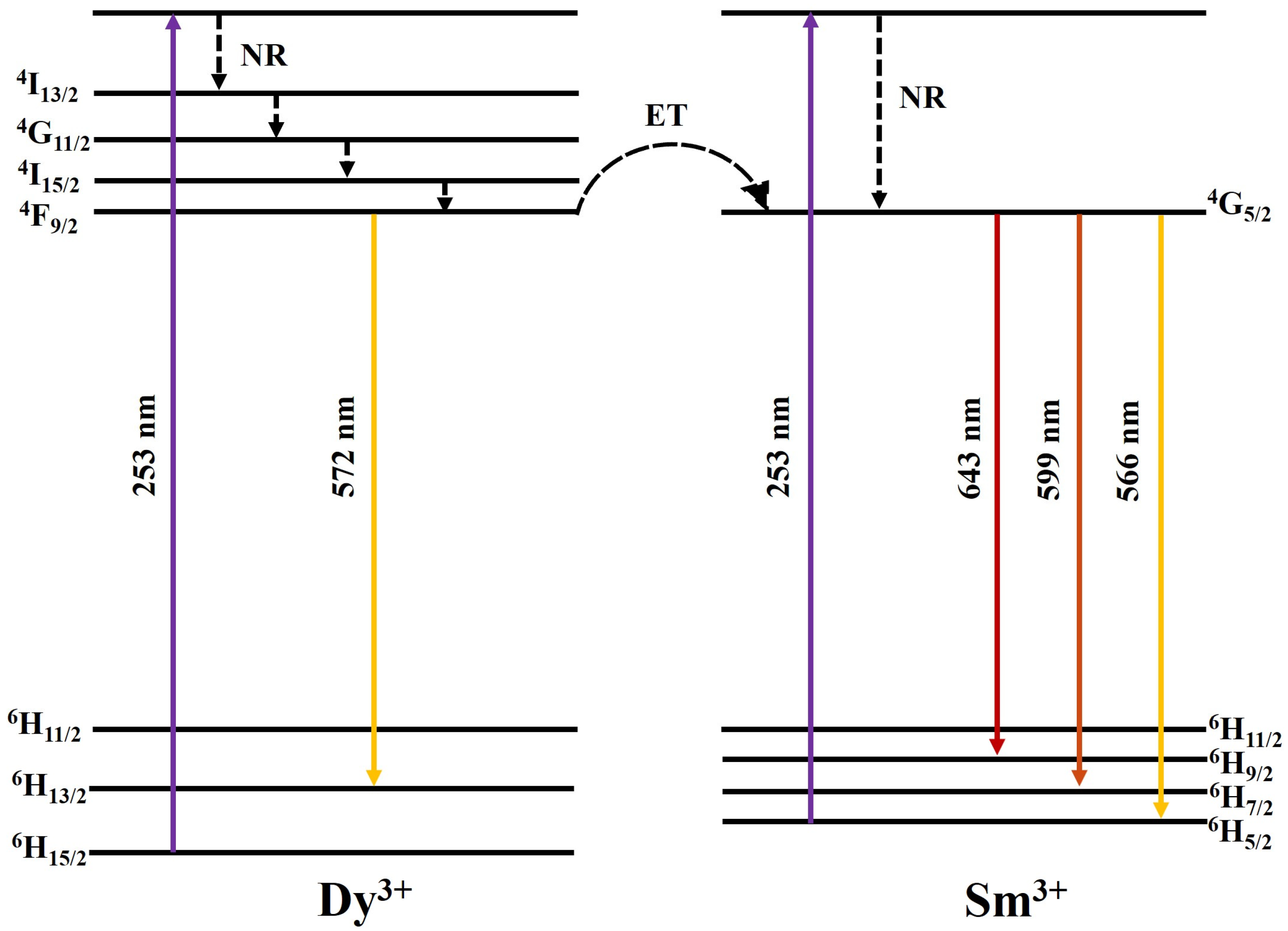

The electrons located at the ground state, ⁶H_15/2, of the Dy³⁺ ions absorbed energy under a 253 nm excitation energy and later jumped to the excited state. Since the high energy level was unstable, these electrons dropped successively to the lower-energy excited state, ⁴F_9/2, by non-radiative transition (NR). With the populated ⁴F_9/2 level, the radiative transitions of Dy³⁺ occurred with yellow emissions due to ⁴F_9/2→⁶H_13/2 transitions, respectively. In the interim, partial electrons located at the ⁴F_9/2 level of Dy³⁺ were relaxed to the ⁶G_5/2 level of Sm³⁺ by the resonance between the two levels, which ultimately gave rise to the characteristic emissions of Sm³⁺ (Figure 8).

3.3. Application in a Flexible Composite LED Filter

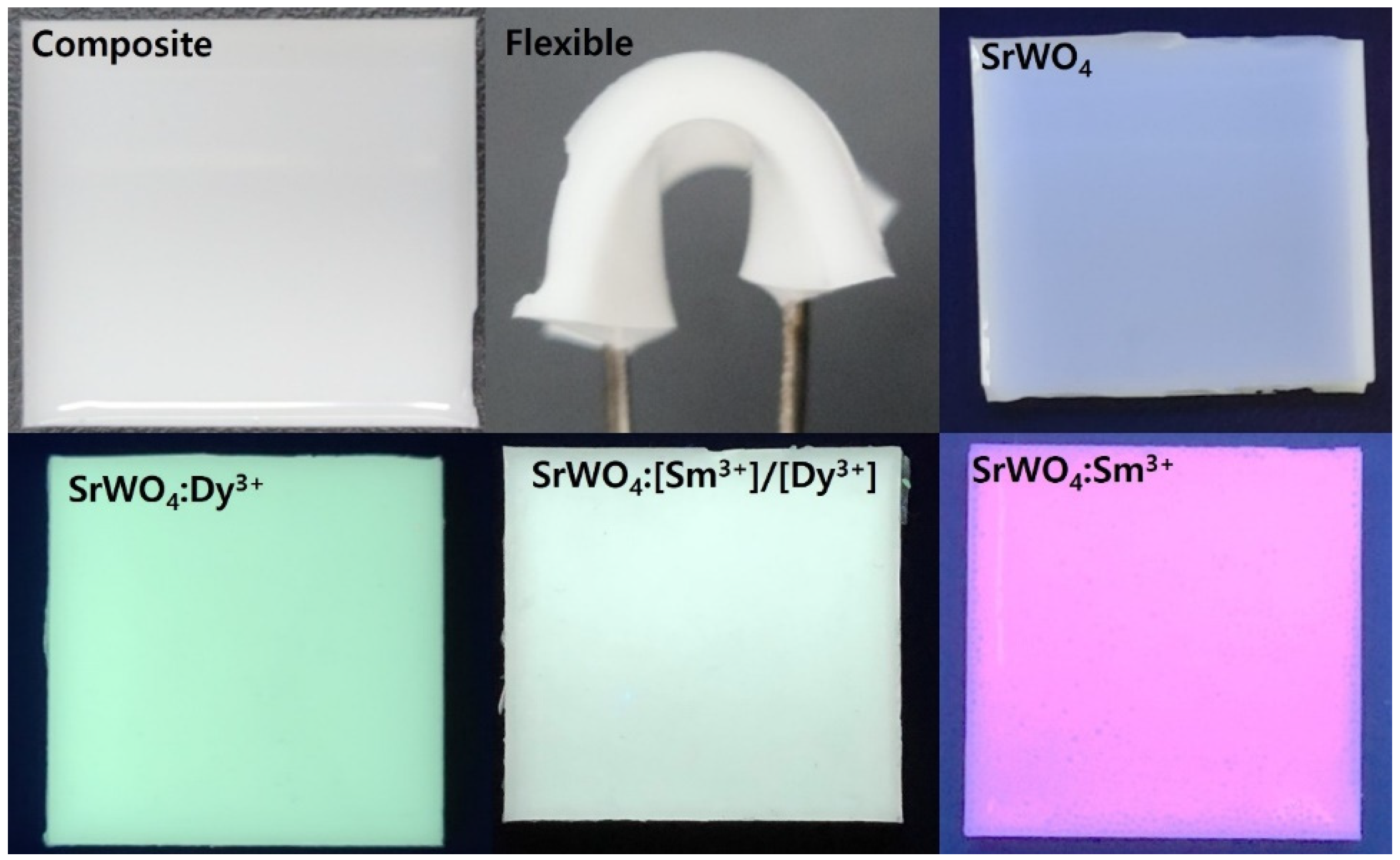

To explore the applicability of the synthesized phosphor, herein referred to as an LED color filter, a flexible composite was fabricated by mixing the phosphor with a PDMS polymer, as explained in detail in Section 2.2. The manufactured composite showed characteristics of blue-white, blue-yellow, and main red light in response to UV light. The composite was flexible by hand and appeared suitable for use as an LED color filter (Figure 9).

4. Conclusions

We successfully synthesized crystalline SrWO₄ at room temperature using the co-precipitation method. When doped with Dy³⁺ and Sm³⁺, yellow and red phosphors were obtained. The crystal structure of the synthesized phosphor was tetragonal, and a change in the lattice constant was observed due to the Dy³⁺ and Sm³⁺ dopants. The synthesized phosphor possessed a cylindrical shape, as confirmed by the FE-SEM images. For the SrWO₄:[Sm³⁺]/[Dy³⁺] phosphor, the intensity of blue-yellow light emitted by the Dy³⁺ ions decreased as the concentration of Sm³⁺ ions increased. We also fabricated a flexible composite by mixing the synthesized phosphor with a PDMS polymer to demonstrate the potential applicability of the RE-doped phosphor produced in this study. The composite showed blue-white, blue-yellow, and red light emissions under UV and visible light, suggesting its potential application as an LED color filter.
