Critical Current Density and Meissner Effect of Smart Meta-Superconductor MgB2 and Bi(Pb)SrCaCuO

by
Honggang Chen
,
Yongbo Li
,
Yao Qi
,
Mingzhong Wang
,
Hongyan Zou
and
Xiaopeng Zhao
*
Smart Materials Laboratory, Department of Applied Physics, Northwestern Polytechnical University, Xi’an 710129, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(3), 972; https://doi.org/10.3390/ma15030972
Submission received: 29 November 2021 / Revised: 23 January 2022 / Accepted: 25 January 2022 / Published: 27 January 2022
(This article belongs to the Special Issue Advances in Superconducting Materials: Characterization, Properties and Applications)
Browse Figures
Versions Notes

Abstract

:
The smart meta-superconductor MgB2 and Bi(Pb)SrCaCuO increase the superconducting transition temperature (TC), but the changes in the transport critical current density (JC) and Meissner effect are still unknown. Here, we investigated the JC and Meissner effect of smart meta-superconductor MgB2 and Bi(Pb)SrCaCuO. The use of the standard four-probe method shows that Y2O3:Eu3+ and Y2O3:Eu3++Ag inhomogeneous phase significantly increase the JC, and JC decreases to a minimum value at a higher temperature. The Meissner effect was measured by direct current magnetization. The doping of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase causes a Meissner effect of MgB2 and Bi(Pb)SrCaCuO at a higher temperature, while the non-luminescent dopant reduces the temperature at which samples have Meissner effect. The introduction of luminescent inhomogeneous phase in conventional MgB2 and copper oxide high-temperature Bi(Pb)SrCaCuO superconductor increases the TC and JC, and Meissner effect is exerted at higher temperature. Therefore, smart meta-superconductivity is suitable for conventional and copper oxide high-temperature superconductors.

1. Introduction

Superconductivity has greatly expanded people’s understanding of condensed matter physics and greatly promoted the progress of industrial technology [1,2]. In the superconducting state, superconductors have zero-resistance characteristic and complete diamagnetism (Meissner effect) [3,4,5,6,7]. The zero-resistance characteristic and Meissner effect are both independent and closely related to each other. A material must satisfy the zero-resistance characteristic and the Meissner effect simultaneously to determine whether it is a superconductor [2].
All superconductors transition from a superconducting state to a non-superconducting state may have their own characteristic parameters: critical transition temperature (TC), critical current density (JC), and critical magnetic field (HC) [1,3]. Critical current density JC is an important parameter to characterize superconductivity, and it is also one of the main parameters to measure the performance of superconducting materials in engineering technology applications. In scientific research, the electric transport and hysteresis loop methods are two widely used methods to measure the critical current [8]. The electric transport method is accurate and reliable, and it is used in the international critical current measurement standard. Electrical transport measurement usually uses the four-probe method. After a certain current I is input into the sample through the current lead, the voltage V of the sample is measured. The critical current IC is defined as the transport current when a significant drift voltage exists [9,10,11]. The current–voltage (I–V) curve is used to determine the critical current IC, which then enables the determination of the critical current density JC [12,13].
Since the discovery of superconductivity, increasing transition temperature and transport critical current density of the superconductor has been the main research direction of superconductivity. At present, the commonly used methods to increase the superconducting transition temperature are to modify existing superconductors and develop new superconducting materials, such as doping Al [14], C [15], and Li [16] in MgB2 and doping Cs [17], SnO2 [18], and ZrO2 [19] in a BiSrCaCuO superconductor. However, the dopants are unstable at a high temperature and will react with the superconductor. Thus, this method cannot increase the superconducting transition temperature. In recent years, researchers have found that hydrides have a higher transition temperature under high pressure. For example, a superconductivity of 203 K was observed in a sulfur hydride system at 155 GPa [20], superconductivity of 250 K in LaH10 at 170 GPa [21], and the room temperature superconductivity of 287.7 K in a carbonaceous sulfur hydride system at 267 GPa [22]. Although this approach can achieve a higher superconducting transition temperature and even room-temperature superconductivity, the extremely high pressure and small sample size limits its further applications. Thus far, there is no particularly good strategy for increasing the superconducting transition temperature. Chemical doping is the easiest way to change the JC of superconductor because it does not require costly raw materials or complex technologies. For example, doping graphene [23] and Dy2O3 [24] in MgB2 and doping Al2O3 [25], MgO [26], and SiC [27] in BiSrCaCuO decrease its JC in self-field. Meanwhile, doping anthracene into MgB2 [28] and doping Cr2O3 [29], SnO2 [30], and ZnO [31] in BiSrCaCuO will increase its JC in self-field. Although the JC of superconductor increases or decreases in self-field due to chemical doping, the corresponding TC decreases. Therefore, no particularly effective method can increase the TC and JC at the same time in self-field.
A metamaterial is a kind of composite material with an artificial structure. It exhibits supernormal physical properties that natural materials do not possess, and these supernormal properties are determined by special artificial structures [32,33]. Recently, Smolyaninov et al. proposed that a higher transition temperature can be obtained by constructing a metamaterial superconductor with an effective dielectric constant of nearly zero or hyperbolic metamaterial superconductor [34,35,36]. In 2007, our research group proposed to introduce an inorganic ZnO electroluminescence (EL) material in the high-temperature Bi(Pb)SrCaCuO superconductor to influence the Bi(Pb)SrCaCuO superconducting transition temperature [37,38,39]. Y2O3 is a non-electroluminescent material and can become a kind of electroluminescent material after the addition of a small amount of Eu3+ ions as the luminous center. Y2O3:Eu3+ is a rare earth luminescent material with excellent performance. In addition, the preparation of Y2O3:Eu3+ into Y2O3:Eu3++Ag topological luminophore can further improve its EL performance. With the development of a metamaterial, we constructed a MgB2 and Bi(Pb)SrCaCuO smart meta-superconductor in recent years. The smart meta-superconductors are composed of superconducting particles and Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phases. We doped Y2O3:Eu3+ and Y2O3:Eu3++Ag EL materials in conventional MgB2 and high-temperature Bi(Pb)SrCaCuO superconductors [37,38,39,40,41,42,43,44]. The research results showed that the doping of Y2O3:Eu3+ and Y2O3:Eu3++Ag EL materials increases the TC of MgB2 and Bi(Pb)SrCaCuO. The TC of MgB2 is increased by 1.2 K, and the zero resistance temperature TC,0 and the onset transition temperature TC,on of Bi(Pb)SrCaCuO are increased by 4 and 6.3 K, respectively. We believe that this result is due to superconducting particles acting as microelectrodes to excite the EL of the luminescent inhomogeneous phases under the action of an external electric field. EL energy injection promotes the formation of electron pairs. Accordingly, the TC of MgB2 and Bi(Pb)SrCaCuO can be increased via EL [43,44].
In previous studies, the TC of MgB2 and Bi(Pb)SrCaCuO were increased by constructing a smart meta-superconductor. However, the JC and Meissner effect were not studied. This study investigates the JC and Meissner effect of MgB2 and Bi(Pb)SrCaCuO smart meta-superconductor. The results show that the addition of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase increases the TC of MgB2 and Bi(Pb)SrCaCuO, while increasing the JC and the JC of the luminescent inhomogeneous phase doped samples decreases to a minimum value at higher temperatures. The direct current (DC) magnetization data indicate that Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase doping causes a Meissner effect of MgB2 and Bi(Pb)SrCaCuO at a higher temperature, while non-luminescent dopant doping reduces the temperature of the Meissner effect.

2. Experiment

2.1. Preparation and Characterization of Pure MgB2 and Doping MgB2 Superconducting Samples

Using MgB2 with three different particle sizes, three series of samples doped with a luminescent inhomogeneous phase or non-luminescent dopant were prepared by ex-situ sintering, and the samples were marked as aMgB2 (Φa < 30 μm), bMgB2 (Φb < 15 μm), and cMgB2 (Φc < 5 μm) series samples, and the thickness of prepared bulk samples is 1.2 mm. X-ray diffraction (XRD) and scanning electron microscope (SEM) characterization show that the main phase of all samples is MgB2, a small amount of MgO impurity phase is detected, and the particle sizes of aMgB2, bMgB2, and cMgB2 decrease sequentially. The curve of the temperature dependence of resistivity (R–T) shows that the non-luminescent dopants Y2O3 and Y2O3:Sm3+ doping decreases the TC of MgB2, while the luminescent inhomogeneous phase Y2O3:Eu3+ and Y2O3:Eu3++Ag doping increases the TC of MgB2 in different amplitudes. The preparation process and related characterization of pure MgB2 and doped MgB2 samples were described in [44].

2.2. Preparation and Characterization of Pure B(P)SCCO and Doping B(P)SCCO Superconducting Samples

Three series of pure B(P)SCCO and doped B(P)SCCO superconducting samples with different particle sizes were prepared using three kinds of B(P)SCCO raw materials with successively decreasing particle sizes, and the samples were marked as A (A1–A6), B (B1–B6), C (C1–C7) series samples. The thickness of prepared bulk samples is 1.2 mm. XRD and SEM show that the main phase of the prepared samples is the high-temperature phase Bi2223, which contains a small amount of the low-temperature phase Bi2212, and the microstructure is a randomly distributed plate-like structure. The particle sizes of A, B, and C series samples decrease in turn. R–T test indicates that the non-luminescent dopants Y2O3 and Y2O3:Sm3+ doping decreases the TC of B(P)SCCO, while the TC of B(P)SCCO increases with the doping of luminescent inhomogeneous phases Y2O3:Eu3+ and Y2O3:Eu3++Ag. The preparation process and related characterization of samples were described in [43,45].

2.3. Testing of Transport Critical Current Density and Meissner Effect

As usually conducted in superconducting systems, transport critical current density (JC) was determined by I–V measurements at different temperatures (below the onset transition temperature TC,on) with a voltage criterion of 1 μV/cm [8,12,13]. Subsequently, DC magnetization measurements were performed on the prepared samples [46]. The samples were cooled slowly in a magnetic field of 1.8 and 2.5 mT parallel to the plane, and data were collected during heating. All samples are fully diamagnetic.

3. Results and Discussion

As usually conducted in superconducting systems, I–V curves of superconductors at different temperatures were used to extract IC. The I–V curves of the samples were tested by a four-probe method. A test current was applied to the prepared samples, and a Keithley digital nanovoltmeter was used to measure the high resolution voltage. Figure 1 shows the I–V curves of pure B(P)SCCO (A1) at different temperatures (106, 108, 110, and 112 K). The extraction criteria of IC are given in this figure, and the IC of all samples prepared is obtained using this criterion in this experiment.
Figure 2a,b show the relationship between JC and the temperature of pure aMgB2 and aMgB2 doped with 0.5 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. Figure 2c,d depict the relationship between JC and the temperature of pure bMgB2 and bMgB2 doped with 0.8 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. Figure 2e,f demonstrate the relationship between JC and the temperature of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. The JC of aMgB2, bMgB2, and cMgB2 are 8.9 × 104, 7.8 × 104, and 7.2 × 104 A/cm2 at 20 K. As observed, the JC of pure MgB2 and doped samples decreases with the increase in temperature, which is consistent with the results of [28,47,48]. The JC of pure MgB2 is comparable to references [49,50]. The JC decreases slowly when the temperature is lower, and the decreasing rate increases with the rise in temperature. The doping of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phases increases the JC. The cMgB2 series samples with the smallest particle size have a higher dopant content, and the most increases in JC. At T = 34 K, the JC of Y2O3:Eu3+ and Y2O3:Eu3++Ag doped samples increases by 32% and 38% compared with purely that of cMgB2, respectively. The JC of non-luminescent dopant-doped MgB2 samples first reduces to a minimum value, while the luminescent inhomogeneous phase-doped samples can have the JC at a higher temperature. For example, the JC of pure cMgB2 reduces to a minimum value at 36.8 K, and the JC of 1.2 wt% Y2O3:Sm3+ and Y2O3 doped samples reduces to a minimum value at 35.8 and 35.6 K, while the JC of 1.2 wt% Y2O3:Eu3+ and Y2O3:Eu3++Ag doped samples decreases to a minimum value at 37.8 and 38 K, respectively.
Figure 3a,b represent the relationship between JC and temperature of pure B(P)SCCO (A1) and B(P)SCCO doped with 0.2 wt% Y2O3:Sm3+ (A2), Y2O3 (A3), Y2O3:Eu3+ (A4), Y2O3:Eu3++Ag (A5), and 0.3 wt% Y2O3:Eu3++Ag (A6). Figure 3c,d depict the relationship between JC and temperature of pure B(P)SCCO (B1) and 0.2 wt% Y2O3:Sm3+ (B2), Y2O3 (B3), Y2O3:Eu3+ (B4), Y2O3:Eu3++Ag (B5), and 0.3 wt% Y2O3:Eu3++Ag (B6) doped samples. Figure 3e,f demonstrate the relationship between JC and temperature of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3:Sm3+ (C2), 0.3 wt% Y2O3 (C3), 0.3 wt% Y2O3:Eu3+ (C4), 0.3 wt% Y2O3:Eu3++Ag (C5), 0.4 wt% Y2O3:Eu3+ (C6), and 0.4 wt% Y2O3:Eu3++Ag (C7). The JC of B(P)SCCO (A1), B(P)SCCO (B1), and B(P)SCCO (C1) are 103, 70, and 54 A/cm2 at 90 K. The figures show that the JC of all samples decreases with the increase in temperature, which is consistent with [51,52]. The JC of all samples decreases rapidly at lower temperature and slows down at higher temperature. This finding is completely contrary to the results observed for the conventional superconductor MgB2. The JC of pure B(P)SCCO is comparable to that of references [52,53,54]. Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase doping increases the JC of B(P)SCCO, and the JC of C-series samples with the smallest particle size increases the most. At T = 90 K, the JC of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase-doped samples increases by 80% and 95% compared with that of pure B(P)SCCO. Moreover, the JC of luminescent inhomogeneous phase-doped samples decreases to a minimum value at higher temperature, while the JC of non-luminescent dopant-doped samples decreases to a minimum value at lower temperature. For example, for C-series samples, the JC of pure B(P)SCCO (C1) reduces to a minimum value at 107.5 K, and the JC of 0.3 wt% Y2O3:Sm3+ (C2), Y2O3 (C3) doped samples reduces to a minimum value at 106.5 and 106 K, respectively. While the JC of 0.3 wt% Y2O3:Eu3+ (C4), 0.3 wt% Y2O3:Eu3++Ag (C5), 0.4 wt% Y2O3:Eu3+ (C6), and 0.4 wt% Y2O3:Eu3++Ag (C7) doped samples decreases to a minimum value at 110, 112, 112, and 113.5 K, respectively.
Figure 4 depicts the DC magnetization data of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. Magnetization measurement shows that prepared samples have diamagnetism at a lower temperature. The diamagnetism of the superconductor can be represented by a Meissner effect, which is usually described in the literature by the relationship between the Meissner effect and temperature [46,55,56]. Therefore, we also showed the relationship between the Meissner effect and the temperature, as shown in Figure 4. The Y-axis is the percentage of the Meissner effect, indicating the strength of the Meissner effect (that is, the strength of the diamagnetism of the sample), and the X-axis is the temperature. The Meissner effect weakens and eventually disappears with the increase in temperature. The Meissner effect disappears at 36 K for pure cMgB2 sample, and it disappears at 34.6 K for the cMgB2 doped with non-luminescent dopant Y2O3. Meanwhile, the Meissner effect of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase-doped cMgB2 samples disappears when temperature is higher than 36.8 and 37 K, respectively.
Figure 5 shows the DC magnetization data of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3 (C3), Y2O3:Eu3+ (C4), and Y2O3:Eu3++Ag (C5). Meissner effect is observed in all Bi(Pb)SrCaCuO samples by DC magnetization data, and the Meissner effect weakens and eventually disappears with the increase in temperature, which is consistent with the results of references [57,58,59]. The Meissner effect of pure B(P)SCCO disappears when the temperature is higher than 100 K, and that of B(P)SCCO doped with non-luminescent dopant Y2O3 disappears when the temperature is higher than 97 K. Meanwhile, the Meissner effect of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase-doped samples disappears when the temperature is higher than 102 and 104 K, respectively.
In conventional MgB2 and high-temperature copper oxide Bi(Pb)SrCaCuO superconductors, the sample doped with non-luminescent dopants has a Meissner effect at lower temperatures, while the Meissner effect is found in samples doped with a luminescent inhomogeneous phase at a higher temperature. Therefore, the superconductivity is enhanced by the doping of the luminescent inhomogeneous phase.

4. Conclusions

In this study, the I–V curves of Bi(Pb)SrCaCuO and MgB2 smart meta-superconductor are measured by a four-probe method, the transport critical current density JC is obtained and the changes in JC are explored, the Meissner effect is also studied by DC magnetization measurement; the conclusions are as follows:
  • Y2O3:Eu3++Ag luminescent inhomogeneous phase doping increases the JC of cMgB2 by 38% (T = 34 K), while the JC of non-luminescent dopant-doped samples decreases. The JC of pure cMgB2 decreases to a minimum value at 36.8 K, and the JC of Y2O3:Eu3+ and Y2O3:Eu3++Ag-doped samples decreases to a minimum value at 37.8 and 38 K, respectively. Meanwhile, the JC of Y2O3:Sm3+ and Y2O3-doped samples reduces to a minimum value at 35.8 and 35.6 K. The Meissner effect disappears at 36 K for pure cMgB2 sample, and it disappears at 36.8 and 37 K for Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase-doped samples. Meanwhile, the Meissner effect disappears at 34.6 K for Y2O3 non-luminescent dopant-doped sample.
  • Y2O3:Eu3++Ag luminescent inhomogeneous phase doping increases the JC of Bi(Pb)SrCaCuO by 95% (T = 90 K), the JC of non-luminescent dopants doped samples decreases. The JC of pure Bi(Pb)SrCaCuO (C1) decreases to a minimum value at 107.5 K. The JC of Y2O3:Eu3+ and Y2O3:Eu3++Ag-doped samples decreases to a minimum value at 112 and 113.5 K, respectively. Meanwhile, the JC of Y2O3:Sm3+ and Y2O3-doped samples reduces to a minimum value at 106.5 and 106 K. The Meissner effect of pure B(P)SCCO (C1) disappears when the temperature is higher than 100 K. The Meissner effect of Y2O3:Eu3+ and Y2O3:Eu3++Ag luminescent inhomogeneous phase-doped samples disappears when the temperature is higher than 102 and 104 K, while that of the Y2O3-doped sample disappears when the temperature is higher than 97 K.
  • The TC and JC of smart meta-superconductor MgB2 and Bi(Pb)SrCaCuO increase simultaneously. The JC of luminescent inhomogeneous phase-doped samples decreases to a minimum value at a higher temperature. A smart meta-superconductor has the Meissner effect at higher temperatures. All these findings indicate that the improvement in superconducting performance through a smart meta-superconductor is applicable to conventional and copper oxide high-temperature superconductors.

Author Contributions

Conceptualization, X.Z.; methodology, X.Z. and H.C.; software, H.C. and Y.Q.; validation, X.Z., H.C. and Y.Q.; formal analysis, X.Z., H.C., Y.L., Y.Q., M.W. and H.Z.; investigation, H.C., Y.L., Y.Q., M.W. and H.Z.; resources, X.Z.; data curation, H.C., Y.L., Y.Q., M.W. and H.Z.; writing—original draft preparation, H.C.; writing—review and editing, X.Z. and H.C.; visualization, X.Z. and H.C.; supervision, X.Z.; project administration, X.Z.; funding acquisition, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China for Distinguished Young Scholar, grant number 50025207.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Qiu, D.; Gong, C.; Wang, S.; Zhang, M.; Yang, C.; Wang, X.; Xiong, J. Recent Advances in 2D Superconductors. Adv. Mater. 2021, 33, e2006124. [Google Scholar] [CrossRef] [PubMed]
  2. Gui, X.; Lv, B.; Xie, W.W. Chemistry in Superconductors. Chem. Rev. 2021, 121, 2966–2991. [Google Scholar] [CrossRef] [PubMed]
  3. Bardeen, J.; Cooper, L.N.; Schrieffer, J.R. Theory of Superconductivity. Phys. Rev. 1957, 108, 1175–1204. [Google Scholar] [CrossRef] [Green Version]
  4. Bardeen, J. Theory of the Meissner Effect in Superconductors. Phys. Rev. 1955, 97, 1724–1725. [Google Scholar] [CrossRef]
  5. Chung, D.Y. The Basic Cause of Superconductivity. J. Mod. Phys. 2015, 6, 26–36. [Google Scholar] [CrossRef] [Green Version]
  6. Fossheim, K.; Sudbø, A. What is Superconductivity? A Brief Overview. In Superconductivity: Physics and Applications; John Wiley & Sons Ltd.: Chichester, UK, 2004; pp. 1–26. [Google Scholar] [CrossRef]
  7. Buckel, W.; Kleiner, R. Fundamental Properties of Superconductors. In Superconductivity: Fundamentals and Applications, 2nd ed.; Wiley-VCH, Verlag GmbH & Co. KgaA: Weinheim, Germany, 2004; pp. 11–71. [Google Scholar] [CrossRef]
  8. Sunwong, P.; Higgins, J.S.; Tsui, Y.; Raine, M.J.; Hampshire, D.P. The critical current density of grain boundary channels in polycrystalline HTS and LTS superconductors in magnetic fields. Supercond. Sci. Technol. 2013, 26, 095006. [Google Scholar] [CrossRef] [Green Version]
  9. Pautrat, A.; Simon, C.; Scola, J.; Goupil, C.; Ruyter, A.; Ammor, L.; Thopart, P.; Plessis, D. On voltage-current characteristics and critical current in Bi-2212. Eur. Phys. J. B 2005, 43, 39–45. [Google Scholar] [CrossRef]
  10. Nappi, C.; Camerlingo, C.; Enrico, E.; Bellingeri, E.; Braccini, V.; Ferdeghini, C.; Sarnelli, E. Current Induced Resistive State in Fe(Se,Te) Superconducting Nanostrips. Sci. Rep. 2017, 7, 4115. [Google Scholar] [CrossRef] [Green Version]
  11. Montemurro, D.; Stornaiuolo, D.; Massarotti, D.; Ercolani, D.; Sorba, L.; Beltram, F.; Tafuri, F.; Roddaro, S. Suspended InAs nanowire Josephson junctions assembled via dielectrophoresis. Nanotechnology 2015, 26, 385302. [Google Scholar] [CrossRef] [Green Version]
  12. Rakshit, D.; Sk, T.; Das, P.; Haldar, S.; Ghosh, A.K. Exponential reduction in critical current density in Eu1-xCexBa2Cu3O7-δ superconductors near critical temperature. Phys. C Supercond. 2021, 588, 1353909. [Google Scholar] [CrossRef]
  13. Tampieri, A.; Fiorani, D.; Sparvieri, N.; Rinaldi, S.; Celotti, G.; Bartolucci, R. Granular and intergranular properties of hot pressed BSCCO (2223) superconductors. J. Mater. Sci. Mater. Electron. 1999, 34, 6177–6182. [Google Scholar] [CrossRef]
  14. Cava, R.J.; Zandbergen, H.W.; Inumaru, K. The substitutional chemistry of MgB2. Phys. C Supercond. 2003, 385, 8–15. [Google Scholar] [CrossRef]
  15. Pogrebnyakov, A.V.; Xi, X.X.; Redwing, J.M.; Vaithyanathan, V.; Schlom, D.G.; Soukiassian, A.; Mi, S.B.; Jia, C.L.; Giencke, J.E.; Eom, C.B.; et al. Properties of MgB2 thin films with carbon doping. Appl. Phys. Lett. 2004, 85, 2017–2019. [Google Scholar] [CrossRef] [Green Version]
  16. Zhao, Y.G.; Zhang, X.P.; Qiao, P.T.; Zhang, H.T.; Jia, S.L.; Cao, B.S.; Zhu, M.H.; Han, Z.H.; Wang, X.L.; Gu, B.L. Effect of Li doping on structure and superconducting transition temperature of Mg1−xLixB2. Phys. C Supercond. 2001, 361, 91–94. [Google Scholar] [CrossRef] [Green Version]
  17. Zhigadlo, N.D.; Petrashko, V.V.; Semenenko, Y.A.; Panagopoulos, C.; Cooper, J.R.; Salje, E.K.H. The effects of Cs doping, heat treatments on the phase formation and superconducting properties of (Bi,Pb)–Sr–Ca–Cu–O ceramics. Phys. C Supercond. 1998, 299, 327–337. [Google Scholar] [CrossRef]
  18. Yavuz, Ş.; Bilgili, Ö.; Kocabaş, K. Effects of superconducting parameters of SnO2 nanoparticles addition on (Bi, Pb)-2223 phase. J. Mater. Sci. Mater. Electron. 2016, 27, 4526–4533. [Google Scholar] [CrossRef]
  19. Jia, Z.Y.; Tang, H.; Yang, Z.Q.; Xing, Y.T.; Wang, Y.Z.; Qiao, G.W. Effects of nano-ZrO2 particles on the superconductivity of Pb-doped BSCCO. Phys. C Supercond. 2000, 337, 130–132. [Google Scholar] [CrossRef]
  20. Drozdov, A.P.; Eremets, M.I.; Troyan, I.A.; Ksenofontov, V.; Shylin, S.I. Conventional superconductivity at 203 kelvin at high pressures in the sulfur hydride system. Nature 2015, 525, 73–76. [Google Scholar] [CrossRef]
  21. Drozdov, A.P.; Kong, P.P.; Minkov, V.S.; Besedin, S.P.; Kuzovnikov, M.A.; Mozaffari, S.; Balicas, L.; Balakirev, F.F.; Graf, D.E.; Prakapenka, V.B.; et al. Superconductivity at 250 K in lanthanum hydride under high pressures. Nature 2019, 569, 528–531. [Google Scholar] [CrossRef] [Green Version]
  22. Snider, E.; Dasenbrock-Gammon, N.; McBride, R.; Debessai, M.; Vindana, H.; Vencatasamy, K.; Lawler, K.V.; Salamat, A.; Dias, R.P. Room-temperature superconductivity in a carbonaceous sulfur hydride. Nature 2020, 586, 373–377. [Google Scholar] [CrossRef]
  23. Tang, S.P.; Wang, D.L.; Zhang, X.P.; Zhang, Q.J.; Li, C.; Ma, Y.W.; Oguro, H.; Awaji, S.; Watanabe, K. Improved Transport JC in MgB2 Tapes by Graphene Doping. J. Supercond. Nov. Magn. 2014, 27, 2699–2705. [Google Scholar] [CrossRef]
  24. Yang, Y.; Sumption, M.D.; Rindfleisch, M.; Tomsic, M.; Collings, E.W. Enhanced higher temperature irreversibility field and critical current density in MgB2 wires with Dy2O3 additions. Supercond. Sci. Technol. 2021, 34, 025010. [Google Scholar] [CrossRef]
  25. Annabi, M.; M’Chirgui, A.; Ben Azzouz, F.; Zouaoui, M.; Ben Salem, M. Addition of nanometer Al2O3 during the final processing of (Bi,Pb)-2223 superconductors. Phys. C Supercond. 2004, 405, 25–33. [Google Scholar] [CrossRef]
  26. Hua, L.; Yoo, J.; Ko, J.; Kim, H.; Chung, H.; Qiao, G. Microstructure and phase evolution of ultrafine MgO doped Bi-2223/Ag tapes. Phys. C Supercond. 1997, 291, 149–154. [Google Scholar] [CrossRef]
  27. Guo, Y.C.; Tanaka, Y.; Kuroda, T.; Dou, S.X.; Yang, Z.Q. Addition of nanometer SiC in the silver-sheathed Bi2223 superconducting tapes. Phys. C Supercond. 1999, 311, 65–74. [Google Scholar] [CrossRef]
  28. Ahmad, I.; Sarangi, S.N.; Sarun, P.M. Enhanced critical current density and flux pinning of anthracene doped magnesium diboride superconductor. J. Alloys Compd. 2021, 884, 160999. [Google Scholar] [CrossRef]
  29. Abbasi, H.; Taghipour, J.; Sedghi, H. Superconducting and transport properties of (Bi–Pb)–Sr–Ca–Cu–O with Cr2O3 additions. J. Alloys Compd. 2010, 494, 305–308. [Google Scholar] [CrossRef]
  30. Abou-Aly, A.I.; Gawad, M.M.H.A.; Awad, R.; G-Eldeen, I. Improving the Physical Properties of (Bi,Pb)-2223 Phase by SnO2 Nano-particles Addition. J. Supercond. Nov. Magn. 2011, 24, 2077–2084. [Google Scholar] [CrossRef]
  31. Aftabi, A.; Mozaffari, M. Fluctuation induced conductivity and pseudogap state studies of Bi1.6Pb0.4Sr2Ca2Cu3O10+δ superconductor added with ZnO nanoparticles. Sci. Rep. 2021, 11, 4341. [Google Scholar] [CrossRef]
  32. Zhao, X.P. Bottom-up fabrication methods of optical metamaterials. J. Mater. Chem. 2012, 22, 9439–9449. [Google Scholar] [CrossRef]
  33. Liu, H.; Zhao, X.P.; Yang, Y.; Li, Q.W.; Lv, J. Fabrication of Infrared Left-Handed Metamaterials via Double Template-Assisted Electrochemical Deposition. Adv. Mater. 2008, 20, 2050–2054. [Google Scholar] [CrossRef]
  34. Smolyaninov, I.I.; Smolyaninova, V.N. Metamaterial superconductors. Phys. Rev. B 2015, 91, 094501. [Google Scholar] [CrossRef] [Green Version]
  35. Smolyaninov, I.I.; Smolyaninova, V.N. Is There a Metamaterial Route to High Temperature Superconductivity? Adv. Condens. Matter Phys. 2014, 2014, 479635. [Google Scholar] [CrossRef] [Green Version]
  36. Rosen, P.F.; Calvin, J.J.; Woodfield, B.F.; Smolyaninova, V.N.; Prestigiacomo, J.C.; Osofsky, M.S.; Smolyaninov, I.I. Normal state specific heat of a core-shell aluminum-alumina metamaterial composite with enhanced TC. Phys. Rev. B 2021, 103, 024512. [Google Scholar] [CrossRef]
  37. Zhang, Z.W.; Tao, S.; Chen, G.W.; Zhao, X.P. Improving the Critical Temperature of MgB2 Superconducting Metamaterials Induced by Electroluminescence. J. Supercond. Nov. Magn. 2016, 29, 1159–1162. [Google Scholar] [CrossRef] [Green Version]
  38. Tao, S.; Li, Y.B.; Chen, G.W.; Zhao, X.P. Critical Temperature of Smart Meta-superconducting MgB2. J. Supercond. Nov. Magn. 2017, 30, 1405–1411. [Google Scholar] [CrossRef] [Green Version]
  39. Li, Y.B.; Chen, H.G.; Qi, W.C.; Chen, G.W.; Zhao, X.P. Inhomogeneous Phase Effect of Smart Meta-Superconducting MgB2. J. Low Temp. Phys. 2018, 191, 217–227. [Google Scholar] [CrossRef]
  40. Chen, H.G.; Li, Y.B.; Chen, G.W.; Xu, L.X.; Zhao, X.P. The Effect of Inhomogeneous Phase on the Critical Temperature of Smart Meta-superconductor MgB2. J. Supercond. Nov. Magn. 2018, 31, 3175–3182. [Google Scholar] [CrossRef] [Green Version]
  41. Li, Y.B.; Chen, H.G.; Wang, M.Z.; Xu, L.X.; Zhao, X.P. Smart meta-superconductor MgB2 constructed by the dopant phase of luminescent nanocomposite. Sci. Rep. 2019, 9, 14194. [Google Scholar] [CrossRef]
  42. Chen, H.G.; Li, Y.B.; Wang, M.Z.; Han, G.Y.; Shi, M.; Zhao, X.P. Smart Metastructure Method for Increasing TC of Bi(Pb)SrCaCuO High-Temperature Superconductors. J. Supercond. Nov. Magn. 2020, 33, 3015–3025. [Google Scholar] [CrossRef]
  43. Chen, H.G.; Wang, M.Z.; Qi, Y.; Li, Y.B.; Zhao, X.P. Relationship between the TC of Smart Meta-Superconductor Bi(Pb)SrCaCuO and Inhomogeneous Phase Content. Nanomaterials 2021, 11, 1061. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Y.B.; Han, G.Y.; Zou, H.Y.; Tang, L.; Chen, H.G.; Zhao, X.P. Reinforcing Increase of ΔTC in MgB2 Smart Meta-Superconductors by Adjusting the Concentration of Inhomogeneous Phases. Materials 2021, 14, 3066. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, M.Z.; Xu, L.X.; Chen, G.W.; Zhao, X.P. Topological luminophor Y2O3:Eu3++Ag with high electroluminescence performance. ACS Appl. Mater. Interfaces 2019, 11, 2328–2335. [Google Scholar] [CrossRef] [PubMed]
  46. Sunshine, S.A.; Siegrist, T.; Schneemeyer, L.F.; Murphy, D.W.; Cava, R.J.; Batlogg, B.; van Dover, R.B.; Fleming, R.M.; Glarum, S.H.; Nakahara, S.; et al. Structure and physical properties of single crystals of the 84-K superconductor Bi2.2Sr2Ca0.8Cu2O8+δ. Phys. Rev. B 1988, 38, 893–896. [Google Scholar] [CrossRef] [PubMed]
  47. Buzea, C.; Yamashita, T. Review of superconducting properties of MgB2. Supercond. Sci. Technol. 2001, 14, R115–R146. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, H.; Zhao, Y.; Zhang, Y. The Effects of Excess Mg Addition on the Superconductivity of MgB2. J. Supercond. Nov. Magn. 2015, 28, 2711–2714. [Google Scholar] [CrossRef]
  49. Arvapalli, S.S.; Miryala, M.; Jirsa, M.; Murakami, M. Size reduction of boron particles by high-power ultrasound for optimization of bulk MgB2. Supercond. Sci. Technol. 2020, 33, 115009. [Google Scholar] [CrossRef]
  50. Peng, J.M.; Cai, Q.; Cheng, F.; Ma, Z.Q.; Li, C.; Xin, Y.; Liu, Y.C. Enhancement of critical current density by a “MgB2 -MgB4 ” reversible reaction in self-sintered ex-situ MgB2 bulks. J. Alloys Compd. 2017, 694, 24–29. [Google Scholar] [CrossRef]
  51. Karaca, I.; Celebi, S.; Varilci, A.; Malik, A.I. Effect of Ag2O addition on the intergranular properties of the superconducting Bi-(Pb)-Sr-Ca-Cu-O system. Supercond. Sci. Technol. 2003, 16, 100–104. [Google Scholar] [CrossRef]
  52. Shamsodini, M.; Salamati, H.; Shakeripour, H.; Sarsari, I.A.; Esferizi, M.F.; Nikmanesh, H. Effect of using two different starting materials (nitrates and carbonates) and a calcination processes on the grain boundary properties of a BSCCO superconductor. Supercond. Sci. Technol. 2019, 32, 075001. [Google Scholar] [CrossRef]
  53. Manabe, T.; Tsunoda, T.; Kondo, W.; Shindo, Y.; Mizuta, S.; Kumagai, T. Preparation and Superconducting Properties of Bi-Pb-Sr-Ca-Cu-O Films (TC = 106 K) by the Dipping-Pyrolysis Process. Jpn. J. Appl. Phys. 1992, 31, 1020–1025. [Google Scholar] [CrossRef]
  54. Ghattas, A.; Annabi, M.; Zouaoui, M.; Azzouz, F.B.; Salem, M.B. Flux pinning by Al-based nano particles embedded in polycrystalline (Bi,Pb)-2223 superconductors. Phys. C Supercond. 2008, 468, 31–38. [Google Scholar] [CrossRef]
  55. Nam, S.B. Magnetization of Superconducting Ba (Y, Nd, Sm, Gd, Dy, Er, Yb) CuO Systems. Jpn. J. Appl. Phys. 1987, 26, 1175. [Google Scholar] [CrossRef] [Green Version]
  56. Schwenk, H.; Andres, K.; Wudl, F. Anisotropy of the lower critical field and meissner effect in (TMTSF)2ClO4 in the basal plane. Solid State Commun. 1984, 49, 723–726. [Google Scholar] [CrossRef]
  57. Krishna, N.M.; Lingam, L.S.; Ghosh, P.K.; Shrivastava, K.N. Effect of current-loop sizes on the para-Meissner effect in superconductors. Physica C Supercond 1998, 294, 243–248. [Google Scholar] [CrossRef]
  58. Posselt, H.; Muller, H.; Andres, K.; Saito, G. Reentrant Meissner effect in the organic conductor κ-(BEDT-TTF)2Cu[N(CN)2]Cl under pressure. Phys. Rev. B 1994, 49, 15849–15852. [Google Scholar] [CrossRef]
  59. Horiuchi, T.; Kawai, T.; Kawai, S.; Ogura, K. The trial of making Bi-Sr-Ca-Cu-M-O superconductors (M = Li, Na, K, Rb, Cs). Ferroelectrics 1990, 109, 351–356. [Google Scholar] [CrossRef]
Materials 15 00972 g001 550

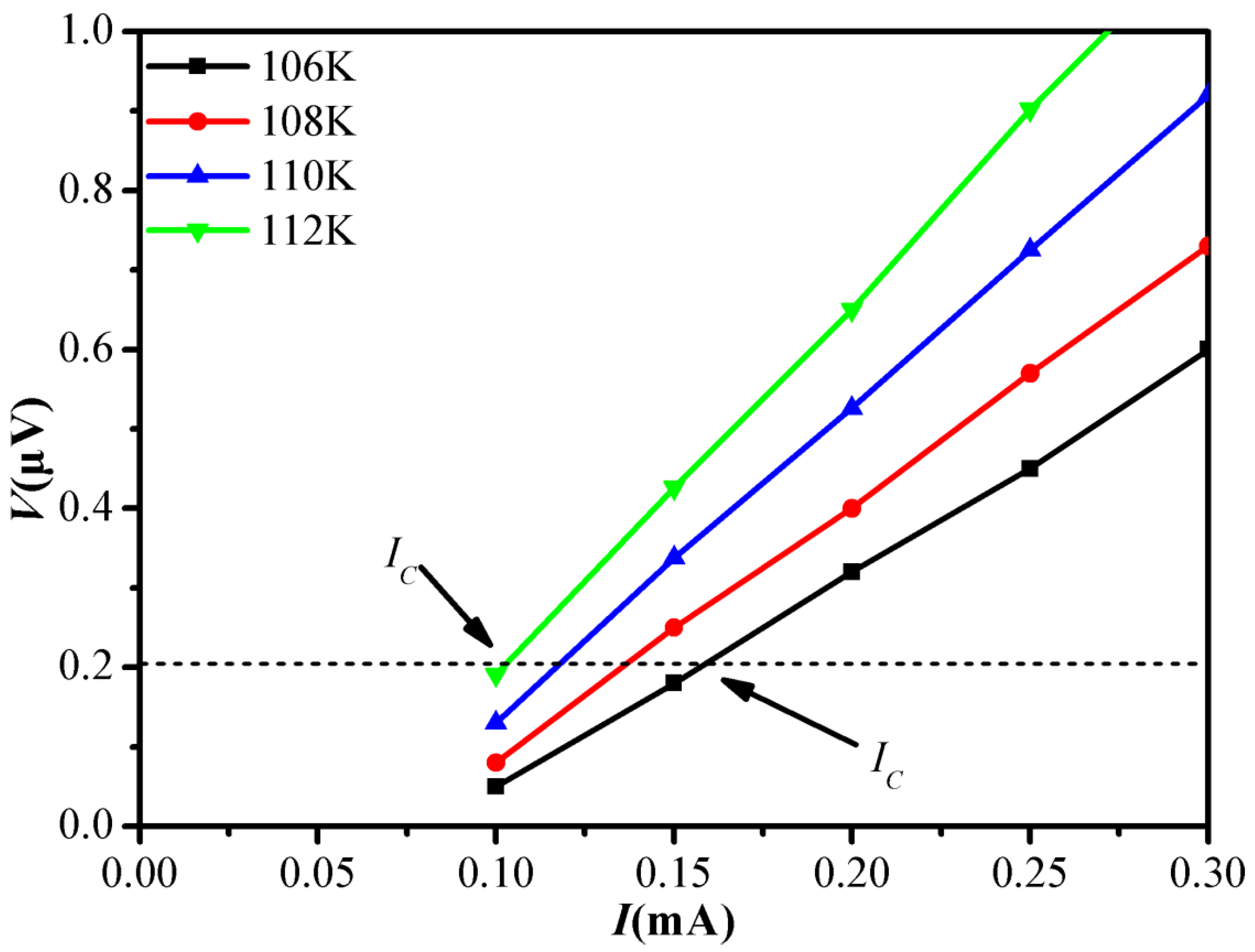

Figure 1. I–V curves of pure B(P)SCCO (A1) at 106, 108, 110, and 112 K.
Figure 1. I–V curves of pure B(P)SCCO (A1) at 106, 108, 110, and 112 K.
Materials 15 00972 g001
Materials 15 00972 g002 550

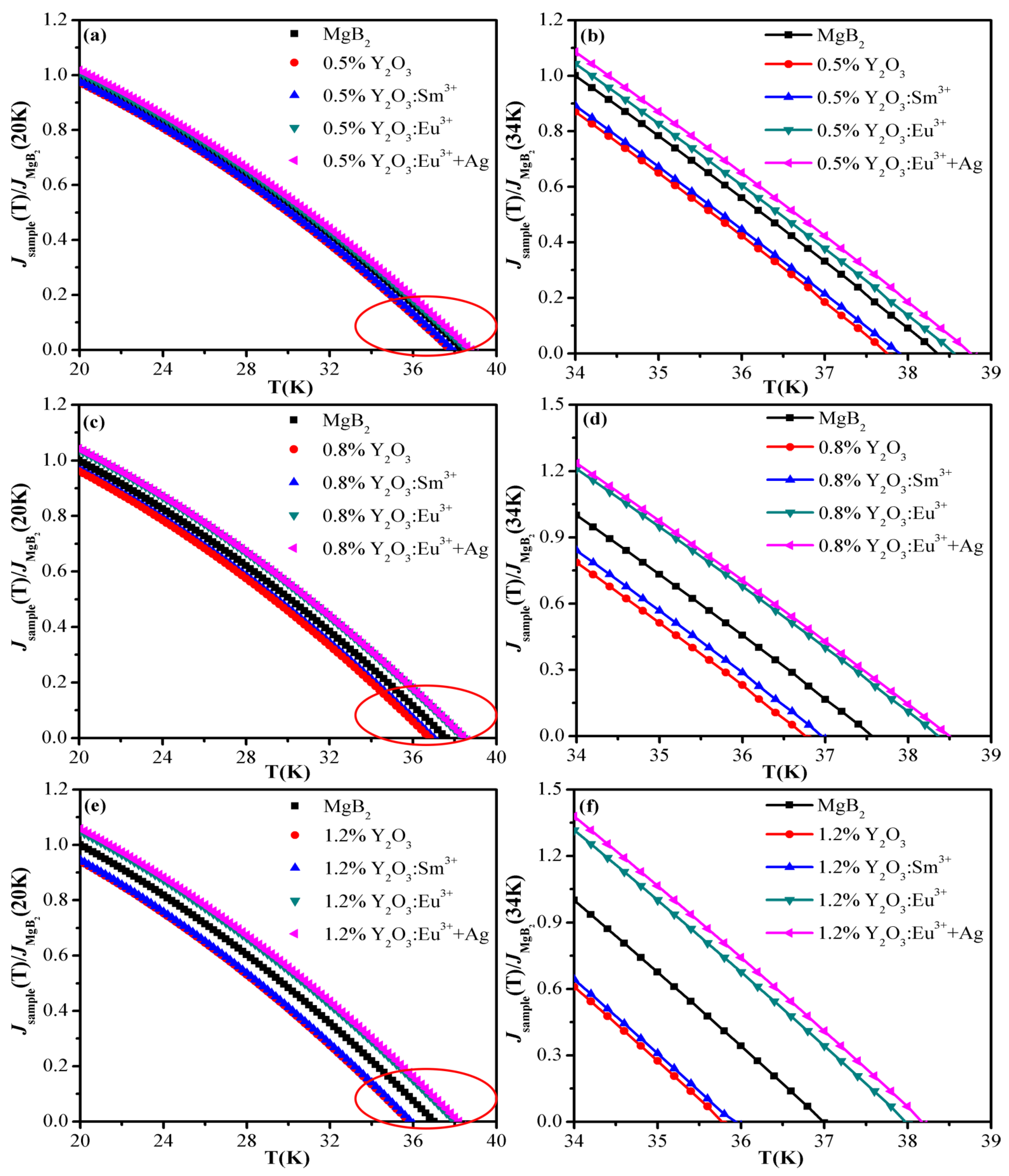

Figure 2. The relationship between JC and temperature of pure MgB2 and doping MgB2 samples. (a,b) The relationship between JC and temperature of pure aMgB2 and aMgB2 doped with 0.5 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (c,d) The relationship between JC and temperature of pure bMgB2 and bMgB2 doped with 0.8 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (e,f) The relationship between JC and temperature of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (b,d,f) are partial enlarged images.
Figure 2. The relationship between JC and temperature of pure MgB2 and doping MgB2 samples. (a,b) The relationship between JC and temperature of pure aMgB2 and aMgB2 doped with 0.5 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (c,d) The relationship between JC and temperature of pure bMgB2 and bMgB2 doped with 0.8 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (e,f) The relationship between JC and temperature of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3:Sm3+, Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag. (b,d,f) are partial enlarged images.
Materials 15 00972 g002
Materials 15 00972 g003 550

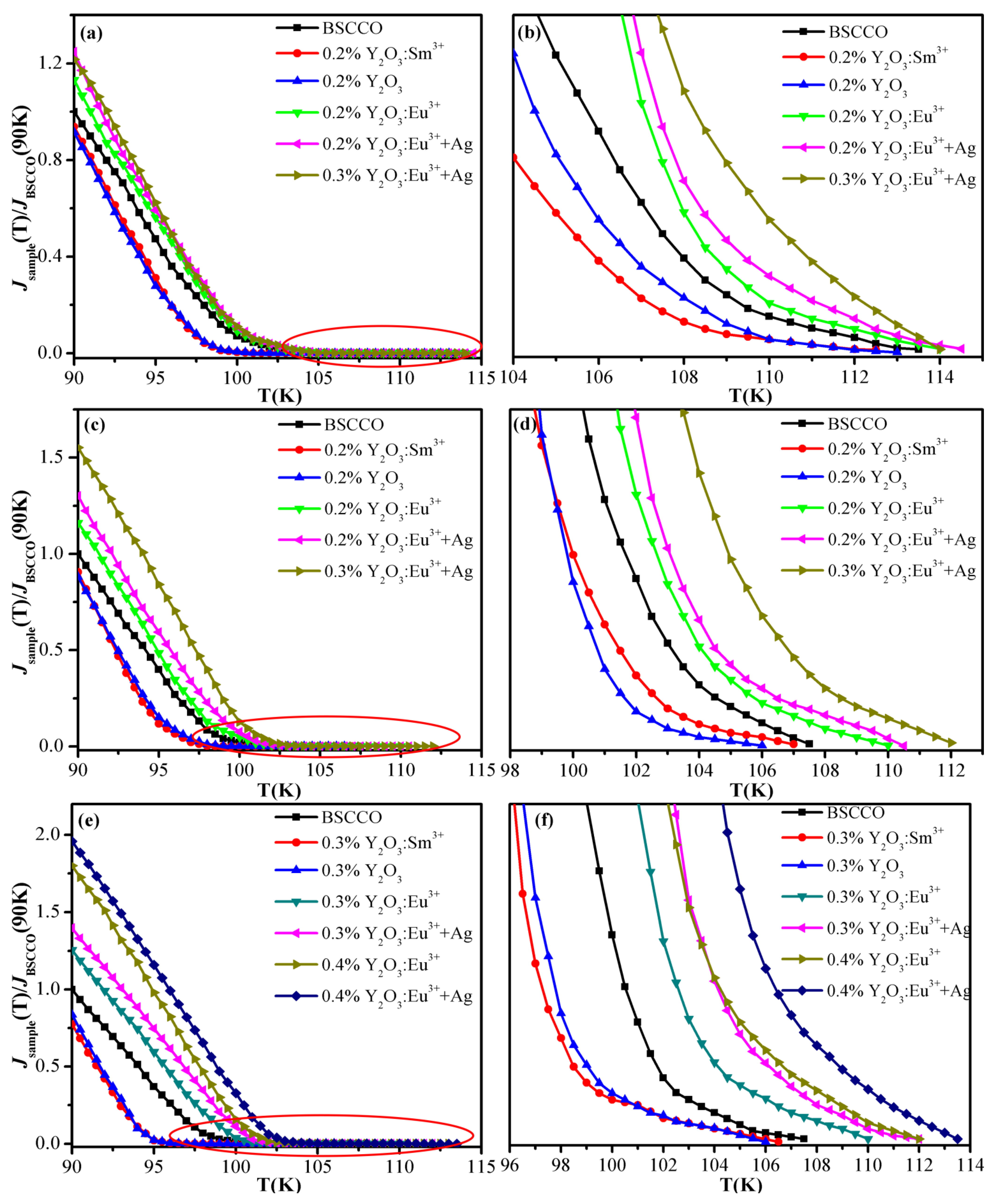

Figure 3. The relationship between JC and temperature of pure B(P)SCCO and doping B(P)SCCO samples. (a,b) The relationship between JC and temperature of pure B(P)SCCO (A1) and B(P)SCCO doped with 0.2 wt% Y2O3:Sm3+ (A2), Y2O3 (A3), Y2O3:Eu3+ (A4), Y2O3:Eu3++Ag (A5), and 0.3 wt% Y2O3:Eu3++Ag (A6). (c,d) The relationship between JC and temperature of pure B(P)SCCO (B1) and 0.2 wt% Y2O3:Sm3+ (B2), Y2O3 (B3), Y2O3:Eu3+ (B4), Y2O3:Eu3++Ag (B5), and 0.3 wt% Y2O3:Eu3++Ag (B6) doped samples. (e,f) The relationship between JC and temperature of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3:Sm3+ (C2), Y2O3 (C3), Y2O3:Eu3+ (C4), Y2O3:Eu3++Ag (C5), 0.4 wt% Y2O3:Eu3+ (C6), and 0.4 wt% Y2O3:Eu3++Ag (C7). (b,d,f) are partial enlarged images.
Figure 3. The relationship between JC and temperature of pure B(P)SCCO and doping B(P)SCCO samples. (a,b) The relationship between JC and temperature of pure B(P)SCCO (A1) and B(P)SCCO doped with 0.2 wt% Y2O3:Sm3+ (A2), Y2O3 (A3), Y2O3:Eu3+ (A4), Y2O3:Eu3++Ag (A5), and 0.3 wt% Y2O3:Eu3++Ag (A6). (c,d) The relationship between JC and temperature of pure B(P)SCCO (B1) and 0.2 wt% Y2O3:Sm3+ (B2), Y2O3 (B3), Y2O3:Eu3+ (B4), Y2O3:Eu3++Ag (B5), and 0.3 wt% Y2O3:Eu3++Ag (B6) doped samples. (e,f) The relationship between JC and temperature of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3:Sm3+ (C2), Y2O3 (C3), Y2O3:Eu3+ (C4), Y2O3:Eu3++Ag (C5), 0.4 wt% Y2O3:Eu3+ (C6), and 0.4 wt% Y2O3:Eu3++Ag (C7). (b,d,f) are partial enlarged images.
Materials 15 00972 g003
Materials 15 00972 g004 550

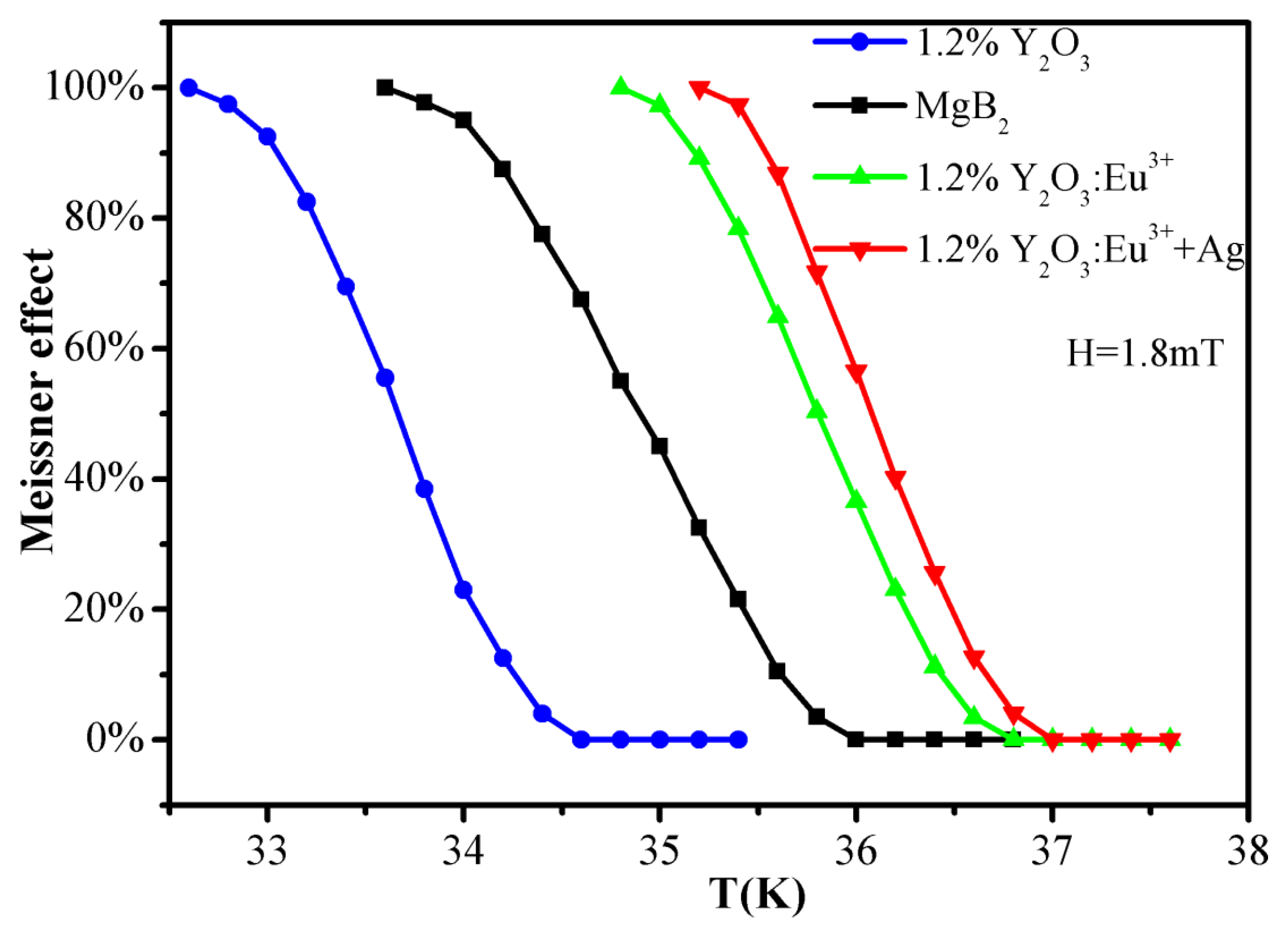

Figure 4. DC magnetization data of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag.
Figure 4. DC magnetization data of pure cMgB2 and cMgB2 doped with 1.2 wt% Y2O3, Y2O3:Eu3+, and Y2O3:Eu3++Ag.
Materials 15 00972 g004
Materials 15 00972 g005 550

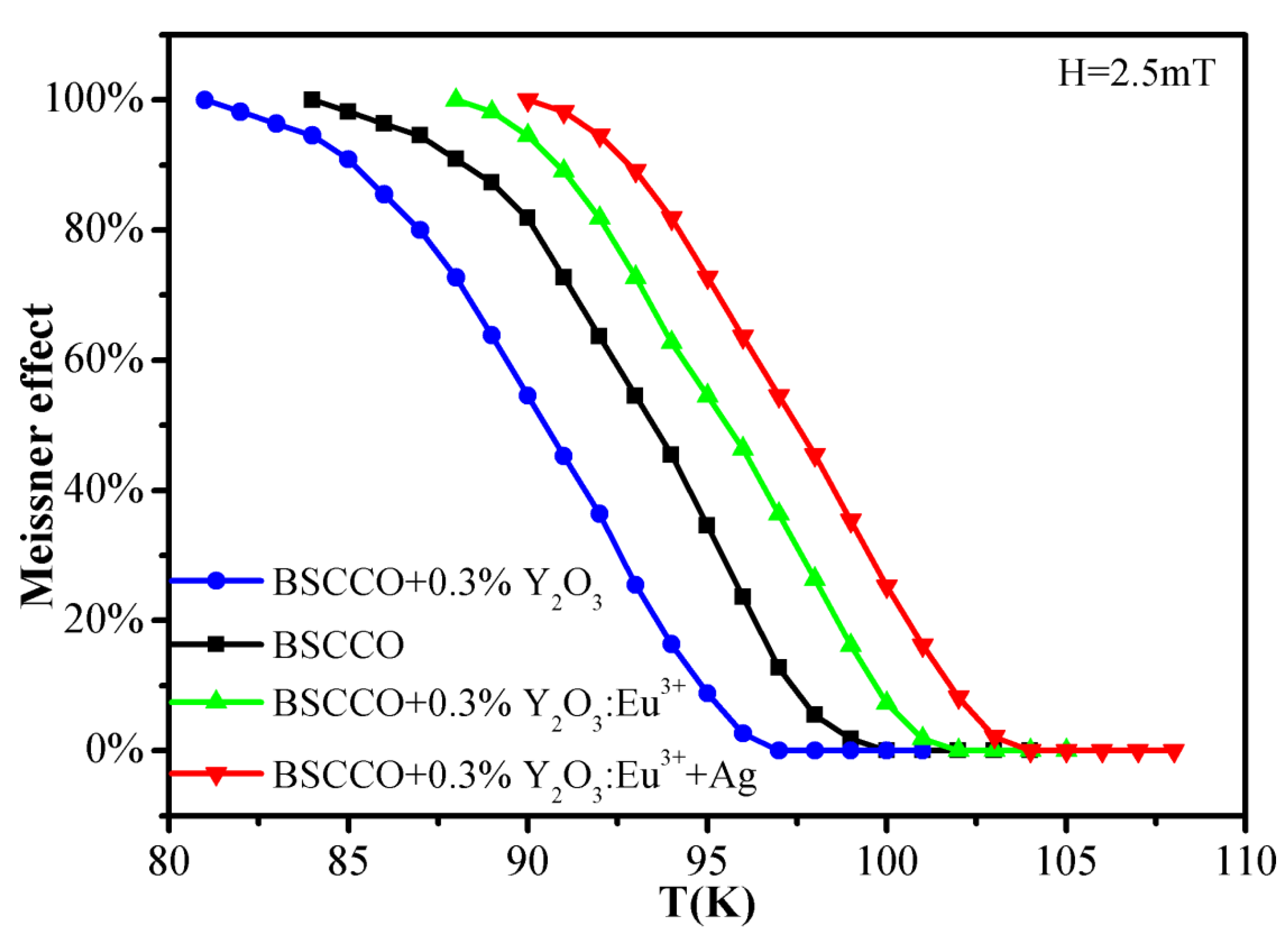

Figure 5. DC magnetization data of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3 (C3), Y2O3:Eu3+ (C4), and Y2O3:Eu3++Ag (C5).
Figure 5. DC magnetization data of pure B(P)SCCO (C1) and B(P)SCCO doped with 0.3 wt% Y2O3 (C3), Y2O3:Eu3+ (C4), and Y2O3:Eu3++Ag (C5).
Materials 15 00972 g005
