High Humidity Response of Sol–Gel-Synthesized BiFeO3 Ferroelectric Film

1
School of Science, Xi’an University of Posts and Telecommunications, Xi’an 710048, China
2
School of Communication and Information Engineering, Xi’an University of Posts and Telecommunications, Xi’an 710048, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(8), 2932; https://doi.org/10.3390/ma15082932
Submission received: 18 March 2022 / Revised: 7 April 2022 / Accepted: 13 April 2022 / Published: 17 April 2022
(This article belongs to the Special Issue Microstructural Design and Processing Control of Advanced Ceramics)

Abstract

:
In this work, a BiFeO3 film is prepared via a facile sol–gel method, and the effects of the relative humidity (RH) on the BiFeO3 film in terms of capacitance, impedance and current–voltage (IV) are explored. The capacitance of the BiFeO3 film increased from 25 to 1410 pF with the increase of RH from 30% to 90%. In particular, the impedance varied by more than two orders of magnitude as RH varied between 30% and 90% at 10 Hz, indicating a good hysteresis and response time. The mechanism underlying humidity sensitivity was analyzed by complex impedance spectroscopy. The adsorption of water molecules played key roles at low and high humidity, extending the potential application of ferroelectric BiFeO3 films in humidity-sensitive devices.

1. Introduction

Humid environments are essential in many fields, such as weather forecasting, agricultural production and personnel health [1,2]. In addition, trace amounts of water molecules can have a significant impact on industry and manufacturing [3,4]. Therefore, it is necessary to explore highly efficient and accurate humidity sensors. Humidity is a physical quantity that indicates the molecular content of water in the air, and is mainly measured by relative humidity. Over the past decade, many techniques for measuring humidity have been reported, including wet and dry bulb hygrometers, piezoelectric quartz films, resistive sensors, and sensors based on current, impedance and surface acoustic waves [2,5]. Among them, impedance-based humidity-sensing technology is the most convenient and commonly used [2]. Impedance humidity sensors work on the principle that changes in humidity can be reflected by changes in the impedance of a hygroscopic medium [6]. Impedance-type humidity sensors have been extensively reported in recent years due to their low cost, fast response speed and small size [6,7]. Impedance measurements indicate that suitable humidity-sensitive materials mainly include polymers, carbon materials and ceramic materials [8,9]. However, polymer films are not suitable for application at high temperatures. Ceramic films with good stability at high temperatures are considered to be the preferred materials for impedance-based humidity sensors due to their unique structure of grain boundaries, grains and pores [10].
For the convenience of microelectronics integration, film materials are often prepared for humidity sensors. Some ferroelectric perovskite (ABO3, where A is a rare earth, alkali or alkaline earth metal and B is a transition metal) humidity-sensing film materials, including BaTiO3, K0.5Bi0.5TiO3, K0.5Na0.5NbO3 and LaFeO3, can behave with remarkable humidity-sensing properties [11,12,13]. BiFeO3 is a well-known lead-free ferroelectric material that has been regarded as a promising spintronic and information-storage receptor material in recent years due to its large remanent polarization and high Curie point [14,15,16]. BiFeO3 is a distorted perovskite ferroelectric material with a non-stoichiometric ratio, which makes it behave with p-type semiconductor behavior and makes it a promising material for high-performance humidity-sensing applications [17,18]. So far, there are few reports exploring the humidity-sensing behavior of BiFeO3 films. In humidity sensors, morphology and cation distribution can be controlled by the synthesis method, which affects the surface reaction. The sol–gel technique is a simple, low-cost and promising method for the preparation of BiFeO3 films [19].
In this work, the capacitance of BiFeO3 film synthesized via the sol–gel method was found to increase from 25 to 1410 pF when RH increased from 30% to 90%. In particular, the impedance varied by more than two orders of magnitude when RH varied between 30% and 90% at 10 Hz, which extends the potential application of ferroelectric BiFeO3 films to humidity-sensitive devices.

2. Materials and Methods

The sol–gel method was used to successfully prepare a BiFeO3 film. Powders of bismuth nitrate (Bi(NO3)3·5H2O) and ferric nitrate (Fe(NO3)3·9H2O) were dissolved in C3H8O2 solution with a molar ratio of 1:1 and agitated at room temperature for 30 min. Afterwards, enough CH3COOH was added to the solution for dehydration. During continuous stirring, 5 mL of aminoethanol was added to BiFeO3 solution in order to control the viscosity. Finally, a 0.3 mol/L red-brown mixed solution with a volume of 30 mL was obtained. The mixture was stirred on a magnetic stirrer for 2 h and left at room temperature for 12 h. The obtained reddish-brown BiFeO3 solution was spin-coated on a Pt/Si(111) substrate and dried for 3 min at 180 °C. Then, films were calcined for 20 min at 490 °C. Finally, conductive silver glue was used to stick electrodes on the surface of the BiFeO3 film for the electrical measurement.
The simple structure was determined via XRD (D/Max2550VB+/PC, Japan). The microstructure was characterized via SEM (Nova NanoSEM 450, Lincoln, NE, USA). A ferroelectric analyzer was used to explore the ferroelectric hysteresis loop (Precision Multiferroic, Radiant Technology, Albuquerque, NM, USA). The capacitance and impedance were measured using a precision impedance analyzer (Novocontrol GmbH, Montabaur, Germany). The current–voltage relationship was measured using a current–voltage meter (Agilent B2902A, Santa Clara, CA, USA). A humidifier in an enclosed space was employed to generate an environment with 30% to 90% relative humidity. The RH was measured using a hygrometer.

3. Results and Discussion

3.1. Structure and Morphology of Material

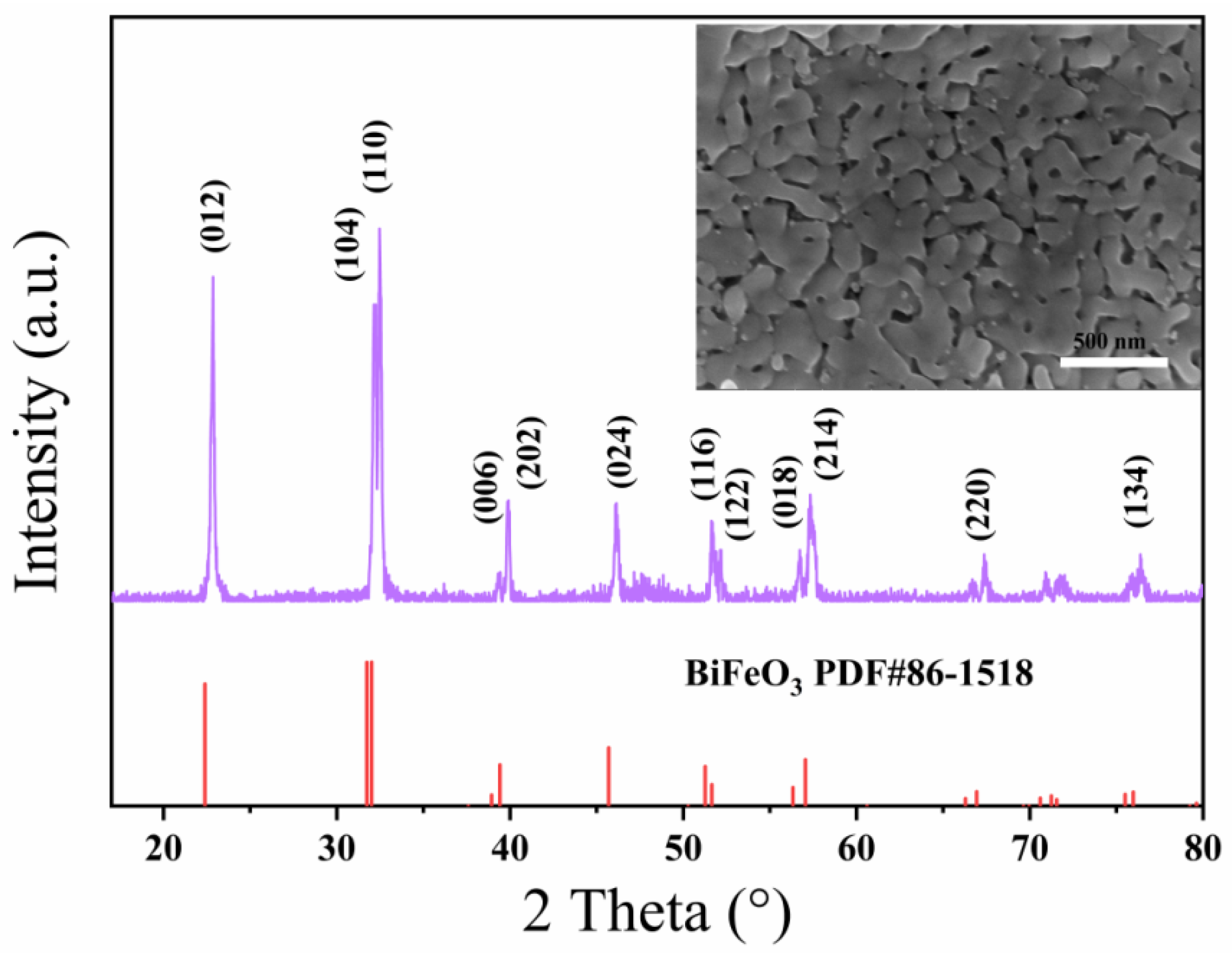

Figure 1 shows the X-ray diffractometer (XRD) patterns of the BiFeO3 film. The diffraction peaks of the pure BiFeO3 sample are consistent with the standard chart of BiFeO3 with rhombohedral R3c structure (JCPDS PDF # 86-1518), as shown in Figure 1. There is no impurity peak, which proves that the sample is a pure-phase perovskite structure BiFeO3. The scanning electron microscope image of the BiFeO3 film is shown in the inset of Figure 1. The image reveals that the as-synthesized BiFeO3 film had a porous structure, indicating its excellent ability to adsorb water molecules, which is essential for humidity sensing.
The ferroelectric hysteresis loop of the BiFeO3 film is shown in Figure 2. A schematic diagram of the ferroelectric test circuit is shown in the inset of Figure 2. This test circuit was composed of two silver electrode points coated on the surface of the material to connect the wires. In Figure 2, the unsaturated ferroelectric hysteresis loop was obtained due to the serious leakage current [19]. The composition of the sample indicates that the BiFeO3 film had a serious electrical leakage problem due to the multiple valence states of Fe [19].

3.2. Humidity-Sensing Properties

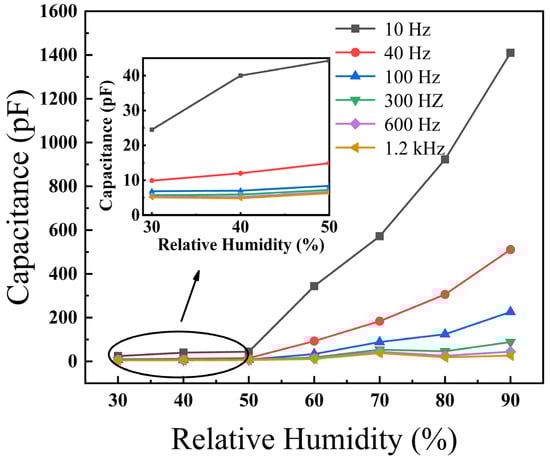

The dependence of the capacitance of the BiFeO3 film on the RH was measured at the frequencies of 10, 40, 100, 300, 600 and 1200 Hz, as shown in Figure 3. The inset is a partial enlarged view of capacitance change with RH (RH 30−50%) at different frequencies. At low frequency (i.e., 10 Hz, 40 Hz, 100 Hz), the capacitance increased significantly with increasing RH. In particular, the capacitance of the BiFeO3 film increased from 25 to 1410 pF as the RH increased from 30% to 90% at 10 Hz. This was due to the increase of physisorbed water molecules on the BiFeO3 film surface with the increase of RH, which made more water molecules polarized. At high frequency (i.e., 300 Hz, 600 Hz, 1200 Hz), the capacitance remained almost constant with increasing RH, implying that frequency is a crucial factor in the humidity response. At high frequency, the dipoles of the water molecules slow their reorientation. The dipole rotation of water molecules no longer resonates with the external field at high frequencies, which means that the polarizability of the water molecules lags behind the frequency of the change of the external electric field. Therefore, the capacitance of the BiFeO3 film had a high humidity response at frequencies range of 10–100 Hz, while RH is independent of the capacitance at frequencies in the range of 100 Hz to 1.2 kHz. The effect of RH on capacitance can be expressed by Equation (1) [20]
C = ( ε γ i × γ ω × ε 0 ) × C 0
where εγ and γ are the permittivity and the electrical conductivity of the BiFeO3 film, respectively. C0 and ε0 denote the capacitance of an ideal capacitor and the vacuum permittivity, respectively. C and ω are the capacitance and the frequency, respectively. Equation (1) indicates that the capacitance of the BiFeO3 film is inversely related to ω and is proportional to the material’s γ. Both γ and C increase as RH increases [20].
In order to determine the optimal working frequency, the dependence of impedance on RH was measured using BiFeO3 film at 30–90% RH and frequencies of 10, 40, 100, 300, 600 and 1200 Hz, as shown in Figure 4. Since it is difficult to lead the adsorbed water molecules to modify the associated polarization at high frequencies, there was a weak response to humidity at these frequencies. Therefore, it is important to determine the optimal frequency for RH measurements [21]. Figure 4 shows that the impedance of the BiFeO3 film decreased from 1.7 × 105 to 1570 kΩ when RH increased from 30% to 90%. The impedance decreased significantly at 10 Hz, indicating that the optimum working frequency is 10 Hz. Over the entire frequency range, the impedance decreased with the increase of RH. At the same frequency, the impedance change was not obvious at low RH, while the impedance drop was more significant at high RH. This is because the main conduction mechanism for humidity sensing is caused by proton hopping between the sensitive layer of the film and water molecules. At low RH, a small amount of water molecules are chemisorbed on the cations (Bi3+ and Fe3+) on the film surface [22]. Due to the lack of a complete adsorption layer, the low polarizability of water molecules eventually leads to high impedance. At high RH, multiple layers of physical adsorption are formed on the basis of the chemical adsorption layer, resulting in the movement of more protons in the water layer [22]. This results in a significant increase in the conductivity of the humidity sensor and a decrease in impedance.

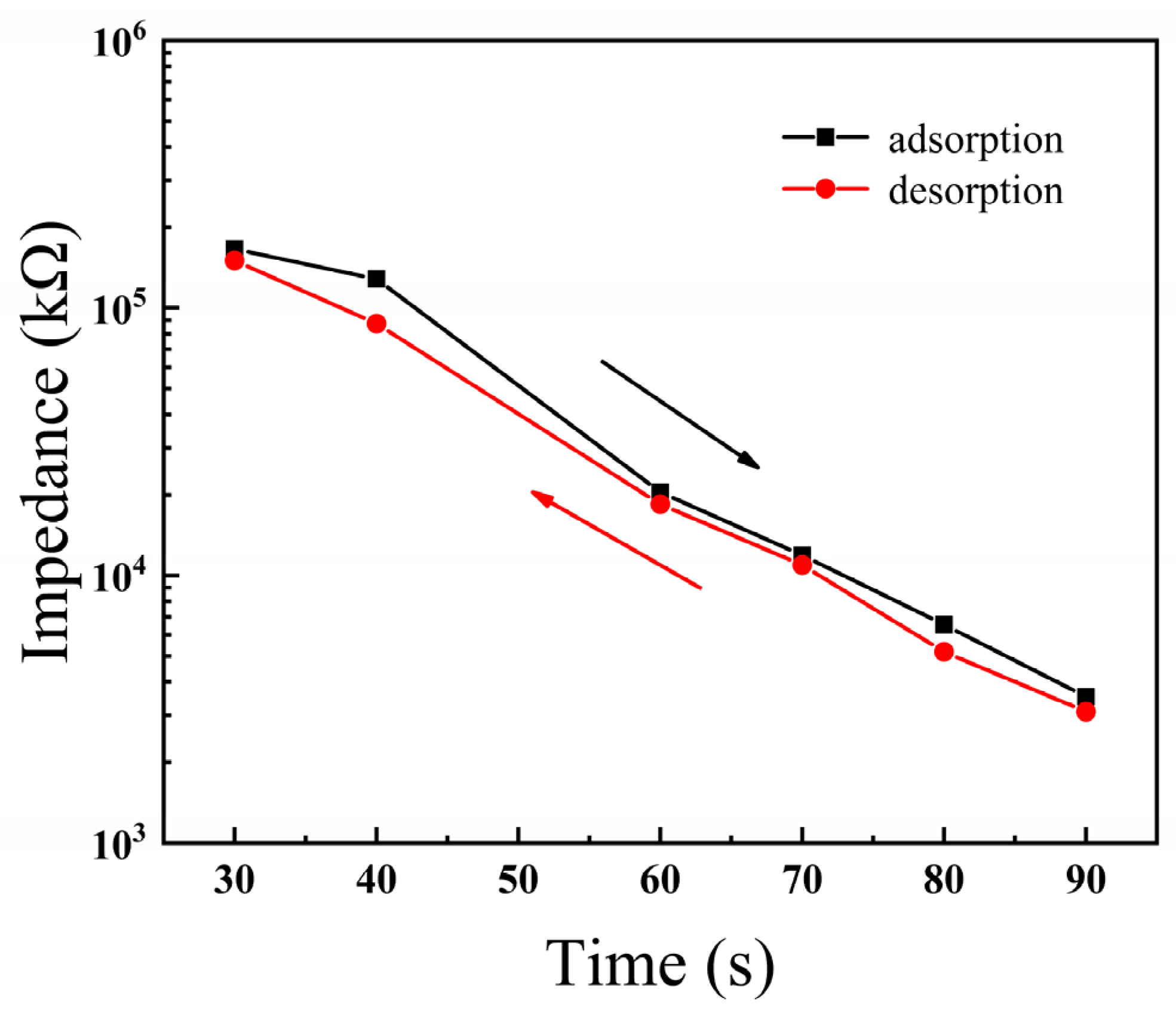

Humidity hysteresis of the BiFeO3 film usually occurred during the desorption of samples. The humidity hysteresis is a critical characteristic for the application of humidity sensing, and is defined as the maximum difference between adsorption and desorption of the humidity sensor. The humidity hysteresis (γH) is expressed in Equation (2) as [21]:
γ H = ± Δ R H M A X 2 F F S
where RHMAX is the maximum difference in the output of adsorption and desorption processes. FFS is the impedance change over the entire humidity range. The humidity hysteresis characteristics of the BiFeO3 humidity sensor at 10 Hz are shown in Figure 5. It can be seen from the figure that the BiFeO3 showed a narrow hysteresis loop. The BiFeO3 film had a small hysteresis during the entire humidity test with a maximum hysteresis of approximately 16%, mainly caused by residual moisture in the BiFeO3 film layer. With the decrease of RH, the number of water molecules between the layers of the BiFeO3 film gradually decreased, resulting in the gradual disappearance of the hysteresis phenomenon [23,24].
Based on the conversion circuit of a humidity sensor, RH changes in the environment can be converted into an electrical signal that is easy to control and identify. The ideal humidity sensor needs to meet the following characteristics: fast response speed, strong recovery ability and small humidity hysteresis error. The response and recovery times are the times required for the BiFeO3 film to reach 90% of the total impedance change during adsorption and desorption, respectively. Figure 6 shows that the humidity response and recovery times of the BiFeO3 film in the maximum humidity range (30–90% RH) were 60 s and 70 s at 10 Hz, respectively. The recovery time of the BiFeO3 film was higher than the response time due to the higher bonding energy between the adsorbed water molecules and the surface of the sensor material [25]. This result indicates that the BiFeO3 film could rapidly adsorb and desorb water molecules, indicating its potential value for practical applications.

3.3. Humidity-Sensing Mechanism

The complex impedance curve is an effective method to study the properties of humidity sensing [26]. In AC complex impedance analysis, an AC sinusoidal test signal is applied to a thin-film device, and the frequency of the test signal is changed within a certain range. Figure 7 shows the complex impedance spectrum of the BiFeO3 film in the range of 30–90% RH and in the scanning frequency range of 10–1000 kHz. The complex impedance spectrum of the BiFeO3 film presented a circular arc shape when the RH was lower than 50%, as shown in Figure 7a–c. The complex impedance spectrum gradually changed from a circular arc to a semicircular shape with increasing humidity. Compared to the complex impedance spectra of standard circuit components, it can be concluded that the equivalent circuit diagram for BiFeO3 films in the low-humidity range is composed of parallel connections of resistors and capacitors, as shown in Figure 7h. Oxygen ions and metal ions are exposed on the surface of the BiFeO3 film, and the H2O molecules on the surface dissociate into H+ and OH. Then, OH and H+ are chemically combined with metal ions and oxygen ions, respectively, to form hydroxyl groups that constitute the first layer of physical adsorption [23]. The charge transfer is carried out according to the Grotthuss chain reaction of 2 H2O → H3O+ + OH, which has a weak influence on the capacitance of the BiFeO3 film. H3O+ spontaneously transfers H+ to the second water molecule according to H3O+ → H2O + H+ [27,28], and the main mechanism underlying the humidity response is based on proton transport [29].
When RH increased to 70%, the complex impedance spectrum of the BiFeO3 film showed a straight line with a slope of approximately 1 at frequencies from 10 to 100 Hz, as shown in Figure 7d,e. On top of the first layer of physical adsorption, more adsorption layers are formed through hydrogen bonding to generate a liquid water layer, and the physical adsorption changes from single-layer to multi-layer [30]. When RH increased to 90%, the proportion of the straight-line part of the complex impedance spectrum increased, while the semicircle part was compressed. The appearance of a straight line in the low-frequency region of the complex impedance spectrum indicates that the BiFeO3 film has a significant Warburg impedance due to ion diffusion, as shown in Figure 7f,g. The corresponding equivalent circuit includes resistance, capacitance and Warburg impedance, as shown in Figure 7i. With the continuous increase in the number of adsorbed water molecules, the adsorption on the sample surface evolves into multi-molecular layer adsorption. The surface of the BiFeO3 films is covered by water, resulting in a rapid increase in the amount of H+, which further increases the conductivity [31,32].

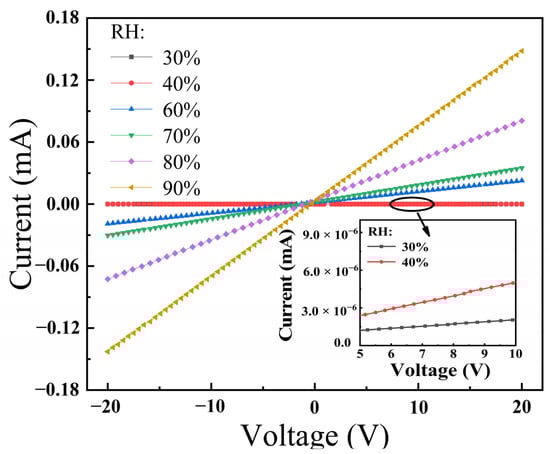

The IV characteristics of the BiFeO3 film at different RH levels are presented in Figure 8. The inset is a partial enlarged view of the change in IV with RH. At different RHs, BiFeO3 film exhibited linear IV characteristics, which indicates an ohmic contact between the BiFeO3 film surface and electrodes. Since the resistance was constant over the range of supply voltage, the sensitivity was the same regardless of the operating bias, which allows operation at low power in practical application [33]. As RH increased, the conductivity of the BiFeO3 film increased, resulting in a decrease in current. The excellent humidity response makes BiFeO3 films a potential candidate for practical humidity-sensing applications.

4. Conclusions

The BiFeO3 film prepared in this study via a simple sol–gel method exhibited significant humidity sensitivity with capacitance and impedance changes of nearly 2–3 orders of magnitude as RH increased from 30% to 90%. In the whole humidity range, the experimental results of humidity hysteresis and humidity response recovery indicate that BiFeO3 film is an excellent material for application in humidity sensors.

Author Contributions

B.L. conceived and designed the experiments; Y.Z. and Y.J. revised the paper and contributed materials/reagents. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Grant Numbers: 51872264, 22179108), Shaanxi Provincial Natural Science Foundation of China (Grant Number: 2020JM-579), Key Research and Development Projects of Shaanxi Province (Grant Number: 2020GXLH-Z-032).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

There are no conflict to declare.

References

  1. Qi, R.; Lin, X.; Dai, J.; Zhao, H.; Liu, S.; Fei, T.; Zhang, T. Humidity sensors based on MCM-41/polypyrrole hybrid film via in-situ polymerization. Sens. Actuators B Chem. 2018, 277, 584–590. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Duan, Z.; Zou, H.; Ma, M. Drawn a facile sensor: A fast response humidity sensor based on pencil-trace. Sens. Actuators B Chem. 2018, 261, 345–353. [Google Scholar] [CrossRef]
  3. Si, R.J.; Li, T.Y.; Sun, J.; Wang, J.; Wang, S.T.; Zhu, G.B.; Wang, C.C. Humidity sensing behavior and its influence on the dielectric properties of (In + Nb) co-doped TiO2 ceramics. J. Mater. Sci. 2019, 54, 14645–14653. [Google Scholar] [CrossRef]
  4. Wang, J.; Guo, Y.M.; Wang, S.T.; Tong, L.; Sun, J.; Zhu, G.B.; Wang, C.C. The effect of humidity on the dielectric properties of (In+Nb) co-doped SnO2 ceramics. J. Eur. Ceram. Soc. 2019, 39, 323–329. [Google Scholar] [CrossRef]
  5. Duan, Z.; Zhao, Q.; Wang, S.; Yuan, Z.; Zhang, Y.; Li, X.; Wu, Y.; Jiang, Y.; Tai, H. Novel application of attapulgite on high performance and low-cost humidity sensors. Sens. Actuators B Chem. 2020, 305, 127534. [Google Scholar] [CrossRef]
  6. Wu, Z.; Yang, J.; Sun, X.; Wu, Y.; Wang, L.; Meng, G.; Kuang, D.; Guo, X.Z.; Qu, W.; Du, B.; et al. An excellent impedance-type humidity sensor based on halide perovskite CsPbBr3 nanoparticles for human respiration monitoring. Sens. Actuators B Chem. 2021, 337, 129772. [Google Scholar] [CrossRef]
  7. Weng, Z.; Qin, J.; Umar, A.A.; Wang, J.; Zhang, X.; Wang, H.; Cui, X.; Li, X.; Zheng, L.; Zhan, Y. Lead-free Cs2BiAgBr6 double perovskite-based humidity sensor with superfast recovery time. Adv. Funct. Mater. 2019, 29, 1902234. [Google Scholar] [CrossRef]
  8. Cho, M.-Y.; Kim, S.; Kim, I.-S.; Kim, E.-S.; Wang, Z.-J.; Kim, N.-Y.; Kim, S.-W.; Oh, J.-M. Perovskite-induced ultrasensitive and highly stable humidity sensor systems prepared by aerosol deposition at room temperature. Adv. Funct. Mater. 2020, 30, 1907449. [Google Scholar] [CrossRef]
  9. Dai, J.; Zhang, T.; Zhao, H.; Fei, T. Preparation of organic-inorganic hybrid polymers and their humidity sensing properties. Sens. Actuators B Chem. 2017, 242, 1108–1114. [Google Scholar] [CrossRef]
  10. Farahani, H.; Wagiran, R.; Urban, G.A. Investigation of room temperature protonic conduction of perovskite humidity sensors. IEEE Sens. J. 2020, 21, 9657–9666. [Google Scholar] [CrossRef]
  11. Kumar, A.; Wang, C.; Meng, F.-Y.; Liang, J.-G.; Xie, B.-F.; Zhou, Z.-L.; Zhao, Z.; Kim, N.-Y. Aerosol deposited BaTiO3 film based interdigital capacitor and squared spiral capacitor for humidity sensing application. Ceram. Int. 2021, 47, 510–520. [Google Scholar] [CrossRef]
  12. Zhao, J.; Liu, Y.; Li, X.; Lu, G.; You, L.; Liang, X.; Liu, F.; Zhang, T.; Du, Y. Highly sensitive humidity sensor based on high surface area mesoporous LaFeO3 prepared by a nanocasting route. Sens. Actuators B Chem. 2013, 181, 802–809. [Google Scholar] [CrossRef]
  13. Wang, N.; Luo, X.; Han, L.; Zhang, Z.; Zhang, R.; Olin, H.; Yang, Y. Structure, performance, and application of BiFeO3 nanomaterials. Nano-Micro Lett. 2020, 12, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Yang, S.Y.; Zhang, F.; Xie, X.; Sun, H.; Zhang, L.; Fan, S. Enhanced leakage and ferroelectric properties of Zn-doped BiFeO3 thin films grown by sol-gel method. J. Alloy Compd. 2018, 734, 243–249. [Google Scholar] [CrossRef]
  15. Chen, M.; Jia, Y.; Li, H.; Wu, Z.; Huang, T.; Zhang, H. Enhanced pyrocatalysis of the pyroelectric BiFeO3/g-C3N4 heterostructure for dye decomposition driven by cold-hot temperature alternation. J. Adv. Ceram 2021, 10, 338–346. [Google Scholar] [CrossRef]
  16. Wu, J.; Mao, W.; Wu, Z.; Xu, X.; You, H.; Xue, A.; Jia, Y.A.X. Strong pyro-catalysis of pyroelectric BiFeO3 nanoparticles under a room-temperature cold-hot alternation. Nanoscale 2016, 8, 7343–7350. [Google Scholar] [CrossRef]
  17. You, H.; Jia, Y.; Wu, Z.; Xu, X.; Qian, W.; Xia, Y.; Ismail, M. Strong piezo-electrochemical effect of multiferroic BiFeO3 square micro-sheets for mechanocatalysis. Electrochem. Commun. 2017, 79, 55–58. [Google Scholar] [CrossRef]
  18. Preethi, A.J.; Ragam, M. Effect of doping in multiferroic BFO: A review. J. Adv. Dielect. 2021, 11, 2130001. [Google Scholar] [CrossRef]
  19. Xu, X.; Xiao, L.; Haugen, N.O.; Wu, Z.; Jia, Y.; Zhong, W.; Zou, J. High humidity response property of sol-gel synthesized ZnFe2O4 films. Mater. Lett. 2018, 213, 266–268. [Google Scholar] [CrossRef]
  20. Liang, J.-G.; Kim, E.-S.; Wang, C.; Cho, M.-Y.; Oh, J.-M.; Kim, N.-Y. Thickness effects of aerosol deposited hygroscopic films on ultra-sensitive humidity sensors. Sens. Actuators B Chem. 2018, 265, 632–643. [Google Scholar] [CrossRef]
  21. Gong, M.; Li, Y.; Guo, Y.; Lv, X.; Dou, X. 2D TiO2 nanosheets for ultrasensitive humidity sensing application benefited by abundant surface oxygen vacancy defects. Sens. Actuators B Chem. 2018, 262, 350–358. [Google Scholar] [CrossRef]
  22. Rachida, D.; Nouara, L.; M’hand, O.; Malika, S.; Yannick, G.; Ahcène, C.; Bertrand, B. Improvement of humidity sensing performance of BiFeO3 nanoparticles-based sensor by the addition of carbon fibers. Sens. Actuator A Phys. 2020, 307, 111981. [Google Scholar]
  23. Mahapatra, P.L.; Das, S.; Mondal, P.P.; Das, T.; Saha, D.; Pal, M. Microporous copper chromite thick film based novel and ultrasensitive capacitive humidity sensor. J. Alloy Compd. 2021, 859, 157778. [Google Scholar] [CrossRef]
  24. Duan, Z.; Zhao, Q.; Wang, S.; Huang, Q.; Yuan, Z.; Zhang, Y.; Jiang, Y.; Tai, H. Halloysite nanotubes: Natural, environmental-friendly and low-cost nanomaterials for high-performance humidity sensor. Sens. Actuators B Chem. 2020, 317, 128204. [Google Scholar] [CrossRef]
  25. Liang, J.-G.; Wang, C.; Yao, Z.; Liu, M.-Q.; Kim, H.-K.; Oh, J.-M.; Kim, N.-Y. Preparation of ultrasensitive humidity-sensing films by aerosol deposition. ACS Appl. Mater. Interfaces 2018, 10, 851–863. [Google Scholar] [CrossRef]
  26. Zia, T.H.; Ali Ahsh, A.H. Understanding the adsorption of 1 NLB antibody on polyaniline nanotubes as a function of zeta potential and surface charge density for detection of hepatitis C core antigen: A label-free impedimetric immunosensor. Colloids Surf. A Physicochem. Eng. Asp. 2021, 626, 127076. [Google Scholar] [CrossRef]
  27. Li, T.Y.; Si, R.J.; Sun, J.; Wang, S.T.; Wang, J.; Ahmed, R.; Zhu, G.B.; Wang, C.C. Giant and controllable humidity sensitivity achieved in (Na+ Nb) co-doped rutile TiO2. Sens. Actuators B Chem. 2019, 293, 151–158. [Google Scholar] [CrossRef]
  28. Si, R.; Xie, X.; Li, T.; Zheng, J.; Cheng, C.; Huang, S.; Wang, C. TiO2/(K, Na)NbO3 nanocomposite for boosting humidity-sensing performances. ACS Sens. 2020, 5, 1345–1353. [Google Scholar] [CrossRef]
  29. Mallick, S.; Ahmad, Z.; Qadir, K.W.; Rehman, A.; Shakoor, R.A.; Touati, F.; Al-Muhtaseb, S.A. Effect of BaTiO3 on the sensing properties of PVDF composite-based capacitive humidity sensors. Ceram. Int. 2020, 46, 2949–2953. [Google Scholar] [CrossRef]
  30. Nikolic, M.V.; Krstic, J.B.; Labus, N.J.; Lukovic, M.D.; Dojcinovic, M.P.; Radovanovic, M.; Tadic, N.B. Structural, morphological and textural properties of iron manganite (FeMnO3) thick films applied for humidity sensing. Mater. Sci. Eng. B 2020, 257, 114547. [Google Scholar] [CrossRef]
  31. Ji, G.-J.; Zhang, L.-X.; Zhu, M.-Y.; Li, S.-M.; Yin, J.; Zhao, L.-X.; Fahlman, B.D.; Bie, L.-J. Molten-salt synthesis of Ba5−xSrxNb4O15 solid solutions and their enhanced humidity sensing properties. Ceram. Int. 2018, 44, 477–483. [Google Scholar] [CrossRef]
  32. Ma, H.; Fang, H.; Wu, W.; Zheng, C.; Wu, L.; Wang, H. A highly transparent humidity sensor with fast response speed based on α-MoO3 thin films. RSC Adv. 2020, 10, 25467–25474. [Google Scholar] [CrossRef]
  33. Han, J.-W.; Kim, B.; Li, J.; Meyyappan, M. Carbon nanotube based humidity sensor on cellulose paper. J. Phys. Chem. C. 2012, 116, 22094–22097. [Google Scholar] [CrossRef]

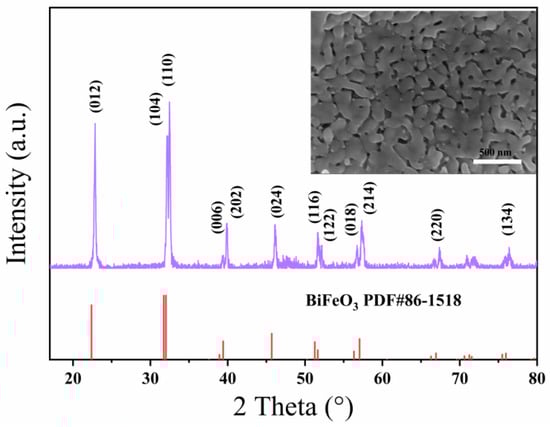

Figure 1. XRD pattern of BiFeO3 film. Inset: SEM image of BiFeO3 film.
Figure 1. XRD pattern of BiFeO3 film. Inset: SEM image of BiFeO3 film.
Materials 15 02932 g001

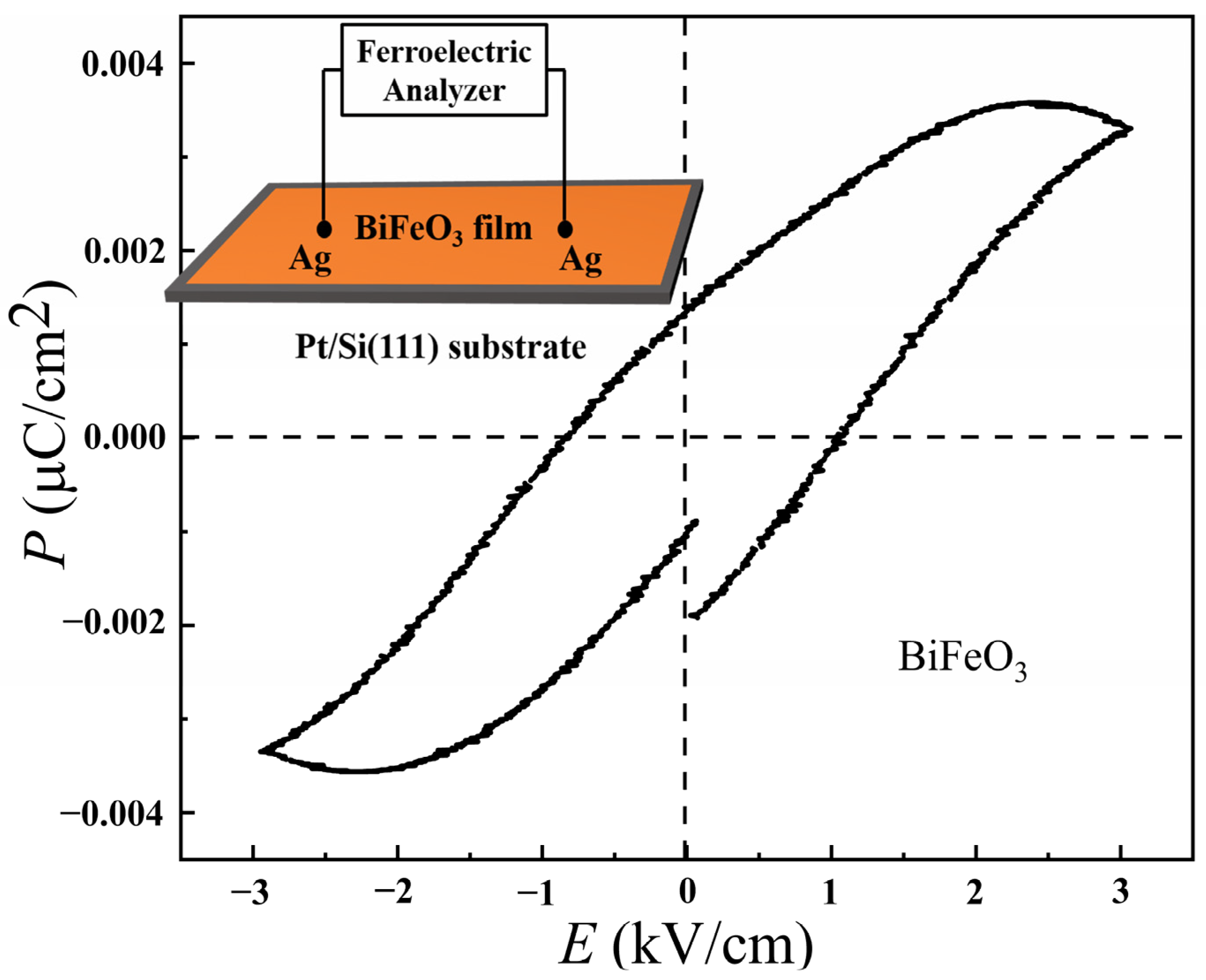

Figure 2. Ferroelectric hysteresis loop. Inset: schematic diagram of the test circuit.
Figure 2. Ferroelectric hysteresis loop. Inset: schematic diagram of the test circuit.
Materials 15 02932 g002

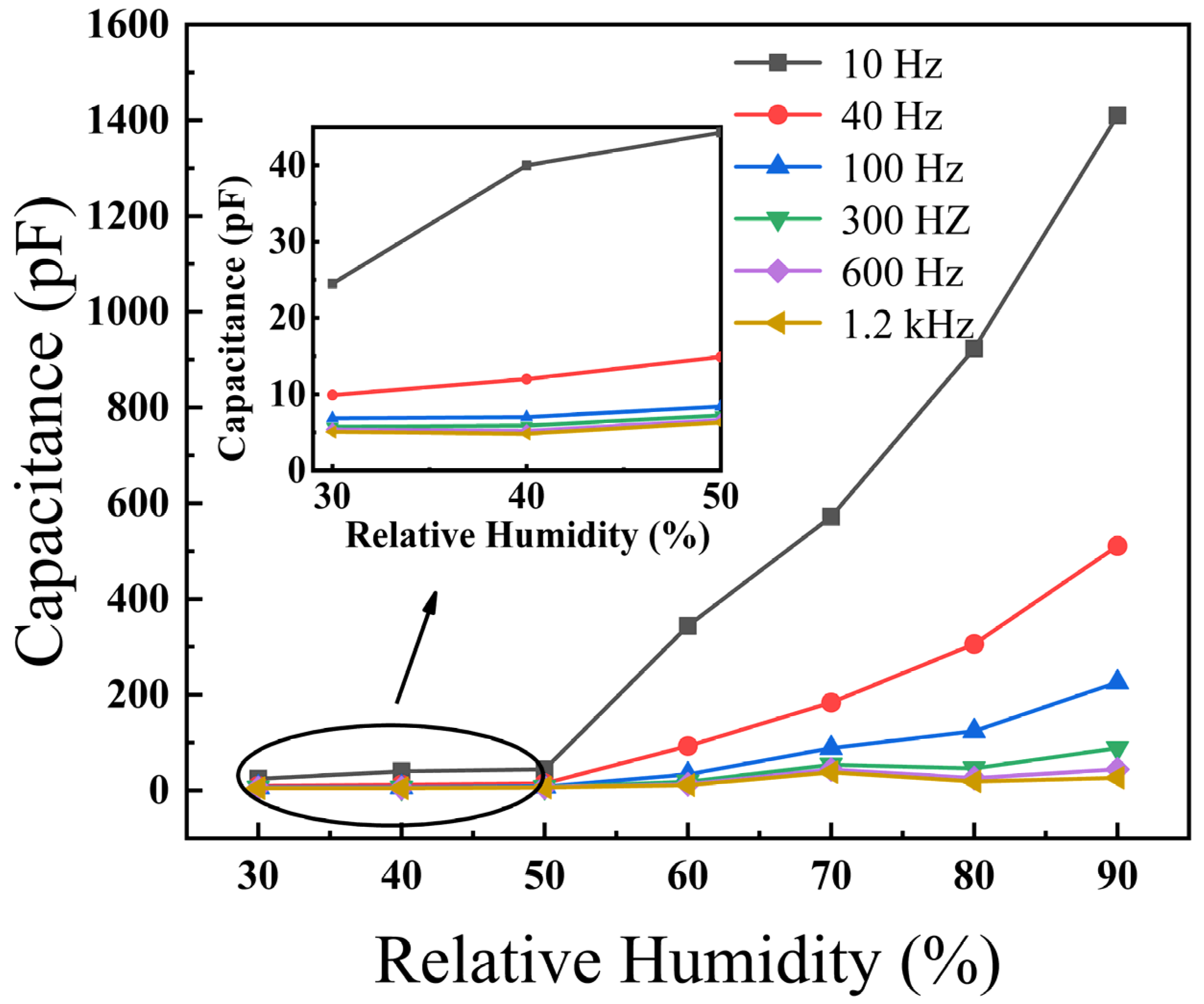

Figure 3. RH dependence on the capacitance of BiFeO3 film. Inset: enlarged capacitance vs. %RH plot (30–50% RH range).
Figure 3. RH dependence on the capacitance of BiFeO3 film. Inset: enlarged capacitance vs. %RH plot (30–50% RH range).
Materials 15 02932 g003

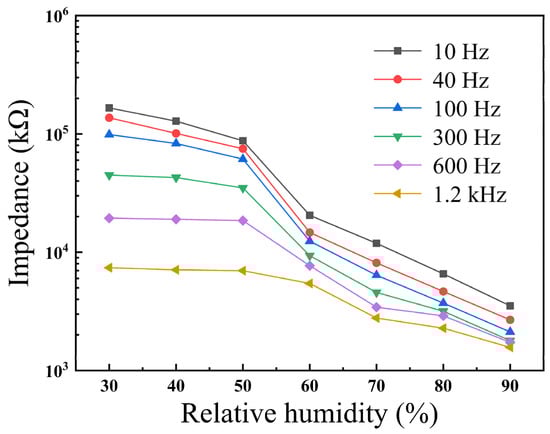

Figure 4. RH dependence on the impedance of BiFeO3 film.
Figure 4. RH dependence on the impedance of BiFeO3 film.
Materials 15 02932 g004

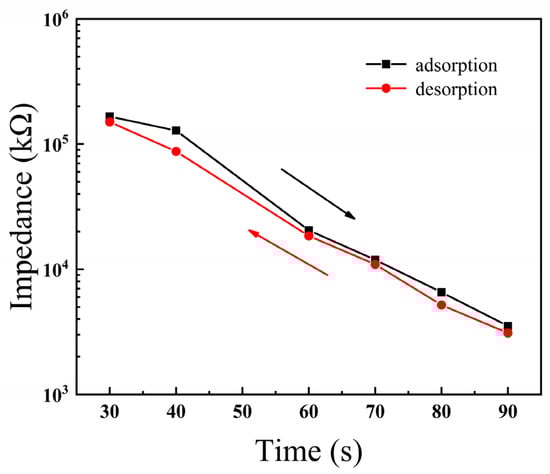

Figure 5. Humidity hysteresis characteristics of BiFeO3 film measured at 10 Hz.
Figure 5. Humidity hysteresis characteristics of BiFeO3 film measured at 10 Hz.
Materials 15 02932 g005

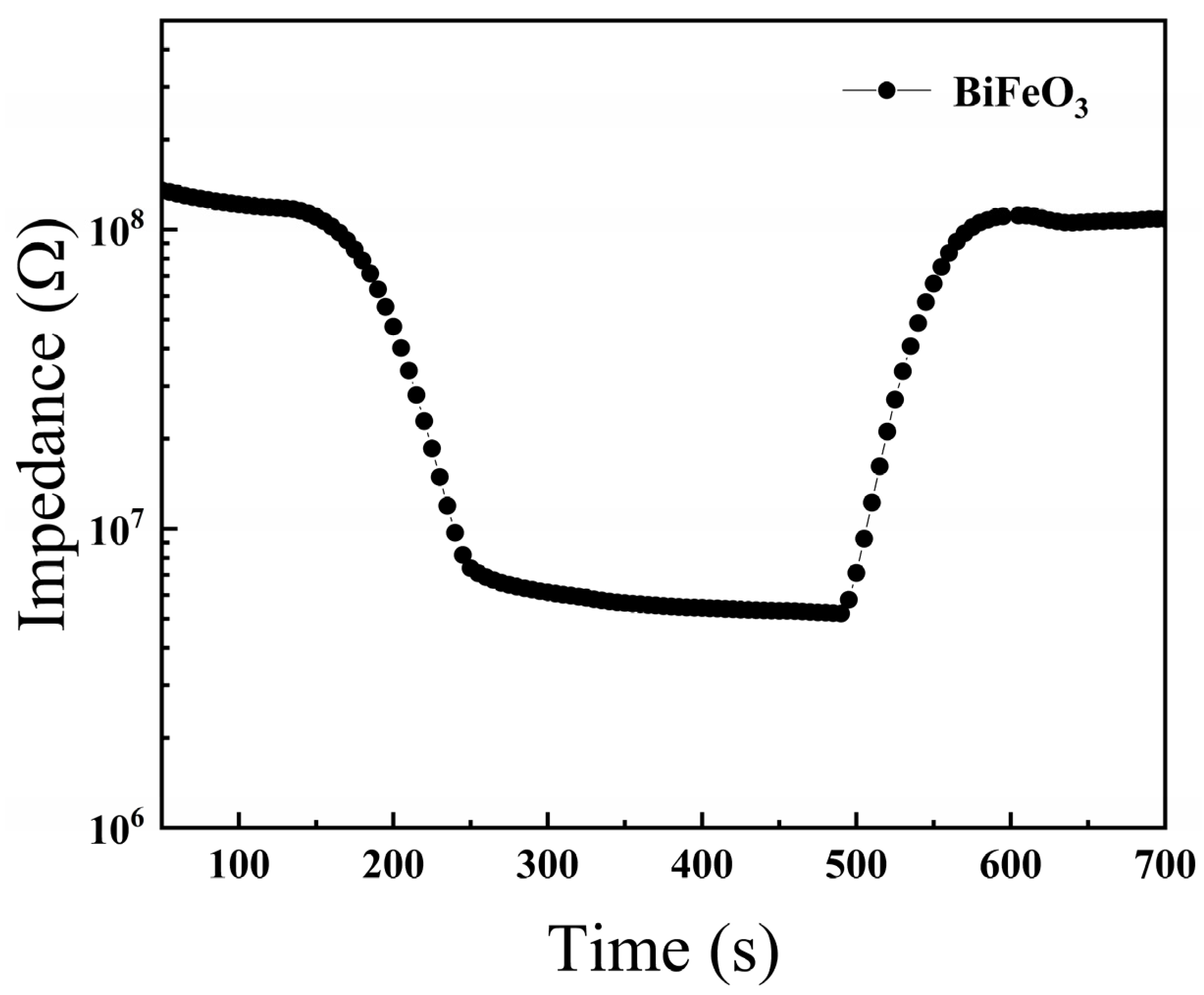

Figure 6. Humidity response and recovery curve of BiFeO3 film measured at 10 Hz.
Figure 6. Humidity response and recovery curve of BiFeO3 film measured at 10 Hz.
Materials 15 02932 g006

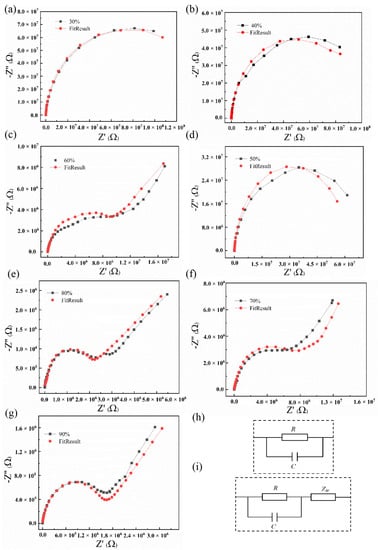

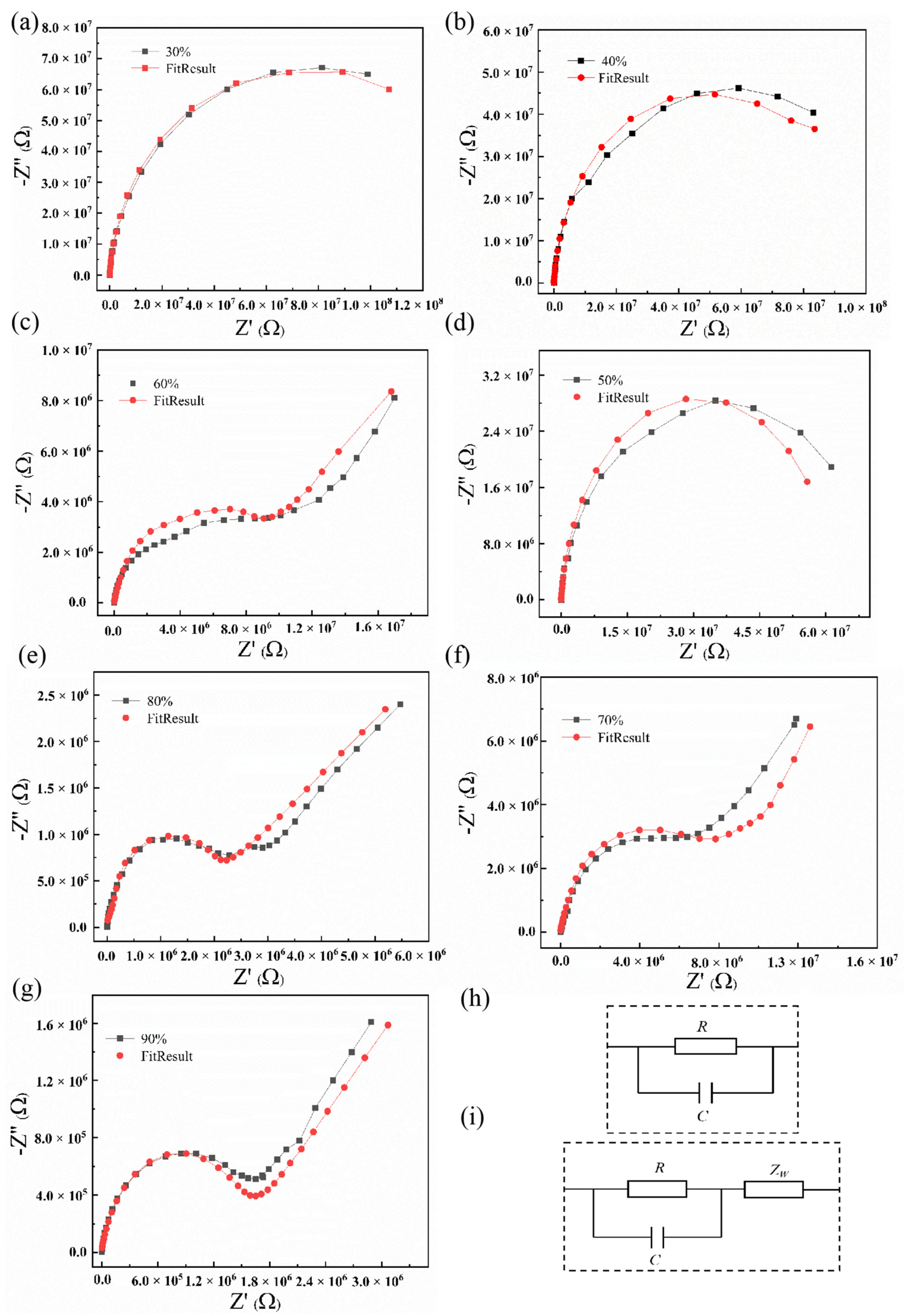

Figure 7. The complex impedance properties of BiFeO3 film under different humidities. (a) 30% RH; (b) 40% RH; (c) 50% RH; (d) 60% RH; (e) 70% RH; (f) 80% RH; (g) 90% RH. (h) The equivalent circuit fit by Zview in the 30−50% RH range. (i) The equivalent circuit fit by Zview in the 60−90% RH range.
Figure 7. The complex impedance properties of BiFeO3 film under different humidities. (a) 30% RH; (b) 40% RH; (c) 50% RH; (d) 60% RH; (e) 70% RH; (f) 80% RH; (g) 90% RH. (h) The equivalent circuit fit by Zview in the 30−50% RH range. (i) The equivalent circuit fit by Zview in the 60−90% RH range.
Materials 15 02932 g007
Figure 8. Dependence of current on voltage for the BiFeO3 film at various RHs. Inset: the enlarged IV vs. %RH plot (30–40% RH range).
Figure 8. Dependence of current on voltage for the BiFeO3 film at various RHs. Inset: the enlarged IV vs. %RH plot (30–40% RH range).
Materials 15 02932 g008
