Thermodynamics Evaluation and Verification of High-Sulfur Copper Slag Composite Agglomerate in Oxidation-Roasting-Separation-Leaching Process

1
School of Metallurgy and Energy, North China University of Science and Technology, Tangshan 063002, China
2
School of Metallurgy, Northeastern University, Shenyang 110819, China
3
School of Iron and Steel, Soochow University, Suzhou 215006, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(1), 42; https://doi.org/10.3390/ma16010042
Submission received: 5 November 2022 / Revised: 28 November 2022 / Accepted: 10 December 2022 / Published: 21 December 2022

Abstract

:
To solve situation of high-sulfur copper slag utilization, an innovative technology was proposed for oxidation roasting with composite agglomerates. The oxidation-roasting process was studied by factage7.3 software. The thermodynamics were calculated about sulfur removal, sulfur adsorption and decomposition. The adsorption of sulfur oxides and microstructure evolution were analyzed via an oxidation roasting experiment and SEM-EDS. The results show that the matte and AsxSy in the matrix could be effectively removed via oxidation roasting in an oxygen atmosphere; the sulfoxide was adsorbed to produce CaSO4. The Fe2SiO4 decomposition could be realized at suitable roasting temperature and in an oxygen atmosphere. This is helpful for the magnetic separation of iron and silicon. The thermodynamic and experimental results were preliminarily confirmed to be available in the innovative process.

1. Introduction

Most of the world’s copper is produced via pyrometallurgy [1]. The copper smelting methods can be divided into flash smelting (Ottokunp furnace, Inko furnace, etc.) and bath smelting (Essa furnace, Ausmelt furnace, Noranda Furnace, etc.) [2]. It will produce 2.2t copper slag while producing 1t copper [3]. Currently, copper slag is mainly treated by open-air accumulation, and a large amount of accumulation will not only occupy land resources, but also produce environmental pollution [4,5]. The copper slag is rich in valuable elements such as iron, silicon and a small amount of copper, which has high recycling value [6]. In copper slag, the iron and silicon elements exist in a stable fayalite phase. Copper slag also contains a certain amount of harmful elements such as S and As [7], which significantly increases the difficulties of copper slag reutilization.
Copper-slag recovery processes mainly include direct beneficiation, smelting reduction, direct reduction, oxidation modification and leaching. The reduction and iron extraction routes have been widely studied in existing technology. Jing [8] obtained the copper slag pellets via direct reduction–magnetization tests; the metallization rate of the obtained pellet was higher than 92% and the metal recovery reached 89%. Xu [9] prepared the magnetic separation iron powder with iron grade of 91.10% and metallization rate of 94.27% through a high-temperature rapid reduction roasting magnetic separation test. Yang [10] studied the recovery of iron from water-quenched copper slag via a direct reduction magnetic separation method and obtained direct reduced iron powder with an iron grade of 92.05% and recovery rate of 81.01%. Cao [11,12] directly reduced the carbon-containing pellets of copper slag at high temperature to obtain metallized pellets, and obtained iron powder with 90% iron grade and iron recovery rate of 85% via a magnetic separation method. All the above-mentioned studies demonstrated that the reduction route can recover iron from copper slag effectively. However, it should be pointed out that the harmful elements such as S and As will enter the recovered products at high temperature during the reduction of copper slag [13], which not only reduces the quality of recovered iron powder, but also improves the desulfurization pressure of the following steelmaking process [14,15,16,17]. Most harmful content will react with oxygen and escape in the form of gas, which could effectively improve the quality of roasting products [18,19].
Copper slag research is relatively limited in terms of pollution-free processes, and there is no report of industrial applications of the recovery process. Therefore, the copper slag should be treated as clean, providing environmental protection and efficient recovery. A composite agglomerates oxidation roasting process was proposed according to the current utilization status of copper slag resources. Factage7.3 was employed to calculate the thermodynamic parameters of the oxidation roasting process, and the feasibility of the new process was preliminarily verified by experiments and SEM-EDS analysis.

2. Materials and Methods

2.1. Raw Materials

In this experiment, the copper slag used is from a typical copper smelter, and the chemical compositions are listed in Table 1. It can be seen that the FeO and SiO2 contents are 42.74% and 38.01%, respectively. Due to the characteristics of flash smelting, the iron in raw copper ore is completely fused into the slag, which is the reason for the high iron content in copper slag. This indicates that the iron and silicon elements are valuable and necessary to recycle. The copper slag is the by-product of smelting process. Copper was enmeshed in the slag with process of slagging; therefore, there is a small amount of copper in the slag. The sulfur content in the copper slag is 1.19%, which means the desulfurization must be considered in the extraction of iron from copper slag.
Figure 1 shows the SEM-EDS of copper slag. The copper slag is composed of glass phase and small quantities of particles, indicating that the raw material is typical water-quenched slag. The particles are determined as copper mattes via elemental analysis. The components of matte include FeS and CuS, which are distributed in layers. Based on the composition and SED-EDS analysis, the matte is the main occurrence form of sulfur, which is also the main target of desulfurization in the oxidation roasting process.

2.2. Thermodynamic Calculation

The Factsage7.3 was employed to calculate the thermodynamics of copper slag during the oxidation and leaching processes. The raw materials, atmosphere and temperature were set by the equlib module to explore the final products of copper matte and fayalite. The reaction module was used for insight into the Gibbs free energy of fayalite oxidative decomposition, matte oxidation and sulfur-oxide adsorption reaction. The phase diagrams of sulfate were drawn to analyze the effects of temperature, sulfur content and oxygen concentration on the occurrence form. Furthermore, the predominance diagram of SiO2 alkali leaching was drawn to obtain the appropriate leaching conditions of the copper slag after oxidation roasting.

2.3. Experimental Design

Figure 2 presents the detailed experimental steps in the oxidation roasting–separation-leaching process. Firstly, the copper slag was dried at 105 °C for 2 h and crushed to approximately 0.074 mm. Next, the copper slag core pellet was prepared by manual briquetting under 20 MPa. Then, the CaO powder for adsorbing harmful gas was adhered to the surface of copper slag core pellet in a pelletizing disc. After that, the obtained copper slag–CaO composite agglomerate was charged into a muffle furnace and heated to target temperature with a heating rate of 10 °C/min. During the heating process, the air flow was injected into the muffle furnace; steady air flow is conducive to the stability and unity of the experimental conditions. Therefore, the steady air flow was controlled by the flowmeter into the muffle furnace with a flow rate of 300 mL/min. When the sample temperature rose to the target temperature, the samples were taken out from the furnace and cooled to room temperature. After roasting, the copper slag core pellet and CaO coating layer were separated from the composite agglomerates by a vibrating screen. The obtained copper slag core pellets were crushed for leaching in alkali solution. The obtained CaO coating layer can be recycled as a cement raw material.

3. Results

3.1. Thermodynamics of Sulfur Oxidation

The sulfur-containing substances in the copper slag mainly includes FeS, CuS, AsxSy and sulfate. Theoretically, the oxidation and decomposition reactions of these sulfur-containing substances can occur at appropriate roasting temperatures and oxygen partial pressure. In this study, the thermodynamics of sulfur oxidation and decomposition were calculated by Factsage [20] to evaluate the feasibility of sulfur removal from copper slag during the oxidation roasting process. In the calculation, the initial FeS or CuS content is set as 1 mol, the oxygen partial pressure is P(O2) = 21% and the temperature ranges from 300 °C to 1200 °C. Figure 3a shows the equilibrium of FeS and O2. It can be seen that the FeS transforms into Fe2O3 and Fe2(SO4)3 with a roasting temperature lower than 700 °C. When the temperature exceeds 700 °C, the Fe2(SO4)3 starts to decompose and transforms into Fe2O3. Simultaneously, the sulfur volatilizes in the form of SO2 and SO3. This indicates that the FeS can react with oxygen to produce Fe2O3 and realize the sulfur removal in the form of gaseous sulfur oxides when the roasting temperature is higher than 700 °C. Figure 3b shows the equilibrium of CuS and O2. Clearly, the CuS reacts with oxygen directly to form CuSO4 at a low temperature. When the roasting temperature reaches 800 °C, CuSO4 begins to decompose to form CuO and gaseous sulfur oxides. This also manifests that the original CuSO4 in copper slag will also transform into CuO. When the roasting temperature reaches 900 °C, CuS is completely converted to CuO. When the temperature exceeds 1000 °C, CuO will begin to convert to Cu2O. This change in the copper’s form cannot affect the sulfur oxidative removal. In conclusion, the sulfur in the matte can be removed in the form of gaseous sulfur oxide when the oxidation temperature reaches 900 °C.
The sulfur also existed in the form of AsxSy in copper slag, which has been demonstrated previously in the literature [21,22]. The forms of AsxSy in copper slag include AsS, As2S2, As2S3, As4S4 and As4S6. In this calculation, the content of S in AsxSy is set as 2 mol, the oxygen partial pressure is P(O2) = 1%, 6%, 11%, 16%, 21% and the temperature ranges from 300 °C to 1200 °C. The obtained results are summarized in Figure 4. Clearly, most of the sulfur can be oxidized to SO3 at low temperature. With the increase in roasting temperature, the proportion of SO3 decreases, while the proportion of SO2 increases gradually. This is due to the fact that the SO3 is unstable at high temperature and tends to decompose. At constant roasting temperature, the proportion of SO3 is increased by enhancing the oxygen partial pressure, which is because the high oxygen partial pressure can inhibit the SO3 decomposition reaction. This indicates that low oxygen partial pressure is conducive to the preformation of SO2. The influence of oxygen partial pressure on the products’ formation can be reflected by the difference between the maximum and minimum SO2 values at the same temperature. Clearly, the influence is significant when the oxidation temperature ranges from 500 °C to 900 °C, indicating that the oxygen partial pressure significantly affects the sulfur oxides’ formation proportion. The abovementioned discussion manifests the oxidation of arsenic sulfide, which can easily occur in aerobic conditions, and the sulfur could escape in the form of gaseous sulfur oxides by controlling the temperature and oxygen partial pressure.
The sulfate in the copper slag mainly exists in the form of CaSO4, CuSO4, Fe2(SO4)3 and MgSO4. The Phase digram module is used to calculate the dominant region of the four sulfates. By setting the pressure of the reaction as normal pressure, the Y-axis as logarithm of oxygen pressure, and X as temperature, the phase diagram could be obtained for the dominant region of sulfate. It calculates the effect of the proportion of different oxygen pressure and the temperature on the sulfate equilibrium product under normal pressure.
The predominance diagrams of Ca-S-O2, Cu-S-O2, Fe-S-O2 and Mg-S-O2 are presented in Figure 5. In the Ca-S-O2 system, the phase exists in the form of CaSO4 at low temperature, and CaSO4 decomposes to CaO with increasing temperature. Actually, the decomposition temperature of CaSO4 is significantly affected by the oxygen partial pressure. The higher the oxygen partial pressure, the higher the decomposition temperature of CaSO4. In air atmosphere, the decomposition temperature of CaSO4 is about 1120 °C. In the Cu-S-O2 system, the phase is CuSO4 at low temperature. With increasing temperature, CuSO4 could be transformed to CuO and CuSO4 composite phases when the oxygen potential is high. The CuO appears in the air atmosphere when the temperature is higher than 700 °C. In the Fe-S-O2 system, iron exists in the form of Fe2(SO4)3 at low temperature. When the oxygen partial pressure P(O2) is 10−3.5, Fe2(SO4)3 is transformed to FeSO4 when the temperature increases. With the temperature continuously rising, Fe2(SO4)3 and FeSO4 will be decomposed to sulfur oxide and iron oxide. In the Mg-S-O2 system, the phase is MgSO4 at low temperature. When the temperature increases, MgSO4 transforms to MgO and releases sulfur oxides. In conclusion, the CuSO4, Fe2(SO4)3 and MgSO4 could decompose and volatilize sulfur oxide gas in air atmosphere when the roasting temperature reaches 1000 °C. Notably, the decomposition temperature of CaSO4 is higher than the other three sulfates, which also demonstrates the feasibility of selecting CaO to adsorb gaseous sulfur oxide in the oxidation roasting process.
To ensure the environmental protection of the experiment and subsequent process, calcium oxide was selected as the sulfur oxide adsorbent. The thermodynamic calculation of sulfur oxide and calcium oxide is shown in Figure 6. As shown in Figure 6a, the Gibbs free-energy curve indicates that the reactions between sulfur oxide and calcium oxide adsorption can theoretically occur in the roasting temperature range. Figure 6b shows the equilibrium phase diagram of the adsorption process, indicating that the final adsorption product is CaSO4. The thermodynamic calculation results shows that the sulfur oxides escaping from the copper slag in the oxidation roasting process can be adsorbed and consolidated by the calcium oxide layer, which alleviates the gaseous sulfur oxides emission and improves the cleanliness of the oxidation-roasting process.

3.2. Thermodynamics of Fe2SiO4 Decomposition and SiO2 Leaching

The Fe and Si mainly existed in the form of fayalite (Fe2SiO4) in the copper slag. The decomposition of fayalite could realize the separation of Fe and Si in the copper slag. The Gibbs free energy and equilibrium phase of fayalite decomposition were calculated using the equlib and reaction module. As shown in Figure 7a, the Gibbs free energy of two oxidative decomposition reactions is much lower than zero, indicating that there are two possible reactions. As shown in Figure 7a, there are two processes for the decomposition of fayalite in air atmosphere; the products reacted with oxygen are Fe2O3 or Fe3O4. The Gibbs free energy of two oxidative decomposition reactions is much less than 0, indicating that the oxidative decomposition progress is easy to carry out. Figure 7b shows the equilibrium phase diagram of the fayalite oxidative decomposition. In this calculation, the initial amount of Fe2SiO4 was set as 1 mol, the oxygen addition amount was set as 0.1 mol/step and the temperature was set at 1000 °C. The results show that the Fe2SiO4 gradually decomposes into Fe3O4 and SiO2 at 1000 °C. With the addition of oxygen, the fayalite continues to decompose, and Fe3O4 begins to transform to Fe2O3. The final products are SiO2 and Fe2O3 when oxygen addition is sufficient. This indicates that the oxidation decomposition conditions of fayalite cooperates with the sulfur removal conditions of copper slag.
In order to separate and recover the Fe and iron from the roasted copper slag, alkali leaching of the core pellet was conducted. In the alkali leaching thermodynamics calculation, the degradation amount of SiO2 was set at 1 mol/kg, oxygen partial pressure was set as the X- axis, and NaOH addition was set as the Y-axis. As shown in Figure 8, when NaOH is added in a small amount, the equilibrium system consists of SiO2 and NaOH solution, and there is no reaction at equilibrium; notably, the neglect of time in thermodynamics leads to the formation of H4SiO4 in aqueous solution, which is not found in the actual experiment. With the NaOH gradual addition, part of Si reacts with it to form Na2Si2O5, which is completely transformed when the addition amount is 1.5 mol/kg. After addition of NaOH, the reaction products are divided into Na2SiO3 and Na2Si2O5, and the constituents tend towards equilibrium due to the increase in sodium ion concentration. When the amount of NaOH is greater than 2.5 mol/kg, SiO2 is completely transformed into Na2SiO3. Thermodynamic analysis shows that the silica-rich phase in roasting copper slag could be leached out by NaOH solution with a certain concentration, the iron-rich phase enters the tail slag, and the silica-rich phase is completely transformed into Na2SiO3, thus realizing the iron–silicon separation of roasting products.

3.3. Desulfurization and Adsorption Behavior in Oxidation-Roasting Process

To verify the feasibility of thermodynamic analysis, the desulfurization and solidification experiments of high-sulfur copper slag agglomerate was carried out. The experiment proceeded in a ventilated tubular furnace. The experimental sample was heated in an air atmosphere and the heating rate was 10 °C/min. The copper slag sample was brought out when the constant temperature zone reached 1000 °C. After cooling to room temperature, the interface of adsorbent was analyzed by SEM and EDS. The interface scanning image of the experimental sample is shown in Figure 9.
It could be found from the line scanning images that the Ca, Si and Fe cannot obviously migrate and distribute on both sides of the interface after roasting at high temperature. However, the content of S obviously increased at the interface, indicating that sulfur was absorbed in large quantities. The copper slag oxidation roasting is a gas–solid reaction; the sulfur was adsorbed and consolidated by the CaO coating layer when sulfur oxide gas volatilized. The elemental distribution images shows that the Si and Fe coincided in the copper slag area, the Ca existed in the adsorbent area and the S had obvious aggregation at the interface. This could be divided into two parts for discussion. The absence of sulfur in the copper slag layer is due to the large amount of sulfur oxidation. The area where sulfur accumulates is the area closest to the copper slag layer. The CaO layer has obvious adsorption behavior of sulfur and the process is completed at the interface; therefore, sulfur is not detected at the upper part of the adsorption layer. Notably, the two distribution images of S and Ca elements perform obvious overlapping parts. According to thermodynamic analysis and experimental results, the consolidation product is CaSO4.
The XRD patterns of the core pellet after oxidization at different roasting temperatures are shown in Figure 10. The main components of initial copper slag are Fe2SiO4 and a small amount of Fe3O4 at room temperature. With the increase in roasting temperature, the Fe2SiO4 gradually transformed to Fe2O3, and the intensity of Fe2O3 diffraction peaks gradually improved with the temperature increase, reaching its strongest point at 1000 °C. This indicates that the higher temperature benefits the oxidation and decomposition of Fe2SiO4. In addition, there is a side peak of Fe3O4 on the left side of the main Fe2O3 peak at about 37°. The existence of Fe3O4 indicates that the oxidation and decomposition of copper slag is not complete due to the insufficient temperature and time. The silica-containing products cannot be detected in the patterns, which is because the SiO2 decomposed by Fe2SiO4 exists in amorphous crystalline form.
To further determine the phase composition in copper slag after oxidation roasting, the FTIR analysis was conducted. Figure 11 shows the infrared spectrum of copper slag samples oxidized at different temperatures. At 600 °C, the silica absorption peaks mainly appeared at 462 cm−1, 804 cm−1, 862 cm−1, 949 cm−1 and 1081 cm−1. The absorption peaks of Fe2O3 and Fe3O4 can be observed at 531 cm−1 and 591 cm−1, respectively. The absorption peak of Fe3O4 indicates that the oxidation reaction is not complete at 600 °C, which is consistent with the XRD analysis results. With the increase in oxidation temperature, the intensity of the Fe3O4 absorption peak gradually decreased, indicating that roasting temperature promoted the degree of iron oxidation. It should be pointed out that the absorption peaks at 462 cm−1, 804 cm−1, 862 cm−1, 949 cm−1 and 1081 cm−1 are different forms of silica, and the silica structure transformed into various spatial structures with the increase in roasting temperature. The FTIR and XRD analysis results proved that the fayalite can be oxidized, and it decomposed iron oxide and amorphous state silica in the roasting process.

3.4. Leaching Behavior of Copper Slag in Alkaline Aqueous

The roasted sample was leached in an aqueous solution with a solid/liquid ratio of 5 g/100 mL, duration of 2 h and NaOH concentration of 160 g/L [23]. Then, the precipitation was filtered, and the hydrochloric acid solution was dropped into the aqueous solution. Large amounts of white floc appeared. The collected white floc was further analyzed by SEM-EDS, as shown in Figure 12. Clearly, the precipitated SiO2 can be divided into amorphous SiO2 and a small amount of dendritic SiO2, which explains the SiO2 diffraction peak absent in XRD and the existence of two SiO2 peaks in FTIR. Thus, it is preliminarily proved that the recovery of silicon and iron from roasted copper slag is available via an alkaline solution leaching method.

4. Discussion

In this study, a composite agglomerate with copper slag as the core pellet and CaO as the coating layer was prepared in the laboratory. The gaseous sulfur oxide can be effectively absorbed by the CaO coating layer in the oxidation roasting process. The detailed reaction mechanisms of high-sulfur copper slag composite agglomerates in oxidative roasting are summarized in Figure 13. The original copper slag mainly consists of glass phase and matte composite phase. The main elements in the glass phase are Fe, Si and O, which will precipitate in the form of Fe2SiO4 during the heating process. In the oxidation roasting process, the matte phases, namely CuS and FeS, are oxidized to generate SO2, CuO and Fe2O3. The escaped gaseous sulfur oxides from the copper slag core pellet can be absorbed by the CaO coating layer, forming a CaSO4 layer between the core–shell interface. Simultaneously, the fayalite crystals were separated out in the glass matrix and decomposed to Fe2O3 and amorphous SiO2 during the oxidation process. Finally, the Fe2O3 and amorphous SiO2 can be separated via the alkaline leaching method. Compared with the traditional copper slag treatment process, this study provides an environmentally friendly route to realize the recovery of Fe, Si and S from copper slag; it has lower energy consumption and does not need to add fuel. CaO adsorbed sulfur after using it as a beneficial substance of cement, without wasting resources.

5. Conclusions

This study provides an environmentally friendly route to realize the recovery of Fe, Si and S from copper slag. The thermodynamic and experimental results preliminarily verify the feasibility of the copper slag composite agglomerates in an oxidation-roasting–separating leaching process. The obtained conclusions are listed below.
(1) Thermodynamic calculation results show that the FeS and CuS in matte begin to oxidize at 700 °C and 800 °C, respectively, and the AsxSy can be oxidized to sulfur oxide in air atmosphere. The appropriate oxygen partial pressure P(O2) of sulfate decomposition should be higher than 10−2.
(2) The main elements in glass phase of copper slag are Fe, Si and O. The fayalite crystals were separated out in the glass matrix and decomposed to Fe2O3 and amorphous SiO2 in the oxidation process. The SiO2 could be dissolved from the oxidative copper slag in alkaline solution to obtain iron-rich phase and silicon-rich phase.
(3) In the oxidation roasting process of composite agglomerate, the sulfur in copper slag core pellet could be oxidized to gaseous sulfur oxides and then escaped. The escaped gaseous sulfur oxides can be absorbed by CaO coating layer, forming a CaSO4 layer between the core–shell interface.

Author Contributions

X.Z. Conceptualization, Methodology, Writing, Software, Visualization, experiment Data Curation; Q.Z. and C.Z.: Methodology; K.Z. Investigation, Validation; H.G. and W.Z.: Supervision, Project administration; H.G.: Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

The experimental part of this study was supported by the National Key R&D Plan of China (2017YFB0603802), National Natural Science Foundation of China (52104336), and Natural Science Foundation of the Jiangsu Higher Education Institutions of China (20KJB45002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw and processed data required to reproduce these results are available by a reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Durinck, D.; Engström, F.; Arnout, S.; Heulens, J.; Jones, P.T.; Björkman, B.; Blanpain, B.; Wollants, P. Hot stage processing of metallurgical slags. Resour. Conserv. Recycl. 2008, 52, 1121. [Google Scholar] [CrossRef]
  2. Zhao, K.; Gong, X.-R.; Li, J.; Liu, W.-X.; Xing, H.-W. Mineralogical characteristics and comprehensive utilization of rapid cooling copper slag. China Min. Mag. 2015, 24, 102–106. [Google Scholar]
  3. Yu, W.; Sun, Y.; Lei, M.; Chen, S.; Qiu, T.; Tang, Q. Preparation of micro-electrolysis material from flotation waste of copper slag and its application for degradation of organic contaminants in water. J. Hazard. Mater. 2019, 361, 221. [Google Scholar] [CrossRef] [PubMed]
  4. Zhu, M.-L.; Xiong, J.-C.; Hu, Z.-B.; Tong, C.-Q.; Wang, R.-X. Research progress in resource utilization of iron and copper in copper smelting slag. Des. Res. Non-Ferr. Metall. 2016, 37, 15. [Google Scholar]
  5. Zhao, K.; Gong, X.-R.; Li, J.; Liu, W.; Xing, H. Thermodynamics of recovering iron, copper, zinc in copper slag by direct reduction method. J. Environ. Eng. 2016, 10, 2638. [Google Scholar]
  6. Wang, P.; Gao, L.; Dong, F.; Chen, L.; Ma, F. Recovery status of copper recovery by flotation from copper smelting slag. Compr. Util. Miner. Resour. 2017, 1, 16–20. [Google Scholar]
  7. Wei, Z.-F.; Zhao, K.; Zhang, Q.-R.; Shi, X.-F.; Ji, H.-J.; Gong, X.-R.; Xing, H.-W. The effect of carbon thermal reduction modification on the dissolution behavior of Cu and S in iron. Compr. Util. Miner. Resour. 2021, 2, 44–48. [Google Scholar]
  8. Jing, W.-B.; Li, S.-L. Experimental study on direct reduction iron-making with copper slag. China Nonferrous Metall. Gold 2018, 47, 78. [Google Scholar]
  9. Xu, D.; Chun, T.-J.; Chen, J.-A. Iron recovery from copper slag by a combined technique of high-temperature reduction roasting and magnetic separation. Min. Metall. Eng. 2017, 37, 89. [Google Scholar]
  10. Yang, H.-F.; Jing, L.-L.; Dang, C.-G. Iron recovery from copper-slag with lignite-based direct reduction followed by magnetic separation. China J. Nonferrous Met. 2011, 21, 1165–1170. [Google Scholar]
  11. Cao, Z.-C.; Sun, T.-C.; Wu, D.-H.; Xue, X.; Liu, Z.-H. Technology of recovery of iron and zinc from copper slag by RHF direct reduction. J. Mater. Metall. 2017, 16, 38. [Google Scholar]
  12. Cao, Z.-C.; Sun, T.-C.; Xue, X.; Liu, Z.-H. Recovery of Iron and zinc from copper slag by rotary hearth furnacewith anthracite as reductant. Min. Metall. Eng. 2017, 37, 74–78. [Google Scholar]
  13. Zhang, X.-H.; Wang, B.; Zhao, K.; Zhang, Q.-R.; Gong, X.-R.; Xing, H.-W. Formation and growth of iron and grains in direct reduction process of high silicon and iron waste slag. Iron Steel 2021, 56, 21–27. [Google Scholar]
  14. Li, S.; Pan, J.; Zhu, D.; Guo, Z.; Xu, J.; Chou, J. A novel process to upgrade the copper slag by direct reduction-magnetic separation with the addition of Na2CO3 and CaO. Powder Technol. 2019, 347, 159–169. [Google Scholar] [CrossRef]
  15. Chen, Q.-Z.; Zhu, R.; Wu, J.-D. Experimental study on desulfurization of copper slag by gasification. Ind. Heat. 2017, 46, 15–16+20. [Google Scholar]
  16. Tian, H.; Guo, Z.; Pan, J.; Zhu, D.; Yang, C.; Xue, Y.; Li, S.; Wang, D. Comprehensive review on metallurgical recycling and cleaning of copper slag. Resour. Conserv. Recycl. 2021, 168, 105366. [Google Scholar] [CrossRef]
  17. Erdenebold, U.; Sung, C.M.; Wang, J.P. Manufacture of low sulphur pig iron from copper slag. Arch. Metall. Mater. 2020, 65, 349–355. [Google Scholar]
  18. Liao, Z.-L.; Tang, P.; Zhang, B.; Zhang, H.-W.; Shi, X.-Y.; Li, Q.-J.; Hong, X. Experimental study on oxidation modification of copper slag at medium and low temperature. China Nonferrous Metall. 2012, 41, 74–78. [Google Scholar]
  19. Li, L.; Hu, J.H.; Wang, H. Application of the chloridizing roasting method for the removal of copper and sulphur from copper slags. Miner. Process. Extr. Metall. 2018, 127, 49–55. [Google Scholar] [CrossRef]
  20. Cao, Z.-M.; Song, X.-Y.; Qiao, Z.-Y. Thermodynamic modeling software FactSage and its application. Chin. J. Rare Met. 2008, 32, 216–219. [Google Scholar]
  21. Wan, X.-Y.; Qi, Y.-H.; Gao, J.-J.; Wu, B.-Q. Behavior of arsenic in arsenic- bearing copper slag by pyrolysis roasting process. Nonferrous Met. Eng. 2017, 7, 40–45. [Google Scholar]
  22. Wan, X.-Y.; Zhao, K.; Qi, Y.-H.; Gao, J.-J.; Shangguan, F.-Q. Thermodynamics of arsenic removal from arsenic-bearing copper slag. Min. Metall. Eng. 2017, 37, 73–76+80. [Google Scholar]
  23. Wang, H.; Zhang, X.; Shen, L.; Yang, S.; Luo, L.; Song, S. Liberation and enrichment of metallic iron from reductively roasted copper slag. JOM 2021, 73, 1013–1022. [Google Scholar] [CrossRef]

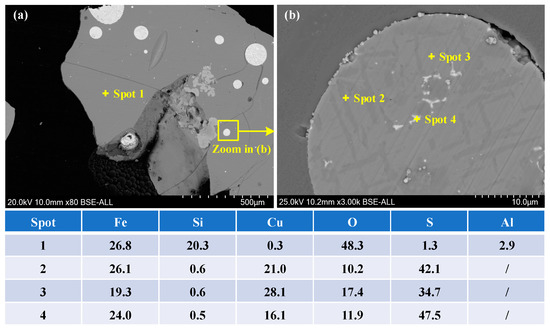

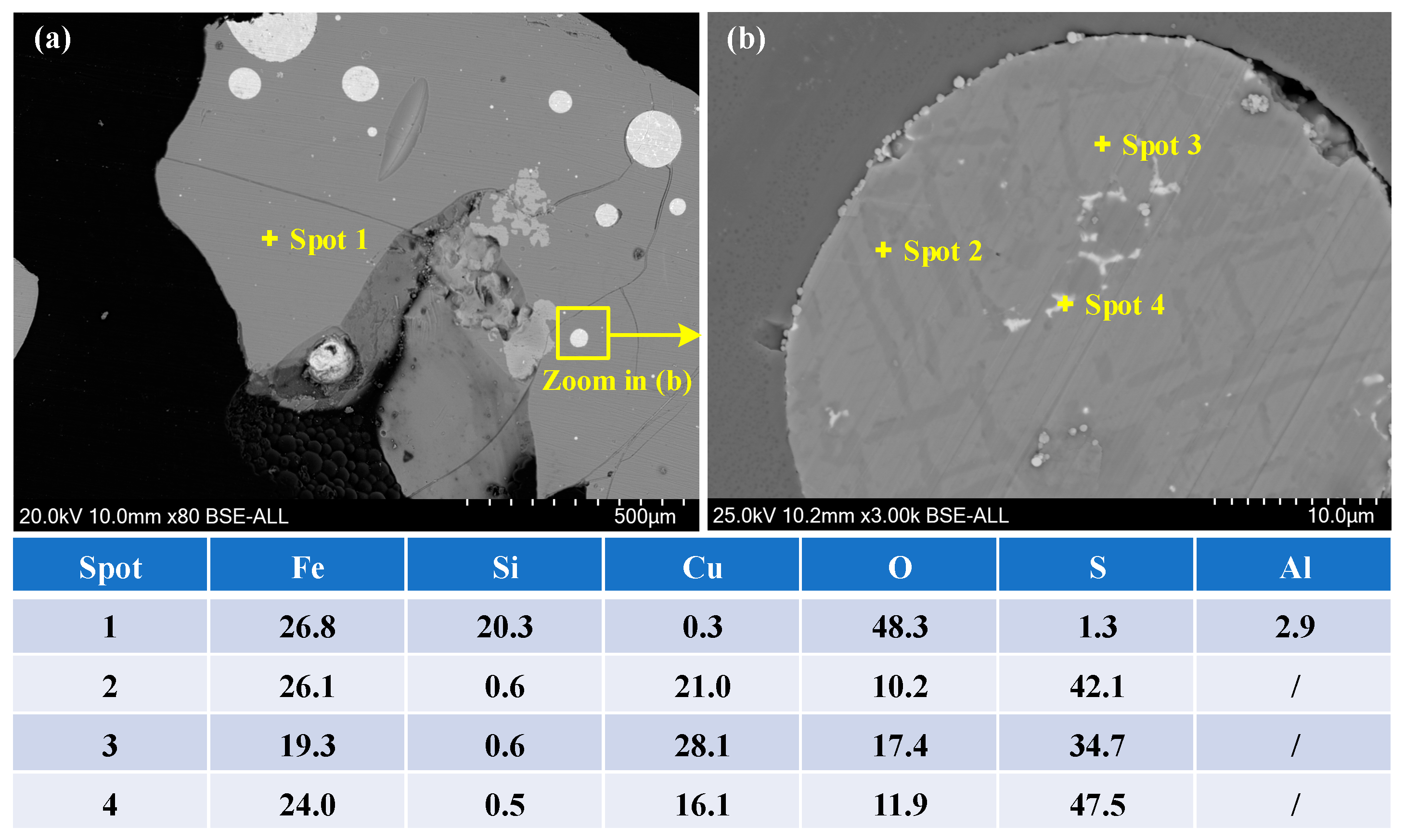

Figure 1. SEM-EDS analysis of copper slag (a) SEM in 80 times; (b) SEM in 3000 times.
Figure 1. SEM-EDS analysis of copper slag (a) SEM in 80 times; (b) SEM in 3000 times.
Materials 16 00042 g001

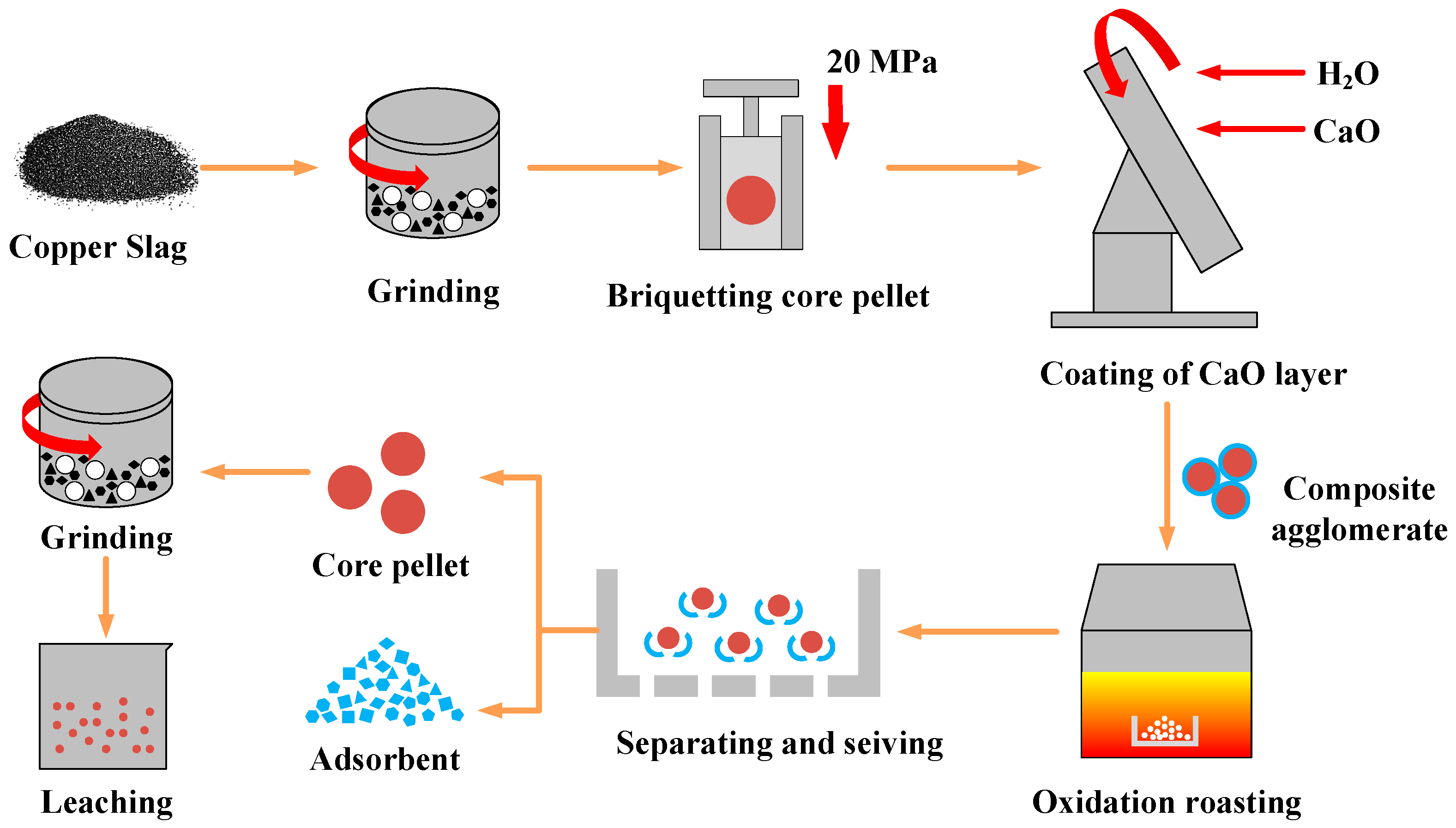

Figure 2. Schematic diagram of oxidation roasting-separation-leaching process.
Figure 2. Schematic diagram of oxidation roasting-separation-leaching process.
Materials 16 00042 g002

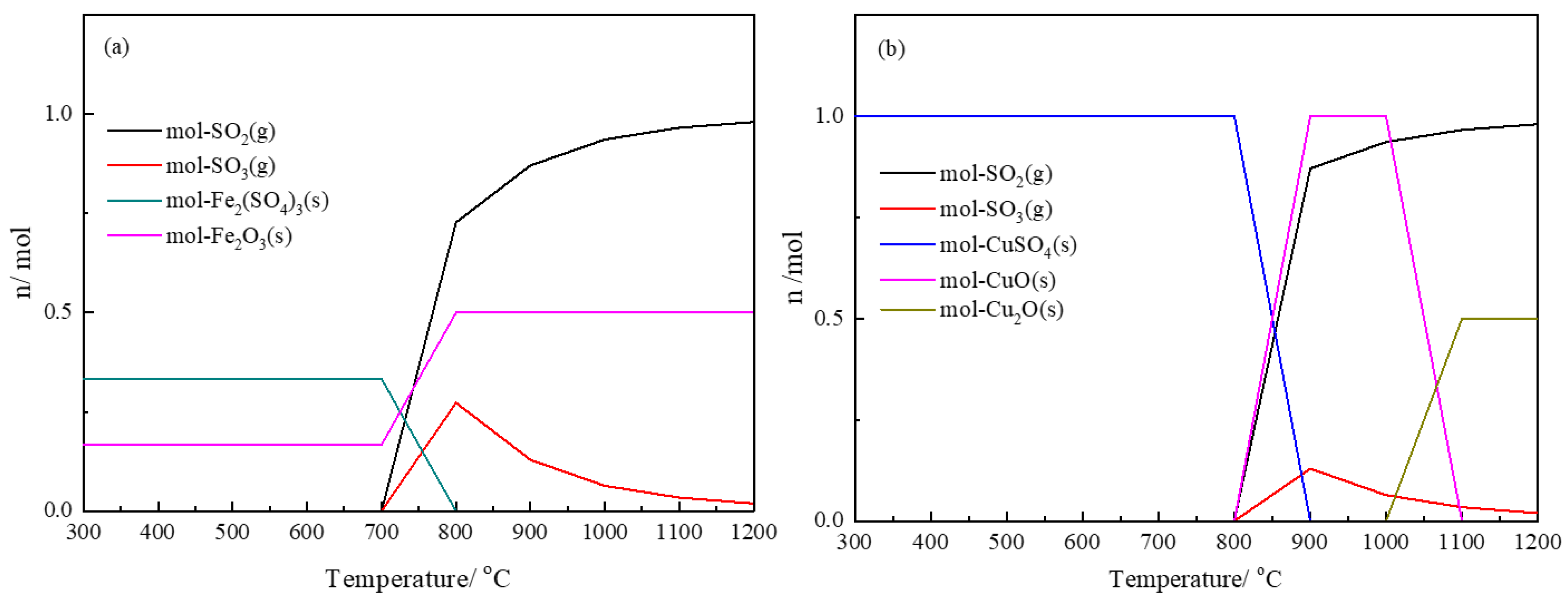

Figure 3. Desulfurization of matte in oxidation roasting (a) Oxidation of FeS; (b) oxidation of CuS.
Figure 3. Desulfurization of matte in oxidation roasting (a) Oxidation of FeS; (b) oxidation of CuS.
Materials 16 00042 g003

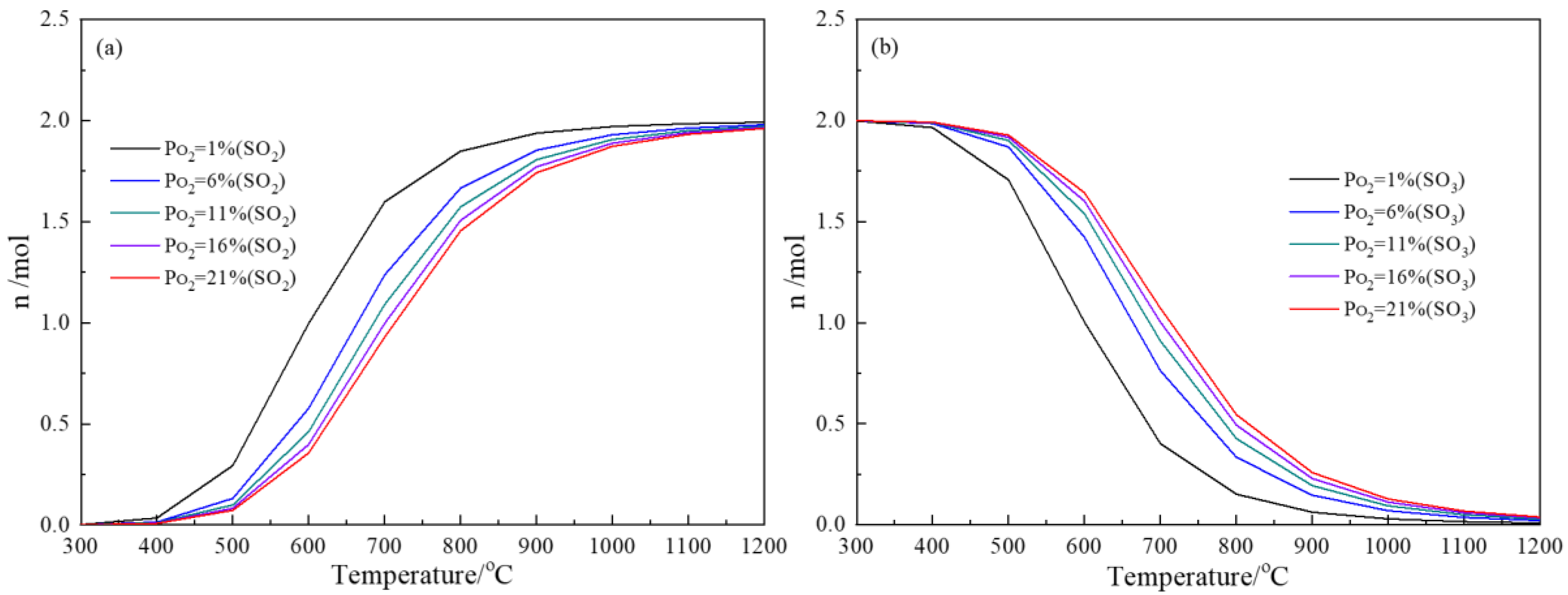

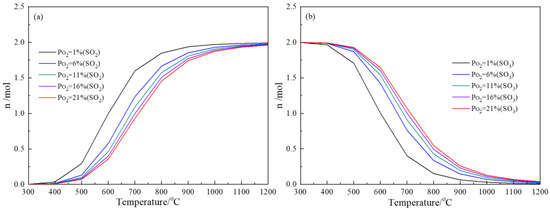

Figure 4. Formation of sulfur oxides in the oxidation of arsenic sulfide under different oxygen partial pressures and temperatures (a) SO2; (b) SO3.
Figure 4. Formation of sulfur oxides in the oxidation of arsenic sulfide under different oxygen partial pressures and temperatures (a) SO2; (b) SO3.
Materials 16 00042 g004

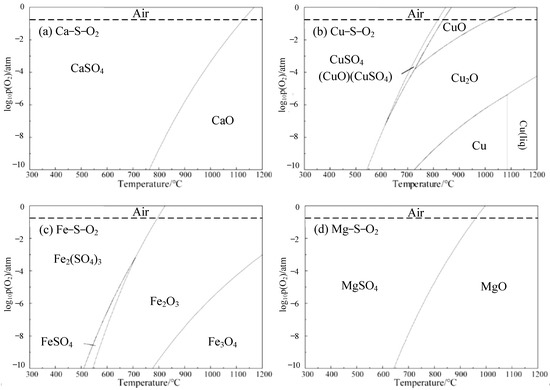

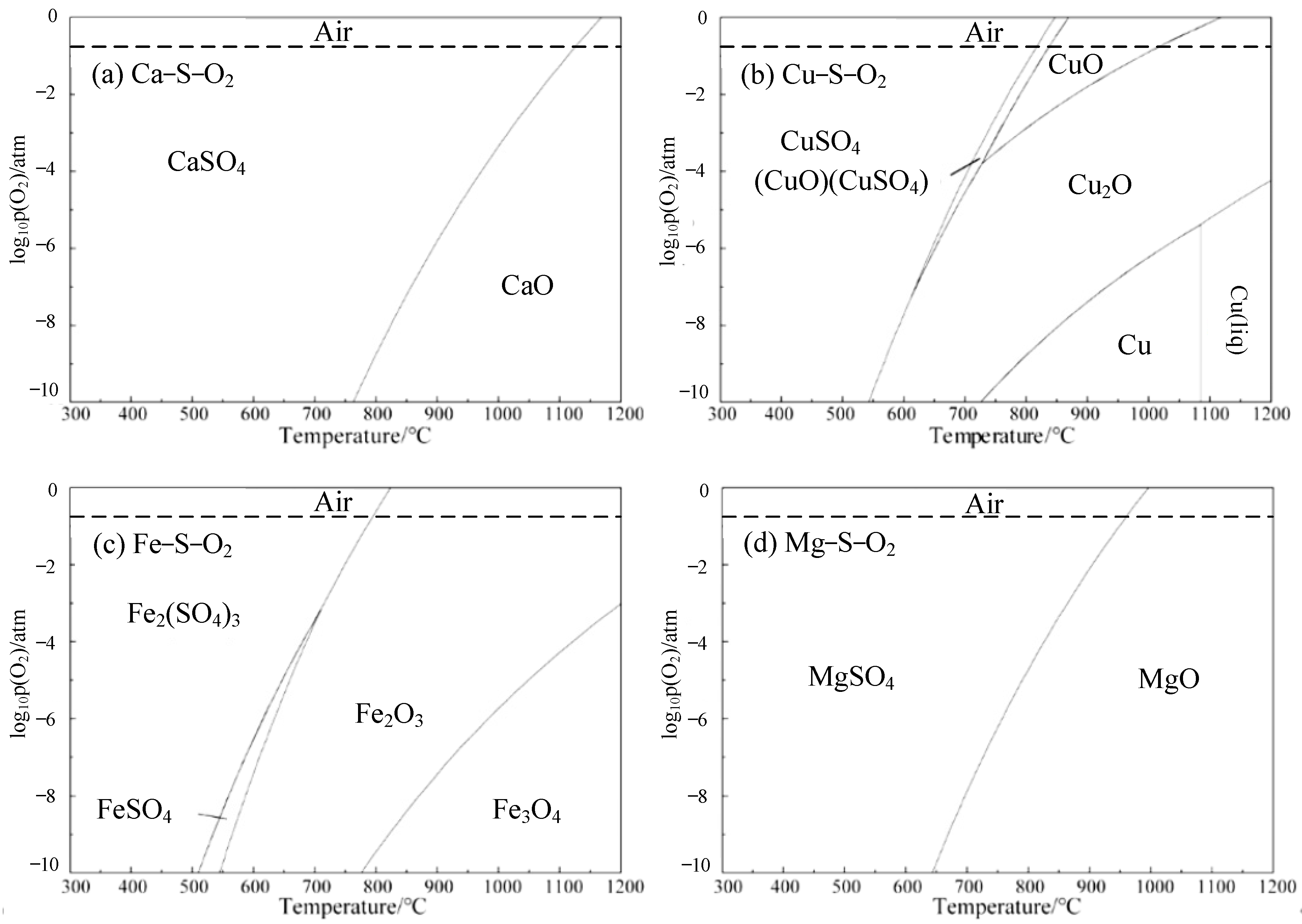

Figure 5. Predominance diagrams of various sulfate desulfurization systems (a)Ca−S−O2; (b)Cu−S−O2; (c)Fe−S−O2; (d)Mg−S−O2.
Figure 5. Predominance diagrams of various sulfate desulfurization systems (a)Ca−S−O2; (b)Cu−S−O2; (c)Fe−S−O2; (d)Mg−S−O2.
Materials 16 00042 g005

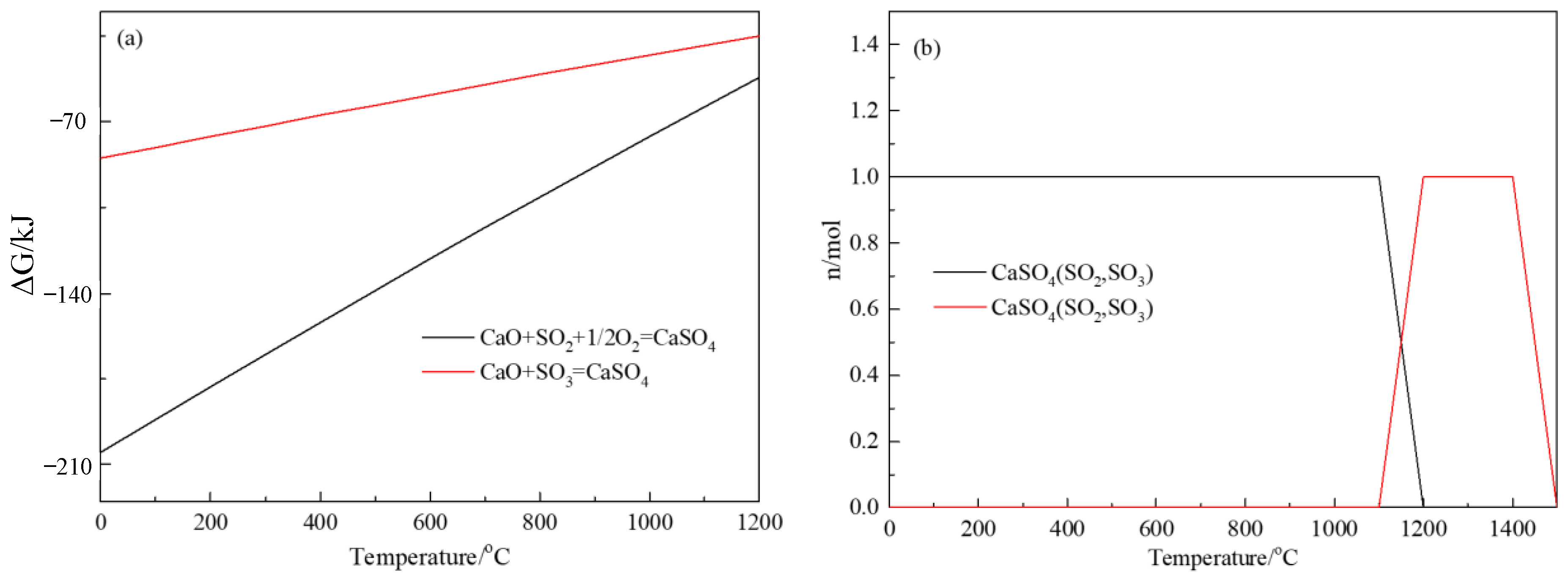

Figure 6. Gibbs free energy (a) and equilibrium diagram (b) of SO2 and SO3 adsorption reaction with calcium oxide.
Figure 6. Gibbs free energy (a) and equilibrium diagram (b) of SO2 and SO3 adsorption reaction with calcium oxide.
Materials 16 00042 g006

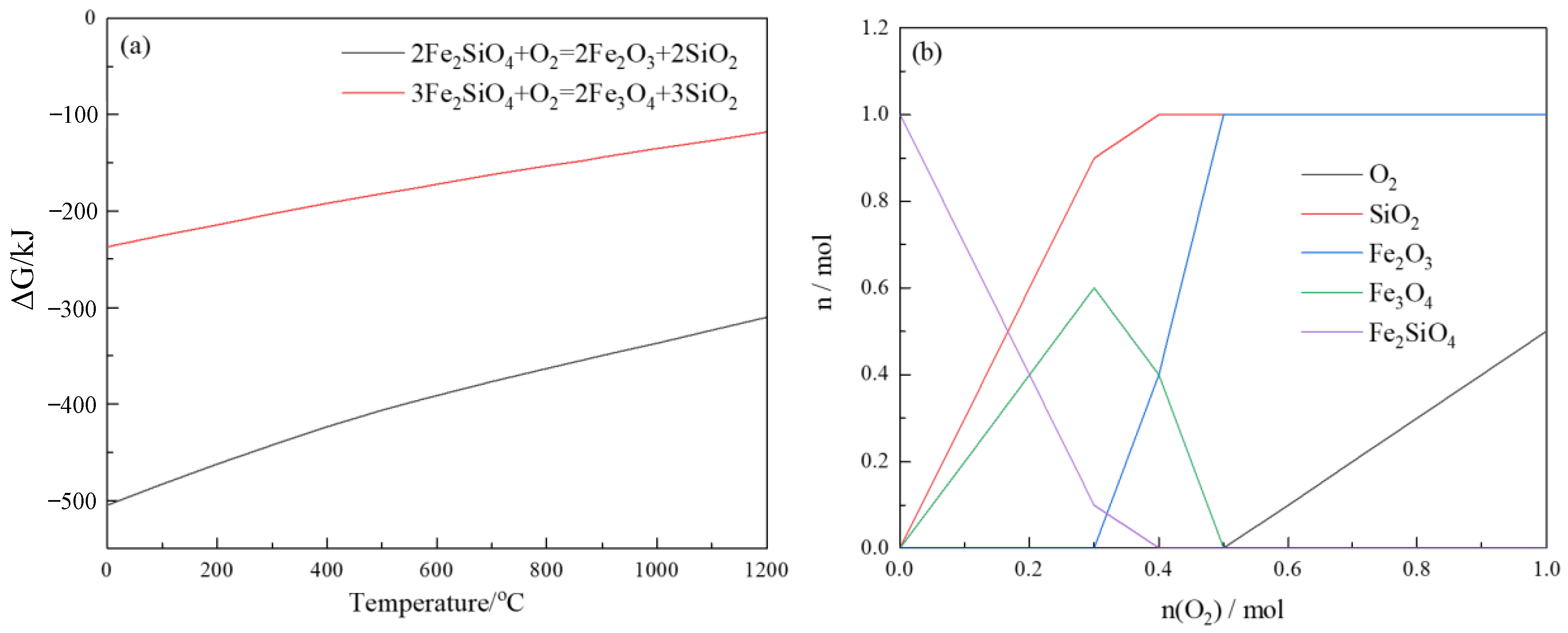

Figure 7. Gibbs free energy curves (a) and equilibrium diagram of Fe2SiO4 decomposition (b).
Figure 7. Gibbs free energy curves (a) and equilibrium diagram of Fe2SiO4 decomposition (b).
Materials 16 00042 g007

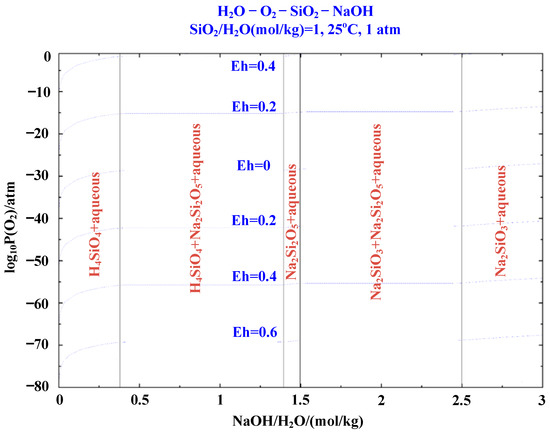

Figure 8. Predominance diagram of SiO2 alkali leaching.
Figure 8. Predominance diagram of SiO2 alkali leaching.
Materials 16 00042 g008

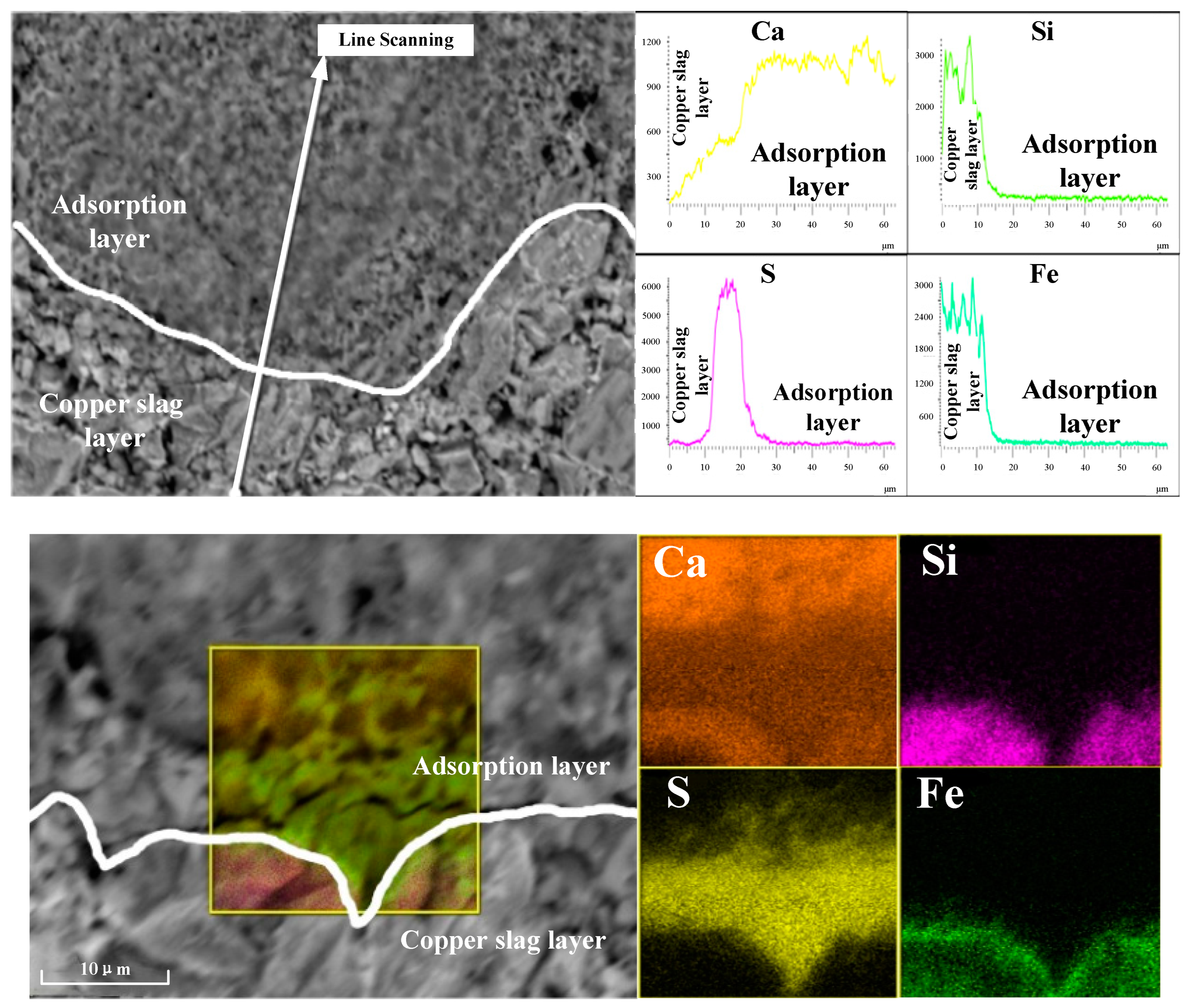

Figure 9. Elemental mapping distribution analysis of the interface between copper slag and calcium oxide.
Figure 9. Elemental mapping distribution analysis of the interface between copper slag and calcium oxide.
Materials 16 00042 g009

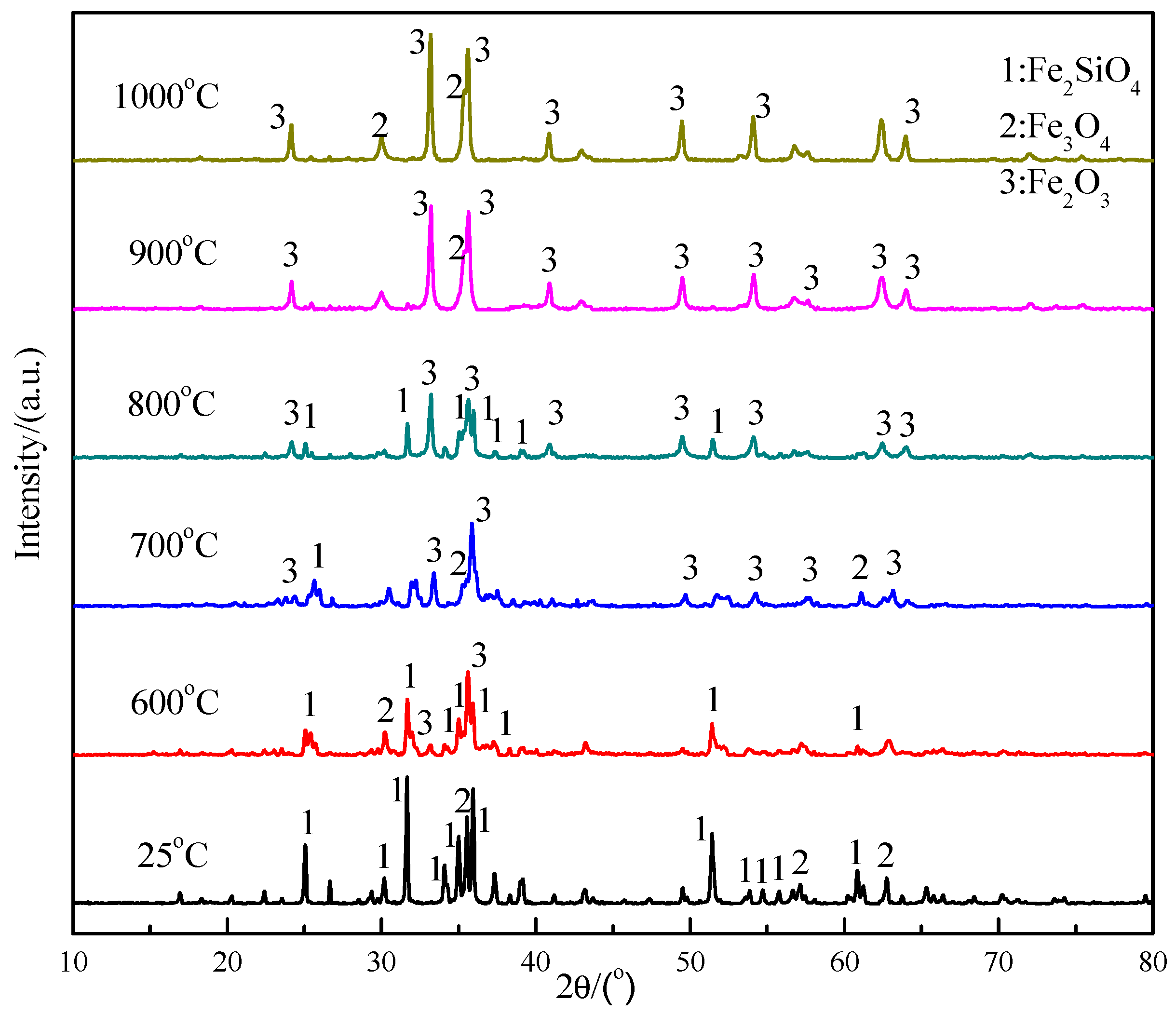

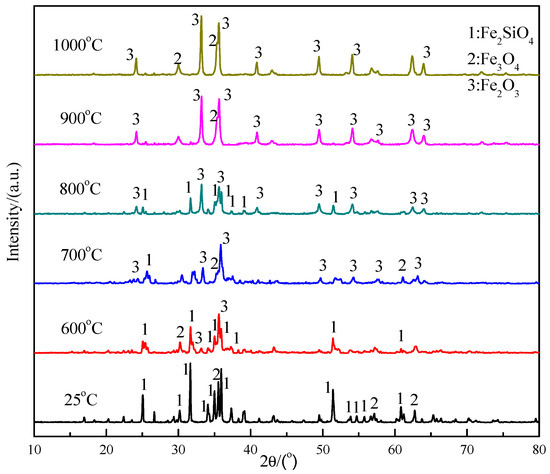

Figure 10. XRD pattern of copper slag in different temperature gradient.
Figure 10. XRD pattern of copper slag in different temperature gradient.
Materials 16 00042 g010

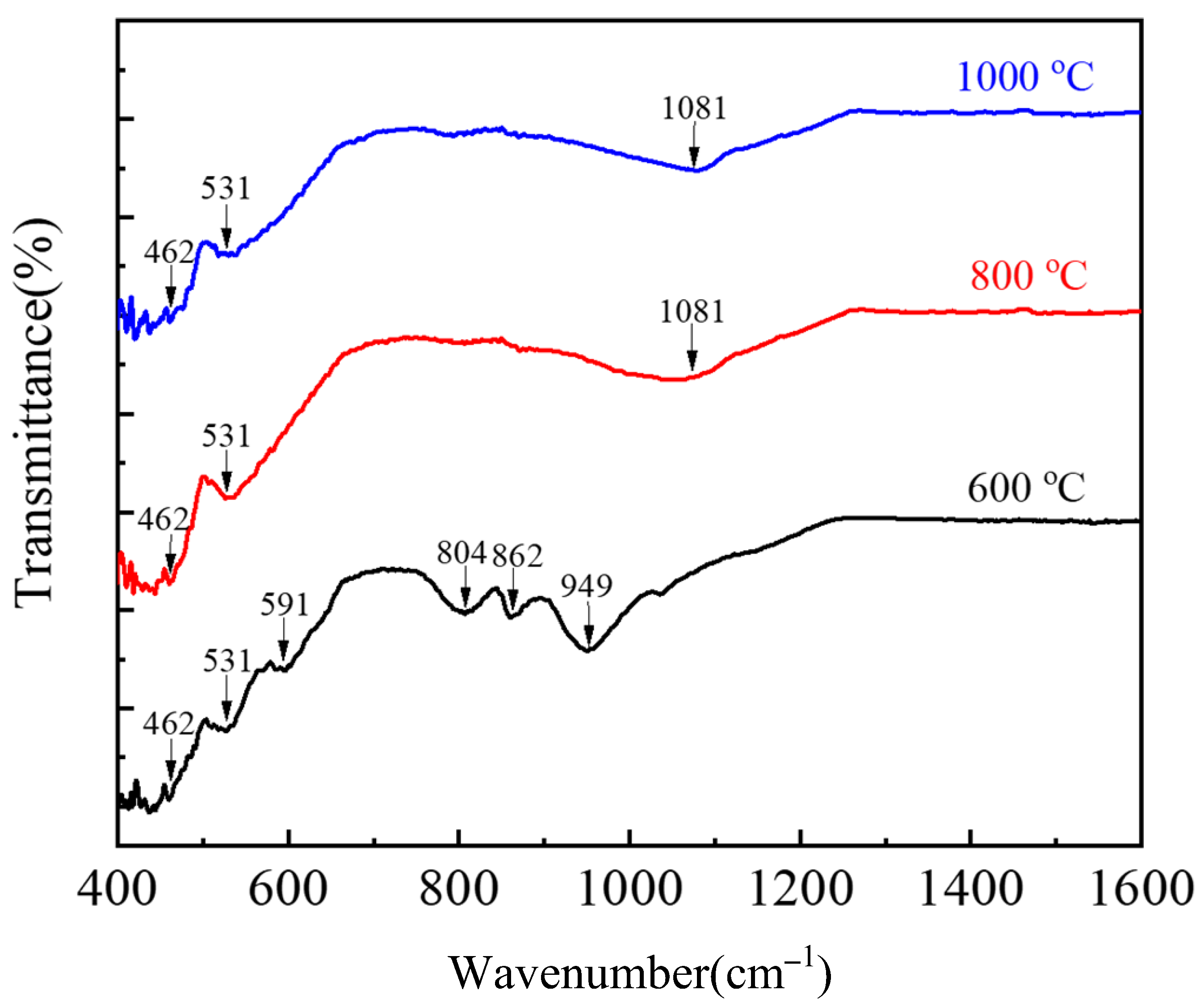

Figure 11. FTIR pattern of copper slag in different temperature gradient.
Figure 11. FTIR pattern of copper slag in different temperature gradient.
Materials 16 00042 g011

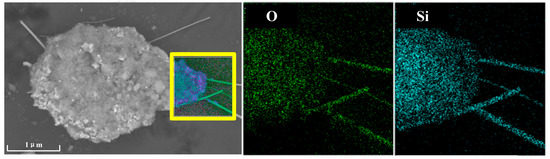

Figure 12. Electron microscope and energy spectrum analysis of white floc.
Figure 12. Electron microscope and energy spectrum analysis of white floc.
Materials 16 00042 g012

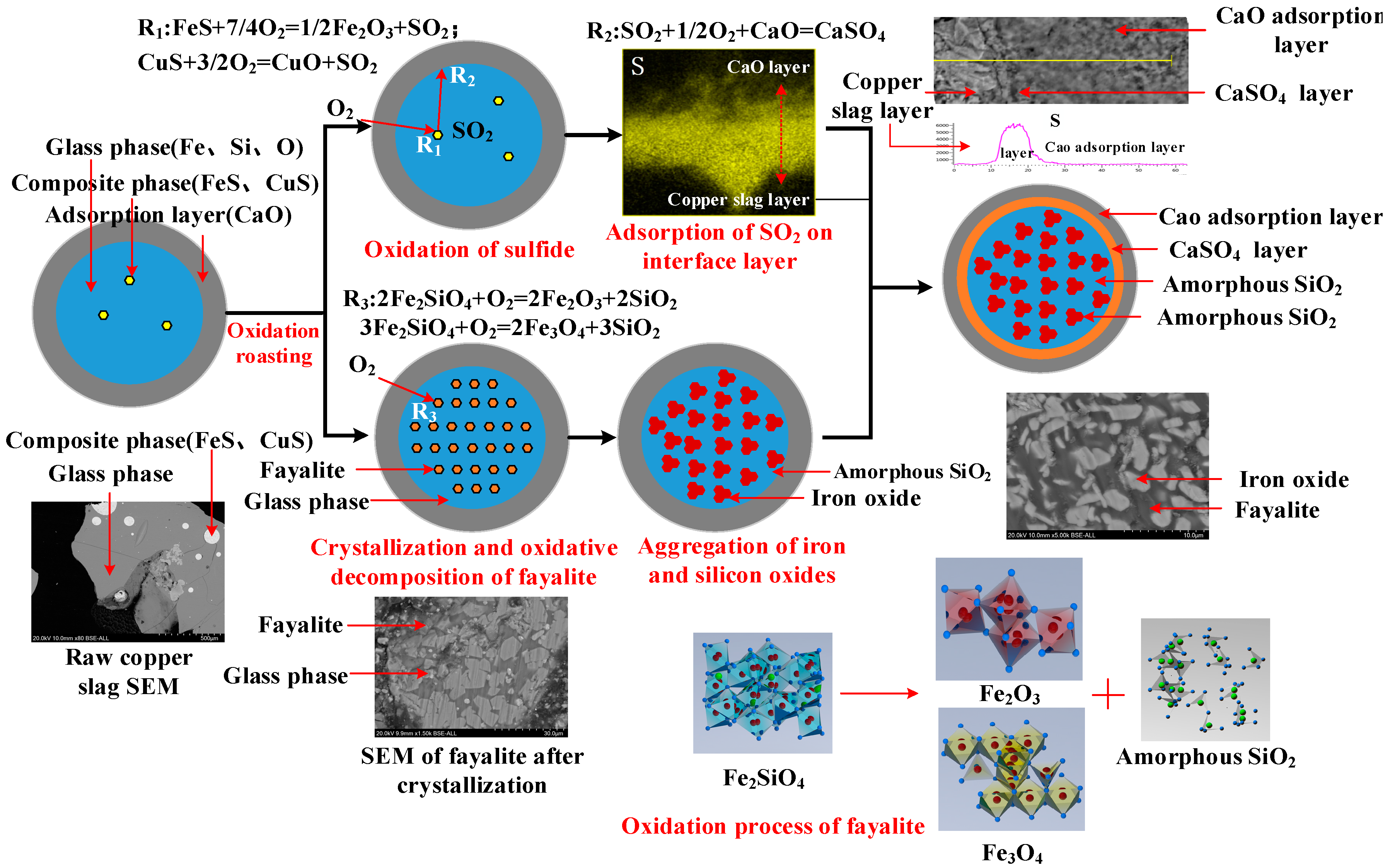

Figure 13. Reaction mechanisms of high-sulfur copper slag composite agglomerate in oxidation-roasting process.
Figure 13. Reaction mechanisms of high-sulfur copper slag composite agglomerate in oxidation-roasting process.
Materials 16 00042 g013
Table 1. Chemical compositions of copper slag (wt%).
Table 1. Chemical compositions of copper slag (wt%).
ItemsTFeMFeFeOSiO2Al2O3MgOCaO
%36.100.2342.7438.013.921.803.41
ItemsK2ONa2OPbAsCuSP
%0.770.440.310.140.681.190.038
