Review

Faceting/Roughening of WC/Binder Interfaces in Cemented Carbides: A Review

by
Boris B. Straumal
1,* and
Igor Konyashin
2
1
Chernogolovka Scientific Center, Osipyan Institute of Solid State Physics, Russian Academy of Sciences, Ac. Osipyan Str. 2, 142432 Chernogolovka, Russia
2
Element Six GmbH, Staedeweg 18-24, 36151 Burghaun, Germany
*
Author to whom correspondence should be addressed.
Materials 2023, 16(10), 3696; https://doi.org/10.3390/ma16103696
Submission received: 15 April 2023 / Revised: 8 May 2023 / Accepted: 9 May 2023 / Published: 12 May 2023
Browse Figures
Versions Notes

Abstract

:
Hardmetals (or cemented carbides) were invented a hundred years ago and became one of the most important materials in engineering. The unique conjunction of fracture toughness, abrasion resistance and hardness makes WC-Co cemented carbides irreplaceable for numerous applications. As a rule, the WC crystallites in the sintered WC-Co hardmetals are perfectly faceted and possess a truncated trigonal prism shape. However, the so-called faceting–roughening phase transition can force the flat (faceted) surfaces or interfaces to become curved. In this review, we analyze how different factors can influence the (faceted) shape of WC crystallites in the cemented carbides. Among these factors are the modification of fabrication parameters of usual WC-Co cemented carbides; alloying of conventional cobalt binder using various metals; alloying of cobalt binder using nitrides, borides, carbides, silicides, oxides; and substitution of cobalt with other binders, including high entropy alloys (HEAs). The faceting–roughening phase transition of WC/binder interfaces and its influence on the properties of cemented carbides is also discussed. In particular, the increase in the hardness and fracture toughness of cemented carbides correlates with transition of WC crystallites from a faceted to a rounded shape.

1. Introduction

Hardmetals (or cemented carbides) were invented in 1923 and later became one of the most important materials used in engineering. Typically, cemented carbides consist of brittle WC grains surrounded by a ductile, usually cobalt-based metallic binder. The WC-Co composites have high strength of above 3000 MPa (for 10 wt.% Co) [1], high density (≈15 g/cm3 [1,2]), excellent hardness (up to 20 GPa [1]) and fracture toughness (>10 MPa·m1/2 depending on a WC grain size [3]). This unique combination of fracture toughness, abrasion resistance and hardness makes WC-Co cemented carbides irreplaceable for numerous applications [4,5,6].
As a rule, the WC grains in the sintered WC-Co hardmetals are perfectly faceted and possess a truncated trigonal prism shape (see Figure 1 and Figure 2 and [4]). Nevertheless, the so-called faceting–roughening phase transition can force the flat (faceted) surfaces or interfaces to become curved [7,8]. The transition from flat to curved (rough) surfaces or interfaces can be proceeded through the modification of their misorientation or inclination [9,10], a change in temperature [11,12] or alloy composition [13].
We can see that these facts concerning faceting–roughening of interfaces [7,8,9,10,11,12,13] were observed in molybdenum [7,8], copper [9,11,13], aluminum [10] or zinc [12]. Nevertheless, they are of a very general nature and can be applied to other classes of materials. Since the WC grains are usually well faceted (Figure 1, Figure 2 and Figure 3), we can expect that different factors (such as temperature, pressure, composition, chemical or mechanical treatment) could modify the ideal faceted shape of WC crystallites observed in conventional WC-Co cemented carbides. Moreover, we can expect that the transition from a faceted to a rough shape among WC/Co interfaces could, in turn, modify the properties of WC-Co cemented carbides. For example, the penetrating crack in WC-Co cemented carbides can take the following actions: (1) permeate the WC grains, (2) move between the WC grains, (3) move through or between the Co grains or (4) move along the WC/Co interfaces (marked with arrows in Figure 3). Therefore, it is easy to imagine that the trajectory of crack can be controlled using the shape of WC/Co interfaces. In turn, the structure and properties of WC-Co cemented carbides can depend on the faceting–roughening of WC grains. To the best of our knowledge, such inter-relation was never analyzed in past studies. This issue constitutes the definite research gap that should be closed.
Closing this gap is the goal of this survey paper. Here, we will analyze how various factors can influence the faceted shape of WC grains in the cemented carbides. Relevant factors include modification of fabrication parameters of conventional WC-Co cemented carbides (Section 2); low alloying of conventional cobalt binder using various metals (Section 3); alloying of cobalt binder using nitrides, borides, carbides, silicides, oxides (Section 4); and substitution of cobalt with other binders (Section 5), including high entropy alloys (HEAs) (Section 6). We will also discuss how the faceting–roughening of WC/binder interphase boundaries can modify the properties of cemented carbides.

2. Modification of Fabrication Parameters of Conventional WC-Co Cemented Carbides

Wang et al. prepared the WC-12 wt.% Co cemented carbides using the selective electron beam melting (SEBM) [14]. Afterwards, the samples were sintered at 1400 °C under argon at 5 MPa. The microhardness obtained after the sintering stage (1686 HV-Vickers units) was lower than that of the SEBM-fabricated sample (1929 HV). Vise versa, the compressive strength after the sintering (1839 MPa) was higher than immediately after SEBM (1770 MPa). The average friction coefficient of as-fabricated samples was 0.548, with a wear rate of 0.0055 mm3. The sintering at 1400 °C increased these values by 59.7% and 142%, respectively.
In the micrographs shown in Figure 4, it is well visible that many WC crystallites in the WC-12 wt.% Co cemented carbide fabricated using SEBM had rounded corners [14]. They are shown with white arrows (Figure 4a). Such rounded corners were absent in the WC-Co cemented carbides sintered in a conventional process (Figure 1). Figure 4b shows that after additional sintering at 1400 °C, the rounded corners of WC crystallites were still present.
The original shape of WC single crystals after the carburization stage followed by gentle de-agglomeration was rounded; thus, if such WC single crystals are only mixed with Co and not subjected to milling leading to the formation of fine-grain WC fraction, the WC grains remain rounded in the microstructure after sintering. Cemented carbides with rounded carbide grains could be obtained via cladding coarse-grain WC powders with cobalt [15]. This made it possible to eliminate the formation of a fine WC fraction during milling of WC-Co graded powders. As a result, the recrystallization of such a fine-grain fraction of large WC grains during sintering could be suppressed, thus leading to the elimination of the process of faceting such large grains of tungsten carbide during sintering.
Thus, in general, the roughening of the WC/binder interfaces can be obtained either through eliminating the process of the fine-grain fraction formation during milling or, if such a fine-grain WC fraction forms, suppressing the process of its dissolution in a liquid binder, followed by its recrystallization and the growth of large facetted WC grains during sintering.
The changes in the shape of WC grains were also observed through the preparation of conventional WC-Co cemented carbides using laser powder bed fusion [16], hot isostatic pressing [17] and spark plasma sintering [18], as well as through varying the carbon [19] and cobalt content [20].

3. Alloying Conventional Cobalt Binders Using Various Metals

In [21], the conventional cobalt binder was alloyed with Al, Ni and W. The four alloys were prepared, i.e., Co-12 at.% Al-11 at.% W, Co-15 at.% Ni-12 at.% Al-11 at.% W, Co-30 at.% Ni-12 at.% Al-11 at.% W and Co-45 at.% Ni-12 at.% Al-11 at.% W. Thus, the Ni-to-Al atomic ratio varied (it was 0, 1.25, 2.5 and 3.75), while the Al-to-W atomic ratio was constant at 1.1. For synthesis, the elementary Co, Al, Ni and W powders used were of powder metallurgical standard grade. After infiltration, all samples were annealed for 48 h at 950 °C in argon atmosphere. Thus, the Ni-based superalloy was used as a binder. It was demonstrated that different γ/γ’ microstructures in binder of cemented carbides could be produced through different interactions between Al, Ni, W and C in the binder alloy. If the binders had no nickel, they also had no γ’ precipitates. The micrographs in [21] show that the shape of WC crystallites differs from truncated prism shown in Figure 1. It looks as if new facets appeared in the equilibrium shape. The corners of WC crystallites became ever-more rounded with increasing Ni content [21].
The addition of ruthenium to the cobalt binder can also modify the shape of WC grains. In [22,23], 0 to 6 wt.% Ru was added to the conventional WC-10 wt.% Co cemented carbides. When the ruthenium concentration increased, the fracture toughness, density, hardness and coercivity of the composites changed. When the ruthenium concentration reached 4%, the hardness increased from 1290 to 1330 (HV30), and the fracture toughness grew from 16.8 to 24.2 (MPa·m1/2), compared with the alloy without ruthenium. The analysis of microstructures of Ru-alloyed WC-10 wt.% Co cemented carbides (Figure 1 from [22]) shows that the addition of ruthenium modified the shape of WC crystallites, which became slightly rounded. This effect was maximal at 4% Ru and correlated, therefore, with maximal fracture toughness and hardness (see Table 1).
Hu et al. proposed to improve the high-temperature compression strength through adding activated TaC nanoparticles to ultra-coarse cemented carbides [26]. This effect was achieved through modulating the Co matrix using TaC nanoparticles, as well as through solid-solution strengthening using Ta atoms. The milled WC, Co and TaC powders were sintered for 80 min at 1480 °C in argon atmosphere at 60 bar. The addition of 0.8 wt.% TaC to the WC-8 wt.% Co indeed led to about a 20% increase in the compressive strength of in the temperature interval 600–1000 °C. The addition of tantalum also led to the rounding of the corners of WC crystallites (see Figure 5). The rounded edges of WC grains are marked in Figure 5 with the white arrows.
The faceting–roughening transitions of surfaces and interfaces, as well as modification of facets after addition of second component, is a well-known outcome for various metallic alloys [8,13,31,32]. This process occurs due to the different adsorption of doping atoms in different facets and rough portions of surfaces and interfaces. In [27], such differences were also observed using the high-resolution transmission electron microscopy (HRTEM) for cemented carbides. The WC-12Co-xVC (with x = 0, 1, 2, 4, 6, 8 wt.%) cemented carbides were synthesized using an in situ synthesis method. This method had the following steps: precursor formation, deoxidization and carbonization-sintering [27]. The VC addition led to an increase in Vickers hardness (see Table 1). HRTEM permitted us to observe the about 2 nm thin V-enriched adsorption layers in the WC/Co interphase boundaries (Figure 6). The thickness of the adsorption layers slightly increased with an increase in VC concentration from 2 to 6 wt.% (Figure 6). The interfacial vanadium segregation in V-doped WC-Co cemented carbides is facet-dependent [33]. The V-doped WC-Co cemented carbide samples were manufactured via vacuum sintering [33]. The WC (4.0 μm), VC (1.5 μm), and Co (0.8 μm) powders were used. The powders were mixed and ball-milled. The V content was 0.30 wt.%, while that of cobalt was 10 wt.%. The mixed powder was vacuum dried, pressed into pellets at 150 MPa and sintered in vacuum for 1 h at 1450 °C. The aberration-corrected scanning TEM was used to study the segregation of V at WC/Co interphase boundaries and WC/WC grain boundaries in WC-Co cemented carbides doped using vanadium on the atomic level [33]. It was found that the orientation of low-index planes controls the segregation of vanadium. This is particularly true for the basal [(0001) plane, see Figure 2b] and prismatic [(1,−1,0,0) and (0,−1,1,0) planes, see Figure 2b] planes. These facets of WC crystallites prevail in WC-Co composites. Vanadium solute atoms weakly segregated at the WC interfaces were terminated with prismatic (1,−1,0,0) or (0,−1,1,0) planes. The prismatic WC interfaces contained, at the outermost surface, a monolayer with only about 10 at.% V (Figure 7). In contrast, the basal planes of WC grains contained a segregation bilayer with a higher vanadium concentration of about 25 at.% (Figure 8). Moreover, the crystallographic dependence of interfacial segregation is valid for grain and interphase boundaries because grain boundaries frequently possess prismatic or basal facets of tungsten carbide grains [33].
Minor shape changes in WC grains were also observed through the alloying of conventional WC-Co cemented carbides using Fe [34,35], Fe–Ni [28,29,36,37,38,39], Fe–Ni–Cr [40,41], Fe–Ni–Cr3C2 [42], Re [43], Ni, Nb [44] and Ni–Al–W [45].

4. Alloying of Cobalt Binder Using Nitrides, Borides, Carbides, Silicides, Oxides

In [46], the carbothermal reduction–nitridation (CRN) technology was utilized to produce three different quaternary solid-solution powders of (Ti, M)(C1−x, Nx) (M = Ta, Nb, W, x = 0.15, 0.20 and 0.26). These powders had various nitrogen contents. The nitrogen concentration in these quaternary carbonitrides strongly influenced the composition, morphology and the grain size of the synthesized cemented carbides. It was also shown that the alloying the carbonitride could reduce the grain growth of WC. The mechanical properties of these hardmetals were improved with an increase in the nitrogen concentration. The analysis of micrographs shows that nitrogen content also influenced the shape of WC grains. At x = 0.15, the WC grains became slightly rounded. Through an increase in the nitrogen content towards x = 0.20 and 0.26, the sharp corners appear again. It is interesting that transverse rupture strength and hardness follow this non-monotonous behavior of interface faceting (see Table 1).
Agyapong et al. utilized the selective laser melting (SLM) to manufacture the WC-17 wt.% Co-based cemented carbides [47]. These cemented carbides were reinforced with hexagonal boron nitride (10, 5 and 3 vol.% of h-BN). Differently to the unmodified WC-17 wt.% Co samples, none of the reinforced composites experienced the undesirable W2C phase. Moreover, the hexagonal BN phases were not found in the samples. The Co–W–B and W–B phases were instead found. The alloying with h-BN drastically changed the shape of WC crystallites. Instead of truncated prisms, they developed a thin flat platelet shape. This transition was especially pronounced in the samples with 5 vol.% of h-BN. The samples with h-BN had better mechanical properties than the undoped WC-17 wt.% Co-based cemented carbides. The samples with 5 vol.% of h-BN possessed the highest fracture toughness of 6.97 MPa·m−1. This outcome occurred because the samples with 5 vol.% of h-BN had the high-volume fraction of WC platelets. Such platelets contained few basal planes. These facts resulted in lower concentrations of stacking faults interfering with crack propagation.
Minor changes in the shape of WC crystallites were also observed through the alloying of conventional WC-Co cemented carbides using Ti3SiC2 [48], WCoB [49], Al2O3, La2O3, Y2O3, CeO2 [50], NbC [44], CrC [51], graphene oxide [52], MgO [53], Al2O3, Y2O3 [21], Ti(C0.5, N0.5)-Mo [54], VC, Cr3C2 [55], multiwalled carbon nanotubes [56,57,58], SiC [59], graphene [60], VC [61], TiC [62,63], VC and (Ta, Nb)C [62]. It appeared to be challenging to maintain carbon nanotube and graphene during sintering, as carbon easily dissolves in both solid and liquid cobalt at elevated temperatures.

5. Substitution of Cobalt with Other Binders

The most radical modification of the shape of WC grains can be found in [64]. In this work, the gas-atomized Al–Si–10Mg alloy with mean particle size of 35 μm and cast tungsten carbide (CC, with mean particle size of 42 μm) powders were sintered using the selective laser melting (SLM) process. It is clearly visible in Figure 9 that, in combination with AlSi10Mg binder, the WC grains possessed a spherical shape, which was completely different from truncated trigonal prism shape of conventional cemented carbides with Co binder (Figure 1). The small individual particles of W(Si, Al)2, WC, W2C and Al4C3 carbides reprecipitated in the AlSi10Mg melt had an appearance close to the spherical CC particle (see Figure 10), as well as having a rounded and non-faceted shape.
Xu et al. substituted the cobalt binder for the 45Cr-18Ni alloy [25]. The WC–45 wt.% Cr–18 wt.% Ni alloys were manufactured using Binder Jetting, followed by sintering. The manufactured parts had a relatively high density of 98.63%, were crack-free and possessed hardness of >1200 HV and compressive strength of >2200 MPa. They had good corrosion and oxidation resistance, as well as optimal dimensional stability. Therefore, they could be applied as mould material when working at high temperatures. Such moulds require the high corrosion, wear and oxidation resistance. In the microstructure (see Figure 6 in [25]), it was remarkable that not only were the edges of the WC crystallites rounded (as shown in Figure 3), but about a half of WC/binder interphase boundaries were also curved.
In [65], the conventional WC-18 vol.% Co cemented carbide (Figure 11b) was compared with composite where the cobalt binder was substituted with FeAl. In Figure 11c, the microstructure is shown for the WC-25 vol.% FeAl cemented carbide produced via solid phase sintering (SPS). In Figure 11b, the edges of the WC grains were even less rounded than in the commercial WC-18 vol.% Co composite manufactured through t liquid phase sintering (LPS). The increased oxygen concentration (Figure 11d) and presence of carbide inhibitors (Figure 11e) during LPS made the WC grains even more rounded.
Minor changes in shape of WC crystallites were also observed through the substitution of cobalt binder in WC-based cemented carbides using Fe [66,67,68], Ni [69,70,71,72,73,74], Al [75,76], Fe–Mn [77,78,79,80,81,82], Fe–Cu [83], Fe–Ni–Mo [84], Ni3Al [85,86,87,88,89,90,91,92], Ni–Cr [93], Y2O3 [94], Al2O3 [85,95,96], Ni, CoNi, NiCr, CoCr, CoNiCr, NiCrMo [97], MgO [98,99], ZrO2 [100,101,102], La2O3 [103,104], iron aluminides [65,105,106,107,108,109], stainless steel [110,111,112,113,114,115] and titanium aluminides [116,117,118,119].

6. Faceting–Roughening of WC/HEA Binder Interfaces

Mueller-Grunz et al. substituted the usual Co-based binder using high-entropy alloys (HEAs) [30]. They used the conventional equimolar CoCrCuFeNi HEA and two different HEAs with aluminum additions, namely Al0.5CoCrCuFeNi and Al2CoCrCuFeNi [61]. The micrographs of these composites sintered in a vacuum for 2 h at 1500 °C is shown in Figure 12. It is easy to see that the shape of WC grains (they are grey in color in Figure 12) surrounded by HEAs is different from that of the conventional WC-Co composites. The WC grains surrounded by HEAs are rounded and their facets are a lot less flat than those shown in [120,121]. It appears that the WC grains surrounded by the Al0.5CoCrCuFeNi HEA binder are slightly more faceted than those surrounded by the equimolar CoCrCuFeNi HEA binder and Al2CoCrCuFeNi HEA binder with aluminum (see Figure 12). This result means that the faceting–roughening transition takes place at the WC/binder interfaces if one substitutes the simple cobalt-based binder using the HEA-based binders, presumably as a result of the suppression of recrystallization of the fine-grain WC fraction. The rounding of the WC/binder interfaces can further affect the crack initiation and propagation. This process can be especially important for cemented carbides subjected to high impact loads. Such WC change in the shape of carbide grains can, thus, deteriorate or improve the mechanical properties of WC-based cemented carbides.
The work of Qian et al. gives a good example of how the modification of WC grains’ shape can influence the mechanical properties of WC-based composite [122]. Qian et al. used vacuum sintering, followed by hot isostatic pressing (Sinter-HIP), to manufacture the WC-CoNiFe and WC-Co composites with different WC grain sizes [122]. The fracture toughness of WC-CoNiFe composite was higher than that of WC-Co and was related with the parameters of the hardmetal microstructure (Figure 13). The same was also true for the fatigue crack growth (FCG). It is clearly visible in Figure 13b how the crack propagation meets an area with a higher binder content. In this case, the FCG mode changes gradually from a transgranular (C) to an intergranular fracture (C/B and C/C) and, finally, to the fracture through the binder (B). The ductile ligament bridging and crack deflection increase the fracture toughness. The conditions required for this increase are an increase in the mean free path of the binder phase (λCo) and/or a decrease in the contiguity of the carbide phase. The main toughening mechanism for WC grains is the crack deflection (Figure 13a). The shape of WC grains allows strong crack deflection due to the characteristics of the WC grains. These grains have a close-packed hexagonal structure and only one slip family {1010} <1123> in the unit cell. Consequently, they possess only four independent slip systems in this slip family. As a result, during the crack propagation, if it meets the WC grain, it is much easier to destroy the grain boundary and not the WC grain itself because it is impossible that the slip surface and direction are the same in both grains. In this way, the intergranular crack propagation is dominant over the transgranular crack propagation. In turn, the crack propagation between WC grains would strongly depend on their shape. As we can see in Figure 13, crack paths following larger WC grains are much more tortuous. They frequently have deflections or branches. Therefore, the FCG can change from a cleavage-like brittle mode to a ductile dimple mode [122]. That outcome explains is why the fatigue sensitivity of WC-Co composites is related to their fracture toughness [122].
Qian et al. prepared the WC-10 wt.% Co-7 wt.% Ni-2 wt.% Fe-1 wt.%Cr cemented carbides with different carbon contents (4.5, 4.7 and 4.9 wt.% C) using the sintering in vacuum, followed by hot isostatic pressing (Sinter-HIP) [123]. The microstructure of these composites had the clusters of rounded WC crystallites, which were completely surrounded by η-phase (Figure 14a). The facets of rounded WC grains were less flat than the WC grains surrounded by the CoNiFeCrC binder (Figure 14b). Through increasing carbon content, the η-phase aggregated in large clusters. This coarsening of the η-phase lead the hardness to decrease and TRS to increase (see Table 1). The change in the WC grains’ shape could be at least partially responsible for this effect.
Minor shape changes among WC grains were also observed due to the substitution of cobalt binder in WC-based cemented carbides using various HEAs, such as CoNiFeCr [124,125], CoCuFeNi [126] and FeCoCrNiAl [127].

7. Summary of a Conducted Literature Survey and Definition of the Future Work

The above analysis shows that WC-based cemented carbides, also known as hardmetals, have great potential for further development. In particular, it outlines such a non-trivial property as the shape of individual WC grains. In the classical WC-based cemented carbides with cobalt binder, the WC grains have a truncated trigonal prism shape with very flat side surfaces (Section 1). In turn, these flat side surfaces form very sharp edges or ripples. However, various factors can change this ideal shape of WC grains. Firstly, the modification of fabrication parameters of conventional WC-Co cemented carbides can also change the shape of WC grains (Section 2). For example, many WC grains in the WC-12 wt.% Co cemented carbide fabricated via selective electron beam melting SEBM had rounded corners. Moreover, after additional sintering at 1400 °C, the rounded corners of WC crystallites were still present. The changes in the shape WC grains were also observed through the preparation of conventional WC-Co cemented carbides using laser powder bed fusion, hot isostatic pressing and spark plasma sintering, as well as through varying WC grain size in WC-Co cemented carbides with the same cobalt content along with carbon and cobalt content.
The alloying of conventional cobalt binder using various metals is another way to modify the shape of WC grains (Section 3). For example, the conventional cobalt binder was alloyed with Al, Ni and W in such a way that the Ni-to-Al atomic ratio varied (it was 0, 1.25, 2.5 and 3.75) and the Al-to-W atomic ratio was constant at 1.1 [21]. As a result, the new facets appeared in the equilibrium shape, and the corners of WC crystallites became more and more rounded with increasing nickel content. The addition of ruthenium to the cobalt binder modified the shape of WC grains [22,23]. They became slightly rounded. This effect was correlated through obtaining the maximal fracture toughness and hardness. The addition of vanadium increased hardness and decreased fracture toughness [27,33]. Vanadium strongly segregated at the WC/WC grain boundaries and WC/Co interphase boundaries. TEM studies witnessed that this segregation was facet-dependent.
The alloying of cobalt binder using nitrides, borides, carbides, silicides, oxides is another way to improve the properties of WC-based cemented carbides and change the shape of WC-Co interfaces (Section 4). In [28], three different quaternary solid-solution powders (Ti, M)(C1−x, Nx) were produced with various nitrogen contents. The nitrogen content influenced the shape of WC crystallites. At x = 0.15, the WC grains became slightly rounded. Through an increase in the nitrogen content towards x = 0.20 and 0.26, the sharp corners appeared again. In turn, the transverse rupture strength and hardness followed this non-monotonous behavior of interface faceting. The WC-17 wt.% Co-based cemented carbides were manufactured via selective laser melting and reinforced with hexagonal boron nitride h-BN (10, 5 and 3 vol.%). The alloying with h-BN drastically changed the shape of WC crystallites. Instead of truncated prisms, they had a thin flat platelet shape. This transition was especially pronounced in the samples with 5 vol.% of h-BN. Such platelets contained only a few basal planes and decreased the number of stacking faults interfering with crack propagation. The samples with h-BN had better mechanical properties than the undoped WC-17 wt.% Co-based cemented carbides.
The cobalt binder could be totally substituted with other binders, including high entropy alloys (Section 5 and Section 6). The most radical modification of the shape of WC grains took place when the cobalt binder is substituted with Al–Si–10Mg alloy [64]. In this case, the WC grains had a spherical shape, which was completely different from truncated trigonal prisms in conventional cemented carbides with the Co binder. The obtained material had high Vickers hardness, good compression strength and reasonable abrasion wear resistance. The cemented carbide with the cobalt binder substituted using the 45Cr–18Ni alloy had good corrosion and oxidation resistance, as well as optimal dimensional stability [128]. Therefore, they could be applied as mould materials working at high temperatures. Such moulds require the high corrosion, wear and oxidation resistance. In these composites, not only did the edges of the WC crystallites become rounded, but about half of WC/binder interphase boundaries were also curved. The substitution of the conventional Co-based binder using high-entropy alloys (equimolar CoCrCuFeNi HEA and two different HEAs with aluminum additions Al0.5CoCrCuFeNi and Al2CoCrCuFeNi) also strongly changed the shape of WC grains [61]. They became rounded and, therefore, affected the crack initiation and propagation. Therefore, the fatigue crack growth could change from a cleavage-like brittle mode to a ductile dimple mode [25]. That result explains why the fatigue sensitivity of WC-Co composites is related to their fracture toughness.
Thus, various correlations between the shape of WC grains and mechanical properties of WC-Co cemented carbides were found in the above literature survey. Roughly speaking, the WC-Co cemented carbides with round (or less faceted) WC grains possessed better mechanical properties. The faceting of WC grains can be influenced through various methods of alloying and sintering. Therefore, this approach, which is known as grain boundary engineering, can be successfully applied to tailor the microstructure and, thus, improve the properties of WC-Co cemented carbides.

8. Conclusions

The WC-based cemented carbides possess the potential for further development. In particular, development can be performed with purposeful change in shape of individual WC grains. Usually, the grains have a truncated trigonal prism shape with flat facets and very sharp edges or ripples. This ideal shape of WC grains can be obtained in different ways. Useful strategies include the adjustment of production parameters of conventional WC-Co cemented carbides; alloying of conventional cobalt binder using various metals; alloying of cobalt binder using nitrides, borides, carbides, silicides, oxides; and the substitution of cobalt with other binders, including high entropy alloys. Instead of conventional truncated trigonal prisms, it is possible to obtain WC grains that have a thin flat plate shape. The sharp edges can become rounded through use of suitable compositions and production parameters, while the flat surfaces can become curved. In extreme cases, the WC crystallites can transform into spheres. Such changes can modify the ways for dislocation glide as well as the initiation and propagation of cracks. As a result, various mechanical properties can also be changed. In particular, one can see that an increase in the fracture toughness and hardness of cemented carbides correlates with a transition from a faceted to rounded shape for WC grains. Therefore, the investigation of the correlations between the shape of WC grains and various properties of WC-based cemented carbides is promising with respect to their further development.

Funding

This research was funded by Russian Science Foundation, grant number 22-22-00511, https://rscf.ru/project/22-22-00511/ (accessed on 10 January 2023).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors thank L.N. Shchur, E. Konstantinova and D. Kagramanian for providing fruitful discussions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Cardarelli, F. Materials Handbook: A Concise Desktop Reference; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  2. Haynes, W.M. CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  3. Swab, J.J.; Wright, J.C. Application of ASTM C1421 to WC-Co fracture toughness measurement. Int. J. Refract. Met. Hard Mater. 2016, 58, 8–13. [Google Scholar] [CrossRef]
  4. Konyashin, I.; Ries, B.; Lachmann, F.; Cooper, R.; Mazilkin, A.; Straumal, B.; Aretz, A. Hardmetals with nano-grained reinforced binder: Binder fine structure and hardness. Int. J. Refractory Metals Hard Mater. 2008, 26, 583–588. [Google Scholar] [CrossRef]
  5. Konyashin, I.; Lachmann, F.; Ries, B.; Mazilkin, A.A.; Straumal, B.B.; Kübel, C.; Llanes, L.; Baretzky, B. Strengthening zones in the Co matrix of WC–Co cemented carbides. Scripta Mater. 2014, 83, 17–20. [Google Scholar] [CrossRef]
  6. Sahoo, B.N.; Mohanty, A.; Gangopadhyay, S.; Vipindas, K. An insight into microstructure and machining performance of deep cryogenically treated cemented carbide inserts. J. Manuf. Process. 2020, 58, 819–831. [Google Scholar] [CrossRef]
  7. Straumal, B.B.; Semenov, V.N.; Kogtenkova, O.A.; Watanabe, T. Pokrovsky-Talapov critical behavior and rough-to-rough ridges of the Σ3 coincidence tilt boundary in Mo. Phys. Rev. Lett. 2004, 92, 196101. [Google Scholar] [CrossRef]
  8. Straumal, B.B.; Kogtenkova, O.A.; Gornakova, A.S.; Sursaeva, V.G.; Baretzky, B. Review: Grain boundary faceting-roughening phenomena. J. Mater. Sci. 2016, 51, 382–404. [Google Scholar] [CrossRef]
  9. Ernst, F.; Finnis, M.W.; Koch, A.; Schmidt, C.; Straumal, B.; Gust, W. Structure and energy of twin boundaries in copper. Z. Metallk. 1996, 87, 911–922. [Google Scholar]
  10. Protasova, S.G.; Kogtenkova, O.A.; Straumal, B.B. Faceting of individual Σ3 Grain boundaries in Al. Mater. Sci. Forum 2007, 558–559, 949–954. [Google Scholar] [CrossRef]
  11. Straumal, B.B.; Polyakov, S.A.; Bischoff, E.; Gust, W.; Mittemeijer, E.J. Faceting of Σ3 and Σ9 grain boundaries in copper. Interface Sci. 2001, 9, 287–292. [Google Scholar] [CrossRef]
  12. Straumal, B.B.; Polyakov, S.A.; Mittemeijer, E.J. Temperature influence on the faceting of Σ3 and Σ9 grain boundaries in Cu. Acta Mater. 2006, 54, 167–172. [Google Scholar] [CrossRef]
  13. Straumal, B.B.; Polyakov, S.A.; Bischoff, E.; Gust, W.; Baretzky, B. Faceting of Σ3 and Σ9 grain boundaries in Cu–Bi alloys. Acta Mater. 2005, 53, 247–254. [Google Scholar] [CrossRef]
  14. Wang, J.; Han, Y.; Zhao, Y.; Li, X.; Yi, D.; Guo, Z.; Cao, Y.; Liu, B.; Tang, H.P. Microstructure and properties of WC-12Co cemented carbide fabricated via selective electron beam melting. Int. J. Refract. Met. Hard Mater. 2022, 106, 105847. [Google Scholar] [CrossRef]
  15. Akerman, J.; Ericson, T. Cemented Carbide Body with Improved High Temperatures and Thermomechanical Properties. US Patent 6,126,709, 24 October 2001. [Google Scholar]
  16. Zhang, L.; Hu, C.; Yang, Y.; Misra, R.D.K.; Kondoh, K.; Lu, Y. Laser powder bed fusion of cemented carbides by developing a new type of Co coated WC composite powder. Addit. Manufact. 2022, 55, 102820. [Google Scholar] [CrossRef]
  17. Rabouhi, H.; Eyidi, D.; Khelfaoui, Y.; Khireddine, A. Microstructural and mechanical characterisation of WC–Co alloys elaborated by liquid phase sintering and hot isostatic pressing: Study of WC crystallites size evolution. Can. Metall. Q. 2022, 61, 66240. [Google Scholar] [CrossRef]
  18. Chen, Z.; Wang, Z.; Wang, B.; Yuan, J.; Huang, L.; Yin, Z. Microstructure and properties of WC-8Co cemented carbides prepared by multiple spark plasma sintering. Int. J. Appl. Ceram. Technol. 2021, 18, 2010–2019. [Google Scholar] [CrossRef]
  19. Fries, S.; Burkamp, K.; Broeckmann, C.; Richter, S.; Westermann, H.; Süess, B. Influence of carbon content on fatigue strength of cemented carbides. Int. J. Refract. Met. Hard Mater. 2022, 105, 105823. [Google Scholar] [CrossRef]
  20. Shi, K.-H.; Zhou, K.-C.; Li, Z.-Y.; Zan, X.-Q.; Dong, K.-L.; Jiang, Q. Microstructure and properties of ultrafine WC–Co–VC cemented carbides with different Co contents. Rare Met. 2022, 41, 1955–1960. [Google Scholar] [CrossRef]
  21. Edtmaier, C.; Wolf, M.; de Oro Calderon, R.; Schubert, W.-D. Effect of nickel on the formation of γ/γ’ microstructures in WC/Co–Ni–Al–W. Int. J. Refract. Met. Hard Mater. 2021, 100, 105652. [Google Scholar] [CrossRef]
  22. Zeng, H.; Liu, W.; Han, F.; Wie, C. Microstructures and properties of WC–10Co tuned by Ru integration and ball-milling. Mater. Sci. Technol. 2022, 21, 7169. [Google Scholar] [CrossRef]
  23. Zeng, H.; Liu, W.; Wei, C. Influence of Ru on the microstructure and performance of WC–Co cemented carbides. Mater. Sci. Technol. 2022, 38, 940–946. [Google Scholar] [CrossRef]
  24. Zhou, P.-F.; Xiao, D.-H.; Yuan, T.-C. Comparison between ultrafinegrained WC–Co and WC–HEA-cemented carbides. Powder Metall. 2017, 60, 1–6. [Google Scholar] [CrossRef]
  25. Xu, Z.; Meenashisundaram, G.K.; Ng, F.L. High density WC–45Cr–18Ni cemented hard metal fabricated with binder jetting additive manufacturing. Virtual Phys. Prototyp. 2022, 17, 92–104. [Google Scholar] [CrossRef]
  26. Hu, H.; Liu, X.; Chen, J.; Lu, H.; Liu, C.; Wang, H.; Luan, J.; Jiao, Z.; Liu, Y.; Song, X. High-temperature mechanical behavior of ultra-coarse cemented carbide with grain strengthening. J. Mater. Sci. Technol. 2022, 104, 8–18. [Google Scholar] [CrossRef]
  27. Wang, K.-F.; Yang, X.-H.; Deng, X.-C.; Chou, K.-C.; Zhang, G.-H. Enhancement of the mechanical properties of ultrafine-grained WC-Co cemented carbides via the in-situ generation of VC. J. Alloys Compd. 2022, 903, 163961. [Google Scholar] [CrossRef]
  28. Upadhyaya, G.S.; Bhaumik, S.K. Sintering of submicron WC–10wt.% Co hard metals containing nickel and iron. Mater. Sci. Eng. A 1988, 105, 249–256. [Google Scholar] [CrossRef]
  29. Gonzalez, R.; Echeberrıa, J.; Sanchez, J.M.; Castro, F. WC-(Fe, Ni, C) hardmetals with improved toughness through isothermal heat treatments. J. Mater. Sci. 1995, 30, 3435–3439. [Google Scholar] [CrossRef]
  30. Mueller-Grunz, A.; Alveen, P.; Rassbach, S.; Useldinger, R.; Moseley, S. The manufacture and characterization of WC-(Al)CoCrCuFeNi cemented carbides with nominally high entropy alloy binders. Int. J. Refract. Met. Hard Mater. 2019, 84, 105032. [Google Scholar] [CrossRef]
  31. Schölhammer, J.; Baretzky, B.; Gust, W.; Mittemeijer, E.; Straumal, B. Grain boundary grooving as an indicator of grain boundary phase transformations. Interface Sci. 2001, 9, 43–53. [Google Scholar] [CrossRef]
  32. Sursaeva, V.G.; Straumal, B.B.; Gornakova, A.S.; Shvindlerman, L.S.; Gottstein, G. Effect of faceting on grain boundary motion in Zn. Acta Mater. 2008, 56, 2728–2734. [Google Scholar] [CrossRef]
  33. Ye, X.; Xiang, C.; Nie, H.; Lei, H.; Du, Y.; Xing, W.; Luo, J.; Yu, Z. Facet-dependent interfacial segregation behavior of V-doped WC-Co cemented carbides. Ceram. Int. 2022, 48, 11251–11256. [Google Scholar] [CrossRef]
  34. Schubert, W.D.; Fugger, M.; Wittmann, B.; Useldinger, R. Aspects of sintering of cemented carbides with Fe-based binders. Int. J. Refract. Met. Hard Mater. 2015, 49, 110–123. [Google Scholar] [CrossRef]
  35. Agte, C. Entwicklung der Hartmetalltechnik waehrend der letzten Jahre in der Deutschen Demokratischen Republik. Neue Huette 1957, 9, 537–544. [Google Scholar]
  36. Moskowitz, D. Abrasion resistant iron-nickel bonded tungsten carbide. Mod. Dev. Powder Metall. 1977, 10, 543–551. [Google Scholar]
  37. Kakeshita, T.; Wayman, C.M. Martensitic transformations in cermets with a metastable austenitic binder I: WC(Fe Ni C). Mater. Sci. Eng. A 1991, 141, 209–219. [Google Scholar] [CrossRef]
  38. Gao, Y.; Luo, B.H.; Bai, Z.H.; Zhu, B.; Ouyang, S. Effects of deep cryogenic treatment on the microstructure and properties of WC Fe Ni cemented carbides. Int. J. Refract. Met. Hard Mater. 2016, 58, 42–50. [Google Scholar] [CrossRef]
  39. Chang, S.H.; Chen, S.L. Characterization and properties of sintered WC–Co and WC–Ni–Fe hard metal alloys. J. Alloys Compd. 2014, 585, 407–413. [Google Scholar] [CrossRef]
  40. Fernandes, C.M.; Senos, A.M.R.; Castanho, J.M.; Vieira, M.T. Effect of the Ni chemical distribution on the reactivity and densification of WC-(Fe/Ni/Cr) composite powders. Mater. Sci. Forum 2006, 514, 633–637. [Google Scholar] [CrossRef]
  41. Fernandes, C.M.; Popovich, V.; Matos, M.; Senos, A.M.R.; Vieira, M.T. Carbide phases formed in WC-M (M=Fe/Ni/Cr) systems. Ceram. Int. 2009, 35, 369–372. [Google Scholar] [CrossRef]
  42. Zhao, H.; Shen, W.; Tian, H.; Xu, G.; Du, Y. Investigation of ultrafine WC–Co–Fe–Ni–Cr3C2 cemented carbide microstructure and properties based on phase diagram thermodynamics. Int. J. Mater. Res. 2022, 113, 8559. [Google Scholar] [CrossRef]
  43. Jing, K.; Guo, Z.; Hua, T.; Xiong, J.; Liao, J.; Liang, L.; Yang, S.; Yi, J. Zhang, Strengthening mechanism of cemented carbide containing Re. Mater. Sci. Eng. A 2022, 838, 142803. [Google Scholar] [CrossRef]
  44. Lin, T.; Li, Q.; Han, Y.; Song, K.; Wang, X.; Shao, H.; Dong, J.; Wang, H.; Deng, X. Effects of Nb and NbC additives on microstructure and properties of WC-Co-Ni cemented carbides. Int. J. Refract. Met. Hard Mater. 2022, 103, 105782. [Google Scholar] [CrossRef]
  45. Wolf, M.; Edtmaier, C.; de Oro Calderon, R. Influence of carbon on the formation of γ/γ’nmicrostructure and κ-phase in the WC/Co–Ni–Al–W system: Ab initio calculations and experimental studies. J. Mater. Sci. 2022, 57, 13779–13799. [Google Scholar] [CrossRef]
  46. Fan, H.-J.; Liu, Y.; Ye, J.-W.; Qiu, W.-B.; Qiu, Y.-C. Microstructure and mechanical properties of WC–(Ti, M)(C, N)–Co cemented carbides with different nitrogen contents. Rare Met. 2022, 41, 3530–3538. [Google Scholar] [CrossRef]
  47. Agyapong, J.; Duntu, S.H.; Czekanski, A.; Yiadom, S.B. Microstructural evolution and properties of cemented carbides alloyed with hexagonal boron nitride (h-BN) using selective laser melting. Int. J. Adv. Manuf. Technol. 2022, 122, 3647–3666. [Google Scholar] [CrossRef]
  48. Lia, M.; Gong, M.; Cheng, Z.; Mo, D.; Wang, L.; Dusza, J.; Zhang, C. Novel WC-Co-Ti3SiC2 cemented carbide with ultrafine WC grains and improved mechanical properties. Ceram. Intern. 2022, 48, 22335–22342. [Google Scholar] [CrossRef]
  49. Liu, X.; Liang, Z.; Wang, H.; Zhao, Z.; Liu, C.; Lu, H.; Song, X. Wear resistance of ultra-coarse WC-WCoB-Co cemented carbide at different oxidation stages. Int. J. Refract. Met. Hard Mater. 2022, 105, 105827. [Google Scholar] [CrossRef]
  50. Deng, X.-C.; Wang, K.-F.; Zhang, G.-H. Effects of oxide addition on structure and properties of WC-10 Co cemented carbide obtained by in situ synthesized powder. Int. J. Appl. Ceram. Technol. 2022, 19, 1916–1928. [Google Scholar] [CrossRef]
  51. Iakovakis, E.; Avcu, E.; Roy, M.J.; Gee, M.; Matthews, A. Dry sliding wear behaviour of additive manufactured CrC-rich WC-Co cemented carbides. Wear 2021, 486–487, 204127. [Google Scholar] [CrossRef]
  52. Zhang, X.; Zhang, J.; Ding, J. Effect of the additive graphene oxide on tribological properties of WC-Co cemented carbide. Int. J. Refract. Met. Hard Mater. 2022, 109, 105962. [Google Scholar] [CrossRef]
  53. Qin, J.; Hui., J.; Dong., W.; Bai., Y.; Fan., J.; Ding., H.; Zhu., S. Preparation of high-performance WC-MgO composites by spark plasma sintering. Adv. Eng. Mater. 2022, 2022, 2200625. [Google Scholar] [CrossRef]
  54. Sui, G.Z.; Gong, M.F.; Wang, X.H.; Xia, X.Q.; Mo, D.Y.; Dusza, J. Microstructure and mechanical properties of WC-Co-Ti(C0.5, N0.5)-Mo cemented carbides. Strength Mater. 2022, 54, 473482. [Google Scholar] [CrossRef]
  55. Wang, Y.; Xiang, F.; Yuan, X.; Yang, B.; Wang, F.; Li, Y. Effects of processing parameters on the microstructure and mechanical properties of nanoscaled WC-10Co cemented carbide. Materials 2022, 15, 4472. [Google Scholar] [CrossRef] [PubMed]
  56. Jiang, J.; Ouyang, S.; Chen, H.; Guo, S.; Yin, L.; Tan, Z.; Shi, H.; Zhong, Z.; Qiu, L. Effect of MWCNTs on microstructure and properties of WC-9Co gradient cemented carbides. Ceram. Int. 2022, 48, 19295–19304. [Google Scholar] [CrossRef]
  57. Kuai, J.; Zhang, H.; Ardashev, D.V.; Li, X.; Liu, S. Mechanical properties of WC–10Co–CNT nano-cemented carbide. Ferroelectricity 2022, 593, 181–187. [Google Scholar] [CrossRef]
  58. Luo, P.; Liang, Y.; He, G.; Yang, Y.; Tian, X. Effects of multi-layer graphene on the fracture toughness and wear resistance of WC–11Co cemented carbide. J. Am. Ceram. Soc. 2022, 10, 453–464. [Google Scholar] [CrossRef]
  59. Amani, M.G.; Moazami-Goudarzi, M.; Kazemi, A. Enhanced wear resistance of cemented carbides reinforced with SiC nanoparticles. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2022, 236, 8108–8115. [Google Scholar] [CrossRef]
  60. Cheng, Y.; Zhu, T.; Li, Y.; Xie, Z.; Liao, N.; Liang, X.; Sang, S.; Dai, J. Enhanced mechanical and tribological properties of oscillatory pressure sintered WC-GNPs composites. J. Am. Ceram. Soc. 2022, 105, 5501–5514. [Google Scholar] [CrossRef]
  61. Yang, X.-H.; Wang, K.-F.; Zhang, G.-H.; Chou, K.-C. Fabrication and performances of WC-Co cemented carbide with a low cobalt content. Int. J. Appl. Ceram. Technol. 2022, 19, 1341–1353. [Google Scholar] [CrossRef]
  62. Koroghli, M.; Alimirzaloo, V.; Mohammadzadeh, H.; Kavanlouei, M. Sintering behavior of WC-Co with additives of TiC, VC, and (Ta, Nb)C: Microstructural and mechanical features. JMEPEG 2022, 31, 814–824. [Google Scholar] [CrossRef]
  63. Kwon, H.; Suh, C.Y.; Kim, W. Microstructure and mechanical properties of (Ti, W)C–Ni cermet prepared using a nano-sized TiC–WC powder mixture. J. Alloys Compd. 2015, 639, 21–26. [Google Scholar] [CrossRef]
  64. Hu, Z.; Zhao, Z.; Deng, X.; Lu, Z.; Liu, J.; Qu, Z.; Jin, F. Microstructure and mechanical behavior of cemented carbide with Al alloy binder fabricated by selective laser melting. Int. J. Refract. Met. Hard Mater. 2022, 108, 105916. [Google Scholar] [CrossRef]
  65. Vilardell, A.M.; Cinca, N.; Tarrés, E.; Kobashi, M. Iron aluminides as an alternative binder for cemented carbides: A review and perspective towards additive manufacturing. Mater. Today Commun. 2022, 31, 103335. [Google Scholar] [CrossRef]
  66. Farooq, T.; Davies, T.J. Tungsten carbide hard metals cemented with ferroalloys. Int. J. Powder Metall. 1991, 27, 347–355. [Google Scholar]
  67. Fernandes, C.M.; Senos, A.M.R.; Vieira, M.T.; Fernandes, J.V. Composites from WC powders sputter-deposited with iron rich binders. Ceram. Int. 2009, 35, 1617–1623. [Google Scholar] [CrossRef]
  68. Rajabi, A.; Ghazali, M.J.; Syarif, J.; Daud, A.R. Development and application of tool wear: A review of the characterization of TiC-based cermets with different binders. Chem. Eng. J. 2014, 255, 445–452. [Google Scholar] [CrossRef]
  69. Wu, Y.; Leng, B.; Zhou, X. Corrosion behaviors of Ni-WC cemented carbide in high temperature molten fluoride salt and vapor. J. Nucl. Mater. 2022, 561, 153541. [Google Scholar] [CrossRef]
  70. Tracey, V.A. Nickel in hardmetals. Int. J. Refract. Met. Hard Mater. 1992, 11, 137–149. [Google Scholar] [CrossRef]
  71. Tarrago, J.M.; Ferrari, C.; Reig, B.; Coureaux, D.; Schneider, L.; Llanes, L. Mechanics and mechanisms of fatigue in a WC–Ni hardmetal and a comparative study with respect to WC–Co hardmetals. Int. J. Fatigue 2015, 70, 252–257. [Google Scholar] [CrossRef]
  72. Tracey, V.A.; Hall, N.R.V. Nickel matrices in cemented carbides. Powder Metall. Int. 1980, 12, 132. [Google Scholar]
  73. Ekemar, S.; Lindholm, L.; Hartzell, T. Aspects on nickel as a binder metal in WC-based cemented carbides. In Proceedings of the 10th Plansee Seminar-Metallwerk Plansee, Reutte, Austria, 1–5 June 1981; Volume 1, pp. 477–824. [Google Scholar]
  74. Penrice, T.W. Alternative binders for hard metals. Carbide Tool J. 1988, 20, 12–15. [Google Scholar]
  75. Shon, I.J. High-frequency induction-heated consolidation of nanostructured WC and WC–Al hard materials and their mechanical properties. Int. J. Refract. Met. Hard Mater. 2017, 64, 242–247. [Google Scholar] [CrossRef]
  76. Shon, I.J. Effect of Al on sintering and mechanical properties of WC–Al composites. Ceram. Int. 2016, 42, 17884–17891. [Google Scholar] [CrossRef]
  77. Hanyaloglu, C.; Aksakal, B.; Bolton, J.D. Production and indentation analysis of WC/Fe–Mn as an alternative to cobalt-bonded hardmetals. Mater. Charact. 2001, 47, 315–322. [Google Scholar] [CrossRef]
  78. Castro, F.R. Consolidation of tungsten carbide cemented carbides with iron-manganese binders. Met. Powder Rep. 1997, 52, 40. [Google Scholar] [CrossRef]
  79. Maccio, M.R.; Berns, H. Sintered hardmetals with iron-manganese binder. Powder Metall. 2012, 55, 101–109. [Google Scholar] [CrossRef]
  80. Sevostianova, I.N.; Gnyusov, S.F.; Garms, A.P.; Kul’kov, S.N. Heat treatment and matrix composition effect on the formation of physical and mechanical properties of solid alloys WC–(Fe–Mn–C). Perspekt. Mater. 1998, 4, 37–41. [Google Scholar]
  81. Siemiaszko, D.; Rosinski, M.; Michalski, A. Nanocrystalline WC with non-toxic Fe–Mn binder. Phys. Status Solidi C 2010, 7, 1376–1379. [Google Scholar] [CrossRef]
  82. Shimizu, K.I.; Tanaka, Y. The γ→ε→α′ martensitic transformations in an Fe–Mn–C alloy. Trans. Jpn. Inst. Met. 1978, 19, 685–693. [Google Scholar] [CrossRef]
  83. Zhao, Z.; Liu, J.; Tang, H.; Ma, X.; Zhao, W. Investigation on the mechanical properties of WCFe–Cu hard alloys. J. Alloys Compd. 2015, 632, 729–734. [Google Scholar] [CrossRef]
  84. Zhao, Z.; Liu, J.; Tang, H.; Ma, X.; Zhao, W. Effect of Mo addition on the microstructure and properties of WC–Ni–Fe hard alloys. J. Alloys Compd. 2015, 646, 155–160. [Google Scholar] [CrossRef]
  85. Chen, C.; Dong, Y.; Hu, C.; Du, Y.; Wei, S.; Long, J.; Wang, C.; Xiao, L.; Mao, F. Fabrication of gradient cemented carbide with Ni3Al binder: Simulations and experiments. Ceram. Int. 2022, 48, 12756–12763. [Google Scholar] [CrossRef]
  86. Huang, B.; Xiong, W.; Yang, Q.; Yao, Z.; Zhang, G.; Zhang, M. Preparation, microstructure and mechanical properties of multicomponent Ni3Al bonded cermets. Ceram. Int. 2014, 40, 14073–14081. [Google Scholar] [CrossRef]
  87. Li, Y.X.; Hu, J.D.; Wang, H.Y.; Guo, Z.X. Study of TiC/Ni3Al composites by laser ignited selfpropagating high-temperature synthesis (LISHS). Chem. Eng. J. 2008, 140, 621–625. [Google Scholar] [CrossRef]
  88. Panov, V.S.; Gol’dberg, M.A. Interaction of tungsten carbide with aluminum nickelide Ni3Al. Powder Metall. Met. Ceram. 2009, 48, 445–448. [Google Scholar] [CrossRef]
  89. Tumanov, A.V.; Gostev, Y.V.; Panov, V.S.; Kots, Y.F. Wetting of TiC–WC system carbides with molten Ni3Al, Powder. Metall. Met. Ceram. 1986, 25, 428–430. [Google Scholar] [CrossRef]
  90. Panov, V.S.; Shugaev, V.A.; Gol’dberg, M.A. The possibility of utilization of Ni3Al as the binding material for hard alloys. Russ. J. Non-Ferr. Met. 2009, 50, 317–320. [Google Scholar] [CrossRef]
  91. Choi, S.C.; Cho, H.J.; Kim, Y.J.; Lee, D.B. High-temperature oxidation behavior of pure Ni3Al. Oxid. Met. 1996, 46, 51–72. [Google Scholar] [CrossRef]
  92. Buchholz, S.; Farhat, Z.N.; Kipouros, G.J.; Plucknett, K.P. Reciprocating wear response of Ti(C, N)-Ni3Al cermets. Can. Metall. Quart. 2013, 52, 69–80. [Google Scholar] [CrossRef]
  93. Alaneme, K.K.; Olubambi, P.A.; Andrews, A. Processing and characterization of WC-10Co-7Ni-3Cr based yttria stabilized zirconia spark plasma sintered composites. Int. J. Refract. Met. Hard Mater. 2015, 48, 157–166. [Google Scholar] [CrossRef]
  94. Liu, Y.; Li, X.; Zhou, J.; Fu, K.; Wei, W.; Du, M.; Zhao, X. Effects of Y2O3 addition on microstructures and mechanical properties of WC-Co functionally graded cemented carbides. Int. J. Refract. Met. Hard Mater. 2015, 50, 53–58. [Google Scholar] [CrossRef]
  95. El-Eskandarany, M.S. Fabrication and characterizations of new nanocomposite WC/Al2O3 materials by room temperature ball milling and subsequent consolidation. J. Alloys Compd. 2005, 391, 228–235. [Google Scholar] [CrossRef]
  96. Sun, J.; Zhao, J.; Chen, M.; Ni, X.; Li, Z.; Gong, F. Determination of microstructure and mechanical properties of VC/Cr3C2 reinforced functionally graded WC–TiC–Al2O3 micro-nano composite tool materials via two-step sintering. J. Alloys Compd. 2017, 709, 197–205. [Google Scholar] [CrossRef]
  97. Pereira, P.; Ferro Rocha, A.M.; Sacramento, J.; Oliveira, F.J.; Senos, A.M.R.; Malheiros, L.F.; Bastos, A.C. Corrosion resistance of WC hardmetals with different Co and Ni-based binders. Int. J. Refract. Met. Hard Mater. 2022, 104, 105799. [Google Scholar] [CrossRef]
  98. Radajewski, M.; Schimpf, C.; Krüger, L. Study of processing routes for WC-MgO composites with varying MgO contents conesolidated by FAST/SPS. J. Eur. Ceram. Soc. 2017, 37, 2031–2037. [Google Scholar] [CrossRef]
  99. Ouyang, C.; Zhu, S.; Li, D.Y. Corrosion and corrosive wear behavior of WC-MgO composites with and without grain-growth inhibitors. J. Alloys Compd. 2014, 615, 146–155. [Google Scholar] [CrossRef]
  100. Basu, B.; Lee, J.H.; Kim, D.Y. Development of WC-ZrO2 nanocomposites by spark plasma sintering. J. Am. Ceram. Soc. 2004, 87, 317–319. [Google Scholar] [CrossRef]
  101. Basu, B.; Venkateswaran, T.; Sarkar, D. Pressureless sintering and tribological properties of WC-ZrO2 composites. J. Eur. Ceram. Soc. 2005, 25, 1603–1610. [Google Scholar] [CrossRef]
  102. Malek, O.; Lauwers, B.; Perez, Y.; De Baets, P.; Vleugels, J. Processing of ultrafine ZrO2 toughened WC composites. J. Eur. Ceram. Soc. 2009, 29, 3371–3378. [Google Scholar] [CrossRef]
  103. Ren, X.; Peng, Z.; Wang, C.; Miao, H. Influence of nano-sized La2O3 addition on the sintering behavior and mechanical properties of WC-La2O3 composites. Ceram. Int. 2015, 41, 14811–14818. [Google Scholar] [CrossRef]
  104. Ma, J.; Zhu, S.G.; Di, P.; Zhang, Y. Influence of La2O3 addition on hardness, flexural strength and microstructure of hot-pressing sintered WC-MgO bulk composites. Mater. Des. 2011, 32, 2125–2129. [Google Scholar] [CrossRef]
  105. Matsumoto, A.; Kobayashi, K.; Nishio, T.; Ozaki, K. Based WC composites prepared by combustion synthesis. In Proceedings of the 16th International Plansee Seminar, Reutte, Austria, 30 May–3 June 2005; Volume 2, pp. 287–294. [Google Scholar]
  106. Misra, A.K. Identification of thermodynamically stable ceramic reinforcement materials for iron aluminide matrices. Metall. Mater. Trans. A 1990, 21, 441–446. [Google Scholar] [CrossRef]
  107. Mosbah, A.Y.; Wexler, D.; Calka, A. Tungsten carbide iron aluminide hardmetals: Nanocrystalline vs microcrystalline. Mater. Sci. Forum 2001, 360–362, 649–650. [Google Scholar] [CrossRef]
  108. Schneibel, J.H.; Subramanian, R. Bonding of WC with an iron aluminide (FeAl) intermetallic. Met. Powder Ind. Fed. 1996, 5, 167–175. [Google Scholar]
  109. Schneibel, J.H.; Carmichael, C.A.; Specht, E.D.; Subramanian, R. Liquid-phase sintered iron aluminide-ceramic composites. Intermetallics 1997, 5, 61–67. [Google Scholar] [CrossRef]
  110. Vilhena, L.M.; Fernandes, C.M.; Sacramento, J.; Senos, A.M.R.; Ramalho, A. Sliding wear and friction behaviour of WC-stainless steel and WC-Co composites. Lubr. Sci. 2022, 34, 247–257. [Google Scholar] [CrossRef]
  111. Vilhena, L.; Domingues, B.; Fernandes, C.; Senos, A.; Ramalho, A. Mechanical and tribological characterization of WC-Co and WC-AISI 304 composites by a newly developed equipment. Materials 2022, 15, 1187. [Google Scholar] [CrossRef]
  112. Oliveira, A.B.; Bastos, A.C.; Fernandes, C.M.; Pinho, C.M.S.; Senos, A.M.R.; Soares, E.; Sacramento, J.; Zheludkevich, M.L.; Ferreira, M.G.S. Corrosion behaviour of WC–10% AISI304 cemented carbides. Corros. Sci. 2015, 100, 322–331. [Google Scholar] [CrossRef]
  113. Marques, B.J.; Fernandes, C.M.; Senos, A.M.R. Sintering, microstructure and properties of WCAISI304 powder composites. J. Alloys Compd. 2013, 562, 164–170. [Google Scholar] [CrossRef]
  114. Trung, T.B.; Zuhailawati, H.; Ahmad, Z.A.; Ishihara, K.N. Grain growth, phase evolution and properties of NbC carbide-doped WC–10AISI304 hardmetals produced by pseudo hot isostatic pressing. J. Alloys Compd. 2013, 552, 20–25. [Google Scholar] [CrossRef]
  115. Trung, T.B.; Zuhailawati, H.; Ahmad, Z.A.; Ishihara, K.N. Sintering characteristics and properties of WC–10AISI304 (stainless steel) hardmetals with added graphite. Mater. Sci. Eng. A 2014, 605, 210–214. [Google Scholar] [CrossRef]
  116. Jung, G.N.; Kim, B.S.; Yoon, J.K.; Shon, I.J. Properties and rapid sintering of nanostructured WC and WC–TiAl hard materials by the pulsed current activated heating. J. Ceram. Process. Res. 2016, 17, 295–299. [Google Scholar] [CrossRef]
  117. Kwak, B.W.; Song, J.H.; Kim, B.S.; Shon, I.J. Mechanical properties and rapid sintering of nanostructured WC and WC–TiAl3 hard materials by the pulsed current activated heating. Int. J. Refract. Met. Hard Mater. 2016, 54, 244–250. [Google Scholar] [CrossRef]
  118. Yang, Y.; Guo, Q.; He, X.; Shi, J.; Liu, L.; Zhai, G. Effect of nano-AlN content on the microstructure and mechanical properties of SiC foam prepared by siliconization of carbon foam. J. Eur. Ceram. Soc. 2010, 30, 113–118. [Google Scholar] [CrossRef]
  119. Ren, X.; Peng, Z.; Peng, Y.; Wang, C.; Fu, Z.; Qi, L. Miao, H, Ultrafine binderless WC-based cemented carbides with varied amounts of AlN nano-powder fabricated by spark plasma sintering. Int. J. Refract. Met. Hard Mater. 2013, 41, 308–314. [Google Scholar] [CrossRef]
  120. Konyashin, I.; Ries, B.; Hlawatschek, D.; Zhuk, Y.; Mazilkin, A.; Straumal, B.; Dorn, F.; Park, D. Wear-resistance and hardness: Are they directly related for nanostructured hard materials? Int. J. Refract. Met. Hard Mater. 2015, 49, 203–211. [Google Scholar] [CrossRef]
  121. Konyashin, I.; Straumal, B.B.; Ries, B.; Bulatov, M.F.; Kolesnikova, K.I. Contact angles of WC/WC grain boundaries with binder in cemented carbides with various carbon content. Mater. Lett. 2017, 196, 1–3. [Google Scholar] [CrossRef]
  122. Qian, C.; Li, K.; Cheng, H.; Zhang, W.; Jiang, X.; Liu, Y. Fracture behavior of cemented carbides with CoNiFe medium entropy alloy binder. Int. J. Refract. Met. Hard Mater. 2021, 98, 105547. [Google Scholar] [CrossRef]
  123. Qian, C.; Liu, Y.; Cheng, H.; Li, K.; Liu, B. Effect of the carbon content on the morphology evolution of the η phase in cemented carbides with the CoNiFeCr high entropy alloy binder. Int. J. Refract. Met. Hard Mater. 2022, 102, 105731. [Google Scholar] [CrossRef]
  124. Qian, C.; Liu, Y.; Cheng, H.; Li, K.; Liu, B.; Zhang, X. The effect of carbon content on the microstructure and mechanical properties of cemented carbides with a CoNiFeCr high entropy alloy binder. Materials 2022, 15, 5780. [Google Scholar] [CrossRef]
  125. Zheng, D. High-entropy-alloy CoFeNiCr bonded WC-based cemented carbide prepared by spark plasma sintering. Metal. Mater. Trans. A 2022, 53, 2724–2729. [Google Scholar] [CrossRef]
  126. Zhai, K.; Chen, S.; Wang, C.; Li, Q.; Sun, B.; He, J. Microstructure and properties of WC–CoCuFeNi composites fabricated by spark plasma sintering. Int. J. Refract. Met. Hard Mater. 2022, 105, 105808. [Google Scholar] [CrossRef]
  127. Chang, F.; Zhang, J.; Lu, S.; Guo, K.; Dai, P.; Liu, C.; Zhang, X. The microstructure and high-temperature oxidation resistance of tungsten carbide with high entropy alloys as binder. J. Ceram. Soc. Jpn. 2022, 130, 477–486. [Google Scholar] [CrossRef]
  128. Wang, L.; Liu, H.; Huang, C.; Liu, X.; Yang, J.; Li, J. Evolution of high temperature mechanical properties of WC-Al2O3-Co-Y2O3 composite tool materials. J. Mater. Eng. Perform. 2022, 32, 3142–3151. [Google Scholar] [CrossRef]
Materials 16 03696 g001 550

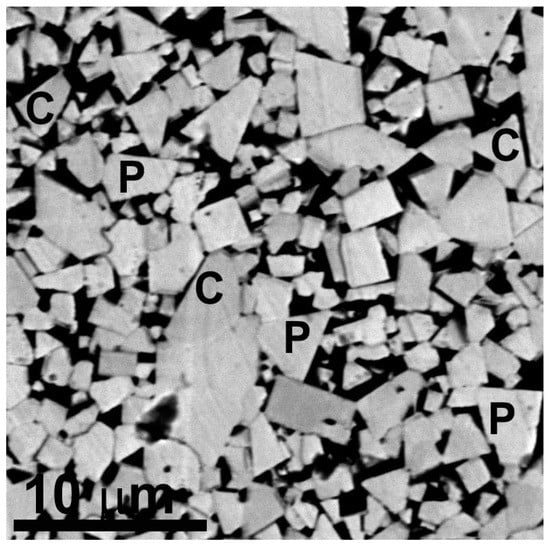

Figure 1. SEM micrograph of WC/Co cemented carbide with ultra-coarse WC crystallites manufactured via liquid-phase sintering at 1380 °C. Co-binder appears black in this micrograph and WC crystallites appear white. Some WC/WC grain boundaries (GBs) can be completely wetted via Co-based melt (marked with letters C) and have zero contact angle with liquid phase. Other WC/WC GBs are incompletely (or partially, marked with letters P) wetted via melt. They have a non-zero contact angle and are marked with letters C in micrograph. Reprinted with permission from authors of [4]. Copyright 2017 Elsevier.
Figure 1. SEM micrograph of WC/Co cemented carbide with ultra-coarse WC crystallites manufactured via liquid-phase sintering at 1380 °C. Co-binder appears black in this micrograph and WC crystallites appear white. Some WC/WC grain boundaries (GBs) can be completely wetted via Co-based melt (marked with letters C) and have zero contact angle with liquid phase. Other WC/WC GBs are incompletely (or partially, marked with letters P) wetted via melt. They have a non-zero contact angle and are marked with letters C in micrograph. Reprinted with permission from authors of [4]. Copyright 2017 Elsevier.
Materials 16 03696 g001
Materials 16 03696 g002 550

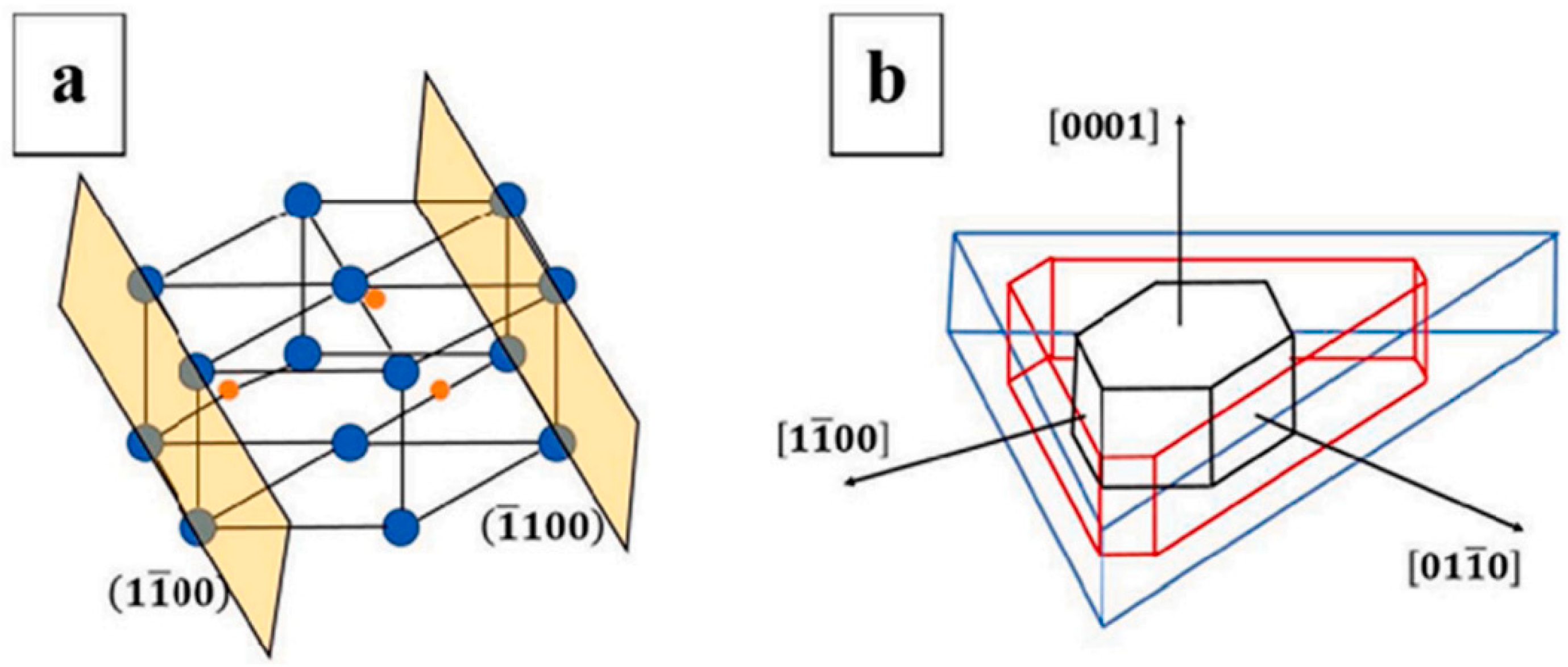

Figure 2. (a) is hexagonal close-packed (hcp) lattice tungsten carbide, while (b) is equilibrium shape of tungsten carbide. Reprinted with permission from authors of [6]. Copyright 2020 Elsevier.
Figure 2. (a) is hexagonal close-packed (hcp) lattice tungsten carbide, while (b) is equilibrium shape of tungsten carbide. Reprinted with permission from authors of [6]. Copyright 2020 Elsevier.
Materials 16 03696 g002
Materials 16 03696 g003 550

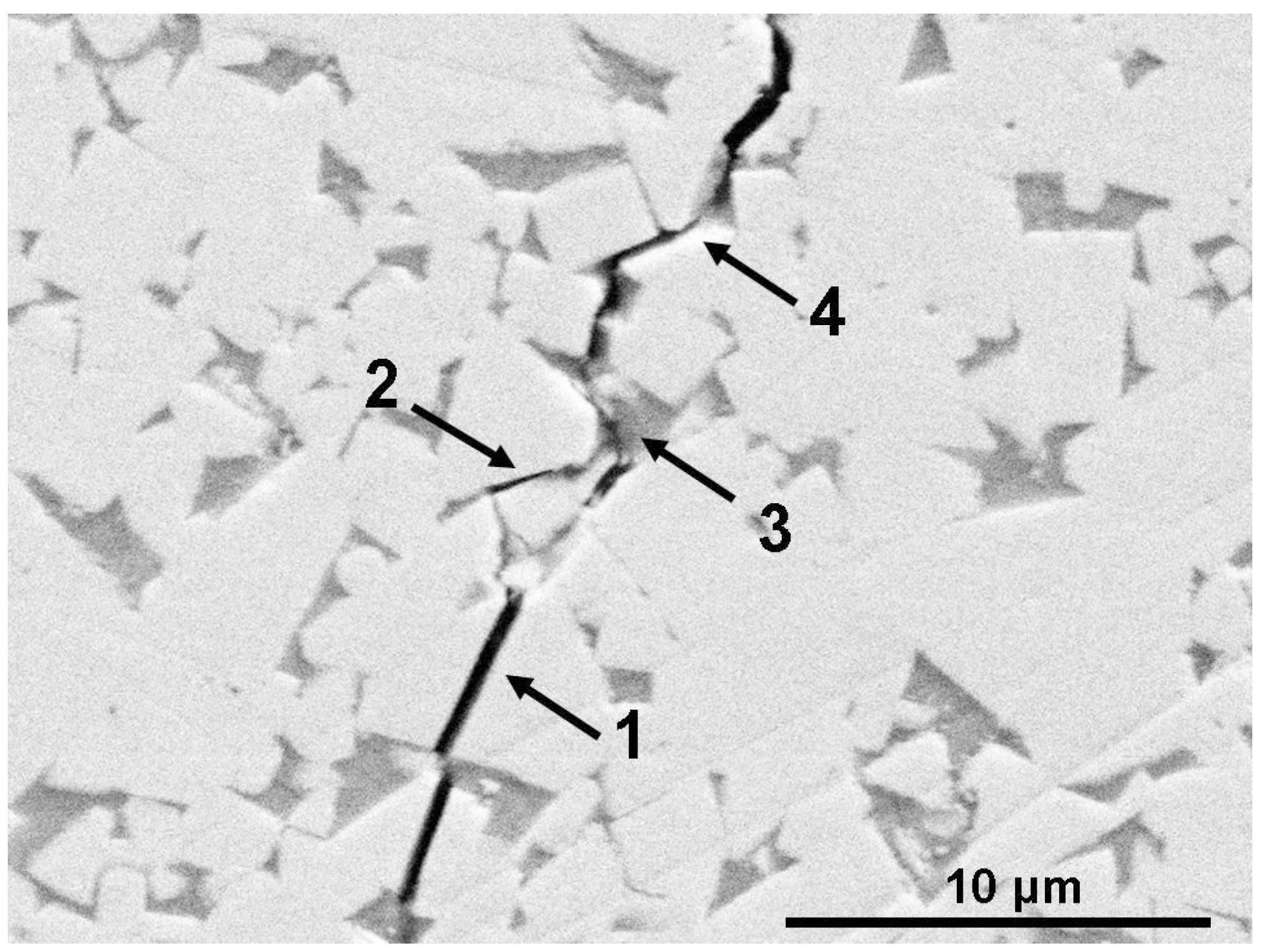

Figure 3. SEM micrograph of WC/Co cemented carbide with ultra-coarse WC crystallites manufactured via liquid-phase sintering at 1380 °C. Co-binder appears dark-grey in this micrograph and WC crystallites appear white. Crack is produced using Vickers indentor and appears black. Digits and arrows show crack permeating WC grains (1), moving between WC grains (2), moving through or between Co grains (3) or moving along WC/Co interfaces (4).
Figure 3. SEM micrograph of WC/Co cemented carbide with ultra-coarse WC crystallites manufactured via liquid-phase sintering at 1380 °C. Co-binder appears dark-grey in this micrograph and WC crystallites appear white. Crack is produced using Vickers indentor and appears black. Digits and arrows show crack permeating WC grains (1), moving between WC grains (2), moving through or between Co grains (3) or moving along WC/Co interfaces (4).
Materials 16 03696 g003
Materials 16 03696 g004 550

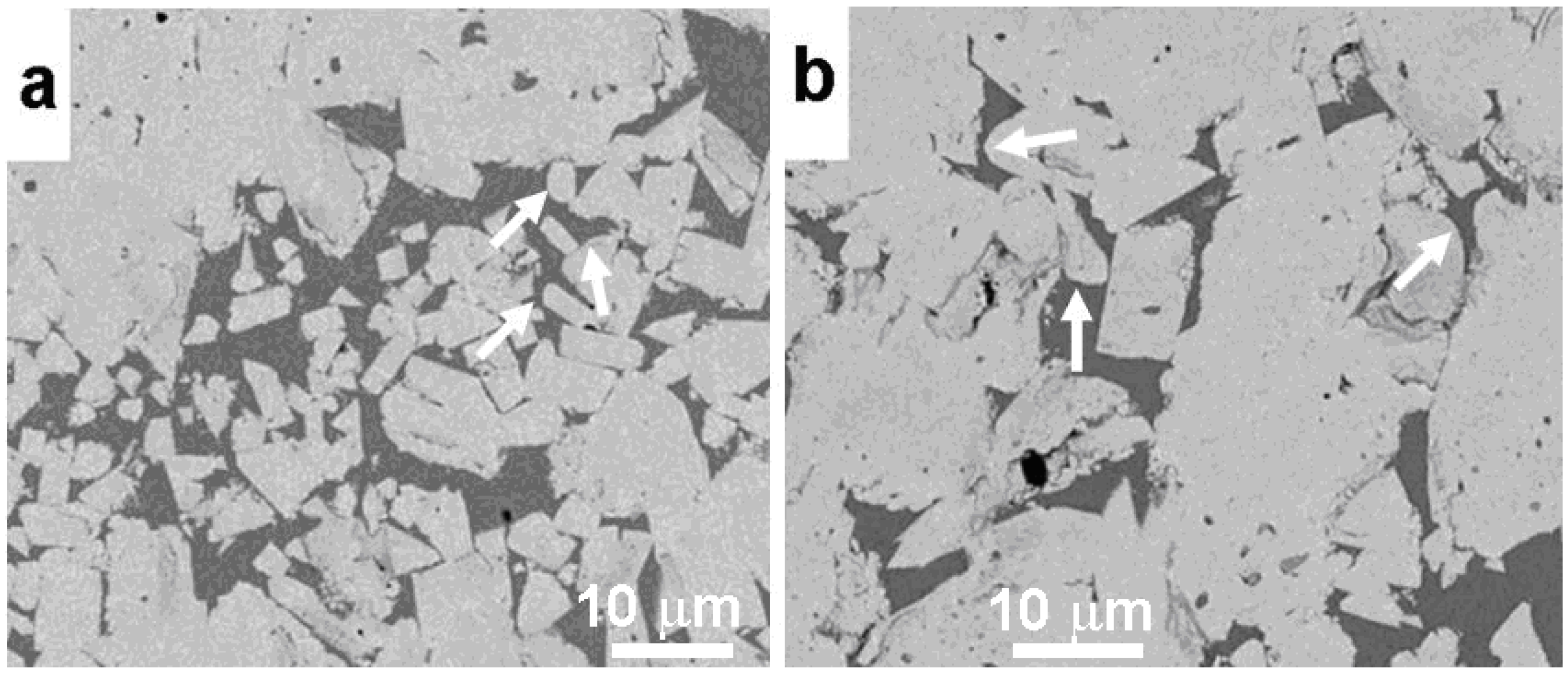

Figure 4. SEM micrographs of WC-12 wt.% Co cemented carbide fabricated via SEBM before (a) and after (b) heat treatment. White arrows show the rounded corners of WC crystallites. Reprinted with permission from authors of [14]. Copyright 2022 Elsevier.
Figure 4. SEM micrographs of WC-12 wt.% Co cemented carbide fabricated via SEBM before (a) and after (b) heat treatment. White arrows show the rounded corners of WC crystallites. Reprinted with permission from authors of [14]. Copyright 2022 Elsevier.
Materials 16 03696 g004
Materials 16 03696 g005 550

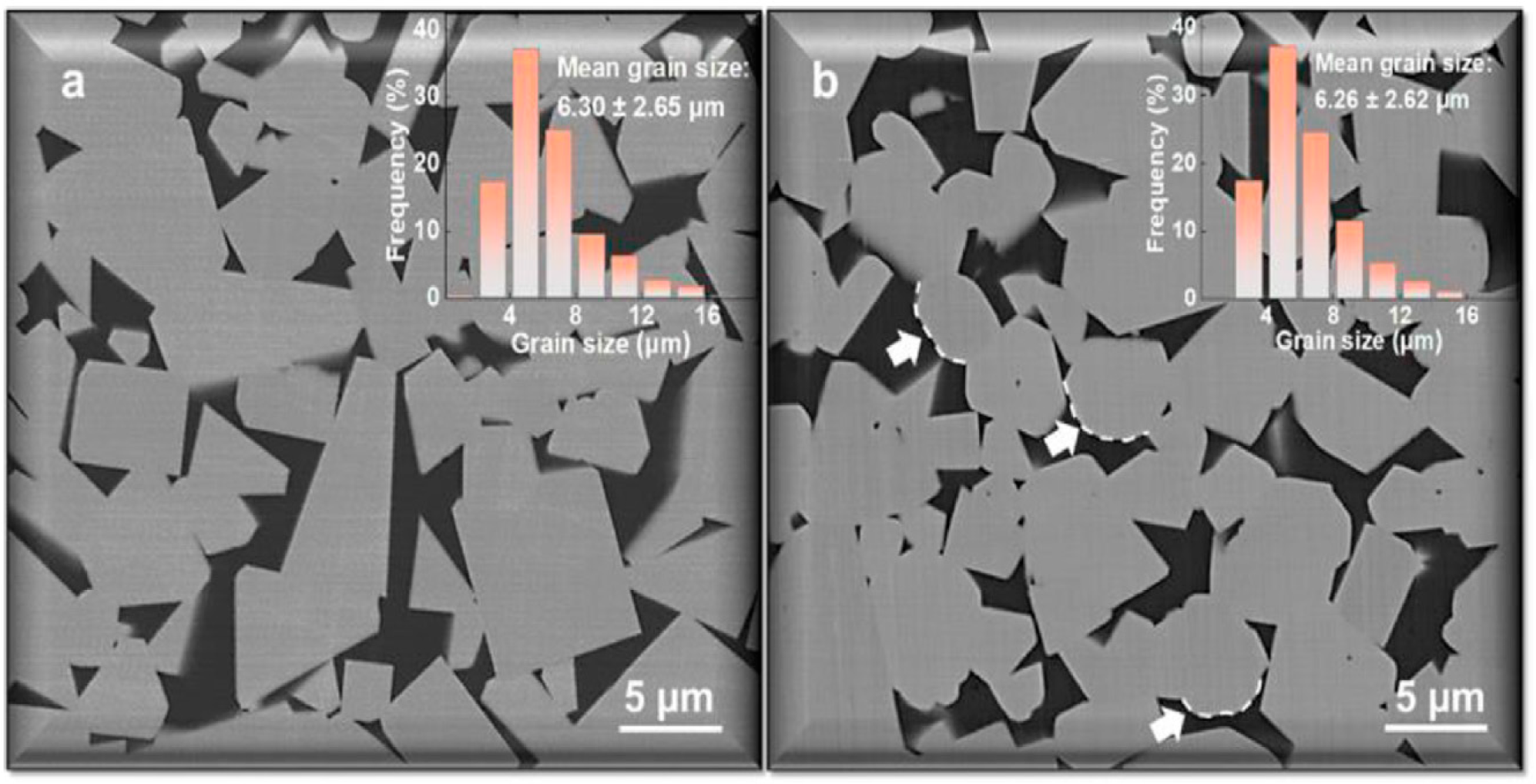

Figure 5. SEM micrographs obtained in BSE mode of as-sintered ultra-coarse grained cemented carbides (a) WC-8Co and (b) WC-8Co-0.8TaC. Rounded edges of WC crystallites are marked using bright arrows. Insets show the corresponding distributions of WC grain sizes. Reprinted with permission from authors of [26]. Copyright 2022 Elsevier.
Figure 5. SEM micrographs obtained in BSE mode of as-sintered ultra-coarse grained cemented carbides (a) WC-8Co and (b) WC-8Co-0.8TaC. Rounded edges of WC crystallites are marked using bright arrows. Insets show the corresponding distributions of WC grain sizes. Reprinted with permission from authors of [26]. Copyright 2022 Elsevier.
Materials 16 03696 g005
Materials 16 03696 g006 550

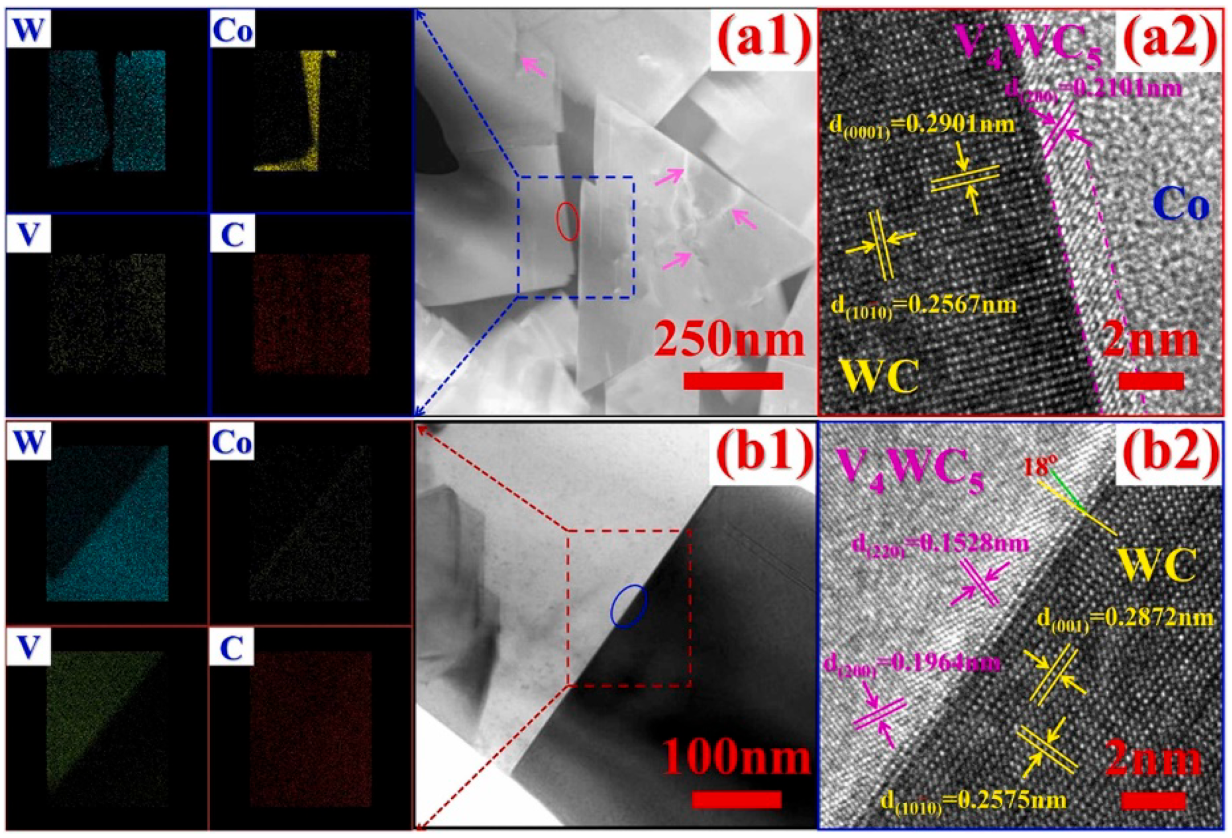

Figure 6. TEM and HRTEM micrographs and elemental distribution for C3.5V2 (WC-12 wt.% Co-2 wt.% VC) and C3.5V6 (WC-12 wt.% Co-6 wt.% VC) alloys after sintering for 2 h at 1400 °C: (a) C3.5V2; (a2) is the HRTEM micrograph of the red oval area marked in (a1). (b) C3.5V6. (b2) is the HRTEM micrograph of the blue oval area marked in (b1). Reprinted with permission from authors of [27]. Copyright 2022 Elsevier.
Figure 6. TEM and HRTEM micrographs and elemental distribution for C3.5V2 (WC-12 wt.% Co-2 wt.% VC) and C3.5V6 (WC-12 wt.% Co-6 wt.% VC) alloys after sintering for 2 h at 1400 °C: (a) C3.5V2; (a2) is the HRTEM micrograph of the red oval area marked in (a1). (b) C3.5V6. (b2) is the HRTEM micrograph of the blue oval area marked in (b1). Reprinted with permission from authors of [27]. Copyright 2022 Elsevier.
Materials 16 03696 g006
Materials 16 03696 g007 550

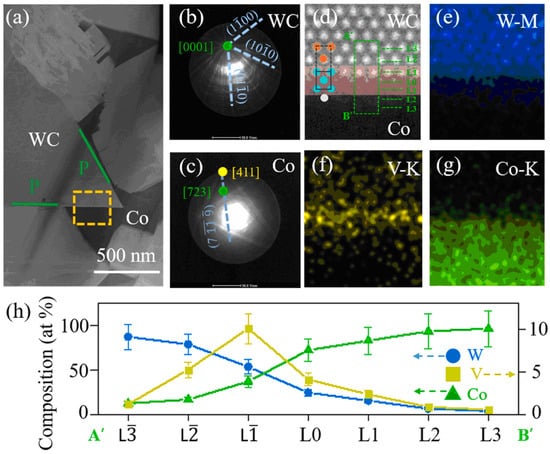

Figure 7. (a) TEM HAADF micrograph of WC/Co interphase boundary. Yellow box shows contour of respective FIB lamella. (1,0,−1,0) plane terminates WC/Co interphase boundary on WC side. At a zero-tilt condition, we acquired the Kikuchi diffraction patterns of (b) WC grain and (c) surrounding cobalt binder. (d) WC/Co interphase boundary viewed along a [0001] zone axis of WC (expanded HAADF image). (e–g) show atomic-resolution EDS mapping. These maps permit us to reveal segregation in this WC(P)/Co interphase boundary. (h) shows corresponding concentration profiles of tungsten, vanadium and cobalt across interphase boundary (along A’B’ track in (d)). A L-1 layer denotes outermost surface of WC grain. At L0 layer, abrupt transition begins at the interphase boundary. Reprinted with permission from authors of [33]. Copyright 2022 Elsevier.
Figure 7. (a) TEM HAADF micrograph of WC/Co interphase boundary. Yellow box shows contour of respective FIB lamella. (1,0,−1,0) plane terminates WC/Co interphase boundary on WC side. At a zero-tilt condition, we acquired the Kikuchi diffraction patterns of (b) WC grain and (c) surrounding cobalt binder. (d) WC/Co interphase boundary viewed along a [0001] zone axis of WC (expanded HAADF image). (e–g) show atomic-resolution EDS mapping. These maps permit us to reveal segregation in this WC(P)/Co interphase boundary. (h) shows corresponding concentration profiles of tungsten, vanadium and cobalt across interphase boundary (along A’B’ track in (d)). A L-1 layer denotes outermost surface of WC grain. At L0 layer, abrupt transition begins at the interphase boundary. Reprinted with permission from authors of [33]. Copyright 2022 Elsevier.
Materials 16 03696 g007
Materials 16 03696 g008 550

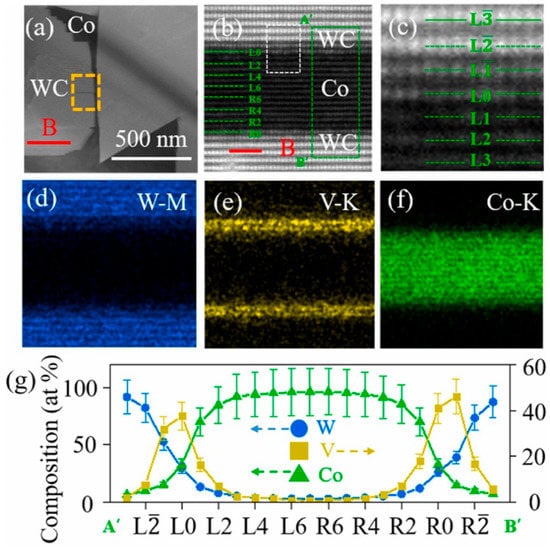

Figure 8. (a) TEM HAADF micrograph of two coherent WC/Co interphase boundaries. These two coherent WC/Co interphase boundaries are enclosed usinh (0001) planes on tungsten carbide side. (b) contains atomic-resolution HAADF image. (c) Shows expanded image of white box marked in (b). (d–f) are EDS concentration maps of tungsten, vanadium and cobalt for interfaces. For these maps, WC grain is setting at a [1,0,−1,0] zone axis. (g) Concentration profiles of tungsten, vanadium and cobalt across A’B’ line in (d). A’B’ line intersects both interfaces. Reprinted with permission from authors of [33]. Copyright 2022 Elsevier.
Figure 8. (a) TEM HAADF micrograph of two coherent WC/Co interphase boundaries. These two coherent WC/Co interphase boundaries are enclosed usinh (0001) planes on tungsten carbide side. (b) contains atomic-resolution HAADF image. (c) Shows expanded image of white box marked in (b). (d–f) are EDS concentration maps of tungsten, vanadium and cobalt for interfaces. For these maps, WC grain is setting at a [1,0,−1,0] zone axis. (g) Concentration profiles of tungsten, vanadium and cobalt across A’B’ line in (d). A’B’ line intersects both interfaces. Reprinted with permission from authors of [33]. Copyright 2022 Elsevier.
Materials 16 03696 g008
Materials 16 03696 g009 550

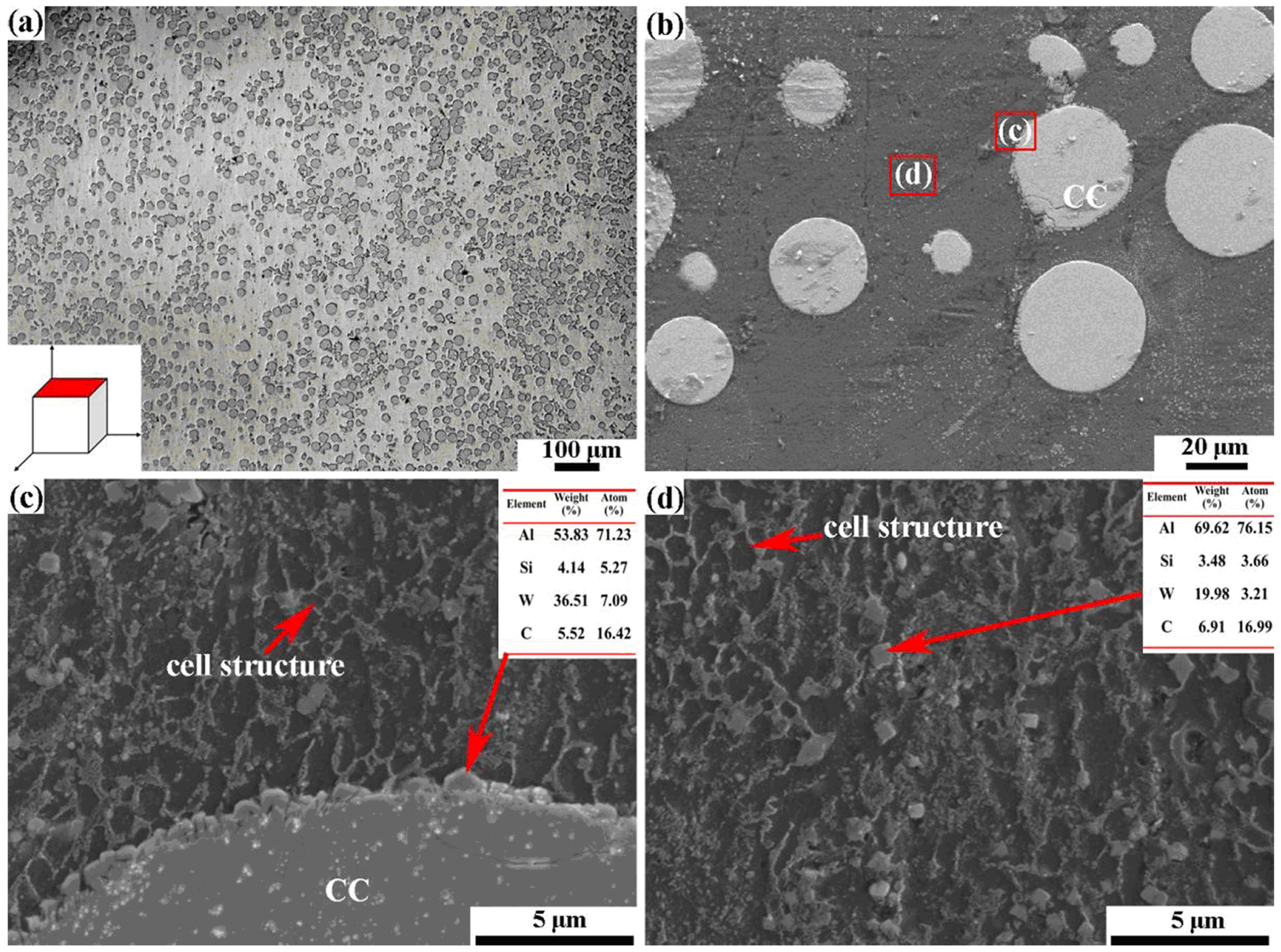

Figure 9. Microstructures of CC-Al-Si-10Mg cemented carbides. (a) light micrograph, investigated surface (red), is perpendicular to the laser beam during SLM. (b) SEM image. (c,d) are SEM images and EDX composition data. Respective analysis positions are marked in (b) as (c,d). Reprinted with permission from authors of [64]. Copyright 2022 Elsevier.
Figure 9. Microstructures of CC-Al-Si-10Mg cemented carbides. (a) light micrograph, investigated surface (red), is perpendicular to the laser beam during SLM. (b) SEM image. (c,d) are SEM images and EDX composition data. Respective analysis positions are marked in (b) as (c,d). Reprinted with permission from authors of [64]. Copyright 2022 Elsevier.
Materials 16 03696 g009
Materials 16 03696 g010 550

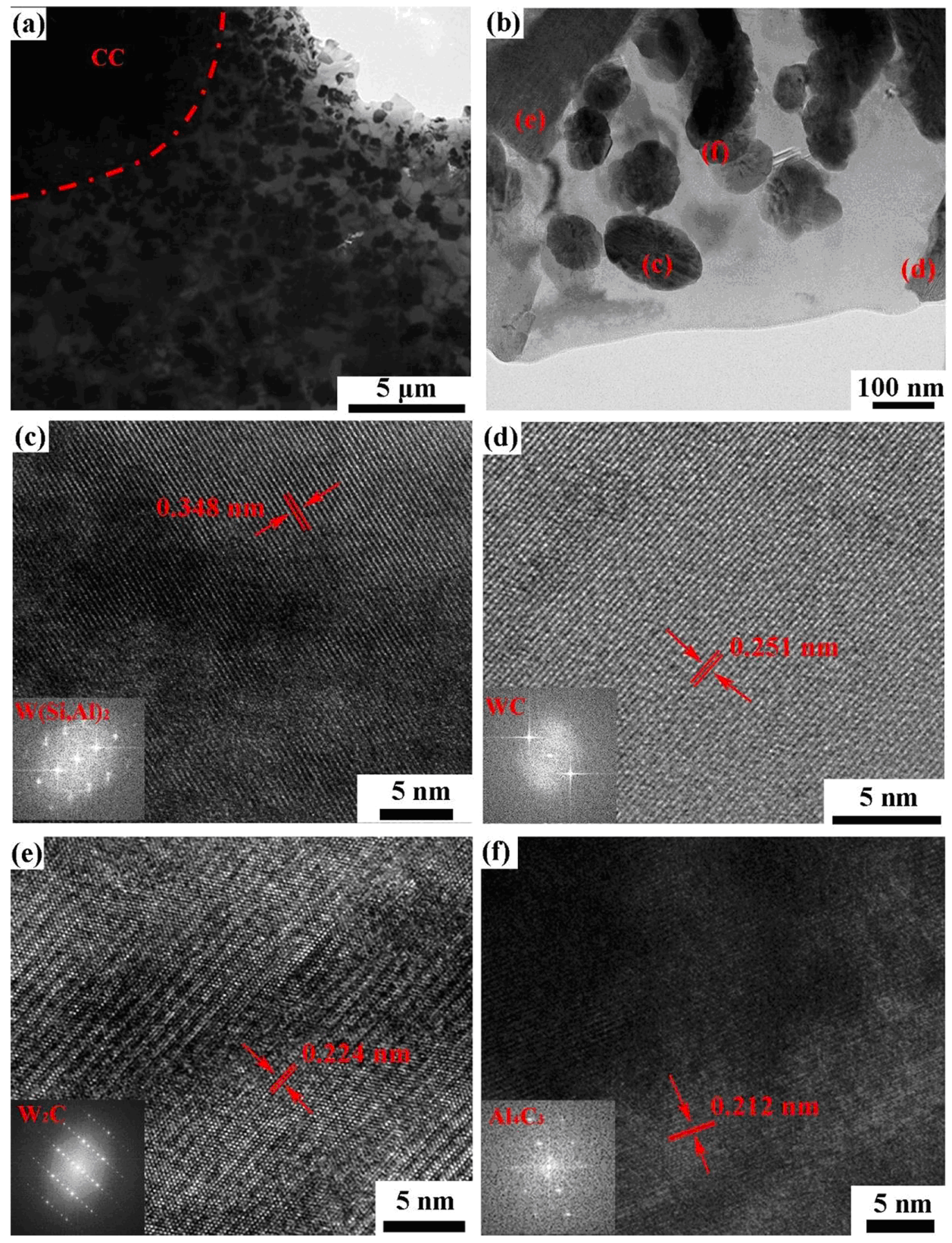

Figure 10. TEM analysis of CC-Al-Si-10Mg cemented carbides; (a,b) contain the TEM images at low and high magnification, respectively. (c–f) are high-resolution lattice and FFT images corresponding to positions (c–f) in (b). These images correspond to W(Si, Al)2 (c), WC (d), W2C (e) and Al4C3 (f) carbides. Reprinted with permission from authors of [64]. Copyright 2022 Elsevier.
Figure 10. TEM analysis of CC-Al-Si-10Mg cemented carbides; (a,b) contain the TEM images at low and high magnification, respectively. (c–f) are high-resolution lattice and FFT images corresponding to positions (c–f) in (b). These images correspond to W(Si, Al)2 (c), WC (d), W2C (e) and Al4C3 (f) carbides. Reprinted with permission from authors of [64]. Copyright 2022 Elsevier.
Materials 16 03696 g010
Materials 16 03696 g011 550

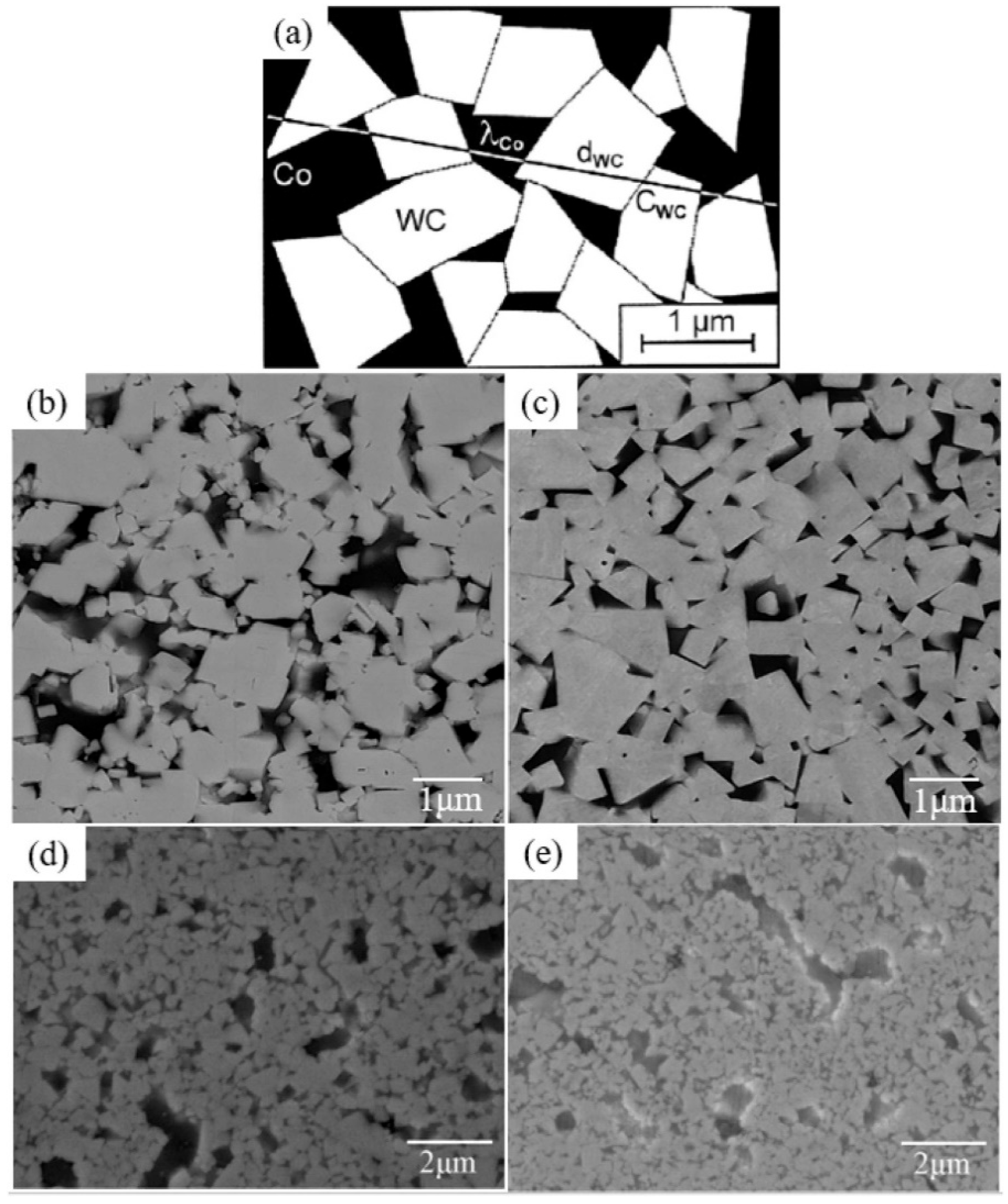

Figure 11. (a) Scheme showing the parameters describing microstructure of cemented carbides. SEM micrographs produced with either (b) a commercial WC-18 vol.% Co or (c) WC-25 vol.% FeAl cemented carbide produced via SPS. SEM micrographs of WC-25 vol.% FeAl produced via LPS with either (d) enhanced oxygen content or (e) carbide inhibitors. Reprinted with permission from authors of [65]. Copyright 2022 Elsevier.
Figure 11. (a) Scheme showing the parameters describing microstructure of cemented carbides. SEM micrographs produced with either (b) a commercial WC-18 vol.% Co or (c) WC-25 vol.% FeAl cemented carbide produced via SPS. SEM micrographs of WC-25 vol.% FeAl produced via LPS with either (d) enhanced oxygen content or (e) carbide inhibitors. Reprinted with permission from authors of [65]. Copyright 2022 Elsevier.
Materials 16 03696 g011
Materials 16 03696 g012 550

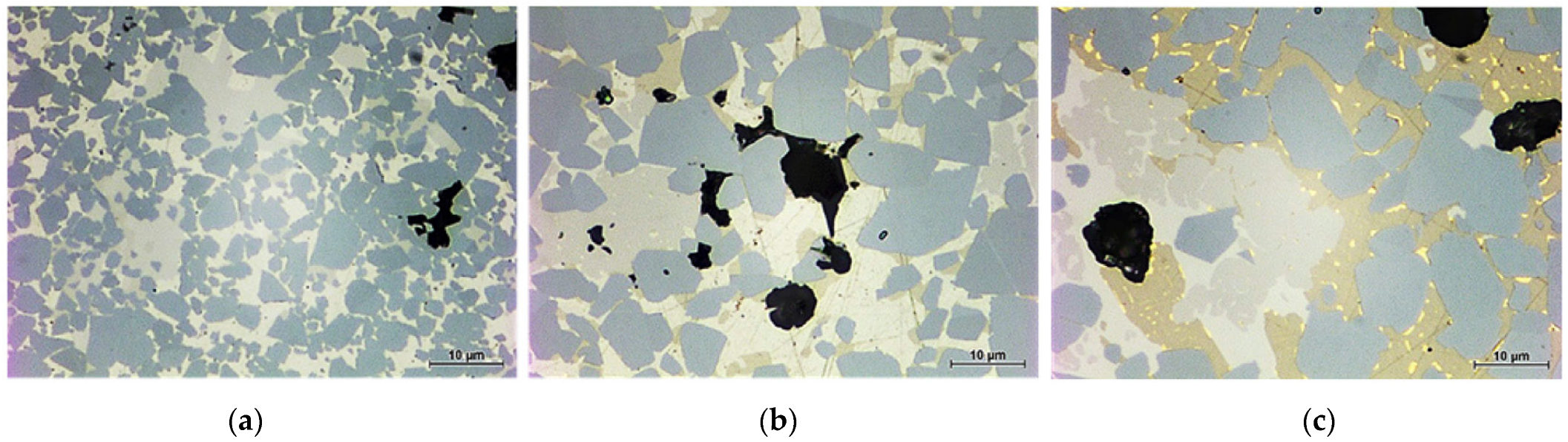

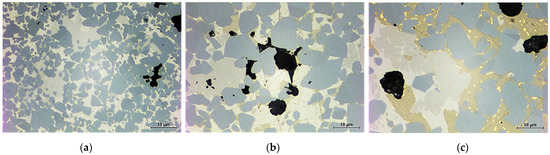

Figure 12. SEM micrographs of cemented carbides with different HEA binders (CoCrCuFeNi, Al0.5CoCrCuFeNi and Al2CoCrCuFeNi) after vacuum sintering for 2 h at 1500 °C. (a) CoCrCuFeNi; (b) Al0.5CoCrCuFeNi; (c) Al2CoCrCuFeNi. Reprinted with permission from authors of [30]. Copyright 2019 Elsevier.
Figure 12. SEM micrographs of cemented carbides with different HEA binders (CoCrCuFeNi, Al0.5CoCrCuFeNi and Al2CoCrCuFeNi) after vacuum sintering for 2 h at 1500 °C. (a) CoCrCuFeNi; (b) Al0.5CoCrCuFeNi; (c) Al2CoCrCuFeNi. Reprinted with permission from authors of [30]. Copyright 2019 Elsevier.
Materials 16 03696 g012
Materials 16 03696 g013 550

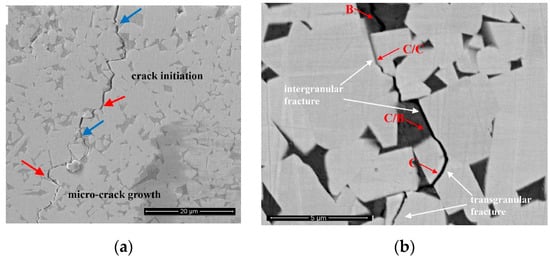

Figure 13. Crack growth path of WC-5Co-4Ni-1Fe (wt.%) alloy. (a) Pre-crack zone. Blue arrows mark intergranular fracture. Red arrows mark transgranular fracture. (b) Enlarged view of crack. C marks transgranular fracture, C/B and C/C mark intergranular fracture; B marks fracture through the binder. Reprinted with permission from authors of [122]. Copyright 2021 Elsevier.
Figure 13. Crack growth path of WC-5Co-4Ni-1Fe (wt.%) alloy. (a) Pre-crack zone. Blue arrows mark intergranular fracture. Red arrows mark transgranular fracture. (b) Enlarged view of crack. C marks transgranular fracture, C/B and C/C mark intergranular fracture; B marks fracture through the binder. Reprinted with permission from authors of [122]. Copyright 2021 Elsevier.
Materials 16 03696 g013
Materials 16 03696 g014 550

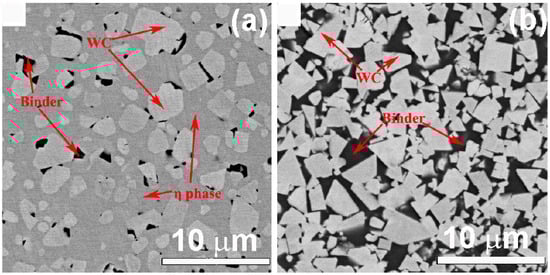

Figure 14. SEM micrographs showing WC crystallites surrounded by η-phase (a) and CoNiFeCrC-based binder (b). Reprinted with permission from author of [123]. Copyright 2022 Elsevier.
Figure 14. SEM micrographs showing WC crystallites surrounded by η-phase (a) and CoNiFeCrC-based binder (b). Reprinted with permission from author of [123]. Copyright 2022 Elsevier.
Materials 16 03696 g014
Table
Table 1. Vickers hardness, fracture toughness and strength of WC-based cemented carbides with various binders.
Table 1. Vickers hardness, fracture toughness and strength of WC-based cemented carbides with various binders.
Alloys’ Compositions and Sintering Temperatures, °CHardness, Vickers UnitsFracture Toughness, MPa·m1/2Compression Strength and Transverse Rupture Strength, MPa
Compression strength
WC-10 wt.% Co, 1500 °C [24]19108.103595
WC-12Co after SEBM [14]1929 1770
WC-12Co, SEBM + 1400 °C [14]1686 1839
WC-45Cr-18Ni, binder jetting + 1350 °C [25]>1200 >2200
WC-8Co [26] at 600 °C 1270
WC-8Co-0.8TaC [26] at 600 °C 1300
WC-8Co [26] at 800 °C 950
WC-8Co-0.8TaC [26] at 800 °C 1080
WC-Co [26] at 1000 °C 800
WC-8Co-0.8TaC [26] at 1000 °C 810
WC-12Co-xVC with x = 0 [27]141512.31
WC-12Co-xVC with x = 2 [27]161312.11
WC-12Co-xVC with x = 4 [27]193412.19
WC-12Co-xVC with x = 6 [27]212411.26
WC-12Co-xVC with x = 8 [27]205910.61
Transverse rupture strength
(Ti, M)(C1−x, Nx) (M = Ta, Nb, W, x = 0) [28]144812.43780
(Ti, M)(C1−x, Nx) (M = Ta, Nb, W, x = 0.15) [28]155014.13320
(Ti, M)(C1−x, Nx) (M = Ta, Nb, W, x = 0.20) [28]156014.23430
(Ti, M)(C1−x, Nx) (M = Ta, Nb, W, x = 0.26) [28]153014.53500
WC-17Co-0 hBN [29]13006.3
WC-17Co-3 hBN [29]17006.4
WC-17Co-5 hBN [29]12006.5
WC-17Co-10 hBN [29]10003.8
WC-10 wt.% Co-0 wt.% Ru [22]120016.52780
WC-10 wt.% Co-1 wt.% Ru [22]131016.02850
WC-10 wt.% Co-2 wt.% Ru [22]130017.22550
WC-10 wt.% Co-3 wt.% Ru [22]131018.22200
WC-10 wt.% Co-4 wt.% Ru [22]133024.22350
WC-10 wt.% Co-5 wt.% Ru [22]132021.02500
WC-10 wt.% Co-6 wt.% Ru [22]132020.02350
WC-10Co7Ni2Fe1Cr4.5C (wt.%) [30]1080-1800
WC-10Co7Ni2Fe1Cr4.7C (wt.%) [30]1000-1700
WC-10Co7Ni2Fe1Cr4.9C (wt.%) [30]950-3450
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Straumal, B.B.; Konyashin, I. Faceting/Roughening of WC/Binder Interfaces in Cemented Carbides: A Review. Materials 2023, 16, 3696. https://doi.org/10.3390/ma16103696

AMA Style

Straumal BB, Konyashin I. Faceting/Roughening of WC/Binder Interfaces in Cemented Carbides: A Review. Materials. 2023; 16(10):3696. https://doi.org/10.3390/ma16103696

Chicago/Turabian Style

Straumal, Boris B., and Igor Konyashin. 2023. "Faceting/Roughening of WC/Binder Interfaces in Cemented Carbides: A Review" Materials 16, no. 10: 3696. https://doi.org/10.3390/ma16103696

APA Style

Straumal, B. B., & Konyashin, I. (2023). Faceting/Roughening of WC/Binder Interfaces in Cemented Carbides: A Review. Materials, 16(10), 3696. https://doi.org/10.3390/ma16103696

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
