Recent Advances in Carbon Nitride-Based S-scheme Photocatalysts for Solar Energy Conversion

Abstract

Energy shortages are a major challenge to the sustainable development of human society, and photocatalytic solar energy conversion is a potential way to alleviate energy problems. As a two-dimensional organic polymer semiconductor, carbon nitride is considered to be the most promising photocatalyst due to its stable properties, low cost, and suitable band structure. Unfortunately, pristine carbon nitride has low spectral utilization, easy recombination of electron holes, and insufficient hole oxidation ability. The S-scheme strategy has developed in recent years, providing a new perspective for effectively solving the above problems of carbon nitride. Therefore, this review summarizes the latest progress in enhancing the photocatalytic performance of carbon nitride via the S-scheme strategy, including the design principles, preparation methods, characterization techniques, and photocatalytic mechanisms of the carbon nitride-based S-scheme photocatalyst. In addition, the latest research progress of the S-scheme strategy based on carbon nitride in photocatalytic H₂ evolution and CO₂ reduction is also reviewed. Finally, some concluding remarks and perspectives on the challenges and opportunities for exploring advanced nitride-based S-scheme photocatalysts are presented. This review brings the research of carbon nitride-based S-scheme strategy to the forefront and is expected to guide the development of the next-generation carbon nitride-based S-scheme photocatalysts for efficient energy conversion.

1. Introduction

An increasingly tight energy supply has become a major constraint on social development [1]. Since the industrial revolution, mankind has used fossil energy to achieve the rapid development of civilization, but with it comes the growing problem of energy depletion and environmental pollution [2,3]. At present, the energy used by mankind is still mainly non-renewable fossil fuels. The massive consumption of carbon-based fuels has led to an explosion of greenhouse gas emissions in the environment, causing catastrophic consequences, such as global warming, glacial melting, a rise in sea level, and an ecological imbalance [4]. Therefore, the development of clean, renewable energy is of great significance to maintain the energy supply and curb environmental pollution. Among the many types of clean energy (wind power, hydropower, solar energy, biomass, etc.), solar energy is a universal, clean, and lasting energy, and its exploitation is a potential way to alleviate energy and environmental problems [5,6,7]. Although solar energy has many advantages, its fragmentation and instability create obstacles for the effective use of this energy [8]. Developing new technologies to overcome the limitation of natural factors is the key to achieving the full use of solar energy. In 1972, Hond et al. found that a TiO₂ photoelectrode can decompose H₂O into H₂ and O₂ under UV light, and this discovery opened a new window for the exploitation of solar energy [9]. Photocatalysis technology has made breakthroughs in H₂O splitting, CO₂ reduction, pollutant degradation, air purification, antibacterial properties, and self-cleaning techniques after decades of development and is gradually becoming one of the important ways to solve energy and environmental problems [10,11,12,13,14,15].

Photocatalysts are the key hub for solar energy conversion. The construction of high-performance photocatalysts is one of the core tasks in the development of photocatalytic technology. Metal oxides and sulfide semiconductors (TiO₂, CdS, etc.) have been successfully used as photocatalysts [16,17,18,19,20]. However, metal oxides usually have low spectral utilization due to their wide bandgap. Metal sulfides are prone to photo-corrosion and have potential problems with metal dissolution [21,22]. Different from traditional metal-based photocatalyst, carbon nitride is an organic polymer semiconductor with a graphite-like two-dimensional layered structure. In 2009, g-C₃N₄ was successfully used for photocatalytic water splitting. Since then, carbon nitride has gradually become a new star in the field of photocatalysis due to its abundant raw materials, simple preparation, suitable energy band structure, and high stability [23,24,25,26]. The conduction band (CB) potential of carbon nitride is about −1.3 eV vs. NHE, which is more negative than most semiconductors. Therefore, the photogenerated electrons on carbon nitride are thermodynamically easier to drive some reactions with high reduction potentials [27]. The valence band (VB) potential of carbon nitride is about 1.4 eV vs. NHE, and its band structure is perfectly suited to photocatalytic water splitting (Figure 1a) [28]. Although carbon nitride is a promising semiconductor photocatalyst, the pristine bulk carbon nitride still suffers from a narrow spectral response region, serious electron and hole recombination, and low photocatalytic efficiency [29,30]. The photocatalytic pathway on carbon nitride can be roughly decomposed into three steps: (i) carbon nitride absorbs a photon to produce electron-hole pairs; (ii) electron-hole pairs separate and transfer to the surface of carbon nitride; and (iii) the electron-hole reacts with the reactants adsorbed on carbon nitride (Figure 1b). The photocatalytic efficiency of carbon nitride is limited by the above three factors. Similar to the cannikin law, any one of these factors may lead to the poor photocatalytic activity of carbon nitride.

In response to the shortcomings of carbon nitride, a variety of modification schemes have been tried, such as morphological control, doping, defect engineering, noble metal modification, etc. These measures can effectively optimize the charge separation, spectral absorption range, and the number of active sites of carbon nitride [31,32,33,34,35]. However, carbon nitride has a low dielectric constant and high resistivity, and its high exciton binding energy and high resistivity lead to low charge separation efficiency and poor carrier migration ability, which seriously restricts the performance of carbon nitride [36,37]. Yu et al. have likened the process of electron transitions in semiconductors to upward throwing [38]. Similar to the fall of a thrown object under gravity, electrons excited from the VB to the CB will also recombine with the holes under the action of coulomb force. The coulomb constant is greater than the universal gravitational constant, which means that it is very difficult to inhibit the recombination of the electron and hole in pure carbon nitride. The optical response range of a semiconductor is inversely proportional to the bandgap. However, the narrowing of the bandgap implies that the CB position moves down or the VB position moves up, which will lead to a significant decrease in the redox activity of carbon nitride. Therefore, it is difficult to achieve a broad spectral response and strong redox capabilities in pure carbon nitride [39,40]. Multi-component heterojunction photocatalysts offer unique advantages over single-component photocatalysts in terms of the charge separation [41,42,43,44,45]. According to the equation of the coulomb force: F_c = kq_eq_h/r², heterojunction photocatalysts can realize the spatial separation of photogenerated carriers, increase the distance between electrons and holes, and reduce the coulomb force between them, thus inhibiting the recombination of photogenerated carriers [46].

The combination of carbon nitride with other semiconductors can realize the spatial separation of charges and bring other unexpected improvements [47,48,49,50]. The combination of carbon nitride with narrow bandgap semiconductors can increase the spectral response range, and a combination with porous semiconductors can increase the active sites [51,52,53]. The construction of type-II heterojunctions can inhibit the rapid recombination of carriers to some extent. Zhou et al. enhanced the charge separation ability of the photocatalyst by constructing a g-C₃N₄/rGO/NiAl-LDHs type-II heterojunction [54]. Photogenerated electrons transfer from the g-C₃N₄ to the CB of NiAl-LDHs, and photogenerated holes in the NiAl-LDHs migrate to the VB of g-C₃N₄. This type-II heterojunction exhibits better CO₂ reduction performance than a single photocatalyst (Figure 2a). Although a type-Ⅱ heterojunction can inhibit the recombination of electrons and holes through charge space separation, the electrons gather in the CB of NiAl-LDHs, and the holes gather in the VB of carbon nitride. Thermodynamically, this charge transfer mechanism leads to an overall decrease in the redox ability of the composite photocatalyst. The Z-scheme photocatalysts can achieve both the spatial separation of the charges and maintain the strong redox capabilities of the photocatalyst [55,56,57]. Zhu et al. constructed a g-C₃N₄/rGO/PDIP Z-scheme photocatalyst using rGO as an electron conductor [58]. A fast electron transfer channel is formed between g-C₃N₄ and PDIP, and electrons from the CB of PDIP are migrated to the VB of carbon nitride through rGO under illumination. Yong et al. successfully prepared hollow Pt/g-C₃N₄/TiO₂/IrOx Z-scheme photocatalysts via loading g-C₃N₄ onto TiO₂ hollow spheres and modifying the co-catalyst [59]. Photogenerated electrons in TiO₂ move towards g-C₃N₄, driven by the built-in electric field (Figure 2b). This Z-scheme without electron transfer intermediates has the advantage of a simple preparation and strong redox capacity. However, a direct Z-scheme heterojunction system is not well explained in terms of fermi level matching, internal electric field construction, and the driving factors of a charge transfer. To address the current shortcomings in Z-scheme heterojunction photocatalysts, Yu et al. analyzed the problems of Z-scheme heterojunctions and further put forward the concept of step-scheme (S-scheme) heterojunctions and systematically explained their photocatalytic mechanism (Figure 2c) [38,46]. Since then, the S-scheme photocatalyst has received increasing attention.

In the past three years, the development of carbon nitride-based S-scheme photocatalysts has been flourished, which has raised the wave of interests and reached a crescendo in the field of energy catalysis. Therefore, a timely overview on the recent progress of carbon nitride-based S-scheme heterojunctions is highly desirable, not only to unveil the basic working mechanism, but also to inspire future research directions in carbon nitride-based heterojunctions. This review introduces the development of carbon nitride-based S-scheme photocatalysts; comprehensively discusses the design principles, preparation methods, characterization techniques, and performance enhancement mechanisms of carbon nitride-based S-scheme photocatalysts; and systematically summarizes the research progress of carbon nitride-based S-scheme photocatalysts in a photocatalytic CO₂ reduction, H₂ evolution, and other solar energy conversions. Finally, some challenges faced by carbon nitride-based S-scheme photocatalysts and their future development directions are analyzed in depth.

2. Preparation of Carbon Nitride-Based S-scheme Photocatalyst

2.1. Design Principles

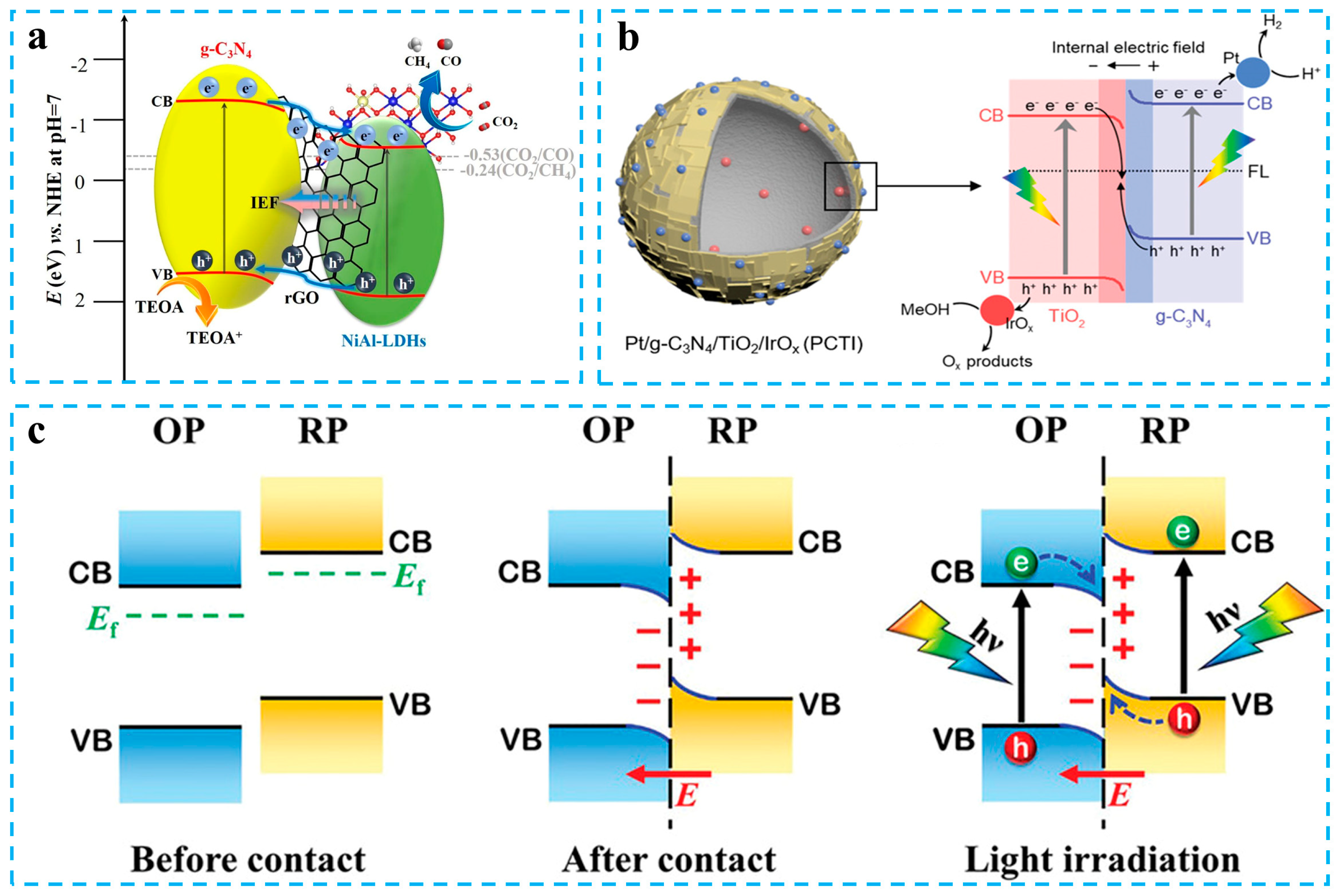

S-scheme heterojunction photocatalysts have similar charge transfer characteristics to direct Z-scheme heterojunctions, but there are some differences in design principles [60,61,62]. Different from the Z-scheme photocatalysts, which are constructed with n-type semiconductors, the S-scheme photocatalyst consists of an oxidation semiconductor photocatalyst (OP) and a reduction semiconductor photocatalyst (RP). Therefore, the S-scheme heterojunction photocatalysts can be an n–n junction, p–n junction, n–p junction, and p–p junction as long as the fermi level and band structure are appropriate [63,64,65]. In an S-scheme heterojunction photocatalyst, the OP needs to have a lower CB, VB, and fermi level than the OP, and the energy bands of the OP and RP are staggered (Figure 3a–c). The difference in fermi levels causes the spontaneous transfer of some electrons from the RP to the OP at the contact surface, and the uneven charge distribution induces the built-in electric field from the RP to the OP. The energy bands near the interface are also bent by electrostatic repulsion (Figure 3d). The carriers can transfer directionally under the built-in electric field, band bending, and coulomb force [66,67]. This transfer way of carrier will promote the recombination of holes and electrons with weak redox ability and prolong the lifetime of the carriers with strong redox capabilities. Therefore, S-scheme heterojunction photocatalysts have enhanced redox ability.

Pure carbon nitride is usually an n-type semiconductor, and there are three types of carbon nitride-based S-scheme photocatalysts: n–n, p–n, and n–p type [68,69,70]. The carbon nitride has quite a negative CB position, and the photogenerated electrons on it have strong reductive ability. Therefore, carbon nitride is typically used as an RP in S-scheme photocatalysts. Semiconductors whose CB, VB, and fermi levels are lower than carbon nitride can be used as the OP. When the carbon nitride-based S-scheme photocatalysts are excited by light, the electrons in the CB of the OP will recombine with the holes in the VB of carbon nitride under the coulomb force and built-in electric field (Figure 3e). The photogenerated electrons in carbon nitride and the photogenerated holes in the OP can fully exert their strong redox capabilities [71]. Zhang et al. prepared TpPa-1-COF/g-C₃N₄ S-scheme photocatalysts using a covalent organic framework and carbon nitride nanowires [72]. The TpPa-1-COF has a lower CB, VB, and fermi level than g-C₃N₄ nanowires (Figure 3f). The π-π conjugated heterointerface between the TpPa-1-COF and g-C₃N₄ has an enhanced interface electric field. The robust internal electric field makes the charge move quickly, which improves the charge separation and utilization of TpPa-1-COF/g-C₃N₄. Therefore, the TpPa-1-COF/g-C₃N₄ S-scheme heterojunction shows an excellent performance of photocatalytic hydrogen production (1153 μmol g⁻¹ h⁻¹). Chen et al. reported the IB/CNx S-scheme photocatalyst composed of iodine-doped BiOBr and nitrogen-deficient g-C₃N₄. The CB potential of IB is not negative enough, and the electrons on it have a low reduction ability. These electrons with a low reduction ability are driven by the internal electric field to recombine with the holes with a low oxidation ability on CNx. This charge transfer pathway leads to a prolonged lifetime of strong oxidizing holes on IB and strong reducing electrons on CNx. The IB/CNx S-scheme heterojunction has high-speed carrier migration and effective charge separation and exhibits enhanced photocatalytic activity in CO₂ reduction and tetracycline degradation [73]. In addition, there are also some semiconductors whose CB, VB, and fermi level are higher than carbon nitride. At this time, carbon nitride can be used as the OP to construct S-scheme photocatalysts. However, the VB position of carbon nitride is not positive enough, and the oxidation capacity of this S-scheme heterojunction may be insufficient [74].

Figure 3. (a) Kelvin probes and (b) relative work functions of different catalysts, (c–e) interfacial charge transfer between BiFeO₃ and Bi₂Fe₄O₉. Reprinted with permission from ref. [60], Copyright 2020 Elsevier. (f) Schematic illustration of the formation mechanism and charge migration in the TPCNNS S-scheme heterojunction. Reprinted with permission from ref. [72], Copyright 2022 Wiley.

Figure 3. (a) Kelvin probes and (b) relative work functions of different catalysts, (c–e) interfacial charge transfer between BiFeO₃ and Bi₂Fe₄O₉. Reprinted with permission from ref. [60], Copyright 2020 Elsevier. (f) Schematic illustration of the formation mechanism and charge migration in the TPCNNS S-scheme heterojunction. Reprinted with permission from ref. [72], Copyright 2022 Wiley.

2.2. Preparation of Carbon Nitride-Based S-scheme Photocatalysts

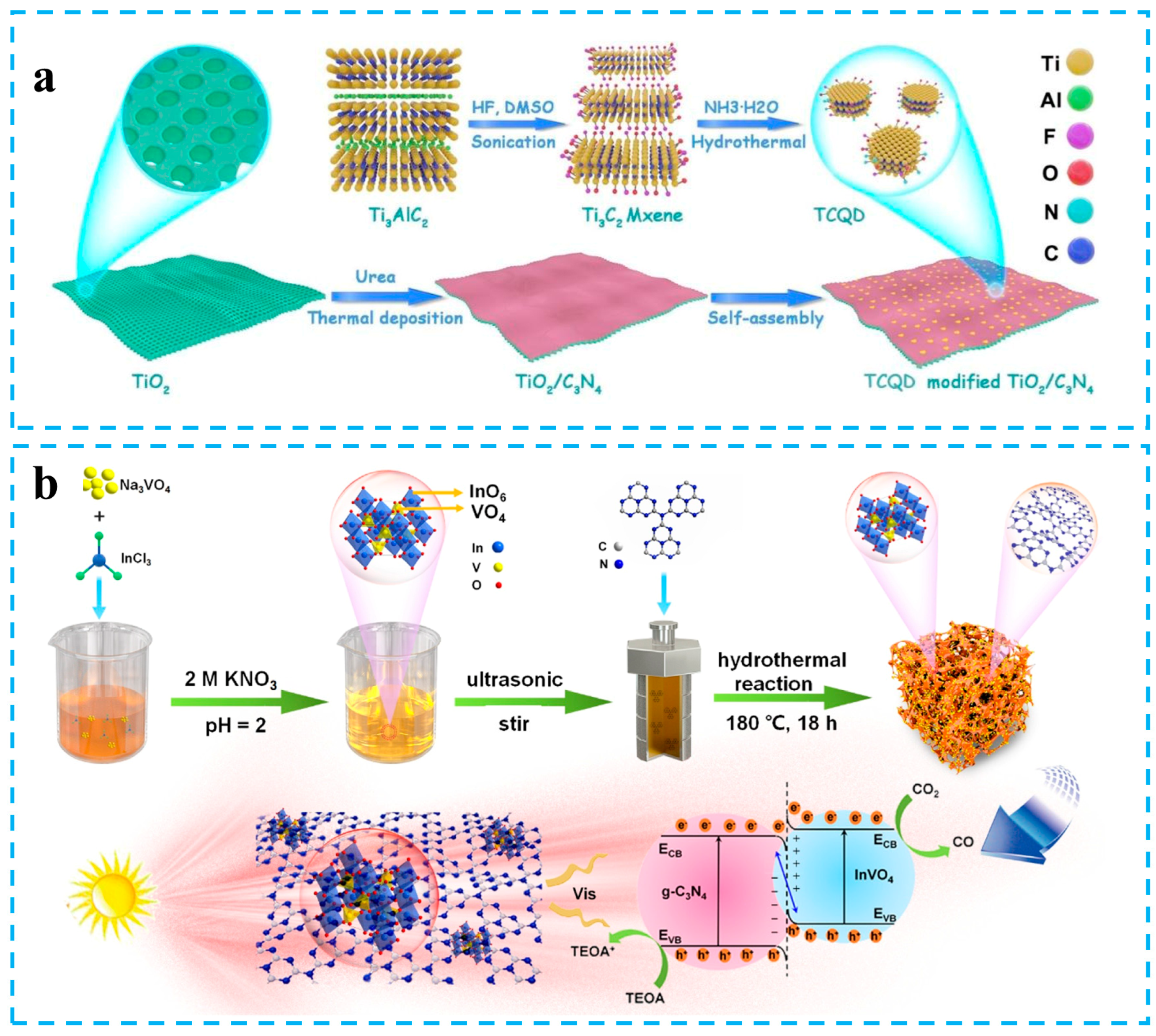

Carbon nitride is an organic polymer semiconductor that is easy to prepare and has stable physicochemical properties. There are many methods to construct S-scheme heterojunctions based on carbon nitride. The typical synthesis method of carbon nitride-based S-scheme photocatalysts includes coprecipitation, the high-temperature solid-state method, the hydrothermal method, the vapor deposition method, electrostatic self-assembly, the thermal polymerization method, etc. [75,76,77]. Macyk et al. prepared TiO₂/C₃N₄/Ti₃C₂ composites with thermal polymerization and electrostatic self-assembly. The C₃N₄ layer is in situ grown on TiO₂ nanosheets using urea as a precursor, and then, Ti₃C₂ quantum dots are loaded on a core-shell TiO₂/C₃N₄ via electrostatic self-assembly (Figure 4a). TiO₂/C₃N₄/Ti₃C₂ composite heterojunction photocatalysts follow the S-scheme charge transfer characteristics in CO₂ reduction and exhibit enhanced CO and CH₄ generation activity. The S-scheme charge transfer pathway between TiO₂ and C₃N₄ is beneficial to inhibit the strong redox electron and hole recombination. Ti₃C₂ can promote electron transfer and increase the CO₂ reduction rate [78]. Chen et al. prepared bulk carbon nitride via thermal polymerization using melamine as a precursor and then added bulk carbon nitride to the solution containing V source and In source. The InVO₄ quantum dots/g-C₃N₄ S-scheme heterojunctions (InVO₄/CN) were finally synthesized via ultrasonic and hydrothermal cutting methods (Figure 4b). The CO₂ reduction rate of 0D/2D hybrid InVO4/CN S-scheme photocatalyst reached 69.8 μmol g⁻¹ h⁻¹, and the content of CO in the product was as high as 93.3%. The InVO₄/CN obtained via this method had abundant defect sites, which were beneficial to the adsorption and activation of CO₂ [79].

Cui et al. prepared anatase TiO₂/H-doped rutile TiO₂/g-C₃N₄ (TiCN) double S-scheme heterojunction photocatalysts with the electrostatic self-assembly method. First, g-C₃N₄ nanosheets, anatase TiO₂ nanoparticles, and H-doped rutile TiO₂ nanorods are prepared separately, and then, the three materials are spontaneously assembled with electrostatic force in an ethanol–water mixture. Anatase TiO₂ nanoparticles and H-doped rutile TiO₂ nanorods are loaded on g-C₃N₄ ultra-thin nanosheets. The photocatalytic hydrogen evolution rate of this double S-scheme heterojunction catalyst is 62.37 mmol g⁻¹ h⁻¹, and the quantum efficiency at 365 nm is 45.9%. The ternary TiCN photocatalyst has suitable lattice matching and fast charge transport channels, which is beneficial to the separation and transfer of photogenerated carriers [80]. Ye et al. prepared S-doped g-C₃N₄/N-doped MoS₂ S-scheme photocatalysts (NMS/SCN) using thiourea and copper chelator as raw materials via the thermal polymerization method. The S released by thiourea during calcination is doped in g-C₃N₄, and the N released by copper chelating agent is doped in MoS₂. The charge transfer between NMS and SCN follows the S-scheme. The electrons and holes are distributed on SCN and NMS, respectively, and the carrier recombination is effectively suppressed. The hydrogen evolution rate of NMS/SCN photocatalysis is 658.5 μmol g⁻¹ h⁻¹, which is 23 and 38 times that of NMS and SCN, respectively [81]. Different methods were used for preparing carbon nitride-based S-scheme photocatalysts, as shown in

Table 1. Comparison of different preparation strategies of carbon nitride-based S-scheme photocatalysts.

Photocatalysts	Synthesis Strategy	Characteristics	Ref.
S-g-C3N4/TiO2	Electrospinning	Small diameter, uniform morphology, time and cost-consuming	[68]
CuFe2O4/Bi2WO6/mpg-C3N4	Hydrothermal and solvothermal	High crystallinity, controllable morphology, low efficiency	[69]
WO3/g-C3N4	Thermal polycondensation	Facile, highly efficient, uncontrollable morphology	[70]
TpPa-1-COF/g-C3N4	Self-assembly	Uniform morphology, complicated preparation process	[72]
70IB/CNx	Deposition-precipitation	Facile, highly efficient, easy aggregation	[73]
us-Cu3P|S/CN	Solid-state method	High-efficiency, simple, uncontrollable morphology	[74]
V2O5/C3N4	Mechanical agitation	Facile, highly efficient, relatively poor interface contacts	[76]
TiO2/C3N4/Ti3C2	Electrostatic self-assembly	High-efficiency, and low-cost, complex conditions	[78]
CdS/PT	In-situ growth	Uniform morphology, close contact, complicated preparation process	[82]

. In summary, the construction of an S-scheme photocatalyst is a simple and efficient way to enhance the photocatalytic performance of carbon nitride. In addition, defect engineering, interfacial engineering, and co-catalyst modification can be combined with the S-scheme heterojunction to promote the performance of carbon nitride-based heterojunction photocatalysts.

2.3. Techniques for the Identification of Carbon Nitride-Based S-scheme Photocatalysts

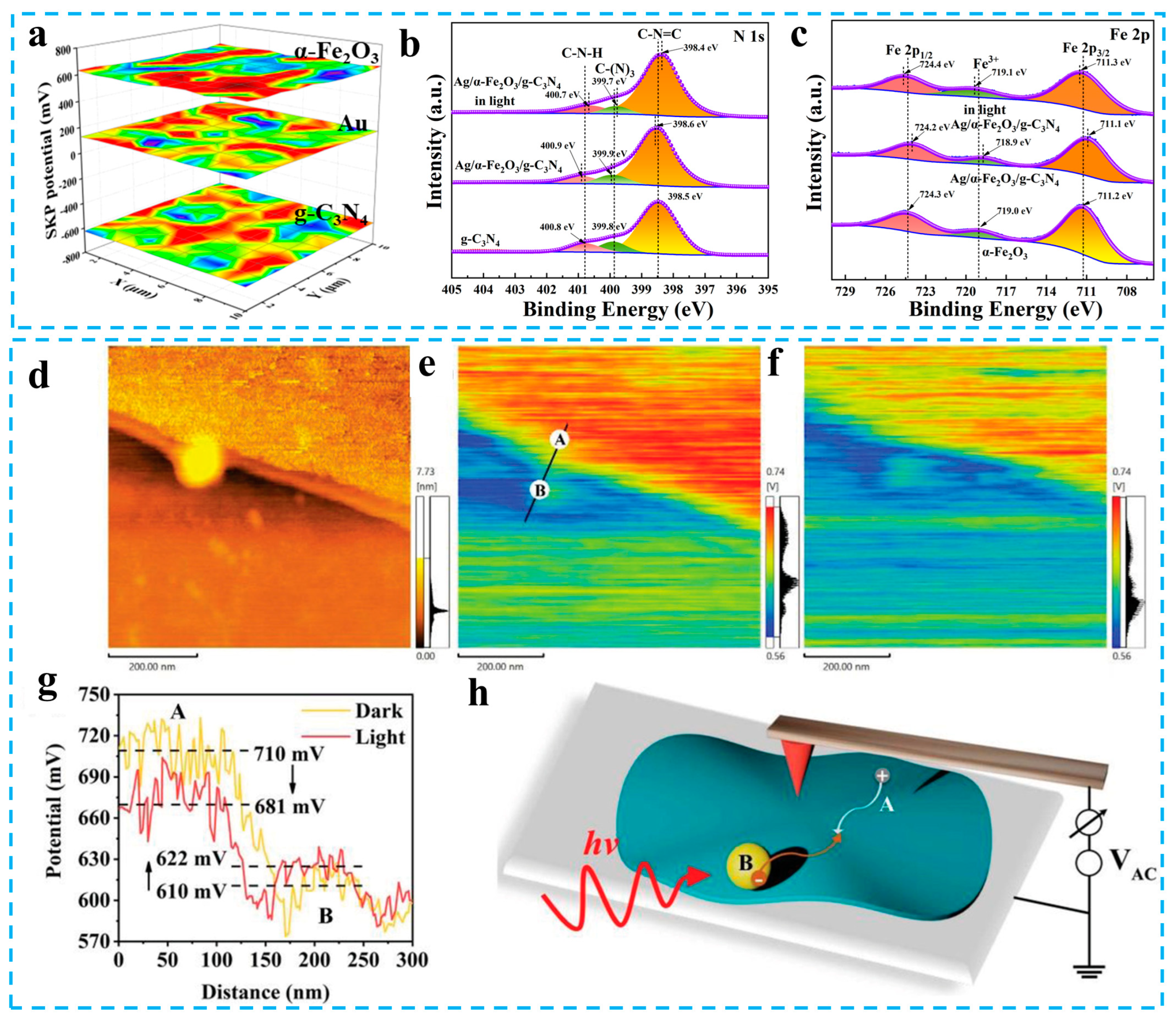

With the progress of characterization technology and the continuous exploration of researchers, the carrier transfer characteristics of an S-scheme photocatalyst has been gradually verified. An in situ irradiation X-ray photoelectron spectroscopy (ISIXPS) and kelvin probe force microscope (KPFM) are two characterization techniques that can directly prove the electronic transfer in S-scheme photocatalysts. XPS is a high-precision instrument for detecting the elemental and valence of solid materials. The binding energy in the spectrum is related to the change in electron density. After the element loses some electrons, its electron density decreases. Therefore, the binding energy of the elements that lose electrons will increase; on the contrary, the binding energies of the elements that get electrons will decrease. The changing trend of the binding energy of different elements can prove the formation of the interface electric field of an S-scheme photocatalyst and the direction of electron transfer under irradiation. For example, in the S-scheme photocatalyst constructed by α-Fe₂O₃ and g-C₃N₄, g-C₃N₄ has a smaller work function than α-Fe₂O₃ (Figure 5a). After contact, the electrons of carbon nitride transfer spontaneously to α-Fe₂O₃. The loss of electrons in g-C₃N₄ results in a positive shift in the binding energy of N and a decrease in the binding energy of Fe in α-Fe₂O₃ after obtaining electrons (Figure 5b,c). The inhomogeneous charge distribution forms an interfacial electric field from g-C₃N₄ to α-Fe₂O₃. When the composite photocatalyst is excited by light, the photogenerated electrons of α-Fe₂O₃ move to carbon nitride under the action of the interfacial electric field. At this time, g-C₃N₄ loses electrons and α-Fe₂O₃ gets electrons, so the binding energy of N and Fe shift positively and negatively, respectively [83]. Therefore, ISIXPS can characterize the direction of electron transfer in S-scheme heterojunctions. KPFM can draw a topographic map and potential distribution map of the sample surface. Yu et al. used KPFM to study charge transfer characteristics in S-scheme photocatalysts composed of CdS and pyrene-based conjugated polymers (PT) (Figure 5h). The PT has a smaller work function than CdS according to the contact potential difference between pure CdS and pure PT. The distribution of the charge on CdS/PT in the dark is shown in Figure 5e. The electrons on PT are transferred to CdS and its surface is positively charged, so the surface potential of PT is higher compared to the CdS. The potential difference between CdS and PT indicates the existence of an interfacial electric field. The surface potential of PT decreases and the potential of CdS increases under light, indicating that photogenerated electrons are moved from CdS to PT (Figure 5f,g) [82]. Therefore, KPFM can also visually characterize the electron transfer in S-scheme photocatalysts.

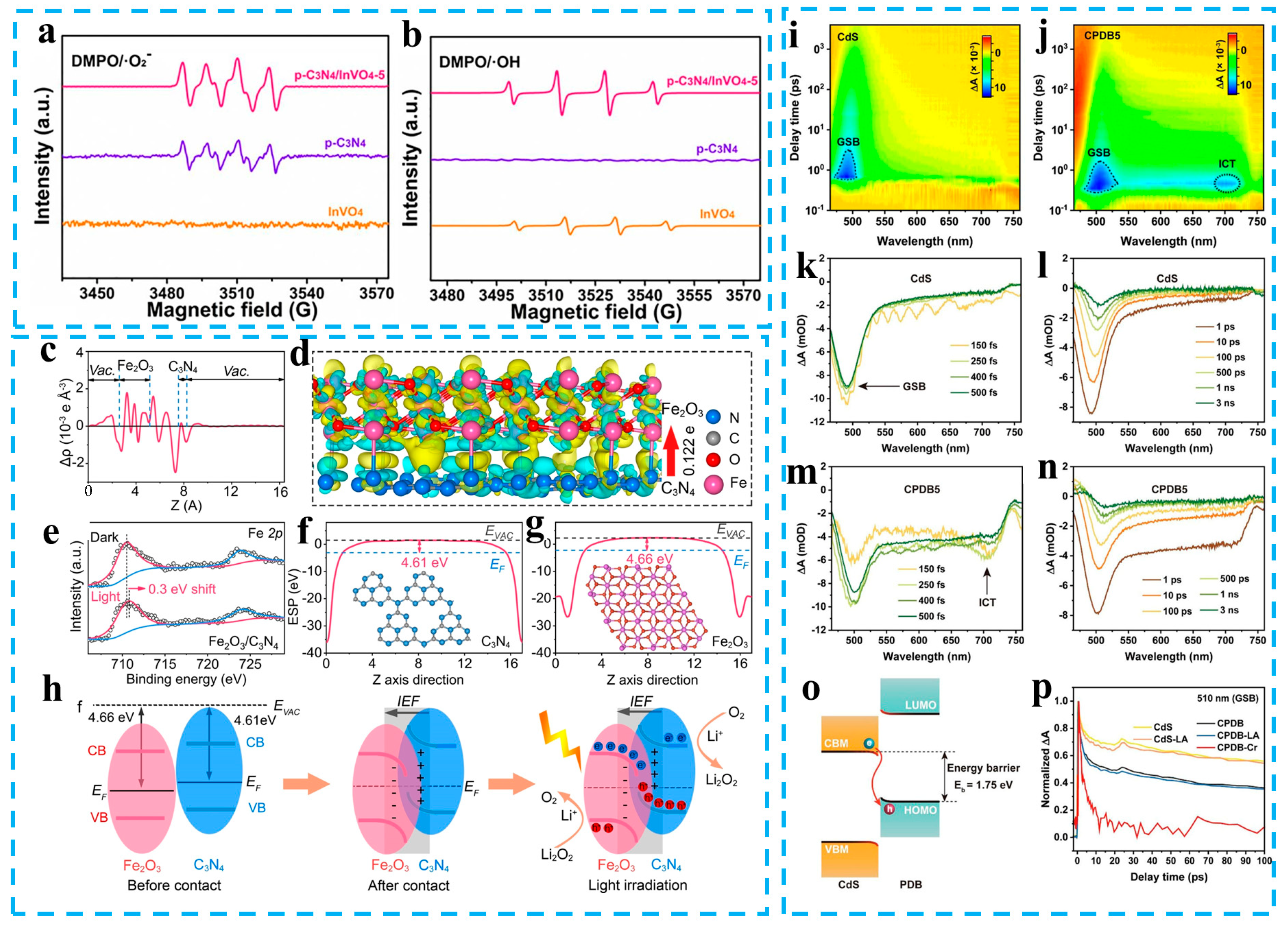

Other techniques can also indirectly prove or assist in proving the formation of S-scheme heterojunctions, such as the scanning kelvin probe (SKP), surface photovoltage (SPV), femtosecond transient absorption (fs-TA), and electron paramagnetic resonance (EPR). An SKP can test the work function of a semiconductor to get information about the fermi level and provide a basis for the identification of the interface electric fields in heterojunctions. Similar characterization technologies also include ultraviolet photoelectron spectroscopy (UPS) [84]. The SPV signal can provide feedback information about charge transfer, which is similar to a transient photocurrent, electrochemical impedance spectroscopy (EIS), photoluminescence (PL), etc. The built-in electric field can drive the rapid transfer of charge carriers to form a fast and strong SPV response. The peaks of OH and O₂⁻ in the EPR spectrum are related to the redox ability of photogenerated carriers in the photocatalyst. A different electronic transfer mechanism can lead to changes in the redox property of the heterojunction photocatalyst. The charge transfer characteristics in the photocatalyst can be judged by the trend of the radical signal. Hu et al. verified the charge transfer characteristics of g-C₃N₄/InVO₄ S-scheme photocatalysts by EPR [85]. The single carbon nitride is not sufficient to oxidize water to produce ·OH, and the single InVO₄ is not sufficient to reduce oxygen to produce ·O₂⁻. The ERP spectrum of the g-C₃N₄/InVO₄ composite photocatalyst shows significantly enhanced signal peaks for ·O₂⁻ and OH, indicating that the charge transfer characteristics in g-C₃N₄/InVO₄ is an S-scheme rather than type-II (Figure 6a,b). The interface charge transfer characteristics of S-scheme photocatalysts can also be verified with DFT calculations, including the average planar electron density difference Δρ(z) and differential charge density map. Li et al. verified the charge transfer pathways of Fe₂O₃/C₃N₄ S-scheme heterojunction via DFT calculations [86]. The average planar electron density curve and differential charge density map show that the electrons move from C₃N₄ to Fe₂O₃, resulting in the interfacial electric field being created from C₃N₄ to Fe₂O₃ (Figure 6c,d). Therefore, DFT calculations can provide a basis for judging the formation of the interface electric field. Fs-TA can simulate the quenching path and corresponding lifetime of carriers in semiconductors by extracting spectral attenuation features. Yu et al. used the fs-TA technique to study the photophysical processes of S-scheme heterojunctions such as cadmium sulfide/pyrene-ALT-difluorobenzothiadiazole (CdS/PBD) and detected the charge transfer signal of the S-scheme and the lifetime of this transfer process [87]. Figure 6m shows an additional peak near 710 nm, the energy corresponding to its wavelength approximately equal to the energy released by the S-scheme charge transfer between CdS and PDB (Figure 6o). Therefore, it is considered to be the direct evidence for the formation of the S-scheme heterojunction between CdS and PDB.

A built-in electric field-driven S-scheme charge transfer can efficiently separate electrons and holes. Therefore, photoelectrochemical tests and photoluminescence spectra can also demonstrate the successful construction of S-scheme heterojunctions to some extent. The transfer of photogenerated electrons along the external circuit will generate a photocurrent. The higher the separation efficiency of photogenerated electrons and holes, the greater the photocurrent generated [84,85]. The transient photocurrent response of p-C₃N₄/InVO₄ is significantly higher than that of the original p-C₃N₄ and InVO₄, indicating that p-C₃N₄/InVO4 has higher charge separation efficiency, which means that more electrons and holes can participate in the photocatalytic reaction [85]. The EIS can also prove that the S-scheme heterojunction has excellent charge transfer characteristics. In the LaVO₄/g-C₃N₄ S-scheme heterojunction system, the composite has the smallest arc radius and the best photocatalytic performance. The original g-C₃N₄ has the largest arc radius and the worst photocatalytic activity, indicating that the S-scheme heterojunction is beneficial to reduce the charge transfer resistance and promote the carrier separation [84]. The PL spectrum can represent the intensity of electron and hole recombination luminescence. Stronger PL peaks mean higher electron-hole complexation rates. The separation efficiency of electrons and holes can also be analyzed via a fluorescence lifetime. The fluorescence lifetime is equivalent to the existence time of photogenerated carriers. The longer the fluorescence lifetime of the photocatalyst means the better the separation of electrons and holes [80,84].

3. Application of Carbon Nitride-Based S-scheme Photocatalysts in Solar Energy Conversion

Since it was first discovered to have catalytic activity in photocatalytic H₂ evolution, carbon nitride has been widely used as a carrier for various photocatalytic reactions [88,89,90]. The carbon nitride-based S-scheme photocatalysts have enhanced carrier separation and migration capabilities. The further enhancement of the redox capacity allows carbon nitride-based S-scheme photocatalysts to show satisfactory activity in photocatalytic solar energy conversion.

3.1. Photocatalytic H₂ Evolution

H₂ is a kind of energy with significant advantages. It is an effective way to alleviate the energy shortage by replacing fossil energy with H₂. Photocatalytic water splitting is a green H₂ production technology, which is expected to be promoted on a large scale. The development of high-performance semiconductor photocatalysts is crucial to achieve this goal. The direct decomposition of H₂O to produce H₂ and O₂ requires a high energy barrier of 237 KJ mol⁻¹, and the band structure of photocatalysts needs to match the redox potential of water [91]. The suitable photocatalyst should have more negative CB than H₂ reduction potential (pH = 0, 0 V vs. NHE) and more positive VB than H₂O oxidation potential (pH = 0, 1.23 eV vs. NHE). In addition to the basic thermodynamic requirements, hydrogen or oxygen evolution reactions on the surface of the catalyst will require more energy due to the overpotential [92]. Carbon nitride is a kind of polymer semiconductor suitable for photocatalytic hydrogen production because its CB potential is negative enough. The unique carrier transfer mechanism of S-scheme photocatalyst makes the redox ability of the OP and RP complement each other. Therefore, the S-scheme photocatalysts constructed by carbon nitride and the OP possess a strong redox capacity. The electrons from the OP are recombined with holes on carbon nitride, the holes from the OP are used to oxidize H₂O to produce oxygen, and the electrons of carbon nitride can fully participate in the hydrogen evolution reaction.

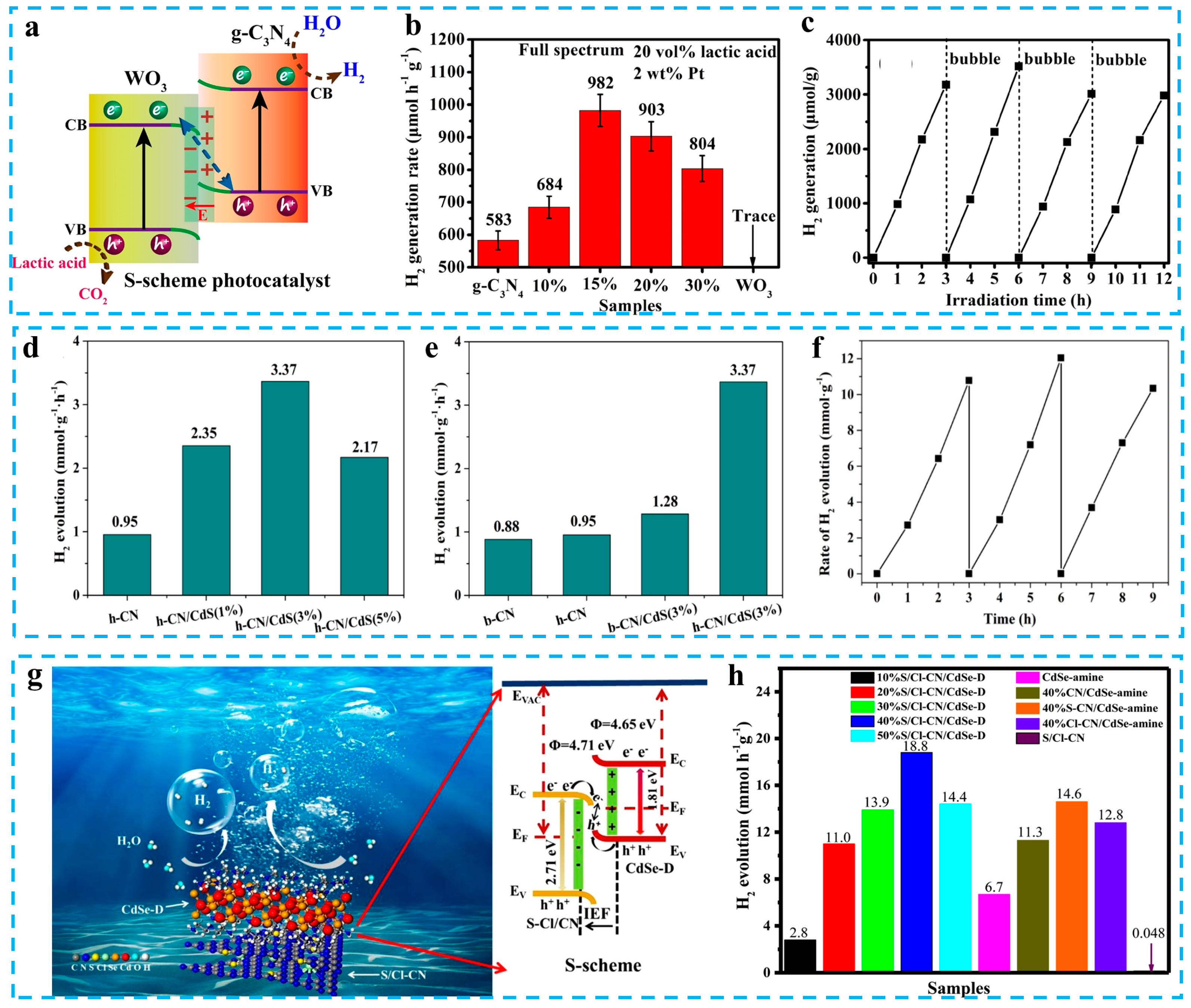

An S-scheme heterojunction can usually be combined with doping, defect, and morphology engineering to further improve the activity of photocatalysts. Yu et al. obtained carbon nitride nanowires via two-step pyrolysis, and then, WO₃/g-C₃N₄ 2D/2D S-scheme photocatalysts were synthesized via electrostatic self-assembly with WO₃ nanowires. The photocatalytic H₂ evolution rate of the optimal sample is 982 μmol h⁻¹ g⁻¹, which is 1.7 times that of the original g-C₃N₄ nanosheet (Figure 7b). In addition, this composite photocatalyst exhibited satisfactory stability in cycling experiments (Figure 7c). XPS, EPR, and DFT calculations are used to demonstrate the formation of an interfacial electric field in the vicinity of the contact surface between WO₃ and g-C₃N₄. The enhanced photocatalytic activity of WO₃/g-C₃N₄ is mainly attributed to the interfacial electric field accelerating charge separation (Figure 7a). The electrons in WO₃/g-C₃N₄ are retained on the CB of g-C₃N₄ under the effect of the built-in electric field, which in turn reduces the hydrogen protons to H₂ [93]. An et al. constructed an h-CN/CdS S-scheme heterojunction via self-assembly. The hydrogen precipitation rate of the best ratio h-CN/CdS photocatalyst is 3.37 mmol g⁻¹ h⁻¹, which is greatly improved compared to the original sample (Figure 7d,e). This S-scheme heterojunction accelerates the charge separation, inhibits the photo-corrosion of CdS, and keeps h-CN/CdS stable in the photocatalytic reaction (Figure 7f) [94]. Chen et al. successfully synthesized S/Cl-CN/CdSe-D S-scheme heterojunction photocatalysts via growing CdSe-amine on the surface of carbon nitride co-doped with sulfur and chlorine (Figure 7g). The H₂ evolution rate of S/Cl-CN/CdSe-D is 18.8 mmol g⁻¹ h⁻¹, which is 391 and 2.8 times that of S/Cl-CN and CdSe-D, respectively. The apparent quantum efficiency of S/Cl-CN/CdSe-D at 420 nm is 38.4% (Figure 7h). The high hydrogen production activity is related to the built-in electric field accelerating the migration of photogenerated carriers. The interfacial electric field suppresses the loss of electrons on CdSe-D so that more electrons are involved in the proton reduction discharge, improving the utilization of photogenerated carriers [95]. More recent examples of carbon nitride-based S-scheme photocatalysts’ photocatalytic water splitting are shown in

Table 2. Various carbon nitride-based S-scheme photocatalysts for H₂ evolution reported in recent years.

Photocatalysts	Auxiliary Conditions	Light Source	H2 Evolution (μmol h−1 g−1)	Ref.
S-pCN/WO2.72	TEOA	Xe lamp (300 W, λ > 420 nm)	786.0	[96]
g-C3N4/Zn0.2Cd0.8S-DETA	Na2S, Na2SO3, H2PtCl6	Xe lamp (300 W, λ > 420 nm)	6690.0	[97]
g-C3N4/TiO2	TEOA, Pt	Xe lamp (300 W, λ > 420 nm)	974.6	[98]
BiOBr/g-C3N4	TEOA	Xe lamp (300 W)	106.63	[99]
ZnCo2S4/g-C3N4	TEOA	Xe lamp (300 W)	6619.0	[100]
ISCNMT	MeOH, K2PtCl6	Xe lamp (110 mW cm−2, λ > 400 nm)	9640.0	[101]
ZnIn2S4/g-C3N4/Ti3C2	TEOA	Xe lamp (300W, λ > 420 nm)	2452.1	[102]
TiO2-OV/g-C3N4	TEOA, H2PtCl6	Xe lamp (300 w, λ > 400 nm)	6308.0	[103]
S-g-C3N4-E	TEOA, Pt	Xe lamp (300 W, λ > 420 nm)	5548.1	[104]
ZnIn2S4/CD/g-C3N4	TEOA, NaCl, H2PtCl6	Xe lamp (300 W, λ > 420 nm)	17580	[105]
In2.77S4/NiS2/g-C3N4	TEOA	Xe lamp (300 W)	7481.7	[106]

[96,97,98,99,100,101,102,103,104,105,106].

3.2. Photocatalytic CO₂ Reduction

Excessive consumption of fossil fuels has led to the gradual increase of CO₂ in the atmosphere, causing a chain of global issues, such as the greenhouse effect and an abnormal climate [107]. Plants in nature are able to fix CO₂ and release O₂ through photosynthesis to maintain the carbon/oxygen cycle in ecosystems. Semiconductor photocatalysis can mimic the photosynthesis of plants by using sunlight as the sole source of energy to drive the conversion of H₂O and CO₂ into high value-added products. This technology solves the problem of solar energy storage and enables CO₂ reduction [108,109,110]. The CO₂ molecule is quite thermodynamically stable, and its reduction reaction involves a multi-electron transfer process [111]. Photocatalytic CO₂ reduction is more challenging than photocatalytic water splitting. The carbon nitride-based S-scheme photocatalysts have strong redox capabilities, which can drive a CO₂ reduction reaction with a high thermodynamic barrier. The built-in electric field in the S-scheme photocatalyst can accelerate the photogenerated charge transfer and promote the photocatalytic reaction rate. Therefore, carbon nitride-based S-scheme photocatalysts have been extensively studied in CO₂ reduction.

The design of hierarchical composite photocatalysts is one of the important methods to promote the photoreduction of CO₂ into fuel. Xiu et al. reported a layered S-scheme heterojunction (OCN/NNBO) assembled with N-doped Nb₂O₅ and O-doped carbon nitride (Figure 8a). The photocatalytic r yields rates of CO₂ to CH₄ and CO are 68.11 and 253.34 μmol g⁻¹ h⁻¹, respectively (Figure 8b,c). The layered S-scheme heterostructure accelerates the migration of carriers and provides a large specific surface area and abundant active sites, which improves the photocatalytic performance of OCN/NNBO. The S-scheme charge transfer leaves electrons on the CB of the OCN, and these strongly reducing electrons react with the CO₂ adsorbed on the surface to reduce CO₂ to CO and CH₄; isotope experiments also show that CO₂ is the only source of carbon for the production of CO and CH₄ [112]. The composites composed of carbon nitride and a covalent organic framework (COF) have significant advantages in improving interfacial contact and accelerating the charge transfer. Ye et al. coupled g-C₃N₄ and Tp-TtaCOF with nitrogen defects via evaporation-induced self-assembly and successfully prepared a 2D/2D C₃N₄ (NH)/COFS heterojunction photocatalyst (Figure 8d). The reduction rate of CO₂ to CO by C₃N₄ (NH)/COF is 11.25 μmol h⁻¹, which is 45 times that of the original carbon nitride, and the selectivity is as high as 90.4% (Figure 8e,f). The experiments and DFT calculations show that C₃N₄ (NH)/COF has proper nitrogen-vacancy and a robust internal electric field, which is beneficial for CO₂ trapping, activation, and charge separation. Under the S-scheme charge transfer mechanism, electrons are gathered on the CB of g-C₃N₄ and gradually reduce the CO₂ adsorbed on the surface to produce intermediates such as CO₂*, COOH*, and CO*, which are further reduced to produce CO [113]. Mohamed et al. prepared g-CNR/CoAlLa-LDH binary photocatalysts via combining 0D carbon nitride nanorods with 2D trimetal CoAlLa LDH nanowires (Figure 8g). The photocatalytic yields rates of CH₄ and CO were 36.66 and 44.62 μmol g⁻¹ h⁻¹, respectively (Figure 8h,i). The charge transfer between g-CNR and CoAlLa-LDH follows the S-scheme, and the electrons and holes are left on different semiconductors, which effectively promote the separation of photogenerated carriers [114]. More recent cases of the photocatalytic CO₂ reduction of carbon nitride-based S-scheme photocatalysts are shown in

Table 3. Recent cases of photocatalytic CO₂ reduction of carbon nitride-based S-scheme photocatalysts.

Photocatalysts	Light Source	CH4 (μmol h−1 g−1)	CO (μmol h−1 g−1)	Ref.
g-C3N4/Bi/BiVO4	Xe lamp (300 W, λ > 420 nm)	-	1.25	[115]
CoO/PCN	Xe lamp (300 W, λ > 410 nm)	-	40.31	[116]
TiO2/Ti3AlC2/g-C3N4	HID car lamp (35 W)	2103.50	297.26	[117]
g-C3N4/CdSe-DETA	Xe lamp (300 W, λ > 420 nm)	-	25.87	[118]
g-C3N4/Fe-MOF	Xe lamp (300 W, full spectrum)	-	19.17	[119]
Bi3NbO7/g-C3N4	Xe lamp (300 W, λ > 420 nm)	37.60	4.18	[120]
CsPbBr3/S-g-C3N4	Xe lamp (300 W, λ > 400 nm)	-	83.60	[121]
ZnIn2S4/g-C3N4	Xe lamp (300 W, full spectrum)	-	883.00	[122]
Nb2O5/g-C3N4	Xe lamp (300 W, full spectrum)	20.89	171.98	[123]
BiOI/g-C3N4	Xe lamp (300 W, λ > 400 nm)	-	3.11	[124]
g-C3N4/Cu2O@Cu	Xe lamp (300 W, full spectrum)	3.10	10.80	[125]

[115,116,117,118,119,120,121,122,123,124,125].

3.3. Other Applications of Carbon Nitride-Based S-scheme Photocatalysts

Besides the two typical photocatalytic solar energy conversions of photocatalytic H₂ generation and CO₂ reduction, carbon nitride-based S-scheme photocatalysts have also attracted much attention in the fields of H₂O₂ production, environmental purification, antibacterial properties, etc. H₂O₂ is a high-value-added chemical known as a green molecule, which is widely used in medical, chemical, and other fields. Photocatalytic H₂O₂ production has the advantage of environmental friendliness and a low cost. Wang et al. reported an S-scheme photocatalyst composed of ultrathin carbon nitride and polydopamine with an H₂O₂ yield of 3801 μmol g⁻¹ h⁻¹, which is 2 times and 11 times that of the original carbon nitride and polydopamine, respectively. The enhanced activity of the composite photocatalysts is due to the accelerated charge transfer by S-scheme heterojunctions. Experiments show that H₂O₂ is generated in the presence of O₂, so H₂O₂ may be derived from an O₂ reduction reaction rather than an H₂O oxidation reaction. In addition, H₂O₂ production was inhibited under the condition of scavenging ·O₂⁻, so H₂O₂ was derived from a two-step single-electron O₂ reduction reaction [126]. Li et al. synthesized an iron-tungsten oxide-modified, oxygen-rich carbon nitride with defects (ITOs/OCNv) S-scheme heterojunction composites. The introduction of double defects expands the spectral absorption, and the S-scheme charge transfer pathway promotes the separation of carriers. The degradation rates of sulfamethazine and ciprofloxacin by ITOs/OCNv within 40 minutes are 99.6% and 99.5%, respectively, and the ITOs/OCNv shows excellent resistance to water quality changes. Experiments show that the internal electric field in ITOs/OCNv can promote carrier separation, and more photogenerated electrons can effectively participate in O₂ reduction and persulfate activation, resulting in a large number of active free radicals to remove pollutants [127]. Zhang et al obtained carbon nitride nanowires via two-step annealing. The carbon nitride nanowires were added to an N-dimethylformamide solution containing cerium nitrate, and CeO₂ quantum dots/carbon nitride nanowires S-scheme photocatalysts were obtained via oil bath and calcination. The photocatalytic sterilization rate of CeO₂/g-C₃N₄ to staphylococcus aureus was as high as 88.1% under visible light. It can be attributed to the rapid charge separation of S-scheme photocatalysts and produced more sterilized active substances [128].

4. Conclusions and Outlook

In summary, photocatalysis has been extensively studied as a technology to realize solar energy conversion. The key to advances in photocatalysis is the development of highly efficient photocatalysts. The design of carbon nitride-based S-scheme photocatalysts as a promising strategy to achieve efficient solar energy conversion has been widely studied. In this review, we systematically review the design strategy of an S-scheme based on carbon nitride and its engineering application in energy conversion, and we summarize the progress of a carbon nitride-based S-scheme heterojunction from the following aspects: (i) the design of S-scheme heterojunction based on carbon nitride, (ii) the method for the preparation of carbon nitride-based S-scheme photocatalysts, (iii) the characterization of built-in electric field and charge transfer characteristics, (iv) the photocatalytic mechanism of carbon nitride-based S-scheme photocatalysts, and (v) the application of a carbon nitride-based S-scheme catalyst in a photocatalytic solar energy conversion.

Some challenges and suggestions are also raised in this work. The carbon nitride-based S-scheme photocatalyst has robust redox capabilities, rapid charge dynamics, and can cooperate with doping, defect engineering, monoatomic modification, precious metal modification, and other measures to enhance the photocatalytic performance. However, there are still some unsatisfactory aspects in the design, preparation, and mechanism analysis of carbon nitride-based S-scheme photocatalysts. In order to further develop the carbon nitride-based S-scheme photocatalyst and promote its practical application in photocatalytic solar energy conversion, the following notable problems and future development opportunities are put forward on the basis of the current research:

• The carbon nitride has a rather negative CB potential, so carbon nitride generally acts as a reduction photocatalyst matched to oxidation photocatalysts with a wide band gap to construct S-scheme heterojunctions. However, this design scheme is not conducive to improving the spectral response of heterojunction photocatalysts. The band structure of carbon nitride can be continuously and controllably adjusted via doping engineering [129,130]. The carbon nitride is expected to be used as oxidation semiconductors to construct broad-spectrum response S-scheme heterojunctions with narrow bandgap semiconductors such as Bi₂S₃ and CuInS₂;
• The preparation method of a carbon nitride-based S-scheme photocatalyst often requires complex steps, so it is difficult to achieve large-scale production. In addition, conventional assembly methods, such as electrostatic self-assembly/physical adsorption, may also suffer from inadequate contact between the two components. Therefore, the simple one-step method or in situ growth process needs to be further studied. It is also necessary to expand the contact interface of the heterojunction, simplify the processes, and reduce the preparation cost of the photocatalyst;
• The related characterization techniques of S-scheme heterojunctions still need to be further developed. The built-in electric field is the key driver for rapid charge separation in S-scheme photocatalysts, but conventional characterization methods make it difficult to accurately characterize the strength of the internal electric field and its position relative to the active center. Li et al. used time-resolved photoelectron microscopy and surface photovoltage microscopy to directly observe the charge transfer characteristics in nanoseconds. [131,132] These advanced in situ characterization techniques are expected to further reveal the action mechanism of an internal electric field in a carbon nitride-based S-scheme photocatalyst;
• Photocatalytic solar energy conversion is a complex process. The carbon nitride-based S-scheme photocatalyst system usually includes defect engineering, surface plasmon resonance, photothermal effect, and so on. The synergistic mechanism of different factors needs to be further explored in depth;
• The carbon nitride-based S-scheme photocatalyst has many advantages in solar energy conversion. However, there is still a big gap between its catalytic efficiency and the requirements of commercial application. Therefore, it is necessary to explore more efficient improvements of carbon nitride-based S-scheme photocatalysts, such as photo-electric synergy, photo-thermal synergy, and photo-magnetic synergy, in order to substantially enhance the catalytic efficiency of carbon nitride-based S-scheme photocatalysts.
