Article

Low Temperature Thermal Treatment of Incineration Fly Ash under Different Atmospheres and Its Recovery as Cement Admixture

by
Tingshu He
*,
Jiangbo Li
*,
Xiaodong Ma
*,
Yongqi Da
and
Hudie Yuan
College of Materials Science and Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(11), 3923; https://doi.org/10.3390/ma16113923
Submission received: 19 April 2023 / Revised: 14 May 2023 / Accepted: 22 May 2023 / Published: 24 May 2023
Browse Figures
Versions Notes

Abstract

:
Municipal solid waste incineration fly ash is classified as hazardous waste because it contains dioxins and a variety of heavy metals. It is not allowed to be directly landfilled without curing pretreatment, but the increasing production of fly ash and scarce land resources has triggered consideration of the rational disposal of fly ash. In this study, solidification treatment and resource utilization were combined, and the detoxified fly ash was used as cement admixture. The effects of thermal treatment in different atmospheres on the physical and chemical properties of fly ash and the effects of fly ash as admixture on cement properties were investigated. The results indicated that the mass of fly ash increased due to the capture of CO2 after thermal treatment in CO2 atmosphere. When the temperature was 500 °C, the weight gain reached the maximum. After thermal treatment (500 °C + 1 h) in air, CO2, and N2 atmospheres, the toxic equivalent quantities of dioxins in fly ash decreased to 17.12 ng TEQ/kg, 0.25 ng TEQ/kg, and 0.14 ng TEQ/kg, and the degradation rates were 69.95%, 99.56%, and 99.75%, respectively. The direct use of fly ash as admixture would increase the water consumption of standard consistency of cement and reduce the fluidity and 28 d strength of mortar. Thermal treatment in three atmospheres could inhibit the negative effect of fly ash, and the inhibition effect of thermal treatment in CO2 atmosphere was the best. The fly ash after thermal treatment in CO2 atmosphere had the possibility of being used as admixture for resource utilization. Because the dioxins in the fly ash were effectively degraded, the prepared cement did not have the risk of heavy metal leaching, and the performance of the cement also met the requirements.

1. Introduction

With accelerated urbanization and the improvement of people’s living standards, the production of municipal solid waste (MSW) has been increasing [1,2]. Incineration and landfill are the two main disposal methods of MSW in China [3,4]. After MSW incineration (MSWI) treatment, the volume of waste can be significantly reduced by approximately 85~90%, the mass by 60~90%, and the organic matter by nearly 100% [5]. The increase in the production of MSW will naturally lead to an increase in the amount of incineration, and the incineration method plays an increasingly important role in the field of MSW treatment with its high efficiency and excellent reduction effect.
MSWI fly ash (MSWI FA) is a kind of particle by-product that is produced after MSWI. It refers to the mixed particulate matter collected by the flue gas from the incineration furnace after being treated by the air pollution control (APC) device [6]. The MSWI FA generation usually accounts for about 3%~15% of MSW amount depending on different MSWI furnaces [7]. However, MSWI FA is classified as hazardous waste due to its large number of toxic substances such as leachable heavy metals and dioxins (PCDD/Fs). Therefore, proper disposal for MSWI FA is crucial.
In China, MSWI FA is mainly landfilled after solidification/stabilization with cementitious materials and chelating agents [8,9]. However, due to limited land resources, the construction of landfills is becoming more and more difficult. Landfill treatment is increasingly inconsistent with China’s sustainable development strategy, and more importantly, PCDD/Fs cannot be degraded. MSWI FA has potential pozzolanic activity due to being rich in Ca, Si, Al, and other elements, and relatively small particles ensure that MSWI FA has sufficient surface area for chemical reaction [10,11]. These physical and chemical properties give the possibility of MSWI FA incorporation into cement-based materials. However, the existence of heavy metals, dioxins, and chlorides in MSWI FA seriously limits its direct utilization, and it needs to be properly treated to realize the resource utilization of MSWI FA. Heat treatment has received the most extensive attention due to its excellent performance in the solidification of heavy metals, the decomposition and destruction of dioxins, and other toxic organic compounds, and the production of environmentally non-toxic reuse materials [12,13]. It has been shown that PCDD/Fs in MSWI FA can be effectively degraded at high temperature, and after melting treatment, MSWI FA becomes a stable and non-toxic resource [14,15]. However, MSWI FA contains a large amount of catalytic metals, organic matter, carbon source, and chlorine source, which makes it easy to synthesize PCDD/Fs again in the temperature range of 200~450 °C [16]. Chen et al. reported that high temperature did lead to the decomposition of PCDD/Fs, but it also greatly promoted the migration of substances that formed PCDD/Fs from MSWI FA to flue gas, which might cause a large reorganization of PCDD/Fs in the low temperature zone [17]. The catalytic metals (such as iron, copper, chromium, and zinc) in MSWI FA were more important than chlorine or carbon sources to promote the recombination of PCDD/Fs [17]. Therefore, reducing the volatilization of heavy metals by reducing the disposal temperature of MSWI FA is beneficial to avoid the recombination of PCDD/Fs, and high temperature will inevitably increase energy consumption and treatment cost. Based on these problems, low temperature thermal treatment of MSWI FA has received more attention.
Wu et al. found that PCDD/Fs in fly ash are easy to decompose above 350 °C in nitrogen atmosphere, and their decomposition pathways include dechlorination and destruction of ring structure, and PCDD/Fs are rarely desorbed into flue gas [18]. It has also been reported that as long as the treatment time is long enough, it is also beneficial to destroy dioxins at about 300 °C or even 260 °C [19,20]. In low temperature thermal treatment, the treatment temperature is often more important than time [21]. When the temperature rises, the decomposition efficiency will be more significant. Therefore, low temperature thermal treatment technology is a very promising fly ash dioxin degradation technology. In addition, MSWI FA has certain carbon dioxide storage potential [22,23]. Sun et al. conducted a gas–solid carbonation experiment of waste incineration fly ash and pure carbon dioxide at 200~500 °C, the maximum calcium conversion rate was 57%, and each kilogram of solid waste could store 0.12 kg of carbon dioxide [22]. After carbonation, the leaching of heavy metals in MSWI FA also decreased to a certain extent, because most of the heavy metals were bound to carbonate after carbonation reaction, from the exchangeable part to the carbonized part, becoming more stable [24,25]. However, whether PCDD/Fs in carbonized fly ash was decomposed and whether the treated fly ash can be used as a resource was rarely investigated in previous studies.
Because cement solidification technology can effectively reduce the environmental pollution caused by MSWI FA, especially significantly reducing the leaching concentration of heavy metals [26], and fly ash has a certain pozzolanic activity, it will be a good disposal method to add fly ash after detoxification modification pretreatment to cement-based materials for resource utilization. In this study, the MSWI FA used was pre-treated with water to wash out chlorine, and then the water-washed MSWI FA was subjected to low-temperature thermal treatment under different atmospheres (air, carbon dioxide, and nitrogen). In particular, thermal treatment under carbon dioxide atmosphere was the focus of this study, because if the water-washed MSWI FA could absorb carbon dioxide while modifying, it could appropriately reduce the current excess carbon dioxide. The mass, particle size distribution, phase composition, microstructure, heavy metal leaching characteristics, and dioxin content of the water-washed MSWI FA after treatment in different atmospheres were compared. Following that, the treated water-washed MSWI FA was used as cement admixture to explore its effect on cement properties, including water consumption of standard consistency, setting time, mortar fluidity, strength, and hydration products. In addition, the leaching characteristics of heavy metals in the prepared cement were evaluated. Through the above, the feasibility of using the treated water-washed MSWI FA as cement admixture was demonstrated. The research results are helpful to broaden the resource utilization of MSWI FA.

2. Materials and Experiment

2.1. Materials

In this study, the water-washed MSWI FA was provided by Anhui Conch Environmental Protection Group Co., Ltd., Wuhu, China. The obtained water-washed MSWI FA was dried to constant weight at 60 °C, homogenized by a quartering method, and finally transferred to a closed container for use. The density of water-washed MSWI FA was 2.24 g/cm3, and the BET specific surface area was 23.18 m2/g. The chemical composition was measured by X-ray fluorescence analysis (XRF, PANalytical Axios, PANalytical B.V., Almelo, The Netherlands), and the results are shown in Table 1. The main components of the incineration fly ash were calcium oxide (CaO, 48.21%), sulfur trioxide (SO3, 8.54%), and silicon dioxide (SiO2, 6.59%), and it had a high loss on ignition of 19.59%. The contents of heavy metals are shown in Table 2, and the results presented the contents of zinc (Zn), plumbum (Pb), cadmium (Cd), and copper (Cu) were as high as 3212.19 mg/L, 312.95 mg/L, 133.80 mg/L, and 116.07 mg/L. In addition, the contents of arsenic (As), chromium (Cr), antimony (Sb), and nickel (Ni) were as low as 74.16 mg/L, 72.68 mg/L, 68.96 mg/L, and 51.46 mg/L. The particle size distribution is shown in Figure 1. The incineration fly ash had a fine particle size of D10 = 8.10 μm, D50 = 31.58 μm, and D90 = 90.36 μm.
The raw materials also included Portland cement clinker and natural dihydrate gypsum, which were provided by Shaanxi Yaobai Special Cement Co., Ltd., Xi’an, China. The chemical composition is shown in Table 3. The density of cement clinker was 3.07 g/cm3 and the content of f-CaO was 1.01%. Standard sand was produced by Xiamen Aisiou Standard Sand Co., Ltd., Xiamen, China.

2.2. Experiment

2.2.1. Low Temperature Thermal Treatment of the Water-Washed MSWI FA

The water-washed MSWI FA was heat-treated at different atmospheres (air, carbon dioxide, and nitrogen) in a high temperature-controlled atmosphere test furnace (QFL-16-8, Luoyang Antler Instrument Co., Ltd., Luoyang, China). The gas flow rate was 60 mL/min, the heating rate was 5 °C/min, and after reaching the target temperature, the holding time was 1 h, and the sample was taken out after falling to room temperature. The concentration of nitrogen and carbon dioxide atmosphere used was greater than 99%. Following that, the mass change, particle size distribution, phase composition, microstructure, heavy metal leaching characteristics, and dioxin content of the treated water-washed MSWI FA were tested to determine the modification of incineration fly ash by low temperature thermal treatment.

2.2.2. Preparation of Cement with Different Admixture

In the light of Chinese standard GB 175-2007 (Common Portland cement), firstly, the P•I Portland cement was ground by a ball mill (RK/ZQM (BM), Wuhan Rock Grinding Equipment Manufacturing Co., Ltd., Wuhan, China) as the control group, and the dosage of water-washed MSWI FA in the control group was 0. The water-washed MSWI FA after heat treatment at 500 °C in air (denoted as W1), carbon dioxide (denoted as W2) and nitrogen (denoted as W3) atmospheres and the untreated water-washed MSWI FA (denoted as W0) were selected to replace the Portland cement clinker with different dosages (5%, 10%, and 15% based on the weight percentage) to prepare P•O Portland cement. The Blaine specific surface area of the prepared cement was controlled to be (350 ± 10) m2/kg. The formula of the prepared cement is shown, in Table 4.

2.2.3. Determination of Dioxin Content

Dioxins in the incineration fly ash were determined according to the Chinese standard HJ 77.3-2008 (Solid waste; determination of polychlorinated dibenzo-p-dioxins and polychlorinated dibenzofurans; isotope dilution HRGC-HRMS). The instrument used was a high-resolution gas chromatography-high-resolution dual-focus magnetic mass spectrometer (Trace GC Ultra, Thermo Fisher Scientific, Waltham, MA, USA).

2.2.4. Determination of the Contents of Heavy Metals

The determination of heavy metal content required the digestion of heavy metal elements in incineration fly ash. The digestion method was referred to Chinese standard HJ 832-2017 (Soil and sediment; digestion of total metal elements; microwave-assisted acid digestion method). The concentration of heavy metals in the liquid after digestion was determined by inductively coupled plasma-mass spectrometry (ICP-MS, Aglient 7800, NYSE: A, Palo Alto, CA, USA).

2.2.5. Leaching Characteristics of Heavy Metals

The leaching toxicity of the incineration fly ash and the prepared cement was investigated by the tests according to the Chinese standard HJ 557–2010 (Solid waste; extraction procedure for leaching toxicity; horizontal vibration method) and HJ/T 300-2007 (Solid waste; extraction procedure for leaching toxicity; acetic acid buffer solution method). After leaching, the leaching concentrations of heavy metals in samples under different leaching environments were determined by ICP-MS, and then the leaching risk was evaluated according to the Chinese standard GB 16889-2008 (Standard for pollution control on the landfill site of municipal solid waste). When measuring the leaching characteristics of heavy metals in cement, cement mortar specimens with standard curing for 28 days were selected, and the standard curing condition was that the temperature was (20 ± 1) °C and the relative humidity was not less than 90%.

2.2.6. Particle Size Distribution, XRD, and SEM

The particle size distribution of water-washed MSWI FA before and after treatment was measured by a laser particle size analyzer (Malvern Mastersizer 2000, Malvern, UK), and the particle size range was 0.02~2000 μm. X-ray diffraction (XRD, X’Pert PRO MPD, PANalytical B.V., Almelo, The Netherlands) was used to analyze the phase composition of the incineration fly ash before and after treatment and cement hydration products. The working conditions were Cu target Kα line at 40 kV and 40 mA, and the scanning speed was set as 5°/min (2θ range: 5°–70°). Scanning electron microscopy (SEM, Zeiss Sigma 300, Carl Zeiss AG, Oberkochen, Germany) was used to observe the microstructure of the incineration fly ash before and after treatment.

2.2.7. Cement Workability and Mortar Fluidity

The water consumption of standard consistency and setting time of the prepared cement were measured according to the Chinese standard GB/T 1346-2011 (test methods for water requirement of normal consistency, setting time, and soundness of the Portland cement). The fluidity of mortar was measured according to Chinese standard GB/T 2419-2005 (test method for fluidity of cement mortar).

2.2.8. Mechanical Properties of Cement

According to the Chinese standard GB/T 17671-2021 (Test method of cement mortar strength), cement mortars with a water to cement weight ratio of one-half and a cement to standard sand weight ratio of one-third were prepared. After stirring evenly according to the prescribed procedure, a mold with a size of 40 mm × 40 mm × 160 mm was loaded and placed in a standard curing room (temperature of (20 ± 1) °C, relative humidity of not less than 90%) for 24 h. Following that, the mold was removed, and the mortar specimens continued to be cured to the corresponding age. The flexural and compressive strengths were measured at the curing age of 3 d and 28 d. The mechanical properties of cement mortar specimens were measured by automatic cement flexural and compressive machine (YAW-SERIES, Zhejiang Lixian Test Instrument Manufacturing Co., Ltd., Shaoxing, China). The loading rate of flexural strength was (50 ± 10) N/s. The average value of the three specimens was taken as the flexural strength, and the standard deviation was calculated. The loading rate of compressive strength was (2400 ± 200) N/s. The average value of the six specimens was taken as the compressive strength, and the standard deviation was calculated.

2.2.9. Preparation of Cement Hydration Products for XRD Analysis Samples

Cement paste with a water–cement ratio of one-half was prepared. After standard curing to the corresponding age, it was crushed into small pieces, immersed in anhydrous ethanol for 3 days to terminate hydration, and then dried in an oven at 40 °C for 48 h. The small pieces were ground through a 75 μm sieve for XRD analysis.

3. Results and Discussion

3.1. Effect of Thermal Treatment Atmosphere on Physicochemical Properties of the Water-Washed MSWI FA

3.1.1. The Mass Change

The mass changes of water-washed MSWI FA after thermal treatment under different conditions are shown in Figure 2. From the diagram, it can be seen that the mass of incineration fly ash was reduced under air and N2 atmosphere, and the mass loss rate increased with the increase of temperature. At the same temperature, the mass loss of incineration fly ash in N2 atmosphere was greater than that in air atmosphere, because there was a part of CO2 in the air, which had a carbonation reaction with incineration fly ash. The mass of incineration fly ash increased after heat treatment in CO2 atmosphere, and the weight gain reached the maximum at 500 °C. This was because some calcium carbonate decomposed at 600 °C and released the sealed CO2, which proved that incineration fly ash had the ability to fix CO2.
Tian et al. used thermo-gravimetric analysis to determine the ability of air pollution control residues (APCr) to capture CO2, and the calculation method was that the CO2 absorption measured by thermo-gravimetric analysis was the sum of the weight gain of dry APCr in CO2 atmosphere and its weight loss in N2 under the same conditions [27]. According to this calculation method, the incineration fly ash was heat-treated at 500 °C in CO2 atmosphere, and the weight gain was 36 g/kg. The incineration fly ash was heat-treated at 500 °C in N2 atmosphere, and the mass loss was 82 g/kg. Therefore, the actual CO2 absorption of the incineration fly ash was 118 g/kg, which was the largest CO2 absorption in this paper. Therefore, the effect of heat treatment atmosphere on the physical and chemical properties of water-washed MSWI FA was studied at 500 °C.

3.1.2. Particle Size Distribution

The particle size distribution of incineration fly ash after heat treatment in different atmospheres is shown in Figure 3, and Table 5 shows the key parameter of particle size distribution. From Figure 1, it can be seen that the particle size of incineration fly ash was generally unimodal distribution, the distribution range was mainly 8.10~90.36 μm, and the average particle size was 31.58 μm. After heat treatment in different atmospheres, the particle size of fly ash showed asymmetric bimodal distribution, which might be due to the partial sintering of particle edges and the agglomeration of some particles during heat treatment. The distribution range was mainly 1.66~8.93 μm and 25.18~112.81 μm in air atmosphere, 1.35~7.10 μm and 25.18~144.10 μm in CO2 atmosphere, and 1.48~7.10 μm and 25.18~138.74 μm in N2 atmosphere. The average particle size of fly ash decreased to 17.78 μm, 30.00 μm, and 22.21 μm after heat treatment in air, CO2, and N2 atmospheres, respectively. It could also be seen from Figure 3 that the volume distribution of particle size in the first peak of the particle size volume distribution of the fly ash after heat treatment in CO2 atmosphere was the smallest, and the volume distribution of particle size in the second peak becomes the largest. This might be due to the heat treatment of fly ash in CO2 atmosphere. The surface of the particles was only partially sintered, and some CaCO3 crystals were generated. After heat treatment in the three atmospheres, the dispersion of fly ash particle size distribution in CO2 atmosphere was the smallest. Dispersion was used to describe the dispersion degree of particle size distribution. It was calculated by Equation (D90 − D10)/D50. The smaller the dispersion was, the more uniform the particle size distribution was.

3.1.3. Phase Composition

The XRD analysis results of fly ash before and after heat treatment under different atmospheres are shown in Figure 4. The main mineral phases contained in untreated fly ash were: calcite (CaCO3), portlandite (Ca(OH)2), rock salt (NaCl), potassium salt (KCl), quartz (SiO2), anhydrite (CaSO4), hemihydrate gypsum (CaSO4·0.5H2O), and Friedel salt (3CaO·Al2O3·CaCl2·10H2O). These chlorine-containing substances were mainly the product of the reaction of HCl in the flue gas with lime and other substances [28]. Friedel salt was the main insoluble chloride salt in fly ash [29].
After heat treatment at 500 °C, the diffraction peaks of CaSO4·0.5H2O and Friedel salt disappeared in all three atmospheres, while the diffraction peak intensity of CaSO4 was enhanced, indicating that CaSO4·0.5H2O was dehydrated and transformed into CaSO4 when the temperature rose to 500 °C. Friedel salt might decompose to other substances. In addition, the diffraction peak intensity of CaCO3 was the highest after heat treatment in CO2 atmosphere, and the diffraction peak of Ca(OH)2 almost disappeared. This proved that almost all Ca(OH)2 in fly ash was carbonized to CaCO3, that was, Ca(OH)2 reacted with CO2 to form CaCO3. After heat treatment in air atmosphere, some Ca(OH)2 was also carbonized to CaCO3, while the diffraction peaks of CaCO3 and Ca(OH)2 after heat treatment in N2 atmosphere did not change significantly. The change of phase composition of fly ash also proved that it had carbon sequestration abilities.

3.1.4. Microstructure

The microstructures of fly ash before and after heat treatment in different atmospheres are shown in Figure 5. It can be seen in Figure 5a that the particle size of the water-washed incineration fly ash was different, the particles were randomly distributed, most of them were irregular, and only a few particles were spherical. Obviously, it could be seen that a number of particles of different shapes were stacked together. Specifically, small blocks, approximately spherical and plate-like substances, were condensed into agglomerates, interspersed with needle-like substances. There were a large number of pores inside the large particles. There were some small particles attached to the dense pores, and many irregular small particles were also stacked outside, resulting in an extremely rough surface and in a large specific surface area of the water-washed incineration fly ash.
In the low-magnification diagram, after heat treatment in three atmospheres, the fly ash particles were still of different sizes and the particle size distribution range was also wide, which was consistent with the conclusion drawn in Section 3.1.2. However, compared with the microstructure of fly ash, the irregular morphology of fly ash particles after heat treatment was significantly reduced. In the high magnification diagram, it could also be clearly observed from Figure 5b that after the heat treatment of fly ash in air atmosphere, the surface pores became less and the density increased, which might be due to the partial melting of the surface of fly ash particles during the sintering process to block the holes on the surface. It can be seen in Figure 5c that after heat treatment in CO2 atmosphere, a large number of calcium carbonate crystals were formed on the surface of fly ash particles. The crystals were well-formed, the surface was smooth, and the calcium carbonate crystals were closely packed together. In Figure 5d, multiple hexagonal plate-like Ca(OH)2 crystals were observed as being interspersed on the surface of fly ash particles, which proved that fly ash still had a large amount of Ca(OH)2 after heat treatment in N2 atmosphere, which was consistent with the XRD analysis results in Section 3.1.3.

3.1.5. Heavy Metal Leaching Characteristics

The heavy metal leaching characteristics of fly ash before and after heat treatment in different atmospheres were tested by horizontal oscillation method and acetic acid buffer solution method. At the same time, the heavy metal leaching concentration limit of fly ash in the Chinese standard GB 16889-2008 was compared. The results are shown in Table 6 and Table 7. In the neutral environment, the leaching concentrations of heavy metals in the water-washed incineration fly ash did not exceed the limits specified in the standard, and the leaching concentrations of Cr and Zn were relatively large. In a weakly acidic environment, the leaching concentration of Pb in fly ash was greater than the limit (0.25 mg/L) specified in the standard, exceeding 27.48%, indicating that the water-washed incineration fly ash had a certain risk of heavy metal leaching. In addition, in the weak acid environment, the leaching concentration of Zn was the highest, which was as high as 11.3309 mg/L, which was related to the highest content of Zn in water-washed incineration fly ash. Although it did not exceed the specified limit (100 mg/L), it still had a certain leaching risk.
In the neutral environment, the leaching concentration of heavy metals in fly ash after heat treatment in three atmospheres also did not exceed the landfill limit specified in the standard, and the leaching concentration of Zn was the highest. In a weakly acidic environment, the leaching concentration of Pb in fly ash after heat treatment in air and N2 atmosphere was still greater than the limit value (0.25 mg/L), exceeding 15.16% and 7.92%, respectively. It could be found that compared with the leaching concentration of heavy metals in fly ash, except for Cu, the heat treatment in three atmospheres would reduce the leaching concentration of heavy metals. It had been reported that the precipitation of calcite in the pores of incineration fly ash after carbonation would increase the compactness of fly ash particles and affect the release of heavy metals [23]. Therefore, after heat treatment, it could be seen from Figure 5 that the particles of fly ash became denser, which might be the reason for the decrease of heavy metal leaching concentration.

3.1.6. Dioxin Content

The toxic equivalent quantities (TEQ) of fly ash before and after heat treatment in different atmospheres are shown in Table 8, TEF meant toxic equivalent factor, and the TEQ of dioxin isomers could be obtained by multiplying the TEF of dioxin isomers by their concentration. The TEQ of fly ash was obtained by adding TEQ of 17 dioxin isomers. The TEQ of fly ash was 56.97 ng TEQ/kg. The largest contribution to the toxicity of fly ash was 2,3,4,7,8-P5CDF, and the corresponding TEQ was 28 ng TEQ/kg, accounting for 49.15% of the total TEQ.
After heat treatment at 500 °C in air, CO2 and N2 atmospheres, the toxic equivalent quantities were 17.12 ng TEQ/kg, 0.25 ng TEQ/kg, and 0.14 ng TEQ/kg, and the degradation rates were 69.95%, 99.56%, and 99.75%, respectively. The heat treatment under CO2 and N2 atmospheres achieved higher degradation rates. The heat treatment under air atmosphere might be due to the recombination of PCDD/Fs in the presence of oxygen [30], resulting in a lower degradation rate. The largest contribution to the toxicity of fly ash after heat treatment in CO2 and N2 atmosphere was 2,3,7,8-T4CDD and 1,2,3,7,8-P5CDD, while the largest contribution to the toxicity of fly ash after heat treatment in air atmosphere was 2,3,4,7,8-P5CDF, which might also be the reason for the different degradation rates.
In addition, according to the review guidelines for cement kiln co-processing of hazardous waste business license issued by the Ministry of Environmental Protection of China, the content of dioxins in the hazardous waste added to the cement mill as an alternative mixture should be less than 10 ng TEQ/kg. After the heat treatment in CO2 and N2 atmosphere, the toxic equivalent quantity of fly ash was far less than 10 ng TEQ/kg, which met the requirement, but it still could not meet the requirement after heat treatment in air atmosphere.

3.2. The Effect of Water-Washed Incineration Fly Ash before and after Heat Treatment as Admixture on Cement Properties

3.2.1. Water Consumption of Standard Consistency

The results of the water consumption of standard consistency of cement prepared by different admixtures are shown in Figure 6. The water consumption of standard consistency referred to the water consumption required when the cement was mixed into a specific plastic state. The results were expressed as a percentage of cement quality.
Compared with the control group, the addition of water-washed incineration fly ash would increase the water consumption of standard consistency of cement, and the water consumption of standard consistency gradually increased with the increase of dosage. This was closely related to the physical and chemical properties of fly ash. The surface of fly ash particles was rough and porous, and the distribution of pores was more, resulting in strong hygroscopicity, and water molecules would be adsorbed inside the pores. Under the same dosage, the water consumption of standard consistency of cement prepared by the untreated fly ash as admixture was greater than that of cement prepared by fly ash as admixture after heat treatment in three atmospheres, and the water consumption of standard consistency of cement prepared by fly ash used as admixture after heat treatment in CO2 atmosphere was the smallest. It could be concluded that the heat treatment under CO2 atmosphere had a better improvement effect on the problem of increasing water consumption of cement standard consistency caused by incorporation of the untreated fly ash. The reason might be that after heat treatment in CO2 atmosphere, calcium carbonate crystals were formed on the surface of fly ash particles. The crystal surface was smooth and closely packed together, filling some pores and reducing the adsorption capacity of water. Therefore, the water consumption of standard consistency of the prepared cement was the smallest.

3.2.2. Setting Time

The results of setting time of cement prepared by different admixtures are shown in Figure 7, including initial setting time and final setting time. The initial setting time of the control group was 171 min, and the final setting time was 312 min. After adding water-washed incineration fly ash, the setting time of cement was shortened, and with the increase of dosage, the setting time of cement showed a downward trend. This might be due to the fact that the chloride salt in the fly ash accelerated the hydration reaction [31]. The setting time of cement prepared by using fly ash as admixture before and after heat treatment had little change. In addition, the setting time of the prepared cement met the requirements of ordinary Portland cement—initial setting time was not less than 45 min and final setting time was not more than 600 min.

3.2.3. Mortar Fluidity

The results of mortar fluidity of cement prepared by different admixtures are shown in Figure 8. Among them, the mortar fluidity of the control group was the largest, which was 215 mm. After the incorporation of water-washed incineration fly ash, the mortar fluidity of the cement decreased significantly. With the increase of dosage, the fluidity showed a downward trend, and the minimum fluidity was only 154 mm. This showed that the incorporation of fly ash would cause serious fluidity loss of cement mortar. The reason was that the large specific surface area of fly ash was easy to adsorb water molecules. At the same dosage, compared with the mortar fluidity of cement prepared by the untreated fly ash as admixture, the mortar fluidity of cement prepared by fly ash heat-treated in three atmospheres as admixture increased, and the mortar fluidity of cement prepared by fly ash heat-treated in CO2 atmosphere as admixture was the largest. It could be concluded that heat treatment could increase the mortar fluidity, and the improvement effect after heat treatment in CO2 atmosphere was more obvious. This was also because the surface morphology of the particles had been more effectively improved after heat treatment of fly ash in CO2 atmosphere.

3.2.4. Strength

The results of mortar strength of cement prepared by different admixtures are shown in Figure 9, including flexural strength and compressive strength. For the strength of mortar at 3 d, the flexural and compressive strength of the control group were 5.9 MPa and 30.3 MPa, respectively. After adding water-washed incineration fly ash, when the dosage was 5%, the flexural and compressive strength of the cement were improved, indicating that the addition of a small amount of fly ash had a certain early strength effect on the cement. However, since the activity of fly ash was less than that of cement clinker, when the dosage of fly ash continued to increase, the active substances involved in the hydration reaction were further reduced, resulting in a gradual decrease in the mortar strength of the prepared cement.
For the strength of mortar at 28 d, the flexural and compressive strength of the control group were 8.1 MPa and 48.1 MPa, respectively. When the dosage was 5%, the strength of cement prepared by the untreated fly ash as admixture was lower than that of the control group, while the strengths of cement prepared by fly ash after heat treatment in three atmospheres were higher than that of the control group. At the same dosage, compared with the mortar strength of cement prepared by the untreated fly ash as admixture, the mortar strength of cement was improved by using fly ash as admixture after heat treatment in three atmospheres, and the mortar strength of cement prepared by using fly ash after heat treatment in CO2 atmosphere was the largest. This showed that the heat treatment in CO2 atmosphere had the best effect of improving the strength of cement mortar prepared by fly ash as admixture. However, when the dosage was 15%, the compressive strength of W1-3, W2-3, and W3-3 was reduced to 36.0 MPa, 39.8 MPa, and 37.2 MPa, respectively. Compared with the control group, it was reduced by 25.16%, 17.26%, and 22.66%, respectively. The reduction was large and could not meet the requirements of P•O42.5 Portland cement strength. Therefore, the dosage of fly ash after heat treatment used as admixture should not exceed 10%.

3.2.5. Hydration Products

The XRD analysis results of 3 d hydration products of the control group, W1-2, W2-2, and W3-2 cement, are shown in Figure 10. When the cement hydration age was 3 d, the hydration products of the control group were mainly portlandite (Ca(OH)2), ettringite (3CaO•Al2O3•3CaSO4•32H2O, AFt), and calcium aluminate sulfate hydrate (3CaO•Al2O3•CaSO4•12H2O, AFm), as well as the unhydrated alite (3CaO•SiO2, C3S) and belite (3CaO•SiO2, C2S). After adding fly ash, the XRD analysis results of cement hydration products added the diffraction peaks of calcite (CaCO3) and Friedel salt (3CaO•Al2O3•CaCl2•10H2O) in addition to the above mineral phases. It can be seen in Figure 4 that for calcite, fly ash itself contained calcite. For Friedel salt, it might be due to the reaction of chloride salt in fly ash with cement hydration products to form Friedel salt. Studies have shown that chloride ions interacted with cement hydration products to form Friedel salt [32]. In addition, compared with W1 and W3, there was almost no portlandite in the mineral phase of W2, but the strengths of the diffraction peaks of portlandite in the hydration products of W1-2, W2-2, and W3-2 cement were not much different, indicating that the hydration reaction of W2-2 cement generated more Ca(OH)2, and the degree of hydration reaction was higher, resulting in higher mortar strength.

3.2.6. Leaching Characteristics of Heavy Metals in Cements

The mortar specimens of cement prepared by adding 15% fly ash (maximum dosage) were selected. After standard curing to 28 days at a temperature of (20 ± 1) °C and a relative humidity of not less than 90%, the heavy metal leaching concentration of cement mortar specimens was tested by horizontal oscillation method and acetic acid buffer solution method. The results are shown in Table 9 and Table 10. When the dosage of fly ash was the largest, the leaching concentration of heavy metals in the prepared cement mortar specimens was far less than the limit specified in the standard, whether in neutral environment or weak acid environment. It showed that when the dosage of fly ash was 15% or less, the prepared cement did not have the risk of excessive heavy metal leaching. This was because after 28 days of cement hydration, the entire cement body was alkaline, which would promote the precipitation of heavy metals, and the hydrated calcium silicate gel and AFt crystals in the hydration products would also adsorb and encapsulate heavy metals [33], thereby reducing the leaching concentration of heavy metals.

4. Conclusions

In this study, the water-washed incineration fly ash was heat-treated in air, CO2, and N2 atmospheres, and the changes in the physical and chemical properties of the fly ash were systematically studied. Following that, the fly ash heat-treated at the highest carbon fixation temperature (500 °C) was selected as admixture to prepare ordinary Portland cement. The effect of fly ash on cement properties and the possibility of resource utilization of fly ash were studied. The following conclusions were drawn.
  • The mass of fly ash increased after heat treatment in CO2 atmosphere. When the temperature was 500 °C, the weight gain reached the maximum, and almost all Ca(OH)2 in fly ash was carbonized into CaCO3. It could also be observed in SEM that the surface of fly ash formed tightly packed CaCO3 crystals. This proved that fly ash had the ability to store CO2.
  • The toxic equivalent quantities of dioxins in fly ash after heat treatment (500 °C + 1 h) in air, CO2, and N2 atmospheres were 17.12 ng TEQ/kg, 0.25 ng TEQ/kg, and 0.14 ng TEQ/kg, respectively, and the degradation rates were 69.95%, 99.56%, and 99.75%, respectively.
  • Compared with the control group without admixture, the water consumption of cement standard consistency increased, and the fluidity of mortar decreased after adding fly ash that was heat-treated in three atmospheres, but the changes of fly ash after heat treatment in CO2 atmosphere were the smallest.
  • Compared with the untreated fly ash used as admixture, under the same dosage, when fly ash was used as admixture after heat treatment, the water consumption of cement standard consistency was reduced, the fluidity of mortar was increased, and the strength of 28 d mortar was obviously improved. The changes of fly ash after heat treatment in CO2 atmosphere were the most obvious.
  • The fly ash after heat treatment in CO2 atmosphere could be used as cement admixture for resource utilization. On the one hand, dioxins were effectively degraded, and the prepared cement had no risk of heavy metal leaching. On the other hand, when the dosage was 10% or less, the performance of the prepared cement met the requirements of P•O42.5 Portland cement.

Author Contributions

Methodology, Resources, Supervision, T.H.; Date curation, Formal analysis, Writing—original draft, J.L.; Project administration, Resources, Validation, X.M.; Project administration, Validation, Y.D.; Resources, Validation, H.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Song Meiling from Shiyanjia Lab (www.shiyanjia.com (accessed on 13 February 2023)) for the XRD analysis.

Conflicts of Interest

The authors declare no conflict of interest and declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Ma, W.; Shi, W.; Shi, Y.; Chen, D.; Liu, B.; Chu, C.; Li, D.; Li, Y.; Chen, G. Plasma vitrification and heavy metals solidification of MSW and sewage sludge incineration fly ash. J. Hazard. Mater. 2020, 408, 124809. [Google Scholar] [CrossRef] [PubMed]
  2. Luo, H.; Cheng, Y.; He, D.; Yang, E.-H. Review of leaching behavior of municipal solid waste incineration (MSWI) ash. Sci. Total Environ. 2019, 668, 90–103. [Google Scholar] [CrossRef]
  3. Shapiro-Bengtsen, S.; Andersen, F.M.; Münster, M.; Zou, L. Municipal solid waste available to the Chinese energy sector—Provincial projections to 2050. Waste Manag. 2020, 112, 52–65. [Google Scholar] [CrossRef] [PubMed]
  4. Shunda, l.; Jiang, X.; Zhao, Y.; Yan, J. Disposal technology and new progress for dioxins and heavy metals in fly ash from municipal solid waste incineration: A critical review. Environ. Pollut. 2022, 311, 119878. [Google Scholar] [CrossRef] [PubMed]
  5. Leckner, B. Process aspects in combustion and gasification Waste-to-Energy (WtE) units. Waste Manag. 2015, 37, 13–25. [Google Scholar] [CrossRef] [PubMed]
  6. Ghouleh, Z.; Shao, Y. Turning municipal solid waste incineration into a cleaner cement production. J. Clean. Prod. 2018, 195, 268–279. [Google Scholar] [CrossRef]
  7. Funari, V.; Braga, R.; Bokhari, S.N.H.; Dinelli, E.; Meisel, T. Solid residues from Italian municipal solid waste incinerators: A source for “critical” raw materials. Waste Manag. 2015, 45, 206–216. [Google Scholar] [CrossRef]
  8. Peng, Z.; Weber, R.; Ren, Y.; Wang, J.; Sun, Y.; Wang, L. Characterization of PCDD/Fs and heavy metal distribution from municipal solid waste incinerator fly ash sintering process. Waste Manag. 2020, 103, 260–267. [Google Scholar] [CrossRef]
  9. Quina, M.J.; Bontempi, E.; Bogush, A.; Schlumberger, S.; Weibel, G.; Braga, R.; Funari, V.; Hyks, J.; Rasmussen, E.; Lederer, J. Technologies for the management of MSW incineration ashes from gas cleaning: New perspectives on recovery of secondary raw materials and circular economy. Sci. Total Environ. 2018, 635, 526–542. [Google Scholar] [CrossRef]
  10. Ferraro, A.; Farina, I.; Race, M.; Colangelo, F.; Cioffi, R.; Fabbricino, M. Pre-treatments of MSWI fly-ashes: A comprehensive review to determine optimal conditions for their reuse and/or environmentally sustainable disposal. Rev. Environ. Sci. Bio/Technol. 2019, 18, 453–471. [Google Scholar] [CrossRef]
  11. Zhou, X.; Zhou, M.; Wu, X.; Han, Y.; Geng, J.; Wang, T.; Wan, S.; Hou, H. Reductive solidification/stabilization of chromate in municipal solid waste incineration fly ash by ascorbic acid and blast furnace slag. Chemosphere 2017, 182, 76–84. [Google Scholar] [CrossRef] [PubMed]
  12. Quina, M.J.; Bordado, J.C.; Quinta-Ferreira, R.M. Treatment and use of air pollution control residues from MSW incineration: An overview. Waste Manag. 2008, 28, 2097–2121. [Google Scholar] [CrossRef] [PubMed]
  13. Lindberg, D.; Molin, C.; Hupa, M. Thermal treatment of solid residues from WtE units: A review. Waste Manag. 2015, 37, 82–94. [Google Scholar] [CrossRef] [PubMed]
  14. Pan, X.; Yan, J.; Xie, Z. Detoxifying PCDD/Fs and heavy metals in fly ash from medical waste incinerators with a DC double arc plasma torch. J. Environ. Sci. 2013, 25, 1362–1367. [Google Scholar] [CrossRef]
  15. Sakai, S.-I.; Hiraoka, M. Municipal solid waste incinerator residue recycling by thermal processes. Waste Manag. 2000, 20, 249–258. [Google Scholar] [CrossRef]
  16. Fujimori, T.; Toda, A.; Mukai, K.; Takaoka, M. Incineration of carbon nanomaterials with sodium chloride as a potential source of PCDD/Fs and PCBs. J. Hazard. Mater. 2020, 382, 121030. [Google Scholar] [CrossRef]
  17. Chen, Z.; Zhang, S.; Lin, X.; Li, X. Decomposition and reformation pathways of PCDD/Fs during thermal treatment of municipal solid waste incineration fly ash. J. Hazard. Mater. 2020, 394, 122526. [Google Scholar] [CrossRef]
  18. Wu, H.-L.; Lu, S.-Y.; Yan, J.-H.; Li, X.-D.; Chen, T. Thermal removal of PCDD/Fs from medical waste incineration fly ash—Effect of temperature and nitrogen flow rate. Chemosphere 2011, 84, 361–367. [Google Scholar] [CrossRef]
  19. Weber, R.; Sakurai, T.; Hagenmaier, H. Formation and destruction of pcdd/pcdf during heat treatment of fly ash samples from fluidized bed incinerators. Chemosphere 1999, 38, 2633–2642. [Google Scholar] [CrossRef]
  20. Stach, J.; Pekárek, V.R.; Grabic, R.; Lojkásek, M.; Pacáková, V. Dechlorination of polychlorinated biphenyls, dibenzo-p-dioxins and dibenzofurans on fly ash. Chemosphere 2000, 41, 1881–1887. [Google Scholar] [CrossRef]
  21. Song, G.-J.; Kim, S.H.; Seo, Y.-C.; Kim, S.-C. Dechlorination and destruction of PCDDs/PCDFs in fly ashes from municipal solid waste incinerators by low temperature thermal treatment. Chemosphere 2008, 71, 248–257. [Google Scholar] [CrossRef] [PubMed]
  22. Sun, J.; Bertos, M.F.; Simons, S.J.R. Kinetic study of accelerated carbonation of municipal solid waste incinerator air pollution control residues for sequestration of flue gas CO2. Energy Environ. Sci. 2008, 1, 370–377. [Google Scholar] [CrossRef]
  23. Baciocchi, R.; Polettini, A.; Pomi, R.; Prigiobbe, V.; Von Zedwitz, V.N.; Steinfeld, A. CO2 Sequestration by Direct Gas−Solid Carbonation of Air Pollution Control (APC) Residues. Energy Fuels 2006, 20, 1933–1940. [Google Scholar] [CrossRef]
  24. Ni, P.; Xiong, Z.; Tian, C.; Li, H.; Zhao, Y.; Zhang, J.; Zheng, C. Influence of carbonation under oxy-fuel combustion flue gas on the leachability of heavy metals in MSWI fly ash. Waste Manag. 2017, 67, 171–180. [Google Scholar] [CrossRef] [PubMed]
  25. Jianguo, J.; Maozhe, C.; Yan, Z.; Xin, X. Pb stabilization in fresh fly ash from municipal solid waste incinerator using accelerated carbonation technology. J. Hazard. Mater. 2009, 161, 1046–1051. [Google Scholar] [CrossRef]
  26. Bie, R.; Chen, P.; Song, X.; Ji, X. Characteristics of municipal solid waste incineration fly ash with cement solidification treatment. J. Energy Inst. 2016, 89, 704–712. [Google Scholar] [CrossRef]
  27. Tian, S.; Jiang, J. Sequestration of flue gas CO(2) by direct gas-solid carbonation of air pollution control system residues. Environ. Sci. Technol. 2012, 46, 13545–13551. [Google Scholar] [CrossRef]
  28. Partanen, J.; Backman, P.; Backman, R.; Hupa, M. Absorption of HCl by limestone in hot flue gases. Part II: Importance of calcium hydroxychloride. Fuel 2005, 84, 1674–1684. [Google Scholar] [CrossRef]
  29. Zhu, F.; Takaoka, M.; Oshita, K.; Kitajima, Y.; Inada, Y.; Morisawa, S.; Tsuno, H. Chlorides behavior in raw fly ash washing experiments. J. Hazard. Mater. 2010, 178, 547–552. [Google Scholar] [CrossRef]
  30. Stieglitz, L. Selected Topics on the De Novo Synthesis of PCDD/PCDF on Fly Ash. Environ. Eng. Sci. 1998, 15, 5–18. [Google Scholar] [CrossRef]
  31. Thomas, J.J.; Allen, A.J.; Jennings, H.M. Hydration Kinetics and Microstructure Development of Normal and CaCl2-Accelerated Tricalcium Silicate Pastes. J. Phys. Chem. C 2009, 113, 19836–19844. [Google Scholar] [CrossRef]
  32. Balonis, M.; Lothenbach, B.; Le Saout, G.; Glasser, F.P. Impact of chloride on the mineralogy of hydrated Portland cement systems. Cem. Concr. Res. 2010, 40, 1009–1022. [Google Scholar] [CrossRef]
  33. Chen, L.; Nakamura, K.; Hama, T. Review on stabilization/solidification methods and mechanism of heavy metals based on OPC-based binders. J. Environ. Manag. 2023, 332, 117362. [Google Scholar] [CrossRef] [PubMed]
Materials 16 03923 g001 550

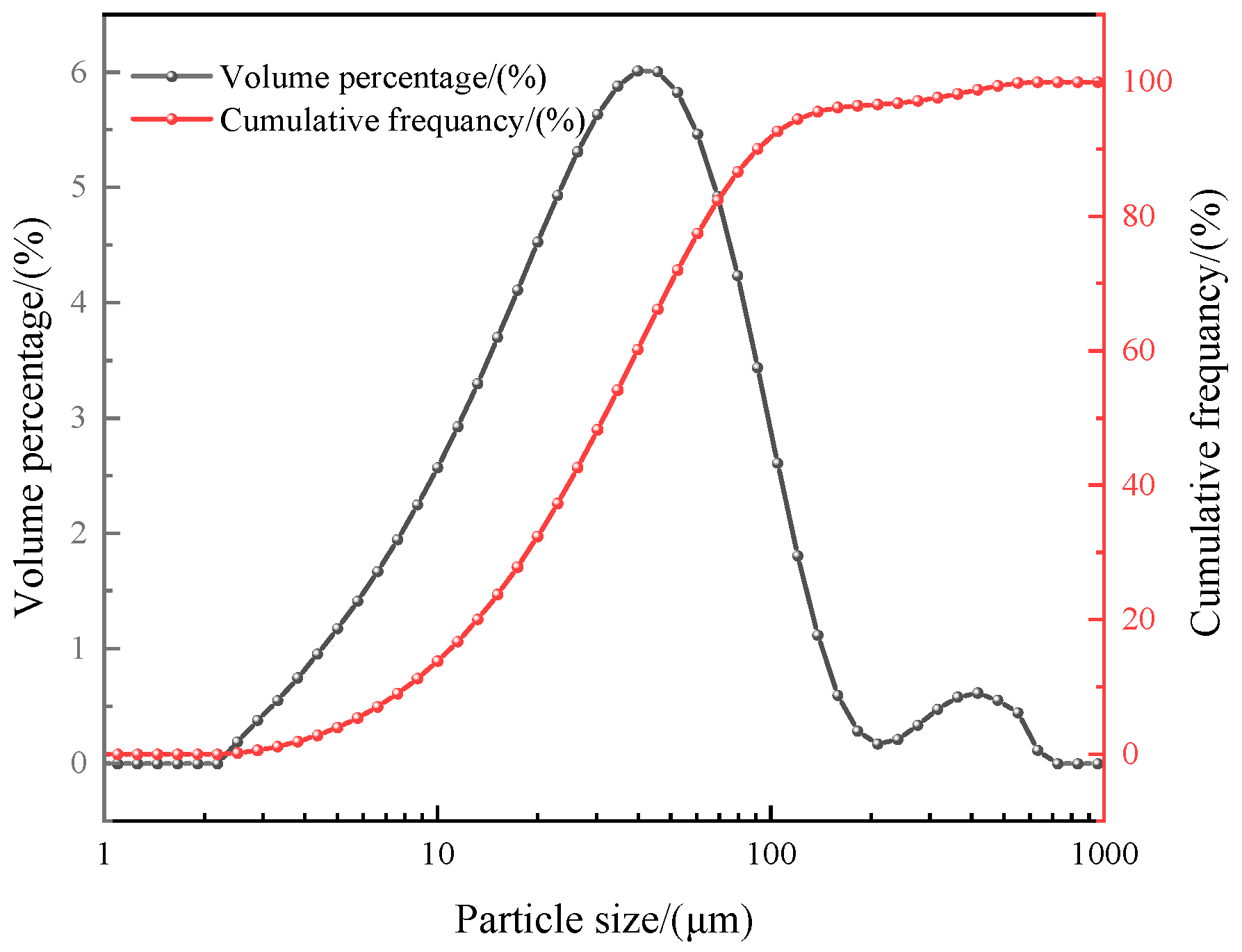

Figure 1. Particle size distribution of water-washed MSWI FA.
Figure 1. Particle size distribution of water-washed MSWI FA.
Materials 16 03923 g001
Materials 16 03923 g002 550

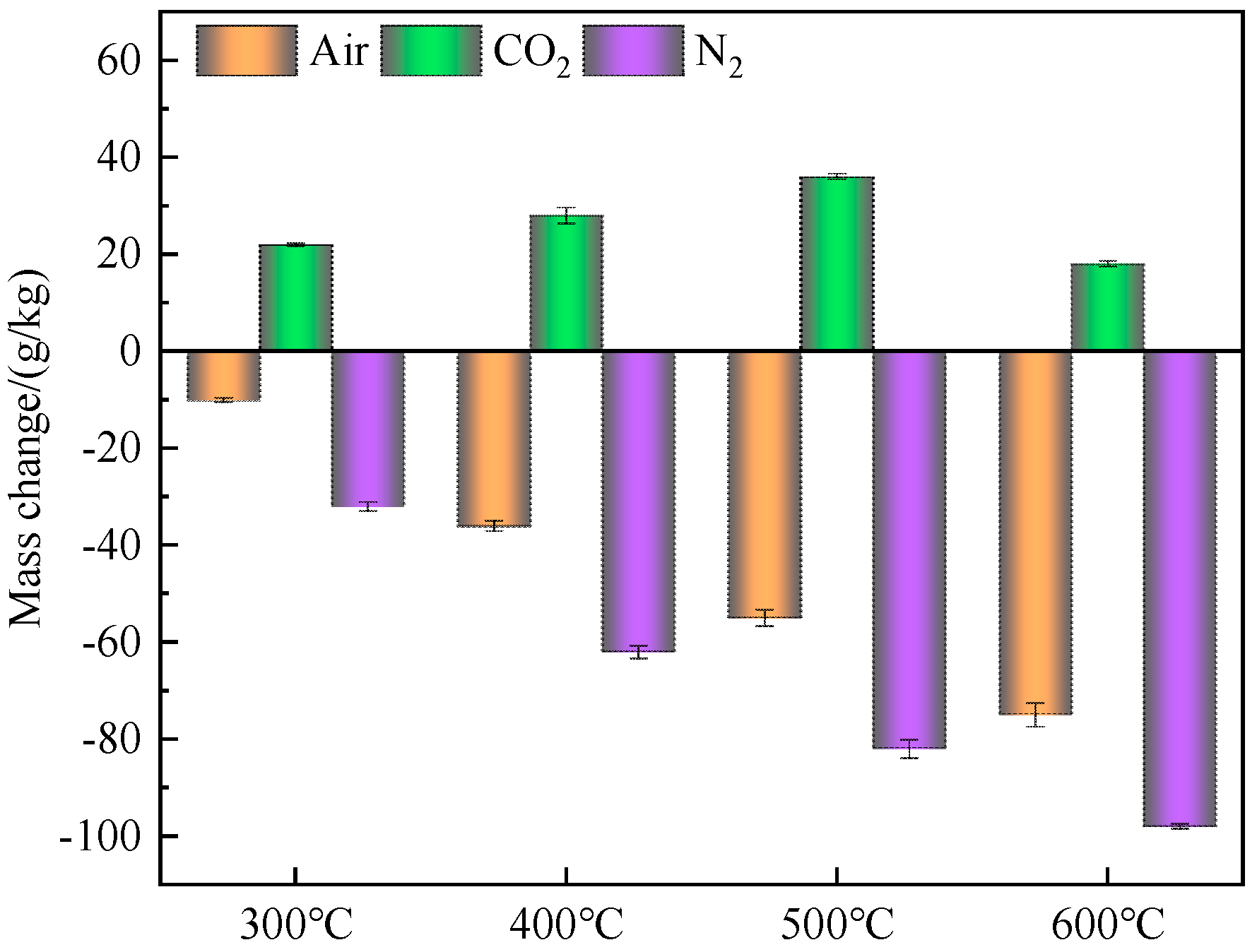

Figure 2. Mass changes of incineration fly ash after thermal treatment under different conditions.
Figure 2. Mass changes of incineration fly ash after thermal treatment under different conditions.
Materials 16 03923 g002
Materials 16 03923 g003 550

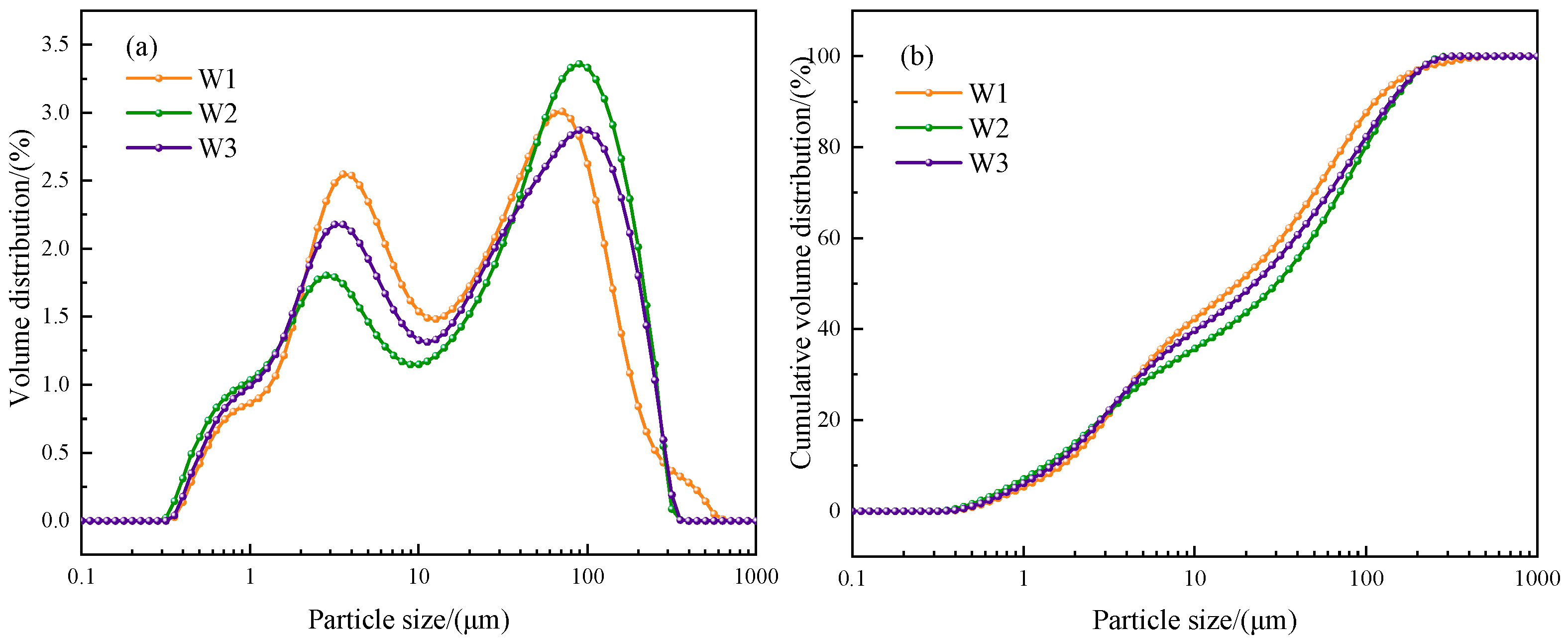

Figure 3. The particle size distribution of incineration fly ash after heat treatment in different atmospheres. (a) Volume distribution, (b) Cumulative volume distribution.
Figure 3. The particle size distribution of incineration fly ash after heat treatment in different atmospheres. (a) Volume distribution, (b) Cumulative volume distribution.
Materials 16 03923 g003
Materials 16 03923 g004 550

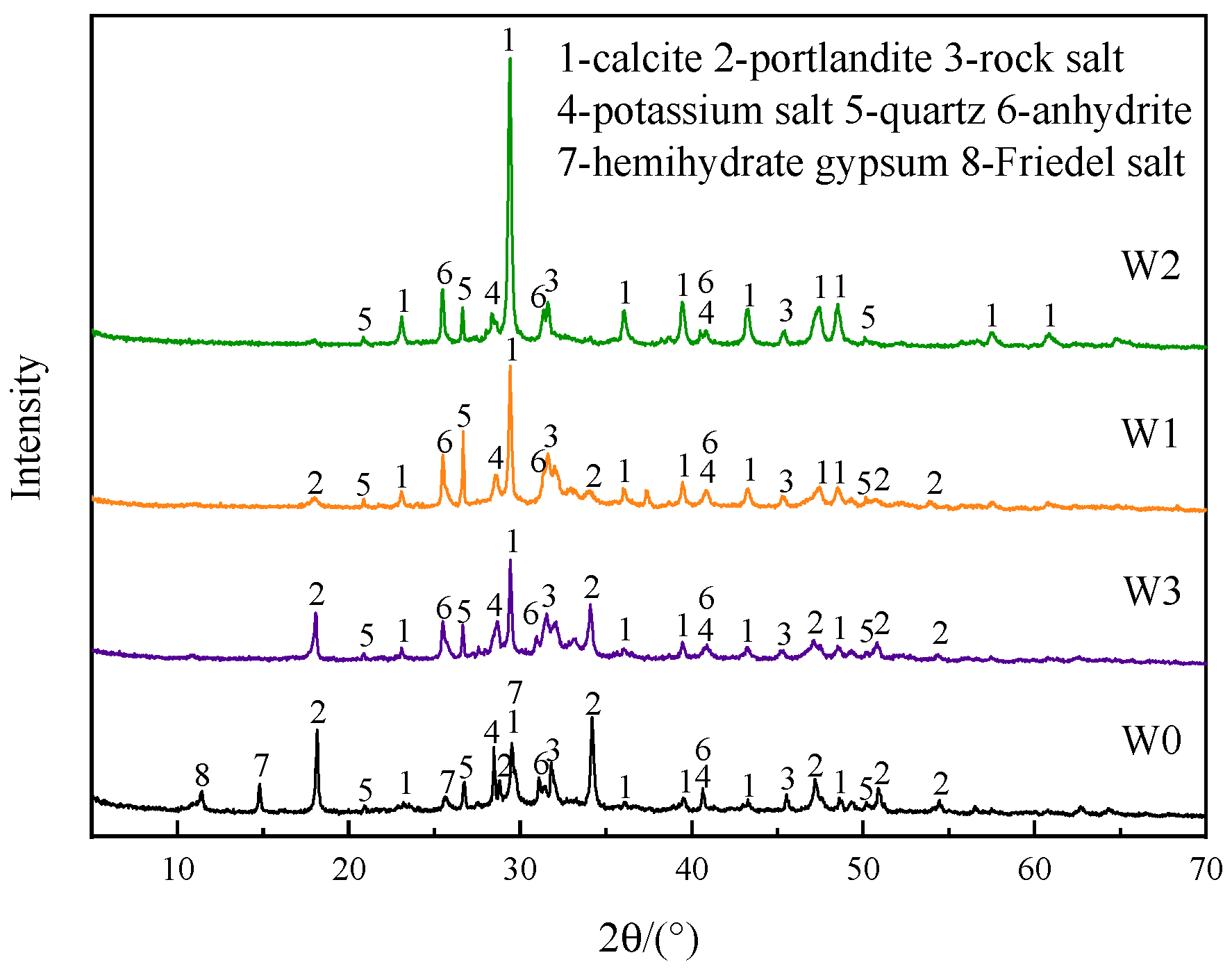

Figure 4. XRD analysis results of fly ash after heat treatment under different atmospheres.
Figure 4. XRD analysis results of fly ash after heat treatment under different atmospheres.
Materials 16 03923 g004
Materials 16 03923 g005 550
Figure 5. The micro-morphology of fly ash after heat treatment in different atmospheres. (a) W0; (b) W1; (c) W2; (d) W3.
Figure 5. The micro-morphology of fly ash after heat treatment in different atmospheres. (a) W0; (b) W1; (c) W2; (d) W3.
Materials 16 03923 g005
Materials 16 03923 g006 550

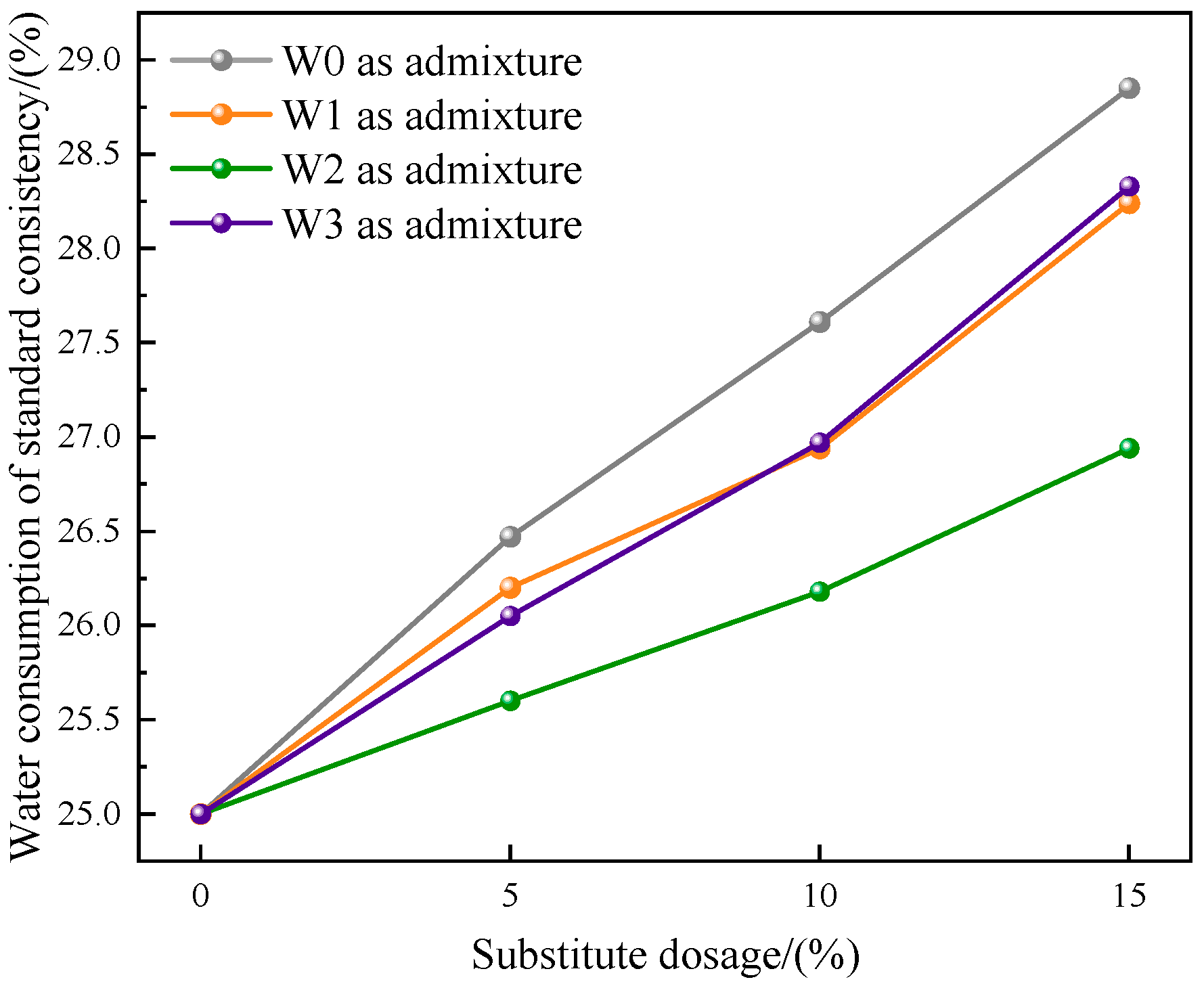

Figure 6. Water consumption of standard consistency of the prepared cement.
Figure 6. Water consumption of standard consistency of the prepared cement.
Materials 16 03923 g006
Materials 16 03923 g007 550
Figure 7. Setting time of the prepared cement. (a) Initial setting time; (b) Final setting time.
Figure 7. Setting time of the prepared cement. (a) Initial setting time; (b) Final setting time.
Materials 16 03923 g007
Materials 16 03923 g008 550
Figure 8. The mortar fluidity of the prepared cement.
Figure 8. The mortar fluidity of the prepared cement.
Materials 16 03923 g008
Materials 16 03923 g009 550
Figure 9. The mortar strength of the prepared cement at different ages. (a) Flexural strength; (b) Compressive strength.
Figure 9. The mortar strength of the prepared cement at different ages. (a) Flexural strength; (b) Compressive strength.
Materials 16 03923 g009
Materials 16 03923 g010 550

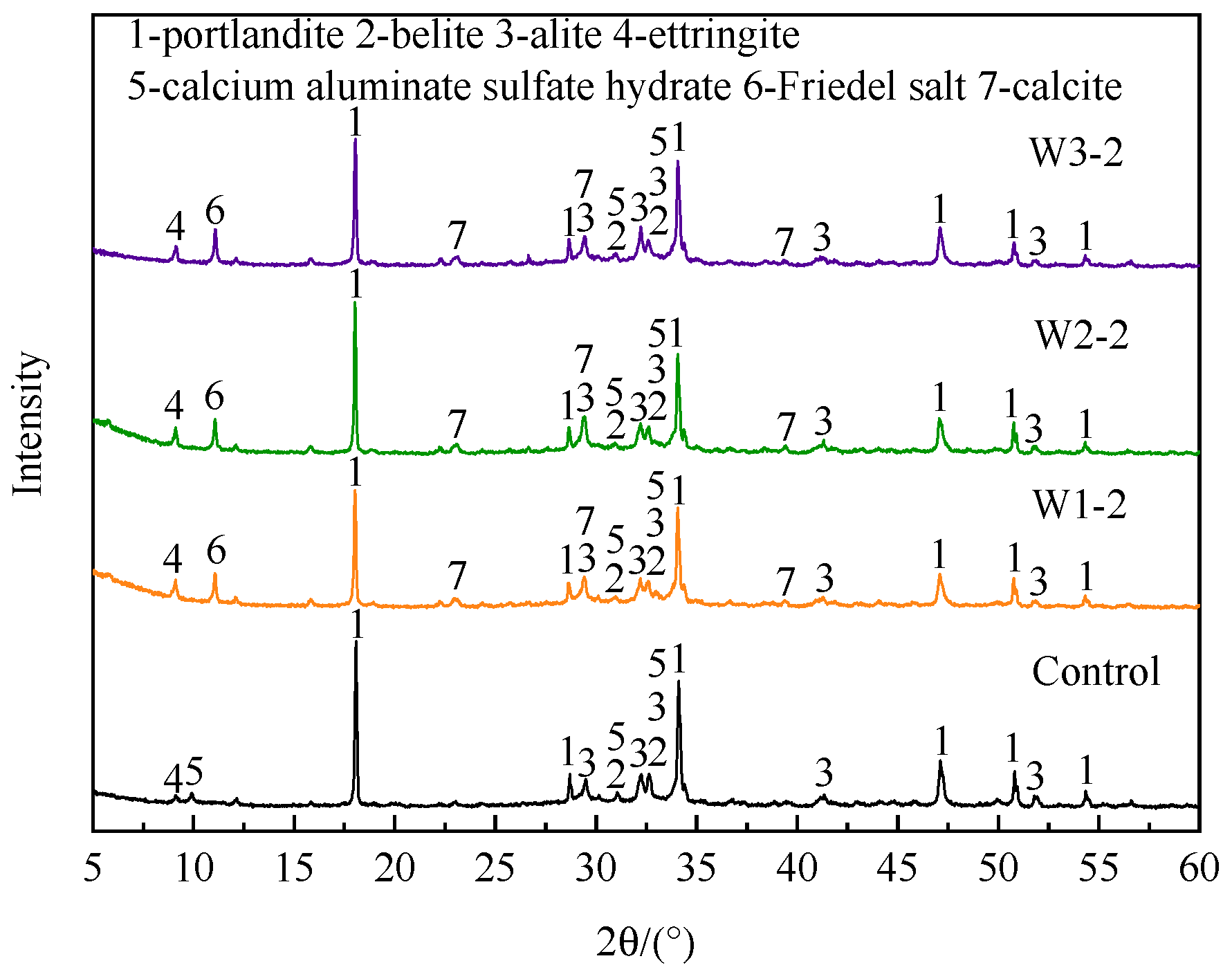

Figure 10. XRD analysis results of 3 d hydration products of the prepared cement.
Figure 10. XRD analysis results of 3 d hydration products of the prepared cement.
Materials 16 03923 g010
Table
Table 1. Chemical composition of water-washed MSWI FA (wt.%; LOI = loss on ignition).
Table 1. Chemical composition of water-washed MSWI FA (wt.%; LOI = loss on ignition).
Chemical CompositionWater-Washed MSWI FA
CaO48.21
SO38.54
SiO26.59
Fe2O32.42
K2O2.03
MgO2.00
Al2O31.81
Na2O1.49
ZnO0.61
Others6.71
LOI (950 °C)19.59
Table
Table 2. Heavy metal contents of water-washed MSWI FA (mg/L).
Table 2. Heavy metal contents of water-washed MSWI FA (mg/L).
Heavy MetalWater-Washed MSWI FA
Zn3212.19
Pb312.95
Cd133.80
Cu116.07
As74.16
Cr72.68
Sb68.96
Ni51.46
V18.49
Co14.78
Mo13.85
Tl4.87
Be0.54
Hg0.25
Table
Table 3. Chemical composition of Portland cement clinker and natural dihydrate gypsum (wt.%; LOI = loss on ignition).
Table 3. Chemical composition of Portland cement clinker and natural dihydrate gypsum (wt.%; LOI = loss on ignition).
Chemical CompositionPortland Cement ClinkerNatural Dihydrate Gypsum
CaO63.6049.95
SO30.2945.58
SiO223.021.56
Al2O35.320.68
Fe2O33.460.40
K2O1.030.07
MgO1.530.35
Others0.851.41
LOI (950 °C)0.90ND
Note: “ND” means not detected.
Table
Table 4. The formula of the prepared cement (wt.%).
Table 4. The formula of the prepared cement (wt.%).
Sequence NumberWater-Washed MSWI FAPortland Cement ClinkerNatural Dihydrate Gypsum
Control0955
W0/W1/W2/W3-15905
W0/W1/W2/W3-210855
W0/W1/W2/W3-315805
Note: W0 means the untreated water-washed MSWI FA, W1 means the water-washed MSWI FA after heat treatment at 500 °C in air, W2 means the water-washed MSWI FA after heat treatment at 500 °C in CO2, and W3 means the water-washed MSWI FA after heat treatment at 500 °C in N2. W0-1, W0-2, and W0-3, respectively, mean dosage of the untreated water-washed MSWI FA at 5%, 10%, and 15%. Other analogies.
Table
Table 5. Key parameters of particle size distribution.
Table 5. Key parameters of particle size distribution.
CategoryD10 (μm)D50 (μm)D90 (μm)Dispersion
W11.6617.78112.816.25
W21.3530.00144.104.76
W31.4822.21138.746.18
Table
Table 6. Heavy metal leaching concentration of fly ash before and after heat treatment in different atmospheres (mg/L), using the horizontal oscillation method.
Table 6. Heavy metal leaching concentration of fly ash before and after heat treatment in different atmospheres (mg/L), using the horizontal oscillation method.
Heavy MetalW0W1W2W3Landfill Limit
Cr0.27280.07630.08240.12554.5
Ni0.01860.01020.00530.01080.5
Cu0.02490.05810.02970.034540
Zn0.20490.14340.15620.1862100
Cd0.00070.00020.00020.00040.15
Pb0.04760.08660.03210.08470.25
Table
Table 7. Heavy metal leaching concentration of fly ash before and after heat treatment in different atmospheres (mg/L), using the acetic acid buffer solution method.
Table 7. Heavy metal leaching concentration of fly ash before and after heat treatment in different atmospheres (mg/L), using the acetic acid buffer solution method.
Heavy MetalW0W1W2W3Landfill Limit
Cr0.47860.28770.31900.13104.5
Ni0.07610.04440.06710.04100.5
Cu0.16720.31600.26090.275440
Zn11.33097.00226.07157.9853100
Cd0.08500.04690.03270.05650.15
Pb0.31870.28790.12980.26580.25
Table
Table 8. Toxic equivalent quantities of fly ash before and after heat treatment in different atmospheres (pg/kg).
Table 8. Toxic equivalent quantities of fly ash before and after heat treatment in different atmospheres (pg/kg).
IsomerTEFW0W1W2W3
CTEQCTEQCTEQCTEQ
2,3,7,8-T4CDD16506504404401001003232
1,2,3,7,8-P5CDD0.5420210270135124629648
1,2,3,4,7,8-H6CDD0.111,00011004550455303252.50
1,2,3,6,7,8-H6CDD0.118,00018008350835232.30202
1,2,3,7,8,9-H6CDD0.112,00012006380638212.10202
1,2,3,4,6,7,8-H7CDD0.01180,000180066,700667600.60410.41
O8CDD0.001470,000470135,00013543004.301800.18
2,3,7,8-T4CDF0.128,000280080008001201210010
1,2,3,7,8-P5CDF0.0548,00024008700435663.30422.10
2,3,4,7,8-P5CDF0.556,00028,00015,844792270353618
1,2,3,4,7,8-H6CDF0.138,00038009400940555.50424.20
1,2,3,6,7,8-H6CDF0.149,000490011,2401124606424.20
1,2,3,7,8,9-H6CDF0.113,00013002670267808656.50
2,3,4,6,7,8-H6CDF0.149,000490018,7701877555.50484.80
1,2,3,4,6,7,8-H7CDF0.01140,000140037,500375390.396406.40
1,2,3,4,7,8,9-H7CDF0.0117,000170450045600.60240.24
O8CDF0.00173,0007330,000305500.553400.34
TEQ--56,973-17,120-251.14-143.87
Note: TEQ means toxic equivalent quantity, TEF means toxic equivalent factor, “C” means concentration, “-” means that the parameter is not obtained.
Table
Table 9. Heavy metal leaching concentration of the prepared cement (mg/L) using the horizontal oscillation method.
Table 9. Heavy metal leaching concentration of the prepared cement (mg/L) using the horizontal oscillation method.
Heavy MetalW0-3W1-3W2-3W3-3Landfill Limit
Cr0.06630.02550.0038ND4.5
Ni0.00150.00450.00350.00420.5
CuNDNDNDND40
Zn0.0065ND0.01110.0031100
Cd0.00010.0001NDND0.15
Pb0.00140.00180.00100.00260.25
Note: “ND” means not detected.
Table
Table 10. Heavy metal leaching concentration of the prepared cement (mg/L) using the acetic acid buffer solution method.
Table 10. Heavy metal leaching concentration of the prepared cement (mg/L) using the acetic acid buffer solution method.
Heavy MetalW0-3W1-3W2-3W3-3Landfill Limit
Cr0.07050.04490.06020.04504.5
Ni0.01920.01340.03140.01430.5
Cu0.06910.05920.06970.078740
Zn0.72830.71370.54630.5767100
Cd0.01210.01990.01360.01490.15
Pb0.05480.08080.05400.04500.25
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

He, T.; Li, J.; Ma, X.; Da, Y.; Yuan, H. Low Temperature Thermal Treatment of Incineration Fly Ash under Different Atmospheres and Its Recovery as Cement Admixture. Materials 2023, 16, 3923. https://doi.org/10.3390/ma16113923

AMA Style

He T, Li J, Ma X, Da Y, Yuan H. Low Temperature Thermal Treatment of Incineration Fly Ash under Different Atmospheres and Its Recovery as Cement Admixture. Materials. 2023; 16(11):3923. https://doi.org/10.3390/ma16113923

Chicago/Turabian Style

He, Tingshu, Jiangbo Li, Xiaodong Ma, Yongqi Da, and Hudie Yuan. 2023. "Low Temperature Thermal Treatment of Incineration Fly Ash under Different Atmospheres and Its Recovery as Cement Admixture" Materials 16, no. 11: 3923. https://doi.org/10.3390/ma16113923

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
