The Effect of a DC Magnetic Field on the AC Magnetic Properties of Oleic Acid-Coated Fe3O4 Nanoparticles

by
Michele Modestino
1,
Armando Galluzzi
1,2,
Maria Sarno
1,3 and
Massimiliano Polichetti
1,2,3,*
1
Department of Physics “E.R. Caianiello”, University of Salerno, Via Giovanni Paolo II 132, 84084 Fisciano, SA, Italy
2
CNR-SPIN Salerno, Via Giovanni Paolo II 132, 84084 Fisciano, SA, Italy
3
NANO_MATES Research Centre, University of Salerno, Via Giovanni Paolo II 132, 84084 Fisciano, SA, Italy
*
Author to whom correspondence should be addressed.
Materials 2023, 16(12), 4246; https://doi.org/10.3390/ma16124246
Submission received: 10 May 2023 / Revised: 5 June 2023 / Accepted: 6 June 2023 / Published: 8 June 2023
(This article belongs to the Special Issue Linear and Non-linear AC Magnetic Susceptibility for the Study of Superconducting and Magnetic Materials)
Browse Figures
Versions Notes

Abstract

:
The AC magnetic properties of a sample of Fe3O4 nanoparticles coated with oleic acid have been investigated with the help of AC susceptibility measurements. In particular, several DC magnetic fields have been superimposed on the AC field, and their effect on the magnetic response of the sample has been analysed. The results show the presence of a double peak structure in the imaginary component of the complex AC susceptibility measured as a function of the temperature. A preliminary evaluation of the Mydosh parameter for both peaks gives the information that each one of them is associated with a different state of interaction between nanoparticles. The two peaks evolve both in amplitude and position when the intensity of the DC field is changed. The field dependence of the peak position shows two different trends, and it is possible to study them in the framework of the currently existing theoretical models. In particular, a model of non-interacting magnetic nanoparticles has been used to describe the behaviour of the peak at lower temperatures, whereas the behaviour of the peak at higher temperatures has been analysed in the framework of a spin-glass-like model. The proposed analysis technique can be useful for the characterisation of magnetic nanoparticles used in several types of applications, such as biomedical and magnetic fluids.

1. Introduction

1.1. Superparamagnetism

The properties of magnetic nanoparticles (MNPs) have been widely studied in the last years, and many different techniques are used today for their characterisation [1]. This is due to the large interest in this type of material in terms of its use for biomedical applications [2,3], including drug delivery [4] or hyperthermia cancer therapy [5,6], but also for applications such as data [7] energy storage [8] and for magnetic fluid preparation, which is a colloidal solution of magnetic nanoparticles coated with a stabiliser dispersed in a carrier liquid [9,10,11]. The possibility of MNPs showing a superparamagnetic state above the so-called “blocking temperature” (TB) is the main reason for their versatility. This state is similar to the paramagnetic one because of the absence of spontaneous magnetisation, but the prefix “super-” refers to a higher response to the applied magnetic field than the classical paramagnetic state [12,13]. These nanoparticles are obtained from materials that show common magnetic properties in bulk form (either ferromagnetic, ferrimagnetic or antiferromagnetic). With their lower dimensions, MNPs lose the domain structure of bulk magnetic materials and become single-domain magnets. Similar to bulk materials’ domains, in single-domain nanoparticles, there is a magnetic order of the spin. Due to this order, the magnetism of the nanoparticles can be described by a total magnetisation vector whose orientation depends on the competition between the anisotropic effects, interaction with external fields and thermal energy [1,13]. In particular, the orientation of the magnetisation can flip between the equilibrium positions described by the form of the energy. The probability to have these flips (or equivalently, the time necessary to observe a flip) depends on the energy competition. In the absence of an external field, the competition is dominated only by the anisotropic energy (proportional to volume) and the thermal energy (proportional to the temperature). By lowering the dimensions of the particles, the relaxation time of the magnetisation decreases enough to become proportional to the measuring time and to observe the system in a paramagnetic-like state [1]. This is the superparamagnetic state.

1.2. Presence of Double TB in Literature

For the reasons described in the last paragraph, the dimensions of MNPs have a great effect on TB. In fact, Micha et al. [14] have shown how the dimension distribution of magnetic nanoparticles is linked to the distribution of the TB of the sample, but the dimension is not the only characteristic that can affect it. Moreover, the intensity of the dipole–dipole interaction among nanoparticles [15] or the presence of a cover [16] can affect the blocking temperature. The dipole–dipole interaction can also introduce magnetic frustration in a system of MNPs, leading to a spin-glass-like phase. This behaviour is often referred to as a super-spin-glass system [17], and it has been widely observed and reported in the literature [17,18,19]. This wide range of phenomena can have an additional degree of complexity given by the possibility to observe two different blocking temperatures for the same sample. This can be seen both in direct current (DC) and alternating current (AC) magnetic measurements, but in DCs, the presence of two blocking temperatures can be noted only after elaboration of the data [20,21] using the method proposed by Micha et al. [14]. On the other hand, the presence of two TB can be directly observed via measuring in AC fields. This is reported by Goya et al. [22] where the described phenomenon is due to the presence of nanoparticles with a different dimension distribution in the same sample but also by Urian et al. [21] in the case of interacting nanoparticles. In addition to this, Echevarria-Bonet et al. [23] have shown how in a sample of antiferromagnetic nanoparticles, it is possible to observe a double-phase transition due to the coexistence of super antiferromagnetic and super-spin-glass phases.

1.3. Analysis of a System Having Double TB

Due to the possibility of effect combinations in MNPs samples, it is important to develop analysis methodologies in order to associate the correct phase transition to the presence of double blocking temperatures. A possibility is to use the effect of a DC superimposed magnetic field (HDC) on AC susceptibility measurements. The idea is that depending on the type of transition that characterises the nanoparticles, the DC field produces a different influence on the blocking temperature [24,25,26,27]. In particular, for a super-spin-glass system, the presence of a DC field produces a variation of the freezing temperature (related to the super-spin-glass transition) [28] that is different from the one usually expected for the blocking temperature in a sample of non-interacting MNPs [29,30]. The results obtained with this approach can be compared with the evaluation of the Mydosh parameter [31]. In a similar way to the effect of a superimposed DC field, the effect of the AC field frequency on the blocking temperature is different for non-interacting nanoparticles with respect to a super-spin-glass system. In particular, by evaluating the variation of the blocking temperature in a decade of frequencies, it is possible to empirically separate three ranges for the value of the Mydosh parameter in the case of non-interacting, clusterised and super-spin-glass nanoparticle systems [17,28]. In this work, a MNPs sample has been studied showing the presence of a double peak in the imaginary part of AC susceptibility. The evaluation of the Mydosh parameter has been used to have a preliminary estimation of the behaviour related to the two peaks. After this, the effect of the DC field on the peaks’ temperature has been shown, and a method to analyse the nature of the interaction among the nanoparticles has been provided.

2. Materials and Methods

2.1. Sample Preparation

In this work, a sample of magnetite nanoparticles covered with oleic acid (Fe3O4-OA) was analysed. The nanoparticles were synthesised via thermo decomposition of organo-metallic precursor. This method has the advantage of producing nanoparticles with controlled size, high crystallinity and well-defined shape [32]. The precursor used for the synthesis of the nanoparticles characterised in this work was the acetylacetonate of iron, Fe(acac)3. A total of 3 mmol of this precursor was mixed with 20 mL of benzyl ether, 10 mmol of 1,2-hexadecanediol and 12 mmol of oleic acid (OA). The result of this mixture was magnetically stirred during thermal treatment. It was warmed up to 473 K, remaining at this temperature for 120 min, and then it was warmed up to 558 K for 60 min. After this process, the result was washed by centrifugation for 30 min of duration at 7500 rpm firstly in ethanol and then in an equal volume mixture of hexane and ethanol [20].

2.2. Characterisation Techniques

Sarno et al. [33] also report the characterisation via FT-IR that proves the bonding between magnetite and oleic acid and thermogravimetry measurements that estimate the percent in weight of oleic acid as 20%. Moreover, TEM analyses were performed to estimate the mean diameter of nanoparticles as 6.9 nm with standard deviation of 1.7 nm. It is important to note that TEM measurements showed a monomodal distribution of the MNPs’ dimensions. To study the magnetic properties of the sample, a PPMS (Physical Property Measurement System) by Quantum Design equipped with ACSM insert was used to perform AC susceptibility measurements. The ACSM insert measures different harmonics of the magnetic signal. In particular, the system used in this work was able to acquire ten different harmonics. Due to the AC nature of the measured signal, for each harmonic, a real and imaginary component are distinguished. In this work, we have focused our attention on the first harmonic signal, both real and imaginary components. Before each measurement, the sample was warmed up to a temperature of 300 K and then cooled down to 10 K without any applied field (“Zero Field Cooling” conditions—ZFC). After this, the sample was warmed from 10 K up to 300 K at a rate of 0.5 K/min while measured with an AC-applied field with an amplitude of 12 Oe and a frequency of 107 Hz and 9693 Hz. After performing a measurement without DC field superimposed to the AC one, 4 different DC field values (100 Oe, 400 Oe, 700 Oe and 1000 Oe) were used. To properly control the DC magnetic field and avoid eventual spurious effects due to the presence of a residual magnetic field trapped in the PPMS superconducting magnet [34], this was reduced below 1 Oe using demagnetisation cycles. This procedure starts by setting the field at the value of 20,000 Oe. After this, the field was set at the value of 1 Oe, but this value was approached by oscillated mode. In this mode, the field oscillates through positive and negative values, reducing progressively the amplitude of the oscillations to approach the set field [35].

3. Results and Discussion

The evaluation of the real (χ′) and imaginary (χ″) components of AC magnetic susceptibility as a function of temperature is useful to investigate the presence of superparamagnetic transition in MNPs. In fact, as described in the literature [1], the peak in χ′(T) is associated with the TB of the MNPs with the largest dimension. On the other hand, the peak in the χ″(T) curve is associated with the mean value of the blocking temperatures of the MNPs [25]. In Figure 1, the χ′(T) and χ″(T) curves are reported as measured on our sample in the absence of a DC magnetic field. As it is possible to see the real component χ′(T) does not show the presence of a peak, indicating that the nanoparticles with the largest size transition to the superparamagnetic state at temperatures higher than 300 K. On the other hand, χ″(T) shows two peaks, the first at the temperature T1 = 37 ± 1 K and the second at the temperature T2 = 225 ± 1 K. As reported by Urian et al. [21], the presence of two peaks in χ″(T) can be explained in terms of a dipolar–dipolar interaction among the MNPs. To confirm the presence of interaction among nanoparticles, a measurement at different frequencies was performed. In Figure 2, the χ′(T) curves (Figure 2a) and the χ″(T) curves (Figure 2b) measured at the frequencies of 107 Hz and 9693 Hz of the AC field are plotted. As can be seen, the effect of an increasing frequency is the increase of both T1 and T2 as expected from the literature [1,25]. Using the value of the peaks’ temperatures in Figure 2b for both frequencies, it is possible to evaluate the Mydosh parameter [31] following the definition:
Φ = ΔTp/(TLf Δlog(f))
where f is the frequency of the AC magnetic field, TP is the peak’s temperature and TLf is the peak’s temperature at low frequency. Typically, the value obtained for Φ is in the range of 0.05–0.18 for a super-spin-glass system and in the range of 0.3–0.5 for a system of non-interacting nanoparticles [28].
The intermediate region is associated with clustered magnetic nanoparticles. In our case, starting from the data in Figure 2, we have obtained Φ1~0.33 from T1 at 107 Hz, and at 9693 Hz, Φ2~0.073 from T2 at the same two frequencies. These results suggest that the peak at a lower temperature is associated with a non-interacting MNP behaviour, and the second is associated with a super-spin-glass behaviour. To strengthen these results, a study with different applied DC fields superimposed on the AC one was performed. In Figure 3, the χ′(T) curves (Figure 3a) and the χ″(T) curves (Figure 3b) at different values of the DC fields are reported. It can be noted that for DC applied fields ≥ 700 Oe, a peak appears in the χ′(T) curve (see inset in Figure 1a), confirming the superparamagnetic transition for the largest nanoparticles and consequently for the entire sample. The temperature shift of the peak is in agreement with the theory that predicts a decrease in the blocking temperature with the increase of a DC field applied to the MNPs [29].
Observing Figure 3b, it can be noted that the position of the peak at low temperature (T1) shifts just slightly by increasing the DC field, while the position of the peak at high temperatures (T2) varies much more.
This can be better seen by plotting the percentage difference between the maximum value of T1 (equivalently T2), corresponding to the curve at the DC field of 100 Oe, and the other values of T1 (respectively T2) at different DC fields, as reported in Figure 4. It can be noted that, except for changing the DC field from 0 Oe to 100 Oe, the T2 percentage variation with a field is larger than the T1 one.
This can suggest that the physical mechanisms associated with the two peaks are different. In order to confirm this hypothesis, a quantitative analysis of the T1 and T2 values as a function of the applied DC field was performed. The results are shown in Figure 5 where the different DC field dependences of the peaks’ temperatures are evidenced in the range from 100 Oe to 1000 Oe. As shown by Mamiya and Nakatani [36], for non-interacting nanoparticles, the temperature associated with the peak of χ″(T) at different DC fields follows the relation:
TB = TB0 [1 − (H/Han)2]
where TB0 is blocking temperature at zero fields, and Han is the anisotropy field; that is the field for which the anisotropy energy becomes lower than the magnetic energy.
On the other hand, in the literature, the existence of a super-spin-glass behaviour for MNPs is also reported [28,37,38]. In that case, the field dependence of the peak temperature (TSSG) of χ″(T) follows the relation:
TSSG = Tf [1 − (H/H0)2/3]
where Tf is the freezing temperature of the system without a magnetic field, and H0 is the theoretical transition field for a spin-glass state at zero temperature.
For these reasons, our experimentally detected dependences of both T1 and T2 on the magnetic field (see Figure 5) have been fitted with the more general relation:
TP = T0 [1 − (H/Hk)p]
which takes into account both Equation (2) and Equation (3) and where TP is the equivalent of TB and TSSG, Han and H0 have been substituted by Hk, T0 represents TB0 and Tf, while the exponent p is considered a fit parameter. To perform the fit, the parameter T0 has been derived in terms of Hk and p by fixing the point T1 (or alternatively T2) at HDC = 100 Oe as T100.
T0 = T100/[1 − (100/Hk)p]
In this way, the fit is reduced to have two parameters, and the value of T0 can be derived from Equation (5) after the evaluation of Hk and p. This has been performed because, in our case, both T1 and T2 have an opposite (increasing) field behaviour in the range from 0 Oe to 100 Oe with respect to the higher fields’ region, as already mentioned. This has a consequence that the points at 0 Oe are not in agreement with the model described by Equation (5), and the parameter T0 cannot be initialised by T1 and T2 at HDC = 0 Oe. In Figure 5, the red line represents the result of the fitting procedure. In Table 1, the parameters obtained by the fit are reported for both the field dependences T1(HDC) and T2(HDC). The values obtained for the parameter p indicate that the behaviour of T1 (HDC) is well-described by Equation (2), whereas that of T2 (HDC) follows Equation (3).
These results suggest that Peak 1 at low temperatures is associated with non-interacting nanoparticles, and Peak 2 is associated with nanoparticles with a spin-glass-like behaviour. Both behaviours can be explained by considering a single distribution of magnetic nanoparticles with different states of aggregation. It is possible that in our sample, some MNPs are non- or weakly interacting (Peak 1), and others have a strong interaction, showing a super-spin-glass behaviour (Peak 2). This possibility is also supported by a similar behaviour observed in the literature [39,40,41] and could be better investigated in the future by studying the third harmonic signal of the sample [40,42]. All the results obtained by the fit proposed in Figure 5 are valid in non-zero DC fields. On the contrary, as mentioned, the data taken for HDC = 0 Oe do not match this description since the experimental values of the peak temperatures associated with this field are lower than what should be expected from the fit procedure (T0 in Table 1) for both curves. This non-monotonic behaviour was already observed for samples of MNPs by Aslani et al. [43], Sappey et al. [44] and Luo et al. [45]. One possible interpretation of this behaviour can be the formation/decay of aggregates caused by the dipole–dipole interaction [10,11]. Zheng et al. [46] have described it starting by considering nanoparticles with a large dimension distribution. In the case of the sample analysed in this work, as previously observed in Figure 1a, the blocking temperature associated with the biggest nanoparticles is higher than 300 K for HDC = 0 T. On the other hand, the temperatures associated with the peaks of the χ″(T) curves are (37 ± 1) K and (225 ± 1) K for HDC = 0 T. These greatly different values can be associated with a wide dimension distribution, as deduced from Equation (5) that defines the blocking temperature [47].
TB = KV/(kB ln(1/(fm/τ0)))
in which K is the coefficient of anisotropy, V is the volume of nanoparticles, kB is the Boltzmann constant, fm is the measurement frequency and τ0 is the characteristic relaxation time of the nanoparticles. The direct proportionality between the blocking temperature and the dimension of the nanoparticles suggests that a large difference in the blocking temperature values corresponds to a large difference in the dimensions of the nanoparticles, making Zheng’s description for the non-monotonic trend of TB (HDC) also applicable to the results reported in this work. It is important to note that the H2/3 dependence of TB is predicted as possible also for non-interacting MNPs, and for this reason, the occurrence of this kind of dependence is not enough to distinguish a super-spin-glass system from a non-interacting system. However, the H2/3 dependence of TB is reported for DC fields close to Han [29,48]. In our case, we have estimated Hk for the T1 (HDC) dependence as (2200 ± 100) Oe (Table 1), and, in agreement with theory [29], we have found T1 ∝ H2 for H < Hk. The H2/3 law found for T2 (HDC) dependence cannot be associated with non-interacting nanoparticles of the same family as those associated with the peak at lower temperature T1 because the DC fields used in this work are lower than the Hk estimated for the peak at temperature T1. It could be also possible that the peak at T2 is associated with another family of MNPs with an Hk low enough to obtain H2/3 dependence of T2. However, this hypothesis can also be rejected because Hk is proportional to the anisotropic energy KV [29,48,49]. If the nanoparticles associated with the peak at T2 have an anisotropic energy lower than the one of the nanoparticles associated with the peak at T1, according to Equation (5), T1 has to be higher than T2 due to the proportionality between TB and KV. This hypothesis is clearly in disagreement with the experimental data, so it is more reasonable that the peak at T2 is associated with MNPs that show a super-spin-glass behaviour. Following this idea, the value of Hk has been evaluated for the peak at higher temperatures as Hk = (3900 ± 200) Oe, which is in accordance with the value obtained for systems of the same typology [28,37].

4. Conclusions

The dependence of the blocking temperature as a function of the applied DC field has been studied in order to analyse the interaction among nanoparticles in a sample of oleic acid-coated Fe3O4 characterised by a double peak structure in χ″(T). The values calculated for the Mydosh’s parameter are Φ1~0.33 for the peak at a lower temperature and Φ2~0.076 for the peak at a higher temperature. According to the literature, the first is in the range associated with non-interacting nanoparticle behaviour, whereas the second is associated with a spin-glass-like system. The first result obtained via the evaluation of the Mydosh parameter has been investigated from the analysis of AC susceptibility under different DC fields. The DC field dependence of the temperature associated with the two peaks was studied by using a general power law model. The obtained results have shown that the peaks can be ascribed to the presence of two different magnetic mechanisms. In particular, the DC field dependence of the peak at lower temperatures well fits the behaviour expected in the case of non-interacting nanoparticles. On the other hand, a spin-glass-like model result is more suitable to analyse the behaviour of the higher temperature peak. This also made it possible to estimate the value for the anisotropic field from the T1 (HDC) behaviour and for the theoretical transition field from the T2 (HDC) behaviour. Finally, the used models are unable to correctly predict the blocking temperature value at a zero DC field due to the wide distribution of the MNPs’ dimensions in our sample. In general, for samples with double TB, the proposed study can be useful in combination with TEM analysis to investigate the effects due to dipole–dipole interactions and the distribution of dimensions.

Author Contributions

Conceptualisation, M.M., A.G., M.S. and M.P.; methodology, M.M. and M.P.; validation, M.M., A.G. and M.P.; formal analysis, M.M.; investigation, M.M.; resources, M.S. and M.P.; data curation, M.M.; writing—original draft preparation, M.M.; writing—review and editing, M.M., A.G. and M.P.; visualisation, M.M., A.G., M.S. and M.P.; supervision, M.P.; project administration, M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Operative Programme for Companies and Competitiveness 2014–2020—Horizon 2020, funded by the European Union (Rilub SPA, project leader. Project n. F/050190/01–02/x32—INNOLUBE).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data sets that support the findings in this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mørup, S.; Frandsen, C.; Hansen, M.F. Magnetic Properties of Nanoparticles; Narlikar, A.V., Fu, Y.Y., Eds.; Oxford University Press: Oxford, UK, 2010; Volume 1, ISBN 0199533059. [Google Scholar] [CrossRef]
  2. Ganapathe, L.S.; Mohamed, M.A.; Mohamad Yunus, R.; Berhanuddin, D.D. Magnetite (Fe3O4) Nanoparticles in biomedical application: From synthesis to surface functionalisation. Magnetochemistry 2020, 6, 68. [Google Scholar] [CrossRef]
  3. Bloemen, M.; Brullot, W.; Luong, T.T.; Geukens, N.; Gils, A.; Verbiest, T. Improved functionalization of oleic acid-coated iron oxide nanoparticles for biomedical applications. J. Nanoparticle Res. 2012, 14, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liu, B.; Li, C.; Ma, P.; Chen, Y.; Zhang, Y.; Hou, Z.; Huang, S.; Lin, J. Multifunctional NaYF4:Yb, Er@mSiO2@Fe3O4-PEG nanoparticles for UCL/MR bioimaging and magnetically targeted drug delivery. Nanoscale 2015, 7, 1839–1848. [Google Scholar] [CrossRef]
  5. Kumar, C.S.S.R.; Mohammad, F. Magnetic nanomaterials for hyperthermia-based therapy and controlled drug delivery. Adv. Drug Deliv. Rev. 2011, 63, 789–808. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hergt, R.; Dutz, S.; Müller, R.; Zeisberger, M. Magnetic particle hyperthermia: Nanoparticle magnetism and materials development for cancer therapy. J. Phys. Condens. Matter 2006, 18, S2919–S2934. [Google Scholar] [CrossRef]
  7. Zhang, H.; Liu, Y.; Sun, S. Synthesis and assembly of magnetic nanoparticles for information and energy storage applications. Front. Phys. China 2010, 5, 347–356. [Google Scholar] [CrossRef]
  8. Frey, N.A.; Peng, S.; Cheng, K.; Sun, S. Magnetic nanoparticles: Synthesis, functionalization, and applications in bioimaging and magnetic energy storage. Chem. Soc. Rev. 2009, 38, 2532. [Google Scholar] [CrossRef] [Green Version]
  9. Linh, P.H.; Van Thach, P.; Tuan, N.A.; Thuan, N.C.; Manh, D.H.; Phuc, N.X.; Van Hong, L. Magnetic fluid based on Fe3O4 nanoparticles: Preparation and hyperthermia application. J. Phys. Conf. Ser. 2009, 187, 012069. [Google Scholar] [CrossRef] [Green Version]
  10. Camp, P.J.; Ivanov, A.O.; Sindt, J.O. How chains and rings affect the dynamic magnetic susceptibility of a highly clustered ferrofluid. Phys. Rev. E 2021, 103, 062611. [Google Scholar] [CrossRef]
  11. Ivanov, A.S.; Solovyova, A.Y.; Zverev, V.S.; Elfimova, E.A. Distribution functions of magnetic moments and relaxation times for magnetic fluids exhibiting controllable microstructure evolution. J. Mol. Liq. 2022, 367, 120550. [Google Scholar] [CrossRef]
  12. Marghussian, V. Magnetic Properties of Nano-Glass Ceramics; Elsevier: Amsterdam, The Netherlands, 2015; ISBN 9780323353861. [Google Scholar] [CrossRef]
  13. Bean, C.P.; Livingston, J.D. Superparamagnetism. J. Appl. Phys. 1959, 30, S120–S129. [Google Scholar] [CrossRef]
  14. Micha, J.S.; Dieny, B.; Régnard, J.R.; Jacquot, J.F.; Sort, J. Estimation of the Co nanoparticles size by magnetic measurements in Co/SiO2 discontinuous multilayers. J. Magn. Magn. Mater. 2004, 272–276, E967–E968. [Google Scholar] [CrossRef]
  15. Hansen, M.F.; Jönsson, P.E.; Nordblad, P.; Svedlindh, P. Critical dynamics of an interacting magnetic system. J. Phys. Condens. Matter 2002, 14, 4901. [Google Scholar] [CrossRef]
  16. Milosevic, I.; Motte, L.; Aoun, B.; Li, T.; Ren, Y.; Sun, C.; Saboungi, M.L. Effects of coating spherical iron oxide nanoparticles. Biochim. Biophys. Acta Gen. Subj. 2017, 1861, 3621–3626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Andersson, M.S. Nanoparticle magnetism: Superspin glasses. J. Nanosci. Nanotechnol. 2019, 19, 4903–4910. [Google Scholar] [CrossRef] [PubMed]
  18. Dormann, J.L.; Bessais, L.; Fiorani, D. A dynamic study of small interacting particles: Superparamagnetic model and spin-glass laws. J. Phys. C Solid State Phys. 1988, 21, 2015. [Google Scholar] [CrossRef]
  19. Abdolrahimi, M.; Vasilakaki, M.; Slimani, S.; Ntallis, N.; Varvaro, G.; Laureti, S.; Meneghini, C.; Trohidou, K.N.; Fiorani, D.; Peddis, D. Magnetism of nanoparticles: Effect of the organic coating. Nanomaterials 2021, 11, 1787. [Google Scholar] [CrossRef]
  20. Polichetti, M.; Modestino, M.; Galluzzi, A.; Pace, S.; Iuliano, M.; Ciambelli, P.; Sarno, M. Influence of Citric acid and oleic acid coating on the Dc magnetic properties of Fe3O4 magnetic nanoparticles. Mater. Today Proc. 2020, 20, 21–24. [Google Scholar] [CrossRef]
  21. Urian, Y.A.; Atoche-Medrano, J.J.; Quispe, L.T.; León Félix, L.; Coaquira, J.A.H. Study of the surface properties and particle-particle interactions in oleic acid-coated Fe3O4 nanoparticles. J. Magn. Magn. Mater. 2021, 525, 167686. [Google Scholar] [CrossRef]
  22. Goya, G.F.; Lima, E.; Arelaro, A.D.; Torres, T.; Rechenberg, H.R.; Rossi, L.; Marquina, C.; Ibarra, M.R. Magnetic hyperthermia with Fe3O4 nanoparticles: The influence of particle size on energy absorption. IEEE Trans. Magn. 2008, 44, 4444–4447. [Google Scholar] [CrossRef]
  23. Echevarria-Bonet, C.; Rojas, D.P.; Espeso, J.I.; Rodriguez Fernández, J.; de La Fuente Rodriguez, M.; Fernández Barquin, L.; Rodriguez Fernández, L.; Gorria, P.; Blanco, J.A.; Fdez-Gubieda, M.L.; et al. Magnetic phase diagram of superantiferromagnetic TbCu₂ nanoparticles. J. Phys. Condens. Matter 2015, 27, 496002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Goya, G.F.; Morales, M.P.; Sugiura, N. Field dependence of blocking temperature in magnetite nanoparticles. Metastable Mech. Alloy. Nanocrystalline Mater. 2004, 20, 673–678. [Google Scholar] [CrossRef] [Green Version]
  25. Topping, C.V.; Blundell, S.J. A.C. susceptibility as a probe of low-frequency magnetic dynamics. J. Phys. Condens. Matter 2018, 31, 013001. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Lee, K.; Jang, J.T.; Nakano, H.; Nakagawa, S.; Paek, S.H.; Bae, S. External magnetic field dependent shift of superparamagnetic blocking temperature due to core/surface disordered spin interactions. Nanotechnology 2017, 28, 075710. [Google Scholar] [CrossRef] [PubMed]
  27. Cimberle, M.R.; Masini, R.; Canepa, F.; Costa, G.; Vecchione, A.; Polichetti, M.; Ciancio, R. Ferromagnetic nanoclusters observed by Ac and Dc magnetic measurements in RuSr2GdCu2O8 samples. Phys. Rev. B Condens. Matter Mater. Phys. 2006, 73, 214424. [Google Scholar] [CrossRef]
  28. Ramos-Guivar, J.A.; Litterst, F.J.; Passamani, E.C. AC susceptibility studies under DC fields in superspinglass nanomaghemite-multiwall carbon nanotube hybrid. Magnetochemistry 2021, 7, 52. [Google Scholar] [CrossRef]
  29. Dormann, J.L.; Fiorani, D.; el Yamani, M. Field dependence of the blocking temperature in the superparamagnetic model: Coincidence. Phys. Lett. A 1987, 120, 95–99. [Google Scholar] [CrossRef]
  30. Chantrell, R.W.; O’Grady, K. The magnetic properties of fine particles. In Applied Magnetism; Springer: Berlin/Heidelberg, Germany, 1994; pp. 113–164. [Google Scholar] [CrossRef]
  31. Mydosh, J.A. Spin Glasses: An Experimental Introduction, 1st ed.; Taylor & Francis: Abingdon, UK, 1993. [Google Scholar]
  32. Ali, A.; Shah, T.; Ullah, R.; Zhou, P.; Guo, M.; Ovais, M.; Tan, Z.; Rui, Y.K. Review on recent progress in magnetic nanoparticles: Synthesis, characterization, and diverse applications. Front. Chem. 2021, 9, 548. [Google Scholar] [CrossRef]
  33. Sarno, M.; Iuliano, M.; Polichetti, M.; Ciambelli, P. High activity and selectivity immobilized lipase on Fe3O4 nanoparticles for banana flavour synthesis. Process. Biochem. 2017, 56, 98–108. [Google Scholar] [CrossRef]
  34. Iannone, G.; Zola, D.; Armenio, A.A.; Polichetti, M.; Attanasio, C. Electrical resistivity and magnetic behavior of PdNi and CuNi thin films. Phys. Rev. B. Condens. Matter Mater. Phys. 2007, 75, 064409. [Google Scholar] [CrossRef]
  35. Galluzzi, A.; Nigro, A.; Fittipaldi, R.; Guarino, A.; Pace, S.; Polichetti, M. DC Magnetic characterization and pinning analysis on Nd1.85Ce0.15CuO4 cuprate superconductor. J. Magn. Magn. Mater. 2019, 475, 125–129. [Google Scholar] [CrossRef]
  36. Mamiya, H.; Nakatani, I. Dynamic study of iron-nitride fine particle system: Field dependence of the blocking temperature. J. Magn. Magn. Mater. 1998, 177–181, 966–967. [Google Scholar] [CrossRef]
  37. Suzuki, M.; Fullem, S.I.; Suzuki, I.S.; Wang, L.; Zhong, C.J. Observation of superspin-glass behavior in Fe3O4 nanoparticles. Phys. Rev. B. Condens. Matter Mater. Phys. 2009, 79, 024418. [Google Scholar] [CrossRef]
  38. Tanwar, S.; Awana, V.P.S.; Singh, S.P.; Pasricha, R. Magnetic field dependence of blocking temperature in oleic acid functionalized iron oxide nanoparticles. J. Supercond. Nov. Magn. 2012, 25, 2041–2045. [Google Scholar] [CrossRef]
  39. Mustapić, M.; Pajić, D.; Novosel, N.; Babić, E.; Zadro, K.; Cindrić, M.; Horvat, J.; Skoko, Ž.; Bijelić, M.; Shcherbakov, A. Synthesis, structural characterization and magnetic properties of iron boride nanoparticles with or without silicon dioxide coating. Croat. Chem. Acta 2010, 83, 275–282. [Google Scholar]
  40. Pajić, D.; Zadro, K.; Ristić, R.; Ivković, I.; Skoko, Ž.; Babić, E. Thermal relaxation of magnetic clusters in amorphous alloy. J. Phys. Condens. Matter 2007, 19, 296207. [Google Scholar] [CrossRef] [Green Version]
  41. Pajić, D.; Marohnić, Ž.; Drobac, D.; Zadro, K.; Ristić, R.; Babić, E. Evolution of magnetism in Hf–Fe metallic glasses. J. Alloys Compd. 2012, 536, S370–S373. [Google Scholar] [CrossRef]
  42. Bitoh, T.; Ohba, K.; Takamatsu, M.; Shirane, T.; Chikazawa, S. Linear and nonlinear susceptibilities in Cu97Co3 alloy for ferromagnetic fine particles in metallic matrix: Comparison with spin glass Au96Fe4 alloy. J. Phys. Soc. Jpn. 2013, 62, 2583–2586. [Google Scholar] [CrossRef]
  43. Aslani, A.; Ghahremani, M.; Zhang, M.; Bennett, L.H.; della Torre, E. Customizing magnetic and structural properties of nanomaterials. IEEE Trans. Magn. 2018, 54, 1–5. [Google Scholar] [CrossRef]
  44. Sappey, R.; Vincent, E.; Hadacek, N.; Chaput, F.; Boilot, J. Nonmonotonic field dependence of the zero-field cooled magnetization peak in some systems of magnetic nanoparticles. Phys. Rev. B 1997, 56, 14551. [Google Scholar] [CrossRef] [Green Version]
  45. Luo, W.; Nagel, S.R.; Rosenbaum, T.F.; Rosensweig, R.E. Dipole interactions with random anisotropy in a frozen ferrofluid. Phys. Rev. Lett. 1991, 67, 2721. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zheng, R.K.; Gu, H.; Xu, B.; Zhang, X.X. The origin of the non-monotonic field dependence of the blocking temperature in magnetic nanoparticles. J. Phys. Condens. Matter 2006, 18, 5905–5910. [Google Scholar] [CrossRef]
  47. Bruvera, I.J.; Mendoza Zélis, P.; Pilar Calatayud, M.; Goya, G.F.; Sánchez, F.H. Determination of the blocking temperature of magnetic nanoparticles: The good, the bad, and the ugly. J. Appl. Phys. 2015, 118, 184304. [Google Scholar] [CrossRef]
  48. Wenger, L.E.; Mydosh, J.A. Nonuniqueness of H2/3 and H2 field-temperature transition lines in spin-glasses. Phys. Rev. B 1984, 29, 4156. [Google Scholar] [CrossRef]
  49. El-Hilo, M.; O’Grady, K.; Chantrell, R.W. Susceptibility phenomena in a fine particle system: II. Field dependence of the peak. J. Magn. Magn. Mater. 1992, 114, 307–313. [Google Scholar] [CrossRef]
Materials 16 04246 g001 550

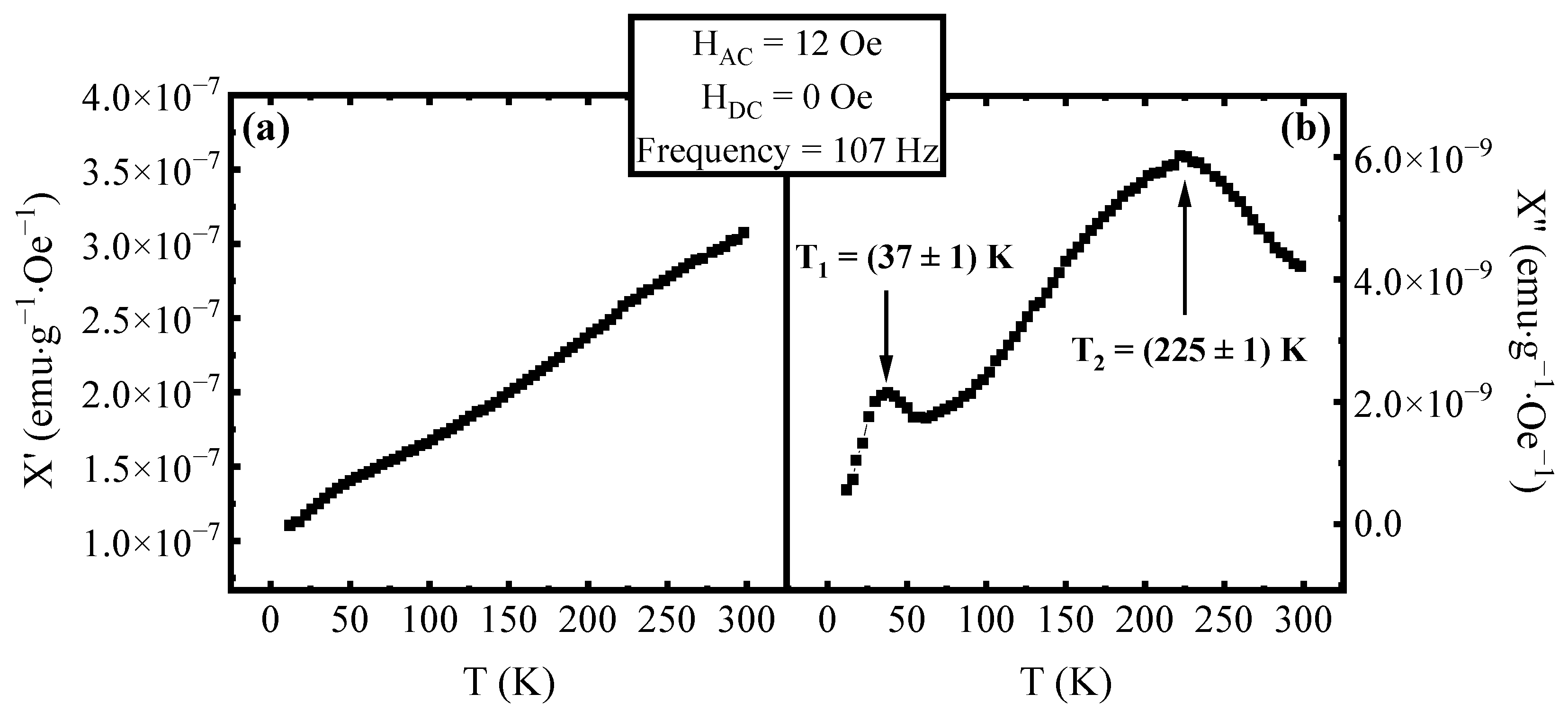

Figure 1. Temperature dependence of (a) the real part χ′(T) and (b) the imaginary part χ″(T) of the AC magnetic susceptibility at an AC field frequency of 107 Hz, an AC field amplitude of 12 Oe and without a superimposed DC field. In χ″(T) curve, the presence of two peaks in the curve is highlighted, and the temperatures associated with them are reported.
Figure 1. Temperature dependence of (a) the real part χ′(T) and (b) the imaginary part χ″(T) of the AC magnetic susceptibility at an AC field frequency of 107 Hz, an AC field amplitude of 12 Oe and without a superimposed DC field. In χ″(T) curve, the presence of two peaks in the curve is highlighted, and the temperatures associated with them are reported.
Materials 16 04246 g001
Materials 16 04246 g002 550
Figure 2. (a) χ′(T) curves and (b) χ″(T) curves at an AC field amplitude of 12 Oe without a superimposed DC field and at AC field frequency of 107 Hz and 9693 Hz. The curve measured at the frequency of 107 Hz is plotted with filled black squares, while the curve measured at 1077 Hz is plotted with empty red circles.
Figure 2. (a) χ′(T) curves and (b) χ″(T) curves at an AC field amplitude of 12 Oe without a superimposed DC field and at AC field frequency of 107 Hz and 9693 Hz. The curve measured at the frequency of 107 Hz is plotted with filled black squares, while the curve measured at 1077 Hz is plotted with empty red circles.
Materials 16 04246 g002
Materials 16 04246 g003 550
Figure 3. (a) χ′(T) curves and (b) χ″(T) curves at an AC field frequency of 107 Hz, an AC field amplitude of 12 Oe and with different DC fields superimposed. The curve measured at 100 Oe is plotted with filled red circles, the one at 400 Oe with open green triangles, the one at 700 Oe with crossed blue rhombus and the one at 1000 Oe with open purple circles. In the inset, the χ′(T) curves measured with a DC field of 700 Oe and 1000 Oe are magnified in the high-temperature region where the peaks in the curves, indicated by the arrows, are visible.
Figure 3. (a) χ′(T) curves and (b) χ″(T) curves at an AC field frequency of 107 Hz, an AC field amplitude of 12 Oe and with different DC fields superimposed. The curve measured at 100 Oe is plotted with filled red circles, the one at 400 Oe with open green triangles, the one at 700 Oe with crossed blue rhombus and the one at 1000 Oe with open purple circles. In the inset, the χ′(T) curves measured with a DC field of 700 Oe and 1000 Oe are magnified in the high-temperature region where the peaks in the curves, indicated by the arrows, are visible.
Materials 16 04246 g003
Materials 16 04246 g004 550
Figure 4. Percentage variation for T1 and T2 compared to their maximum value as function of DC applied field. The T1 percentage variation is plotted with filled black squares, while the T2 percentage variation is plotted with open red triangle.
Figure 4. Percentage variation for T1 and T2 compared to their maximum value as function of DC applied field. The T1 percentage variation is plotted with filled black squares, while the T2 percentage variation is plotted with open red triangle.
Materials 16 04246 g004
Materials 16 04246 g005 550
Figure 5. (a) T1 (HDC) and (b) T2(HDC) behaviours (with associated error bars). The (red) continuous lines are the best fit obtained by using Equation (4) for both the sets of data. The points at low field that do not match with the fit are marked with an open square symbol (in red).
Figure 5. (a) T1 (HDC) and (b) T2(HDC) behaviours (with associated error bars). The (red) continuous lines are the best fit obtained by using Equation (4) for both the sets of data. The points at low field that do not match with the fit are marked with an open square symbol (in red).
Materials 16 04246 g005
Table
Table 1. Fit parameters for T1(HDC) and T2(HDC). The value presented for parameter T0 is not obtained directly by fit but by the evaluation of Equation (5) in which, for Hk and p, the values reported in this table are used.
Table 1. Fit parameters for T1(HDC) and T2(HDC). The value presented for parameter T0 is not obtained directly by fit but by the evaluation of Equation (5) in which, for Hk and p, the values reported in this table are used.
Fit ParameterT1 (HDC) FittingT2 (HDC) Fitting
T0(40.07 ± 0.02) K(267 ± 2) K
Hk(2200 ± 100) Oe(3900 ± 200) Oe
p2.03 ± 0.110.65 ± 0.03
Adjust R-Square0.99780.99965
