Review

The Review of Hybridization of Transition Metal-Based Chalcogenides for Lithium-Ion Battery Anodes

by
Lin-Hui Wang
1,
Long-Long Ren
2 and
Yu-Feng Qin
1,*
1
College of Information Science and Engineering, Shandong Agricultural University, Taian 271018, China
2
College of Mechanical and Electronic Engineering, Shandong Agricultural University, Taian 271018, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(12), 4448; https://doi.org/10.3390/ma16124448
Submission received: 31 March 2023 / Revised: 5 June 2023 / Accepted: 15 June 2023 / Published: 18 June 2023
(This article belongs to the Special Issue Anode and Energy Storage Mechanism of Battery)
Browse Figures
Versions Notes

Abstract

:
Transition metal chalcogenides as potential anodes for lithium-ion batteries have been widely investigated. For practical application, the drawbacks of low conductivity and volume expansion should be further overcome. Besides the two conventional methods of nanostructure design and the doping of carbon-based materials, the component hybridization of transition metal-based chalcogenides can effectively enhance the electrochemical performance owing to the synergetic effect. Hybridization could promote the advantages of each chalcogenide and suppress the disadvantages of each chalcogenide to some extent. In this review, we focus on the four different types of component hybridization and the excellent electrochemical performance that originated from hybridization. The exciting problems of hybridization and the possibility of studying structural hybridization were also discussed. The binary and ternary transition metal-based chalcogenides are more promising to be used as future anodes of lithium-ion batteries for their excellent electrochemical performance originating from the synergetic effect.

1. Introduction

With the increasingly serious energy crisis, more and more attention has been paid to green energies, such as wind energy and solar energy [1,2]. To resolve the disadvantages of the intermittency and randomness of these green energies, the development of energy conversion and storage systems is becoming increasingly significant. Lithium-ion batteries (LIBs) have been widely explored and applied in portable electronics, electric vehicles, and high-power energy storage systems, on account of their long cycle life, and high specific capacity [3,4]. However, traditional carbon-based anodes are facing the challenges of improving the energy density and rate performance raised by high-power energy storage systems and artificial intelligence vehicles [5,6]. Despite the advantages of abundance, relatively low lithiation voltage, and high lithium storage for the alloying anodes, such as Si-based, Ge-based, and Sn-based materials, the large destructive effects of volumetric expansion during cycling and low intrinsic electronic conductivity prohibit the further application of these alloying anodes [7,8,9].
As a representative of the conversion reaction, transition metal chalcogenides, as one of the most promising alternatives to carbon-based anodes, have been extensively explored, exhibiting high specific capacity and outstanding rate performance [10,11,12]. For practical application, the drawbacks of volume expansion and low conductivity for these anode materials during the cycling process should be further resolved. Therefore, diverse nanostructures have been designed and prepared using many preparation methods. The nanostructures can increase the specific surface and decrease the intercalation path, and therefore increase the specific capacity of the transition metal chalcogenide anodes [13,14,15,16,17]. Cubic hollow CuS nano-boxes anodes exhibited superior cycle stability and high specific capacity at 20 C [13]. Synthesized by a sol-gel method, CuS nanorods achieved excellent cycle stability and high Coulombic efficiency [14]. Hu et al. synthesized CuS porous spheres and hollow spheres by a bubble template method, which indicated a promising alternative to carbon-based anodes for LIBs [15]. CuO anodes showed excellent electrochemical performance due to the unique morphology of the leaf-like nanoplates [16]. The core/shell-structured NiS anodes were prepared by the arc discharge method and exhibited good cyclability, high capacity, and outstanding rate capability [17]. Besides, carbon-based materials, such as graphene, reduced graphene oxide (rGO), and graphite, have been generally introduced to transition metal chalcogenides anodes. The introduction of carbon-based materials can enhance the cycle stability and conductivity of transition metal chalcogenide anodes to some extent [18,19,20,21,22,23]. In the rGO matrix, Fe3S4 nanoparticles were obtained by a one-pot hydrothermal method, showing excellent specific capacity and high conductivity [18]. The tubular mesoporous carbon materials were introduced to prepare Cu2S/C nanocomposites, which showed relatively good reversible capacity and rate capability [19]. CuS/CNTs nanocomposites were synthesized by a solvothermal method and exhibited good electrochemical performance due to the synergetic effect between carbon nanotubes and CuS [20]. CuO/graphene nanomaterials possessed an enhanced accommodation of lithium ions intercalation due to the synergetic effect of graphene [21]. Graphene with different structures was also introduced to Mn3O4 nanomaterials, which enhanced the conducive network and cycle stability of the anode materials [22,23].
In addition to the two above-mentioned solutions, the hybridization of transition metal-based chalcogenide anodes was reported, which could effectively enhance the electrochemical performance because of the synergetic effect of diverse components. The multifunctional component hybridization of the anode materials should be an effective way to accomplish excellent electrochemical performance for transition metal chalcogenides. It is worth noting that “hybridization” does not mean a simple mixture composed of two or more materials but a hybrid material with chemical links between each other in which the electronic structure of the hybrid material itself will be different from the mixture. Many works and reviews were reported based on the investigation of nanostructure designing and carbon-based material doping [13,14,15,16,17,18,19,20,21,22,23]. As far as we know, there are many studies on hybridization, but a summary of hybridization has not been reported. Generally, the hybridization can be divided into the hybridization between the transition metal and the transition metal chalcogenide, and the hybridization between different transition metal chalcogenides. In this review, we concentrate on the four types of hybridization, by which the individual advantages of each component could be strengthened and excellent electrochemical performance could be obtained. We also discuss the exciting problems of hybridization and the possibility of studying structural hybridization.

2. Hybridization between the Transition Metal and Transition Metal Chalcogenide

Because of the high conductivity and the catalytic property for the decomposition of Li2O, transition metal doping has been investigated, and the enhanced electrochemical performance of transition metal chalcogenide anodes was obtained. Generally, transition metal doping includes the hybridization of X and X-chalcogenides, and the hybridization of X and Y-chalcogenides, in which X and Y denote different transition metals, while X-chalcogenide and Y-chalcogenide represent different transition metal chalcogenides.

2.1. Hybridization of X and X-Chalcogenides

The transition metal could not only catalyze the reversible decomposition of Li2O but also help to establish the conductive network in the hybrid electrodes. The hybridization of a transition metal and the same metal-based chalcogenide was always achieved by accurately controlling the oxidation or reduction process.
Compared to pure CoO, the core-shell nanostructured Co@CoO exhibited superior electrochemical performance due to the existence of Co metal. According to their catalytic ability, the core Co metal nanoparticles could enhance the reversible decomposition of Li2O, while the outside Co metal portion could establish the conductivity network between the CoO anode materials [24]. Hao et al. prepared Co/CoO nanoparticles anchored on porous carbon cuboids by an impregnation method and consequent high-temperature treatment. Due to the synergetic effect between Co and CoO, as well as the unique hierarchical structure, the PCC-CoOx anodes showed high specific capability, long cycle life, and outstanding rate capability at high current density [25]. The Co/CoO@N-C nanocomposites were obtained by a facile chemical process and exhibited an enhanced initial capacity and a relatively high reversible specific capacity. The remarkable electrochemical performance originated from the increased conductivity and enhanced catalytic effect on Li2O, which were induced by heterogeneous composite doping [26]. Co3O4@CoO@Co nanocomposites were prepared by the hydrothermal method and following calcination treatment. The Co3O4@CoO@Co nanomaterials exhibited superior electrochemical and catalytic performance in the fields of LIBs and oxygen evolution reactions due to the modification of these components with each other [27]. Owing to the enhanced stability and improved conductivity achieved by the doping of metal Cu, the Cu2O/Cu nanowires exhibited greater remarkable cyclability and much higher capacity than conventional pure Cu2O [28]. The sub-microsphere structured Cu2O@Cu composites showed an outstanding rate performance and good cycling performance, which was ascribed to the synergistic effect between the volume-buffering capacity and the high electronic conductivity of metallic Cu in Cu2O@Cu composites [29]. The metallic Cu in Cu2O could act as a conducting way for electrons, a volume buffer during the cycling process, and a catalyst for the decomposition of Li2O. Wang et al. successfully synthesized core-shell structured Cu/Cu2O@Ppy nanowires by a one-step hydrothermal method, showing superior Li-storage performance caused by the nanowires’ structure and the introduction of Cu metal. In the anode materials, Cu metal could enhance the conductivity and the electrochemical reaction kinetics [30]. The nanostructured NiS/Ni electrode was prepared and showed high specific capacity and long cycle life resulting from the special porous structure and the formation of a conductivity network by Ni in the materials [31]. Zhu et al. explored a highly efficient and facile milling strategy to prepare Sn@SnOx/C nanocomposites. The Sn@SnOx/C anodes exhibited a stable reversible capacity after many cycles due to the amorphous microstructure and the conductive network established by the Sn nanoparticles [32]. The better electrochemical performance of a hybrid of X and X-chalcogenides than pure transition metal chalcogenide can be seen in Table 1 and Figure 1 [26,30].

2.2. Hybridization of X and Y-Chalcogenide

Compared to homoatomic metal doping, heteroatom hybridization could be easily accomplished by controlling the kinds and ratios of the chemical precursors. The hybrid of transition metal chalcogenide and heteroatoms tended to exhibit more remarkable electrochemical performance than pure transition metal chalcogenide.
Wang et al. found that the concentration of the doped Cu could regularly affect the morphologies and structures of the CoO/Cu nanocomposites. At a certain concentration, the CoO/Cu nanocomposites showed remarkable cycling stability to 1000 cycles and a high specific capacity of 580 mAh/g at 10 C, which are much better than pure CoO nanomaterials [33]. The outstanding electrochemical performance of the CoO/Cu anodes originated from the improved electron conductivity, enhanced catalytic function, and significant structure stability of CoO/Cu induced by Cu doping. The structure, morphologies, and electrochemical performance of a series of Ce-doped Mn3O4 nanocrystals with different Ce concentrations were thoroughly investigated. Mn2.98Ce0.02O4 anodes exhibited the highest capacity of 754.2 mAh/g up to 100 cycles, which was attributed to the bigger diffusion channels, more robust structure, and lower charge transfer impedance induced by the doping of Ce [34]. Krishnan et al. proposed a simple, environmentally friendly, and low-cost method to synthesize Mo-doped Cu2O:Mo with a porous microsphere structure. The remarkable electrochemical performance of the Cu2O:Mo anodes originated from the improvement of the specific surface area, electrical conductivity, Li-ion transports, and electrochemical kinetics induced by Mo doping [35]. The Zn-doped Co3O4 nanocomposites with a hollow concave structure displayed excellent rate capability and high specific capacities with stable cyclability. The outstanding electrochemical performance originated from the unique hollow concave structure and the defects induced by Zn doping, which could effectively improve the electronic structure of Co3O4 composites and then enhance the electrochemical reaction kinetics [36]. Wu et al. reported that the binary transition metal Cu3.8Ni was doped with CoO and MnO. The obtained Cu3.8Ni/CoO and Cu3.8Ni/MnO nanocomposites exhibited long cycle life, high energy density, and high power density, resulting from the establishment of the electron carrier path by Cu3.8Ni doping. [37].
Other metal-doped compound anodes for lithium-ion batteries were also reported. The physical properties and electrochemical performance of Mn-doped Co2(OH)3Cl xerogels depending on the Mn concentration were systematically investigated. Compared to pure Co2(OH)3Cl, the 4% Mn-doped Co2(OH)3Cl xerogels displayed a superior capacity and an outstanding rate capability, which could be mainly ascribed to the increased electric conductivity and charge transfer ability induced by Mn doping [38]. Through a ball milling activating technique, Li4Ti5−xYxO12 anode materials were obtained by Y doping to Li4Ti5O12 and exhibited fast diffusion of lithium ions, outstanding rate capability, and excellent long-cycle stability. The introduction of hetero valence Y can establish a new charge balance with the spinel structure unchanged, by which the Li diffusion coefficient, electrical conductivity, and electrochemical performances were improved [39]. The better electrochemical performance of the hybrid of X and Y-chalcogenide than pure transition metal chalcogenide was summarized in Table 2.

3. Hybridization between Different Transition Metal Chalcogenides

Recently, many binary and ternary transition metal chalcogenides have been prepared and exhibited outstanding electrochemical performance. The hybridization of transition metal chalcogenides could promote the advantages of each chalcogenide and suppress the disadvantages of each chalcogenide. Therefore, the excellent electrochemical performance of a hybrid of transition metal chalcogenides could be obtained on account of the synergetic effect.

3.1. Hybridization of X-Chalcogenide and X-Chalcogenide

Due to the multivalent state of the transition metals, the two phrases of X-chalcogenide in the above title represent two different X-based chalcogenides, such as CoO and Co3O4, MnO and Mn3O4, CuO and Cu2O. Therefore, the hybridization of the same transition metal-based but different chalcogenides is discussed in this part.
Zhu et al. prepared dandelion-like CoO/Co3O4/C nanocomposites by a hydrothermal method and the following unique combustion method. The CoO/Co3O4/C anodes exhibited stable and high capacity at different current densities [40]. Prepared by a hydrothermal reaction and a subsequent calcination and reduction process, porous Co3O4@CoO nanosheet anodes showed an outstanding rate capability even at 5 A/g and an excellent specific capacity [41]. Li et al. synthesized Co(OH)2/Co3O4/Co nanoparticles derived from the EDTA-Co(II) sodium complex. The anode materials exhibited a high reversible capacity, good cycling stability, and high-rate performance, which originated from the porous structure, the presence of conductive Co, and especially the synergetic effect of Co(OH)2 and Co3O4 [42]. The MnO/Mn3O4@NC composites with a porous structure were prepared and used as anodes of LIBs. The relatively high electrochemical performance resulted from the special porous structure and the co-doping of N and Mn [43]. After 630 cycles, the MnO/Mn3O4/SeOx (x = 0, 2) hybrid anodes exhibited a reversible specific capacity of up to 1007 mAh/g at 3 A/g, resulting from the synergetic effect between MnO and Mn3O4 phases [44]. Grown on conductive collectors of β-NiS@Ni3S2, the bind-free anodes of NiO nanosheet arrays exhibited outstanding lithium storage properties owing to the special heterostructures and the synergetic effect of the Ni3S2, β-NiS, and NiO components [45]. The CuS/Cu1.8S nanocomposite anodes showed a better electrochemical performance than that of most of the previous reports, owing to the nano-size structure and the assistance of the Cu1.8S component [46].
Yolk–shell structured Cu2O@CuO nanocomposites were prepared by a multistep chemical method at room temperature. The anode nanocomposites exhibited superior cycling stability and rate capability with a reversible capacity of up to 854 mAh/g at 0.1 C after 200 cycles, which could be mostly attributed to the improved conductivity induced by the spur-CuO bridge and CuO shell [47]. Quaternary Cu2O/CuO/Cu/Carbon-polymer composite fibers were obtained and exhibited good rate performance, excellent cycle stability, and high capacity due to the fiber structure and the combination of metal and metal oxides [48]. Compared to pure CuO nanowires, the CuO/Cu2O/Cu exhibited much better electrochemical performance, which was ascribed to the synergetic effect of the ternary composites [49]. The outstanding electrochemical performance of the CuO/Cu2O/C anodes with uniform spherical morphology was attributed to the synergetic effect of the two-component CuO/Cu2O, porous structure, and conducting carbon coating [50]. Ternary CuO/Cu2O/Cu composites were designed and prepared by a method of electrodeposition and following calcination in air. The obtained bind-free CuO/Cu2O/Cu anodes displayed a high capacity, which originated from the cypress-like structure and the synergetic effect between the conductive Cu and the active Cu oxides [51]. Used in lithium/sodium-ion batteries, the CuO/Cu2O anodes anchored in graphite matrix exhibited high capacity and cycling stability, mainly due to the synergetic effect of the CuO and Cu2O nanoparticles [52]. Other CuO/Cu2O nanocomposite anodes with various structures were prepared by different methods and exhibited relatively outstanding electrochemical performance. The synergetic effect of the components of CuO and Cu2O plays an important role in enhancing the rate capability, specific capacity, and cycling stability of these nanocomposite anodes [53,54,55]. From Figure 2 and Table 3, we could draw the conclusion that the hybridization of the homoatomic transition metal chalcogenides can effectively enhance the electrochemical performance of a single pure transition metal chalcogenide [45,49].

3.2. Hybridization of X-Chalcogenide and Y-Chalcogenide

The hybridization of different transition metal-based chalcogenides, i.e., X-metal chalcogenide and Y-metal chalcogenide, was widely investigated and could be easily achieved by many different preparation methods. The electrochemical performance of the composites of binary or ternary transition metal-based chalcogenides was almost better than that of each transition metal-based chalcogenide because of the synergetic effect of the components. The hybridization of transition metal chalcogenides could effectively enhance the advantages of a single component at certain concentrations.
A hierarchical Fe3O4/CuO hybrid wire showed high capacities, excellent rate capabilities, and ultrafast diffusion of Li ions, which was much better than the pure Fe3O4 or CuO nanomaterial, respectively, originating from the intelligent integration of the Fe3O4 and CuO and the unique nanowires structure [56]. Due to the synergetic effect between Mn3O4 and Fe3O4 and the unique flower-like structure, the Mn3O4/Fe3O4 nanocomposites showed superior lithium ion storage ability than pure Fe3O4 or Mn3O4, respectively [57].
Porous Co3O4/CuO composites also displayed better cycling stability and higher capacities than pure Co3O4 or CuO electrodes because of the synergetic lithium storage effect of both Co3O4 and CuO, as well as the porous hierarchical structure [58]. The ratios of Co and Cu could affect the morphologies, structures, and further electrochemical performance of the porous Co3O4/CuO composites, which indicated the vital role of hybridization to adjust electrochemical properties [58]. Directly grown on Cu foam, the heterostructured CoO/SiO2 exhibited high reversible capacity and good rate capability mainly because of the excellent synergetic effect between the two active materials of CoO and SiO2, and the enhanced conductivity of the 3D copper foam [59]. The binary ZnO/CoO mesoporous microspheres with carbon shells were prepared and delivered a good rate capability and high reversible capacity of 1457 mAh/g after 500 cycles, which was ascribed to the synergetic effect of the two components [60]. Composed of cubic Co3O4 and rhombus NiO, the flower-like NiO/Co3O4 composites exhibited a low charge transfer resistance and a high initial discharge capacity, indicating the improved conductivity and electrochemical reaction originated from the two metal cations [61]. For the hybrid nanofibrous Co3O4/TiO2, the initial discharge capacity was higher than the theoretical capacity of pure Co3O4 at 50.6% Co3O4 mass content [62]. The reversible capacity of amorphous hybridized SnO2/Co3O4 nanoflakes with a certain ratio of Sn and Co was much better than that of pure Co3O4 and SnO2 electrodes, respectively, which was attributed to the different potentials and working mechanisms of the SnO2 and Co3O4 [63]. Prepared by facile solvothermal and freeze-dring methods, the 3D structured CoO/ZnO nanoclusters anodes delivered a much higher specific capacity, which indicated an improved electrochemical performance by the synergetic effect of CoO and ZnO components [64]. The Co3O4/CeO2 heterostructure nanocomposites with different molar ratios of Co/Ce were prepared by a facile microwave assistance method. The excellent cycling stability and high reversible capacity of the 5Co3O4/CeO2 anodes resulted from the appropriate hybridization of Co3O4 and CeO2 [65]. Synthesized by a series of chemical reaction processes, the hierarchical mesoporous structured CoO@TiO2@C anodes exhibited much better electrochemical performance than that of pure CoO anodes, which indicated the enhanced effect of the robust TiO2 and amorphous carbon shells [66]. For the NiO/CoO nanoneedles, the enhancement of the electrochemical performance mainly resulted from the structural stability and the volume accommodation because of the interspace between NiO-CoO nanoneedles [67].
The core-shell CuO@ZnO composites with different contents of ZnO were synthesized by a chemical process of depositing ZnO on the CuO surface. Compared to pure CuO materials, the specific [email protected]% anodes showed much superior electrochemical performance [68]. Cu7.2S4/C was introduced to form the core-shell Cu7.2S4/C@MoS2 nanocomposites, which exhibited long-cycle stability and high specific discharge capacity owing to the special oxidation states of Cu and the improved conductivity by the Cu-rich Cu7.2S4 component [69]. ZnO was introduced to suppress the agglomeration and migration of Cu2O or Cu particles during the carbonization process, and the molar ratios of Zn to Cu can directly affect the size of the bimetallic oxides. At a certain concentration, the carbon-confined Cu2O/ZnO showed a reversible capacity of up to 476 mAh/g [70]. Porous Cu2O/Mn3O4 hetero-nanosheets exhibited good cycling stability, high reversible capacity, and competitive rate capability because of the synergetic effect of the two components [71]. The flower-like C@SnO2/Cu2O nanosheet cluster anodes showed much better storage capacity, rate performance, and cycle stability than pure SnO2 anodes because of the carbon layer, the novel structure, and the synergetic effect between the nanosized SnO2 and Cu2O [72]. Prepared by a facile dealloying process of MnCoAl, MnCoOx microspheres anodes exhibited better rate capability, superior cycling stability, and higher capacities than those of pure Mn3O4 anodes [73]. Figure 3 exhibited the better electrochemical performance of the hybrid of Mn3O4 than that of pure Mn3O4 [57,63], while Figure 4 showed the better electrochemical performance of the hybrid of SnO2 than that of each pure component [72,73], indicating the enhanced electrochemical performance by the hybridization of different transition metal-based chalcogenides.
Due to the unique architecture and the synergetic effect between the two composites, the bind-free Co(OH)2@MnO2 nanosheets grown on Ni foam showed outstanding electrochemical performance [74]. Multilayer amorphous SnO2 and TiO2 thin films displayed good electrochemical performance due to the heterogeneous structure and the two components. The SnO2/TiO2 nanocomposite integrated the advantages of the long cycle life of TiO2 and the high specific capacity of SnO2, indicating the enhanced effect of hybridization [75]. The hybrid of transition metal selenides was also synthesized by different methods and exhibited superior electrochemical performance. The CoFeSe/NC anodes exhibited better electrochemical performances (775 mAh g−1 after 50 cycles at 0.2 A g−1 and 423 mAh g−1 at 3 A g−1 up to 1000 cycles) and dynamic kinetics than the single-metal selenides, profiting from the synergistic effect of the multi-metal components, and well-retained integrated architecture [76]. Zhang and Pang demonstrated the excellent electrochemical performance of the hybrid of transition metal selenides in energy storage systems, such as lithium-ion batteries, sodium-ion batteries, and supercapacitors, respectively [77,78]. The better electrochemical performance of the hybrid of X-chalcogenide and Y-chalcogenide than pure transition metal chalcogenide was summarized in Table 4.

4. Discussion and Prospect

As is shown in Table 1, Table 2, Table 3 and Table 4 and Figure 1, Figure 2, Figure 3 and Figure 4, the electrochemical performance of hybrid anode materials was always better than that of pure anode materials. Hybridization is an effective method to improve the electrochemical performance of transition metal chalcogenides. Some researchers ascribe the enhanced mechanism of hybridization to the synergetic effect of the different components [64,65,66], while some researchers believe the interspace of the different phases plays an important role [67]. However, the details of the enhanced mechanism or the synergetic effect have not been further investigated. Based on the experimental results, a suitable theoretical calculation model should be established, and the enhanced mechanism should be deeply studied by using classical molecular dynamics and first-principle calculations in detail. If the interaction of different atoms or different phases is explored clearly, transition metal chalcogenides with excellent electrochemical performance will be prepared and used as anodes practically.
Till now, the study of hybridization has always focused on the hybridization of different crystal components. The study of amorphous/amorphous and amorphous/crystal hybridization has not been widely explored. The amorphous materials have unique features, such as an isotropic nature and more defects, which could provide more active sites and accommodate the volume expansion during the charge-discharge process [79]. Many molecular dynamics simulations and experimental results indicate that the electrochemical performance of amorphous anodes is better than that of crystal anodes [80,81]. The electrochemical performance of amorphous and crystalline Sn@C composites was compared, and the better electrochemical performance of amorphous anodes was ascribed to the unique features of amorphous structures [82]. A novel amorphous MoS2/MoO3 anode exhibited high specific capacity and cycling stability [83]. Compared to the crystal CoS anode, amorphous CoS exhibited much higher specific capacity and rate capability [10]. The amorphous CoO buffer was introduced to accommodate the volume expansion of CoO nanosheets, by which the CoO nanosheets/CoO film exhibited better electrochemical performance than CoO nanosheets [12]. Based on the unique features of amorphous structures, it is necessary to study structural hybridization combined with component hybridization, such as amorphous/amorphous and amorphous/crystal, which could accommodate the volume expansion and then improve the electrochemical performance of transition metal chalcogenides.

5. Conclusions

Due to the synergetic effect, hybridization is an effective way to enhance the electrochemical performance of transition metal chalcogenides as anodes in lithium-ion batteries. The hybridization could be divided into the hybridization between the transition metal and transition metal-based chalcogenide, and the hybridization between different transition metal-based chalcogenides. The electrochemical performance of a hybrid of transition metal chalcogenides is always better than that of pure transition metal chalcogenides. Though excellent electrochemical performance was obtained through the hybridization by many different preparation methods, the enhanced mechanism should be deeply investigated using classical molecular dynamics and first-principle calculations in the future. According to the unique features of amorphous structures, structural hybridization combined with component hybridization, such as amorphous/amorphous and amorphous/crystal, should be further investigated to improve the electrochemical performance. After a thorough understanding of the enhanced mechanism of the hybridization, we believe that a well-designed hybrid of transition metal-based chalcogenides is more promising to be used as future anodes of lithium-ion batteries.

Author Contributions

All authors listed have made a substantial contribution to this review and approved it for publication. All authors have read and agreed to the published version of the manuscript.

Funding

This review was supported by a Project of Shandong Province Higher Educational Science and Technology Program No. J17KA184.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, H.; Li, Q.; Li, L.; Teng, X.; Feng, Z.; Zhang, Y.; Wu, M.; Qiu, J. Laser Irradiation of Electrode Materials for Energy Storage and Conversion. Matter 2020, 3, 95–126. [Google Scholar] [CrossRef]
  2. Li, H.; Hu, Z.; Xia, Q.; Zhang, H.; Li, Z.; Wang, H.; Li, X.; Zuo, F.; Zhang, F.; Wang, X.; et al. Operando Magnetometry Probing the Charge Storage Mechanism of CoO Lithium-Ion Batteries. Adv. Mater. 2021, 33, 2006629. [Google Scholar] [CrossRef] [PubMed]
  3. Li, Q.; Li, H.; Xia, Q.; Hu, Z.; Zhu, Y.; Yan, S.; Ge, C.; Zhang, Q.; Wang, X.; Shang, X.; et al. Extra storage capacity in transition metal oxide lithium-ion batteries revealed by in situ magnetometry. Nat. Mater. 2021, 20, 76–83. [Google Scholar] [CrossRef] [PubMed]
  4. Li, Z.; Zhang, Y.; Li, X.; Gu, F.; Zhang, L.; Liu, H.; Xia, Q.; Li, Q.; Ye, W.; Ge, C.; et al. Reacquainting the Electrochemical Conversion Mechanism of FeS2 Sodium-Ion Batteries by Operando Magnetometry. J. Am. Chem. Soc. 2021, 143, 12800–12808. [Google Scholar] [CrossRef]
  5. Zhao, Z.; Hu, Z.; Jiao, R.; Tang, Z.; Dong, P.; Li, Y.; Li, S.; Li, H. Tailoring multi-layer architectured FeS2@C hybrids for superior sodium-, potassium- and aluminum-ion storage. Energy Storage Mater. 2019, 22, 228–234. [Google Scholar] [CrossRef]
  6. Zhao, Z.; Hu, Z.; Li, Q.; Li, H.; Zhang, X.; Zhuang, Y.; Wang, F.; Yu, G. Designing two-dimensional WS2 layered cathode for high-performance aluminum-ion batteries: From micro-assemblies to insertion mechanism. Nano Today 2020, 32, 100870. [Google Scholar] [CrossRef]
  7. Chu, D.B.; Li, J.; Yuan, X.M.; Li, Z.L.; Wei, X.; Wan, Y. Tin-Based Alloy Anode Materials for Lithium Ion Batteries. Prog. Chem. 2012, 24, 1466–1476. [Google Scholar]
  8. Feng, Z.-Y.; Peng, W.-J.; Wang, Z.-X.; Guo, H.-J.; Li, X.-H.; Yan, G.-C.; Wang, J.-X. Review of silicon-based alloys for lithium-ion battery anodes. Int. J. Miner. Metall. Mater. 2021, 28, 1549–1564. [Google Scholar] [CrossRef]
  9. Adams, J.N.; Nelson, G.J. Cycling-Induced Microstructural Changes in Alloy Anodes for Lithium-Ion Batteries. J. Electrochem. Energy Convers. Storage 2021, 18, 1–33. [Google Scholar] [CrossRef]
  10. Ren, L.-L.; Wang, L.-H.; Qin, Y.-F.; Li, Q. One-Pot Synthesized Amorphous Cobalt Sulfide With Enhanced Electrochemical Performance as Anodes for Lithium-Ion Batteries. Front. Chem. 2022, 9, 1186. [Google Scholar] [CrossRef]
  11. Wang, L.-H.; Ren, L.-L.; Qin, Y.-F.; Li, Q. Hydrothermal Preparation and High Electrochemical Performance of NiS Nanospheres as Anode for Lithium-Ion Batteries. Front. Chem. 2022, 9, 1210. [Google Scholar] [CrossRef]
  12. Wang, L.-H.; Teng, X.-L.; Qin, Y.-F.; Li, Q. High electrochemical performance and structural stability of CoO nanosheets/CoO film as self-supported anodes for lithium-ion batteries. Ceram. Int. 2021, 47, 5739–5746. [Google Scholar] [CrossRef]
  13. Chen, Y.; Li, J.; Lei, Z.; Huo, Y.; Yang, L.; Zeng, S.; Ding, H.; Qin, Y.; Jie, Y.; Huang, F.; et al. Hollow CuS Nanoboxes as Li-Free Cathode for High-Rate and Long-Life Lithium Metal Batteries. Adv. Energy Mater. 2020, 10, 1903401. [Google Scholar] [CrossRef]
  14. Zhou, M.; Peng, N.; Liu, Z.; Xi, Y.; He, H.; Xia, Y.; Liu, Z.; Okada, S. Synthesis of sub-10 nm copper sulphide rods as high-performance anode for long-cycle life Li-ion batteries. J. Power Sources 2016, 306, 408–412. [Google Scholar] [CrossRef]
  15. Zhao, L.; Tao, F.; Quan, Z.; Zhou, X.; Yuan, Y.; Hu, J. Bubble template synthesis of copper sulfide hollow spheres and their applications in lithium ion battery. Mater. Lett. 2012, 68, 28–31. [Google Scholar] [CrossRef]
  16. Li, Z.; Li, G.; Xu, W.; Zhou, M.; Xu, C.; Shi, M.; Li, F.; Chen, L.; He, B. Self-Integrated Porous Leaf-like CuO Nanoplate Array-Based Anodes for High-Performance Lithium-Ion Batteries. ChemElectroChem 2018, 5, 2774–2780. [Google Scholar] [CrossRef]
  17. Han, D.; Xiao, N.; Liu, B.; Song, G.; Ding, J. One-pot synthesis of core/shell-structured NiS@onion-like carbon nanocapsule as a high-performance anode material for Lithium-ion batteries. Mater. Lett. 2017, 196, 119–122. [Google Scholar] [CrossRef]
  18. Guo, S.P.; Li, J.C.; Xiao, J.R.; Xue, H.G. Fe3S4 Nanoparticles Wrapped in an rGO Matrix for Promising Energy Storage: Outstanding Cyclic and Rate Performance. ACS Appl. Mater. Interfaces 2017, 9, 37694–37701. [Google Scholar] [CrossRef]
  19. Han, F.; Li, W.-C.; Li, D.; Lu, A.-H. In Situ Electrochemical Generation of Mesostructured Cu2S/C Composite for Enhanced Lithium Storage: Mechanism and Material Properties. ChemElectroChem 2014, 1, 733–740. [Google Scholar] [CrossRef]
  20. Liu, H.; Zhou, W.; Zhang, Y. One-pot Solvothermal Synthesis of CuS-CNTs Hybrid as Binder-free Anode Material for Lithium Ion Batteries. Colloid Interface Sci. Commun. 2016, 15, 1–4. [Google Scholar] [CrossRef]
  21. Mai, Y.J.; Wang, X.L.; Xiang, J.Y.; Qiao, Y.Q.; Zhang, D.; Gu, C.D.; Tu, J.P. CuO/graphene composite as anode materials for lithium-ion batteries. Electrochim. Acta 2011, 56, 2306–2311. [Google Scholar] [CrossRef]
  22. Varghese, S.P.; Babu, B.; Prasannachandran, R.; Antony, R.; Shaijumon, M.M. Enhanced electrochemical properties of Mn3O4/graphene nanocomposite as efficient anode material for lithium ion batteries. J. Alloys Compd. 2019, 780, 588–596. [Google Scholar] [CrossRef]
  23. Wu, L.-L.; Zhao, D.-L.; Cheng, X.-W.; Ding, Z.-W.; Hu, T.; Meng, S. Nanorod Mn3O4 anchored on graphene nanosheet as anode of lithium ion batteries with enhanced reversible capacity and cyclic performance. J. Alloys Compd. 2017, 728, 383–390. [Google Scholar] [CrossRef]
  24. Zhang, L.; Hu, P.; Zhao, X.; Tian, R.; Zou, R.; Xia, D. Controllable synthesis of core–shell Co@CoO nanocomposites with a superior performance as an anode material for lithium-ion batteries. J. Mater. Chem. 2011, 21, 18279–18283. [Google Scholar] [CrossRef]
  25. Sun, X.; Hao, G.-P.; Lu, X.; Xi, L.; Liu, B.; Si, W.; Ma, C.; Liu, Q.; Zhang, Q.; Kaskel, S.; et al. High-defect hydrophilic carbon cuboids anchored with Co/CoO nanoparticles as highly efficient and ultra-stable lithium-ion battery anodes. J. Mater. Chem. A 2016, 4, 10166–10173. [Google Scholar] [CrossRef] [Green Version]
  26. Sun, M.; Zhang, H.; Wang, Y.-F.; Liu, W.-L.; Ren, M.-M.; Kong, F.-G.; Wang, S.-J.; Wang, X.-Q.; Duan, X.-L.; Ge, S.-Z. Co/CoO@N-C nanocomposites as high-performance anodes for lithium-ion batteries. J. Alloys Compd. 2019, 771, 290–296. [Google Scholar] [CrossRef]
  27. Xu, D.; Mu, C.; Xiang, J.; Wen, F.; Su, C.; Hao, C.; Hu, W.; Tang, Y.; Liu, Z. Carbon-Encapsulated Co3O4 @CoO@Co Nanocomposites for Multifunctional Applications in Enhanced Long-life Lithium Storage, Supercapacitor and Oxygen Evolution Reaction. Electrochim. Acta 2016, 220, 322–330. [Google Scholar] [CrossRef]
  28. Chen, R.; Wang, Y.; Nuli, Y.; Yu, Y.; Gao, P.; Chen, Q.; Wei, L.; Hu, N.; Yang, Z.; Gao, R.; et al. Cu2O nanowires as anode materials for Li-ion rechargeable batteries. Sci. China Technol. Sci. 2014, 57, 1073–1076. [Google Scholar] [CrossRef]
  29. Zhou, H.; Zhao, H.; Zhang, X.; Cheng, H.; Lu, X.; Xu, Q. Facile one-step synthesis of Cu2O@Cu sub-microspheres composites as anode materials for lithium ion batteries. J. Mater. Sci. Technol. 2018, 34, 1085–1090. [Google Scholar] [CrossRef]
  30. Wang, Y.; Cao, L.; Li, J.; Kou, L.; Huang, J.; Feng, Y.; Chen, S. Cu/Cu2O@Ppy nanowires as a long-life and high-capacity anode for lithium ion battery. Chem. Eng. J. 2020, 391, 123597. [Google Scholar] [CrossRef]
  31. Ni, S.; Yang, X.; Li, T. Fabrication of a porous NiS/Ni nanostructured electrode via a dry thermal sulfuration method and its application in a lithium ion battery. J. Mater. Chem. 2012, 22, 2395–2397. [Google Scholar] [CrossRef]
  32. Liu, H.; Hu, R.; Sun, W.; Zeng, M.; Liu, J.; Yang, L.; Zhu, M. Sn@SnOx/C nanocomposites prepared by oxygen plasma-assisted milling as cyclic durable anodes for lithium ion batteries. J. Power Sources 2013, 242, 114–121. [Google Scholar] [CrossRef]
  33. Chen, C.; Huang, Y.; Zhang, H.; Wang, X.; Wang, Y.; Jiao, L.; Yuan, H. Controllable synthesis of Cu-doped CoO hierarchical structure for high performance lithium-ion battery. J. Power Sources 2016, 314, 66–75. [Google Scholar] [CrossRef]
  34. Han, X.; Cui, Y.; Liu, H. Ce-doped Mn3O4 as high-performance anode material for lithium ion batteries. J. Alloys Compd. 2020, 814, 152348. [Google Scholar] [CrossRef]
  35. Kumar, P.S.M.; Al-Muhtaseb, A.H.; Kumar, G.; Vinu, A.; Cha, W.; Cab, J.V.; Pal, U.; Krishnan, S.K. Piper longum Extract-Mediated Green Synthesis of Porous Cu2O:Mo Microspheres and Their Superior Performance as Active Anode Material in Lithium-Ion Batteries. ACS Sustain. Chem. Eng. 2020, 8, 14557–14567. [Google Scholar] [CrossRef]
  36. Liang, J.; Kong, J.; Zhang, J. Hollow Concave Zinc-Doped Co3O4 Nanosheets/Carbon Composites as Ultrahigh Capacity Anode Materials for Lithium-Ion Batteries. Chemelectrochem 2021, 8, 172–178. [Google Scholar] [CrossRef]
  37. Lee, J.; Zhu, H.; Deng, W.; Wu, Y. Synthesis of Cu3.8Ni/CoO and Cu3.8Ni/MnO nanoparticles for advanced lithium-ion battery anode materials. Nano Res. 2016, 10, 1033–1043. [Google Scholar] [CrossRef]
  38. Zhang, Z.; Yin, L. Mn-doped Co2(OH)3Cl xerogels with 3D interconnected mesoporous structures as lithium ion battery anodes with improved electrochemical performance. J. Mater. Chem. A 2015, 3, 17659–17668. [Google Scholar] [CrossRef]
  39. Chen, W.; Kuang, S.; Liu, Z.; Fu, H.; Yun, Q.; Xu, D.; Hu, H.; Yu, X. Y-doped Li4Ti5−xYxO12 with Y2Ti2O7 surface modification anode materials: Superior rate capability and ultra long cyclability for half/full lithium-ion batteries. J. Alloys Compd. 2020, 835, 155327–155336. [Google Scholar] [CrossRef]
  40. Huang, R.; Zhou, R.; Wang, L.; Zhu, Y. Dandelion-like CoO/Co3O4/Carbon Composites as Anode Materials for a High-Performance Lithium Ion Battery. ChemistrySelect 2020, 5, 12932–12939. [Google Scholar] [CrossRef]
  41. Liu, Y.G.; Zhang, H.Z.; Jiang, N.; Zhang, W.X.; Arandiyan, H.; Wang, Z.Y.; Luo, S.H.; Fang, F.; Sun, H.Y. Porous Co3O4@CoO composite nanosheets as improved anodes for lithium-ion batteries. J. Alloys Compd. 2020, 834, 8. [Google Scholar] [CrossRef]
  42. Li, J.-X.; Xie, Q.; Zhao, P.; Li, C. EDTA-Co(II) sodium complex derived Co(OH)2/Co3O4/Co nanoparticles embedded in nitrogen-enriched graphitic porous carbon as lithium-ion battery anode with superior cycling stability. Appl. Surf. Sci. 2020, 504, 144515. [Google Scholar] [CrossRef]
  43. Zhou, X.; Long, B.; Cheng, F.; Tang, J.; Sun, A.; Yang, J.; Jia, M.; Wang, H. N-doped carbon encapsulated porous MnO/Mn3O4 submicrospheres as high-performance anode for lithium-ion batteries. J. Electroanal. Chem. 2019, 838, 1–6. [Google Scholar] [CrossRef]
  44. Li, L.-W.; Wang, L.-P.; Zhang, M.-Y.; Huang, Q.-Z.; He, K.-J.; Wu, F.-X. Enhancement of lithium storage capacity and rate performance of Se-modified MnO/Mn3O4 hybrid anode material via pseudocapacitive behavior. Trans. Nonferrous Met. Soc. China 2020, 30, 1904–1915. [Google Scholar] [CrossRef]
  45. Wu, X.; Li, S.; Xu, Y.; Wang, B.; Liu, J.; Yu, M. Hierarchical heterostructures of NiO nanosheet arrays grown on pine twig-like β-NiS@Ni3S2 frameworks as free-standing integrated anode for high-performance lithium-ion batteries. Chem. Eng. J. 2019, 356, 245–254. [Google Scholar] [CrossRef]
  46. Wang, L.-H.; Dai, Y.-K.; Qin, Y.-F.; Chen, J.; Zhou, E.-L.; Li, Q.; Wang, K. One-Pot Synthesis and High Electrochemical Performance of CuS/Cu1.8S Nanocomposites as Anodes for Lithium-Ion Batteries. Materials 2020, 13, 3797. [Google Scholar] [CrossRef] [PubMed]
  47. Pu, F.; Bai, Y.; Lv, J.; Zhao, X.; Wu, G.; Kong, C.; Lei, B.; Zhang, X.; Jin, H.; Yang, Z. Yolk–Shell Cu2O@CuO-decorated RGO for High-Performance Lithium-Ion Battery Anode. Energy Environ. Mater. 2022, 5, 253–260. [Google Scholar] [CrossRef]
  48. Li, Z.; Xie, G.; Wang, C.; Liu, Z.; Chen, J.; Zhong, S. Binder free Cu2O/CuO/Cu/Carbon-polymer composite fibers derived from metal/organic hybrid materials through electrodeposition method as high performance anode materials for lithium-ion batteries. J. Alloys Compd. 2021, 864, 158585. [Google Scholar] [CrossRef]
  49. Wang, L.-H.; Gao, S.; Ren, L.-L.; Zhou, E.-L.; Qin, Y.-F. The Synergetic Effect Induced High Electrochemical Performance of CuO/Cu2O/Cu Nanocomposites as Lithium-Ion Battery Anodes. Front. Chem. 2021, 9, 1035. [Google Scholar] [CrossRef] [PubMed]
  50. Xu, C.; Manukyan, K.V.; Adams, R.A.; Pol, V.G.; Chen, P.; Varma, A. One-step solution combustion synthesis of CuO/Cu2O/C anode for long cycle life Li-ion batteries. Carbon 2019, 142, 51–59. [Google Scholar] [CrossRef]
  51. Liu, S.; Hou, H.; Liu, X.; Duan, J.; Yao, Y.; Liao, Q. High-performance hierarchical cypress-like CuO/Cu2O/Cu anode for lithium ion battery. Ionics 2016, 23, 1075–1082. [Google Scholar] [CrossRef]
  52. Kim, A.Y.; Kim, M.K.; Cho, K.; Woo, J.Y.; Lee, Y.; Han, S.H.; Byun, D.; Choi, W.; Lee, J.K. One-Step Catalytic Synthesis of CuO/Cu2O in a Graphitized Porous C Matrix Derived from the Cu-Based Metal-Organic Framework for Li- and Na-Ion Batteries. ACS Appl. Mater. Interfaces 2016, 8, 19514–19523. [Google Scholar] [CrossRef]
  53. Zhao, Y.; Zhang, Y.; Zhao, H.; Li, X.; Li, Y.; Wen, L.; Yan, Z.; Huo, Z. Epitaxial growth of hyperbranched Cu/Cu2O/CuO core-shell nanowire heterostructures for lithium-ion batteries. Nano Res. 2015, 8, 2763–2776. [Google Scholar] [CrossRef]
  54. Zhou, X.; Shi, J.; Liu, Y.; Su, Q.; Zhang, J.; Du, G. Microwave-assisted synthesis of hollow CuO–Cu2O nanosphere/graphene composite as anode for lithium-ion battery. J. Alloys Compd. 2014, 615, 390–394. [Google Scholar] [CrossRef]
  55. Hu, L.; Huang, Y.; Zhang, F.; Chen, Q. CuO/Cu2O composite hollow polyhedrons fabricated from metal-organic framework templates for lithium-ion battery anodes with a long cycling life. Nanoscale 2013, 5, 4186–4190. [Google Scholar] [CrossRef] [PubMed]
  56. Saadat, S.; Zhu, J.; Sim, D.H.; Hng, H.H.; Yazami, R.; Yan, Q. Coaxial Fe3O4/CuO hybrid nanowires as ultra fast charge/discharge lithium-ion battery anodes. J. Mater. Chem. A 2013, 1, 8672–8678. [Google Scholar] [CrossRef]
  57. Zhao, D.; Hao, Q.; Xu, C. Facile fabrication of composited Mn3O4/Fe3O4 nanoflowers with high electrochemical performance as anode material for lithium ion batteries. Electrochim. Acta 2015, 180, 493–500. [Google Scholar] [CrossRef]
  58. Shi, L.; Fan, C.; Fu, X.; Yu, S.; Qian, G.; Wang, Z. Carbonate-assisted hydrothermal synthesis of porous hierarchical Co3O4/CuO composites as high capacity anodes for lithium-ion batteries. Electrochim. Acta 2016, 197, 23–31. [Google Scholar] [CrossRef]
  59. Hou, S.; Liao, M.; Guo, Y.; Liu, T.; Wang, L.; Li, J.; Mei, C.; Fu, W.; Zhao, L. SiO2 nanoparticles modulating the “flos albiziae” like CoO by the synergistic effect with enhanced lithium storage. Appl. Surf. Sci. 2020, 530, 147223. [Google Scholar] [CrossRef]
  60. Liu, J.; Wu, J.; Zhou, C.; Zhang, P.; Guo, S.; Li, S.; Yang, Y.; Li, K.; Chen, L.; Wang, M. Single-phase ZnCo2O4 derived ZnO–CoO mesoporous microspheres encapsulated by nitrogen-doped carbon shell as anode for high-performance lithium-ion batteries. J. Alloys Compd. 2020, 825, 153951. [Google Scholar] [CrossRef]
  61. Liu, Q.; Zheng, G.X.; Yin, J.H.; Song, M.X.; Wang, Y.; Tian, S.Y.; Zhang, F.Q. A Flower-Shape NiO/Co3O4 Composite as Anode for Lithium Ion Battery Prepared by a Template-Free Hydrothermal Method. Int. J. Electrochem. Sci. 2020, 15, 11522–11530. [Google Scholar] [CrossRef]
  62. Wang, F.; Yuan, H.; Huang, J.G. A bio-inspired nanofibrous Co3O4/TiO2/carbon composite as high-performance anodic material for lithium-ion batteries. J. Alloys Compd. 2020, 819, 12. [Google Scholar] [CrossRef]
  63. Wang, J.K.; Wang, H.K.; Yao, T.H.; Liu, T.; Tian, Y.P.; Li, C.; Li, F.; Meng, L.J.; Cheng, Y.H. Porous N-doped carbon nanoflakes supported hybridized SnO2/Co3O4 nanocomposites as high-performance anode for lithium-ion batteries. J. Colloid Interface Sci. 2020, 560, 546–554. [Google Scholar] [CrossRef]
  64. Yan, Z.; Sun, Z.; Yue, K.; Li, A.; Qian, L. CoO/ZnO nanoclusters immobilized on N-doped 3D reduced graphene oxide for enhancing lithium storage capacity. J. Alloys Compd. 2020, 836, 155443. [Google Scholar] [CrossRef]
  65. Kang, Y.; Zhang, Y.H.; Shi, Q.; Shi, H.W.; Xue, D.F.; Shi, F.N. Highly efficient Co3O4/CeO2 heterostructure as anode for lithium-ion batteries. J. Colloid Interface Sci. 2021, 585, 705–715. [Google Scholar] [CrossRef]
  66. Yuan, Y.F.; Zhao, W.C.; Chen, L.; Cai, G.S.; Guo, S.Y. CoO hierarchical mesoporous nanospheres@TiO2@C for high-performance lithium-ion storage. Appl. Surf. Sci. 2021, 556, 149810. [Google Scholar] [CrossRef]
  67. Wei, Y.; Yan, F.; Tang, X.; Luo, Y.; Zhang, M.; Wei, W.; Chen, L. Solvent-Controlled Synthesis of NiO–CoO/Carbon Fiber Nanobrushes with Different Densities and Their Excellent Properties for Lithium Ion Storage. ACS Appl. Mater. Interfaces 2015, 7, 21703–21711. [Google Scholar] [CrossRef]
  68. Liu, B.; Yongming, C.; Yinyin, Z.; Jiajiao, A.; Haiyun, C.; Tasawar, H.; Ahmed, A.; Bashir, A. The Preparation of CuO@ZnO Core-Shell Materials as High- Stability Anodes for Lithium-Ion Batteries. Int. J. Electrochem. Sci. 2019, 14, 8973–8985. [Google Scholar] [CrossRef]
  69. Liu, Z.; Qi, S.; Liu, G.; Cheng, L.; Chen, J.; Lou, Y. 3D Metal-Rich Cu7.2S4/Carbon-Supported MoS2 Nanosheets for Enhanced Lithium-Storage Performance. ChemElectroChem 2019, 6, 1458–1465. [Google Scholar] [CrossRef]
  70. Nie, Y.; Wang, F.; Zhang, H.; Wei, D.; Zhong, S.; Wang, L.; Zhang, G.; Duan, H.; Cao, R. Tunable confinement of Cu-Zn bimetallic oxides in carbon nanofiber networks by thermal diffusion for lithium-ion battery. Appl. Surf. Sci. 2020, 517, 146079. [Google Scholar] [CrossRef]
  71. Pan, Y.; Xu, M.; Yang, L.; Yu, M.; Liu, H.; Zeng, F. Porous architectures assembled with ultrathin Cu2O–Mn3O4 hetero-nanosheets vertically anchoring on graphene for high-rate lithium-ion batteries. J. Alloys Compd. 2020, 819, 152969. [Google Scholar] [CrossRef]
  72. Wang, M.; Zhang, X.; He, X.; Zhu, B.; Tang, H.; Wang, C. In-Situ grown flower-like C@SnO2/Cu2O nanosheet clusters on Cu foam as high performance anode for lithium-ion batteries. J. Alloys Compd. 2021, 856, 158202. [Google Scholar] [CrossRef]
  73. Ye, J.; Zhao, D.; Hao, Q.; Xu, C. Facile Fabrication of Hierarchical Manganese-Cobalt Mixed Oxide Microspheres as High-Performance Anode Material for Lithium Storage. Electrochim. Acta 2016, 222, 1402–1409. [Google Scholar] [CrossRef]
  74. Kundu, M.; Singh, G.; Svensson, A.M. Co(OH)2@MnO2 nanosheet arrays as hybrid binder-free electrodes for high-performance lithium-ion batteries and supercapacitors. New J. Chem. 2019, 43, 1257–1266. [Google Scholar] [CrossRef]
  75. Fan, S.; Zhang, J.; Teng, X.; Wang, X.; Li, H.; Li, Q.; Xu, J.; Cao, D.; Li, S.; Hu, H. Self-Supported Amorphous SnO2/TiO2 Nanocomposite Films with Improved Electrochemical Performance for Lithium-Ion Batteries. J. Electrochem. Soc. 2019, 166, A3072–A3078. [Google Scholar] [CrossRef]
  76. Li, Z.; Hu, X.; Zhang, Y.; Zhang, W.; Meng, Q.; Tang, S.; Li, D.; Shi, Z.; Wang, Z. Multi-scale study on a synergetic multimetal-based selenide anode with nitrogen-doped porous carbon support for high-performance lithium storage. J. Alloys Compd. 2022, 919, 165841. [Google Scholar] [CrossRef]
  77. Hussain, I.; Sahoo, S.; Lamiel, C.; Nguyen, T.T.; Ahmed, M.; Xi, C.; Iqbal, S.; Ali, A.; Abbas, N.; Javed, M.S.; et al. Research progress and future aspects: Metal selenides as effective electrodes. Energy Storage Mater. 2022, 47, 13–43. [Google Scholar] [CrossRef]
  78. Zhou, H.; Li, X.; Li, Y.; Zheng, M.; Pang, H. Applications of M(x)Se(y) (M = Fe, Co, Ni) and Their Composites in Electrochemical Energy Storage and Conversion. Nano-Micro Lett. 2019, 11, 40. [Google Scholar] [CrossRef] [Green Version]
  79. Hou, L.; Cui, R.; Jiang, X.; Wang, D.; Jiang, Y.; Deng, S.; Guo, Y.; Gao, F. Unique amorphous manganese oxide/rGo anodes for lithium-ion batteries with high capacity and excellent stability. Ionics 2020, 26, 4339–4349. [Google Scholar] [CrossRef]
  80. Zeng, T.; Zhang, C. Facile-synthesized amorphous CoCO3 for high-capacity lithium-ion battery anode. Ionics 2019, 25, 4149–4159. [Google Scholar] [CrossRef]
  81. Lim, S.-Y.; Jang, W.; Yun, S.; Yoon, W.-S.; Choi, J.-Y.; Whang, D. Amorphous germanium oxide nanobubbles for lithium-ion battery anode. Mater. Res. Bull. 2019, 110, 24–31. [Google Scholar] [CrossRef]
  82. Duan, Y.; Du, S.; Tao, H.; Yang, X. Sn@C composite for lithium ion batteries: Amorphous vs. crystalline structures. Ionics 2021, 27, 1403–1412. [Google Scholar] [CrossRef]
  83. Zhu, K.; Wang, X.; Liu, J.; Li, S.; Wang, H.; Yang, L.; Liu, S.; Xie, T. Novel Amorphous MoS2/MoO3/Nitrogen-Doped Carbon Composite with Excellent Electrochemical Performance for Lithium Ion Batteries and Sodium Ion Batteries. ACS Sustain. Chem. Eng. 2017, 5, 8025–8034. [Google Scholar] [CrossRef]
Materials 16 04448 g001 550

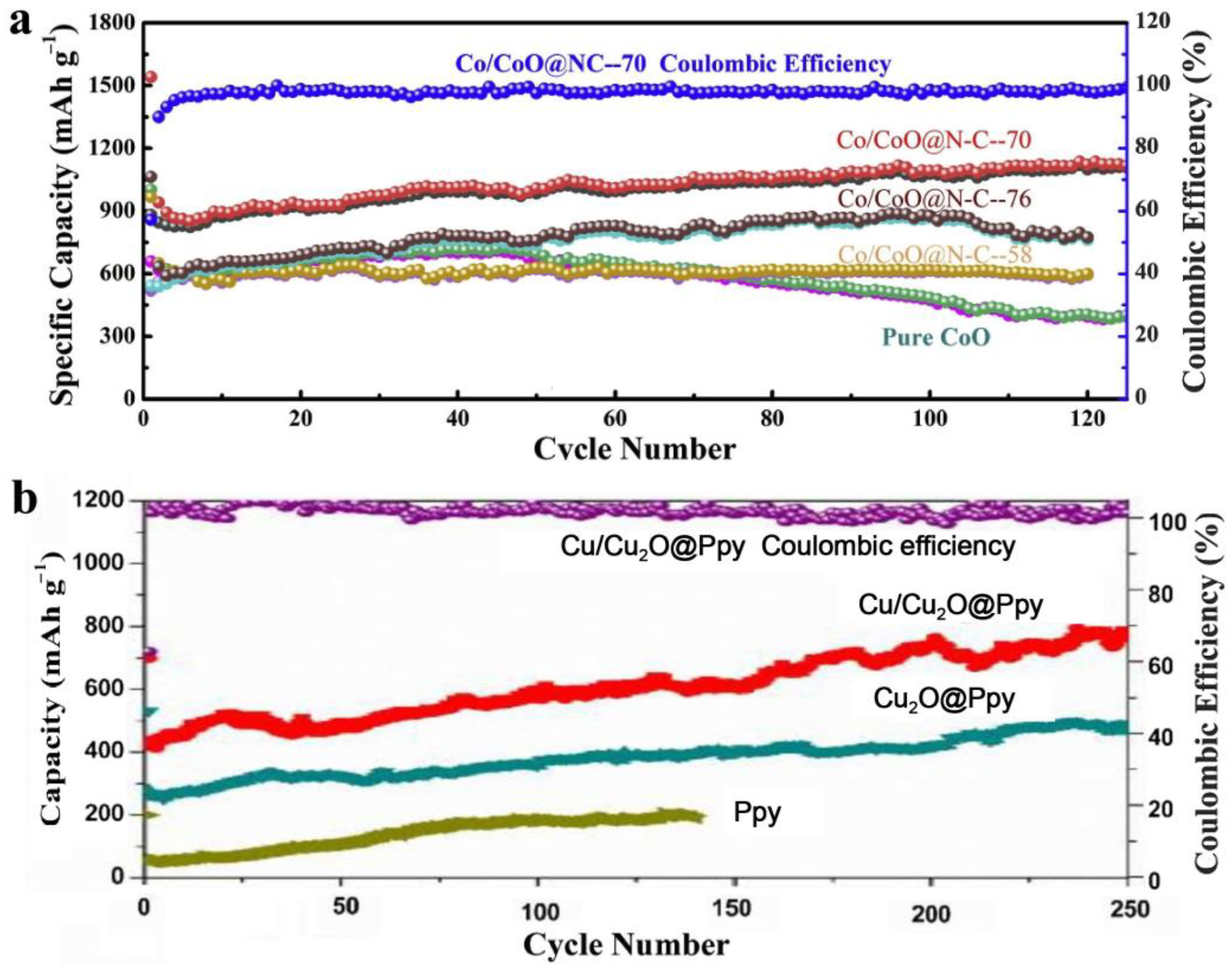

Figure 1. (a) Comparison of Co/CoO@N-C and pure CoO at 200 mA/g [26]. (b) Comparison of Cu/Cu2O@Ppy, Cu2O@Ppy, and pure Ppy at 100 mA/g [30].
Figure 1. (a) Comparison of Co/CoO@N-C and pure CoO at 200 mA/g [26]. (b) Comparison of Cu/Cu2O@Ppy, Cu2O@Ppy, and pure Ppy at 100 mA/g [30].
Materials 16 04448 g001
Materials 16 04448 g002 550

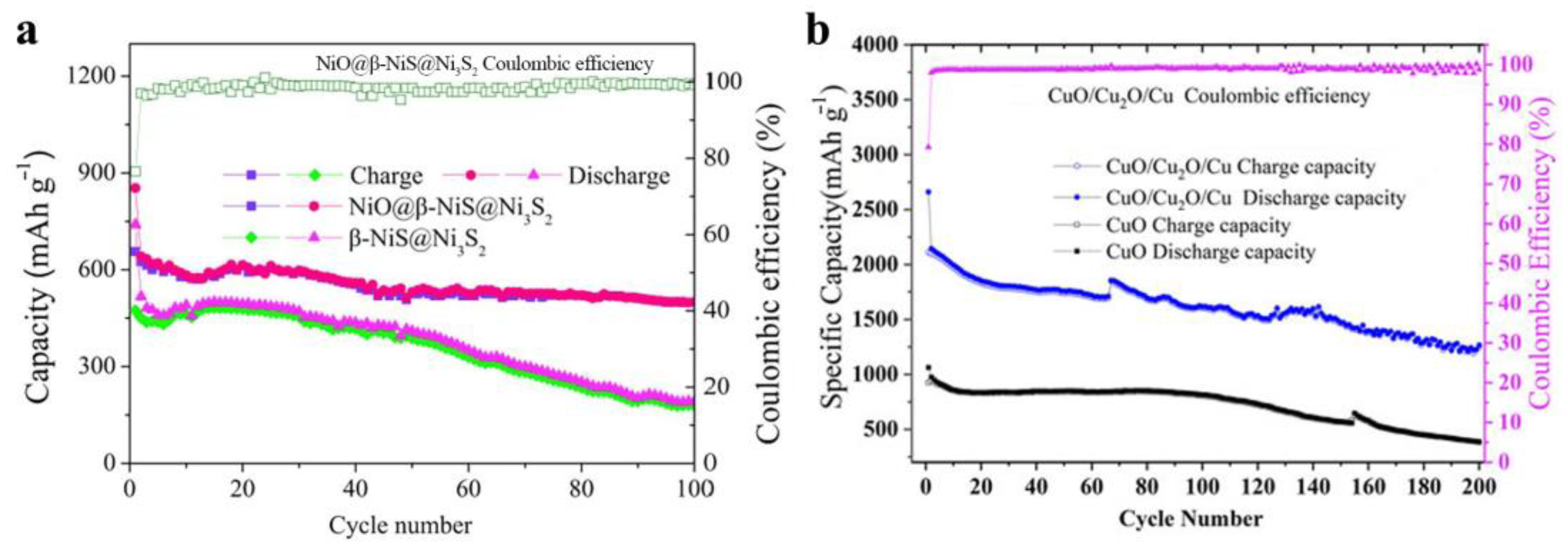

Figure 2. (a) Comparison of the NiO@β-NiS@Ni3S2 and β-NiS@Ni3S2 electrodes at 500 mA/g [45]. (b) Comparison of CuO/Cu2O/Cu and CuO nanowires nanocomposites at 200 mA/g [49].
Figure 2. (a) Comparison of the NiO@β-NiS@Ni3S2 and β-NiS@Ni3S2 electrodes at 500 mA/g [45]. (b) Comparison of CuO/Cu2O/Cu and CuO nanowires nanocomposites at 200 mA/g [49].
Materials 16 04448 g002
Materials 16 04448 g003 550

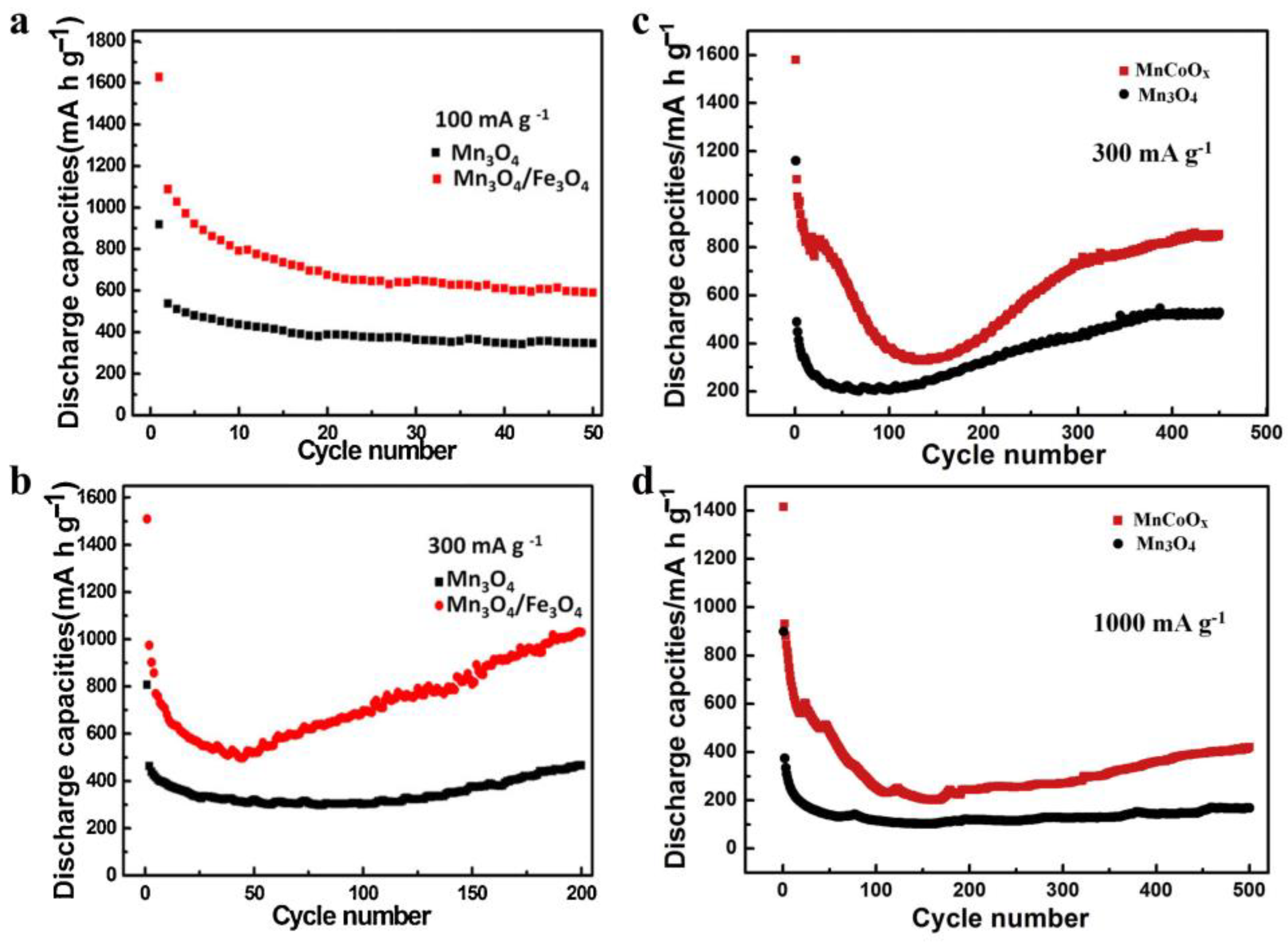

Figure 3. Comparison of the Mn3O4/Fe3O4 and Mn3O4 electrodes at 100 mA/g (a) and 300 mA/g (b) [57]. Comparison of the MnCoOx anode and pure Mn3O4 material at 300 mA/g (c) and 1000 mA/g (d) [63].
Figure 3. Comparison of the Mn3O4/Fe3O4 and Mn3O4 electrodes at 100 mA/g (a) and 300 mA/g (b) [57]. Comparison of the MnCoOx anode and pure Mn3O4 material at 300 mA/g (c) and 1000 mA/g (d) [63].
Materials 16 04448 g003
Materials 16 04448 g004 550

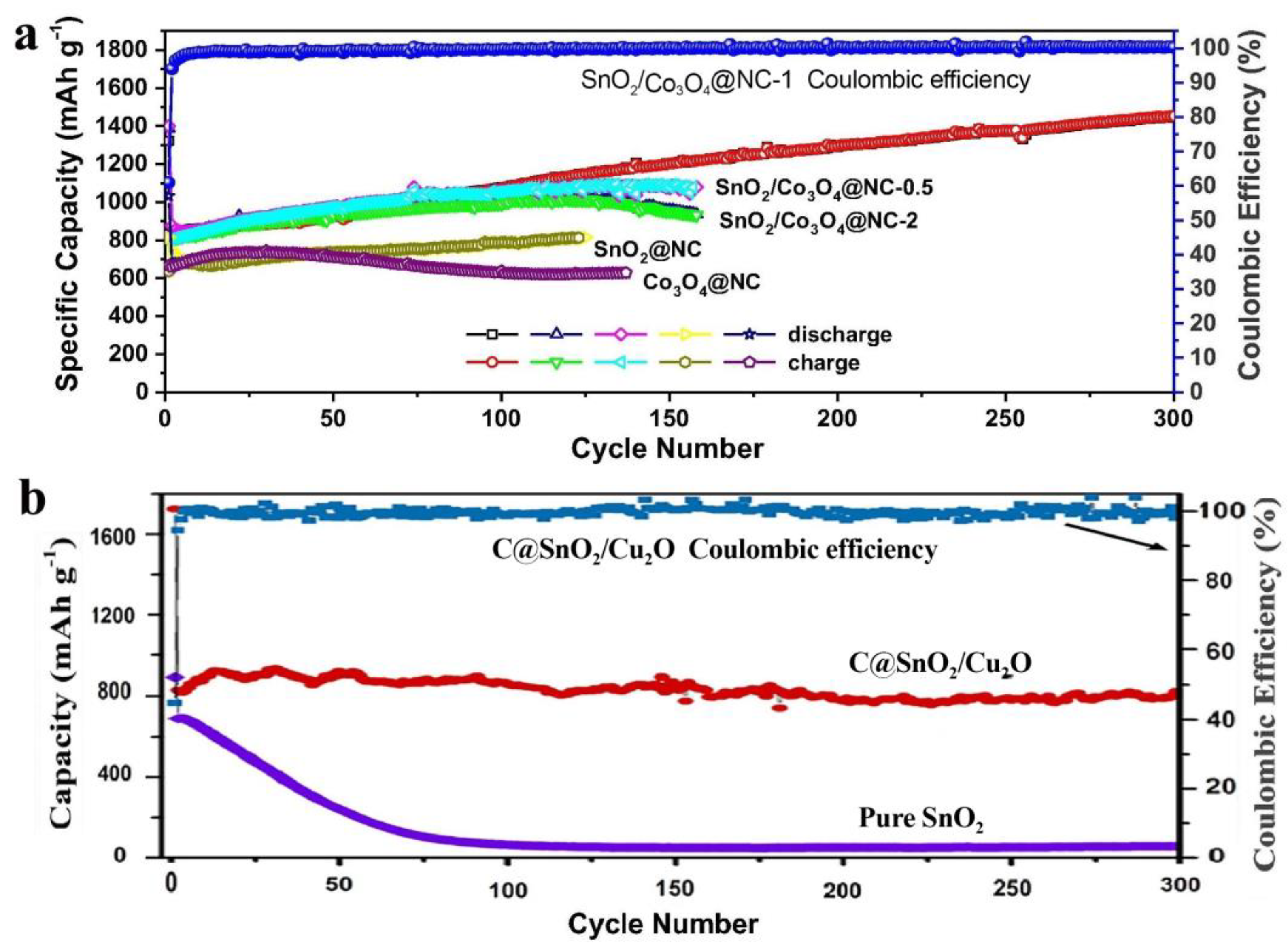

Figure 4. (a) Comparison of the SnO2/Co3O4@NC, SnO2@NC, and Co3O4@NC electrodes at 200 mA/g [72]. (b) Comparison of cycling performance of the C@SnO2/Cu2O electrode and pure SnO2 electrode at 0.5 C [73].
Figure 4. (a) Comparison of the SnO2/Co3O4@NC, SnO2@NC, and Co3O4@NC electrodes at 200 mA/g [72]. (b) Comparison of cycling performance of the C@SnO2/Cu2O electrode and pure SnO2 electrode at 0.5 C [73].
Materials 16 04448 g004
Table
Table 1. The electrochemical performance comparison of X and X-Chalcogenides hybrid materials and pure materials.
Table 1. The electrochemical performance comparison of X and X-Chalcogenides hybrid materials and pure materials.
Hybrid Materials Capacity
[mAh g−1]		Pure Materials Capacity
[mAh g−1]		Current
[mA g−1]		Refs.
Co@CoO800 (50 cycles)CoO200 (50 cycles)50[24]
PCC-CoOx618 (500 cycles)CoO452 (500 cycles)500[25]
Co/CoO@N-C1115 (125 cycles)CoO718 (125 cycles)200[26]
Cu/Cu2O@Ppy787 (250 cycles)Cu2O@Ppy200 (140 cycles)100[30]
Sn@SnOx/C430 (200 cycles)Sn-SnO2-C300 (200 cycles)250[32]
Table
Table 2. The electrochemical performance comparison of X and Y-Chalcogenide hybrid materials and pure materials.
Table 2. The electrochemical performance comparison of X and Y-Chalcogenide hybrid materials and pure materials.
Hybrid Materials Capacity
[mAh g−1]		Pure Materials Capacity
[mAh g−1]		Current
[mA g−1]		Refs.
Co0.95Cu0.05O800 (80 cycles)CoO500 (200 cycles)0.5 C[33]
Mn2.98Ce0.02O4754.2 (100 cycles)Mn3O4306 (100 cycles)100[34]
Cu2O:Mo1122 (100 cycles)Cu2O820 (100 cycles)100[35]
Mn/Co2(OH)3Cl1377 (50 cycles)Co2(OH)3Cl277 (50 cycles)100[38]
Table
Table 3. The electrochemical performance comparison of X-Chalcogenide and X-Chalcogenide hybrid materials and pure materials.
Table 3. The electrochemical performance comparison of X-Chalcogenide and X-Chalcogenide hybrid materials and pure materials.
Hybrid Materials Capacity
[mAh g−1]		Pure Materials Capacity
[mAh g−1]		Current
[mA g−1]		Refs.
Co3O4@CoO892 (200 cycles)Co3O4425 (200 cycles)500[41]
Co(OH)2/Co3O4/Co543 (300 cycles)Co3O4/Co200 (100 cycles)100[42]
MnO/Mn3O4/SeOx1007 (630 cycles)Mn3O4/SeOx544 (300 cycles)1000[44]
NiO@NiS@Ni3S2498 (100 cycles)NiS@Ni3S2175 (100 cycles)500[45]
Cu2O@CuO@RGO516 (60 cycles)Cu2O@RGO282 (60 cycles)0.1 C[47]
CuO/Cu2O/Cu1266 (200 cycles)CuO385 (200 cycles)50[49]
CuO/Cu2O/Cu534 (100 cycles)Cu2O/Cu297 (100 cycles)100[51]
Table
Table 4. The electrochemical performance comparison of X-Chalcogenide and Y-Chalcogenide hybrid materials and pure materials.
Table 4. The electrochemical performance comparison of X-Chalcogenide and Y-Chalcogenide hybrid materials and pure materials.
Hybrid Materials Capacity
[mAh g−1]		Pure Materials Capacity
[mAh g−1]		Current
[mA g−1]		Refs.
Fe3O4/CuO953 (100 cycles)Fe3O4260 (100 cycles)820[56]
Fe3O4/CuO953 (100 cycles)CuO559 (100 cycles)820[56]
Mn3O4/Fe3O4600 (50 cycles)Mn3O4400 (50 cycles)100[57]
Co3O4/CuO800 (80 cycles)Co3O4246 (80 cycles)100[58]
Co3O4/CuO800 (80 cycles)CuO588 (80 cycles)100[58]
CoO/SiO21251 (250 cycles)CoO752 (50 cycles)500[59]
ZnO-CoO@NC1457 (500 cycles)ZnCo2O4889 (400 cycles)200[60]
SnO2/Co3O41450 (300 cycles)Co3O4625 (135 cycles)200[63]
SnO2/Co3O41450 (300 cycles)SnO2800 (125 cycles)200[63]
Co3O4/CeO21131 (80 cycles)Co3O4539 (100 cycles)100[65]
CoO@TiO2@C1136 (200 cycles)CoO17 (100cycles)500[66]
CoO@TiO2@C1136 (200 cycles)TiO294 (100 cycles)500[66]
CuO@ZnO400 (500 cycles)CuO200 (130 cycles)0.2 C[68]
Cu7.2S4/C@MoS21415 (42 cycles)MoS2254 (42 cycles)200[69]
Cu7.2S4/C@MoS21527 (340 cycles)Cu7.2S4/C294 (68 cycles)1000[69]
Cu2O/Mn3O4792 (350 cycles)CuMnOx238 (120 cycles)2500[71]
C@SnO2/Cu2O814 (300 cycles)SnO264 (100 cycles)0.5 C[72]
MnCoOx860 (450 cycles)Mn3O4550 (450 cycles)300[73]
MnCoOx420 (500 cycles)Mn3O4168 (500 cycles)1000[73]
Co(OH)2@MnO2700 (150 cycles)Co(OH)2575 (150 cycles)250[74]
SnO2/TiO2175 μAhcm−2 (200 cycles)SnO210 μAhcm−2 (200 cycles)13.8 μAcm−2[75]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, L.-H.; Ren, L.-L.; Qin, Y.-F. The Review of Hybridization of Transition Metal-Based Chalcogenides for Lithium-Ion Battery Anodes. Materials 2023, 16, 4448. https://doi.org/10.3390/ma16124448

AMA Style

Wang L-H, Ren L-L, Qin Y-F. The Review of Hybridization of Transition Metal-Based Chalcogenides for Lithium-Ion Battery Anodes. Materials. 2023; 16(12):4448. https://doi.org/10.3390/ma16124448

Chicago/Turabian Style

Wang, Lin-Hui, Long-Long Ren, and Yu-Feng Qin. 2023. "The Review of Hybridization of Transition Metal-Based Chalcogenides for Lithium-Ion Battery Anodes" Materials 16, no. 12: 4448. https://doi.org/10.3390/ma16124448

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
