Effect of Chromium Carbide Addition on the Microstructures and Properties in Dual Carbide Phases Reinforced Ni-Based Composite Coatings by Plasma Cladding

by
Zhanji Geng
1,2,
Mengling Zhang
3,
Jianyong Zhu
4,
Yingbo Peng
5,
Wei Zhang
1,* and
Feng Liu
1,*
1
Powder Metallurgy Research Institute, Central South University, Changsha 410083, China
2
Changsha Huaxi New Material Co., Ltd., Changsha 410083, China
3
Hunan Hastion Technology Co., Ltd., Zhuzhou 412000, China
4
Hunan Metallurgy Material Institute Co., Ltd., Changsha 410129, China
5
College of Engineering, Nanjing Agricultural University, Nanjing 210031, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(13), 4580; https://doi.org/10.3390/ma16134580
Submission received: 15 May 2023 / Revised: 21 June 2023 / Accepted: 21 June 2023 / Published: 25 June 2023
(This article belongs to the Special Issue Advances in Coating Materials Research: From Preparation to Application)
Browse Figures
Versions Notes

Abstract

:
Cr3C2-modified NiCr–TiC composite coatings were prepared using the plasma spraying technique for different Cr3C2 contents on the microstructure and the properties of the Ni-based TiC cladding layer were investigated. The microstructures of the coatings were characterized using scanning electron microscopy, and the friction and wear performance of the coating was evaluated by the wear tests. The results revealed that the surfaces of the Cr3C2-modified NiCr–TiC composite coatings with varying Cr3C2 contents were dense and smooth. TiC was uniformly distributed throughout the entire coating, forming a gradient interface between the binder phase of the Ni-based alloy and the hard phase of TiC. At high temperatures, Cr3C2 decomposes, with some chromium diffusing and forming complex carbides around TiC, some chromium solubilizes with Fe, Ni, and other elements. An increase in chromium carbide content leads to an upward trend in hardness. The measured hardness of the coatings ranged from 600 to 850 HV3 and tended to increase with increasing Cr3C2 content. When the mass fraction of Cr3C2 reached 30%, the hardness increased to 850 HV3, and the cracks and defects were observed in the coating, resulting in a wear resistance decline.

1. Introduction

Particle-reinforced metal matrix composites significantly enhance the wear resistance of coatings. By leveraging the advantageous physical, chemical, and mechanical properties of the reinforcing materials, these coatings compensate for the deficiencies of the substrate material, resulting in a superior overall performance. These coatings are mainly applied in industries requiring surfaces with excellent wear resistance and components with long lifespans, such as in the engineering of mixed-material mixing drums for new energy equipment, marine engineering, and automotive turbochargers [1,2]. The type and amount of the reinforcing phase added to the composite determines the operating performance of the coating.
Typically, the reinforcing phases used in composite coatings are metal carbides such as WC, TiC, TiN, and CrC. The addition of carbides can be achieved through ex situ and in situ methods. In situ generated carbides tend to be uniformly distributed and well bonded to the matrix; however, their content is remarkably limited, restricting the potential for improvements in hardness and wear resistance. For example, composite coatings with different TiC/Co50 contents were produced using a laser-cladding technique [3]. As the TiC content increased, the hardness of the cladding layer increased, reaching approximately four-fold that of the substrate. The best overall performance of the cladding layer was achieved when the TiC content reached 20%. Sun Shuting [4] used laser cladding to prepare NbC-reinforced nickel-based composite coatings in situ and determined that the optimal content was 20% based on the coating’s microstructure, hardness, and wear resistance. Ex situ addition of TiC can significantly increase the carbide content and improve wear resistance. Yi, X.X, et al. [5] improved the content and formation rate of NbC by appropriate ex situ addition while inhibiting the formation of the eutectic structure and promoting the formation of blocky and petal-like carbides. However, the wetting behavior between the matrix and carbides greatly affects the size and content of carbides. The uniform distribution of a high-volume fraction of hard and brittle carbide particles is difficult to control, and the agglomeration of hard particles on the metal matrix can lead to stress concentration, crack formation, and formation of micropores and other defects, which can lower the toughness of the composite coating and result in cracking and delamination. In particular, titanium carbide, which has superior wear resistance, higher hardness, and lower cost compared with tungsten carbide, is currently being extensively investigated for different applications. However, the poor wetting behavior of titanium carbide with iron-group elements affects its application [6,7,8,9,10].
Nickel-based self-fluxing alloy powder is the most commonly used commercial matrix material [11]. It has good wetting behavior with TiC, resulting in a strong interfacial bond, and exhibits high temperature and corrosion resistance. Furthermore, it is less expensive than cobalt and has a better high-temperature performance than iron-based materials. Nickel also has excellent wettability with TiC and easily penetrates the interior of the particle skeleton. Nickel-based TiC composite coatings are used in wear-resistant and high-temperature applications [4]. However, owing to the incomplete wetting of nickel by TiC, the performance of the composite coating is limited by the amount of titanium carbide added. Excessive TiC particles tend to agglomerate and grow, and TiC particles can undergo decarburization and transform into Ti8C5 at high temperatures. The decomposed carbon can then diffuse into the matrix, causing changes in the matrix structure, including the formation of brittle structures such as martensite and ledeburite [12]. This can result in cracks in the matrix and coating during the cladding or cooling process, leading to coating defects and insufficient performance. It has been shown that the optimal TiC content for laser cladding is approximately 30% [13], whereas it is approximately 10–20% for plasma cladding [14,15,16].
In the WC/Ni-based composite coating, Lifeng et al. [17] added 20% TiC, resulting in the formation of dispersed TiWC2 in the cladding layer. The morphology of the reinforcing phase changed; the sharp parts smoothened, and the amount of white fishbone-like structure increased, further enhancing the wear resistance of the composite coating. Shuting et al. [4] added TiC to the NbC/Ni-based composite coating, as their lattice structures are similar. During the cladding process, the two lattices easily combine and grow into (Ti, Nb)C, which can stably exist and further increase the hardness. The Cr3C2/Ni-based composite coating with added TiC exhibits excellent high-temperature and corrosion-resistance properties [18]. In the TiC/Ni coating prepared by Chengcai et al. [19], the addition of chromium (Cr) results in the formation of a solid solution during the laser-cladding process, as Cr, Ti, and C generated from the decomposition of TiC particles dissolve into the Ni matrix, leading to solid solution strengthening. According to the Cr–C phase diagram [20,21,22], the chromium carbide (CrC) phase appears at higher temperatures, which can decompose into Cr3C2 and graphite. At lower temperatures, it can also dissolve with titanium carbide, achieving stabilization. Therefore, the addition of multiphase carbides can further improve the coating performance and mitigate the reduction in the toughness of traditional composite coatings caused by the addition of a high-volume fraction of a single reinforcing phase.
In this study, TiC-rich composite coatings were prepared using plasma cladding and the addition of Cr3C2, which significantly improved the wear resistance of the coating. The effect of the Cr3C2 content on the phase composition, microstructural evolution, friction, and wear performance of the coatings was evaluated. These findings provide theoretical and experimental evidence that can be used to enhance the performance and expand the application scope of particle-reinforced metal matrix composite coatings.

2. Materials and Methods

2.1. Materials

The base material used in the experiment was high-carbon steel, with sample dimensions of 150 mm × 150 mm × 15 mm. The cladding material consisted of Ni25A alloy powder (Jiangxi YuTech Powder Metallurgy Co., Ltd., Pingxiang, China) (composition shown in Table 1) with a particle size range of 20–50 μm and TiC powder (Hunan Hastion Technology Co., Ltd., Zhuzhou, China) with a particle size range of 50–150 μm, which was prepared by a carbothermic reduction and screened to the desired size range. Spherical Cr3C2–25% NiCr powder (Jiangxi YuTech Powder Metallurgy Co., Ltd.) was produced by granulation using vacuum spray granulation equipment, followed by vacuum sintering for shaping. The TiC mass fraction was 45%, and varying contents of Cr3C2–25% NiCr (20, 25, 30, 35, and 40%) were added; accordingly, the mass fractions of Cr3C2 were 15, 19, 23, 26, and 30%, respectively (composition shown in Table 2).

2.2. Methods

The composite powders were mixed using an ultrasonic vibration mixer for 1 h. The cladding experiments were conducted using Duomu A300 plasma cladding equipment. During the cladding process, a coaxial carrier gas powder feeding method was used for single-layer multiple-pass cladding, with argon gas protection. The parameters are presented in Table 3. The test samples were polished by the ZXQ-5HS inlay machine gold sandpaper (60 #to2000#), and then on the MP-3S-2 with 15 micron, 8 micron, 1 micron automatic polishing machine, each polishing time is 3 min. Phase analysis of the cladding layers was performed using a Bruker D8 X-ray diffractometer. The parameters were as follows: operating voltage of 40 kV, operating current of 40 mA, Cu Kα radiation, step scan speed of 2°/min, and scanning range of 20~90°. Microstructural observation and analysis of the cladding layers were carried out using a Tescan Mira4 field-emission scanning electron microscope. The microhardness of different positions along the cross-section of the laser cladding layer at the same horizontal level was measured using a Huayin 200HV-5 Vickers hardness tester. A five-point average was taken, with a test load of 3000 g (30 N) applied for 10 s. The friction and wear performance of the cladding layers were evaluated using an MM-U10G pin-on-disk tribometer at room temperature with a load of 50 N, rotational speed of 50 r/min, and wear time of 1 h, using a silicon nitride ball with a diameter of φ 9.425 mm as the counterface. After the wear test, the mass loss owing to friction was determined using a FA2004 electronic balance with a precision of 0.1 mg.

3. Results and Discussion

3.1. Phase Structure of the Cladding Layer

Figure 1 shows the X-ray diffraction (XRD) pattern of the composite coating. The results indicate that the microstructure of the cladding layer is composed of solid solution phases such as FeNi/NiCrFe, TiC, (Fe, Cr)C/(Fe, Cr, Ni)C, Cr7C3, and complex carbides. According to the literature [23], the enthalpy of formation (ΔrH) for Cr3C2 is –0.114 eV/atom. The enthalpies of formation for the solid solution phases were calculated using Materials Studio software (Version 8.0); the enthalpies for (NiCr11)C8, (Ni2Cr10)C8, and (Ni3Cr9)C8 were calculated to be −0.124, −0.0758, and +0.1298 eV/atom. This indicates that when Ni ≥ 3, the enthalpy of formation for the substituted solid solution phases becomes positive, and thus solid solution phases cannot be formed. Cr3C2 decarburizes at high temperatures to produce Cr7C3. The dissolution of chromium carbides into TiC causes changes in the lattice parameters of the δ phase. Wenlong et al. [20] found that when the chromium carbide content was TiC, TiC–6.7% Cr3C2, TiC–19.5% Cr3C2, and TiC–30% Cr3C2, respectively, the lattice parameters changed at 1500 °C to 4.33−10, 4.31−10, 4.27−10, 4.25−10 m, which remain essentially unchanged. Moreover, for the Cr3C2 solid solution in TiC, a strong and stable structure was formed.
During the plasma cladding of nickel-based carbide composite coatings on an iron base plate, melting of the matrix provides the Fe source, and Cr3C2 pyrolysis provides the Cr and C sources. Under the high-temperature conditions of plasma cladding, a compound FeNi/NiCrFe and (FeNi)C/(FeCrNi)C solid solution was produced, with a significant peak value [24,25,26,27,28]. With increasing Cr3C2 content, the main phase types of the different composite coatings did not change. They were composed of TiC, Cr3C2, FeNi/NiCrFe, (FeNi)C/(FeCrNi)C solid solution and other phases. The main diffraction peaks of each phase were enhanced and sharpened to varying degrees; however, the positions of the diffraction peaks did not shift. The XRD spectrum revealed that, owing to the role of the high-energy plasma beam, Cr3C2 added to the nickel-based alloy undergoes a large amount of decomposition, which significantly increases the Cr and C contents in the culture pool. During the rapid solidification process, a large number of solid solutions and carbides will be generated, followed by the formation of (FeNi)C/(FeCrNi)C solid solution.

3.2. Morphology of the Cladding Layer

Figure 2 shows SEM images of the polished cross-sections of the NiCr-TiC-based composite coatings with different nominal Cr3C2 contents (as listed in Table 2). The coatings are designated 1# for the Ni-15Cr3C2-45TiC coating with 15% Cr3C2 content, 2# for the Ni-19Cr3C2-45TiC coating with 19% Cr3C2 content, 3# for the Ni-23Cr3C2-45TiC coating with 23% Cr3C2 content, 4# for the Ni-26Cr3C2-45TiC coating with 26% Cr3C2 content, and 5# for the Ni-30Cr3C2-45TiC coating with 30% Cr3C2 content, respectively. Figure 2 shows that the cladding layer can be divided into three distinct regions: the heat-affected zone, the bonding zone, and the cladding zone. The bonding zone appears as a prominent “bright” band, which was formed by the mutual dilution of the substrate metal and the cladding powder during the plasma cladding. The bonding zone acts as a transition region between the substrate material and coating, indicating a metallurgical bond between them.

3.3. Microstructure of the Cladding Layer

SEM images of the cross-sectional micromorphology of the plasma cladding layer with various mass fractions of Cr3C2 are presented in Figure 3. The black phase represents the TiC phase, which is uniformly distributed in the coating. In the coating with 15% Cr3C2, the second phase is present in smaller quantities and has smaller particle sizes, with a relatively uniform distribution. However, when the mass fraction of Cr3C2 is increased to 30%, the particle TiC size remains similar and relatively unchanged, whereas the size of the second phase significantly increases. With increasing distance from the bottom of the molten pool, the microstructure of the cladding layer transitions from cell grains to dendritic grains, and at the top of the cladding layer, it transforms into a fully disordered dendritic microstructure. This is likely influenced by the polycrystalline orientation of the base material and possible nucleation at the solidification front of the molten pool.
The microstructure of the cladding layer consists of a dendritic solid solution, eutectic structure, undissolved chromium carbides, as well as rod- and block-like carbide phases. As the Cr3C2 content increases, the dendritic grains in the cladding layer transform into equiaxed grains, resulting in a finer microstructure and a higher number of block-like carbide phases, as confirmed by XRD analysis. Additionally, a significant amount of undissolved titanium carbides are uniformly distributed in the coating, which can be attributed to the rapid cooling rate during the plasma fusing process.
The high-magnification image of the 1# cladding layer, as shown in Figure 4, reveals the presence of numerous black TiC particles, as well as a significant amount of grey elongated and block-like structures. Energy-dispersive spectroscopy (EDS) analysis (Table 3) indicates that Point A contains a high concentration of Fe, Cr, and Ni, while Point B is primarily composed of Fe and Ni, with lower Cr content. Combined with the XRD results (Figure 2), it can be concluded that the phases at Point A are (Fe, Cr)C and (Fe, Cr, Ni)C, while Point B contains (Fe, Cr) and (Cr, Fe, Ni) solid solutions owing to the incorporation of Cr. The EDS results of the TiC region in the 1# cladding layer (Table 4) reveal that during the cladding process, a significant amount of iron from the substrate melted into the coating [29]. The contents of other elements may vary depending on the specific region selected for analysis.
Coating #1 was further using EDS, revealing the formation of multicomponent carbides (NixCryFezTih)C with a thickness of about 0.5–1 μm around the TiC phase. The values of x, y, z, and h gradually transitioned as the thickness increased, until the outermost titanium (Ti) disappeared completely. The results for P1–P5 (Table 5) show that the decreasing Ti content is accompanied by a further transition to multicomponent carbides, such as (FeNi)C and (FeCrNi)C occurs. The elemental distribution at point P4 indicates that the melted Cr3C2 provides sufficient carbon for the precipitation of a second phase, namely (Fe, Cr, Ni)C. The results from point P5 indicate the formation of an FeNi solid solution enabled by the high Fe and Ni contents in the substrate [30].
During the melting process, the melted TiC reacts with decomposed Cr3C2 and Fe to form ternary carbides, as shown in Table 4, Table 5 and Table 6, with precipitation of a second phase observed at Point P6. Meanwhile, the unmelted large TiC particles remain intact. At Point P7, a network-like binary carbide consisting of Fe and Cr is formed. With an increase in the Cr3C2 content, both the quantity and size of the formed complex carbides increase.

3.4. Mechanical Properties of the Cladding Layers

3.4.1. Microhardness

Pokhmurska et al. [31] showed that Cr3C2 dispersed in the solid solution can effectively enhance the hardness of the coating. Figure 5 compares the average surface and cross-sectional hardness values of the cladding layer, revealing that the hardness of the composite coating generally increases with the increase in Cr3C2 content, reaching a maximum of 825.4 HV3.
The analysis results indicate that the morphology of the TiC particles in the coating remains largely unchanged, while the primary changes occur in the binder-phase nickel-based alloy, Cr3C2, and in the melted Fe. Owing to the low melting point of Cr3C2, it dissolves in the molten pool under the action of a high-temperature plasma arc, providing a significant source of Cr and C. For one thing, Cr and C are supersaturated in the solid solution, enhancing the solid-solution strengthening effect of the alloying elements. For another thing, during the cooling process, they can further react with C, B, and other elements to form more compounds, thus further improving the performance of the coating. Partial melting of Cr3C2 and subsequent cooling results in the precipitation of Cr3C2 particles as non-uniform nuclei that promote nucleation and refining of the microstructure of the coating, thus providing a grain refinement strengthening effect. In addition, the area surrounding the black TiC particles is mainly composed of (NiCrFe)C and (FeCr)C along with dispersed fine carbides such as TiC. Among them, the γ-Ni dendritic solid solution, which contains dissolved C, Cr, Si, Fe, and other elements, possesses a eutectic structure with compound phases. Based on the morphology and X-ray analysis of the coating, the region with higher Cr content is considered the primary Cr-rich phase and is believed to contain a certain amount of dissolved Ni, Fe, and other elements. During the solidification process, the harndess of the cladding layer is enhanced via solid solution, dispersion, and grain refinement effects. The composite coating contains a significant amount of TiC and hard phases of complex carbides, which serve as the supporting framework of the entire cladding layer, further improving the hardness of the coating [32].

3.4.2. Nanoindentation

Nanoindentation testing was performed on sample 4# (Figure 6). Based on the results of the XRD and SEM–EDS analysis, Point 1 can be concluded to correspond to TiC particles; points 2–4 correspond to complex carbides; and Points 5 and 6 correspond to NiFe/FeNi solid solution. The microhardness results are shown in Table 7.
The large TiC particles exhibit a high hardness of 32 GPa. The (TiCr)C/(TiCrFe)C carbides have hardness values exceeding 20 GPa, indicating high hardness. The NiFe/FeNi solid solution exhibits a hardness above 6 GPa. This further confirms that Cr3C2 dissolves significantly during the high-temperature process of thermal spraying, forming multicomponent carbides around the TiC particles, including (TiCr)C/(TiCrFe)C multicomponent carbides with other elements. With increasing Cr3C2 content, the volume fraction of multicomponent carbides in the coating increases, which enhances the hardness and elastic modulus. The NiFe and FeNi phases exhibit high hardness and toughness. The high-volume fraction of hard phases helps to reduce thermal stresses and improve the coating’s defect structure, thereby enhancing the overall performance of the coating.

3.4.3. Analysis of Friction and Wear Performance of the Composite Coating

Figure 7 compares the friction coefficient and weight loss due to sliding wear for composite coatings with different Cr3C2 contents. The coating with 26% Cr3C2 addition exhibits a lower friction coefficient and the least amount of wear. Although the coating labeled 1# has a lower friction coefficient, it also has a lower hardness, resulting in a higher weight loss compared to coating 4#.

3.4.4. Wear Morphology

Figure 8 shows the cross-section of the composite coating after friction testing. The wear coefficients of the samples are shown in Table 8. The 1# coating exhibits a lower friction coefficient, but larger wear dimensions in terms of the width and depth of the wear marks. This is mainly due to its lower hardness, resulting in higher wear compared to the 4# coating. The friction coefficient of sample 4# was lower than that of sample 5#. Although the hardness of sample 4# was lower than that of sample 5#, the width and depth of the wear marks were smaller in sample 4#, indicating excellent wear resistance performance. For sample 5#, the width and depth of the wear marks were measured to be 924.43 μm and 35 μm, respectively. For sample 4#, the width and depth were measured to be 845.23 μm and 8 μm, respectively.
During friction and wear testing, the friction coefficient curve was directly obtained using software (origin2021), and the wear rate (WR; mm3/N·m) was calculated using Equation (1).
WR = V/FL
Here, V is the wear volume (mm3), F denotes the normal force applied during the wear process (in N), L represents the total friction stroke (m), and WR represents the wear rate (mm3/N·m), Therefore, WR indicates the wear volume per unit wear distance under a unit load.
  • Table data in Table 8 indicate that the wear resistance of the composite coating is exceptional. This improvement in wear performance aligns with Archard’s wear theory [13], which suggests that the wear volume (Vw) is directly proportional to the wear load, but inversely proportional to the material’s hardness (Figure 5). The composite coating exhibits higher hardness and thus superior wear resistance. Additionally, the lower friction coefficients contribute to further the wear performance of these coatings.
Figure 9 shows that the widths of the wear marks on coatings 2# and 4# are remarkably small. In terms of friction coefficient and wear volume, sample 4# exhibits the best wear resistance. Microscopically, numerous branching cracks can be observed on the surface of the hard phase. This may be due to crack deflection around the two-phase particles and the bending of crack fronts between particles, resulting in the reduced driving force for crack propagation and increased fracture toughness. The plastic deformation zone ahead of the crack absorbs some energy, hindering crack propagation [33,34,35].
The wear surface contains hard phases of TiC, (FeCr)C, (FeCrNi)C, FeNi, FeNiCr, oxide, and bonded Si3N4, among others. Scanning electron microscopy (Table 9) reveals that the wear mechanism of the samples is abrasive wear, with some accumulation of wear debris during the wear process. This accumulation of wear debris increases the roughness of the wear surface, which is one of the main reasons for the relatively high friction coefficient of the material under room temperature conditions.
The micromorphology and energy spectrum chemical composition analysis of the wear scars after the wear test of the composite coating are shown in Figure 9 and Figure 10, respectively. The composite coatings exhibit adhesive wear characteristics, with the formation of thick oxide films on the friction surfaces [36,37]. The morphology of the wear debris at room temperature is shown in Figure 9. The energy spectrum reveals that the white particles are mainly composed of titanium carbide, chromium carbide ceramic particles, FeCrNi, and some SiN dual-phase debris. This is primarily because, during the wear process, ceramic phases fracture and accumulate on the surface, forming nanosized ceramic particles after repeated rolling and fragmentation by the abrasive balls. The gray portion consists of a mixture of Cr3O2, FeO, and NiO oxides. In addition, the energy spectrum indicates that the upper oxide layer is mainly composed of Ti, Cr, and Ni oxides, while the lower oxide layer is primarily composed of Ti oxides. Similar results are observed in the wear scars of the composite coating. These oxides are formed owing to the high temperature generated during the friction process, resulting in rapid surface oxidation and effectively improving the wear resistance of the coating. The Gibbs free energy diagrams of the elemental oxidation reactions reveal that the oxidation of TiC into TiO2 and CO2 has the lowest energy compared with the other oxidation reactions [38]. This suggests that TiC preferentially forms oxides during the friction process and accounts for the significant amount of Ti oxide in the oxide films generated in the composite coating during friction. The formation of TiO2 and other metal oxides during the friction process is advantageous because they are relatively soft and possess lubricity [39]. This allows for the development of a continuous friction-induced oxide film, which exhibits lubricating properties. The presence of such a lubricating and continuous oxide film further enhances the wear resistance performance of the coating.
The abrasion debris exhibits larger delamination in a layered form. In Figure 9, it can be observed that under room temperature conditions, the composite coating predominantly undergoes abrasive wear with abrasive particles when in contact with a silicon nitride counterpart [40], and a minor amount of oxidative wear. Fracture of titanium carbide and multicomponent carbide particles occurs in the sub-surface region, with cracks primarily appearing at the interface between the multicomponent carbide particles and the metal binder phase.
SEM and EDS analysis were performed on the wear debris of coating 4#, as shown in Figure 11, respectively. The wear resistance of the composite coating is mainly attributed to the presence of titanium carbide (TiC), as revealed by EDS analysis of the wear debris. As the Cr3C2 content varies in the range of 15% to 26%, the increase in FeCr carbide (FeCr)C content gradually leads to higher friction coefficients, increased hardness, and improved wear resistance. However, when the Cr3C2 content exceeds 30%, the hardness increases, but cracks penetrating the coating appear, resulting in more coating defects and a decrease in wear resistance.

3.5. In Situ Formation of the Hard Phase

To explain the formation mechanism of FeNi/NiCrFe,(Ti,Cr)C and (FeNi)C/(FeCrNi)C, and their influence on the coating properties, the solidification process of the molten tank was considered. During the plasma cladding process, when the melting pool temperature exceeds 2000 °C, Cr3C2 is decomposed into CrC molecules to form a composite carbide transition layer around TiC and form a stable binding body with the matrix. The melting of Fe, Ni, Cr, and C is generated in situ (FeNi)C/(FeCrNi)C. The melting point of the nickel-based alloy was approximately 1300 °C, of TiC was approximately 3067 °C, and of Cr3C2 was approximately 1890 °C. Cr3C2 and TiC will preferentially nucleate during the pool solidification. The study showed that (Ti, Cr) C formed, even though the melting pool temperature was below the melting point of the nickel–iron alloy. According to the B–C–Cr ternary phase diagram, the melting point of Cr3C2 is higher than that of Cr23C6. The addition of Ti and Cr consumed some C atoms and increased the Cr/C ratio, favoring Cr3C2 formation in the B–C–Cr system, while Cr23C6 was inhibited. This was the primary reason for the presence of numerous stable carbides in the coating and improved wear resistance [41].
Compound carbide particles formed in situ have high hardness and are uniformly distributed in the coating, which improves the coating wear resistance (see Figure 6). Additional hot melting of Cr3C2 caused a sharp increase in the contents of carbide in (TiCr)C and (FeNi)C/(FeCrNi)C in the coating. The high hardness of the carbides in the coating can hinder the dislocation movement and deformation of the substrate and play a significant role in pinning the substrate. Thus, the strength of the substrate is enhanced, and the wear resistance of the coating is improved. In addition, Fe in the Fe matrix, Ni form Ni25, and Cr atoms form Cr3C2 form a solid reinforcement phase that increases the hardness of the matrix and improves the wear resistance of the coating.

4. Conclusions

  • Plasma-sprayed Ni-based TiC composite coatings with various Cr3C2 contents exhibit a smooth surface morphology, dense structure, high bonding strength, and high microhardness. The composite coatings are composed of TiC, (FeCr)C, and (Fe, Cr, Ni)C multicomponent carbides, as well as (FeCr) and (Fe, Cr, Ni) solid solutions.
  • As the mass fraction of Cr3C2 increases, the microhardness of the plasma-sprayed coating also tends to increase. When the mass fraction of Cr3C2 reaches 30%, the overall hardness of the coating reaches its maximum at 825.4 HV3. Decarburization of Cr3C2 provides a source of carbon for the formation of multicomponent carbides of Fe, Ni, and other elements, resulting in the formation of ring-shaped phases (Ti, Cr, Fe, Ni)C around TiC particles that exhibit excellent wetting properties with the nickel-based binder phase.
  • The main wear mechanisms of the composite coating are abrasive wear and oxidative wear. With an increasing mass fraction of Cr3C2, both the friction and wear volume initially decreases and then increases, while the wear volume follows a similar trend. When the mass fraction of Cr3C2 reaches 26%, the friction coefficient is relatively low, the wear marks are narrower, and the wear volume is the lowest. However, at a mass fraction of 30% Cr3C2, the thermal stress increases, and the number of defects and cracks penetrating the coating surface increases, decreasing the wear resistance.

Author Contributions

Z.G.: writing—original draft, data curation, resources. M.Z.: funding acquisition and project administration. J.Z.: supervision, project administration. Y.P.: review and editing conceptualization. W.Z.: review and editing methodology. F.L.: review. All authors have read and agreed to the published version of the manuscript.

Funding

The authors received financial support from the Hunan Provincial Natural Science Foundation of China (No. 2023JJ55026).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Sharma, A.K.; Bhandari, R.; Aherwar, A.; Rimašauskienė, R. Matrix materials used in composites: A comprehensive study. Mater. Today Proc. 2016, 21, 1559–1562. [Google Scholar] [CrossRef]
  2. Luo, J.; Niu, B.; Chen, J.; Yi, J.; Yi, Y.; Hu, Y.; Miao, S. Preparation Technology and Properties of Metal Matrix Composite Wear-resistant Materials Reinforced by WC Particles. J. Netshape Form. Eng. 2020, 12, 126–131. [Google Scholar]
  3. Pham, T.H.N.; Zhang, X.; Wang, C.; Liu, H.; Jiang, Y. Microstructure and mechanical properties of TiC/Co composite coating by laser cladding on H13 steel surface. Trans. China Weld. Inst. 2013, 34, 27–31,114. [Google Scholar]
  4. Sun, S.; Fu, H.; Ping, X.; Lin, J.; Lei, Y.; Wu, W.; Zhou, J. Reinforcing behavior and microstructure evolution of NbC in laser cladded Ni45 coating. Appl. Surf. Sci. 2018, 455, 160–170. [Google Scholar] [CrossRef]
  5. Xiao, Y.; Liu, Z. Characteristics Study on in-situ NbC Particles Reinforced Ni-based Alloy Composite Coating by Laser Cladding. J. Phys. Conf. Ser. 2020, 1635, 012076. [Google Scholar] [CrossRef]
  6. Obadele, B.A.; Olubambi, P.A.; Johnson, O.T. Effects of TiC addition on properties of laser particle deposited WC–Co–Cr and WC–Ni coatings. Trans. Nonferrous Met. Soc. China 2013, 23, 3634–3642. [Google Scholar] [CrossRef]
  7. Gao, J.J.; Jiang, L.K.; Song, J.P.; Liang, G.X.; Ang, J. Effects of TiC content on microstructure and mechanical property of WC–TiC–TaC cemented carbides. J. Inorg. Mater. 2017, 32, 891–896. [Google Scholar]
  8. Spriggs, G.E. A history of fine grained hardmetal. Int. J. Refract. Met. Hard Mater. 1995, 13, 241–255. [Google Scholar] [CrossRef]
  9. Liu, N.; Xu, Y.; Li, Z.; Chen, M.; Li, G.; Zhang, L. Influence of molybdenum addition on the microstructure and mechanical properties of TiC-based cermets with nano-TiN modification. Ceram. Int. 2003, 29, 919–925. [Google Scholar] [CrossRef]
  10. Lee, K.H.; Cha, S.I.; Kim, B.K.; Hong, S.H. Effect of WC/TiC grain size ratio on microstructure and mechanical properties of WC–TiC–Co cemented carbides. Int. J. Refract. Met. Hard Mater. 2006, 24, 109–114. [Google Scholar] [CrossRef]
  11. Guo, C.; Chen, J.; Zhou, J.; Zhao, J.; Wang, L.; Yu, Y.; Zhou, H. Effects of WC–Ni content on microstructure and wear resistance of laser cladding Ni-based alloys coating. Surf. Coat. Technol. 2011, 206, 2064–2071. [Google Scholar] [CrossRef]
  12. Zhao, W.; He, Q.; Han, B.; Yang, M. Formation of laser cladding layer of TiC-NiCrBSi composites. Trans. China Weld Inst. 2010, 31, 25–28+32+114. [Google Scholar]
  13. Zhou, D.; Guo, J.; Xiong, D.; Wang, A.; Yang, Z.; Ye, B. Effect of TiC Content on the Properties of Fe Based Coating by Laser Cladding. Appl. Laser 2021, 41, 1189–1195. [Google Scholar]
  14. Sun, B.; Zhang, W.Y.; Lu, J.B.; Wang, Z.X. Microstructure and Hardness of TiC/Ni-Based Coating by Plasma Cladding. Adv. Mater. Res. 2012, 510, 734–737. [Google Scholar] [CrossRef]
  15. Cai, Y.; Luo, Z.; Chen, Y. Effect of CeO2 on TiC morphology in Ni-based composite coating. High. Temp. Mater. Process. 2018, 37, 209–217. [Google Scholar] [CrossRef]
  16. Duan, H.; Liu, B.; Ao, F.; He, J.; Yang, T.; Liu, C.T.; Liu, Y. Segregation enabled outstanding combination of mechanical and corrosion properties in a FeCrNi medium entropy alloy manufactured by selective laser melting. J. Mater. Sci. Technol. 2022, 99, 207–214. [Google Scholar] [CrossRef]
  17. Qin, L. Effect of TiC dosage on properties of plasma-clad WC–TiC–Ni composite coating. Electroplat. Finish 2021, 40, 1551–1555. [Google Scholar]
  18. He, Y. Microstructure and Properties of NiCr-Cr3C2/TiC Coatings by Plasma/Laser Melting; Shandong University of Science and Technology: Qingdao, China, 2019. [Google Scholar] [CrossRef]
  19. Zhu, C.; Bai, H.; Zhang, Z.; Zheng, S. Study on wear resistance of laser cladded Ni-TiC-Cr coating. Hot Work. Technol. 2020, 49, 89–93+97. [Google Scholar]
  20. Ming, W.; Xiao, J.; Zhou, F.; Hu, Z. Research progress on TiC-Cr3C2 particle composites. Aerosp. Mater. Technol. 1995, 01, 27–30. [Google Scholar]
  21. Erdemir, A. A crystal-chemical approach to lubrication by lidoxides. Tribol. Lett. 2000, 8, 97–102. [Google Scholar] [CrossRef]
  22. Zhong, W.; Cao, R.; Ling, H.; Chang, L.; Qiu, S. Thermodynamic analysis of titanium oxide precipitation in titanium-containing medium carbon steel. J. Iron Steel Res. 2021, 8, 880–890. [Google Scholar]
  23. Zhang, J.Y.; Xia, C.; Wang, H.F.; Tang, C. Recent advances in electrocatalytic oxygen reduction for on-site hydrogen peroxide synthesis in acidic media. J. Energy Chem. 2022, 67, 432–450. [Google Scholar] [CrossRef]
  24. Njimou, J.R.; Pengou, M.; Tchakoute, H.K.; Sieugaing Tamwa, M.; Tizaoui, C.; Fannang, U.; Lemougna, P.N.; Nanseu-Njiki, C.P.; Ngameni, E. Removal of lead ions from aqueous solution using phosphate-based geopolymer cement composite. J. Chem. Technol. Biotechnol. 2021, 96, 1358–1369. [Google Scholar] [CrossRef]
  25. Godwin, J.; Njimou, J.R.; Abdus-Salam, N.; Panda, P.K.; Tripathy, B.C.; Ghosh, M.K.; Basu, S. Nanoscale ZnO-adsorbent carefully designed for the kinetic and thermodynamic studies of Rhodamine B. Inorg. Chem. Commun. 2022, 138, 109287. [Google Scholar] [CrossRef]
  26. Huang, Z.; Hou, Q.; Wang, P. Microstructure and properties of Cr3C2-modified nickel-based alloy coating deposited by plasma transferred arc process. Surf. Coat. Technol. 2008, 202, 2993–2999. [Google Scholar] [CrossRef]
  27. Xiao, Y.; Xu, C.; Ryou, M.; Cao, J. Effect of Cr3C2 grain size on the microstructure and wear performance of Fe-based alloy plasma transferred arc surfacing. Mater. Rep. 2018, 32, 4329–4333+4338. [Google Scholar]
  28. Murthy, J.K.N.; Venkataraman, B. Abrasive wear behaviour of WC–CoCr and Cr3C2–20 (NiCr) deposited by HVOF and detonation spray processes. Surf. Coat. Technol. 2006, 200, 2642–2652. [Google Scholar] [CrossRef]
  29. Tang, M.; Wang, W.; Li, G.; Feng, Z.; Yan, Z.; Zhang, N.; Zhang, R. Electrochemical Corrosion Behaviors of TiC Particles Reinforced Fe-based Composite Plasma Cladding Layers. Int. J. Electrochem. Sci. 2019, 14, 1591–1600. [Google Scholar] [CrossRef]
  30. Krylova, T.A.; Chumakov, Y.A. Fabrication of Cr-Ti-C composite coating by non-vacuum electron beam cladding. Mater. Lett. 2020, 274, 128022. [Google Scholar] [CrossRef]
  31. Pokhmurska, H.; Student, M.; Paczkowski, G.; Holovchuk, M.; Chumalo, H.; Hvozdetskyi, V.; Schuberth, S. Influence of diameter of the cored wires on abrasive wear resistance of arc sprayed coatings. IOP Conf. Ser. Mater. Sci. Eng. 2021, 1147, 012033. [Google Scholar] [CrossRef]
  32. Yang, J.; Chang, W.; Miao, X.; Chen, H.; Wang, X.; Yang, F. Influence of Mn, Mo, Ti Additions on Microstructure and Magnetic Properties of WC-FeNiCr Composite Coatings. Chin. J. Laser 2015, 42, 180–185. [Google Scholar]
  33. Hachisuka, T. Toughening Mechanism in TiC-TiN-Mo2C-WC-HfC-Cr3C2 Multi-Component Ceramic Composite. J. Jpn. Soc. Powder Powder Metall. 1990, 37, 1029–1036. [Google Scholar] [CrossRef]
  34. Faber, K.T.; Evans, A.G. Crack deflection processes—I. Theory. Acta Metall. 1983, 31, 565–576. [Google Scholar] [CrossRef]
  35. Faber, K.T.; Evans, A.G. Crack deflection processes—II. Experiment. Acta Metall. 1983, 31, 577–584. [Google Scholar] [CrossRef]
  36. Zhang, W.; Wang, C.; Song, Q.; Cui, H.; Feng, X.; Zhang, C. Influence of Cr Content on the Microstructure and Electrochemical Corrosion in Plasma Cladding Ni-Cr Coatings. Metall. Mater. Trans. A-Phys. Metall. Mater. Sci. 2019, 50, 5410–5420. [Google Scholar] [CrossRef]
  37. Pang, D.; Zhang, S.; Zhou, X. Performance Analysis of Plasma Cladding Metal Matrix/Ceramic Composite Coating. J. Lanzhou Inst. Technol. 2022, 29, 65–67+92. [Google Scholar]
  38. Jin, M.; He, D.; Wang, Z.; Zhou, Z.; Wang, G.; Li, X. Microstructure and Properties of Laser Cladded 2205 Dual-Phase Stainless Steel/TiC Composite Coatings. Laser Optoelectron. Prog. 2018, 55, 291–296. [Google Scholar]
  39. Hu, R.; Qang, R.; Zhang, J.; Zhang, C.; Zhang, Y.; Li, G.; Lu, X.; Yang, Y.; Liu, Q. An in-situ synthesised TiC/Ni60A composite coating on copper by plasma cladding. Mater. Sci. Technol. 2023, 39, 729–735. [Google Scholar] [CrossRef]
  40. Krylova, T.A.; Chumakov, Y.A. Effect of refractory modifiers on the structure of coatings based on chromium carbide. Mater. Lett. 2021, 294, 129807. [Google Scholar] [CrossRef]
  41. Li, L.; Jin, T.; Fu, H.; Sun, S. Research on Microstructure and Wear Propeties of Ni45 Coatings Enhanced by Laser Cladding ln-situ(Ti, Nb)C. Hot Work. Technol. 2021, 50, 81–85+91. [Google Scholar]
Materials 16 04580 g001 550

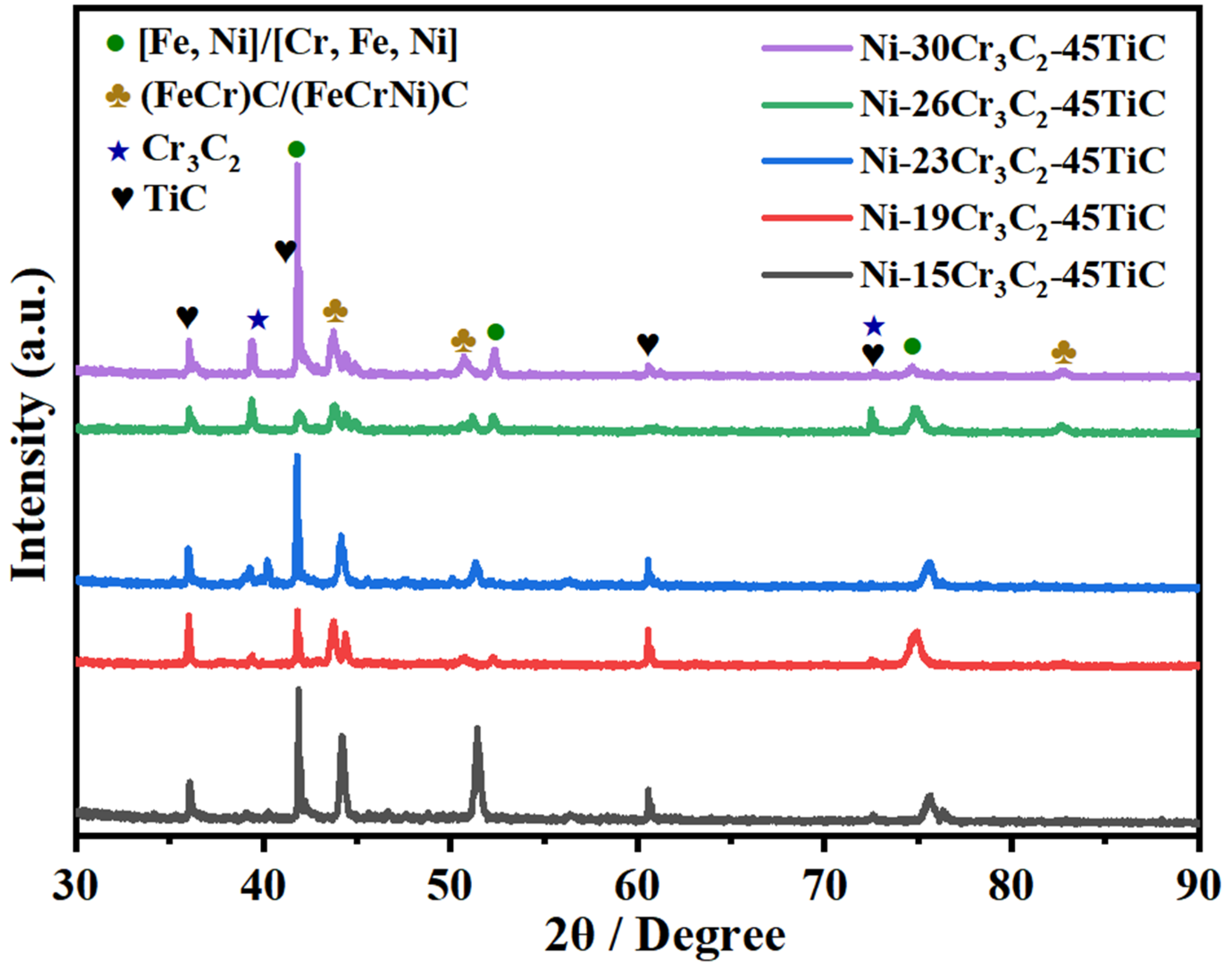

Figure 1. XRD pattern of composite coating.
Figure 1. XRD pattern of composite coating.
Materials 16 04580 g001
Materials 16 04580 g002 550

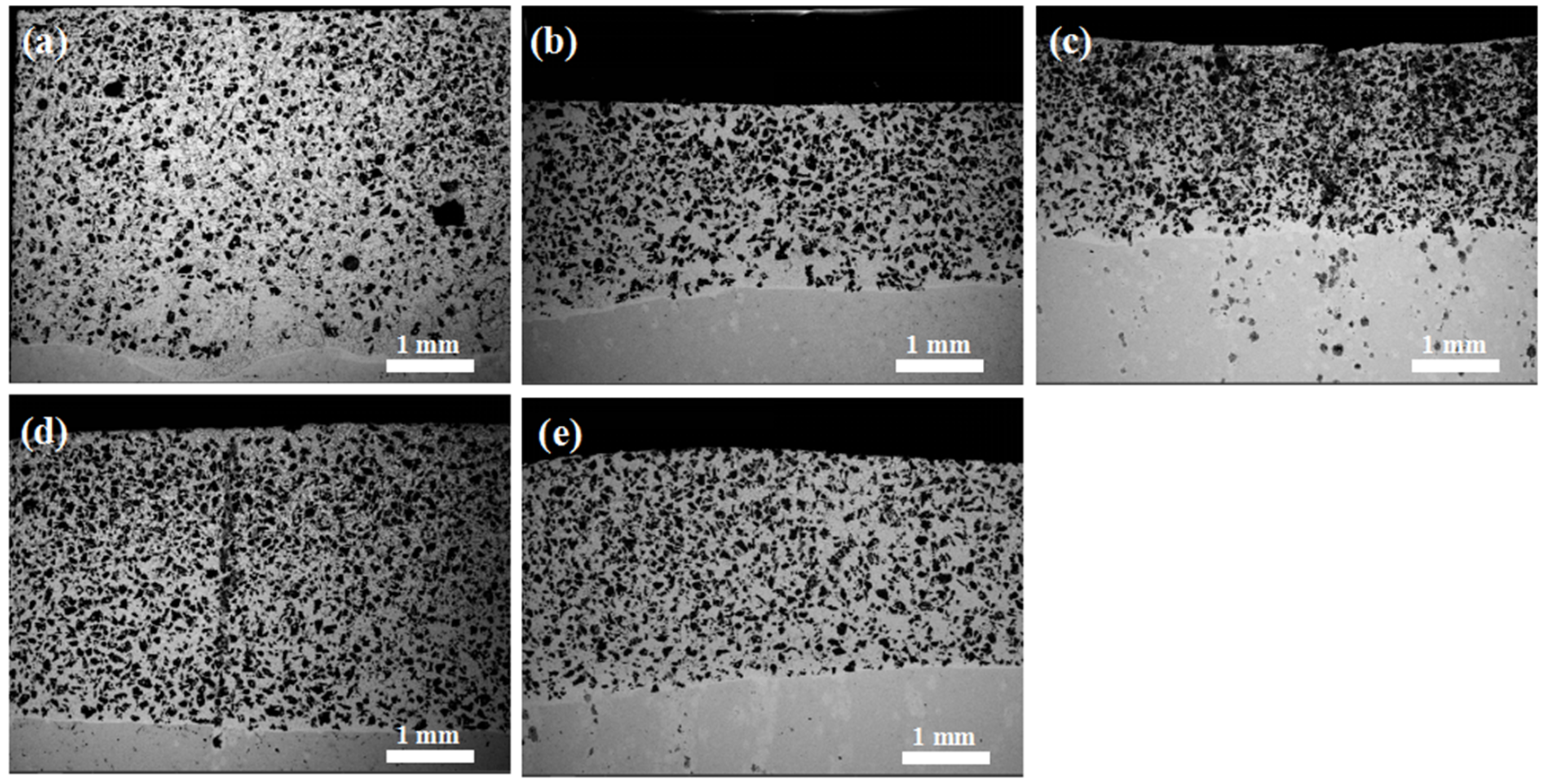

Figure 2. Cross-sectional SEM images of the composite coatings with (a) 15%, (b) 19%, (c) 23%, (d) 26%, and (e) 30% Cr3C2.
Figure 2. Cross-sectional SEM images of the composite coatings with (a) 15%, (b) 19%, (c) 23%, (d) 26%, and (e) 30% Cr3C2.
Materials 16 04580 g002
Materials 16 04580 g003a 550Materials 16 04580 g003b 550

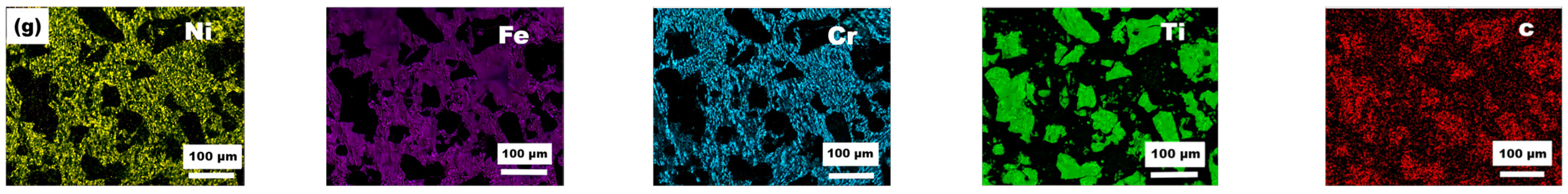

Figure 3. Morphology of the cladding layers: (a) low- and (b) high-magnification SEM images of coating 1#; low-magnification SEM images of coating (c) 2#, (d) 3#, (e) 4#, and (f) 5#; and (g) low-magnification elemental maps of coating 5#.
Figure 3. Morphology of the cladding layers: (a) low- and (b) high-magnification SEM images of coating 1#; low-magnification SEM images of coating (c) 2#, (d) 3#, (e) 4#, and (f) 5#; and (g) low-magnification elemental maps of coating 5#.
Materials 16 04580 g003aMaterials 16 04580 g003b
Materials 16 04580 g004 550

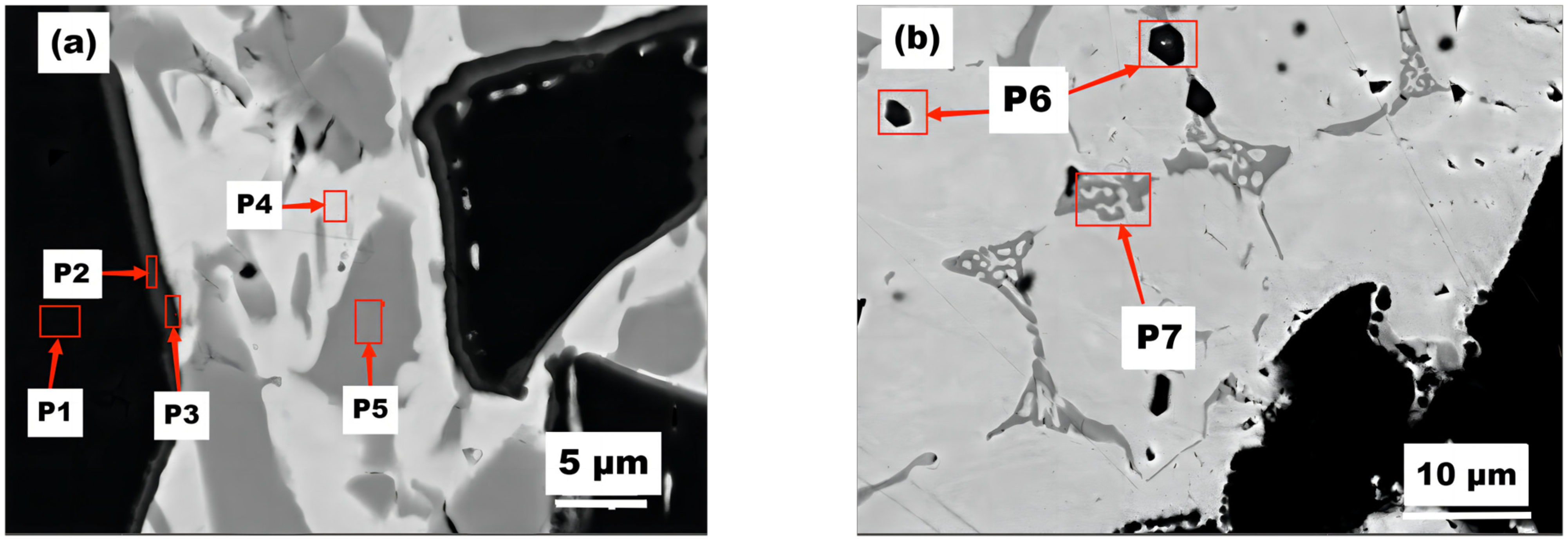

Figure 4. Different shape phase points (a) and (b) SEM image of coating 1#.
Figure 4. Different shape phase points (a) and (b) SEM image of coating 1#.
Materials 16 04580 g004
Materials 16 04580 g005 550
Figure 5. Hardness of composite coatings.
Figure 5. Hardness of composite coatings.
Materials 16 04580 g005
Materials 16 04580 g006 550

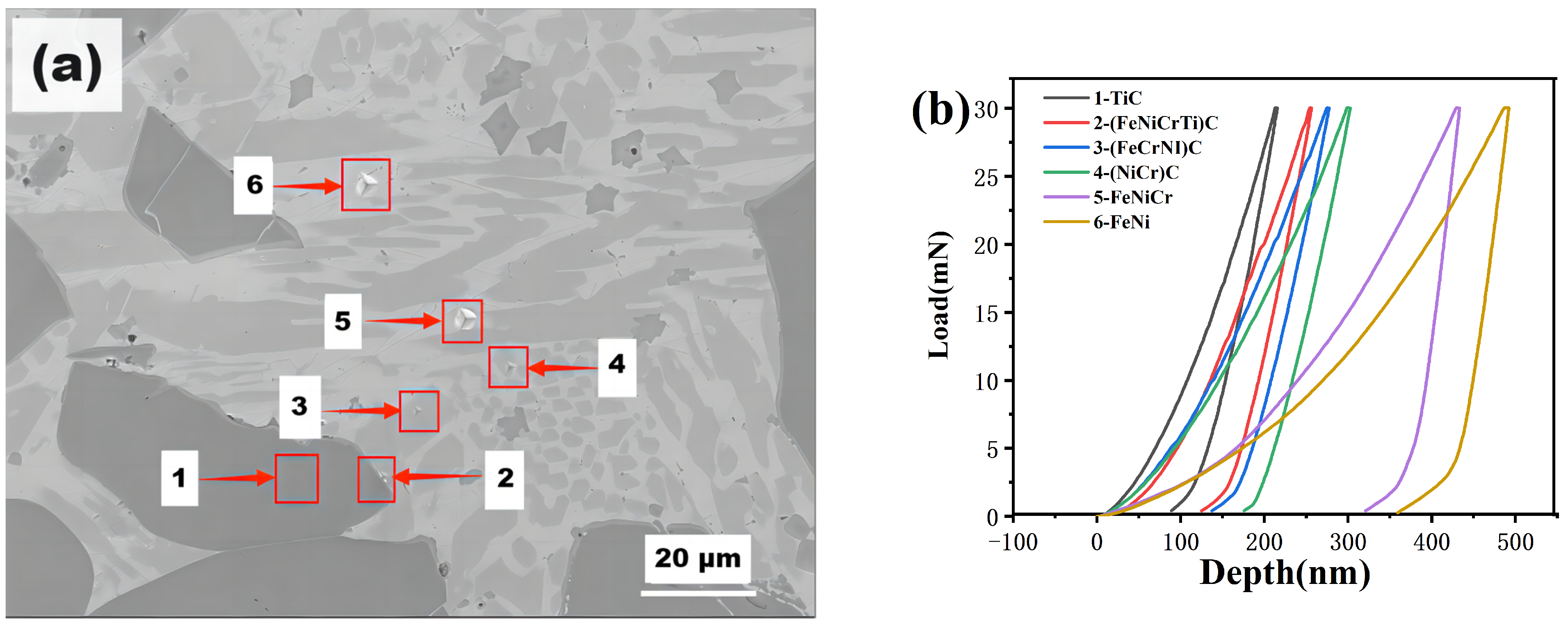

Figure 6. (a) Indentation points within different phases and (b) load-depth curves for coating 4#.
Figure 6. (a) Indentation points within different phases and (b) load-depth curves for coating 4#.
Materials 16 04580 g006
Materials 16 04580 g007 550

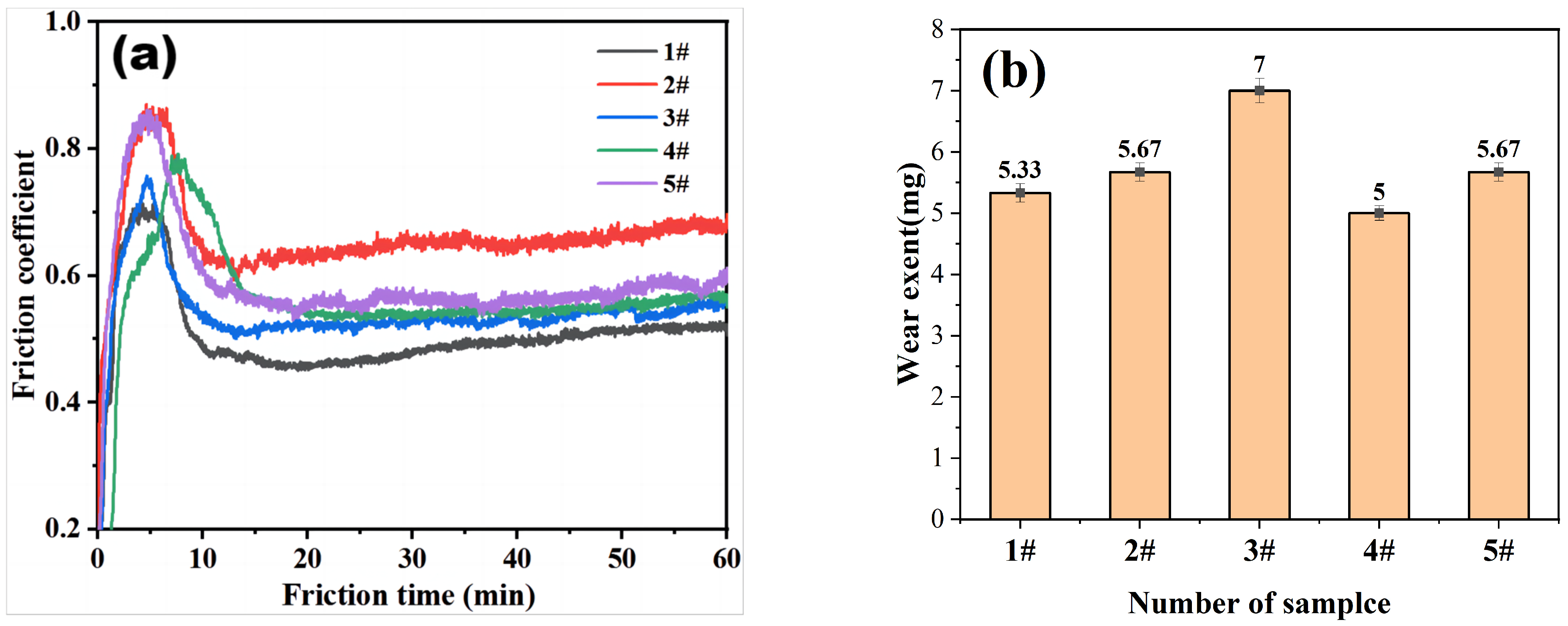

Figure 7. (a) Friction coefficient and (b) wear weight loss of the composite coating.
Figure 7. (a) Friction coefficient and (b) wear weight loss of the composite coating.
Materials 16 04580 g007
Materials 16 04580 g008 550

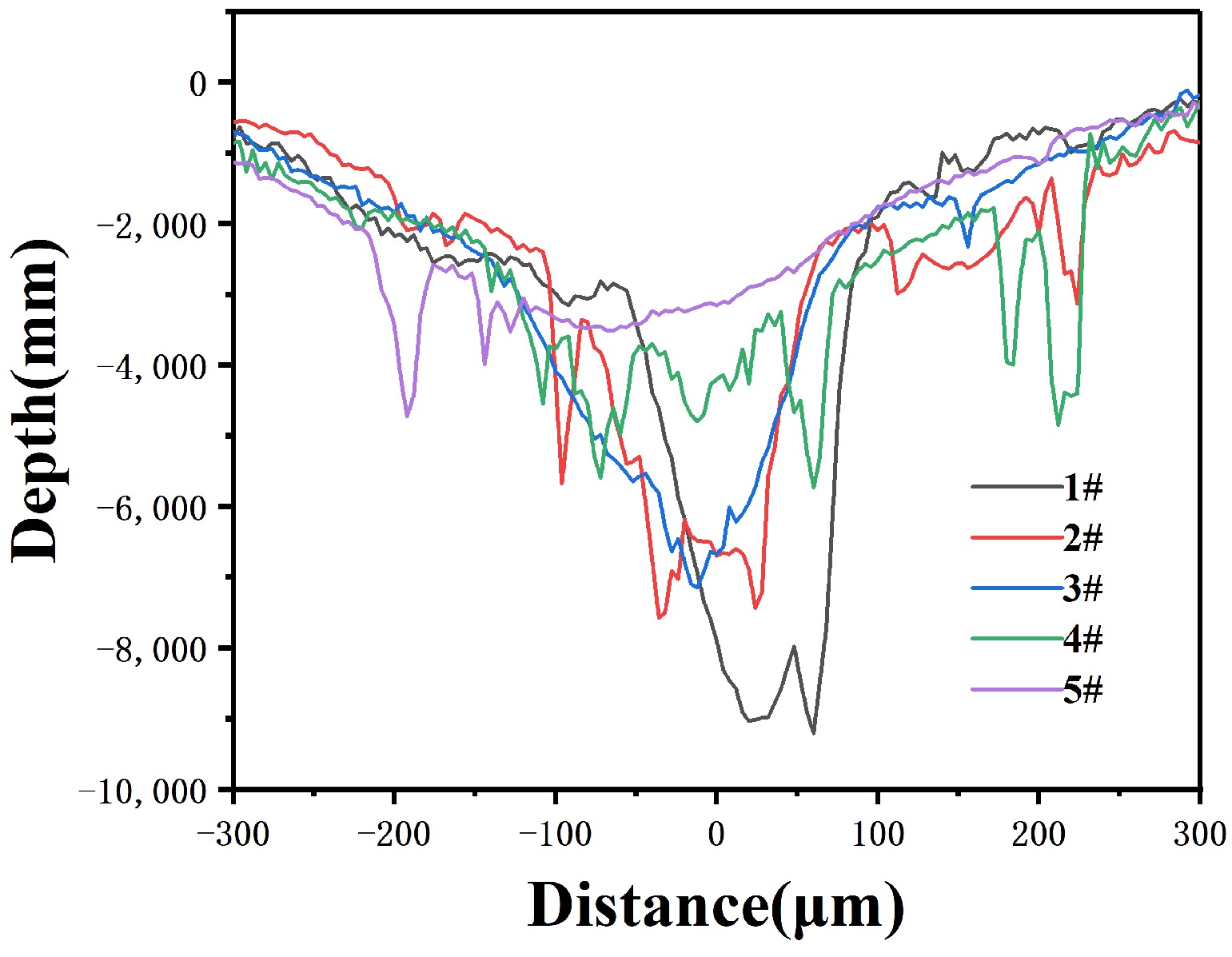

Figure 8. Cross-sectional profile of the composite coatings.
Figure 8. Cross-sectional profile of the composite coatings.
Materials 16 04580 g008
Materials 16 04580 g009 550
Figure 9. Wear marks on the coatings with various Cr2C3 contents. (a,b) 1#, (c,d) 2#, (e,f) 3#, (g,h) 4#, and (i,j) 5#.
Figure 9. Wear marks on the coatings with various Cr2C3 contents. (a,b) 1#, (c,d) 2#, (e,f) 3#, (g,h) 4#, and (i,j) 5#.
Materials 16 04580 g009
Materials 16 04580 g010a 550Materials 16 04580 g010b 550

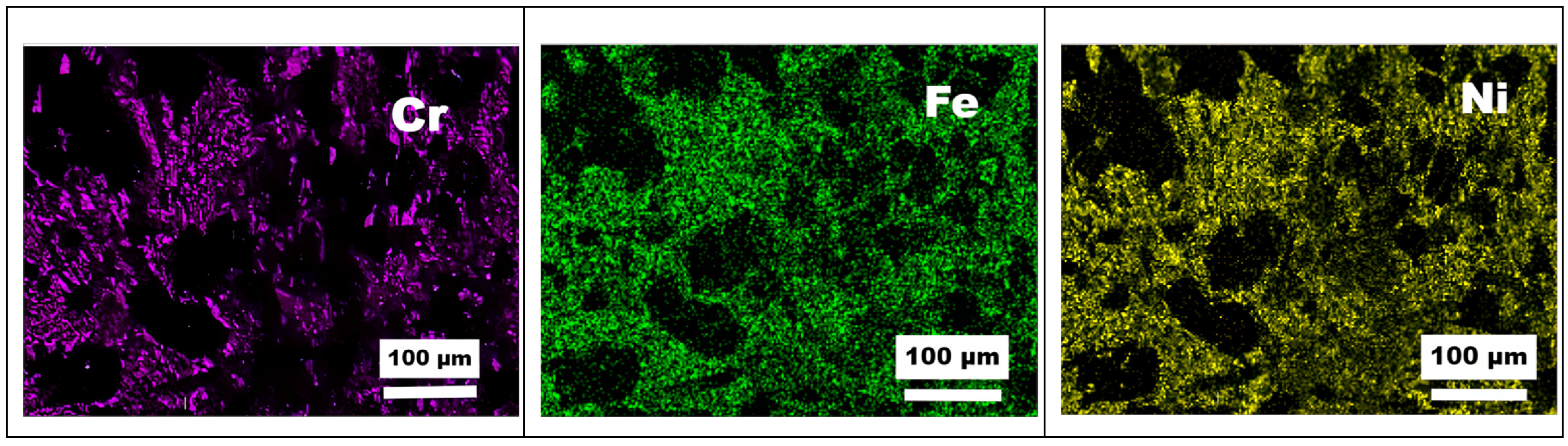

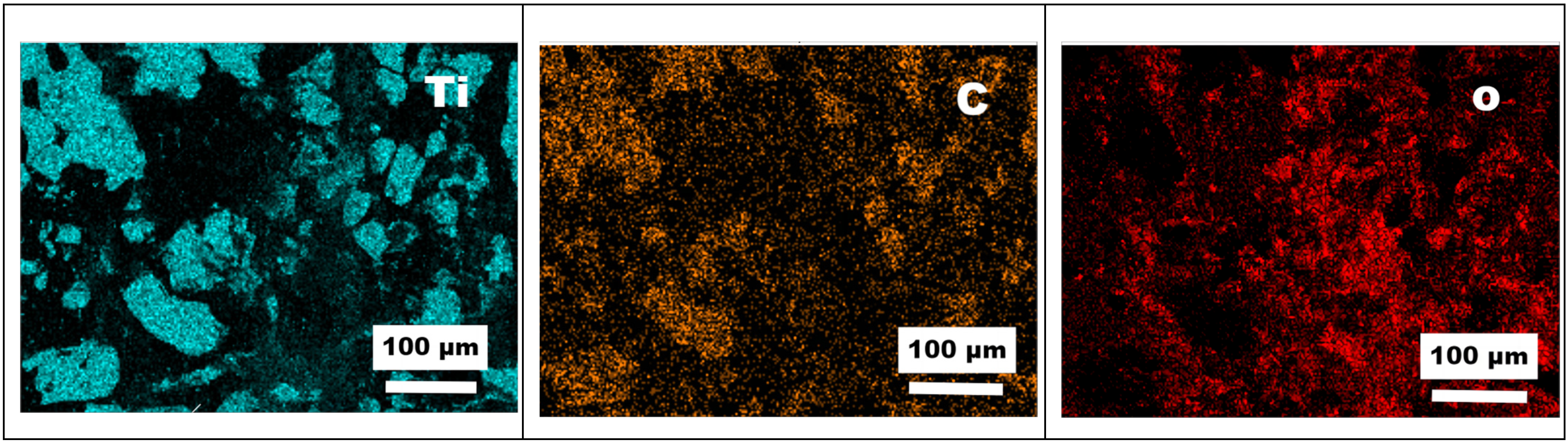

Figure 10. SEM–EDS images of the wear mark morphology of coating 1#.
Figure 10. SEM–EDS images of the wear mark morphology of coating 1#.
Materials 16 04580 g010aMaterials 16 04580 g010b
Materials 16 04580 g011 550

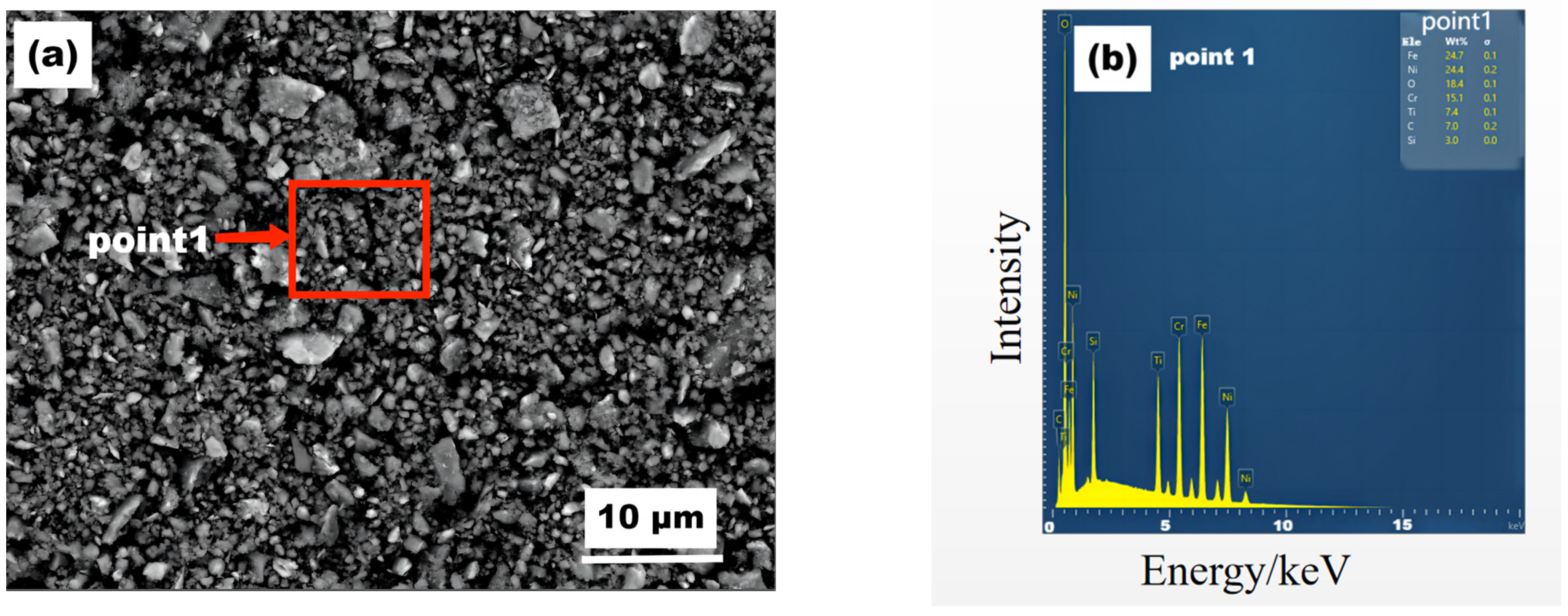

Figure 11. (a) SEM image and the (b) corresponding EDS spectrum of Point 1 in (a) of the coating debris on coating 4#.
Figure 11. (a) SEM image and the (b) corresponding EDS spectrum of Point 1 in (a) of the coating debris on coating 4#.
Materials 16 04580 g011
Table
Table 1. Chemical composition of Ni25A alloy powder.
Table 1. Chemical composition of Ni25A alloy powder.
Chemical ComponentCrFeNiBCNOSSi
Content (%)7.5302.590balance1.6600.0070.0050.0440.0053.240
Table
Table 2. Chemical composition of the coatings.
Table 2. Chemical composition of the coatings.
SamplesBinder PhaseHard Phase (wt.%)
Ni25ACr3C2TiC
1#Balance15.0045.00
2#Balance19.0045.00
3#Balance23.0045.00
4#Balance26.0045.00
5#Balance30.0045.00
Table
Table 3. Plasma surfacing process parameters.
Table 3. Plasma surfacing process parameters.
Power (kW)Current (A)Overlap Butt Diameter (mm)Scanning Speed (mm/s)Powder Feeding Rate
(g/min)		Atmosphere
17120414.075Argon
Table
Table 4. EDS analysis results of coating 1#.
Table 4. EDS analysis results of coating 1#.
SpotComposition (at.%)
CFeNiTiCrSi
Point A45.3713.946.8125.539.830.35
Point B51.514.870.3839.353.050.52
Table
Table 5. EDS results for coating 1#.
Table 5. EDS results for coating 1#.
SpotComposition (at.%)
CrFeNiTiCSi
P10.780.420.2148.0251.01/
P22.941.740.9945.1848.17/
P34.5213.1710.1436.0634.990.38
P44.5213.1710.1436.0638.090.26
P58.1540.5327.651.520.571.6
Table
Table 6. EDS analysis results of coating 1#.
Table 6. EDS analysis results of coating 1#.
SpotComposition (at.%)
CrFeNiTiC
P63.054.870.3839.3551.51
P722.2338.111.240.8037.62
Table
Table 7. Nanoindentation hardness results for coating 4#.
Table 7. Nanoindentation hardness results for coating 4#.
Indentation Point123456
Nanohardness
(GPa)		322320166.65.1
Elastic
modulus		368.16344.62283.91256.87274225.35
Table
Table 8. Coating wear rates of different samples.
Table 8. Coating wear rates of different samples.
SampleFriction Stroke
(m)		Wear Volume
(mm3) × 10−8		Normal Force
(N)		Wear Rate
(mm3 N−1 m−1) × 10−8
1#0.0051.008504.032
2#0.0051.012504.048
3#0.0051.084504.337
4#0.0050.938503.750
5#0.0050.874503.497
Table
Table 9. EDS results of coating 1#.
Table 9. EDS results of coating 1#.
ElementCrFeNiTiCO
at%7.334.0613.0715.9126.5329.56
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Geng, Z.; Zhang, M.; Zhu, J.; Peng, Y.; Zhang, W.; Liu, F. Effect of Chromium Carbide Addition on the Microstructures and Properties in Dual Carbide Phases Reinforced Ni-Based Composite Coatings by Plasma Cladding. Materials 2023, 16, 4580. https://doi.org/10.3390/ma16134580

AMA Style

Geng Z, Zhang M, Zhu J, Peng Y, Zhang W, Liu F. Effect of Chromium Carbide Addition on the Microstructures and Properties in Dual Carbide Phases Reinforced Ni-Based Composite Coatings by Plasma Cladding. Materials. 2023; 16(13):4580. https://doi.org/10.3390/ma16134580

Chicago/Turabian Style

Geng, Zhanji, Mengling Zhang, Jianyong Zhu, Yingbo Peng, Wei Zhang, and Feng Liu. 2023. "Effect of Chromium Carbide Addition on the Microstructures and Properties in Dual Carbide Phases Reinforced Ni-Based Composite Coatings by Plasma Cladding" Materials 16, no. 13: 4580. https://doi.org/10.3390/ma16134580

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
