Preparation, Modification, and Application of Biochar in the Printing Field: A Review

by
Xin Li
,
Jinyu Zeng
,
Shuai Zuo
,
Saiting Lin
and
Guangxue Chen
*
State Key Laboratory of Pulp and Paper Engineering, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(14), 5081; https://doi.org/10.3390/ma16145081
Submission received: 7 June 2023 / Revised: 13 July 2023 / Accepted: 17 July 2023 / Published: 19 July 2023
(This article belongs to the Section Carbon Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Biochar is a solid material enriched with carbon produced by the thermal transformation of organic raw materials under anoxic or anaerobic conditions. It not only has various environmental benefits including reducing greenhouse gas emissions, improving soil fertility, and sequestering atmospheric carbon, but also has the advantages of abundant precursors, low cost, and wide potential applications, thus gaining widespread attention. In recent years, researchers have been exploring new biomass precursors, improving and developing new preparation methods, and searching for more high-value and meaningful applications. Biochar has been extensively researched and utilized in many fields, and recently, it has also shown good industrial application prospects and potential application value in the printing field. In such a context, this article summarizes the typical preparation and modification methods of biochar, and also reviews its application in the printing field, to provide a reference for future work.

1. Introduction

Carbon is an element that exists widely on the earth and has been used for a long time, playing an essential role in the progress of human civilization [1]. With the progress of society and the development of science and technology, through the continuous in-depth understanding and study of carbon elements, researchers have invented many new carbon materials (fullerenes, graphite, graphene, carbon nanotubes [2], carbon particles, carbon scaffolds [3], etc.) and have explored and studied them extensively. However, they are mostly synthesized using non-renewable petroleum and coal carbon products, and the synthesis process usually also requires harsh and energy-intensive conditions, which can bring about energy shortages, climate warming, and environmental damage [4]. Therefore, the development of carbon materials that are environmentally friendly, low cost, widely available, and renewable has been a continuous research direction of exploration.
Biochar, a carbon by-product obtained from natural resources or biomass (e.g., plants [5], animals [6], insects [7,8], etc.) after carbonization, is a new cost-effective and environmentally preferable degradable biomaterial. Biochar also has great strengths over conventional carbon materials such as graphite and carbon nanotubes in terms of production capacity, resource reserves, cost expenditures, and environmental protection [9,10]. In addition, biochar can greatly reduce the use of fossil fuels and help with sustainable development [11]. Thermal processes such as hydrothermal carbonization [12,13], pyrolysis [14,15], microwave irradiation [16,17], and laser processing [18,19] have been used to convert biomass precursors into biochar. In addition, due to its porosity, functional groups, electrical conductivity, and biocompatibility, biochar has been widely investigated and applied in the fields of wastewater treatment [20], capacitors [21], sensors [22], electrochemistry [23], and environment [24], making it a hot research topic today (Figure 1a). Recently, the application of biochar in the printing field has also attracted the attention of researchers (Figure 1b).
Inks used in screen printing and flexographic printing have the potential to be replaced by biochar, according to research from previous years [25,26]. Additionally, the development of high-performance 3D printing polymer blends and composites is urgently needed due to the limits of pure polymers in terms of printability and mechanical qualities. Researchers have found that the use of artificially generated plastics can be combined with sustainable fillers, such as biochar, to meet the demands of intended applications [27,28,29,30]. Biochar also has many potential applications in treating printing and dyeing wastewater [31,32,33,34]. In this paper, we first describe the typical carbonization methods and modifications used in the preparation of biochar, and then summarize their research in the printing field.

2. Raw Material and Preparation Method of Biochar

The carbonation of biomass is an elemental change process in which most of the O, H, and other elements of biomass resources disappear and the content of C elements is significantly increased. Biomass resources are made up of intricate parts, which have various pyrolysis methods. As a result, choosing the right biomass precursors is crucial to producing biochar with the desired structure and morphology [35]. In general, the sources of biochar are classified as plant-derived biomass and animal-derived biomass (Figure 2). In past studies, plant-derived biomass has been widely used as precursors of biomass carbon, e.g., coffee grounds [36,37], rice husk [38], tea grounds [39], seaweed [40], and radish [41]. Compared to plants, animal-derived biomass contains more complex components, and chitin [42], animal hair [7], animal feces [43], and eggs [44] have been used to synthesize biochar. Dehydration, decarboxylation, depolymerization, isomerization, aromatization, and carbonization are some of the reactions that occur simultaneously or in sequence during the carbonization of biomass, and they all contribute to the creation of biochar with various structures and properties [45,46]. The carbonization process is incredibly crucial in the creation of biochar, in addition to the choice of precursors. The selection of the carbonization method directly affects the chemical and physical properties of biochar such as structure, surface area, porosity, chemical composition, functional groups, and graphitization [47]. Therefore, we have reviewed several typical carbonization methods to provide a reference for later studies (Table 1).

2.1. Pyrolysis Carbonization

In general, pyrolysis carbonation is the broad term for the thermal decomposition of raw materials using an apparatus with limited or no oxygen [48]. Tube furnaces and muffle furnaces are the more common instruments used for pyrolysis. In this process, biomass is pyrolyzed to form solids, liquids, and gases (Figure 3a). The solid and liquid products are commonly termed biochar and bio-oil, and the gaseous products often contain small-molecule chemicals including carbon dioxide, hydrogen, and carbon monoxide [49]. Pyrolysis carbonization is one of the most popular and commonly utilized techniques for producing biochar. This is because the structure and qualities of biochar can be easily regulated by controlling the carbonization temperature, heating rate, carbonization time, and gas atmosphere, and the apparatus used for pyrolysis carbonization can precisely control the above parameters [45]. However, compared to other methods, the high energy consumption of the pyrolysis process is not negligible [4].
Depending on the heating rate and carbonization time, pyrolysis carbonization can be classified into three categories: slow (conventional) pyrolysis, fast pyrolysis, and flash pyrolysis [50]. Slow pyrolysis, which was initially applied to the production of charcoal, reacts at relatively low temperatures (~300–700 °C) for long periods (lasting from hours to days). When pyrolysis is carried out at a slow heating rate, adequate time for repolymerization occurrences can increase solid yields, so slow pyrolysis results in more coke and less tar formation [51]. Fast pyrolysis is characterized by fast heating rates and brief residence durations, leading to rapid cracking of biomass, resulting in more bio-oil and less coke, with higher bio-oil yields [45]. Flash pyrolysis processes use higher heat rates (103–104 °C/s) and faster residence times (<0.5 s), leading to remarkably high bio-oil yields [52,53]. It can be concluded that the pyrolysis products of biomass can be regulated in terms of yield and composition by modulating the pyrolysis temperature and the pyrolysis rate. Therefore, slow heating rates are more favorable in the synthesis of biochar, and therefore, low heating rates are used in most reports to produce biochar [4].
Materials 16 05081 g003 550
Figure 3. (a) Composition and pyrolysis products of woody biomass. (b) Schematic diagram of the process of PI synthesis of LIG [54] (reproduced with permission from Jian Lin, Nat. Commun.; published by Springer Nature, 2014). (c) Comparison of the traditional heating system and microwave heating system [55] (open access; published by Elsevier, 2021).
Figure 3. (a) Composition and pyrolysis products of woody biomass. (b) Schematic diagram of the process of PI synthesis of LIG [54] (reproduced with permission from Jian Lin, Nat. Commun.; published by Springer Nature, 2014). (c) Comparison of the traditional heating system and microwave heating system [55] (open access; published by Elsevier, 2021).
Materials 16 05081 g003

2.2. Hydrothermal Carbonization

Hydrothermal carbonization (HTC) technology is the generation of hydrated carbon from biomass or its components, using water as a solvent and reaction medium at a certain temperature [56]. During the HTC process, three types of reactions result in biomass dehydration: fragment polymerization, intermolecular dehydration, and carbonization [4]. Modulation of the structure, components, and morphology of hydrated carbon can be readily achieved by changing the conditions of the hydrothermal reaction, such as biomass precursors, temperature, and reaction time. Sun et al. [57] used glucose as a raw material to obtain carbon nanospheres with a diameter of 200 nm in a hydrothermal reaction at 160 °C for 3.5 h. Chen et al. [58] used low-temperature (L-T) HTC technology to reform waste sludge into biochar. Biochar with a maximum high heating value of 15.21 MJ/kg was obtained, and the product was similar to cellulose biochar and lignite surface. In addition, some xanthic and humic acid analogs were observed in the secondary leachate of carbon, which could promote redox reactions in the soil microenvironment. This illustrates that L-T HTC is a good method for sludge treatment and resource recovery.
HTC has many advantages: (1) compared to pyrolytic carbonation, the feedstock for HTC is allowed to be in an incomplete dry state and does not need to undergo a dehydration process before the reaction [59]; (2) compared to other carbonation methods, HTC requires lower temperatures, reducing the energy loss in the carbonation process [60]; (3) because of the relatively mild reaction conditions of HTC, the yield of solid products is commonly higher; (4) the obtained liquid and gas phases could be value-added after further processing [61]. In addition, hydrochar, with its high adsorption capacity and no negative effects on plants, has attracted much attention for its application in soil amendment, increasing carbon stocks in degraded soils, and pollutant remediation [62]. Hydrothermal carbonization has also shown great potential in converting biomass waste into solid biofuels [60]. Unfortunately, the lower pyrolysis temperature also brings the problem of poor graphitization, which limits the application of hydrochar [4].

2.3. Laser-Induced Carbonization

In 2014, Tour et al. [54] discovered that commercial polyimide (PI) films could be converted into 3D porous laser-induced graphene (LIG) using a mid-infrared (MIR) CO2 laser system under ambient conditions (Figure 3b). Moreover, LIG demonstrates exceptional qualities like high porosity (340 m2·g−1), strong heat stability (900 °C), and superior electrical conductivity (25 S·cm−1). Since then, much research around laser-induced carbonization (LIC) technology has been carried out. With LIC technology, pre-designed patterns with regulated microstructure, surface characteristics, electrical conductivity, chemical composition, and heteroatom doping can be effectively manufactured on various carbon materials. In addition, the LIC technique has the benefits of being inexpensive, without chemicals, metal-free, and mask-free, reducing the consumption of initial supplies and the environmental effect [63].
So far, the raw material for LIC technology has been extended from PI to many commercial polymers and natural materials [64]. Truong et al. [65] formed highly conductive graphene and high-resolution LIG patterns on a variety of woods and leaves in ambient air via programmable irradiation with high-repetition-rate UV FS laser pulses in one step. New possibilities are offered for flexible green electronics. In addition, the laser used in this work has a lower input power (0.8 W) than the CO2 laser (7.8 W) but is compared to the reported conductivity of LIG on wood with higher laser power under an inert atmosphere or multi-step strategy. In addition, Morosawa et al. [66] fabricated graphitic carbon on cellulose nanofiber (CNF) films using a high-repetition femtosecond laser. In the case of laser irradiation, the thermal effect carried by heat buildup and the optical influence brought on by the high peak intensity created at the focal point contributes to the degradation of CNF, leading to the production of crystalline graphitic carbon. One scan of the laser beam yielded a conductivity of up to 6.9 S/cm, which is more than 100 times greater than previously reported. LIG not only has the excellent properties of graphene, but also has the advantage of controlled performance and easy production, and has been found to have good applications in numerous fields such as biosensors, supercapacitors, batteries, and frictional electric nanogenerators prospect [63]. On the downside, this method can only achieve surface and localized carbonization and is mostly performed in the laboratory [4].

2.4. Microwave-Assisted Carbonization

A rapidly expanding area of materials research, microwave-assisted synthesis, and processing has effectively entered the realm of carbon nanomaterials [67]. The mechanism of microwave-assisted carbonization (MAC) is to transform electromagnetic radiation into heat within the irradiated things. During the preparation process, there is no actual contact between the biomass and the heat source; instead, microwaves enter the sample and the energy is transformed to heat inside the particles [68]. The transfer of the energy causes a temperature gradient within the particle from the interior to the exterior, which is the same as the direction of the volatiles emitted [69]. Pyrolysis of biomass in MAC is easier and faster compared to other carbonization methods, thus showing clear advantages in providing a fast, energy-efficient, and pre-designed heating process that helps to increase productivity and reduce production costs [70]. Haeldermans et al. [71] thermally treated medium-density fiberboard using two different carbonization methods (MAC and pyrolytic carbonization) (Figure 3c). The results showed that MAC produced biochar with higher aromaticity at lower temperatures than pyrolytic carbonization for the same input material.
However, MAC also has some drawbacks. For example, due to the lack of standards for instrument operation and testing techniques, the experimental results are not reproducible. In addition, “thermal runaway” and “hot spots” may occur during MAC, and the lack of a theoretical basis for MAC–material interactions makes the large-scale application of this system a great challenge [55]. In general, there is a wide range of methods for preparing and modifying biochar, each with its advantages and disadvantages, and a suitable method needs to be chosen according to the requirements of the application.

3. Modification of Biochar

The properties of the original biochar are not sufficient to satisfy the needs of scientific research and practical production, which limits the development of biochar applications. Therefore, some additional methods can be adopted to improve the properties of biochar such as pore size distribution, thermal properties, and specific surface area. In general, most of the modification methods of biochar revolve around physical and chemical methods.

3.1. Physical Modification

Physical modification generally does not involve chemical reagents, which is simple and economical, and is a common means of biochar modification (Table 2). The advantage of physical modification consists in improving the pore structure and oxygen-containing functional group induction of biochar in a cost-effective and safe way [72]. Due to the increase in specific surface area and pore volume, the adsorption capacity of biochar may be improved for heavy metal elements, nutrients, and organic pollutants [73]. Increasing reaction rates and reducing energy consumption are problems that should be addressed [74]. Ball milling, steam activation, etc., are typical physical modification methods.
Ball milling is a conventional treatment method to grind biomass into smaller particles by physical means. In this way, the heat transfer during pyrolysis is facilitated, creating a uniform temperature within the particles and thus increasing the yield of bio-oil by inhibiting char formation and secondary cracking by steam [45]. Steam activation is usually carried out at 500–850 °C, with treatment times ranging from 1 to 7 h, and is an effective method for modifying biochar properties (specific surface area and porosity) [75]. Steam activation is usually performed during the initial pyrolysis, where the prepared biochar is exposed to steam for partial vaporization. This step promotes the formation of crystalline C and the partial degreasing of the biochar [76]. With the assistance of steam, biochar could develop new pores and expand small pores formed during pyrolysis [77].
Table
Table 2. Various raw materials and physical modification methods.
Table 2. Various raw materials and physical modification methods.
Raw MaterialsModification MethodsHeating Temperature (°C)Surface Area (m2·g−1)Pore Volume (cm3·g−1)ApplicationReference
BurcucumberSteam300 and 7007.100.038Remove
sulfamethazine		[78]
Tea wasteSteam300 and 700576.090.1091Remove
sulfamethazine		[79]
CorncobsThermal air oxidation300–700~350--[80]
SoftwoodSteam400672-Adsorb
tetracycline		[81]
Wheat strawBall milling400–800271.100.1445Adsorb
volatile organic compounds		[82]
DanshenGrind250–80070.30.068Adsorb
sulfamethoxazole		[83]

3.2. Chemical Modification

Chemical modifications usually involve the addition of chemical substances to the feedstock to change the surface chemistry of the biochar (Table 3). Many chemical reagents have been used for biochar modification, such as acids (HCl, H2SO4, H3PO4, and HNO3), bases (KOH, K2CO3, and NaOH), salts (chlorides and phosphates), and oxidants (KMNO4 and H2O2) [84]. Compared to physical activation, chemical activation has the advantage of fast reaction time and low operating temperature, but chemical modification costs more, and the strong bases, acids, and salts used to lead to secondary contamination. However, in recent years, researchers have discovered organic acids that are more friendly to the environment and have been widely used as surface chemicals for modified biochar [85]. Sun et al. [86] extracted biochar from eucalyptus sawdust and then modified eucalyptus charcoal using citric acid, tartaric acid, and acetic acid at low temperatures and used them as adsorbents to remove methylene blue (MB) from contaminated water. Experimental data showed that citric-acid-modified eucalyptus char had higher MB adsorption efficiency than tartaric- and acetic-acid-modified eucalyptus char. In addition, more gentle modifiers such as hydrogels, vitamins, and chitosan have been used in biochar in recent years [87].

4. Application of Biochar in the Printing Field

The unique chemical property structure, low cost, huge reserves, and environmental friendliness make biochar a potential for a wide range of applications in wastewater treatment [98], capacitors [99], sensors [100], and the environment [101]. Printing technology, which has a very long history in China, has also achieved extraordinary technological innovations in recent years that have changed and facilitated our lives. However, with the growing awareness of sustainable development, researchers are constantly trying to move the raw materials, manufacturing processes, and by-products of printing in a greener direction. In recent years, some researchers have applied biochar to the printing field, and it has shown good application potential. But a systematic summary is lacking; therefore, this paper reviews the application of biochar in the printing field.

4.1. Biochar as Printing Material

In recent years, there has been a growing interest in the sustainability of printing inks to reduce the carbon footprint of the printing industry. Screen printing (SPE) is a well-established technology used in the mass production of electrochemical sensors [102]. Due to its inert internal structure and highly functionalized surface, biochar offers excellent electron transfer kinetics, reproducibility, and high sensitivity [103]. In addition, the structural characteristics of biochar show certain similarities to carbon nanomaterials (i.e., graphene, nanotubes, and nanofibers), which are widely used in electrochemistry, and therefore have the potential to be a renewable and biodegradable raw material for screen-printing [104]. In addition, inks used in printing technology mainly consist of colorants, additives, carriers, and solvents [105]. Carbon black (CB), the main raw material for black pigments in printing inks, is obtained from the incomplete combustion of natural gas, thus becoming one of the “culprits” of greenhouse gas emissions. With the efforts of researchers, “green” inks using biochar instead of conventional CB have also been developed. This paper summarizes some of the more typical efforts.
Cancelliere et al. [106] prepared biochar-based SPE electrodes using biochar prepared from waste grains of breweries as raw material. To investigate its electrochemical potential and performance, different electroactive substances were used, and the results were compared with the electrodes produced with commercial graphene, which were found to exhibit better electrochemical behavior in resolution, peak-to-peak separation, current intensity, and resistance to charge transfer (Figure 4a). In the follow-up study, they also proposed a reverse-designed biochar-based SPE electrode with higher sensitivity and reproducibility compared with conventional SPE [103]. Goh et al. [25] formulated flexographic inks to replace CB with a more sustainable pine char. The results showed that prints with a reflective optical density of more than 1.0 were obtained with excellent tonal reproduction (Figure 4b). Yuan et al. [107] also developed a stabilized biochar-based ink made from fruit peels that can be integrated on different flexible substrates by SPE or program-controlled writing methods. This suggests that replacing fossil fuel charcoal with biochar for printing materials is a promising avenue, but more research is still needed to lay the theoretical foundation.

4.2. Application of Biochar in 3D Printing

In recent years, polymeric nanocomposites with carbon-based reinforcing fillers such as carbon nanotubes, graphene, and carbon black have been widely used to improve the properties of additive manufacturing (3D printed) composites [108,109]. The precursors of these materials are dependent on fossil fuels and may be in crisis in the future, which further aggravates environmental problems such as the energy crisis, global warming, and environmental pollution. In this context, there is a great demand for the development of carbon with mass production potential and simple synthesis processes as sustainable precursor materials for 3D printing. Commercially mature and low-cost biochar shows great potential for applications [110,111]. Biochar has the advantages of high hardness, high surface area, and good thermal properties, and the thermal and mechanical properties of materials such as polylactic acid (PLA), epoxy resin, thermoplastic polyurethane (TPU), and polyethylene terephthalate (PET) can be improved by adding biochar as a filler in polymers [112,113,114].
Umerah et al. [115] prepared a carbon-based biodegradable polymer nanocomposite using coconut shell carbon and PLA. The results showed that the addition of coconut shell carbon improved the mechanical and electrical properties of the material and was successfully used in 3D printing (Figure 5a). Mohanad et al. [29] prepared a composite material using biochar and PET, which could be used in 3D printing. The results demonstrated that adding biochar enhanced the mechanical, thermal, and kinetic properties of the composites. The tensile strength of PET increased by 32% after receiving a 0.5-weight percent infusion of biochar. The tensile modulus of polymer composites loaded with 5 wt.% increased by 60% compared to pure PET. Mohammed et al. [116] synthesized biochar by heating biodegradable starch-based packaging trash (Figure 5b). In addition, to make the produced biochar more suited for dispersion and 3D printing, the obtained biochar was sonicated using ultrasounds to reduce the particle size and enhance the active surface area. The biochar was used as an adequate strengthening filler for polypropylene polymers, increasing the strength and tensile modulus by 46% and 34%, respectively, with only 0.75 wt.% loading. All these works show that biochar has good prospects for 3D printing applications.

4.3. Biochar as Adsorbent

Printing and dyeing industries are one of the factors that cause ecological damage because they discharge large amounts of dyes in their wastewater. Printing and dyeing wastewater is not only huge in quantity, but also has the problems of large amounts of residual dyes, poor biodegradability, and high alkalinity, making it difficult to treat [117]. Therefore, efficient dye removal is an urgent problem in dye wastewater remediation nowadays [31]. Among the many physical and chemical methods for dye removal, adsorption has become an effective method because of its advantages of high selectivity, low cost, and simple operation [118]. Biochar shows great potential for dye adsorption due to its large specific surface area, porous structure, abundance of surface functional groups, and low cost [119,120] (Figure 6). However, pristine biochar usually lacks excellent adsorption properties, and the use of physical or chemical modifications to improve the surface groups and porous structure of biochar can significantly increase its adsorption capacity for removing pollutants from wastewater [121,122].
Chen et al. [123] used corn stover carbon activated by K2CO3 for the decolorization of printing wastewater and investigated the adsorption of methylene blue (MB) and gentian violet (GV). In the one-component system, the equilibrium adsorption of MB was 274.84 mg·g−1, which was higher than that of GV at 266.57 mg·g−1, but in the binary system, the GV improved the adsorption of MB up to 325.15 mg·g−1 and 287.73 mg·g−1 at different GV concentrations. Huo et al. [32] prepared N-self-doped mesoporous lotus leaf biochar (LLC800) from lotus leaves to degrade dyeing and printing wastewater. The LLC800/peroxynitrite (PS) system achieved 99.46% removal of AO7 from dyeing and printing wastewater. These studies have tapped into the application potential of biochar and provided more value-added application scenarios.

5. Limitations and Future Perspectives

Biochar is a unique renewable resource with the advantages of low cost, huge reserves, and environmental friendliness, and it can also be extremely easily endowed with new properties using physical or chemical modification. Although biochar has received much attention in the printing field in recent years, its application is mainly in the laboratory, and there are still many challenges in transferring it from the laboratory scale to large-scale application. For example, although raw materials for biochar are widely available, the quality and properties of biochar vary depending on the type of feedstock and pyrolysis conditions, posing some obstacles to large-scale production and applications. For example, the quality of biochar is more difficult to control than other 3D printing materials, which makes it more difficult to produce the same product accurately and reproducibly. When used as a replacement for CB, it also poses problems for mass production because of the inconsistent quality. Therefore, the preparation of biochar must regulate its performance more precisely to further ensure that biochar possesses a more stable quality.
In addition, the pyrolysis process, which devastates the structure of the raw material of biochar, leads to poor mechanical properties of biochar, usually several times lower than traditional plastic and resin materials, making it unsuitable for high-strength applications and mostly present as an additive in 3D printing applications. Although there are some drawbacks in the application and preparation of biochar, its good economic advantages, great application potential, huge reserves, and sustainability are not negligible. If it can be reasonably applied to replace some petroleum materials, it would be a great effective strategy to solve energy and environmental problems. However, research on the application of biochar in printing is still very limited, and more extensive and detailed studies are needed to lay the theoretical foundation.

6. Conclusions

In general, with the increasing awareness of environmental protection and the urgent need for global emission reduction, the application of biochar in the printing field will become more and more promising. According to the current research trend, biochar will be more widely used, including but not limited to ink manufacturing, printing, dyeing wastewater treatment, manufacturing 3D printing materials, etc. With the continuous development of science and technology, the production technology and quality of biochar will be improved, and the application scope and practicality will be more extensive. Although, up to now, the application of biochar in the printing field is mostly in the laboratory, there are still some limitations and technical defects in the large-scale application. We hope that through the efforts of scientific researchers, more relevance will be given to the application of biochar in the printing field soon. This paper summarizes the preparation, modification, and application of biochar in the printing field, to provide readers with more references and knowledge of this field.

Author Contributions

X.L.: conceptualization, writing—original draft. J.Z.: writing—original draft. S.Z.: writing—original draft. S.L.: writing—review and editing. G.C.: conceptualization, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundations of China (No. 61973127) and the Natural Science Foundations of Guangdong Province (No. 2022A1515011416).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The authors confirm that the findings of this study are available within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, Z.; Ren, J.; Zhang, Z.; Chen, X.; Guan, G.; Qiu, L.; Zhang, Y.; Peng, H. Recent Advancement of Nanostructured Carbon for Energy Applications. Chem. Rev. 2015, 115, 5159–5223. [Google Scholar] [CrossRef] [PubMed]
  2. Soni, S.K.; Thomas, B.; Kar, V.R. A Comprehensive Review on CNTs and CNT-Reinforced Composites: Syntheses, Characteristics and Applications. Mater. Today Commun. 2020, 25, 101546. [Google Scholar] [CrossRef]
  3. Patel, S.K.S.; Jeon, M.S.; Gupta, R.K.; Jeon, Y.; Kalia, V.C.; Kim, S.C.; Cho, B.K.; Kim, D.R.; Lee, J.-K. Hierarchical Macroporous Particles for Efficient Whole-Cell Immobilization: Application in Bioconversion of Greenhouse Gases to Methanol. ACS Appl. Mater. Interfaces 2019, 11, 18968–18977. [Google Scholar] [CrossRef]
  4. Wang, Y.; Zhang, M.; Shen, X.; Wang, H.; Wang, H.; Xia, K.; Yin, Z.; Zhang, Y. Biomass-Derived Carbon Materials: Controllable Preparation and Versatile Applications. Small 2021, 17, 2008079. [Google Scholar] [CrossRef] [PubMed]
  5. Selvaraj, A.R.; Muthusamy, A.; Inho, C.; Kim, H.-J.; Senthil, K.; Prabakar, K. Ultrahigh surface area biomass derived 3D hierarchical porous carbon nanosheet electrodes for high energy density supercapacitors. Carbon 2021, 174, 463–474. [Google Scholar] [CrossRef]
  6. Sun, T.; Pei, P.; Sun, Y.; Xu, Y.; Jia, H. Performance and mechanism of As(III/V) removal from aqueous solution by novel positively charged animal-derived biochar. Sep. Purif. Technol. 2022, 290, 120836. [Google Scholar] [CrossRef]
  7. Ren, J.; Zhou, Y.; Wu, H.; Xie, F.; Xu, C.; Lin, D. Sulfur-encapsulated in heteroatom-doped hierarchical porous carbon derived from goat hair for high performance lithium–sulfur batteries. J. Energy Chem. 2019, 30, 121–131. [Google Scholar] [CrossRef]
  8. Gao, L.; Gan, W.; Qiu, Z.; Cao, G.; Zhan, X.; Qiang, T.; Li, J. Biomorphic Carbon-Doped TiO2 for Photocatalytic Gas Sensing with Continuous Detection of Persistent Volatile Organic Compounds. ACS Appl. Nano Mater. 2018, 1, 1766–1775. [Google Scholar] [CrossRef]
  9. Kamali, M.; Sweygers, N.; Al-Salem, S.; Appels, L.; Aminabhavi, T.M.; Dewil, R. Biochar for soil applications-sustainability aspects, challenges and future prospects. Chem. Eng. J. 2022, 428, 131189. [Google Scholar] [CrossRef]
  10. Yuan, J.; Wen, Y.; Dionysiou, D.D.; Sharma, V.K.; Ma, X. Biochar as a novel carbon-negative electron source and mediator: Electron exchange capacity (EEC) and environmentally persistent free radicals (EPFRs): A review. Chem. Eng. J. 2022, 429, 132313. [Google Scholar] [CrossRef]
  11. Wang, F.; Harindintwali, J.D.; Yuan, Z.; Wang, M.; Wang, F.; Li, S.; Yin, Z.; Huang, L.; Fu, Y.; Li, L.; et al. Technologies and perspectives for achieving carbon neutrality. Innovation 2021, 2, 100180. [Google Scholar] [CrossRef] [PubMed]
  12. Hu, B.; Wang, K.; Wu, L.; Yu, S.-H.; Antonietti, M.; Titirici, M.-M. Engineering Carbon Materials from the Hydrothermal Carbonization Process of Biomass. Adv. Mater. 2010, 22, 813–828. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, P.; Gong, Y.; Wei, Z.; Wang, J.; Zhang, Z.; Li, H.; Dai, S.; Wang, Y. Updating Biomass into Functional Carbon Material in Ionothermal Manner. ACS Appl. Mater. Interfaces 2014, 6, 12515–12522. [Google Scholar] [CrossRef] [PubMed]
  14. Jie, W.; Shen, L.; Xu, Y.; Hui, D.; Zhang, X. Lamellar-Structured Biomass-Derived Phosphorus- and Nitrogen-co-Doped Porous Carbon for High Performance Supercapacitors. New J. Chem. 2015, 39, 9497–9503. [Google Scholar] [CrossRef]
  15. Chen, Y.; Syed-Hassan, S.S.A.; Xiong, Z.; Li, Q.; Hu, X.; Xu, J.; Ren, Q.; Deng, Z.; Wang, X.; Su, S.; et al. Temporal and spatial evolution of biochar chemical structure during biomass pellet pyrolysis from the insights of micro-Raman spectroscopy. Fuel Process. Technol. 2021, 218, 106839. [Google Scholar] [CrossRef]
  16. Hidalgo, P.; Navia, R.; Hunter, R.; Coronado, G.; Gonzalez, M. Synthesis of carbon nanotubes using biochar as precursor material under microwave irradiation. J. Environ. Manag. 2019, 244, 83–91. [Google Scholar] [CrossRef]
  17. Chu, G.; Zhao, J.; Chen, F.; Dong, X.; Zhou, D.; Liang, N.; Wu, M.; Pan, B.; Steinberg, C.E.W. Physi-chemical and sorption properties of biochars prepared from peanut shell using thermal pyrolysis and microwave irradiation. Environ. Pollut. 2017, 227, 372–379. [Google Scholar] [CrossRef]
  18. Aubriet, F.; Ghislain, T.; Hertzog, J.; Sonnette, A.; Dufour, A.; Mauviel, G.; Carré, V. Characterization of biomass and biochar by LDI-FTICRMS—Effect of the laser wavelength and biomass material. J. Am. Soc. Mass Spectrom. 2018, 29, 1951–1962. [Google Scholar] [CrossRef]
  19. Jeong, S.-Y.; Lee, C.-W.; Lee, J.-U.; Ma, Y.-W.; Shin, B.-S. Laser-Induced Biochar Formation through 355 nm Pulsed Laser Irradiation of Wood, and Application to Eco-Friendly pH Sensors. Nanomaterials 2020, 10, 1904. [Google Scholar] [CrossRef]
  20. Kamali, M.; Appels, L.; Kwon, E.E.; Aminabhavi, T.M.; Dewil, R. Biochar in water and wastewater treatment—A sustainability assessment. Chem. Eng. J. 2021, 420, 129946. [Google Scholar] [CrossRef]
  21. Cuong, D.V.; Matsagar, B.M.; Lee, M.; Hossain, M.S.A.; Yamauchi, Y.; Vithanage, M.; Sarkar, B.; Ok, Y.S.; Wu, K.C.W.; Hou, C.-H. A critical review on biochar-based engineered hierarchical porous carbon for capacitive charge storage. Renew. Sustain. Energy Rev. 2021, 145, 111029. [Google Scholar] [CrossRef]
  22. Spanu, D.; Binda, G.; Dossi, C.; Monticelli, D. Biochar as an alternative sustainable platform for sensing applications: A review. Microchem. J. 2020, 159, 105506. [Google Scholar] [CrossRef]
  23. Sant’Anna, M.V.S.; Carvalho, S.W.M.M.; Gevaerd, A.; Silva, J.O.S.; Santos, E.; Carregosa, I.S.C.; Wisniewski, A.; Marcolino-Junior, L.H.; Bergamini, M.F.; Sussuchi, E.M. Electrochemical sensor based on biochar and reduced graphene oxide nanocomposite for carbendazim determination. Talanta 2020, 220, 121334. [Google Scholar] [CrossRef] [PubMed]
  24. Anae, J.; Ahmad, N.; Kumar, V.; Thakur, V.K.; Gutierrez, T.; Yang, X.J.; Cai, C.; Yang, Z.; Coulon, F. Recent advances in biochar engineering for soil contaminated with complex chemical mixtures: Remediation strategies and future perspectives. Sci. Total Environ. 2021, 767, 144351. [Google Scholar] [CrossRef] [PubMed]
  25. Goh, Y.; Lauro, S.; Barber, S.T.; Williams, S.A.; Trabold, T.A. Cleaner production of flexographic ink by substituting carbon black with biochar. J. Clean. Prod. 2021, 324, 129262. [Google Scholar] [CrossRef]
  26. Cancelliere, R.; Cianciaruso, M.; Carbone, K.; Micheli, L. Biochar: A Sustainable Alternative in the Development of Electrochemical Printed Platforms. Chemosensors 2022, 10, 344. [Google Scholar] [CrossRef]
  27. Pal, A.K.; Mohanty, A.K.; Misra, M. Additive manufacturing technology of polymeric materials for customized products: Recent developments and future prospective. RSC Adv. 2021, 11, 36398–36438. [Google Scholar] [CrossRef]
  28. Ertane, E.G.; Dorner-Reisel, A.; Baran, O.; Welzel, T.; Matner, V.; Svoboda, S. Processing and Wear Behaviour of 3D Printed PLA Reinforced with Biogenic Carbon. Adv. Tribol. 2018, 2018, 1763182. [Google Scholar] [CrossRef] [Green Version]
  29. Idrees, M.; Jeelani, S.; Rangari, V. Three-Dimensional-Printed Sustainable Biochar-Recycled PET Composites. ACS Sustain. Chem. Eng. 2018, 6, 13940–13948. [Google Scholar] [CrossRef]
  30. Zhang, Q.F.; Khan, M.U.; Lin, X.N.; Cai, H.Z.; Lei, H.W. Temperature varied biochar as a reinforcing filler for high-density polyethylene composites. Compos. Part B Eng. 2019, 175, 107151. [Google Scholar] [CrossRef]
  31. Sutar, S.; Patil, P.; Jadhav, J. Recent advances in biochar technology for textile dyes wastewater remediation: A review. Environ. Res. 2022, 209, 112841. [Google Scholar] [CrossRef] [PubMed]
  32. Huo, J.X.; Pang, X.H.; Wei, X.Y.; Sun, X.; Liu, H.W.; Sheng, P.F.; Zhu, M.Q.; Yang, X.F. Efficient Degradation of Printing and Dyeing Wastewater by Lotus Leaf-Based Nitrogen Self-Doped Mesoporous Biochar Activated Persulfate: Synergistic Mechanism of Adsorption and Catalysis. Catalysts 2022, 12, 1004. [Google Scholar] [CrossRef]
  33. Khan, A.A.; Gul, J.; Naqvi, S.R.; Ali, I.; Farooq, W.; Liaqat, R.; AlMohamadi, H.; Stepanec, L.; Juchelkova, D. Recent progress in microalgae-derived biochar for the treatment of textile industry wastewater. Chemosphere 2022, 306, 135565. [Google Scholar] [CrossRef] [PubMed]
  34. Zhai, S.; Li, M.; Peng, H.; Wang, D.; Fu, S. Cost-effective resource utilization for waste biomass: A simple preparation method of photo-thermal biochar cakes (BCs) toward dye wastewater treatment with solar energy. Environ. Res. 2021, 194, 110720. [Google Scholar] [CrossRef]
  35. Liu, W.J.; Jiang, H.; Yu, H.Q. Thermochemical conversion of lignin to functional materials: A review and future directions. Green Chem. 2015, 17, 4888–4907. [Google Scholar] [CrossRef]
  36. Reffas, A.; Bernardet, V.; David, B.; Reinert, L.; Lehocine, M.B.; Dubois, M.; Batisse, N.; Duclaux, L. Carbons prepared from coffee grounds by H3PO4 activation: Characterization and adsorption of methylene blue and Nylosan Red N-2RBL. J. Hazard. Mater. 2010, 175, 779–788. [Google Scholar] [CrossRef]
  37. Ren, J.; Chen, N.; Wan, L.; Li, G.; Chen, T.; Yang, F.; Sun, S. Preparation of High-Performance Activated Carbon from Coffee Grounds after Extraction of Bio-Oil. Molecules 2021, 26, 257. [Google Scholar] [CrossRef]
  38. Gan, F.; Wang, B.; Jin, Z.; Xie, L.; Dai, Z.; Zhou, T.; Jiang, X. From typical silicon-rich biomass to porous carbon-zeolite composite: A sustainable approach for efficient adsorption of CO2. Sci. Total Environ. 2021, 768, 144529. [Google Scholar] [CrossRef]
  39. Li, B.; Zhang, Y.; Xu, J.; Mei, Y.; Fan, S.; Xu, H. Effect of carbonization methods on the properties of tea waste biochars and their application in tetracycline removal from aqueous solutions. Chemosphere 2021, 267, 129283. [Google Scholar] [CrossRef]
  40. Katiyar, R.; Patel, A.K.; Nguyen, T.-B.; Singhania, R.R.; Chen, C.-W.; Dong, C.-D. Adsorption of copper (II) in aqueous solution using biochars derived from Ascophyllum nodosum seaweed. Bioresour. Technol. 2021, 328, 124829. [Google Scholar] [CrossRef]
  41. Zhu, M.; Yu, J.; Ma, C.; Zhang, C.; Wu, D.; Zhu, H. Carbonized daikon for high efficient solar steam generation. Sol. Energy Mater. Sol. Cells 2019, 191, 83–90. [Google Scholar] [CrossRef]
  42. Hao, R.; Yang, Y.; Wang, H.; Jia, B.; Ma, G.; Yu, D.; Guo, L.; Yang, S. Direct chitin conversion to N-doped amorphous carbon nanofibers for high-performing full sodium-ion batteries. Nano Energy 2018, 45, 220–228. [Google Scholar] [CrossRef]
  43. Luo, J.; Bo, S.; Qin, Y.; An, Q.; Xiao, Z.; Zhai, S. Transforming goat manure into surface-loaded cobalt/biochar as PMS activator for highly efficient ciprofloxacin degradation. Chem. Eng. J. 2020, 395, 125063. [Google Scholar] [CrossRef]
  44. Wang, J.; Wang, C.-F.; Chen, S. Amphiphilic Egg-Derived Carbon Dots: Rapid Plasma Fabrication, Pyrolysis Process, and Multicolor Printing Patterns. Angew. Chem. Int. Ed. 2012, 51, 9297–9301. [Google Scholar] [CrossRef] [PubMed]
  45. Kan, T.; Strezov, V.; Evans, T.J. Lignocellulosic biomass pyrolysis: A review of product properties and effects of pyrolysis parameters. Renew. Sustain. Energy Rev. 2016, 57, 1126–1140. [Google Scholar] [CrossRef]
  46. Lazaridis, P.A.; Fotopoulos, A.P.; Karakoulia, S.A.; Triantafyllidis, K.S. Catalytic Fast Pyrolysis of Kraft Lignin With Conventional, Mesoporous and Nanosized ZSM-5 Zeolite for the Production of Alkyl-Phenols and Aromatics. Front. Chem. 2018, 6, 295. [Google Scholar] [CrossRef] [Green Version]
  47. Zhu, X.; Luo, Z.; Guo, W.; Cai, W.; Zhu, X. Reutilization of biomass pyrolysis waste: Tailoring dual-doped biochar from refining residue of bio-oil through one-step self-assembly. J. Clean. Prod. 2022, 343, 131046. [Google Scholar] [CrossRef]
  48. Lei, L.; Pan, F.; Lindbrthen, A.; Zhang, X.; Guiver, M.D. Carbon hollow fiber membranes for a molecular sieve with precise-cutoff ultramicropores for superior hydrogen separation. Nat. Commun. 2021, 12, 268. [Google Scholar] [CrossRef]
  49. Wang, J.; Wang, S. Preparation, modification and environmental application of biochar: A review. J. Clean. Prod. 2019, 227, 1002–1022. [Google Scholar] [CrossRef]
  50. Balat, M.; Balat, M.; Kirtay, E.; Balat, H. Main routes for the thermo-conversion of biomass into fuels and chemicals. Part 1: Pyrolysis systems. Energy Convers. Manag. 2009, 50, 3147–3157. [Google Scholar] [CrossRef]
  51. Vijayaraghavan, K. Recent advancements in biochar preparation, feedstocks, modification, characterization and future applications. Environ. Technol. Rev. 2019, 8, 47–64. [Google Scholar] [CrossRef]
  52. Jahirul, M.I.; Rasul, M.G.; Chowdhury, A.A.; Ashwath, N. Biofuels Production through Biomass Pyrolysis —A Technological Review. Energies 2012, 5, 4952–5001. [Google Scholar] [CrossRef]
  53. Amutio, M.; Lopez, G.; Aguado, R.; Bilbao, J.; Olazar, M. Biomass Oxidative Flash Pyrolysis: Autothermal Operation, Yields and Product Properties. Energy Fuels 2012, 26, 1353–1362. [Google Scholar] [CrossRef]
  54. Lin, J.; Peng, Z.; Liu, Y.; Ruiz-Zepeda, F.; Ye, R.; Samuel, E.L.G.; Yacaman, M.J.; Yakobson, B.I.; Tour, J.M. Laser-induced porous graphene films from commercial polymers. Nat. Commun. 2014, 5, 5714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Zulkornain, M.F.; Shamsuddin, A.H.; Normanbhay, S.; Md Saad, J.; Zhang, Y.S.; Samsuri, S.; Wan Ab Karim Ghani, W.A. Microwave-assisted Hydrothermal Carbonization for Solid Biofuel Application: A Brief Review. Carbon Capture Sci. Technol. 2021, 1, 100014. [Google Scholar] [CrossRef]
  56. Liu, J.; Zhang, S.; Jin, C.; E, S.; Sheng, K.; Zhang, X. Effect of Swelling Pretreatment on Properties of Cellulose-Based Hydrochar. ACS Sustain. Chem. Eng. 2019, 7, 10821–10829. [Google Scholar] [CrossRef]
  57. Sun, X.; Li, Y. Colloidal Carbon Spheres and Their Core/Shell Structures with Noble-Metal Nanoparticles. Angew. Chem. Int. Ed. 2004, 43, 597–601. [Google Scholar] [CrossRef]
  58. Chen, C.; Liu, G.; An, Q.; Lin, L.; Shang, Y.; Wan, C. From wasted sludge to valuable biochar by low temperature hydrothermal carbonization treatment: Insight into the surface characteristics. J. Clean. Prod. 2020, 263, 121600. [Google Scholar] [CrossRef]
  59. Gascó, G.; Paz-Ferreiro, J.; Álvarez, M.L.; Saa, A.; Méndez, A. Biochars and hydrochars prepared by pyrolysis and hydrothermal carbonisation of pig manure. Waste Manag. 2018, 79, 395–403. [Google Scholar] [CrossRef]
  60. González-Arias, J.; Sánchez, M.E.; Cara-Jiménez, J.; Baena-Moreno, F.M.; Zhang, Z. Hydrothermal carbonization of biomass and waste: A review. Environ. Chem. Lett. 2022, 20, 211–221. [Google Scholar] [CrossRef]
  61. Akbari, M.; Oyedun, A.O.; Kumar, A. Comparative energy and techno-economic analyses of two different configurations for hydrothermal carbonization of yard waste. Bioresour. Technol. Rep. 2019, 7, 100210. [Google Scholar] [CrossRef]
  62. Sharma, R.; Jasrotia, K.; Singh, N.; Ghosh, P.; Srivastava, S.; Sharma, N.R.; Singh, J.; Kanwar, R.; Kumar, A. A Comprehensive Review on Hydrothermal Carbonization of Biomass and its Applications. Chem. Afr. 2020, 3, 1–19. [Google Scholar] [CrossRef] [Green Version]
  63. Le, T.-S.D.; Phan, H.-P.; Kwon, S.; Park, S.; Jung, Y.; Min, J.; Chun, B.J.; Yoon, H.; Ko, S.H.; Kim, S.-W.; et al. Recent Advances in Laser-Induced Graphene: Mechanism, Fabrication, Properties, and Applications in Flexible Electronics. Adv. Funct. Mater. 2022, 32, 2205158. [Google Scholar] [CrossRef]
  64. Wang, H.; Wang, H.; Wang, Y.; Su, X.; Wang, C.; Zhang, M.; Jian, M.; Xia, K.; Liang, X.; Lu, H.; et al. Laser Writing of Janus Graphene/Kevlar Textile for Intelligent Protective Clothing. ACS Nano 2020, 14, 3219–3226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Le, T.-S.D.; Park, S.; An, J.; Lee, P.S.; Kim, Y.-J. Ultrafast Laser Pulses Enable One-Step Graphene Patterning on Woods and Leaves for Green Electronics. Adv. Funct. Mater. 2019, 29, 1902771. [Google Scholar] [CrossRef]
  66. Morosawa, F.; Hayashi, S.; Terakawa, M. Femtosecond Laser-Induced Graphitization of Transparent Cellulose Nanofiber Films. ACS Sustain. Chem. Eng. 2021, 9, 2955–2961. [Google Scholar] [CrossRef]
  67. Schwenke, A.M.; Hoeppener, S.; Schubert, U.S. Synthesis and Modification of Carbon Nanomaterials utilizing Microwave Heating. Adv. Mater. 2015, 27, 4113–4141. [Google Scholar] [CrossRef]
  68. Morgan, H.M., Jr.; Bu, Q.; Liang, J.; Liu, Y.; Mao, H.; Shi, A.; Lei, H.; Ruan, R. A review of catalytic microwave pyrolysis of lignocellulosic biomass for value-added fuel and chemicals. Bioresour. Technol. 2017, 230, 112–121. [Google Scholar] [CrossRef]
  69. Zhang, Y.N.; Chen, P.; Liu, S.Y.; Peng, P.; Min, M.; Cheng, Y.L.; Anderson, E.; Zhou, N.; Fan, L.L.; Liu, C.H.; et al. Effects of feedstock characteristics on microwave-assisted pyrolysis—A review. Bioresour. Technol. 2017, 230, 143–151. [Google Scholar] [CrossRef]
  70. Selvam, S.M.; Paramasivan, B. Microwave assisted carbonization and activation of biochar for energy-environment nexus: A review. Chemosphere 2022, 286, 131631. [Google Scholar] [CrossRef]
  71. Haeldermans, T.; Claesen, J.; Maggen, J.; Carleer, R.; Yperman, J.; Adriaensens, P.; Samyn, P.; Vandamme, D.; Cuypers, A.; Vanreppelen, K.; et al. Microwave assisted and conventional pyrolysis of MDF—Characterization of the produced biochars. J. Anal. Appl. Pyrolysis 2019, 138, 218–230. [Google Scholar] [CrossRef]
  72. Kazemi Shariat Panahi, H.; Dehhaghi, M.; Ok, Y.S.; Nizami, A.-S.; Khoshnevisan, B.; Mussatto, S.I.; Aghbashlo, M.; Tabatabaei, M.; Lam, S.S. A comprehensive review of engineered biochar: Production, characteristics, and environmental applications. J. Clean. Prod. 2020, 270, 122462. [Google Scholar] [CrossRef]
  73. Wang, B.; Gao, B.; Fang, J. Recent advances in engineered biochar productions and applications. Crit. Rev. Environ. Sci. Technol. 2017, 47, 2158–2207. [Google Scholar] [CrossRef]
  74. Luo, L.; Lan, Y.; Zhang, Q.; Deng, J.; Luo, L.; Zeng, Q.; Gao, H.; Zhao, W. A review on biomass-derived activated carbon as electrode materials for energy storage supercapacitors. J. Energy Storage 2022, 55, 105839. [Google Scholar] [CrossRef]
  75. Bardestani, R.; Kaliaguine, S. Steam activation and mild air oxidation of vacuum pyrolysis biochar. Biomass Bioenergy 2018, 108, 101–112. [Google Scholar] [CrossRef]
  76. Rutherford, D.W.; Wershaw, R.L.; Rostad, C.E.; Kelly, C.N. Effect of formation conditions on biochars: Compositional and structural properties of cellulose, lignin, and pine biochars. Biomass Bioenergy 2012, 46, 693–701. [Google Scholar] [CrossRef]
  77. Rajapaksha, A.U.; Chen, S.S.; Tsang, D.C.W.; Zhang, M.; Vithanage, M.; Mandal, S.; Gao, B.; Bolan, N.S.; Ok, Y.S. Engineered/designer biochar for contaminant removal/immobilization from soil and water: Potential and implication of biochar modification. Chemosphere 2016, 148, 276–291. [Google Scholar] [CrossRef]
  78. Rajapaksha, A.U.; Vithanage, M.; Ahmad, M.; Seo, D.-C.; Cho, J.-S.; Lee, S.-E.; Lee, S.S.; Ok, Y.S. Enhanced sulfamethazine removal by steam-activated invasive plant-derived biochar. J. Hazard. Mater. 2015, 290, 43–50. [Google Scholar] [CrossRef]
  79. Rajapaksha, A.U.; Vithanage, M.; Zhang, M.; Ahmad, M.; Mohan, D.; Chang, S.X.; Ok, Y.S. Pyrolysis condition affected sulfamethazine sorption by tea waste biochars. Bioresour. Technol. 2014, 166, 303–308. [Google Scholar] [CrossRef]
  80. Xiao, F.; Bedane, A.H.; Zhao, J.X.; Mann, M.D.; Pignatello, J.J. Thermal air oxidation changes surface and adsorptive properties of black carbon (char/biochar). Sci. Total Environ. 2018, 618, 276–283. [Google Scholar] [CrossRef]
  81. Zhu, X.; Li, C.; Li, J.; Xie, B.; Lü, J.; Li, Y. Thermal treatment of biochar in the air/nitrogen atmosphere for developed mesoporosity and enhanced adsorption to tetracycline. Bioresour. Technol. 2018, 263, 475–482. [Google Scholar] [CrossRef] [PubMed]
  82. Qi, G.; Pan, Z.; Zhang, X.; Miao, X.; Xiang, W.; Gao, B. Effect of ball milling with hydrogen peroxide or ammonia hydroxide on sorption performance of volatile organic compounds by biochar from different pyrolysis temperatures. Chem. Eng. J. 2022, 450, 138027. [Google Scholar] [CrossRef]
  83. Lian, F.; Sun, B.; Song, Z.; Zhu, L.; Qi, X.; Xing, B. Physicochemical properties of herb-residue biochar and its sorption to ionizable antibiotic sulfamethoxazole. Chem. Eng. J. 2014, 248, 128–134. [Google Scholar] [CrossRef]
  84. Li, Y.; Xing, B.; Ding, Y.; Han, X.; Wang, S. A critical review of the production and advanced utilization of biochar via selective pyrolysis of lignocellulosic biomass. Bioresour. Technol. 2020, 312, 123614. [Google Scholar] [CrossRef] [PubMed]
  85. Xu, Y.; Liu, Y.; Liu, S.; Tan, X.; Zeng, G.; Zeng, W.; Ding, Y.; Cao, W.; Zheng, B. Enhanced adsorption of methylene blue by citric acid modification of biochar derived from water hyacinth (Eichornia crassipes). Environ. Sci. Pollut. Res. 2016, 23, 23606–23618. [Google Scholar] [CrossRef] [PubMed]
  86. Sun, L.; Chen, D.; Wan, S.; Yu, Z. Performance, kinetics, and equilibrium of methylene blue adsorption on biochar derived from eucalyptus saw dust modified with citric, tartaric, and acetic acids. Bioresour. Technol. 2015, 198, 300–308. [Google Scholar] [CrossRef]
  87. Tomczyk, A.; Kondracki, B.; Szewczuk-Karpisz, K. Chemical modification of biochars as a method to improve its surface properties and efficiency in removing xenobiotics from aqueous media. Chemosphere 2023, 312, 137238. [Google Scholar] [CrossRef]
  88. Khoshnood Motlagh, E.; Asasian-Kolur, N.; Sharifian, S.; Ebrahimian Pirbazari, A. Sustainable rice straw conversion into activated carbon and nano-silica using carbonization-extraction process. Biomass Bioenergy 2021, 144, 105917. [Google Scholar] [CrossRef]
  89. Murge, P.; Dinda, S.; Roy, S. Adsorbent from Rice Husk for CO2 Capture: Synthesis, Characterization, and Optimization of Parameters. Energy Fuels 2018, 32, 10786–10795. [Google Scholar] [CrossRef]
  90. Yin, Q.; Ren, H.; Wang, R.; Zhao, Z. Evaluation of nitrate and phosphate adsorption on Al-modified biochar: Influence of Al content. Sci. Total Environ. 2018, 631–632, 895–903. [Google Scholar] [CrossRef]
  91. Jung, K.-W.; Hwang, M.-J.; Jeong, T.-U.; Ahn, K.-H. A novel approach for preparation of modified-biochar derived from marine macroalgae: Dual purpose electro-modification for improvement of surface area and metal impregnation. Bioresour. Technol. 2015, 191, 342–345. [Google Scholar] [CrossRef] [PubMed]
  92. Zhao, N.; Zhao, C.; Tsang, D.C.W.; Liu, K.; Zhu, L.; Zhang, W.; Zhang, J.; Tang, Y.; Qiu, R. Microscopic mechanism about the selective adsorption of Cr(VI) from salt solution on O-rich and N-rich biochars. J. Hazard. Mater. 2021, 404, 124162. [Google Scholar] [CrossRef] [PubMed]
  93. Shan, R.; Shi, Y.; Gu, J.; Bi, J.; Yuan, H.; Luo, B.; Chen, Y. Aqueous Cr(VI) removal by biochar derived from waste mangosteen shells: Role of pyrolysis and modification on its absorption process. J. Environ. Chem. Eng. 2020, 8, 103885. [Google Scholar] [CrossRef]
  94. Chen, T.; Luo, L.; Deng, S.; Shi, G.; Zhang, S.; Zhang, Y.; Deng, O.; Wang, L.; Zhang, J.; Wei, L. Sorption of tetracycline on H3PO4 modified biochar derived from rice straw and swine manure. Bioresour. Technol. 2018, 267, 431–437. [Google Scholar] [CrossRef] [PubMed]
  95. Van Vinh, N.; Zafar, M.; Behera, S.K.; Park, H.S. Arsenic(III) removal from aqueous solution by raw and zinc-loaded pine cone biochar: Equilibrium, kinetics, and thermodynamics studies. Int. J. Environ. Sci. Technol. 2015, 12, 1283–1294. [Google Scholar] [CrossRef] [Green Version]
  96. Liu, P.; Liu, W.-J.; Jiang, H.; Chen, J.-J.; Li, W.-W.; Yu, H.-Q. Modification of bio-char derived from fast pyrolysis of biomass and its application in removal of tetracycline from aqueous solution. Bioresour. Technol. 2012, 121, 235–240. [Google Scholar] [CrossRef]
  97. Liu, D.; Zhang, W.; Huang, W. Effect of removing silica in rice husk for the preparation of activated carbon for supercapacitor applications. Chin. Chem. Lett. 2019, 30, 1315–1319. [Google Scholar] [CrossRef]
  98. Zhou, J.; Liu, S.; Zhou, N.; Fan, L.; Zhang, Y.; Peng, P.; Anderson, E.; Ding, K.; Wang, Y.; Liu, Y.; et al. Development and application of a continuous fast microwave pyrolysis system for sewage sludge utilization. Bioresour. Technol. 2018, 256, 295–301. [Google Scholar] [CrossRef]
  99. Thomas, P.; Lai, C.W.; Bin Johan, M.R. Recent developments in biomass-derived carbon as a potential sustainable material for super-capacitor-based energy storage and environmental applications. J. Anal. Appl. Pyrolysis 2019, 140, 54–85. [Google Scholar] [CrossRef]
  100. Li, Y.; Xu, R.; Wang, H.; Xu, W.; Tian, L.; Huang, J.; Liang, C.; Zhang, Y. Recent Advances of Biochar-Based Electrochemical Sensors and Biosensors. Biosensors 2022, 12, 377. [Google Scholar] [CrossRef]
  101. Saletnik, B.; Zaguła, G.; Bajcar, M.; Tarapatskyy, M.; Bobula, G.; Puchalski, C. Biochar as a Multifunctional Component of the Environment—A Review. Appl. Sci. 2019, 9, 1139. [Google Scholar] [CrossRef] [Green Version]
  102. Silva, R.M.; da Silva, A.D.; Camargo, J.R.; de Castro, B.S.; Meireles, L.M.; Silva, P.S.; Janegitz, B.C.; Silva, T.A. Carbon Nanomaterials-Based Screen-Printed Electrodes for Sensing Applications. Biosensors 2023, 13, 453. [Google Scholar] [CrossRef] [PubMed]
  103. Cancelliere, R.; Di Tinno, A.; Di Lellis, A.M.; Tedeschi, Y.; Bellucci, S.; Carbone, K.; Signori, E.; Contini, G.; Micheli, L. An inverse-designed electrochemical platform for analytical applications. Electrochem. Commun. 2020, 121, 106862. [Google Scholar] [CrossRef]
  104. Arduini, F.; Di Nardo, F.; Amine, A.; Micheli, L.; Palleschi, G.; Moscone, D. Carbon Black-Modified Screen-Printed Electrodes as Electroanalytical Tools. Electroanalysis 2012, 24, 743–751. [Google Scholar] [CrossRef]
  105. Gecol, H.; Scamehorn, J.F.; Christian, S.D.; Grady, B.P.; Riddell, F. Use of surfactants to remove water based inks from plastic films. Colloids Surf. A 2001, 189, 55–64. [Google Scholar] [CrossRef]
  106. Cancelliere, R.; Carbone, K.; Pagano, M.; Cacciotti, I.; Micheli, L. Biochar from Brewers’ Spent Grain: A Green and Low-Cost Smart Material to Modify Screen-Printed Electrodes. Biosensors 2019, 9, 139. [Google Scholar] [CrossRef]
  107. Liang, Y.; Wang, S.; Wang, Y.; He, S.; Liu, Z.; Fu, Y.; Sun, Z.; Li, M.; Wu, Z.-S.; Yu, H. Solid-state integrated micro-supercapacitor array construction with low-cost porous biochar. Mater. Chem. Front. 2021, 5, 4772–4779. [Google Scholar] [CrossRef]
  108. Zhao, S.; Zhao, Z.; Yang, Z.; Ke, L.; Kitipornchai, S.; Yang, J. Functionally graded graphene reinforced composite structures: A review. Eng. Struct. 2020, 210, 110339. [Google Scholar] [CrossRef]
  109. Compton, B.G.; Hmeidat, N.S.; Pack, R.C.; Heres, M.F.; Sangoro, J.R. Electrical and Mechanical Properties of 3D-Printed Graphene-Reinforced Epoxy. JOM 2018, 70, 292–297. [Google Scholar] [CrossRef]
  110. Vergara, L.A.; Perez, J.F.; Colorado, H.A. 3D printing of ordinary Portland cement with waste wood derived biochar obtained from gasification. Case Stud. Constr. Mater. 2023, 18, e02117. [Google Scholar] [CrossRef]
  111. Alhelal, A.; Mohammed, Z.; Jeelani, S.; Rangari, V.K. 3D printing of spent coffee ground derived biochar reinforced epoxy composites. J. Compos. Mater. 2021, 55, 3651–3660. [Google Scholar] [CrossRef]
  112. George, J.; Jung, D.; Bhattacharyya, D. Improvement of Electrical and Mechanical Properties of PLA/PBAT Composites Using Coconut Shell Biochar for Antistatic Applications. Appl. Sci. 2023, 13, 902. [Google Scholar] [CrossRef]
  113. Wei, M.; Li, Q.; Jiang, T.; Ding, H.; Wu, X.; Zhang, Y.; Wang, X. Improvement on the mechanical properties of maleic anhydride/polylactic acid composites with Pinus sylvestris-char. Mater. Today Commun. 2023, 34, 105278. [Google Scholar] [CrossRef]
  114. Mayakrishnan, V.; Mohamed, J.K.; Selvaraj, N.; SenthilKumar, D.; Annadurai, S. Effect of nano-biochar on mechanical, barrier and mulching properties of 3D printed thermoplastic polyurethane film. Polym. Bull. 2023, 80, 6725–6747. [Google Scholar] [CrossRef]
  115. Umerah, C.O.; Kodali, D.; Head, S.; Jeelani, S.; Rangari, V.K. Synthesis of carbon from waste coconutshell and their application as filler in bioplast polymer filaments for 3D printing. Compos. Part B 2020, 202, 108428. [Google Scholar] [CrossRef]
  116. Mohammed, Z.; Jeelani, S.; Rangari, V. Effective reinforcement of engineered sustainable biochar carbon for 3D printed polypropylene biocomposites. Compos. Part C Open Access 2022, 7, 100221. [Google Scholar] [CrossRef]
  117. Li, Y.; Cao, P.; Wang, S.; Xu, X. Research on the treatment mechanism of anthraquinone dye wastewater by algal-bacterial symbiotic system. Bioresour. Technol. 2022, 347, 126691. [Google Scholar] [CrossRef]
  118. Gvoic, V.; Prica, M.; Turk Sekulic, M.; Pap, S.; Paunovic, O.; Kulic Mandic, A.; Becelic-Tomin, M.; Vukelic, D.; Kerkez, D. Synergistic effect of Fenton oxidation and adsorption process in treatment of azo printing dye: DSD optimization and reaction mechanism interpretation. Environ. Technol. 2022, 12, 1–20. [Google Scholar] [CrossRef]
  119. Dai, Y.; Zhang, N.; Xing, C.; Cui, Q.; Sun, Q. The adsorption, regeneration and engineering applications of biochar for removal organic pollutants: A review. Chemosphere 2019, 223, 12–27. [Google Scholar] [CrossRef]
  120. Navarathna, C.M.; Dewage, N.B.; Karunanayake, A.G.; Farmer, E.L.; Perez, F.; Hassan, E.B.; Mlsna, T.E.; Pittman, C.U. Rhodamine B Adsorptive Removal and Photocatalytic Degradation on MIL-53-Fe MOF/Magnetic Magnetite/Biochar Composites. J. Inorg. Organomet. Polym. Mater. 2020, 30, 214–229. [Google Scholar] [CrossRef]
  121. Wang, K.; Peng, N.; Zhang, D.; Zhou, H.; Gu, J.; Huang, J.; Liu, C.; Chen, Y.; Liu, Y.; Sun, J. Efficient removal of methylene blue using Ca(OH)2 modified biochar derived from rice straw. Environ. Technol. Innov. 2023, 31, 103145. [Google Scholar] [CrossRef]
  122. Liu, S.; Shen, C.; Wang, Y.; Huang, Y.; Hu, X.; Li, B.; Karnowo; Zhou, J.; Zhang, S.; Zhang, H. Development of CO2/H2O activated biochar derived from pine pyrolysis: Application in methylene blue adsorption. J. Chem. Technol. Biotechnol. 2022, 97, 885–893. [Google Scholar] [CrossRef]
  123. Chen, Q.; Zhang, Q.; Yang, Y.; Wang, Q.; He, Y.; Dong, N. Synergetic effect on methylene blue adsorption to biochar with gentian violet in dyeing and printing wastewater under competitive adsorption mechanism. Case Stud. Therm. Eng. 2021, 26, 101099. [Google Scholar] [CrossRef]
Materials 16 05081 g001 550
Figure 1. (a) The number of publications on biochar (data from Web of Science for the period from 2013 to 2023, using “biochar” as a topic), and (b) the number of publications (data from Web of Science for the period from 2013 to 2023, using “biochar” and “print” as topics).
Figure 1. (a) The number of publications on biochar (data from Web of Science for the period from 2013 to 2023, using “biochar” as a topic), and (b) the number of publications (data from Web of Science for the period from 2013 to 2023, using “biochar” and “print” as topics).
Materials 16 05081 g001
Materials 16 05081 g002 550

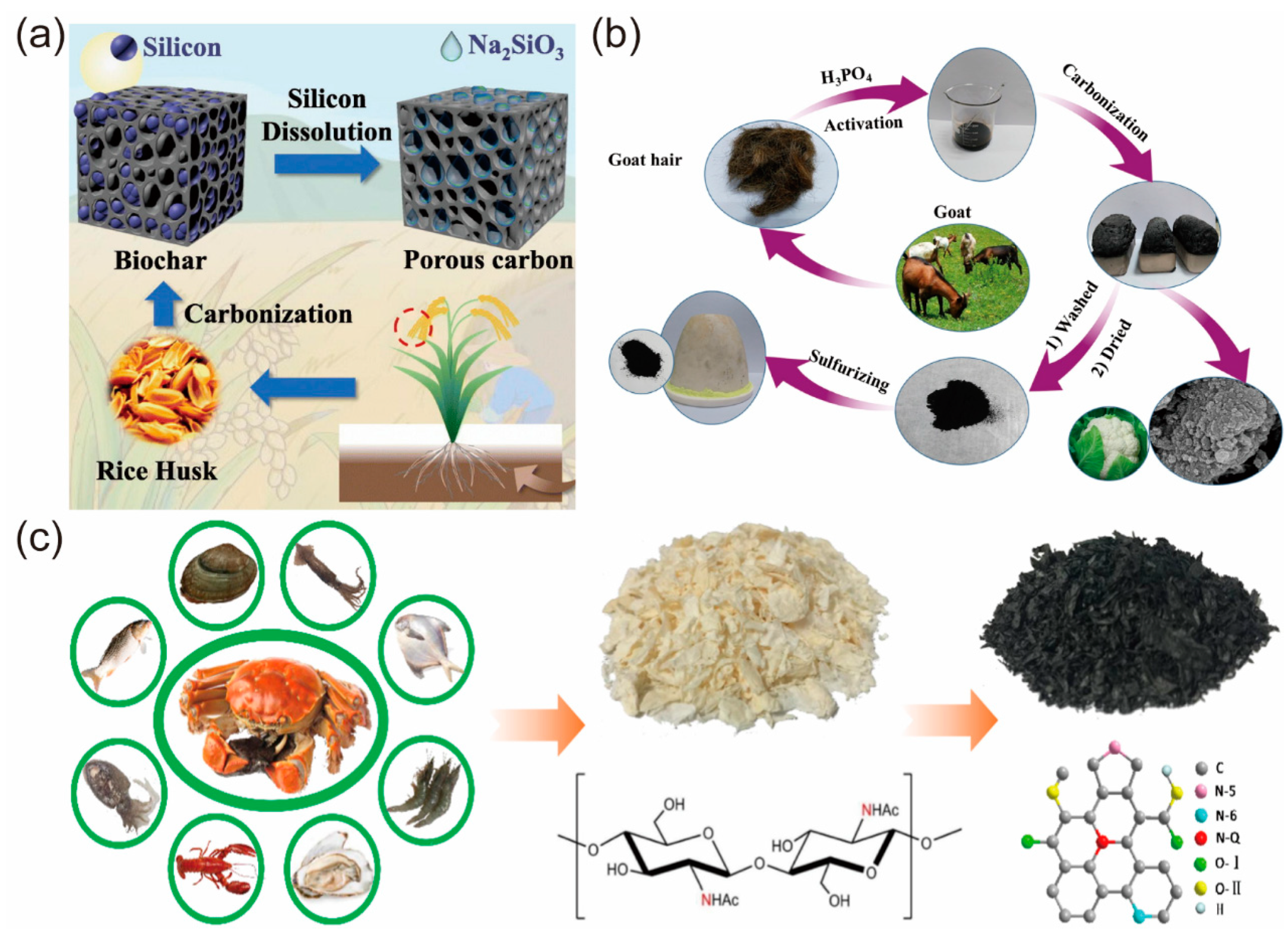

Figure 2. (a) Preparation process of rice husk carbon [38] (reproduced with permission from Fengli Gan, Total Environ.; published by Elsevier, 2021). (b) P-doped goat hair porous carbon [7] (reproduced with permission from Juan Ren, J. Energy Chem; published by Elsevier, 2019). (c) Schematic diagram of N-doped carbon from bio-waste chitin [42] (reproduced with permission from Rui Hao, Nano Energy; published by Elsevier, 2018).
Figure 2. (a) Preparation process of rice husk carbon [38] (reproduced with permission from Fengli Gan, Total Environ.; published by Elsevier, 2021). (b) P-doped goat hair porous carbon [7] (reproduced with permission from Juan Ren, J. Energy Chem; published by Elsevier, 2019). (c) Schematic diagram of N-doped carbon from bio-waste chitin [42] (reproduced with permission from Rui Hao, Nano Energy; published by Elsevier, 2018).
Materials 16 05081 g002
Materials 16 05081 g004 550

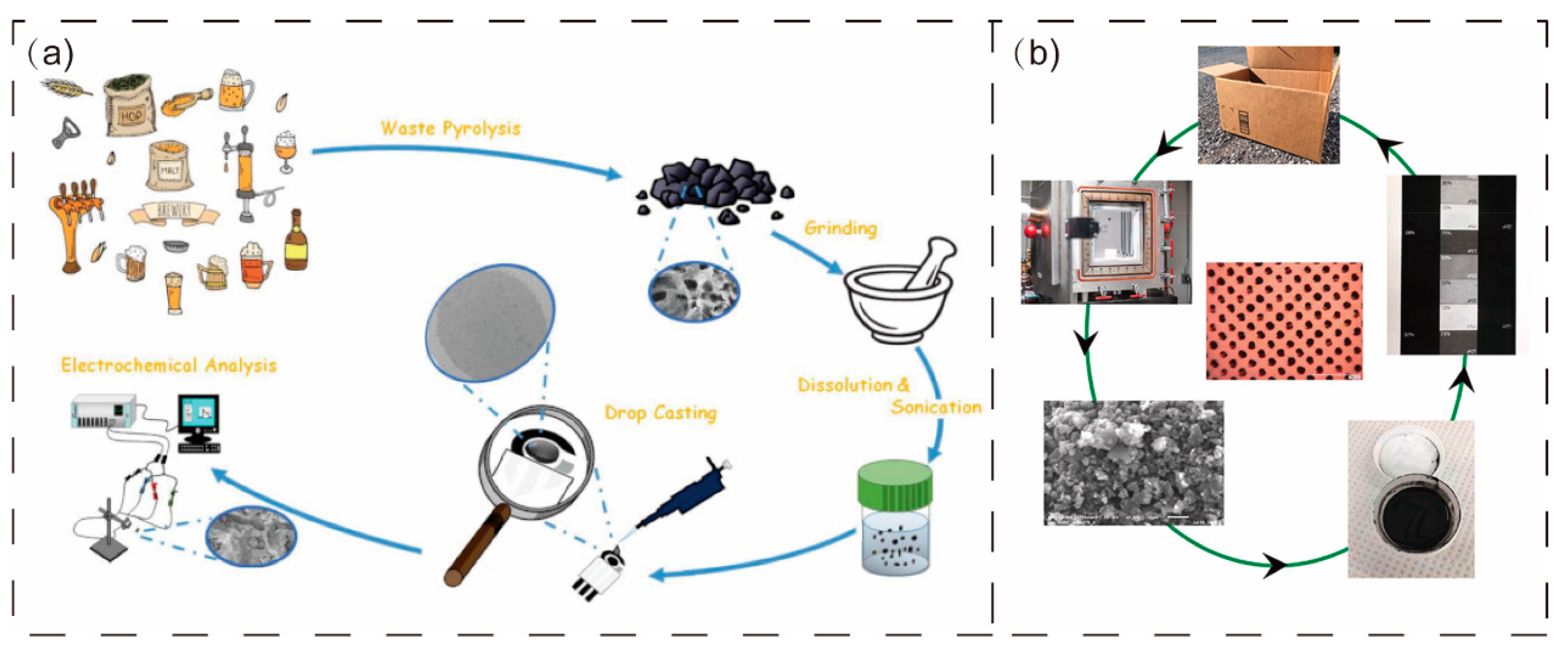

Figure 4. Brewery waste grain carbon (a) (open access; published by MDPI, 2019) and pine wood carbon (b) in printing [25,106] (reproduced with permission from Yang Goh, J. Cleaner Prod; published by Elsevier, 2021).
Figure 4. Brewery waste grain carbon (a) (open access; published by MDPI, 2019) and pine wood carbon (b) in printing [25,106] (reproduced with permission from Yang Goh, J. Cleaner Prod; published by Elsevier, 2021).
Materials 16 05081 g004
Materials 16 05081 g005 550
Figure 5. (a) Preparation process of using coconut shell carbon in 3D printing [115] (reproduced with permission from Chibu O. Umerah, Composites, Part B; published by Elsevier, 2020). (b) Starchy carbon [116] in 3D printing (open access; published by Elsevier, 2022).
Figure 5. (a) Preparation process of using coconut shell carbon in 3D printing [115] (reproduced with permission from Chibu O. Umerah, Composites, Part B; published by Elsevier, 2020). (b) Starchy carbon [116] in 3D printing (open access; published by Elsevier, 2022).
Materials 16 05081 g005
Materials 16 05081 g006 550

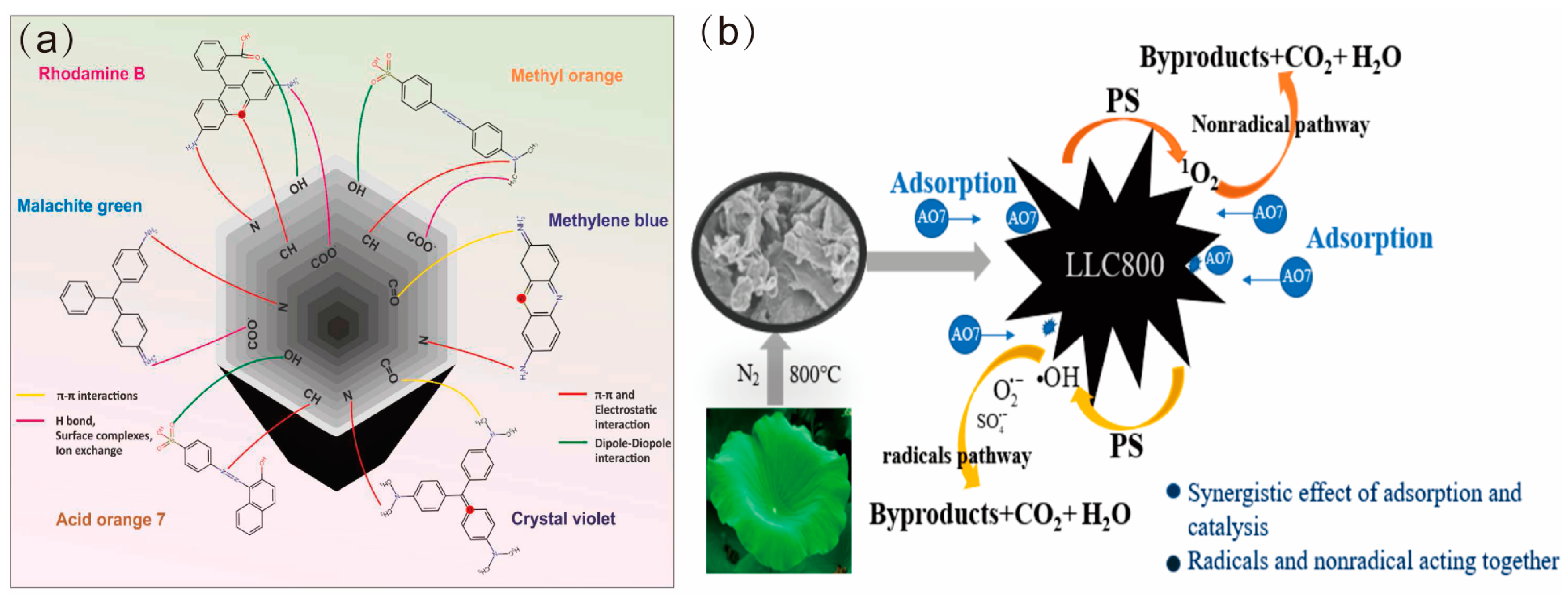

Figure 6. (a) Combination of biochar with different dyes [31] (reproduced with permission from Shubham Sutar, Environ Res; published by Elsevier, 2022). (b) Degradation of AO7 by LLC800/PS system [32] (reproduced with permission from Jiaxu Huo, Catalysts; published by MDPI, 2020).
Figure 6. (a) Combination of biochar with different dyes [31] (reproduced with permission from Shubham Sutar, Environ Res; published by Elsevier, 2022). (b) Degradation of AO7 by LLC800/PS system [32] (reproduced with permission from Jiaxu Huo, Catalysts; published by MDPI, 2020).
Materials 16 05081 g006
Table
Table 1. Advantages and disadvantages of different preparation methods.
Table 1. Advantages and disadvantages of different preparation methods.
Preparation Methods Advantages Disadvantages
Pyrolysis carbonization
  • Controllable carbonization temperature
  • Controllable heating rate
  • Controllable gas atmosphere
  • High energy consumption
  • Long reaction process
Hydrothermal carbonization
  • Without pre-drying process
  • Low reaction temperatures
  • Mild reaction conditions
  • Low energy consumption
  • Low graphitization degree
  • Long reaction process
Laser-induced carbonization
  • High porosity
  • Superior electrical conductivity
  • Controllable performance
  • Fast reaction process
  • Surface carbonization
  • Localized carbonization
  • Mostly performed in the laboratory
Microwave-assisted carbonization
  • Fast reaction process
  • Energy-efficient
  • Difficult to control reaction temperature
  • Poor reproducibility
Table
Table 3. Various raw materials and chemical modification methods.
Table 3. Various raw materials and chemical modification methods.
Raw MaterialsModification MethodsHeating Temperature (°C)Surface Area (m2·g−1)Pore Volume (cm3·g−1)ApplicationReference
Rice strawHCl700–1000 23561.61-[88]
Rice HuskKOH700403.00.35CO2 Capture[89]
Poplar chipsAlCl3550418.140.413Adsorb NO3− and PO43−[90]
MacroalgaeH2SO4 and NaOH45045.4630.0318Adsorb phosphate [91]
Waste poplar leavesUrea650--Adsorb Cr(VI)[92]
Mangosteen shellsHCl, KOH and ZnCl2350, 7001836.461.058Adsorb Cr(VI)[93]
Swine manureH3PO4700 372.210.23Adsorb tetracycline[94]
PineconeZn(NO3)2·6H2O500 11.540.028Remove Arsenic(III) [95]
BiocharH2SO4/KOH60 °C stirrer117.80.073Remove tetracycline[96]
Rice huskKOH500 3263-Supercapacitor[97]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, X.; Zeng, J.; Zuo, S.; Lin, S.; Chen, G. Preparation, Modification, and Application of Biochar in the Printing Field: A Review. Materials 2023, 16, 5081. https://doi.org/10.3390/ma16145081

AMA Style

Li X, Zeng J, Zuo S, Lin S, Chen G. Preparation, Modification, and Application of Biochar in the Printing Field: A Review. Materials. 2023; 16(14):5081. https://doi.org/10.3390/ma16145081

Chicago/Turabian Style

Li, Xin, Jinyu Zeng, Shuai Zuo, Saiting Lin, and Guangxue Chen. 2023. "Preparation, Modification, and Application of Biochar in the Printing Field: A Review" Materials 16, no. 14: 5081. https://doi.org/10.3390/ma16145081

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
