W-doped Lanthanum Molybdenum Oxide/Lithium-Sodium-Potassium Carbonate Composite Membranes for Carbon Dioxide Permeation

by
Midilane S. Medina
1,
Sabrina G. M. Carvalho
1,
Francisco N. Tabuti
2,
Eliana N. S. Muccillo
1,
Fábio C. Fonseca
2 and
Reginaldo Muccillo
1,*
1
Center of Science and Technology of Materials, Energy and Nuclear Research Institute, Sao Paulo 05508-000, Brazil
2
Center of Fuel Cells and Hydrogen, Energy and Nuclear Research Institute, Sao Paulo 05508-000, Brazil
*
Author to whom correspondence should be addressed.
Materials 2023, 16(14), 5128; https://doi.org/10.3390/ma16145128
Submission received: 28 June 2023 / Revised: 17 July 2023 / Accepted: 18 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue The 15th Anniversary of Materials—Recent Progresses in Advanced and Functional Ceramics and Glasses)
Browse Figures
Versions Notes

Abstract

:
Single-phase tungsten-doped lanthanum molybdenum oxide (La2MoWO9) ceramic powders were synthesized using the complex polymerization technique. Porous ceramic pellets were obtained by thermally removing graphite, which served as a pore former. The porous pellets were then impregnated with molten eutectic lithium-sodium-potassium carbonates. The energy dispersive X-ray analysis and scanning electron microscopy (FEG-SEM) images of the external and fracture surfaces of the La2MoWO9-(Li,Na,K)2CO3 composite dual-phase membrane revealed the percolation of the carbonate mixture through the pores. Electrochemical impedance spectroscopy measurements conducted at temperatures below and above the melting point of the eutectic carbonate composition demonstrated the contributions of oxygen and carbonate ions to the ionic conductivity of the dual membrane. The electrical conductivity of the carbonate ions within the membrane was continuously monitored for over 1300 h with negligible degradation, implying that the membrane could be used for long-term monitoring of CO2 without aging effects. A comparison of FEG-SEM images taken before and after this endurance test suggested minimal fouling, indicating that the membrane could potentially replace similar zirconia- and ceria-based composite membranes.

1. Introduction

Lanthanum molybdate oxide (La2Mo2O9−δ) is a fast oxide ion conductor that exhibits a first-order reversible α-β phase transition. This transition occurs at 580 °C, causing the crystalline structure to change from monoclinic to cubic. The α-phase has a highly complex crystalline structure, with 312 crystallographically independent atoms, numerous X-ray diffraction reflections, lower symmetry, and indications of a superstructure [1]. The β-phase crystalline structure is indexed based on β-SnWO4, with a lattice parameter of a = 7.2014(7) Å. One key difference between these two structures is the arrangement of the oxygen atoms: β-SnWO4 has two fully occupied oxygen sites, while La2Mo2O9−δ has three oxygen sites, with only one fully occupied and two partially occupied. The α–β phase transition leads to an increase in oxygen ion conductivity of approximately two orders of magnitude [2]. Specimens synthesized by the polymeric precursor method are phase-transition-dependent on the powder’s average particle size and ionic-conductivity-dependent on the sintering conditions [3]. However, the change in the crystalline structure adversely affects the mechanical properties and thermal stability [4]. Moreover, La2Mo2O9−δ is thermodynamically unstable at low oxygen partial pressures (pO2) due to the reducibility of Mo6+, resulting in the formation of phases with partial n-type conductivity and amorphization [4,5]. To address these issues, several studies have focused on cation substitutions (W [6,7,8,9,10,11], Nd [6], Ca [12], Ba [12,13], Sr [12,14], Y [15], Cr [7,14]) for La or Mo (LAMOX family). These substitutions aim to inhibit the phase transition, stabilize the β-phase, and improve the thermomechanical stability [16]. Substituting tungsten for molybdenum has been identified as an effective strategy to stabilize the cubic phase of La2Mo2O9−δ at room temperature while preserving its ionic conductivity [8]. In addition to stabilizing the β-phase at room temperature, the La2Mo2−yWyO9−δ series also exhibits enhanced chemical stability under low pO2, resulting in a reduction in the formation of phases with n-type conduction as the W content increases. Although substitutions at both the La and Mo sites lead to a decrease in the ionic conductivity due to long-range vacancy ordering, the substitution of Mo for W [8] results in a structurally and chemically stable W-LAMOX compound that is suitable for various applications.
Nowadays, human activities have significant negative impacts on ecosystems due to the extensive emission of greenhouse gases. Among these gases, carbon dioxide (CO2) has emerged as a major global environmental concern due to its substantial release from industrial activities and the combustion of fossil fuels. To address this issue, various approaches are being pursued to develop new technologies for selective CO2 separation or storage.
Several types of porous membranes utilizing polymers [17], silica [18], and zeolites [19] have been tested for CO2 separation, but their use is limited by the low operating temperatures (up to 300 °C) required [20]. A dual-phase composite membrane that combines a stainless-steel porous support with a eutectic mixture of molten carbonates, exhibiting high permeation in the temperature range of 450–650 °C, has been proposed [21]. However, at temperatures exceeding 650 °C, low-conductivity phases are formed at the metal surface, inhibiting CO2 permeation. Additionally, achieving pure CO2 separation requires an additional step to remove oxygen (O2) from the CO2 permeate, making the process expensive. To overcome these challenges, the use of porous supports based on ionic conducting ceramics or mixed-conducting ceramics has been proposed [22]. Dual-phase composite ceramic membranes are considered a promising option for achieving efficient and cost-effective CO2 separation.
In a dual-phase membrane, a porous solid electrolyte ceramic support is filled with a eutectic mixture of binary or ternary alkali carbonates. Selective CO2 separation occurs through the transport of carbonate ions in the carbonate phase and oxygen ions in the ceramic phase. The performance of CO2 permeation is limited by the oxygen ion conductivity of the solid electrolyte [23]. Therefore, optimizing the operation of these membranes relies on achieving high ionic conductivity in the solid electrolyte at the melting point of the carbonate phase.
In addition to high ionic conductivity, an ideal dual-phase membrane for CO2 separation should possess properties such as thermal and chemical stability, as well as CO2 selectivity and permeability. Various compounds, including doped lanthanum strontium cobaltite [24] and ceria-based [25,26] compounds, have been proposed to meet these requirements. However, some of these compounds encounter issues with structural phase transformations due to the reaction between CO2 and the ceramic phase [21]. Therefore, enhancing the oxygen conductivity of ceramics and discovering new compounds have been the focus of numerous research studies.
In this context, W-LAMOX has emerged as a promising candidate for use as a porous ceramic support due to its desirable characteristics. Despite the decrease in ionic conductivity resulting from the substitution of W for Mo [9], the achieved structural and chemical stability make W-LAMOX suitable for carbonate dual-phase membranes used in CO2 separation, considering that this application necessitates chemically and thermally stable ceramics with high oxygen ion conductivity.
This work describes the synthesis, structural characterization, and electrical properties of W-doped lanthanum molybdenum oxide (W-LAMOX), as well as dual-phase W-LAMOX/(Li-Na-K)2CO3 membranes. Furthermore, the long-term stability of carbon dioxide ion conduction at the melting point of the eutectic lithium-sodium-potassium carbonate is investigated.

2. Materials and Methods

2.1. W-LAMOX Synthesis; Membrane Preparation

W-doped lanthanum molybdenum oxide (La2MoWO9, hereafter W-LAMOX) was synthesized using the complex polymerization method. The following chemicals were used: molybdenum (VI) oxide (MoO3 99%, Sigma Aldrich, St. Louis, MO, USA), tungsten (VI) oxide (WO3 99.8%, Sigma Aldrich), lanthanum (III) nitrate hexahydrate (La(NO3)3·6H2O 99.999%, Sigma Aldrich), citric acid (C6H8O7 99.5%, Synth, Colorado Springs, CO, USA), ethylene glycol (C2H4(OH)2, Vetec, Speyer am Rhein, Germany), hydrogen peroxide (H2O2 30%, Nalgon, Golden Lake, ON, Canada), and ammonium hydroxide (NH4OH 28%, CRQ, Carlsbad, CA, USA).
The synthesis process involved several steps: (1) dissolution of stoichiometric amounts of MoO3 and WO3 in separate solutions of H2O2 and NH4O4 (5 vol.%) at room temperature (for MoO3) and at 200 °C (for WO3); (2) dissolution of La(NO3)3·6H2O in distilled water at room temperature; and (3) mixing the metal precursor solutions with a solution of citric acid at room temperature. The citric acid/metals molar ratio was fixed at 2:1; (4) stirring the mixture and increasing the temperature to 100 °C; (5) the addition of ethylene glycol to promote citrate polymerization, with a 60:40 citric acid/ethylene glycol mass ratio; (6) continuous stirring at 100 °C until the solution turned into a gel; and (7) heating the gel at a rate of 5 °C/min for precalcination at 200 °C for 2 h and calcination at 550 °C for 4 h.
Dense W-LAMOX pellets with a cylindrical shape (14 mm diameter and 3 mm thickness) were obtained by uniaxial cold pressing at 70 MPa (Skay, São Paulo, Brazil), followed by isostatic pressing at 200 MPa (National Forge Co., Irvine, PA, USA) in vacuum-sealed plastic bags. The pellets were then sintered at 1050 °C for 2 h. Porous W-LAMOX was obtained by incorporating ~10 wt.% graphite (Micrograf, 99507 grade, Nacional de Grafite, Itapecerica, Brazil) as a sacrificial pore former. The mixture was cold pressed, and the green pellets were sintered at ~800 °C for 2 h to remove the graphite, followed by sintering at 1000 °C with heating and cooling rates of 5 °C/min. The resulting porous W-LAMOX was impregnated with a eutectic mixture of lithium carbonate (Li2CO3), sodium carbonate (Na2CO3), and potassium carbonate (K2CO3) in a molar ratio of 43.5:31.5:25.0 (hereafter, LNKC). The impregnation process involved placing an LNKC pellet on top of the porous W-LAMOX, heating it to 500 °C at a rate of 5 °C/min, and maintaining that temperature for 1 h. After cooling, any residual carbonates were removed from the W-LAMOX surfaces. The skeletal density of the sintered porous W-LAMOX was determined using the Archimedes method in a Mettler Toledo AG245 analytical balance (Columbus, OH, USA).

2.2. Thermal, Structural, and Electrical Analyses

DTATG experiments were performed in a W-LAMOX/graphite mixture with STA 409E equipment (Netzsch, Selb, Germany) from room temperature to 1000 °C at a rate of 5 °C/min under flowing synthetic air at 10 L min−1.
X-ray diffraction data from the W-LAMOX samples (powder and pellets) were collected in a D8 Advance diffractometer (Bruker-AXS, Karlsruhe, Germany) with a θ-θ Bragg-Brentano configuration and 40 kV-40 mA Cu-kα radiation in the 20°–80° 2θ range with a 0.05° step size and 3 s per step.
The images of the surfaces of the porous W-LAMOX were observed before and after impregnation with LNKC with a scanning electron microscope (FEG-SEM Inspect F50, FEI, Brno, Czech Republic). Energy dispersive X-ray spectroscopy (EDX) analyses were performed at both parallel and fracture surfaces of the impregnated samples to evaluate the permeation of the carbonate phase through the pores and its presence in the bulk of the samples.
The electrical conductivity of both porous and LNKC-impregnated W-LAMOX was evaluated with an impedance analyzer (HP 4192A, Yokogawa-Hewlett Packard, Tokyo, Japan) connected to a desktop workstation (series 360 HP Controller) from 300 °C to 650 °C, using thin gold disks as electrodes; [−Z″(ω) × Z′(ω)] data (Z″ and Z′ are the imaginary and the real components of the electrical impedance, respectively; ω = 2πf, f is the frequency of the applied bias) were collected in the 5 Hz–13 MHz frequency range with 20 points per decade, under a 200 mV input signal, with special software [27]. For the measurements, the sample was spring-loaded in a homemade alumina sample chamber with 1 m platinum leads connected to the impedance analyzer using the HP16047C test fixture; the temperature was monitored with a type K (chromel-alumel) thermocouple with its sensing tip positioned close to the sample. For long-term electrical conductivity tests, approximately 100 impedance spectroscopy diagrams were collected over >1300 h in an impregnated sample in the sample chamber inside a Lindberg-Blue M (Lindberg, Watertown, NY, USA) furnace kept at 480 °C.

3. Results and Discussion

3.1. Dense W-LAMOX

The room temperature X-ray diffraction pattern of the W-LAMOX powder is depicted in Figure 1. La2Mo2O9−δ undergoes a phase transition from the monoclinic α-phase to the cubic β-phase at 580 °C, which is characterized by a split in the (321) reflection at 2θ = 47.632° [28]. The absence of this split indicates the stabilization of the high-temperature conducting cubic phase. The Bragg reflections observed in the diffractogram shown in Figure 1 are consistent with the ICSD 172611 file, which has a lattice parameter of 7.142 Å, as determined using GSAS/EXPGUI software [29]. This agrees with the data reported for the cubic phase [8,16].
Figure 2 shows impedance spectroscopy diagrams at various temperatures within the range of 400–650 °C. The diagrams consist of one semicircle in the high-frequency region and a spike at lower frequencies for temperatures higher than 400 °C. The semicircle is due to the contributions of the resistivity of the bulk (grains) and interfaces (mainly grain boundaries). The spike represents the resistivity due to the interaction of the charge carriers (oxygen ions) with the gold electrodes [30]. Additionally, Figure 3 displays a plot of the total electrical resistivity as a function of the reciprocal of the absolute temperature. The electrical resistivity values were determined at the intersection of the semicircles with the real axis in the low-frequency region of the [−Z″(ω) × Z′(ω)] impedance diagram. At approximately 400 °C, the compositions of the LAMOX family show modification of the ionic conductivity behavior, from the Arrhenius to the Vogel–Tamman–Fulcher (VTF) type [8]. The activation energy of 0.77 eV reported for the ionic conductivity is close to reported values for W-LAMOX [8].

3.2. Porous W-LAMOX

The skeletal density of the sintered porous W-LAMOX, determined using the Archimedes method in a Mettler Toledo AG245 analytical balance (Columbus, OH, USA), was approximately 60% of the theoretical density [8].
Figure 4 illustrates the results of the DTATG analysis performed from room temperature to 1100 °C on a mixture of W-LAMOX with 10% graphite.
The DTATG curves exhibit the thermal decomposition behavior of the mixture, revealing an exothermic peak at around 720 °C, accompanied by an approximately 8% weight loss, attributed mostly to the thermal removal of graphite. Beyond 800 °C, the weight loss becomes negligible, indicating the absence of residual graphite in the composite. Consequently, a temperature of 800 °C was applied to eliminate graphite and obtain porous samples.
Figure 5a displays a scanning electron microscopy (SEM) micrograph depicting a typical surface of a W-LAMOX pellet that was sintered with 10 wt.% graphite. Figure 5b illustrates the pore size distribution, which was analyzed using ImageJ software [31]. The sample exhibits consistent and uniformly distributed pore sizes, with an average pore size of approximately 0.21 µm. The opposite parallel surface and fracture surfaces of these ceramic pellets exhibit similar pore structures.

3.3. W-LAMOX/(Li,Na,K)2CO3 Composite Membrane

Figure 6 shows the diffraction pattern of the W-LAMOX/(Li,Na,K)2CO3 composite membrane. Upon comparison with the X-ray diffraction pattern of W-LAMOX, no significant changes were observed in the Bragg reflections. This suggests that there were no apparent reactions between W-LAMOX and molten LNKC. However, the presence of certain peaks marked with asterisks in the diffractogram, attributed to LNKC, indicate its presence in the composite membrane.
Figure 7 exhibits scanning electron microscopy (SEM) micrographs and energy-dispersive X-ray spectroscopy (EDX) plots obtained from data collected from both surfaces of the composite membrane. Specifically, these images and plots capture the porous structure of the W-LAMOX pellet following thermal infiltration with the (Li,Na,K)2CO3 eutectic composition.
The images reveal that the composite membrane features a dense, solid electrolyte matrix, partially covered by carbonates. The matrix effectively fills the entire porous network. EDX analyses provided evidence that sodium (Na) and potassium (K) are present on both surfaces, indicating that molten LNKC successfully permeated the interconnected porous structure during the impregnation procedure. This suggests thorough infiltration of the composite membrane by the molten LNKC electrolyte.
Figure 8 shows the impedance spectroscopy diagrams of the porous W-LAMOX (left) and W-LAMOX/LNKC (right) samples, measured at 350 °C (top) and 500 °C (bottom). At 350 °C, both samples exhibit apparently single-arc impedance diagrams without clear differentiation between the electrical resistivity contributions of grain and interfaces (mainly grain boundaries). Moreover, the total electrical resistivity of W-LAMOX/LNKC is approximately one order of magnitude lower than that of porous W-LAMOX, indicating that filling the pores with LNKC leads to an enhancement of the total conductivity of the W-LAMOX/LNKC composite. At 500 °C, the impedance diagram of the porous matrix remains a single arc, while the diagram of W-LAMOX/LNKC changes its shape due to the contribution of the inductance of the coaxial cables [32] and exhibits enhanced conductivity above the melting temperature of LNKC (396 °C) [33]. This indicates that the conductivity at this temperature is improved by the contribution of the carbon dioxide ion conductivity of the molten LNKC second phase within the porous structure of the composite membrane.
In the LNKC-impregnated porous matrix, the Arrhenius plot displays three distinct regions: (1) for temperatures below approximately 370 °C, the electrical conductivity exhibited linear behavior with an activation energy of 0.77 eV, which is close to previously reported values for W-LAMOX. The conductivity in this temperature range is attributed to thermally activated oxygen ion conductivity [1,2]. (2) In the subsequent region, the electrical conductivity demonstrated a significant increase, primarily driven by the contribution of carbon dioxide ions, resulting from the onset of LNKC melting [34]. (3) At temperatures exceeding 400 °C, the linear behavior resumed due to the dominant contribution of electrical conductivity from carbon dioxide ions in the molten state of the LNKC. This region exhibited a typical activation energy of 0.19 eV, representative of the electrical conductivity behavior observed [35,36,37].
Figure 9 presents the electrical resistance values of W-LAMOX/LNKC ceramic membranes plotted as a function of the time that the membrane was kept inside the sample chamber of the furnace at 480 °C. The measurements were taken at two frequencies: one at the region containing the bulk contribution (300 kHz) and the other containing the electrode contribution (10 Hz). The bulk resistance remained constant, indicating that the membrane did not undergo any degradation. However, the interface resistance showed an increase over time, likely attributed to the oxidation of the electrodes. It is important to note that these measurements were conducted in an air environment.
Impedance spectroscopy measurements were conducted on the W-LAMOX/LNKC dual-phase composite membranes, both before and after a long-term annealing period of approximately 1300 h at 480 °C. The measurements were performed at various temperatures, including those below and above the melting point of the carbonate phase. Figure 10 displays a selection of impedance spectroscopy diagrams obtained from these measurements.
A noteworthy observation in the impedance spectroscopy measurements is the increase in the electrical resistivity of approximately one order of magnitude. This increase is attributed to the partial oxidation of the electrodes at the interface between the electrodes and the specimen. The impact of this oxidation is evident in the Arrhenius plots of the electrical resistivity, as depicted in Figure 11. The temperature of 400 °C, near the melting point of LNKC, is signaled.
The surface of the W-LAMOX/LNKC ceramic membrane was examined using a scanning electron microscope before and after the long-term electrical measurements at 480 °C. Figure 12a displays the corresponding image, while Figure 12b presents the results of the EDX analysis.
Based on the image and the EDX elemental analysis, it is evident that the carbonates remained present in the sample of the W-LAMOX/LNKC ceramic membrane. The EDX analysis confirmed the detection of sodium and potassium elements, indicating their presence in the composite. However, it is important to note that lithium was not detected by the EDX technique in this analysis.

4. Conclusions

Lanthanum molybdenum oxide doped with tungsten (La2MoWO9, W-LAMOX) ceramic powder was successfully synthesized by the complex polymerization method. Porous W-LAMOX ceramic pellets were prepared by the thermal removal of graphite powder, which was added as sacrificial pore former. Molten eutectic compositions of lithium, sodium, and potassium carbonates were impregnated in the porous pellets. The electrical resistivity and the surfaces of both porous and impregnated samples were analyzed by the impedance spectroscopy and scanning electron microscopy (SEM) techniques, respectively. The SEM analyses showed that the carbonate phase percolated through the bulk of the pellets. Analysis of the carbon dioxide ion resistivity in the molten state for more than 1300 h showed negligible degradation, providing evidence of the chemical resistance of W-LAMOX to the molten carbonates. W-LAMOX is thus proposed as a solid electrolyte matrix for ceramic membranes for application either in carbon dioxide capture or as a carbon dioxide sensor.

Author Contributions

Conceptualization, R.M.; Formal analysis, S.G.M.C., E.N.S.M. and F.C.F.; Investigation, M.S.M., S.G.M.C., F.N.T. and F.C.F.; Methodology, E.N.S.M. and R.M.; Supervision, R.M.; Validation, F.C.F.; Writing—original draft, E.N.S.M., F.C.F. and R.M.; Writing—review & editing, R.M. and E.N.S.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Proc. Intercentros 2020.06.IPEN.01, CINE-SHELL (ANP) (FAPESP Proc. 2017/11937-4), CDMF-CEPID (FAPESP Proc. 2013/07296-2), and CNPq (Procs. 402966/2021-0, 302357/2018-1, 305889/2018-4, 305620/2019-3).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

M.S. Medina and S.G.M. Carvalho acknowledge IPEN and CINE-Shell, respectively, for their post-doctoral fellowships.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Goutenoire, F.; Isnard, O.; Retoux, R.; Lacorre, P. Crystal structure of La2Mo2O9, a new fast oxide-ion conductor. Chem. Mater. 2000, 12, 2575–2580. [Google Scholar] [CrossRef]
  2. Lacorre, P.; Goutenoire, F.; Bohnke, O.; Retoux, R.; Laligant, Y. Designing fast oxide-ion conductors based on La2Mo2O9. Nature 2000, 404, 856–858. [Google Scholar] [CrossRef] [PubMed]
  3. Rocha, R.A.; Muccillo, E.N.S. Influence of sintering on electrical properties and phase transition of La2Mo2O9. Mater. Sci. Forum 2006, 530–531, 520–525. [Google Scholar] [CrossRef]
  4. Marrero-López, D.; Ruiz-Morales, J.C.; Perez-Coll, D.; Núñez, P.; Abrantes, J.C.C.; Frade, J.R. Stability and transport properties of La2Mo2O9. J. Solid State Electrochem. 2004, 8, 638–643. [Google Scholar] [CrossRef]
  5. Marozau, I.P.; Marrero-Lopez, D.; Shaula, A.L.; Kharton, V.V.; Tsipis, E.V.; Nunez, P.; Frade, J.R. Ionic and electronic transport in stabilized β-La2Mo2O9 electrolytes. Electrochim. Acta 2004, 49, 3517–3524. [Google Scholar] [CrossRef]
  6. Marrero-López, D.; Canales-Vázquez, J.; Zhou, W.; Irvine, J.T.; Núñez, P. Structural studies on W6+ and Nd3+ substituted La2Mo2O9 materials. J. Solid State Chem. 2006, 179, 278–288. [Google Scholar] [CrossRef]
  7. Corbel, G.; Laligant, Y.; Goutenoire, F.; Suard, E.; Lacorre, P. Effects of partial substitution of Mo6+ by Cr6+ and W6+ on the crystal structure of the fast oxide-ion conductor structural effects of W6+. Chem. Mater. 2005, 17, 4678–4684. [Google Scholar] [CrossRef]
  8. Paul, T.; Tsur, Y. Influence of isovalent ‘W’ substitutions on the structure and electrical properties of La2Mo2O9 electrolyte for intermediate-temperature solid oxide fuel cells. Ceramics 2021, 4, 502–515. [Google Scholar] [CrossRef]
  9. Marrero-Lopez, D.; Canales-Vazquez, J.; Ruiz-Morales, J.C.; Irvine, J.T.; Nunez, P. Electrical conductivity and redox stability of La2Mo2−xWxO9 materials. Electrochim. Acta 2005, 50, 4385–4395. [Google Scholar] [CrossRef]
  10. Georges, S.; Bohnké, O.; Goutenoire, F.; Laligant, Y.; Fouletier, J.; Lacorre, P. Effects of tungsten substitution on the transport properties and mechanism of fast oxide-ion conduction in La2Mo2O9. Solid State Ion. 2006, 177, 1715–1720. [Google Scholar] [CrossRef]
  11. Pinet, P.; Fouletier, J.; Georges, S. Conductivity of reduced La2Mo2O9 based oxides: The effect of tungsten substitution. Mater. Res. Bull. 2007, 42, 935–942. [Google Scholar] [CrossRef]
  12. Subasri, R.; Matusch, D.; Näfe, H.; Aldinger, F. Synthesis and characterization of (La1−xMx)2Mo2O9−δ; M = Ca2+, Sr2+ or Ba2+. J. Eur. Ceram. Soc. 2004, 24, 129–137. [Google Scholar] [CrossRef]
  13. He, T.; Huang, Y.; He, Q.; Ji, Y.; Pei, L.; Liu, J.; Lu, Z. The effects on the structures and properties in the oxide-ion conductor La2Mo2O9 by partial substituting Ba for La. J. Alloys Compnd. 2005, 388, 145–152. [Google Scholar] [CrossRef]
  14. Yoo, K.S.; Jacobson, A.J. Effects of Sr and Cr doping on properties of La2Mo2O9 electrolytes. J. Mater Sci. 2005, 40, 4431–4434. [Google Scholar] [CrossRef]
  15. Paul, T.; Ghosh, A. Correlation between structure and oxygen ion dynamics in Y substituted La2Mo2O9 ionic conductors. AIP Adv. 2016, 6, 095015. [Google Scholar] [CrossRef]
  16. Corbel, G.; Suard, E.; Lacorre, P. Structural key of the thermal expansion and the oxide ionic conduction in derivatives of La2Mo2O9: A temperature-controlled neutron diffraction study of β-La1.7Bi0.3Mo2O9. Chem. Mater. 2011, 23, 1288–1298. [Google Scholar] [CrossRef]
  17. Du, N.; Park, H.B.; Robertson, G.P.; Dal-Cin, M.M.; Visser, T.; Scoles, L.; Guiver, M.D. Polymer nanosieve membranes for CO2-capture applications. Nat. Mater. 2011, 10, 372–375. [Google Scholar] [PubMed]
  18. Asaeda, M.; Yamasaki, S. Separation of inorganic/organic gas mixtures by porous silica membranes. Sep. Purif. Technol. 2001, 25, 151–159. [Google Scholar] [CrossRef]
  19. Kusakabe, K.; Kuroda, T.; Morooka, S. Separation of carbon dioxide from nitrogen using ion-exchanged faujasite-type zeolite membranes formed on porous support tubes. J. Membr. Sci. 1998, 148, 13–23. [Google Scholar] [CrossRef]
  20. Yang, H.; Xu, Z.; Fan, M.; Gupta, R.; Slimane, R.B.; Bland, A.E.; Wright, I. Progress in carbon dioxide separation and capture: A review. J. Environ. Sci. 2008, 20, 14–27. [Google Scholar] [CrossRef]
  21. Chung, S.J.; Park, J.H.; Li, D.; Ida, J.I.; Kumakiri, I.; Lin, J.Y. Dual-phase metal-carbonate membrane for high-temperature carbon dioxide separation. Ind. Eng. Chem. Res. 2005, 44, 7999–8006. [Google Scholar] [CrossRef]
  22. Anderson, M.; Lin, Y. Carbonate-ceramic dual-phase membrane for carbon dioxide separation. J. Membr. Sci. 2010, 357, 122–129. [Google Scholar] [CrossRef]
  23. Lu, B.; Lin, Y.S. Synthesis and characterization of thin ceramic-carbonate dual-phase membranes for carbon dioxide separation. J. Membr. Sci. 2013, 444, 402–411. [Google Scholar] [CrossRef]
  24. Norton, T.T.; Ortiz-Landeros, J.; Lin, Y.S. Stability of La–Sr–Co–Fe oxide–carbonate dual-phase membranes for carbon dioxide separation at high temperatures. Ind. Eng. Chem. Res. 2014, 53, 2432–2440. [Google Scholar] [CrossRef]
  25. Li, Y.; Rui, Z.; Xia, C.; Anderson, M.; Lin, Y.S. Performance of ionic-conducting ceramic/carbonate composite material as solid oxide fuel cell electrolyte and CO2 permeation membrane. Catal. Today 2009, 148, 303–309. [Google Scholar] [CrossRef]
  26. Carvalho, S.G.M.; Muccillo, E.N.S.; Fonseca, F.C.; Müller, M.; Schulze-Küppers, F.; Baumann, S.; Meulenberg, W.A.; Guillon, O.; Muccillo, R. Tape-casting and freeze-drying gadolinia-doped ceria composite membranes for carbon dioxide permeation. J. Membr. Sci. 2022, 648, 120355. [Google Scholar] [CrossRef]
  27. Kleitz, M.; Kennedy, J.H. Resolution of multicomponent impedance diagrams. In Fast Ion Transport in Solids; Mundy, J.N., Shenoy, G.K., Vashishta, P., Eds.; Elsevier: North Holland, The Netherlands, 1979; pp. 185–188. [Google Scholar]
  28. Corbel, G.; Durand, P.; Lacorre, P. Comprehensive survey of Nd3+ substitution In La2Mo2O9 oxide-ion conductor. J. Solid State Chem. 2009, 182, 1009–1016. [Google Scholar] [CrossRef] [Green Version]
  29. Toby, B.H. EXPGUI, a graphical user interface for GSAS. J. Appl. Crystallogr. 2001, 34, 210–213. [Google Scholar] [CrossRef] [Green Version]
  30. Macdonald, J.R.; Johnson, W.B. Fundamentals of Impedance Spectroscopy. In Impedance Spectroscopy—Theory, Experimental and Applications; Barsoukov, E., Macdonald, J.B., Eds.; Wiley: Hoboken, NJ, USA, 2005; pp. 1–26. [Google Scholar]
  31. ImageJ Version 1.34N, Wayne Rasband, National Institute of Health, USA. Available online: https://imagej.nih.gov/ij/ (accessed on 1 January 2023).
  32. Cruz-Manzo, S.; Chen, R.; Rama, P. Inductive Effect on the Fuel Cell Cathode Impedance Spectrum at High Frequencies. J. Fuel Cell Sci. Technol. 2012, 9, 051002. [Google Scholar] [CrossRef]
  33. Frangini, S.; Masi, A. Molten carbonates for advanced and sustainable energy applications: Part I. Revisiting molten carbonate properties from a sustainable viewpoint. Int. J. Hydrog. Energy 2016, 41, 18739–18746. [Google Scholar] [CrossRef]
  34. Grilo, J.P.; Macedo, D.A.; Nascimento, R.M.; Marques, F.M. Electronic conductivity in Gd-doped ceria with salt additions. Electrochim. Acta 2019, 318, 977–988. [Google Scholar] [CrossRef]
  35. Nikolaeva, E.V.; Zakir’yanova, I.D.; Bove, A.L. Electric Conductivity of α-Al2O3 Suspensions in Carbonate and Carbonate-Chloride Melts. Russ. J. Electrochem. 2018, 54, 690–696. [Google Scholar] [CrossRef]
  36. Carvalho, S.G.M.; Muccillo, E.N.S.; Marques, F.M.B.; Muccillo, R. Electric field-assisted sintering (gadolinia-doped ceria/alkali salts) composite membranes. Materialia 2020, 11, 100679. [Google Scholar] [CrossRef]
  37. Zhadan, A.; Sarou-Kanian, V.; Del Campo, L.; Cosson, L.; Malki, M.; Bessada, C. Transport properties in molten carbonates: Self-diffusion and conductivity measurements at high temperature. Int. J. Hydrog. Energy 2021, 46, 15059–15065. [Google Scholar] [CrossRef]
Materials 16 05128 g001 550
Figure 1. X-ray diffraction patterns for W-LAMOX; top: powder synthesized by the polymeric precursor method and calcined at 550 °C/4 h; bottom: LAMOX ICSD 172611 file.
Figure 1. X-ray diffraction patterns for W-LAMOX; top: powder synthesized by the polymeric precursor method and calcined at 550 °C/4 h; bottom: LAMOX ICSD 172611 file.
Materials 16 05128 g001
Materials 16 05128 g002 550

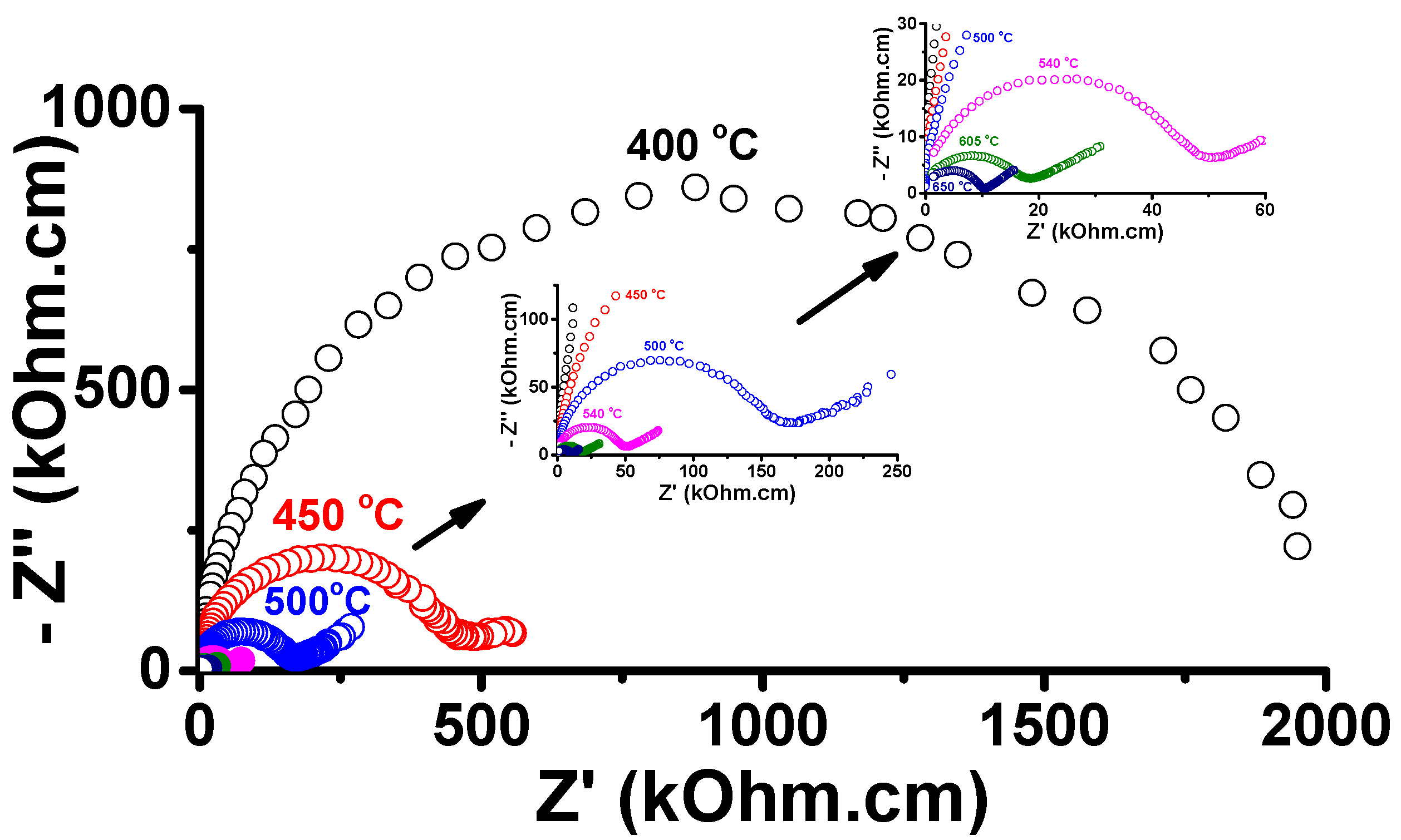

Figure 2. Impedance spectroscopy diagrams in the 400–650 °C range for W-LAMOX sintered at 1050 °C/2 h; insets show diagrams for higher temperatures.
Figure 2. Impedance spectroscopy diagrams in the 400–650 °C range for W-LAMOX sintered at 1050 °C/2 h; insets show diagrams for higher temperatures.
Materials 16 05128 g002
Materials 16 05128 g003 550

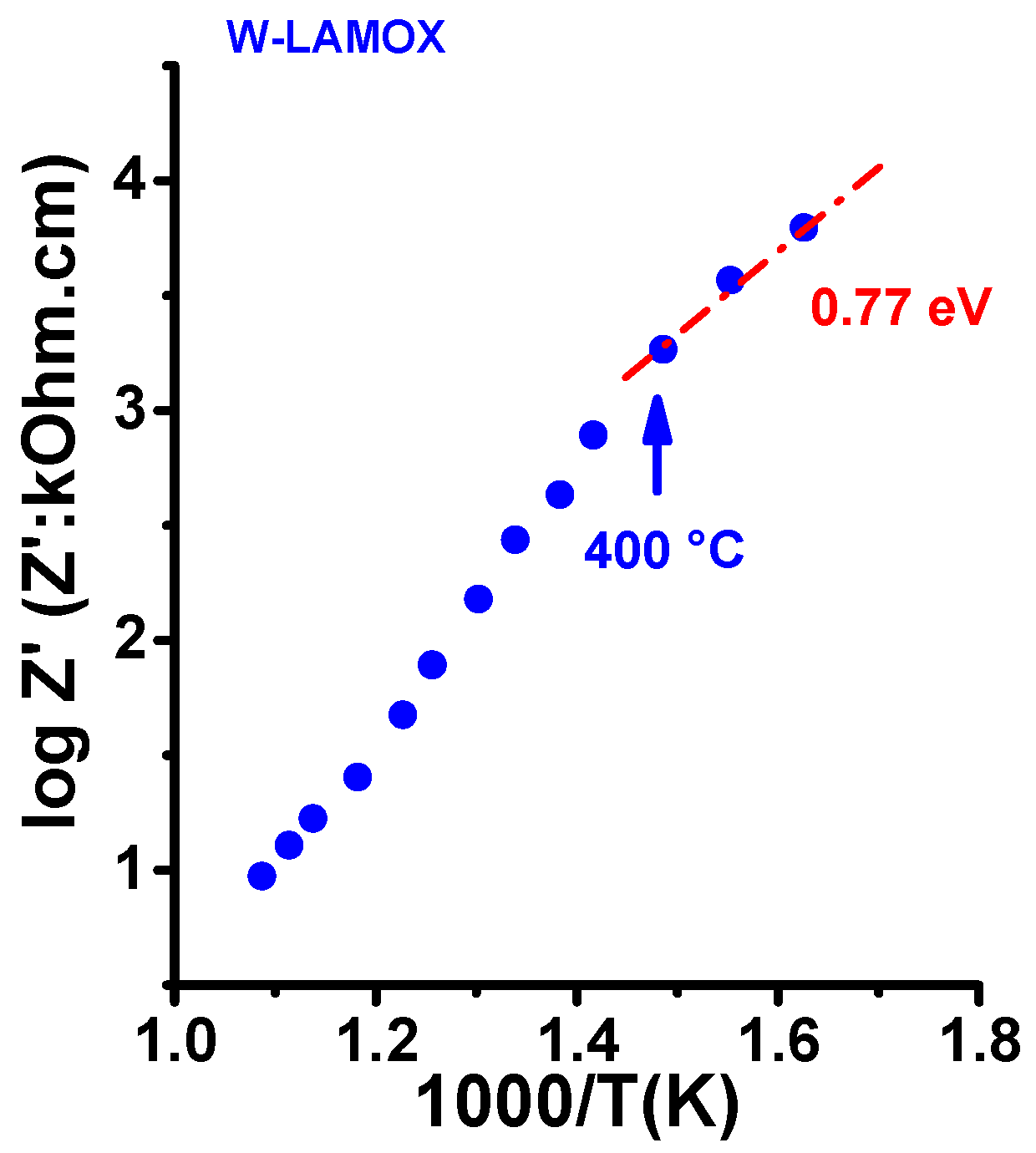

Figure 3. Electrical resistivity of W-LAMOX sintered at 1050 °C/2 h as a function of the reciprocal temperature.
Figure 3. Electrical resistivity of W-LAMOX sintered at 1050 °C/2 h as a function of the reciprocal temperature.
Materials 16 05128 g003
Materials 16 05128 g004 550

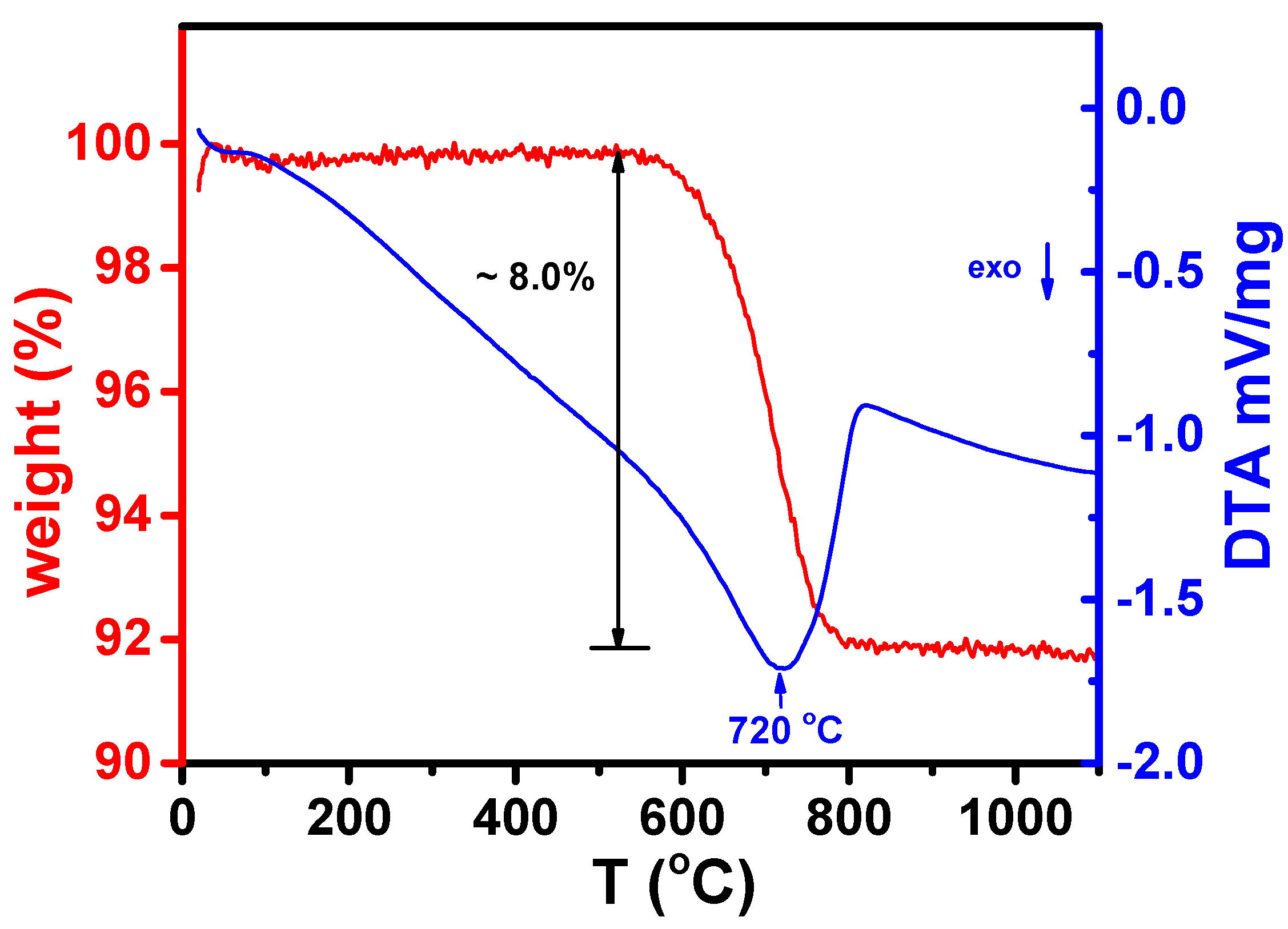

Figure 4. Thermogravimetric and differential thermal analysis curves of W-LAMOX mixed with 10 wt.% graphite (sacrificial pore former).
Figure 4. Thermogravimetric and differential thermal analysis curves of W-LAMOX mixed with 10 wt.% graphite (sacrificial pore former).
Materials 16 05128 g004
Materials 16 05128 g005 550

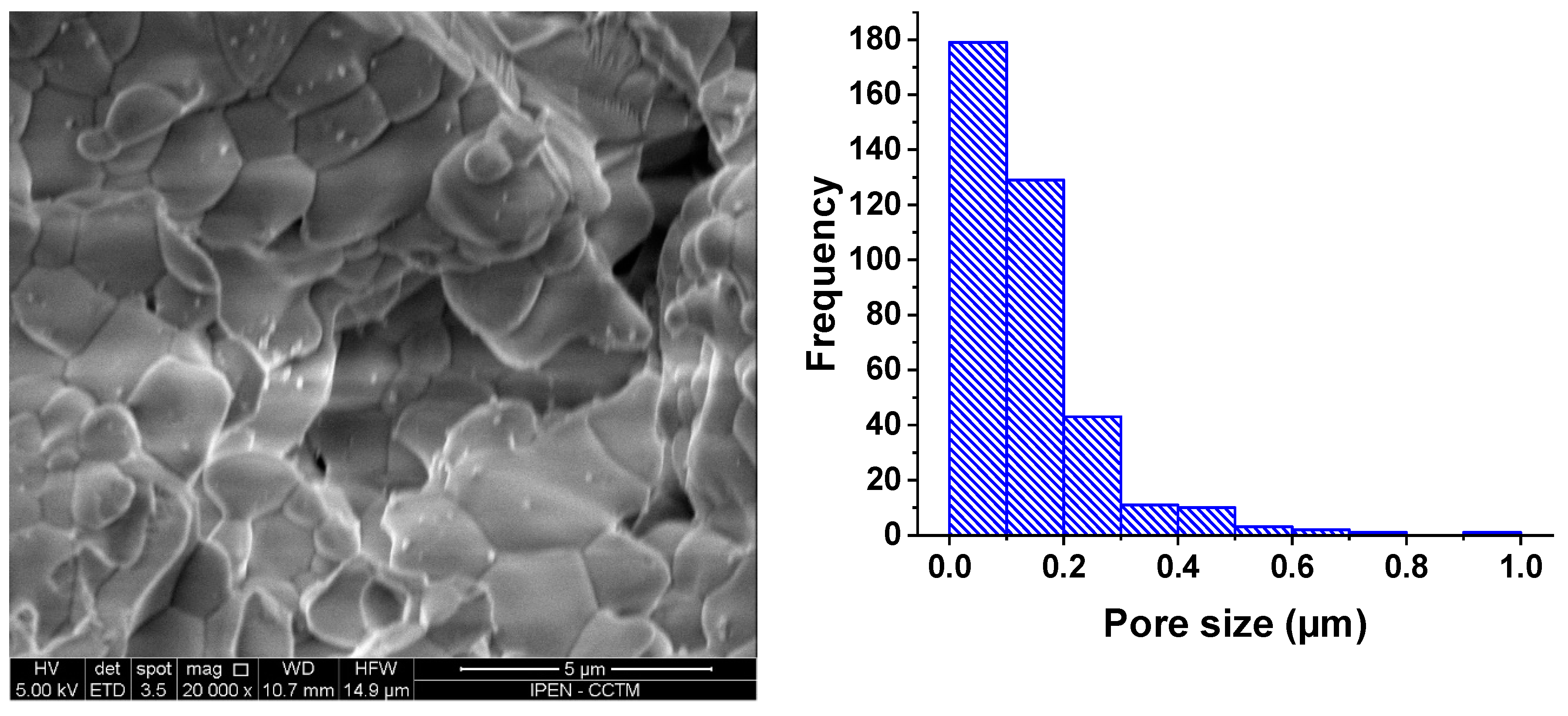

Figure 5. (a) Scanning electron microscopy micrographs of the porous W-LAMOX pellet surface; (b) distribution of pore sizes determined using ImageJ software [31].
Figure 5. (a) Scanning electron microscopy micrographs of the porous W-LAMOX pellet surface; (b) distribution of pore sizes determined using ImageJ software [31].
Materials 16 05128 g005
Materials 16 05128 g006 550
Figure 6. X-ray diffraction patterns of porous W-LAMOX (blue curve) and porous W-LAMOX impregnated with LNKC (red curve). The asterisks indicate LNKC reflections.
Figure 6. X-ray diffraction patterns of porous W-LAMOX (blue curve) and porous W-LAMOX impregnated with LNKC (red curve). The asterisks indicate LNKC reflections.
Materials 16 05128 g006
Materials 16 05128 g007a 550Materials 16 05128 g007b 550

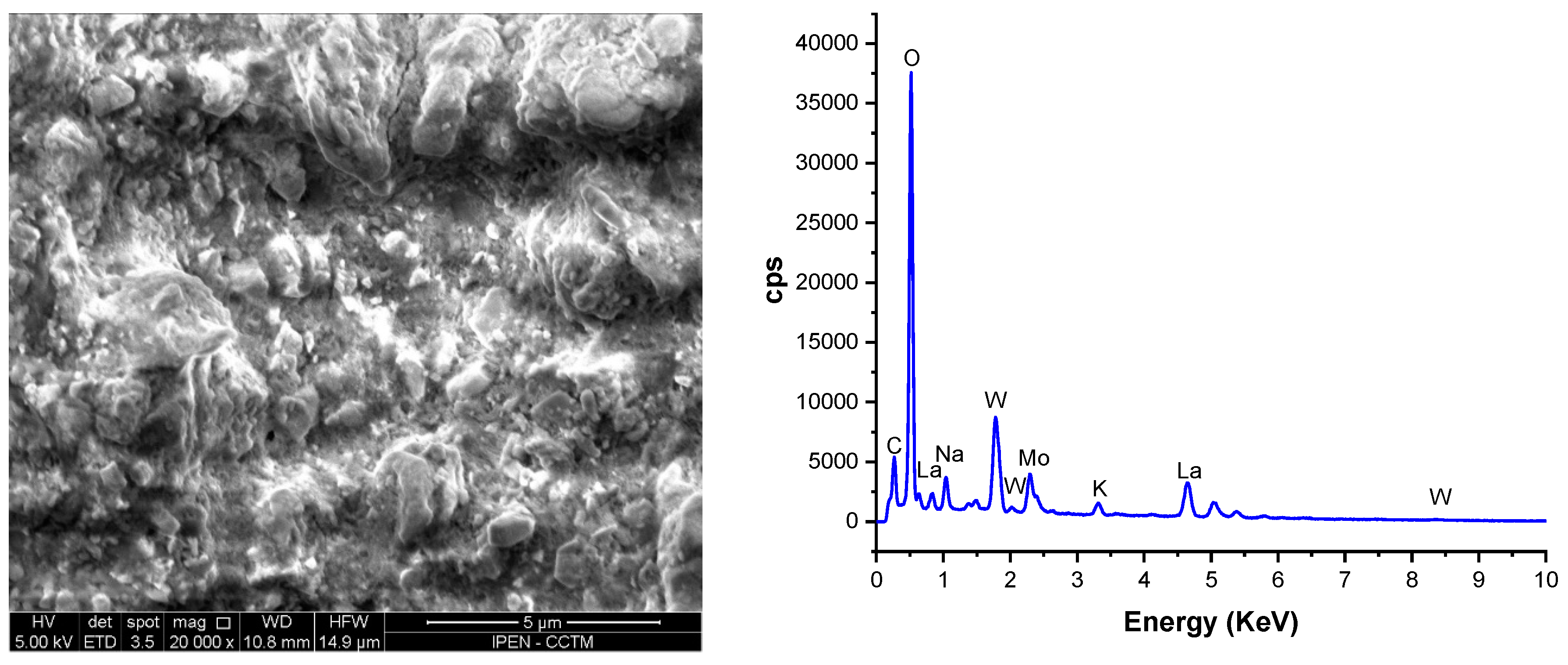

Figure 7. Scanning electron microscopy micrographs (left) and EDX plots (right) of the two parallel surfaces of W-LAMOX/LNKC.
Figure 7. Scanning electron microscopy micrographs (left) and EDX plots (right) of the two parallel surfaces of W-LAMOX/LNKC.
Materials 16 05128 g007aMaterials 16 05128 g007b
Materials 16 05128 g008a 550Materials 16 05128 g008b 550
Figure 8. Top: Impedance spectroscopy diagrams of porous W-LAMOX (left) and W-LAMOX/LNKC (right) at 350 °C (top) and 500 °C (bottom); numbers stand for log f (f: Hz). bottom: Arrhenius plots of the W-LAMOX porous matrix (red curve) and W-LAMOX/LNKC (blue curve).
Figure 8. Top: Impedance spectroscopy diagrams of porous W-LAMOX (left) and W-LAMOX/LNKC (right) at 350 °C (top) and 500 °C (bottom); numbers stand for log f (f: Hz). bottom: Arrhenius plots of the W-LAMOX porous matrix (red curve) and W-LAMOX/LNKC (blue curve).
Materials 16 05128 g008aMaterials 16 05128 g008b
Materials 16 05128 g009 550
Figure 9. Electrical resistance long-term operational stability data collected at 300 kHz and 100 Hz at 480 °C in W-LAMOX/LNKC.
Figure 9. Electrical resistance long-term operational stability data collected at 300 kHz and 100 Hz at 480 °C in W-LAMOX/LNKC.
Materials 16 05128 g009
Materials 16 05128 g010a 550Materials 16 05128 g010b 550

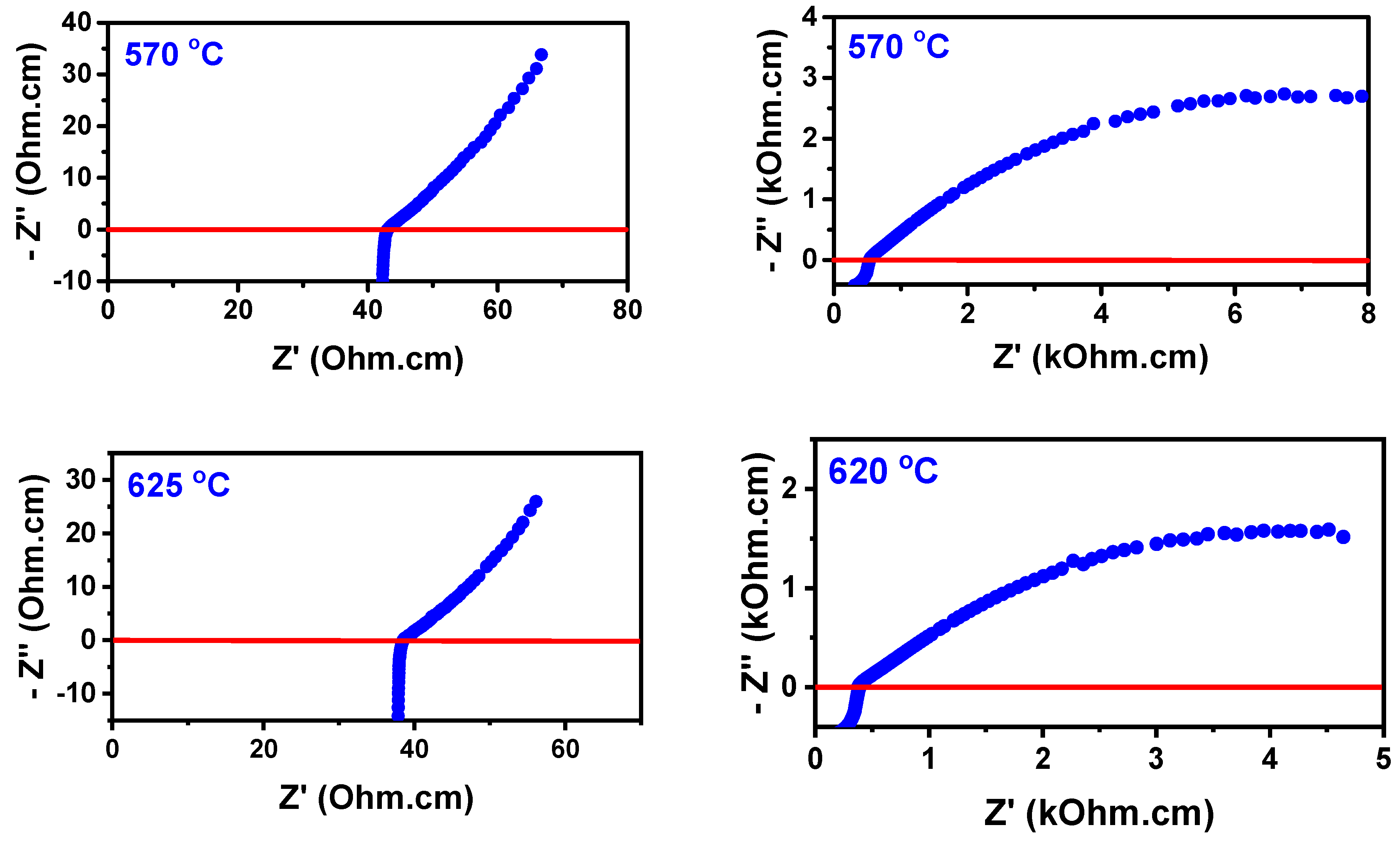

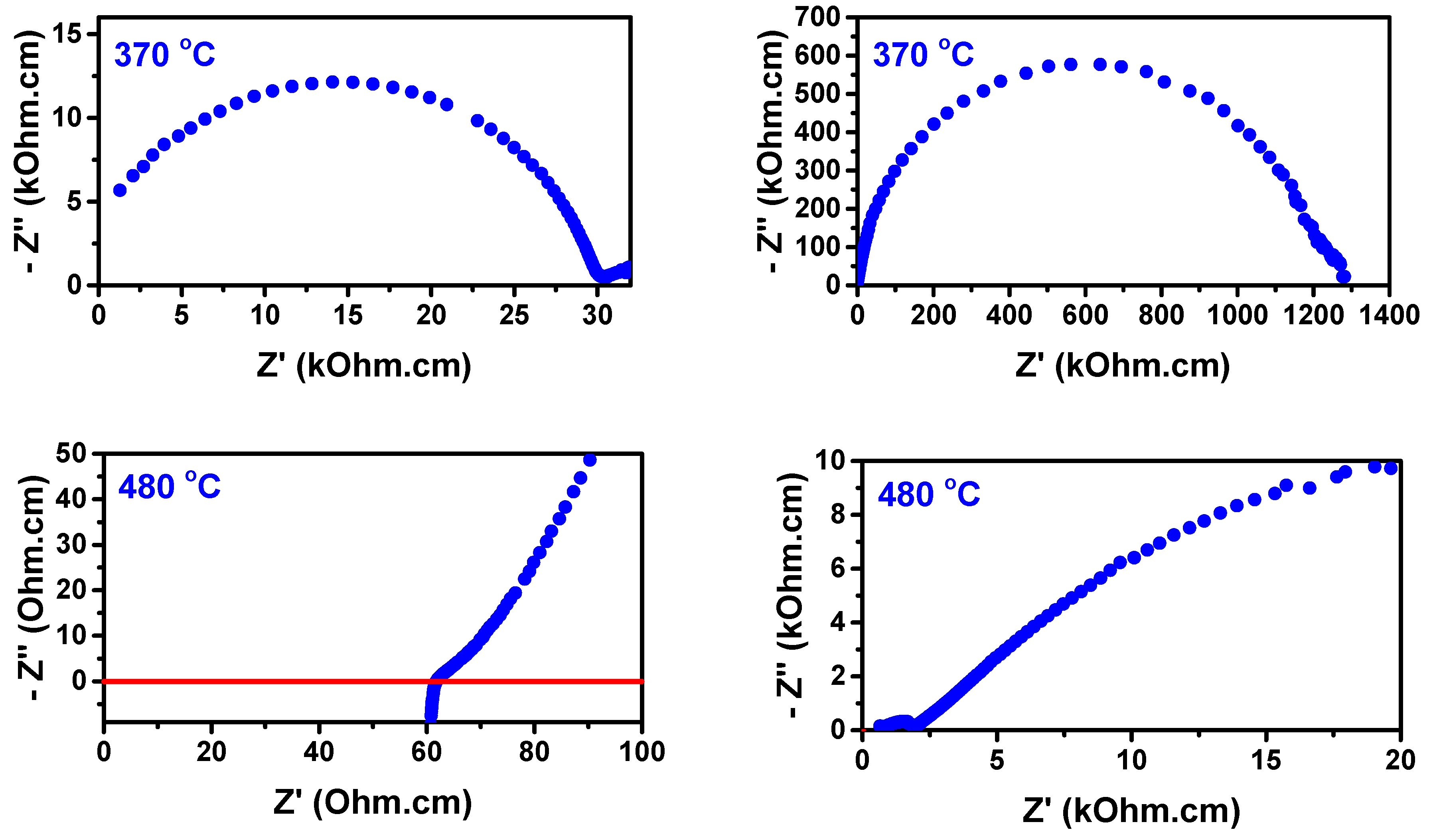

Figure 10. Impedance spectroscopy diagrams of W-LAMOX/LNKC before (left) and after (right) ~1300 h at 480 °C.
Figure 10. Impedance spectroscopy diagrams of W-LAMOX/LNKC before (left) and after (right) ~1300 h at 480 °C.
Materials 16 05128 g010aMaterials 16 05128 g010b
Materials 16 05128 g011 550
Figure 11. Arrhenius plots of the W-LAMOX/LNKC ceramic membrane before and after being kept at 480 °C for ~1300 h.
Figure 11. Arrhenius plots of the W-LAMOX/LNKC ceramic membrane before and after being kept at 480 °C for ~1300 h.
Materials 16 05128 g011
Materials 16 05128 g012 550

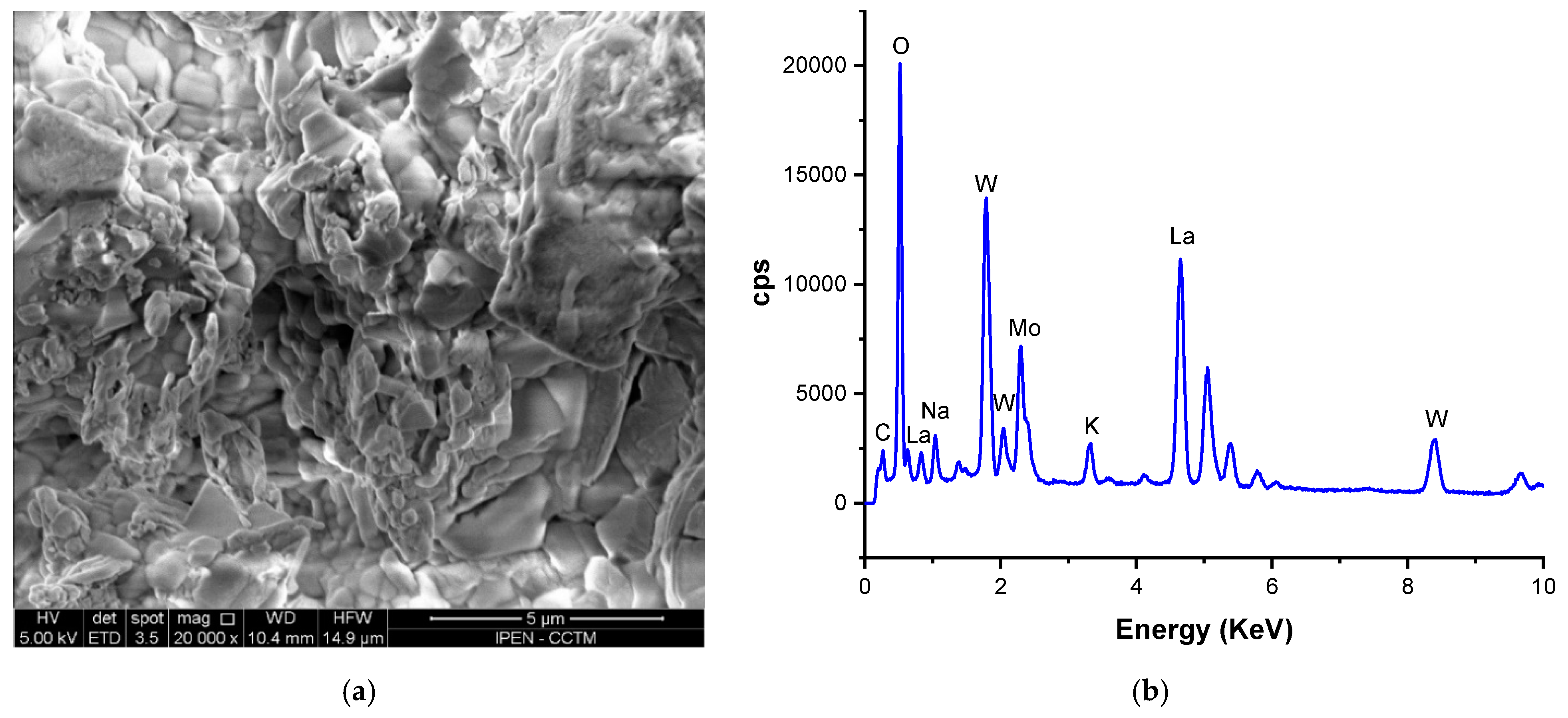

Figure 12. (a) SEM micrographs and (b) EDX analysis of the W-LAMOX/LNKC ceramic membrane before and after being kept at 480 °C for ~1300 h.
Figure 12. (a) SEM micrographs and (b) EDX analysis of the W-LAMOX/LNKC ceramic membrane before and after being kept at 480 °C for ~1300 h.
Materials 16 05128 g012
