Preparation and Laser-Induced Thermoelectric Voltage Effect of Bi2Sr2Co2Oy Thin Films Grown on Al2O3 (0001) Substrate
Abstract
:1. Introduction
2. Experiments
3. Results and Discussion
3.1. In Situ Annealing
3.2. Post-Annealing
3.3. Non-Annealing
3.4. LITV Effect
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Tate, K.L.; Johnson, R.D.; Chang, C.L.; Hilinski, E.F.; Foster, S.C. Transient laser-induced voltages in room-temperature films of YBa2Cu3O7-x. J. Appl. Phys. 1990, 67, 4375. [Google Scholar] [CrossRef]
- Chang, C.L.; Kleinhammes, A.; Moulton, W.G.; Testardi, L.R. Symmetry-forbidden laser-induced voltages in YBa2Cu3O7. Phys. Rev. B 1990, 41, 11564. [Google Scholar] [CrossRef]
- Lengfellner, H.; Kremb, G.; Schnellbögl, A.; Betz, J.; Renk, K.F.; Prettl, W. Giant voltages upon surface heating in normal YBa2Cu3O7−δ films suggesting an atomic layer thermopile. Appl. Phys. Lett. 1992, 60, 501–503. [Google Scholar] [CrossRef] [Green Version]
- Lengfellner, H.; Zeuner, S.; Prettl, W.; Renk, K.F. Thermoelectric effect in normal-state YBa2Cu3O7-δ films. Europhys. Lett. 1994, 25, 375. [Google Scholar] [CrossRef] [Green Version]
- Zeuner, S.; Lengfellner, H.; Prettl, W. Thermal boundary resistance and diffusivity for YBa2Cu3O7-δ films. Phys. Rev. B 1995, 51, 11903. [Google Scholar] [CrossRef] [PubMed]
- Zhang, Y.L.; Tao, R.H.; Dong, W.W.; Deng, Z.H.; Fang, X.D. Wide band-response laser-induced thermoelectric voltage in tilted orientation SrTiO3 single-crystal coated by La0.7Sr0.3CoO3 layer. Opt. Laser Technol. 2009, 41, 968–971. [Google Scholar] [CrossRef]
- Wang, Y.; Yu, L.; Zhang, P.X. Transverse laser induced thermoelectric voltage effect in tilted La0.5Sr0.5CoO3 thin films. Opt. Laser Technol. 2011, 43, 1462–1465. [Google Scholar] [CrossRef]
- Liu, X.; Yan, Y.Z.; Chen, Q.M.; Zhang, H.; Yin, X.P. Laser-induced voltage (LIV) enhancement of La2/3Sr1/3MnO3 films with Ag addition. Appl. Phys. A 2014, 115, 1371–1374. [Google Scholar] [CrossRef]
- Zhang, L.S.; Su, X.H.; Sun, Z.; Fang, Y. Laser-induced thermoelectric voltage effect of La0.9Sr0.1NiO3 films. Appl. Surf. Sci. 2015, 351, 693–696. [Google Scholar] [CrossRef]
- Yu, L.; Wang, Y.; Zhang, P.X.; Habermeier, H.-U. Epitaxial La0.9Ca0.1MnO3 films grown on vicinal cut substrates for the investigation of resistivity and thermoelectric anisotropy. J. Cryst. Growth 2011, 322, 41–44. [Google Scholar] [CrossRef]
- Ma, J.; Zhang, H.; Chen, Q.; Liu, X. Effects of substrate-induced-strain on the electrical properties and laser induced voltages of tilted La0.67Ca0.33MnO3 thin films. J. Appl. Phys. 2013, 114, 043708. [Google Scholar] [CrossRef]
- Liu, X.; Yin, X.; Chen, Q.; Zhang, H.; Cao, M. Effect of annealing oxygen pressure on the enhancement of laser-induced voltage in La2/3Ca1/3MnO3:Ag0.04 films. Mater. Sci. Eng. B 2014, 185, 105–108. [Google Scholar] [CrossRef]
- Liu, X.; Zhang, M.; Cao, M.G. Enhancement of laser-induced voltage (LIV) in La2/3Ca1/3MnO3:Ag0.04 films. Appl. Phys. A 2017, 123, 36. [Google Scholar] [CrossRef]
- Qin, Y.; Zhao, T.; Zhang, H.-H.; Wang, B.; Zhang, P.-X.; Yang, J.-F. Large transverse thermoelectric voltage effect in incline-oriented SrTi1−xNbxO3 films with cubic structure. Appl. Phys. Lett. 2013, 102, 253901. [Google Scholar] [CrossRef]
- Zhu, J.; Xie, K.; Zhang, J.T.; Hu, J.T.; Zhang, P.X. Laser induced thermoelectric voltage effect in Pb(Zr0.3Ti0.7)O3 ferroelectric thin film. Solid State Commun. 2009, 149, 1786–1789. [Google Scholar] [CrossRef]
- Shang, J.; Zhang, H.; Li, Y.; Cao, M.G.; Zhang, P.X. The transverse laser induced thermoelectric voltages in step flow growth (1-x)Pb(Mg1/3Nb2/3)O3-xPbTiO3 thin films. Chin. Phys. B 2010, 19, 107203. [Google Scholar]
- Terasaki, I.; Sasago, Y.; Uchinokura, K. Large thermoelectric power in NaCo2O4 single crystals. Phys. Rev. B 1997, 56, R12685. [Google Scholar] [CrossRef]
- Zhu, X.B.; Shi, D.Q.; Dou, S.X.; Sun, Y.P.; Li, Q.; Wang, L.; Li, W.X.; Yeoh, W.K.; Zheng, R.K.; Chen, Z.X.; et al. (001)-oriented Bi2Sr2Co2Oy and Ca3Co4O9 films: Self-assembly orientation and growth mechanism by chemical solution deposition. Acta Mater. 2010, 58, 4281–4291. [Google Scholar] [CrossRef]
- Hu, Q.J.; Wang, K.L.; Zhang, Y.J.; Li, X.J.; Song, H.Z. Enhanced thermoelectric properties of nano SiC dispersed Bi2Sr2Co2Oy ceramics. Mater. Res. Express 2018, 5, 045510. [Google Scholar] [CrossRef]
- Fan, M.M.; Zhang, Y.W.; Hu, Q.J.; Zhang, Y.; Li, X.J.; Song, H.Z. Enhanced thermoelectric properties of Bi2Sr2Co2Oy by alkali metal element doping and SiC dispersion. Ceram. Int. 2019, 45, 17723–17728. [Google Scholar] [CrossRef]
- Wang, X.; Liu, X.C.; Yan, W.; Hou, S.; Liu, X. Significant enhancement in Seebeck coefficient and power factor of Ca3Co4O9 thermoelectric ceramics by SiC addition. J. Alloys Compd. 2019, 785, 698–705. [Google Scholar] [CrossRef]
- Torres, M.A.; Costa, F.M.; Flahaut, D.; Touati, K.; Rasekh, S.; Ferreira, N.M.; Allouche, J.; Depriester, M.; Madre, M.A.; Kovalevsky, A.V.; et al. Significant enhancement of the thermoelectric performance in Ca3Co4O9 thermoelectric materials through combined strontium substitution and hot-pressing process. J. Eur. Ceram. Soc. 2018, 39, 1186–1192. [Google Scholar] [CrossRef] [Green Version]
- Liu, X.; Fan, M.M.; Zhu, X.G.; Tian, Z.G.; Li, X.J.; Song, H.Z. Optimising the thermoelectric properties of Bi2Sr2Co2Oy using Ag substitution and nano-SiC doping. Ceram. Int. 2021, 47, 30657–30664. [Google Scholar] [CrossRef]
- Sugiura, K.; Ohta, H.; Nakagawa, S.-I.; Huang, R.; Ikuhara, Y.; Nomura, K.; Hosono, H.; Koumoto, K. Anisotropic carrier transport properties in layered cobaltate epitaxial films grown by reactive solid-phase epitaxy. Appl. Phys. Lett. 2009, 94, 152105. [Google Scholar] [CrossRef]
- Wang, S.F.; Chen, S.S.; Liu, F.Q.; Yan, G.Y.; Chen, J.C.; Li, H.L.; Wang, J.L.; Yu, W.; Fu, G.S. Laser-induced voltage effects in c-axis inclined NaxCoO2 thin films. Appl. Surf. Sci. 2012, 258, 7330–7333. [Google Scholar] [CrossRef]
- Song, S.J.; Yu, L.; Hu, J.L.; Liu, A.A.; Zhong, Y. Laser-induced transverse voltage effect and thermopower anisotropy of c-axis inclined Ca3Co4O9 thin film. Appl. Phys. A 2017, 123, 595. [Google Scholar] [CrossRef]
- Maignan, A.; Hebert, S.; Hervieu, M.; Michel, C.; Pelloquin, D.; Khomskii, D. Magnetoresistance and magnetothermopower properties of Bi/Ca/Co/O and Bi(Pb)/Ca/Co/O misfit layer cobaltites. J. Phys. Condens. Matter 2003, 15, 2711–2723. [Google Scholar] [CrossRef]
- Sakai, A.; Kanno, T.; Yotsuhashi, S.; Odagawa, A.; Adachi, H. Control of epitaxial growth orientation and anisotropy thermoelectric properties of misfit-type Ca3Co4O9 thin films. Jpn. J. Appl. Phys. 2005, 44, L966. [Google Scholar] [CrossRef]
- Sugiura, K.; Ohta, H.; Nakagawa, S.; Huang, R.; Ikuhara, Y.; Nomura, K.; Hosono, H.; Koumoto, K. Electronic transport and colossal electroresistance in SrTiO3: Nb-based Schottky junctions. Appl. Phys. Lett. 2009, 94, 52105. [Google Scholar]
- Zhou, X.F.; Zhang, H.; Chen, Q.M.; Shang, J.; Zhang, P.X. Effects of annealing atmosphere on thermoelectric signals from ZnO films. Thin Solid Films 2011, 519, 3026–3028. [Google Scholar] [CrossRef]
- Zhang, P.X.; Lee, W.K.; Zhang, G.Y. Time dependence of laser-induced thermoelectric voltages in La1-xCaxMnO3 and YBa2Cu3O7-δ thin films. Appl. Phys. Lett. 2002, 81, 4026. [Google Scholar] [CrossRef]
Samples | Substrate Temperature (°C) | Flowing Oxygen Pressure (Pa) | Deposition Time (min) | Pulsed Laser Energy (mJ/Pulse) | Annealing Time (min) |
---|---|---|---|---|---|

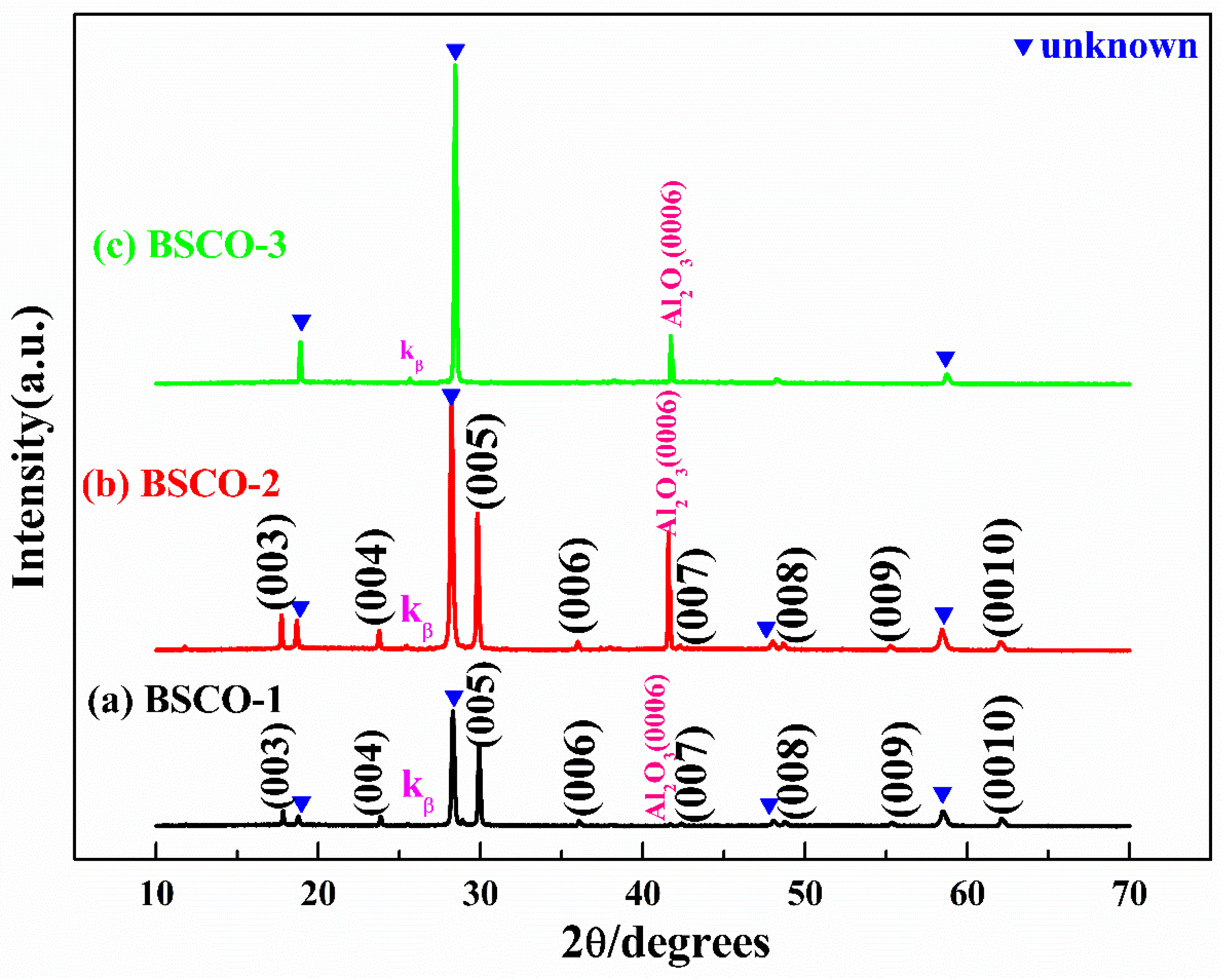

BSCO-1 | 820 | 100 | 8 | 300 | 30 |
BSCO-2 | 820 | 60 | 8 | 300 | 30 |
BSCO-3 | 850 | 60 | 8 | 300 | 30 |
Samples | Substrate Temperature (°C) | Flowing Oxygen Pressure (Pa) | Deposition Time (min) | Pulsed Laser Energy (mJ/Pulse) | Annea-Ling Time (min) | Annealing Temperature (°C) |
---|---|---|---|---|---|---|

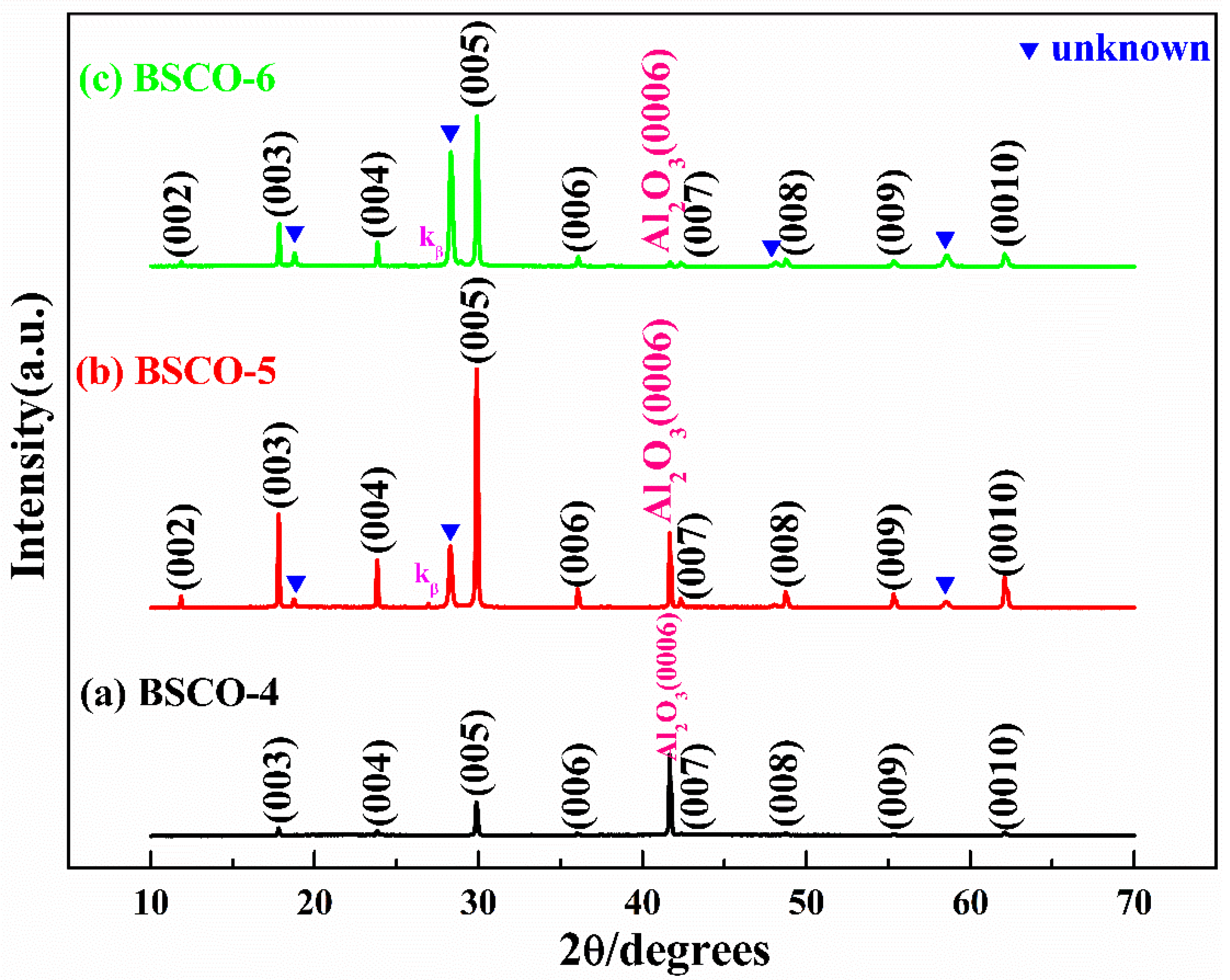

BSCO-4 | 760 | 60 | 8 | 300 | 60 | 510 |
BSCO-5 | 800 | 60 | 8 | 300 | 60 | 510 |
BSCO-6 | 805 | 60 | 8 | 300 | 60 | 510 |

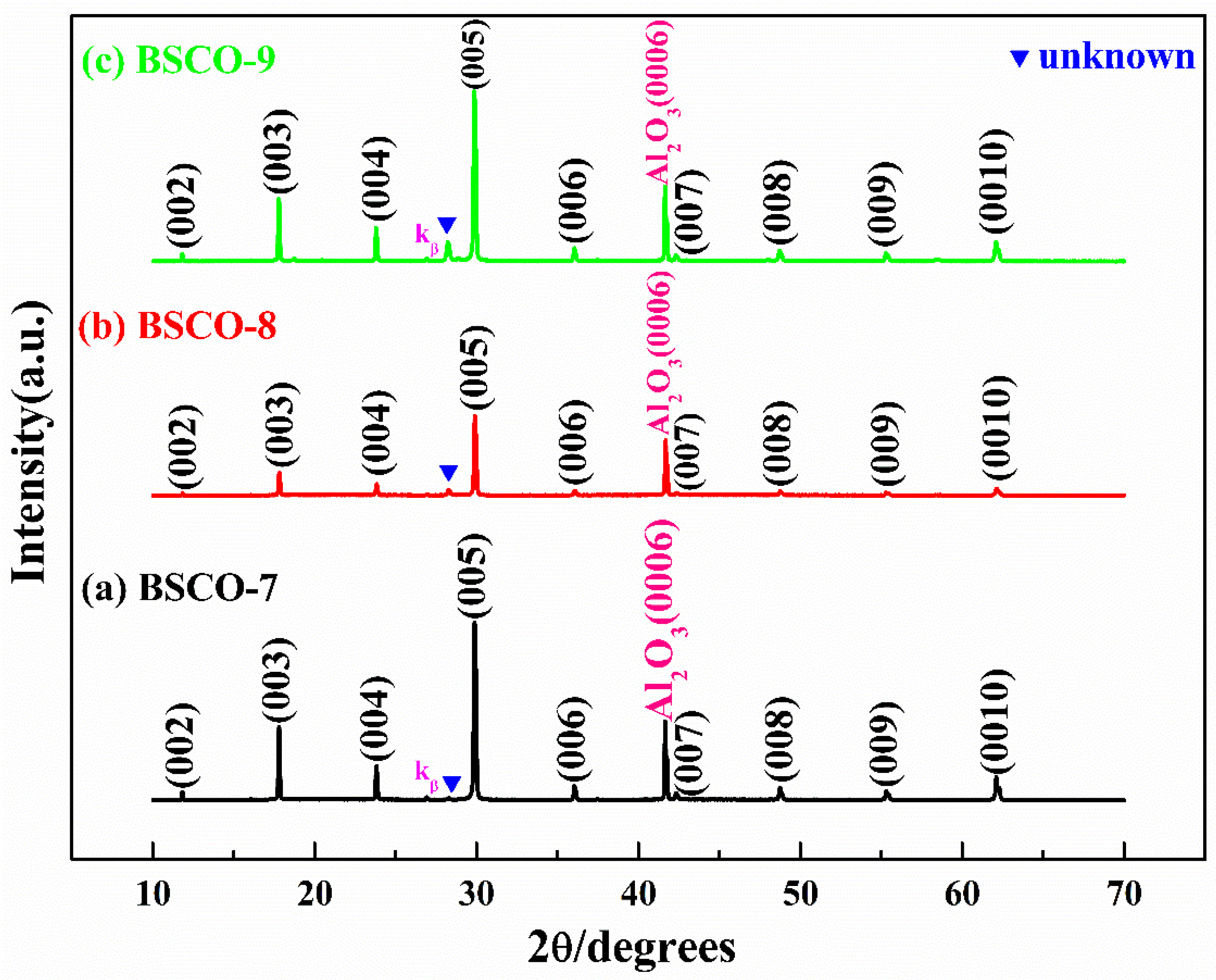

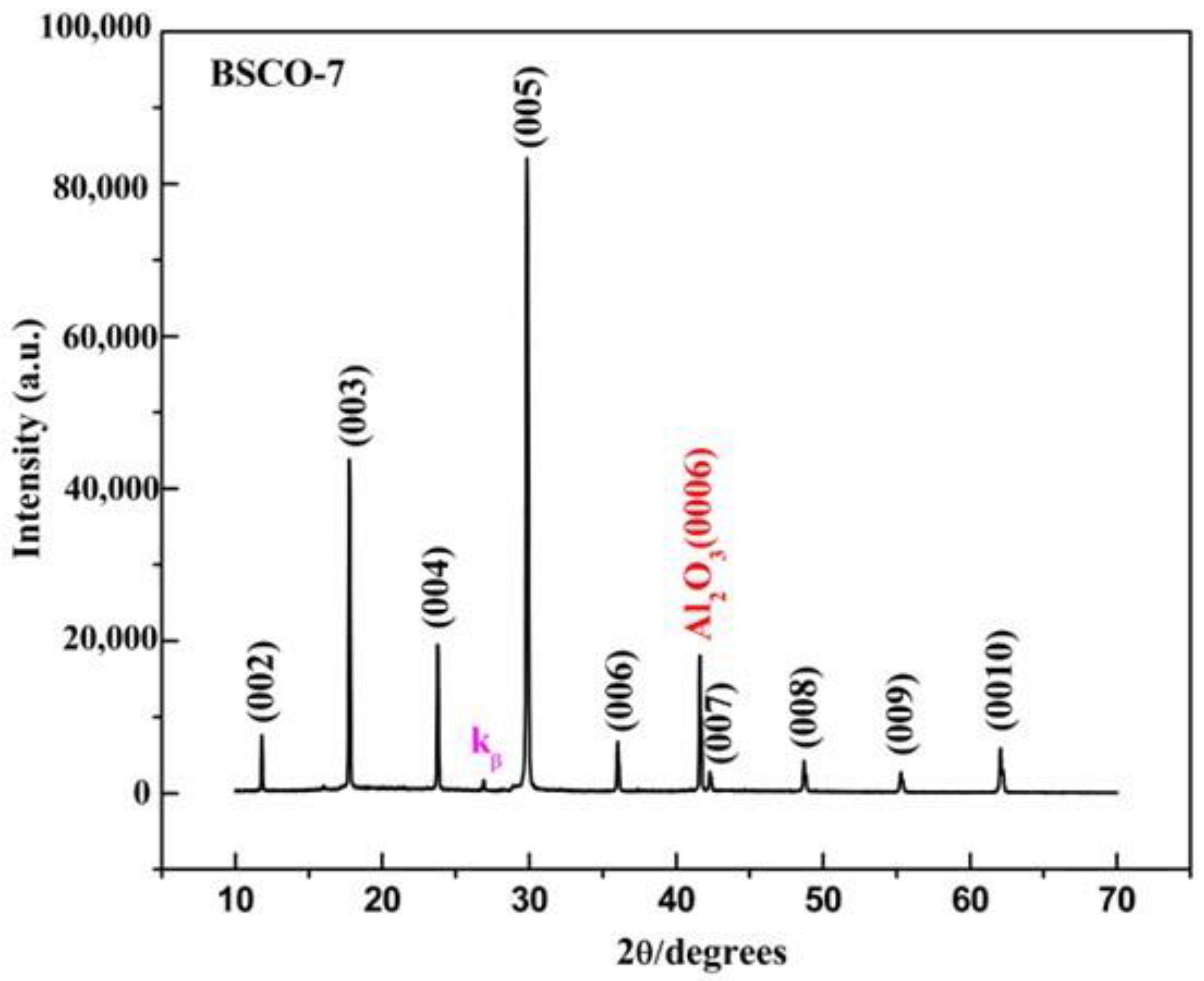

BSCO-7 | 780 | 60 | 8 | 300 | 120 | 510 |
BSCO-8 | 795 | 60 | 8 | 300 | 120 | 510 |
BSCO-9 | 800 | 60 | 8 | 300 | 120 | 510 |

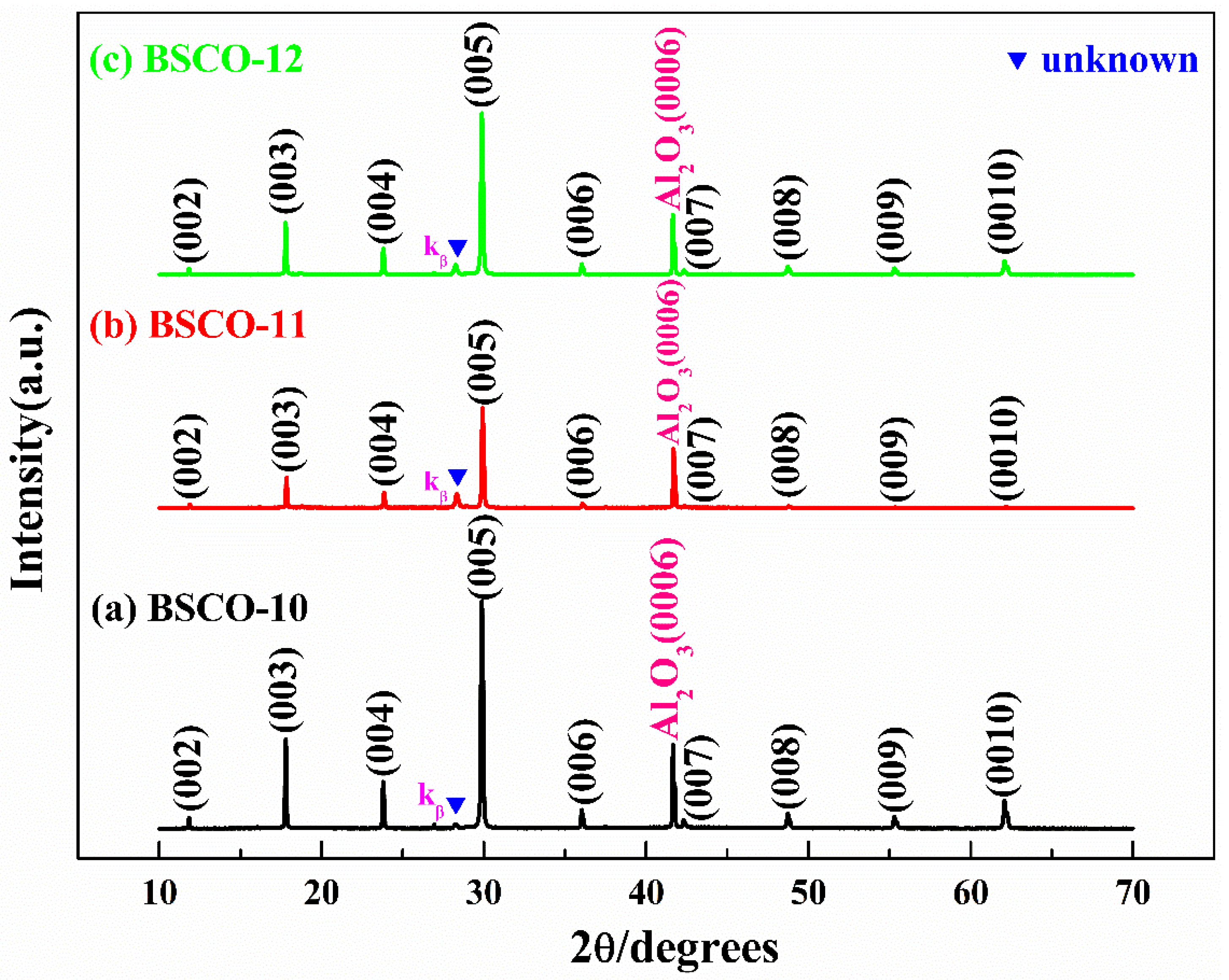

BSCO-10 | 780 | 60 | 8 | 300 | 180 | 510 |
BSCO-11 | 795 | 60 | 8 | 300 | 180 | 510 |
BSCO-12 | 800 | 60 | 8 | 300 | 180 | 510 |
Sample | Substrate Temperature (°C) | Flowing Oxygen Pressure (Pa) | Deposition Time (min) | Pulsed Laser Energy (mJ/Pulse) |
---|---|---|---|---|
BSCO-13 | 790 | 60 | 8 | 300 |

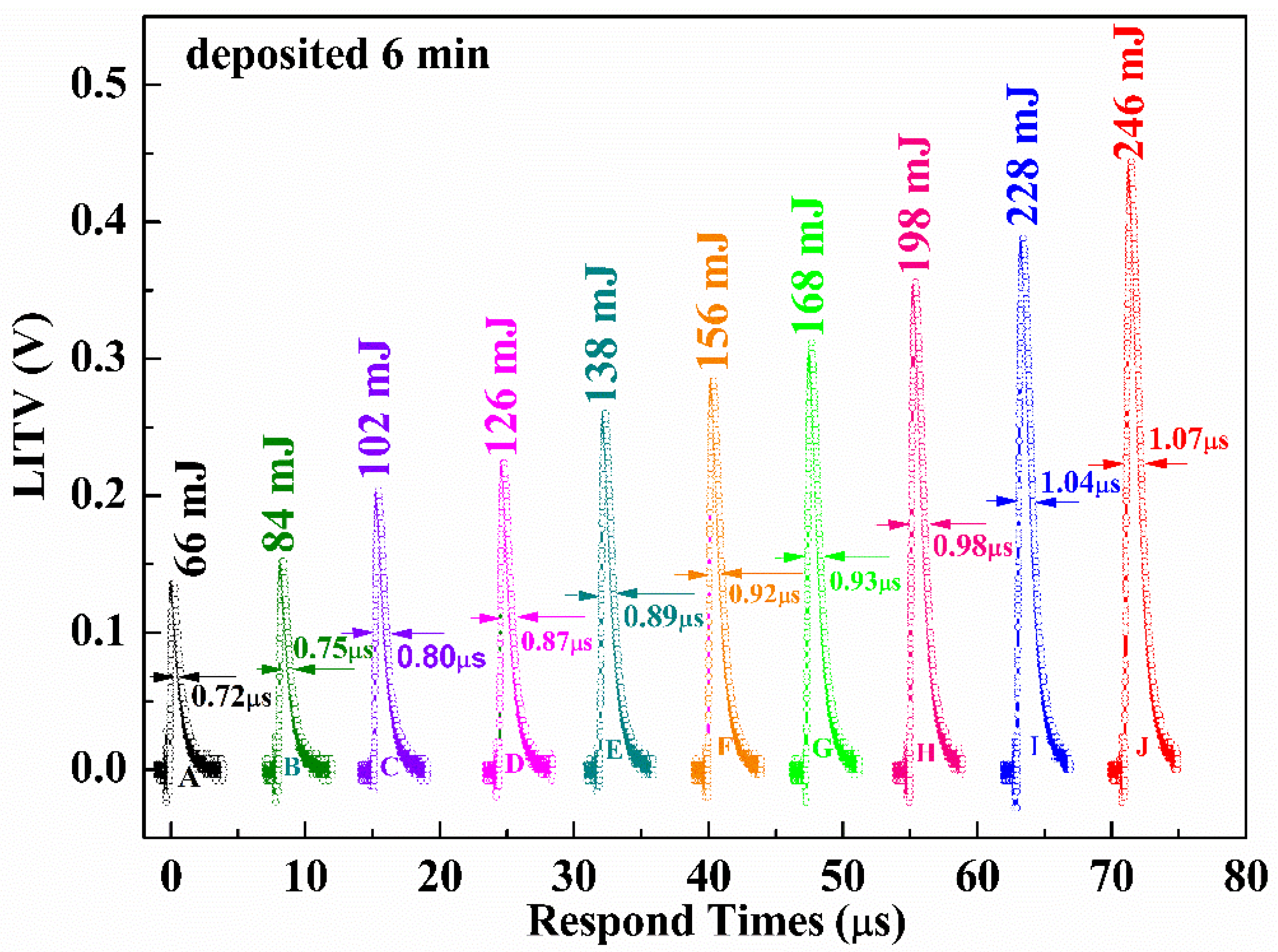

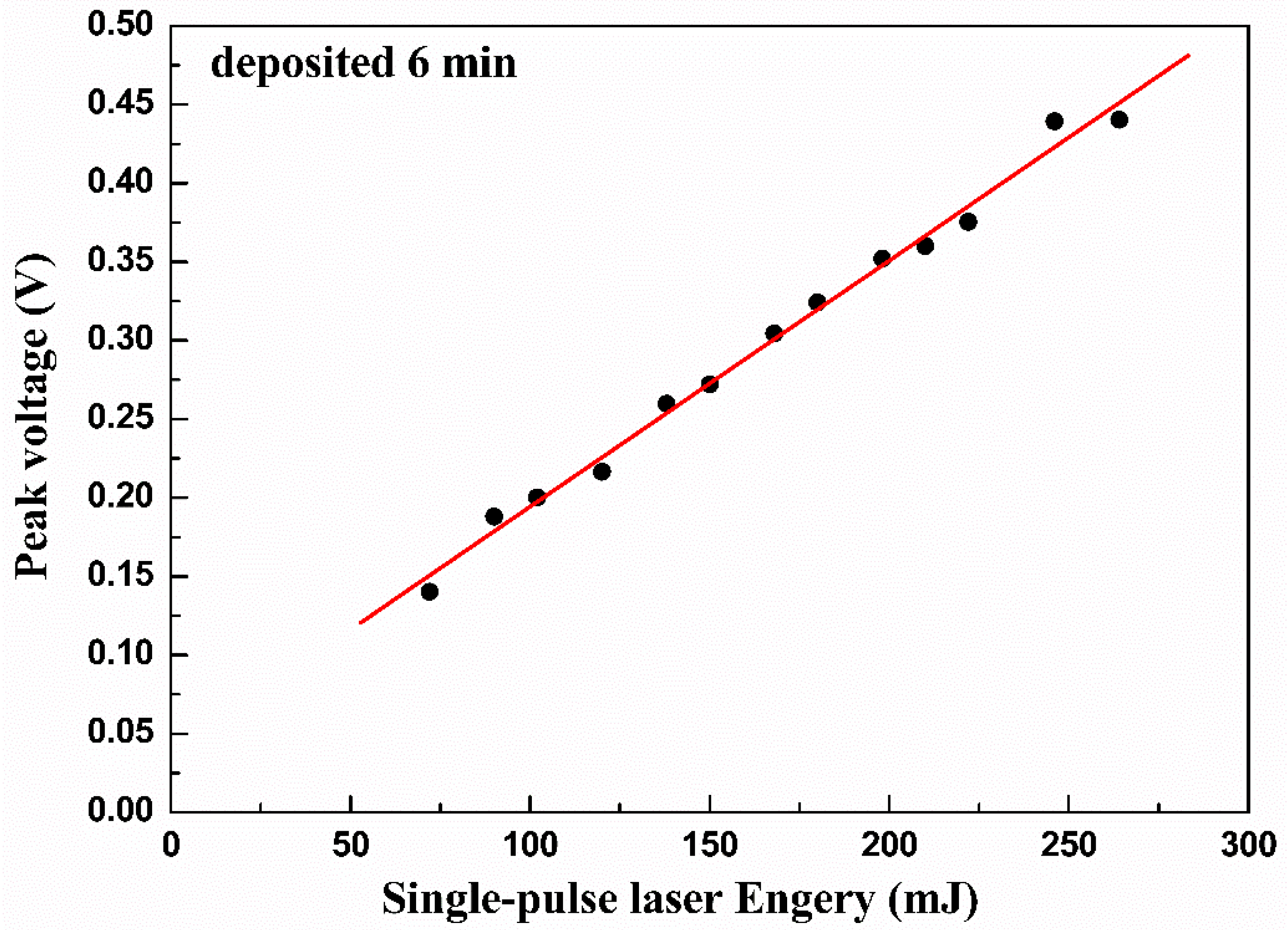

Samples | Single-Pulse LASER Energy (mJ) | Peak Voltage (V) | Respond Time (μs) |
---|---|---|---|
A | 66 | 0.14 | 0.72 |
B | 84 | 0.15 | 0.75 |
C | 102 | 0.20 | 0.80 |
D | 126 | 0.22 | 0.87 |
E | 138 | 0.26 | 0.89 |
F | 156 | 0.28 | 0.92 |
G | 168 | 0.31 | 0.93 |
H | 198 | 0.36 | 0.98 |
I | 228 | 0.39 | 1.04 |
J | 246 | 0.44 | 1.07 |

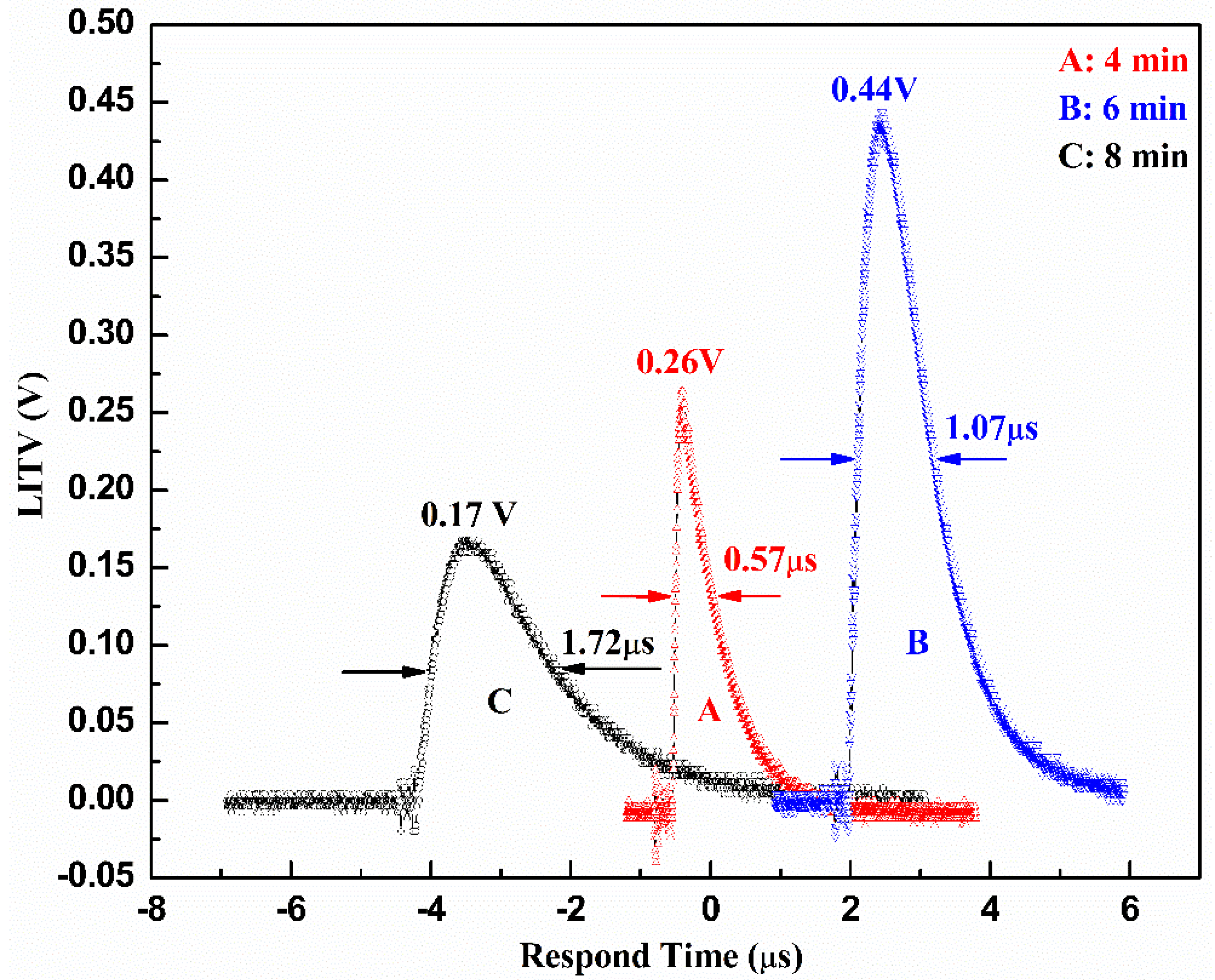

Samples | Deposition Time (min) | Peak Voltage (V) | Respond Time (μs) |
---|---|---|---|
A | 4 | 0.26 | 0.57 |

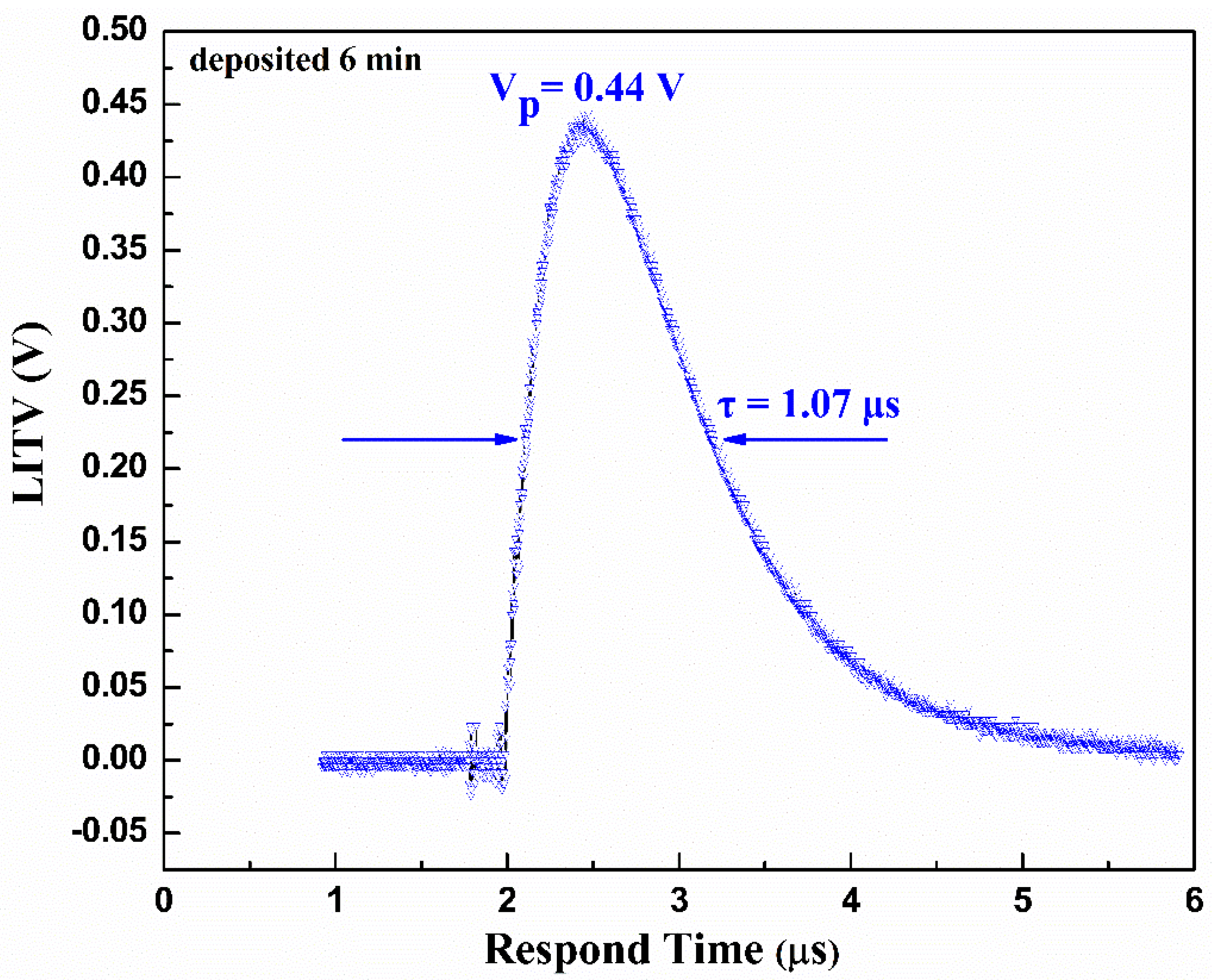

B | 6 | 0.44 | 1.07 |
C | 8 | 0.17 | 1.72 |
