Analysis of the Frictional Performance of AW-5251 Aluminium Alloy Sheets Using the Random Forest Machine Learning Algorithm and Multilayer Perceptron

by
Tomasz Trzepieciński
1,*,
Sherwan Mohammed Najm
2,3,
Omar Maghawry Ibrahim
4 and
Marek Kowalik
5
1
Department of Manufacturing Processes and Production Engineering, Faculty of Mechanical Engineering and Aeronautics, Rzeszow University of Technology, al. Powst. Warszawy 8, 35-959 Rzeszów, Poland
2
Kirkuk Technical Institute, Northern Technical University, 36001 Kirkuk, Iraq
3
Department of Manufacturing Science and Engineering, Budapest University of Technology and Economics, Műegyetemrkp 3, H-1111 Budapest, Hungary
4
Plant Production Department, Arid Land Cultivation Research Institute, City of Scientific Research and Technological Applications SRTA-City, Borg Al-Arab 21934, Egypt
5
Faculty of Mechanical Engineering, Kazimierz Pulaski University of Technology and Humanities in Radom, 54 Stasieckiego Street, 26-600 Radom, Poland
*
Author to whom correspondence should be addressed.
Materials 2023, 16(15), 5207; https://doi.org/10.3390/ma16155207
Submission received: 5 June 2023 / Revised: 18 July 2023 / Accepted: 20 July 2023 / Published: 25 July 2023
(This article belongs to the Special Issue Forming Technologies and Mechanical Properties of Advanced Materials - 2nd Volume)
Browse Figures
Versions Notes

Abstract

:
This paper is devoted to the determination of the coefficient of friction (COF) in the drawbead region in metal forming processes. As the test material, AW-5251 aluminium alloys sheets fabricated under various hardening conditions (AW-5251-O, AW-5251-H14, AW-5251-H16 and AW-5251H22) were used. The sheets were tested using a drawbead simulator with different countersample roughness and different orientations of the specimens in relation to the sheet rolling direction. A drawbead simulator was designed to model the friction conditions when the sheet metal passed through the drawbead in sheet metal forming. The experimental tests were carried out under conditions of dry friction and lubrication of the sheet metal surfaces with three lubricants: machine oil, hydraulic oil, and engine oil. Based on the results of the experimental tests, the value of the COF was determined. The Random Forest (RF) machine learning algorithm and artificial neural networks (ANNs) were used to identify the parameters affecting the COF. The R statistical package software version 4.1.0 was used for running the RF model and neural network. The relative importance of the inputs was analysed using 12 different activation functions in ANNs and nine different loss functions in the RF. Based on the experimental tests, it was concluded that the COF for samples cut along the sheet rolling direction was greater than for samples cut in the transverse direction. However, the COF’s most relevant input was oil viscosity (0.59), followed by the average counter sample roughness Ra (0.30) and the yield stress Rp0.2 and strength coefficient K (0.05 and 0.06, respectively). The hard sigmoid activation function had the poorest R2 (0.25) and nRMSE (0.30). The ideal run was found after training and testing the RF model (R2 = 0.90 ± 0.028). Ra values greater than 1.1 and Rp0.2 values between 105 and 190 resulted in a decreased COF. The COF values dropped to 9–35 for viscosity and 105–190 for Rp0.2, with a gap between 110 and 130 when the oil viscosity was added. The COF was low when the oil viscosity was 9–35, and the Ra was 0.95–1.25. The interaction between K and the other inputs, which produces a relatively limited range of reduced COF values, was the least relevant. The COF was reduced by setting the Rp0.2 between 105 and 190, the Ra between 0.95 and 1.25, and the oil viscosity between 9 and 35.

1. Introduction

There is a growing interest in the automotive industry in sheets made of non-ferrous metal alloys, which, with strength equal to steel, are characterised by lower weight [1,2]. The production of sheet metal drawpieces characterised by low drawability is associated with the need to overcome the many problems related to elastic deformations of products and the limited formability [3,4]. Moreover, some lightweight alloys, for example, aluminium alloys, are prone to galling. During sheet metal forming, there are many phenomena and factors that determine the final shape and properties of the product. In obtaining products of appropriate quality, one of the key phenomena is that of friction occurring at the interface between the surfaces of the tool and the deformed material [5,6]. Currently, the primary method of reducing friction is to use lubrication [7]. Due to the occurrence of various friction conditions in the deep-drawing process, many tests have been developed to model friction, for example, the strip drawing test [8], the bending under tension test [9] and the drawbead test [10]. When forming drawpieces with a complex shape, it may be necessary to use drawbeads which direct the flow of the material by introducing tensile stresses in the sheet material. The drawbeads are protrusions on the die surface (Figure 1) through which the flange of the shaped drawpiece flows [11]. The shape of the drawbead is adapted to the thickness and plastic properties of the sheet material and controls the flow of the sheet metal into the die, but at the same time not prematurely stopping the flow of the material and breaking the drawpiece. Knowledge of the coefficient of friction (COF) occurring at the drawbead is necessary for designing the stamping tool and determining the appropriate boundary conditions in finite element-based numerical simulations of the sheet metal forming process.
Over the years, experimental methods have been developed to determine the value of the COF on the drawbead and the effect of material properties, sheet thickness, and the geometry of the drawbead on the resistance to friction and the restraining force. Firstly, Nine [12] developed a roller drawbead fixture to determine the COF. In this test, while pulling the sheet metal strip over the fixed and freely rotatable rollers, the pulling force and the clamping force are measured, so that it is possible to separate the sheet metal deformation resistance from the resistance to friction. Green [13] experimentally determined in situ bending radii in a strip while it was being pulled through a drawbead. The bead penetration had an effect on the amount of bead wrap. As the penetration increased, the wrap angle increased. Nanayakkara and Hodgson [14] modified the method proposed by Green [13] and determined the drawbead contacts with variable bead penetration. They concluded that the actual COF is a function of the angle of contact of the sheet metal with the drawbead. They also conducted finite element-based computations to study the deformation mechanics during the flow of the sheet metal through the drawbead. Samuel [15] established the finite element method (FEM) model for the investigation of blank-holding conditions and the COF on the deformation of the material which will be passed through the drawbead. Livatyali et al. [16] proposed a tribometer for testing the friction performance when the sheet metal passes through the drawbead. This tribometer is mounted in the holders of a universal testing machine, enabling the determination of only the value of the pulling force of the sheet metal. The depth of the drawbead is regulated by means of a double-acting pneumatic actuator. It was found that the main factor determining the value of the restraining force is the height of the drawbead. Smith et al. [17] developed a device for determining the pulling force of the sheet metal in a stamping die with a drawbead. When the sheet metal is pulled through the height-adjustable drawbead, the pulling force, the restraining force, and the displacement of the sheet are measured. The results of drawing strips of deep-drawing quality steel sheets confirmed quantitatively that the parameter that determines the value of the restraining force to the greatest extent is the geometry of the drawbead. Murali et al. [18] analysed the effect of drawbead geometry in the sheet metal drawing process using finite element analysis and experimental validation. The work-hardening phenomenon plays an important role in the restraining forces. A rectangular drawbead bends and unbends the sheet four times and strengthens the material more than a circular drawbead. Firat et al. derived an analytical model for predicting the restraining force [19] and proposed a numerical model to improve the contact and wrap angle in the drawbead region [20]. Thipprakmas [21,22] numerically analysed the forming process of SUS304 stainless steel with and without using drawbeads. The results showed that it is difficult to achieve a straight wall on both the ‘length’ and ‘width’ sides without the use of a drawbead. Smith et al. [17] developed a device for obtaining the pulling forces for drawbead tooling on inclined binder surfaces in the Oakland University Angle Draw Bead Simulation (OU-ADBS) test. For the deep-drawing steel sheets, bead penetrations, and bead geometries studied, the pulling force at a 20° binder angle ranged from 55% to 96% of that corresponding to a 0° binder angle. Bassoli et al. [23] developed a versatile drawbead simulator to measure the restraining force when deep drawing 6014-T4 aluminium alloy sheets. The authors investigated the effects of the geometry of the drawbead on the restraining forces. It was found that the restraining force normalised by the drawbead width increased with increasing values in the bead height-to-radius ratio. De Carvalho and Lukács [24] used friction shear stress values to detect those places on the workpiece that were exposed to tangential stress caused by contact with the tools and to verify the drawbeads. For the analysed region, the coulomb model was found to be more relevant than the pressure-dependent model for describing friction phenomena. Lo [25] investigated the restraining force generated by the draw bead under different settings for the draw bead radius. It was concluded that when a higher force was applied to the draw bead, a higher restraining force was generated. Gil et al. [26] proposed a model to identify the main variables affecting the uplift force in the drawbead region. They found that minor geometrical deviations in the drawbead geometry significantly affect the uplift force. Venema et al. [27] observed that the coating flakes transported by the sliding sheet tend to accumulate in the area of high contact pressure (the drawbead region). Zabala et al. [28] found a direct relationship between the COF, thinning and forming limit diagram. The lower the COF, the higher the draw-in of the material. In the draw bead region, the clamping force is about 85% of the restraining force. When the restraining force is created by friction only, the binder force needs to be five to seven times larger depending on COF [29].
The phenomenon of friction in sheet metal forming is the result of the simultaneous interaction of many parameters and phenomena such as normal pressure, the surface roughness of the sheet metal and dies, the temperature, the combination of workpiece-tool materials, and the sliding speed. In practice, it is very difficult to determine the influence of one parameter on the COF while omitting other parameters. Therefore, analytical modelling, analysis of variance, artificial neural networks (ANNs), machine learning, genetic algorithms, and advanced deep learning techniques are used. Among the mentioned methods, ANNs are the most widespread and their operation is understood well. In recent years, there has been an interest in artificial intelligence (AI) techniques for solving problems related to the phenomenon of friction, of which ANNs predominate. The performance of ANNs depends on many parameters, that is, the number of hidden layers [30], the training algorithm [31], the number of neurons in the hidden layers [32] and the quality of the input data [33], the neuron activation function [34], and the size of the dataset (a larger training database provides greater accuracy for ANNs). Najm et al. [35] used neural networks to identify the parameters influencing the COF of the deep-drawing sheets tested in the strip drawing test. Different methods of partitioning weight were employed for the expected COF to assess the individual feature’s relevance. Lemu et al. [36] developed mathematical models that describe the friction behaviour of brass sheets using multiple regression analysis and ANNs. They concluded that one advantage of ANNs is that they can be used to extrapolate the model’s function outside the range of the training set but this only has limited scope. Trzepieciński et al. [37] used backward elimination regression and multilayer ANNs to predict the COF of Ti-6Al-4V titanium alloy sheets based on the results of the strip drawing test. Different training methods, that is, the quasi-Newton, Levenberg–Marquardt, back propagation, and network architectures were considered. The highest value of the correlation coefficient and the minimum value of the round mean square error were found for a multilayer perceptron (MLP) trained using the quasi-Newton algorithm. Yang et al. [38] used generalised regression neural networks for predicting the COF of Cr1−xAlxC films deposited on high-speed steel substrates. It was found that compared to the conventional back propagation ANNs, generalised regression neural networks are more suitable for predicting the COF of Cr1−xAlxC films. Nasir et al. [39] applied ANNs for predicting the COF of multilayer chopped strand mat glass fibre-reinforced thermosetting polyester composites in three different orientations. Various training functions were used and it was found that single-layer ANNs showed a prediction accuracy of up to 90% when trained with the Levenberg–Marquardt function. The ANN prediction method has been used in several applications, such as friction [40], surface roughness [41], and wear [42]. The potential applications of ANNs in the field of tribology were provided in review papers by Frangu and Ripa [43] and Argatov [44]. Perspectives about the use of AI in tribology were also provided by Rosenkranz et al. [45].
There are many approaches in the literature investigating the friction performance of materials. However, to the best of the authors’ knowledge, the problem of determining the COF in the drawbead region using the Random Forest (RF) machine learning algorithm combined with ANNs has not been analysed so far. In this paper, a machine learning algorithm and ANNs were used to identify the parameters affecting the COF of AW-5251 aluminium alloy sheets in different temper designations, that is, O, H14, H16, and H22. The sheets were tested using a drawbead simulator under different friction conditions (dry friction, oil lubrication), the different surface roughness of the countersamples and different orientations of the samples in relation to the direction of the sheet rolling. Machine learning is a collection of algorithms focusing and on making precise predictions from data [46]. One of these algorithms is RF [47] which is considered a non-parametric supervised machine learning algorithm. It consists of decision trees where each tree is split by selecting random inputs to fit a random bootstrap sample of those inputs. Another algorithm of machine learning is ANNs which are considered a robust mathematical model and consist of interconnected simple processing units called neurons just like the biological neurons in humans. The neurons in ANNs are arranged in sets called layers. Each neuron in a given layer is connected to other neurons in the adjacent layers but not to neurons in the same layer. The connections among neurons are defined by what is known as connection strength or connection weight which are used in estimating the relative importance of the inputs. In the present study, RF and ANNs were used to explore the relationship between the yield stress Rp0.2, the average roughness of the countersamples Ra, oil viscosity, and the strength coefficient K with the COF as well as estimating their relative importance.

2. Material and Methods

2.1. Test Material

AW-5251 aluminium alloy sheets in different temper states (Table 1) were used as the test materials. The chemical composition of the AW-5251 aluminium alloy according to the EN 573-3 [48] standard is listed in Table 2. The mechanical properties of the sheets in Table 3 were determined in a uniaxial tensile test for samples cut along and transversely to the direction of the sheet rolling. The uniaxial tensile tests were carried out at room temperature according to the EN ISO 6892-1 [49] standard. The basic mechanical properties were determined, that is, yield stress Rp0.2, ultimate tensile stress Rm, and elongation A50. The parameters of work hardening were determined based on the approximation of the true-stress/true-strain curves using the power law hardening (or Ludwik/Holloman) equation σp = K·εn, where σp = stress, K—strength coefficient, n—strain hardening exponent, ε—plastic strain. The basic surface roughness parameters of the tested sheets (Table 4) were determined using an Alicona Infinite-Focus instrument.

2.2. Experimental Setup

Tests to determine the COF in the drawbead region require the separation of the deformation resistance from the resistance to friction as the sheet metal passes through the drawbead. For this purpose, a four-roller tester simulating the sheet passing through the drawbead in sheet metal forming was developed (Figure 2). The tribotester’s equipment includes three sets of cylindrical countersamples made of cold-worked tool steel X165CrV12 with a diameter of 20 mm and an average roughness Ra of 0.32, 0.63 and 1.25 µm. Due to the rotating shape of the countersamples and the manufacturing technology, the average roughness was measured on the surface of the rollers, parallel to their axes. The device was mounted in the lower holder of a universal uniaxial tensile testing machine.
A sample in the form of a 20 mm wide and 200 mm long strip of sheet metal was placed between the lower and upper working countersamples and the middle working countersample. The upper end of the strip sample was then clamped into the tension member, which was then clamped into the upper fixture of the testing machine. The height of the drawbead was set by the appropriate horizontal displacement of the middle working countersample. The tests were carried out with a drawbead height of 20 mm. In this way, the axes of all three working rollers lay in one geometrical plane. The supporting roller was used to prevent the sample from bending due to elastic deformations of the sheet during the friction test. The value of the pulling and clamping forces was recorded using extensometers bonded to the tension members (Figure 2). The signals from the extensometers were transmitted to an 8-channel HBM amplifier, and then to a computer with software.
The determination of the coefficient of friction requires two tests: with freely rotatable rollers and with fixed rollers. During tests with freely rotatable rollers, the clamping force Fc and the pulling force Fp were registered. Similarly, during tests with fixed countersamples, the clamping force Fcf and the pulling force Fpf were registered. Then the value of the COF was calculated according to the relationship [14]:
μ = sin α 2 α · F pf − F p F cf
where α is half of the centre roll wrap angle, α = 90°.
The friction tests were carried out using sheet strips cut along the rolling direction and at a transverse direction to that of the sheet rolling. The samples were drawn at a speed of 1 mm/s under conditions of dry friction and lubrication with three oils: L-AN 46 machine oil, SAE10W40 engine oil, and L-HL 32 hydraulic oil. The basic physicochemical properties of the test oils are shown in Table 5. Sheet metals in the as-received state were tested after cleaning their surfaces using acetone.

2.3. ANN Modelling

In the present study, a four-layer feed-forward multilayer perceptron neural network (Figure 3) was used to study the relationship between the inputs (Rp0.2, Ra, oil viscosity, and K) and the output (COF). The structure of the network consisted of one input layer with four neurons, two hidden layers with six neurons each, and one output layer with one neuron. A back propagation learning algorithm was used and 12 activation functions were compared based on the determination of the coefficient (R2) and the normalised root mean square of error (nRMSE). The 12 activation functions were relu, gelu, softplus, swish, sigmoid, hard_sigmoid, elu, selu, leaky_relu, softsign, tanh, and linear. To train the network, 80% of the data set was used and the other 20% was used for testing its performance. After training and testing the network, the connection weights algorithm [50,51] was used to calculate the relative importance of the inputs. It is worth mentioning that the output layer’s activation function was linear. The connection weights were generated using a Glorot uniform initializer to avoid gradient vanishing problems in the deep learning neural networks; the learning rate was 0.01, the momentum was 0.9, and the epochs were 350.

2.4. RF Model

The main reason for choosing the RF model in the present study is its good prediction performance [52]. Other reasons are that RF can be used for both regression and classification problems, it can handle high-dimensional data where both non-linear effects of inputs and the interactions among them exist, and it can be used to rank the inputs according to their relative importance. The RF model was tuned by adjusting its three tuning parameters to maximise its prediction capability. These three tuning parameters are the number of trees (ntree), the minimum number of data points at a leaf (nodesize), which is used for preventing overfitting, and the maximum number of randomly selected inputs (mtry) to be considered at each split node [53,54]. The best performance was achieved by using low values of the minimum node size and high values of the number of randomly selected inputs. Partitioning the dataset into training and testing subsets significantly affects prediction accuracy and training performance [55]. Inappropriate subsets have a negative effect on performance metrics. On the other hand, Shahin [56] argued that there is no evident relationship between the splitting ratio of the dataset and the dataset itself. In contrast, Zhang et al. [55] asserted that the splitting ratio is one of the primary issues. However, there is no general setting available as a solution. Based on their surveys, most researchers divide the datasets into lines with varying proportions of subsets. The most commonly used training and testing ratios are 90% to 10%, 80% to 20%, or 70% to 30%. As part of the training for this paper, the optimal prediction of the tuning parameters was achieved by dividing the actual data (96 samples) into 80% training and 20% test sets. To overcome the overfitting in RF, 30% of the training subset was used for the validation. A factorial combination of the tuning hyperparameters was selected to construct a grid and a search in that grid was performed in combination with a five-to-ten-fold cross-validation to achieve the best prediction performance based on the testing dataset [57]. After training and testing RF, the relative importance of the input variables was estimated using the optimal run.
The R statistical package software version 4.1.0 [58] was used for running the RF model and the multilayer perceptron neural network. R is a statistical programming language uniquely equipped to deal with different data. R makes it simple to manipulate data and generate publication-ready graphics and visualizations. The program can run all aspects of data analysis, mining, and modelling tasks. The randomForest package was used to run the RF model [59], the caret package was used for tuning the parameters [57], and the iml package was used to produce the accumulated local effect (ALE) plots [60]. For the multilayer perceptron neural network, keras and tensorflow packages were used in Python via R.

3. Results and Discussion

3.1. Experimental Results

In both the friction conditions tested, it was observed that the COF for samples cut along the sheet rolling direction was greater than for samples cut in the transverse direction (Figure 4). For the AW-5251-O aluminium alloy sheet, with the increase in the average roughness of the countersamples, the effect of the orientation of the samples on the value of the COF increases (Figure 4a). However, for the AW-5251-H22 aluminium alloy sheet, this relationship is reversed. In general, the greater the average roughness of the countersamples, the smaller the effect of the sample orientation on the COF. The relationships described above apply to both dry friction and oil lubrication. During the passage of the sample through the drawbead, the sheet is bent and straightened several times. As a result of the phenomenon of work hardening, the strength of the sheet material increases and, at the same time, the formability of the material decreases. Samples bent perpendicularly to the sheet rolling direction are less susceptible to plastic working than samples bent parallel to the rolling direction. This is due to the band-like directional arrangement of the material grains, which are elongated in the direction of rolling.
In general, increasing the average roughness of the countersamples causes a decrease in the value of the COF. The character of the influence of the surface roughness of a harder tool on the COF value compared to the sheet material depends on the friction conditions. During dry friction, the high surface roughness of the tool can lead to intensification of the ploughing phenomenon [61]. This is a particularly sensitive phenomenon in the case of aluminium alloy plates which are prone to galling. On the other hand, under lubricated conditions, increased surface roughness allows more oil to accumulate in the surface valleys [62]. The highest lubrication efficiency for both sample orientations was observed for 10W40 engine oil which is characterised by the highest viscosity index value among all the tested oils.
There is a clear tendency for the COF value to decrease with the increase in the average roughness of the countersamples. The sheet metal undergoes severe work hardening when passing through the drawbead and its hardness increases. In this way, the intensification of the ploughing phenomenon is limited. Therefore, the increased surface roughness of the strip sample ensures that more lubricant is stored in the surface valleys [63].
Determining the influence of sheet surface roughness and mechanical properties on the value of the COF is extremely difficult due to the possible complex interactions of many parameters. Therefore, in the next section, machine learning and ANNs are used to identify the main interactions between the input parameters and the COF.

3.2. Artificial Neural Networks

When R2 is close to 1, the performance is good; when nRMSE is close to 0, the error is low. Knowing the difference between training and test errors is very important. Training errors are calculated using the same data for training the model. Test errors, on the other hand, are calculated using a complete dataset that was not used to train the model. It can be said that the R2 value of the training dataset shows how different the learned samples are, while the R2 value of the testing dataset shows how efficient the model is at making predictions. The leaky_relu activation function (Table 6) was the most suitable function for the tested data as its R2 value was the highest (0.86) and its nRMSE was the lowest (0.11) (Figure 5), so the estimated relative importance of the inputs based on that activation function was more reliable than the other activation functions. The importance of an input was measured by calculating the increase in the prediction error of the model after permuting the input. An input is considered important if shuffling its values caused an increase in the model error because, in this situation, the model relied on that input for its prediction. On the other hand, an input is considered unimportant if shuffling its values caused no change in the model error because, in this state, the model disregarded the input. Oil viscosity was the most important input to the COF (0.59) followed by the average roughness of the countersamples Ra (0.30), while both the yield stress Rp0.2 and the strength coefficient K were the least important inputs (0.05 and 0.06, respectively). The hard sigmoid activation function was the worst function as its R2 value was the lowest (0.25) and its nRMSE value was the highest (0.30) (Figure 6), so it should not be used.
From Figure 6, it is clear that the results of the different activation functions varied greatly. Predicting a COF with the same features using various activation functions might be problematic. Activation functions may utilise these features well or inadequately. Not all prediction models can leverage data links for predicting the COF. The issue is stochastic; the data set is incomplete, the data are inadequate, the model is too simplistic, or any combination of these. All the foregoing concerns would lead to discrepancies in unseen data model predictions. To estimate the relative importance of the inputs, the Glorot uniform initialiser [ 6 / ( fan _ in   +   fan _ out ) ] where fan_in is the number of input units and fan_out is the number of output units] was used to generate the connection weights to avoid gradient vanishing problems in the deep learning and the connection weight algorithm, ( RI x = ∑ y = 1 m w xy w yz ) where Wxy is the connection weights from the input layer to the hidden layer and, Wyz is the connection weights from the hidden layer to the output layer. The relative importance of the inputs was calculated using 12 different activation functions (Figure 6).
On the other hand, variable importance (Figure 7) was estimated using the optimal run after training and testing the RF model (R2 = 0.90 ± 0.028) using nine different loss functions (Table 7). The dots represent the median of the relative importance while the lines represent the minimum and maximum values of the relative importance. The function of variable importance in the RF model defines the insight of the additive predictive value of a certain input variable and consequently ranks the studied input variables by using the mean decrease in accuracy that happened when a particular input variable was permuted randomly, where the mean decrease in accuracy is an indication of how much accuracy was lost in the prediction process by removing each input variable. Input variables with a big mean decrease in accuracy are considered the most important or strongest input variable to the output.
Before estimating the importance of the input variables, it is worth noting that when collinearity among inputs is present, the estimated variable importance becomes less reliable and less interpretable and, consequently, ALE plots should be used to explore the nature of the relationship between the inputs and the output. However, when collinearity is absent, variable importance becomes reliable and, consequently, partial dependence (PD) plots could be used for providing information about the shape of the relation between each input and the output [64].
Figure 8 depicts the influence of the analysed inputs on predicting the COF using ALE plots.
ALE plots illustrate how the prediction average of the output changes by changing the values of an input while all other inputs are kept at their original values. Figure 8 reveals that oil viscosity and Ra were the most important inputs to the COF, while Rp0.2 and K were the least important. These results are in agreement with those obtained by the results of the ANNs. The most essential factor influencing friction conditions is viscosity. The surface roughness does not determine the volume of oil retained and thereby affects the COF values. Roughness is critical in increasing friction. Moreover, if roughness retains oil, then there is a correlation between the oil viscosity and the roughness input parameters in determining the output COF. As Rp0.2 and K were the minor relevant inputs, it may be deduced that the mechanical characteristics of the sheets did not make a substantial contribution. There was no noticeable increase in the intensity of the mechanical interactions occurring on the surface asperities.
Figure 9 and Figure 10 reveal that the Ra and Rp0.2 were the most active inputs in interactions with the other inputs. Viscosity was the lowest in interactions with the other inputs because it has a large direct effect. However, the Ra has both a large direct effect and higher interactions with the other inputs. Figure 10 shows that when the Ra and Rp0.2 interacted with each other this leads to a lower COF (coloured red) when the Ra values were more than 1.1 and the Rp0.2 values between 105 and 190. When the oil viscosity is added with the Rp, the values of the COF were lower at 9–35 for viscosity and 105–190 for Rp0.2 with a gap between 110 and 130. The interaction between the oil viscosity and the Ra revealed a low value of the COF when the oil viscosity values were between 9 and 35 and the Ra values between 0.95 and 1.25. On the other hand, the interaction between K and the other inputs was the least important one because it leads to a very small region of lower values of the COF (coloured red). It can be concluded that to achieve lower values of the COF, the Rp0.2 values should be between 105 and 190, the Ra values should be between 0.95 and 1.25, and the oil viscosity values should be between 9 and 35. It is highly challenging to explain the interplay of the many parameters physically. It can be observed that there is an unsteadiness at K = 255 MPa for both Ra and viscosity; this is because it is not necessary to be able to compute the accumulated local effects (ALE) since there was no connection between the inputs, that is, the changes in predictions did not average out significantly across the grid. The Y axis represents the deviation from the predicted value to the observed value. Therefore, once the viscosity was over 10, the difference was negligible.

4. Conclusions

In this paper, the results of the frictional performance of AW-5251 aluminium alloys sheet in various tempers were tested using a drawbead simulator. The RF machine learning algorithm and ANNs were used to identify the parameters affecting the COF. Based on the experimental results and ANN modelling, the following conclusions can be drawn:
  • It was observed that the COF for samples cut along the sheet rolling direction was greater than for samples cut in the transverse direction. This applies to both dry friction and lubricated conditions. For the AW-5251-O sheet, the greatest difference (0.019) in the COF values for both sample orientations was observed for dry friction conditions for a countersample with an average roughness of 1.25 µm. For the AW-5251-H14 sheet, the greatest difference (0.021) in COF values for both sample orientations was observed for dry friction conditions for a countersample with an average roughness of 0.63 µm.
  • In general, the greater the average roughness of the countersamples, the smaller the effect of sample orientation on the COF.
  • There is a clear tendency for the COF value to decrease with the increase in the average roughness of the countersamples. Increasing the surface roughness of the countersample material with much greater strength than the workpiece material causes intensification of the mechanical interaction of the surface asperities, but at the same time, greater roughness means a larger volume of the valleys constituting the lubricant reservoir.
  • The highest lubrication efficiency for both sample orientations was observed for SAE10W40 engine oil which is characterised by the highest viscosity index value (157) among all the tested oils.
  • Oil viscosity was the most important input to the COF followed by the average roughness of the countersamples Ra, while both Rp0.2 and K (strength coefficient) were the least important inputs. As Rp0.2 and K were the minor relevant inputs, it may be deduced that the mechanical characteristics of the sheets did not make a substantial contribution to the COF when passing the sheet metal through the drawbead.
  • The most appropriate activation function for our data was leaky_relu because it had the highest R2 and the lowest nRMSE.
  • The average roughness of the countersamples Ra and the yield stress Rp0.2 were the most active inputs in interactions with the other inputs. Oil viscosity was the lowest in interactions with the other inputs because it has a large direct effect. However, the Ra has both a large direct effect and higher interactions with the other inputs.

Author Contributions

Conceptualization, T.T., S.M.N. and O.M.I.; Methodology, T.T., S.M.N. and O.M.I.; Formal analysis, T.T., S.M.N., O.M.I. and M.K.; Investigation, T.T., S.M.N. and O.M.I.; Validation, T.T., S.M.N., O.M.I. and M.K.; Data curation, T.T., S.M.N., O.M.I. and M.K.; Writing—Original Draft Preparation, T.T., O.M.I. and S.M.N.; Writing—Review and Editing, T.T. and S.M.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dou, S.; Xia, J. Analysis of Sheet Metal Forming (Stamping Process): A Study of the Variable Friction Coefficient on 5052 Aluminum Alloy. Metals 2019, 9, 853. [Google Scholar] [CrossRef] [Green Version]
  2. Trzepieciński, T.; Oleksik, V.; Pepelnjak, T.; Najm, S.M.; Paniti, I.; Maji, K. Emerging Trends in Single Point Incremental Sheet Forming of Lightweight Metals. Metals 2021, 11, 1188. [Google Scholar] [CrossRef]
  3. Żaba, K.; Kuczek, Ł.; Puchlerska, S.; Wiewióra, M.; Góral, M.; Trzepieciński, T. Analysis of Tribological Performance of New Stamping Die Composite Inserts Using Strip Drawing Test. Adv. Mech. Mater. Eng. 2023, 40, 55–62. [Google Scholar] [CrossRef]
  4. Trzepieciński, T.; Lemu, H.G. Improving Prediction of Springback in Sheet Metal Forming Using Multilayer Perceptron-Based Genetic Algorithm. Materials 2020, 13, 3129. [Google Scholar] [CrossRef] [PubMed]
  5. Luiz, V.D.; de Matos Rodrigues, P.C. Design of a Tribo-Simulator for Investigation of the Tribological Behavior of Stainless-Steel Sheets Under Different Contact Conditions. Mater. Res. 2022, 25, e20210220. [Google Scholar] [CrossRef]
  6. Luiz, V.D.; de Matos Rodrigues, P.C. Effect of the test conditions on tribological behavior of an Nb-stabilized AISI 430 stainless steel sheet. J. Braz. Soc. Mech. Sci. Eng. 2021, 43, 505. [Google Scholar] [CrossRef]
  7. Szewczyk, M.; Szwajka, K. Assessment of the Tribological Performance of Bio-Based Lubricants Using Analysis of Variance. Adv. Mech. Mater. Eng. 2023, 40, 31–38. [Google Scholar] [CrossRef]
  8. Trzepieciński, T. Tribological Performance of Environmentally Friendly Bio-Degradable Lubricants Based on a Combination of Boric Acid and Bio-Based Oils. Materials 2020, 13, 3892. [Google Scholar] [CrossRef]
  9. De Araujo, A. Banding under Tension-Friction Measuring Device. Bachelor’s Thesis, Hame Univetsity of Applied Sciences, Hämeenlinna, Finland, 2023. [Google Scholar]
  10. Trzepieciński, T.; Najm, S.M. Application of Artificial Neural Networks to the Analysis of Friction Behaviour in a Drawbead Profile in Sheet Metal Forming. Materials 2022, 15, 9022. [Google Scholar] [CrossRef]
  11. Trzepieciński, T.; Slota, J.; Kaščák, Ľ.; Gajdoš, I.; Vojtko, M. Friction Behaviour of 6082-T6 Aluminium Alloy Sheets in a Strip Draw Tribological Test. Materials 2023, 16, 2338. [Google Scholar] [CrossRef]
  12. Nine, H.D. Drawbead forces in sheet metal forming. In Mechanics of Sheet Metal Forming; Koistinen, D.P., Wang, N.M., Eds.; Plenum Press: New York, NY, USA, 1978; pp. 179–211. [Google Scholar]
  13. Green, D.E. An Experimental Technique to Determine the Behavior of Sheet Metal in a Drawbead; SAE Technical Paper; SAE: Amman, Jordan, 2001. [Google Scholar]
  14. Nanayakkara, N.K.B.M.P.; Manjula, N.; Hodgson, P. Determination of Drawbead Contacts with Variable Bead Penetration. Comp. Method. Mater. Sci. 2006, 6, 188–194. [Google Scholar]
  15. Samuel, M. Influence of drawbead geometry on sheet metal forming. J. Mater. Process. Technol. 2002, 122, 94–103. [Google Scholar] [CrossRef]
  16. Livatyali, H.; Firat, M.; Gurler, B.; Ozsoy, M. An experimental analysis of drawing characteristics of a dual-phase steel through a round drawbead. Mater. Des. 2010, 31, 1639–1643. [Google Scholar] [CrossRef]
  17. Smith, L.M.; Zhou, Y.J.; Zhou, D.J.; Du, C.; Wanintrudal, C. A new experimental test apparatus for angle binder draw bead simulations. J. Mater. Process. Technol. 2009, 209, 4942–4948. [Google Scholar] [CrossRef]
  18. Murali, G.; Gopal, M.; Rajadurai, A. Effect of Circular and Rectangular Drawbeads in Hemispherical Cup Forming: Finite Element Analysis and Experimental Validation. Arab. J. Sci. Eng. 2012, 37, 1701–1709. [Google Scholar] [CrossRef]
  19. Firat, M. An analysis of sheet drawing characteristics with drawbead elements. Comput. Mater. Sci. 2008, 41, 266–274. [Google Scholar] [CrossRef]
  20. Firat, M.; Livatyali, H.; Cicek, O.; Onhon, F. Improving the accuracy of contact type drawbead elements in panel stamping analysis. Mater. Des. 2009, 30, 4003–4011. [Google Scholar] [CrossRef]
  21. Thipprakmas, S. Affect of Part Geometry on Wall Features in Rectangular Deep-Drawing Processes using Finite Element Method. Key Eng. Mater. 2009, 410–411, 579–585. [Google Scholar]
  22. Thipprakmas, S. Effect of Draw Bead Height on Wall Features in Rectangular Deep-Drawing Process Using Finite Element Method. Adv. Mater. Res. 2011, 264–265, 1580–1585. [Google Scholar]
  23. Bassoli, E.; Sola, A.; Denti, L.; Gatto, A. Experimental approach to measure the restraining force in deep drawing by means of a versatile draw bead simulator. Mater. Manuf. Process. 2019, 34, 1286–1295. [Google Scholar] [CrossRef]
  24. De Carvalho, L.A.; Lukács, Z. Application of enhanced coulomb models and virtual tribology in a practical study. Pollack Period. 2022, 17, 19–23. [Google Scholar] [CrossRef]
  25. Lo, T.W.C. Effect of draw bead geometry and applied force to drawing of aluminium AA6061. Bachelor’s Thesis, Universiti Sains Malaysia, Penang, Malaysia, May 2019. [Google Scholar]
  26. Gil, I.; Mendiguren, J.; Galdos, L.; Mugarra, E.; de Andragoña, E.S. New drawbead tester and numerical analysis of drawbead closure force. Int. J. Adv. Manuf. Technol. 2021, 116, 1855–1869. [Google Scholar] [CrossRef]
  27. Venema, J.; Korver, F.; Chezan, T. Slider on Sheet Tester Development for Characterizing Galling. Key Eng. Mater. 2022, 926, 1204–1210. [Google Scholar] [CrossRef]
  28. Zabala, A.; de Argandoña, E.S.; Daniel Cañizares, D.; Llavori, I.; Otegi, N.; Mendiguren, J. Numerical study of advanced friction modelling for sheet metal forming: Influence of the die local roughness. Tribol. Int. 2022, 165, 107259. [Google Scholar] [CrossRef]
  29. Mokashi, A.; Golovashchenko, S.; Reinberg, N.; Nasheralahkami, S.; Demiralp, Y. Engineering Angle: Draw Bead Restraining Forces in Sheet Metal Drawing Operations. Available online: https://www.thefabricator.com/thefabricator/article/bending/engineering-angle-draw-bead-restraining-forces-in-sheet-metal-drawing-operations (accessed on 2 July 2023).
  30. Suresh, A.; Harsha, A.P.; Ghosh, M.K. Solid particle erosion studies on polyphenylene sulfide composites and prediction on erosion data using artificial neural networks. Wear 2009, 266, 184–193. [Google Scholar] [CrossRef]
  31. Šušteršič, T.; Gribova, V.; Nikolic, M.; Lavalle, P.; Filipovic, N.; Vrana, N.E. The Effect of Machine Learning Algorithms on the Prediction of Layer-by-Layer Coating Properties. ACS Omega 2023, 8, 4677–4686. [Google Scholar] [CrossRef]
  32. Uzair, M.; Jamil, N. Effects of Hidden Layers on the Efficiency of Neural networks. In Proceedings of the 2020 IEEE 23rd International Multitopic Conference (INMIC), Bahawalpur, Pakistan, 5–7 November 2020; pp. 1–6. [Google Scholar]
  33. Zhang, Z.; Friedrich, K.; Velten, K. Prediction on tribological properties of short fibre composites using artificial neural networks. Wear 2002, 252, 668–675. [Google Scholar] [CrossRef]
  34. Onwujekwegn, G.; Yoon, V.Y. Analyzing the Impacts of Activation Functions on the Performance of Convolutional Neural Network Models. 2020. Available online: https://aisel.aisnet.org/amcis2020/ai_semantic_for_intelligent_info_systems/ai_semantic_for_intelligent_info_systems/4 (accessed on 3 July 2023).
  35. Najm, S.M.; Trzepieciński, T.; Kowalik, M. Modelling and parameter identification of coefficient of friction for deep-drawing quality steel sheets using the CatBoost machine learning algorithm and neural networks. Int. J. Adv. Manuf. Technol. 2023, 124, 2229–2259. [Google Scholar] [CrossRef]
  36. Lemu, H.G.; Trzepieciński, T. Multiple regression and neural network based characterization of friction in sheet metal forming. Adv. Mater. Res. 2014, 1051, 204–210. [Google Scholar]
  37. Trzepieciński, T.; Szpunar, M.; Kašcák, Ľ. Modeling of friction phenomena of Ti-6Al-4V sheets based on backward elimination regression and multi-layer artificial neural networks. Materials 2021, 14, 2570. [Google Scholar] [CrossRef]
  38. Yang, Y.S.; Chou, J.H.; Huang, W.; Fu, T.C.; Li, G.W. An artificial neural network for predicting the friction coefficient of deposited Cr1−xAlxC films. Appl. Soft Comp. 2013, 13, 109–115. [Google Scholar] [CrossRef]
  39. Nasir, T.; Yousif, B.F.; McWilliam, S.; Salth, N.D.; Hui, L.T. An artificial neural network for prediction of the friction coefficient of multi-layer polymeric composites in three different orientations. Proc. IMechE Part C J. Mech. Eng. Sci. 2010, 224, 419–429. [Google Scholar] [CrossRef]
  40. Aleksendric, D.; Duboka, C. Prediction of automotive friction material characteristics using artificial neural networks-cold performance. Wear 2006, 261, 269–282. [Google Scholar] [CrossRef]
  41. Rapetto, M.P.; Almqvist, A.; Larsson, R.; Lugt, P.M. On the influence of surface roughness on real area of contact in normal, dry, friction free, rough contact by using a neural network. Wear 2009, 266, 592–595. [Google Scholar] [CrossRef] [Green Version]
  42. Jiang, Z.; Zhang, Z.; Friedrich, K. Prediction on wear properties of polymer composites with artificial neural networks. Compos. Sci. Technol. 2007, 67, 168–176. [Google Scholar] [CrossRef]
  43. Frangu, L.; Ripa, M. Artificial Neural Networks Applications in Tribology—A Survey. In Proceedings of the NIMIA-SC2001—2001 NATO Advanced Study Institute on Neural Networks for Instrumentation, Measurement, and Related Industrial Applications: Study Cases, Crema, Italy, 9–20 October 2001; pp. 1–6. [Google Scholar]
  44. Argatov, I. Artificial Neural Networks (ANNs) as a Novel Modeling Technique in Tribology. Front. Mech. Eng. 2019, 5, 30. [Google Scholar] [CrossRef] [Green Version]
  45. Rosenkranz, A.; Marian, M.; Profito, F.J.; Aragon, N.; Shah, R. The Use of Artificial Intelligence in Tribology—A Perspective. Lubricants 2021, 9, 2. [Google Scholar] [CrossRef]
  46. Crisci, C.; Ghattas, B.; Perera, G. A review of supervised machine learning algorithms and their applications to ecological data. Ecol. Model. 2012, 240, 113–122. [Google Scholar] [CrossRef]
  47. Wright, M.N.; Ziegler, A. Ranger: A Fast Implementation of Random Forests for High Dimensional Data in C++ and R. J. Stat. Softw. 2015, 77, 1–17. [Google Scholar] [CrossRef] [Green Version]
  48. EN 573-3; Aluminium and Aluminium Alloys—Chemical Composition and Form of Wrought Products—Part 3, Chemical Composition and Form of Products. BSI: London, UK, 2019.
  49. ISO 6892-1:2009; Metallic Materials—Tensile Testing—Part 1: Method of Test at Room Temperature. International Organization for Standardization: Geneva, Switzerland, 2009.
  50. Ibrahim, O.M. A comparison of methods for assessing the relative importance of input variables in artificial neural networks. J. Appl. Sci. Res. 2013, 9, 5692–5700. [Google Scholar]
  51. Ibrahim, O.M.; El-Gamal, E.H.; Darwish, K.M.; Kianfar, N. Modeling main and interactional effects of some physiochemical properties of Egyptian soils on cation exchange capacity via artificial neural networks. Eurasian Soil Sci. 2022, 55, 1052–1063. [Google Scholar] [CrossRef]
  52. Fernández-Delgado, M.; Cernadas, E.; Barro, S.; Amorim, D. Do we need hundreds of classifiers to solve real world classification problems? J. Mach. Learn. Res. 2014, 15, 3133–3181. [Google Scholar]
  53. Probst, P.; Wright, M.N.; Boulesteix, A.L. Hyperparameters and tuning strategies for random forest. Wires Data Min. Knowl. Discov. 2019, 9, e1301. [Google Scholar] [CrossRef] [Green Version]
  54. Scornet, E. Tuning parameters in random forests. ESAIM Proc. Surv. 2017, 60, 144–162. [Google Scholar] [CrossRef] [Green Version]
  55. Zhang, G.; Eddy-Patuwo, B.; Hu, M.Y. Forecasting with artificial neural networks: The state of the art. Int. J. Forecast. 1998, 14, 35–62. [Google Scholar] [CrossRef]
  56. Shahin, M.; Maier, H.R.; Jaksa, M.B. Evolutionary Data Division Methods for Developing Artificial Neural Network Models in Geotechnical Engineering; Research Report No. R 171; The University of Adelaide: Adelaide, SA, Australia, 2000. [Google Scholar]
  57. Kuhn, M. Building predictive models in R using the caret package. J. Stat. Softw. 2008, 28, 1–26. [Google Scholar] [CrossRef] [Green Version]
  58. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018; Available online: https://www.gbif.org/tool/81287/r-a-language-and-environment-for-statistical-computing (accessed on 29 May 2023).
  59. Liaw, A.; Wiener, M. Classification and Regression by random Forest. R News 2002, 2, 18–22. [Google Scholar]
  60. Molnar, C.; Casalicchio, G.; Bischl, B. iml: An R package for Interpretable Machine Learning. J. Open Source Softw. 2018, 3, 786. [Google Scholar] [CrossRef] [Green Version]
  61. Xia, J.; Zhao, J.; Dou, S.; Shen, X. A Novel Method for Friction Coefficient Calculation in Metal Sheet Forming of Axis-Symmetric Deep Drawing Parts. Symmetry 2022, 14, 414. [Google Scholar] [CrossRef]
  62. Wang, W.Z.; Chen, H.; Hu, Y.Z.; Wang, H. Effect of surface roughness parameters on mixed lubrication characteristics. Tribol. Int. 2006, 39, 522–527. [Google Scholar] [CrossRef]
  63. Xu, Z.; Huang, J.; Mao, M.; Peng, L.; Lai, X. An investigation on the friction in a micro sheet metal roll forming processes considering adhesion and ploughing. J. Mater. Proc. Technol. 2020, 285, 116790. [Google Scholar] [CrossRef]
  64. Apley, D.W.; Zhu, J. Visualizing the effects of predictor variables in black box supervised learning models. J. R. Stat. Soc. Ser. B 2020, 82, 1059–1086. [Google Scholar] [CrossRef]
Materials 16 05207 g001 550

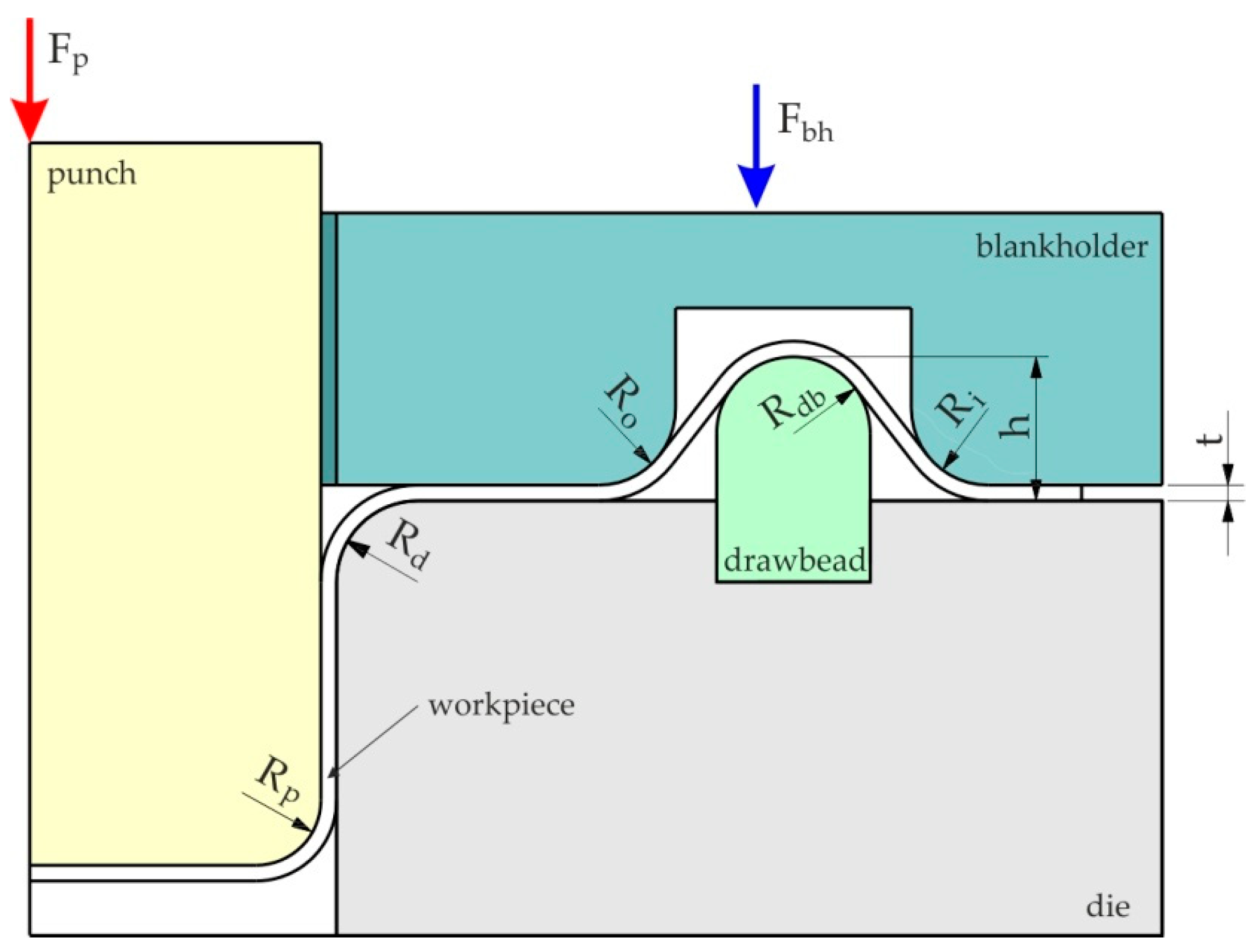

Figure 1. Deformation of the sheet metal in the drawbead region.
Figure 1. Deformation of the sheet metal in the drawbead region.
Materials 16 05207 g001
Materials 16 05207 g002 550

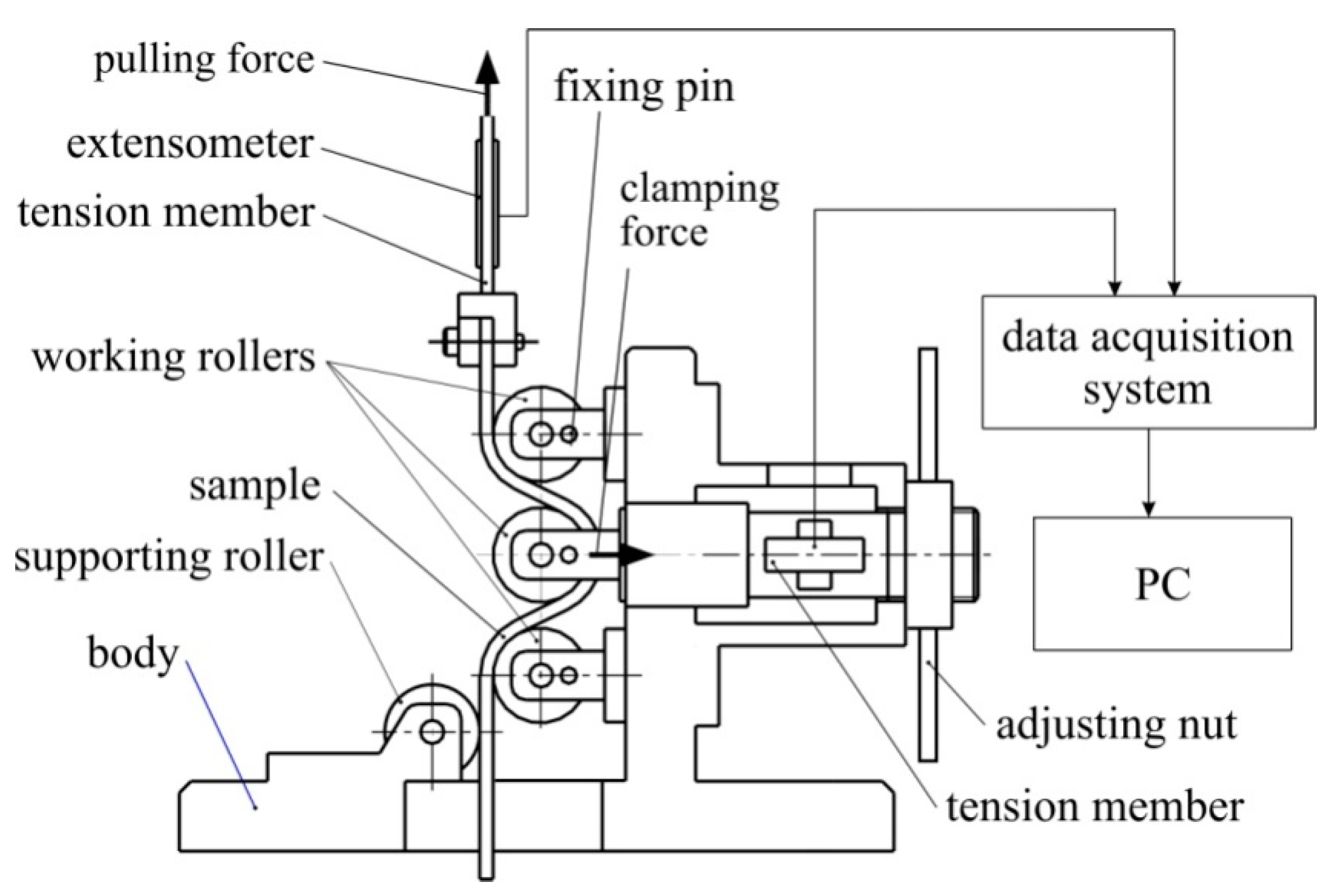

Figure 2. Drawbead simulator [10].
Figure 2. Drawbead simulator [10].
Materials 16 05207 g002
Materials 16 05207 g003 550

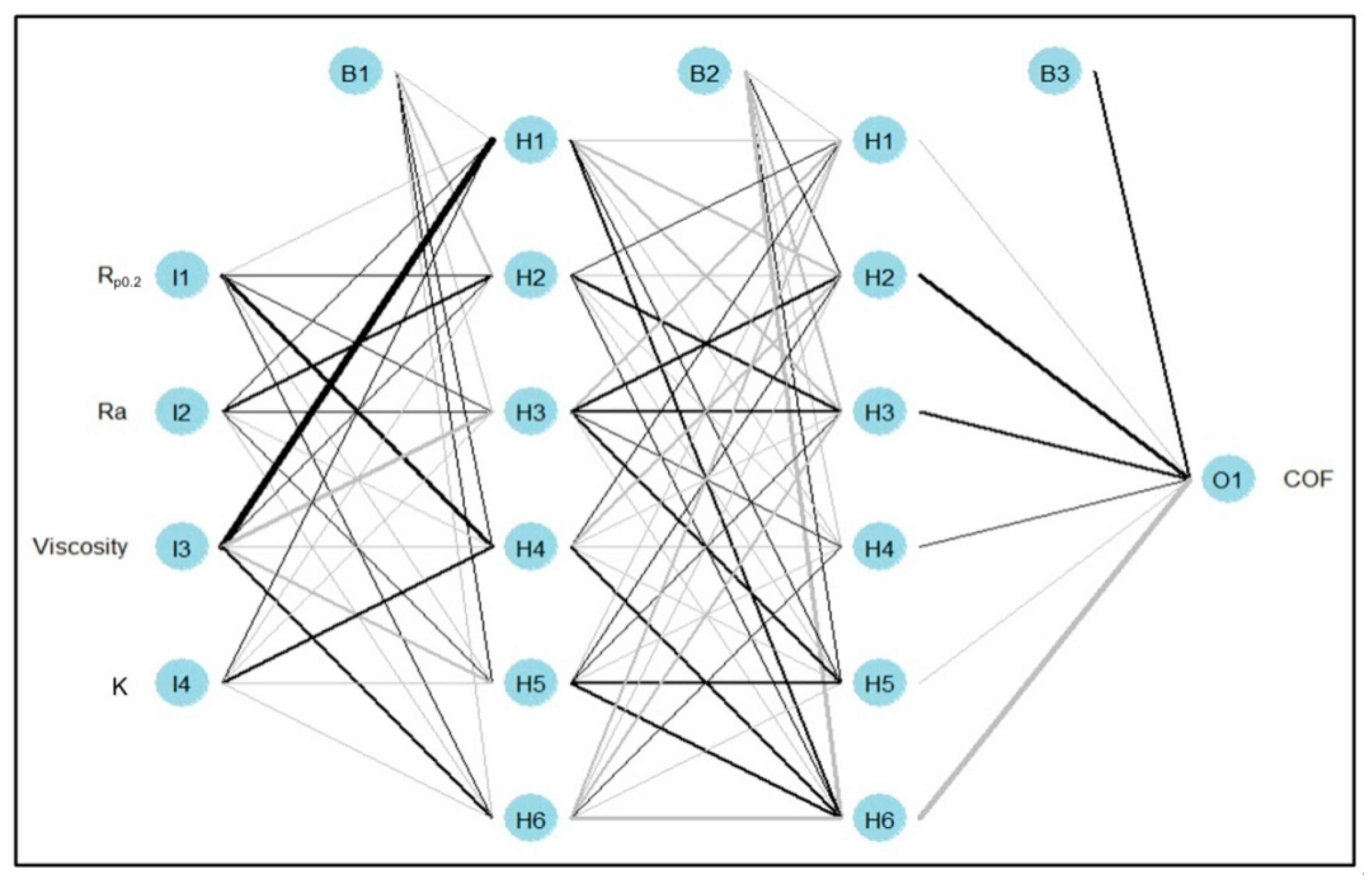

Figure 3. Structure of the multilayer perceptron used: I, H, B, and O stand for input, hidden, bias, and output neurons. Black colour connections indicate a negative effect while grey colour connections indicate a positive effect, the thickness of the connections indicates the degree or the strength of the effect.
Figure 3. Structure of the multilayer perceptron used: I, H, B, and O stand for input, hidden, bias, and output neurons. Black colour connections indicate a negative effect while grey colour connections indicate a positive effect, the thickness of the connections indicates the degree or the strength of the effect.
Materials 16 05207 g003
Materials 16 05207 g004a 550Materials 16 05207 g004b 550

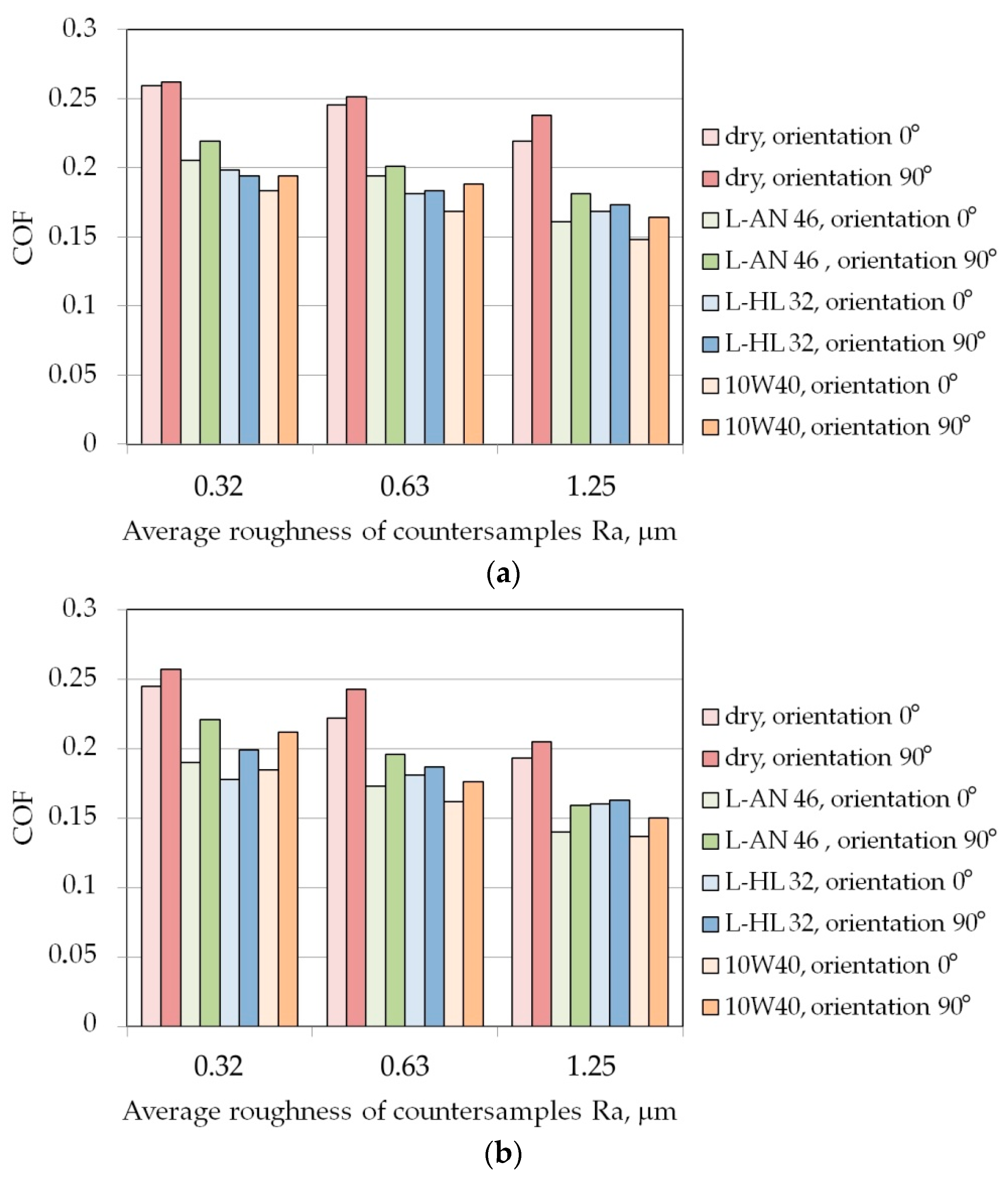

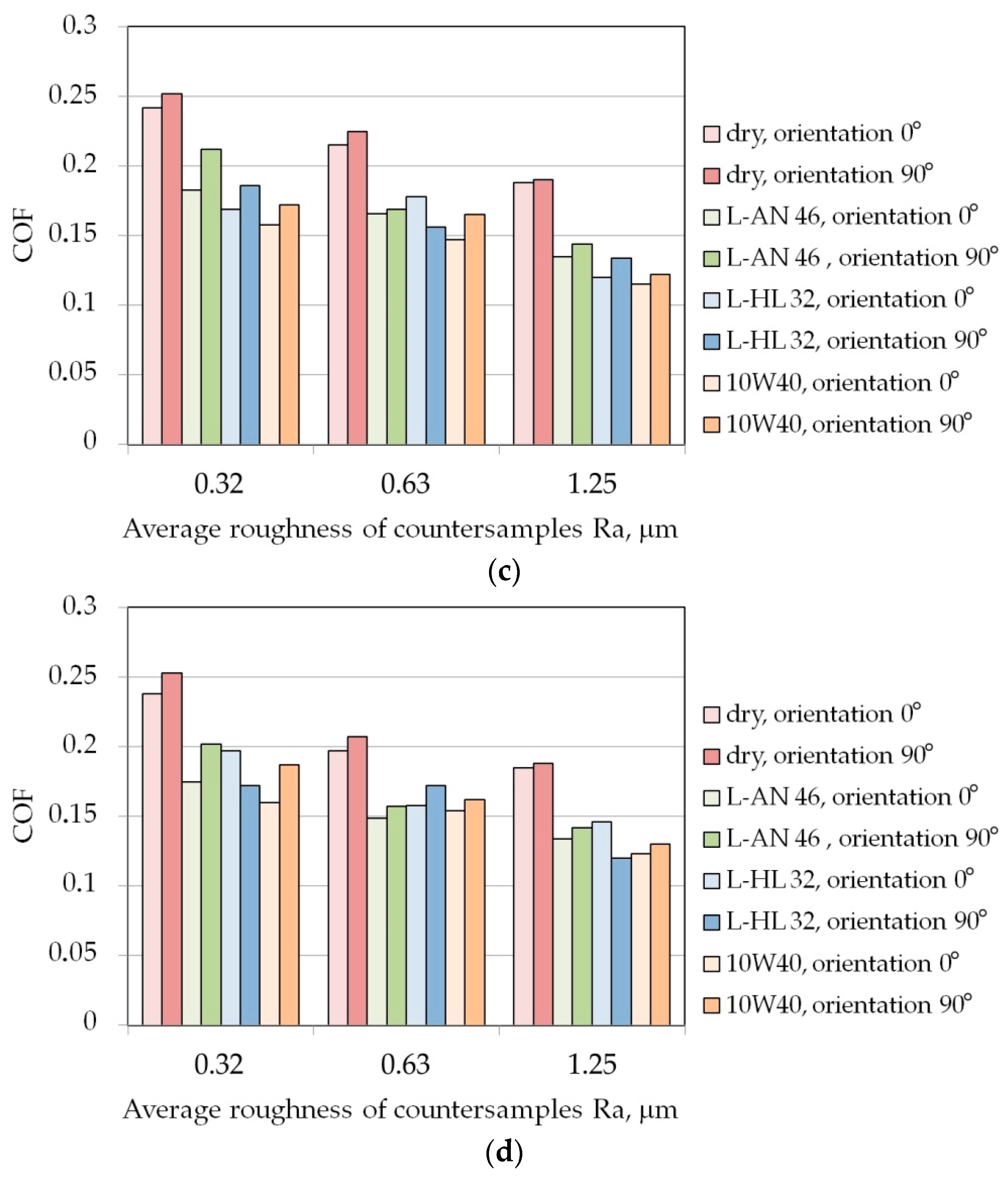

Figure 4. The effect of specimen orientation and friction conditions on the COF for (a) AW-5251-O, (b) AW-5251-H14, (c) AW-5251-H16, (d) AW-5251-H22.
Figure 4. The effect of specimen orientation and friction conditions on the COF for (a) AW-5251-O, (b) AW-5251-H14, (c) AW-5251-H16, (d) AW-5251-H22.
Materials 16 05207 g004aMaterials 16 05207 g004b
Materials 16 05207 g005 550
Figure 5. R2 and nRMSE in the MLP.
Figure 5. R2 and nRMSE in the MLP.
Materials 16 05207 g005
Materials 16 05207 g006 550

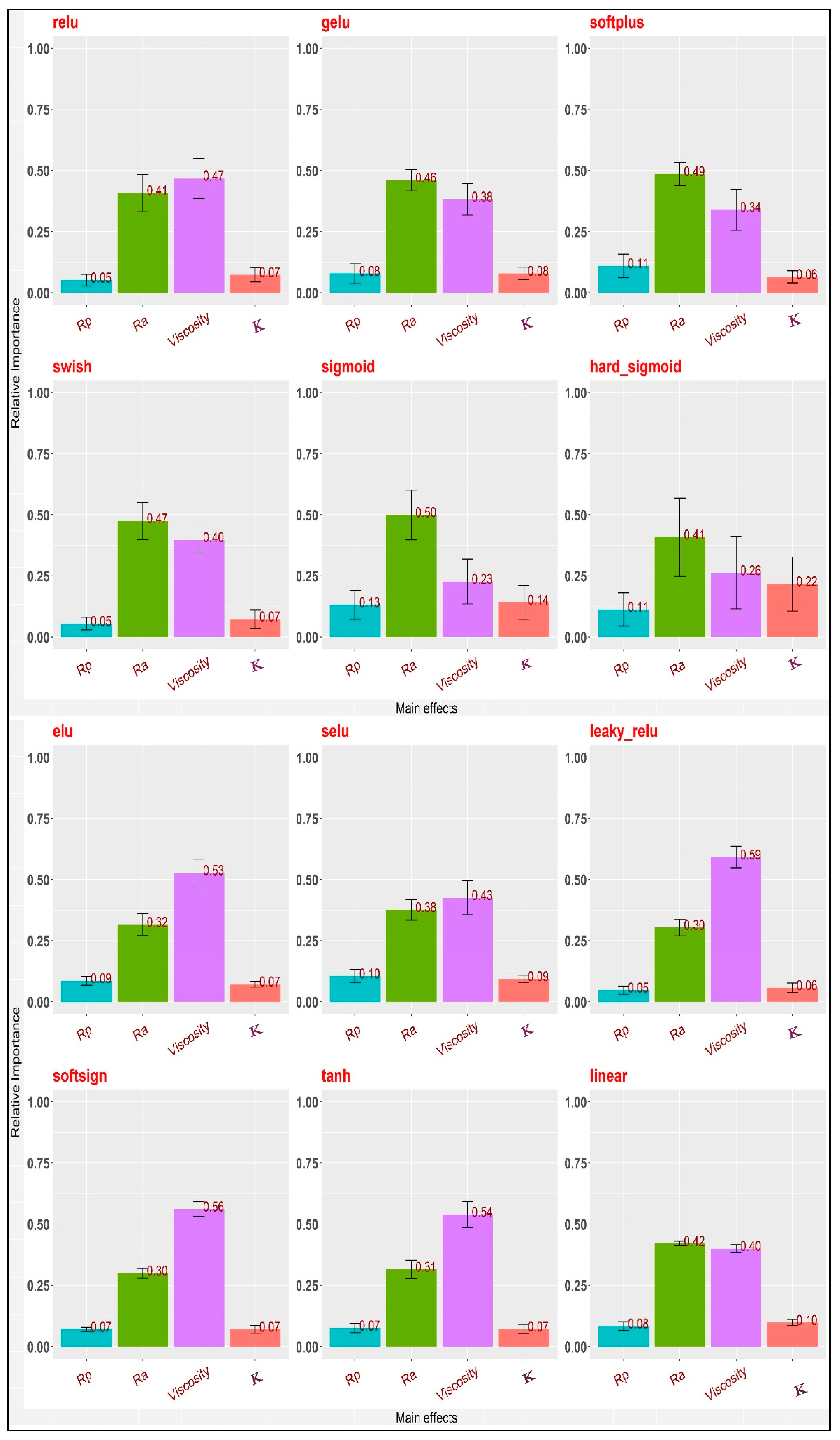

Figure 6. The relative importance of the inputs in the MLP.
Figure 6. The relative importance of the inputs in the MLP.
Materials 16 05207 g006
Materials 16 05207 g007 550

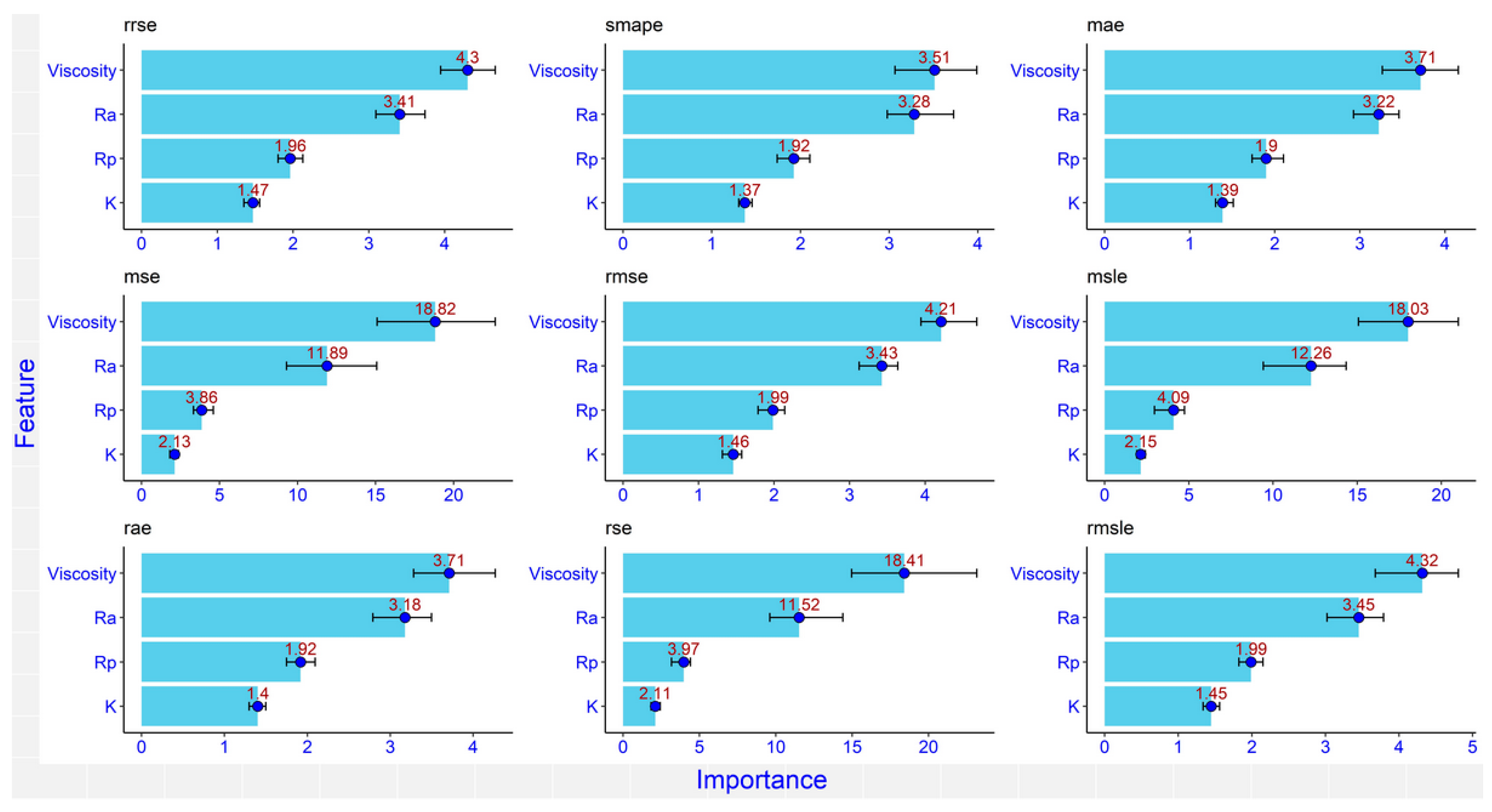

Figure 7. The relative importance of the inputs in the RF model using nine different loss functions.
Figure 7. The relative importance of the inputs in the RF model using nine different loss functions.
Materials 16 05207 g007
Materials 16 05207 g008 550
Figure 8. ALE plots showing the effect of the studied inputs on predicting the COF.
Figure 8. ALE plots showing the effect of the studied inputs on predicting the COF.
Materials 16 05207 g008
Materials 16 05207 g009 550

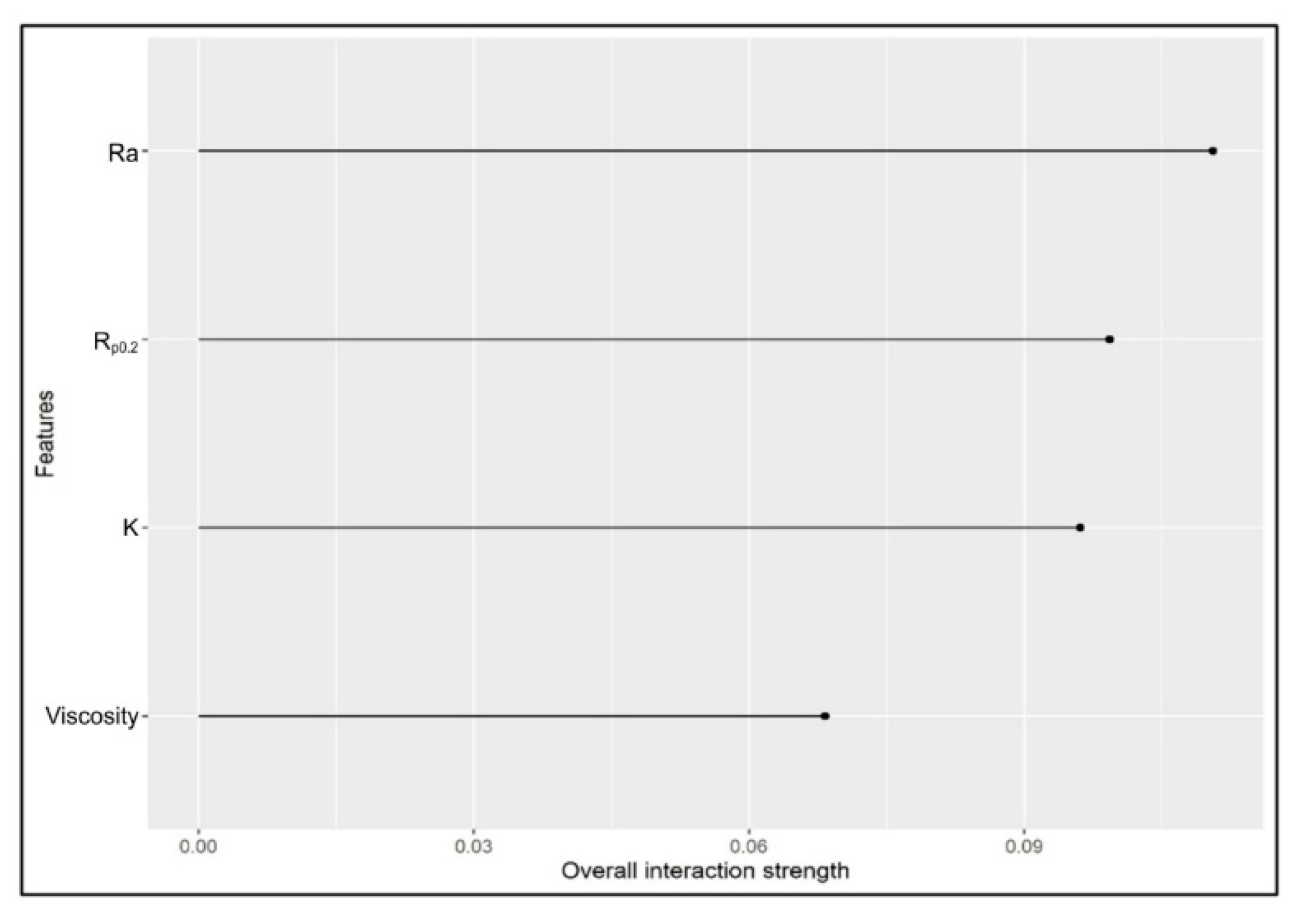

Figure 9. Overall interaction strength of the studied parameters (the scale of the interaction is 0 to 1).
Figure 9. Overall interaction strength of the studied parameters (the scale of the interaction is 0 to 1).
Materials 16 05207 g009
Materials 16 05207 g010 550

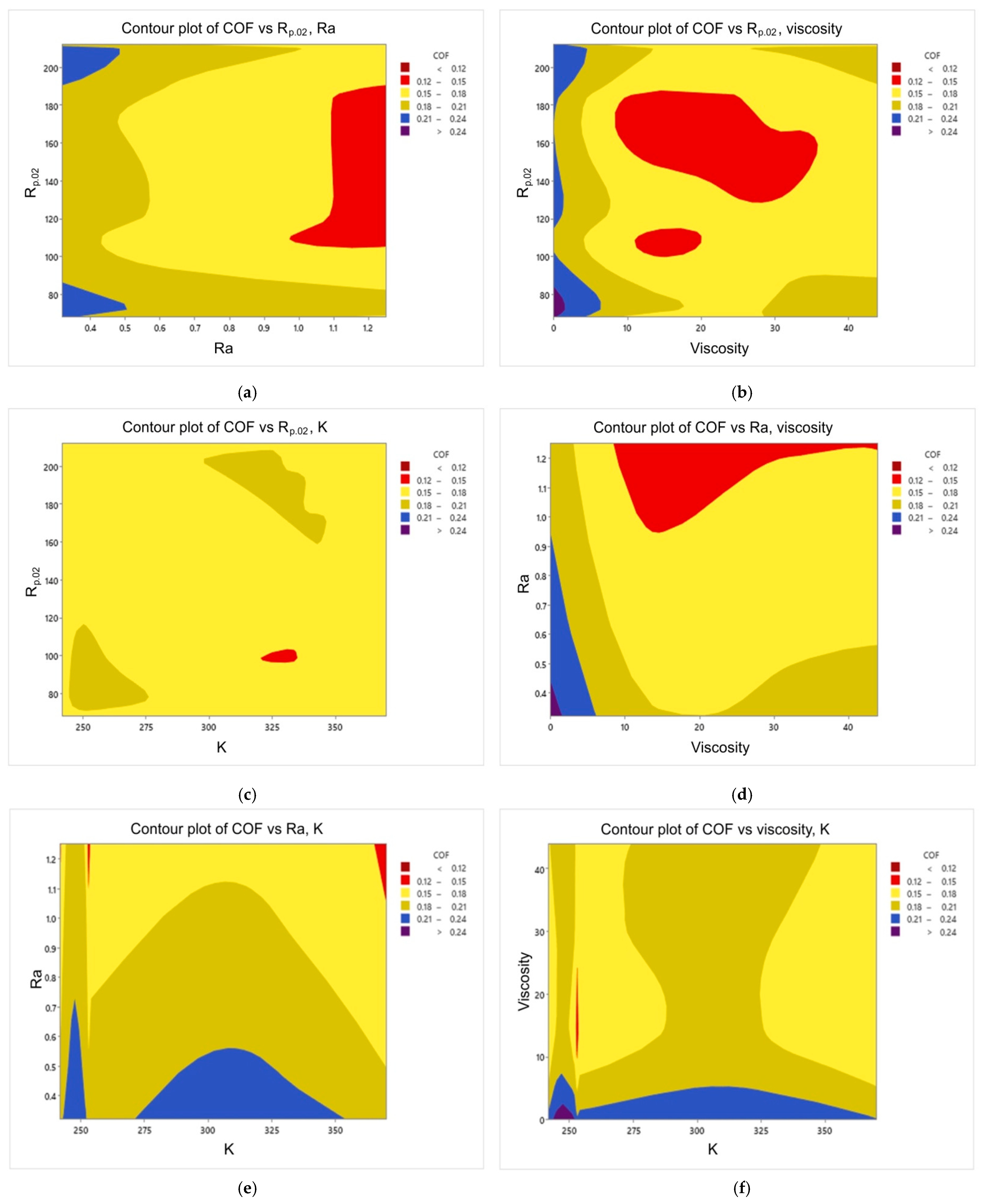

Figure 10. Contour plots of the studied inputs in relation to the output: (a) COF vs. Rp0.2 and Ra, (b) COF vs. Rp0.2 and oil viscosity, (c) COF vs. Rp0.2 and K (strength coefficient), (d) COF vs. Ra and oil viscosity, (e) COF vs. Ra and K, (f) COF vs. oil viscosity and K. Red colour means low values of COF.
Figure 10. Contour plots of the studied inputs in relation to the output: (a) COF vs. Rp0.2 and Ra, (b) COF vs. Rp0.2 and oil viscosity, (c) COF vs. Rp0.2 and K (strength coefficient), (d) COF vs. Ra and oil viscosity, (e) COF vs. Ra and K, (f) COF vs. oil viscosity and K. Red colour means low values of COF.
Materials 16 05207 g010
Table
Table 1. Temper designations of the test materials.
Table 1. Temper designations of the test materials.
Temper TypeDescription
Osoft
H14work hardened to half hard, nor annealed after rolling
H16work hardened to three-quarter hard, nor annealed after rolling
H22strain-hardened and partially annealed—three-quarter hard
Table
Table 2. Chemical composition (wt.%) of the AW-5251 aluminium alloy according to the EN 573-3 standard.
Table 2. Chemical composition (wt.%) of the AW-5251 aluminium alloy according to the EN 573-3 standard.
MnCu
(Max.)		MgSi
(Max.)		Zn
(Max.)		Cr
(Max.)		Ti
(Max.)		Others
(Total)		Fe
(Max.)		Al
0.10–0.500.151.70–2.400.400.150.150.150.150.50balance
Table
Table 3. Basic mechanical properties of AW-5251 aluminium alloy sheets.
Table 3. Basic mechanical properties of AW-5251 aluminium alloy sheets.
Temper TypeSpecimen Orientation, °Elongation A50Ultimate Tensile Stress Rm, MPaYield Stress Rp0.2, MPaStrength Coefficient K, MPaStrain Hardening Exponent n
O00.18203682520.607
900.25205722450.870
H1400.042342122540.478
900.042412103270.786
H1600.052321842530.528
900.062361892420.751
H2200.192011113700.535
900.212071223700.793
Table
Table 4. Basic surface roughness parameters of AW-5251 aluminium alloy sheets.
Table 4. Basic surface roughness parameters of AW-5251 aluminium alloy sheets.
Temper TypeSa, µmSv, µmSp, µmSkuSsk
O0.3021.390.373.480.267
H140.3401.622.483.340.298
H160.3622.082.983.670.338
H220.3251.532.043.580.321
Table
Table 5. Physico-chemical properties of the test oils.
Table 5. Physico-chemical properties of the test oils.
Oil TypeKinematic Viscosity, mm2/sViscosity Index
L-AN 4643.9094.0
L-HL 3232.0095.0
SAE 10W4014.50157.0
Table
Table 6. Mathematical model of the 12 activation functions used.
Table 6. Mathematical model of the 12 activation functions used.
Name of Activation FunctionMathematical Equation
Rectified linear unit (ReLU)f(x) = max (x,0)
Gaussian Error Linear Unit (GELU)f(x) = x * P (X ≤ x)
Softplusf(x) = ln (1 + ex)
Sigmoid-Weighted Linear Unit (Swish)f(x) = x/(1 + exp(−x))
Sigmoid f(x) = 1/(1 + e−x)
Hard sigmoidf(x) = max (min (0:25x + 0:5;1);0)
Exponential linear unit (ELU)ifelse (x < 0,1.673263 * (exp(x) − 1.0507), x)
Scaled exponential linear unit (Selu)ifelse (x < = 0,1.0507 * 1.673263 * (exp(x) − 1.0507), x * 1.0507)
Leaky ReLUifelse (x < = 0, α * x, x) where 0 < α < 1
Sofsignf(x) = x/(|x| + 1)
Tanhf(x) = 2/(1 + e−2x) − 1
Linearf(x) = x
Table
Table 7. Mathematical model of the nine loss functions used.
Table 7. Mathematical model of the nine loss functions used.
Name of Loss FunctionAbbreviationEquation
root relative squared errorrrse [ ∑ i = 1 n ( x i − y i ) 2 ] / [ ∑ i = 1 n ( x i − x ˜ ) 2 ]
symmetric mean absolute percent error smape 2 n ∑ i = 1 n | x i − y i | | x i | + | y i |
mean absolute errormae 1 n ∑ i = 1 n | x i − y i |
mean squared errormse 1 n ∑ i = 1 n ( x i − y i ) 2
root mean squared errorrmse 1 n ∑ i = 1 n ( x i − y i ) 2
mean squared log errormsle 1 n ∑ i = 1 n ( l n ( 1 + x i ) − l n ( 1 + y i ) ) 2
relative absolute errorrae [ ∑ i = 1 n | x i − y i | ] / [ ∑ i = 1 n | x i − x ˜ | ]
relative squared errorrse [ ∑ i = 1 n ( x i − y i ) 2 ] / [ ∑ i = 1 n ( x i − x ˜ ) 2 ]
root mean squared log errorrmsle 1 n ∑ i = 1 n ( l n ( 1 + x i ) − l n ( 1 + y i ) ) 2
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Trzepieciński, T.; Najm, S.M.; Ibrahim, O.M.; Kowalik, M. Analysis of the Frictional Performance of AW-5251 Aluminium Alloy Sheets Using the Random Forest Machine Learning Algorithm and Multilayer Perceptron. Materials 2023, 16, 5207. https://doi.org/10.3390/ma16155207

AMA Style

Trzepieciński T, Najm SM, Ibrahim OM, Kowalik M. Analysis of the Frictional Performance of AW-5251 Aluminium Alloy Sheets Using the Random Forest Machine Learning Algorithm and Multilayer Perceptron. Materials. 2023; 16(15):5207. https://doi.org/10.3390/ma16155207

Chicago/Turabian Style

Trzepieciński, Tomasz, Sherwan Mohammed Najm, Omar Maghawry Ibrahim, and Marek Kowalik. 2023. "Analysis of the Frictional Performance of AW-5251 Aluminium Alloy Sheets Using the Random Forest Machine Learning Algorithm and Multilayer Perceptron" Materials 16, no. 15: 5207. https://doi.org/10.3390/ma16155207

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
