Effect of Sterilization on Bone Implants Based on Biodegradable Polylactide and Hydroxyapatite
Abstract
:1. Introduction
2. Materials and Methods
2.1. Research Object
2.1.1. Materials
2.1.2. Preparation Implants for Study
2.2. Organoleptic Evaluation
2.3. Fourier-Transform Infrared Study
2.4. Gel Permeation Chromatography
2.5. Thermal Properties
- Xc—degree of crystallinity;
- ΔHm—enthalpy connected with the melting process of the crystalline phase;
- —enthalpy connected with the melting process of the crystalline phase PLA; completely crystalline ( = 109 J/g) [26].
2.6. Test of Sterility
3. Results and Discussion

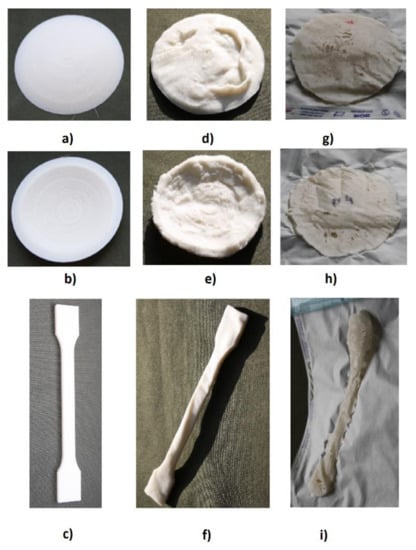

3.1. Change in the Shape of the Implants
3.2. The Structural Properties of the Implant Material

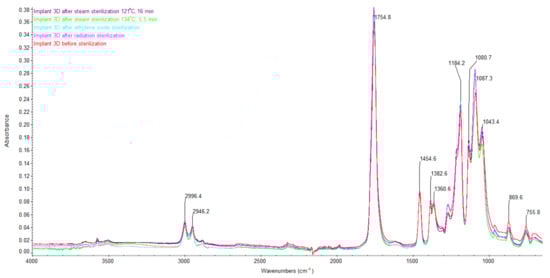

3.2.1. Fourier-Transform Infrared Study (FTIR)
- ca. 3550 cm−1 coming from stretching vibrations of –O–H bonds;
- 2996; 2946 cm−1 coming from stretching vibrations of –CH– bonds;
- 1755 cm−1 coming from vibrations stretching the –C=O bonds;
- 1455 cm−1 coming from deformation vibrations of the –CH3 group;
- 1383; 1361 cm−1 originating from symmetric and asymmetric –CH– bond vibrations;
- ca. 1264 cm−1 coming from deformation vibrations of the –C=O bond;
- 1184; 1131; 1087 cm−1 coming from vibrations stretching the –C–O– bonds;
- 1043 cm−1 coming from vibrations stretching the –OH bonds;
- ca. 950 cm−1 derived from –CH in the PLA ring;
- 870 cm−1 coming from deformation vibrations of –C–C– bonds.
3.2.2. Molecular Weight and Polydispersity
3.3. Thermal Analysis
3.4. Sterility Tests
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kaye, R.; Goldstein, T.; Zeltsman, D.; Grande, D.A.; Smith, L.P. Three dimensional printing: A review on the utility within medicine and otolaryngology. Int. J. Pediatr. Otorhinolaryngol. 2016, 89, 145–148. [Google Scholar] [CrossRef]
- Aimar, A.; Palermo, A.; Innocenti, B. The Role of 3D Printing in Medical Applications: A State of the Art. J. Healthc. Eng. 2019, 2019, 5340616. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bizzotto, N.; Tami, I.; Santucci, A.; Adani, R.; Poggi, P.; Romani, D.; Carpeggiani, G.; Ferraro, F.; Festa, S.; Magnan, B. 3D Printed replica of articular fractures for surgical planning and patient consent: A two years multi-centric experience. 3D Print. Med. 2016, 2, 2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kadakia, R.J.; Wixted, C.M.; Allen, N.B.; Hanselman, A.E.; Adams, S.B. Clinical applications of custom 3D printed implants in complex lower extremity reconstruction. 3D Print. Med. 2020, 6, 29. [Google Scholar] [CrossRef] [PubMed]
- Sutradhar, A.; Park, J.; Carrau, D.; Nguyen, T.H.; Miller, M.J.; Paulino, G.H. Designing patient-specific 3D printed craniofacial implants using a novel topology optimization method. Med. Biol. Eng. Comput. 2015, 54, 1123–1135. [Google Scholar] [CrossRef]
- Turnbull, G.; Clarke, J.; Picard, F.; Riches, P.; Jia, L.; Han, F.; Li, B.; Shu, W. 3D bioactive composite scaffolds for bone tissue engineering. Bioact. Mater. 2018, 3, 278–314. [Google Scholar] [CrossRef] [Green Version]
- Arif, Z.U.; Khalid, M.Y.; Noroozi, R.; Sadeghianmaryan, A.; Jalalvand, M.; Hossain, M. Recent advances in 3D-printed pol-ylactide and polycaprolactone-based biomaterials for tissue engineering applications. Int. J. Biol. Macromol. 2022, 218, 930–968. [Google Scholar] [CrossRef]
- Qu, H.; Fu, H.; Hana, Z.; Sun, Y. Biomaterials for bone tissue engineering scaffolds: A review. RSC Adv. 2019, 9, 26252–26262. [Google Scholar] [CrossRef]
- Lim, L.T.; Auras, R.; Rubino, M. Processing technologies for poly(lactic acid). Prog. Polym. Sci. 2008, 33, 820–852. [Google Scholar] [CrossRef]
- Narayanan, G.; Vernekar, V.N.; Kuyinu, E.L.; Laurencin, C.T. Poly (lactic acid)-based biomaterials for orthopaedic regenerative engineering. Adv. Drug Deliv. Rev. 2016, 107, 247–276. [Google Scholar] [CrossRef] [Green Version]
- Pugliese, R.; Beltrami, B.; Regondi, S.; Lunetta, C. Polymeric biomaterials for 3D printing in medicine: An overview. Annals 3D Print. Med. 2021, 2, 100011. [Google Scholar] [CrossRef]
- Da Silva, D.; Kaduri, M.; Poley, M.; Adir, O.; Krinsky, N.; Shainsky-Roitman, J.; Schroeder, A. Biocompatibility, biodegradation and excretion of polylactic acid (PLA) in medical implants and theranostic systems. Chem. Eng. J. 2018, 340, 9–14. [Google Scholar] [CrossRef]
- Albuquerque, T.L.; Marques Júnior, J.E.; de Queiroz, L.P.; Ricardo, A.D.S.; Rocha, M.V.P. Polylactic acid production from bio-technological routes: A review. Int. J. Biol. Macromol. 2021, 186, 933–951. [Google Scholar] [CrossRef] [PubMed]
- Gritsch, L.; Conoscenti, G.; La Carrubba, V.; Nooeaid, P.; Boccaccini, A.R. Polylactide-based materials science strategies to improve tissue-material interface without the use of growth factors or other biological molecules. Mater. Sci. Eng. C 2019, 94, 1083–1101. [Google Scholar] [CrossRef] [PubMed]
- Serra, T.; Planell, J.A.; Navarro, M. High-resolution PLA-based composite scaffolds via 3-D printing technology. Acta Biomater. 2013, 9, 5521–5530. [Google Scholar] [CrossRef] [PubMed]
- Bernardo, M.P.; da Silva, B.C.R.; Hamouda, A.E.I.; de Toledo, M.A.S.; Schalla, C.; Rütten, S.; Goetzke, R.; Mattoso, L.H.C.; Zenke, M.; Sechi, A. PLA/Hydroxyapatite scaffolds exhibit in vitro immunological inertness and promote robust osteogenic differentiation of human mesenchymal stem cells without osteogenic stimuli. Sci. Rep. 2022, 12, 2333. [Google Scholar] [CrossRef]
- Pietrzykowska, E.; Mukhovskyi, R.; Chodara, A.; Wojnarowicz, J.; Koltsov, I.; Chudoba, T.; Łojkowski, W. Composites of polylactide and nano-hydroxyapatite created by cryomilling and warm isostatic pressing for bone implants applications. Mater. Lett. 2019, 236, 625–628. [Google Scholar] [CrossRef]
- Targonska, S.; Dobrzynska-Mizera, M.; Wujczyk, M.; Rewak-Soroczynska, J.; Knitter, M.; Dopierala, K.; Andrzejewski, J.; Wiglusz, R.J. New way to obtain the poly(L-lactide-co-D,L-lactide) blend filled with nanohydroxyapatite as biomaterial for 3D-printed bone-reconstruction implants. Eur. Polym. J. 2022, 165, 110997. [Google Scholar] [CrossRef]
- Mondal, S.; Nguyen, T.P.; Pham, V.H.; Hoang, G.; Manivasagan, P.; Kim, M.H.; Seung Yun Nam, S.Y.; Oh, J. Hydroxyapatite nano bioceramics optimized 3D printed poly lactic acid scaffold for bone tissue engineering application. Ceram. Int. 2020, 46, 3443–3455. [Google Scholar] [CrossRef]
- Bergsma, J.E.; de Bruijn, W.C.; Rozema, F.R.; Bos, R.R.M.; Boering, G. Late degradation tissue response to poly(l-lactide) bone plates and screws. Biomaterials 1995, 16, 25–31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Middleton, J.C.; Tipton, A.J. Synthetic biodegradable polymers as orthopedic devices. Biomaterials 2000, 21, 2335–2346. [Google Scholar] [CrossRef] [PubMed]
- Prakash, C.; Singh, G.; Singh, S.; Linda, W.L.; Zheng, H.Y.; Ramakrishna, S.; Narayan, R. Mechanical Reliability and In Vitro Bioactivity of 3D-Printed Porous Polylactic Acid-Hydroxyapatite Scaffold. J. Mater. Eng. Perform. 2021, 30, 4946–4956. [Google Scholar] [CrossRef]
- Told, R.; Ujfalusi, Z.; Pentek, A.; Kerenyi, M.; Banfai, K.; Vizi, A.; Szabo, P.; Melegh, S.; Bovari-Biri, J.; Pongracz, J.E.; et al. A state-of-the-art guide to the sterilization of thermoplastic polymers and resin materials used in the additive manufacturing of medical devices. Mater. Des. 2022, 223, 111119. [Google Scholar] [CrossRef]
- Ferràs-Tarragó, J.; Sabalza-Baztán, O.; Sahuquillo-Arce, J.M.; Angulo-Sánchez, M.A.; Amaya-Valero, J.; De-La-Calva Ceinos, C.; Baixauli-García, F. Security of 3D-printed polylactide acid piece sterilization in the operating room: A sterility test. Eur. J. Trauma Emerg. Surg. 2021, 48, 3895–3900. [Google Scholar] [CrossRef] [PubMed]
- EN ISO 11607-1:2009; Packaging for Terminally Sterilized Medical Devices—Part 1: Requirements for Materials, Sterile Barrier Systems and Packaging Systems. ISO: Geneva, Switzerland, 2019.
- Sosnowski, S. Poly(L-lactide) microspheres with controlled crystallinity. Polymer 2001, 42, 637–643. [Google Scholar] [CrossRef]
- EN ISO 11737-2:2020; Sterilization of Health Care Products—Microbiological Methods—Part 2: Tests of Sterility Performed in the Definition, Validation and Maintenance of a Sterilization Process. ISO: Geneva, Switzerland, 2020.
- Bigg, D.M. In Society of Plastics Engineers. Annu. Tech. Conf. 1996, 54, 2028–2039. [Google Scholar]
Implants Group | Characteristics of the Sterile Barrier System | Characteristics of the Sterilization Process | |||
---|---|---|---|---|---|
Packaging | Heat Sealing Parameters | Sterilization Type | Parameters of the Sterilization Process | Sterilization Unit | |
A | flat paper–foil bag, TZMO_OM-191-FPPA-126 | downforce: 700–850 N without the air remove T = 180 °C t = 2 s | steam | T = 121 °C t = 16 min | CitoNet-Łódź Sp. z o. o. Lodz, Poland |
T = 134 °C t = 5.5 min | |||||
B | flat paper–foil bag, TZMO_OM-191-FPPR-033 | downforce: 700–850 N without the air remove T = 180 °C t = 2 s | ethylene oxide | amount of gas used 48.2 kg, including 5.1 kg of ethylene oxide | Yavo Sp. z o.o. Belchatow, Poland |
C | flat foil bag WIPAK_ ESE 1250–ESE 1250 Medi Peel | downforce: 700–850 N tAR = 2 s T = 135 °C t = 0.8 s | electron beam radiation | irradiation dose 25 kGy ± 0.99% transportation speed 0.459 m/min ± 1.12% | Radiation Sterilization Plant of Medical Devices and Allografts Warsaw, Poland |
Sample Characteristics | Molecular Weight (g/mol) | Polydispersity | |
---|---|---|---|
Mw | Mn | Mw/Mn | |

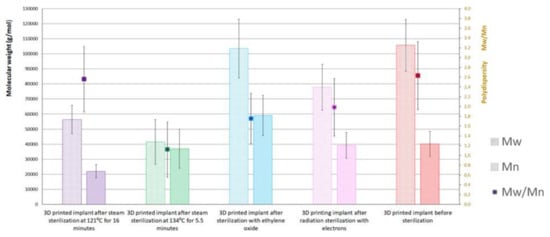

bone implant sample after steam sterilization (T = 121 °C; t = 16 min) | 5.628 × 104 (±16.850%) | 2.198 × 104 (±19.830%) | 2.561 (±26.022%) |
bone implant sample after steam sterilization (T = 134 °C; t = 5.5 min) | 4.146 × 104 (±35.801%) | 3.697 × 104 (±35.110%) | 1.122 (±50.143%) |
bone implant sample after sterilization with ethylene oxide | 10.35 × 104 (±18.882%) | 5.896 × 104 (±22.611%) | 1.756 (±29.458%) |
bone implant sample after radiation sterilization with electrons | 7.789 × 104 (±19.554%) | 3.922 × 104 (±22.033%) | 1.986 (±29.459%) |
bone implant sample before sterilization process | 10.57 × 104 (±16.227%) | 4.014 × 104 (±20.597%) | 2.633 (±26.221%) |

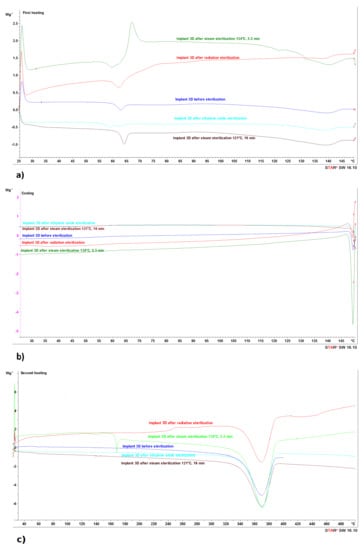

Sample Characteristics | I SEGMENT Heating | II SEGMENT Cooling | III SEGMENT Reheating | |||||
---|---|---|---|---|---|---|---|---|
Tg [°C] | Tm [°C] | ΔHm [J/g] | Tg [°C] | Tc [°C] | Tg [°C] | Tm [°C] | ΔHm [J/g] | |
bone implant sample before sterilization process | 60.0 ± 2.7 | 137.0 ± 1.8 | −8.5 ± 0.7 | 55.0 ± 2.6 | - | 56.0 ± 2.7 | 139.5 ± 2.7 | −2.2 ± 0.2 |
bone implant sample after steam sterilization (T = 121 °C; t = 16 min) | 61.0 ± 2.8 | 138.0 ± 1.7 | −14.0 ± 0.9 | 54.0 ± 1.9 | - | 57.0 ± 2.1 | 142.0 ± 2.8 | −0.5 ± 0.2 |
bone implant sample after steam sterilization (T = 134 °C; t = 5.5 min) | 56.0 ± 2.7 | 139.0 ± 2.3 | −17.5 ± 0.7 | - | - | 56.0 ± 1.9 | 140.0 ± 2.1 | −6.6 ± 0.4 |
bone implant sample after sterilization with ethylene oxide | 56.0 ± 2.4 | 138.0 ± 2.1 | −6.3 ± 0.8 | 59.0 ± 1.8 | - | 55.0 ± 2.4 | 139.0 ± 2.3 | −1.3 ± 0.7 |
bone implant sample after radiation sterilization with electrons | 63.0 ± 2.7 | 138.0 ± 1.7 | −7.4 ± 1.1 | 59.0 ± 1.6 | - | 57.0 ± 2.2 | - | - |
