Preparation of Ganoderma Lucidum Bran-Based Biological Activated Carbon for Dual-Functional Adsorption and Detection of Copper Ions

by
Baoying Wang
1,
Jingming Lan
1,
Chunmiao Bo
1,
Bolin Gong
1,* and
Junjie Ou
1,2,*
1
School of Chemistry and Chemical Engineering, Key Laboratory for Chemical Engineering and Technology, State Ethnic Affairs Commission, Ningxia Key Laboratory of Solar Chemical Conversion Technology, North Minzu University, Yinchuan 750021, China
2
CAS Key Laboratory of Separation Science for Analytical Chemistry, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(2), 689; https://doi.org/10.3390/ma16020689
Submission received: 5 December 2022 / Revised: 29 December 2022 / Accepted: 5 January 2023 / Published: 10 January 2023
(This article belongs to the Special Issue Development Characterization and Application of Biochar-Based Composites)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this paper, Ganoderma lucidum bran was explored as the precursor to fabricate biomass activated carbon. When potassium hydroxide was selected as an activator (1:6, mass ratio of AC-12 to potassium hydroxide), and the activation condition was 700 °C at 5 h, the highest specific surface area reached 3147 m2 g−1. Carbon dots were prepared with citric acid monohydrate and thiourea as precursors and then loaded onto the surface of activated carbon by a simple and green method. Activated carbon for dual-functional had a high adsorption capacity. Additionally, based on its unique optical properties, the fluorescence response for detecting copper ion was established. The fluorescence intensity of the materials decreased linearly with the increase of copper ion concentration, in the range of 10–50 nmol L−1. The research opened up a new way for applying biomass activated carbon in the field of adsorption and detection. Highlights: (1) Carbon dots were loaded on the surface of activated carbon; (2) the simultaneous adsorption and detection were realized; (3) it provides a way for the preparation of dual-functional materials.

Graphical Abstract

1. Introduction

Mushroom bran, also known as mushroom residue, is the residue of the culture medium after harvesting mushrooms, which is made of raw materials such as straw and sawdust. After the edible fungi harvest, many mycelium and beneficial bacteria are left on the stick, and a variety of sugars, organic acids, enzymes, and bioactive substances are produced through enzymatic hydrolysis during the growth of mycelium. The bacterial residue is rich in protein, cellulose, and amino acids [1]. For example, Ganoderma lucidum bran (GB) residue contains not only a large number of mycelium and protein but also trace elements such as iron, calcium, zinc, and magnesium [2]. Improper disposal will cause a waste of resources and seriously destroy the environment for human survival and health.
Activated carbon (AC) has a hierarchical structure, high surface area and porosity, and a variety of surface-active sites, and it is widely employed as an adsorbent to effectively remove pollution. However, the regeneration process of industrial AC is expensive and complex, which makes the application of this material economically infeasible. To address these issues, a plethora of precursor materials have been selected to prepare AC. For example, Almahbashi et al. selected sewage sludge as raw material to produce AC with a maximum surface area of 377.7 m2 g−1 [3]. In addition, Sun et al. prepared AC with coffee shells as a precursor, and the surface area was 2349 m2 g−1 [4]. These works offer us a hint to utilize the agricultural waste from GB for the preparation of AC. On the one hand, the rational utilization of GB can reduce environmental pressure and create economic value. On the other hand, developing a new method of preparing AC by GB can reduce costs [5]. However, the single functional carbon-based adsorbent can only achieve the function of turning waste into treasure and has certain limitations for treating heavy metals [6]. Therefore, preparing a bifunctional carbon-based material that can adsorb and detect heavy metals is necessary.
Carbon dots (CDs) are composed of ultrafine, quasi-spherical carbon nanoparticles with a size of less than 10 nm [7]. CDs have good water solubility, low toxicity, and excellent optical properties, and have been widely employed in many fields [8]. Due to these characteristics, preparing dual-functional materials has become an essential target for adsorption and detection. However, very little has been reported on such dual-functional materials. To realize the simultaneous detection and adsorption performance of GB biomass AC, the detection of metal ions is based on the fluorescence quenching phenomenon of CDs combined with metal ions, and the adsorption of heavy metals can be realized via the interaction between the active site of AC and heavy metal ions. Herein, the AC with a large specific surface area was prepared from GB and then integrated with CDs via a simple impregnation method. The detection and their adsorption capacity of heavy metals were studied.

2. Experimental Section

2.1. Reagents and Materials

Potassium hydroxide (KOH), potassium permanganate (KMnO4), zinc chloride (ZnCl2), citric acid monohydrate (C6H10O8), and thiourea (CH4N2S) were provided by Aladdin Industries Co. (Shanghai, China). ZnCl2, CaCl2, LiCl, Cd(NO3)2·4H2O, CoCl2·6H2O, Cr(NO3)3·9H2O, CuSO4, FeCl3·6H2O, KCl, Mg(NO3)2, NaCl, Pb(NO3)2, and ZrCl4 were the prepared solutions of metal ions (Zn2+, Ca2+, Li+, Cd2+, Co2+, Cr3+, Cu2+, Fe3+, K+, Mg2+, Na+, Pb2+ and Zr4+), which were also from Aladdin Industries Co. (Shanghai, China). Nitric acid (HNO3), hydrochloric acid (HCl), and absolute ethanol (C2H6O2) were provided by Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). GB was obtained from Ningxia Academy of Agricultural and Forestry Sciences (Yinchuan, China).

2.2. Preparation Process

2.2.1. Preparation of AC

The GB was crushed and passed through a 30 mesh screen to obtain a powder. It was placed in a tubular furnace and carbonized at 500 °C for 3 h under the N2, and the AC precursor was obtained.
In order to optimize the activation conditions of the AC, single-factor experiments were conducted to explore the effects of the proportion of activators, type of activator, activation temperature, and time on a specific surface area.

2.2.2. Preparation of AC@CD

The CDs were prepared according to the previous report [9]. In brief, 1.26 g of C6H10O8 and 1.37 g of CH4N2S were dissolved in water and put in a reaction vessel for 4 h at 160 °C. Then, 0.01 g of AC reacted with 0.01 g of CDs (after freeze-drying for 24 h) at 25 °C for 24 h. The resulting product was dried to a constant weight for 24 h at 60 °C and named as AC@CD. The synthetic schematic of AC@CD is shown in Figure 1.

2.3. Characterization of Material

The nitrogen adsorption-desorption isotherm and pore size distribution of the adsorbent were measured by Brunner-Emmet-Teller (BET, Tri star 3020, McMurray Tec Instrument Co., Ltd., Canonsburg, PA, USA). The surface functional groups of the adsorbent were determined by Fourier-transform infrared spectroscopy (FT-IR, Thermo Nicolet iS50 spectrometer, Thermo Fisher Scientific Co., Ltd., Waltham, MA, USA). X-ray diffraction was obtained by scanning with Smartlab SE (XRD, XRD-6100200 Ma, Shimadzu Enterprise Management Co., Ltd., Kyoto, Japan). The morpho-ogy of the adsorbent was determined by scanning electron microscopy (SEM, JEM-7500F, Japan Electronics Co., Ltd., Tokyo, Japan). A nanoparticle size and zeta potential analyzer (Malvern Zetasizer nano ZS90, Malvern Instruments Co., Ltd., Malvern, Worcestershire, UK) was employed to measure the potential of the sample. The steady state and transient fluorescence spectrometer (RF, Fluoro Max-4, HORIBA Co., Ltd., Irvine, CA, USA) measured its fluorescence emission spectrum. The residual concentration was analyzed using an ultraviolet-visible spectrophotometer (UV, TU-1950, Beijing General Instrument Co., Ltd., Beijing, China).

3. Results and Discussion

3.1. Preparation and Characterization of AC@CD

The AC precursor was prepared with GB as a biomass source by simple carbonization. The chemical activation method mixes the activator and carbonized biomass in a particular proportion, then reacts at a high temperature. Activators can be classified as alkaline, acidic, neutral, and so on. Different activators, ratio of precursor and activator, and activation, activation temperature, and time will remarkably affect both physical and chemical properties of as-synthesized AC [10,11]. Herein, the AC precursor with GB as the raw material was prepared, and the optimal activation conditions were explored. The CDs with good fluorescence performance reacted with the obtained product to obtain a dual-functional material.
A series of ACs were obtained under different conditions, as listed in Table 1. KOH was selected as an activator, and the activation temperature was set at 300 °C, and the activation time at 3 h under N2. The effect of the mass ratio of the AC precursor to the KOH (1:2, 1:4, 1:6, and 1:8) was investigated, and the obtained ACs were assigned as AC-1, AC-2, AC-3, and AC-4. The specific surface area of the AC increased from 12 to 1633 m2 g−1, then decreased to 8.26 m2 g−1. Different amounts of activator can change the physical properties of AC, allowing the specific surface area to increase as the activator increases. However, too many activators can lead to the collapse of pore space, decreasing the particular surface area.
The effect of activator type such as KMnO4, ZnCl2, and HNO3 on the specific surface area and pore structure of AC were also investigated, and the activation was performed under N2 at 300 °C for 3 h (1:6, mass ratio of AC precursor to KOH). The obtained ACs were named as AC-5, AC-6, and AC-7. The specific surface area of the AC fabricated with ZnCl2 was 18.0 m2 g−1, and that of the AC with KMnO4 was 832 m2 g−1. The specific surface area of the AC fabricated with HNO3 was 21.55 m2 g−1, and that of the AC with KOH was 1633 m2 g−1, which was the highest surface area using four kinds of activators. Potassium hydroxide could inhibit the formation of tar, thus achieving a good activation effect at a low reaction temperature.
The influence of activation temperature (500, 700, and 900 °C) on AC was investigated by keeping the mass ratio of the AC to KOH at 1:6 under N2, with activation for 3 h. The obtained samples were named AC-8, AC-9, and AC-10. The specific surface area of the carbon first increased and then decreased with an increase in activation temperature, acquiring a maximum specific surface area of 2155 m2 g−1 at 700 °C. The effect of activation time (1, 5, and 7 h) was also studied by maintaining the activation temperature at 700 °C, and the resulting ACs were named AC-11, AC-12, and AC-13. The specific surface area of the carbon first increased and then decreased, and the maximum specific surface area reached 3147 m2 g−1 (AC-12).
It can be observed from Figure 2a that there was an apparent H4 hysteresis loop in the region of P/P0 = 0.3–1.1, representing capillary condensation in the mesopore. At the low-pressure profile (P/P0 = 0–0.3), a gentle inflection point formed by single-layer dispersion and the central location with a slight slope were obtained by multi-layer diffusion (Figure 2b). So, the adsorption and desorption isothermal curve belongs to the type IV isothermal curve. The pore size of the different ACs was 2–21 nm, indicating the existence of mesopores in the prepared AC.
In our case, four kinds of GB-based ACs were modified with CDs. As shown in Table 1, the specific surface area of AC-1@CD changed to 1510 m2 g−1 after modification, and that of AC-4@CD increased to 135.2 m2 g−1. The specific surface area of AC-9@CD changed to 2580 m2 g−1, and that of AC-12@CD changed to 3284 m2 g−1. Obviously, their specific surface area slightly increased after modification with CDs, proving that the CDs were successfully loaded onto the AC [11,12].
Figure 3 shows SEM images of AC-12 and AC-12@CD. Honeycomb-like porous structures existed, indicating that GB was a suitable carbon source for preparing porous materials [13]. Additionally, there were no significant differences between AC-12 and AC-12@CD due to the large size of the CDs, which could not enter the micropores in the AC [14].
FT-IR spectra of AC-12, AC-12@CD, and AC-12@CD-Cu2+ (AC-12@CD after adsorption of Cu2+) are shown in Figure 4a. Wide peaks at 3428 cm−1 were assigned as a tensile vibration of -NHx or -OH, while the peak at 1623 cm−1 was assigned as a bending vibration of C=C [15]. Their intensities in AC-12@CD was significantly enhanced relative to those in AC-12, indicating the successful loading of CDs onto the AC-12 surface. The absorption peaks at 1017 and 1073 cm−1 were asymmetric stretching vibration peaks of C–O and C–H [16,17]. The peaks at 3428 and 1073 of AC-12@CD-Cu2+ were obviously weakened, because the materials had a complexation reaction with Cu2+. All this evidence indicated the presence of a few oxygen-containing functional groups [18]. Many groups, such as amino, hydroxyl, and carboxyl groups in both AC-12 and AC-12@CD, would provide the basis to remove heavy metals and be suitable for application in water treatment.
The phase structure analysis of AC-12 and AC-12@CD was carried out using the XRD technique, as shown in Figure 4b. Two hump-shaped diffraction peaks were located at 22.24° and 43.12°. The former was assigned as characteristic peaks of the (002) and (100) crystal planes of the carbon material, indicating that the diffraction peaks of AC-12 and AC-12@CD were still mainly graphite-like phase g-C3N4 structures [19,20]. However, the peak intensities at 22.61° and 43.12° for AC-12@CD were reduced compared to AC-12, indicating an increased graying of AC-12@CD [21].
The surface property of AC-12 and AC-12@CD was also tested by employing a zeta potential meter at pH = 7. The zeta potential of AC-12 particles in water was −12.9 mV, but after loading the CDs, the zeta potential on the carbon surface became −21.3 mV. It was related to the increase of –NH or –NH2 and –OH functional groups on the surface of AC-12@CD, causing the surface to be more negatively charged [22]. This result also proved the successful loading of the CDs.

3.2. Adsorption Ability of AC@CD for Cu2+

The adsorption capacities of four kinds of AC@CD were measured under the same conditions. The adsorption capacity of AC-12@CD was 36.31 mg g−1, those of AC-1@CD, AC-4@CD, and AC-9@CD were 27.69, 13.27, and 30.58 mg g−1, respectively. The difference in the adsorption capacity was related to its specific surface area. The larger the specific surface area of carbon material, the richer the pore structure, and the higher the adsorption capacity of Cu2+ [23,24]. To sum up, the adsorption performance of AC-12@CD was the best, which was subsequently measured as an example.

3.2.1. Isothermal Adsorption and Kinetic Experiment

The isothermal adsorption model of AC-12 and AC-12@CD were studied, as shown in Figure 5a. AC-12 and AC-12@CD were added into 200 mL of Cu2+ solutions with different initial concentrations. The adsorption amount of AC-12 increased at the initial Cu2+ concentrations of 90–160 μmol L−1, the adsorption reached the maximum at 170 μmol L−1, and that of AC-12 gradually equilibrated at 180–190 μmol L−1. The adsorption amount of AC-12@CD increased at the initial Cu2+ concentrations of 90–150 μmol L−1, the adsorption amount reached the maximum at 160 μmol L−1, and that of AC-12 gradually equilibrated at 170–190 μmol L−1. The kinetic adsorption model of AC-12 and AC-12@CD is shown in Figure 5b. The adsorption amount of AC-12 increased within 35 min, and the equilibrium time was determined to be 35 min. Additionally, that of AC-12@CD increased within 30 min, so the equilibrium time was 30 min. The adsorption time was shortened due to the increased adsorption sites of the modified materials. In the adsorption at 35 and 30 min, the adsorption was faster because the material was mainly a chemical reaction (complexation reaction). With the increase of time, the adsorption rate gradually slowed down because the adsorption site had reached saturation. A few materials are listed in Table 2. Runtime et al. [25] selected biomass carbon residue as a low-cost adsorbent to treat Cu2+ in water during biomass gasification, the adsorption capacity of which reached 23.10 mg g−1 at 120 min. The AC from waste rubber tires was prepared to adsorb Cu2+ in a polymetallic aqueous solution by Cherono et al. [26], and the adsorption capacity reached 12.44 mg g−1 at 120 min. The maximum adsorption capacity of AC prepared from Malawian monkey bread shells was 3.083 mg g−1 [27]. The adsorption capacity of AC prepared from pistachio fruit (277.8 mg g−1) was higher than that reported by us, but the adsorption equilibrium time was too long, requiring 180 min [28]. The adsorption capacity of AC-12 and AC-12@CD could reach 49.35 and 36.55 mg g−1. AC-12 and AC-12@CD showed the ability to rapidly adsorb Cu2+ in a solution and with a high adsorption capacity.

3.2.2. Fitting of Isothermal Adsorption Experimental Data

The fitted curves of the Freundlich and Langmuir models for AC-12 and AC-12@CD are shown in Figure 5c,d, and the correlation coefficients are listed in Table 3. The correlation coefficients (R) of the Langmuir model were 0.9758 and 0.9791, respectively, which were remarkably higher than those of the Freundlich model (R = 0.9352, 0.9656). It confirmed that the theoretical model agrees better with the experimental data; the Langmuir model could be better described in the adsorption process than the Freundlich model. The adsorption characteristics of Cu2+ on AC-12 and AC-12@CD were of unimolecular adsorption with uniform distribution of active groups on the adsorbent surface [24,29]. The functional groups such as –NHx, –OH, and –COOH in the adsorbent could remove metal pollution through electronic interaction with charged metal ions in the solution [30,31].

3.2.3. Dynamic Experiment Data Fitting

The quasi-first-order kinetic adsorption curve model for AC-12 and AC-12@CD are exhibited in Figure 5e,f, and the resulting model parameters are listed in Table 4. The quasi-second-order kinetic adsorption curve model (R = 0.9998, 0.9961) was more suitable for AC-12 and AC-12@CD. The calculated and actual values of the equilibrium sorption capacity were in good agreement and the proposed quasi-second-order kinetic curve model fits the experimental data well [32]. The adsorption was related to the chemisorption of metal ions by the reactive groups on the surface of the material [33,34].

3.3. Fluorescence Property of AC@CD

Although the specific surface areas of AC-1@CD, AC-4@CD, AC-9@CD, and AC-12@CD all increased, the fluorescence responses of them varied greatly. AC-1@CD hardly produced a fluorescence response, while AC-4@CD exhibited the highest fluorescence response. The pore size of AC-4 was too large to load some aggregate CDs, while AC-12@CD possessed the largest surface area, in which the micropores could not load the CDs with better dispersion. There was not enough pore capacity of AC-1@CD to load some aggregate CDs, and there were not enough micropores of AC-9@CD to load the well-dispersed CDs. This was the main reason for the poor or even no fluorescence response of AC-1@CD and AC-9@CD.

3.3.1. Fluorescence Yield of AC@CD

Fluorescence yield is an essential parameter for evaluating the fluorescence ability of materials. Anthracene with a similar excitation wavelength of 366 nm was selected as the standard sample to calculate the fluorescence yield of AC@CD. The fluorescence yield of AC-4@CD and AC-12@CD were 2.63% and 0.42%, respectively.

3.3.2. Fluorescence Selective and Sensitive Detection for Metal Ions

The selectivity of AC-12@CD for metal ions was investigated, as shown in Figure 6a. The fluorescence signals of Mg2+, Ca2+, Co2+, Zr4+, Cd2+, Zn2+, K+, Na+, Pd2+, and Cr2+ on AC-12@CD were negligible. The sensitivity of the fluorescence signal of AC-12@CD with Fe3+ and Li+ were 30% and 28%, also much lower than that of Cu2+ (46%). The strong response to Cu2+ was mainly attributed to the nitrogen-containing groups on the surface of AC-12@CD. Electrons were attributed to Cu2+ as electron donors, and the lone pair electrons of the nitrogen atom showed a good affinity for Cu2+ [35,36]. The quenching constant was an important means of determining fluorescence sensitivity, which were calculated according to the Stern-Volmer equation. The quenching constant of AC-4@CD and AC-12@CD was 5.63 × 106 and 1.32 × 107 L mol−1, respectively, demonstrating a perfect fluorescence response of AC@CD to the Cu2+ ion.

3.3.3. Quantitative Measurement of AC@CD

The fluorescence responses of AC-4@CD and AC-12@CD to different concentrations of Cu2+ were tested. The fluorescence intensities of AC-4@CD and AC-12@CD decreased with an increase of Cu2+ concentration (Figure 6b,d). The linear relationship between the fluorescence intensity of AC-4@CD and AC-12@CD with Cu2+ concentration is shown in Figure 6c,e, and R was 0.9987 and 0.9887, respectively. The LOD of AC-4@CD and AC-12@CD were 11.40 and 16.95 nmol L−1, when the concentration of Cu2+ was in the range of 10–50 nmol L−1, which provided a new tool for the application of carbon-based dual-functional materials. Table 5 lists several CD materials with fluorescent properties for the selective detection of Cu2+. Ma et al. [37] prepared CDs using natural peanut shells as precursor materials; the LOD was 4.80 μmol L−1. Tan et al. [38] selected pyrolyzed sago waste to generate CDs as potential probes for metal ion sensing, with an LOD of 7.80 μmol L−1 in the concentration range of 0–48 μmol L−1. Zheng et al. [39] functionalized CDs and achieved an LOD of 5.00 μmol L−1 in the range of 0.5 to 10 μmol L−1. Hydrophobic CDs were also synthesized by the one-pot method, with an LOD of 0.2 μmol L−1 [40]. The LOD of AC@CD in detecting Cu2+ was much lower than other reported materials.

4. Conclusions

A facile and cost-effective strategy for dual-functional GB biomass AC was developed. The CDs with excellent optical property were loaded into the AC to generate the blue emission at 451 nm. The fluorescence emission of AC@CD could be selectively quenched by Cu2+. The AC@CD fluorescence detection method was constructed to selectively detect Cu2+ with a linear range from 10 to 50 nmol L−1. At the same time, the AC@CD possessed a high adsorption capacity. Both adsorption isotherms and kinetics curves confirmed that the adsorption of Cu2+ by AC@CD was monolayer adsorption via chemical interaction. As a result, the dual-functional GB biomass AC with the adsorption and detection of Cu2+ was successfully developed, which not only reasonably avoided the disposal of carbon dots, but also provided more possibilities for the application of carbon-base materials.

Author Contributions

B.W.: writing—original draft, preparation, creation of the published work, specifically writing the initial draft; J.L.: data curation, classify and summarize the research data for use; C.B.: ideas, formulation of overarching research goals and aims; J.O.: writing—review and editing, preparation, creation and presentation of the published work by those from the original research group, specifically critical review, commentary or revision, including pre-or post-publication stages; B.G.: funding acquisition, acquisition of the financial support for the project leading to this publication. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support is gratefully acknowledged from the National Natural Science Foundation of China (No. 21974137), the CAS-Weigao Research and Development Program ([2017] -009), the Innovation Program of Science and Research from the Dalian Institute of Chemical Physics (DICPI202005) and the National Natural Science Foundation of Ningxia (No. 2021AAC02017) to J.O., as well as the National Natural Science Foundation of China (No. 22164001) and the Key Research and Development Program of Ningxia (No. 2022BFE02002) to B.G.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request from the authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tesfay, T.; Godifey, T.; Mesfin, R.; Kalayu, G. Evaluation of waste paper for cultivation of oyster mushroom (Pleurotus ostreatus) with some added supplementary materials. AMB Express 2020, 10, 15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Zou, Y.; Du, F.; Hu, Q.; Yuan, X.; Dai, D.; Zhu, M. Integration of Pleurotus tuoliensis cultivation and biogas production for utilization of lignocellulosic biomass as well as its benefit evaluation. Bioresour. Technol. 2020, 317, 124042. [Google Scholar] [CrossRef] [PubMed]
  3. Almahbashi, N.M.Y.; Kutty, S.R.M.; Ayoub, M.; Noor, A.; Salihi, I.U.; Al-Nini, A.; Jagaba, A.H.; Aldhawi, B.N.S.; Ghaleb, A.A.S. Optimization of Preparation Conditions of Sewage sludge based Activated Carbon. Ain Shams Eng. J. 2021, 12, 1175–1182. [Google Scholar] [CrossRef]
  4. Sun, S.; Yu, Q.; Li, M.; Zhao, H.; Wu, C. Preparation of coffee-shell activated carbon and its application for water vapor adsorption. Renew. Energy 2019, 142, 11–19. [Google Scholar] [CrossRef]
  5. Yeletsky, P.M.; Lebedeva, M.V.; Yakovlev, V.A. Today’s progress in the synthesis of porous carbons from biomass and their application for organic electrolyte and ionic liquid based supercapacitors. J. Energy Storage 2022, 50, 104225. [Google Scholar] [CrossRef]
  6. Yeletsky, P.M.; Dubinin, Y.V.; Yazykov, N.A.; Tabakaev, R.B.; Okotrub, K.A.; Yakovlev, V.A. Conversion of natural feedstocks to porous carbons via carbonization in fluidized catalyst bed followed by leaching the feedstock mineral template phase: A comparison of biomass and sedimentary raw materials. Fuel Process. Technol. 2022, 226, 107076. [Google Scholar] [CrossRef]
  7. Xia, C.; Zhu, S.; Feng, T.; Yang, M.; Yang, B. Evolution and Synthesis of Carbon Dots: From Carbon Dots to Carbonized Polymer Dots. Adv. Sci. 2019, 6, 1901316. [Google Scholar] [CrossRef]
  8. Yao, B.; Huang, H.; Liu, Y.; Kang, Z. Carbon Dots: A Small Conundrum. Trends Chem. 2019, 1, 235–246. [Google Scholar] [CrossRef]
  9. Yu, R.; Liang, S.; Ru, Y.; Li, L.; Wang, Z.; Chen, J.; Chen, L. A Facile Preparation of Multicolor Carbon Dots. Nanoscale Res. Lett. 2022, 17, 32. [Google Scholar] [CrossRef]
  10. Heidarinejad, Z.; Dehghani, M.H.; Heidari, M.; Javedan, G.; Ali, I.; Sillanpää, M. Methods for preparation and activation of activated carbon: A review. Environ. Chem. Lett. 2020, 18, 393–415. [Google Scholar] [CrossRef]
  11. Wang, H.; Xu, J.; Liu, X.; Sheng, L. Preparation of straw activated carbon and its application in wastewater treatment: A review. J. Clean. Prod. 2021, 283, 10. [Google Scholar] [CrossRef]
  12. Ao, W.; Fu, J.; Mao, X.; Kang, Q.; Ran, C.; Liu, Y.; Zhang, H.; Gao, Z.; Li, J.; Liu, G.; et al. Microwave assisted preparation of activated carbon from biomass: A review. Renew. Sustain. Energy Rev. 2018, 92, 958–979. [Google Scholar] [CrossRef]
  13. Das, D.; Meikap, B.C. Role of amine-impregnated activated carbon in carbon dioxide capture. Indian Chem. Eng. 2021, 63, 435–447. [Google Scholar] [CrossRef]
  14. Fatoki, O.S.; Ayanda, O.S.; Adekola, F.A.; Ximba, B.J.; Opeolu, B.O. Preparation and Characterization of Activated Carbon-nFe3O4, Activated Carbon-nSiO2 and Activated Carbon-nZnO Hybrid Materials. Part. Part. Syst. Charact. 2012, 29, 178–191. [Google Scholar] [CrossRef]
  15. Macias-Garcia, A.; Gomez Corzo, M.; Alfaro Dominguez, M.; Alexandre Franco, M.; Martinez Naharro, J. Study of the adsorption and electroadsorption process of Cu (II) ions within thermally and chemically modified activated carbon. J. Hazard. Mater. 2017, 328, 46–55. [Google Scholar] [CrossRef]
  16. Jiang, Q.; Xie, W.; Han, S.; Wang, Y.; Zhang, Y. Enhanced adsorption of Pb(II) onto modified hydrochar by polyethyleneimine or H3PO4: An analysis of surface property and interface mechanism. Coll. Surf. A Physicochem. Eng. Asp. 2019, 583, 20. [Google Scholar] [CrossRef]
  17. Das, D.; Samal, D.P.; Bc, M. Preparation of Activated Carbon from Green Coconut Shell and its Characterization. J. Chem. Eng. Process Technol. 2015, 6, 241. [Google Scholar] [CrossRef]
  18. Mandal, S.; Calderon, J.; Marpu, S.B.; Omary, M.A.; Shi, S.Q. Mesoporous activated carbon as a green adsorbent for the removal of heavy metals and Congo red: Characterization, adsorption kinetics, and isotherm studies. J. Contam. Hydrol. 2021, 243, 103869. [Google Scholar] [CrossRef]
  19. Zhang, Z.; Wang, T.; Zhang, H.; Liu, Y.; Xing, B. Adsorption of Pb(II) and Cd(II) by magnetic activated carbon and its mechanism. Sci Total Env. 2021, 757, 143910. [Google Scholar] [CrossRef]
  20. Shi, G.; He, S.; Chen, G.; Ruan, C.; Ma, Y.; Chen, Q.; Jin, X.; Liu, X.; He, C.; Du, C.; et al. Crayfish shell-based micro-mesoporous activated carbon: Insight into preparation and gaseous benzene adsorption mechanism. Chem. Eng. J. 2022, 428, 15. [Google Scholar] [CrossRef]
  21. Wei, H.; Chen, H.; Fu, N.; Chen, J.; Lan, G.; Qian, W.; Liu, Y.; Lin, H.; Han, S. Excellent electrochemical properties and large CO2 capture of nitrogen-doped activated porous carbon synthesised from waste longan shells. Electrochim. Acta 2017, 231, 403–411. [Google Scholar] [CrossRef]
  22. Sambaza, S.S.; Masheane, M.L.; Malinga, S.P.; Nxumalo, E.N.; Mhlanga, S.D. Polyethyleneimine-carbon nanotube polymeric nanocomposite adsorbents for the removal of Cr6+ from water. Phys. Chem. Earth Parts A/B/C 2017, 100, 236–246. [Google Scholar] [CrossRef]
  23. Rahmi; Lelifajri; Nurfatimah, R. Preparation of polyethylene glycol diglycidyl ether (PEDGE) crosslinked chitosan/activated carbon composite film for Cd(2+) removal. Carbohydr. Polym. 2018, 199, 499–505. [Google Scholar] [CrossRef] [PubMed]
  24. Nazir, M.A.; Najam, T.; Jabeen, S.; Wattoo, M.A.; Bashir, M.S.; Shah, S.S.A.; Rehman, A.U. Facile synthesis of Tri-metallic layered double hydroxides (NiZnAl-LDHs): Adsorption of Rhodamine-B and methyl orange from water. Inorg. Chem. Commun. 2022, 145, 110008. [Google Scholar] [CrossRef]
  25. Runtti, H.; Tuomikoski, S.; Kangas, T.; Lassi, U.; Kuokkanen, T.; Ramo, J. Chemically activated carbon residue from biomass gasification as a sorbent for iron(II), copper(II) and nickel(II) ions. J. Water Process Eng. 2014, 4, 12–24. [Google Scholar] [CrossRef]
  26. Cherono, F.; Mburu, N.; Kakoi, B. Adsorption of lead, copper and zinc in a multi-metal aqueous solution by waste rubber tires for the design of single batch adsorber. Heliyon 2021, 7, 08254. [Google Scholar] [CrossRef]
  27. Vunain, E.; Kenneth, D.; Biswick, T. Synthesis and characterization of low-cost activated carbon prepared from Malawian baobab fruit shells by H3PO4 activation for removal of Cu(II) ions: Equilibrium and kinetics studies. Appl. Water Sci. 2017, 7, 4301–4319. [Google Scholar] [CrossRef] [Green Version]
  28. Nejadshafiee, V.; Islami, M.R. Intelligent-activated carbon prepared from pistachio shells precursor for effective adsorption of heavy metals from industrial waste of copper mine (vol 12, pg 214, 2020). Environ. Sci. Pollut. Res. 2020, 27, 1640–1649. [Google Scholar] [CrossRef] [Green Version]
  29. Mariana, M.; Abdul, K.; Mistar, E.M.; Yahya, E.B.; Alfatah, T.; Danish, M.; Amayreh, M. Recent advances in activated carbon modification techniques for enhanced heavy metal adsorption. J. Water Process Eng. 2021, 43, 102221. [Google Scholar] [CrossRef]
  30. Aguayo-Villarreal, I.A.; Bonilla-Petriciolet, A.; Muñiz-Valencia, R. Preparation of activated carbons from pecan nutshell and their application in the antagonistic adsorption of heavy metal ions. J. Mol. Liq. 2017, 230, 686–695. [Google Scholar] [CrossRef]
  31. Nazir, M.A.; Najam, T.; Shahzad, K.; Wattoo, M.A.; Hussain, T.; Tufail, M.K.; Shah, S.S.A.; ur Rehman, A. Heterointerface engineering of water stable ZIF-8@ZIF-67: Adsorption of rhodamine B from water. Surf. Interfaces 2022, 34, 102324. [Google Scholar] [CrossRef]
  32. Shahrokhi-Shahraki, R.; Benally, C.; El-Din, M.G.; Park, J. High efficiency removal of heavy metals using tire-derived activated carbon vs commercial activated carbon: Insights into the adsorption mechanisms. Chemosphere 2021, 264 Pt 1, 128455. [Google Scholar] [CrossRef]
  33. Li, L.Y.; Gong, X.; Abida, O. Waste-to-resources: Exploratory surface modification of sludge-based activated carbon by nitric acid for heavy metal adsorption. Waste Manag. 2019, 87, 375–386. [Google Scholar] [CrossRef] [PubMed]
  34. Yuan, Y.; An, Z.; Zhang, R.; Wei, X.; Lai, B. Efficiencies and mechanisms of heavy metals adsorption on waste leather-derived high-nitrogen activated carbon. J. Clean. Prod. 2021, 293, 126215. [Google Scholar] [CrossRef]
  35. Zheng, H.Z.; Wang, Q.L.; Long, Y.J.; Zhang, H.J.; Huang, X.X.; Zhu, R. Enhancing the luminescence of carbon dots with a reduction pathway. Chem. Commun. 2011, 47, 10650–10652. [Google Scholar] [CrossRef]
  36. Ganguly, S.; Das, P.; Banerjee, S.; Das, N.C. Advancement in science and technology of carbon dot-polymer hybrid composites: A review. Funct. Compos. Struct. 2019, 1, 022001. [Google Scholar] [CrossRef]
  37. Ma, X.H.; Dong, Y.H.; Sun, H.Y.; Chen, N.S. Highly fluorescent carbon dots from peanut shells as potential probes for copper ion: The optimization and analysis of the synthetic process. Mater. Today Chem. 2017, 5, 1–10. [Google Scholar] [CrossRef]
  38. Tan, X.W.; Romainor, A.N.B.; Chin, S.F.; Ng, S.M. Carbon dots production via pyrolysis of sago waste as potential probe for metal ions sensing. J. Anal. Appl. Pyrolysis 2014, 105, 157–165. [Google Scholar] [CrossRef]
  39. Zheng, X.C.; Ren, S.T.; Wang, L.L.; Gai, Q.X.; Dong, Q.L.; Liu, W.J. Controllable functionalization of carbon dots as fluorescent sensors for independent Cr(VI), Fe(III) and Cu(II) ions detection. J. Photochem. Photobiol. A-Chem. 2021, 417, 113359. [Google Scholar] [CrossRef]
  40. Lin, Y.S.; Yang, Z.Y.; Anand, A.; Huang, C.C.; Chang, H.T. Carbon dots with polarity-tunable characteristics for the selective detection of sodium copper chlorophyllin and copper ions. Anal. Chim. Acta 2022, 1191, 339311. [Google Scholar] [CrossRef]
Materials 16 00689 g001 550

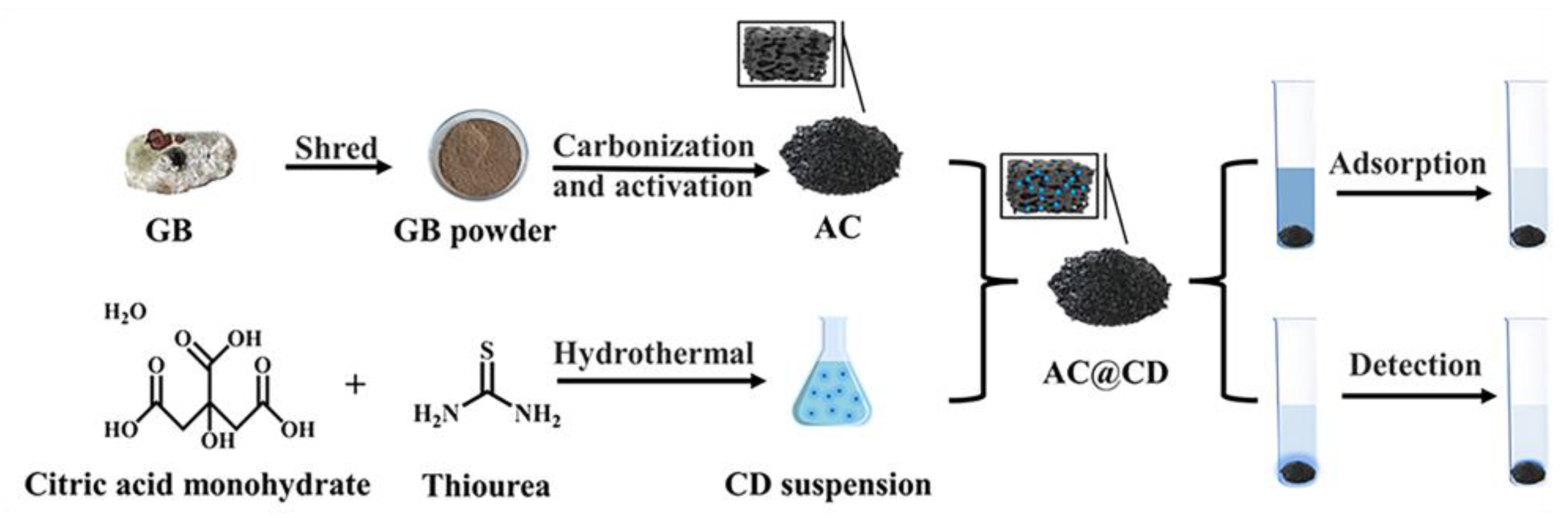

Figure 1. Synthetic schematic of AC@CD.
Figure 1. Synthetic schematic of AC@CD.
Materials 16 00689 g001
Materials 16 00689 g002 550

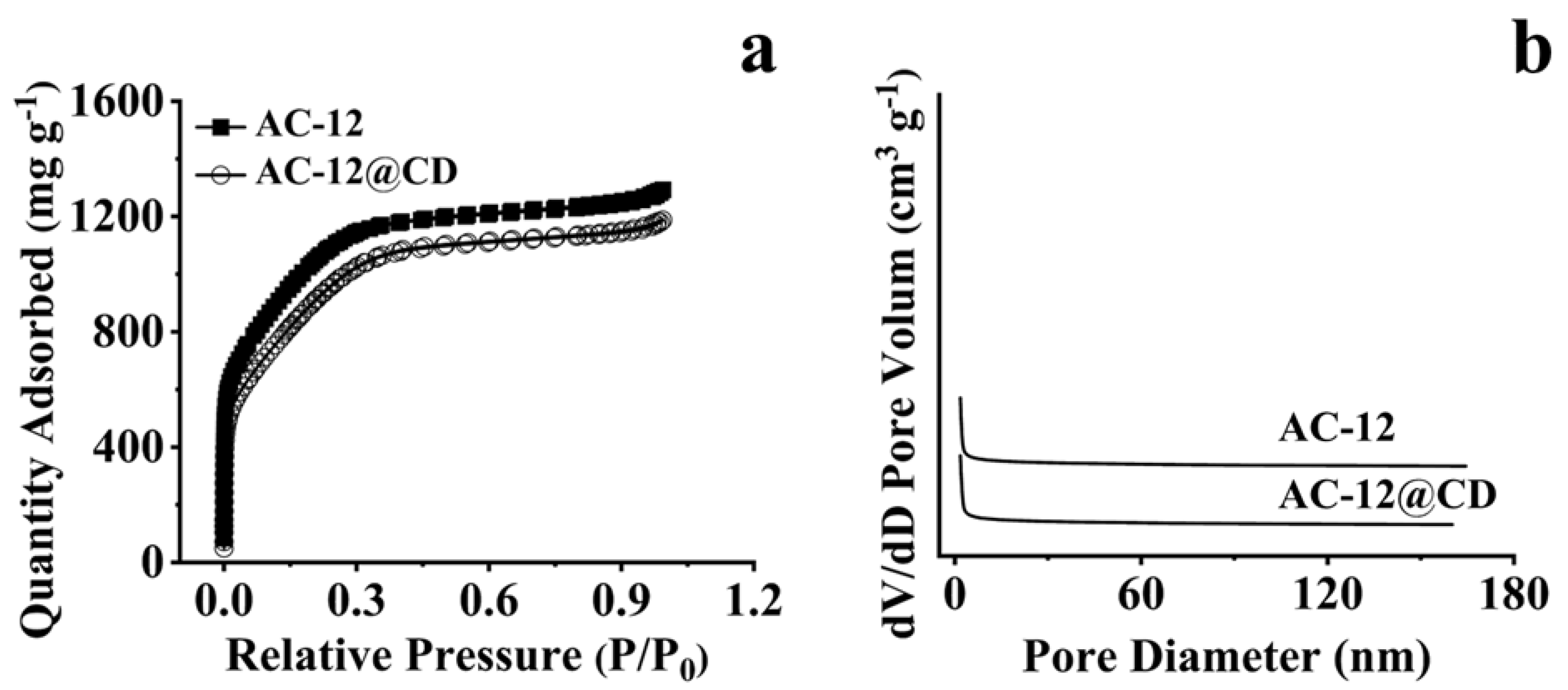

Figure 2. N2 adsorption analysis diagram of AC-12 and AC-12@CD. (a) Adsorption isotherm, (b) pore size distribution diagram.
Figure 2. N2 adsorption analysis diagram of AC-12 and AC-12@CD. (a) Adsorption isotherm, (b) pore size distribution diagram.
Materials 16 00689 g002
Materials 16 00689 g003 550
Figure 3. SEM images of (a,c) AC-12 and (b,d) AC-12@CD.
Figure 3. SEM images of (a,c) AC-12 and (b,d) AC-12@CD.
Materials 16 00689 g003
Materials 16 00689 g004 550

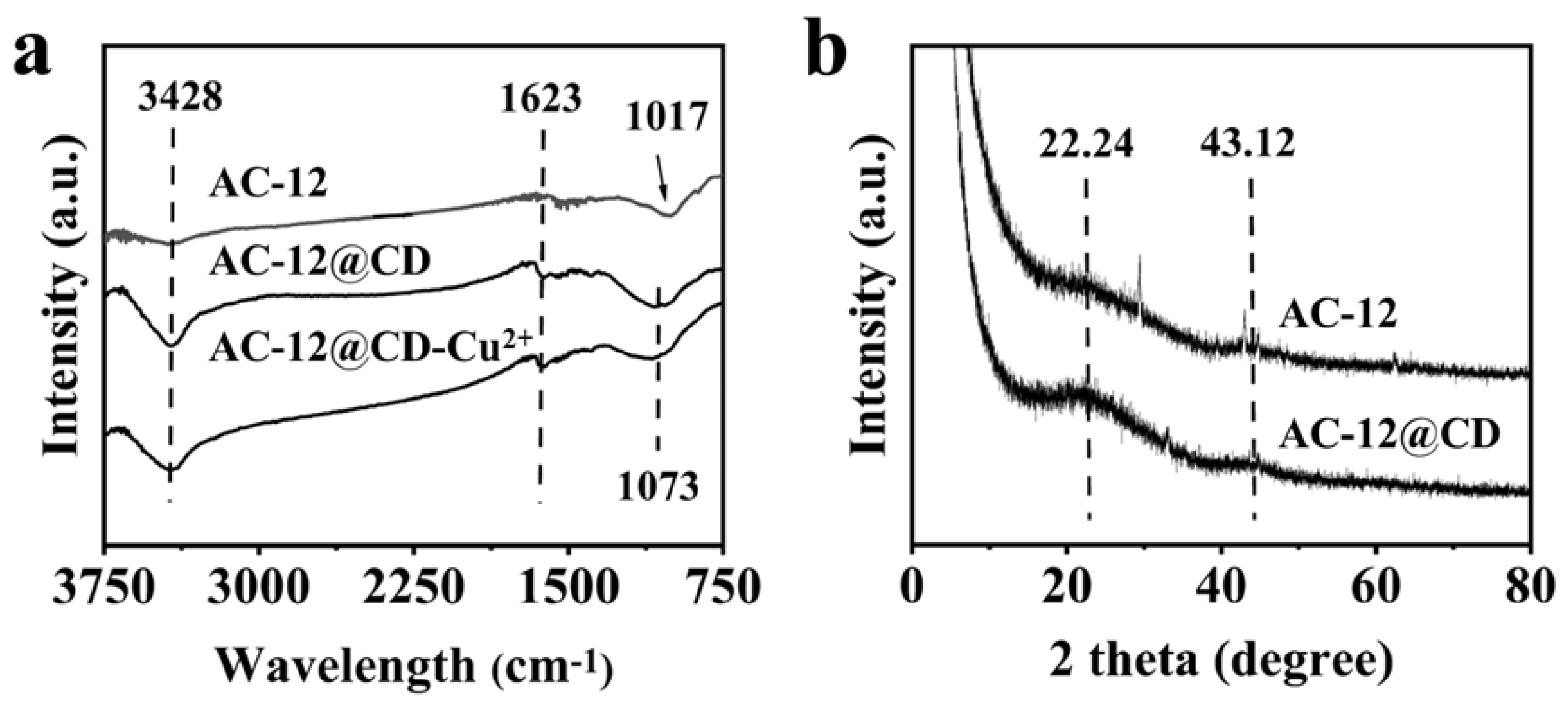

Figure 4. (a) FT−IR spectra of AC-12 and AC-12@CD, (b) XRD diffraction of AC-12 and AC-12@CD.
Figure 4. (a) FT−IR spectra of AC-12 and AC-12@CD, (b) XRD diffraction of AC-12 and AC-12@CD.
Materials 16 00689 g004
Materials 16 00689 g005 550

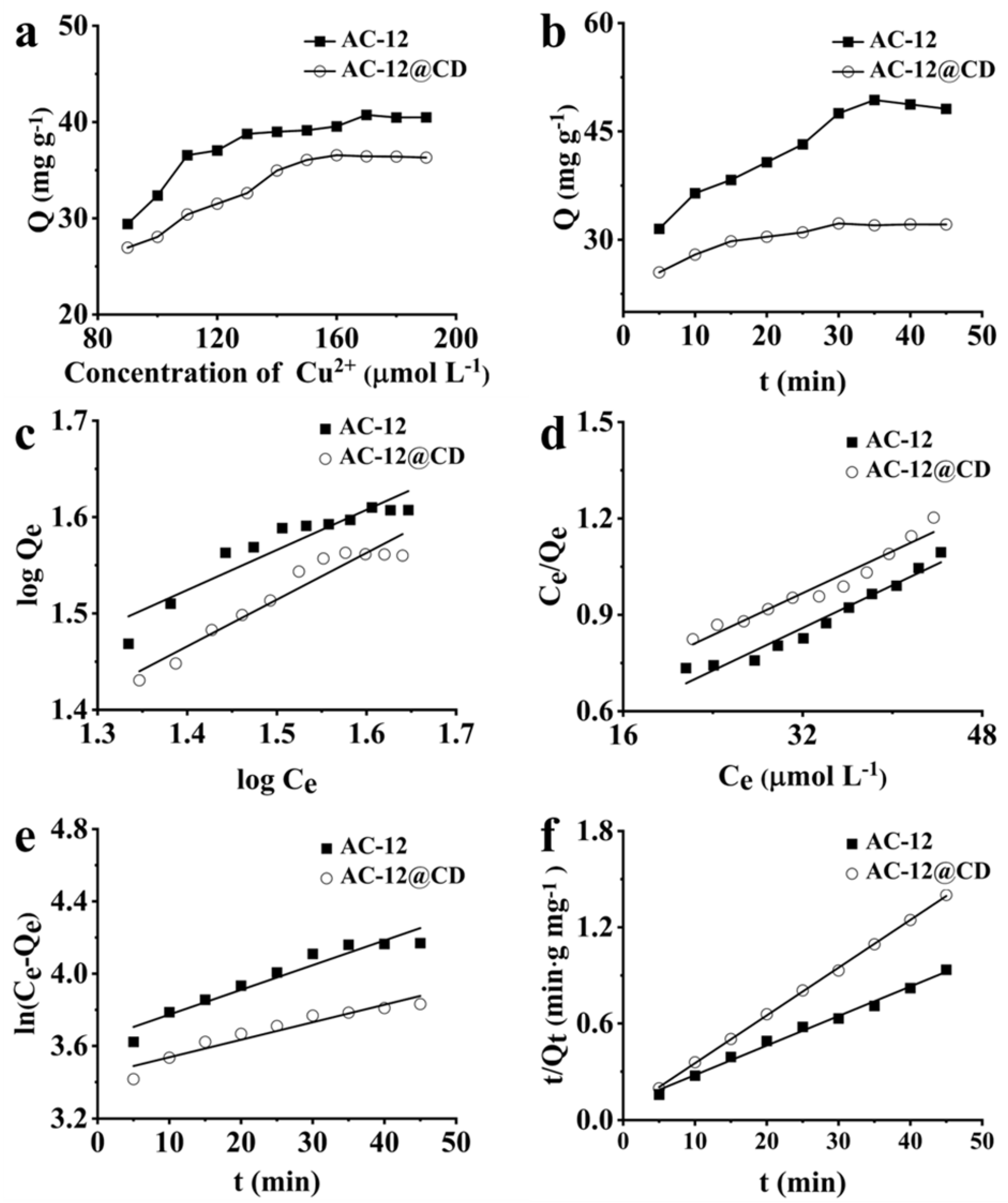

Figure 5. (a) Isothermal adsorption curve, (b) kinetic adsorption curve, (c) Freundlich curve, (d) Langmuir curve, (e) quasi-first-order kinetic curve, (f) quasi-second-order kinetic curve.
Figure 5. (a) Isothermal adsorption curve, (b) kinetic adsorption curve, (c) Freundlich curve, (d) Langmuir curve, (e) quasi-first-order kinetic curve, (f) quasi-second-order kinetic curve.
Materials 16 00689 g005
Materials 16 00689 g006 550

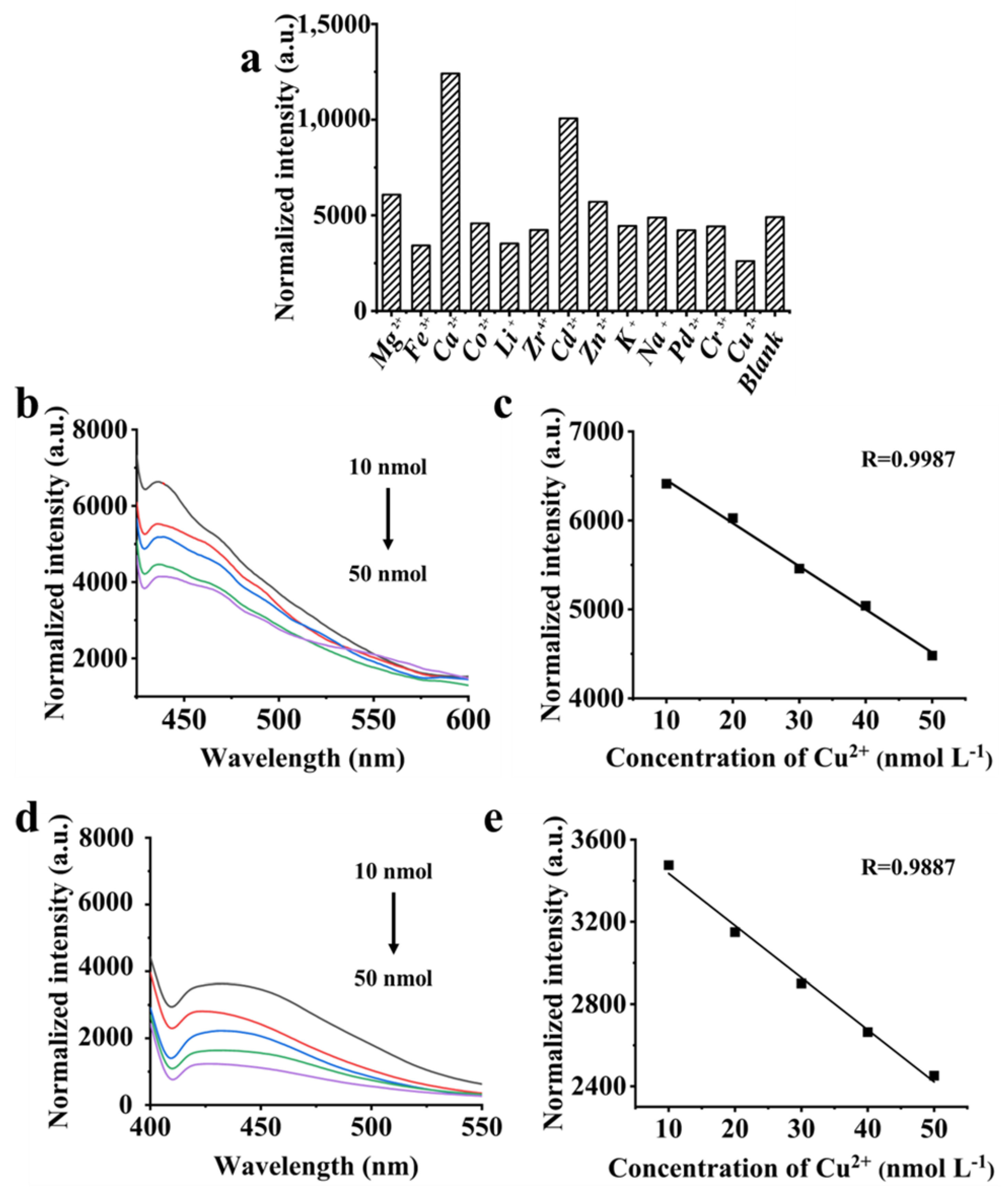

Figure 6. (a) Fluorescence intensity of AC-12@CD with 13 kinds of metal ions, (b) fluorescence emission spectrum of AC-4@CD containing different concentrations of Cu2+, (c) linear response curve of AC-4@CD for detection of Cu2+, (d) fluorescence emission spectrum of AC-12@CD containing different concentrations of Cu2+, (e) linear response curve of AC-12@CD for detection of Cu2+.
Figure 6. (a) Fluorescence intensity of AC-12@CD with 13 kinds of metal ions, (b) fluorescence emission spectrum of AC-4@CD containing different concentrations of Cu2+, (c) linear response curve of AC-4@CD for detection of Cu2+, (d) fluorescence emission spectrum of AC-12@CD containing different concentrations of Cu2+, (e) linear response curve of AC-12@CD for detection of Cu2+.
Materials 16 00689 g006
Table
Table 1. Surface area and porosity property of AC fabricated with different conditions.
Table 1. Surface area and porosity property of AC fabricated with different conditions.
MaterialActivatorMass RatioTemperature (°C)Time (h)SBET
(m2 g−1)		Vg
(cm3 g−1)		Dpore (nm)
AC-precursor--300312.00.0212.6
AC-1KOH1:2300311480.173.94
AC-2KOH1:4300314980.782.42
AC-3KOH1:6300316330.812.24
AC-4KOH1:830038.30.063.82
AC-5KMnO41:63003832.00.119.04
AC-6ZnCl21:6300318.00.033.65
AC-7HNO31:6300321.550.025.01
AC-8KOH1:6500314410.342.24
AC-9KOH1:6700321550.642.74
AC-10KOH1:69003875.00.743.44
AC-11KOH1:6700127790.682.78
AC-12KOH1:6700531471.102.60
AC-13KOH1:6700723470.642.73
AC-1@CD----15100.123.68
AC-4@CD----135.20.093.87
AC-9@CD----25800.802.73
AC-12@CD----32841.202.58
Table
Table 2. Comparison of a few reported materials for adsorption of Cu2+.
Table 2. Comparison of a few reported materials for adsorption of Cu2+.
MaterialSBET
(m2 g−1)		Adsorption Capacity (mg g−1)Adsorption Equilibrium Time (min)Ref.
Biomass carbon residue-23.10120[25]
AC from rubber tire preparation-12.44120[26]
AC from Malawian baobab shell10893.08360[27]
AC from pistachio-277.8180[28]
AC-12314749.3535This work
AC-12@CD328436.5530This work
Table
Table 3. Fitting parameters of Langmuir and Freundlich isothermal adsorption models.
Table 3. Fitting parameters of Langmuir and Freundlich isothermal adsorption models.
MaterialLangmuir ModelFreundlich Model
KL (min−1)Qm
(mg g−1)		RLKF
(L g−1)		nRF
AC-120.03661.430.97588.742.40.9352
AC-12@CD0.05060.350.97916.132.10.9656
Table
Table 4. Fitting parameters of adsorption kinetic model.
Table 4. Fitting parameters of adsorption kinetic model.
MaterialQuasi-First-Order Kinetic Adsorption Curve ModelQuasi-Second-Order Kinetic Adsorption Curve Model
K1R1K2R2
AC-120.0130.96330.0160.9998
AC-12@CD0.0100.95930.0040.9961
Table
Table 5. Comparison of a few reported materials for fluorescence detection of Cu2+.
Table 5. Comparison of a few reported materials for fluorescence detection of Cu2+.
MaterialDetection Range (μmol L−1)LOD
(μmol L−1)		Ref.
CD from Peanut shells0–504.80[36]
CD from Sago waste0–487.80[37]
Amino hydroxyl-doped CD20–805.00[38]
CD from triolein0.5–100.20[39]
AC-12@CD10–50 × 10−31.69 × 10−4This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, B.; Lan, J.; Bo, C.; Gong, B.; Ou, J. Preparation of Ganoderma Lucidum Bran-Based Biological Activated Carbon for Dual-Functional Adsorption and Detection of Copper Ions. Materials 2023, 16, 689. https://doi.org/10.3390/ma16020689

AMA Style

Wang B, Lan J, Bo C, Gong B, Ou J. Preparation of Ganoderma Lucidum Bran-Based Biological Activated Carbon for Dual-Functional Adsorption and Detection of Copper Ions. Materials. 2023; 16(2):689. https://doi.org/10.3390/ma16020689

Chicago/Turabian Style

Wang, Baoying, Jingming Lan, Chunmiao Bo, Bolin Gong, and Junjie Ou. 2023. "Preparation of Ganoderma Lucidum Bran-Based Biological Activated Carbon for Dual-Functional Adsorption and Detection of Copper Ions" Materials 16, no. 2: 689. https://doi.org/10.3390/ma16020689

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
