Influence of Filler Material on the Microstructural and Mechanical Properties of 430 Ferritic Stainless Steel Weld Joints
Abstract
:1. Introduction
2. Materials and Method

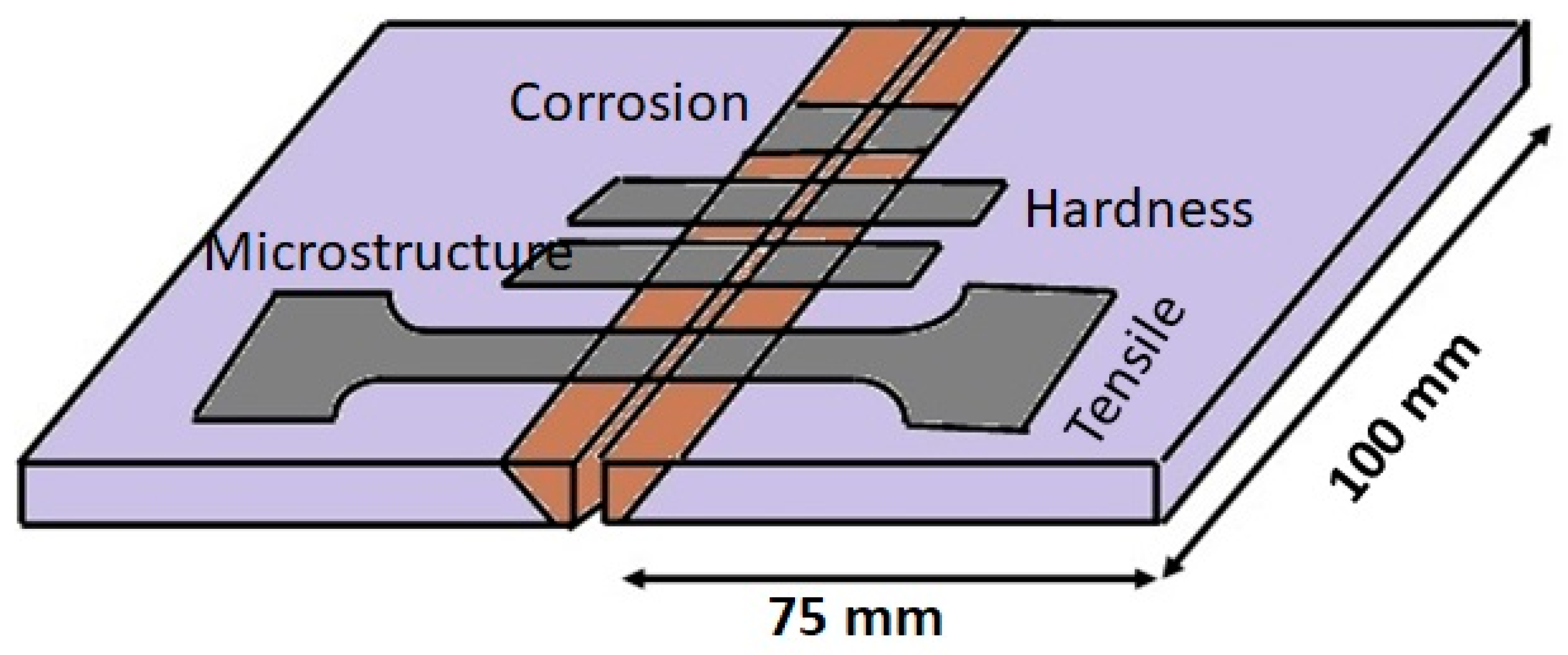

2.1. Materials and Welding
2.2. Metallographic and Microscopy
2.3. Mechanical Testing
3. Results and Discussion
3.1. Dilution

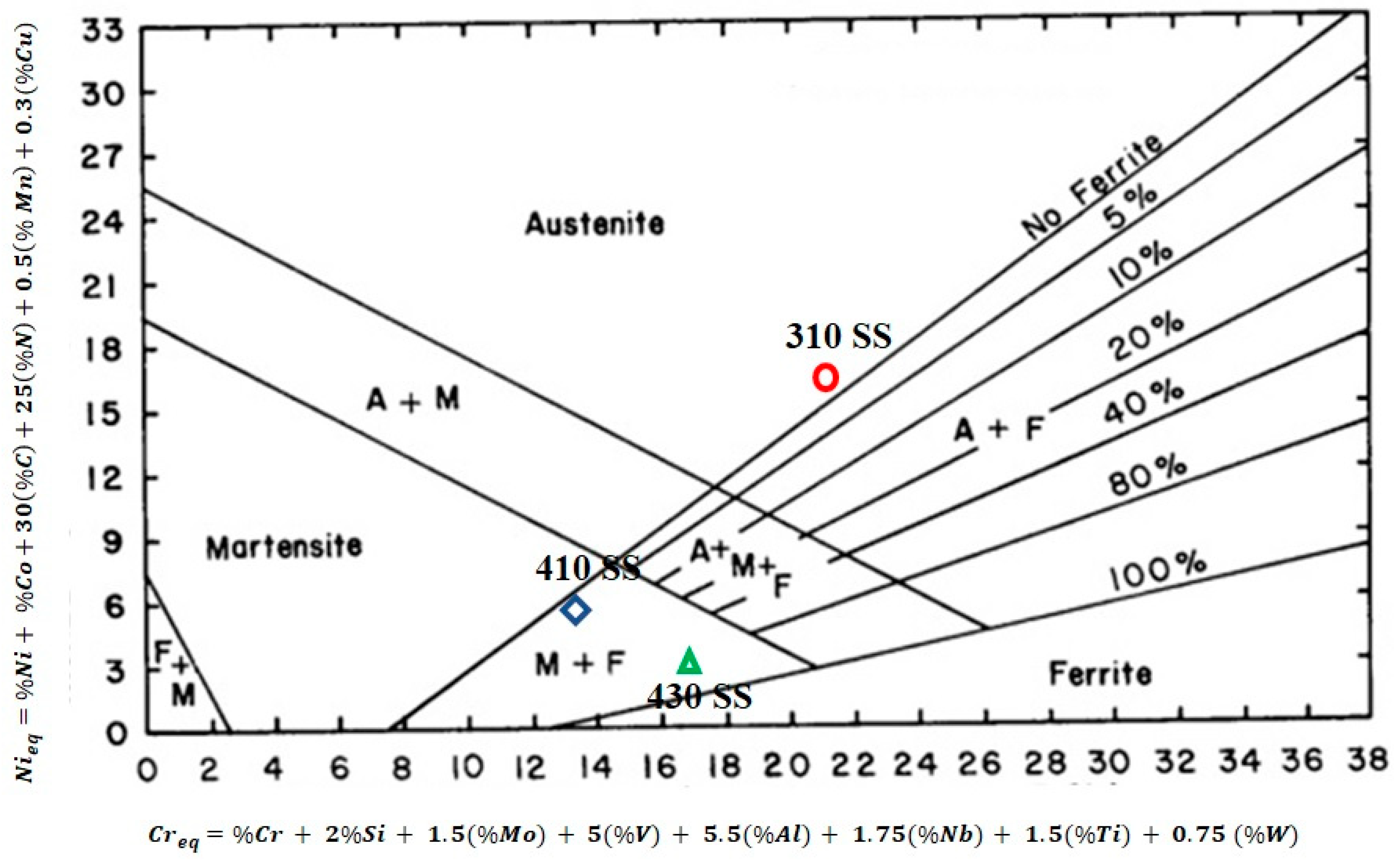

3.2. Predictive Model

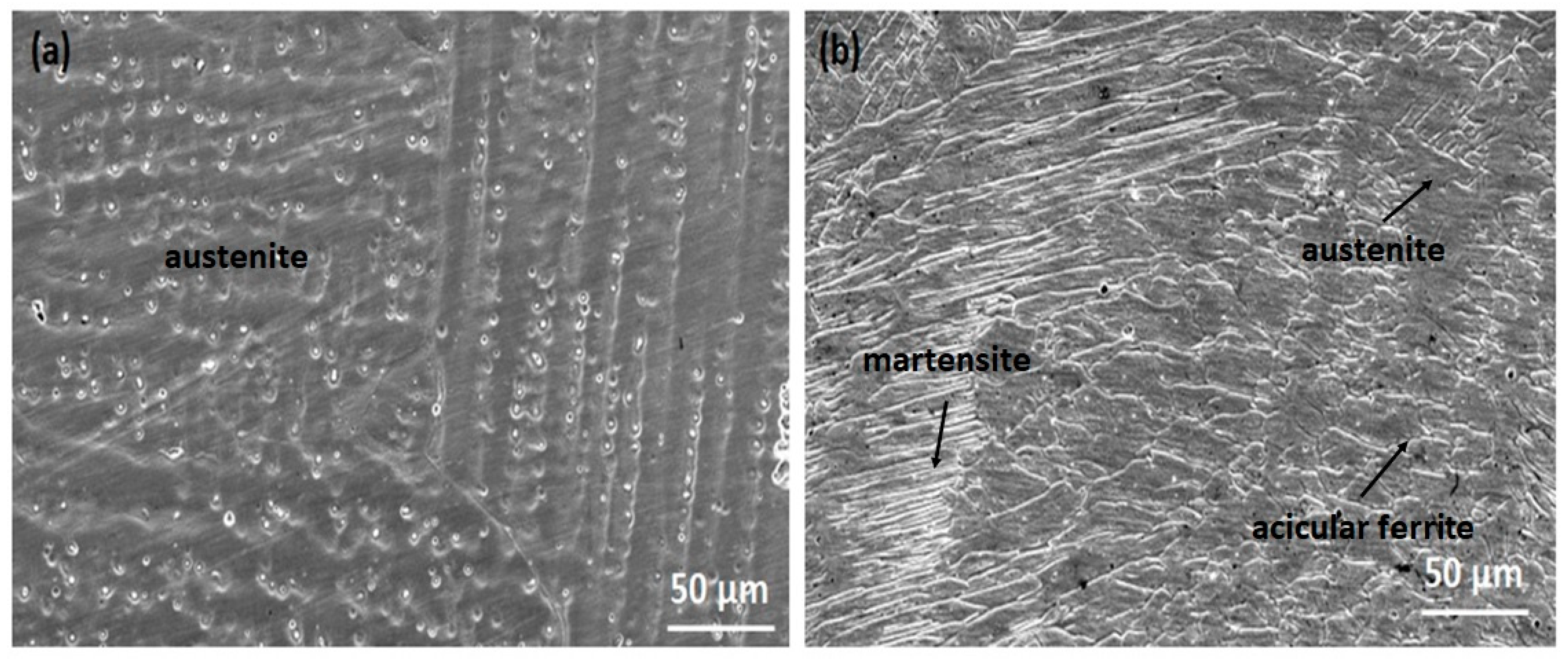

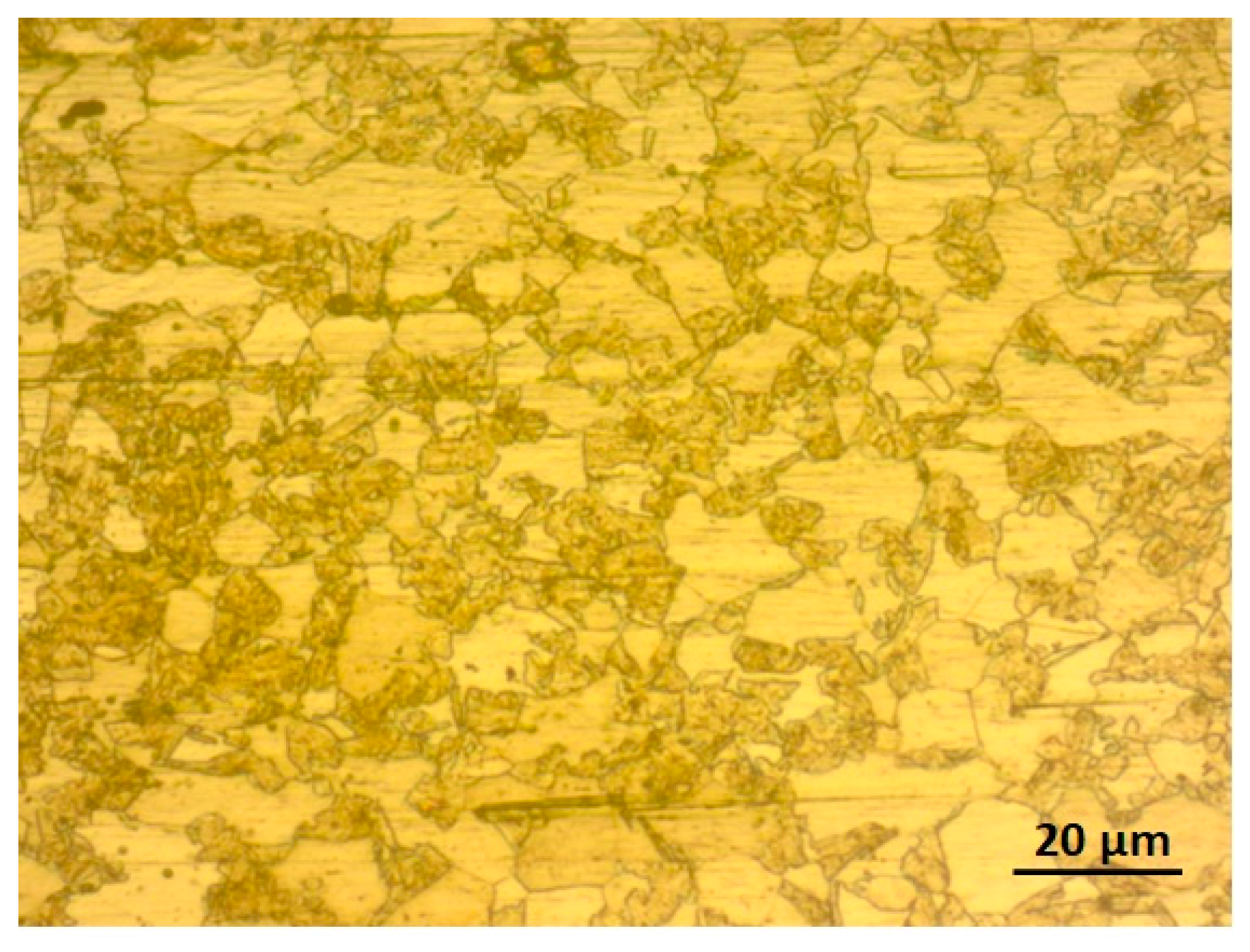

3.3. Microstructural Characterization
3.4. XRD Analysis
3.5. Mechanical Testing
3.5.1. Tensile Test
3.5.2. Hardness Test
4. Conclusions
- Both 410 and 310 filler materials can be successfully used for TIG welding of 430 ferritic stainless steel.
- The microstructure of the welds made using 410 filler were found to have ferrite, martensite, and austenite, and thus show a higher ratio. On the other hand, the welds made using 310 filler were found to have a reduced ratio, and an austenitic microstructure.

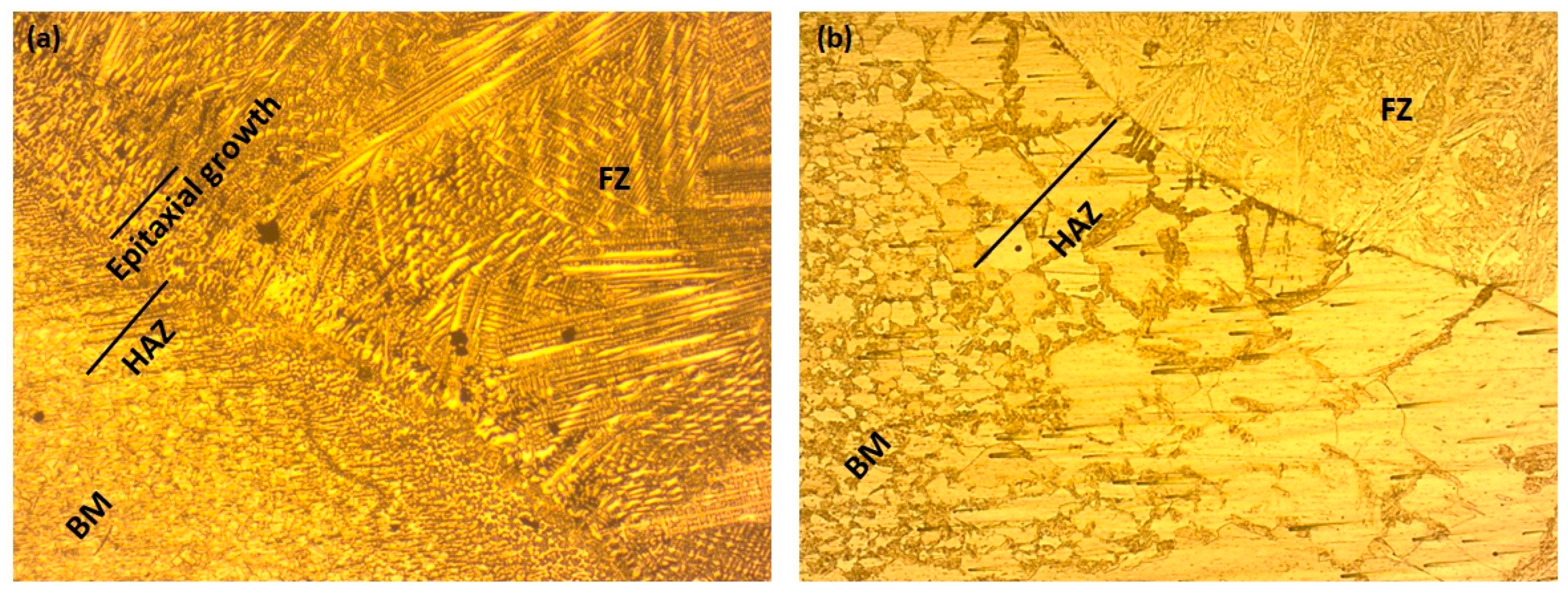

- Epitaxial growth was observed in the sample welded with 310 filler. However, no such growth was observed in the sample welded with the ferritic filler (410).

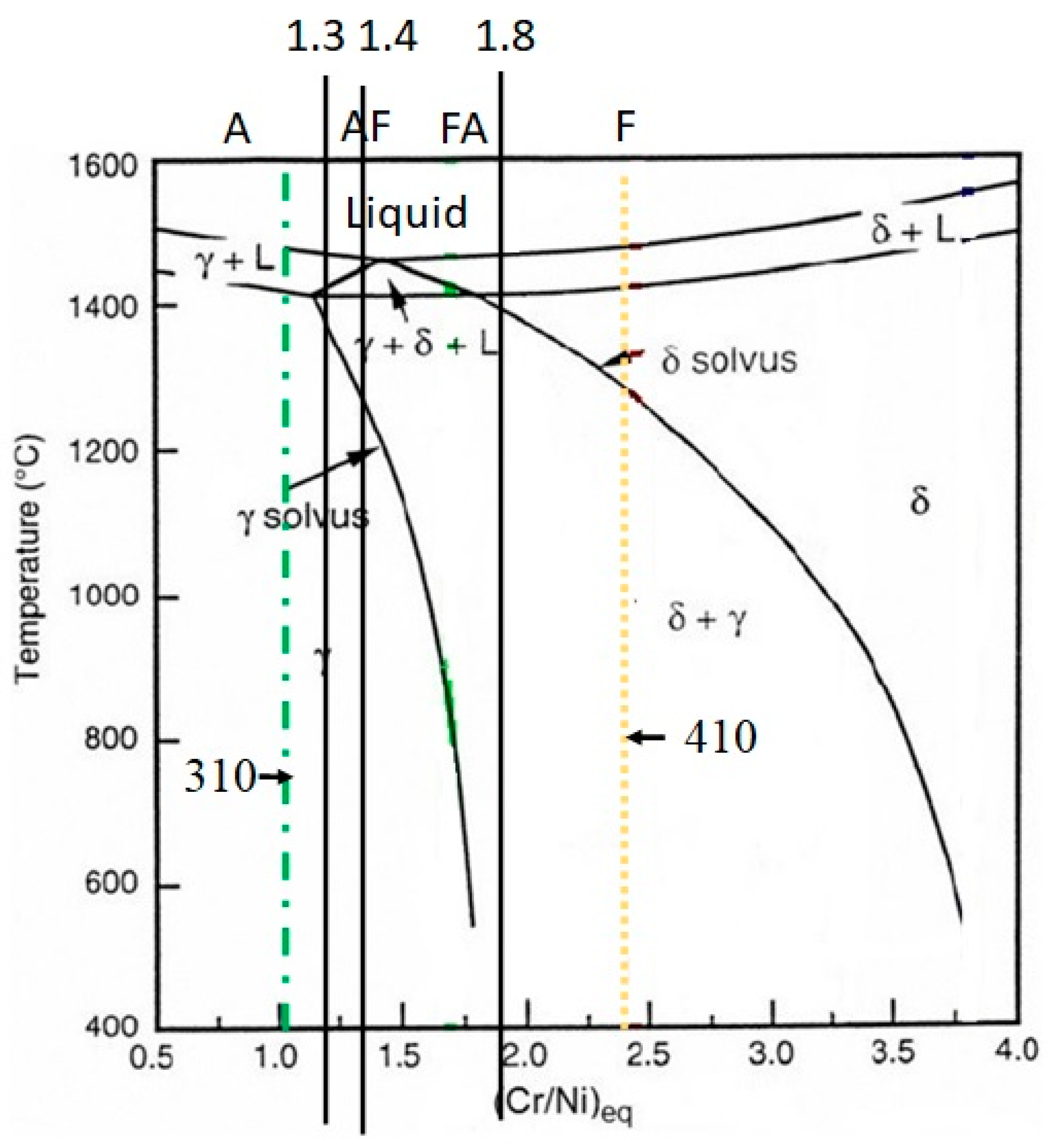

- Different behaviors are displayed by different alloy solidification modes and electrode compositions. These significantly affect the weld specimen’s hardness and tensile strength. Higher ratios result in the ferritic mode, where the austenite-dominated (310 filler) phase was significantly outperformed by the ferrite-dominated (410 filler) phase in terms of mechanical properties.
- The tensile strength was found to be higher in samples welded with 410 filler as compared to those welded with 310 filler.

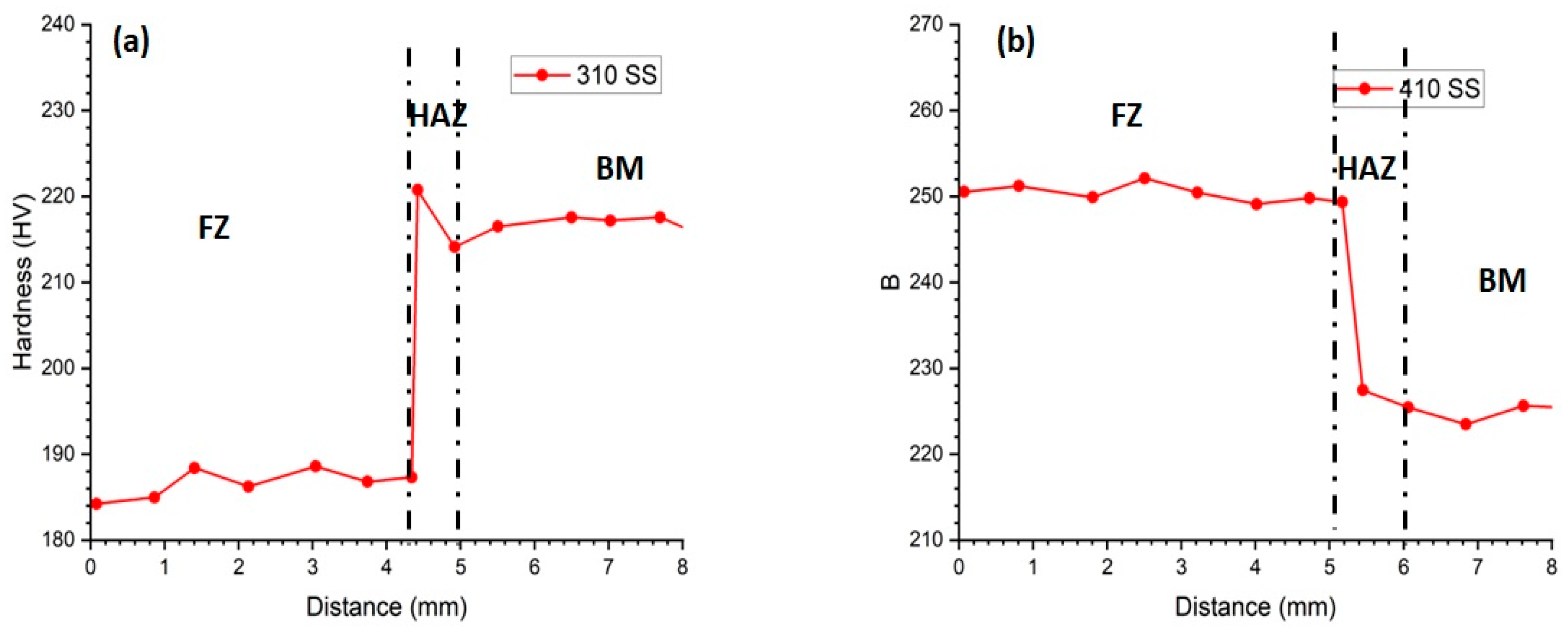

- The hardness of the 410 weld samples was higher than the 310 weld samples. This is due to the formation of δ ferrite in the weld zone.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Bansod, A.V.; Khobragade, N.N.; Giradkar, K.V.; Patil, A.P. Effect of concentration of hyaluronic acid and NaCl on corrosion behavior of 316L austenitic stainless steel. Mater. Res. Express 2017, 4, 116508. [Google Scholar] [CrossRef]
- Mamphekgo, T.C.; Matjeke, V.J.; Pillay, K. Investigation of abnormal corrosion of 10.5–12.5 chromium ferritic stainless steel used to fabricate railway coal wagons. IOP Conf. Ser. Mater. Sci. Eng. 2018, 430, 012038. [Google Scholar] [CrossRef]
- Li, C.-X.; Dang, S.-H.; Wang, L.-P.; Zhang, C.-L.; Han, P.-D. Effect of Cr, Mo, and Nb additions on intergranular cohesion of ferritic stainless steel: First-principles determination. Chin. Phys. B 2014, 23, 037102. [Google Scholar] [CrossRef]
- Meng, X.; Qin, G.; Zhang, Y.; Fu, B.; Zou, Z. High speed TIG–MAG hybrid arc welding of mild steel plate. J. Mater. Process. Technol. 2014, 214, 2417–2424. [Google Scholar] [CrossRef]
- Venugopal, A.; Sreekumar, K.; Raja, V.S. Stress Corrosion Cracking Behavior of Multipass TIG-Welded AA2219 Aluminum Alloy in 3.5 wt pct NaCl Solution. Met. Mater. Trans. A 2012, 43, 3135–3148. [Google Scholar] [CrossRef]
- Yan, J.; Gao, M.; Zeng, X. Study on microstructure and mechanical properties of 304 stainless steel joints by TIG, laser and laser-TIG hybrid welding. Opt. Lasers Eng. 2009, 48, 512–517. [Google Scholar] [CrossRef]
- Serindağ, H.T.; Çam, G. Multi-pass butt welding of thick AISI 316L plates by gas tungsten arc welding: Microstructural and mechanical characterization. Int. J. Press. Vessel. Pip. 2022, 200, 104842. [Google Scholar] [CrossRef]
- Shojaati, M.; Beidokhti, B. Characterization of AISI 304/AISI 409 stainless steel joints using different filler materials. Constr. Build. Mater. 2017, 147, 608–615. [Google Scholar] [CrossRef]
- Parker, J.; Stratford, G. The high-temperature performance of nickel-based transition joints: I. Deformation behaviour. Mater. Sci. Eng. A 2001, 299, 164–173. [Google Scholar] [CrossRef]
- Samal, M.; Seidenfuss, M.; Roos, E.; Balani, K. Investigation of failure behavior of ferritic–austenitic type of dissimilar steel welded joints. Eng. Fail. Anal. 2011, 18, 999–1008. [Google Scholar] [CrossRef]
- Lakshminarayanan, A.; Shanmugam, K.; Balasubramanian, V. Fatigue Crack Growth Behavior of Gas Metal Arc Welded AISI 409 Grade Ferritic Stainless Steel Joints. J. Mater. Eng. Perform. 2009, 18, 917–924. [Google Scholar] [CrossRef]
- Hsieh, C.-C.; Lin, D.-Y.; Chen, M.-C.; Wu, W. Precipitation and strengthening behavior of massive δ-ferrite in dissimilar stainless steels during massive phase transformation. Mater. Sci. Eng. A 2008, 477, 328–333. [Google Scholar] [CrossRef]
- Khan, M.; Romoli, L.; Fiaschi, M.; Dini, G.; Sarri, F. Laser beam welding of dissimilar stainless steels in a fillet joint configuration. J. Mater. Process. Technol. 2012, 212, 856–867. [Google Scholar] [CrossRef]
- Shanmugam, K.; Lakshminarayanan, A.; Balasubramanian, V. Effect of weld metal properties on fatigue crack growth behaviour of gas tungsten arc welded AISI 409M grade ferritic stainless steel joints. Int. J. Press. Vessel. Pip. 2009, 86, 517–524. [Google Scholar] [CrossRef]
- Kim, Y.; Lee, D.; Byun, J.; Jung, K.; Kim, J.; Lee, H.; Shin, Y.; Kim, S. The effect of sigma phases formation depending on Cr/Ni equivalent ratio in AISI 316L weldments. Mater. Des. 2011, 32, 330–336. [Google Scholar] [CrossRef]
- Mukherjee, M.; Pal, T. Influence of Heat Input on Martensite Formation and Impact Property of Ferritic-Austenitic Dissimilar Weld Metals. J. Mater. Sci. Technol. 2012, 28, 343–352. [Google Scholar] [CrossRef]
- Kang, D.; Lee, H. Study of the correlation between pitting corrosion and the component ratio of the dual phase in duplex stainless steel welds. Corros. Sci. 2013, 74, 396–407. [Google Scholar] [CrossRef]
- Bansod, A.V.; Patil, A.P.; Verma, J.; Shukla, S. Microstructure, Mechanical and Electrochemical Evaluation of Dissimilar low Ni SS and 304 SS using Different Filler Materials. Mater. Res. 2019, 22, 1–14. [Google Scholar] [CrossRef]
- Standard Practice for Preparation of Metallographic Specimens. Available online: https://www.astm.org/e0003-95.html (accessed on 5 January 2023).
- ASTM E8-04; Tension Testing of Metallic Materials. ASTM: West Conshohocken, PA, USA, 2010.
- Gupta, S.K.; Raja, A.R.; Vashista, M.; Yusufzai, M.Z.K. Effect of heat input on microstructure and mechanical properties in gas metal arc welding of ferritic stainless steel. Mater. Res. Express 2018, 6, 036516. [Google Scholar] [CrossRef]
- Verma, J.; Taiwade, R.V.; Khatirkar, R.K.; Sapate, S.G.; Gaikwad, A.D. Microstructure, Mechanical and Intergranular Corrosion Behavior of Dissimilar DSS 2205 and ASS 316L Shielded Metal Arc Welds. Trans. Indian Inst. Met. 2016, 70, 225–237. [Google Scholar] [CrossRef]
- Bansod, A.V.; Patil, A.P.; Moon, A.P.; Khobragade, N.N. Intergranular Corrosion Behavior of Low-Nickel and 304 Austenitic Stainless Steels. J. Mater. Eng. Perform. 2016, 25, 3615–3626. [Google Scholar] [CrossRef]
- Oh, D.; Han, K.; Hong, S.; Lee, C. Effects of alloying elements on the thermal fatigue properties of the ferritic stainless steel weld HAZ. Procedia Eng. 2011, 10, 383–389. [Google Scholar] [CrossRef]
- Opiela, M.; Fojt-Dymara, G.; Grajcar, A.; Borek, W. Effect of Grain Size on the Microstructure and Strain Hardening Behavior of Solution Heat-Treated Low-C High-Mn Steel. Materials 2020, 13, 1489. [Google Scholar] [CrossRef] [PubMed]
- Moshtaghi, M.; Loder, B.; Safyari, M.; Willidal, T.; Hojo, T.; Mori, G. Hydrogen trapping and desorption affected by ferrite grain boundary types in shielded metal and flux-cored arc weldments with Ni addition. Int. J. Hydrogen Energy 2022, 47, 20676–20683. [Google Scholar] [CrossRef]
- Lippold, J.C.; Kotecki, D.J. Welding Metallurgy and Weldability of Stainless Steels; Wiley-VCH: Hoboken, NJ, USA, 2005; p. 376. [Google Scholar]
- Mukherjee, M.; Dutta, A.; Kanjilal, P.; Pal, T.K.; Sisodia, S. Enhancement of Microstructural and Mechanical Properties by Pulse Mode of Metal Transfer in Welded Modified Ferritic Stainless Steel. ISIJ Int. 2015, 55, 1439–1447. [Google Scholar] [CrossRef]
- Alizadeh-Sh, M.; Marashi, S.; Pouranvari, M. Resistance spot welding of AISI 430 ferritic stainless steel: Phase transformations and mechanical properties. Mater. Des. 2014, 56, 258–263. [Google Scholar] [CrossRef]
- Yin, Y.; Faulkner, R.G.; Moreton, P.; Armson, I.; Coyle, P. Grain boundary chromium depletion in austenitic alloys. J. Mater. Sci. 2010, 45, 5872–5882. [Google Scholar] [CrossRef]
- Dadfar, M.; Fathi, M.; Karimzadeh, F.; Saatchi, A. Effect of TIG welding on corrosion behavior of 316L stainless steel. Mater. Lett. 2007, 61, 2343–2346. [Google Scholar] [CrossRef]
- Verma, J.; Taiwade, R.V. Effect of Austenitic and Austeno-Ferritic Electrodes on 2205 Duplex and 316L Austenitic Stainless Steel Dissimilar Welds. J. Mater. Eng. Perform. 2016, 25, 4706–4717. [Google Scholar] [CrossRef]
Materials | Composition (wt. %) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
C | Si | Mn | Cr | Mo | Ni | Fe | PREN | ||||
430 (BM) | 0.08 | 0.34 | 0.58 | 16.28 | 0 | 0.13 | Balance | 16.96 | 2.82 | 6.01 | 16.28 |
410 Filler | 0.06 | 0.71 | 0.82 | 17.01 | 0.05 | 5.23 | Balance | 18.49 | 7.44 | 2.48 | 17.16 |
310 Filler | 0.1 | 0.49 | 1.5 | 26.10 | 0 | 21.5 | Balance | 26.98 | 25.25 | 1.06 | 26.01 |
S. No. | Sample Specification | Current (I) | Voltage (V) | Welding Speed (S) | Heat Input (HI) | Filler Diameter (mm) |
---|---|---|---|---|---|---|
1 | BM (430) welded with 310 filler | 110 | 20 | 3.8 | 0.347 | 2.14 |
2 | BM (430) welded with 410 filler | 110 | 20 | 3.4 | 0.388 | 2.14 |

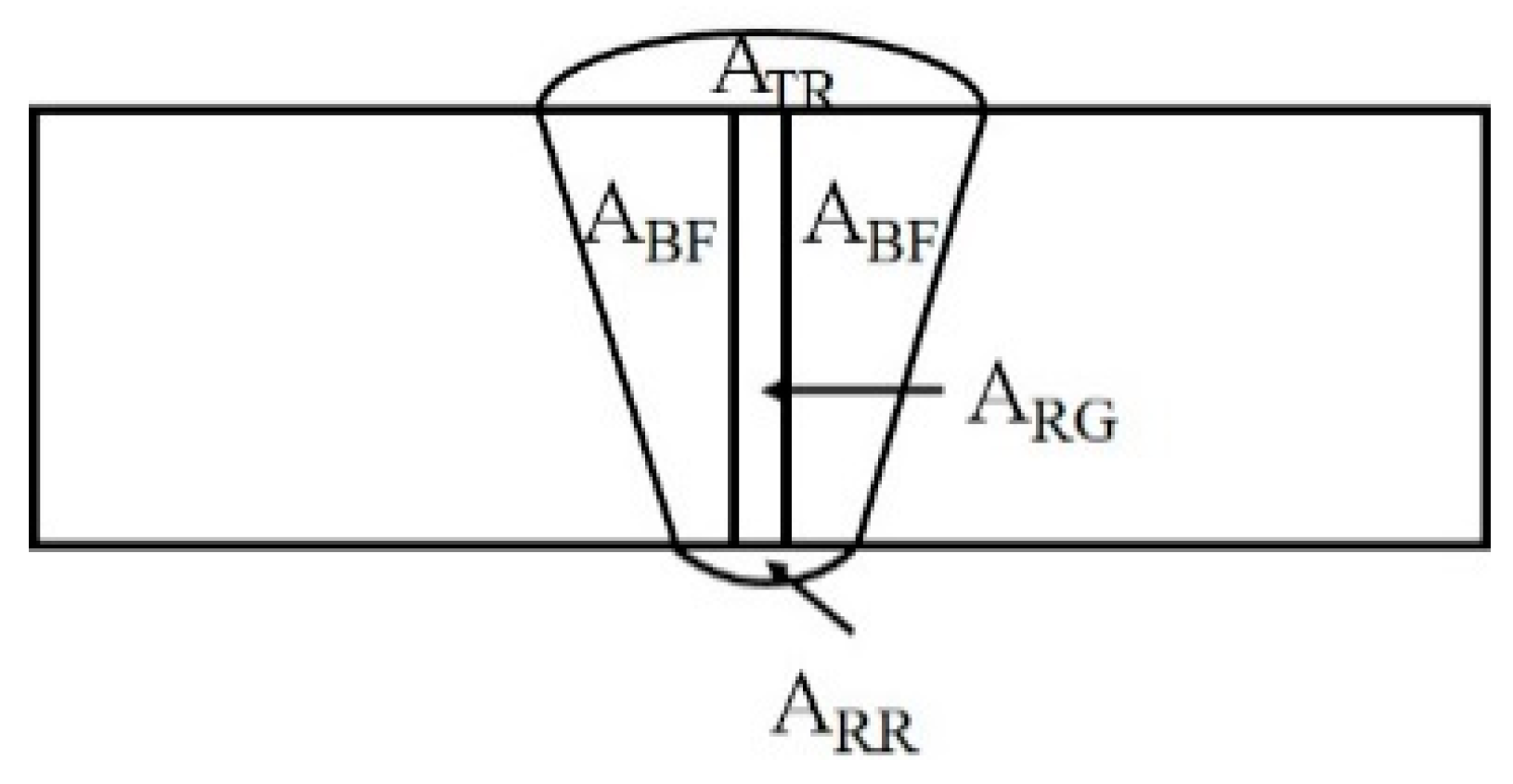

S. No. | Sample Specification | ABF/mm2 | AWD/mm2 | DL % = (ABF/AWD) × 100 |
---|---|---|---|---|
1 | BM (430) welded with 310 filler | 12.26 | 36.20 | 33.86 |
2 | BM (430) welded with 410 filler | 15.10 | 35.10 | 43.01 |
Sample | Unmixed Zone Length (µm) | HAZ Length (µm) | -Ferrite by Ferritoscope (FN) |
---|---|---|---|
310 weld zone | 86 | 95 | 0.10 |
410 weld zone | - | 213 | 6.4 |
Sample | Ultimate Tensile Strength (MPa) | Standard Deviation (MPa) | % Elongation | Failure |
---|---|---|---|---|
430 BM | 515.2 | 13 | 30 | - |
430 SS with 310 filler | 489.5 | 75 | 32 | Weld joint |
430 SS with 410 filler | 732.4 | 45 | 22 | Weld joint |
