Mechanical Properties and Energy Absorption Abilities of Diamond TPMS Cylindrical Structures Fabricated by Selective Laser Melting with 316L Stainless Steel
Abstract
:1. Introduction
2. Materials and Methods
2.1. Diamond Lattice Structure Design
- ki—TPMS function periodicity;
- ui—number of unit cells in x, y, and z dimension;
- Li—absolute size of the porous structure in x, y, and z direction;
- e—exponent, which determines the type of unit cell: skeletal (for e = 1) and sheet (for e = 2);
2.2. Metal Powder Characterization and Sample Structures Fabrication
Element | Fe | Cr | Ni | Mo | C | Other |
---|---|---|---|---|---|---|
Weight percent (%) | Balance | 18 | 12 | 2 | <0.03 | <1.0 |
2.3. Quasi-Static Compression Test
3. Results

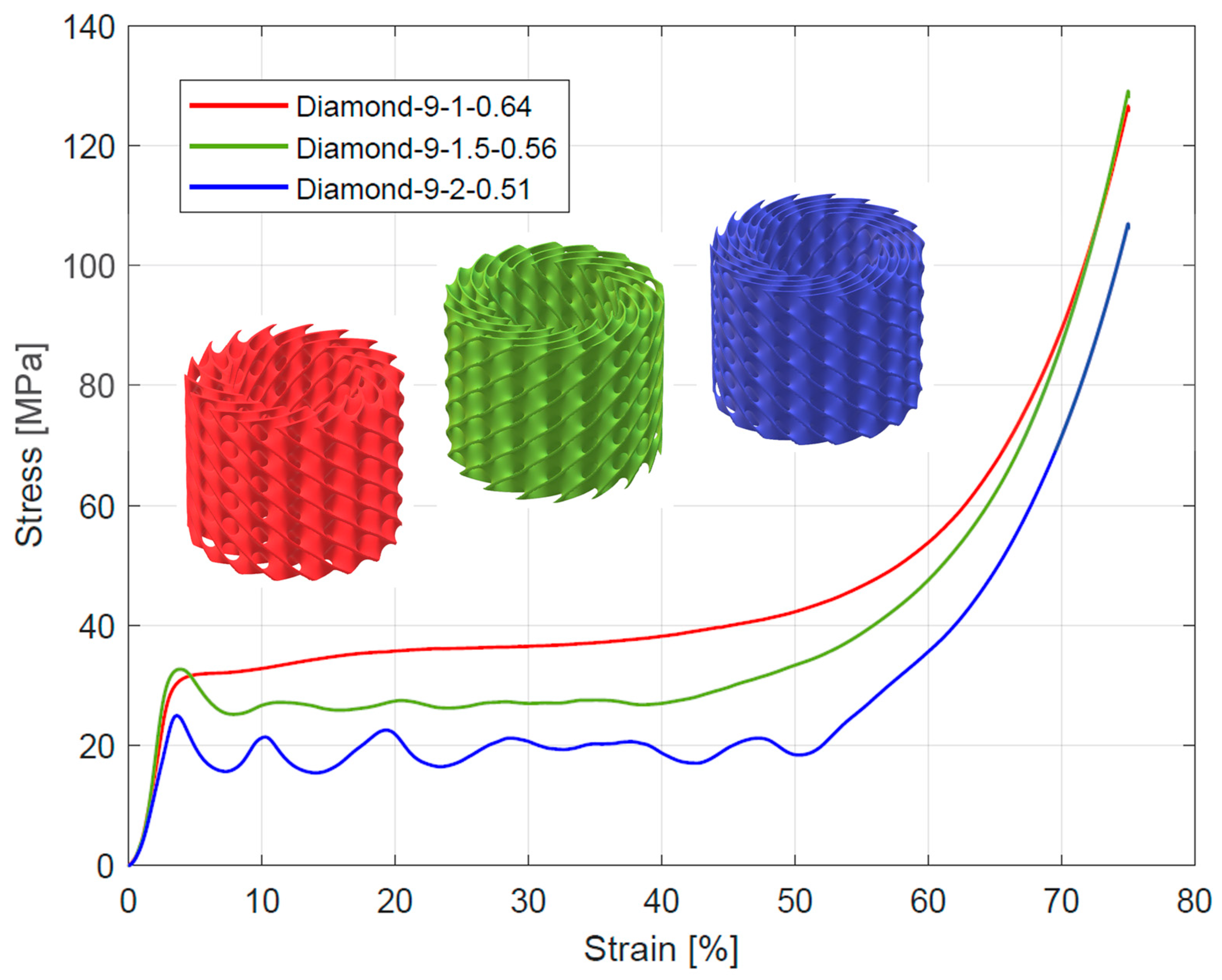

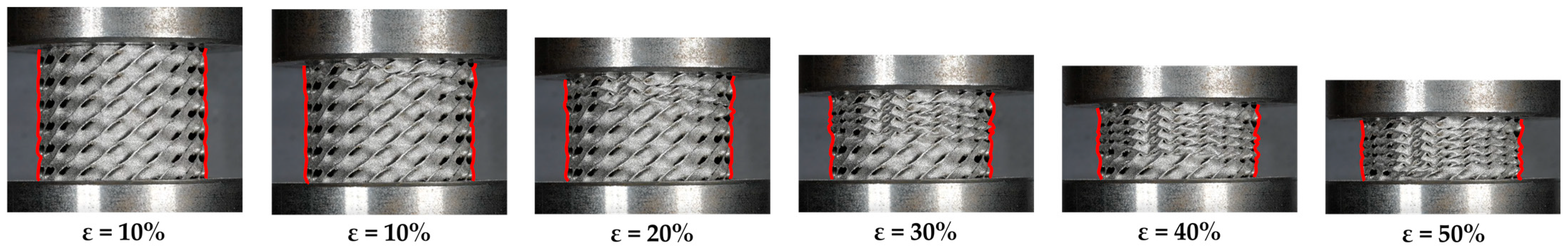

3.1. Compression Process and Overall Deformation Model
3.2. Compressive Mechanical Properties
3.3. Energy Absorption
4. Discussion
Gyroid TPMS Cylindrical Structures | Diamond TPMS Cylindrical Structures | Figure | |
---|---|---|---|
Elastic modulus |
|
| Figure 14A–C |
Yield strength |
|
| Figure 15A–C |
Plateau stress |
|
| Figure 16A–C |
- In both cases, the structure that absorbed the highest value of energy to the densification point had ncircum = 9 and nradial = 1;
- In both cases, the structure that absorbed the lowest value of energy to the densification point had ncircum = 6 and nradial = 2.
5. Conclusions
- An increase in ncircum and nradial causes an increase in the value of EL for all structures;
- For stretch-dominated structures, an increase in ncircum and a decrease in nradial causes an increase in the value of σy;
- An increase in ncircum causes an increase in the value of σpl for stretch-dominated structures and a decrease in the value of σpl for bending-dominated structures;
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yuan, L.; Ding, S.; Wen, C. Additive manufacturing technology for porous metal implant applications and triple minimal surface structures: A review. Bioact. Mater. 2019, 4, 56–70. [Google Scholar] [CrossRef] [PubMed]
- Yang, E.; Leary, M.; Lozanovski, B.; Downing, D.; Mazur, M.; Sarker, A.; Khorasani, A.M.; Jones, A.; Maconachine, T.; Bateman, S. Effect of geometry on the mechanical properties of TI-6Al-4V Gyroid structures fabricated via SLM: A numerical study. Mater. Des. 2019, 184, 108165. [Google Scholar] [CrossRef]
- Feng, J.; Fu, J.; Yao, X.; He, Y. Triply periodic minimal surface (TPMS) porous structures: From multi-scale design, precise additive manufacturing to multidisciplinary applications. Int. J. Extreme Manuf. 2022, 4, 022001. [Google Scholar] [CrossRef]
- Li, D.; Liao, W.; Dai, N.; Xie, Y.M. Comparison of Mechanical Properties and Energy Absorption of Sheet-Based and Strut-Based Gyroid Cellular Structures with Graded Densities. Materials 2019, 12, 2183. [Google Scholar] [CrossRef]
- Zhou, H.; Zhao, M.; Ma, Z.; Zhang, D.Z.; Fu, G. Sheet and network based functionally graded lattice structures manufactured by selective laser melting: Design, mechanical properties and simulation. Int. J. Mech. Sci. 2020, 175, 105480. [Google Scholar] [CrossRef]
- Yang, L.; Mertens, R.; Ferrucci, M.; Yan, C.; Shi, Y.; Yang, S. Continuous graded Gyroid cellular structures fabricated by selective laser melting: Design, manufacturing and mechanical properties. Mater. Des. 2019, 162, 394–404. [Google Scholar] [CrossRef]
- Fan, Z.; Huang, G.; Lu, Y.; Chen, Y.; Zeng, F.; Li, J. Full compression response of FG-based scaffolds with varying porosity via an effective numerical scheme. Int. J. Mech. Sci. 2022, 223, 107294. [Google Scholar] [CrossRef]
- Zhang, X.-Y.; Yan, X.-C.; Fang, G.; Liu, M. Biomechanical influence of structural variation strategies on functionally graded scaffolds constructed with triply periodic minimal surface. Addit. Manuf. 2020, 32, 101015. [Google Scholar] [CrossRef]
- Wang, Y.; Liu, F.; Zhang, X.; Zhang, K.; Wang, X.; Gan, D.; Yang, B. Cell-size graded sandwich enhances additive manufacturing fidelity and energy absorption. Int. J. Mech. Sci. 2021, 211, 106798. [Google Scholar] [CrossRef]
- Liu, F.; Mao, Z.; Zhang, P.; Zhang, D.Z.; Jiang, J.; Ma, Z. Functionally graded porous scaffolds in multiple patterns: New design method, Physical and mechanical properties. Mater. Des. 2018, 160, 849–860. [Google Scholar] [CrossRef]
- Qiu, N.; Zhang, J.; Yuan, F.; Jin, Z.; Zhang, Y.; Fang, J. Mechanical performance of triply periodic minimal surface structures with a novel hybrid gradient fabricated by selective laser melting. Eng. Struct. 2022, 263, 114377. [Google Scholar]
- Chen, H.; Liu, Y.; Wang, C.; Zhang, A.; Chen, B.; Han, Q.; Wang, J. Design and properties of biomimetic irregular scaffolds for bone tissue engineering. Comput. Biol. Med. 2021, 130, 104241. [Google Scholar] [CrossRef]
- Maconachie, T.; Leary, M.; Lozanovski, B.; Zhang, X.; Qian, M.; Faruque, O.; Brandt, M. SLM lattice structures: Properties, performance, applications and challenges. Mater. Des. 2019, 183, 108137. [Google Scholar] [CrossRef]
- Riva, L.; Ginestera, P.S.; Ceretti, E. Mechanical characterization and properties of laser-based powder bed-fused lattice structures: A review. Int. J. Adv. Manuf. Technol. 2021, 113, 649–671. [Google Scholar] [CrossRef]
- Qureshi, Z.A.; Elnajjar, E.; Al-Ketan, O.; Al-Rub, R.A.; Al-Omari, S.B. Heat transfer performance of a finned metal foam-phase change material (FMF-PCM) system incorporating triply periodic minimal surfaces (TPMS). Int. J. Heat Mass Transfer 2021, 170, 121001. [Google Scholar] [CrossRef]
- Kaur, I.; Singh, P. Flow and thermal transport characteristics of Triply-Periodic Minimal Surface (TPMS)-based gyroid and Schwarz-P cellular materials. Numer. Heat Transfer Part A 2021, 79, 553–569. [Google Scholar] [CrossRef]
- Wong, M.; Owen, I.; Puri, A. Convective heat transfer and pressure losses across novel heat sinks fabricated by Selective Laser Melting. Int. J. Heat Mass Transfer 2009, 52, 281–288. [Google Scholar] [CrossRef]
- Lei, H.-Y.; Li, J.-R.; Wang, Q.-H.; Xu, Z.-J.; Zhou, W.; Yu, C.-L.; Zheng, T.-Q. Feasibility of preparing additive manufactured porous stainless steel felts with mathematical micro pore structure as novel catalyst support for hydrogen production via methanol steam reforming. Int. J. Hydrog. Energy 2019, 44, 24782–24791. [Google Scholar] [CrossRef]
- Baena-Moreno, F.M.; Gonzales-Castano, M.; Navarro de Miguel, J.C.; Miah, K.U.M.; Ossenbrik, R.; Odriozola, J.A.; Arellano-Garcia, H. Stepping toward Efficient Microreactors for CO2 Methanation: 3D-Printed Gyroid Geometry. ACS Sustain. Chem. Eng. 2021, 9, 8198–8206. [Google Scholar] [CrossRef]
- Femmer, T.; Kuehne, A.J.C.; Wessling, M. Estimation of the structure dependent performance of 3-D rapid prototyped membranes. Chem. Eng. J. 2015, 273, 438–445. [Google Scholar] [CrossRef]
- Hesselmann, F.; Scherenberg, N.; Bongartz, P.; Djeljadini, S.; Wessling, M.; Cornelissen, C.; Schmitz-Rode, T.; Steinseifer, U.; Jansen, S.V.; Arens, J. Structure-dependent gas transfer performance of 3D-membranes for artificial membrane lungs. J. Membr. Sci. 2021, 634, 119371. [Google Scholar] [CrossRef]
- Hur, K.; Henning, R.G.; Wiesner, U. Exploring Periodic Bicontinuous Cubic Network Structures with Complete Phononic Bandgaps. J. Phys. Chem. C 2017, 121, 22347–22352. [Google Scholar] [CrossRef]
- Yang, W.; An, J.; Chua, C.K.; Zhou, K. Acoustic absorptions of multifunctional polymeric cellular structures based on triply periodic minimal surfaces fabricated by stereolithography. Virtual Phys. Prototyp. 2020, 15, 242–249. [Google Scholar] [CrossRef]
- Feng, Y.; Guo, X.; Huang, K.; Elsayed, H.; Franchin, G.; Gong, H.; Colombo, P. Enhanced electromagnetic microwave absorption of SiOC ceramics targeting the integration of structure and function. J. Eur. Ceram. Soc. 2021, 41, 6393–6405. [Google Scholar] [CrossRef]
- Yan, C.; Hao, L.; Hussein, A.; Young, P. Ti-6Al-4V triply periodic minimal surface structures for bone implants fabricated via selective laser melting. J. Mech. Behav. Biomed. Mater. 2015, 51, 61–73. [Google Scholar] [CrossRef]
- Zhang, X.-Y.; Fang, G.; Zhou, J. Additively manufactured scaffolds for bone tissue engineering and the prediction of their mechanical behavior: A review. Materials 2017, 10, 50. [Google Scholar] [CrossRef]
- Wu, T.; Yu, S.; Chen, D.; Wang, Y. Bionic design, materials and performance of bone tissue scaffolds. Materials 2017, 10, 1187. [Google Scholar] [CrossRef]
- Ma, S.; Tang, Q.; Feng, Q.; Song, J.; Han, X.; Guo, F. Mechanical behaviours and mass transport properties of bone-mimicking scaffolds consisted of gyroid structures manufactured using selective laser melting. J. Mech. Behav. Biomed. Mater. 2019, 93, 158–169. [Google Scholar] [CrossRef]
- Murr, L.E. Strategies for creating living, additively manufactured, open-cellular metal and alloy implants by promoting osseointegration, osteoinduction and vascularization: An overview. J. Mater. Sci. Technol. 2019, 35, 231–241. [Google Scholar] [CrossRef]
- Dong, Z.; Zhao, X. Application of TPMS structure in bone regeneration. Eng. Regener. 2021, 2, 154–162. [Google Scholar] [CrossRef]
- Sychov, M.M.; Lebedev, L.A.; Dyachenko, S.V.; Nefedova, L.A. Mechanical properties of energy-absorbing structures with triply periodic minimal surface topology. Acta Astronaut. 2018, 150, 81–84. [Google Scholar] [CrossRef]
- Beharic, A.; Egui, R.R.; Yang, L. Drop-weight impact characteristics of additively manufactured sandwich structures with different cellular designs. Mater. Des. 2018, 145, 122–134. [Google Scholar] [CrossRef]
- Zhang, L.; Feih, S.; Daynes, S.; Chang, S.; Wang, M.Y.; Wei, J. Energy absorption characteristics of metallic triply periodic minimal surface sheet structures under compressive loading. Addit. Manuf. 2018, 23, 505–515. [Google Scholar] [CrossRef]
- Jin, M.; Feng, Q.; Fan, X.; Luo, Z.; Tang, Q.; Song, J.; Ma, S.; Nie, Y.; Jin, P.; Zhao, M. Investigation on the mechanical properties of TPMS porous structures fabricated by laser powder bed fusion. J. Manuf. Process. 2022, 76, 559–574. [Google Scholar] [CrossRef]
- Maskery, I.; Aboulkhair, N.T.; Aremu, A.O.; Tuck, C.J.; Ashcroft, I.A. Compressive failure modes and energy absorption in additively manufactured double gyroid lattice. Addit. Manuf. 2017, 16, 24–29. [Google Scholar] [CrossRef]
- Zhang, C.; Zheng, H.; Yang, L.; Li, Y.; Jin, J.; Cao, W.; Yan, C.; Shi, Y. Mechanical responses of sheet-based gyroid-type triply periodic minimal surface lattice structures fabricated using selective laser melting. Mater. Des. 2022, 214, 110407. [Google Scholar] [CrossRef]
- Maskery, I.; Strum, L.; Aremu, A.O.; Panesar, A.; Williams, C.B.; Tuck, C.J.; Wildman, R.D.; Ashcroft, I.A.; Hangue, R.J.M. Insights into the mechanical properties of several triply periodic minimal surface lattice structures made by polymer additive manufacturing. Polymer 2018, 152, 62–71. [Google Scholar] [CrossRef]
- Bobbert, F.S.L.; Lietaert, K.; Eftekhari, A.A.; Pouran, B.; Ahmadi, S.M.; Weinans, H.; Zadpoor, A.A. Additively manufactured metallic porous biomaterials based on minimal surfaces: A unique combination of topological, mechanical, and mass transport properties. Acta Biomater. 2017, 53, 572–584. [Google Scholar] [CrossRef]
- Novak, N.; Al-Ketan, O.; Krstulovic-Opara, L.; Rowshan, R.; Abu Al-Rub, R.K.; Vesenjak, M.; Ren, Z. Quasi-static and dynamic compressive behaviour of sheet TPMS cellular structures. Compos. Struct. 2021, 266, 113801. [Google Scholar] [CrossRef]
- Kladovasilakis, N.; Charalampous, P.; Tsongas, K.; Kostavelis, I.; Tzetis, D.; Tzovaras, D. Experimental and Computational Investigation of Lattice Sandwich Structures Constructed by Additive Manufacturing Technologies. J. Manuf. Mater. Process. 2021, 5, 95. [Google Scholar] [CrossRef]
- Sokollu, B.; Gulcan, O.; Konukseven, E. Mechanical properties comparison of strut-based and triply periodic minimal surface lattice structures produced by electron beam melting. Addit. Manuf. 2022, 60, 103199. [Google Scholar]
- Wang, H.; Chen, P.; Wu, H.; Chen, A.; Wu, S.; Su, J.; Wang, M.; Feng, X.; Yang, C.; Yan, C.; et al. Comparative evaluation of printability and compression properties of poly-ether-ether-ketone triply periodic minimal surface scaffolds fabricated by laser powder bed fusion. Addit. Manuf. 2022, 57, 102981. [Google Scholar] [CrossRef]
- Al-Ketan, O.; Rowshan, R.; Abu Al-Rub, R.K. Topology-mechanical property relationship of 3D printed strut, skeletal, and sheet based periodic metallic cellular materials. Addit. Manuf. 2018, 19, 167–183. [Google Scholar] [CrossRef]
- Chen, Z.; Xie, Y.M.; Wu, X.; Wnag, Z.; Li, Q.; Zhou, S. On hybrid cellular materials based on triply periodic minimal surfaces with extreme mechanical properties. Mater. Des. 2019, 183, 108109. [Google Scholar] [CrossRef]
- Shitanaka, A.; Aoki, T.; Yokozeki, T. Comparison of bucking loads of hyperboloidal and cylindrical lattice structures. Compos. Struct. 2019, 207, 877–888. [Google Scholar] [CrossRef]
- Cao, X.; Ji, B.; Li, Y.; An, X.; Fan, H.; Ke, L. Multi-failure analyses of additively manufactured lattice truss sandwich cylinders. Compos. Part B 2021, 207, 108561. [Google Scholar] [CrossRef]
- Smeets, B.J.R.; Fagan, E.M.; Matthews, K.; Telford, R.; Murray, B.R.; Pavlov, L.; Weafer, B.; Meier, P.; Goggins, J. Structural testing of shear web attachment point on composite lattice cylinder for aerospace applications. Compos. Part B 2021, 212, 108691. [Google Scholar] [CrossRef]
- Guo, Y.; Zhang, J.; Chen, L.; Du, B.; Liu, H.; Chen, L.; Li, W.; Liu, Y. Deformation behaviours and energy absorption of auxetic lattice cylindrical structures under axial crushing load. Aerosp. Sci. Technol. 2020, 98, 105662. [Google Scholar] [CrossRef]
- Wang, Y.; Ren, X.; Chen, Z.; Jiang, Y.; Cao, X.; Fang, S.; Zhao, T.; Li, Y.; Fang, D. Numerical and experimental studies on compressive behavior of Gyroid lattice cylindrical shells. Mater. Des. 2020, 186, 108340. [Google Scholar] [CrossRef]
- Cao, X.; Yang, H.; Ren, X.; Wu, W.; Xi, L.; Li, Y.; Fang, D. Mechanical performance and defect analysis of the imperfect micro smooth gyroid cylinder shell structure. Compos. Struct. 2021, 273, 114320. [Google Scholar] [CrossRef]
- Cao, X.; Huang, Z.; He, C.; Wu, W.; Xi, L.; Li, Y.; Fang, D. In-situ synchrotron X-ray tomography investigation of the imperfect smooth-shell cylinder structure. Compos. Struct. 2021, 267, 113926. [Google Scholar] [CrossRef]
- Szatkiewicz, T.; Laskowska, D.; Bałasz, B.; Mitura, K. The Influence of the Structure Parameters on the Mechanical Properties of Cylindrically Mapped Gyroid TPMS Fabricated by Selective Laser Melting with 316L Stainless Steel Powder. Materials 2022, 15, 4352. [Google Scholar] [CrossRef]
- Maskery, I.; Ashcroft, I.A. The deformation and elastic anisotropy of a new gyroid-based honeycomb made by laser sintering. Addit. Manuf. 2020, 36, 101548. [Google Scholar] [CrossRef]
- 2020 nTopology. Available online: https://ntopology.com/ (accessed on 7 February 2023).
- ISO 9276-1:2021; Representation of Results of Particle Size Analysis—Part 1: Graphical Representation. International Standard: Geneva, Switzerland, 2021.
- Material Product Data Sheet. Type 316L Austenic Stainless Steel Powders for Additive Manufacturing, MetcoAddTM 316L-A, Oerlicon Metco. Available online: https://www.oerlikon.com/ecoma/files/DSM-0272_AM_316L-AusteniticSteel.pdf?download=true (accessed on 6 November 2021).
- ISO 13314; Mechanical Testing of Metals—Ductility testing—Compression Test for Porous and Cellular Metals. International Standard: Geneva, Switzerland, 2011; pp. 1–7.
- Xia, X.C.; Chen, X.W.; Zhang, Z.; Chen, X.; Zhao, W.M.; Liao, B.; Hur, B. Effects of porosity and pore size on the compressive properties of closed-cell Mg alloy foam. J. Magnes. Alloy. 2013, 1, 330–335. [Google Scholar] [CrossRef]
- Gibson, L.J.; Ashby, M.F. Cellular Solids: Structure and Properties; Cambridge University Press: Cambridge, UK; New York, NY, USA, 1997. [Google Scholar]
- Sun, Q.; Sun, J.; Guo, K.; Wang, L. Compressive mechanical properties and energy absorption characteristics of SLM fabricated Ti6Al4V triply periodic minimal surface cellular structures. Mech. Mater. 2022, 166, 104241. [Google Scholar] [CrossRef]
- Benedetti, M.; du Plessis, A.; Ritchie, R.O.; Dallago, M.; Razavi, S.M.J.; Berto, F. Architected cellular materials: A review on their mechanical properties towards fatigue-tolerant design and fabrication. Mater. Sci. Eng. R 2021, 144, 100606. [Google Scholar] [CrossRef]
- Ren, H.; Shen, H.; Ning, J. Effect of Internal Microstructure Distribution on Quasi-Static Compression Behavior and Energy Absorption of Hollow Truss Structures. Materials 2020, 13, 5094. [Google Scholar] [CrossRef]
- Sun, Z.P.; Guo, Y.B.; Shim, V.P.W. Characterisation and modeling of additively-manufactured polymeric hybrid lattice structures for energy absorption. Int. J. Mech. Sci. 2021, 191, 106101. [Google Scholar] [CrossRef]
Laser Power | Laser Speed | Layer Thickness | Printing Environment |
---|---|---|---|
123 W | 1000 mm/s | 25 µm | Argon |
Symbol | ncircum | nradial | naxial | T (mm) | mr (g) | Δm (%) | mr_avrage (g) |
---|---|---|---|---|---|---|---|
Diamond_6_1_0.73 | 16.42 | −0.9 | 16.43 | ||||
6 | 1 | 3 | 0.73 | 16.45 | −0.7 | ||
16.42 | −0.9 | ||||||
Diamond_6_1.5_0.64 | 16.46 | −0.6 | 16.47 | ||||
6 | 1.5 | 3 | 0.64 | 16.45 | −0.7 | ||
16.50 | −0.4 | ||||||
Diamond_6_2_0.58 | 16.47 | −0.6 | 16.46 | ||||
6 | 2 | 3 | 0.58 | 16.45 | −0.7 | ||
16.46 | −0.6 | ||||||
Diamond_9_1_0.64 | 16.46 | −0.6 | 16.46 | ||||
9 | 1 | 3 | 0.64 | 16.44 | −0.8 | ||
16.47 | −0.6 | ||||||
Diamond_9_1.5_0.56 | 16.45 | −0.7 | 16.45 | ||||
9 | 1.5 | 3 | 0.56 | 16.45 | −0.7 | ||
16.44 | −0.8 | ||||||
Diamond_9_2_0.51 | 16.50 | −0.4 | 16.46 | ||||
9 | 2 | 3 | 0.51 | 16.44 | −0.8 | ||
16.44 | −0.8 | ||||||
Diamond_12_1_0.58 | 16.45 | −0.7 | 16.47 | ||||
12 | 1 | 3 | 0.58 | 16.45 | −0.7 | ||
16.50 | −0.4 | ||||||
Diamond_12_1.5_0.51 | 16.50 | −0.4 | 16.45 | ||||
12 | 1.5 | 3 | 0.51 | 16.41 | −0.9 | ||
16.43 | −0.8 | ||||||
Diamond_12_2_0.47 | 16.47 | −0.6 | 16.46 | ||||
12 | 2 | 3 | 0.47 | 16.47 | −0.6 | ||
16.44 | −0.8 |
Symbol | Elastic Modulus (MPa) | Yield Strength (MPa) | Plateau Stress (MPa) |
---|---|---|---|
Diamond_6_1_0.73 | 1446 ± 162 | 27 ± 0.33 | 35 ± 0.30 |
Diamond_6_1.5_0.64 | 1663 ± 21 | 25 ± 0.69 | 21 ± 0.33 |
Diamond_6_2_0.58 | 2030 ± 109 | 22 ± 0.37 | 16 ± 0.92 |
Diamond_9_1_0.64 | 1493 ± 279 | 28 ± 0.32 | 36 ± 0.22 |
Diamond_9_1.5_0.56 | 1731 ± 7 | 30 ± 0.87 | 27 ± 0.79 |
Diamond_9_2_0.51 | 2061 ± 40 | 24 ± 1.31 | 19 ± 0.45 |
Diamond_12_1_0.58 | 1166 ± 26 | 27 ± 0.66 | 30 ± 0.26 |
Diamond_12_1.5_0.51 | 1883 ± 142 | 33 ± 0.87 | 27 ± 3.68 |
Diamond_12_2_0.47 | 2406 ± 180 | 31 ± 1.49 | 25 ± 3.93 |
Symbol | Densification Point εD (%) | Energy Absorption W(εD) (MJ/m3) |
---|---|---|
Diamond_6_1_0.73 | 52 | 17.68 |
Diamond_6_1.5_0.64 | 38 | 7.67 |
Diamond_6_2_0.58 | 44 | 6.80 |
Diamond_9_1_0.64 | 55 | 19.53 |
Diamond_9_1.5_0.56 | 51 | 13.83 |
Diamond_9_2_0.51 | 51 | 9.43 |
Diamond_12_1_0.58 | 56 | 17.61 |
Diamond_12_1.5_0.51 | 51 | 13.50 |
Diamond_12_2_0.47 | 55 | 13.65 |
ncircum | nradial | Maximum Energy Absorption η(εD) (%) | ||
---|---|---|---|---|
Gyroid | Diamond | |||
6 | 1 | 45 | 42 | |
1.5 | 38 | 39 | ||
2 | 38 | 44 | ||
9 | 1 | 45 | 42 | |
1.5 | 40 | 40 | ||
2 | 36 | 51 | ||
12 | 1 | 42 | 39 | |
1.5 | 38 | 50 | ||
2 | 36 | 47 |
