Sound Quality Performance of Orthogonal Antisymmetric Composite Laminates Embedded with SMA Wires
Abstract
:1. Introduction

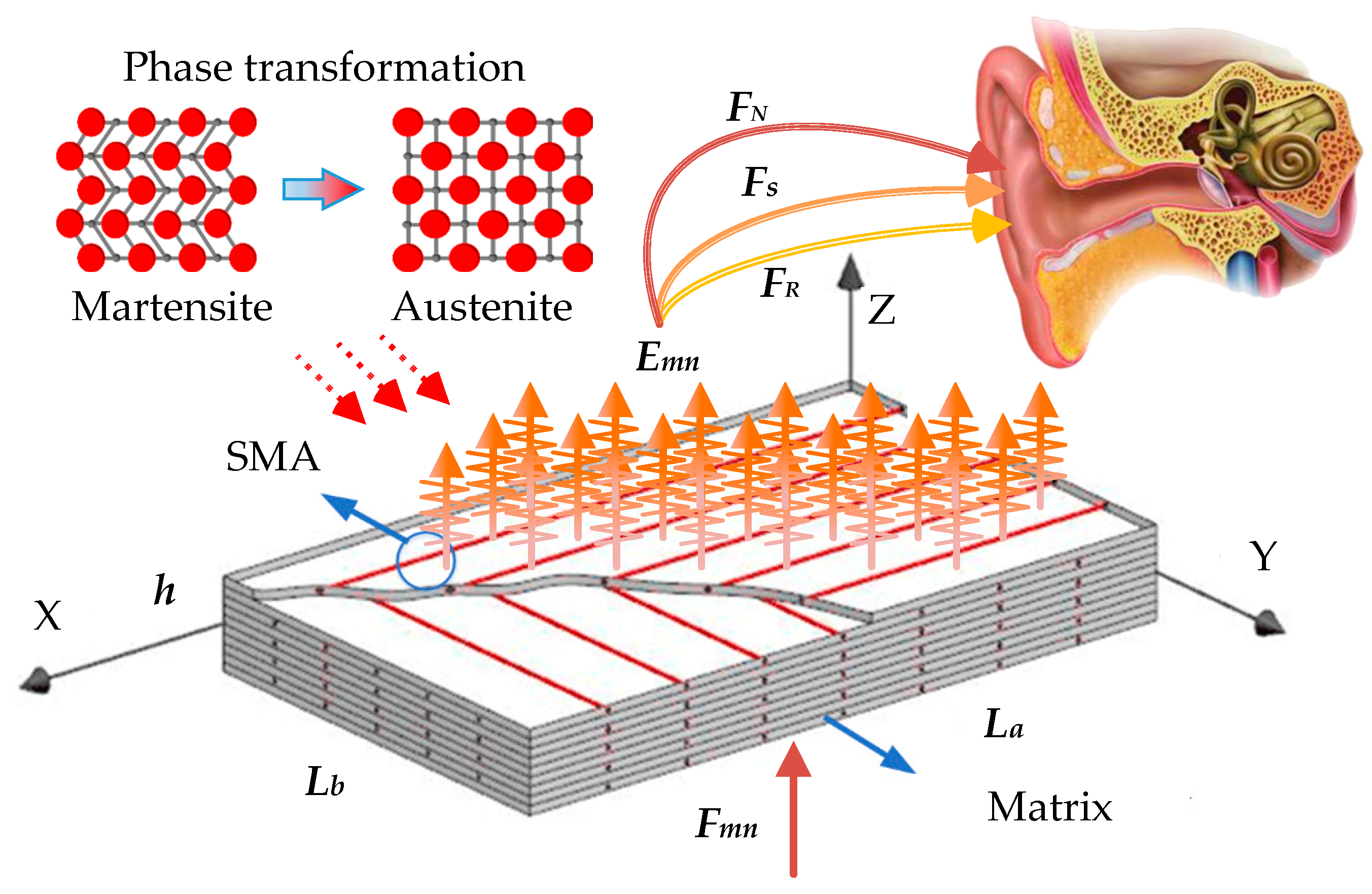

2. Formulation of Sound Quality Evaluation
3. Results and Discussion

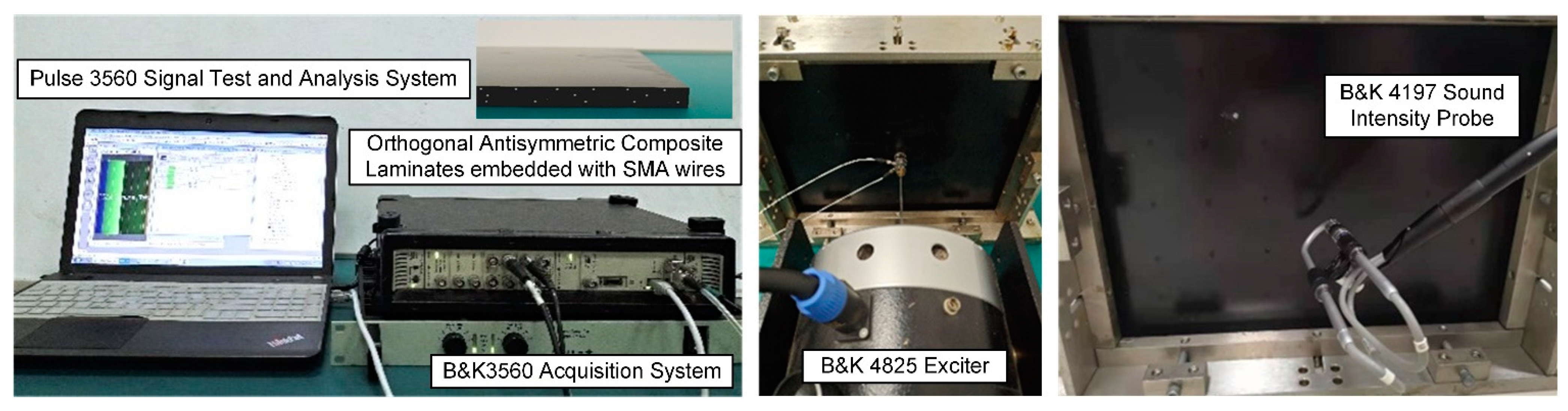

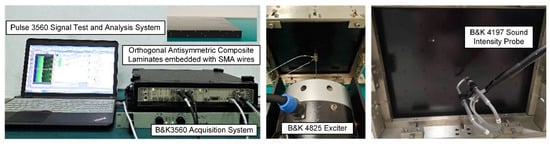

4. Experimental Verification
5. Conclusions
- (1)
- At 25 °C ambient temperatures, a variation in SMA tensile pre-strain has little effect on sound loudness, sharpness, or roughness. The loudness and roughness are slightly reduced, while the SMA tensile pre-strain is increased to 5%. At 100 °C, loudness, sharpness, and roughness are all positively correlated with the tensile pre-strain of the SMAs.
- (2)
- Loudness and sharpness at temperatures of 25 °C and high temperatures of 100 °C significantly decline as the SMA volume fraction increases. At 25 °C, the roughness gradually decreases as the volume fraction increases. At 100 °C, the roughness increases gradually with the volume fraction, though less so than at 25 °C.
- (3)
- In the frequency range of 1000 Hz, the number of Barks with loudness greater than 9 for different matrix materials at 25 °C is higher than that at the high temperature of 100 °C. When the ratio of the matrix material is 2:8, the high loudness value distributes more in the high-frequency component and the sharp value is higher. The sound radiation roughness of different matrix material volume fractions at 25 °C is higher than that at 100 °C.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Cho, W.-H.; Shin, S.-H.; Ih, J.-G. Sound quality change of the automotive engine noise by variation of engine oil condition. J. Mech. Sci. Technol. 2022, 36, 4935–4942. [Google Scholar] [CrossRef]
- Liu, Z.; Gao, D.; Gao, Y.; Yang, J. Numerical and experimental-aided framework based on TPA for acoustic contributions of individual transfer paths on a vehicle door in the slamming event. Appl. Acoust. 2023, 203, 109220. [Google Scholar] [CrossRef]
- Ni, Z.; He, D.; Wang, X.; Zhang, Y. Research on the detection of axle abnormal noise based on maximum autocorrelation kurtosis deconvolution. Appl. Acoust. 2023, 203, 109228. [Google Scholar] [CrossRef]
- Park, J.H.; Park, H.; Kang, Y.J. A study on sound quality of vehicle engine sportiness using factor analysis. J. Mech. Sci. Technol. 2020, 34, 3533–3543. [Google Scholar] [CrossRef]
- Fu, J.; Zhu, C.; Su, J. Research on the Design Method of Pure Electric Vehicle Acceleration Motion Sense Sound Simulation System. Appl. Sci. 2022, 13, 147. [Google Scholar] [CrossRef]
- Hu, Y.; Xu, L.; Wang, S.; Gu, Z.; Tang, Z. Mobile Device-Based Train Ride Comfort Measuring System. Appl. Sci. 2022, 12, 6904. [Google Scholar] [CrossRef]
- Mughal, H.; Sivayogan, G.; Dolatabadi, N.; Rahmani, R. An efficient analytical approach to assess root cause of nonlinear electric vehicle gear whine. Nonlinear Dyn. 2022, 110, 3167–3186. [Google Scholar] [CrossRef]
- Ruan, P.; Zheng, X.; Qiu, Y.; Hao, Z. A Binaural MFCC-CNN Sound Quality Model of High-Speed Train. Appl. Sci. 2022, 12, 12151. [Google Scholar] [CrossRef]
- Yu, Y.; Zheng, X.; Liu, L.; Qiu, Y.; Dai, Z.; Cui, Y. Auditory performance of reproduced sound field in aircraft cabin mock-up by feedback controlled multichannel least-square equalization method. Build. Environ. 2023, 231, 110036. [Google Scholar] [CrossRef]
- Qian, K.; Hou, Z.; Sun, D. Sound Quality Estimation of Electric Vehicles Based on GA-BP Artificial Neural Networks. Appl. Sci. 2020, 10, 5567. [Google Scholar] [CrossRef]
- Huang, H.; Huang, X.; Ding, W.; Yang, M.; Yu, X.; Pang, J. Vehicle vibro-acoustical comfort optimization using a multi-objective interval analysis method. Expert Syst. Appl. 2023, 213, 119001. [Google Scholar] [CrossRef]
- Chen, W.; Lu, C.; Liu, Z.; Williams, H.; Xie, L. A computationally efficient active sound quality control algorithm using local secondary-path estimation for vehicle interior noise. Mech. Syst. Signal Process. 2022, 168, 108698. [Google Scholar] [CrossRef]
- Liao, Y.; Huang, H.; Chang, G.; Luo, D.; Xu, C.; Wu, Y.; Tang, J. Research on Low-Frequency Noise Control of Automobiles Based on Acoustic Metamaterial. Materials 2022, 15, 3261. [Google Scholar] [CrossRef] [PubMed]
- Wang, X.L.; Song, Y.C.; Wang, T.Z.; Wang, Y.S.; Liu, N.N. Hybrid vibro-acoustic active control method for vehicle interior sound quality under high-speed. Appl. Acoust. 2022, 186, 108419. [Google Scholar] [CrossRef]
- Zhang, S.; Zhang, L.; Meng, D.; Pi, X. Active control of vehicle interior engine noise using a multi-channel delayed adaptive notch algorithm based on FxLMS structure. Mech. Syst. Signal Process. 2023, 186, 109831. [Google Scholar] [CrossRef]
- Kim, S.Y.; Ryu, S.C.; Jun, Y.D.; Kim, Y.C.; Oh, J.S. Methodology for Sound Quality Analysis of Motors for Automotive Interior Parts through Subjective Evaluation. Sensor 2022, 22, 6898. [Google Scholar] [CrossRef]
- Grigg, S.; Al-Shibaany, Z.Y.A.; Pearson, M.R.; Pullin, R.; Calderbank, P. Acoustic Sensing and Noise Identification of a Heating, Ventilation and Air Conditioning Unit: Industrial Case Study. Appl. Sci. 2021, 11, 9811. [Google Scholar] [CrossRef]
- Li, B.; Lu, Q.; Jiang, B.; Yang, J.; Wang, J.; Xie, J. Effects of Outer Edge Bending on the Aerodynamic and Noise Characters of Axial Fan for Air Conditioners. Processes 2022, 10, 686. [Google Scholar] [CrossRef]
- Liu, X.; Zhao, D.; Guan, D.; Becker, S.; Sun, D.; Sun, X. Development and progress in aeroacoustic noise reduction on turbofan aeroengines. Prog. Aerosp. Sci. 2022, 130, 100796. [Google Scholar] [CrossRef]
- Wang, J.; Yang, M.; Liang, F.; Feng, K.; Zhang, K.; Wang, Q. An Algorithm for Painting Large Objects Based on a Nine-Axis UR5 Robotic Manipulator. Appl. Sci. 2022, 12, 7219. [Google Scholar] [CrossRef]
- Ruth, D.J.S.; Sohn, J.W.; Dhanalakshmi, K.; Choi, S.B. Control Aspects of Shape Memory Alloys in Robotics Applications: A Review over the Last Decade. Sensors 2022, 22, 4860. [Google Scholar] [CrossRef] [PubMed]
- Hmede, R.; Chapelle, F.; Lapusta, Y. Review of Neural Network Modeling of Shape Memory Alloys. Sensors 2022, 22, 5610. [Google Scholar] [CrossRef]
- Placinta, C.; Stanciu, S.; Panainte-Lehadus, M.; Mosnegutu, E.; Nedeff, F.; Nedeff, V.; Tomozei, C.; Petrescu, T.C.; Agop, M. Theoretical and Experimental Designs on Several Mechanical Properties of Cu-Al-Zn Shape Memory Alloys Used in the Processing Industry. Materials 2023, 16, 1441. [Google Scholar] [CrossRef]
- Santosh, S.; Nithyanandh, G.; Ashwath, J.; Lalith Kishore, K. Comparison of internal friction measurements on Ni-Ti reinforced smart composites prepared by additive manufacturing. J. Alloys Compd. 2022, 924, 166027. [Google Scholar] [CrossRef]
- Sattari, M.; Kadkhodaei, M.; Akbarzadeh, S.; Gholami, R.; Beheshti, A. Wear in superelastic shape memory alloys: A thermomechanical analysis. Wear 2022, 488–489, 204139. [Google Scholar] [CrossRef]
- Sun, M.; Chang, M.; Wang, Z.; Li, H.; Sun, X. Experimental and Simulation Study of Low-Velocity Impact on Glass Fiber Composite Laminates with Reinforcing Shape Memory Alloys at Different Layer Positions. Appl. Sci. 2018, 8, 2405. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Z.; Li, H.; Sun, M.; Wang, F.; Chen, B. Influence of Embedding SMA Fibres and SMA Fibre Surface Modification on the Mechanical Performance of BFRP Composite Laminates. Materials 2018, 11, 70. [Google Scholar] [CrossRef] [PubMed]
- Pazhanivel, K.; Bhaskar, G.B.; Elayaperumal, A.; Anandan, P.; Arunachalam, S. Influence of SMA reinforcement on the impact resistance of GFRP composite laminates under different temperatures. Bull. Mater. Sci. 2016, 39, 889–899. [Google Scholar] [CrossRef]
- Zhao, S.; Teng, J.; Wang, Z.; Sun, X.; Yang, B. Investigation on the Mechanical Properties of SMA/GF/Epoxy Hybrid Composite Laminates: Flexural, Impact, and Interfacial Shear Performance. Materials 2018, 11, 246. [Google Scholar] [CrossRef]
- Lei, H.; Wang, Z.; Tong, L.; Tang, X. Macroscopic Mechanical Characterization of SMAs Fiber-Reinforced Hybrid Composite Under Uniaxial Loading. J. Mater. Eng. Perform. 2013, 22, 3055–3062. [Google Scholar] [CrossRef]
- Sun, M.; Chang, M.; Wang, Z.; Li, H.; Liu, Y. Simulation of Eccentric Impact of Square and Rectangular Composite Laminates Embedded with SMA. Materials 2018, 11, 2371. [Google Scholar] [CrossRef]
- Qiu, J.; Stiharu, I. Vibration and noise reduction of pipelines using shape memory alloy. Sci. Eng. Compos. Mater. 2022, 29, 165–175. [Google Scholar] [CrossRef]
- Verma, L.; Andrew, J.J.; Sivakumar, S.M.; Balaganesan, G.; Vedantam, S.; Dhakal, H.N. Evaluation of quasi-static indentation response of superelastic shape memory alloy embedded GFRP laminates using AE monitoring. Polym. Test. 2021, 93, 106942. [Google Scholar] [CrossRef]
- Huang, Y.; Zhang, Z.; Li, C.; Wang, J.; Li, Z.; Mao, K. Sound Radiation of Orthogonal Antisymmetric Composite Laminates Embedded with Pre-Strained SMA Wires in Thermal Environment. Materials 2020, 13, 3657. [Google Scholar] [CrossRef]
- Huang, Y.; Zhang, Z.; Li, C.; Mao, K.; Huang, Q. Modal Performance of Two-Fiber Orthogonal Gradient Composite Laminates Embedded with SMA. Materials 2020, 13, 1102. [Google Scholar] [CrossRef]

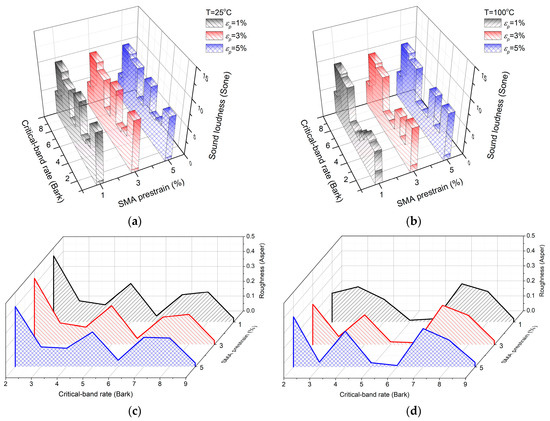

10 Hz–1 kHz | Tensile Pre-Strain at T = 25 °C | Tensile Pre-Strain at T = 100 °C | |||||
---|---|---|---|---|---|---|---|
(1 Bark–9 Bark) | 1% | 3% | 5% | 1% | 3% | 5% | |
Loudness | 58.11 | 58.03 | 55.81 | 50.74 | 50.97 | 53.35 | |
Sharpness | Aures | 2.36 | 2.35 | 2.35 | 2.24 | 2.27 | 2.30 |
von Bismark | 0.59 | 0.59 | 0.60 | 0.59 | 0.60 | 0.60 | |
Roughness | 1.41 | 1.41 | 1.35 | 1.09 | 1.03 | 1.10 |

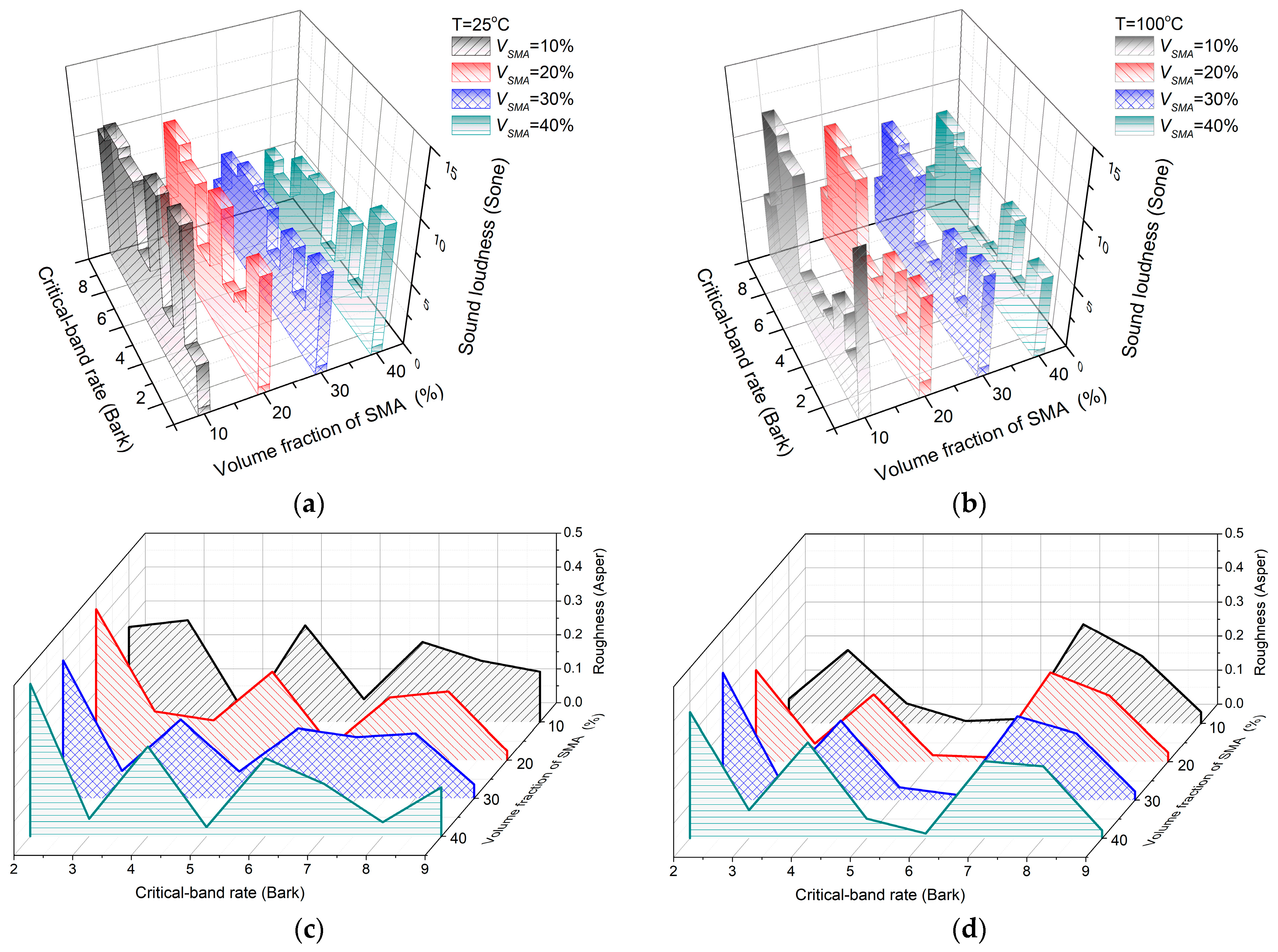

10 Hz–1 kHz | Volume Fraction of SMA at T = 25 °C | Volume Fraction of SMA at T = 100 °C | |||||||
---|---|---|---|---|---|---|---|---|---|
(1 Bark–9 Bark) | 10% | 20% | 30% | 40% | 10% | 20% | 30% | 40% | |
Loudness | 71.80 | 58.11 | 49.43 | 47.95 | 63.74 | 50.97 | 48.03 | 45.44 | |
Sharpness | Aures | 2.75 | 2.36 | 2.15 | 2.06 | 2.37 | 2.27 | 2.19 | 2.15 |
von Bismark | 0.63 | 0.59 | 0.58 | 0.56 | 0.55 | 0.61 | 0.60 | 0.61 | |
Roughness | 1.51 | 1.41 | 1.41 | 1.36 | 0.88 | 1.03 | 1.16 | 1.26 |

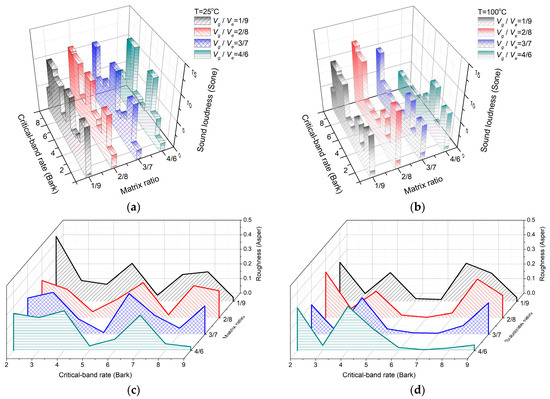

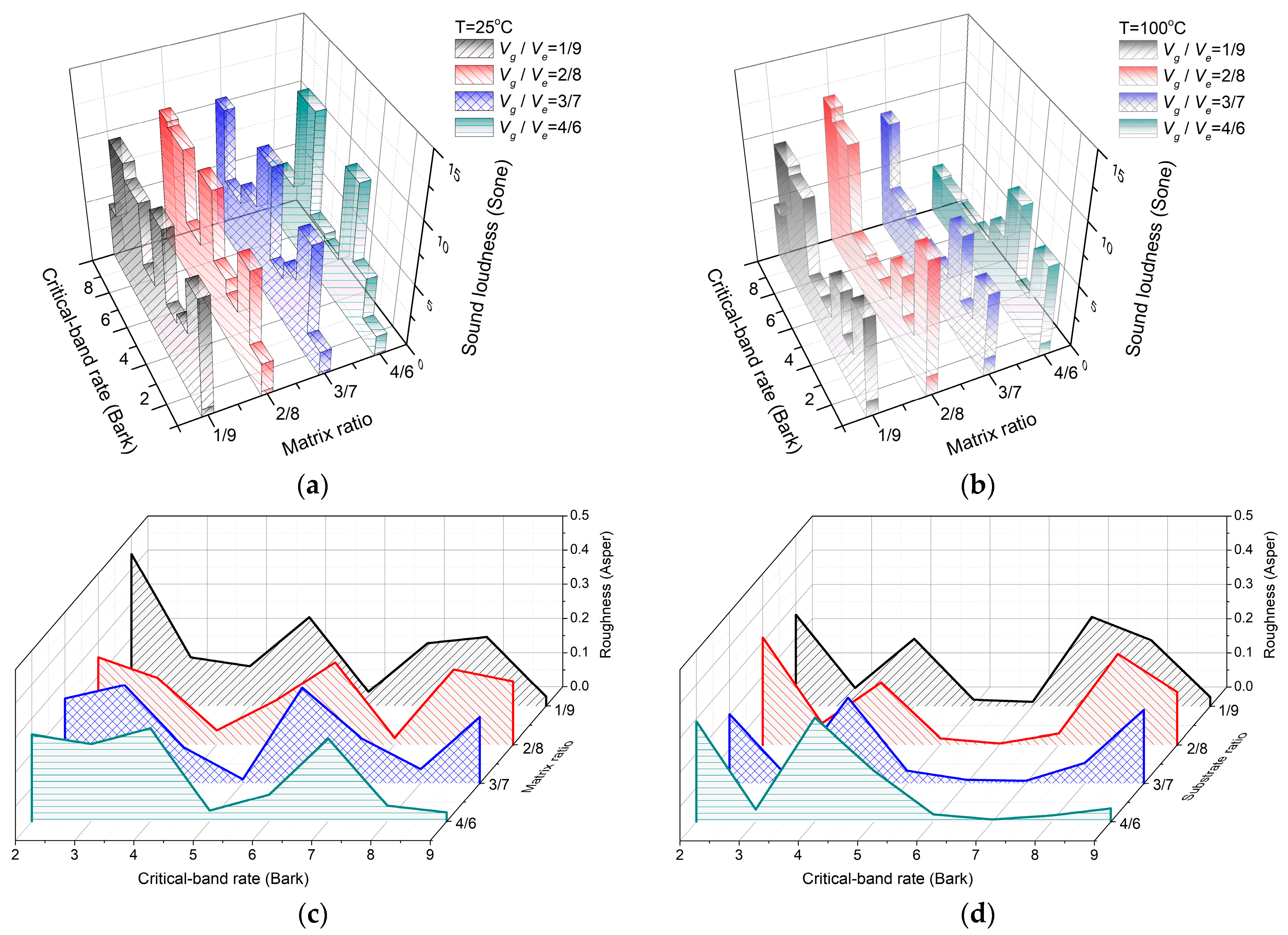

10 Hz–1 kHz | Volume Ratios of Matrix Material at T = 25 °C | Volume Ratios of Matrix Material at T = 100 °C | |||||||
---|---|---|---|---|---|---|---|---|---|
(1 Bark–9 Bark) | 1/9 | 2/8 | 3/7 | 4/6 | 1/9 | 2/8 | 3/7 | 4/6 | |
Loudness | 58.11 | 55.77 | 51.53 | 46.57 | 50.97 | 55.17 | 43.65 | 41.13 | |
Sharpness | Aures | 2.36 | 2.58 | 2.43 | 2.20 | 2.27 | 2.46 | 2.13 | 1.85 |
von Bismark | 0.59 | 0.67 | 0.65 | 0.62 | 0.60 | 0.62 | 0.59 | 0.53 | |
Roughness | 1.41 | 1.28 | 1.29 | 1.17 | 1.03 | 1.03 | 0.79 | 0.86 |

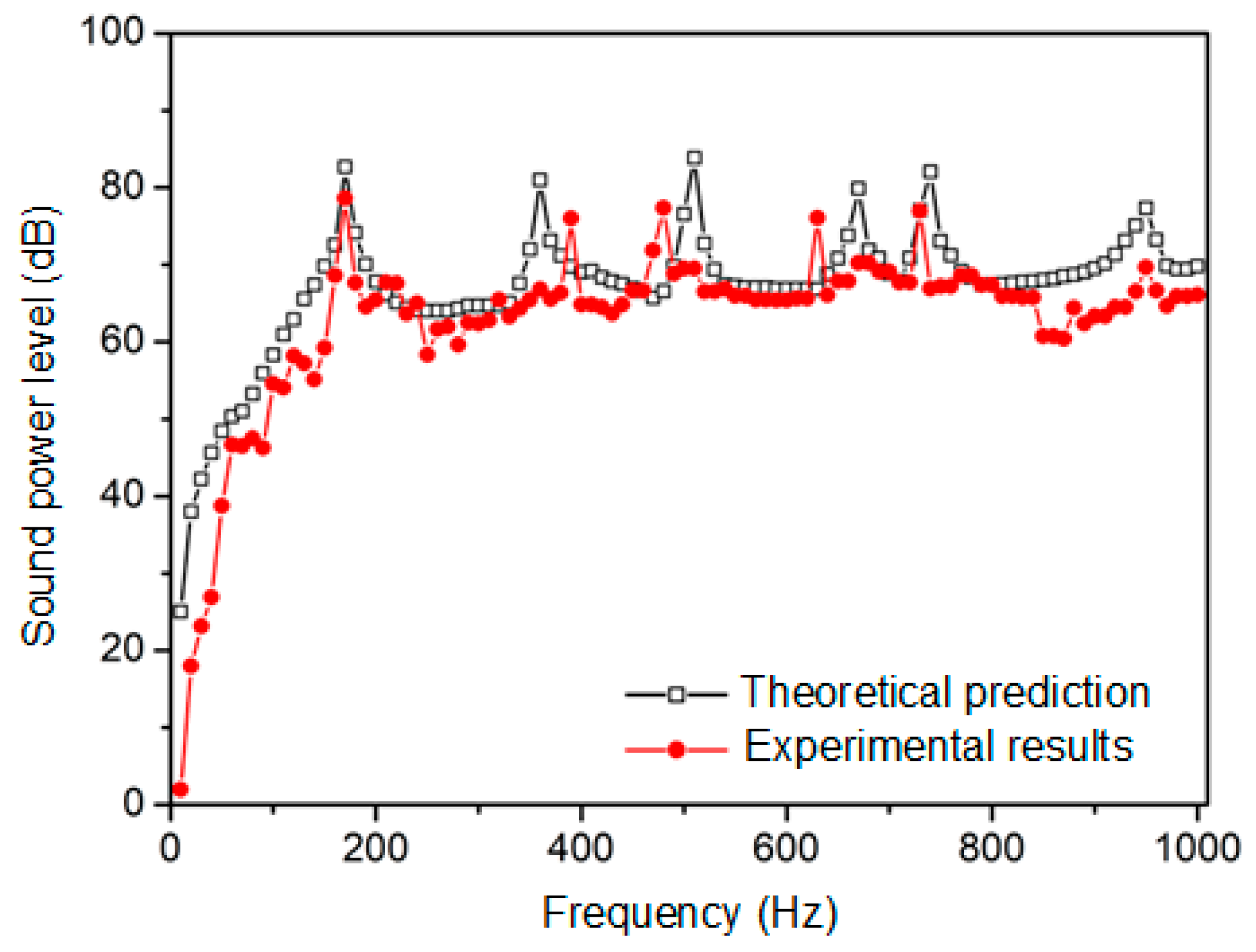

Sound Quality | Theoretical Prediction | Experimental Results | Error |
---|---|---|---|
Loudness level (Phon) | 95.76 | 92.32 | 3.73% |
Sharpness (Acum) | 2.08 | 1.96 | 6.12% |
Roughness (Asper) | 0.98 | 0.93 | 5.38% |
