Evaluation of the Acousto-Optic Figure of Merit and the Maximum Value of the Elasto-Optic Constant of Liquids

Abstract

The elasto-optic properties of liquids on the basis of the first principles of acousto-optics were theoretically investigated. A relationship for calculating the elasto-optic constant of liquids using only the refractive index was obtained. The refractive index values corresponding to the maximum elasto-optic constant for polar and nonpolar liquids were determined. Calculations for about 100 liquids were performed and compared with known experimental data. This study significantly extends our understanding of the acousto-optic effect and has practical applications for predicting the elasto-optic constant of a liquid and estimating its wavelength dispersion.

1. Introduction

Acousto-optic devices are used today in many fields, e.g., in laser technology, medicine and optical information-processing systems [1,2,3]. Due to the formation of a phase structure in the medium under the influence of ultrasound, acousto-optic devices allow for the parameters of the light beam to be controlled in real time. It is assumed that the ultrasound frequency is less than the inverse time of the relaxation processes [4]. For the rotation of aspherical molecules due to the ultrasound wave, the relaxation time is about 0.1–10 ns [5]. Therefore, the ultrasound frequency has to be less than 100 MHz, which is reasonably accurate for the majority of practical applications. The greatest success was achieved by using birefringent single crystals (e.g., paratellurite, TeO₂) as the medium for the acousto-optic interaction [6]. Such crystals also have a pronounced acoustic anisotropy, which makes it possible to select the optimal propagation directions of light and ultrasound beams for a given task.

The energy efficiency of acousto-optic devices is determined by the coefficient $M_2$, which characterizes the acousto-optic figure of merit of the medium in which the diffraction of radiation by ultrasound takes place. This coefficient is a complex function of the components $p_{ij}$ of the elasto-optic tensor [7], the speed of sound V, the density of the medium $\rho$ and the refractive index n. For reasons of simplicity, the effective elasto-optic constant p is used. In this case, the formula for the acousto-optic figure of merit reads as follows [6]:

$$M_2=\frac{p^2{n}^6}{\rho V^3}.$$

(1)

Note that all known values of the components $p_{ij}$ of the elasto-optic tensor of crystals and liquids are less than one [8]. Therefore, the value of the effective elasto-optic constant p, which is a combination of the $p_{ij}$ values, is also bounded from above. In our opinion, this fact is of fundamental importance and, therefore, requires a detailed investigation. In this study, the maximum value of the effective elasto-optic constant was determined using liquids as an example. This is not only important from a theoretical point of view but can also increase the energy efficiency of acousto-optic devices by choosing the optimal interaction medium.

2. Theory of the Elasto-Optic Effect in Liquids

2.1. Elasto-Optic Effect

The elasto-optic effect consists of variation in the permittivity $\epsilon$ of the medium caused by its deformation. Let us define an elementary volume in the medium in the form of a cube. Its compression by $\mathsf{\Delta }x$ along an edge with length $L_x$ parallel to the $Ox$ axis leads to a displacement of the matter particles u and, as a consequence, to a change in the density $\mathsf{\Delta }\rho$ and relative deformation S:

$$u=x\frac{\mathsf{\Delta }x}{L_x}=x\frac{\mathsf{\Delta }\rho }{\rho },$$

(2)

$$S=\frac{du}{dx}=\frac{\mathsf{\Delta }\rho }{\rho }.$$

(3)

At the same time, it is known that in the first approximation, the change in the dielectric impermeability $\mathsf{\Delta }B$ (where $B=1/\epsilon =1/n^2$) is proportional to the relative strain S, and the proportionality coefficient is the elasto-optic constant p [9]:

$$\mathsf{\Delta }B=\frac{1}{n^2}-\frac{1}{{(n+\mathsf{\Delta }n)}^2}\approx \frac{2\mathsf{\Delta }n}{n^3}=pS.$$

(4)

It follows from (4) that the ratio of the change in the refractive index $\mathsf{\Delta }n$ to the relative strain S for a given medium is a constant that is independent of the strain. This constant is sometimes used and is referred to as the elasto-optic coefficient $\rho \partial n/\partial \rho$ (not to be confused with the elasto-optic constant p) [10]:

$$\rho \frac{\partial n}{\partial \rho }\approx \rho \frac{\mathsf{\Delta }n}{\mathsf{\Delta }\rho }=\frac{\mathsf{\Delta }n}{S}.$$

(5)

By substituting Expression (5) into (4), the relationship between the elasto-optic constant p and the elasto-optic coefficient $\rho \partial n/\partial \rho$ can be obtained [11]:

$$p=\frac{2}{n^3}\left(\rho \frac{\partial n}{\partial \rho }\right).$$

(6)

Note, that sometimes $\rho \partial \epsilon /\partial \rho$ is used instead of $\rho \partial n/\partial \rho$, and the elasto-optic constant p can be calculated as follows (assuming $\epsilon =n^2$):

$$\rho \frac{\partial \epsilon }{\partial \rho }=2n\left(\rho \frac{\partial n}{\partial \rho }\right),$$

(7)

$$p=\frac{1}{n^4}\left(\rho \frac{\partial \epsilon }{\partial \rho }\right).$$

(8)

2.2. Review of Permittivity Models

The dependence of the permittivity $\epsilon$ on the density $\rho$ is non-linear and also implicitly includes temperature and pressure. In most works, the relationships between $\epsilon$ and $\rho$, as well as the expressions for the elasto-optic coefficient $\rho \partial n/\partial \rho$, were determined. Using (8), we derive expressions for $\partial \epsilon /\partial \rho$ and for the elasto-optic constant p. The models can be divided into three groups: (1) the general theories (Lorentz, Onsager, Kirkwood, Proutiere), (2) the simple approximations to the known relationships (Rocard, Looyenga) and (3) the empirical rules for the best fit of some experimental data (Gladstone–Dale, Eykman, Wahid, Meeten).

The simplest model uses the Lorentz–Lorenz Formula [12,13], which is also known as the Clausius–Mossotti relation [14,15]:

$$\begin{array}{cccccc}\hfill \frac{\epsilon -1}{\epsilon +2}& =\left(\frac{4\pi }{3}\frac{N_A\alpha }{M}\right)\rho \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \frac{{(\epsilon +2)}^2}{3},\hfill & \hfill p& =\frac{(n^2-1)(n^2+2)}{3n^4},\hfill \end{array}$$

(9)

where M is the molar mass, $N_A$ is the Avogadro number and $\alpha$ is the molecular polarizability.

Let us emphasize the assumptions in the Lorentz–Lorenz model. First, it is assumed that the molecules have a spherical shape. Second, the dipole polarizability caused by the rotation of dipole molecules is neglected. And finally, the influence of neighboring molecules on each other is not taken into account.

The approximation of the Lorentz–Lorenz model was given by Rocard, who assumed $(\epsilon +2)$ as a constant in the Lorentz–Lorenz Formula (9) [16]:

$$\begin{array}{cccccc}\hfill \epsilon -1& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \mathrm{const},\hfill & \hfill p& =\frac{n^2-1}{n^4}.\hfill \end{array}$$

(10)

One more model that does not involve the shapes of the molecules was developed by Looyenga [17] and suggests the following equation as a simple approximation of the Lorentz–Lorenz relation (9) for $\epsilon \approx 1$:

$$\begin{array}{cccccc}\hfill {\epsilon }^{1/3}-1& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto {\epsilon }^{2/3},\hfill & \hfill p& =\frac{3(n^{2/3}-1)}{n^{8/3}}.\hfill \end{array}$$

(11)

The Onsager formula [18,19], which is referred to as Oster’s rule in some works [20,21], is used to calculate the dielectric constant of liquids. In this model, the molecules are assumed to be a polarizable point dipole located at the center of a spherical cavity (the Onsager cavity):

$$\begin{array}{cccccc}\hfill \frac{(\epsilon -1)(2\epsilon +1)}{\epsilon }& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \frac{{\epsilon }^2}{2{\epsilon }^2+1},\hfill & \hfill p& =\frac{(n^2-1)(2n^2+1)}{(2n^4+1)n^2}.\hfill \end{array}$$

(12)

To provide a more precise description of polar liquids, the Kirkwood model introduces a g-factor to consider the short-range intermolecular interaction [22,23], resulting in the following expressions [24]:

$$\begin{array}{cccc}\hfill \epsilon -1& \propto \rho (1+a\rho ),\hfill & \hfill p& =\frac{(n^2-1)(2n^2+1)}{(n^2+2)n^4}.\hfill \end{array}$$

(13)

In refining the Kirkwood model, Niedrich assumed that the molecules are not identical and that the local electric field is determined solely by the dielectric constant, independent of temperature and density [24]:

$$\begin{array}{cccc}\hfill \frac{(\epsilon -1)(2\epsilon +1)}{\epsilon }& \propto \rho exp\left(b{\rho }^2\right),\hfill & \hfill p& =\frac{(n^2-1)(2n^2+1)}{(n^2+2)n^4}\frac{3(n^4+2)}{(2n^2+1/n^2)(n^2+2)}.\hfill \end{array}$$

(14)

Proutiere in [25,26,27] showed that the approximation of the local electric field must be made after averaging the molecular dipole moment and that this moment is independent of density fluctuations [28]. It was established that this model gives more accurate results than others [29,30]:

$$\epsilon -1\propto \rho \frac{\epsilon \alpha }{2\overline{\epsilon }+1-2(\overline{\epsilon }-1)\phi \rho (\alpha N_A/3{\epsilon }_{0}M)},$$

(15)

$$p=\frac{n^2-1}{n^4}\left[1+\frac{2{(n^2-1)}^2\phi }{3(2n^2+1)-6{(n^2-1)}^2(\phi -1)/(2n^2+1)}\right],$$

(16)

where ${\epsilon }_0$ is the dielectric constant of a vacuum, the bar indicates a mean value in the bulk liquid that surrounds the Onsager cavity and $\phi =6/\pi \sqrt{2}$ is the inverse value of a part of the available space filled by the molecular Onsager cavities.

As can be seen, numerous models describing the elasto-optic effect have been developed to date. It is worth mentioning empirical relations: Gladstone–Dale rule [21,31]:

$$\begin{array}{cccccc}\hfill \sqrt{\epsilon }-1& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \sqrt{\epsilon },\hfill & \hfill p& =\frac{2(n-1)}{n^3},\hfill \end{array}$$

(17)

Eykman’s rule [26], which is applicable for organic solvents within the refractive index range 1.35 < n < 1.5 [32]:

$$\begin{array}{cccccc}\hfill \frac{\epsilon -1}{\sqrt{\epsilon }+0.4}& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \frac{\sqrt{\epsilon }{(\sqrt{\epsilon }+0.4)}^2}{\epsilon +0.8\sqrt{\epsilon }+1},\hfill & \hfill p& =\frac{2(n^2-1)(n+0.4)}{n^3(n^2+0.8n+1)},\hfill \end{array}$$

(18)

Wahid’s rule [16] for 1.3 < n < 1.6:

$$\begin{array}{cccccc}\hfill \frac{\epsilon -1}{{\epsilon }^{1/3}}& \propto \rho ,\hfill & \hfill \frac{\partial \epsilon }{\partial \rho }& \propto \frac{{\epsilon }^{4/3}}{2\epsilon +1},\hfill & \hfill p& =\frac{3(n^2-1)}{n^2(2n^2+1)}.\hfill \end{array}$$

(19)

and Meeten’s rule for temperatures from −50 °C to +35 °C, for pressures from 1 to ${10}^3$ bars and over the whole visible spectrum [32]:

$$\begin{array}{cccc}\hfill \rho \frac{\partial \epsilon }{\partial \rho }& =\frac{(\epsilon -1)(7\epsilon +23)}{30},\hfill & \hfill p& =\frac{(n^2-1)(7n^2+23)}{30n^4}.\hfill \end{array}$$

(20)

Usually, the models under consideration are used to calculate the permittivity $\epsilon$ or molecular polarizability. Verification of the models (excluding the Proutiere model) in the experiment on compressing liquids to a pressure of 14 kbar revealed that the Lorentz–Lorenz model has the highest error rate (approximately 10%), while the Niedrich formula has the lowest (about 5%) [24,33]. It was demonstrated [29] that the Proutiere formula provides a more accurate result (with an error of about 2%) for polar liquids, such as water, compared with the Niedrich formula. At the same time, the error in Meeten’s rule is within 1% relative to experimental data for most liquids [32].

The main theoretical problem is to determine the local electric field of the molecules, taking into account the shape of the molecule and the influence of the neighboring molecules. The only way to estimate the applicable range of the model is to compare the consequences of the theory with experimental data: (1) the pressure dependence of the refractive index [24,33], (2) the light scattering in a liquid due to thermal fluctuations in the permittivity [29] and (3) the pressure dependence of the elasto-optic constant [26,32]. But even if a model gives the correct result for one physical parameter (molecular polarizability, permittivity), it does not mean that the model is correct for another physical parameter (elasto-optic constant). In fact, the elasto-optic constant comparison derived from the most known models is performed here for the first time. The results are summarized in the following section.

3. Comparison of Permittivity Models

The models work fine to give an accurate relationship between the permittivity $\epsilon$ and the density $\rho$ of the medium. At the same time, it is interesting to compare all these models in detail with regard to the calculation of the elasto-optic constant p. For this purpose, the theoretical dependencies $p\left(n\right)$, as well as experimental data from [15,26], are presented in Figure 1. It should be noted that the data for the same fluid scatter by 5–10%. Furthermore, the dynamic elasto-optic constant could even be only half as large as that determined under static conditions [34,35]. Nevertheless, as one can see, the data agree qualitatively with the models.

According to (9)–(19), the density derivative of the permittivity $\partial \epsilon /\partial \rho$ at $\epsilon \gg 1$ is estimated as (1) a constant ($\partial \epsilon /\partial \rho \approx \mathrm{const}$ in the Rocard and Onsager models), which is determined by the polarizability of the medium; (2) a linear dependence on the refractive index ($\partial \epsilon /\partial \rho \propto n$ in the Gladstone–Dale and Eykman models); and even (3) a significantly nonlinear function ($\partial \epsilon /\partial \rho \propto n^4$ in the Lorentz–Lorenz model). It should also be noted that only in the Lorentz–Lorenz (9) and Meeten (20) models, there is a plateau of $p\left(n\right)$ at $n\gg 2$. However, there is a common feature in the considered dependencies of the elasto-optic constant p on the refractive index n. In most of the considered models, the elasto-optic constant p increases linearly with the refractive index n according to the law $p\propto n-1$, and at $n\gg 2$, the elasto-optic constant decreases as $p\propto 1/n^2$. For example, in (13), (17) and (18),

$$p\approx \left\{\begin{array}{cc}2(n-1)\hfill & \mathrm{at}n-1\ll 1\hfill \\ 2/n^2\hfill & \mathrm{at}n\gg 2\hfill \end{array}\right..$$

(21)

The analysis of the models allowed us to determine the value of the refractive index $n_{\mathrm{opt}}$ corresponding to the maximum value of the elasto-optic constant max(p). The results are summarized in

Table 1. Optimal refractive index and maximum elasto-optic constant for different models.

	Lorentz	Rocard	Looyenga	Onsager	Kirkwood	Niedrich	Gladstone	Eykman	Wahid	Meeten
$n_{\mathrm{opt}}$	2.000	1.414	1.540	1.421	1.547	1.625	1.500	1.581	1.492	1.696
max(p)	0.375	0.250	0.316	0.278	0.320	0.326	0.296	0.316	0.303	0.326

.

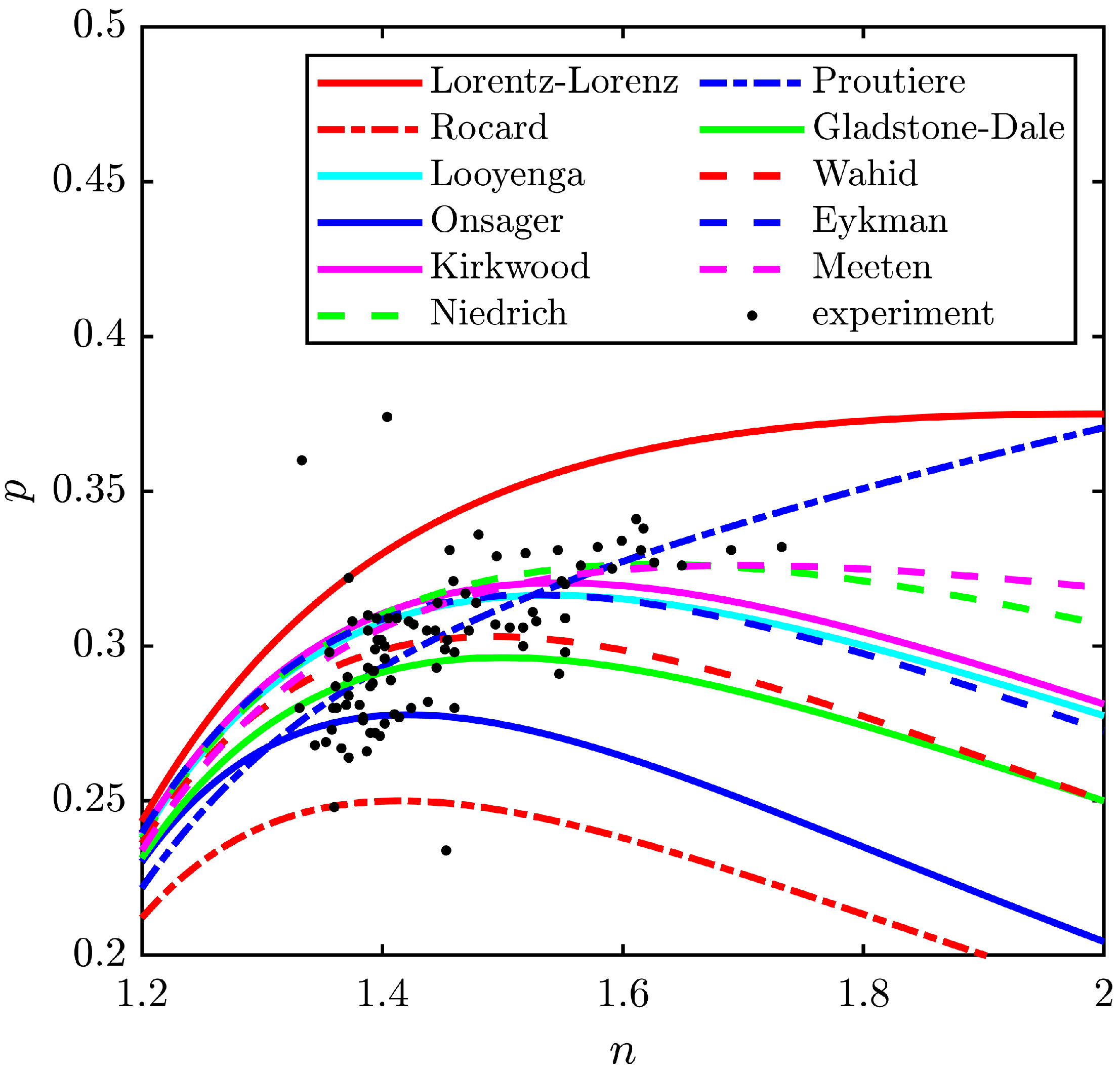

One can see from Figure 1 that the Proutiere relation (16) describes the experimental data the most accurately, while the Lorentz–Lorenz (9) and Rocard (10) models are the crudest approximations. At the same time, the Proutiere model predicts a clearly different dependence of the elasto-optic constant $p\left(n\right)$ on the refractive index at $n>1.6$. According to Formula (16), the elasto-optic constant of liquids with a high optical density is an increasing function of the refractive index, while according to other models, in contrast, it is a decreasing function. As the Lorentz–Lorenz formula was one of the first models, it gives significant errors. At the same time, the Proutiere relation is a result of the much more modern theory with an accuracy of about a few percent. Certainly, there is the significant difference between these and other models at $n>1.6$, but which ones are correct could not be clarified owing to a lack of experimental data.

It is important to note that the Lorentz–Lorenz model predicts the largest value of the elasto-optic constant and all experimental values of p are below this dependence (9). This fact was also established by Niedrich [24]. Therefore, Formula (9) can be used to estimate the maximum value of the elasto-optic constant p.

4. AO Figure of Merit of Liquids

The result obtained in the previous section is very important: the optimal value of the refractive index $n_{\mathrm{opt}}$ of the liquid at which the elasto-optic constant p is a maximum was determined. However, for practical applications, the value of p is not the only one can be used as a criterion for the selection of the optimal acousto-optic interaction medium. As follows from (1), the energy efficiency of the AO devices is determined by the AO figure of merit $M_2$, which is a complex parameter. Combining (1) and (6), one can obtain the following relation for $M_2$:

$$M_2=\frac{p^2{n}^6}{\rho V^3}=\frac{4}{\rho V^3}{\left(\rho \frac{\partial n}{\partial \rho }\right)}^2.$$

(22)

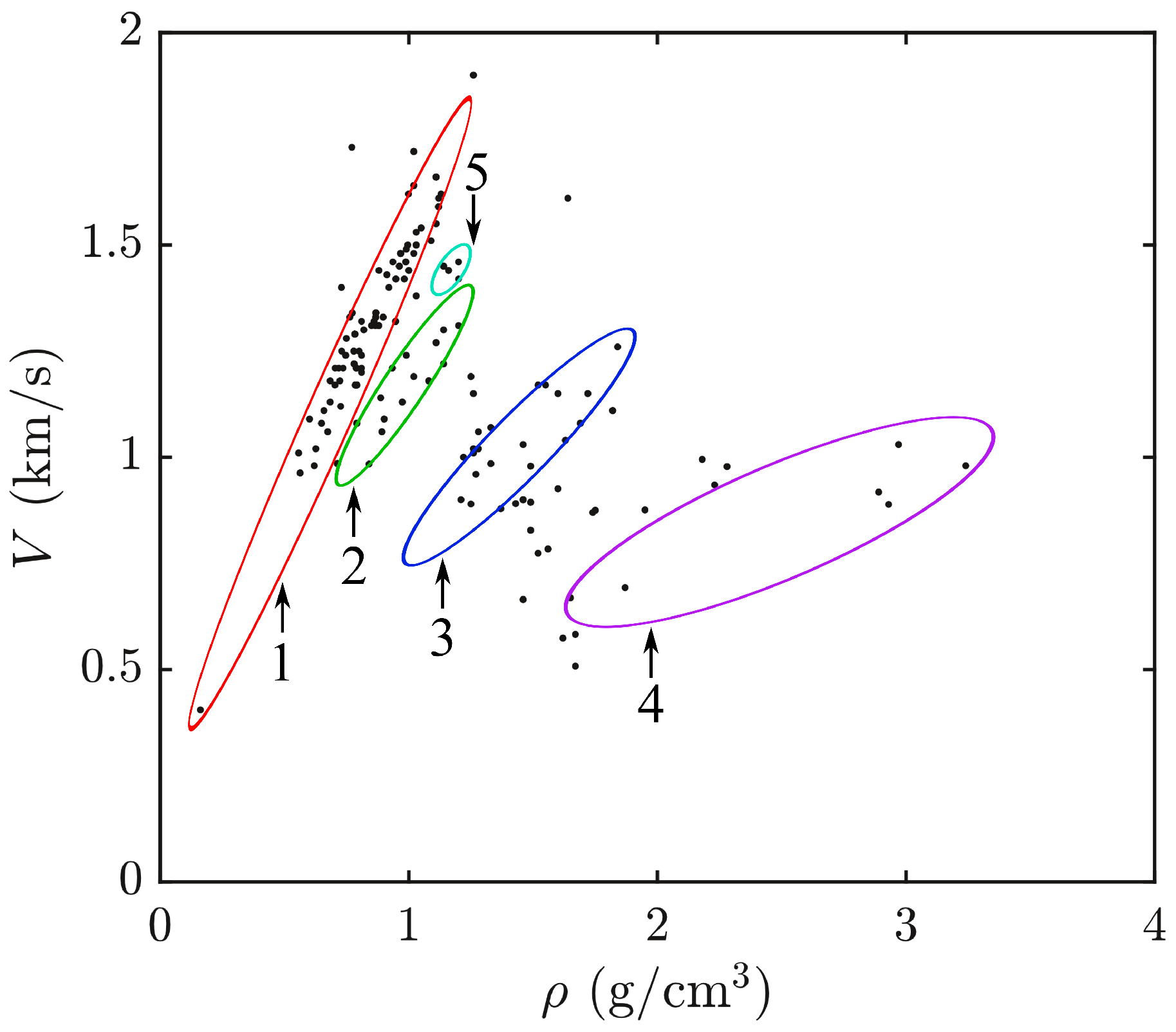

A review of the data [36] for more than 250 liquids allowed us to plot a density–velocity diagram (see Figure 2) in which the points correspond to different liquids. As can be seen, it cannot be said that a denser liquid is characterized by a greater value of the speed of sound. Therefore the further considerations in this section only apply to a single liquid. In this case, one can assume that the speed of sound is proportional to the density of the medium [37]:

$$V=w(-1+v\rho ),$$

(23)

where w and v are coefficients that are environment-specific and have the same sign ($w>0$, $v>0$ or $w<0$, $v<0$).

Under the Lorentz–Lorentz approximation, the relations (1), (9) and (23) allow one to write the expression for the acousto-optic figure of merit in the following way:

$$M_2=\frac{v}{w^3}\frac{1}{v\rho {(v\rho -1)}^3}\frac{{(n^2-1)}^2{(n^2+2)}^2}{9n^2}$$

(24)

Combining (24) and the relation (9) between density $\rho$ and permittivity $\epsilon$ leads to the following expression for the acousto-optic figure of merit (see Figure 3):

$$M_2=\frac{v}{w^3}\frac{1}{v{\rho }^{\max }{[(v{\rho }^{\max }-1)n^2-(2+v{\rho }^{\max })]}^3}\frac{{(n^2-1)}^2{(n^2+2)}^2}{9n^2},$$

(25)

$${\rho }^{\max }=\frac{3M}{4\pi N_A\alpha },$$

(26)

where ${\rho }^{\max }$ is the maximal value of $\rho$ according to the Lorentz–Lorenz model (9) at infinite permittivity $\epsilon$ [17].

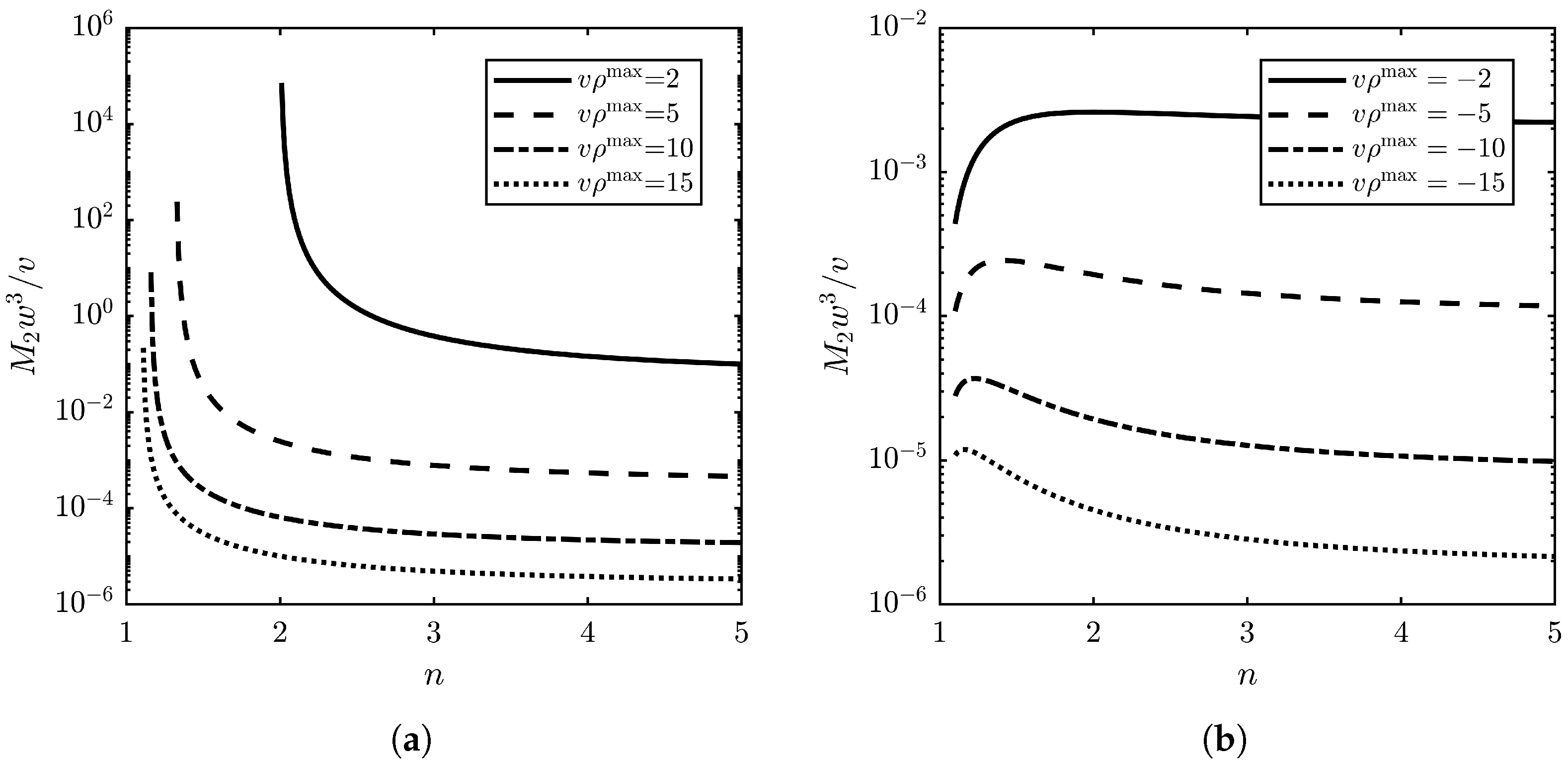

As can be seen from Figure 3, the shape of the graph $M_2\left(n\right)$ is determined by the sign of coefficients in the dependence $V\left(\rho \right)$ (23). For liquids under normal conditions, as follows from [37], the free term of the linear approximation $V\left(\rho \right)$ is negative. At the same time, the dependence $V\left(\rho \right)$ for liquefied gases is essentially non-linear. Therefore, the slope angle and, consequently, the free term of the linear approximation depend on the operating point (temperature and pressure). Note, that infinite growth of the acousto-optic figure of merit $M_2$ with a decrease in the refractive index n is related to the extremely small sound velocity V, as follows from (23) and (25).

There are a few peculiarities that should be mentioned for the dependence of the normalized acousto-optic figure of merit on n and $v{\rho }^{\max }$. For $v{\rho }^{\max }<0$, the optimal value of the refractive index $n_{\mathrm{opt}}$ can be found as follows:

$$n_{\mathrm{opt}}=\sqrt{\frac{10-7v{\rho }^{\max }+3\sqrt{{\left(v{\rho }^{\max }\right)}^2-28v{\rho }^{\max }+4}}{2(-5v{\rho }^{\max }-4)}},$$

(27)

where the relation for the maximal value of $M_2$ can be easily obtained, but it is not presented because of its highly complicated nature.

It is interesting that at a high refractive index $n\gg 1$, the acousto-optic figure of merit $M_2\approx 1/{\rho }^{\max }{w}^3{(v{\rho }^{\max }-1)}^3$ seems to be independent of n and depends only on the density and sound velocity parameters. However, this is not the case, as ${\rho }^{\max }$ depends on the polarizability $\alpha$, which is an optical parameter that varies with temperature and pressure. This means a limitation for the model used.

5. Discussion

The acousto-optic figure of merit $M_2$ is a complex parameter of acoustic, optic and elasto-optic properties of the medium, i.e., four items: V, $\rho$, n and p. At the same time, the models of permittivity give us simple relations $p=p\left(n\right)$, reducing the number of parameters to three. As shown in the previous section, the structure of the relationship in (25) allows one to reduce everything to the analysis of the function of only two variables $M_2{w}^3/v=f(v{\rho }^{\max },n)$. However, it should be noted that there are forbidden zones on this dependence since not any combination of medium parameters can be found in nature. This aspect is very important and requires further consideration, but is beyond the scope of this paper. Nevertheless, from the obtained dependencies (see Figure 3) one can draw a general conclusion that from two liquids with the same optical $\left(n\right)$ and acoustic properties $(w,v)$, the liquid with the larger value of the molecule polarizability $\alpha$ is more preferable. This study reviewed the literature on optical, acoustic and elasto-optic properties, as well as acousto-optic figure of merit, and the collected data for about 100 liquids are presented in

Table A1. Optical, acoustical and acousto-optical properties of liquids.

Medium	n	$\mathit{\rho }$ (g/cm)3	V (m/s)	p Exp	p Eykman	p Lorentz	${\mathit{M}}_2·{10}^{15}$ (s3/kg) Exp	${\mathit{M}}_2·{10}^{15}$ (s3/kg) Eykman	${\mathit{M}}_2·{10}^{15}$ (s3/kg) Lorentz
1,1,1-Trichloroethane	1.438 [26]	1.338 [26]	943 [45]	0.282 [26]	0.313	0.339	625	771	903
1,1,2,2-Tetrachloroethane	1.494 [26]	1.595 [26]	1170 [46]	0.307 [26]	0.316	0.349	411	435	530
1,2-Dichloroethane	1.445 [26]	1.253 [26]	1216 [46]	0.293 [26]	0.314	0.340	347	397	467
1-Butanol	1.399 [26]	0.810 [26]	1257 [46]	0.302 [26]	0.309	0.330	426	445	507
1-Chlorobutane	1.402 [26]	0.886 [26]	1117 [46]	0.296 [26]	0.309	0.330	538	587	671
1-Chloropropane	1.388 [26]	0.891 [26]	1091 [46]	0.293 [26]	0.307	0.327	530	582	659
1-Hexane	1.388 [26]	0.673 [26]	1098 [46]	0.305 [26]	0.307	0.327	745	756	856
1-Nitropropane	1.402 [26]	1.001 [26]	1252 [47]	0.275 [26]	0.309	0.330	292	368	421
2-Aminoethanol	1.454 [26]	1.016 [26]	1741 [46]	0.302 [26]	0.314	0.342	161	174	206
2-Ethoxyethyl Acetate	1.404 [26]	0.973 [26]	1129 [46]	0.374 [26]	0.309	0.331	768	525	601
2-Methyl-1-Propanol	1.396 [26]	0.802 [26]	1188 [48]	0.302 [26]	0.308	0.329	502	523	595
2-Nitropropane	1.394 [26]	0.988 [26]	1201 [47]	0.272 [26]	0.308	0.328	317	407	462
3-Methyl-1-Butanol	1.407 [26]	0.810 [26]	1220 [46]	0.289 [26]	0.310	0.332	442	506	580
a-Bromonaphthalene	1.649 [15]	1.479 [15]	1376 [15]	0.326 [15]	0.312	0.366	553	507	698
Acetaldehyde	1.331 [26]	0.778 [26]	1137 [46]	0.280 [26]	0.295	0.309	381	424	465
Acetic Acid	1.372 [26]	1.049 [26]	1134 [46]	0.264 [26]	0.304	0.322	303	403	452
Acetic Anhydride	1.390 [26]	1.081 [26]	1249 [46]	0.272 [26]	0.307	0.327	254	324	368
Acetone	1.356 [15]	0.785 [15]	1170 [15]	0.298 [15]	0.301	0.317	438	448	498
Acetonitrile	1.344 [26]	0.782 [26]	1300 [46]	0.268 [26]	0.298	0.314	247	306	337
a-Chloronaphthalene	1.626 [15]	1.188 [15]	1454 [15]	0.327 [15]	0.313	0.364	541	497	671
Acrolein	1.402 [26]	0.839 [26]	1207 [49]	0.300 [26]	0.309	0.330	462	491	561
Acrylonitrile	1.392 [26]	0.806 [26]	1172 [50]	0.292 [26]	0.307	0.328	478	529	601
Aniline	1.579 [15]	1.017 [15]	1639 [15]	0.332 [15]	0.316	0.360	382	345	448
Anisole	1.517 [26]	0.994 [26]	1425 [46]	0.306 [26]	0.317	0.352	397	425	526
Benzene	1.495 [15]	0.874 [15]	1290 [15]	0.329 [15]	0.316	0.349	643	595	725
Benzonitrile	1.528 [26]	1.005 [26]	1603 [51]	0.308 [26]	0.317	0.354	291	308	385
Bicyclohexyl	1.480 [26]	0.886 [26]	1422 [46]	0.336 [26]	0.316	0.347	466	411	495
Bromobenzene	1.552 [15]	1.488 [15]	1160 [15]	0.320 [15]	0.316	0.357	616	602	766
Bromoform	1.591 [15]	2.877 [15]	921 [15]	0.325 [15]	0.315	0.361	764	717	940
Butyl Acetate	1.394 [26]	0.881 [26]	1226 [46]	0.299 [26]	0.308	0.328	403	428	487
Butyric Acid	1.398 [26]	0.958 [26]	1203 [46]	0.271 [26]	0.308	0.329	328	426	485
Carbon Disulphide	1.617 [15]	1.256 [15]	1144 [15]	0.338 [15]	0.314	0.363	1087	937	1255
Carbon Tetrachloride	1.460 [26]	1.594 [26]	936 [46]	0.280 [26]	0.315	0.343	583	734	873
Carbon Tetrachloride	1.456 [15]	1.584 [15]	922 [15]	0.331 [15]	0.314	0.342	841	758	899
Chlorobenzene	1.525 [26]	1.106 [26]	1289 [46]	0.311 [26]	0.317	0.353	513	532	662
Chlorobenzene	1.519 [15]	1.101 [15]	1270 [15]	0.330 [15]	0.317	0.353	593	546	677
Chloroform	1.446 [26]	1.489 [26]	1001 [46]	0.314 [26]	0.314	0.340	601	601	708
Chloroform	1.444 [15]	1.480 [15]	978 [15]	0.305 [15]	0.313	0.340	609	643	756
Cinnamaldehyde	1.611 [15]	1.049 [15]	1555 [15]	0.341 [15]	0.314	0.363	514	438	583
Crotonaldehyde	1.437 [26]	0.852 [26]	1344 [49]	0.305 [26]	0.313	0.338	397	417	489
Cyclohexane	1.426 [26]	0.779 [26]	1279 [46]	0.307 [26]	0.312	0.336	486	503	584
Cyclohexylamine	1.459 [26]	0.867 [26]	1430 [52]	0.321 [26]	0.315	0.343	393	377	448
Decane	1.412 [26]	0.730 [26]	1253 [46]	0.309 [26]	0.310	0.333	525	530	610
Dichloromethane	1.424 [26]	1.326 [26]	1092 [46]	0.280 [26]	0.312	0.336	380	469	545
Dimethoxymethane	1.353 [26]	0.860 [26]	1146 [46]	0.269 [26]	0.301	0.317	344	429	476
Dodecane	1.422 [26]	0.749 [26]	1298 [46]	0.308 [26]	0.311	0.335	478	489	566
Ethanol	1.361 [26]	0.789 [26]	1160 [46]	0.287 [26]	0.302	0.319	427	472	527
Ethyl Acetate	1.372 [26]	0.901 [26]	1162 [46]	0.284 [26]	0.304	0.322	382	438	491
Ethyl Acetate	1.370 [15]	0.895 [15]	1148 [15]	0.281 [15]	0.304	0.322	385	451	505
Ethyl Alcohol	1.359 [15]	0.785 [15]	1146 [15]	0.280 [15]	0.302	0.318	417	485	540
Ethyl Butyrate	1.393 [26]	0.879 [26]	1197 [46]	0.292 [26]	0.308	0.328	413	458	521
Ethyl Formate	1.360 [26]	0.923 [26]	1136 [53]	0.248 [26]	0.302	0.319	288	426	475
Ethyl Malonate	1.414 [26]	1.055 [26]	1267 [54]	0.277 [26]	0.310	0.333	286	358	413
Ethyl Oxalate	1.410 [26]	1.079 [26]	1276 [55]	0.278 [26]	0.310	0.332	272	337	388
Ethyl Propionate	1.384 [26]	0.890 [26]	1183 [46]	0.277 [26]	0.306	0.326	365	447	505
Ethylenediamine	1.457 [26]	0.897 [26]	1672 [56]	0.414 [26]	0.314	0.342	391	226	268
Formic Acid	1.371 [26]	1.220 [26]	1287 [46]	0.290 [26]	0.304	0.322	215	237	265
iso-Butil Alcohol	1.390 [15]	0.798 [15]	1194 [15]	0.287 [15]	0.307	0.327	436	501	569
Methyl Benzoate	1.517 [26]	1.089 [26]	1380 [57]	0.300 [26]	0.317	0.352	384	426	528
Methyl Oleate	1.452 [26]	0.874 [26]	1425 [58]	0.299 [26]	0.314	0.341	331	366	432
Methylene Iodide	1.732 [15]	3.308 [15]	962 [15]	0.332 [15]	0.305	0.370	1012	851	1257
n-Butil Alcohol	1.395 [15]	0.806 [15]	1245 [15]	0.309 [15]	0.308	0.329	451	449	512
n-Heptane	1.388 [26]	0.684 [26]	1152 [46]	0.310 [26]	0.307	0.327	656	643	729
n-Hexane	1.375 [26]	0.659 [26]	1098 [46]	0.308 [26]	0.305	0.323	735	719	808
n-Hexane	1.372 [15]	0.655 [15]	1090 [15]	0.322 [15]	0.304	0.322	816	728	817
Nitrobenzene	1.552 [26]	1.203 [26]	1475 [46]	0.298 [26]	0.316	0.357	323	363	461
Nitrobenzene	1.546 [15]	1.198 [15]	1448 [15]	0.331 [15]	0.316	0.356	412	376	476
Nitroethane	1.392 [26]	1.051 [26]	1272 [59]	0.288 [26]	0.308	0.328	280	318	362
Nitromethane	1.381 [26]	1.138 [26]	1338 [46]	0.281 [26]	0.306	0.325	202	238	269
Nonane	1.405 [26]	0.718 [26]	1297 [46]	0.309 [26]	0.309	0.331	470	471	540
n-Pentane	1.358 [26]	0.626 [26]	1030 [46]	0.273 [26]	0.301	0.318	681	830	924
o-Dichlorobenzene	1.552 [26]	1.306 [26]	1296 [46]	0.309 [26]	0.316	0.357	468	491	624
Oleic Acid	1.460 [26]	0.891 [26]	1400 [60]	0.298 [26]	0.315	0.343	352	392	466
o-Toluidine	1.565 [15]	0.994 [15]	1598 [15]	0.326 [15]	0.316	0.358	385	362	465
Phenil hydrazine	1.599 [15]	1.094 [15]	1716 [15]	0.334 [15]	0.315	0.362	337	300	396
Phosphorus tribromide	1.690 [15]	2.861 [15]	930 [15]	0.331 [15]	0.309	0.368	1107	964	1373
Piperidine	1.453 [26]	0.860 [26]	1400 [46]	0.234 [26]	0.314	0.342	218	393	464
Propionaldehyde	1.362 [26]	0.797 [26]	1379 [61]	0.280 [26]	0.302	0.319	240	279	311
Propionic Acid	1.387 [26]	0.993 [26]	1166 [62]	0.266 [26]	0.307	0.326	320	425	481
Propionitrile	1.366 [26]	0.782 [26]	1271 [46]	0.267 [26]	0.303	0.320	289	371	415
Propyl Acetate	1.384 [26]	0.888 [26]	1198 [46]	0.276 [26]	0.306	0.326	350	433	489
Quinoline	1.615 [15]	1.092 [15]	1567 [15]	0.331 [15]	0.314	0.363	464	416	557
Styrene	1.547 [26]	0.906 [26]	1354 [46]	0.291 [26]	0.316	0.356	516	610	773
Tetrachloroethylene	1.506 [26]	1.623 [26]	1053 [46]	0.306 [26]	0.316	0.351	577	616	756
Trans-Decahydronaphthalene	1.469 [26]	0.870 [26]	1398 [63]	0.317 [26]	0.315	0.345	426	421	503
Trichloroethylene	1.478 [26]	1.468 [26]	1049 [46]	0.314 [26]	0.316	0.346	606	611	736
Trichloroethylene	1.472 [15]	1.460 [15]	1021 [15]	0.305 [15]	0.315	0.345	608	651	780
Trycresyl Phosphate	1.549 [15]	1.172 [15]	1502 [15]	0.321 [15]	0.316	0.356	358	348	442
Water	1.330 [15]	0.997 [15]	1491 [15]	0.273 [15]	0.295	0.309	125	146	160
Water	1.333 [26]	0.998 [26]	1482 [46]	0.360 [26]	0.296	0.310	224	151	166

in Appendix A.

Since the refractive index n depends on the wavelength $\lambda$, the dispersion of the elasto-optic constant p can be estimated using (21):

$$\frac{\mathrm{d}p}{\mathrm{d}\lambda }\approx \left\{\begin{array}{cc}{\displaystyle 2\frac{\mathrm{d}n}{\mathrm{d}\lambda }}\hfill & \mathrm{at}n-1\ll 1\hfill \\ {\displaystyle -\frac{4}{n^3}\frac{\mathrm{d}n}{\mathrm{d}\lambda }}\hfill & \mathrm{at}n\gg 2\hfill \end{array}\right..$$

(28)

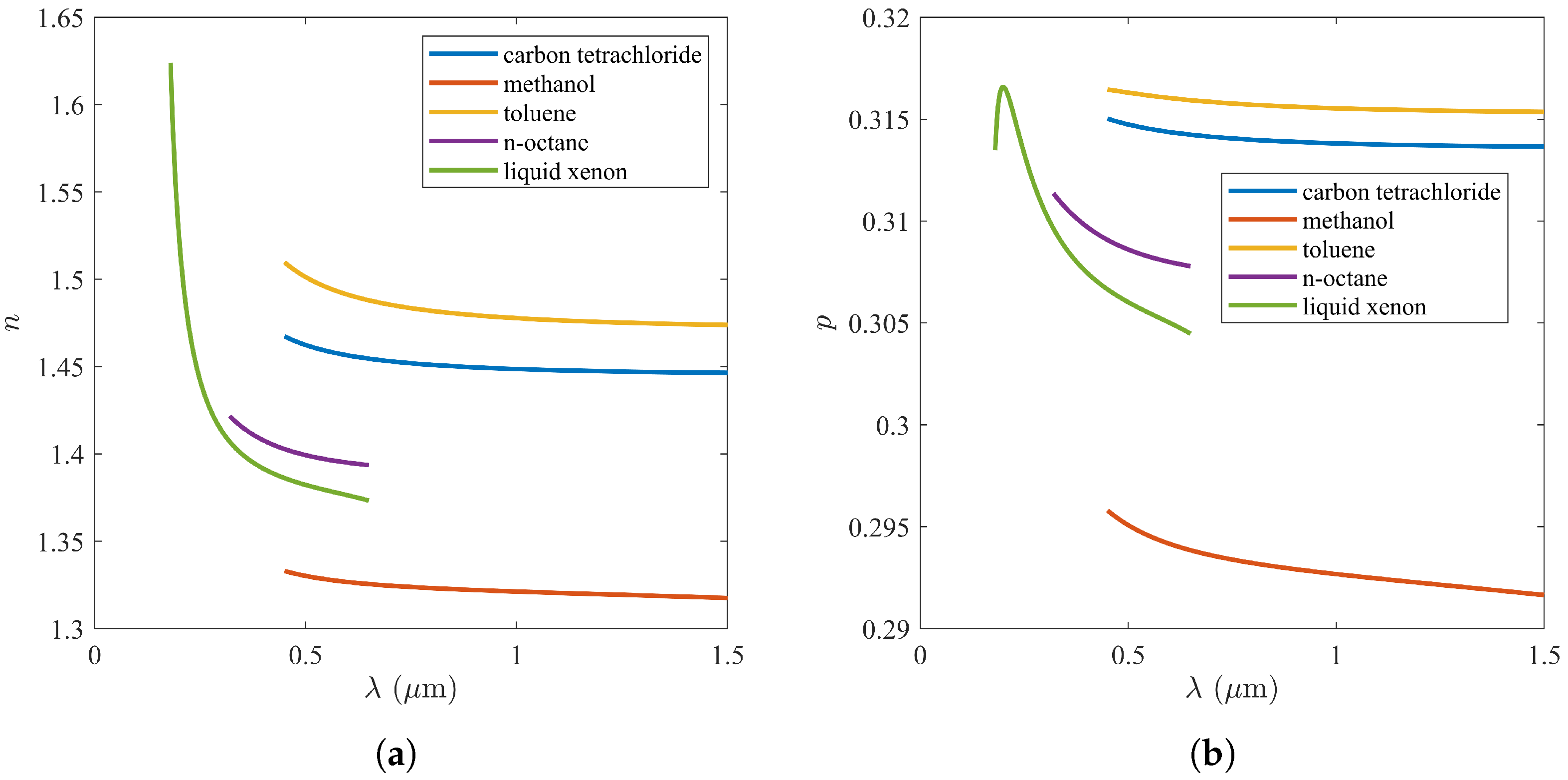

To calculate the dispersion of the elasto-optic constant p, the experimental Eykman’s rule (18) was used, as well as data on the refractive index dispersion $n\left(\lambda \right)$ of both polar and nonpolar liquids. Data for alkanes were related to the range 0.32–0.65 $\mathsf{\mu }$m at a temperature of 300 K [38], whereas data for alcohols were obtained in the much wider range 0.45–1.55 $\mathsf{\mu }$m at the same temperature [39]. In addition, data for liquid xenon for the range 0.18–0.65 $\mathsf{\mu }$m at 162.35 K were taken from [40]. The dynamics of $p\left(\lambda \right)$ depended on the relationship between the refractive index n and its optimal value $n_{\mathrm{opt}}$ for maximal p (see Table 1): (1) for $n<n_{\mathrm{opt}}$, the elasto-optic constant p decreased with the wavelength $\lambda$; (2) for $n>n_{\mathrm{opt}}$, the elasto-optic constant increased with $\lambda$; and (3) for $n\approx n_{\mathrm{opt}}$, the elasto-optic constant did not depend on $\lambda$. The results are shown in Figure 4.

For the crystalline media, the components of the elasto-optic tensor were calculated on the basis of density functional theory to determine the structure of the electronic zone [41,42]. The above method was only implemented numerically, and therefore, there was no analytical formula for the $p_{ij}$ components. It is worth mentioning that a method for estimating the $p_{11}$ and $p_{12}$ components for electro-optic crystals based on electro-optic, optical and acoustic properties was recently proposed [43]. However, this method has not yet found wide application and was only validated for one crystal. At the same time, for liquids, as can be seen from the relationships in Section 2.2, the elasto-optic constant p depended only on the refractive index n. Therefore, now (1) it is possible to calculate the elasto-optic constant using a simple relationship and (2) the analysis of the results is reduced to the study of a function of one variable. In our opinion, it is one of the fundamental laws of nature that the function $p\left(n\right)$ is bounded. However, this law has so far only been shown for liquids in this study.

Let us try to give a physical interpretation of the limitation of the maximum value of the elasto-optic constant p. For this purpose, let us use the original relation (4), which is the definition of this constant, and rewrite it so that it contains relative physical quantities:

$$\frac{\mathsf{\Delta }n}{n}=\frac{p{n}^2}{2}S.$$

(29)

As can be seen from the literature data, for most liquids, $1.3<n<1.6$ in the range of transparency (see Figure 1), while the maximum refractive index is $n=2.1$ for the liquid Se₂Br₂ [44] (the experimental value of p, however, is unknown). At the same time, the maximum value of the elasto-optical constant is limited to $p<0.375$ (see Table 1). Finally, we arrive at the following relationship: $\mathsf{\Delta }n/n<0.8S$, i.e., the relative change in the refractive index is less than the relative strain.

6. Conclusions

This article deals with the basics of the theory of the elasto-optic effect in liquids. Starting from first principles, an expression for the acousto-optic figure of merit is derived, which allows one to estimate the optimal ratios of the material parameters of the medium. The physical properties, as well as the calculated acousto-optic figure of merit, of about 100 liquids are summarized. Formulas for estimating the elasto-optic constant from the known refractive index are derived. It was found that the elasto-optic constant of any liquid cannot be greater than 0.375. This fact is of fundamental importance, as it provides a qualitative explanation as to why the elasto-optic constants of known liquid and crystalline media are less than one. In the future, it is planned to develop the proposed method for isotropic dielectrics.
