2.1. Properties of ISF Slag
ISF slag has various potential applications as concrete aggregate, but unfortunately, the effects depend on its chemical composition and physical properties. Analyzed ISF slag comes from Polish Zinc Smelter (Świętochłowice, Poland), which annually produces around 30 thousand tons of ISF slag. However, introducing ISF slag into concrete can be a valuable way to recycle and reduce waste, but this must be conducted with care to prevent the introduction of any harmful ingredients that could potentially harm the quality of the mortar or concrete, as well as the environment [
3,
12,
25].
ISF slag is waste material with code 10 05 01—waste from zinc metallurgy. 10 05 01. Slags from primary production and secondary (except 10 05 80) 17 01 06 are considered heterogeneous substances [
11,
26,
27]. Imperial smelting furnace (ISF) slag is one among many other materials that, when dumped as such, can cause severe environmental damage due to the presence of heavy metals in it [
9,
15,
16,
17,
18,
19,
20,
21,
22,
23,
24,
25,
26,
27,
28].
In the first stage of the research, the chemical composition of the slag and its natural radioactivity acc. the ITB Instruction guidelines [
29] were investigated. Raw materials used for feeding, such as Zn-Pb concentrates, contain several accompanying elements besides the main ones, such as Fe, Cu, Cd, Hg, As, Sb, Bi, and Tl [
26,
30,
31,
32,
33]. These concentrates are produced from recast furnaces, fluxes, and returnable materials. Zinc is separated from lead and slag by melting the charge at temperatures between 1300 °C and 1350 °C, known as the reduction and distillation process. The hot slag is then immediately water granulated. However, the speciation of zinc, lead, copper, and arsenic in the slag controls its recovery or fate in the environment, and this has not been thoroughly investigated in the literature. X-ray Absorption Spectroscopy (XAS) was used for the first time on this complex, poorly crystalline material to better understand the speciation of elements at low concentrations. Zn, Cu, As K-edge and Pb L3-edge XAS were carried out for a Pb/Zn slag from a closed ISF facility in England, supported by Fe, S, and P K-edge XAS. The results are presented in the context of a complete literature review. X-ray fluorescence showed that concentrations of Zn, Pb, Cu, and As were 8.4%, 1.6%, 0.48%, and 0.45%, respectively. XAS provided a complete understanding of the matrix, although Wüstite (FeO) was the only crystalline phase identified by X-ray diffraction. Zn was found to be mainly present in glass, ZnS, and possibly solid solutions with Fe oxides; Pb was primarily present in glass and apatite minerals (e.g., Pb
5(PO
4)
3OH); Cu was mainly speciated as Cu
2S, with some metallic Cu and a weathering product, Cu(OH)
2; As speciation was likely dominated by arsenic (III) and (V) oxides and sulphides.

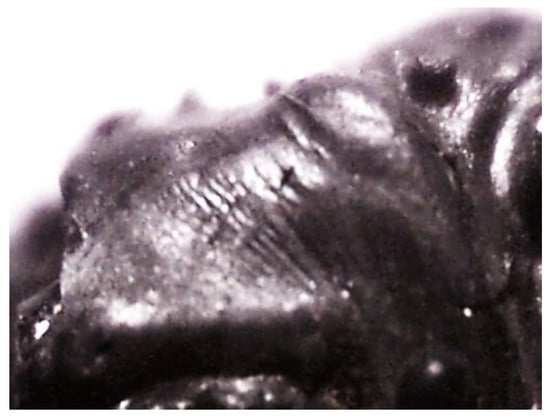

Fortunately, the granulated ISF slag contains various chemical and mineral components that are melted and consolidated to form a glaze (
Figure 2). This glaze binds and scatters heavy metals, primarily zinc and lead, in the slag (as depicted in
Figure 3). On the other hand, iron is chemically bound to calcium in the form of amorphous iron-calcium silicates. Due to its chemical composition, the ISF slag granulate has a bulk density of 3.8 kg/dm
3. Based on the analyses performed, the chemical composition of the slag and the share of individual compounds were determined (
Table 1).
Table 2 contains the results of determining the pH of the slag.
As research results in
Table 3 indicated, the aluminium content percentage of Al
2O
3, MgO, and SO
3 does not meet the guidelines set at 12% or less. Based on the calculated value of the modulus M = 4.50, the tested slag can be classified as an aggregate of the silicon-aluminium-ferrous variety.
Table 3 lists the compounds’ content leached from the EC Zabrze and ISF slag.
The granulometric composition of the slag using the PN-EN 933-1:2012 method [
35]. The ISF slag was used as a 100% substitute for natural sand in self-compacting cement mortar and a geopolymer, but before use, the slag was thoroughly rinsed and then dried. The minor gains (smaller than 0.125 mm) of the ISF slag were eliminated to obtain high-strength mortar.

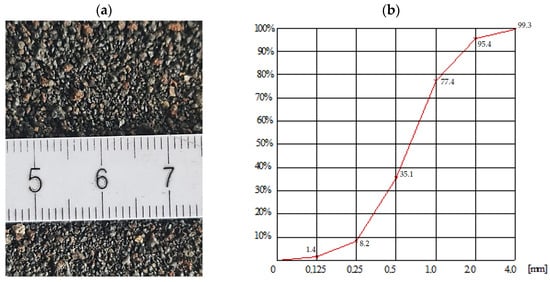

Figure 3 provides a view of the slag grains and the granulometric composition acc. to EN 933-1:2012 [
36].
That is important also, as per construction standards, all aggregates utilized for concrete and earthworks must conform to the guidelines specified in ITB Instruction № 234 [
29] regarding the concentration of radioactive elements. The presence of natural radioactive isotopes, such as potassium K-40, radium Ra-226, and thorium Th-228, in the raw materials and building materials intended for human or animal habitation, as well as in industrial waste used for construction, are assessed using two activity indexes. These indexes are (a) activity index f
1, which measures the content of natural radioactive isotopes, and (b) activity index f
2, which measures the content of radium Ra-226. According to Polish legal regulations [
30], which comply with the rules of the European Union (Regulation of the Council of Ministers of 2 January 2007) [
35,
36], the activity indicators are subject to two limitations: the values of activity indicators f
1 and f
2 cannot exceed the value more than 20% [
30,
35].
The following information pertains to the levels of radioactivity in various types of materials used in construction for human or livestock habitation, as well as levelling of areas for development [
37]:
For raw and construction materials, f1 = 1.0 and f2 = 200 Bq/kg.
For industrial waste used in above-ground construction facilities in urban areas or for development in the local plan, f1 = 2.0 and f2 = 400 Bq/kg.
For industrial waste used in above-ground parts of construction facilities outside of urban areas or for levelling undeveloped areas, f1 = 3.5 and f2 = 1000 Bq/kg.
For industrial waste used in underground construction facilities and structures, including tunnels, but not mine workings, f1 = 7.0 and f2 = 2000 Bq/kg.
When industrial waste is used for levelling or construction of roads, sports and recreational facilities by the above values, the dose rate absorbed at a height of 1.00 m must be reduced to a value not exceeding 0.3 micrograms per hour (µGy/h) above the surface of the land, road, or object by adding layer of alternate material [
35].
The formula for determining the radioactive concentration index of radioactive isotopes of potassium K-40, radium Ra-226 and thorium Th-232 (index I) is given by Formula (1):
where:
CK-40, CRa-226 and CTh-232—mean the radioactive concentrations of potassium isotopes K-40, radium Ra-226 and thorium Th-232, respectively, expressed in becquerels per kilogram (Bq/kg).
The results of the natural radioactivity test presented in
Table 4 and
Table 5 prove that the slag meets the requirements mentioned above. A higher specific weight characterizes concrete produced based on ISF slag than concrete containing only sand. This makes it suitable for producing acoustic screens and heavy concrete. Concretes containing slag have higher gamma absorption than regular concrete. The results [
38,
39,
40] proved that ISF slag can improve the durability and radiological properties of mortar and concrete mixes even for higher replacements and durability properties of SCC mixes for replacements up to 25%.
2.2. Materials and Methodology Preparation of Cement Mortar
In
Table 6, the chemical composition of CSA cement is shown. CSA cement is a mineral hydraulic binder known for its low shrinkage, early strength, and sulphate resistance. The primary components of CSA cement are calcium sulfate aluminate anhydride (4CaO·3Al
2O
3·SO
4), which is responsible for the early increase in strength, dicalcium silicate (delete) (2CaO·SiO
2), which provides significant strength to the concrete after 28 days, and gISF (CaSO
4·2H
2O). CSA cements are fired at a temperature of 1250 °C, which significantly reduces energy consumption during production. The obtained CSA clinker is softer than Portland cement clinker and requires less grinding energy. Ettringite formation takes place during the hardening process according to simplified Formula (2):
The reaction between calcium sulphate aluminate (4CaO·3Al
2O
3·SO
4) and water can cause expansion of the initial raw materials. This reaction produces ettringite (3CaO·Al
2O
3·3CaSO
4·32H
2O), which can cause a final expansion of the volume of the initial raw materials. However, if sulphate saturation is low, the reaction produces calcium aluminate monosulfate (3CaO·Al
2O
3·CaSO
4·12H
2O) with much smaller expansion. The structures of both compounds are similar, making it difficult to distinguish them. Research has been conducted with different proportions in the triangle of materials: calcium sulphate aluminate, gISF (CaSO
4·2H
2O), and dicalcium silicate (2CaO·SiO
2), to determine the proportions of mixtures for fast-hardening, expansive and weakly expansive cement. The CSA cement series includes various products that can be used as a primary binder or accelerator for Portland Cement and are suitable for multiple applications. When used as the primary binder, they can set from a few minutes to hours, gain strength rapidly, and achieve compressive strengths ranging from 50 to 100 MPa [
41].
Cement mortars (
Table 7) were prepared according to EN 196-1:2016-07 [
42]. EN 196-1 states that mortar preparation involves following a specific methodology to meet the required standards and specifications. After one day of hardening, the specimens of cement mortars were carried in water for 27 days.
2.3. Materials and Methodology Preparation of a Geopolymer Mortar
In the late 1970s, Joseph Davidovits, the inventor and developer of a geopolymerisation, coined the term “a geopolymer” to classify the newly discovered synthesis that produces inorganic geopolymeric materials now used for several industrial applications. He also set a logical scientific terminology based on different chemical units, essentially for silicate and aluminosilicate materials, classified according to the Si:Al atomic ratio:
Si:Al = 0, siloxo,
Si:Al = 1, sialate (acronym for silicon-oxo-aluminate of Na, K, Ca, Li),
Si:Al = 2, sialate-siloxo,
Si:Al = 3, sialate-disiloxo,
Si:Al > 3, sialate link.
This terminology was presented to the scientific community at an IUPAC conference in 1976. For details, see the Library Milestone Paper IUPAC-76 [
43].
The analysed research used metakaolin to create a geopolymer mortar binder, as described in
Table 8. According to [
43], it is sialate, a geopolymer (-Si-O-Al-O-sialate, poly(sialate)).
An appropriate alkaline activator must be chosen to activate aluminosilicate materials with a low amount of calcium compounds in their composition. Previous research on copper slag alkaline activation has shown that the reaction between ground copper slag and the alkaline activator (either NaOH or sodium water glass) results in the formation of low-base hydro silicates of the calcium silicate hydrate (C-S-H) type, hydrated low-base aluminate and aluminosilicate of the hydro garnet type, calcite, magnesium hydro silicates, mixed sodium-potassium compounds, and alkaline hydrated aluminosilicates of the hydro nepheline, analcime, and natrolite type. These resulting products in the form of hydrates differ significantly from those from the hydration of traditional common-use cement rich in CaO. As the CaO content decreases, the content of the C-S-H and calcium aluminate hydrate (C-A-H) phases formed because of hydration decreases and the zeolite-like phases increase. Choosing the appropriate type and amount of activator is complex and depends mainly on the slag’s chemical composition and specific surface area. The dissolution of aluminium and silica is faster, and the higher the system’s pH is, the more it depends on the quality and content of the activator. Therefore, a higher molar concentration of the alkaline solution with the scale given in
Table 9 was used.
Geopolymer samples (
Table 9) were prepared as follows: first, an alkaline solution cooled to 20 degrees Celsius was mixed for 5 min using a sonicator, and then it was added to the previously mixed ISF slag with metakaolin. Everything was mixed in an automatic mortar mixer for cement mortar acc. to EN 196-1:2016-07 [
42]. The geopolymer samples were activated at a temperature of 80 °C for 72 h and tightly wrapped in foil to protect against drying and shrinkage. Geopolymer mortars, after thermal activation, were matured in air-dry conditions.
2.4. Methodology of Research of Fresh and Hardened Mortar

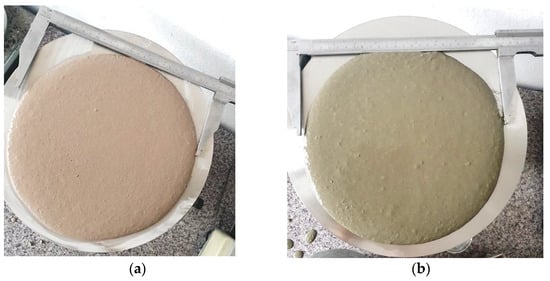

The consistency of the cement and a geopolymer mortar was determined per EN 1015-3 [
44].
Mechanical properties of mortars were investigated acc. to EN 196-1:2016-07 [
42], and porosity tests were conducted on three cement and three geopolymer samples.

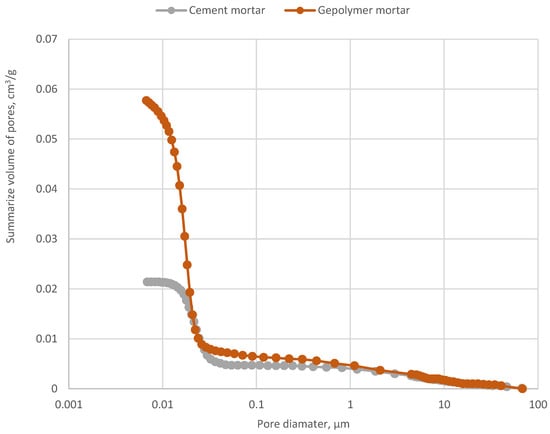

The porosity tests of geopolymer and cement mortar were conducted using the following test equipment:
helium density—AccuPyc II 1340 device from Micromeritics Instruments (Norcross, GA, USA),
pore size distribution—Poremaster 60 by Quantachrome Instruments (Boynton Beach, FL, USA).
Finally, the immobilisation efficacy of ISF slag in a geopolymer and cement binders was assessed through leachability tests based on the EN 12457-2 standard [
45]. An aqueous extract was prepared from the collected waste at a liquid-to-solid phase ratio of L/S = 10 L/kg and then subjected to leaching tests using demineralized water. The sample was shaken for 24 h, allowed to settle for 15 min, and filtered through a filter [
45]. The extract was then subjected to several determinations, including pH [
46], chloride content [
47], sulphate content [
48], and the content of sodium, calcium, potassium, lithium, barium [
49], phosphorus [
50], and fluorides [
51]. The AVANTA PM atomic absorption spectrometer from GBC evaluated the heavy metal content in water extracts. The results were compared with the maximum limit values specified in the Regulation on substances particularly harmful to the aquatic environment and conditions to be met when discharging sewage into waters or the ground, as well as when discharging rainwater or snowmelt into water or water facilities (Journal of Laws 2019, item 1311) [
34]. This study’s results will be valuable to industries that produce ISF slag and researchers and policymakers working on environmental protection and the responsible handling of industrial waste.
