In-Depth Study on the Application of a Graphene Platelet-reinforced Composite to Wind Turbine Blades
Abstract
:1. Introduction
2. Wind Turbine Blade Reinforced with GPLs
2.1. Effective Material Properties of GPLRCs

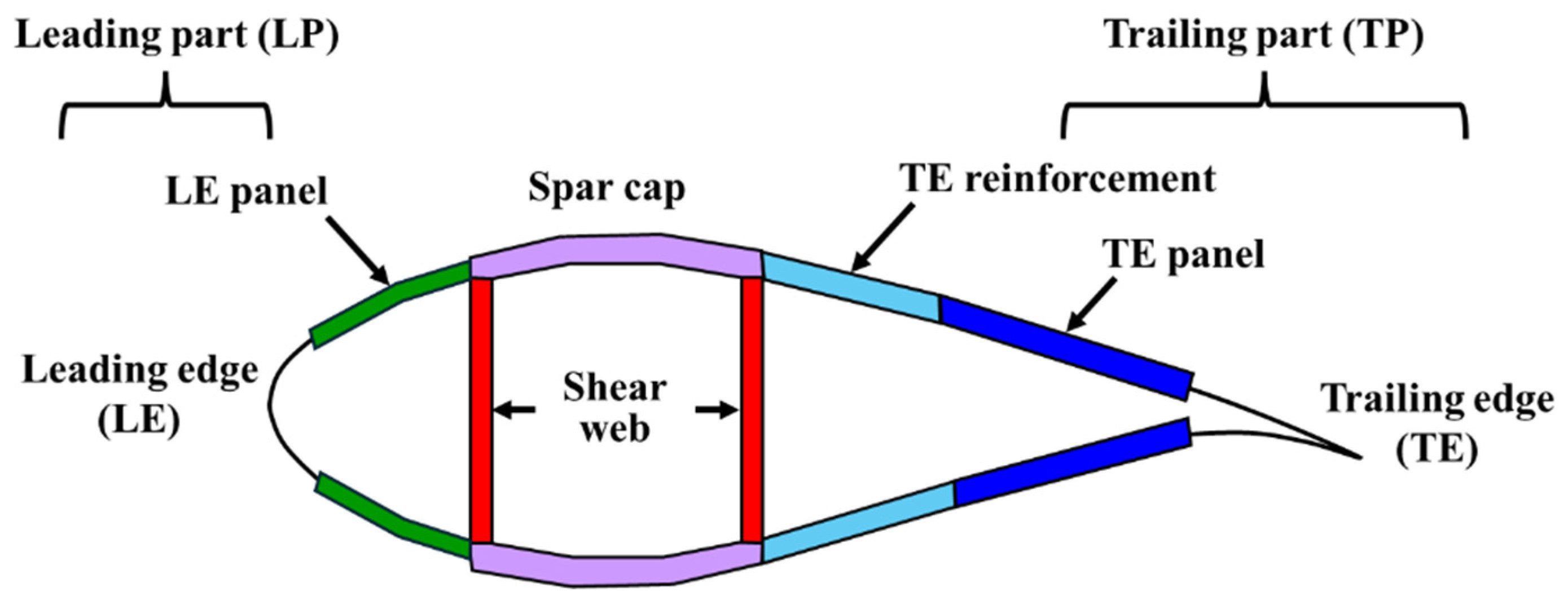

2.2. Finite Element Model of GPL-Reinforced Wind Blade

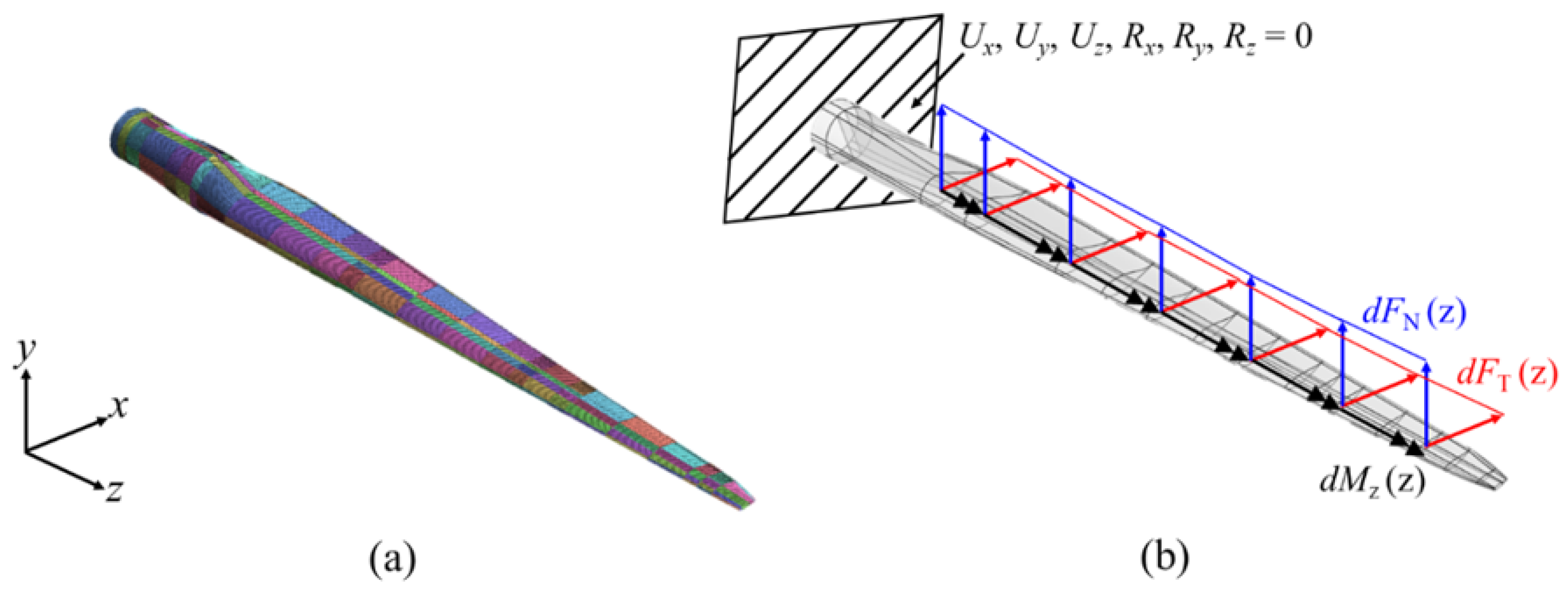

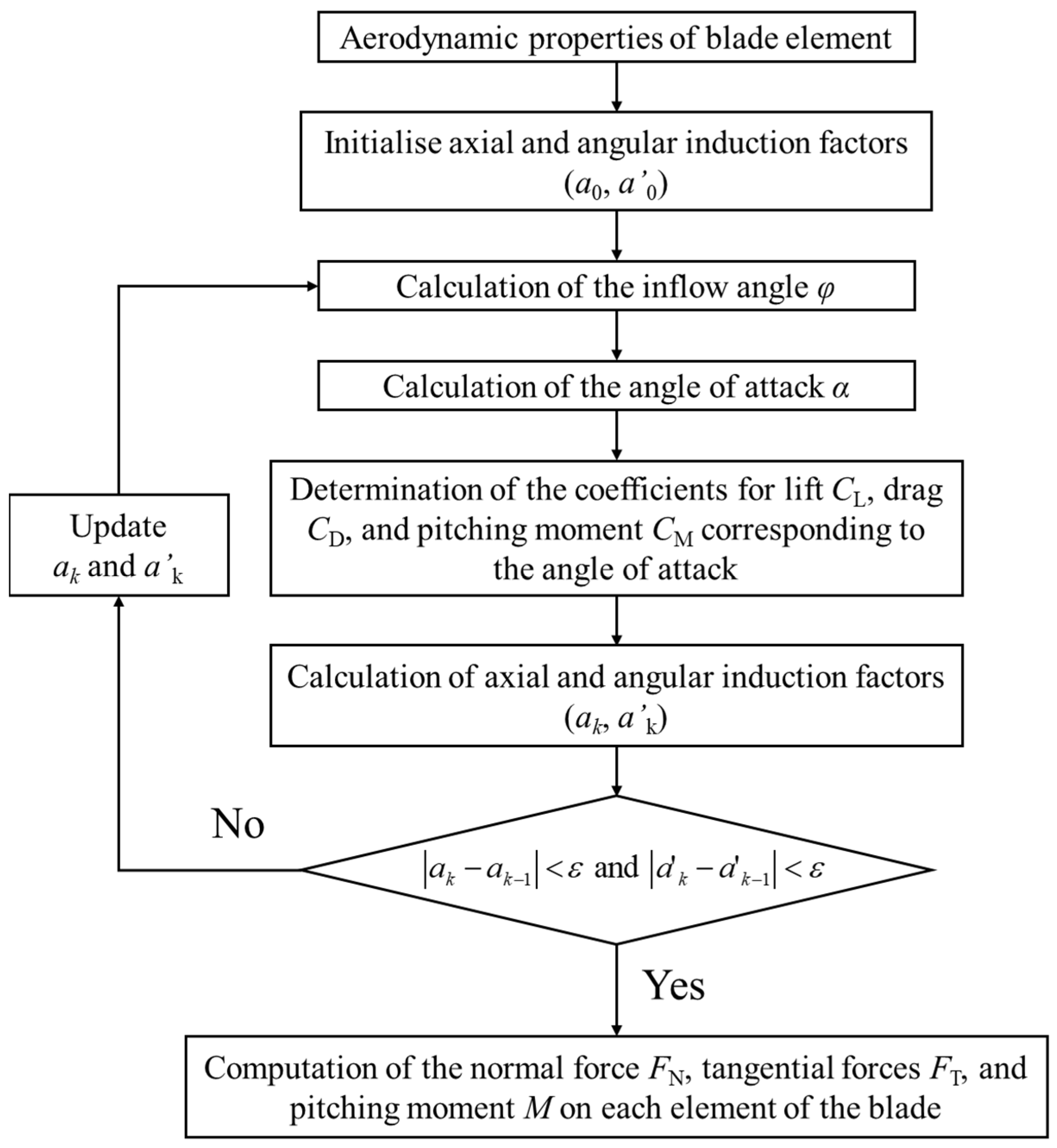

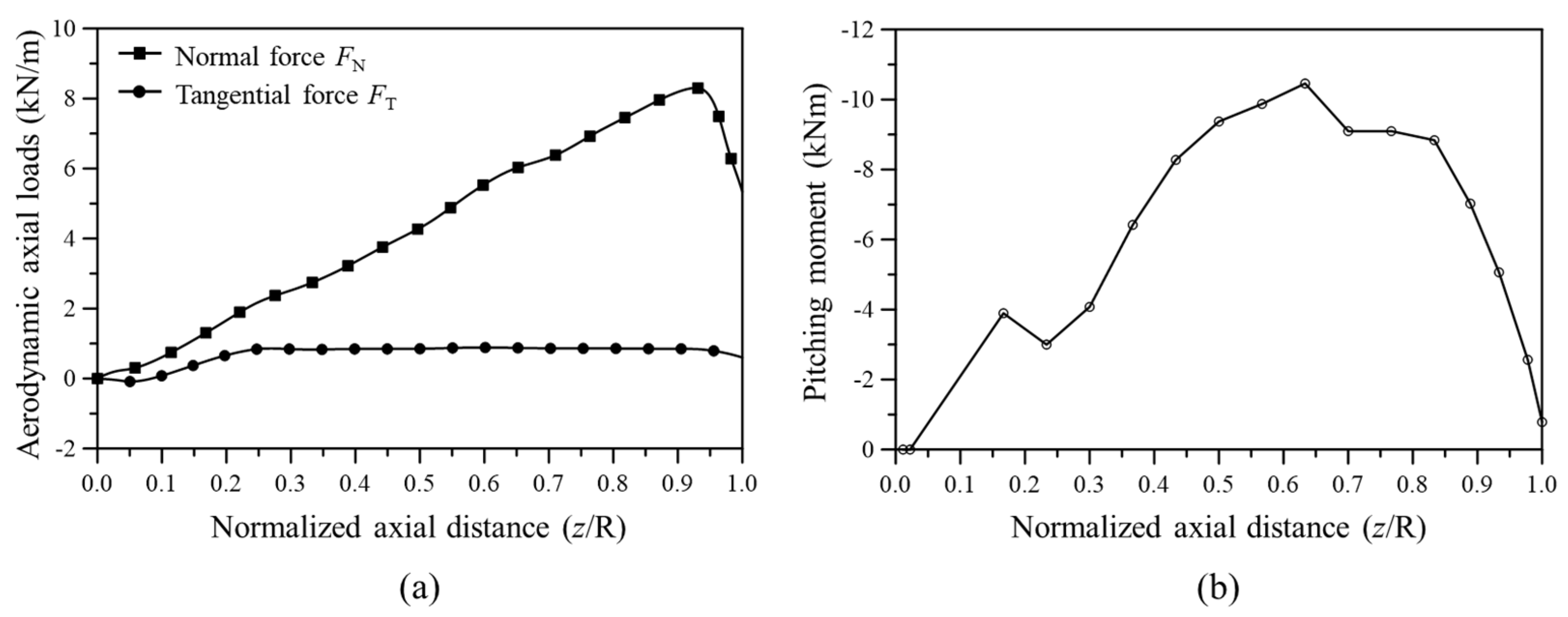

2.3. Loading and Boundary Conditions
3. Results and Discussion

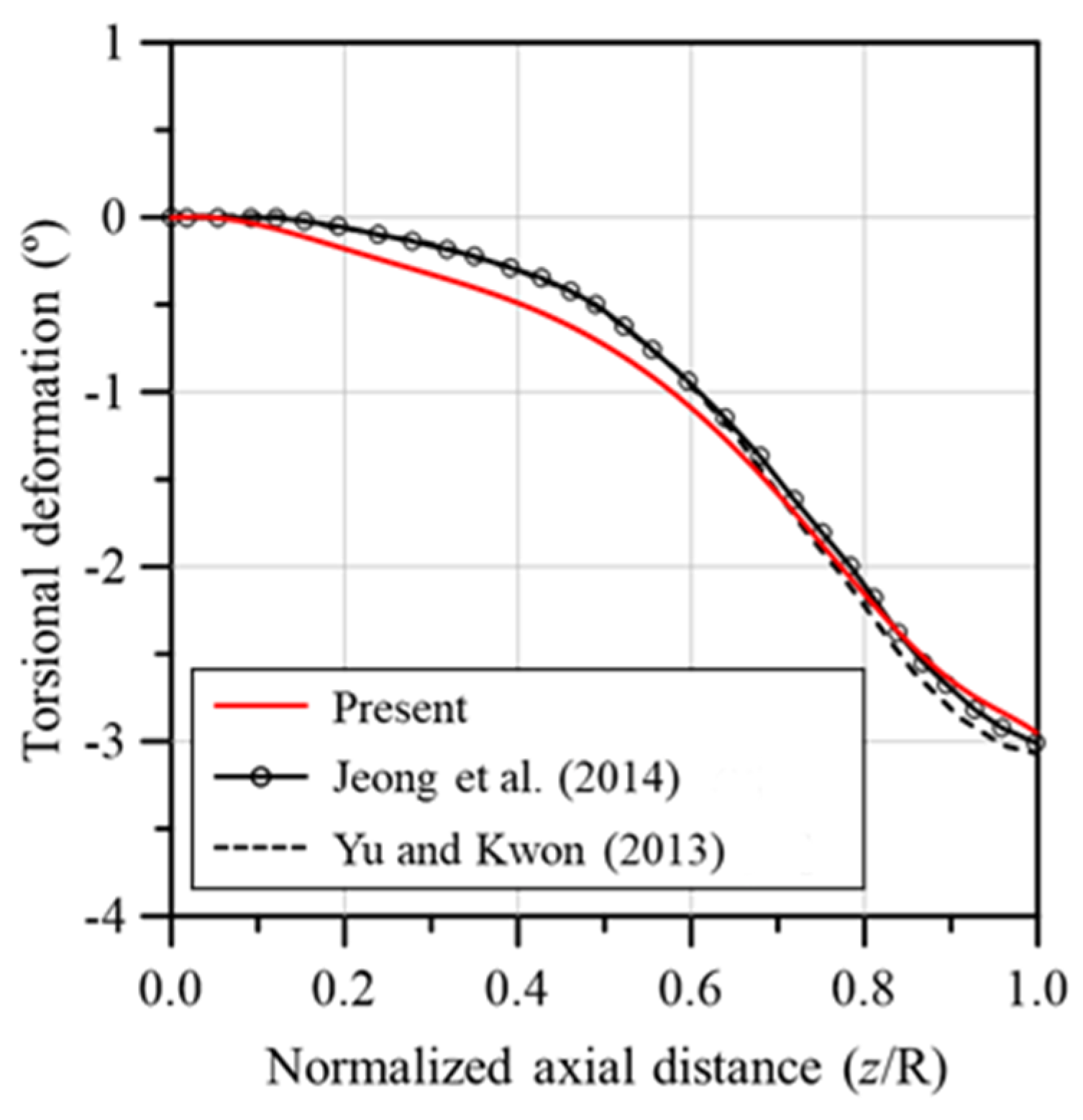

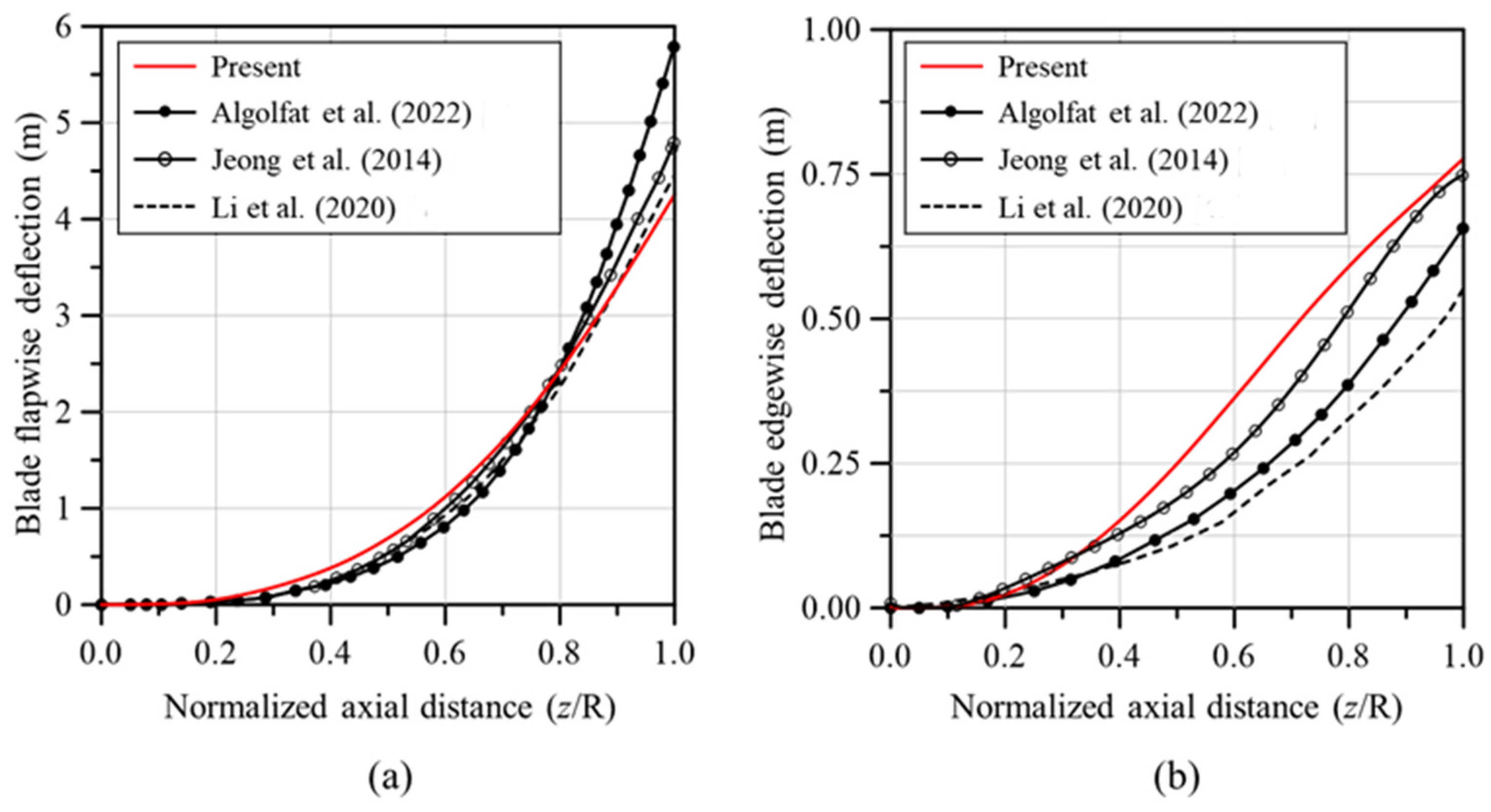

3.1. Validation of the FEA Model

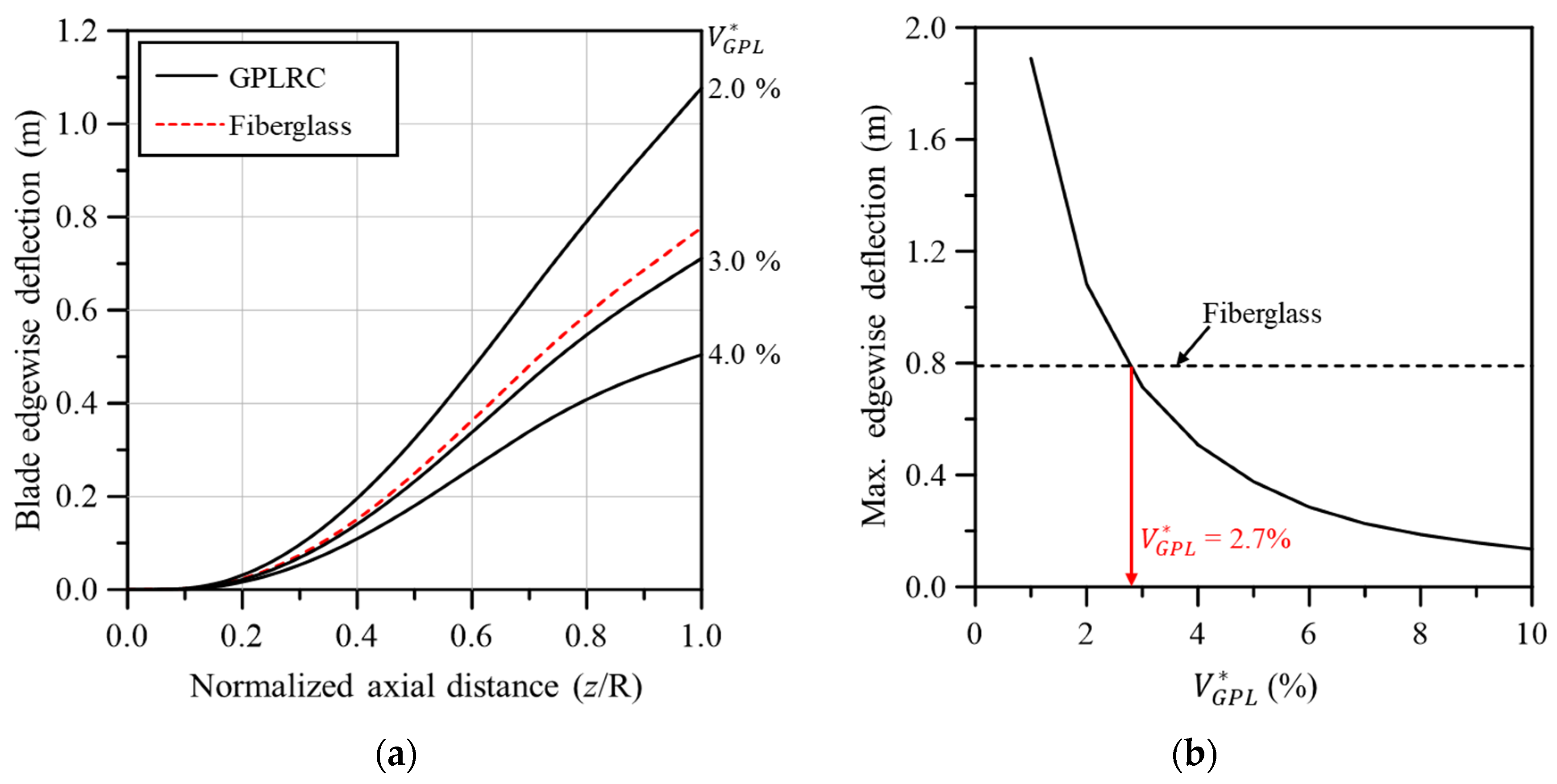

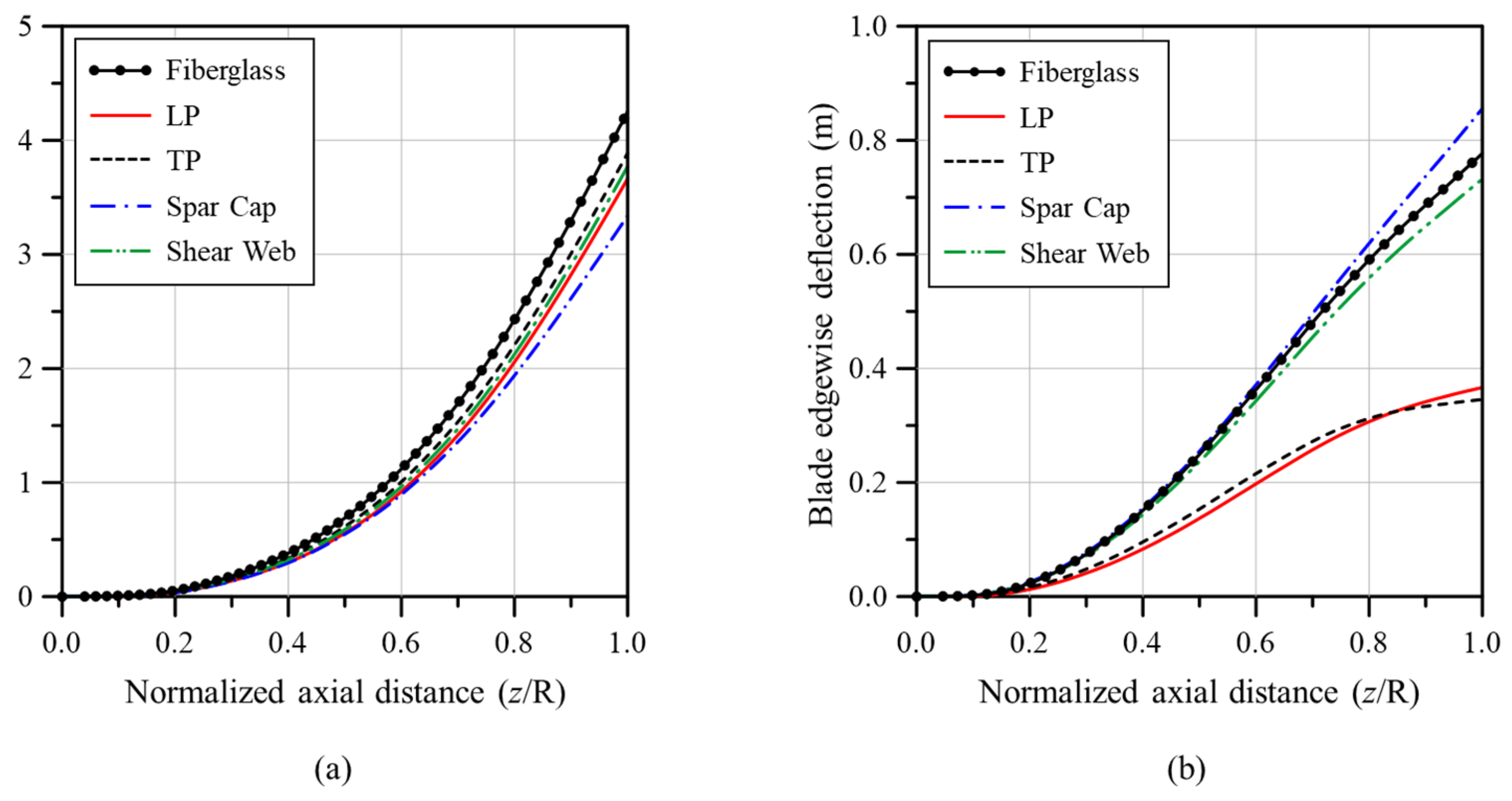

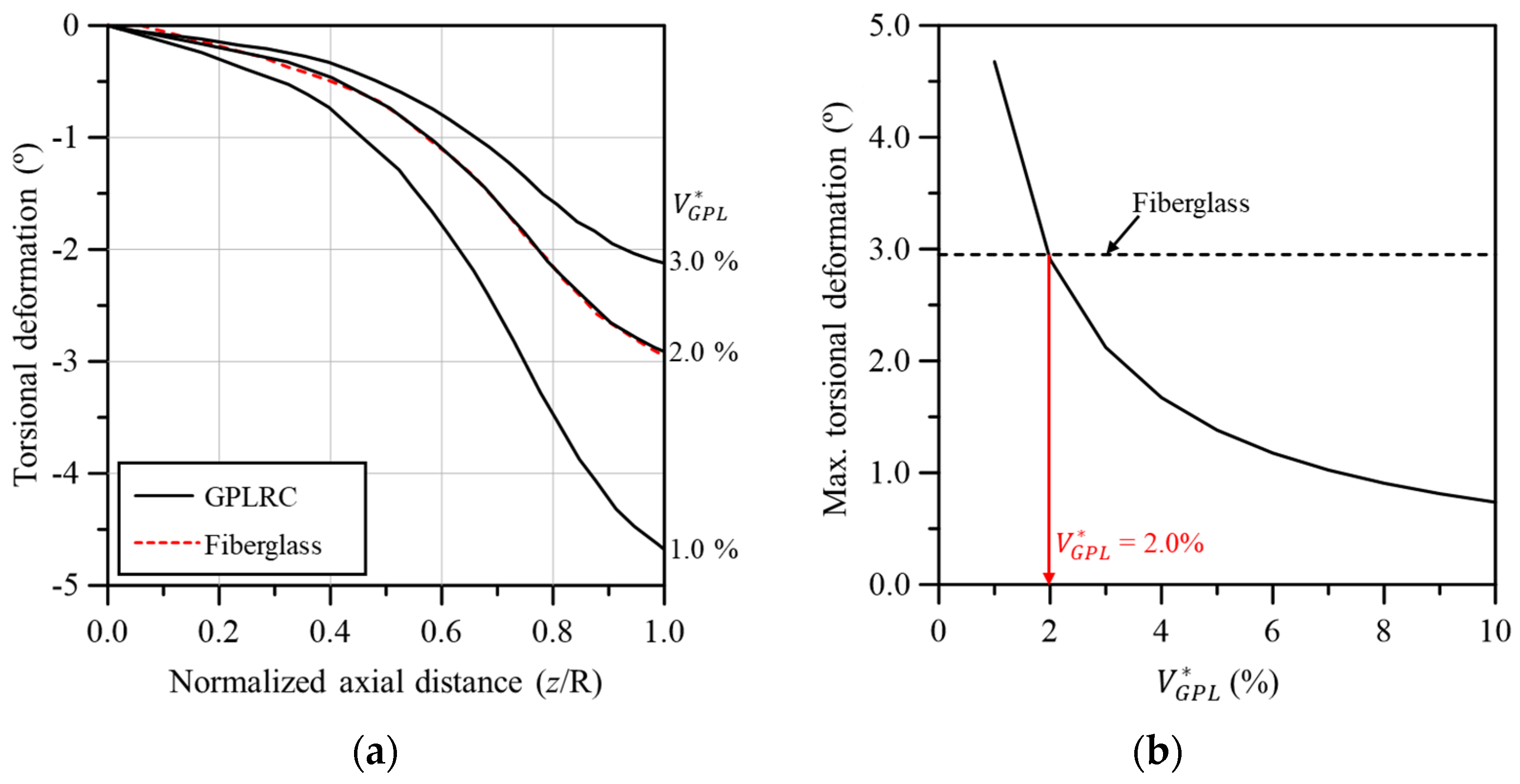

3.2. Mechanical Behaviors of GPL-Reinforced Wind Turbine Blade
3.2.1. Static Bending
3.2.2. Free Vibration
3.3. Cost–Benefit Analysis
4. Conclusions

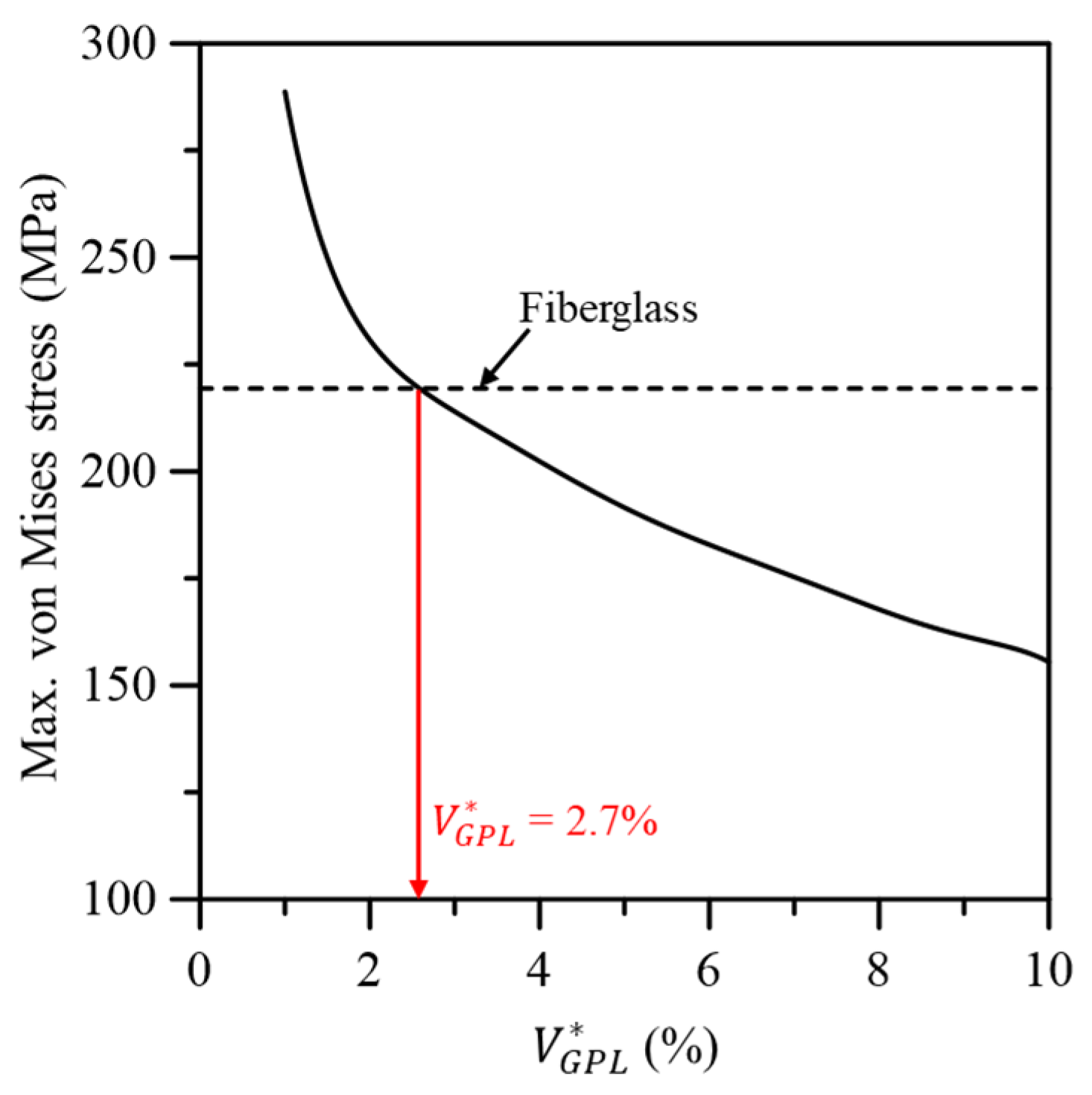

- Flapwise deflection, edgewise deflection, and von Mises stress exhibited similar performance to the wind turbine blade based on conventional fiberglass composites when was 2.7%, whereas torsional deformation exhibited the most similar performance when was 2.0%;

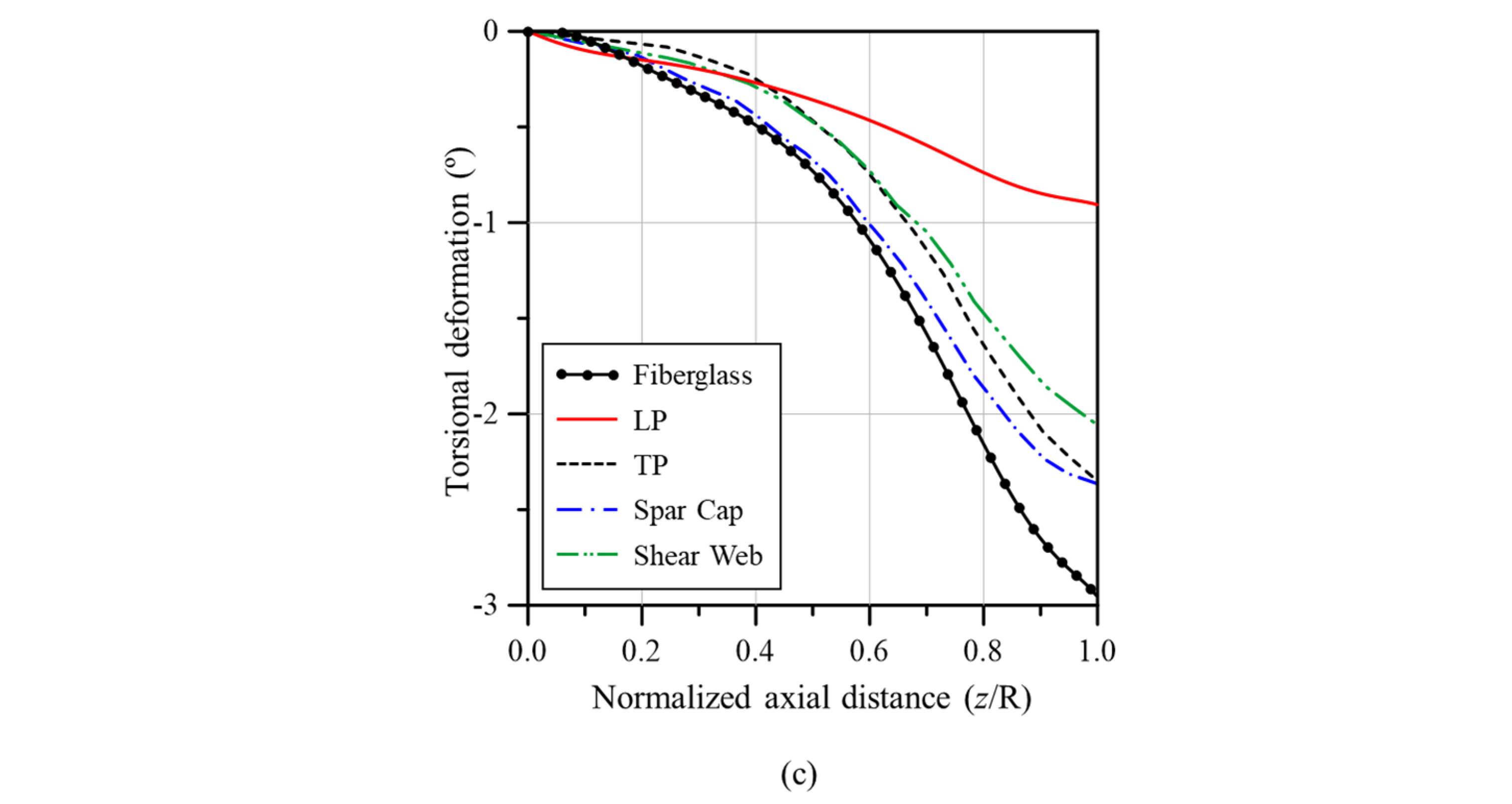

- When the GPL reinforcement position (leading part (LP), trailing part (TP), spar cap, and shear web) in the wind turbine blade was different, fiberglass showed the largest flapwise deflection, succeeded by the TP, shear web, LP, and spar cap. The spar cap exhibited the largest edgewise deflection, succeeded by the fiberglass, shear web, LP, and TP. In addition, fiberglass had the largest torsional deformation, succeeded by the spar cap, TP, shear web, and LP;

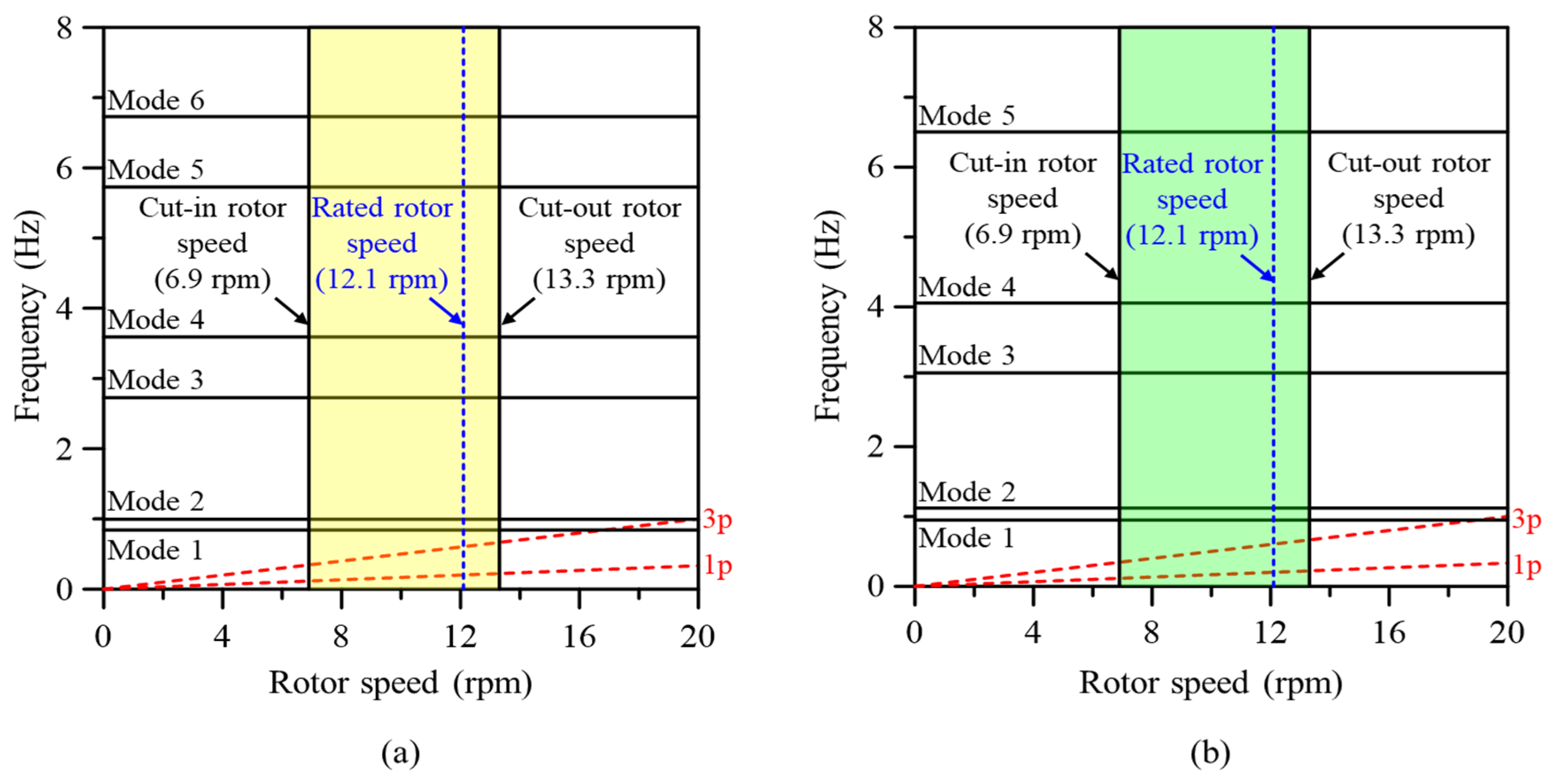

- When the resonance of the analysis model was evaluated using a Campbell diagram, the possibility of resonance was lower for the blade with the GPLRC than that with fiberglass;

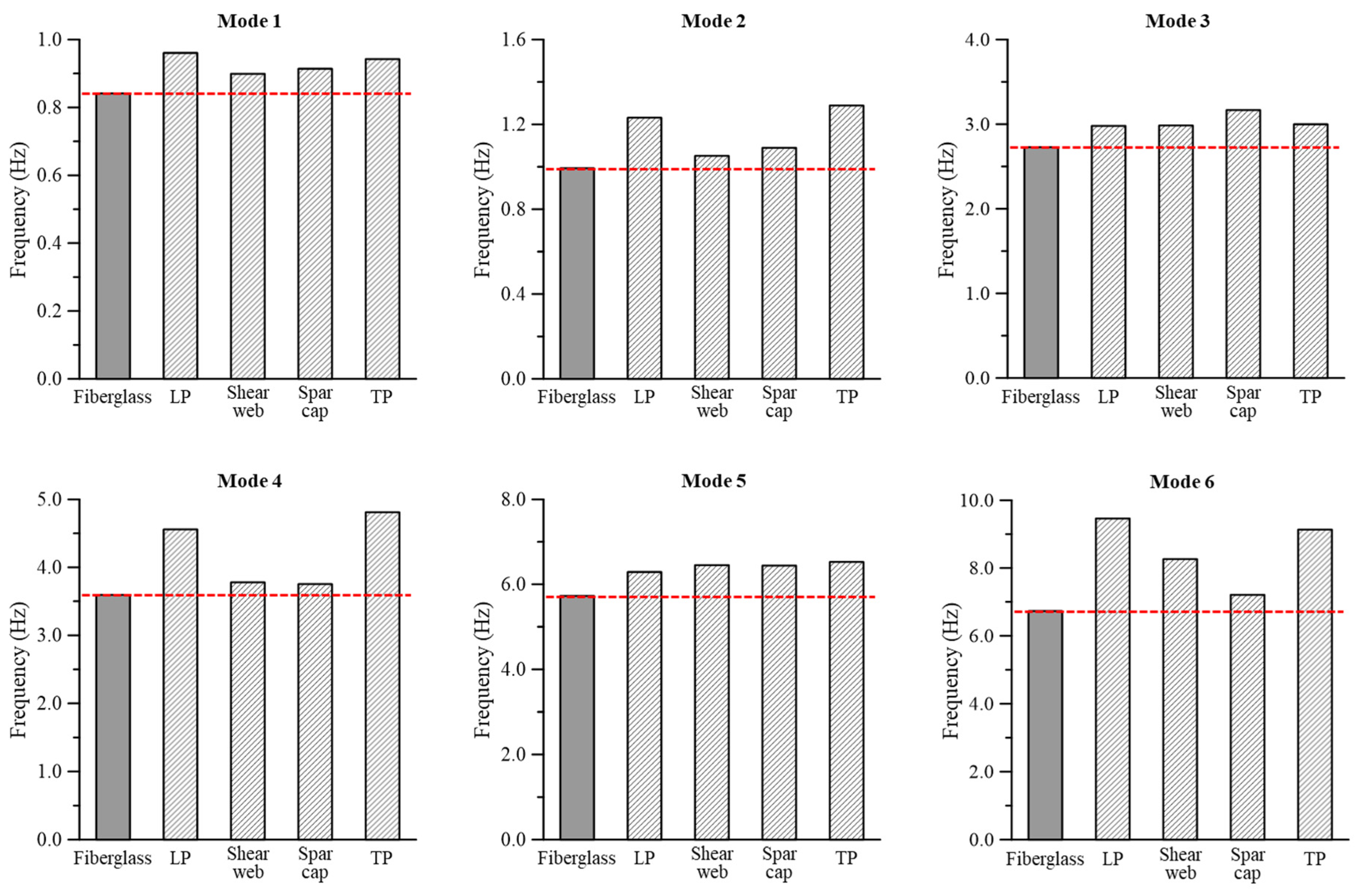

- When natural frequency characteristics were analyzed according to the GPL reinforcement position in the wind turbine blade, the same mode shape as the wind turbine blade with conventional fiberglass composites was observed in all cases. This study confirmed that the natural frequencies of the blades with the GPLRC were always higher than those with fiberglass;
- Similar mechanical performance was achieved by increasing the volume fraction of GPLs while significantly reducing the weight of the blade even if the thickness of the GPLRC in the wind turbine blade was reduced;

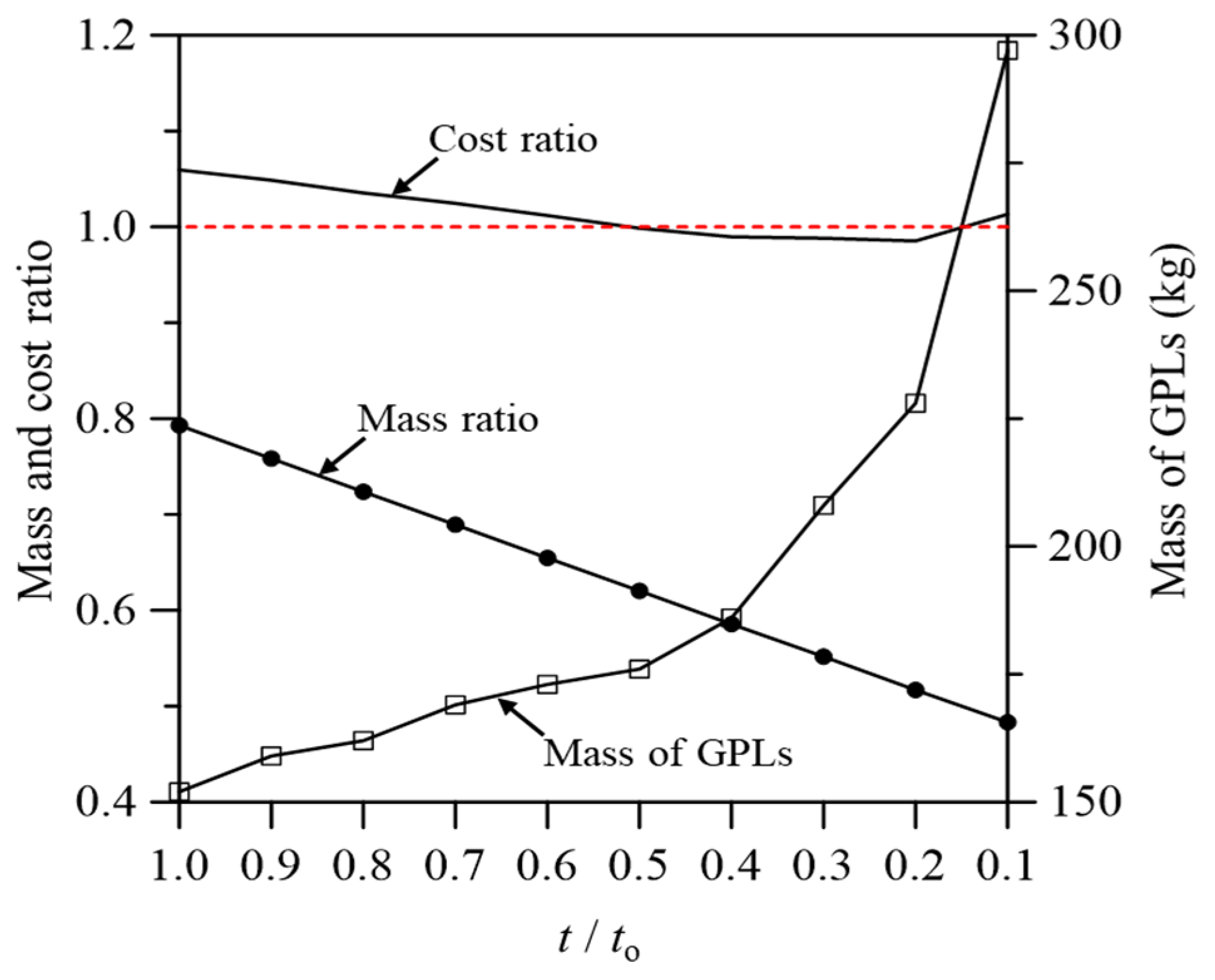

- When changes in the GPL content, blade weight, and cost due to the GPLRC thickness reduction were analyzed, the GPL content increased and the blade weight decreased as the thickness of the GPLRC decreased. The material cost remained similar to the blade based on conventional fiberglass composites.
