An Evaluation of the Impact Effect on the Surface Microstructure and Its Induced Temperature Changes during Ultrasonic-Assisted Micro-Forging
Abstract
:1. Introduction
2. Experiment Set-Up and Materials

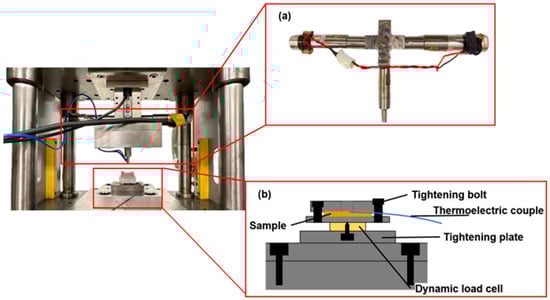

2.1. Design of the Micro-Forging Device

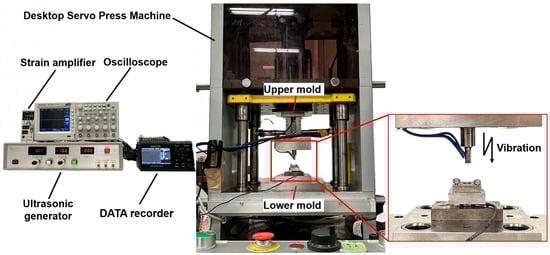

2.1.1. Ultrasonic-Assisted Micro-Forging Test System

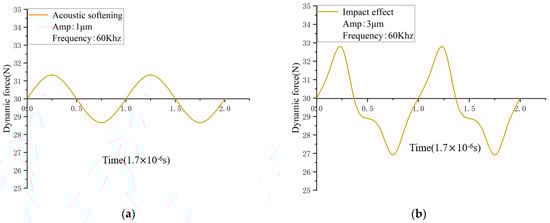

2.1.2. Upper Mold of the Ultrasonic-Assisted Micro-Forging System
2.1.3. Lower Mold of the Ultrasonic-Assisted Micro-Forging System

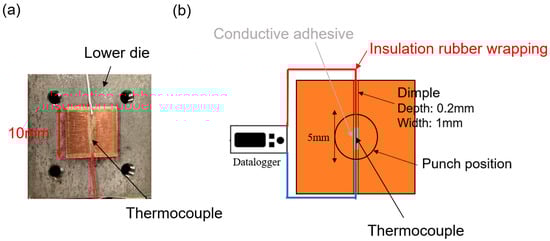

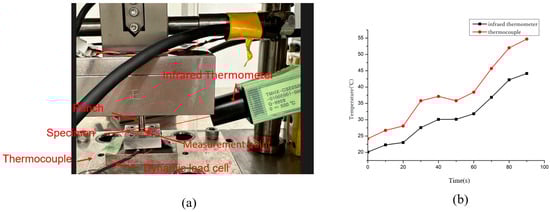

2.1.4. Surface Temperature Monitoring System and the Specimen
2.2. Forging Test Conditions and Materials
3. Results and Discussion
3.1. Evaluation of the Temperature Change under Different Amplitudes

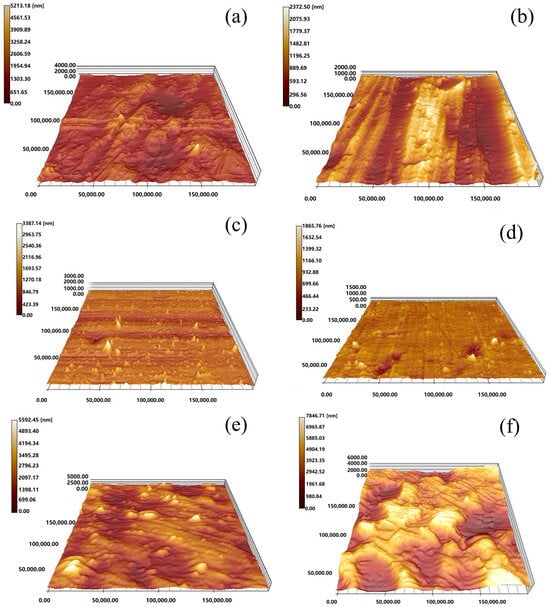

3.2. Effect of Temperature on Surface Topography
3.3. The Microstructure Analysis
4. Conclusions
- (1)

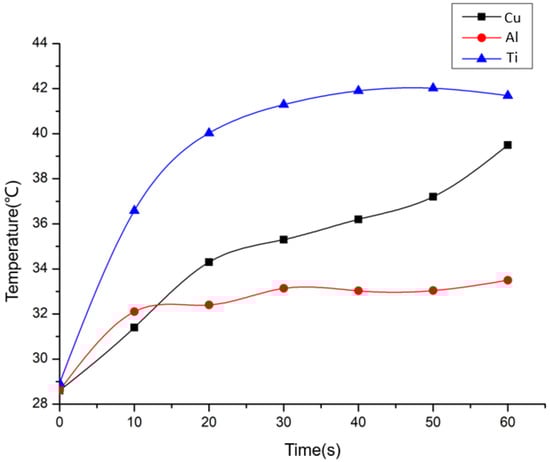

- During ultrasonic-assisted microforging, ultrasonic energy is converted to heat on the surface of the material, causing an increase in temperature, where the average surface temperatures of aluminum, copper, and titanium increase from room temperature to approximately 35°, 41°, and 43°.
- (2)

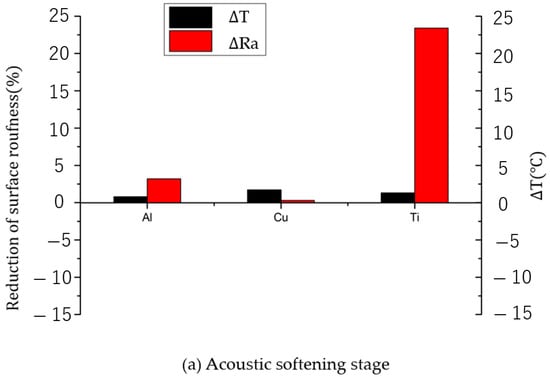

- During the acoustic softening stage, the increase in temperature is very limited for all three materials, with only a change of almost 2° to 5°.
- (3)

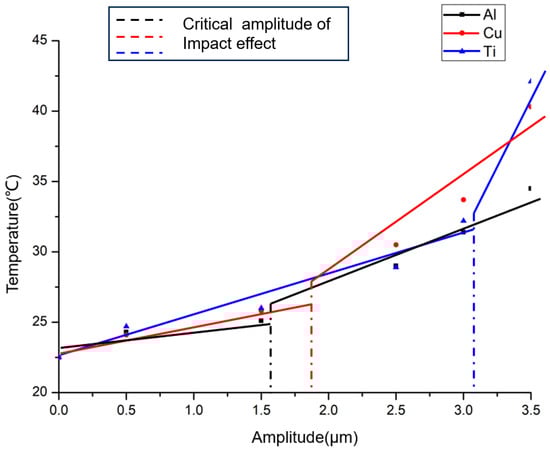

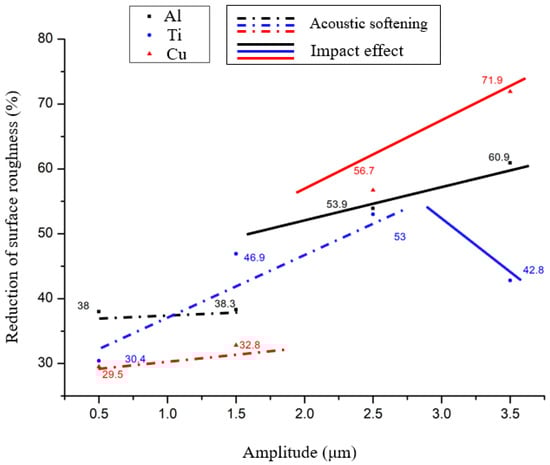

- The rapid rise in surface temperature of each material occurs after the impact effect, and this temperature rise is enhanced by the increase in amplitude, as large amplitudes lead to larger strain rates.
- (4)

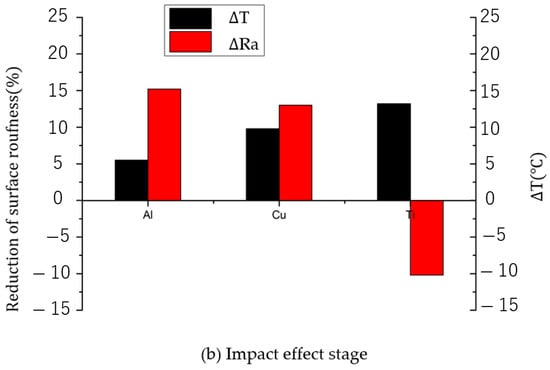

- Thermal softening due to the temperature increase caused by the impact effect leads to further softening of the FCC material surface compared to the acoustic softening phase. However, for the HCP material titanium, the impact-effect-induced work hardening has a greater influence than the thermal softening effect.
- (5)

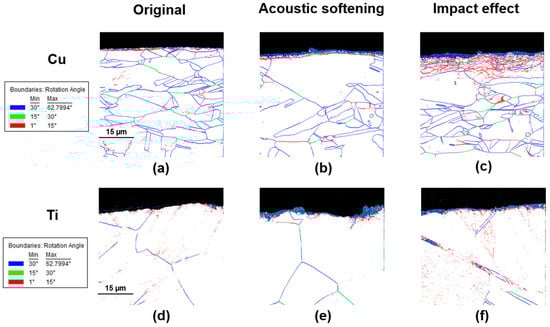

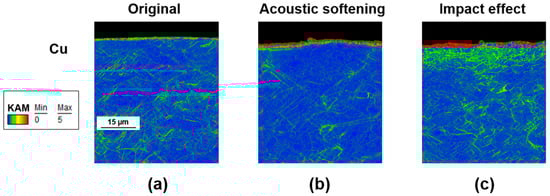

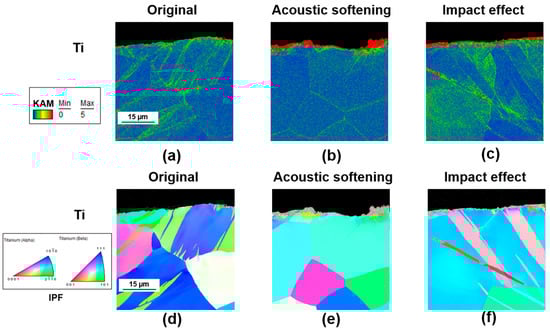

- Microstructure evolutions show that the impact effect on FCC materials could reach deeper into the material due to the temperature diffusion compared to titanium. Also, during the impact effect stage, regenerated twinning, which is reduced under the influence of acoustic softening, consequently results in strain hardening on the surface of titanium.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Blaha, F.; Langenecker, B. Dehnung von Zink-Kristallen unter Ultraschalleinwirkung. Naturwissenschaften 1955, 20, 556. [Google Scholar] [CrossRef]
- Wang, C.; Zhang, W.; Cheng, L.; Zhu, C.; Wang, X.; Han, H.; He, H.; Hua, R. Investigation on microsheet metal deformation behaviors in ultrasonic-vibration-assisted uniaxial tension with aluminum alloy 5052. Materials 2020, 13, 637. [Google Scholar] [CrossRef]
- Zhai, J.; Guan, Y.; Li, Y.; Liu, Y.; Lin, J. The surface effect of ultrasonic vibration in double cup extrusion test. J. Mater. Process. Technol. 2022, 299, 117344. [Google Scholar] [CrossRef]
- Malekipour, E.; Sharifi, E.; Majd, N.S.; Heidary, H. Observation on the behavior of ultrasonic micro-hammer and its effects on the deep drawing process: Numerical simulation and experimental study. Ultrasonics 2022, 119, 106566. [Google Scholar] [CrossRef]
- Liu, Y.; Shan, X.; Guo, K.; Yang, Y.; Xie, T. Experimental study on titanium wiredrawing with ultrasonic vibration. Ultrasonics 2017, 83, 60–67. [Google Scholar] [CrossRef]
- Hung, J.C.; Lin, C.C. Investigations on the material property changes of ultrasonic-vibration assisted aluminum alloy upsetting. Mater. Des. 2013, 45, 412–420. [Google Scholar] [CrossRef]
- Yi, Y.; Zheng, Q.; Furushima, T. Study of hot tensile deformation behavior and microstructure characteristics of Zn-22Al microtubes using direct resistance heating-assisted tensile tests. Mater. Sci. Eng. A 2024, 890, 145893. [Google Scholar] [CrossRef]
- Walczyk, D.F.; Vittal, S. Bending of titanium sheet using laser forming. J. Manuf. Process. 2000, 2, 258–269. [Google Scholar] [CrossRef]
- Vollertsen, F.; Niehoff, H.S.; Hu, Z. State of the art in micro forming. Int. J. Mach. Tools Manuf. 2006, 46, 1172–1179. [Google Scholar] [CrossRef]
- Fu, M.W.; Wang, J.L. Size effects in multi-scale materials processing and manufacturing. Int. J. Mach. Tools Manuf. 2021, 167, 103755. [Google Scholar] [CrossRef]
- Wan, W.; Cheng, J.; Xu, L.; Liu, F.; Zhang, H.; Han, G. Investigation on Friction Characteristics of Micro Double Cup Extrusion Assisted by Different Ultrasonic Vibration Modes. Int. J. Adv. Manuf. Technol. 2022, 123, 2549–2560. [Google Scholar] [CrossRef]
- Zhao, J.; Wang, T.; Jia, F.; Li, Z.; Zhou, C.; Huang, Q.; Jiang, Z. Experimental Investigation on Micro Deep Drawing of Stainless Steel Foils with Different Microstructural Characteristics. Chin. J. Mech. Eng. 2021, 34, 40. [Google Scholar] [CrossRef]
- Huang, Y.M.; Chang, Y.M. The Reducing of Springback Angle on Micro-Bending Process with Ultrasonic Assistance. J. Chin. Soc. Mech. Eng. Ser. C Trans. Chin. Soc. Mech. Eng. 2014, 35, 321–325. [Google Scholar]
- Xu, J.; Wang, X.; Wang, C.; Yuan, L.; Chen, W.; Bao, J.; Su, Q.; Xu, Z.; Wang, C.; Wang, Z.; et al. A Review on Micro/Nanoforming to Fabricate 3D Metallic Structures. Adv. Mater. 2021, 33, 2000893. [Google Scholar] [CrossRef]
- Wan, W.; Yin, Z.; Han, G.; Yang, M.; Hu, J.; Liu, F.; Xu, L.; Bai, W.; Chen, H. Mechanical properties and microstructure evolution of T2 copper in multimodal ultrasonic vibration assisted micro-compression. J. Mater. Sci. Technol. 2024, 208, 152–163. [Google Scholar] [CrossRef]
- Zhang, H.; Shi, J.; Deng, L.; Tang, X.; Jin, J.; Zhang, M.; Gong, P.; Wang, X. Grain size effect on anisotropic acoustoplasticity of rolled α-Ti during ultrasonic vibration-assisted compression. Mater. Sci. Eng. A 2024, 898, 146407. [Google Scholar] [CrossRef]
- Wang, Y.; Hou, Y.; Liu, Y.; Hu, N.; Wang, C.; Lang, L. Investigation of ultrasonic deformation characteristics of ultrathin miniaturized TA1 foil. Mater. Sci. Eng. A 2020, 777, 139070. [Google Scholar] [CrossRef]
- Mao, Q.; Coutris, N.; Rack, H.; Fadel, G.; Gibert, J. Gibert, Investigating ultrasound-induced acoustic softening in aluminum and its alloys. Ultrasonics 2020, 102, 106005. [Google Scholar] [CrossRef] [PubMed]
- Liu, Y.; Wang, C.; Bi, R. Acoustic residual softening and microstructure evolution of T2 copper foil in ultrasonic vibration assisted micro-tension. Mater. Sci. Eng. A 2022, 841, 143044. [Google Scholar] [CrossRef]
- Wang, X.; Wang, C.; Liu, Y.; Liu, C.; Wang, Z.; Guo, B.; Shan, D. An energy based modeling for the acoustic softening effect on the Hall-Petch behavior of pure titanium in ultrasonic vibration assisted micro-tension. Int. J. Plast. 2021, 136, 102879. [Google Scholar] [CrossRef]
- Yin, Z.; Yang, M. Investigation on Deformation Behavior in the Surface of Metal Foil with Ultrasonic Vibration-Assisted Micro-Forging. Materials 2022, 15, 1907. [Google Scholar] [CrossRef] [PubMed]
- Hu, J.; Shimizu, T.; Yoshino, T.; Shiratori, T.; Yang, M. Ultrasonic dynamic impact effect on deformation of aluminum during micro-compression tests. J. Mater. Process. Technol. 2018, 258, 144–154. [Google Scholar] [CrossRef]
- Yao, C.; Chen, J.; Tan, L. Experimental investigation on surface integrity and fatigue performance of Ti60 alloy under ultrasonic impact treatment. Eng. Fail. Anal. 2024, 164, 108639. [Google Scholar] [CrossRef]
- Bai, Y.; Yang, M. Optimization of metal foils surface finishing using vibration-assisted micro-forging. J. Mater. Process. Technol. 2014, 214, 21–28. [Google Scholar] [CrossRef]
- Meng, B.; Cao, B.N.; Wan, M.; Xu, J.; Shan, D.B. Ultrasonic-assisted microforming of superalloy capillary: Modeling and experimental investigation. J. Manuf. Process. 2020, 57, 589–599. [Google Scholar] [CrossRef]
- Liu, T.; Lin, J.; Guan, Y.; Xie, Z.; Zhu, L.; Zhai, J. Effects of ultrasonic vibration on the compression of pure titanium. Ultrasonics 2018, 89, 26–33. [Google Scholar] [CrossRef]
- Bragov, A.; Igumnov, L.; Konstantinov, A.; Lomunov, A.; Rusin, E. Effects of High Strain Rate and Self-heating on Plastic Deformation of Metal Materials Under Fast Compression Loading. J. Dyn. Behav. Mater. 2019, 5, 309–319. [Google Scholar] [CrossRef]
- Samanta, S.K. Dynamic deformation of aluminium and copper at elevated temperatures. J. Mech. Phys. Solids 1971, 19, 117–135. [Google Scholar] [CrossRef]
- Tsukamoto, G.; Kunieda, T.; Mitsuhara, M.; Nakashima, H. Effect of twinning deformation on work hardening in commercially pure titanium. Mater. Sci. Eng. A 2022, 840, 142907. [Google Scholar] [CrossRef]
Material | G (GPa) | E (GPa) | Thermal Conductivity (W/m·K) | Original Ra (μm) | |
---|---|---|---|---|---|
Aluminum | 26 | 69 | 237 | 643 | 5.6 |
Copper | 48 | 110 | 401 | 1083 | 2.9 |
Titanium | 44 | 116 | 21.9 | 1668 | 11.4 |
