Influence of the Addition of Zinc, Strontium, or Magnesium Oxides to the Bioglass 45S5 Network on Electrical Behavior

by
Sílvia Rodrigues Gavinho
1,
Imen Hammami
1,
Suresh Kumar Jakka
1,
Sílvia Soreto Teixeira
1,
Jorge Carvalho Silva
2,
João Paulo Borges
3 and
Manuel Pedro Fernandes Graça
1,*
1
I3N and Physics Department, Aveiro University, 3810-193 Aveiro, Portugal
2
I3N-CENIMAT and Physics Department, NOVA School of Science and Technology, Campus de Caparica, 2829-516 Caparica, Portugal
3
I3N-CENIMAT and Materials Science Department, NOVA School of Science and Technology, Campus de Caparica, 2829-516 Caparica, Portugal
*
Author to whom correspondence should be addressed.
Materials 2024, 17(2), 499; https://doi.org/10.3390/ma17020499
Submission received: 20 December 2023 / Revised: 17 January 2024 / Accepted: 18 January 2024 / Published: 20 January 2024
(This article belongs to the Special Issue Bioactive Glass-Based Materials for Soft and Hard Tissue Regeneration: A New Future for Dental and Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
45S5 Bioglass has been widely used in regenerative medicine due to its ability to dissolve when inserted into the body. Its typically amorphous structure allows for an ideal dissolution rate for the formation of the hydroxyapatite layer, which is important for the development of new bone. This bioactive capacity can also be controlled by adding other oxides (e.g., SrO, ZnO, and MgO) to the 45S5 Bioglass network or by storing electrical charge. Ions such as zinc, magnesium, and strontium allow for specific biological responses to be added, such as antibacterial action and the ability to increase the rate of osteoblast proliferation. The charge storage capacity allows for a higher rate of bioactivity to be achieved, allowing for faster attachment to the host bone, decreasing the patient’s recovery time. Therefore, it is necessary to understand the variation in the structure of the bioglass with regard to the amount of non-bridging oxygens (NBOs), which is important for the bioactivity rate not to be compromised, and also its influence on the electrical behavior relevant to its potential as electrical charge storage. Thus, several bioactive glass compositions were synthesized based on the 45S5 Bioglass formulation with the addition of various concentrations (0.25, 0.5, 1, and 2, mol%) of zinc, strontium, or magnesium oxides. The influence of the insertion of these oxides on the network was evaluated by studying the amount of NBOs using Raman spectroscopy and their implication on the electrical behavior. Electrical characterization was performed in ac (alternating current) and dc (direct current) regimes.

1. Introduction

Implants play an important role in the treatment of various medical conditions, from replacing damaged or diseased tissues to restoring lost function. While titanium has long been the material of choice due to its exceptional biocompatibility and mechanical properties, it is not without its limitations. Weak bone regeneration and the risk of instability during the healing phase have been recognized as significant challenges in the field of implantology [1,2,3]. Surface treatments that improve surface roughness have been an important strategy for increasing osseointegration, allowing for a stronger bond between the implant and the surrounding bone tissue [4,5,6]. However, this strategy may not be sufficient to assure long-term implant success, especially in situations where inflammatory reactions can result in bone support loss and implant failure [7,8].
One potential solution to these problems is to coat implants with bioactive materials [9,10,11,12]. Bioglass, composed of 46.1SiO2-24.4Na2O-26.9CaO-2.6P2O5 in mol%, was first introduced by Larry L. Hench in the 1960s and has since opened the way for numerous breakthroughs in the implant industry [13,14,15,16]. Its remarkable bioactivity, particularly in the context of coating metal implants, exceeds that of conventional biomaterials. The crucial factor to its effectiveness lies in the formation of a strong, carbonated hydroxyapatite layer that mimics the structure of the host bone, ensuring an effective chemical bond and thereby emphasizing the stability of the implant [13,17,18,19,20]. Moreover, bioglass exhibits inherent osteoinductive and osteogenic properties, stimulating the recruitment and differentiation of human primary osteoblasts, thereby enhancing their proliferation [16,21,22].
Several studies have shown that the incorporation of therapeutic agents into bioglass enhances its biological properties [23,24,25,26,27,28,29]. Zinc (Zn) is an essential nutrient element that is essential in DNA replication and plays a relevant role in cell growth, development, and differentiation [30,31]. Moreover, it has been shown to have antimicrobial activities against various microorganisms [32,33,34]. Magnesium (Mg) is an important element for cellular activity, promoting the proliferation and differentiation of osteoblasts [35,36,37,38,39]. Furthermore, its deficiency can lead to impaired bone growth, heightened trabecular bone loss, and increased bone resorption. Strontium (Sr) plays an important role in the process of bone regeneration [40,41]. Its influence extends to enhancing bone microarchitecture and elevating bone mineral density [40]. Strontium exerts biological effects by promoting osteogenesis, thereby improving the proliferation and differentiation of pre-osteoblastic cells into osteoblasts. Additionally, it hinders the process of bone resorption and osteoclast differentiation and activity, thereby avoiding osteoclastogenesis [42,43,44].
One of the key features that make bioglass an exceptional biomaterial is its ability to store large quantities of electrical charges with low polarization [45,46,47,48]. This remarkable property arises from the high mobility of sodium ion chains within its glass structure. The unique composition of bioglass allows it to accumulate and release electrical charges efficiently, which can be harnessed for various therapeutic purposes. The biological properties can be influenced by the charge type (whether it is positive or negative) and the quantity of accumulated charge [46]. It has been reported that surfaces with a negative charge promote tissue regeneration and enhance bone growth and osseointegration by stimulating osteoblast activity [49,50,51]. Yamashita et al. [45,52] explored apatite growth on crystalline hydroxyapatite (HA) and bioactive glass surfaces after electrical polarization. The surface charges influenced bioactivity, leading to enhanced calcium phosphate layer growth, increased cell proliferation, and improved osteoconductivity in vivo. Obata et al. [47,48] demonstrated that the electrical polarization of 45S5 Bioglass, influenced by sodium ion migration, could be controlled by polarization time, temperature, and applied voltage. Compared to HA, 45S5 bioglass achieved 1000 times higher polarization with 100 times lower DC field. Polarizing bioglass at 500 °C with 10 V for 1 h led to persistent surface charges, significantly enhancing bioactivity. Morphological differences in apatite layers were observed among non-polarized, positive, and negative surfaces after 2 h in simulated body fluid, but no distinctions were detected after 24 h. Verma et al. [53] established in their study that the presence of electrical charge on the 1393 bioglass surface (53 wt% SiO2, 20 wt% CaO, 12 wt% K2O, 6 wt% Na2O, 5 wt% MgO, 4 wt% P2O5) can affect its interaction with cells, potentially enhancing its antibacterial properties through electrostatic interaction as bacterial cells possess electric charge, and improving the proliferation and adhesion of osteoblast cells.
This paper aims to explore the electrical properties of 45S5 bioglass and assess whether the introduction of zinc, magnesium, and strontium oxides has any adverse effects on its charge storage capabilities. For this purpose, bioglasses modified with the insertion of various concentrations of ZnO, MgO, and SrO (0.25, 0.5, 1, and 2, mol%) were synthesized using the melt-quenching technique. Using impedance spectroscopy (IS), changes in the electrical properties of the prepared glasses were verified. Furthermore, morphological characterization was performed using scanning electron microscopy (SEM), and structural characterization was assessed using X-ray diffraction (XRD) and Raman spectroscopy.

2. Materials and Methods

2.1. Bioglasses Synthesis

The bioglass base composition used in this study was prepared based on the Bioglass® developed by Hench et al. (46.1SiO2-24.4Na2O-26.9CaO-2.6P2O5, mol%). The bioglass composition was modified by the incorporation of various concentrations (0.25, 0.5, 1, and 2, mol%) of ZnO (Zn0.25, Zn0.5, Zn1, and Zn2), MgO (Mg0.25, Mg0.5, Mg1, and Mg2), and SrO (Sr0.25, Sr0.5, Sr1, and Sr2). The chemical precursors, including SiO2, P2O5, CaCO3, Na2CO3, and MgO, or Sr(NO3)2 or ZnO, supplied by Sigma-Aldrich, Darmstadt, Germany, with a high purity grade (≥99%), were mixed and homogenized using a planetary ball-milling process for 1 h at 300 rpm. The obtained powders were calcined for 8 h at 800 °C and then melted in a platinum crucible at 1300 °C for 1 h. To ensure greater sample homogeneity, the bioactive glass was re-melted using the same parameters. To control the thickness of the samples, the molten glass was quenched between two casting plates, at room temperature, to obtain bulk glass samples. After, the obtained samples were polished to achieve uniform dimensions of approximately 1 mm in thickness.

2.2. Structural and Morphological Characterizations

Structural characterization was performed using X-ray diffraction and Raman spectroscopy. The bioactive glass was grinded in an agate mortar, and the powder was analyzed in a 2θ range between 10° and 60° using an Aeris-Panalytical diffractometer. The diffractometer worked at 40 kV and 14 mA, and CuKα radiation (λ = 1.54056 Å) was used.
Raman spectroscopy was conducted on the bulk samples using a Jobin Yvon HR800 spectrometer, Kyoto, Japan, equipped with an Ar+ laser (λ = 532 nm). The spectra were acquired in back-scattering geometry, spanning the spectral range from 200 to 1400 cm−1. The deconvolution process was performed using the OriginLab 2021 software.
Morphology characterization was performed on the bulk surface using a Vega 3 TESCAN SEM microscope, Brno, Czech Republic.

2.3. Electrical Characterization

Electrical measurements were performed on glass bulk samples with a uniform thickness of 1 mm. The surface area of the samples was measured utilizing ImageJsoftware 1.8.0 [51]. Subsequently, the opposing parallel surfaces of the samples were painted with a layer of silver conducting paste. Both direct current (dc) and alternating current (ac) analyses were conducted in a nitrogen bath cryostat, which allows for measurements in the temperature range from 100 to 400 K to be obtained. An Oxford Research IT-C4 system with temperature monitoring enabled by a platinum sensor was used to control the sample temperature. The dc conductivity was measured with a Keithley electrometer model 617A, applying a voltage of 100 V across the bulk glass. In the case of ac experiments, dielectric spectroscopy measurements were performed using an impedance analyzer, Agilent 4294A, Santa Clara, CA, United States. The measurements were carried out within a broad frequency range between 100 Hz and 1 MHz, employing the Cp−Rp configuration and applying an ac signal of 0.5 V. The complex electric permittivity ε* and the complex dielectric modulus M* formalisms were determined using Equation (1) and Equation (2) [54,55,56]:
ε* = ε′ − j ε″ = Cp (d/ε0 A) − j d (ω Rp ε0 A),
M* = 1/ε* = M′+ iM″ = ε′/(ε′2+ ε″2) + I ε″/(ε′2+ ε″2),
where Cp and Rp are the measured capacitance and resistance, d is the sample’s thickness, A is the electrode area, ε0 is the vacuum permittivity (8.8542 × 10−12 F/m), and ω is the angular frequency.
AC conductivity was calculated using the relation [51,56]:
σac* = ε0 ω ε″+ j ε0 ω ε′,
The activation energy was determined by adjusting the temperature dependence of electrical conductivity using the Arrhenius model [54,56,57]:
σ = σ0 exp (−EA/(kB T)),
where σ0 is a pre-exponential factor, EA is the activation energy, KB is the Boltzmann constant, and T is the temperature. The activation energy, EA, is therefore determined from the slope of the graph ln (σ) versus 1/T.

3. Results and Discussion

Figure 1 displays the XRD diffractograms for the base and the bioglasses with the highest concentration of MgO, ZnO, and SrO. The results show the typical amorphous behavior of 45S5 Bioglass. According to the literature, insertion of the oxides studied up to 2 mol% does not induce the formation of crystalline phases [58,59,60,61,62].
The Raman spectra of the prepared bioglasses are depicted in Figure 2, demonstrating a consistent trend among these samples. For silicate glasses, the most intriguing vibrational modes are those associated with symmetric and asymmetric stretching in the high-frequency region (800 and 1200 cm−1), regarded as especially significant.
To conduct a more comprehensive analysis, Gaussian fitting was applied to deconvolve the Raman spectra in this region. Figure 3 illustrates the deconvolution of the Raman spectra for bioglasses containing 0.25 and 2% mol of ZnO. Six distinguishable vibrational modes can be found at 860–865 cm−1, 903–910 cm−1, 938–942 cm−1, 965–973 cm−1, 1001–1010 cm−1, and 1050–1065 cm−1, which correspond to Q0 Si units, Q1 Si units, Q2 Si, Q0 P and Q1 P units, and Q3 Si units, respectively [63,64,65,66,67]. The areas of the bands obtained using the deconvolution of Raman spectra for the Qn units detected are represented in Table 1. The results obtained in Table 1 reveal the effect of oxides insertion.
Figure 4 shows the sum of the area of Raman vibration bands associated with non-bridging oxygen (NBOs), i.e., Q0, Q1, Q2, and Q3 of the Si and P units for all samples. The results demonstrate that the insertion of ZnO, MgO, and SrO oxides into the bioglass network does not change significantly the amount of NBOs compared to the base sample. However, an increase in the concentration of these oxides from 1.0 to 2.0% suggests an increasing tendency of NBOs.
Figure 5 shows the micrographs of the bioglasses surface of the base and the bioglass with 2 mol% of ZnO, SrO, and MgO. The morphology confirms its glassy structure. The imperfections present on the surface of the bulk were created by the production method and demonstrated to be useful for acquiring the image in SEM.
Figure 6 depicts the temperature dependence of the dielectric constant, ε′, for all samples at a frequency of 10 kHz. The results show an increase in the dielectric constant with increasing temperature, which is likely attributed to the enhanced mobility of the dipoles from the glass matrix [19,47]. Based on the analysis of Figure 4 and Table 2, it is evident that the introduction of oxides did not yield a significant alteration in the dielectric constant when compared to the bioglass base.
The dielectric properties of all the samples were analyzed using the modulus formalism, denoted as M*, defined as 1/ε*. This approach offers the advantage of minimizing the impact of low capacitance contributions, such as electrode polarization and low-frequency conductivity [19]. Figure 7 shows the variation in the imaginary part of the electric modulus versus the frequency at different temperatures for the Mg2 sample. Similar behavior was observed for all the prepared bioglass samples, indicating the presence of one dielectric relaxation process that shifts toward higher frequencies with increasing temperature. This particular dielectric relaxation behavior was not revealed by other approaches like permittivity, impedance, or admittance. Consequently, it can be deduced that the observed relaxation phenomenon is associated with an intrinsic characteristic related to the formation of dipoles between network modifiers and structurally proximate non-bridging oxygens.
Conductivity and the dynamics of charge carriers can be better understood by studying the frequency dependence of ac conductivity (σac). Figure 8 shows the variation in σac versus frequency for 45S5 bioglass.
At high temperatures, the variation in ac consists of two distinct regions. The initial one, situated in the region of low frequencies, is typically frequency-independent (horizontal plateau nature), giving rise to dc conductivity σdc resulting from the random diffusion of the ionic charge carriers through an activated hopping process. However, at a high frequency range, the conductivity increases linearly following a power law Aωs. Therefore, Jonscher’s model could be applied to describe the variation in the ac conductivity [68]:
σac = σdc + Aωs,
where σdc is the direct current conductivity, ω is the angular frequency, and A is a constant which determines the strength of polarizability. The exponent s in the equation represents the degree of interaction between mobile ions and their surrounding lattices. According to Funke et al. [69], the value of s holds physical significance. If s < 1, it implies that the load carriers undergo translational movement with a sudden jump. Conversely, when s > 1, it signifies a localized jump of the species (small jump without leaving the neighborhood).
To determine the conduction mechanism of ac conductivity for the prepared bioglass samples, the variation in the s exponent as a function of the temperature is reported in Figure 9. Various models have been considered to describe the variation in the s exponent with temperature. These models are based on two distinct processes, specifically, quantum–mechanical tunneling or classical hopping over a barrier, or a variant or combination of the two [70]. Carriers have been assumed to be atoms or electrons (or polarons). As can be seen in Figure 9, the exponent s decreases with temperature for all the samples, proving that the ac conduction mechanism refers to correlated barrier hopping (CBH) [71,72]. According to this model, the charge carrier leaps between the sites over the potential barrier separating them.

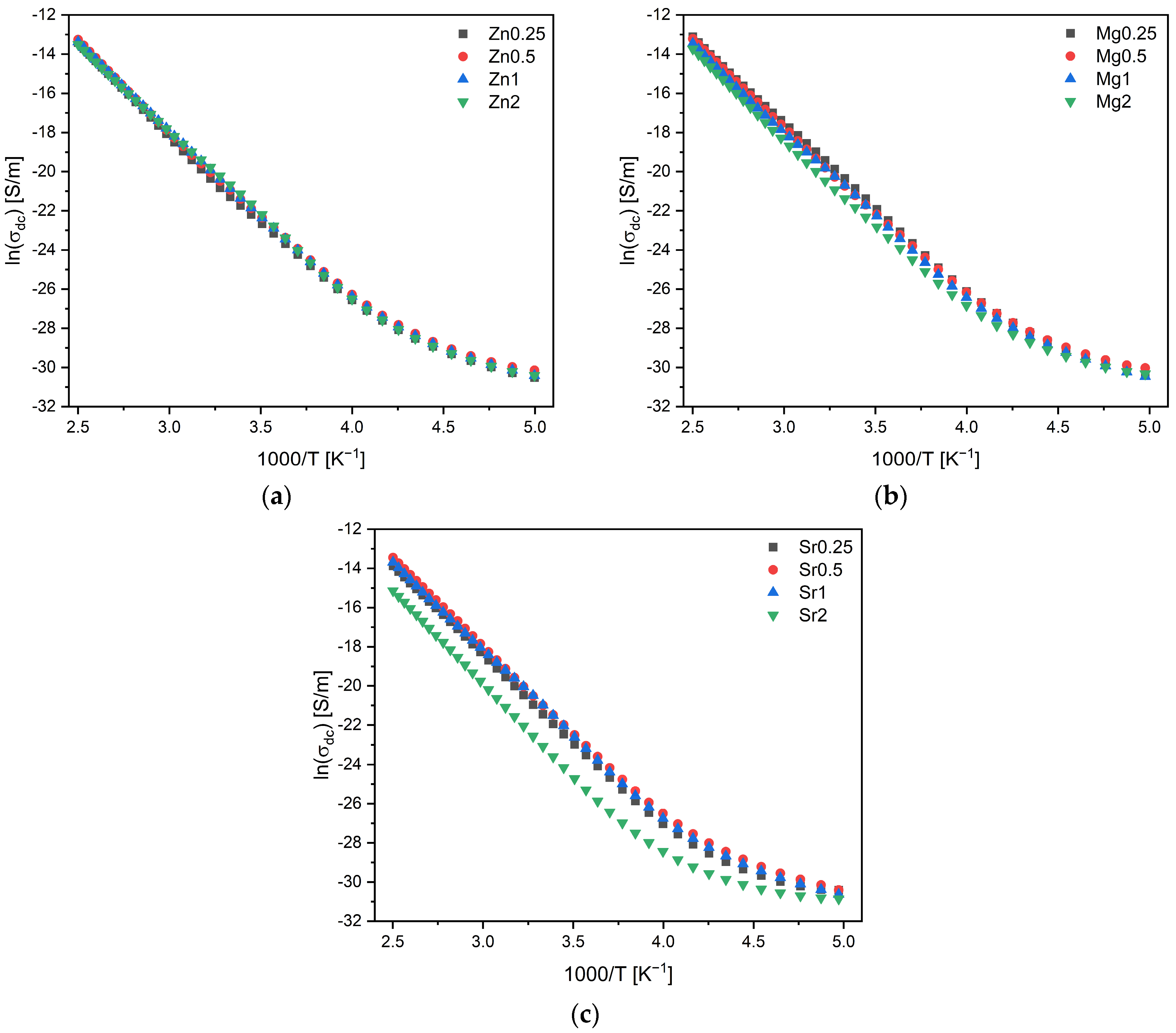

Figure 10 illustrates the variation in the dc conductivity versus 1000/T on a logarithmic scale. It must be mentioned that the results below 100 K are not showed because of the low signal–noise ratio. It is clear that conductivity increases with temperature due to the enhanced mobility of charge carriers. Beyond approximately 270 K, this variation becomes linear, suggesting that the activation energy associated with this thermally activated process can be calculated using the Arrhenius formalism. At these temperature ranges, the ionic contribution predominates over the electronic contribution in glasses. Therefore, the conductivity of the bioglasses is associated with the energy carried by the network modifier (NaO, CaO, and ZnO, or MgO or SrO) moving through the glass network [45,73].

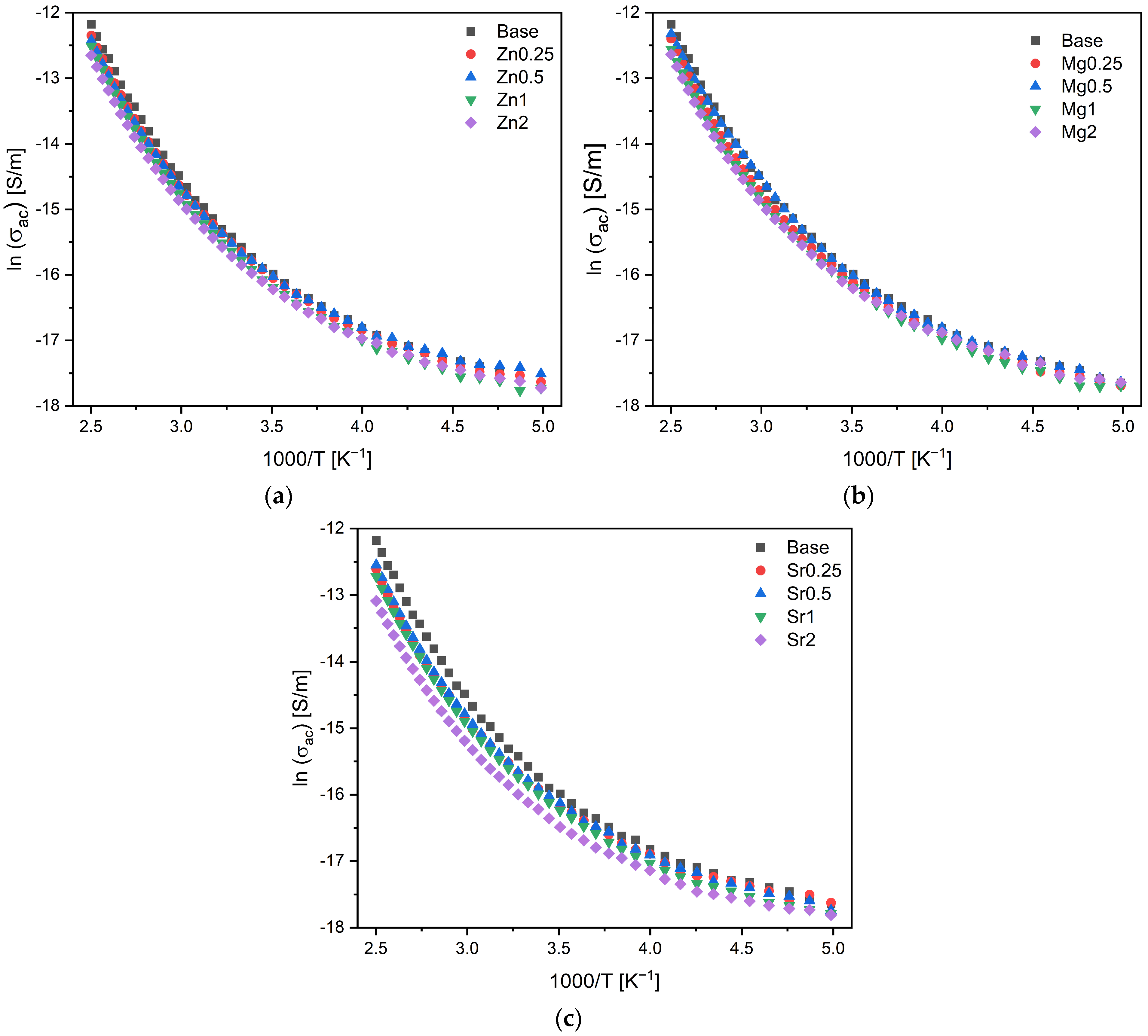

The temperature dependence of ac conductivity, as illustrated in Figure 11, exhibited a similar feature to that of dc conductivity. This suggests that the responsible units are similar to those in dc conductivity. The calculated activation energy for both ac and dc conductivity is reported in Table 2. The results show that the activation energy for dc conductivity is higher than that of ac conductivity. Furthermore, there are no discernible differences in activation energy across the samples. Consistent results are obtained for permittivity, which shows that the insertion of oxides does not induce a significant alteration. This finding demonstrates that the electrical charge storage property of 45S5 bioglass is not compromised by the addition of ZnO, MgO, or SrO at a concentration up to 2% mol.

4. Conclusions

A series of 45S5 bioactive glass modified by the addition of ZnO, MgO, and SrO was successfully produced using the melt-quenching technique. The Raman results did not show new vibration modes with the insertion of oxides until 2% mol. Nevertheless, the deconvolution of Raman spectra revealed that the incorporation of ZnO, MgO, and SrO into the bioglass network increases the amount of NBOs. However, increasing these oxides does not significantly impact NBOs levels. The electric response of the prepared glasses in the ac and dc regime did not show substantial changes with the addition of oxides. This is related to the insignificant change in the amount of NBO detected by Raman, probably associated with the low quantity of the added ZnO, MgO, or SrO. These results suggest that the potential of the bioglass to store electrical charge will not be compromised with the addition of ZnO, MgO, or SrO up to 2% mol. Therefore, all the prepared glasses have the ability to function as electrically charged coatings, one of the parameters that can induce a positive response in the bioactivity rate and consequently promote the bone regeneration process.

Author Contributions

Conceptualization, S.R.G. and M.P.F.G.; methodology, S.R.G., I.H. and M.P.F.G.; software, S.R.G. and I.H.; validation, M.P.F.G., J.C.S. and J.P.B.; formal analysis, I.H.; investigation, S.R.G., I.H., S.K.J., S.S.T. and M.P.F.G.; resources, M.P.F.G., J.C.S. and J.P.B.; data curation, S.R.G. and I.H.; writing—original draft preparation, S.R.G. and I.H.; writing—review and editing, M.P.F.G., J.C.S. and J.P.B.; visualization, I.H. and M.P.F.G.; supervision, M.P.F.G., J.C.S. and J.P.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FEDER funds through the COMPETE 2020 Program and National Funds through the FCT—Portuguese Foundation for Science and Technology under the projects LISBOA-01-0247-FEDER-039985/POCI-01-0247-FEDER-039985, LA/P/0037/2020, UIDP/50025/2020, and UIDB/50025/2020 of the Associate Laboratory Institute of Nanostructures, Nanomodelling and Nanofabrication—i3N, UIDP/04378/2020 and UIDB/04378/2020 of the Research Unit on Applied Molecular Biosciences—UCIBIO, and LA/P/0140/2020 of the Associate Laboratory Institute for Health and Bioeconomy—i4HB. S.R. Gavinho acknowledge the FCT—Portuguese Foundation for Science and Technology for the Ph.D. grant (SFRH/BD/148233/2019). S.K. Jakka acknowledges FCT—Fundaçao para a Ciência e a Tecnologia, Portugal, I.P., in the scope of the framework contract foreseen in the numbers 4, 5, and 6 of article 23 of the Decree Law 57/2016 of 29 August, changed by Law 57/2017 of 19 July.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Petersen, R.C. Titanium Implant Osseointegration Problems with Alternate Solutions Using Epoxy/Carbon-Fiber-Reinforced Composite. Metals 2014, 4, 549–569. [Google Scholar] [CrossRef] [PubMed]
  2. Silva, R.C.S.; Agrelli, A.; Andrade, A.N.; Mendes-Marques, C.L.; Arruda, I.R.S.; Santos, L.R.L.; Vasconcelos, N.F.; Machado, G. Titanium Dental Implants: An Overview of Applied Nanobiotechnology to Improve Biocompatibility and Prevent Infections. Materials 2022, 15, 3150. [Google Scholar] [CrossRef] [PubMed]
  3. Kearns, V.R.; Williams, R.L.; Mirvakily, F.; Doherty, P.J.; Martin, N. Guided Gingival Fibroblast Attachment to Titanium Surfaces: An in Vitro Study. J. Clin. Periodontol. 2013, 40, 99–108. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Q.; Zhou, P.; Liu, S.; Attarilar, S.; Ma, R.L.-W.; Zhong, Y.; Wang, L. Multi-Scale Surface Treatments of Titanium Implants for Rapid Osseointegration: A Review. Nanomaterials 2020, 10, 1244. [Google Scholar] [CrossRef] [PubMed]
  5. Guglielmotti, M.B.; Olmedo, D.G.; Cabrini, R.L. Research on Implants and Osseointegration. Periodontology 2000 2019, 79, 178–189. [Google Scholar] [CrossRef] [PubMed]
  6. Pádua, A.S.; Gavinho, S.R.; Vieira, T.; Hammami, I.; Silva, J.C.; Borges, J.P.; Graça, M.P.F. In Vitro Characterization of Doped Bioglass 45S5/HAp Coatings Obtained by CoBlastTM Deposition. Coatings 2023, 13, 1775. [Google Scholar] [CrossRef]
  7. Lung, C.Y.K.; Abdalla, M.M.; Chu, C.H.; Yin, I.; Got, S.-R.; Matinlinna, J.P. A Multi-Element-Doped Porous Bioactive Glass Coating for Implant Applications. Materials 2021, 14, 961. [Google Scholar] [CrossRef]
  8. Davidson, D.J.; Spratt, D.; Liddle, A.D. Implant Materials and Prosthetic Joint Infection: The Battle with the Biofilm. EFORT Open Rev. 2019, 4, 633–639. [Google Scholar] [CrossRef]
  9. Priyadarshini, B.; Rama, M.; Chetan; Vijayalakshmi, U. Bioactive Coating as a Surface Modification Technique for Biocompatible Metallic Implants: A Review. J. Asian Ceram. Soc. 2019, 7, 397–406. [Google Scholar] [CrossRef]
  10. Zafar, M.S.; Farooq, I.; Awais, M.; Najeeb, S.; Khurshid, Z.; Zohaib, S. Chapter 11-Bioactive Surface Coatings for Enhancing Osseointegration of Dental Implants. In Biomedical, Therapeutic and Clinical Applications of Bioactive Glasses; Kaur, G., Ed.; Woodhead Publishing Series in Biomaterials; Woodhead Publishing: Sawston, UK, 2019; pp. 313–329. ISBN 978-0-08-102196-5. [Google Scholar]
  11. Aswad, M.A.; Sabree, I.K.; Abd, A.H.S. An Examination of the Effect of Adding Zirconia to Bioactive Glass-Ceramic Properties. IOP Conf. Ser. Mater. Sci. Eng. 2021, 1067, 012121. [Google Scholar] [CrossRef]
  12. Joy-anne, N.O.; Su, Y.; Lu, X.; Kuo, P.-H.; Du, J.; Zhu, D. Bioactive Glass Coatings on Metallic Implants for Biomedical Applications. Bioact. Mater. 2019, 4, 261–270. [Google Scholar]
  13. Hench, L.L. The Story of Bioglass®. J. Mater. Sci. Mater. Med. 2006, 17, 967–978. [Google Scholar] [CrossRef] [PubMed]
  14. Hench, L.L. An Introduction to Bioceramics, 2nd ed.; World Scientific: Singapore, 2013; pp. 1–600. [Google Scholar] [CrossRef]
  15. Hench, L.L.; Greenspan, D. Interactions between Bioactive Glass and Collagen: A Review and New Perspectives. J. Aust. Ceram. Soc. 2013, 49, 1–40. [Google Scholar]
  16. Xynos, I.D.; Hukkanen, M.V.J.; Batten, J.J.; Buttery, L.D.; Hench, L.L.; Polak, J.M. Bioglass ®45S5 Stimulates Osteoblast Turnover and Enhances Bone Formation In Vitro: Implications and Applications for Bone Tissue Engineering. Calcif. Tissue Int. 2000, 67, 321–329. [Google Scholar] [CrossRef] [PubMed]
  17. Bano, S.; Romero, A.R.; Grant, D.M.; Nommeots-Nomm, A.; Scotchford, C.; Ahmed, I.; Hussain, T. In-Vitro Cell Interaction and Apatite Forming Ability in Simulated Body Fluid of ICIE16 and 13–93 Bioactive Glass Coatings Deposited by an Emerging Suspension High Velocity Oxy Fuel (SHVOF) Thermal Spray. Surf. Coat. Technol. 2021, 407, 126764. [Google Scholar] [CrossRef]
  18. Al Mugeiren, O.M.; Baseer, M.A. Dental Implant Bioactive Surface Modifiers: An Update. J. Int. Soc. Prev. Community Dent. 2019, 9, 1. [Google Scholar] [CrossRef] [PubMed]
  19. Hammami, I.; Gavinho, S.R.; Pádua, A.S.; Sá-Nogueira, I.; Silva, J.C.; Borges, J.P.; Valente, M.A.; Graça, M.P.F. Bioactive Glass Modified with Zirconium Incorporation for Dental Implant Applications: Fabrication, Structural, Electrical, and Biological Analysis. Int. J. Mol. Sci. 2023, 24, 10571. [Google Scholar] [CrossRef]
  20. Joy-anne, N.O.; Akande, O.; Ecker, M. Incorporation of Novel Elements in Bioactive Glass Compositions to Enhance Implant Performance. In Current Concepts in Dental Implantology-From Science to Clinical Research; IntechOpen: London, UK, 2021. [Google Scholar]
  21. Xynos, I.D.; Edgar, A.J.; Buttery, L.D.; Hench, L.L.; Polak, J.M. Ionic Products of Bioactive Glass Dissolution Increase Proliferation of Human Osteoblasts and Induce Insulin-like Growth Factor II mRNA Expression and Protein Synthesis. Biochem. Biophys. Res. Commun. 2000, 276, 461–465. [Google Scholar] [CrossRef]
  22. Silver, I.A.; Deas, J.; Erecińska, M. Interactions of Bioactive Glasses with Osteoblasts in Vitro: Effects of 45S5 Bioglass®, and 58S and 77S Bioactive Glasses on Metabolism, Intracellular Ion Concentrations and Cell Viability. Biomaterials 2001, 22, 175–185. [Google Scholar] [CrossRef]
  23. Kang, T.-Y.; Seo, J.-Y.; Ryu, J.-H.; Kim, K.-M.; Kwon, J.-S. Improvement of the Mechanical and Biological Properties of Bioactive Glasses by the Addition of Zirconium Oxide (ZrO2) as a Synthetic Bone Graft Substitute. J. Biomed. Mater. Res. Part A 2021, 109, 1196–1208. [Google Scholar] [CrossRef]
  24. Hammami, I.; Gavinho, S.R.; Pádua, A.S.; Graça, M.P.F.; Silva, J.C. Synthesis and Characterization of Iron Containing Bioactive Glass for Implants. In Proceedings of the 2022 E-Health and Bioengineering Conference (EHB), Iași, Romania, 17–18 November 2022; pp. 1–4. [Google Scholar]
  25. Gavinho, S.R.; Pádua, A.S.; Sá-Nogueira, I.; Silva, J.C.; Borges, J.P.; Costa, L.C.; Graça, M.P.F. Biocompatibility, Bioactivity, and Antibacterial Behaviour of Cerium-Containing Bioglass®. Nanomaterials 2022, 12, 4479. [Google Scholar] [CrossRef]
  26. Balamurugan, A.; Balossier, G.; Laurent-Maquin, D.; Pina, S.; Rebelo, A.H.S.; Faure, J.; Ferreira, J.M.F. An in Vitro Biological and Anti-Bacterial Study on a Sol-Gel Derived Silver-Incorporated Bioglass System. Dent. Mater. 2008, 24, 1343–1351. [Google Scholar] [CrossRef]
  27. Akhtach, S.; Tabia, Z.; El Mabrouk, K.; Bricha, M.; Belkhou, R. A Comprehensive Study on Copper Incorporated Bio-Glass Matrix for Its Potential Antimicrobial Applications. Ceram. Int. 2021, 47, 424–433. [Google Scholar] [CrossRef]
  28. Hammami, I.; Gavinho, S.R.; Jakka, S.K.; Valente, M.A.; Graça, M.P.F.; Pádua, A.S.; Silva, J.C.; Sá-Nogueira, I.; Borges, J.P. Antibacterial Biomaterial Based on Bioglass Modified with Copper for Implants Coating. J. Funct. Biomater. 2023, 14, 369. [Google Scholar] [CrossRef]
  29. Bargavi, P.; Chitra, S.; Durgalakshmi, D.; Radha, G.; Balakumar, S. Zirconia Reinforced Bio-Active Glass Coating by Spray Pyrolysis: Structure, Surface Topography, in-Vitro Biological Evaluation and Antibacterial Activities. Mater. Today Commun. 2020, 25, 101253. [Google Scholar] [CrossRef]
  30. Cacciotti, I. Bivalent Cationic Ions Doped Bioactive Glasses: The Influence of Magnesium, Zinc, Strontium and Copper on the Physical and Biological Properties. J. Mater. Sci. 2017, 52, 8812–8831. [Google Scholar] [CrossRef]
  31. Palanikumar, L.; Ramasamy, S.N.; Balachandran, C. Size-Dependent Antimicrobial Response of Zinc Oxide Nanoparticles. IET Nanobiotechnology 2014, 8, 111–117. [Google Scholar] [CrossRef]
  32. Ansari, M.A.; Khan, H.M.; Khan, A.A.; Sultan, A.; Azam, A. Characterization of Clinical Strains of MSSA, MRSA and MRSE Isolated from Skin and Soft Tissue Infections and the Antibacterial Activity of ZnO Nanoparticles. World J. Microbiol. Biotechnol. 2012, 28, 1605–1613. [Google Scholar] [CrossRef]
  33. Malka, E.; Perelshtein, I.; Lipovsky, A.; Shalom, Y.; Naparstek, L.; Perkas, N.; Patick, T.; Lubart, R.; Nitzan, Y.; Banin, E.; et al. Eradication of Multi-Drug Resistant Bacteria by a Novel Zn-Doped CuO Nanocomposite. Small 2013, 9, 4069–4076. [Google Scholar] [CrossRef]
  34. Gavinho, S.R.; Pádua, A.S.; Sá-Nogueira, I.; Silva, J.C.; Borges, J.P.; Costa, L.C.; Graça, M.P.F. Fabrication, Structural and Biological Characterization of Zinc-Containing Bioactive Glasses and Their Use in Membranes for Guided Bone Regeneration. Materials 2023, 16, 956. [Google Scholar] [CrossRef]
  35. Tabia, Z.; Mabrouk, K.E.; Bricha, M.; Nouneh, K. Mesoporous Bioactive Glass Nanoparticles Doped with Magnesium: Drug Delivery and Acellular in Vitro Bioactivity. RSC Adv. 2019, 9, 12232–12246. [Google Scholar] [CrossRef]
  36. Moghanian, A.; Sedghi, A.; Ghorbanoghli, A.; Salari, E. The Effect of Magnesium Content on in Vitro Bioactivity, Biological Behavior and Antibacterial Activity of Sol–Gel Derived 58S Bioactive Glass. Ceram. Int. 2018, 44, 9422–9432. [Google Scholar] [CrossRef]
  37. Coelho, C.C.; Padrão, T.; Costa, L.; Pinto, M.T.; Costa, P.C.; Domingues, V.F.; Quadros, P.A.; Monteiro, F.J.; Sousa, S.R. The Antibacterial and Angiogenic Effect of Magnesium Oxide in a Hydroxyapatite Bone Substitute. Sci. Rep. 2020, 10, 19098. [Google Scholar] [CrossRef]
  38. Damian-Buda, A.I.; Voicu, G.; Vasile, B.S.; Banciu, A.; Iordache, F.; Ciocan, L.T. Development of Mesoporous Borosilicate Bioactive Glass Nanoparticles Containing Mg2+ and Zn2+: Biocompatibility, Bioactivity and Antibacterial Activity. J. Non-Cryst. Solids 2022, 594, 121819. [Google Scholar] [CrossRef]
  39. Gavinho, S.R.; Pádua, A.S.; Holz, L.I.V.; Sá-Nogueira, I.; Silva, J.C.; Borges, J.P.; Valente, M.A.; Graça, M.P.F. Bioactive Glasses Containing Strontium or Magnesium Ions to Enhance the Biological Response in Bone Regeneration. Nanomaterials 2023, 13, 2717. [Google Scholar] [CrossRef]
  40. Mosaddad, S.A.; Yazdanian, M.; Tebyanian, H.; Tahmasebi, E.; Yazdanian, A.; Seifalian, A.; Tavakolizadeh, M. Fabrication and Properties of Developed Collagen/Strontium-Doped Bioglass Scaffolds for Bone Tissue Engineering. J. Mater. Res. Technol. 2020, 9, 14799–14817. [Google Scholar] [CrossRef]
  41. Chaichana, W.; Insee, K.; Chanachai, S.; Benjakul, S.; Aupaphong, V.; Naruphontjirakul, P.; Panpisut, P. Physical/Mechanical and Antibacterial Properties of Orthodontic Adhesives Containing Sr-Bioactive Glass Nanoparticles, Calcium Phosphate, and Andrographolide. Sci. Rep. 2022, 12, 6635. [Google Scholar] [CrossRef]
  42. Manoochehri, H.; Ghorbani, M.; Moosazadeh Moghaddam, M.; Nourani, M.R.; Makvandi, P.; Sharifi, E. Strontium Doped Bioglass Incorporated Hydrogel-Based Scaffold for Amplified Bone Tissue Regeneration. Sci. Rep. 2022, 12, 10160. [Google Scholar] [CrossRef]
  43. Mutreja, I.; Kumar, D.; Hogan, K.; Campbell, E.; Mansky, K.; Aparicio, C. Strontium- and Peptide-Modified Silicate Nanostructures for Dual Osteogenic and Antimicrobial Activity. Biomater. Adv. 2022, 135, 212735. [Google Scholar] [CrossRef]
  44. Kumar, A.; Banrjee, S.; Roy, P.; Xu, H.; Mariappan, C.R. Osteogenic Commitment of Strontium Nanoparticles Doped Mesoporous Bioactive Glass-Ceramics. Mater. Sci. Eng. B 2022, 286, 116068. [Google Scholar] [CrossRef]
  45. Obata, A.; Nakamura, S.; Moriyoshi, Y.; Yamashita, K. Electrical Polarization of Bioactive Glass and Assessment of Their in Vitro Apatite Deposition. J. Biomed. Mater. Res. Part A 2003, 67, 413–420. [Google Scholar] [CrossRef]
  46. Dubey, A.K.; Oyama, Y.; Kakimoto, K. Surface Charge-Assisted Synthesis of ZnO on Polarized BaTiO3 Substrate. Ionics 2019, 25, 1351–1358. [Google Scholar] [CrossRef]
  47. Obata, A.; Nakamura, S.; Yamashita, K. Interpretation of Electrical Polarization and Depolarization Mechanisms of Bioactive Glasses in Relation to Ionic Migration. Biomaterials 2004, 25, 5163–5169. [Google Scholar] [CrossRef]
  48. Obata, A.; Nakamura, S.; Sekijima, Y.; Yamashita, K. Control of Surface Reactions of Bioactive Glass by Electrical Polarization. J. Ceram. Soc. Jpn. 2004, S822–S825. [Google Scholar] [CrossRef]
  49. Kobayashi, M.; Saito, H.; Mase, T.; Sasaki, T.; Wang, W.; Tanaka, Y.; Nakamura, M.; Nagai, A.; Yamashita, K. Polarization of Hybridized Calcium Phosphoaluminosilicates with 45S5-Type Bioglasses. Biomed. Mater. 2010, 5, 025001. [Google Scholar] [CrossRef]
  50. Guo, W.; Liu, Y.; Zhu, X.; Wang, S. Temperature-Dependent Dielectric Properties of Honey Associated with Dielectric Heating. J. Food Eng. 2011, 102, 209–216. [Google Scholar] [CrossRef]
  51. Gavinho, S.R.; Melo, B.M.G.; Borges, J.P.; Silva, J.C.; Graça, M.P.F. Thermal, Structural, Morphological and Electrical Characterization of Cerium-Containing 45S5 for Metal Implant Coatings. Coatings 2023, 13, 294. [Google Scholar] [CrossRef]
  52. Yamashita, K.; Oikawa, N.; Umegaki, T. Acceleration and Deceleration of Bone-Like Crystal Growth on Ceramic Hydroxyapatite by Electric Poling. Chem. Mater. 1996, 8, 2697–2700. [Google Scholar] [CrossRef]
  53. Verma, A.S.; Kumar, D.; Dubey, A.K. Antibacterial and Cellular Response of Piezoelectric Na0.5K0.5NbO3modified 1393 Bioactive Glass. Mater. Sci. Eng. C 2020, 116, 111138. [Google Scholar] [CrossRef]
  54. Graça, M.P.F.; Ferreira Da Silva, M.G.; Valente, M.A. Preparation, Structure, Morphology, and Dc and Ac Conductivity of the 88SiO2-6Li2O-6Nb2O5 (% Mole) Sol-Gel Derived Glass-Ceramics. J. Sol-Gel Sci. Technol. 2007, 42, 1–8. [Google Scholar] [CrossRef]
  55. El-Mallawany, R.A. Tellurite Glasses Handbook: Physical Properties and Data; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  56. Barsoukov, E.; Macdonald, J.R. Impedance Spectroscopy: Theory, Experiment, and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2018. [Google Scholar]
  57. Macdonald, J.R. Emphasizing Solid Materials and Systems. Impedance Spectroscopy; John Wiley & Sons Inc.: New York, NY, USA, 1987. [Google Scholar]
  58. Miola, M.; Verné, E.; Ciraldo, F.E.; Cordero-Arias, L.; Boccaccini, A.R. Electrophoretic Deposition of Chitosan/45S5 Bioactive Glass Composite Coatings Doped with Zn and Sr. Front. Bioeng. Biotechnol. 2015, 3, 159. [Google Scholar] [CrossRef]
  59. Sergi, R.; Bellucci, D.; Salvatori, R.; Maisetta, G.; Batoni, G.; Cannillo, V. Zinc Containing Bioactive Glasses with Ultra-High Crystallization Temperature, Good Biological Performance and Antibacterial Effects. Mater. Sci. Eng. C 2019, 104, 109910. [Google Scholar] [CrossRef]
  60. Neščáková, Z.; Zheng, K.; Liverani, L.; Nawaz, Q.; Galusková, D.; Kaňková, H.; Michálek, M.; Galusek, D.; Boccaccini, A.R. Multifunctional Zinc Ion Doped Sol-Gel Derived Mesoporous Bioactive Glass Nanoparticles for Biomedical Applications. Bioact. Mater. 2019, 4, 312–321. [Google Scholar] [CrossRef]
  61. Taherkhani, S.; Moztarzadeh, F. Influence of Strontium on the Structure and Biological Properties of Sol–Gel-Derived Mesoporous Bioactive Glass (MBG) Powder. J. Sol-Gel Sci. Technol. 2016, 78, 539–549. [Google Scholar] [CrossRef]
  62. Zhao, R.; Shi, L.; Gu, L.; Qin, X.; Song, Z.; Fan, X.; Zhao, P.; Li, C.; Zheng, H.; Li, Z.; et al. Evaluation of Bioactive Glass Scaffolds Incorporating SrO or ZnO for Bone Repair: In Vitro Bioactivity and Antibacterial Activity. J. Appl. Biomater. Funct. Mater. 2021, 19, 22808000211040910. [Google Scholar] [CrossRef]
  63. Dziadek, M.; Zagrajczuk, B.; Jelen, P.; Olejniczak, Z.; Cholewa-Kowalska, K. Structural Variations of Bioactive Glasses Obtained by Different Synthesis Routes. Ceram. Int. 2016, 42, 14700–14709. [Google Scholar] [CrossRef]
  64. Araujo, M.S.; Silva, A.C.; Bartolomé, J.F.; Mello-Castanho, S. Structural and Thermal Behavior of 45S5 Bioglass®-Based Compositions Containing Alumina and Strontium. J. Am. Ceram. Soc. 2020, 103, 3620–3630. [Google Scholar] [CrossRef]
  65. Aguiar, H.; Serra, J.; González, P.; León, B. Structural Study of Sol-Gel Silicate Glasses by IR and Raman Spectroscopies. J. Non-Cryst. Solids 2009, 355, 475–480. [Google Scholar] [CrossRef]
  66. Berezicka, A.; Szumera, M.; Sułowska, J.; Jeleń, P.; Olejniczak, Z.; Stępień, J.; Zając, M.; Pollastri, S.; Olivi, L. Unraveling the Nature of Sulfur-Bearing Silicate-Phosphate Glasses: Insights from Multi-Spectroscopic (Raman, MIR, 29Si, 31P MAS-NMR, XAS, XANES) Investigation. Ceram. Int. 2022, 48, 4238–4254. [Google Scholar] [CrossRef]
  67. Sun, Y.; Zhang, Z.; Liu, L.; Wang, X. FTIR, Raman and NMR Investigation of CaO–SiO2–P2O5 and CaO–SiO2–TiO2–P2O5 Glasses. J. Non-Cryst. Solids 2015, 420, 26–33. [Google Scholar] [CrossRef]
  68. Jonscher, A.K.; Réau, J.-M. Analysis of the Complex Impedance Data for β-PbF 2. J. Mater. Sci. 1978, 13, 563–570. [Google Scholar] [CrossRef]
  69. Funke, K. Jump Relaxation in Solid Electrolytes. Prog. Solid State Chem. 1993, 22, 111–195. [Google Scholar] [CrossRef]
  70. Bechir, M.B.; Karoui, K.; Tabellout, M.; Guidara, K.; Rhaiem, A.B. Electric and Dielectric Studies of the [N (CH3) 3H] 2CuCl4 Compound at Low Temperature. J. Alloys Compd. 2014, 588, 551–557. [Google Scholar] [CrossRef]
  71. Ghosh, A. Frequency-Dependent Conductivity in Bismuth-Vanadate Glassy Semiconductors. Phys. Rev. B 1990, 41, 1479–1488. [Google Scholar] [CrossRef]
  72. Austin, I.G.; Mott, N.F. Polarons in Crystalline and Non-Crystalline Materials. Adv. Phys. 1969, 18, 41–102. [Google Scholar] [CrossRef]
  73. Keshri, S.R.; Ganisetti, S.; Kumar, R.; Gaddam, A.; Illath, K.; Ajithkumar, T.G.; Balaji, S.; Annapurna, K.; Nasani, N.; Krishnan, N.M.A.; et al. Ionic Conductivity of Na3Al2P3O12 Glass Electrolytes—Role of Charge Compensators. Inorg. Chem. 2021, 60, 12893–12905. [Google Scholar] [CrossRef]
Materials 17 00499 g001

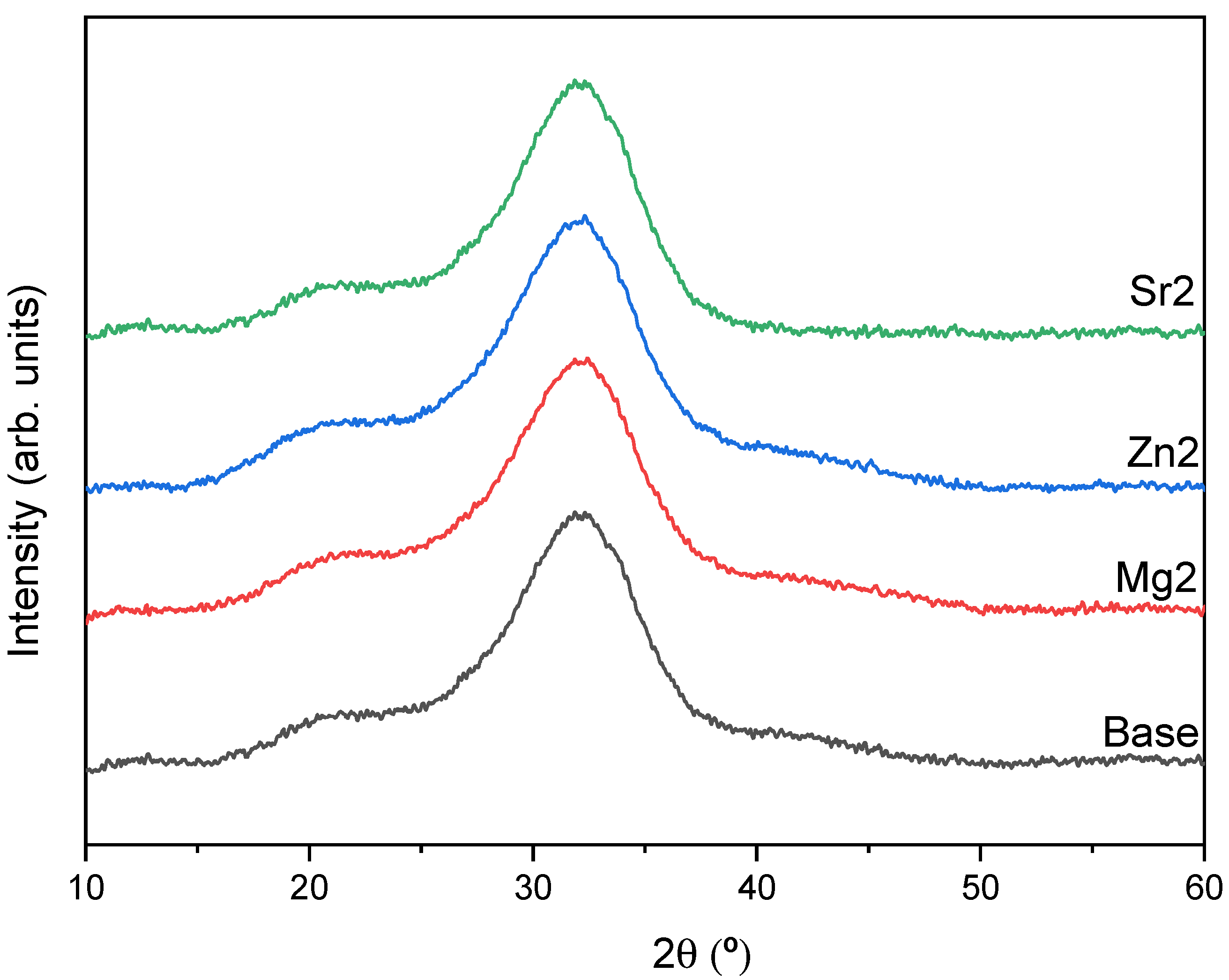

Figure 1. X-ray diffraction patterns of the bioglasses (base, Mg2, Zn2, and Sr2).
Figure 1. X-ray diffraction patterns of the bioglasses (base, Mg2, Zn2, and Sr2).
Materials 17 00499 g001
Materials 17 00499 g002

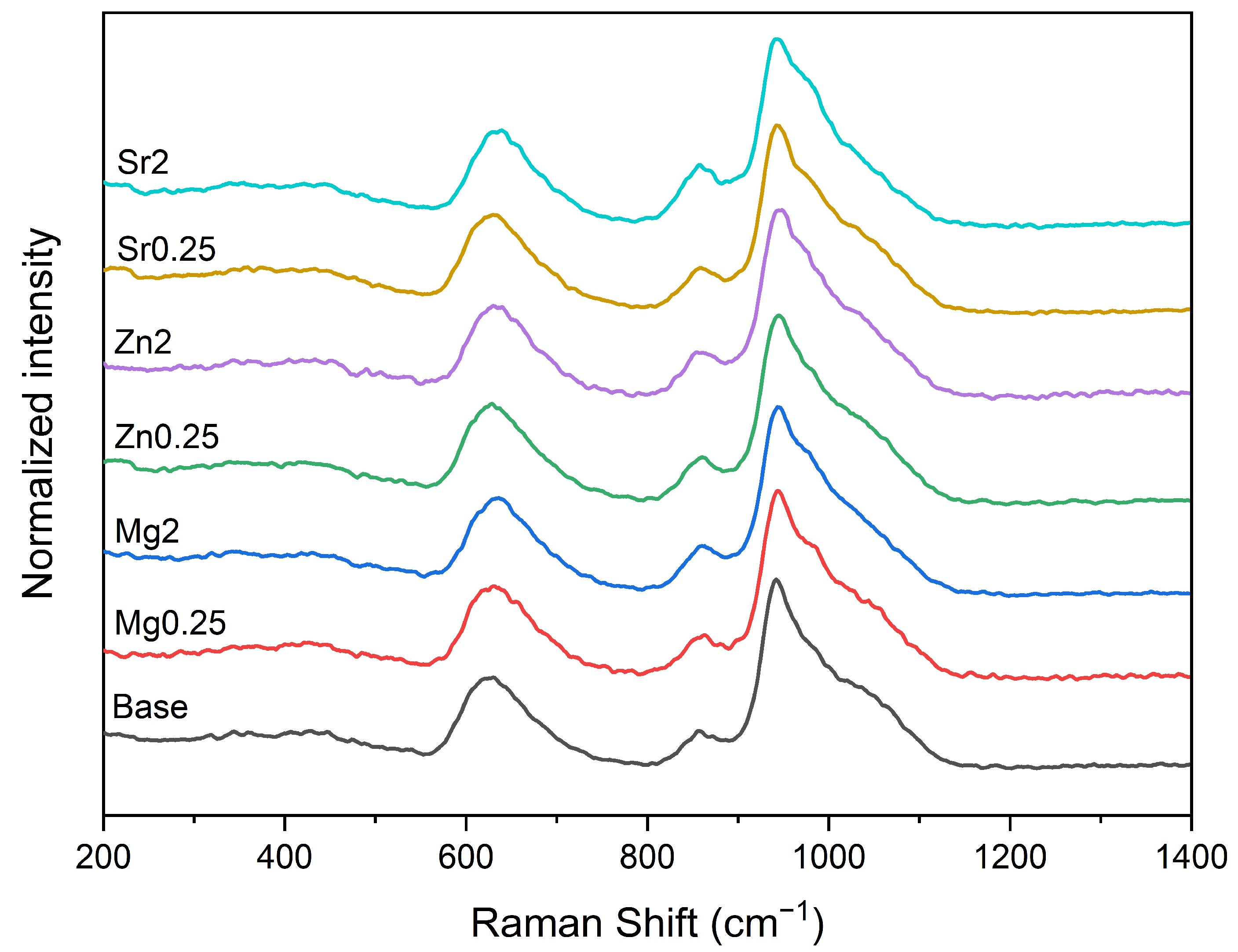

Figure 2. Raman spectra of the bioglass samples.
Figure 2. Raman spectra of the bioglass samples.
Materials 17 00499 g002
Materials 17 00499 g003

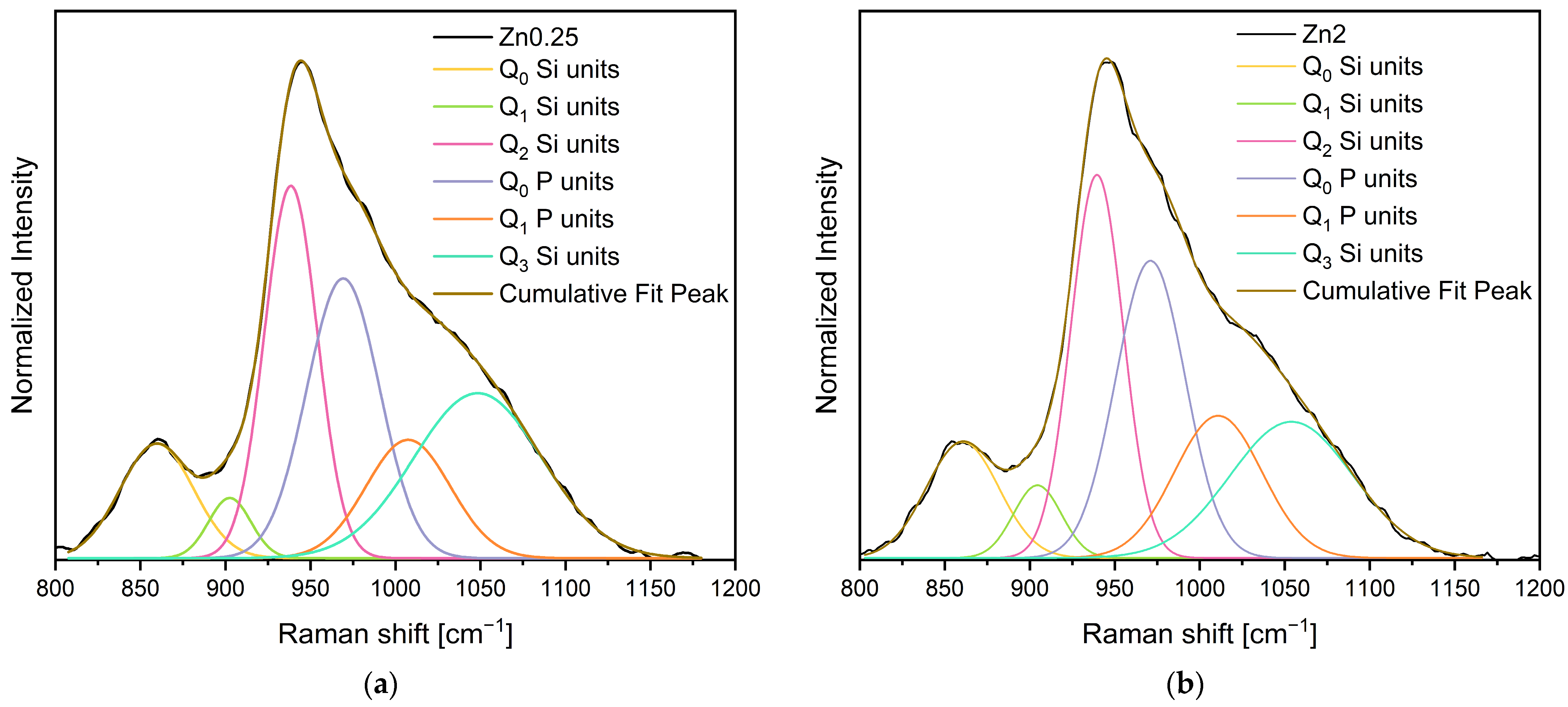

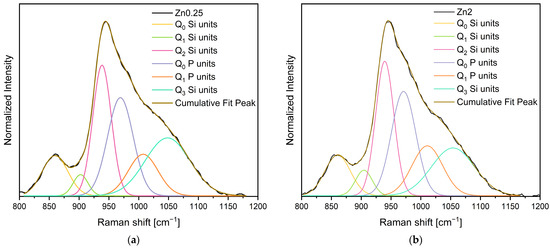

Figure 3. Deconvolution of Raman spectra for (a) Zn0.25 and (b) Zn2 bioglasses.
Figure 3. Deconvolution of Raman spectra for (a) Zn0.25 and (b) Zn2 bioglasses.
Materials 17 00499 g003
Materials 17 00499 g004

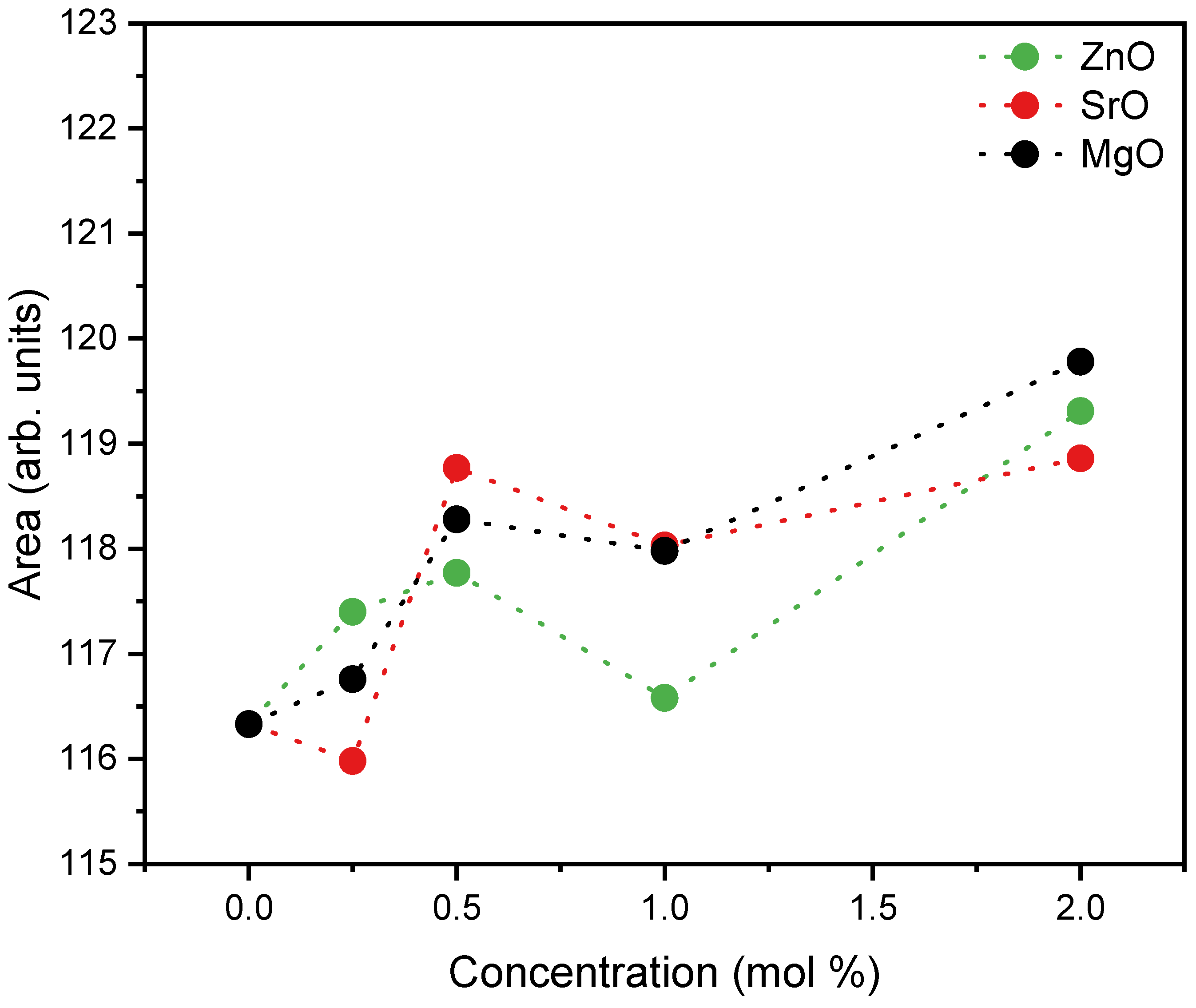

Figure 4. Sum of the areas of the Raman vibration bands associated with NBOs, Q0+ Q1 + Q2 + Q3, of Si and P units.
Figure 4. Sum of the areas of the Raman vibration bands associated with NBOs, Q0+ Q1 + Q2 + Q3, of Si and P units.
Materials 17 00499 g004
Materials 17 00499 g005
Figure 5. SEM micrographs for (a) base; (b) Zn2; (c) Sr2; and (d) Mg2 (magnification: 2 kx).
Figure 5. SEM micrographs for (a) base; (b) Zn2; (c) Sr2; and (d) Mg2 (magnification: 2 kx).
Materials 17 00499 g005
Materials 17 00499 g006

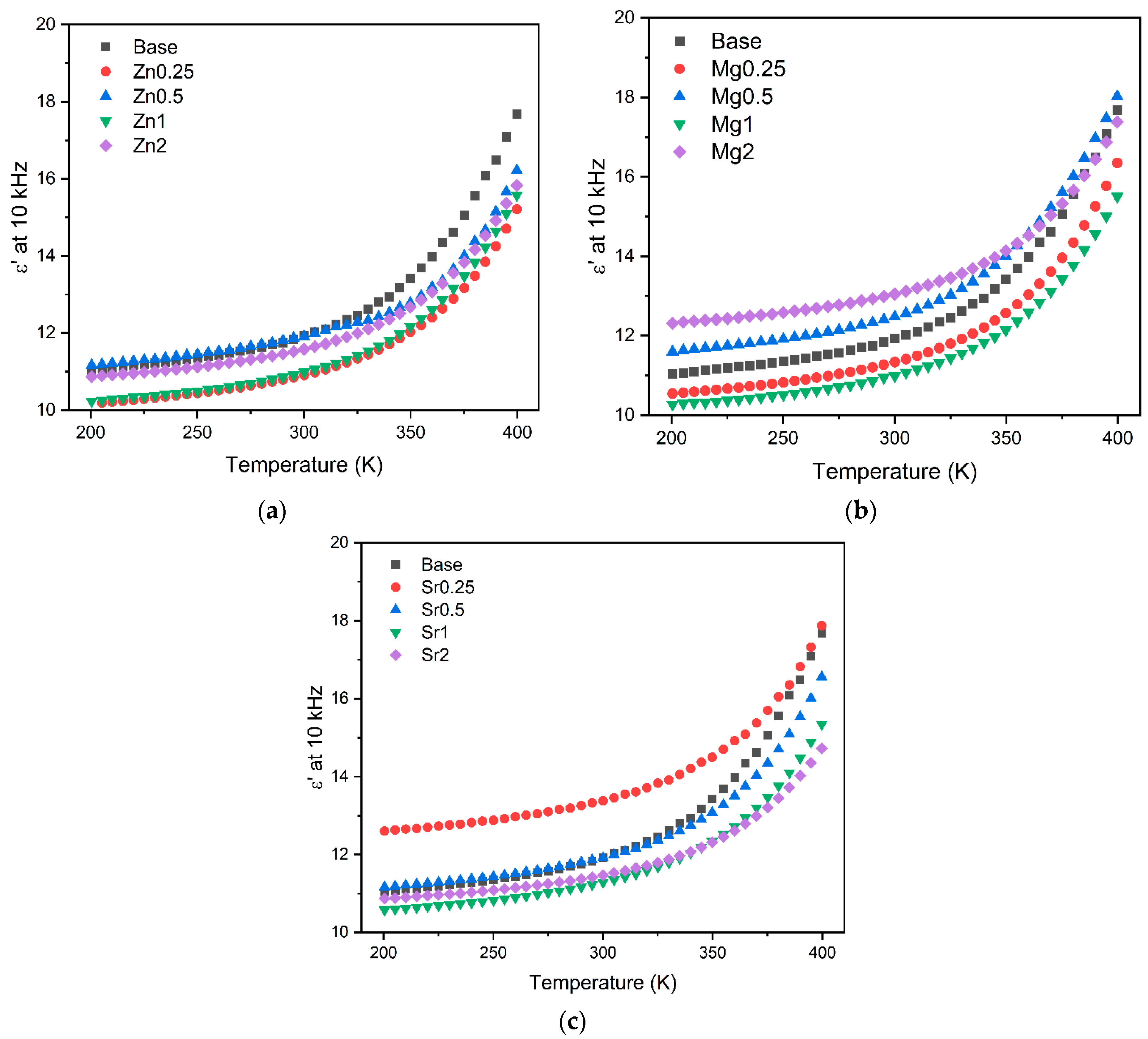

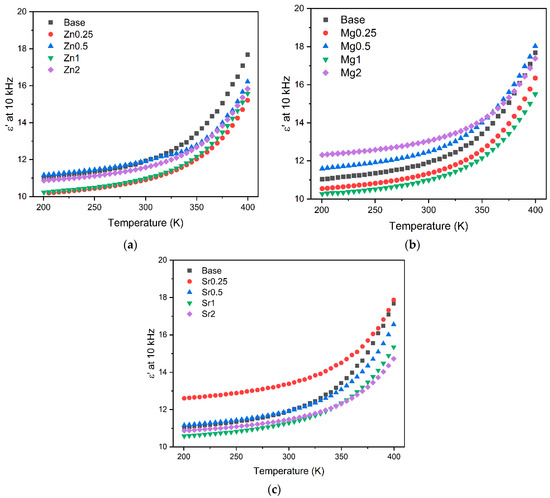

Figure 6. The dielectric constant, ε′, as a function of the temperature at 10 kHz of the glasses modified by the addition of (a) ZnO; (b) MgO; and (c) SrO.
Figure 6. The dielectric constant, ε′, as a function of the temperature at 10 kHz of the glasses modified by the addition of (a) ZnO; (b) MgO; and (c) SrO.
Materials 17 00499 g006
Materials 17 00499 g007

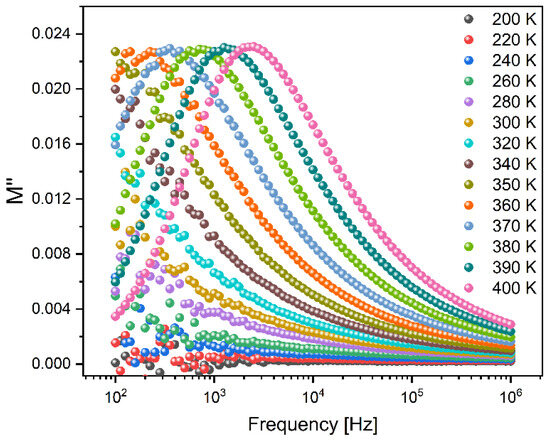

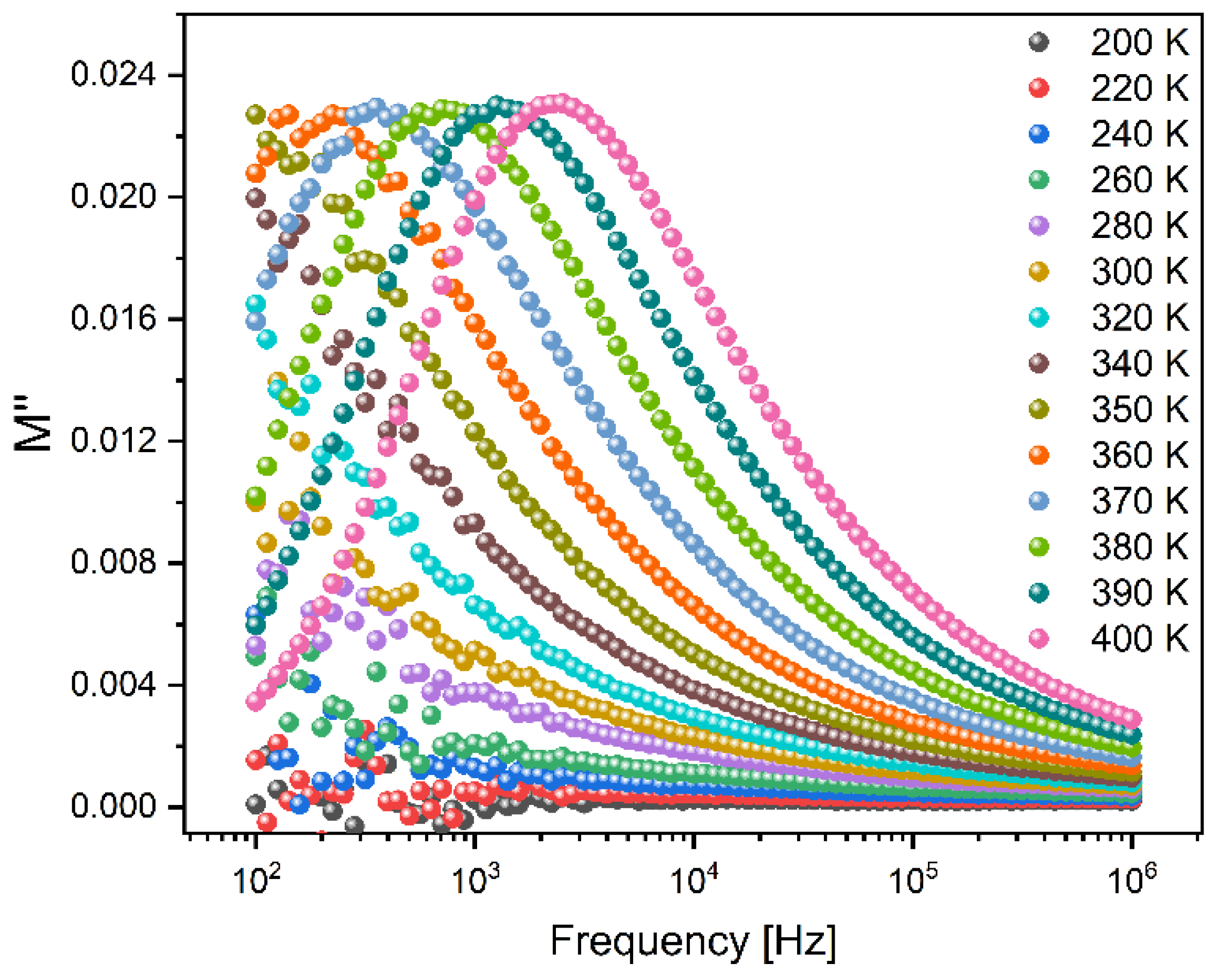

Figure 7. The imaginary part of the electric modulus, M″, versus the frequency for the Mg2 bioglass measured between 200 K and 400 K.
Figure 7. The imaginary part of the electric modulus, M″, versus the frequency for the Mg2 bioglass measured between 200 K and 400 K.
Materials 17 00499 g007
Materials 17 00499 g008

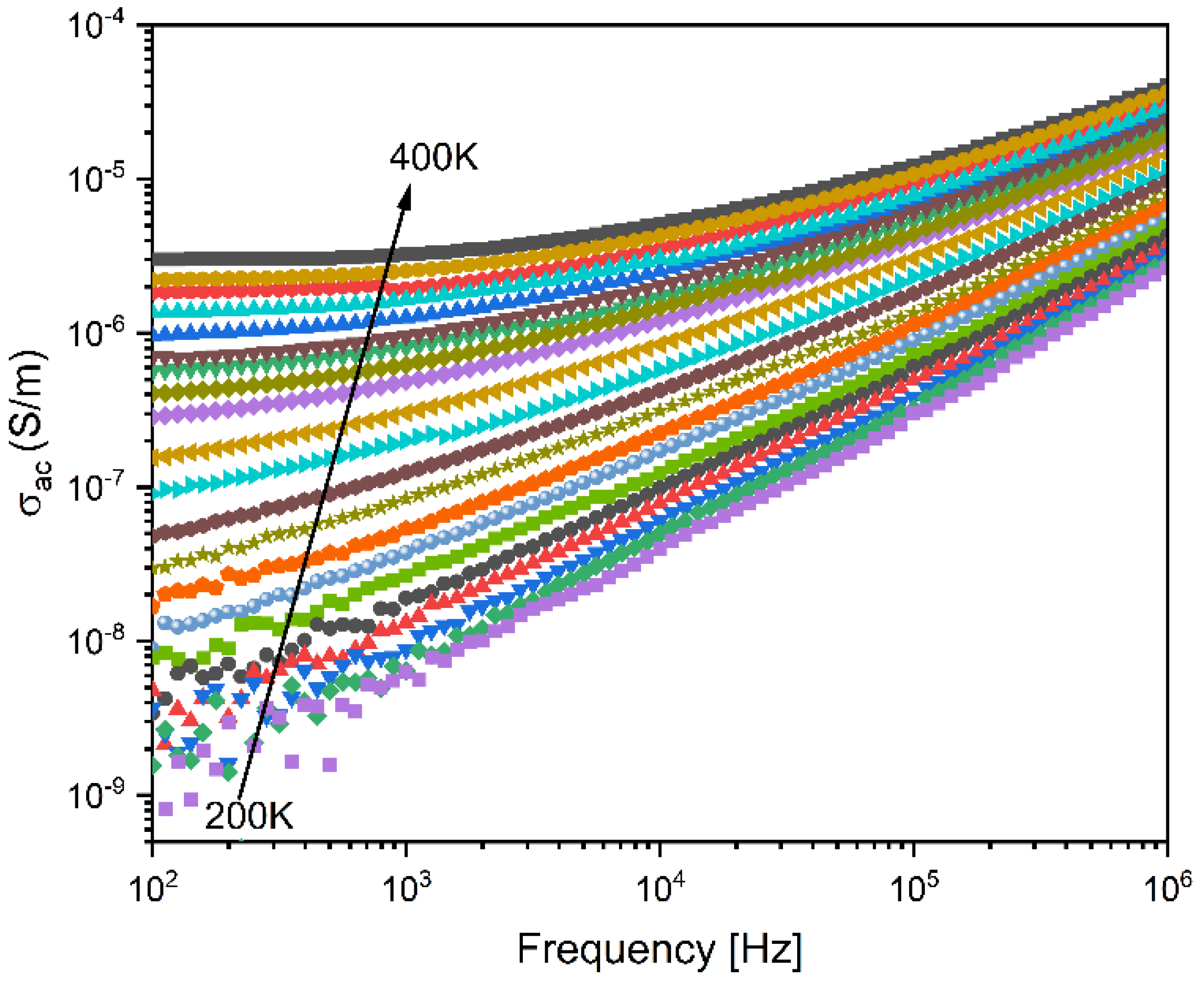

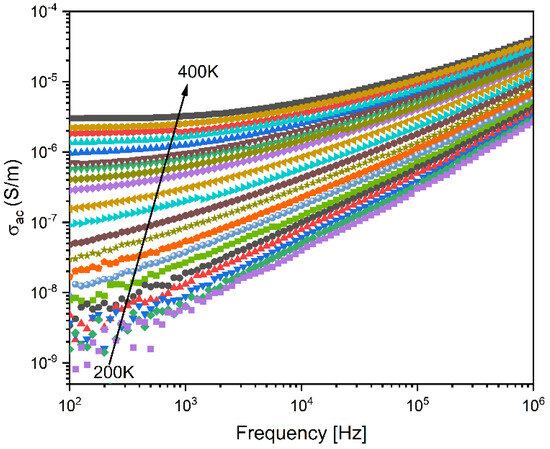

Figure 8. Frequency dependence of the ac conductivity at various temperatures for 45S5 bioglass measured in the temperature range between 200 and 400 K.
Figure 8. Frequency dependence of the ac conductivity at various temperatures for 45S5 bioglass measured in the temperature range between 200 and 400 K.
Materials 17 00499 g008
Materials 17 00499 g009

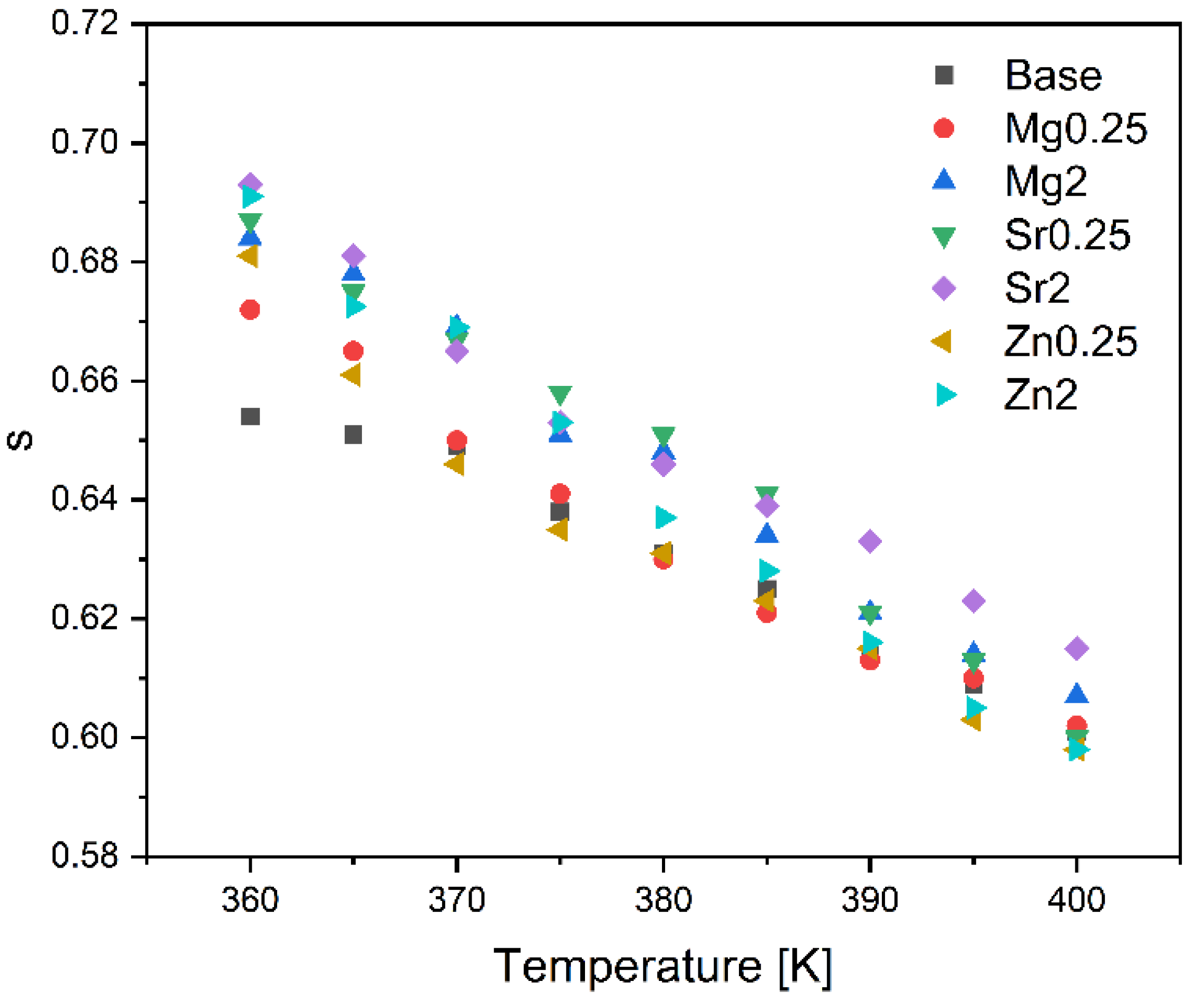

Figure 9. Temperature dependence of the frequency exponent s.
Figure 9. Temperature dependence of the frequency exponent s.
Materials 17 00499 g009
Materials 17 00499 g010
Figure 10. The logarithm of dc conductivity versus 1000/T of bioglasses modified by the insertion of (a) ZnO; (b) MgO; and (c) SrO.
Figure 10. The logarithm of dc conductivity versus 1000/T of bioglasses modified by the insertion of (a) ZnO; (b) MgO; and (c) SrO.
Materials 17 00499 g010
Materials 17 00499 g011
Figure 11. The logarithm of ac conductivity versus 1000/T at 10 kHz of bioglasses modified by the insertion of (a) ZnO; (b) MgO; and (c) SrO.
Figure 11. The logarithm of ac conductivity versus 1000/T at 10 kHz of bioglasses modified by the insertion of (a) ZnO; (b) MgO; and (c) SrO.
Materials 17 00499 g011
Table 1. The areas of the bands for all Qn units obtained by Raman spectra fitting.
Table 1. The areas of the bands for all Qn units obtained by Raman spectra fitting.
SampleQ0 Si UnitsQ1 Si UnitsQ2 Si UnitsQ0 P UnitsQ1 P UnitsQ3 Si Units
Base7.82.1315.949.93.936.7
Zn0.2512.293.7128.8129.8214.6528.25
Zn0.513.233.6630.4726.5314.9728.91
Zn113.534.4829.2926.0411.5531.69
Zn212.315.0829.1830.1818.1624.40
Mg0.2512.243.1232.6726.3414.3627.25
Mg0.513.453.1533.9624.7514.4029.06
Mg113.343.4432.1025.0816.2627.81
Mg214.205.0928.9127.1116.7726.78
Sr0.2513.143.1729.5330.0915.5225.31
Sr0.514.584.2324.4131.4118.1225.53
Sr115.264.4727.9831.7717.3121.19
Sr217.983.9332.4129.4217.2218.82
Table 2. The dc conductivity (σdc), dc activation energy, ac conductivity (σac), ac activation energy, dielectric constant (ε′), and dielectric loss (tan δ) at 10 kHz and 300 K.
Table 2. The dc conductivity (σdc), dc activation energy, ac conductivity (σac), ac activation energy, dielectric constant (ε′), and dielectric loss (tan δ) at 10 kHz and 300 K.
Sampleσdc (×10−10)
[S/m]		Ea dc
[kJ/mol]		σac (×10−7)
[S/m]		Ea ac
[kJ/mol]		ε′tan δ
Base6.9 ± 0.1077.7 ± 0.801.73 ± 0.0240.99 ± 0.4311.9 ± 0.70.026 ± 0.003
Zn0.255.7 ± 0.1380.5 ± 0.071.27 ± 0.0242.27 ± 1.7011.0 ± 0.70.024 ± 0.003
Zn0.58.1 ± 0.1679.0 ± 0.131.30 ± 0.0240.42 ± 1.0311.9 ± 0.70.019 ± 0.002
Zn18.7 ± 0.2275.8 ± 0.151.41 ± 0.0339.80 ± 0.7111.0 ± 0.80.023 ± 0.004
Zn210.5 ± 0.2673.5 ± 0.291.31 ± 0.0238.75 ± 0.7611.6 ± 0.90.020 ± 0.003
Mg0.2510.4 ± 0.5172.8 ± 0.751.74 ± 0.0440.67 ± 0.4211.3 ± 1.00.023 ± 0.004
Mg0.510.1 ± 0.2275.3 ± 0.781.68 ± 0.0337.65 ± 0.3912.5 ± 0.80.024 ± 0.003
Mg110.2 ± 0.3175.5 ± 0.781.36 ± 0.0339.54 ± 0.4111.0 ± 0.80.022 ± 0.003
Mg25.7 ± 0.1378.1 ± 0.811.33 ± 0.0339.11 ± 0.4013.1 ± 0.80.018 ± 0.003
Sr0.254.9 ± 0.1276.2 ± 0.791.34 ± 0.0239.00 ± 0.4013.4 ± 0.40.018 ± 0.002
Sr0.57.6 ± 0.2375.5 ± 0.781.42 ± 0.0239.45 ± 0.4112.1 ± 0.10.021± 0.003
Sr17.8 ± 0.2174.6 ± 0.771.30 ± 0.0237.93 ± 0.4011.3 ± 0.20.021 ± 0.002
Sr20.9 ± 0.0279.7 ± 0.831.03 ± 0.0139.94 ± 0.4011.8 ± 0.70.015 ± 0.002
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gavinho, S.R.; Hammami, I.; Jakka, S.K.; Teixeira, S.S.; Silva, J.C.; Borges, J.P.; Graça, M.P.F. Influence of the Addition of Zinc, Strontium, or Magnesium Oxides to the Bioglass 45S5 Network on Electrical Behavior. Materials 2024, 17, 499. https://doi.org/10.3390/ma17020499

AMA Style

Gavinho SR, Hammami I, Jakka SK, Teixeira SS, Silva JC, Borges JP, Graça MPF. Influence of the Addition of Zinc, Strontium, or Magnesium Oxides to the Bioglass 45S5 Network on Electrical Behavior. Materials. 2024; 17(2):499. https://doi.org/10.3390/ma17020499

Chicago/Turabian Style

Gavinho, Sílvia Rodrigues, Imen Hammami, Suresh Kumar Jakka, Sílvia Soreto Teixeira, Jorge Carvalho Silva, João Paulo Borges, and Manuel Pedro Fernandes Graça. 2024. "Influence of the Addition of Zinc, Strontium, or Magnesium Oxides to the Bioglass 45S5 Network on Electrical Behavior" Materials 17, no. 2: 499. https://doi.org/10.3390/ma17020499

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
