Evaluation of Thermal and Mechanical Properties of Bi-In-Sn/WO3 Composites for Efficient Heat Dissipation

by
Die Wu
1,2,*,
Zhen Ning
1,2,
Yanlin Zhu
1,2 and
Rui Yuan
3
1
Institute for Mathematical and Computational Materials Science, Chengdu Advanced Metal Materials Industry Technology Research Institute Co., Ltd., Chengdu 610300, China
2
State Key Laboratory of Vanadium and Titanium Resources Comprehensive Utilization, Chengdu 610031, China
3
Engineering State Key Laboratory of Polymer Materials Engineering, College of Polymer Science, Sichuan University, Chengdu 610500, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(21), 5315; https://doi.org/10.3390/ma17215315
Submission received: 23 September 2024 / Revised: 28 October 2024 / Accepted: 30 October 2024 / Published: 31 October 2024
Browse Figures
Versions Notes

Abstract

:
Phase change materials (PCMs) offer promising solutions for efficient thermal management in electronic devices, energy storage systems, and renewable energy applications due to their capacity to store and release significant thermal energy during phase transitions. This study investigates the thermal and physical properties of Bi-In-Sn/WO3 composites, specifically for their use as phase change thermal interface materials (PCM-TIMs). The Bi-In-Sn/WO3 composite was synthesized through mechanochemical grinding, which enabled the uniform dispersion of WO3 particles within the Bi-In-Sn alloy matrix. The addition of WO3 particles markedly improved the composite’s thermal conductivity and transformed its physical form into a putty-like consistency, addressing leakage issues typically associated with pure Bi-In-Sn alloys. Microstructural analyses demonstrated the existence of a continuous interface between the liquid metal and WO3 phases, with no gaps, ensuring structural stability. Thermal performance tests demonstrated that the Bi-In-Sn/WO3 composite achieved improved thermal conductivity, and reduced volumetric latent heat, and there was a slight increase in thermal contact resistance with higher WO3 content. These findings highlight the potential of Bi-In-Sn/WO3 composites for utilization as advanced PCM-TIMs, offering enhanced heat dissipation, stability, and physical integrity for high-performance electronic and energy systems.

1. Introduction

In recent years, phase change materials (PCMs) have attracted significant attention for their remarkable potential to store and release substantial amounts of thermal energy during phase transitions [1]. This unique property makes PCMs particularly effective for thermal management across various fields, including energy storage, electronics, and renewable energy systems [2,3,4,5,6,7]. With the increasing power and compactness of electronic devices, efficient thermal regulation has become vital to prevent overheating and ensure optimal performance. PCMs offer a promising solution to address these emerging challenges [8]. Traditional thermal interface materials (TIMs) often fail to meet the increasing requirements for enhanced thermal conductivity and mechanical strength [9]. To overcome these limitations, PCMs have been shown to be a cutting-edge alternative, employing their latent heat properties to provide improved heat management and thermal performance [10,11].
Among the diverse range of PCMs, Bi-In-Sn alloys have been recognized for their favorable properties, including low melting points, high thermal conductivity, and strong mechanical stability [12]. The favorable properties of Bi-In-Sn alloys make them highly desirable for applications in electronics, power devices, and advanced energy systems [13,14]. Their ability to undergo solid-to-liquid phase transitions enables them to absorb significant amounts of heat, making them particularly effective in managing sudden thermal spikes [15]. However, a critical limitation of pure Bi-In-Sn alloys lies in their tendency to flow uncontrollably upon melting, which can lead to leakage and significantly compromise efficiency [16]. This presents a significant challenge in terms of the practical use of Bi-In-Sn alloys in real-time thermal management. To overcome these limitations, materials such as tungsten trioxide (WO3) films have been investigated for energy storage and electrochemical applications, where they offer benefits like corrosion resistance and improved performance in supercapacitors and fuel cells [17]. Incorporating materials like WO3 can enhance the stability and performance of systems where Bi-In-Sn alloys alone may not be sufficient.
To overcome this limitation, integrating WO3 particles into the Bi-In-Sn alloy matrix presents a promising strategy. The incorporation not only increases the thermal conductivity of the composite but also mitigates leakage by altering the physical state of the material during melting, thus enhancing overall stability and performance. Specifically, as the Bi-In-Sn alloy melts, the incorporation of WO3 particles transforms the molten material into a paste-like consistency. This change effectively eliminates the risk of fluid leakage, ensuring greater stability and reliability during thermal management [18,19]. The unique aspect of this approach is the mechanochemical integration of WO3 particles, which allows for intimate atomic-level interactions between the metal alloy and the WO3 phase [20]. Unlike conventional methods, mechanochemistry creates a continuous interface between Bi-In-Sn and WO3, improving thermal conductivity and mechanical stability while preserving the material’s structural integrity. The modification enhances the composite’s mechanical properties, enabling it to perform reliably even in high-temperature conditions, thereby transforming it into a durable solution for challenging applications [21].
Mechanochemistry is essential for achieving a successful integration of WO3 particles within the Bi-In-Sn alloy, facilitating optimal interaction and performance between the components [22,23]. The approach optimizes the interaction between the alloy and the particles, leading to a uniform dispersion of WO3 within the alloy matrix [24]. Such consistent distribution is essential for achieving enhanced thermal and mechanical performance. This method also offers a scalable and environmentally friendly approach to composite development by minimizing the need for solvents and extreme processing conditions commonly employed for material synthesis. Furthermore, the incorporation of WO3 particles improves the stability of the alloy during thermal cycling, allowing it to endure repeated phase changes while maintaining performance integrity without significant degradation [25].
The current study investigates the thermal and mechanical properties of Bi-In-Sn/WO3 composites, emphasizing their potential application as phase change thermal interface materials (PCM-TIMs) [26,27]. It also explores the effects of incorporating WO3 particles on the thermal conductivity, phase change behavior, and long-term stability of the alloy. Furthermore, the study evaluates the composite’s effectiveness in overcoming typical challenges faced by phase change materials, including leakage, thermal resistance, and maintaining structural integrity throughout phase transitions [28,29]. The results of the current study highlight the potential of Bi-In-Sn/WO3 composites as advanced thermal interface materials, particularly for high-performance electronics, power devices, and other energy-intensive applications that require efficient and reliable heat dissipation [30].
This study aims to investigate the integration of WO3 particles into Bi-In-Sn alloys to improve their thermal properties for use in phase change thermal interface materials (PCM-TIMs). Specifically, it evaluates how WO3 incorporation affects the composite’s thermal conductivity, phase change behavior, and long-term thermal stability. This research also addresses common challenges in phase change materials, such as leakage and thermal resistance during phase transitions, to explore a more efficient and reliable solution for high-performance electronics, power devices, and energy systems.

2. Experimental Section

Materials: The Bi-In-Sn alloy (51 wt% indium, 32.5 wt% bismuth, 16.5 wt% tin) was purchased from Shengte Xincai Electronic Technology Co., Ltd., Changsha, China and Spherical WO3 particles were purchased from Beijing High-tech New Material Technology Co., Ltd., Beijing, China.
Preparation of Bi-In-Sn/WO3 composite: Spherical WO3 powder with a particle size of 5 μm was used to prepare the Bi-In-Sn/WO3 composite. The Bi-In-Sn alloy, which has a melting point of 71 °C, was placed into an agate mortar and then heated in an oven set at 100 °C, a temperature above the alloy’s melting point. The alloy was held at this temperature for 20 min to ensure that it was fully molten. Once fully liquefied, the pre-measured WO3 powder was added to the molten alloy. Various mixtures were prepared with different mass ratios of WO3 to Bi-In-Sn (0.1:0.9, 0.15:0.85, 0.2:0.8, 0.25:0.75, 0.3:0.7, 0.35:0.65, 0.4:0.6, and 0.45:0.55). The mixture was manually ground for 30 min in the agate mortar to achieve the uniform dispersion of WO3 within the alloy matrix. During grinding, the temperature was held at 100 °C to keep the Bi-In-Sn alloy in its molten state. The WO3-to-Bi-In-Sn ratios were selected based on findings from similar composite systems [24]. When the WO3 content is below 0.1, the composite remains fluid after remelting, making it more susceptible to leakage. Conversely, with WO3 content above 0.5, the composite takes on a powder-like form, hindering structural cohesion. Ratios between 0.1 and 0.5 were thus chosen to achieve a putty-like consistency, optimizing thermal performance and structural integrity. Following grinding, the mixture was cooled to solidify the Bi-In-Sn/WO3 composite, enhancing its thermal properties and phase transition behavior.
Characterization: The morphological features of the Bi-In-Sn/WO3 composite were assessed using a scanning electron microscope (SEM, FEI Quanta 650, Hillsboro, OR, USA) in conjunction with energy dispersive spectroscopy (EDS). The Bi-In-Sn/WO3 composite was cut with a double-focused ion beam (FIB, FEI Helios G4 CX, Hillsboro, OR, USA), and the elemental distribution in its cross-section was characterized using a high-resolution transmission electron microscope (HRTEM, FEI Talos F200X TEM, Hillsboro, OR, USA) equipped with an energy dispersive spectrometer (EDS). The structural properties of the material were investigated using X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). Thermal diffusivity measurements were conducted with a laser flash analyzer (LFA467, NETZSCH, Selb, Germany). The thermal resistance (Ri) of the composite under varying pressures was evaluated using the Longwin 9389 steady-state heat-flow method, following ASTM D5470 standards [31]. The volume-specific enthalpy of the Bi-In-Sn/WO3 composite was determined via differential scanning calorimetry (DSC, NETZSCH DSC 214 Polyma, Selb, Germany), a technique that evaluates heat flow during phase transitions to derive enthalpy values.

3. Results and Discussion

3.1. Synthesis of Bi-In-Sn/WO3 via Mechanochemistry

The Bi-In-Sn/WO3 composite was successfully synthesized using mechanochemistry, employing a high-energy grinding technique to facilitate interactions between the Bi-In-Sn liquid metal (LM) alloy and the WO3 phase. The specific details of the materials and preparation process, including the size of the WO3 particles (5 μm) and the melting point of the Bi-In-Sn alloy (71 °C), are provided in the “Preparation of Bi-In-Sn/WO3 composite” section. As illustrated in Figure 1a, the mechanochemical process enabled metal atoms from the Bi-In-Sn alloy to endure shear-induced diffusion, allowing them to penetrate the WO3 lattice. The method promoted intimate contact between the LM phase and WO3, facilitating atomic-level interactions.
In the traditional composite shown in Figure 1b, a noticeable gap was observed between the liquid metal (LM) and WO3 phases, reducing the thermal and mechanical performance. However, the mechanochemical synthesis method applied in this study achieved a continuous interface between the LM and WO3 phases, as shown in Figure 1c. The Bi-In-Sn atoms effectively diffused into the WO3 lattice structure, eliminating the gaps commonly observed in the conventional composite. The diffusion of Bi, In, and Sn into the WO3 crystal structure resulted in a stable, tightly bonded interface.
The interaction between the liquid metal and WO3 strengthened the chemical bonds at the microscopic level, greatly enhancing the overall stability of the Bi-In-Sn/WO3 composite [24]. Furthermore, the absence of gaps between the LM phase and WO3 phase is anticipated to enhance thermal conductivity and mechanical properties, thereby enhancing the overall performance of the Bi-In-Sn/WO3 composite as thermal interface material. The direct interaction between the LM phase and the WO3 phase ensures a uniform distribution of stress and heat, resulting in enhanced phase change characteristics with improved thermal management capabilities.

3.2. Microstructure and Physical State of Bi-In-Sn/WO3 Composite

The microstructure of the Bi-In-Sn/WO3 composite was characterized using scanning electron microscopy (SEM) as presented in Figure 2, demonstrating the uniform dispersion of WO3 particles throughout the Bi-In-Sn matrix. The WO3 particles presented a spherical shape and were uniformly dispersed throughout the Bi-In-Sn matrix, with no significant agglomeration detected. The uniform distribution demonstrated the effectiveness of the mechanochemical synthesis method, which plays a vital role in enhancing the thermal and mechanical properties of the material. This uniform dispersion is essential for enhancing the composite’s thermal cycling performance, as it enables consistent heat distribution and prevents localized thermal stress during repeated phase transitions. As a result, the material’s structural integrity is preserved throughout prolonged thermal cycling, leading to improved stability and durability in practical applications.
The incorporation of WO3 significantly altered the physical state of the Bi-In-Sn alloy. Figure 3 shows this transformation by comparing the pure Bi-In-Sn alloy (Figure 3a) with the Bi-In-Sn/WO3 composite (Figure 3b). The pure Bi-In-Sn alloy showed high fluidity, posing potential leakage challenges in practical applications. However, the incorporation of WO3 altered the physical state of the alloy, transforming it from a liquid to a more putty-like, semi-solid form. The change significantly reduced the risk of leakage, enhancing the composite’s suitability for use as an effective thermal interface material.
The putty-like nature of the Bi-In-Sn/WO3 composite enhanced its structural stability during phase transitions, while still facilitating efficient heat transfer. The uniform dispersion of WO3 throughout the composite reinforces the Bi-In-Sn alloy, stabilizing its structure and mitigating the uncontrolled flow seen in the pure alloy. The improvement in physical stability is a key factor in optimizing the composite’s functionality as a thermal interface material, especially in demanding applications where maintaining structural integrity under thermal cycling and mechanical stress is essential for long-term performance.

3.3. Phase Analysis and Bonding in Bi-In-Sn/WO3 Composite

The phase composition of the Bi-In-Sn/WO3 composite was analyzed using X-ray diffraction (XRD). As illustrated in Figure 4, the XRD pattern revealed the distinct presence of both Bi-In-Sn and WO3 phases, confirming that no new alloy phases were formed during the synthesis process. The absence of intermetallic alloy phases is essential for the long-term stability of the composite in thermal interface applications. In contrast to alloys like Ga-In-Sn, which tend to develop rigid intermetallic phases upon contact with metals including Cu, Ag, or Al [32], the Bi-In-Sn/WO3 composite preserves its putty-like consistency over time, as shown in Figure 3b. This characteristic is critical for preventing the increased thermal resistance often associated with hardening in other materials.
The XPS analysis further confirms the stable interaction between Bi-In-Sn and WO3. Figure 5 compares the O 1s spectra of pure WO3 (Figure 5a) with that of the Bi-In-Sn/WO3 composite (Figure 5b). The appearance of a shifted O 1s peak revealed the formation of a coordination bond between the Bi-In-Sn alloy and WO3 in the composite [33,34,35]. This binding energy shift indicated the development of a stable coordination covalent bond between the alloy’s metal atoms and WO3’s oxygen atoms, significantly improving the structural stability of the composite. The interaction effectively prevents phase separation and degradation, ensuring the long-term performance of the composite in thermal management applications.
The formation of these coordination bonds enhanced the interaction between the liquid metal and WO3 phases, enabling the composite to retain its mechanical flexibility while preventing the hardening commonly observed during alloy formation. With its structure and the absence of unwanted alloy phases, the Bi-In-Sn/WO3 composite emerges as a highly suitable material for prolonged use in thermal interface applications. It ensures sustained low thermal resistance and preserves mechanical flexibility over extended periods of application.

3.4. Interface Analysis of Bi-In-Sn/WO3 Composite

High-angle annular dark-field (HAADF) imaging and energy-dispersive X-ray spectroscopy (EDS) line scanning were used to characterize the interface between Bi-In-Sn and WO3 within the composite. Figure 6a shows the cross-sectional view of the composite obtained through focused ion beam (FIB) cutting, revealing the microstructure of the interface region. Figure 6b shows the EDS line scan across the interface, demonstrating a gradual reduction in W and O signals together with a corresponding increase in Bi, In, and Sn signals. The gradual shift in elemental concentrations suggests that Bi-In-Sn atoms have successfully diffused into the WO3 lattice, resulting in a smooth transition interface without abrupt changes or gaps.
The gradual change in elemental composition suggested atomic-level diffusion, confirming the formation of a coherent interface between the two phases [36]. Such interfacial bonding prevents delamination and ensures the structural integrity required for long-term stability in thermal applications. Furthermore, the continuous nature of the transition zone is essential for reducing thermal resistance and maintaining the composite’s mechanical flexibility.
Further evidence for the formation of the interface was obtained through high-resolution transmission electron microscopy (HRTEM) and a selected area electron diffraction (SAED) analysis. Figure 7a presents the HRTEM image of the Bi-In-Sn/WO3 interface, clearly illustrating the distinct boundary between the two phases. Figure 7b,c show the SAED patterns corresponding to the Bi-In-Sn region and the transition interface, respectively. The diffraction pattern at the interface revealed a combination of crystalline order and partial distortion, likely arising from the incorporation of Bi-In-Sn atoms into the WO3 lattice.
The observed broadening of the diffraction spots at the interface signified the lattice distortion, providing further evidence for atomic-level diffusion. The structural modification strengthens the interfacial bonding between Bi-In-Sn and WO3, thereby establishing a stable interface with the potential to endure mechanical stress without the formation of gaps. Ensuring a gap-free interface is essential for reducing thermal resistance, which significantly enhances the efficiency of the composite as a thermal interface material.

3.5. Thermal Properties of Bi-In-Sn/WO3 Composite

The assessment of the thermal properties of the Bi-In-Sn/WO3 composite involved analyzing thermal conductivity, thermal contact resistance, and volumetric latent heat relative to the mass fraction of WO3. These metrics are pivotal for understanding the composite’s capability as a TIM.
Figure 8 shows the variation in thermal conductivity with the WO3 mass fraction. An increase in WO3 content led to a remarkable enhancement in thermal conductivity, likely due to the formation of continuous heat conduction pathways within the matrix. The enhancement can be attributed to the high intrinsic thermal conductivity of WO3, which enables more efficient heat transfer within the material. At higher WO3 concentrations, the material may approach a percolation threshold where interconnected WO3 networks are formed, which further enhances the heat transfer efficiency. Therefore, the integration of WO3 particles significantly enhanced the heat dissipation capability of the composite, positioning it as an optimal choice for applications that require effective thermal management. When the WO3 content exceeds 0.5 vol%, the composite shifts into a discontinuous, powder-like state [24], which complicates accurate thermal conductivity measurements and limits its effectiveness as a phase change thermal interface material.
Figure 9 illustrates the variation in thermal contact resistance (Rᵢ) with an increasing WO3 mass fraction, demonstrating increased thermal contact resistance with increasing WO3 content. The observed trend can be attributed to the reduced flexibility of the composite at higher WO3 concentrations, which hinders its ability to conform to surface irregularities at the interface. The change in flexibility is due to the composite’s transition from a putty-like to a powder-like form as WO3 content increases, as described in the “Preparation of Bi-In-Sn/WO3 Composite” section. Although an increase in Rᵢ was observed, the overall thermal performance remained strong, largely due to the significant improvement in thermal conductivity, as demonstrated in Figure 8.
Figure 10 illustrates the relationship between the volumetric latent heat and WO3 mass fraction, with a decrease in volumetric latent heat observed as WO3 content increased. The reduction occurred because WO3, a non-phase change material, decreased the latent heat capacity of the Bi-In-Sn alloy. Despite the reduction in volumetric latent heat, the composite retained a sufficient capacity for heat absorption and release, making it suitable for applications that rely on phase transition processes.
Figure 11 shows the variation in the phase transition temperature (Tm) of the Bi-In-Sn/WO3 composite relative to WO3 content. As illustrated, the phase transition temperature slightly decreases as WO3 content increases, especially once WO3 concentration exceeds 0.1 vol%. This reduction is likely due to the dilution effect of WO3—a non-phase change material—within the Bi-In-Sn matrix. The presence of WO3 disrupts the alloy’s uniform structure, lowering the overall phase transition temperature. Despite this decrease, the composite maintains a phase transition temperature suitable for effective thermal management applications. At higher WO3 concentrations, the transition temperature stabilizes, indicating that further increases in WO3 content have a minimal impact on the composite’s phase change properties.

4. Conclusions

This study successfully developed a Bi-In-Sn/WO3 composite as a highly efficient phase change thermal interface material (PCM-TIM). Integrating WO3 particles within the Bi-In-Sn alloy matrix significantly enhanced the composite’s thermal and mechanical properties. The composite achieved a thermal conductivity of up to 45 W/m·K with a WO3 content of 0.45, demonstrating superior heat dissipation capabilities over conventional materials. The observed thermal conductivity surpasses that of many existing PCM-TIMs, establishing it as a strong candidate for demanding thermal management applications. Thermal contact resistance (Rᵢ) was kept low, around 0.4 cm2·K/W, ensuring effective thermal transfer during phase transitions—a performance feature not typically observed in comparable materials. Volumetric latent heat was reduced to 160 J/cm3, preserving sufficient heat storage capacity despite the addition of non-phase change WO3 particles.
Mechanochemical synthesis facilitated the uniform dispersion of WO3 and fostered strong bonding between the phases, leading to enhanced thermal conductivity and mechanical stability. The composite maintained its structural integrity without forming intermetallic phases, which is essential for preserving its putty-like consistency and ensuring low thermal resistance during phase transitions. The phase transition temperature (Tm) of the composite showed a slight decrease, from 71 °C to 66 °C, indicating a minimal yet significant thermal response as WO3 content increased.
The Bi-In-Sn/WO3 composite offers distinct advantages over traditional materials, particularly in high-performance environments where both high thermal conductivity and low thermal resistance are critical. The composite demonstrated significant potential as a PCM-TIM, providing enhanced thermal conductivity, higher structural stability, and effective heat dissipation management for high-performance electronic devices and energy systems. This composite is specifically suited for applications in power electronics, advanced cooling systems for energy devices, and high-performance computing units, where efficient heat dissipation and thermal regulation are vital for ensuring device reliability and longevity. These findings offer valuable insights for the development of next-generation thermal interface materials that can address the stringent thermal management demands of modern industries, particularly in electronics, power devices, and other energy-intensive applications.

Author Contributions

D.W.: conceptualization, methodology, writing—original draft, supervision. Z.N.: data curation, formal analysis, investigation. Y.Z.: resources, formal analysis, visualization. R.Y.: writing—review and editing, validation, data curation. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Conflicts of Interest

Authors Die Wu, Zhen Ning and Yanlin Zhu was employed by the company Chengdu Advanced Metal Materials Industry Technology Research Institute Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Zhang, X.; Liu, J.; Deng, Z. Bismuth-based liquid metals: Advances, applications, and prospects. Mater. Horiz. 2024, 11, 1369–1394. [Google Scholar] [CrossRef] [PubMed]
  2. Deng, Y.; Xu, J.; Li, Y.; Zhang, Y.; Kuang, C. Study of the Phase-Change Thermal-Storage Characteristics of a Solar Collector. Materials 2022, 15, 7497. [Google Scholar] [CrossRef]
  3. Ge, H.; Li, H.; Mei, S.; Liu, J. Low melting point liquid metal as a new class of phase change material: An emerging frontier in energy area. Renew. Sustain. Energy Rev. 2013, 21, 331–346. [Google Scholar] [CrossRef]
  4. Lv, P.; Cheng, H.; Ji, C.; Wei, W. Graphitized-rGO/Polyimide Aerogel as the Compressible Thermal Interface Material with Both High in-Plane and through-Plane Thermal Conductivities. Materials 2021, 14, 2350. [Google Scholar] [CrossRef] [PubMed]
  5. Shu, D.; Sun, J.; Huang, F.; Qin, W.; Wang, C.; Yue, W. Boron Nitride/Carbon Fiber High-Oriented Thermal Conductivity Material with Leaves–Branches Structure. Materials 2024, 17, 2183. [Google Scholar] [CrossRef]
  6. Zhao, L.; Xing, Y.; Wang, Z.; Liu, X. The passive thermal management system for electronic device using low-melting-point alloy as phase change material. Appl. Therm. Eng. 2017, 125, 317–327. [Google Scholar] [CrossRef]
  7. Handschuh-Wang, S.; Wang, T.; Zhang, Z.; Liu, F.; Han, P.; Liu, X. Long-Term Corrosion of Eutectic Gallium, Indium, and Tin (EGaInSn) Interfacing with Diamond. Materials 2024, 17, 2683. [Google Scholar] [CrossRef] [PubMed]
  8. Yang, J.; Yu, W.; Liu, C.; Xie, H.; Xu, H. Phase change mediated graphene hydrogel-based thermal interface material with low thermal contact resistance for thermal management. Compos. Sci. Technol. 2022, 219, 109223. [Google Scholar] [CrossRef]
  9. Zhang, Y.; Ma, J.; Wei, N.; Yang, J.; Pei, Q.-X. Recent progress in the development of thermal interface materials: A review. Phys. Chem. Chem. Phys. 2021, 23, 753–776. [Google Scholar] [CrossRef]
  10. Yang, X.-H.; Tan, S.-C.; He, Z.-Z.; Zhou, Y.-X.; Liu, J. Evaluation and optimization of low melting point metal PCM heat sink against ultra-high thermal shock. Appl. Therm. Eng. 2017, 119, 34–41. [Google Scholar] [CrossRef]
  11. Togun, H.; Sultan, H.S.; Mohammed, H.I.; Sadeq, A.M.; Biswas, N.; Hasan, H.A.; Homod, R.Z.; Abdulkadhim, A.H.; Yaseen, Z.M.; Talebizadehsardari, P. A critical review on phase change materials (PCM) based heat exchanger: Different hybrid techniques for the enhancement. J. Energy Storage 2024, 79, 109840. [Google Scholar] [CrossRef]
  12. Widjajana, M.S.; Chiu, S.-H.; Chi, Y.; Baharfar, M.; Zheng, J.; Ghasemian, M.B.; Bhattacharyya, S.K.; Tang, J.; Rahim, M.A.; Kalantar-Zadeh, K. A liquid metal-based process for tuning the thermoelectric properties of bismuth indium systems. J. Mater. Chem. C 2023, 11, 10299–10309. [Google Scholar] [CrossRef]
  13. Chen, K.; Wei, X.; Ding, J.; Wang, W.; Lu, J. Bi-Sn-In phase change material with low melting point and high cyclic stability for thermal energy storage and management. Chem. Eng. J. 2022, 435, 135055. [Google Scholar] [CrossRef]
  14. Liu, Y.; Ma, Y.; Xie, H.; Zhao, L.; Zhang, Z.; Li, Z.; Han, B.; Zhao, Y. Ultrasound-assisted preparation of uniform BiInSn phase change microparticles for enhanced thermal interface materials through in-situ low-temperature soldering. Mater. Chem. Phys. 2023, 309, 128408. [Google Scholar] [CrossRef]
  15. Wang, S.; Zhao, X.; Wang, Z.; Zhang, Y.; Wang, H.; Zou, D. Micro-encapsulation of a low-melting-point alloy phase change material and its application in electronic thermal management. J. Clean. Prod. 2023, 417, 138058. [Google Scholar] [CrossRef]
  16. Huang, K.; Qiu, W.; Ou, M.; Liu, X.; Liao, Z.; Chu, S. An anti-leakage liquid metal thermal interface material. RSC Adv. 2020, 10, 18824–18829. [Google Scholar] [CrossRef]
  17. Shchegolkov, A.V.; Lipkin, M.S.; Shchegolkov, A.V. Preparation of WO3 Films on Titanium and Graphite Foil for Fuel Cell and Supercapacitor Applications by Electrochemical (Cathodic) Deposition Method. Russ. J. Gen. Chem. 2022, 92, 1161–1167. [Google Scholar] [CrossRef]
  18. Liu, Z.; Wang, C.-C.; Wang, Q.; Chu, W. Enhancement on heat transfer and reliability of low melting temperature alloy based thermal interface materials. Int. Commun. Heat Mass Transf. 2024, 151, 107215. [Google Scholar] [CrossRef]
  19. Zhao, L.; Xing, Y.; Liu, X. Experimental investigation on the thermal management performance of heat sink using low melting point alloy as phase change material. Renew. Energy 2020, 146, 1578–1587. [Google Scholar] [CrossRef]
  20. Hu, Z.; Yang, F.; Liu, B.; Wang, S.; Wang, Q.; Kuang, G.; Xie, W.; Meng, S. Ablation behavior of gradient ceramic-polymer composites in wind tunnel environment. J. Eur. Ceram. Soc. 2024, 44, 6160–6168. [Google Scholar] [CrossRef]
  21. Abdul Jaleel, S.A.; Kim, T.; Baik, S. Covalently Functionalized Leakage-Free Healable Phase-Change Interface Materials with Extraordinary High-Thermal Conductivity and Low-Thermal Resistance. Adv. Mater. 2023, 35, 2300956. [Google Scholar] [CrossRef] [PubMed]
  22. Gilman, J.J. Mechanochemistry. Science 1996, 274, 65. [Google Scholar] [CrossRef]
  23. Hu, Y.; Li, B.; Yu, C.; Fang, H.; Li, Z. Mechanochemical preparation of single atom catalysts for versatile catalytic applications: A perspective review. Mater. Today 2023, 63, 288–312. [Google Scholar] [CrossRef]
  24. Wu, D.; Liu, D.; Tian, X.; Lei, C.; Chen, X.; Zhang, S.; Chen, F.; Wu, K.; Fu, Q. A Universal Mechanochemistry Allows On-Demand Synthesis of Stable and Processable Liquid Metal Composites. Small Methods 2022, 6, e2200246. [Google Scholar] [CrossRef]
  25. Wang, C.; Gong, Y.; Cunning, B.V.; Lee, S.; Le, Q.; Joshi, S.R.; Buyukcakir, O.; Zhang, H.; Seong, W.K.; Huang, M.; et al. A general approach to composites containing nonmetallic fillers and liquid gallium. Sci. Adv. 2021, 7, eabe3767. [Google Scholar] [CrossRef]
  26. Kumar, M.R.; Mohan, S.; Behera, C.K. Measurements of Mixing Enthalpy for a Lead-Free Solder Bi-In-Sn System. J. Electron. Mater. 2019, 48, 8096–8106. [Google Scholar] [CrossRef]
  27. Wang, X.; Li, H.; Yao, R.; Lai, W.; Liu, R.; Yu, R.; Chen, X.; Li, J. Thermal Contact Resistance Optimization of Press-Pack IGBT Device Based on Liquid Metal Thermal Interface Material. IEEE Trans. Power Electron. 2022, 37, 5411–5421. [Google Scholar] [CrossRef]
  28. Liu, J.; Feng, H.; Dai, J.; Yang, K.; Chen, G.; Wang, S.; Jin, D.; Liu, X. A Full-component recyclable Epoxy/BN thermal interface material with anisotropy high thermal conductivity and interface adaptability. Chem. Eng. J. 2023, 469, 143963. [Google Scholar] [CrossRef]
  29. Sun, X.; Wang, Z.-Y.; Wang, Y.; Du, X.-Y.; Liu, J.-D.; Zhang, C.; Li, W.; Zhao, Z.-B. Graphene/Polyolefin Elastomer Films as Thermal Interface Materials with High Thermal Conductivity, Flexibility, and Good Adhesion. Chem. Mater. 2023, 35, 2486–2494. [Google Scholar] [CrossRef]
  30. Li, J.; Ma, Q.; Gao, S.; Liang, T.; Pang, Y.; Zeng, X.; Li, Y.-y.; Zeng, X.; Sun, R.; Ren, L. Liquid bridge: Liquid metal bridging spherical BN largely enhances the thermal conductivity and mechanical properties of thermal interface materials. J. Mater. Chem. C 2022, 10, 6736–6743. [Google Scholar] [CrossRef]
  31. ASTM D5470; Standard Test Method for Thermal Transmission Properties of Thermally Conductive Electrical Insulation Materials. ASTM: West Conshohocken, PA, USA, 2017.
  32. Wang, H.; Xing, W.; Chen, S.; Song, C.; Dickey, M.D.; Deng, T. Liquid Metal Composites with Enhanced Thermal Conductivity and Stability Using Molecular Thermal Linker. Adv. Mater. 2021, 33, 2103104. [Google Scholar] [CrossRef] [PubMed]
  33. Manciu, F.S.; Enriquez, J.L.; Durrer, W.G.; Yun, Y.; Ramana, C.V.; Gullapalli, S.K. Spectroscopic analysis of tungsten oxide thin films. J. Mater. Res. 2011, 25, 2401–2406. [Google Scholar] [CrossRef]
  34. Mazur, M.; Wojcieszak, D.; Wiatrowski, A.; Kaczmarek, D.; Lubańska, A.; Domaradzki, J.; Mazur, P.; Kalisz, M. Analysis of amorphous tungsten oxide thin films deposited by magnetron sputtering for application in transparent electronics. Appl. Surf. Sci. 2021, 570, 151151. [Google Scholar] [CrossRef]
  35. Terohid, S.A.A.; Heidari, S.; Jafari, A.; Asgary, S. Effect of growth time on structural, morphological and electrical properties of tungsten oxide nanowire. Appl. Phys. A 2018, 124, 567. [Google Scholar] [CrossRef]
  36. Li, G.; Jiang, W.; Guan, F.; Zhu, J.; Zhang, Z.; Fan, Z. Microstructure, mechanical properties and corrosion resistance of A356 aluminum/AZ91D magnesium bimetal prepared by a compound casting combined with a novel Ni-Cu composite interlayer. J. Mater. Process. Technol. 2021, 288, 116874. [Google Scholar] [CrossRef]
Materials 17 05315 g001

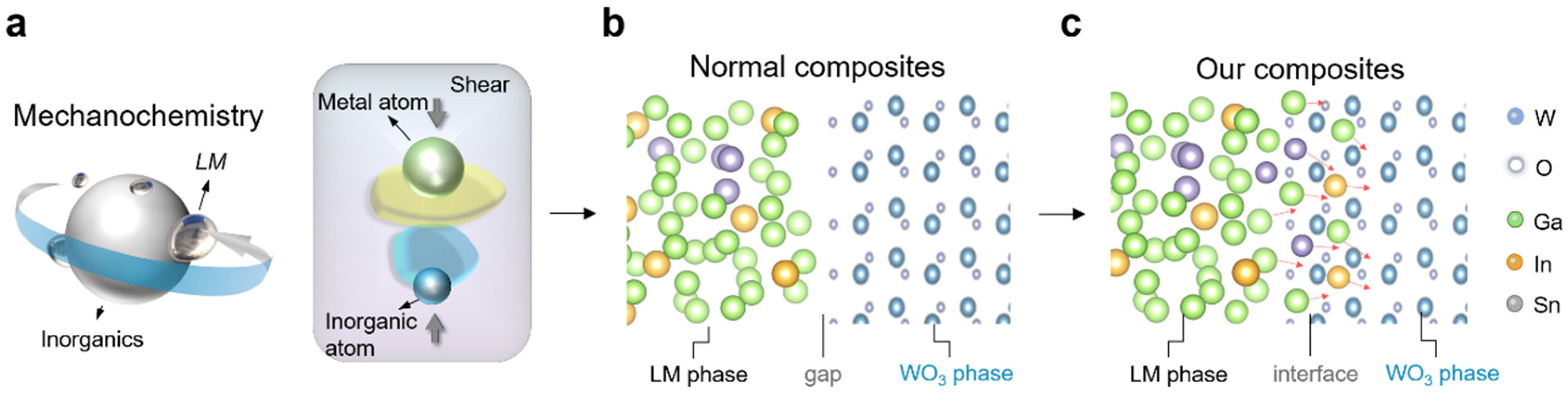

Figure 1. Schematic illustration of synthesis and microstructure of Bi-In-Sn/WO3 composite via mechanochemistry. (a) Mechanochemical process between LM (Bi-In-Sn) and WO3 particles; (b) Normal composites showing gaps at the interface between LM and WO3 phases; (c) Our Bi-In-Sn/WO3 composite showing a continuous, gap-free interface. Note: Color-coded elements include W (blue), O (light blue), Ga (green), In (yellow), and Sn (orange). Arrows indicate the direction of atomic interaction under shear.
Figure 1. Schematic illustration of synthesis and microstructure of Bi-In-Sn/WO3 composite via mechanochemistry. (a) Mechanochemical process between LM (Bi-In-Sn) and WO3 particles; (b) Normal composites showing gaps at the interface between LM and WO3 phases; (c) Our Bi-In-Sn/WO3 composite showing a continuous, gap-free interface. Note: Color-coded elements include W (blue), O (light blue), Ga (green), In (yellow), and Sn (orange). Arrows indicate the direction of atomic interaction under shear.
Materials 17 05315 g001
Materials 17 05315 g002

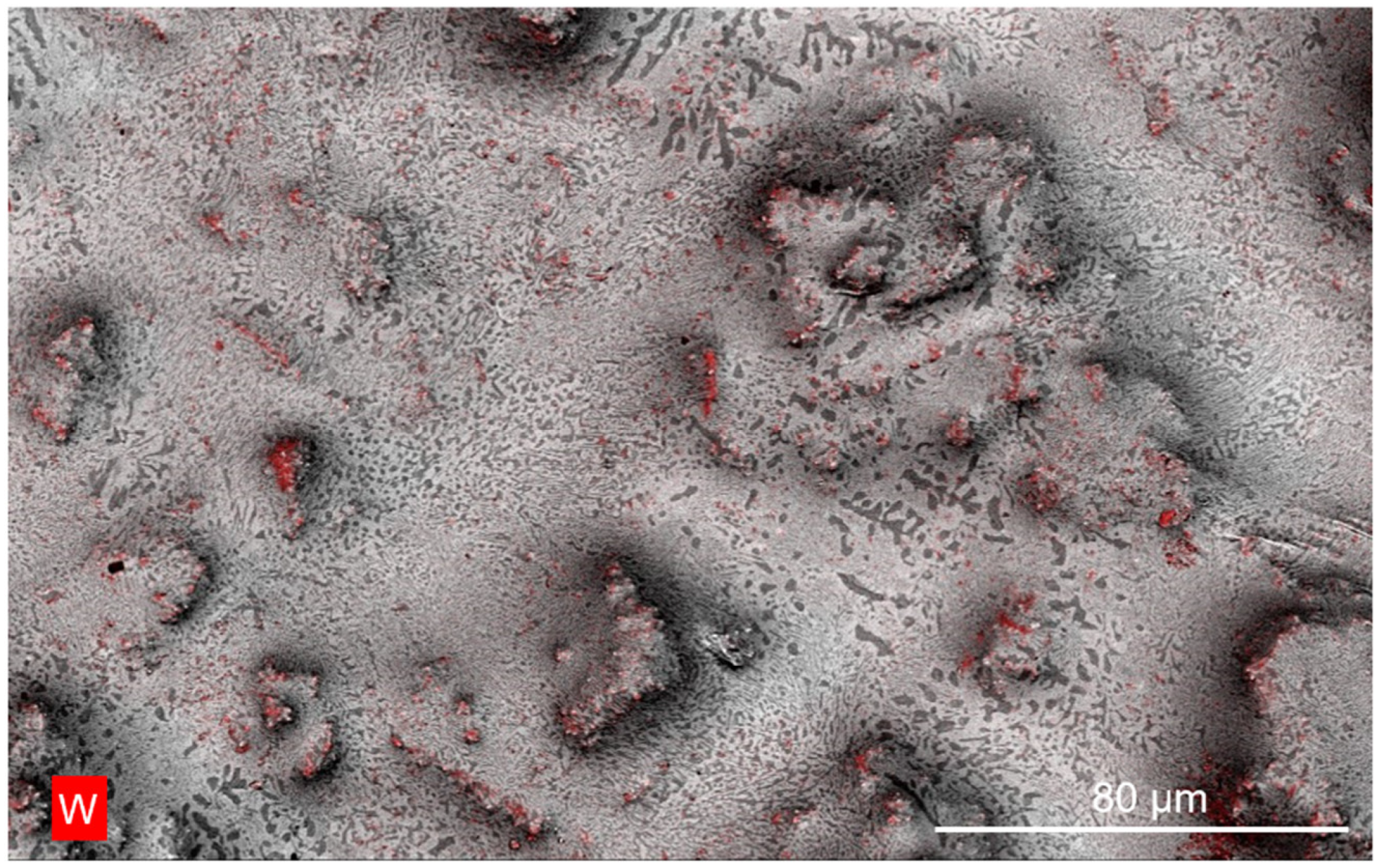

Figure 2. SEM image of Bi-In-Sn/WO3 composite. The red-highlighted areas represent tungsten (W) distribution in the composite.
Figure 2. SEM image of Bi-In-Sn/WO3 composite. The red-highlighted areas represent tungsten (W) distribution in the composite.
Materials 17 05315 g002
Materials 17 05315 g003

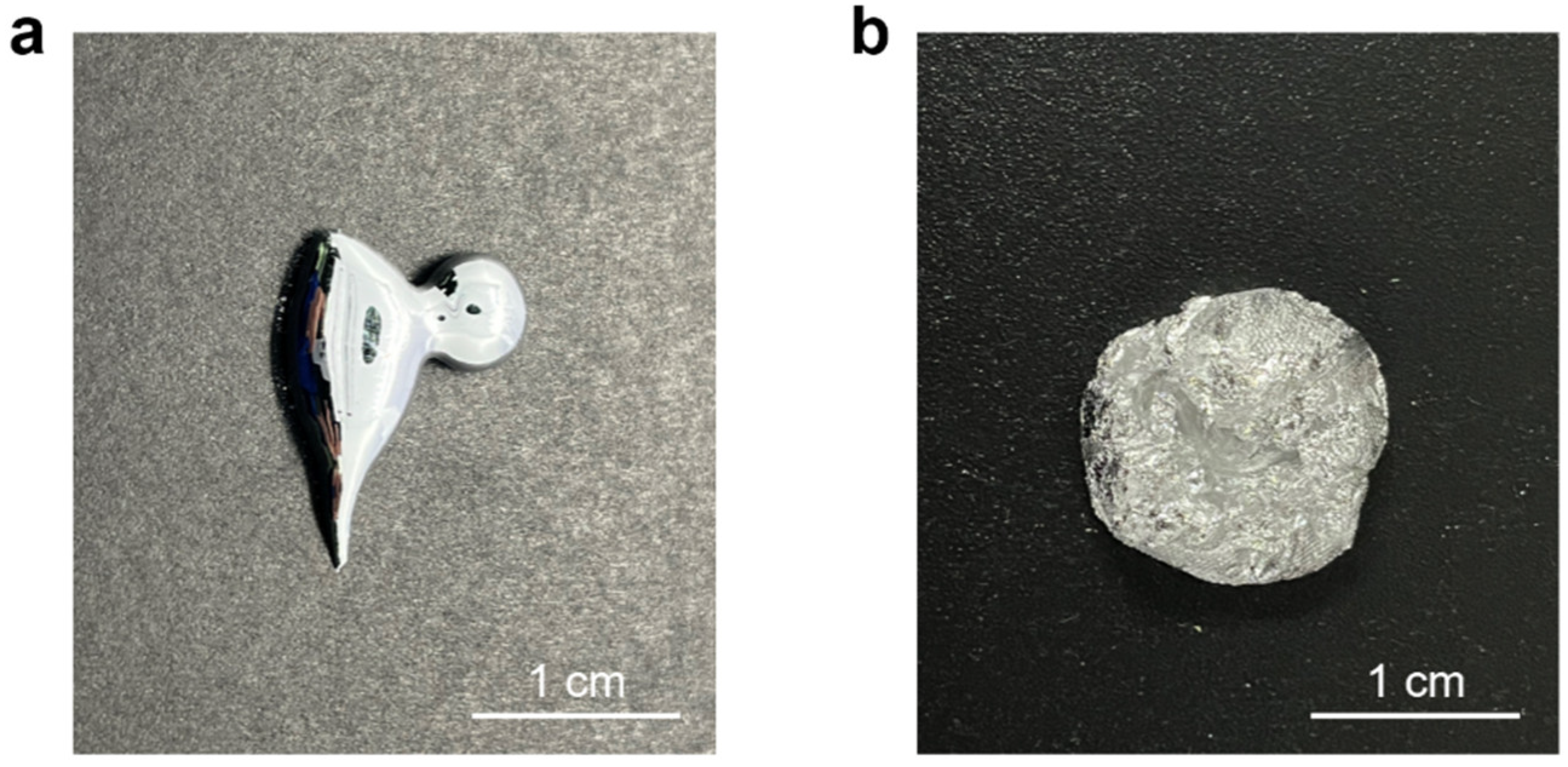

Figure 3. Optical images of (a) pure Bi-In-Sn; and (b) Bi-In-Sn/WO3 composite.
Figure 3. Optical images of (a) pure Bi-In-Sn; and (b) Bi-In-Sn/WO3 composite.
Materials 17 05315 g003
Materials 17 05315 g004

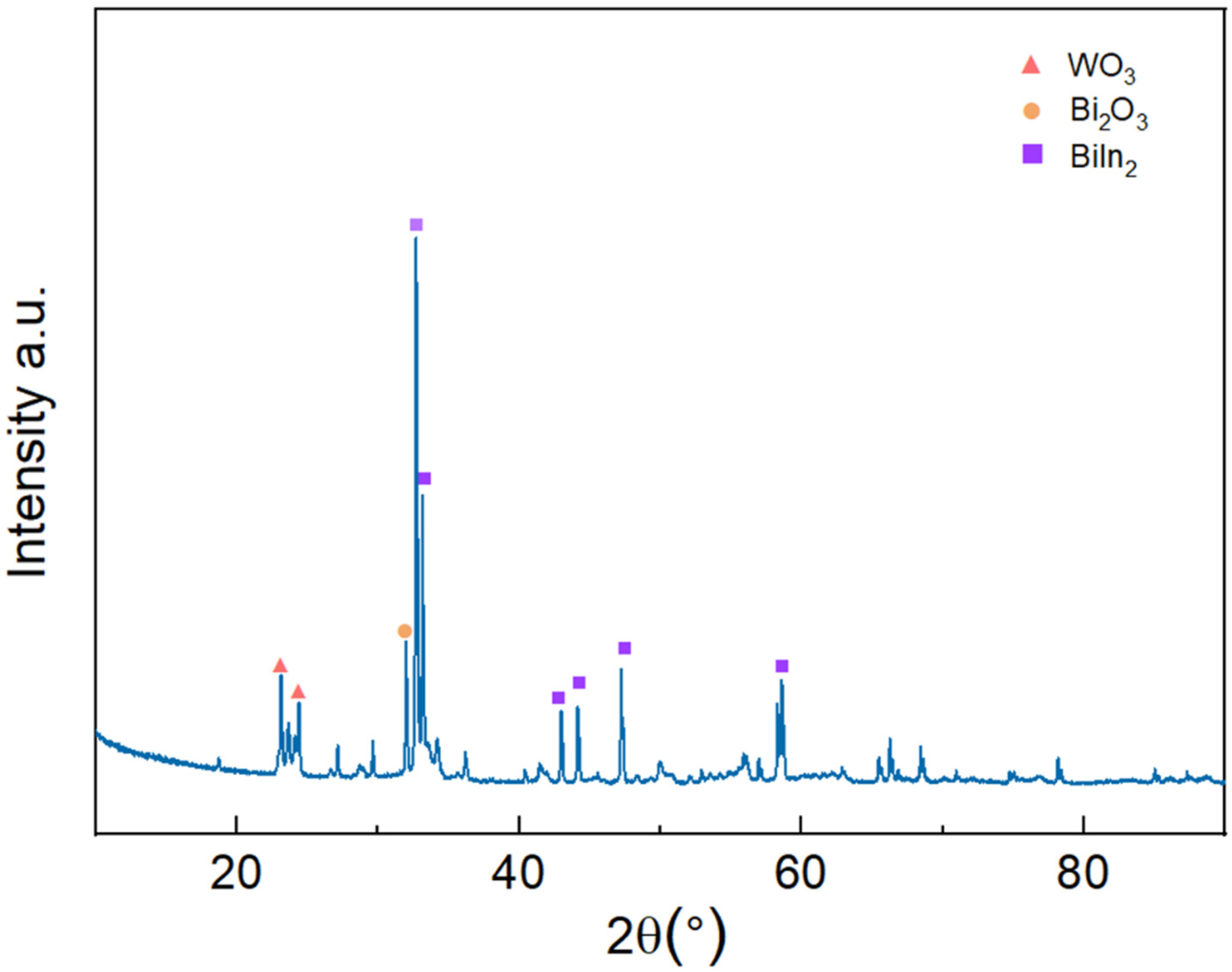

Figure 4. X-ray diffractogram of Bi-In-Sn/WO3 composite.
Figure 4. X-ray diffractogram of Bi-In-Sn/WO3 composite.
Materials 17 05315 g004
Materials 17 05315 g005

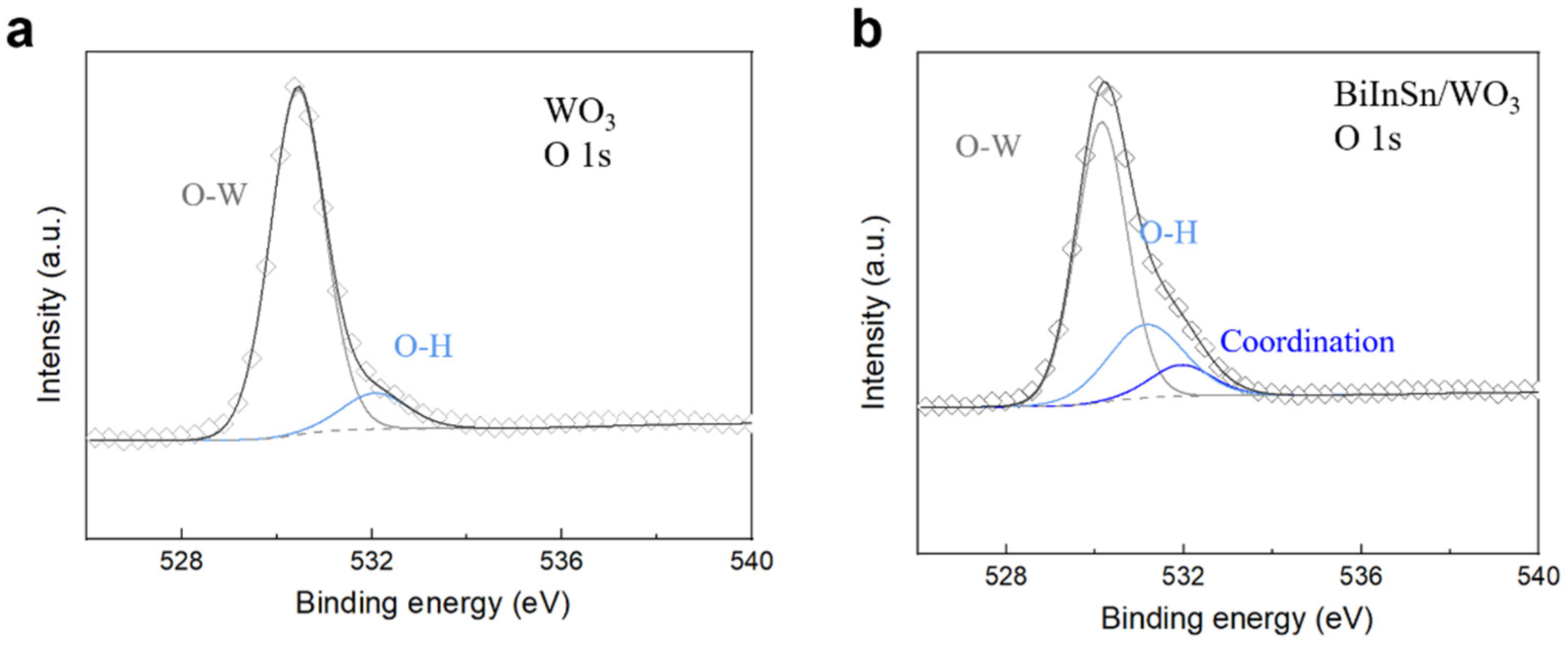

Figure 5. XPS analysis of (a) WO3, and (b) Bi-In-Sn/WO3 composite.
Figure 5. XPS analysis of (a) WO3, and (b) Bi-In-Sn/WO3 composite.
Materials 17 05315 g005
Materials 17 05315 g006

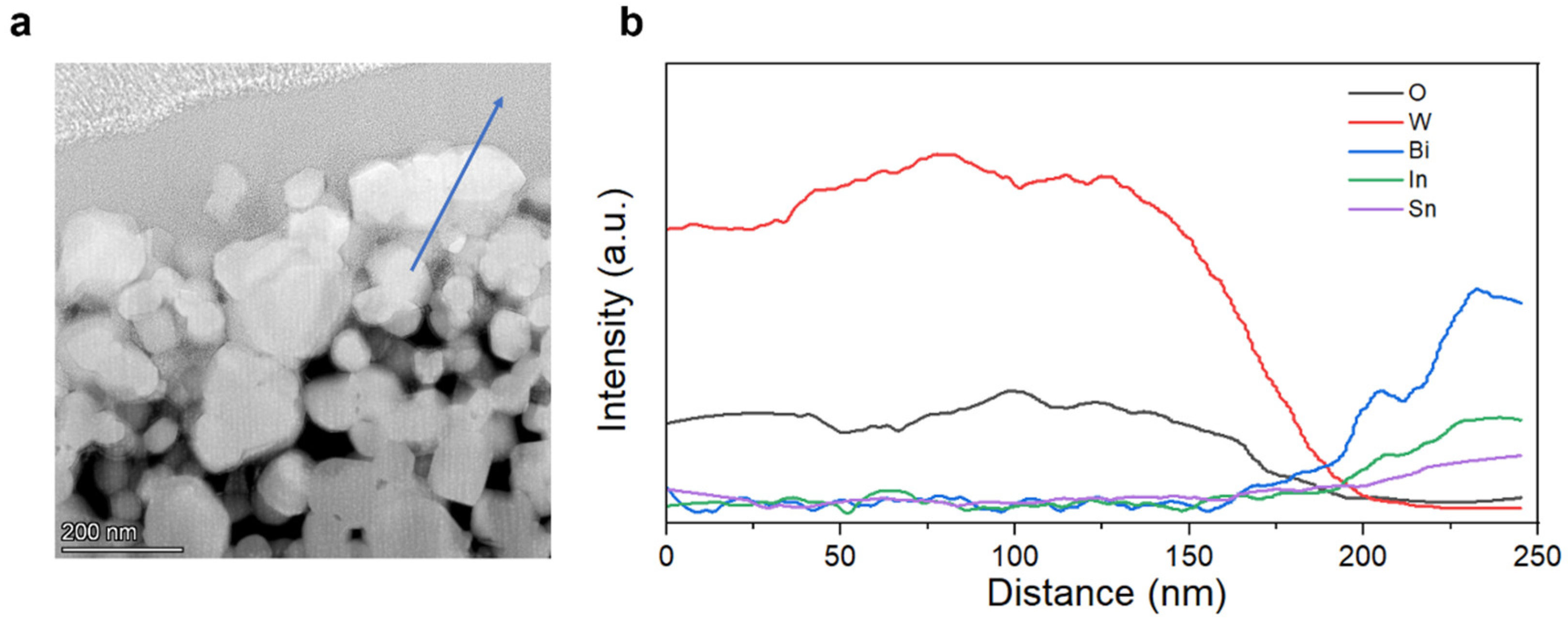

Figure 6. (a) A schematic representation of the Bi-In-Sn/WO3 composite following FIB cutting and HADDF imaging, with the arrow indicating the direction of the line scan; (b) EDS line scan showing the distribution of O, W, Bi, In, and Sn along the interface.
Figure 6. (a) A schematic representation of the Bi-In-Sn/WO3 composite following FIB cutting and HADDF imaging, with the arrow indicating the direction of the line scan; (b) EDS line scan showing the distribution of O, W, Bi, In, and Sn along the interface.
Materials 17 05315 g006
Materials 17 05315 g007

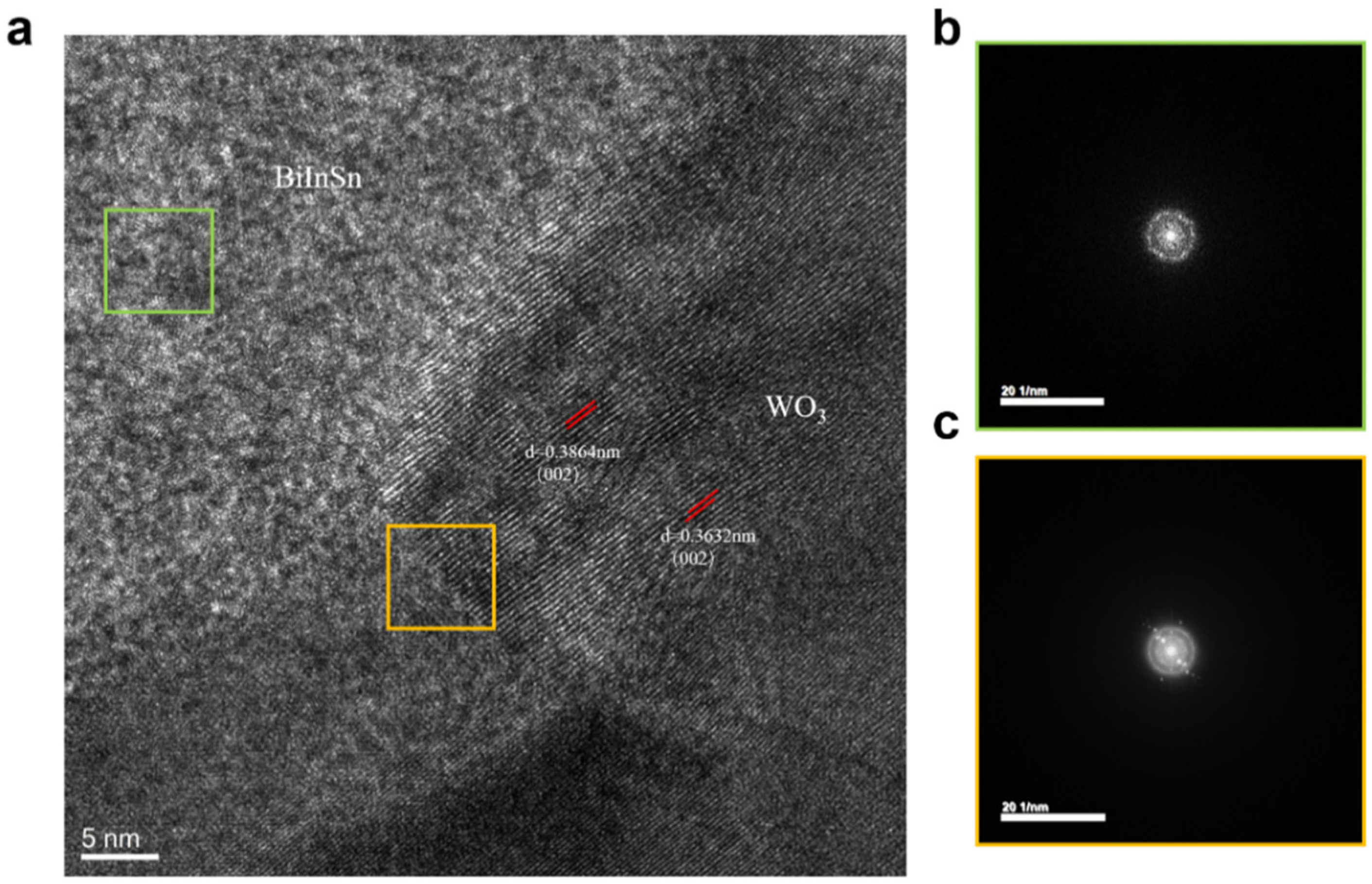

Figure 7. (a) High-resolution transmission electron microscopy image of Bi-In-Sn/WO3 interface, showing lattice structure. The green box highlights the Bi-In-Sn region, while the yellow box marks the transition interface with WO3; (b) SAED pattern of Bi-In-Sn (green box); and (c) transition interface between Bi-In-Sn and WO3 (yellow box).
Figure 7. (a) High-resolution transmission electron microscopy image of Bi-In-Sn/WO3 interface, showing lattice structure. The green box highlights the Bi-In-Sn region, while the yellow box marks the transition interface with WO3; (b) SAED pattern of Bi-In-Sn (green box); and (c) transition interface between Bi-In-Sn and WO3 (yellow box).
Materials 17 05315 g007
Materials 17 05315 g008

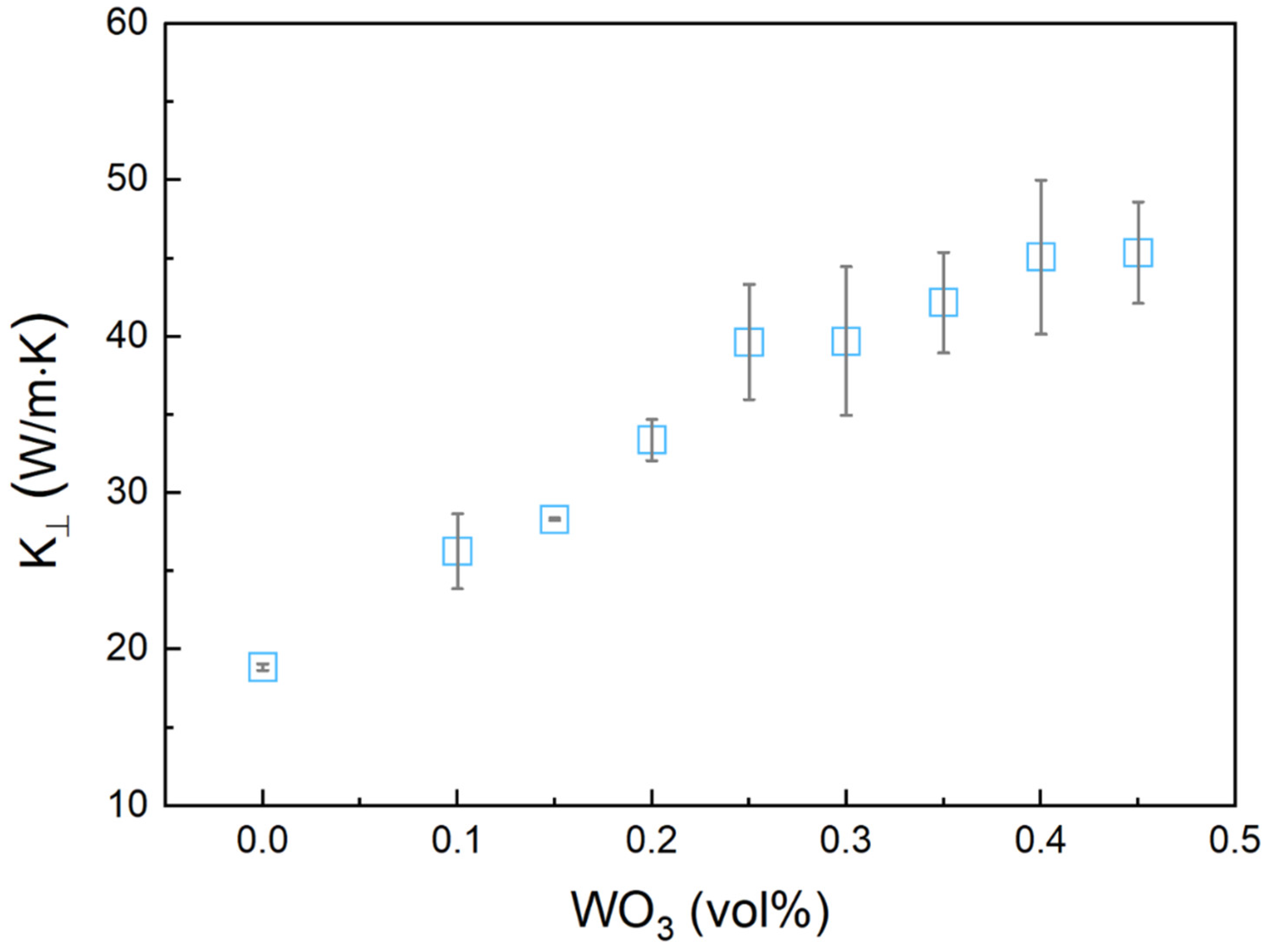

Figure 8. Thermal conductivity of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Figure 8. Thermal conductivity of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Materials 17 05315 g008
Materials 17 05315 g009

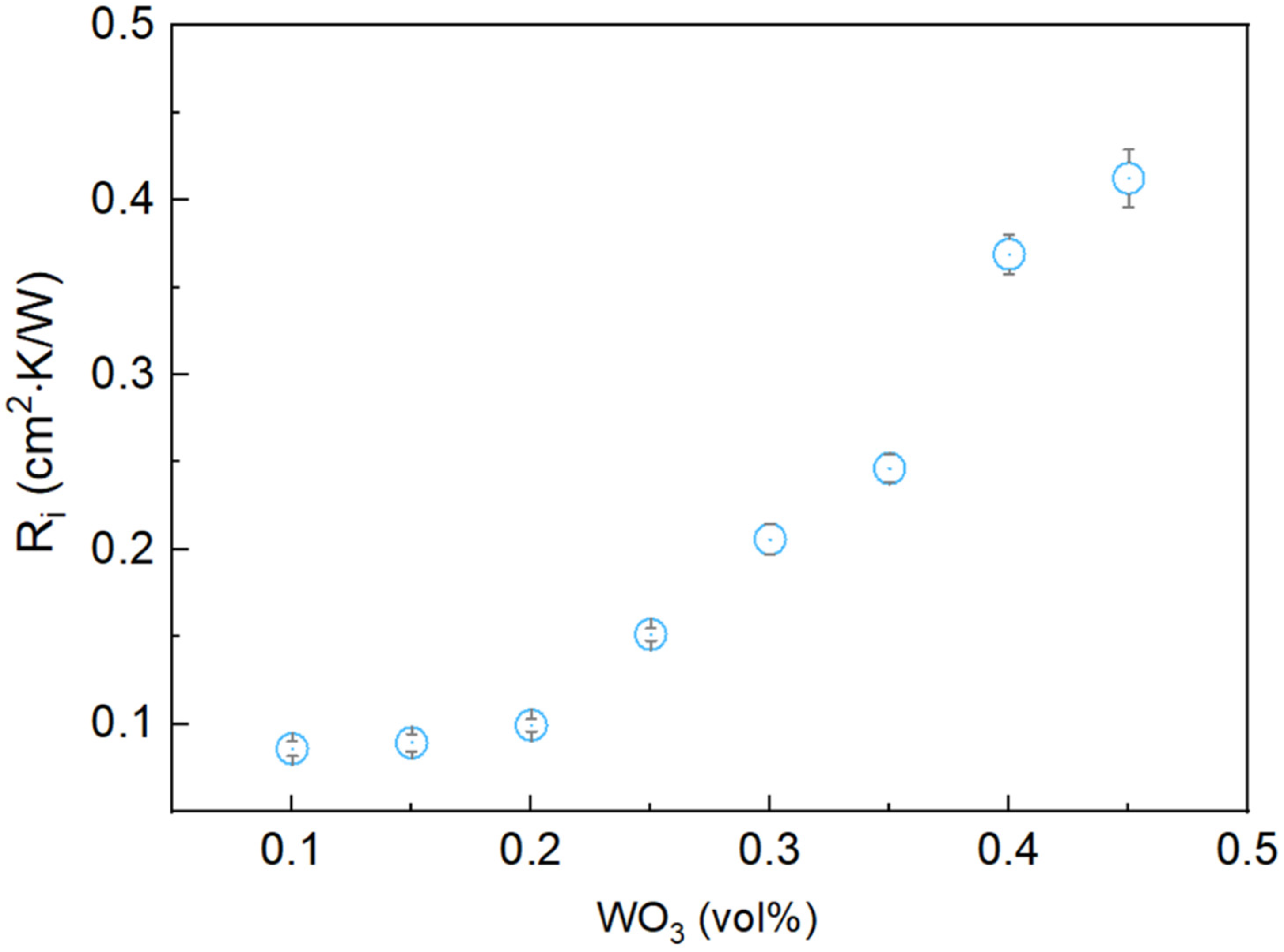

Figure 9. Thermal contact resistance of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Figure 9. Thermal contact resistance of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Materials 17 05315 g009
Materials 17 05315 g010

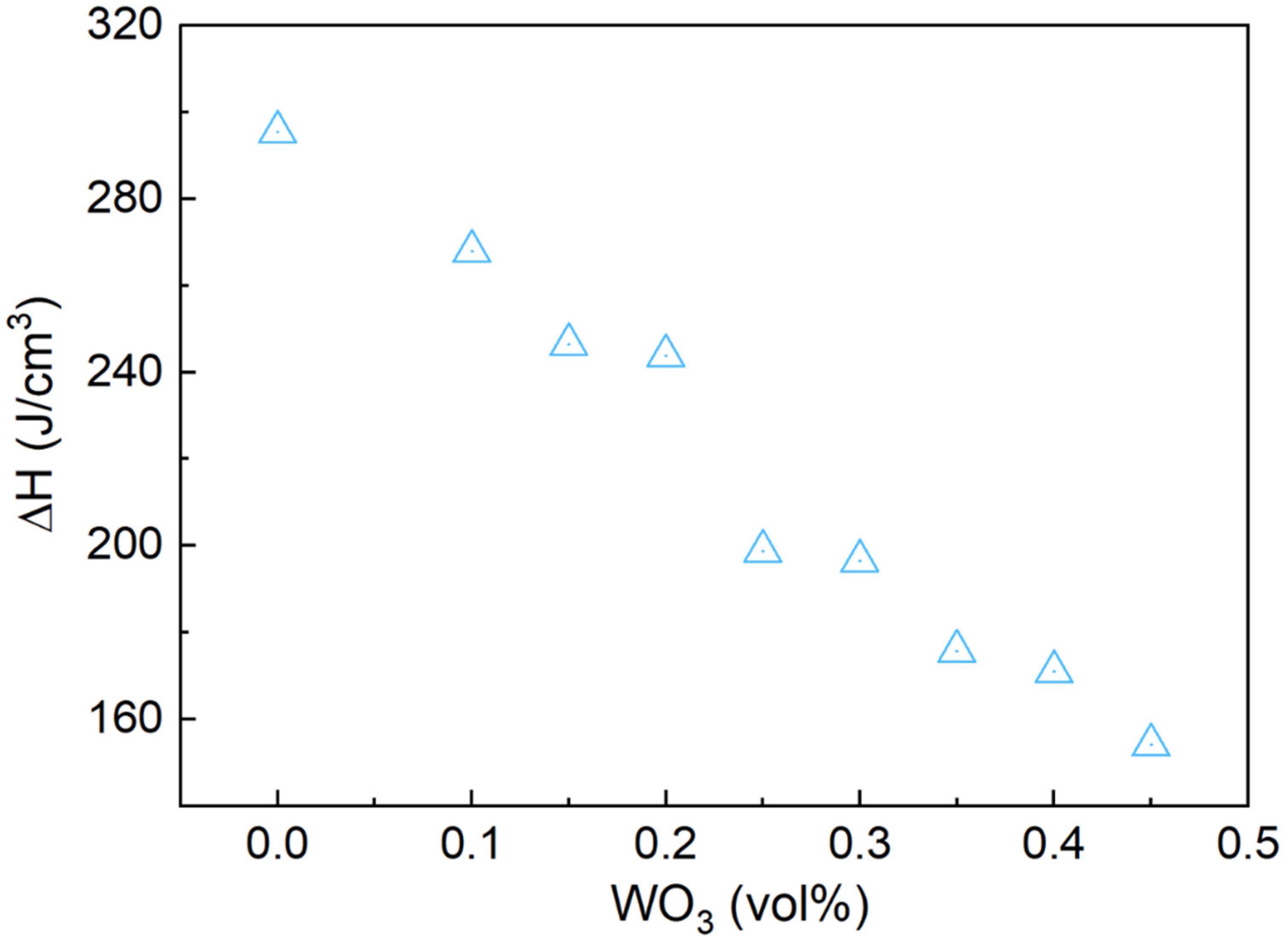

Figure 10. Volumetric latent heat of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Figure 10. Volumetric latent heat of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
Materials 17 05315 g010
Materials 17 05315 g011

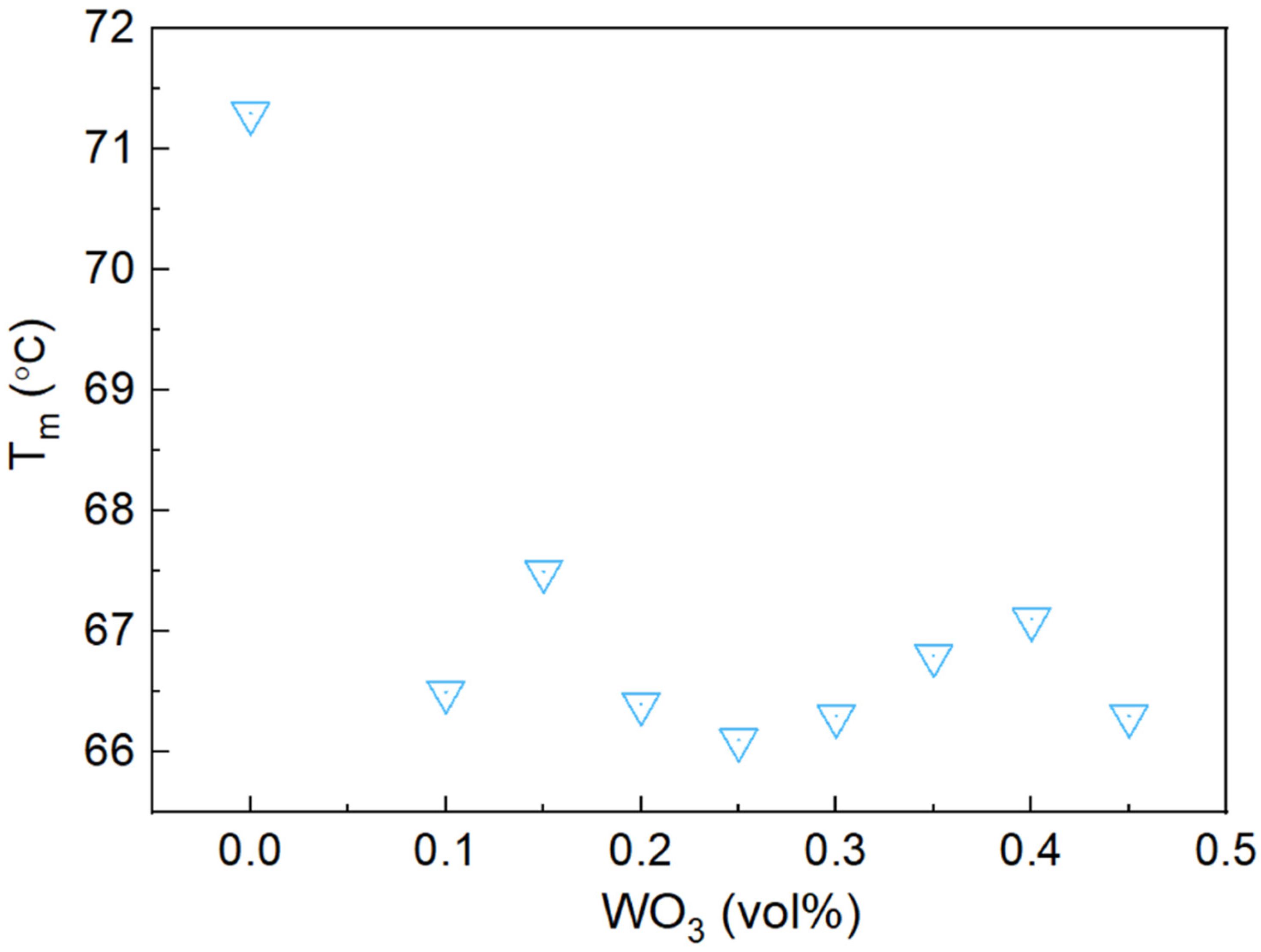

Figure 11. Phase transition temperature (Tm) of Bi-In-Sn/WO3 composite as function of WO3 mass fraction.
