Article

Effect of Amorphous Metallic Fibers on Thermal and Mechanical Properties of Lightweight Aggregate Cement Mortars Containing Carbon Nanotubes

by
Se-Jin Choi
,
Jae-In Lee
*,
Chae-Young Kim
,
Joo-Ho Yoon
and
Kwan-Ho Kim
Department of Architectural Engineering, Wonkwang University, 460 Iksan-daero, Iksan 54538, Republic of Korea
*
Author to whom correspondence should be addressed.
Materials 2024, 17(22), 5449; https://doi.org/10.3390/ma17225449
Submission received: 18 October 2024 / Revised: 1 November 2024 / Accepted: 5 November 2024 / Published: 8 November 2024
(This article belongs to the Special Issue Concretes and Cement-Based Composites: Additives/Admixtures, Hydration Process and Durability Research (2nd Edition))
Browse Figures
Versions Notes

Abstract

:
Lightweight aggregate concrete can reduce the self-weight of a structure with a low unit weight; however, disadvantages such as reduced strength and brittleness remain. This study evaluated the thermal and mechanical properties of lightweight aggregate cement mortars containing carbon nanotubes (CNTs) and amorphous metallic fibers (AMFs). A thermal property test indicated that the peak temperature of the C1A1 and C1A2 samples using AMFs was approximately 91.5–93.8 °C (approximately 57.2–61.1% higher than the C1A0 sample without AMFs). The time to reach the peak temperature was approximately 15–27 min (21.1–38.0% of that for the C1A0 sample). The 28-day split tensile strength of the sample using 20 kg/m3 of the AMFs was approximately 3.6–3.8 MPa (approximately 46.1–50.0% higher than that of CNT-only samples). The 56-day flexural strength of the C2A2 sample using 0.2% CNTs and 20 kg/m3 AMFs was the highest at approximately 11.2 MPa (approximately 24.4% higher than that of the control sample). The results of this study indicate that using CNTs and AMFs can enhance the strength and reduce the brittleness of lightweight aggregate cement mortar. Furthermore, the performance of the cement mortar is significantly improved when combined with AMFs compared to using CNTs alone.

1. Introduction

Lightweight aggregate (LWA) concrete is a building material used in high-rise buildings and marine floating structures [1,2] owing to its low unit weight and dead load reduction effect [3,4]. However, there are certain disadvantages, such as the reduced performance of the concrete due to the porosity of artificial LWAs [5], low strength, and high brittleness [6,7].
To compensate for these shortcomings, certain studies have reported improvements in the performance of LWA concrete using fibers with high tensile strength and ductility enhancement effects as reinforcing materials [8,9]. Amorphous metallic fibers (AMFs), which are concrete-reinforcing fibers, exhibit high adhesion to the cement matrix, excellent tensile strength, and corrosion resistance. Moreover, they are known to improve mechanical properties and durability when incorporated into cement composites [10,11].
Dang et al. [8] evaluated the mechanical performance of a lightweight mortar using amorphous metals and nylon fibers. Consequently, they reported that the bending strength increased with an increase in the proportion of AMFs. Moreover, the length of nylon fibers exerted a significant effect on the deformation ability at maximum load. A study by Choi et al. [9] examined the strength and durability of AMF-reinforced mortar using artificial LWA. The bending strength increased with an increase in the mixing ratio of AMFs. Choi et al. [10] reviewed the corrosion resistance and plastic shrinkage characteristics of AMFs. They reported that AMFs exhibited higher corrosion resistance and crack control performance than general steel fibers in deteriorating environments. Zhao et al. [11] evaluated the performance of cement composites containing 0.4, 0.8, 1.2, and 1.6% AMFs. It was found that mixing more than 1.2% of AMFs had a negative effect on the chloride ion penetration resistance.
Recently, it has been reported that the performance of LWA concrete can be improved by incorporating nanomaterials, such as carbon nanotubes (CNTs) and graphene [12,13,14]. Carbon exhibits high efficiency even in small amounts [15]. Furthermore, it exhibits extremely high conductivity, and when incorporated into cement composites, it improves the conductivity of cement composites by forming a conductive network [16].
Adhikary et al. [12] reviewed the effects of CNTs and graphene nanoplates on lightweight concrete. They reported that the compressive strength of the sample using CNTs was higher than that of the sample using graphene nanoplates. Further, the compressive strength of the sample combining CNTs and graphene nanoplates was reported to be the highest. Du et al. [13] evaluated the properties of a lightweight mortar containing CNTs and nanosilica. It was found that the incorporation of nanomaterials improved the mechanical properties of lightweight mortar and that the porosity decreased with the incorporation of approximately 0.05–0.15% CNTs. Yoo et al. [14] evaluated the electrical resistance of cement paste using CNTs and graphene and reported that the maximum decrease in the electrical resistance was observed in the sample that used approximately 1% CNTs.
However, studies on LWA cement composites using CNTs with high conductivity and AMFs with excellent tensile strength and corrosion resistance are lacking.
Thus, this study evaluated the thermal and mechanical properties of LWA cement mortars containing CNTs and AMFs. The fluidity, microhydration heat, strength, thermal properties, and microstructure of LWA mortars containing 0, 0.1, and 0.2% CNTs and 0, 10, and 20 kg/m3 AMFs were examined.

2. Materials and Experimental Methods

2.1. Materials

The cement used in this study was ordinary Portland cement (Sampyo Cement, Seoul, Republic of Korea) with a specific gravity of 3.13 g/cm3 and a Blaine fineness of 3820 cm2/g. For the fine aggregate, artificial lightweight fine aggregate (Koen, Jinju, Republic of Korea) with a specific gravity of 1.77 g/cm3 and a fineness modulus of 4.61, manufactured by firing coal ash and dredged soil at 1200 °C, was used. In addition, we used multi-walled CNTs and AMFs (SEVA, Chalon-sur-saône, France) as reinforcing materials.
Table 1 and Table 2 list the chemical properties of cement and the physical properties of the artificial LWA used in this study, respectively. Table 3 and Table 4 present the characteristics of CNTs and AMFs used in this study, respectively.
Figure 1 shows the shape and scanning electron microscopy (SEM) images of the LWA. Evidently, the LWA was porous and had a high water absorption rate, which can affect the performance of the mortar. Accordingly, on the basis of a prior study [17], we immersed the LWA in water for 24 h and then adjusted it to a saturated-surface-dry state. Figure 2 and Figure 3 show SEM images of the CNT and AMF used in this study, respectively. It is evident that the surface of the AMF was rough and smooth.

2.2. Mixing Proportions and Specimen Preparation

Table 5 lists the mix proportions of the LWA mortars used in this study. The water–cement ratio (W/C) was fixed at 50%, and LWA was used as the fine aggregate. The CNT was added in amounts of 0, 0.1, and 0.2% by cement content, and the AMF was added in amounts of 0, 10, and 20 kg/m3. To disperse the hydrophobic CNTs, they were first incorporated in the dry mixing process of the cement and aggregates. Then, the AMF was added to the mortar dough mixed with water.
A 50 mm × 50 mm × 50 mm cubic sample was produced to evaluate the compressive strength and thermal performance of LWA mortar using CNTs and AMFs, and a Ø50 × 100 mm cylindrical sample was produced for the split tensile strength test. Further, a 40 mm × 40 mm × 160 mm prismatic sample was manufactured, and its flexural strength was measured. Microstructural analyses were performed through SEM and energy-dispersive X-ray spectroscopy (EDS). Each sample was demolded after 24 h and cured in water at 20 °C until further use.
The mortar flow and compressive strength were measured according to KS L 5105 [18]. The heat of microhydration was measured according to ASTM C 1753 [19] using a semiadiabatic calorimeter (Calmetrix, F-Cal8000, Boston, MA, USA). For the thermal characteristics, referred to in the existing literature [20,21], a K-TYPE thermocouple was used. Temperature monitoring was conducted until the maximum temperature was reached after applying 60 V (Figure 4). For sample preparation, a cubic test specimen of 50 mm × 50 mm × 50 mm was created, and a thermocouple was inserted into the center of the test specimen at a depth of 25 mm before the material hardened, with electrode bodies inserted at intervals of 40 mm. The samples were cured in water at 20 °C prior to thermal performance measurement, having been cured at room temperature for 24 h before measurement to minimize the effect of moisture . The split tensile strength was measured according to KS F 2423 [22], and the flexural strength was tested according to KS F 2408 [23]. The microstructures were analyzed via SEM (AIS1800C, Seron, Uiwang-si, Republic of Korea) and EDS (OXFORD INSTRUMENTS, Xplore, Abingdon, UK).

3. Experimental Results and Discussion

3.1. Mortar Flow

Figure 5 shows the flow change in LWA mortar using CNTs and AMFs. Evidently, the mortar flow of the control sample without CNTs and AMFs was approximately 165 mm, which was the highest among all the samples. The mortar flows of the C1A0 and C2A0 samples using CNTs without AMFs were approximately 130–132 mm, approximately 20.0–21.2% lower than that of the control sample. When a CNT was used, the mortar flow of the C1A0 sample using 0.1% CNTs and 0 kg/m3 AMFs was the highest at approximately 132 mm.
In addition, as the amount of AMFs increased, the flow of the mortar sample decreased, and the flows of the C1A1 and C1A2 samples were approximately 16.6–19.6% lower than that of the C1A0 sample without AMFs. Even in the sample with 0.2% CNTs, the mortar flow decreased as the amount of AMFs increased, and the mortar flow of the C2A2 sample containing 20 kg/m3 AMFs was the lowest at approximately 103 mm.
The decrease in the mortar flow when using CNTs is attributed to an increase in the agglomeration rate of the hydrophobic CNTs [24]. Additionally, the tendency of mortar flowability to decrease when using AMFs is believed to result from the uneven distribution of fibers as the amount of AMFs increases [25] and moisture loss, which can affect fluidity when dry fibers are mixed in. When CNTs and AMFs were used together, the mortar flowability was found to decrease further, aligning with findings from a previous study that reported reduced fluidity when CNTs and reinforcing fibers were combined [26].

3.2. Heat of Microhydration

Figure 6 shows the change in the microhydration heat of the LWA mortar samples using CNTs and AMFs. Evidently, the control sample showed the fastest time to reach peak temperature, that is, 22.9 °C in approximately 30 h. In the case of the sample containing 0.1% CNTs, the peak temperature reaching time was approximately 32–34 h, which was slightly delayed compared with the control sample.
Further, as the amount of AMFs increased, the peak temperature increased to 23.5–23.8 °C, which was approximately 2.6–3.9% higher than that of the C1A0 sample. In the case of the sample using 0.2% CNTs, the peak temperature of the C2A0 sample without AMFs was approximately 21.9 °C, which was approximately 4.3% lower than the control sample. Thereafter, as the amount of AMFs increased, the peak temperature tended to increase to 22.6–23.0 °C.
The results of this study show that when only a CNT is used in LWA mortar, the time to reach the peak temperature is delayed. CNT agglomerates can potentially delay the hydration reaction by reducing the homogeneity of the cement matrix and the contact interface between the pastes [27,28]. However, when CNTs and AMFs are used together, the peak temperature increases. This trend is attributable to the agglomeration phenomenon of CNTs [29,30] being partially alleviated using the AMF, which acts as a medium for transferring hydration heat.

3.3. Thermal Properties

Figure 7 shows the changes in the thermal properties of the LWA mortar using CNTs and AMFs. The peak temperature and arrival time of the control sample were approximately 54.3 °C and 104 min, respectively, which were the lowest and slowest, respectively.
The peak temperature of the C1A0 and C2A0 samples containing only CNTs was approximately 58.2–60.9 °C, approximately 7.1–12.1% higher than the control sample. Further, the peak temperature of the sample containing both CNTs and AMFs was significantly higher than that of the sample containing only CNTs.
Thus, in the case of the sample using 0.1% CNTs, the peak temperature of the LWA mortar sample using AMFs was approximately 91.5–93.8 °C, which was approximately 57.2–61.1% higher than the C1A0 sample without AMFs.
In particular, the time to reach the peak temperature was approximately 15–27 min, which was 21.1–38.0% of that of the C1A0 sample. Even when 0.2% of the CNT was used, the peak temperature of the sample using AMFs was approximately 75.8–98.3 °C, which was approximately 24.4–61.4% higher than that of the C2A0 sample. Moreover, the time required to reach the peak temperature was also short. The peak temperature of the C2A2 sample using 0.2% CNTs and 20 kg/m3 AMFs was the highest at approximately 98.3 °C, which was approximately 81.0% higher than the control sample.
In this study, the thermal performance of LWA mortar was significantly improved when CNTs and AMFs were used together as reinforcing materials. This is attributed to the formation of a conductive network in the mortar sample owing to the incorporation of CNTs [31] and the significant increase in thermal performance owing to the use of conductive AMFs [32].

3.4. Compressive Strength

Figure 8 shows the change in compressive strength with the age of the LWA mortar samples using CNTs and AMFs. Notably, the 7-day compressive strength of the control sample was approximately 24.7 MPa, and as the amount of CNTs and AMFs increased, the compressive strength of the LWA mortar sample increased. In addition, when the amount of AMFs was the same, the compressive strength of the sample with 0.2% CNTs was greater than that of the sample with 0.1% CNTs.
The 7-day compressive strength of the C2A2 sample using 0.2% CNTs and 20 kg/m3 AMFs was approximately 29.8 MPa, which was approximately 20.6% higher than that of the control sample.
After 28 days, the compressive strength of the control sample was approximately 35.8 MPa, and the 28-day compressive strength of the samples using CNTs and AMFs increased as the amount of AMFs increased. The improvement in the compressive strength of all samples continued even after 56 days. The 56-day compressive strength of the control sample was approximately 41.8 MPa, and that of the sample using CNTs and AMFs was 41.3–49.5 MPa, demonstrating an increase with the amount of CNTs and AMFs. The 56-day compressive strength of the C2A2 sample using 0.2% CNTs and 20 kg/m3 AMFs was approximately 49.5 MPa, which was approximately 18.4% higher than that of the control sample.
The compressive strength of the LWA mortar using CNTs and AMFs being higher than that of the control sample is attributable to the crosslinking effect of CNTs, a nanomaterial, and the improved adhesion strength to the cement matrix due to the rough surface characteristics of AMFs [33,34,35].

3.5. Split Tensile Strength

Figure 9 shows the change in the split tensile strength of the LWA mortar samples using CNTs and AMFs. fc/ft is the ratio of the split tensile strength (ft) to compressive strength (fc). The 28-day split tensile strength of the control sample was approximately 2.6 MPa, and for the sample using CNTs and AMFs, it was approximately 2.4–3.8 MPa. The split tensile strength increased with the amount of AMFs. The 28-day split tensile strengths of the C1A0 and C2A0 samples using only CNTs were approximately 2.4–2.6 MPa, similar to that of the control sample.
However, the 28-day split tensile strength of the sample using 10 kg/m3 AMFs was approximately 2.7–3.4 MPa, which was approximately 12.5–30.7% higher than that of the sample using only CNTs. In addition, the 28-day split tensile strength of the sample using 20 kg/m3 of AMFs was approximately 3.6–3.8 MPa, which was approximately 46.1–50.0% higher than that of the sample using only CNTs.
In particular, when the amount of AMFs was the same, the split tensile strength of the sample with 0.2% CNTs was greater than that of the sample with 0.1% CNTs.
Even after 56 days, the split tensile strength of the control sample was approximately 2.8 MPa, whereas that of the samples using CNTs and AMFs was relatively high at approximately 3.0–4.2 MPa. The 56-day split tensile strength of the C1A2 and C2A2 samples using 20 kg/m3 of AMFs was approximately 3.9–4.2 MPa, which was 39.2–50.0% greater than that of the control sample.
The split tensile strengths of the samples prepared using CNTs and AMFs were significantly greater than that of the control sample. This is believed to be owing to the CNT-suppressing microcracks in the mortar [36,37] and the stress distribution effect of the AMFs used as reinforcing fibers [38].
In addition, the brittleness of cement composites is high when the fc/ft is high [32,39]. After 28 days, the fc/ft of the control sample was approximately 13.9, and that of the sample using CNTs and AMFs together was 10.2–13.7—up to 26.6% lower than that of the control sample. Therefore, it is believed that the brittleness of LWA mortar samples can be effectively reduced using CNTs and AMFs.

3.6. Flexural Strength

Figure 10 shows the change in the flexural strength according to the age of the LWA mortar samples using CNTs and AMFs. Evidently, the 28-day flexural strength of the control sample was the lowest at approximately 7.5 MPa.
For the sample with 0.1% CNTs, the flexural strength of the sample without AMFs was approximately 8.4 MPa, and the flexural strength tended to increase as the amount of AMFs increased. The 28-day flexural strength of the sample containing 0.1% CNTs and 20 kg/m3 AMFs was approximately 9.1 MPa, which was approximately 21.3% higher than that of the control sample. Even when 0.2% of the CNT was used, the flexural strength increased as the amount of AMFs increased, and the 28-day flexural strength of the C2A2 sample containing 0.2% CNTs and 20 kg/m3 AMFs was the highest at approximately 9.1 MPa.
After 56 days, the flexural strength of the control sample was approximately 9.0 MPa, and the flexural strength increased as the amount of AMFs increased.
Moreover, when the amount of AMFs was the same, the 56-day flexural strength of the sample using 0.2% CNTs was relatively greater than that of the sample using 0.1% CNTs. The 56-day flexural strength of the C2A2 LWA mortar sample using 0.2% CNTs and 20 kg/m3 AMFs was the highest at approximately 11.2 MPa. This value was approximately 24.4% higher than that of the control sample.
This is attributed to the crack control and crosslinking effects of CNTs and AMFs [40,41,42] . This phenomenon is likely caused by the interaction of CNTs and AMFs. Specifically, this is due to the entrainment of CNTs, which can act as a bridge across microcracks, and AMFs, which exhibit excellent crack control [40,41,42].

3.7. Microstructural Analysis

Figure 11 shows the SEM images of certain 28-day samples. Voids and microcracks were observed in the matrix of the control sample without CNTs or AMFs, along with certain hydrates. In the C1A0 sample with 0.1% CNTs, voids, ettringite, and calcium silicate hydrates (CSHs) were observed. In the C1A2 sample, a honeycomb-shaped CSH was formed around ettringite and monosulfate, and a relatively homogeneous matrix was observed compared to the control and C1A0 samples. In the C2A0 sample, pores and a somewhat less dense structure were observed, believed to have resulted from the lowest 28-day compressive strength. For the C2A2 sample with 0.2% CNTs and 20 kg/m3 AMFs, numerous hydrates and a dense matrix were observed.
Figure 12 and Table 6 show the EDS mapping results of the control and C2A2 samples and the EDS spot analysis results of the CSH gel within each sample, respectively. The elements detected in each sample were Ca, O, Al, Si, C, etc. In general, when the Ca/Si ratio in the CSH gel is low, the Ca2+ concentration is low, and strength development is delayed [43]. In addition, when the Ca/Si ratio is greater than 1.50, the stability of the gel decreases, and the CSH gel with reduced stability negatively affects the performance of the cement composite [44,45].
As is evident from Table 6, the Ca/Si ratio of the control sample was approximately 2.69, and that of the C2A2 sample, which exhibited the highest 28-day compressive strength, was approximately 1.49.

4. Conclusions

This study evaluated the thermal and mechanical properties of lightweight aggregate cement mortars containing CNTs and AMFs. The findings obtained can be summarized as follows:
  • As the amount of AMFs increased, the flow of the mortar sample decreased, and the flows of the C1A1 and C1A2 samples were approximately 16.6–19.6% lower than that of the C1A0 sample without AMFs.
  • In the microhydration heat test, when only the CNT was used in the LWA mortar, the time to reach the peak temperature was delayed. However, when CNTs and AMFs were used together, the peak temperature increased.
  • Through a thermal property test, the peak temperature of the sample using both CNTs and AMFs was found to be significantly higher than that of the sample using only CNTs. Thus, the peak temperature of the C1A1 and C2A2 samples using AMFs was approximately 91.5–93.8 °C, which was approximately 57.2–61.1% higher than the C1A0 sample without AMFs. In particular, the time to reach the peak temperature was approximately 15–27 min, which was 21.1–38.0% of that of the C1A0 sample.
  • The 28-day compressive strength of the control sample was approximately 35.8 MPa, and the compressive strengths of the samples using CNTs and AMFs increased as the amount of AMFs increased.
  • The 28-day split tensile strength of the sample using 20 kg/m3 of the AMF was approximately 3.6–3.8 MPa, which was approximately 46.1–50.0% higher than that of the sample using only CNTs. In particular, when the amount of AMFs was the same, the split tensile strength of the sample with 0.2% CNTs was greater than that of the sample with 0.1% CNTs.
  • The 56-day flexural strength of the C2A2 sample using 0.2% CNTs and 20 kg/m3 AMFs was the highest at approximately 11.2 MPa. This value was approximately 24.4% higher than that of the control sample.
The results of this study show that the thermal properties and mechanical performance of LWA mortar can be efficiently improved when CNTs and AMFs are used together.
In the future, additional research will be needed on the correlation between the microstructure and durability of lightweight aggregate cement composites using CNTs and AMFs.

Author Contributions

Conceptualization, S.-J.C.; investigation, S.-J.C. and J.-I.L.; data curation, C.-Y.K., J.-H.Y. and K.-H.K.; writing—original draft preparation, S.-J.C. and J.-I.L.; writing—review and editing, S.-J.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MIST) (RS-2024-00405537).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Acknowledgments

The authors gratefully acknowledge the NRF and MIST for their financial support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Choi, S.J.; Mun, J.S.; Yang, K.H.; Kim, S.J. Compressive fatigue performance of fiber-reinforced lightweight concrete with high-volume supplementary cementitious materials. Cem. Concr. Compos. 2016, 73, 89–97. [Google Scholar] [CrossRef]
  2. Xiang, Z.H.; Wang, J.; Niu, J.G.; Xu, Y. Experimental Study on the Seismic Performance of Hollow Columns with Fiber Lightweight Aggregate Concrete. Buildings 2022, 12, 2164. [Google Scholar] [CrossRef]
  3. Real, S.; Bogas, J.A.; Pontes, J. Structural lightweight aggregate concrete exposed to marine environment for 5years. Constr. Build. Mater. 2021, 275, 122161. [Google Scholar] [CrossRef]
  4. Chen, P.; Wang, Z.; Cao, S.; Rong, X.; Shi, Z.; Wang, H. Study on axial compressive stress-strain relationship of alkali-activated slag lightweight aggregate concrete. Constr. Build. Mater. 2023, 364, 129991. [Google Scholar] [CrossRef]
  5. Kockal, N.U.; Ozturan, T. Durability of lightweight concretes with lightweight fly ash aggregates. Constr. Build. Mater. 2011, 25, 1430–1438. [Google Scholar] [CrossRef]
  6. Maghfouri, M.; Alimohammadi, V.; Gupta, R.; Saberian, M.; Azarsa, P.; Hashemi, M.; Asadi, I.; Roychand, R. Drying Shrinkage properties of expanded polystyrene (EPS) lightweight aggregate concrete: A review. Case Stud. Constr. Mater. 2022, 16, e00919. [Google Scholar] [CrossRef]
  7. Cui, H.Z.; Lo, T.Y.; Memon, S.A.; Xu, W. Effect of lightweight aggregates on the mechanical properties and brittleness of lightweight aggregate concrete. Constr. Build. Mater. 2012, 35, 149–158. [Google Scholar] [CrossRef]
  8. Dang, C.T.; Pham, M.; Dinh, N.H. Experimental Study on Compressive and Flexural Performance of Lightweight Cement-Based Composites Reinforced with Hybrid Short Fibers. Materials 2023, 16, 4457. [Google Scholar] [CrossRef]
  9. Choi, S.J.; Kim, J.H.; Bae, S.H.; Oh, T.G. Strength, Drying Shrinkage, and Carbonation Characteristic of Amorphous Metallic Fiber-Reinforced Mortar with Artificial Lightweight Aggregate. Materials 2020, 13, 4451. [Google Scholar] [CrossRef]
  10. Choi, S.J.; Hong, B.T.; Lee, S.J.; Won, J.P. Shrinkage and corrosion resistance of amorphous metallic-fiber-reinforced cement composites. Compos. Struct. 2014, 107, 537–543. [Google Scholar] [CrossRef]
  11. Zhao, S.; Liu, R.; Liu, J. Experimental study on the durability of high-performance cementitious composites with amorphous metallic fibers. Constr. Build. Mater. 2023, 367, 130295. [Google Scholar] [CrossRef]
  12. Adhikary, S.K.; Rudzionis, Z.; Ghosh, R. Influence of CNT, graphene nanoplate and CNT-graphene nanoplate hybrid on the properties of lightweight concrete, Assessment of High Thermal Effects on Carbon Nanotube (Cnt)- Reinforced Concrete. Mater. Proc. 2021, 44, 1979–1982. [Google Scholar]
  13. Du, Y.; Pundiene, I.; Pranckeviciene, J.; Zujevs, A.; Korjakins, A. Study on the Pore Structure of Lightweight Mortar with Nano-Additives. Nanomaterials 2023, 13, 2942. [Google Scholar] [CrossRef] [PubMed]
  14. Yoo, D.Y.; You, I.; Lee, S.J. Electrical properties of cement-based composites with carbon nanotubes, graphene and graphite nano fibers. Sensors 2017, 17, 1064. [Google Scholar] [CrossRef] [PubMed]
  15. Seo, J.; Jang, D.; Yang, B.; Yoon, H.N.; Jang, J.G.; Park, S.; Lee, H.K. Material characterization and piezoresistive sensing capability assessment of thin-walled CNT-embedded ultra-high performance concrete. Cem. Concr. Compos. 2022, 134, 104808. [Google Scholar] [CrossRef]
  16. Abdulhameed, A.; Wahab, N.Z.A.; Mohtar, M.N.; Hamidon, M.N.; Shafie, S.; Halin, I.A. Method and Applications of Electrical Conductivity Enhancement of Materials Using Carbon Nanotubes. J. Electron. Mater. 2021, 50, 3207–3221. [Google Scholar] [CrossRef]
  17. Lee, J.I.; Bae, S.H.; Kim, J.H.; Choi, S.J. Effect of Cementitious Materials on the Engineering Properties of Lightweight Aggregate Mortars Containing Recycled Water. Materials 2022, 15, 1967. [Google Scholar] [CrossRef]
  18. KS L 5105; Testing Method for Compressive Strength of Hydraulic Cement Mortars. Korea Industrial Standards, Seoul (Korea); Korean Standards & Certification Information Center: Seoul, Republic of Korea, 2007.
  19. ASTM C 1753; Standard Practice for Evaluation Early Hydration of Hydraulic Cementitious Mixtures Using Thermal Measurements. American Society for Testing and Materials: West Conshohocken, PA, USA, 2021.
  20. Lee, J.I.; Kim, C.Y.; Yoon, J.H.; Choi, S.J. Study on the Engineering Properties of Cement Composites Using Carbon Nanotubes and Amorphous Metallic Fiber. J. Korea Concr. Institue 2024, 34, 73–84. [Google Scholar] [CrossRef]
  21. Maho, B.; Sukontosukkul, P.; Iam, G.S.; Sappakittipakorn, M.; Intarabut, D.; Suksiripattanapong, C.; Chindaprasirt, P.; Limkatanyu, S. Mechanical properties and electrical resistivity of multiwall carbon nanotubes incorporated into high calcium fly ash geopolymer. Case Stud. Constr. Mater. 2021, 15, e00785. [Google Scholar] [CrossRef]
  22. KS F 2423; Standard Test Method for Tensile Splitting Strength of Concrete. Korea Industrial Standards; Korean Standards & Certification Information Center: Seoul, Republic of Korea, 2011.
  23. KS F 2408; Standard Test Method for Flexural Strength of Concrete. Korea Industrial Standards, Seoul (Korea); Korean Standards & Certification Information Center: Seoul, Republic of Korea, 2016.
  24. Ahmad, J.; Zhou, Z. Properties of concrete with addition carbon nanotubes: A review. Constr. Build. Mater. 2023, 393, 132066. [Google Scholar] [CrossRef]
  25. Kim, J.S.; Cho, C.G.; Moon, H.J.; Kim, H.Y.; Lee, S.J.; Kim, W.J. Experimental on Tensile and Shear Characteristics of Amorphous Micro Steel (AMS) Fibre-reinforced Cementitious Composites. Int. J. Concr. Struct. Mater. 2017, 11, 647–655. [Google Scholar] [CrossRef]
  26. Xing, G.; Xu, Y.; Huang, J.; Lu, Y.; Miao, P.; Chindasiriphan, P.; Jongvivatsakul, P.; Ma, K. Research on the mechanical properties of steel fibers reinforced carbon nanotubes concrete. Constr. Build. Mater. 2023, 392, 131880. [Google Scholar] [CrossRef]
  27. Isfahani, F.T.; Li, W.; Redaelli, E. Dispersion of multi-walled carbon nanotubes and its effects on the properties of cement composites. Cem. Concr. Compos. 2016, 74, 154–163. [Google Scholar] [CrossRef]
  28. Adhikari, S.K.; Rudžionis, Ž.; Rajapriya, R. The Effect of Carbon Nanotubes on the Flowability, Mechanical, Microstructural and Durability Properties of Cementitious Composite: An Overview. Sustainability 2020, 12, 8362. [Google Scholar] [CrossRef]
  29. Zhang, J.; Ke, Y.; Zhang, J.; Han, Q.; Dong, B. Cement paste with well-dispersed multi-walled carbon nanotubes: Mechanism and performance. Constr. Build. Master 2020, 262, 120746. [Google Scholar] [CrossRef]
  30. Jang, D.I.; Yoon, H.N.; Lee, H.K.; Nam, I.W. Influence of water ingress on the electrical properties and electronmechanical sensing capabilities of CNT/cement composites. J. Build. Eng. 2021, 42, 103065. [Google Scholar] [CrossRef]
  31. Khan, M.S.; Hashmi, A.F.; Sharia, M.; Ibrahim, S.M. Effects of incorporating fibres on mechanical properties of fibre-reinforced concrete: A review. Mater. Proceeding, 2023; in press. [Google Scholar] [CrossRef]
  32. Miah, M.J.; Pei, J.; Kim, H.; Jang j., G. Flexural behavior porosity, and water absorpation of CO2-cured amorphous metallic-fiber-reinforced belite-rich cement composites. Constr. Build. Mater. 2023, 387, 131668. [Google Scholar] [CrossRef]
  33. Lim, K.M.; Lee, J.H. Electircal conductivity and compressive strength of cement paste with multiwalled carbon nanotubes and graphene nanoplatelets. Apple. Sci. 2022, 12, 1160. [Google Scholar] [CrossRef]
  34. Belli, A.; Mobil, A.; Belleze, T.; Tittareli, F. Commerical and recycled carbon/steel fibers for fiber-reinforced cement mortars with high electirical conductivity. Cem. Concr. Compos. 2020, 109, 103569. [Google Scholar] [CrossRef]
  35. Kin, H.; Kim, G.; Lee, S.; Choe, G.; Nam, J.; Nam, T.; Mechtcherine, V. Effects of strain rate on the tensile behavior of cementitious composites made with amorphous metallic fiber. Cem. Concr. Compos. 2020, 108, 103519. [Google Scholar]
  36. Dihn, N.H.; Choi, K.G.; Kim, H.S. Mechanical properties and Modeling of Amorphous Metallic Fiber-Reinforced Concrete in Compression. Int. J. Concr. Struct. Mater. 2016, 10, 221–236. [Google Scholar]
  37. Cui, K.; Liang, K.; Jiang, T.; Zhang, J.; Lau, D.; Chang, J. Understanding the role of carbon nanotubes in low-carbon concrete: From experiment to molecular dynamics. Cem. Concr. Compos. 2023, 142, 105189. [Google Scholar] [CrossRef]
  38. Silvestro, L.; Gleize, P.J.P. Effect of carbon nanotubes on compressive, flexural and tensile strengths of Portland cement-based materials: A systemic literature review. Constr. Build. Mater. 2020, 264, 120237. [Google Scholar] [CrossRef]
  39. Fang, M.; Chen, Y.M.; Deng, Y.; Wang, Z.; Zhu, M. Toughness improvement mechanism and evaluation of cement concrete for read pavement: A review. J. Road Eng. 2023, 3, 125–140. [Google Scholar] [CrossRef]
  40. Hassanpour, M.; Shanfigh, P.; Mahmud, H.B. Lightweight aggregate concrete fiber reinforcement—A review. Constr. Build. Mater. 2012, 37, 452–461. [Google Scholar] [CrossRef]
  41. Danoglidis, P.A.; Gdoutos, M.S.K.; Gdoutos, E.E.; Shan, S.P. Strength, energy absorption capability and self-sensing properties of multifunctional carbon nanotube reinforced mortars. Constr. Build. Mater. 2016, 120, 265–274. [Google Scholar] [CrossRef]
  42. Yang, J.M.; Shin, H.O.; Yu, D.Y. Benefits of using amorphous metallic fibers in concrete pavement for long-term performance. Arch. Civ. Mech. Eng. 2017, 17, 750–760. [Google Scholar] [CrossRef]
  43. Liu, X.; Wang, G.; Yu, J.; Liu, R.; Lyu, K.; Zuo, J.; Shan, S.P. Stress-sensitive of carbon ananotube-grafted-carbon fiber incorporated cement-based composites. J. Build. Eng. 2023, 64, 105589. [Google Scholar] [CrossRef]
  44. Fan, M.; Chen, F.; Zhang, X.; Wang, R.; Yu, R. Effect of Ca/Si ratio on the characteristics of alkali-activated ultra-high performance concrete (A-UHPC): From hydration kinetics to microscopic structure development. Constr. Build. Mater. 2023, 394, 132158. [Google Scholar] [CrossRef]
  45. Zhu, X.; Qian, C.; He, B.; Chen, Q.; Jiang, Z. Experimental study on the stability of C-S-H nanostructures with varying bulk CaO/SiO2 ratios under cryogenic attack. Cem. Concr. Res. 2020, 135, 106114. [Google Scholar] [CrossRef]
Materials 17 05449 g001

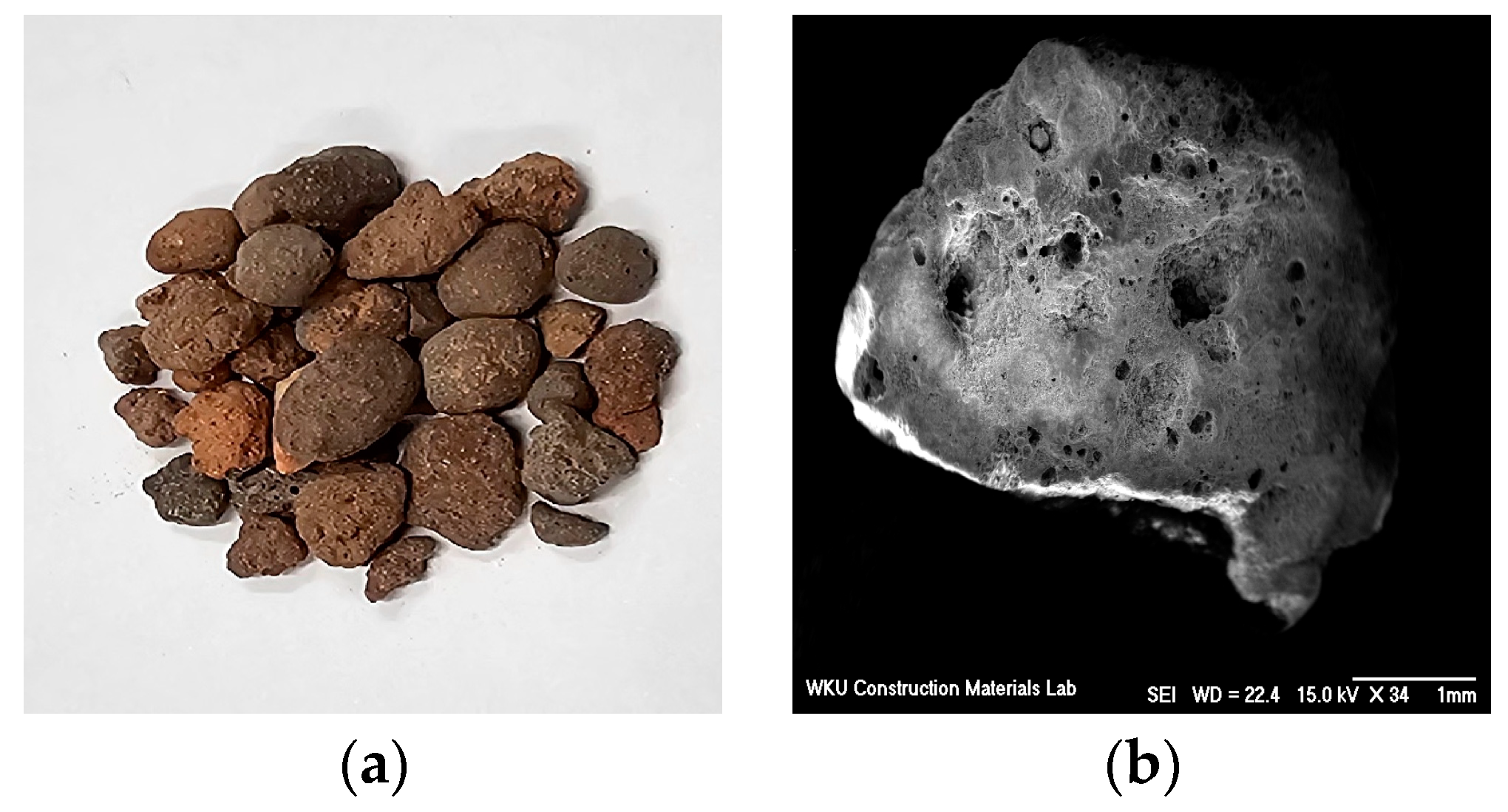

Figure 1. Lightweight fine aggregate: (a) shape, and (b) SEM image.
Figure 1. Lightweight fine aggregate: (a) shape, and (b) SEM image.
Materials 17 05449 g001
Materials 17 05449 g002

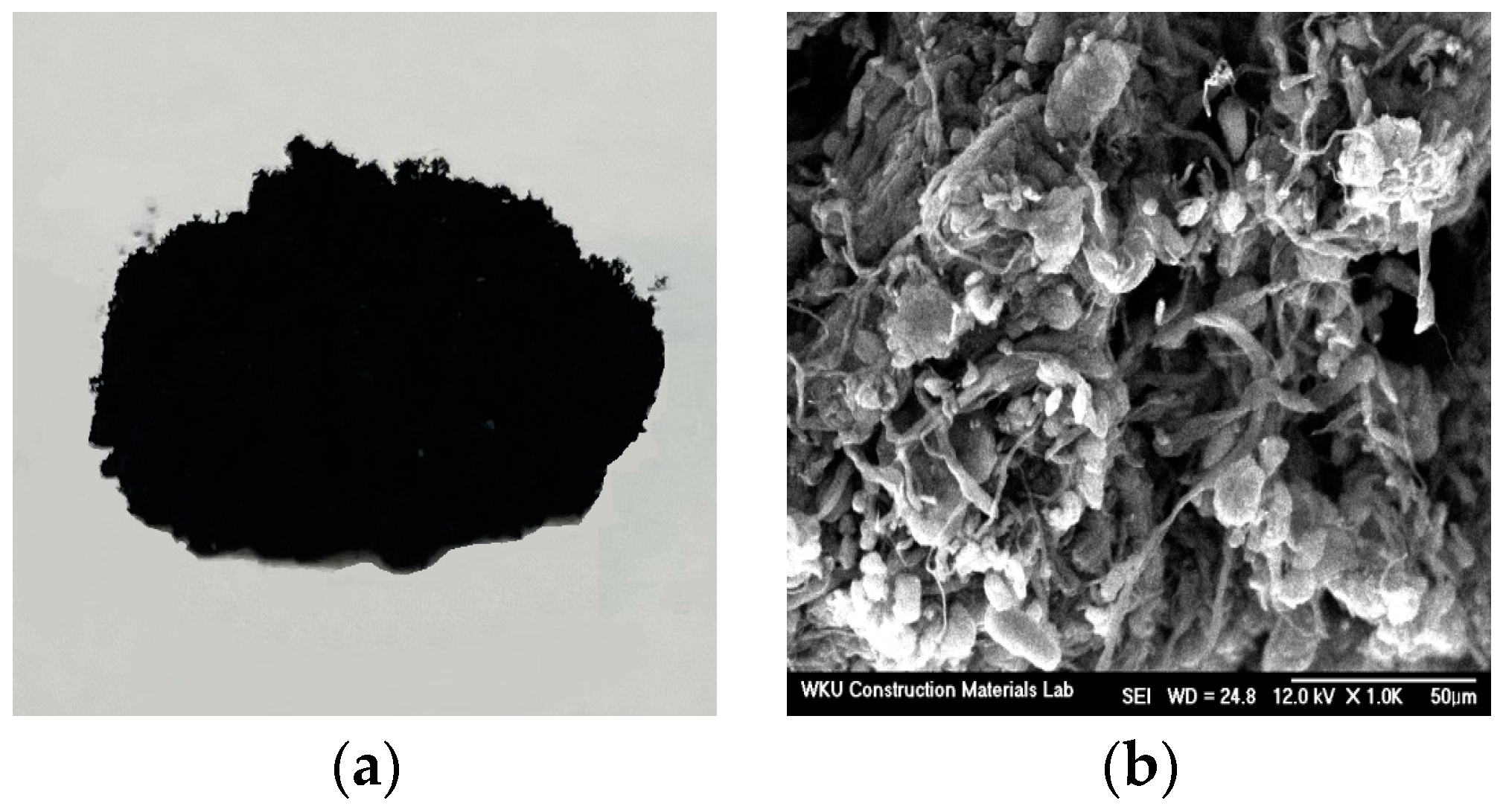

Figure 2. Carbon nanotube: (a) appearance, and (b) SEM image.
Figure 2. Carbon nanotube: (a) appearance, and (b) SEM image.
Materials 17 05449 g002
Materials 17 05449 g003

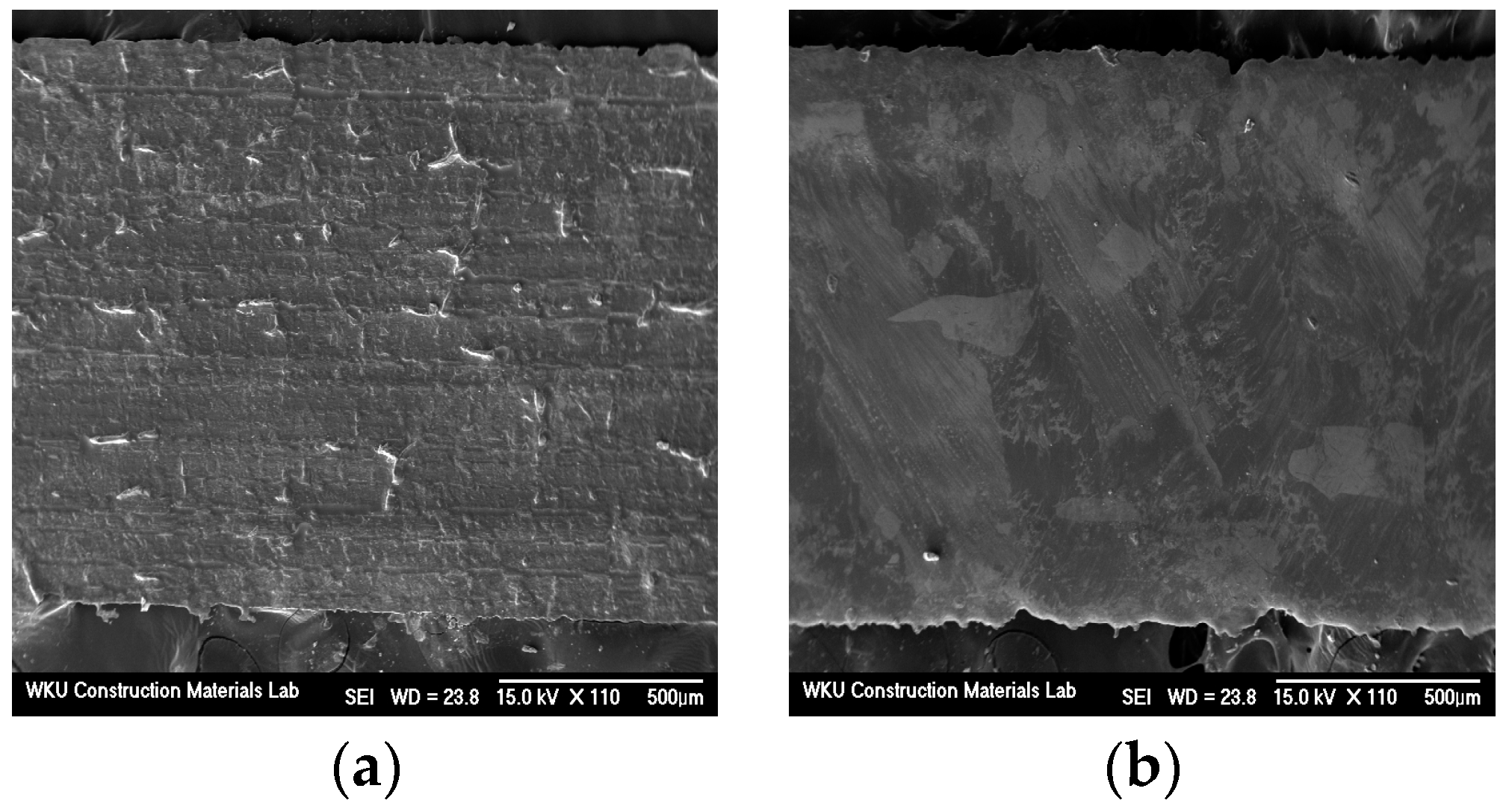

Figure 3. SEM images of AMF: (a) rough surface, and (b) smooth surface.
Figure 3. SEM images of AMF: (a) rough surface, and (b) smooth surface.
Materials 17 05449 g003
Materials 17 05449 g004

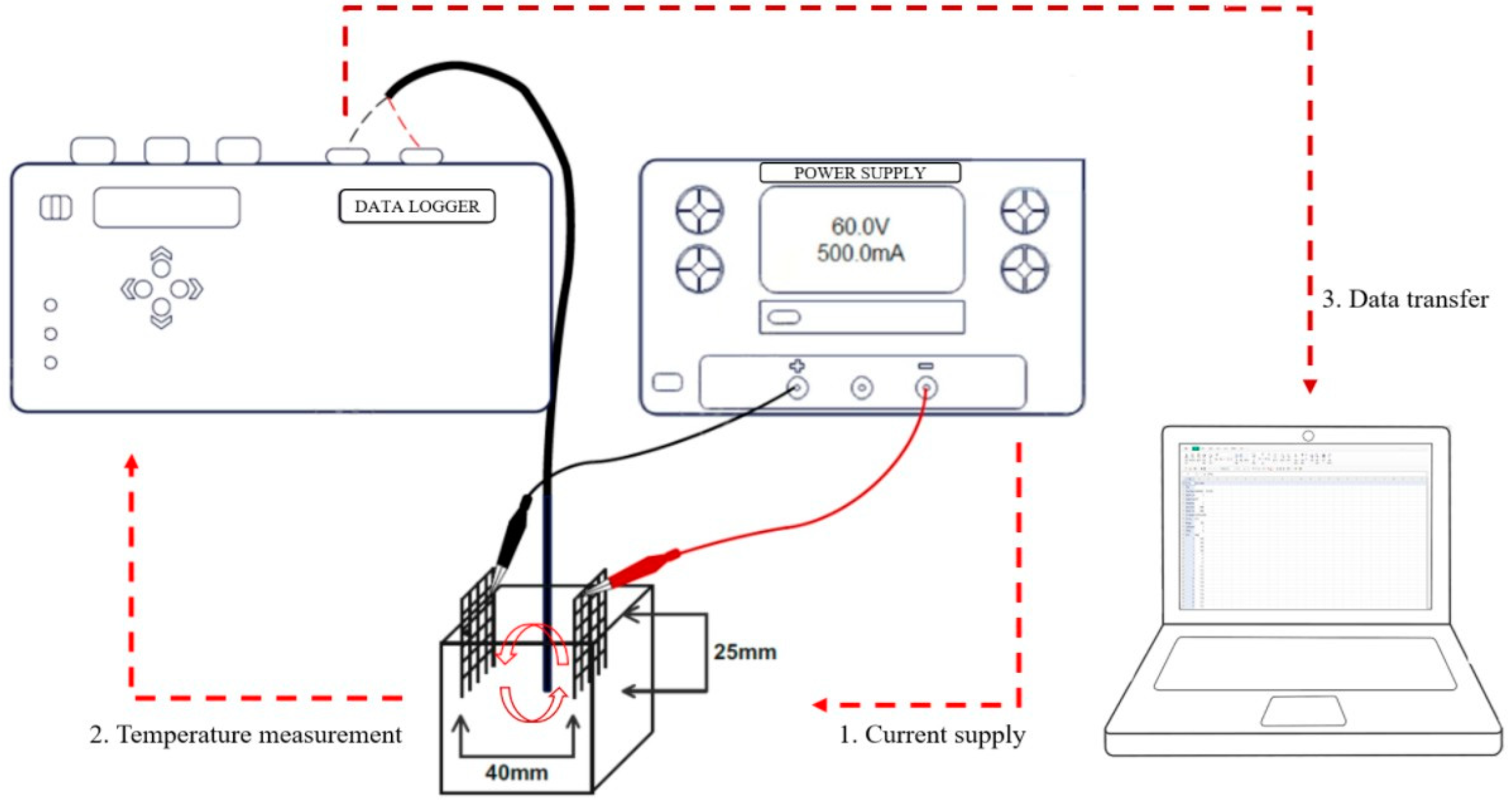

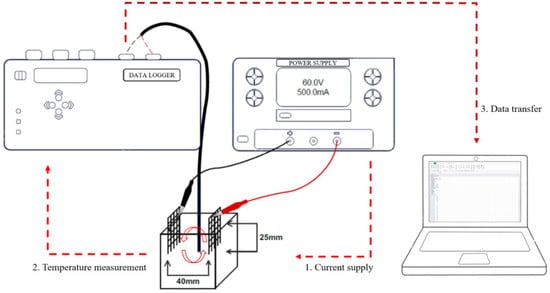

Figure 4. Thermal test setup.
Figure 4. Thermal test setup.
Materials 17 05449 g004
Materials 17 05449 g005

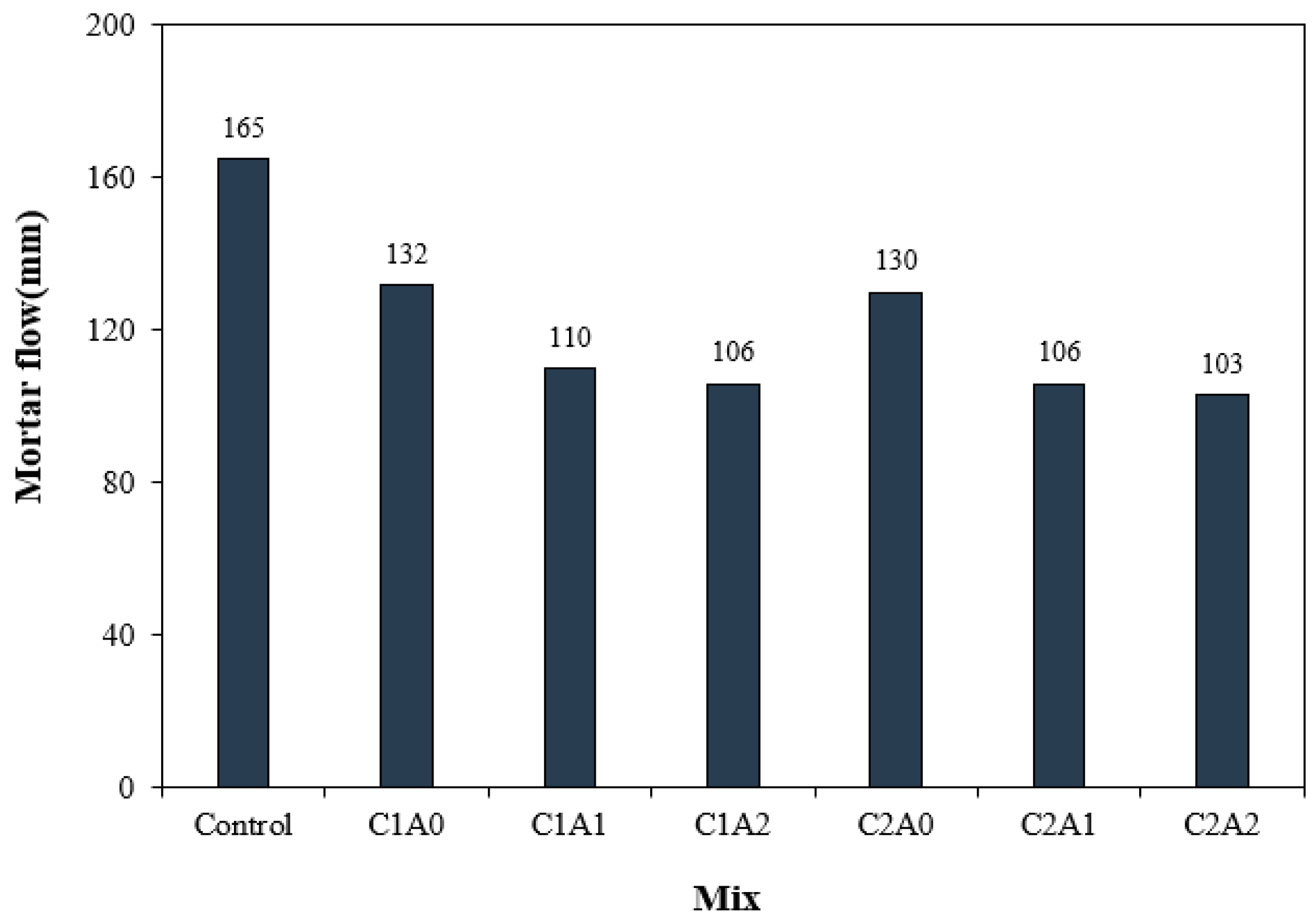

Figure 5. Mortar flow test results.
Figure 5. Mortar flow test results.
Materials 17 05449 g005
Materials 17 05449 g006

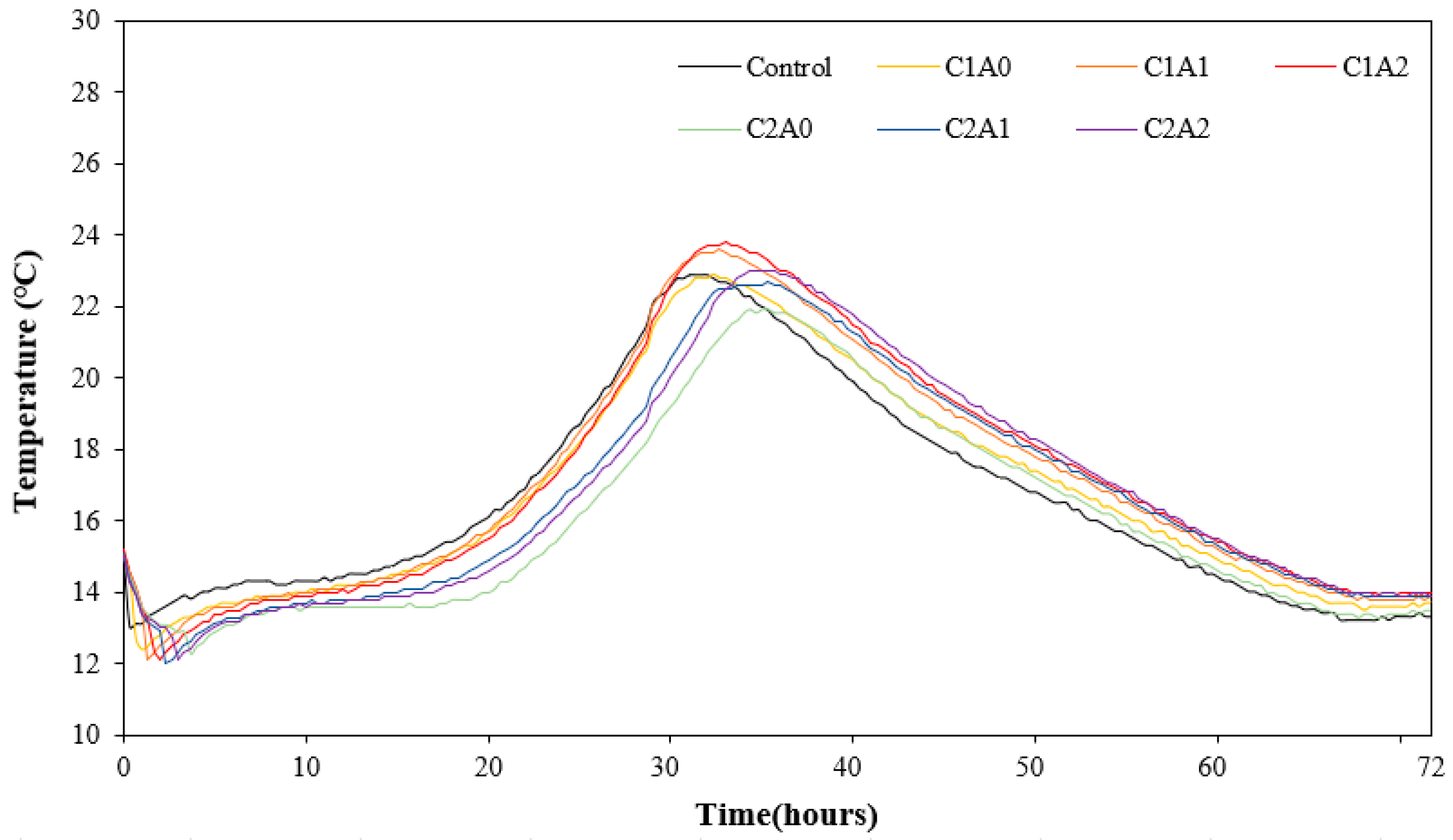

Figure 6. Heat of microhydration test results.
Figure 6. Heat of microhydration test results.
Materials 17 05449 g006
Materials 17 05449 g007

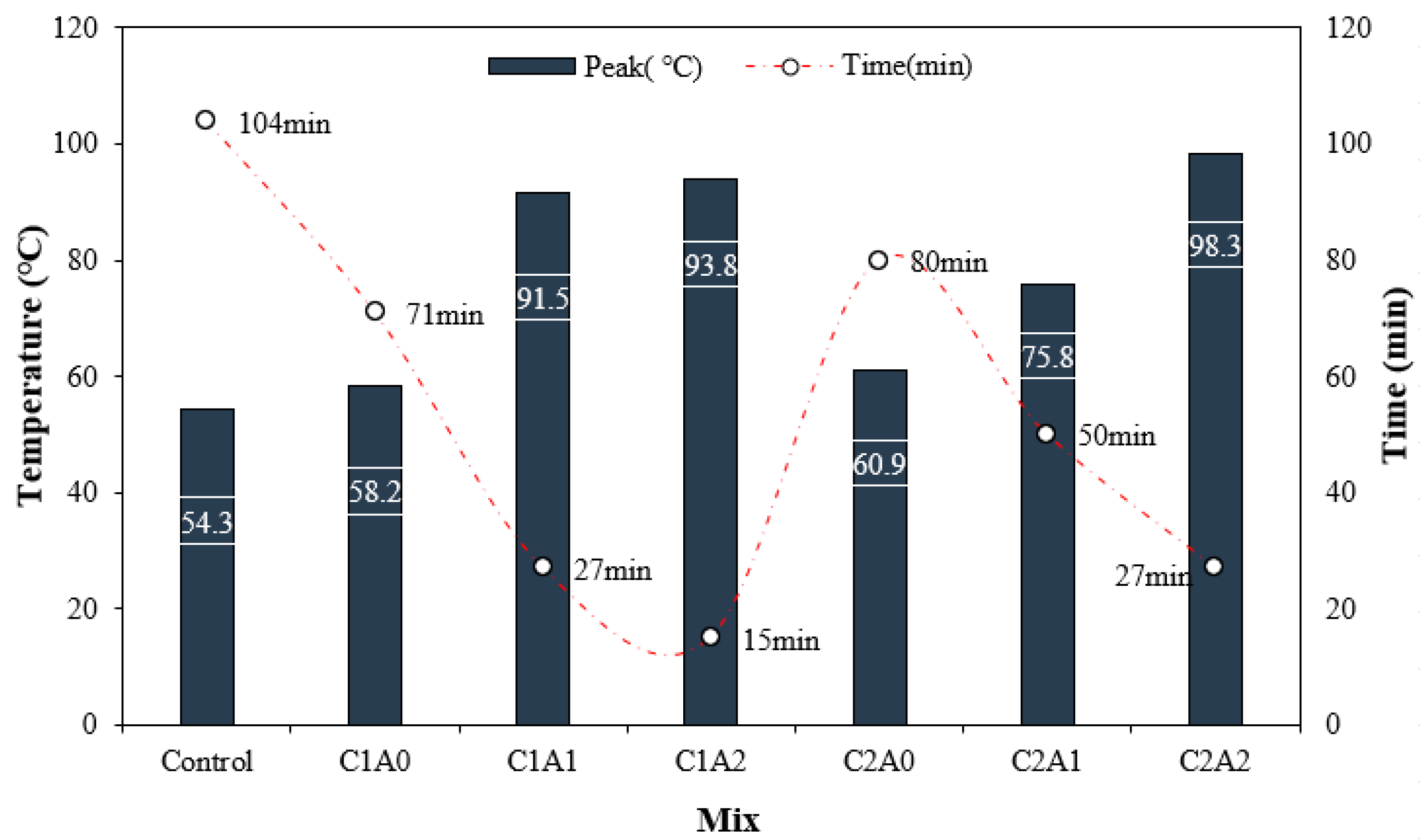

Figure 7. Peak temperature and reaching time.
Figure 7. Peak temperature and reaching time.
Materials 17 05449 g007
Materials 17 05449 g008

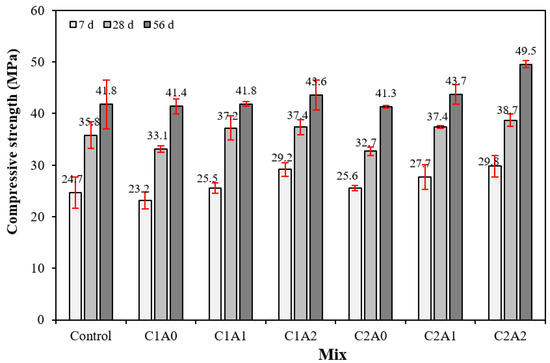

Figure 8. Compressive strength test results.
Figure 8. Compressive strength test results.
Materials 17 05449 g008
Materials 17 05449 g009

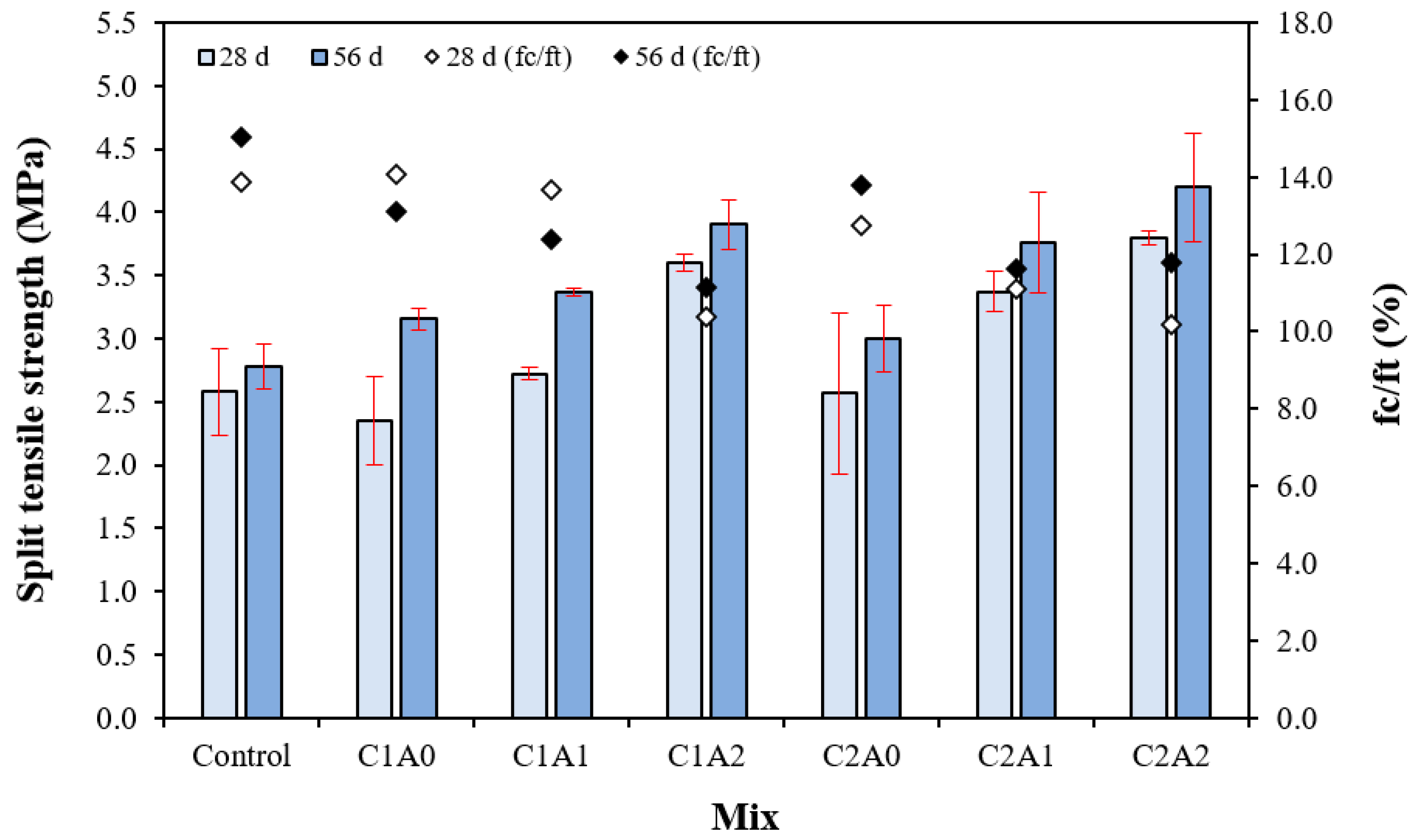

Figure 9. Split tensile strength and fc/ft.
Figure 9. Split tensile strength and fc/ft.
Materials 17 05449 g009
Materials 17 05449 g010

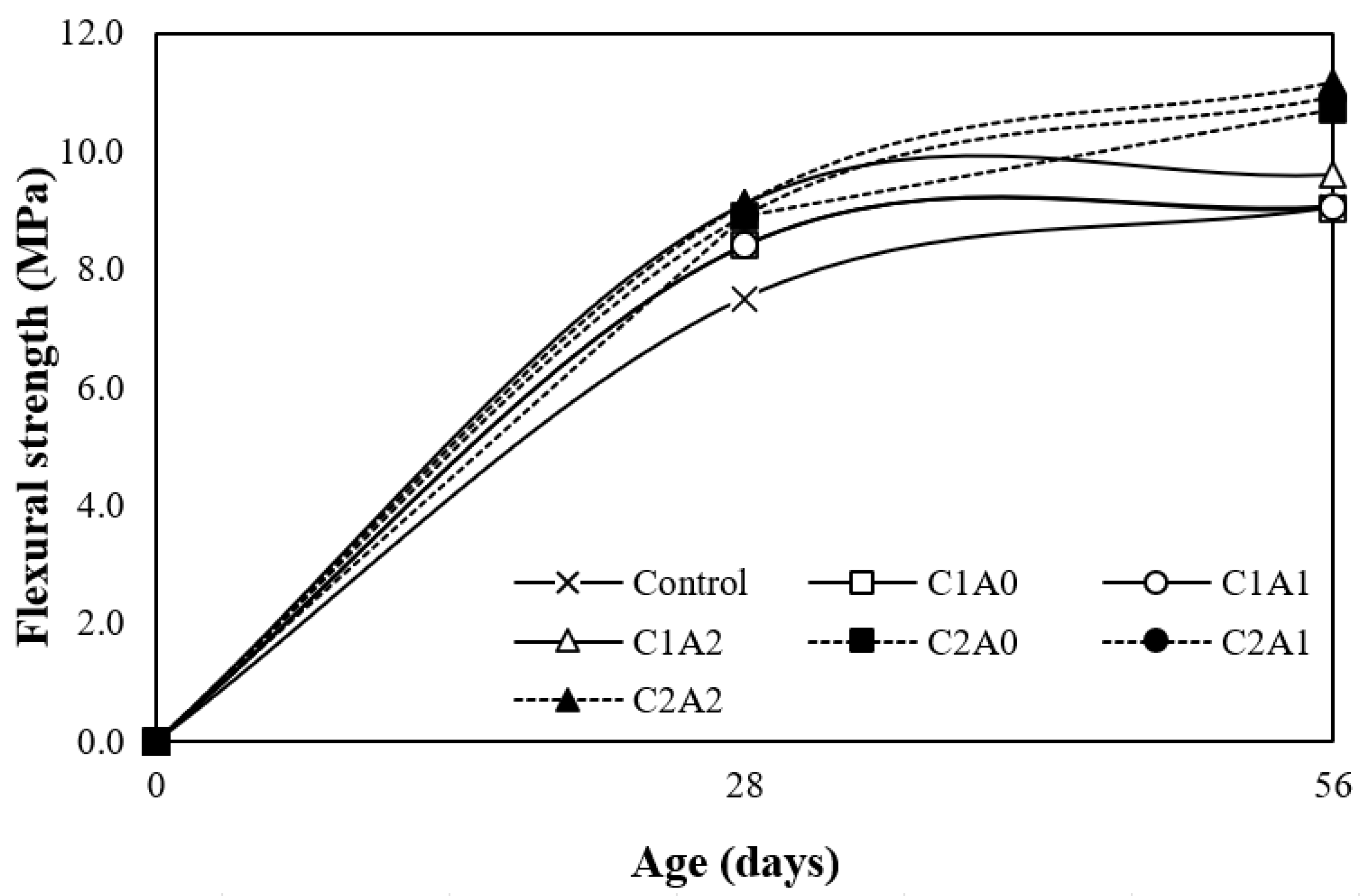

Figure 10. Flexural strength test results.
Figure 10. Flexural strength test results.
Materials 17 05449 g010
Materials 17 05449 g011
Figure 11. SEM images of 28-day samples (3000×): (a) control, (b) C1A0, (c) C1A2, (d) C2A0, (e) C2A2.
Figure 11. SEM images of 28-day samples (3000×): (a) control, (b) C1A0, (c) C1A2, (d) C2A0, (e) C2A2.
Materials 17 05449 g011
Materials 17 05449 g012
Figure 12. EDS mapping results of 28-day samples: (a) control, (b) C2A2.
Figure 12. EDS mapping results of 28-day samples: (a) control, (b) C2A2.
Materials 17 05449 g012
Table 1. Chemical compositions of cement samples.
Table 1. Chemical compositions of cement samples.
SiO2
(wt%)		Al2O3
(wt%)		Fe2O3
(wt%)		CaO
(wt%)		MgO
(wt%)		K2O
(wt%)		Blaine
(cm2/g)		Density
(g/cm3)
Ordinary
Portland
cement		17.436.503.5764.42.551.1738203.13
Table 2. Physical properties of fine aggregate.
Table 2. Physical properties of fine aggregate.
FMDensity
(g/cm3)		Water Absorption
(%)		Unit Weight
(kg/L)
Lightweight
aggregate (LWA)		4.611.778.711010
Table 3. Physical properties of carbon nanotube (CNT).
Table 3. Physical properties of carbon nanotube (CNT).
Specific Surface Area (m2/g)Purity
(wt%)		Bulk
Density
(g/mL)		Moisture
Contents
(wt%)
CNT22197.880.0940.3
Table 4. Physical properties of amorphous metallic fiber (AMF).
Table 4. Physical properties of amorphous metallic fiber (AMF).
Density
(g/cm3)		Tensile Strength
(N/mm2)		Length
(mm)
AMF7.2140015
Table 5. Mix proportions of cement mortars.
Table 5. Mix proportions of cement mortars.
MixW/C
(%)		Water
(kg/m3)		Cement
(kg/m3)		CNT
(C*wt%)		AMF
(kg/m3)		LWA
(S*%)
Control5017034000100
C1A00.10
C1A110
C1A220
C2A00.20
C2A110
C2A220
Table 6. Gel composition of control and C2A2 samples from EDS analysis.
Table 6. Gel composition of control and C2A2 samples from EDS analysis.
MixCa
(wt%)		Si
(wt%)		Al
(wt%)		Fe
(wt%)		K
(wt%)		O
(wt%)		Ca/Si
(%)
Control21.868.112.69.191.3856.862.69
C2A238.5725.772.74-1.4649.331.49
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Choi, S.-J.; Lee, J.-I.; Kim, C.-Y.; Yoon, J.-H.; Kim, K.-H. Effect of Amorphous Metallic Fibers on Thermal and Mechanical Properties of Lightweight Aggregate Cement Mortars Containing Carbon Nanotubes. Materials 2024, 17, 5449. https://doi.org/10.3390/ma17225449

AMA Style

Choi S-J, Lee J-I, Kim C-Y, Yoon J-H, Kim K-H. Effect of Amorphous Metallic Fibers on Thermal and Mechanical Properties of Lightweight Aggregate Cement Mortars Containing Carbon Nanotubes. Materials. 2024; 17(22):5449. https://doi.org/10.3390/ma17225449

Chicago/Turabian Style

Choi, Se-Jin, Jae-In Lee, Chae-Young Kim, Joo-Ho Yoon, and Kwan-Ho Kim. 2024. "Effect of Amorphous Metallic Fibers on Thermal and Mechanical Properties of Lightweight Aggregate Cement Mortars Containing Carbon Nanotubes" Materials 17, no. 22: 5449. https://doi.org/10.3390/ma17225449

APA Style

Choi, S. -J., Lee, J. -I., Kim, C. -Y., Yoon, J. -H., & Kim, K. -H. (2024). Effect of Amorphous Metallic Fibers on Thermal and Mechanical Properties of Lightweight Aggregate Cement Mortars Containing Carbon Nanotubes. Materials, 17(22), 5449. https://doi.org/10.3390/ma17225449

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
