Article

Environmentally Friendly Bleaching Process of the Cellulose Fibres Materials Using Ozone and Hydrogen Peroxide in the Gas Phase

by
Anetta Walawska
,
Magdalena Olak-Kucharczyk
,
Anna Kaczmarek
and
Marcin H. Kudzin
*
Łukasiewicz Research Network—Łódź Institute of Technology, 19/27 Marii Sklodowskiej-Curie Str., 90-570 Łódź, Poland
*
Author to whom correspondence should be addressed.
Materials 2024, 17(6), 1355; https://doi.org/10.3390/ma17061355
Submission received: 8 February 2024 / Revised: 6 March 2024 / Accepted: 9 March 2024 / Published: 15 March 2024
(This article belongs to the Section Polymeric Materials)
Browse Figures
Versions Notes

Abstract

:
The paper presents the new eco-friendly method of bleaching process of the cellulose fibre materials. Cellulose materials were bleached using hydrogen peroxide (both in aqueous solution, vapours, ozone and by the combined action of gaseous hydrogen peroxide and ozone. The method using hydrogen peroxide in aqueous solution presents the standard procedure and was used as the comparison technique. The bleaching processes using gaseous oxidants were carried out in a prototype device for dry, low-temperature treatment of fibrous materials with the use of oxidising agents in the gas phase. The influence of the innovative gas-phase bleaching method on the cotton samples’ properties was analysed by Scanning Electron Microscopy (SEM), evaluation of the colour and whiteness, assessment of the polymerisation degree (DP), analysis of the mechanical properties and sorption capacity as well as microbiological assessment against colonies of Gram-positive (Staphylococcus aureus) and Gram-negative (Escherichia coli) bacteria. The comparison of the obtained results led to the conclusion that the bleaching processes using gas-phase agents—vaporised hydrogen peroxide, ozone or their combination—are non-invasive. The applied bleaching processes resulted in a slightly lower whiteness parameters than standard bath bleaching. After the bleaching processes with ozone and vaporised hydrogen peroxide separately, the decrease in the DP and tensile strength was similar to that observed after the bleaching with aqueous H2O2. When both processes were used together, a higher reduction in DP and tensile strength was noticed. Both oxidising agents showed a strong biocidal effect against bacteria. Gas-phase bleaching procedures, due to the lower temperature (35 °C vs. 98 °C) and minimal water consumption, have economic and environmental advantages, which allows their use in semi-industrial applications. It has been shown that the treatment of cotton fabrics using ozone and hydrogen peroxide in the gas phase allows to simultaneously obtain the bleaching and disinfection effect.

1. Introduction

Cotton fibre is the second most widely used fibre in the textile industry with a global production of 26.2 million tons and a 24.4% textile fibre market share in 2020 [1,2]. These fibres are a basic material widely used in the clothing and apparel industry [3], for medical and hygienic purposes [4,5], and also for environmental applications [6]. The major component of cotton fibres is cellulose—a natural polysaccharide made of glucose molecules connected by β-1,4-glycosidic bonds [7,8,9]. Nearly all cotton fibres produced in the world are white; however, a few types of cotton occur in colours ranging from white to various shades of green, cream and/or brown [10,11].

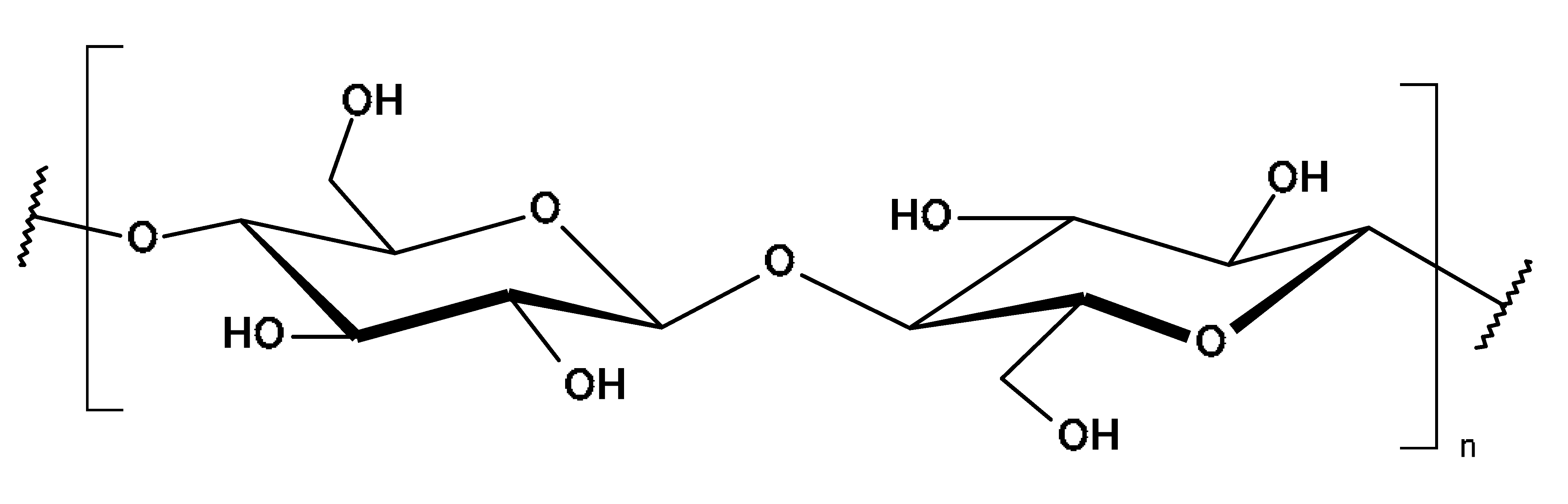

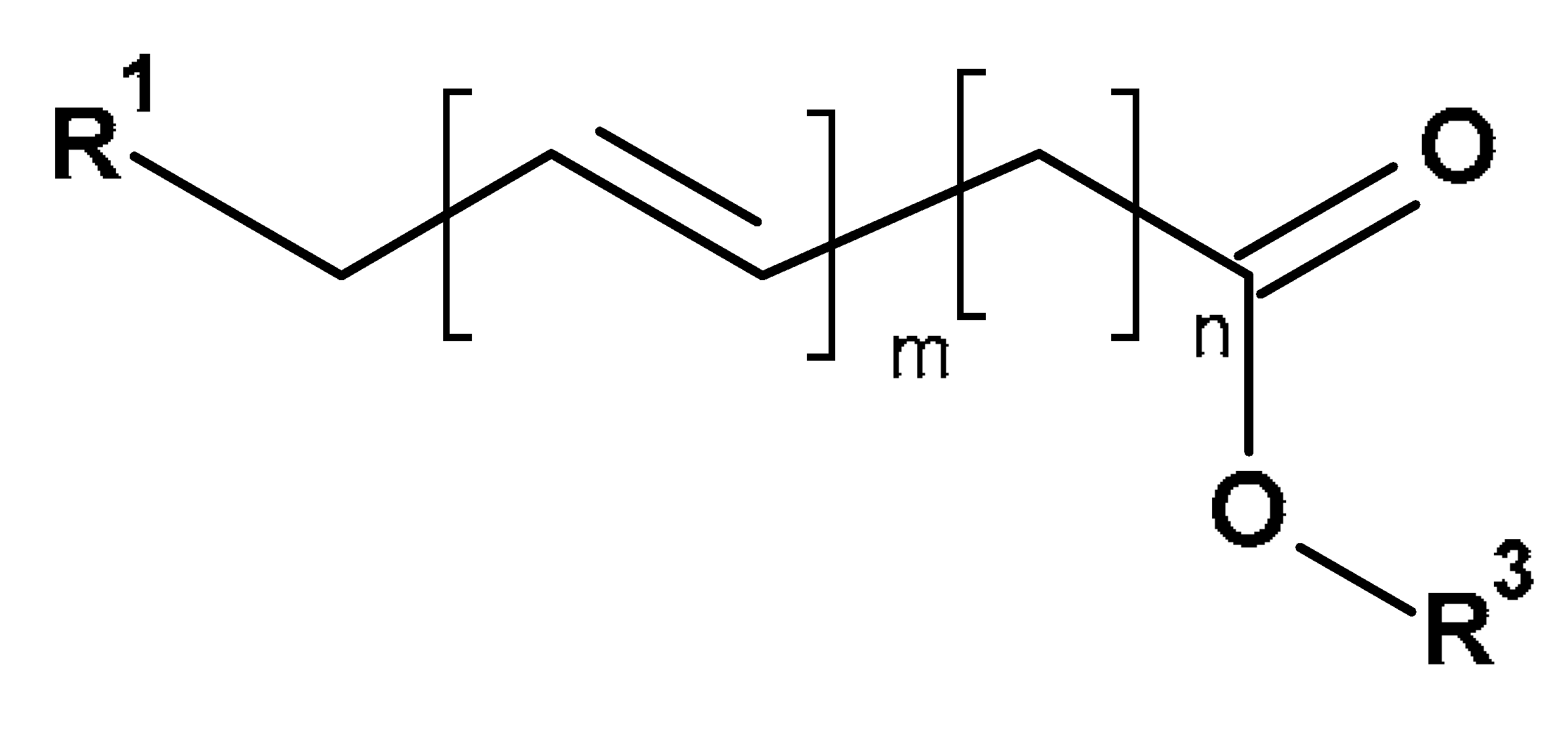

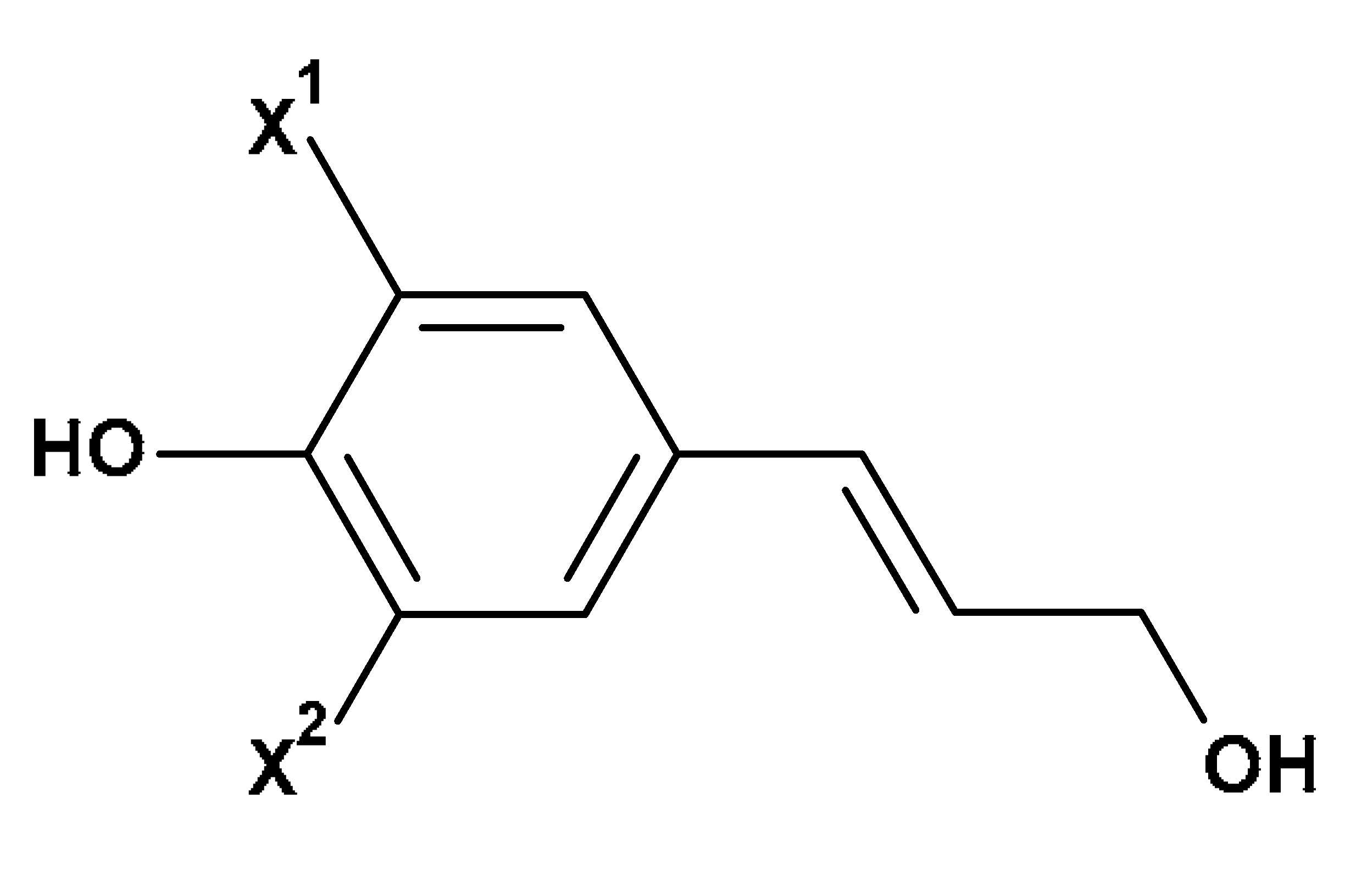

Raw cotton contains a number of non-cellulosic materials that are generally considered to be surface-related and may therefore affect fibre quality. The main constituents of the cotton causing its colour are lignin, flavonoids and wax. These compounds together with the structure of cellulose are presented in Table 1.
A removal of colorizing additivities from cotton is carried out during the bleaching processes, which are to a great extent based on oxidative treatments. Nowadays, textile manufacturing is a multistage process in which the bleaching process is inextricably linked with textile wastewater treatment. Due to the size of the global textile market and its environmental impact, the development of effective, economical, and easy-to-handle alternative treatment technologies for textile wastewater is of significant interest [21].
The large cotton production causes significant amounts of waste. Every year, 11.6 million tons of cotton waste are generated worldwide [1,22]. One of the priority directions in the field of wet processing of textiles is directed towards shortening and simplification of the processing sequence influencing the water consumption and impact on the natural environment [23,24].
Therefore, new procedures enabling “transfer from wet to dry environment” are of great importance. Such procedures include a gas-phase bleaching, with potential application of gaseous oxidants such as oxygen, ozone, chlorine, chlorine dioxide and/or hydrogen peroxide [25,26,27,28].
However, chlorine components, such as chlorine and hypochlorite, present limited use due to their reactivity [29,30,31], toxicity [32] and harmful environmental impact [33]. Chlorine dioxide gas has an excellent ability for sterilization and deodorization and is harmless to humans [34]. However, it is unstable and explosive (in high concentration) [35], which limits its potential application. Therefore, ozone and hydrogen peroxide are components of choice. These reagents react with alkene and phenolic fragments (see lignins, flavones and pigments in Table 1) by free-radical addition to double bond, converting them to temporary carbonyl and finally carboxyl compounds, easily removable during the washing process [36,37,38,39,40]. Hydrogen peroxide is an unstable compound with a boiling temperature of 150 °C (lower under decreased pressure) [41]. It forms stable hydrosols/aerosols (aHP) [42]. The physical chemistry of the vaporisation of hydrogen peroxide has been reviewed by Hultman et al. [43]. A review of the medical application of various physical forms of hydrogen peroxide, including aerosolized hydrogen peroxide (aHP) and vaporised hydrogen peroxide (VHP), has been published recently [44]. Vaporised hydrogen peroxide is produced by the vaporisation of a liquid, acidic hydrogen peroxide at 120 °C. As a result, a mixture of VHP and water vapour is obtained.
Pironti [45] recently used hydrogen peroxide vapour as a disinfectant in the vapour phase to treat fabrics and textiles (cotton, linen, silk, wool, polyester, viscose). Similarly, Wawrzyk [46] applied H2O2 for disinfecting historical cotton textiles from the Auschwitz-Birkenau State Museum in Oświęcim, Poland. There are few reports in the scientific literature about the use of vaporised hydrogen peroxide for the bleaching of textile products. In recent years, VHP has been used by the authors of this paper for bleaching and disinfection of cotton textile products [47]. This innovative, waste-free and low-temperature process allows to obtain bleached textile products characterized by an acceptable whiteness and microbiological purity, devoid of the following microorganisms: bacteria—Staphylococcus aureus, spores Bacillus subtilis and Bacillus atrophaeus, as well as fungi—Chaetomium globusom and Aspergillus niger. This process can be an alternative to the conventional water- and energy-consuming bleaching process using aqueous hydrogen peroxide for products with special applications, such as medical (gauze, cotton wool, bandages) and hygienic—protective masks for the human respiratory system used as a prevention of bacterial and/or viral disease transmission [47].
Ozone has strong oxidising properties, which is why it has a harmful effect on various forms of life. Ozone destroys bacteria, viruses and fungi, due to the destructive effect on the protective cell walls of these microorganisms. For this reason, it is widely used for the decontamination purposes in several industries [48], e.g., for water [49,50] and wastewater [51,52,53,54,55] treatment, including textile wastewater [56,57,58], in the food industry [59,60,61,62], in the paper industry—for bleaching cellulose pulp [63,64], and in the pharmaceutical and medical sectors [48,65]. The emergence of the COVID-19 pandemic has led to the recent developments in the implementation of various ozone-based technologies for the disinfection of surfaces, materials and the indoor environment [48,66,67,68,69,70]. There are also reports regarding the use of ozone for the bleaching of cotton fibres [71], jute, silk, angora [72], mohair [73] and soybean fabrics [74,75,76,77]. In the above studies, ozone gas was introduced into the bleaching (water) bath. As well as that, there are studies regarding the use of ozone in the gas phase for the oxidative treatment of cotton fibre materials [78,79], including the processing of jeans [80].
The innovative solution proposed in this paper describes the combined use of two oxidising agents in the gas phase: vaporised hydrogen peroxide (VHP) and ozone, for advanced/deep oxidation of organic impurities in cellulose fibres. Both agents are active at low temperatures (ambient temperature) and do not produce products harmful to the environment, which makes the process not only ecological but also economical. The current study investigates the possible synergistic effect of the treatment of fibrous cellulosic materials using a combination of VHP and ozone on the physicochemical properties of the fabrics in comparison to conventional bleaching processes.

2. Materials and Methods

2.1. Materials

  • Unbleached 100% plain woven cotton fabric with a weight of 170 g/m2. The amount of weft yarn in the longitudinal direction per unit length was 20 yarns/cm, and the amount of warp yarns in the transverse direction per unit length was 16 yarns/cm. Before testing, cotton fabric samples were subjected to pre-treatment with an anionic wetting–washing agent—Periwet WLV (Dr. Petry GmbH, Reutlingen, Germany)—2 g/L, 98 °C, 30 min, using laboratory dyeing machine RED KROME(Ugolini S.R.L., Schio, Italy)
  • Hydrogen peroxide solution 30% (CAS No.: 7722-84-1) was purchased from Millipore Sigma (St. Louis, MO, USA).
  • Bacterial strains: Staphylococcus aureus (ATCC 6538, Gram-positive bacteria) and Escherichia coli (ATCC 25922, Gram-negative bacteria) were purchased from Microbiologics (St. Cloud, MN, USA).

2.2. Bleaching Process of Cellulose Fibrous Materials

Cellulose-fibre materials made from cotton (COT) were subjected to the bleaching process using vaporised hydrogen peroxide (H2O2(g); VHP) and ozone (O3(g)). Table 2 presents abbreviations of the cotton samples used for the investigations. Since the parts of these abbreviations contain chemical formulas, we used COT for cotton instead of CO/Co (CO and/or Co can be confused with carbon oxide or cobalt). The resulting cotton samples and the applied conditions of the bleaching procedures are listed in Table 2.
The processes were carried out in a prototype device for dry, low-temperature treatment of fibrous materials with the use of oxidising agents in the gas phase. The apparatus is schematically presented in Figure 1 and consists of the following elements:
  • Absorption column with a filter (1);
  • Central unit in which a generator of vaporised (gaseous) hydrogen peroxide is placed, allowing to set the parameters of the process and to control the readings from sensors placed in the chamber (2);
  • Hermetic sealed working chamber having a volume of approximately 1 m3, made of transparent plastic resistant to hydrogen peroxide (acrylic glass), equipped with a fan and a set of sensors enabling to control relative humidity, temperature, concentration of oxidising agent, pressure (3);
  • Ozone generator, allowing to provide the ozone concentration in the chamber up to approximately 60 g/m3 (4);
  • Oxygen concentrator (5).
Materials 17 01355 g001

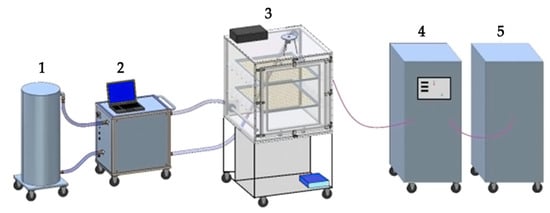

Figure 1. The prototype device for dry, low-temperature treatment of fibrous materials with the use of oxidising agents in the gas phase, i.e., hydrogen peroxide and/or ozone (1—absorption column with a filter; 2—Central unit with a VHP generator; 3—working chamber; 4—ozone generator; 5—oxygen concentrator).
Figure 1. The prototype device for dry, low-temperature treatment of fibrous materials with the use of oxidising agents in the gas phase, i.e., hydrogen peroxide and/or ozone (1—absorption column with a filter; 2—Central unit with a VHP generator; 3—working chamber; 4—ozone generator; 5—oxygen concentrator).
Materials 17 01355 g001

2.2.1. Bleaching Process of Cellulose Materials Using Hydrogen Peroxide in the Gas Phase (H2O2(g), VHP)

The hydrogen peroxide concentration inside the working chamber was equal to 800 ppm (0.24 Mol/L), the temperature was set to 35 °C, while the hydrogen peroxide treatment time was equal to 1 or 4 h, and the aeration time was 24 h (sample COT-H2O2(g)). The applied bleaching process consists of the following steps:
  • Dehumidification—the drying of the working chamber in order to lower the relative humidity to 40 ± 3% in order to allow the higher concentration of the active vapours;
  • Saturation—dosing of hydrogen peroxide in order to achieve the proper concentration of hydrogen peroxide vapours (H2O2(g), VHP) inside the working chamber (800 ppm; 0.24 Mol/L);
  • Bleaching with a simultaneous decontamination—in this phase, the concentration of the hydrogen peroxide in the form of dry gas (below the condensation point) is maintained at the previously defined level for a certain period of time; the system constantly supplies and replenishes hydrogen peroxide in the working chamber, while the installed fans ensure the even distribution of air, VPH and water vapour within the entire volume of the chamber;
  • Aeration—exchange of air inside the working chamber or the decomposition of the active substance; in this step, the hydrogen peroxide supply to the working chamber is stopped, and hydrogen peroxide mixed with water vapour is exhausted from the working chamber (in a closed cycle) until a safe concentration is reached.

2.2.2. Bleaching Process of Cellulose Materials Using Ozone

The ozone bleaching was carried out under the following conditions: the ozone concentration within the working chamber was equal to 1000–15,000 ppm (0.021–0.31 Mol/L), the temperature was set to 35 °C, while the time was equal to 0.25 or 1 h (sample COT-O3(g)). Ozone was produced at the moment of use by electrical discharge that was provided by an ozone generator (Figure 1).

2.2.3. Bleaching Process of Cellulose Materials Using Combination of VHP and Ozone

The innovative bleaching procedure proposed in this paper consisted of a sequential bleaching using VHP and ozone in a gas phase. Firstly, the samples were treated using hydrogen peroxide in the gas phase. The hydrogen peroxide concentration was equal to 800 ppm (0.24 Mol/L), the temperature was 35 °C, while the hydrogen peroxide treatment time was equal to 1 h. Next, the samples were treated with gaseous ozone. The applied concentration of ozone was equal to either 1000 or 10,000 ppm (0.021 or 0.21 Mol/L), the temperature was set to 35 °C, while the time was equal to 1 h.

2.2.4. Conventional Bleaching Process

For a comparison, samples made from cotton fabric were also subjected to a conventional bleaching process in the laboratory using an Ugolini dyeing machine, model: Redcrome/RED/P (Schio, Italy), in a bath containing 4 g/L of 30% H2O2(as) and auxiliary agents (sequestering agent Contavan GAL (CHT Germany GmbH, Dußlingen, Germany)—organic chelate former based on hydroxycarboxylic acids—1.0 g/L) and wetting/washing agent (Periwet WLV (Dr. Petry GmbH, Reutlingen, Germany)—1.5 g/L) at 98 °C for 60 min (sample COT-H2O2(as)). The liquor ratio was 1:10.

2.3. Analytical Methods

2.3.1. Scanning Electron Microscopy (SEM)

The morphology of the investigated samples was examined using the Tescan Vega 3 scanning electron microscope (Brno, Czech Republic). The samples were observed using a secondary electron imaging mode, under high vacuum and with the accelerating voltage equal to 20 kV. Prior to the analysis, the surface of all samples was covered with a thin layer of gold using a Quorum Technologies Ltd. vacuum sprayer (Lewes, UK).

2.3.2. Colour and Whiteness Measurement

Evaluation of the Whiteness

The whiteness of the cotton samples after the applied bleaching processes was assessed by the evaluation of the CIE whiteness index (WICIE) according to the EN ISO 105-J02:2002 standard [81]. The measurements were performed using the Datacolor 650 spectrophotometer (Datacolor Int., Luzern, Schweiz) with the d/8 geometry, for the 10° observer and by the D65 light. The obtained data were analysed by means of the Datacolor Tools (version 1.3.1) software. The colorimetric coordinates (X, Y, Z) and the chromaticity coordinates (x, y) were determined for each sample. Next, the whiteness index was calculated using the CIE formula (Equation (1)):
WICIE = Y + 800(x0 − x) + 1700(y0 − y)
where x0 and y0 are the coordinates of the achromatic point for the given illuminate (for the D65 light and 10° observer, these values are equal to 0.3138 and 0.3310, respectively). The above WICIE index is limited to the value 40 < WICIE < 5Y − 280. The investigations on the predictive modelling of the cotton fabric’s whiteness index, in COT-NaOH-H2O2(as) for various reagent concentrations and bleaching conditions, were carried out recently [82].

Yellowness Index

The degree of yellowness—E313 Yellowness Index (YI)—of the textile samples treated with vaporised hydrogen peroxide and ozone was calculated according to the ASTM Method E313, Standard Practice for Calculating Yellowness and Whiteness Indices from Instrumentally Measured Colour Coordinates” (2020) [83], and according to Equation (2):
YI = (100(CxX − CzZ))/Y
where X, Y and Z are the CIE colour coordinates, while the value of the Cx and Cz factors depends on the illuminate and the observer. For the D65 illuminate and the 10° observer, the values of these coefficients are, respectively: 1.3013 and 1.1498.

Evaluation of the Colour

The colour of the cellulose samples after the applied bleaching processes was assessed according to the EN ISO 105-J02:2002 standard using the CIELAB technique [46]. For that purpose, the Datacolor 650 spectrophotometer (Datacolor Int., Luzern, Schweiz) with the d/8 geometry equipped with the Datacolor TOOLS, Version: 1.3.1, Build: 514 software was used. The CIE colour coordinates (L*, a*, b*, C* and h) were determined for the D65 light and 10° observer using the wide measuring window (LAV) with a diameter equal to 30 mm. The difference in the colour (DE) in comparison to the specific standard, i.e., control sample not subjected to the bleaching process, was determined according to EN ISO 105-J03:2009 [84].

2.3.3. Determination of the Polymerisation Degree

The degree of the polymerisation of the cellulose samples was determined according to EN ISO 5351:2010 [85]. The procedure is based on the measurement of the viscosity ratio of the sample solution in bis(ethylenediamine)copper(II) hydroxide solution (Cupri-EthyleneDiamine—CED) by measuring the efflux time of the solution. For that purpose, 0.2500 g of moisture-free cellulose (cotton fabric sample) was dissolved in 50 mL of solution consisting of 25 mL of CED and 25 mL of deionized water. The cellulose solution was thermostated at 25 °C and introduced into a viscometer with a glass capillary. Then, the flow time of the liquid through the capillary was measured. On this basis, the relative viscosity ŋ of the tested solution was calculated, according to the following formula (Equation (3)):
ŋ = h∙t
where h is the previously determined viscometer constant, and t is the flow time of the tested solution through the capillary.
Then, the concentration of the solution C was calculated according to Equation (4):
C = (2∙m∙s/100)∙100
where m is the mass of the sample in grams, and s is the mass dryness in %.
Knowing the relative viscosity, the value of the [ŋ]·C was determined and then, knowing the concentration of the solution, the intrinsic viscosity [ŋ] of the solution was calculated. Finally, the degree of the polymerisation was calculated using the Immergut, Shurz and Mark formula [86], which describes the relationship between the degree of the polymerisation of linear chain compounds and the intrinsic viscosity of the solution (Equation (5)):
DPa = K·[ŋ]
where DP is the polymerisation degree, [ŋ] is the intrinsic viscosity in g/cm3, and a and K are the constants dependent on the type of the solvent (a = 0.905 and K = 0.75 for 1 mol/L solution of ethylenediamine copper (II) hydroxide).

2.3.4. Assessment of the Mechanical Properties

Tensile strength and elongation at break were assessed using a Hounsfield H5KS (Tinius Ltd., England, UK) tensile testing machine according to EN ISO 13934-1:2013 [87]. The samples with a width of 50 mm and length of 200 mm were stretched at a constant elongation rate equal to 100 m/min until the breakage. The maximum force and elongation at maximum force of the examined cellulose materials were registered. Each measurement was pentaplicated (both in warp and weft directions).

2.3.5. Determination of the pH of an Aqueous Extract

For the samples made of woven cotton fabric, the pH of the aqueous extract was determined according to EN ISO 3071:2020 [88]. For that purpose, the laboratory test samples of unmodified cotton and of cotton bleached using different procedures were cut into pieces having approximately a 5 mm side (or into pieces of the size allowing to wet rapidly). From each sample, two specimens were taken—2.00 ± 0.05 g each. Then, each specimen was placed in a stoppered flask containing 100 mL of the extracting solution and was shaken mechanically for 2 h ± 5 min. Distilled water with a pH of 5.8 and a temperature of 24.1 °C was used as a solvent.

2.3.6. Measurement of the Sorption Capacity

Water sorption capability of the examined cotton samples in superficial contact with a liquid was tested using the SORP-3 instrument (KONTECH, Lodz, Poland). The method is based on the measurement of the quantity of water absorbed by a unit surface of the sample as a function of time [89]. The following parameters were determined: the maximum sorption—Smax (expressed as the µL of the absorbed liquid per cm2 of the sample), the total sorption time tmax (expressed in s), the maximum sorption velocity Vmax (µL/cm2s) and sorption velocity V30–70 (µL/cm2s). Tests were carried out using distilled water and L/S 14 tubes. The pressure exerted on the samples was equal to 0.5 kPa.

2.3.7. Microbiological Assessment of the Decontamination Efficiency

The decontamination efficiency of the bleaching procedures was assessed using the Gram (+) Staphylococcus aureus (strain ATCC 6538, Microbiologics, St. Cloud, MN, USA) and Gram (-) Escherichia coli (strain ATCC 11229, Microbiologics, St. Cloud, MN, USA) bacteria. The following concentrations of inoculum were used: E. coli—CFU/mL = 6.3 × 106, S. aureus—CFU/mL = 0.9 × 107. The bacteria were deposited on the surface of the samples (1 cm2) using 0.1 mL of suspension per sample. Afterwards, the contaminated samples were subjected to the bleaching process using ozone (10,000 ppm, 0.21 M; 0.33 h) or vaporised hydrogen peroxide (800 ppm; 0.024 M, 0.33 h). Next, the samples were placed into the proper broth (tryptone soya broth, Oxoid, UK) and incubated for 72 h at 37 °C in order to provide the adequate conditions for bacteria growth. The samples made from woven cotton fabric contaminated with the selected microorganisms and not subjected to the bleaching process were used as control samples. The samples were considered sterile if there was no bacteria growth in the broth after the incubation time.

3. Results and Discussion

3.1. Bleaching

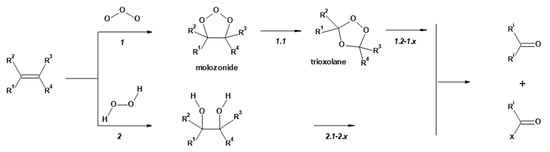

The basic principle of the applied bleaching methods results from reactivity differences of alkenes/polyhydroxyphenols (constituents of lignins, flavonoids and waxes) and cellulose (major constituent of cotton) (Table 1) during the bleaching process. Thus, the reactions of alkenes (polyhydroxyphenols) with ozone [90] or hydrogen peroxide [36,91] occur quickly and quantitatively, whereas cellulose undergo only very slow changes [36] (Figure 2).
As a result of the ozone/hydrogen peroxide treatment, the cotton structural constituents—lignins, flavonoids and waxes—covert into low-molecular, soluble-in-water compounds (carbonyls and carboxylic acids), which in turn are removed during the subsequent washing.

3.2. Scanning Electron Microscopy (SEM)

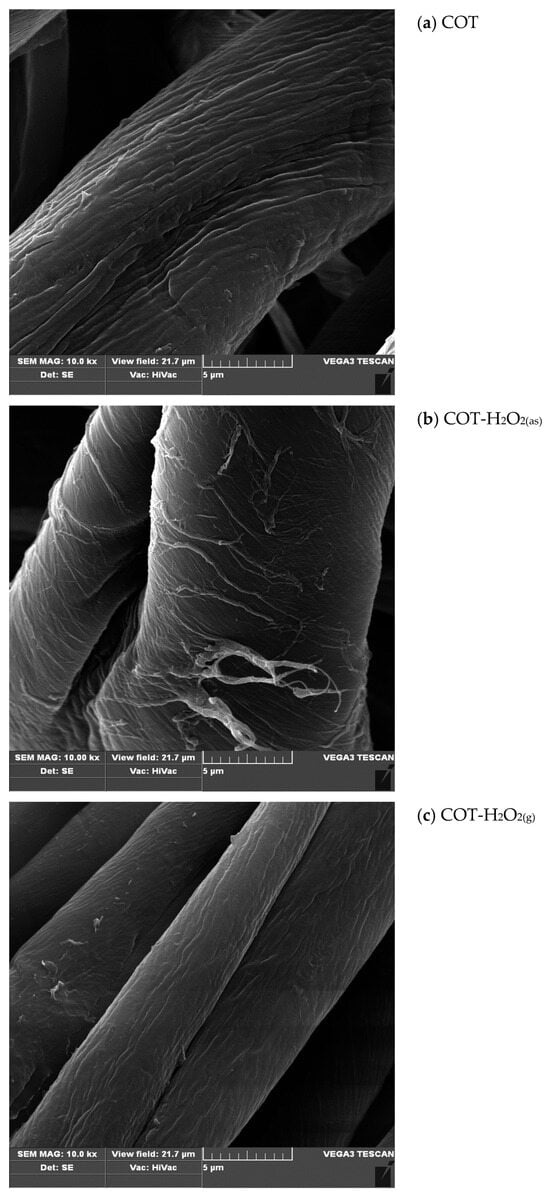

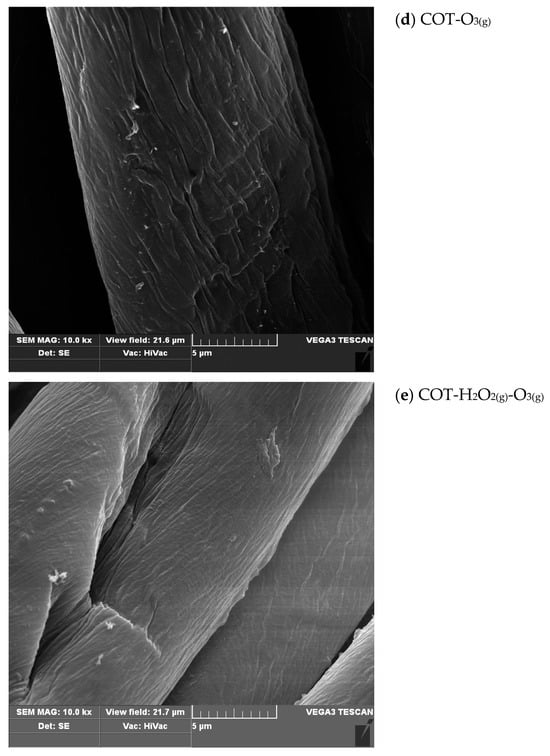

SEM micrographs of the investigated cotton samples are presented in Figure 3. These include images of cotton samples subjected to the bleaching in the hydrogen peroxide aqueous solution (COT-H2O2(as)), and the images of cotton samples bleached in gaseous oxidant environments (oxidants: H2O2(g); O3(g); H2O2(g) + O3(g); samples: COT-H2O2(g); COT-O3(g); COT-H2O2(g)-O3(g), correspondingly), using the raw cotton sample as the SEM image control.
It may be observed that all of the applied bleaching treatments resulted in a slight change in the surface morphology of the fibres. This is due to the removal of lignins, flavons and wax deposits from the fibres’ surface. As a result, the cracks on the surface of the cellulose fibres were observed. These changes are most noticeable for fibres subjected to the conventional bleaching process in an H2O2-containing bath (COT-H2O2(aq)). Bleaching using ozone (COT-O3(g)), and both ozone and hydrogen peroxide vapor (VHP) (COT-H2O2(g)-O3(g)), resulted only in minor changes in the surface morphology of the cellulose fibres, while for the VHP bleaching (COT-H2O2(g)), no significant changes were observed. Therefore, it may be concluded that bleaching using the gas-phase agents—ozone and VHP—is less invasive for cellulose materials than conventional bleaching. Despite the observed changes in the morphology of the surface of the fibres, none of the applied modifications caused the destruction of the fibres. Therefore, it may be concluded that the applied bleaching treatments are non-destructive.

3.3. Evaluation of the Whiteness and Yellowness

Figure 4 presents the cotton samples—raw and after bleaching process, Table 3 presents the whiteness index WICIE and yellowness index YI for the investigated cotton samples—raw and bleached.
The whiteness and yellowness indexes of the bleached cotton samples showed the significant improvement in comparison to the unmodified samples. The WICIE and YI indexes of the cotton samples bleached in comparable conditions (oxidant concentration: H2O2(as) = 0.05 M; H2O2(g) = 0.024 M; and O3(g) = 0.21 M, temperature 35 °C and reaction time 1 h) showed the following order: WICIE(H2O2(as)) > WICIE(O3(g)) > WICIE(H2O2(g)-O3(g)) > WICIE(H2O2(g) and YI(H2O2(as)) < YI(O3(g)) < YI (H2O2(g)-O3(g)) < YI (H2O2(g), respectively (Table 3). The prolongation of the bleaching time for the COT-H2O2(g) sample from 1 h to 4 h increased the WICIE values from 48.9 to 55.2 and decreased the corresponding YI values from 13.2 to 11.8 (Table 3).
The increasing ozone concentration from 0.021 Mol/L, through 0.21 Mol/L, to 0.31 Mol/L for the cotton sample bleached with ozone (COT-O3(g)) for 0.25 h resulted in an increase in the whiteness index from 42.2, through 50.7, to 54.6 and a decrease in the yellowness index from 13.2, through 12.4, to 11.2, respectively. Extension of the ozone bleaching time from 0.25 h to 1 h using the ozone concentration equal to 0.021 Mol/L caused a relatively small increase in the WICIE from 42.2 to 44.9 and a corresponding decrease in the YI from 13.2 to 13.1. A similar extension of the bleaching time using the ozone concentration equal to 0.21 Mol/L led to an increase in the whiteness index from 50.7 to 65.3 and a corresponding decrease in the yellowness index from 12.4 to 8.4 (Table 3).
The use of a combined bleaching process: VHP (0.024 Mol/L, 1 h) + ozone (0.021 Mol/L, 1 h) contributed to a higher value of whiteness index (WICIE = 52.8) than for each of the bleaching agents applied separately, i.e., 48.9 for VHP bleaching and 44.9 for ozone bleaching. However, for the combined bleaching process and increased ozone concentration, i.e., 0.21 Mol/L, a lower whiteness index (WICIE = 56.3) was obtained than for the bleaching using ozone alone under the same conditions (WICIE = 65.3) (Table 3).
The comparison of bleaching effectiveness of the applied procedures with the data obtained from the literature is illustrated in Table 4.
The degree of whiteness of cotton fabric obtained after the standard bleaching process in a bath containing H2O2 depends on the quality and colour of the raw fabric as well as on the additives used in the bleaching process (Table 4). The values of the whiteness index range from 62.3 [96,97], through 64.1 [92], 65.0 [94] and 71.4–71.8 [93], up to 72.7 [this work]. The use of additional chemical compounds in the bath bleaching process, such as NaOH [95] and PAA (peracetic acid) [95], resulted in higher WICIE values of 84.1 and 72.7, respectively. In turn, the addition of MPPhA (monoperphthalic acid) resulted in a lower degree of whiteness (WICIE = 63.0) than without this addition (WICIE = 65.0) [94].
The bleaching and desizing process using glucose oxidase enzyme also resulted in a lower degree of whiteness (WICIE = 56.3) than in the case of the standard procedure (WICIE = 62.3) [96,97]. Bleaching of cotton fabric in ozonated water resulted in a whiteness index equal to 50.6, while the addition of surfactants contributed to a higher whiteness degree of the cotton fabric equal to 61.0 and even 66.5 [92] (Table 4).
Concerning the WICIE and YI factors as the primary indicators of the cotton bleaching effectiveness, we applied the corresponding conditions for the subsequent evaluation of the colour of the bleached cotton samples.

3.4. Evaluation of the Colour

The modification of the cellulose samples using oxidising agents in the gas phase resulted in significant changes in the CIE colour coordinates in comparison to the unmodified sample (Table 5). The bleaching processes using the oxidising agents in the gas phase resulted in the increase in the lightness (L*) of the samples from 86.00 to 88.91–93.86 for ozone, 91.53–93.08 for VHP and 92.11–92.59 for the combination of VHP and ozone. However, the highest lightness, i.e., 95.50, was achieved for the sample subjected to a conventional bleaching in the bath containing H2O2.
The values of the other CIE colour coordinates (a*, b* and chroma—C*) decreased in comparison to the unmodified sample. It means that the “less red”, “less yellow” and darker colour was obtained. On the other hand, the value of the h (hue angle) increased from 80.24 to values closer to 90, which corresponds to the yellow hue (Table 5).

3.5. Determination of the Polymerisation Degree

The dependence of the polymerisation degree DP on the conditions of the applied cellulose bleaching process are summarised in Table 6. The polymerisation degree of cellulose samples after bleaching with hydrogen peroxide in both liquid and gas phases decreased significantly (by over 50%) in comparison to the unmodified sample. In the case of the conventional bleaching in the bath, the DP value was reduced from 2951 to 1234, while after VHP bleaching, it was equal to 1168. On the other hand, the treatment with ozone alone contributed to a much smaller reduction in the polymerisation degree (DP value equal to 2406). In turn, the bleaching with both oxidising agents in the gas phase, i.e., VHP and ozone, caused a drastic decrease (by 80%) in the degree of cellulose polymerisation, to the value of 579 (Table 6). This reduction in the degree of cotton polymerisation is the highest among all of the investigated procedures. It results from the fact, that according to the common knowledge, the action of strong oxidising agents (ozone and VHP) causes the chemical reconstruction of cellulose Mer cells and the formation of oxycellulose, characterized by a significantly reduced degree of polymerisation compared to the initial cellulose.
A high reduction in the DP (by 70%) was also achieved by bleaching in a bath using hydrogen peroxide with the addition of caustic soda [102], although other researchers showed a much lower reduction in the DP after a similar bleaching process [99,101,103]—by 13%, 35% and 32%, respectively, in comparison to cotton fabric before bleaching. A significant decrease in the DP (by about 52%) was noticed after the cotton bleaching in a bath with ozone in a strongly acidic environment, with an extended process time [74]. In a similar process carried out under the mild conditions, only a 25% reduction in the DP was observed [74], similar to that after the bleaching with sodium hypochlorite (NaClO) [99]. In turn, a high degree of polymerisation of cotton (over 87% in relation to the DP of the starting material) was maintained after the bleaching processes using enzymatic methods—with enzymatically (glucose oxidase; GOD) generated hydrogen peroxide [101] and/or subsequently peracetic acid [99] as well as after enzymatic desizing (α-amylase, amyloglucosidase), scoring (pectinase, glucose oxidase) and subsequent bleaching with hydrogen peroxide [103].

3.6. Assessment of the Mechanical Properties

The bleaching process using hydrogen peroxide, both in the gas phase and in the bath, resulted in a slight reduction in the tensile strength of the tested cotton fabric in both the longitudinal and transverse directions (Table 7). Lower values of breaking force (warp: 357 ± 7 N, weft: 376 ± 6 N) were obtained for the sample bleached with ozone. However, the greatest reduction in the tensile strength compared to the unbleached fabric—by almost 40% in the warp direction and about 20% in the weft direction—was noticed for the sample bleached using a combination of two oxidising agents in the gas phase—VHP and ozone. Such changes in the tensile strength of the cotton fabric (Table 7) correspond to changes in the value of the polymerisation degree of cellulose after various bleaching processes using oxidising agents in the gas phase (Table 6). The lower the polymerisation degree, the lower tensile strength was observed.

3.7. Determination of the pH of Aqueous Extract

The values of the pH of aqueous extracts of cotton samples subjected to different bleaching processes are summarised in Table 8. The pH of the aqueous extract of the unmodified woven cotton fabric was equal to 8.4. This relatively high pH value results from the use of an alkaline pre-treatment agent (Imbilan LP). After the conventional bleaching process of the cotton fabric using the bath containing H2O2, the pH of aqueous extract reached a value close to neutral, i.e., 7.4, while the VHP bleaching resulted in the slightly acidic pH, i.e., 6.7. The lowest pH value of the aqueous extract (the most acidic), equal to 5.0, was obtained for the sample bleached using ozone treatment. The pH value of the aqueous extract of cotton fabric subjected to the bleaching with both oxidising agents in the gas phase was 5.7 (Table 8). Chemical reconstruction of cellulose cells as a result of the oxidative bleaching treatment with ozone and/or VHP is associated with the ability of OH groups to oxidise and transform into aldehyde and carboxyl groups, which results in a decrease in the pH of the samples’ aqueous extracts. This was confirmed by the results presented in Table 8.

3.8. Measurement of the Sorption Capacity

The sorption capacity of cellulose/cotton has been the subject of many papers, in which various aspects of its application as sorbents [104,105,106], as well as models for sorption/desorption of both inorganics (water, cations) and organics (oils), were illustrated [107,108,109].
The sorption parameters of cellulose reflect a state of the surface and the morphology (an accessibility of surface hydroxyl groups, a presence of carbonyl and carboxyl functions, etc.) [110,111,112,113]. Therefore, the measurements of the sorption capacity were applied as a tool for the investigation of the surface changes of the cotton which accompanied the process of fibre bleaching. Moreover, sorption capacity is extremely important in the case of hygienic and medical applications, such as wound dressings and bandages, for which cotton is commonly applied.
The sorption parameters of the cotton samples subjected to different bleaching processes using oxidising agents are presented in Table 9.
The highest value of maximum sorption, 38.1 µL/cm2, was observed for the sample subjected to a conventional bleaching process using an H2O2-containing bath. For the sample bleached using ozone or VHP and ozone combination, the maximum sorption was slightly lower, equal to 35.8 µL/cm2 and 36.1 µL/cm2, respectively. The lowest value of maximum sorption, i.e., 30.4 µL/cm2, was obtained for the sample subjected to VHP bleaching, and it was almost equal to the value measured for the unmodified woven cotton fabric, i.e., 30.5 µL/cm2. The same trend was observed for the sorption velocity, with the maximum V30–70 value (7.5 µL/cm2s) achieved for the sample subjected to conventional bleaching in bath, followed by the VHP-and-ozone-bleached sample (7.4 µL/cm2s), ozone-bleached sample (7.0 µL/cm2s) and, finally, the lowest V30–70 for the unmodified sample (5.5 µL/cm2s) and the sample after the VHP bleaching (5.3 µL/cm2s). At the same time, the maximum sorption velocity was the highest for the samples subjected to the bleaching using H2O2, both in bath (15.6 µL/cm2s) and in a gas phase (14.9 µL/cm2s). In turn, the lowest maximum sorption velocity was measured for the sample modified using ozone (10.1 µL/cm2s) and a combination of both oxidising agents, i.e., VHP and ozone (9.7 µL/cm2s). The total sorption time decreased for all of the bleached cotton samples in comparison to the unmodified one (23.5 s). The lowest sorption time was obtained for the sample treated using ozone (11.6 s) and using a combination of VHP and ozone (11.4 s), while for the samples bleached using H2O2, either in bath or gas phase, it was similar and equal to 16.0 s and 17.5 s, respectively.

3.9. Microbiological Assessment of the Decontamination Efficiency

Ozone and hydrogen peroxide are extensively used antimicrobial chemicals for preservative, disinfection and sterilization applications [114]. They exhibit the broad-spectrum antimicrobial activity, illustrated by over 2000 documents for hydrogen peroxide [115] and over 200 documents for ozone [116] abstracted in the Scopus base, respectively. Both oxidants also exhibit antiviral potential [117,118]. There were also papers on the antibacterial cotton fabric prepared with other antibacterial agents [119,120,121,122]
The results of the microbiological tests (Table 10) indicated that the gas-phase bleaching process of cellulose samples using oxidising agents like ozone and vaporised hydrogen peroxide resulted in high biocidal efficiency against Gram (+) S. aureus (ATCC 6538) and Gram (-) E. coli (ATCC 11229) bacteria strains. The use of VHP was also applied earlier in the process of waste-free, low-temperature bleaching with simultaneous disinfection [Gram (+) and Gram (-) bacteria, moulds, fungi and spore forms] of cellulose fibre materials [47]. Due to the fact that after the bleaching using each bleaching agent—VHP and ozone separately—a very good biocidal effect was achieved against the tested microorganisms, and antimicrobial activity tests were no longer performed after the combined bleaching process using both—VHP and ozone. It can be concluded that the treatment of cotton using gaseous ozone and VHP provides a simultaneous bleaching and disinfection effect.

4. Conclusions

In this paper, the set of eco-friendly cotton bleaching procedures based on the use of gaseous hydrogen peroxide and ozone (namely COT-H2O2(g), COT-O3(g) and COT-H2O2(g)-O3(g)) was presented.
These procedures were carried out at nearly ambient temperature (35 °C), close to neutral pH, over a relatively short reaction time (0.25–4 h), using low total water consumption (mainly limited to the preliminary/final washings).
The significant improvement in the whiteness index (WICIE) and the reduction in the yellowness index (YI) of the bleached cotton samples in comparison to the unmodified samples was shown.
Scanning Electron Microscopy of the cotton fibres showed minor changes in the fibre morphology, suggesting that the presented bleaching procedures are non-invasive.
The polymerisation degree of the cotton samples decreased substantially after the bleaching (over 50% for both COT-H2O2(as) and COT-H2O2(g); 21% for COT-O3(g) and 80% for COT-H2O2(g)-O3(g)) due to the applied oxidation treatment. These changes were also accompanied by the tensile strength decrease of the tested cotton samples. The reduction in the tensile strength corresponded to the decrease in the polymerisation degree, which is turn was associated with the chemical reconstruction of cellulose Mer cells and the formation of oxycellulose.
The sorption parameters of the samples COT-H2O2(g), COT-O3(g) and COT-H2O2(g)-O3(g) improved—the amount of adsorbed moisture (maximum sorption) and the sorption velocity increased, and the sorption time was shortened. This is of the utmost importance for medical and hygienic applications of cotton.
The results of microbiological tests showed high decontamination efficiency of gas-phase bleaching procedures (COT-H2O2(g), COT-O3(g) and COT-H2O2(g)-O3(g)) against S. aureus and E. coli.
Comparison of the abovementioned findings leads to the conclusion that the bleaching procedures using gaseous oxidants (COT-H2O2(g), COT-O3(g) and COT-H2O2(g)-O3(g)) are non-destructive and allow to obtain good functional properties, comparable with those reached for the standard aqueous hydrogen peroxide bleaching (COT-H2O2(as)). These procedures, due to lower bleaching temperature (35 °C vs. 98 °C) and minimal water consumption, have economic and environmental advantages, which advocates for their use in semi-industrial applications. Moreover, it has been shown that the treatment of cotton fabrics with the gaseous oxidants (COT-H2O2(g), COT-O3(g) and COT-H2O2(g)-O3(g)) allows to obtain a simultaneous bleaching and disinfection effect combined with superior whiteness and sorption capacity.
However, the achieved polymerisation degree and tensile strength are lowered. Therefore, the application of the applied procedures is recommended for the production of textile materials for medical and hygienic products where medical properties (antimicrobial resistance, high whiteness and good sorption) are more important than mechanotechnical properties.

Author Contributions

A.W. developed the concept and designed experiments, performed experiments, analysed data and wrote the paper; M.O.-K. designed experiments in the field of ozone treatment and analysed the data; A.K. analysed the data and participated in the publication preparation; M.H.K. analysed the data and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

The research was carried out within the National Science Centre, Poland. Project number M-ERA.NET 2022, No. 2022/04/Y/ST4/00157.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cao, H.; Cobb, K.; Yatvitskiy, M.; Wolfe, M.; Shen, H. Textile and product development from end-of-use cotton apparel: A study to reclaim value from waste. Sustainability 2022, 14, 8553. [Google Scholar] [CrossRef]
  2. Textile Exchange. Preferred Fibers and Materials Market Report. 2021. Available online: https://textileexchange.org/wp-content/uploads/2021/08/Textile-Exchange_Preferred-Fiber-and-Materials-Market-Report_2021.pdf (accessed on 26 April 2022).
  3. Krifa, M. Cotton uses and performance in the textile market. In Cotton Fibres: Characteristics, Uses and Performance; Abidi, N., Gordon, S., Eds.; Nova Science Publishers: Hauppauge, NY, USA, 2017; Chapter 11; pp. 233–253. [Google Scholar]
  4. Sindhu, K.A.; Prasanth, R.; Thakur, V.K. Medical Applications of Cellulose and its Derivatives: Present and Future. In Nanocellulose Polymer Nanocomposites: Fundamentals and Applications; Sindhu, K.A., Prasanth, R., Thakur, V.K., Eds.; Scrivener Publishing LLC: Beverly, MA, USA, 2014; pp. 437–477. [Google Scholar] [CrossRef]
  5. Shahriari-Khalaji, M.; Alassod, A.; Nozhat, Z. Cotton-based health care textile: A mini review. Polym. Bull. 2022, 79, 10409–10432. [Google Scholar] [CrossRef]
  6. Akpomie, K.G.; Conradie, J. Advances in application of cotton-based adsorbents for heavy metals trapping, surface modifications and future perspectives. Ecotoxicol. Environ. Saf. 2020, 201, 110825. [Google Scholar] [CrossRef]
  7. Klemm, D.; Heublein, B.; Fink, H.P.; Bohn, A. Cellulose: Fascinating Biopolymer and Sustainable Raw Material. Angew. Chem. Int. Ed. 2005, 44, 3358–3393. [Google Scholar] [CrossRef]
  8. Rojas, O.J. (Ed.) Cellulose Chemistry and Properties: Fibers, Nanocelluloses and Advanced Materials. In Advances in Polymer Science, 271; Springer: Berlin/Heidelberg, Germany, 2016; pp. 1–341. [Google Scholar] [CrossRef]
  9. Fang, D.D. (Ed.) Cotton Fiber: Physics, Chemistry and Biology; Springer Nature: Basel, Switzerland, 2018; pp. 1–226. [Google Scholar] [CrossRef]
  10. De Carvalho, J.P.; Correia Farias, F.J.; de Andrade Lima, M.M.; da Silva Rodrigues, J.I. Inheritance of different fiber colors in cotton (Gossypium barbadense L.). Crop Breed. Appl. Biotechnol. 2014, 14, 256–260. [Google Scholar] [CrossRef]
  11. Teixeira, E.M.; Correa, A.C.; Manzoli, A. Cellulose nanofibers from white and naturally colored cotton fibers. Cellulose 2010, 17, 595–606. [Google Scholar] [CrossRef]
  12. Komuraiah, A.; Kumar, N.S.; Prasad, B.D. Chemical composition of natural fibers and its influence on their mechanical properties. Mech. Compos. Mater. 2014, 50, 359–376. [Google Scholar] [CrossRef]
  13. Chokshi, S.; Parmar, V.; Gohil, P.; Chaudhary, V. Chemical composition and mechanical properties of natural fibers. J. Nat. Fibers 2022, 19, 3942–3953. [Google Scholar] [CrossRef]
  14. Lebo, S.E., Jr.; Gargulak, J.D.; McNally, T.J. Lignin. In Kirk-Othmer Encyclopedia of Chemical Technology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2001; ISBN 978-0-471-23896-6. [Google Scholar] [CrossRef]
  15. Ismailov, A.I.; Karimdzhanov, A.K.; Islambekov, S.Y.; Rakhimkhanov, Z.B. Flavonoids of the cotton plant and plants close to it. Chem. Nat. Compd. 1994, 30, 1–14. [Google Scholar] [CrossRef]
  16. Nix, A.; Paull, C.; Colgrave, M. Flavonoid profile of the cotton plant, Gossypium hirsutum: A Review. Plants 2017, 6, 43. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, M.; Zhang, T.T.; He, L.; Wang, K.; Chen, Y. Qualitative analysis of cotton fiber pigment composition. Text. Res. J. 2021, 91, 456–463. [Google Scholar] [CrossRef]
  18. Khalid, M.N.; Rasheed, Z.; Amjad, I.; Qasim, M.; Khan, M.M. An in-depth review of flavonoid profile in cotton (Gossypium hirsutum L.). Indian J. Pure Appl. Biosci. 2021, 9, 202–216. [Google Scholar] [CrossRef]
  19. Cui, X.L.; Price, J.B.; Calamari, T.A.; Hemstreet, J.M.; Meredith, W. Cotton wax and its relationship with fiber and yarn properties: Part I: Wax content and fiber properties. Text. Res. J. 2002, 72, 399–404. [Google Scholar] [CrossRef]
  20. Brushwood, D.E. Noncellulosic constituents on raw cotton and their relationship to fiber physical properties. Text. Res. J. 2003, 73, 912–916. [Google Scholar] [CrossRef]
  21. Zhang, Y.; Shaad, K.; Vollmer, D.; Ma, C. Treatment of textile wastewater using advanced oxidation processes—A critical review. Water 2021, 13, 3515. [Google Scholar] [CrossRef]
  22. Johnson, S.; Echeverria, D.; Venditti, R.; Jameel, H.; Yao, Y. Supply chain of waste cotton recycling and reuse: A review. AATCC J. Res. 2020, 7, 19–29. [Google Scholar] [CrossRef]
  23. Babu, B.R.; Parande, A.K.; Raghu, S.; Prem Kumar, T. Cotton textile processing: Waste generation and effluent treatment. J. Cotton Sci. 2007, 11, 141–153. [Google Scholar]
  24. Harane, R.S.; Mehra, N.R.; Tayade, P.B.; Adivarekar, R.V. A facile energy and water-conserving process for cotton dyeing. Int. J. Energy Environ. Eng. 2014, 5, 96. [Google Scholar] [CrossRef]
  25. Durrant, P.J.; Durrant, B. Introduction to Advanced Inorganic Chemistry, 2nd ed.; Wiley: New York, NY, USA, 1970; pp. 1–1331. [Google Scholar]
  26. Audran, G.; Marque, S.R.A.; Santelli, M. Ozone, chemical reactivity and biological functions. Tetrahedron 2018, 74, 6221–6261. [Google Scholar] [CrossRef]
  27. Goor, G.; Glenneberg, J.; Jacobi, S.; Jal Dadabhoy, J.; Candido, E. Hydrogen Peroxide. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag: Weinheim, Germany, 2019; pp. 1–40. [Google Scholar] [CrossRef]
  28. LennTech. Chemical Properties of Chlorine—Health Effects of Chlorine—Environmental Effects of Chlorine. Available online: https://www.lenntech.com/periodic/elements/cl.htm#ixzz7vvusfT9a (accessed on 15 March 2023).
  29. Fukayama, M.Y.; Tan, H.; Wheeler, W.B.; Wei, C.I. Reactions of aqueous chlorine and chlorine dioxine with model food compounds. Environ. Health Perspect. 1986, 69, 267–274. [Google Scholar] [CrossRef] [PubMed]
  30. Deborde, M.; von Gunten, U. Reactions of chlorine with inorganic and organic compounds during water treatment—Kinetics and mechanisms: A critical review. Water Res. 2008, 42, 13–51. [Google Scholar] [CrossRef]
  31. Zhou, Z.; Jääskeläinen, A.S.; Vuorinen, T. Oxidation of cellulose and carboxylic acids by hypochlorous acid: Kinetics and mechanisms. J. Pulp Pap. Sci. 2008, 34, 212–218. [Google Scholar]
  32. Squadrito, G.L.; Postlethwait, E.M.; Matalon, S. Elucidating mechanisms of chlorine toxicity: Reaction kinetics, thermodynamics, and physiological implications. Am. J. Physiol. Lung Cell. Mol. Physiol. 2010, 299, 73. [Google Scholar] [CrossRef] [PubMed]
  33. Hossaini, R.; Chipperfield, M.P.; Saiz-Lopez, A.; Fernandez, R.; Monks, S.; Feng, W.; Brauer, P.; von Glasow, R. A global model of tropospheric chlorine chemistry: Organic versus inorganic sources and impact on methane oxidation. , J. Geophys. Res. Atmos. 2016, 121, 14271–14297. [Google Scholar] [CrossRef]
  34. Jefri, U.H.N.M.; Khan, A.; Lim, Y.C.; Lee, K.S.; Liew, K.B.; Kassab, Y.W.; Choo, C.Y.; Al-Worafi, Y.M.; Ming, L.C.; Kalusalingam, A. A systematic review on chlorine dioxide as a disinfectant. J. Med. Life 2022, 15, 313–318. [Google Scholar] [CrossRef] [PubMed]
  35. Jin, R.-Y.; Hu, S.-Q.; Zhang, Y.-G.; Bo, T. Concentration-dependence of the explosion characteristics of chlorine dioxide gas. J. Hazard. Mater. 2009, 166, 842–847. [Google Scholar] [CrossRef] [PubMed]
  36. Hosoya, S. Fundamental reaction mechanisms of hydrogen peroxide bleaching. Jap. Tappi J. 1998, 52, 9–21. [Google Scholar] [CrossRef]
  37. Sato, K.; Hyodo, M. Hydrogen peroxide oxidation of aldehydes to carboxylic acids: An organic solvent-, halide- and metal-free procedure. Tetrahedron Lett. 2000, 41, 1439–1442. [Google Scholar] [CrossRef]
  38. Voukides, A.C.; Konrad, K.M.; Johnson, R.P. Competing mechanistic channels in the oxidation of aldehydes by ozone. J. Org. Chem. 2009, 74, 2108–2113. [Google Scholar] [CrossRef]
  39. Weber, I.E.; Clayton, E. The hydrogen peroxide bleaching of wool, cotton, and silk. J. Text. Inst. Proc. 1933, 24, P178–P193. [Google Scholar] [CrossRef]
  40. Zeronian, S.H.; Inglesby, M.K. Bleaching of cellulose by hydrogen peroxide. Cellulose 1995, 2, 265–272. [Google Scholar] [CrossRef]
  41. Loeffler, M.J.; Teolis, B.D.; Baragiola, R.A. Distillation kinetics of solid mixtures of hydrogen peroxide and water and the isolation of pure hydrogen peroxide in ultrahigh vacuum. J. Phys. Chem. B 2006, 110, 6911–6915. [Google Scholar] [CrossRef] [PubMed]
  42. Abramson, H.A. A stable hydrogen peroxide aerosol. Science 1942, 96, 238. [Google Scholar] [CrossRef] [PubMed]
  43. Hultman, C.; Hill, G.; McDonnell, G. The physical chemistry of decontamination with gaseous hydrogen peroxide. Pharm. Eng. 2007, 27, 22–32. [Google Scholar]
  44. Berger, D.; Gundermann, G.; Sinha, A.; Moroi, M.; Goya, N.; Tsai, A. Review of aerosolized hydrogen peroxide, vaporized hydrogen peroxide, and hydrogen peroxide gas plasma in the decontamination of filtering facepiece respirators. Am. J. Infect. Control 2022, 50, 203–213. [Google Scholar] [CrossRef] [PubMed]
  45. Pironti, C.; Motta, O.; Proto, A. Development of a new vapour phase methodology for textiles disinfection. Clean. Eng. Technol. 2021, 4, 100170. [Google Scholar] [CrossRef]
  46. Wawrzyk, A.; Gutarowska, B.; Rybitwa, D.; Pietrzak, K.; Machnowski, W.; Wrzosek, H.; Papis, A.; Walawska, A.; Otlewska, A.; Szulc, J.; et al. Vapourised Hydrogen Peroxide (VHP) and Ethylene Oxide (EtO) Methods for Disinfecting Historical Cotton Textiles from the Auschwitz-Birkenau State Museum in Oświęcim, Poland. Int. Biodeterior. Biodegrad. 2018, 133, 42–51. [Google Scholar] [CrossRef]
  47. Sójka-Ledakowicz, J.; Walawska, A.; Filipowska, B.; Lewartowska, J.; Olczyk, J.; Kiwała, M. New Eco-Friendly Method of Cellulosic Product Bleaching with Simultaneous Disinfection. Fibres Text. East. Eur. 2015, 23, 115–119. [Google Scholar] [CrossRef]
  48. Epelle, E.I.; Macfarlane, A.; Cusack, M.; Burns, A.; Okolie, J.A.; Mackay, W.; Rateb, M.; Yaseen, M. Ozone Application in Different Industries: A Review of Recent Developments. Chem. Eng. J. 2023, 454, 140188. [Google Scholar] [CrossRef]
  49. Batagoda, J.H.; Hewage, S.D.A.; Meegoda, J.N. Nano-Ozone Bubbles for Drinking Water Treatment. J. Environ. Eng. Sci. 2019, 14, 57–66. [Google Scholar] [CrossRef]
  50. Manasfi, T. Chapter Four—Ozonation in Drinking Water Treatment: An Overview of General and Practical Aspects, Mechanisms, Kinetics, and Byproduct Formation. In Comprehensive Analytical Chemistry; Manasfi, T., Boudenne, J.-L., Eds.; Analysis and Formation of Disinfection Byproducts in Drinking Water; Elsevier: Amsterdam, The Netherlands, 2021; Volume 92, pp. 85–116. [Google Scholar]
  51. Rekhate, C.V.; Srivastava, J.K. Recent Advances in Ozone-Based Advanced Oxidation Processes for Treatment of Wastewater—A Review. Chem. Eng. J. Adv. 2020, 3, 100031. [Google Scholar] [CrossRef]
  52. Gupta, A.; Thakur, I.S. Treatment of Organic Recalcitrant Contaminants in Wastewater. In Biological Wastewater Treatment and Resource Recovery; Robina, F., Ahmad, Z., Eds.; IntechOpen: London, UK, 2017. [Google Scholar]
  53. Paucar, N.E.; Kim, I.; Tanaka, H.; Sato, C. Ozone Treatment Process for the Removal of Pharmaceuticals and Personal Care Products in Wastewater. Ozone Sci. Eng. 2019, 41, 3–16. [Google Scholar] [CrossRef]
  54. Olak-Kucharczyk, M.; Festinger, N.; Smułek, W. Application of Ozonation-Biodegradation Hybrid System for Polycyclic Aromatic Hydrocarbons Degradation. Int. J. Environ. Res. Public. Health 2023, 20, 5347. [Google Scholar] [CrossRef]
  55. Olak-Kucharczyk, M.; Foszpańczyk, M.; Żyłła, R.; Ledakowicz, S. Photodegradation and Ozonation of Ibuprofen Derivatives in the Water Environment: Kinetics Approach and Assessment of Mineralization and Biodegradability. Chemosphere 2022, 291, 132742. [Google Scholar] [CrossRef] [PubMed]
  56. Kasiri, M.B.; Modirshahla, N.; Mansouri, H. Decolorization of Organic Dye Solution by Ozonation; Optimization with Response Surface Methodology. Int. J. Ind. Chem. 2013, 4, 3. [Google Scholar] [CrossRef]
  57. Sevimli, M.F.; Sarikaya, H.Z. Ozone Treatment of Textile Effluents and Dyes: Effect of Applied Ozone Dose, pH and Dye Concentration. J. Chem. Technol. Biotechnol. 2002, 77, 842–850. [Google Scholar] [CrossRef]
  58. Bilińska, L.; Blus, K.; Gmurek, M.; Ledakowicz, S. Coupling of Electrocoagulation and Ozone Treatment for Textile Wastewater Reuse. Chem. Eng. J. 2019, 358, 992–1001. [Google Scholar] [CrossRef]
  59. Aslam, R.; Alam, M.S.; Saeed, P.A. Sanitization Potential of Ozone and Its Role in Postharvest Quality Management of Fruits and Vegetables. Food Eng. Rev. 2020, 12, 48–67. [Google Scholar] [CrossRef]
  60. Botondi, R.; Barone, M.; Grasso, C. A Review into the Effectiveness of Ozone Technology for Improving the Safety and Preserving the Quality of Fresh-Cut Fruits and Vegetables. Foods 2021, 10, 748. [Google Scholar] [CrossRef] [PubMed]
  61. Sivaranjani, S.; Prasath, V.A.; Pandiselvam, R.; Kothakota, A.; Mousavi Khaneghah, A. Recent Advances in Applications of Ozone in the Cereal Industry. LWT 2021, 146, 111412. [Google Scholar] [CrossRef]
  62. Obadi, M.; Zhu, K.-X.; Peng, W.; Sulieman, A.A.; Mohammed, K.; Zhou, H.-M. Effects of Ozone Treatment on the Physicochemical and Functional Properties of Whole Grain Flour. J. Cereal Sci. 2018, 81, 127–132. [Google Scholar] [CrossRef]
  63. He, T.; Liu, M.; Tian, X. Effect of Active Hydroxylamine Intermediates on Improving Cellulose Protection and Mass Transfer in Ozone Bleaching of Low-Consistency Pulp. Ind. Crop. Prod. 2020, 143, 111404. [Google Scholar] [CrossRef]
  64. Zhang, X.; Li, J.; Gong, J.; Kuang, Y.; He, S.; Xu, J.; Mo, L.; Man, Y.; Zhu, W.; Song, J.; et al. Cleaner Approach for Medium Consistency Eucalyptus Slab Pulp Production Using Ozone Bleaching under Turbulent Mixing. J. Clean. Prod. 2020, 276, 124201. [Google Scholar] [CrossRef]
  65. de Souza Botelho-Almeida, T.; Lourenço, F.R.; Kikuchi, I.S.; Awasthi, R.; Dua, K.; Andreoli Pinto, T.d.J. Evaluating the Potential, Applicability, and Effectiveness of Ozone Sterilization Process for Medical Devices. J. Pharm. Innov. 2018, 13, 87–94. [Google Scholar] [CrossRef]
  66. Zhang, J.M.; Zheng, C.Y.; Xiao, G.F.; Zhou, Y.Q.; Gao, R. Examination of the efficacy of ozone solution disinfectant in in activating SARS virus. Chin. J. Disinfect. 2004, 1, 66–70. [Google Scholar]
  67. Hudson, J.B.; Sharma, M.; Vimalanathan, S. Development of a Practical Method for Using Ozone Gas as a Virus Decontaminating Agent. Ozone Sci. Eng. 2009, 31, 216–223. [Google Scholar] [CrossRef]
  68. Cristiano, L. Could Ozone Be an Effective Disinfection Measure against the Novel Coronavirus (SARS-CoV-2)? J. Prev. Med. Hyg. 2020, 61, E301–E303. [Google Scholar] [CrossRef]
  69. Karim, N.; Afroj, S.; Lloyd, K.; Oaten, L.C.; Andreeva, D.V.; Carr, C.; Farmery, A.D.; Kim, I.-D.; Novoselov, K.S. Sustainable Personal Protective Clothing for Healthcare Applications: A Review. ACS Nano 2020, 14, 12313–12340. [Google Scholar] [CrossRef]
  70. Rubio-Romero, J.C.; Pardo-Ferreira, M.d.C.; Torrecilla-García, J.A.; Calero-Castro, S. Disposable Masks: Disinfection and Sterilization for Reuse, and Non-Certified Manufacturing, in the Face of Shortages during the COVID-19 Pandemic. Saf. Sci. 2020, 129, 104830. [Google Scholar] [CrossRef]
  71. Bahtiyari, M.İ.; Benli, H. Ozone Bleaching of Cotton Fabrics with the Aid of Ultrasonic Humidifier. Cellulose 2016, 23, 2715–2725. [Google Scholar] [CrossRef]
  72. Perincek, S.; Bahtiyari, M.; Körlü, A.E.; Duran, K. Effect of Ozone and Ultrasound on the Fiber Properties of Angora Rabbit. J. Appl. Polym. Sci. 2011, 120, 3119–3125. [Google Scholar] [CrossRef]
  73. Atav, R.; Yurdakul, A. Effect of the Ozonation Process on the Dyeability of Mohair Fibres. Color. Technol. 2011, 127, 159–166. [Google Scholar] [CrossRef]
  74. Arooj, F.; Ahmad, N.; Shaikh, I.A.; Chaudhry, M.N. Application of Ozone in Cotton Bleaching with Multiple Reuse of a Water Bath. Text. Res. J. 2014, 84, 527–538. [Google Scholar] [CrossRef]
  75. Eren, H.A.; Ozturk, D. The Evaluation of Ozonation as an Environmentally Friendly Alternative for Cotton Preparation. Text. Res. J. 2011, 81, 512–519. [Google Scholar] [CrossRef]
  76. Arooj, F.; Ahmad, N.; Chaudhry, M.N. A Pilot-Scale Application of Ozone to Bleach Raw Cotton Fabric Using Various Additives. Ozone Sci. Eng. 2015, 37, 203–215. [Google Scholar] [CrossRef]
  77. Prabaharan, M.; Rao, J. Combined Desizing, Scouring and Bleaching of Cotton Using Ozone. Indian J. Fibre Text. Res. 2003, 28, 437–443. [Google Scholar]
  78. Maqsood, H.; Wiener, J.; Baheti, V.; Eldeeb, M.; Militky, J. Ozonation: A Green Source for Oxidized Cotton. Fibres Text. East. Eur. 2016, 24, 19–21. [Google Scholar] [CrossRef]
  79. Turhan, Y. The Effects of Ozone Bleaching and Ozone Desizing Method on Whiteness and Water Absorption of 100% Cotton Terry Fabrics. Int. J. Mater. Sci. Appl. 2018, 7, 85. [Google Scholar] [CrossRef]
  80. Ben Fraj, A.; Jaouachi, B. Effects of Ozone Treatment on Denim Garment Properties. Color. Technol. 2021, 137, 678–688. [Google Scholar] [CrossRef]
  81. ISO 105-J02:2002; Textiles—Tests for Colour Fastness—Part J02: Instrumental Assessment of Relative Whiteness. International Organization for Standardization: Geneva, Switzerland, 2002.
  82. Yeo, W.S.; Lau, W.J. Predicting the whiteness index of cotton fabric with a least squares model. Cellulose 2021, 28, 8841–8854. [Google Scholar] [CrossRef]
  83. ASTM Method E313; Standard Practice for Calculating Yellowness and Whiteness Indices from Instrumentally Measured Color Coordinates. ASTM International: West Conshohocken, PA, USA, 2020.
  84. ISO 105-J03:2009; Textiles—Tests for Colour Fastness—Part J03: Calculation of Colour Differences. International Organization for Standardization: Geneva, Switzerland, 2009.
  85. ISO 5351:2010; Pulps—Determination of Limiting Viscosity Number in Cupri-Ethylenediamine (CED) Solution. International Organization for Standardization: Geneva, Switzerland, 2010.
  86. Immergut, E.H.; Schurz, J.; Mark, H. Viscosity number-molecular weight relationship for cellulose and studies of nitrocellulose in various solvents. Monatshefte Chem. 1953, 84, 219–249. [Google Scholar] [CrossRef]
  87. ISO 13934-1:2013; Textiles—Tensile Properties of Fabrics—Part 1: Determination of Maximum Force and Elongation at Maximum Force Using the Strip Method. International Organization for Standardization: Geneva, Switzerland, 2013.
  88. ISO 3071:2020; Textiles—Determination of pH of Aqueous Extract. International Organization for Standardization: Geneva, Switzerland, 2020.
  89. Bartkowiak, G. Liquid sorption by nonwovens containing superabsorbent fibres. Fibres Text. East. Eur. 2006, 14, 57–62. [Google Scholar]
  90. Wójtowicz-Młochowska, H. Synthetic utility of metal catalyzed hydrogen peroxide oxidation of C-H, C-C and C=C bonds in alkanes, arenes and alkenes: Recent advances. Arkivoc 2017, 2017, 12–58. [Google Scholar] [CrossRef]
  91. Rubin, M.B. The history of ozone: Part III.—C. D. Harries and the introduction of ozone into organic chemistry. Helv. Chim. Acta 2003, 86, 930–940. [Google Scholar] [CrossRef]
  92. Arooj, F.; Jamshed, K.; Kashif, S.U.R.; Jamshed, H.; Luqman, M. Improvement in the absorbency of ozone bleached cotton fabric by the addition of surfactant. J. Text. Inst. 2021, 112, 1821–1825. [Google Scholar] [CrossRef]
  93. Gürsoy, N.Ç.; Lim, S.-H.; Hinks, D.; Hauser, P. Evaluating hydrogen peroxide bleaching with cationic bleach activators in a cold pad-batch process. Text. Res. J. 2004, 74, 970–977. [Google Scholar] [CrossRef]
  94. Liu, K.; Zhang, X.; Yan, K. Development of o-phthalic anhydride as a low-temperature activator in H2O2 bleaching system for cotton fabric. Cellulose 2018, 25, 859–867. [Google Scholar] [CrossRef]
  95. Preša, P.; Forte Tavčer, P. Low water and energy saving process for cotton pretreatment. Text. Res. J. 2009, 79, 76–88. [Google Scholar] [CrossRef]
  96. Ali, S.; Khatri, Z.; Tanwari, A. Integrated preparatory method for cotton towel by using enzymes. Int. J. Chem. Environ. Eng. 2011, 2, 295–301. [Google Scholar]
  97. Ali, S.; Khatri, Z.; Khatri, A.; Tanwari, A. Integrated desizing-bleaching-reactive dyeing process for cotton towel using glucose oxidase enzyme. J. Clean. Prod. 2014, 66, 562–567. [Google Scholar] [CrossRef]
  98. Heo, Y.D.; Sung, Y.J.; Joung, Y.J.; Kim, D.K.; Kim, T.Y. Changes in the Properties of Cotton Cellulose by Hydrogen Peroxide Bleaching. J. Korea Tappi 2013, 45, 59–68. [Google Scholar] [CrossRef]
  99. Steiner, N. Evaluation of peracetic acid as an environmentally safe alternative for hypochlorite. Text. Chem. Color. 1995, 27, 29–32. [Google Scholar]
  100. Križman, P.; Kovac, F.; Tavcer, P.F. Bleaching of cotton fabric with peracetic acid in the presence of different activators. Color. Technol. 2005, 121, 304–310. [Google Scholar] [CrossRef]
  101. Špička, N.; Tavčer, P.F. Complete enzymatic pre-treatment of cotton fabric with incorporated bleach activator. Text. Res. J. 2013, 83, 566–573. [Google Scholar] [CrossRef]
  102. Buschle-Diller, G.; Yang, X.D.; Yamamoto, R. Enzymatic bleaching of cotton fabric with glucose oxidase. Text. Res. J. 2001, 71, 388–394. [Google Scholar] [CrossRef]
  103. Mojsov, K. Enzymatic desizing, bioscouring and enzymatic bleaching of cotton fabric with glucose oxidase. J. Text. Inst. 2019, 110, 1032–1041. [Google Scholar] [CrossRef]
  104. Bailey, S.E.; Olin, T.J.; Bricka, R.M.; Adrian, D.D. A review of potentially low-cost sorbents for heavy metals. Water Res. 1999, 33, 2469–2479. [Google Scholar] [CrossRef]
  105. Subramoniapillai, V.; Thilagavathi, G. Oil spill cleanup by natural fibers: A review. Res. J. Text. Appar. 2022, 26, 390–404. [Google Scholar] [CrossRef]
  106. Jiang, P.; Lou, L.; Ramkumar, S. Comparison of oil sorption capacity of nonwoven sorbents. AATCC J. Res. 2023, 10, 101–109. [Google Scholar] [CrossRef]
  107. Okubayashi, S.; Griesser, U.J.; Bechtold, T. Moisture sorption/desorption behavior of various manmade cellulosic fibers. J. Appl. Polym. Sci. 2005, 97, 1621–1625. [Google Scholar] [CrossRef]
  108. Hill, C.A.S.; Norton, A.; Newman, G. The water vapor sorption behavior of natural fibers. J. Appl. Polym. Sci. 2009, 112, 1524–1537. [Google Scholar] [CrossRef]
  109. Hamdaoui, M.; Sawssen Achour, N.; Ben Nasrallah, S. The influence of woven fabric structure on kinetics of water sorption. J. Eng. Fibers Fabr. 2014, 9, 101–106. [Google Scholar] [CrossRef]
  110. Célino, A.; Fréour, S.; Jacquemin, F.; Casari, P. The hygroscopic behavior of plant fibers: A review. Front. Chem. 2014, 1, 43. [Google Scholar] [CrossRef]
  111. Jordanov, I.; Mangovska, B.; Tavčer, P.F. Assessing structural changes in cotton yarns during wet processing, mercerization, and scouring. AATCC Rev. 2007, 7, 56–61. [Google Scholar]
  112. Smyatskaya, Y.; Politaeva, N.; Chusov, A. Influence of the nature of the binding material on properties of the sorbents. IOP Conf. Ser. Mater. Sci. Eng. 2020, 883, 012193. [Google Scholar] [CrossRef]
  113. Simon, M.; Fulchiron, R.; Gouanvé, F. Water sorption and mechanical properties of cellulosic derivative fibers. Polymers 2022, 14, 2836. [Google Scholar] [CrossRef] [PubMed]
  114. Rutala, W.A.; Weber, D.J. Disinfection, sterilization, and antisepsis: An overview. Am. J. Infect. Control 2019, 47S, A3–A9. [Google Scholar] [CrossRef]
  115. Scopus Base. 2339 Document Results on Hydrogen Peroxide Antibacterial Activity. Available online: https://www-1scopus-1com-10000149b00ae.han.p.lodz.pl/results/results.uri?sort=plf-f&src=s&st1=hydrogen+peroxide+antibacterial+activity&sid=3ada7d64df1864f30b66b1d9b1c45fb2&sot=b&sdt=b&sl=55&s=TITLE-ABS-KEY%28hydrogen+peroxide+antibacterial+activity%29&origin=searchbasic&editSaveSearch=&yearFrom=Before+1960&yearTo=Present&sessionSearchId=3ada7d64df1864f30b66b1d9b1c45fb2&limit=10 (accessed on 5 September 2023).
  116. Scopus Base. 232 Document Results on Ozone Antibacterial Activity. Available online: https://www-1scopus-1com-10000149b00cf.han.p.lodz.pl/results/results.uri?sort=plf-f&src=s&st1=Chemistry+of+Cellulose+Bleaching+by+Hydrogen+Peroxide&sid=6db54cb41f66ab9ee85fe8b2aa8ab8e9&sot=b&sdt=b&sl=68&s=TITLE-ABS-KEY%28Ozone+antibacterial+activity%29&origin=searchbasic&editSaveSearch=&yearFrom=Before+1960&yearTo=Present&sessionSearchId=6db54cb41f66ab9ee85fe8b2aa8ab8e9&limit=10 (accessed on 5 September 2023).
  117. Tuladhar, E.; Terpstra, P.; Koopmans, M.; Duizer, E. Virucidal efficacy of hydrogen peroxide vapour disinfection. J. Hosp. Infect. 2012, 80, 110–115. [Google Scholar] [CrossRef]
  118. Xiao, S.; Yuan, Z.; Huang, Y. Disinfectants against SARS-CoV-2: A Review. Viruses 2022, 14, 1721. [Google Scholar] [CrossRef]
  119. Gedanken, A.; Perkas, N.; Perelshtein, I.; Lipovsky, A. Imparting pharmaceutical applications to the surface of fabrics for wound and skin care by ultrasonic waves. Curr. Med. Chem. 2018, 25, 5739–5754. [Google Scholar] [CrossRef]
  120. Gao, D.; Li, X.; Li, Y.; Lyu, B.; Ren, J.; Ma, J. Long-acting antibacterial activity on the cotton fabric. Cellulose 2021, 28, 1221–1240. [Google Scholar] [CrossRef]
  121. Chruściel, J.J.; Olczyk, J.; Kudzin, M.H.; Kaczmarek, P.; Król, P.; Tarzyńska, N. Antibacterial and antifungal properties of polyester, polylactide, and cotton nonwovens and fabrics, by means of stable aqueous dispersions containing copper silicate and some metal oxides. Materials 2023, 16, 5647. [Google Scholar] [CrossRef] [PubMed]
  122. Scopus Base. 242 Document Results on Antibacterial Cotton Fabric Preparation. Available online: https://www-1scopus-1com-10000147o03eb.han.p.lodz.pl/results/results.uri?sort=plf-f&src=s&st1=antibacterial+cotton+fabric+preparation&sid=99128104102da25119ebaf9a688cfa38&sot=b&sdt=b&sl=54&s=TITLE-ABS-KEY%28antibacterial+cotton+fabric+preparation%29&origin=searchbasic&editSaveSearch=&yearFrom=Before+1960&yearTo=Present&sessionSearchId=99128104102da25119ebaf9a688cfa38&limit=10 (accessed on 27 February 2024).
Materials 17 01355 g002
Figure 2. The simplified reaction scheme of alkenes (structural constituents of lignin, flavonoids and cotton fibre wax (Table 1)) with ozone (reaction 1, and subsequent reactions 1.1 to 1.x) and hydroxyperoxide (reaction 2, and subsequent reactions 2.1 to 2.x).
Figure 2. The simplified reaction scheme of alkenes (structural constituents of lignin, flavonoids and cotton fibre wax (Table 1)) with ozone (reaction 1, and subsequent reactions 1.1 to 1.x) and hydroxyperoxide (reaction 2, and subsequent reactions 2.1 to 2.x).
Materials 17 01355 g002
Materials 17 01355 g003aMaterials 17 01355 g003b
Figure 3. SEM images of the investigated samples, namely the raw cotton ((a); COT) and the cotton samples bleached in the hydrogen peroxide aqueous solution ((b), COT-H2O2(as)) and in the gaseous oxidant environments ((c), COT-H2O2(g); (d) COT-O3(g); and (e) COT-H2O2(g)-O3(g)). The magnifications of all SEM images (a–e) = 10,000×; scale bar = 5 μm).
Figure 3. SEM images of the investigated samples, namely the raw cotton ((a); COT) and the cotton samples bleached in the hydrogen peroxide aqueous solution ((b), COT-H2O2(as)) and in the gaseous oxidant environments ((c), COT-H2O2(g); (d) COT-O3(g); and (e) COT-H2O2(g)-O3(g)). The magnifications of all SEM images (a–e) = 10,000×; scale bar = 5 μm).
Materials 17 01355 g003aMaterials 17 01355 g003b
Materials 17 01355 g004
Figure 4. Photos of raw and bleached cotton fabric samples: (a) COT; (b) COT-H2O2(as); (c) COT-H2O2(g); (d) COT-O3(g); (e) COT-H2O2(g)-O3(g).
Figure 4. Photos of raw and bleached cotton fabric samples: (a) COT; (b) COT-H2O2(as); (c) COT-H2O2(g); (d) COT-O3(g); (e) COT-H2O2(g)-O3(g).
Materials 17 01355 g004
Table 1. The main coloured constituents of cotton fibres.
Table 1. The main coloured constituents of cotton fibres.
The Main Coloured Constituents of Cotton Fibres
Comp.CelluloseLigninFlavonoidsCotton fibre wax
Materials 17 01355 i001Materials 17 01355 i002Materials 17 01355 i003Materials 17 01355 i004
Con. [%]83–90 [12,13]0.8 [12,14]0.5–8 [15,16,17,18]0.4–1.0 [12,19,20]
Comp.—component; Con.—content.
Table 2. Cotton bleached samples and conditions of bleaching procedures applied.
Table 2. Cotton bleached samples and conditions of bleaching procedures applied.
No.Sample
Abbreviation		Bleaching
OxidantsConditions
H2O2(as)H2O2(g)O3(g)Temp.
[°C]		Time
[h]
ppmMol/LppmMol/LppmMol/L
1.COT- - - --
2.COT-H2O2(as) (1)16800.05 981
3.COT-H2O2(g) 8000.024 351–4
4.COT-O3(g) 1000–15,0000.021–0.031350.25–1
5.COT-H2O2(g)-O3(g) 8000.0241000–10,0000.021–0.21351
Abbreviations: COT—Unbleached 100% plain woven cotton fabric; COT-H2O2(as)—Plain woven cotton fabric (100%) after conventional bleaching in H2O2 bath; (1) liquor ratio COT: bath = 1:10; a bath contained 4 g/L of 30% H2O2(as); COT-H2O2(g)—Plain woven cotton fabric (100%) after VHP bleaching (35 °C, 1 h or 4 h); COT-O3(g)—Plain woven cotton fabric (100%) after ozone bleaching (35 °C, 0.25 h or 1 h). COT-H2O2(g)-O3—Plain woven cotton fabric (100%) after sequential VHP bleaching (35 °C, 1 h) and ozone bleaching (35 °C, 1 h).
Table 3. Whiteness index (WICIE) and yellowness index (YI) for cotton fabric—raw and bleached samples.
Table 3. Whiteness index (WICIE) and yellowness index (YI) for cotton fabric—raw and bleached samples.
No.Sample
Abbreviation		Bleaching ConditionsDetermined Data
Oxidant [Mol/L]Conditions
H2O2(as)H2O2(g)O3(g)Temp. [°C]Time [h]WICIEYI
1COT --24.119.1
2COT-H2O2(as) (1)0.05 98172.76.8
3.1COT-H2O2(g) 0.024 35148.913.2
3.2 0.024 35455.211.8
4.1COT-O3(g) 0.021350.2542.213.2
4.2 0.02135144.913.1
4.3 0.21350.2550.712.4
4.4 0.2135165.38.4
4.5 0.31350.2554.611.2
5.1COT-H2O2(g)-O3(g) 0.024 351
0.02135152.812.1
5.2 0.024 351
0.2135156.310.8
Abbreviations: COT—Unbleached 100% plain woven cotton fabric; COT-H2O2(as)—Plain woven cotton fabric (100%) after conventional bleaching in H2O2 bath; (1) liquor ratio COT: bath = 1:10; a bath contained 4 g/L (0.05 Mol/L) of 30% H2O2(as); COT-H2O2(g)—Plain woven cotton fabric (100%) after VHP bleaching (35 °C, 1 h or 4 h); COT-O3(g)—Plain woven cotton fabric (100%) after ozone bleaching (35 °C, 0.25 h or 1 h). COT-H2O2(g)-O3—Plain woven cotton fabric (100%) after sequential VHP bleaching (35 °C, 1 h) and ozone bleaching (35 °C, 1 h). WICIE—whiteness index; YI—yellowness index (E313 Yellowness Index).
Table 4. Comparison of whiteness index WICIE for cotton samples after representative bleaching processes using different oxidising agents.
Table 4. Comparison of whiteness index WICIE for cotton samples after representative bleaching processes using different oxidising agents.
Sample Abbreviation (a,b)WICIE (c)
This WorkLiterature Data
[92] (1,2)[93] (3)[94] (4,5)[95] (6–8)[96,97] (9,10)
COT24.12.11.2 11.1
COT-NaOH 19.5 (6)
COT-NaOH-H2O2(as) 84.1 (7)
COT-NaOH-PAA(as) 72.7 (8)
COT-H2O2(as)-MPPhA 63.0 (4)
COT-H2O2(as)72.764.171.4–71.865.0 (5) 62.3 (9)
COT-H2O2(as)-GOD 56.3 (10)
COT-H2O2(g)48.9–55.2
COT-O3(g)42.2–65.3
COT-H2O-O3(g) 50.6 (1);
56.1–66.5 (2)
COT-H2O2(g)-O3(g)52.8–56.3
(a) Experimental conditions used: (1) Ozone dose, 10 g/h; 0.75 h, temp.: 30 °C, liquor ratio 1:10; (2) With addition of 0.01 g/L of surfactant (anionic, cationic and/or non-ionic); (3) Bleaching solution: activator TBCC (8 g/L), chelate DTPMP (29 g/L), H2O2 (100 g/L). Conditions: pH 11.7, 8 h; (4) Bleaching solution: NaOH (2 g/L); H2O2 (1.5 g/L); PhA (4 g/L). Conditions: 70 °C, 1–1.25 h; (5) Bleaching solution: NaOH (4 g/L); H2O2 (2.7 g/L). Conditions: 70 °C, 1–1.25 h; (6) Scouring solution: NaOH (3 g/L). Conditions: pH 12.5; 95 °C, 0.7 h; (7) Bleaching solution: NaOH (4 g/L); H2O2 (2.7 g/L); EDTA (0.2 g/L). Conditions: pH 12.5; 95 °C, 0.7 h; (8) Bleaching solution: NaOH (2.2 g/L); PAA (2.3 g/L); Conditions: pH 8; 55 °C, 0.7 h; (9) Bleaching solution: NaOH (4% o.w.f.); NaOH (4.2 g/L). Conditions: pH 8; 90–100 °C, 0.5 h; (10) Bleaching and desizing procedure: COT was treated with Dextrozyme DX (1% o.w.f), 65 °C, 0.5 h; followed by bleaching by GOD addition, conditions 100 °C; (b)Abbreviations: Dextrozyme DX—myloglucosidase/pullanase enzyme; GOD—glucose oxidase enzyme; MPPhA—monoperphthalic acid; PAA—peracetic acid; PhA—phthalic anhydride; TAED—tetraacetylethylenediamine; TBCC N-[4-(triethylammoniomethyl) benzyl]caprolactam chloride; DTPMP—(diethylenetriamine)pentakis (methylphosphonic acid); (c) WICIE literature data were approximated to the first decimal place.
Table 5. CIE colour coordinates for cotton samples subjected to different bleaching processes using oxidising agents.
Table 5. CIE colour coordinates for cotton samples subjected to different bleaching processes using oxidising agents.
Sample CIE Colour Coordinates
CIELAB and CIELCH ValuesColour Difference
L*a*b*C*hDE*DL*Da*Db*DC*Dh
COT86.001.548.929.0580.24------
COT-H2O2(as)95.500.063.563.5689.0911.09.49−1.48−5.36−5.490.88
COT-H2O2(g)—1 h91.530.676.576.6184.156.075.53−0.86−2.35−2.450.53
COT-H2O2(g)—4 h93.080.326.056.0687.017.737.27−1.22−2.87−2.990.88
COT-O3(g)—0.021 Mol/L; 0.25 h88.911.166.646.7480.093.722.91−0.37−2.28−2.31−0.02
COT-O3(g)—0.021 Mol/L; 1 h89.401.186.336.4379.474.293.40−0.36−2.60−2.62−0.10
COT-O3(g)—0.21 Mol/L; 0.25 h91.140.935.996.0681.185.955.14−0.61−2.93−2.990.12
COT-O3(g)—0.021 Mol/L; 1 h93.860.344.244.2685.379.227.86−1.19−4.68−4.800.56
COT-H2O2(g)-O3(g)—0.021 Mol/L O392.110.576.066.0984.616.816.11−0.96−2.86−2.970.57
COT-H2O2(g)-O3(g)—0.21 Mol/L O392.590.655.565.6083.387.446.58−0.89−3.36−3.450.39
Colour Parameters: L*—lightness; a*—green/red; b*—blue/yellow; C*—chroma; h—hue angle; DE*—total colour difference; DL*—difference in lightness; Da*—difference in green./red parameters; Db*—difference in green/yellow parameters; DC*—difference in chroma; Dh—difference in hue angles. COT-H2O2(as) (H2O2: 0.05 Mol/L; 98 °C; 1 h); COT-H2O2(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h and 4 h); COT-O3(g) (O3: 0.021 or 0.21 Mol/L; 35 °C; 0.25 h or 1 h). COT-H2O2(g)-O3(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h; O3: 0.021 or 0.21 Mol/L; 35 °C; 1 h).
Table 6. Changes in the polymerisation degree of cotton samples subjected to different bleaching processes using representative oxidising agents.
Table 6. Changes in the polymerisation degree of cotton samples subjected to different bleaching processes using representative oxidising agents.
Cotton TreatmentCotton Treated Polymerisation Degree [DPbc/(DPubc)] (1)
This WorkLiterature Data
[74] (2,3)[98] (4)[99] (5)[100] (6)[101] (7)[102] (8,9)[103] (10,11)
COT-H2O2(as)1234/
(2951)		2676/
(3190)		1856/
(2176) (2);
1679/
(2176) (4)		 1946/(2232) 1593/
(2312)
COT-H2O2-NaOH 2155/
(2470)		 1445/
(2232)		1180/
(3850) (8)		1593/
(2312) (11)
COT-H2O2(g)1168/
(2951)
COT-O3(g)2406/
(2951)
COT-H2O2(g)—O3(g)579/
(2951)
COT-H2O-O3(g) 2419/
(3190) (1); 1673/
(3190) (2)
COT-PAA-H2O2 2526–2463/
(2845)		2047/
(2232)
COT-NaClO-H2O2 1860/
(2470)
COT-H2O2-ENZ 1946–2221/
(2232)		3750/
(3850) (9)		2038–2187/
(2312)
(1) Polymerisation degree of bleached cotton (DPbc) vs. polymerisation degree of unbleached cotton (DPubc) [DPbc/(DPubc)]; (2,3) Ozone treatment: 45 min treatment time at pH 5 at 25–30 °C with doses: (1) 2 g/h; (2) 10 g/h; (4) Cotton pre-treated with alkali (0.2%) at pH 11 and treated with H2O2 doses of 2% and 4% (on fibre); (5) Cotton bleaching at 20 °C; 35 min; (6) Cotton bleaching with PAA—2.25 g/L; pH 7, 40 min, at 40 °C and 80 °C; (7–9) Cotton bleaching with enzymatically generated H2O2; (7) Cotton enzymatic desizing (mixtures of α-amylases, amyloglucosidases and pullanases) and scouring with pectinases (50 °C, pH 5; 1 h). Bleaching with enzymatically (glucose oxidase; GOD) generated hydrogen peroxide and/or subsequently peracetic acid (50 °C, pH 5–7.5, 1 h); (8,9) Cotton bleaching with enzymatically generated H2O2: (6) 80–95 °C; LR = 0.05; (7) ENZ—glucose oxidase, pH 7, at 85–90 °C for 1–2 h; (10,11) Cotton enzymatic desizing (α-amylase, amyloglucosidase) and scoring (pectinase, glucose oxidase). Bleaching with hydrogen peroxide; (11) Conventional process: consecutive enzymatic desizing with α-amylase, alkaline scouring, and bleaching with hydrogen peroxide (80–95 °C, pH 11, 1 h); This work applied conditions: COT-H2O2(as) (H2O2: 0.05 Mol/L; 98 °C; 1 h); COT-H2O2(g) (H2O2: 0.024 Mol/L; 35 °C; 4 h); COT-O3(g) (O3: 0.21 Mol/L; 35 °C; 1 h); COT-H2O2(g)-O3(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h; O3: 0.21 Mol/L; 35 °C; 1 h).
Table 7. Maximum force and relative elongation at maximum force for cotton samples after different bleaching processes using oxidising agents.
Table 7. Maximum force and relative elongation at maximum force for cotton samples after different bleaching processes using oxidising agents.
Cotton
Sample		Maximum Force
[N]		Rel. Elong. (max. force)
[%]
WarpWeftWarpWeft
COT510 ± 10410 ± 910.5 ± 0.924.0 ± 1.2
COT-H2O2 (as)430 ± 8380 ± 815.5 ± 1.425.5 ± 1.1
COT-H2O2(g)470 ± 7390 ± 810.5 ± 1.025.0 ± 1.6
COT-O3(g)357 ± 7376 ± 614.8 ± 1.325.7 ± 1.5
COT-H2O2(g)-O3(g)321 ± 6332 ± 713.1 ± 1.215.6 ± 1.3
Warp—longitudinal direction; Weft—transverse direction; This work applied conditions: COT-H2O2(as) (H2O2: 0.05 Mol/L; 98 °C; 1 h); COT-H2O2(g) (H2O2: 0.024 Mol/L; 35 °C; 4 h); COT-O3(g) (O3: 0.21 M; 35 °C; 1 h); COT-H2O2(g)-O3(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h; O3: 0.21 Mol/L; 35 °C; 1 h).
Table 8. Values of the pH of aqueous extracts of cotton samples subjected to different bleaching processes.
Table 8. Values of the pH of aqueous extracts of cotton samples subjected to different bleaching processes.
SamplepH of Aqueous Extract
COT8.4
COT-H2O2(as)7.4
COT-H2O2(g)6.7
COT-O3(g)5.0
COT-H2O2(g)-O3(g)5.7
H2O2/(0.3%; 0.1M)6.4
This work applied conditions: COT-H2O2(as) (H2O2: 0.05 Mol/L; 98 °C; 1 h); COT-H2O2(g) (H2O2: 0.024 Mol/L; 35 °C; 4 h); COT-O3(g) (O3: 0.21 Mol/L; 35 °C; 0.5 h); COT-H2O2(g)-O3(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h; O3: 0.21 Mol/L; 35 °C; 0.5 h).
Table 9. Sorption parameters of cotton samples subjected to different bleaching processes using oxidising agents.
Table 9. Sorption parameters of cotton samples subjected to different bleaching processes using oxidising agents.
SampleSorption Parameters
Sample AbbreviationSmax
[µL/cm2]		Vmax
[µL/cm2s]		V30–70
[µL/cm2s]		tmax
[s]
COT 30.511.85.523.5
COT-H2O2(as)38.115.67.516.0
COT-H2O2(g)30.414.95.317.5
COT-O3(g)35.810.17.011.6
COT-H2O2(g)-O3(g)36.19.77.411.4
Sorption parameters: Smax—Maximum sorption; Vmax—Maximum sorption velocity; V30–70—Sorption velocity; tmax—Total sorption time. This work applied conditions: COT-H2O2(as) (H2O2: 0.05 Mol/L; 98 °C; 1 h); COT-H2O2(g) (H2O2: 0.024 Mol/L; 35 °C; 4 h); COT-O3(g) (O3: 0.21 Mol/L; 35 °C; 0.5 h); COT-H2O2(g)-O3(g) (H2O2: 0.024 Mol/L; 35 °C; 1 h; O3: 0.21 Mol/L; 35 °C; 1 h).
Table 10. Efficiency of decontamination of cotton samples during different bleaching processes using oxidising agents.
Table 10. Efficiency of decontamination of cotton samples during different bleaching processes using oxidising agents.
Cotton Bleaching/Disinfection a,bDisinfection Test
SampleOxidant ConcentrationTime
[h]		E. coliS. aureus
ppmMolar
COT a- -Growth: Turbidity, sedimentGrowth: Turbidity, sediment
COT-H2O2(as) b16800.051No growth: Clear mediumNo growth: Clear medium
COT-H2O2(g) b800 0.0240.33
COT-O3(g) b10,000 0.210.33
a Control sample. b Decontaminated sample (after bleaching/disinfection).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Walawska, A.; Olak-Kucharczyk, M.; Kaczmarek, A.; Kudzin, M.H. Environmentally Friendly Bleaching Process of the Cellulose Fibres Materials Using Ozone and Hydrogen Peroxide in the Gas Phase. Materials 2024, 17, 1355. https://doi.org/10.3390/ma17061355

AMA Style

Walawska A, Olak-Kucharczyk M, Kaczmarek A, Kudzin MH. Environmentally Friendly Bleaching Process of the Cellulose Fibres Materials Using Ozone and Hydrogen Peroxide in the Gas Phase. Materials. 2024; 17(6):1355. https://doi.org/10.3390/ma17061355

Chicago/Turabian Style

Walawska, Anetta, Magdalena Olak-Kucharczyk, Anna Kaczmarek, and Marcin H. Kudzin. 2024. "Environmentally Friendly Bleaching Process of the Cellulose Fibres Materials Using Ozone and Hydrogen Peroxide in the Gas Phase" Materials 17, no. 6: 1355. https://doi.org/10.3390/ma17061355

APA Style

Walawska, A., Olak-Kucharczyk, M., Kaczmarek, A., & Kudzin, M. H. (2024). Environmentally Friendly Bleaching Process of the Cellulose Fibres Materials Using Ozone and Hydrogen Peroxide in the Gas Phase. Materials, 17(6), 1355. https://doi.org/10.3390/ma17061355

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
