Armillaria altimontana Is Associated with Healthy Western White Pine (Pinus monticola): Potential in Situ Biological Control of the Armillaria Root Disease Pathogen, A. solidipes

by
Marcus V. Warwell
1,*,
Geral I. McDonald
1,
John W. Hanna
1,
Mee-Sook Kim
2,
Bradley M. Lalande
3,
Jane E. Stewart
3,
Andrew T. Hudak
1 and
Ned B. Klopfenstein
1
1
USDA Forest Service, Rocky Mountain Research Station, Moscow, ID 83843, USA
2
USDA Forest Service, Pacific Northwest Research Station, Corvallis, OR 97331, USA
3
Department of Bioagricultural Sciences and Pest Management, Colorado State University, Fort Collins, CO 80523, USA
*
Author to whom correspondence should be addressed.
Forests 2019, 10(4), 294; https://doi.org/10.3390/f10040294
Submission received: 7 February 2019 / Revised: 16 March 2019 / Accepted: 20 March 2019 / Published: 28 March 2019
(This article belongs to the Section Forest Ecology and Management)
Browse Figures
Versions Notes

Abstract

:
Research Highlights: Two genets of Armillaria altimontana Brazee, B. Ortiz, Banik, and D.L. Lindner and five genets of Armillaria solidipes Peck (as A. ostoyae [Romagnesi] Herink) were identified and spatially mapped within a 16-year-old western white pine (Pinus monticola Doug.) plantation, which demonstrated distinct spatial distribution and interspecific associations. Background and Objectives: A. solidipes and A. altimontana frequently co-occur within inland western regions of the contiguous USA. While A. solidipes is well-known as a virulent primary pathogen that causes root disease on diverse conifers, little has been documented on the impact of A. altimontana or its interaction with A. solidipes on growth, survival, and the Armillaria root disease of conifers. Materials and Methods: In 1971, a provenance planting of P. monticola spanning 0.8 ha was established at the Priest River Experimental Forest in northern Idaho, USA. In 1987, 2076 living or recently dead trees were measured and surveyed for Armillaria spp. to describe the demography and to assess the potential influences of Armillaria spp. on growth, survival, and the Armillaria root disease among the study trees. Results: Among the study trees, 54.9% were associated with Armillaria spp. The genets of A. altimontana and A. solidipes comprised 82.7% and 17.3% of the sampled isolates (n = 1221) from the study plot, respectively. The mapped distributions showed a wide, often noncontiguous, spatial span of individual Armillaria genets. Furthermore, A. solidipes was found to be uncommon in areas dominated by A. altimontana. The trees colonized by A. solidipes were associated with a lower tree growth/survival and a substantially higher incidence of root disease than trees colonized only by A. altimontana or trees with no colonization by Armillaria spp. Conclusions: The results demonstrate that A. altimontana was not harmful to P. monticola within the northern Idaho planting. In addition, the on-site, species-distribution patterns suggest that A. altimontana acts as a long-term, in situ biological control of A. solidipes. The interactions between these two Armillaria species appear critical to understanding the Armillaria root disease in this region.

1. Introduction

Armillaria root diseases are among the most damaging and broadly distributed root diseases of diverse woody hosts around the world (e.g., [1,2,3]). Armillaria solidipes Peck (as A. ostoyae [Romagnesi] Herink) is well-known as a virulent primary pathogen that causes root disease on diverse conifers within the inland western regions of the contiguous USA [4], where A. altimontana Brazee, B. Ortiz, Banik, and D.L. Lindner (formerly North American Biological Species X, NABS X) frequently co-occur [5]. Although A. altimontana is frequently considered a weak or secondary pathogen [6], little has been documented about its impact on tree health and growth. Furthermore, A. altimontana and A. solidipes are frequently found in association with western white pine (Pinus monticola Doug.) [5].
Western white pine is a widely distributed seral species in western North America that occupies diverse environmental conditions and habitats from ca. 52° N to 36° N latitude and 113° W to 126° W longitude [7,8]. In areas such as northern Idaho, USA, western white pine’s distribution declined by 90% in fewer than 70 years in the mid-20th century [9]. This decline was due to several factors, including white pine blister rust caused by an introduced pathogen (Cronartium ribicola J.C. Fisch), mountain pine beetle (Dendroctonus ponderosae Hopkins), fire suppression, and logging [10].
Because western white pine is economically valuable and plays a critical ecological role in many forest ecosystems, genetic studies have been devoted to restoring western white pine in ecosystems where it once predominated (e.g., [8,10,11,12]). Successful restoration efforts must consider western white pine sources that are resistant to white pine blister rust and that are able to thrive in areas prone to Armillaria root disease, which is prevalent in northern Idaho [4]. Although previous studies have examined the adaptation to the climate using geographic features as surrogates (e.g., [13,14,15,16,17]) and the resistance to white pine blister rust (e.g., [18,19,20]), little is known about the impact of Armillaria root disease on planted western white pine.
The objectives of this study were to identify Armillaria isolates associated with planted western white pine at the species and genet (vegetative clone) level, to describe species/genet demography including spatial distribution, and to determine the potential influence of each Armillaria species and their interactions on the growth and survival of western white pine to provide baseline information for the management of Armillaria root disease in western white pine ecosystems.

2. Materials and Methods

2.1. Planting Site, Plant Materials, Planting Design, Height and Survival Measurements, and Criteria for Determining Tree Health

In 1979, Steinhoff [14] first described the Ida Creek provenance test, which was established to assess the variation in growth and survival among seed sources of western white pine from different elevations in the interior northwestern USA. The provenance test used seeds from wind-pollinated cones collected from 48 natural western white pine provenances (n = 2286 trees) from four regions (i.e., Clearwater, Kaniksu, Trestle Creek, and St. Joe) in northern Idaho, USA. The northern Idaho seed sources occurred between ca. 46° N and 49° N latitude and ranged in elevation from ca. 455 m to 1585 m [14]. The provenance test also included seeds collected from eight additional provenances (n = 86 trees) from western Washington and one provenance from the Blue Mountains, northeastern Oregon.
The seedlings were established and maintained in a replicated nursery trial for 3 years. In 1971, the seedlings from the nursery trial were outplanted (as 3–0 seedlings stock) to a field plot known as “Ida Creek” within the Priest River Experimental Forest in northern Idaho, USA. The Ida Creek field plot was ca. 0.8 ha in size and was located on a north-facing slope at an elevation of 970 m.a.s.l. (northeast plot corner located at ca. 48°21′48.75″ N and 116°49′25.36″ W). In the year prior to planting, Ida Creek was cleared of naturally grown, mature western white pine, western larch (Larix occidentalis Nutt.), western hemlock (Tsuga heterophylla [Raf.] Sarg.), grand fir (Abies grandis [Douglas ex D. Don] Lindley), and western redcedar (Thuja plicata Donn ex D. Don) with only a minimal disturbance. The seedlings where planted with a spacing of 1.2 m × 1.2 m. For each provenance, the seedlings were planted in 25-tree-row plots aligned from east to west that were randomized within two blocks. Each 25-tree-row plot included seedlings from five families arranged as five tree-row plots per family (n = 2372 trees); however, all provenances were not fully represented after planting.
Measurements on the survival, height growth, and diameter at breast height (DBH) growth were collected over multiple years with the last measures taken at the end of the 1987 growing season. Surveys of the Armillaria-associated mycelial fans, wood rot, rhizomorphs, and basal resinosis were conducted in 1987, and the blister rust bole cankers were recorded in 1982 and 1987. Based on missing tree data, a ca. 12% mortality is assumed to have occurred from the first year of establishment (1971) through 1982. Because the cause of mortality was largely unknown, this early mortality (n = 296 trees), which may have also included tree positions that were never planted, was excluded from the analysis.

2.2. Armillaria Survey and Isolate Collection

During 1987, 16 years after outplanting, the root collar and major lateral roots of each tree within the planting (2076 living or recently dead trees = 2372 total trees—296 from early mortality) were inspected for Armillaria by excavating 0.3-m deep for a distance of ca. 0.5- to 1-m away from the stem in three cardinal/ordinal directions. The trees were considered to have signs and/or symptoms of Armillaria root disease only if they were (1) alive with mycelial fans, wood rot, or both or (2) recently dead and displayed basal resinosis in addition to mycelial fans, wood rot, or both, which indicates that the tree was alive when it was infected with Armillaria spp. Live trees with no mycelial fans or wood rot where considered healthy even if epiphytic rhizomorphs were found on the roots. Epiphytic rhizomorphs, mycelial fans, and rotten wood were used as sources to establish 1221 isolates in culture following the methods of McDonald et al. [21] (Table 1).

2.3. Armillaria Genet and Species Identification

Following the isolations of Armillaria in 1987, somatic incompatibility pairing tests among all isolates were used to identify individual genets that comprised the isolates, and isolates that fused in culture to form homogeneous colonies were considered as belonging to the same genet (e.g., [22,23,24]) (Table 1). The somatic pairing of each genet was used to separate the genets at the species level [22,23,25,26,27,28,29,30,31,32,33,34]. The initial species identification was performed by the somatic pairing (e.g., [28,29,32,35]) of each genet 2–16 times against well-characterized reference isolates of A. solidipes (15–32 reference isolates), A. sinapina Bérubé and Dessur (two reference isolates), and A. altimontana (8–20 reference isolates considered as NABS X when the pairing tests were performed), which were available at the time. The somatic pairing test was replicated once (Table S1). Each somatic pairing reaction was interpreted twice by separate individuals, and the pairing tests were coded to allow “blind” readings (i.e., the genet and reference isolate were unknown to the reader). Isolate pairings that resulted in intraspecific compatibility (colorless antagonism) were considered as belonging to the same species. Pairings that resulted in a black line (pseudosclerotial plate) or other incompatible reactions were considered as belonging to different species [35]. The species identification of each Armillaria genet was further verified by the DNA sequencing of a partial translation elongation factor-1α (tef1) for at least one isolate following the methods of Ross-Davis et al. [36]. Multiple Armillaria isolates (derived from rhizomorphs, mycelial fans, and rotten wood) of the same genet on the same tree were considered as a single isolate for the analyses of pathogenicity and impacts on tree growth and survival.

2.4. Statistical Analyses

Whether the Armillaria species were spatially autocorrelated was assessed using Moran’s I using the spdep [37] package in R [38]. Moran’s I is a statistical measure of spatial autocorrelation. A Moran’s I value of 0 indicates a perfect random dispersion. Increasingly more positive values indicate an increasing clustering with the value of 1 indicating a perfect clustering.
The relationship between the Armillaria status (i.e., trees colonized by A. altimontana, A. solidipes, both Armillaria species, or neither Armillaria species) and the height growth, DBH growth, and survival of the study trees was assessed using generalized linear mixed-effects models (GLMM) using the lme4 package [39] in R. GLMM was used because its treatment of random effects (e.g., genetic and spatial variation) can provide a better fit of the data than the traditional ANOVA [40,41]. The model selection was based on minimizing the Akaike Information Criterion (AIC). The GLMM equation used for analysis of height was
Yijklmno = U + Ai + Rj + F[P(R)]jkl + R(B)mo + C(B)no + eijklmno
where Yijklmno is the observed ith tree of the jth maternal family in the kth provenance in the lth region of seed origin in the mth row in the nth column in the oth block; U is the overall mean; Ai is the Armillaria status effect; Rj is the effect of the region of seed origin; F[P(R)]jkl is the effect of the maternal tree family within the provenance and region of origin; R(B)mo is the row effect (north to south) within the block; C(B)no is the column effect (east to west) within the block; and eijklmno is the random residual error. The Armillaria status and region of seed origin were treated as categorical fixed effects. The effect of the family was treated as a categorical random; the row and column effects were treated as a continuous random. The main effects of the seed source elevation and provenance were treated as random but were excluded from the final models because neither improved the model fit in comparison to the models that excluded the variables. The models for DBH and survival followed the above description for the height model but excluded the region of seed origin effect. In addition, the DBH model included a site density effect (the number of neighboring trees (0 to 8) for each tree) which was treated as a continuous random. The model residuals were checked for normality and homoscedasticity by a visual inspection of the residual plots (Figure S1). The statistical significance of the fixed effects was tested by comparing the likelihoods of the nested models using a maximum likelihood. The likelihood ratio testing for GLMMs with random effects having few levels can be unreliable [40,42]. Thus, the region (n = 4) was treated as a fixed effect. In addition, the likelihood ratio tests were confirmed with bootstrap tests using the pbmn function [43] in R. The differences between the Armillaria status groups were separated by Tukey-adjusted comparisons using the emmeans function [44] in R, which is appropriate for unbalanced group data (i.e., Armillaria status) [45]. The GLM function in R was used for a logistic regression to assess the significance of colonization by Armillaria species with disease symptoms.
Provenances from Washington and Oregon were excluded from these regression analyses because of a limited representation. Therefore, the regression analyses were exclusively focused on seed sources originating from northern Idaho that were collected from the same general region as the study site. In addition, white pine blister rust infections were identified in 2% (n = 49 trees) and 12% (n = 237 trees) of trees during the 1982 and 1987 assessments, respectively (Note that 41 trees infected with blister rust in 1982 survived to be included in the tally for 1987). White pine blister rust was not significantly (p > 0.05) correlated to the occurrence of Armillaria spp. (data not shown). Because white pine blister rust can cause decreased growth and increased mortality (e.g., [46]), trees with blister rust (n = 245) were removed from the statistical analyses of the Armillaria impact to avoid confounding blister rust influences on the growth and survival of western white pine. After excluding early dead, “control” trees (presumably planted to maintain spacing within the study), nonlocal, and white pine blister rust-afflicted trees, a total of 1694–1758 trees, depending on missing data, were included in the regression analyses (Table S2). The data used for the analyses are available in the Supplementary Materials (Table S3).

3. Results

3.1. Armillaria Species, Genets, and Isolates

Armillaria was found in association with 54.9% (n = 1139 trees) of the 2076 western white pine trees (including nonlocal, control, and white pine blister rust-afflicted trees) at the Ida Creek plantation. A total of 1221 Armillaria isolates were recovered and established in culture. The somatic pairing tests demonstrated that all isolates collected across the 0.8-ha planting were comprised within seven genets, which were numbered G1–G7 (Table 1). The results of the original somatic pairing tests are shown in the Supplementary Materials (Table S1). In general, Genets 1 and 2 showed ≥89.5% intraspecific compatibility with the A. altimontana reference isolates, ≤3.7% compatibility with the A. solidipes reference isolates, and ≤25% compatibility with the A. sinapina reference isolates, which indicated that Genets 1 and 2 belong to A. altimontana. In contrast, Genets 3–7 showed 46.1%–78.1% compatibility with the A. solidipes reference isolates, ≤12.5% compatibility with the A. sinapina reference isolates, and ≤6.3% compatibility with the A. altimontana reference isolates, which indicated that Genets 3–7 belonged to A. solidipes. Based on the tef1 sequences, Genets 1 and 2 showed a 99% similarity to A. altimontana; whereas, Genets 3, 4, 5, 6, and 7 showed a 99% similarity to A. solidipes. For each of the seven Armillaria genets (two genets of A. altimontana and five genets of A. solidipes), the tef1 sequences are deposited in the GenBank (MH879011–MH879017). Thus, based on the somatic compatibility tests and tef1 sequencing, Genets 1 and 2 were confirmed as A. altimontana and Genets 3, 4, 5, 6, and 7 were confirmed as A. solidipes. The genets of A. altimontana (Genets 1 and 2) and A. solidipes (Genets 3–7) contained tef1 sequences that were ≤94% similar. Similarities of the tef1 sequences from A. altimontana (Genets 1 and 2) and A. solidipes (Genets 3–7) with additional Armillaria species are compared in Table S4.
The distributions of the A. altimontana and A. solidipes genets within the 16-year-old planting of western white pine are depicted in Figure 1. The Armillaria genets likely spanned outside of the experimental planting; however, Genet 2 (A. altimontana) spanned at least 109 m, and Genet 7 (A. solidipes) spanned at least 120 m (Figure 1). Within the western white pine plantation, A. altimontana was found most frequently, with occurrence on 48.7% of trees (n = 1010 trees), whereas A. solidipes was found on 10.2% of the trees (n = 211 trees). Both A. altimontana and A. solidipes co-occurred in association with 4% of the trees (n = 82 trees). It is especially noteworthy that in only one case (a tree colonized by A. solidipes) were different genets of the same Armillaria species found in association with the same tree. In addition, one isolate of A. gallica (identified by the tef1 sequences) was found ca. 2.5 m away from the planting, which indicates that A. gallica can potentially exist in a similar habitat to the planting site.
The mapped distribution of Armillaria species showed patterns of clustering within species that were supported by Moran’s I for A. altimontana (I = 0.61, p < 0.0001) and, to a much lesser extent, A. solidipes (I = 0.178, p < 0.0001). Thus, trees colonized by A. altimontana were more likely to have neighboring trees colonized by the same species.

3.2. Armillaria Association with Disease

Of the 1758 trees that remained in the analyses after the dataset was refined to exclude nonlocal provenances, control, and white pine blister rust-afflicted trees, 7.5% of trees (including 1.5% of recently dead trees) showed signs/symptoms of Armillaria root disease (i.e., mycelial fans or rotten wood on living trees or mycelial fans or rotten wood on recently dead trees with basal resinosis), while 46.1% of living/recently dead trees contained only epiphytic rhizomorphs (Table 2). Disease signs/symptoms were observed on 13.9% of the living/recently dead trees (n = 131) colonized by Armillaria (n = 942 trees) (Table 2).
The occurrence of disease symptoms on colonized trees differed significantly (Χ2 [1, N = 942] = 807.79, p < 0.001) by the Armillaria species. In particular, 74.7% of the A. solidipes isolates and only 1.8% of the A. altimontana isolates were associated with disease symptoms on living or recently dead trees (Table 3). Conversely, 98.2% of the A. altimontana isolates and 25.3% of the A. solidipes isolates were not associated with causing disease (Table 3). On diseased trees where both Armillaria species were found (n = 62 trees in refined dataset), the A. solidipes isolates were derived from mycelial fans or rotten wood, which indicates that A. solidipes was causing disease, whereas almost all A. altimontana isolates were derived from epiphytic rhizomorphs and were not associated with causing disease. In one case, however, an A. solidipes isolate was derived from a mycelial fan and an A. altimontana isolate was derived from rotten wood on the same tree.

3.3. Growth and Survival of Western White Pine in Relation to Armillaria spp.

The height, DBH, and survival of western white pine differed significantly by Armillaria colonization status (i.e., trees colonized by A. altimontana, A. solidipes, both species, or neither species; Table 4). The height, DBH, and survival were greatest among trees colonized by A. altimontana (6.7 m, 7.5 cm, and 99%, respectively), while a lower height, DBH, and survival occurred among trees with no Armillaria (6.4 m, 7.2 cm, and 98%, respectively), trees colonized by A. solidipes (5.8 m, 6.7 cm, and 84%, respectively), and tree colonized by both A. altimontana and A. solidipes (5.8 m, 6.8 cm, and 79%, respectively). Post hoc Tukey tests showed that the height and survival of trees colonized by A. altimontana differed significantly (p < 0.05) from all other Armillaria colonization statuses (Figure 2). In contrast and in agreement with Rehfeldt et al. [16] and Steinhoff [14], the provenance and elevation of the seed source was not identified as an important source of variation for predicting the height, DBH, or survival of western white pine.

4. Discussion

It is well-known that the Armillaria species play diverse ecological roles in forest ecosystems, including roles as virulent pathogens of diverse woody plants, beneficial saprophytes, and mycorrhizal symbionts [2,3]. In a 16-year-old western white pine plantation spanning 0.8 ha, we found and characterized two genets of A. altimontana and five genets of A. solidipes that exhibited distinct spatial distribution and interspecific associations (Table 1; Figure 1). The presence of the Armillaria root disease clearly corresponded with the Armillaria species present. In particular, the A. solidipes isolates were frequently (74.7%) associated with Armillaria root disease (Table 3). This finding is consistent with the well-documented pathogenic role of A. solidipes (as A. ostoyae) on conifers in North America [4,47]. Although western white pine is generally considered tolerant to Armillaria root disease [21], planted or young western white pine seedlings have been found to be more susceptible in areas where Armillaria pathogens are common [48]. In contrast, a large majority (98.2%) of the A. altimontana isolates were not associated with Armillaria root disease. In addition, the tree height, DBH, and survival differed significantly (p < 0.001) by Armillaria colonization status (Table 4) with trees colonized only by A. altimontana exhibiting a greater growth (i.e., height and DBH) and survival in comparison with trees colonized only by A. solidipes, by both Armillaria species, and not associated with Armillaria (Figure 2). These findings support the hypothesis that A. altimontana is typically nonpathogenic or a weak pathogen and further suggest that A. altimontana could perhaps behave as a beneficial symbiont, epiphyte, or both in western white pine under certain conditions.
The association of A. altimontana with the slightly enhanced growth and survival of western white pine was unexpected and warrants further investigation. Part of this increased growth and survival is likely due to the absence of pathogenic A. solidipes, but trees associated with A. altimontana also exhibited better growth and survival than trees growing in association with no Armillaria. Possible explanations for the increased growth and survival of A. altimontana-associated western white pine over trees with no Armillaria associations are potentially complex. Armillaria altimontana may play an ecological role as a beneficial root or rhizosphere symbiont. Alternatively, A. altimontana could contribute to or reflect a soil environment and microbial community that are conducive to the growth and survival of western white pine. With similarities in their geographic distributions (see [49]), it can also be speculated that A. altimontana and western white pine may have a long history of coevolution.
Armillaria genets can only spread via the vegetative growth of rhizomorphs and/or mycelia (e.g., root-to-root contact [3], which allows additional inferences based on the spatial distribution of the Armillaria species and genets within the Ida Creek planting. For example, Genet 2 of A. altimontana occupied a span of ≥109 m and Genet 7 of A. solidipes occupied a span of ≥120 m within the study plot boundaries (Figure 1). Based on an estimation by van der Kamp [50] that A. solidipes (as A. ostoyae) spreads at a rate of 0.22 m yr−1 in interior British Columbia, Canada, we very conservatively estimate that the A. altimontana genet has been present on the site for at least 248 years and that the A. solidipes genet has been present for at least 273 years, assuming a 0.22 m yr−1 growth in each direction from the midpoint of each genet’s distribution within the plot. The age of these genets is almost certainly much older considering these genets most likely spread beyond the plot boundaries.
Another intriguing observation is that the A. altimontana and A. solidipes genets were not contiguously distributed. For example, Genet 1 (A. altimontana) spanned a 28-m gap where the genet was not present (Figure 1) and Genet 4 (A. solidipes) spanned an 81-m gap (Figure 1). Such patterns of spatial distribution suggest that genets of A. altimontana and A. solidipes have apparently been expanding/contracting and interacting over centuries. However, biotic/abiotic environmental factors that contribute to the expansion or contraction of A. altimontana and A. solidipes remain unknown. Because this study plot is in an experimental forest on a site that was not previously harvested or managed before site preparation (see [51,52,53]), these influencing factors likely represent natural processes, such as interspecies competition, microclimate change, natural succession, tree development, fire, insect attack, and other factors that influence stand structure or composition. Further investigations are warranted to determine the environmental factors that enhance or suppress site occupancy by A. altimontana or A. solidipes. Information from such studies could provide critical insight into management approaches to suppress A. solidipes and/or enhance A. altimontana.
Several lines of evidence suggest that A. altimontana is acting as a biological control agent against A. solidipes via competitive exclusion in the environment associated with this study site (ca. 1987). Firstly, the genet distributions indicate that both species likely extended across the majority of the plot at one point in time (Figure 1), yet A. altimontana dominates the site at the time of the study (1987). The dominance of A. altimontana on the site is supported by the Moran’s I values of spatial autocorrelation that shows the distribution of A. altimontana was highly clustered (I = 0.61) in comparison to the distribution of A. solidipes, which exhibited much lower clustering (I = 0.178). Furthermore, subsequent surveys from 2014–2018 found little evidence of Armillaria root disease caused by A. solidipes in the plot. Secondly, the 0.8-ha plot was relatively homogenous and was planted with trees of the same species and age, which suggests that environmental variation should have little influence on the distribution patterns between Armillaria species. Moreover, the ecological amplitude of A. solidipes appears to encompass and extend beyond that of A. altimontana [5], which suggests that the observed species distribution patterns were likely influenced by factors apart from environmental variation. Finally, the biological control of A. solidipes by A. altimontana is consistent with species distribution patterns across the region. For example, on sites where A. altimontana was absent, large continuous A. solidipes genets have been reported, such as a 965-ha mortality center in northeast Oregon [54]. The single genet of A. solidipes from that study was found to span 3.8 km with an estimated age of 1900–8650 years. In contrast, on multiple sites in northern Idaho and western Washington, USA where A. altimontana and A. solidipes were found to co-occur, other studies [55,56] have reported distribution patterns for A. solidipes similar to the present study that are considerably more modest. Although the aforementioned evidence provides support that A. altimontana is competitively excluding A. solidipes in the rhizosphere or surrounding soil within the study site, more studies are needed to confirm this occurrence.
Based on the competitive exclusion principle [57], sympatric organisms that compete for the same ecological niche cannot exist in stable equilibrium. Accordingly, this principle provides one basis for the function of biological control agents. One means of biological control can occur when a biological control agent has a competitive advantage over a pathogen within a shared niche. Biological control could occur when the biological control agent is already dominating the niche or has a competitive advantage, such as a faster growth or reproduction. Raziq [58] suggested that a biological control agent or antagonist of an Armillaria pathogen should have the capacity to inhabit wood and the rhizosphere. For example, Hypholoma fasciculare (Huds.:Fr.) P.Kumm., a wood-rotting basidiomycete, has demonstrated the potential to competitively displace A. solidipes (as A. ostoyae) after stump inoculations [59]. Similarly, five species of saprobic lignicolous fungi (H. fasciculare, Ganoderma lucidum [Curtis] P.Karst, Phanerochaete velutina [DC.] P.Karst., Schizophyllum commune Fries, and Xylaria hypoxylon [(L.) Grev.]) exhibited the potential for the competitive exclusion of Desarmillaria tabescens (Scop.) R. A. Koch and Aime (as A. tabescens [Scop.] Emel) and A. mellea (Vahl) P.Kumm. under controlled inoculation studies [60]. Based on stump surveys in southeastern Alaska, Shaw [61] hypothesized that colonization by a weakly pathogenic Armillaria spp. could deter the spread of the root pathogen Heterobasidion annosum s.l. (Fr.) Bref. When considering potential biological control agents for Armillaria root disease, the nonpathogenic or weakly pathogenic Armillaria spp. should not be overlooked because of their potential saprophytic ability to compete with pathogenic Armillaria spp. for the same or a similar ecological niche in the rhizosphere and soil surrounding the host tree.
The in vitro antagonism between different Armillaria spp. is well-established, and the “black line” zone of antagonism provides the basis for species identification based on the pairing tests of somatic incompatibility (e.g., [29,31,35]). Furthermore, in nature, the distributions among interspecific Armillaria genets typically do not appear to be randomly interspersed. Even so, the potential in situ antagonism as a basis for competitive exclusion between or among Armillaria spp. is difficult to interpret conclusively. For example, several previous studies have also examined patterns of interspecific interactions: (1) A. gemina Bérubé and Dessur. and A. solidipes (as A. ostoyae) in a mixed-species forest stand in New Hampshire, USA [23]; (2) A. calvescens Bérubé and Dessur., A. gemina, A. gallica Marxm. and Romagn., and/or A. solidipes (as A. ostoyae) in different forest types of New York, USA [33]; (3) A. ostoyae, A. gallica, and/or A. cepistipes Velen. in hardwood and mixed forests of France [34]; and (4) A. gallica and A. mellea in mixed hardwood forests of California, USA [62]. The overlapping distributions observed in many of these studies have been interpreted as reflecting the differences in ecological niches and colonization strategies (e.g., [23,26,34]). In a similar study of the Armillaria distribution, Bruhn et al. [63] reported that the occurrence of A. gallica may reduce the activity of other more virulent Armillaria species in mixed oak forests of the Ozark Mountains of southeastern Missouri, USA.
The sympatric distribution of A. altimontana and A. solidipes found in this study and others (e.g., [55,56]) is similar to a previous study in European forests where the saprotrophic/weakly pathogenic A. cepistipes can occur sympatrically with the pathogenic A. ostoyae [26]. The sympatric distributions of Armillaria spp. in our study and perhaps other aforementioned studies seem likely attributable to the in situ antagonism between species that results in competitive exclusion.
To the extent that the observed pattern reflects competitive exclusion, A. altimontana may offer potential biological control against A. solidipes as was originally proposed by McDonald [64]. However, trees colonized by both A. altimontana and A. solidipes displayed a reduced growth and survival similar to trees colonized by only A. solidipes (Table 4), which suggests that once A. solidipes has colonized the cambial tissue of living roots, it may have a competitive advantage over A. altimontana as a pathogen on substrates within a living host. Understanding the biotic (e.g., [65,66,67,68,69,70,71,72,73,74,75,76]) and abiotic (e.g., [5]) environmental factors that influence the dynamic interactions of A. altimontana and A. solidipes seems key to the development of management practices for Armillaria root disease in coniferous forests of the interior western North America.
The disparate ecological roles of A. altimontana and A. solidipes in association with western white pine further confirms the need to accurately identify Armillaria spp. on a site before developing and applying appropriate forest management practices. The DNA-sequence data indicate that previous somatic pairing tests provided the accurate identification of A. altimontana and A. solidipes; however, tef1 sequencing appears to be a more reliable and faster method for identifying Armillaria spp. in North America [36,77,78,79,80,81].
It remains inconclusive if and how A. altimontana functions to limit the distribution of A. solidipes. Further insights into this relationship could provide a unique basis for developing novel methods to manage Armillaria root disease in association with western white pine. Additional studies are needed to determine the extent of this relationship with other forest species, geographic regions, and climates. Complex interactions among the soil microbial communities undoubtedly play critical ecological roles, such as biological control, decomposition, nutrient cycling, symbioses, etc.; however, the role of these microbial communities is not well-understood in forest ecosystems. Soil metagenomic and metatranscriptomic techniques (e.g., [80]), coupled with environmental data, such as soil properties, moisture, temperature, plant coverage, etc., could provide greater insight into the soil microbial communities and ecological functions that favor A. altimontana, increase tree growth and survival, and reduce Armillaria root disease [81].

5. Conclusions

In a 16-year-old western white pine plantation spanning 0.8 ha, we found and characterized two genets of A. altimontana and five genets of A. solidipes that exhibited distinct spatial distribution and interspecific associations. The spatial distributions of individual Armillaria genets were wide and noncontiguous, and A. solidipes was found to be uncommon in areas dominated by A. altimontana. Trees colonized by A. solidipes were associated with a substantially higher incidence of root disease, a lower tree growth (i.e., height and DBH), and a lower tree survival than trees colonized only by A. altimontana or trees with no Armillaria colonization. In addition, trees colonized only by A. altimontana were associated with a slightly greater height growth and survival than trees not associated with Armillaria. These findings support the hypothesis that A. altimontana is typically nonpathogenic or a weak pathogen and further suggest that A. altimontana may act to competitively exclude A. solidipes in the soil and/or rhizosphere and could perhaps behave as a beneficial symbiont, epiphyte, or both in western white pine under certain conditions. Understanding the interactions of these two Armillaria species appears critical to understanding and developing novel management approaches for Armillaria root disease in this region.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4907/10/4/294/s1, Table S1. The somatic pairing tests to identify the Armillaria genets among the isolates collected from western white pine (Pinus monticola) within a plantation at the Ida Creek site, Priest River Experimental Forest, northern Idaho, USA. Table S2. The number of western white pine (Pinus monticola) trees by region of seed origin and group status used for the analyses or results presented in Figure 1; Figure 2 and Table 1, Table 2, Table 3 and Table 4 for the Ida Creek site, Priest River Experimental Forest, northern Idaho, USA. Table S3. The tree height, DBH, survival, Armillaria colonization status, and disease signs and symptoms data for western white pine (Pinus monticola) trees at the Ida Creek plantation, Priest River Experimental Forest, Idaho, USA. Table S4. The Sequence Identity Matrix for Armillaria genets from Ida Creek plantation at the Priest River Experimental Forest, Idaho, USA vs. themselves and the North American Armillaria standards. Figure S1. A graphical summary of (A) the height (Equation (1)) and (C) diameter at breast height (DBH) model fits for residuals vs. observed and the Q-Q plots for (B) height (Equation (1)) and (D) the DBH models of western white pine (Pinus monticola) trees growing in Ida Creek plantation within the Priest River Experimental Forest in northern Idaho, USA.

Author Contributions

Conceptualization, M.V.W., G.I.M., and N.B.K.; methodology, M.V.W., N.B.K., and G.I.M.; software, M.V.W.; validation, M.V.W., G.I.M., J.W.H., M.-S.K., B.M.L., J.E.S., and N.B.K.; formal analysis, M.V.W. and A.T.H.; investigation, M.V.W., G.I.M., J.W.H., M.-S.K., B.M.L., J.E.S., and N.B.K.; resources, M.V.W. and N.B.K.; data curation, M.V.W.; writing—original draft, M.V.W., N.B.K., J.W.H., M.-S.K., B.M.L., and J.E.S.; writing—review and editing, M.V.W., G.I.M., J.W.H., M.-S.K., B.M.L., J.E.S., A.T.H., and N.B.K.; visualization, M.V.W.; supervision, M.V.W. and N.B.K.; Project administration, M.V.W., N.B.K., and J.W.H.; funding acquisition, N.B.K.

Funding

Partial funding was provided by the Special Technology Development Program of the USDA Forest Service, S&PF Forest Health Monitoring, Western Wildlands Environmental Threat Assessment Center, and the Western Forestry and Conservation Association.

Acknowledgments

The authors thank James Donley for the culturing and somatic pairing; Duane Anderson for the assistance with the surveys, sampling, and height/survival measurements; Amy Ross-Davis for the assistance with the data management and plot identification; Dale Coffen, Ray Hoff, Pat Wells, Terrie Jain, Judith Street, Jonalea Tonn, Mell Morton, Tim Greavey, Jo Beth Stroh, Den Brommel, Lee Andrews, Joann David, Frank Lenning, and Jay Clark for the data collection; Tommy “White Shoes” Rice for the preliminary mapping assistance; and Russ Graham for the analysis assistance. The USDA Forest Service Forest Health Protection provided the preliminary funding for these analyses.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Worrall, J. Armillaria Root Disease; Shaw, C.G., Kile, G.A., III, Eds.; Agricultural Handbook No. 691; U.S. Department of Agriculture, Forest Service: Washington, DC, USA, 1991; p. 233.
  2. Baumgartner, K.; Coetzee, M.P.A.; Hoffmeister, D. Secrets of the subterranean pathosystem of Armillaria. Mol. Plant Pathol. 2011, 12, 515–534. [Google Scholar] [CrossRef] [PubMed]
  3. Heinzelmann, R.; Dutech, C.; Tsykun, T.; Labbé, F.; Soularue, J.-P.; Prospero, S. Latest advances and future perspectives in Armillaria research. Can. J. Plant Pathol. 2018, 41, 1–23. [Google Scholar] [CrossRef]
  4. Angwin, P.; Blodgett, J.; Cram, M.; Fairweather, M.; Filip, G.; Fraedrich, S.; Guyon, J.; Kearns, H.; Lockman, B.; Owen, D. Forest Root Diseases across the United States; Lockman, I.B., Kearns, H.S.J., Eds.; Gen. Tech. Rep. RMRS-GTR-342; U.S. Department of Agriculture, Forest Service, Rocky Mountain Research Station: Ogden, UT, USA, 2016; 55p.
  5. McDonald, G.I.; Harvey, A.E.; Tonn, J.R. Fire, competition and forest pests: Landscape treatment to sustain ecosystem function. In Proceedings of the Joint Fire Science Conference and Workshop: Crossing the Millennium: Integrating Spatial Technologies and Ecological Principles for a New Age in Fire Management, Boise, ID, USA, 15–17 June 1999; Neuenschwander, L.F., Ryan, K.C., Gollberg, G.E., Greer, J.D., Eds.; University of Idaho: Moscow, ID, USA, 2000; Volume II, pp. 195–211. [Google Scholar]
  6. Brazee, N.J.; Ortiz-Santana, B.; Banik, M.T.; Lindner, D.L. Armillaria altimontana, a new species from the western interior of North America. Mycologia 2012, 104, 1200–1205. [Google Scholar] [CrossRef] [PubMed]
  7. Graham, R.T. Silvics of western white pine. In Silvics of Forest Trees of the United States, Agriculture Handbook 654; Bums, R., Ed.; U.S. Department of Agriculture, Forest Service: Washington, DC, USA, 1990; pp. 385–394. [Google Scholar]
  8. Kim, M.-S.; Richardson, B.A.; McDonald, G.I.; Klopfenstein, N.B. Genetic diversity and structure of western white pine (Pinus monticola) in North America: A baseline study for conservation, restoration, and addressing impacts of climate change. Tree Genet. Genomes 2011, 7, 11–21. [Google Scholar] [CrossRef]
  9. Neuenschwander, L.F.; Byler, J.W.; Harvey, A.E.; McDonald, G.I.; Ortiz, D.S.; Osborne, H.L.; Snyder, G.C.; Zack, A. White pine in the American West: A Vanishing Species—Can We Save It? Gen. Tech. Report RMRS-GTR-35; U.S. Department of Agriculture, Forest Service, Rocky Mountain Research Station and University of Idaho: Fort Collins, CO, USA, 1999; p. 20. ISBN 0002-9610.
  10. Mehes, M.; Nkongolo, K.K.; Michael, P. Assessing genetic diversity and structure of fragmented populations of eastern white pine (Pinus strobus) and western white pine (P. monticola) for conservation management. J. Plant Ecol. 2009, 2, 143–151. [Google Scholar] [CrossRef]
  11. Bingham, R.T.; Hoff, R.J.; Steinhoff, R.J. Genetics of Western White Pine; Res. Pap. WO-RP-012; U.S. Department of Agriculture, Forest Service: Washington, DC, USA, 1971; p. 18.
  12. Maloney, P.E.; Eckert, A.J.; Vogler, D.R.; Jensen, C.E.; Mix, A.D.; Neale, D.B. Landscape biology of western white pine: Implications for conservation of a widely-distributed five-needle pine at its southern range limit. Forests 2016, 7, 93. [Google Scholar] [CrossRef]
  13. Barnes, B.V. Phenotypic variation associated with elevation in western white pine. For. Sci. 1967, 13, 357–364. [Google Scholar]
  14. Steinhoff, R.J. Variation in Early Growth of Western White Pine in Northern Idaho; Res. Pap. INT-222; U.S. Department of Agriculture, Intermountain Research Station: Ogden, UT, USA, 1979; p. 22.
  15. Steinhoff, R.J.; Joyce, D.G.; Fins, L. Isozyme variation in Pinus monticola. Can. J. For. Res. 1983, 13, 1122–1132. [Google Scholar] [CrossRef]
  16. Rehfeldt, G.E.; Hoff, R.J.; Steinhoff, R.J. Geographic patterns of genetic variation in Pinus monticola. Bot. Gaz. 1984, 145, 229–239. [Google Scholar] [CrossRef]
  17. Richardson, B.A.; Rehfeldt, G.E.; Kim, M.-S. Congruent climate-related genecological responses from molecular markers and quantitative traits for western white pine (Pinus monticola). Int. J. Plant Sci. 2009, 170, 1120–1131. [Google Scholar] [CrossRef]
  18. Kim, M.-S.; Brunsfeld, S.J.; McDonald, G.I.; Klopfenstein, N.B. Effect of white pine blister rust (Cronartium ribicola) and rust-resistance breeding on genetic variation in western white pine (Pinus monticola). Theor. Appl. Genet. 2003, 106, 1004–1010. [Google Scholar] [CrossRef] [PubMed]
  19. King, J.N.; David, A.; Noshad, D.; Smith, J. A review of genetic approaches to the management of blister rust in white pines. For. Pathol. 2010, 40, 292–313. [Google Scholar] [CrossRef]
  20. Hunt, R.S.; Geils, B.W.; Hummer, K.E. White pines, Ribes, and blister rust: Integration and action. For. Pathol. 2010, 40, 402–417. [Google Scholar] [CrossRef]
  21. McDonald, G.I.; Martin, N.; Harvey, A. Armillaria in the Northern Rockies: Pathogenicity and host susceptibility on pristine and disturbed sites; Res. Pap. INT-371; U.S. Department of Agriculture, Intermountain Research Station: Ogden, UT, USA, 1987; p. 5.
  22. McDonald, G.I.; Martin, N.E. Armillaria in the Northern Rockies: Delineation of Isolates into Clones; Res. Pap. INT-385; U.S. Department of Agriculture, Intermountain Research Station: Ogden, UT, USA, 1988; p. 13.
  23. Rizzo, D.M.; Harrington, T.C. Delineation and biology of clones of Armillaria ostoyae, Armillaria gemina and Armillaria calvescens. Mycologia 1993, 85, 164–174. [Google Scholar] [CrossRef]
  24. Rizzo, D.M.; Blanchette, R.A.; May, G. Distribution of Armillaria ostoyae genets in a Pinus resinosa—Pinus banksiana forest. Can. J. Bot 1995, 787, 776–787. [Google Scholar] [CrossRef]
  25. Dettman, J.R.; van der Kamp, B.J. The population structure of Armillaria ostoyae and Armillaria sinapina in the central interior of British Columbia. Can. J. Bot. 2001, 79, 600–611. [Google Scholar] [CrossRef]
  26. Prospero, S.; Rigling, D.; Holdenrieder, O. Population structure of Armillaria species in managed Norway spruce stands in the Alps. New Phytol. 2003, 158, 365–373. [Google Scholar] [CrossRef]
  27. Shaw, C.G., III; Roth, L.F. Persistence and distribution of a clone of Armillaria mellea in a ponderosa pine forest. Phytopathology 1976, 66, 1210–1213. [Google Scholar] [CrossRef]
  28. Korhonen, K. Infertility and clonal size in the Armillariella mellea complex. Karstenia 1978, 18, 31–42. [Google Scholar] [CrossRef]
  29. Mallett, K.I.; Hopkin, A.A.; Blenis, P.V. Vegetative incompatibility in diploid isolates of Armillaria North American Biological Species I and V. Can. J. Bot. 1989, 67, 3083–3089. [Google Scholar] [CrossRef]
  30. Guillaumin, J.-J.; Anderson, J.B.; Korhonen, K. Life cycle, interfertility and biological species. In Armillaria Root Disease; Agriculture Handbook No. 691; Shaw, C.G., Kile, G.A., Eds.; U.S. Department of Agriculture, Forest Service: Washington, DC, USA, 1991; pp. 10–20. [Google Scholar]
  31. Guillaumin, J.-J.; Anderson, J.B.; Legrand, P.; Ghahari, S.; Berthelay, S. A comparison of different methods for the identification of genetics of Armillaria spp. New Phytol. 1996, 133, 333–343. [Google Scholar] [CrossRef] [PubMed]
  32. Harrington, T.C.; Worrall, J.J.; Baker, F.A. Armillaria. In Methods for Research on Soilborne Phytopathogenic Fungi; Singleton, L.L., Mihail, J.D., Rush, C.M., Eds.; American Phytopathological Society: St. Paul, MN, USA, 1992; pp. 81–85. [Google Scholar]
  33. Worrall, J.J. Population-structure of Armillaria species in several forest types. Mycologia 1994, 86, 401–407. [Google Scholar] [CrossRef]
  34. Legrand, P.; Ghahari, S.; Guillaumin, J.-J. Occurrence of genets of Armillaria spp. in four mountain forests in Central France: The colonization strategy of Armillaria ostoyae. New Phytol. 1996, 133, 321–332. [Google Scholar] [CrossRef] [PubMed]
  35. Mallett, K.; Hiratsuka, Y. Nature of the “Black Line” produced between different biological species of Armillaria mellea complex. Can. J. Bot. 1985, 64, 2588–2590. [Google Scholar] [CrossRef]
  36. Ross-Davis, A.L.; Hanna, J.W.; Kim, M.-S.; Klopfenstein, N.B. Advances toward DNA-based identification and phylogeny of North American Armillaria species using elongation factor-1 alpha gene. Mycoscience 2012, 53, 161–165. [Google Scholar] [CrossRef]
  37. Bivand, R.S.; Wong, D.W.S. Comparing implementations of global and local indicators of spatial association. TEST 2018, 27, 716–748. [Google Scholar] [CrossRef]
  38. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018. [Google Scholar]
  39. Bates, D.; Mächler, M.; Bolker, B.; Walker, S. Fitting Linear Mixed-Effects Models Using lme4. J. Stat. Softw. 2015, 67, 1–48. [Google Scholar] [CrossRef]
  40. Bolker, B.M.; Brooks, M.E.; Clark, C.J.; Geange, S.W.; Poulsen, J.R.; Stevens, M.H.H.; White, J.-S.S. Generalized linear mixed models: A practical guide for ecology and evolution. Trends Ecol. Evol. 2009, 24, 127–135. [Google Scholar] [CrossRef] [PubMed]
  41. Funda, T.; Lstibůrek, M.; Klápště, J.; Permedlová, I.; Kobliha, J. Addressing spatial variability in provenance experiments exemplified in two trials with black spruce | Hodnocení provenienčních experimentů se zohledněním prostorových autokorelací na příkladu dvou ploch se smrkem černým. J. For. Sci. 2007, 53, 47–56. [Google Scholar] [CrossRef]
  42. Pinheiro, J.C.; Bates, D.M. Mixed-Effects Models in S and S-PLUS; Springer: New York, NY, USA, 2000; ISBN 0-387-98957-9. [Google Scholar]
  43. Banghar, M. pbnm: Parametric Bootstrap Test of Nested Models. R Package version 0.3.0.9003. 2015. [Google Scholar]
  44. Lenth, R. emmeans: Estimated Marginal Means, aka Least-Squares Means, R package version 1.2.3; 2018. Available online: https://CRAN.R-project.org/package=emmeans.
  45. Herberich, E.; Sikorski, J.; Hothorn, T. A robust procedure for comparing multiple means under heteroscedasticity in unbalanced designs. PLoS ONE 2010, 5, e9788. [Google Scholar] [CrossRef] [PubMed]
  46. Schwandt, J.W.; Lockman, I.B.; Kliejunas, J.T.; Muir, J.A. Current health issues and management strategies for white pines in the western United States and Canada. For. Pathol. 2010, 40, 226–250. [Google Scholar] [CrossRef]
  47. Shaw, C.G., III; Roth, L.F. Control of Armillaria Root-Rot in Managed Coniferous Forest—Literature-Review. Eur. J. For. Pathol. 1978, 8, 163–174. [Google Scholar] [CrossRef]
  48. Morrison, D.J.; Pellow, K.W.; Norris, D.J.; Nemec, A.F.L. Visible versus actual incidence of Armillaria root disease in the southern interior of British Columbia. Can. J. For. Res. 2000, 30, 405–414. [Google Scholar] [CrossRef]
  49. Hanna, J.W.; Kim, M.-S.; Klopfenstein, N.B.; Ramsey, A.C.; Omdal, D.W.; Mulvey, R.L.; Goodrich, B.A.; Ferguson, B.A.; Winton, L.M.; Goheen, E.M.; et al. Toward a west-wide model of Armillaria root disease: New surveys needed in western Oregon, western Washington, and Alaska. In Proceedings of the 64th Annual Western International Forest Disease Work Conference, Sitka, AK, USA, 9–13 May 2016; pp. 107–114. [Google Scholar]
  50. van der Kamp, B.J. Rate of spread of Armillaria ostoyae in the central interior of British Columbia. Can. J. For. Res. 1993, 23, 1239–1241. [Google Scholar] [CrossRef]
  51. Warwell, M.; Denner, J.; Andrea, A.; Graham, R. Chapter 3. Columbia Mountains/Northern Rockies (Omernik Ecoregion 6.2.3) Represented by the Priest River Experimental Forest, Idaho. In Synthesis of Research and Monitoring of Biological Responses to Stream Nutrients at Experimental Forests and Ranges; Gen. Tech. Rep.; Douglas, R., Ed.; U.S. Department of Agriculture, Forest Service, Pacific Northwest Research Station: Portland, OR, USA, in press.
  52. Wellner, C.A. Frontiers of Forestry Research—Priest River Experimental Forest, 1911–1976; U.S. Dept. of Agriculture, Intermountain Forest and Range Experiment Station: Ogden, UT, USA, 1976; p. 148.
  53. Graham, K.L. History of the Priest River Experiment Station; Gen. Tech. Rep. RMRS-GTR-129; Department of Agriculture, Forest Service, Rocky Mountain Research Station: Fort Collins, CO, USA, 2004; p. 78.
  54. Ferguson, B.A.; Dreisbach, T.A.; Parks, C.G.; Filip, G.M.; Schmitt, C.L. Coarse-scale population structure of pathogenic Armillaria species in a mixed-conifer forest in the Blue Mountains of northeast Oregon. Can. J. For. Res. 2003, 33, 612–623. [Google Scholar] [CrossRef]
  55. Hanna, J.W. Armillaria ostoyae: Genetic Characterization and Distribution in the Western United States. Master’s Thesis, University of Idaho, Moscow, ID, USA, 2005; p. 116. [Google Scholar]
  56. McDonald, G.I.; Evans, J.S.; Moeur, M.; Rice, T.M.; Strand, E.K. Using digital terrain modeling and satellite imagery to map interactions among fire and forest microbes. In Proceedings of Fire Conference 2000: The First National Congress on Fire Ecology, Prevention, and Management. Miscellaneous Publication No. 13; Galley, K.E.M., Klinger, R.C., Sugihara, N.G., Eds.; Tall Timbers Research Station: Tallahassee, FL, USA, 2003; pp. 100–110. [Google Scholar]
  57. Hardin, G. The competitive exclusion principle. Science 1960, 131, 1292–1297. [Google Scholar] [CrossRef]
  58. Raziq, F. Biological and integrated control of the root rot caused by Armillaria mellea. In Armillaria Root Rot: Biology and Control of Honey Fungus; Fox, R.T.V., Ed.; Intercept Ltd.: Andover, UK, 1998; Chapter 10; pp. 183–201. [Google Scholar]
  59. Chapman, B.; Xiao, G.; Myers, S. Early results from field trials using Hypholoma fasciculare to reduce Armillaria ostoyae root disease. Can. J. Bot. 2004, 82, 962–969. [Google Scholar] [CrossRef]
  60. Cox, K.D.; Scherm, H. Interaction dynamics between saprobic lignicolous fungi and Armillaria in controlled environments: Exploring the potential for competitive exclusion of Armillaria on peach. Biol. Control 2006, 37, 291–300. [Google Scholar] [CrossRef]
  61. Shaw, C.G., III. Root disease threat minimal in young strands of western hemlock and Sitka spruce in southeastern Alaska USA. Plant Dis. 1989, 73, 573–577. [Google Scholar] [CrossRef]
  62. Baumgartner, K.; Rizzo, D.M. Ecology of Armillaria spp. in mixed-hardwood forests of California. Plant Dis. 2001, 85, 947–951. [Google Scholar] [CrossRef] [PubMed]
  63. Bruhn, J.N.; Wetteroff, J.J.; Mihail, J.D.; Kabrick, J.M.; Pickens, J.B. Distribution of Armillaria species in upland Ozark Mountain forests with respect to site, overstory species composition and oak decline. For. Pathol. 2000, 30, 43–60. [Google Scholar] [CrossRef]
  64. McDonald, G.I. Is stumping a wise solution for the long-term: The problem of phenotype-environment mismatch. In Proceedings of the 59th Annual Western International Forest Disease Work Conference, Leavenworth, WA, USA, 11–14 October 2011; pp. 53–64. [Google Scholar]
  65. Baker, K.; Cook, R.J. Biological Control of Plant Pathogens; W.H. Freeman and Co.: San Francisco, CA, USA, 1974; p. 433. [Google Scholar]
  66. Silva, A.; Elad, Y.; Chet, I. Boligical control effects of a New Isolate of Trichoderma harzianum on Pythium aphanidermatum. Phytopathology 1984, 74, 498–501. [Google Scholar] [CrossRef]
  67. Raziq, F.; Fox, R.T.V. Combinations of fungal antagonists for biological control of Armillaria root rot of strawberry plants. Biol. Agric. Hortic. 2005, 23, 45–57. [Google Scholar] [CrossRef]
  68. Reaves, J.L.; Shaw, C.G., III; Mayfield, J.E. The effects of Trichoderma-spp. isolated from burned and non-burned forest soils on the growth and development of Armillaria ostoyae in culture. Northwest Sci. 1990, 64, 39–44. [Google Scholar]
  69. Hagle, S.K.; Shaw, C.G., III. Avoiding and reducing losses from Armillaria root disease. In Armillaria Root Disease; Agriculture Handbook No. 691; Shaw, C.G., III, Kile, G.A., Eds.; USDA Forest Service: Washington, DC, USA, 1991; Chapter 11; pp. 157–173. [Google Scholar]
  70. Raziq, F. Biological and integrated control of Armillaria root rot. In Armillaria Root Rot: Biology and Control of Honey Fungus; Fox, R.T.V., Ed.; Intercept Ltd.: Andover, UK, 2000; pp. 183–201. [Google Scholar]
  71. Dumas, M.T. Inhibition of Armillaria by bacteria isolated from soils of the boreal mixed wood forest of Ontario. Eur. J. For. Pathol. 1992, 22, 11–18. [Google Scholar] [CrossRef]
  72. Reaves, J.L.; Crawford, R.H. In vitro antagonism by Ulocladium botrytis of Phellinus weirii, Heterobasidion annosum, and Armillaria ostoyae. Eur. J. For. Pathol. 1994, 24, 364–375. [Google Scholar] [CrossRef]
  73. DeLong, R.L.; Lewis, K.J.; Simard, S.W.; Gibson, S. Fluorescent pseudomonad population sizes baited from soils under pure birch, pure Douglas-fir, and mixed forest stands and their antagonism toward Armillaria ostoyae in vitro. Can. J. For. Res. 2002, 32, 2146–2159. [Google Scholar] [CrossRef]
  74. Baumgartner, K.; Warnock, A.E. A soil inoculant inhibits Armillaria mellea in vitro and improves productivity of grapevines with root disease. Plant Dis. 2006, 90, 439–444. [Google Scholar] [CrossRef] [PubMed]
  75. de Vasconcellos, R.L.F.; Cardoso, E.J.B.N. Rhizospheric streptomycetes as potential biocontrol agents of Fusarium and Armillaria pine rot and as PGPR for Pinus taeda. BioControl 2009, 54, 807–816. [Google Scholar] [CrossRef]
  76. Mesanza, N.; Iturritxa, E.; Patten, C.L. Native rhizobacteria as biocontrol agents of Heterobasidion annosum s.s. and Armillaria mellea infection of Pinus radiata. Biol. Control 2016, 101, 8–16. [Google Scholar] [CrossRef]
  77. Brazee, N.J.; Hulvey, J.P.; Wick, R.L. Evaluation of partial tef1, rpb2, and nLSU sequences for identification of isolates representing Armillaria calvescens and Armillaria gallica from northeastern North America. Fungal Biol. 2011, 115, 741–749. [Google Scholar] [CrossRef] [PubMed]
  78. Elías-Román, R.D.; Guzmán-Plazola, R.A.; Klopfenstein, N.B.; Alvarado-Rosales, D.; Calderón-Zavala, G.; Mora-Aguilera, J.A.; Kim, M.-S.; García-Espinosa, R. Incidence and phylogenetic analyses of Armillaria spp. associated with root disease in peach orchards in the State of Mexico, Mexico. For. Pathol. 2013, 43, 390–401. [Google Scholar] [CrossRef]
  79. Klopfenstein, N.B.; Stewart, J.E.; Ota, Y.; Hanna, J.W.; Richardson, B.A.; Ross-Davis, A.L.; Elías-Román, R.D.; Korhonen, K.; Keča, N.; Iturritxa, E.; et al. Insights into the phylogeny of Northern Hemisphere Armillaria: Neighbor-net and Bayesian analyses of translation elongation factor 1-α gene sequences. Mycologia 2017, 109, 75–91. [Google Scholar] [CrossRef] [PubMed]
  80. Stewart, J.E.; Kim, M.-S.; Klopfenstein, N.B. Molecular genetic approaches toward understanding forest-associated fungi and their interactive roles within forest ecosystems. Curr. For. Rep. 2018, 4, 72–84. [Google Scholar] [CrossRef]
  81. Kim, M.-S.; Ross-Davis, A.L.; Stewart, J.E.; Hanna, J.W.; Warwell, M.V.; Cleaver, C.; McDonald, G.I.; Page-Dumroese, D.S.; Moltzan, B.; Klopfenstein, N.B. Can Metagenetic studies of soil microbial communities provide insights toward developing novel management approaches for Armillaria root disease? In Proceedings of the 63rd annual Western International Forest Disease Work Conference, Newport, OR, USA, 21–25 September 2015; pp. 129–131. [Google Scholar]
Forests 10 00294 g001 550

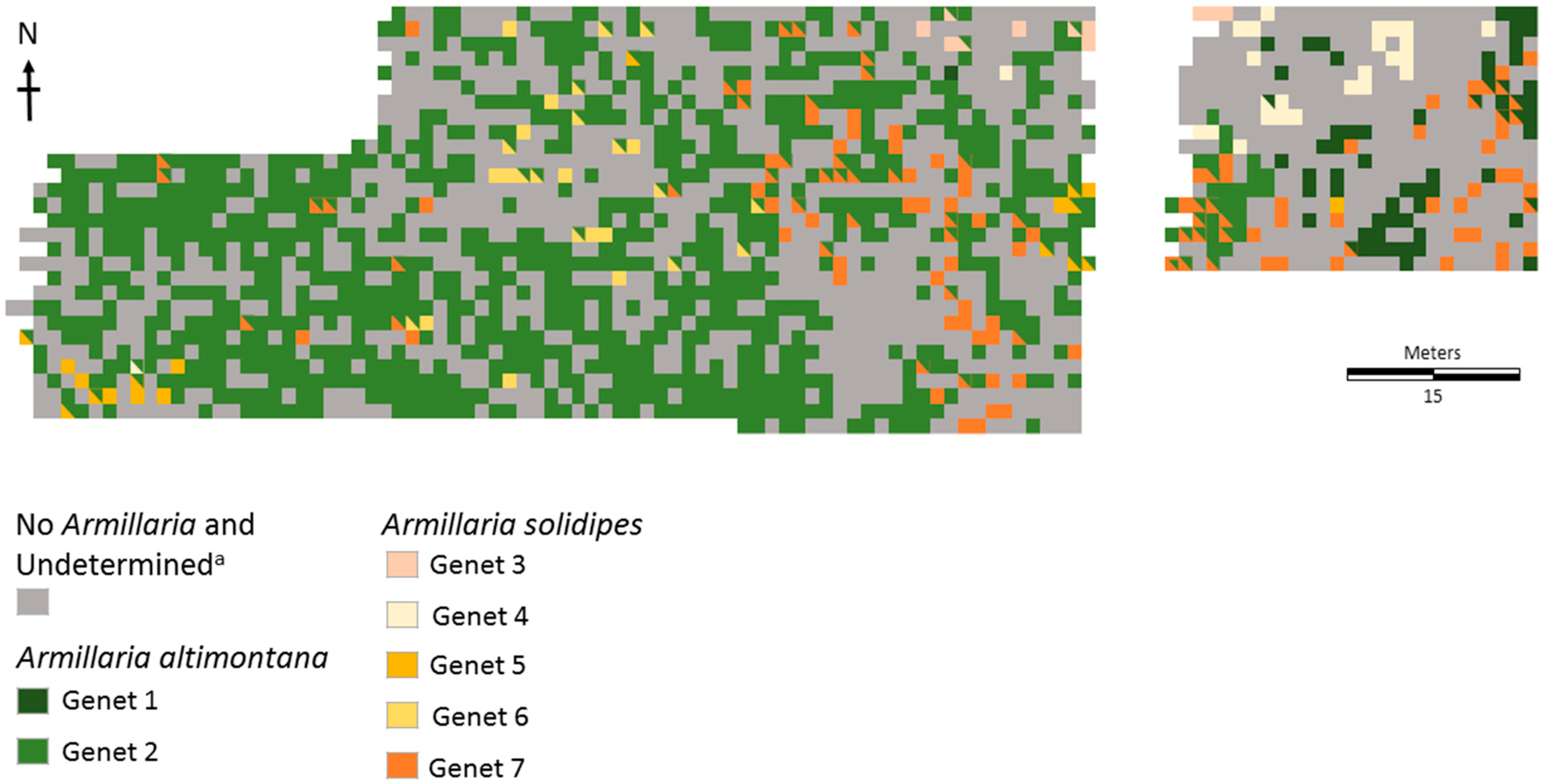

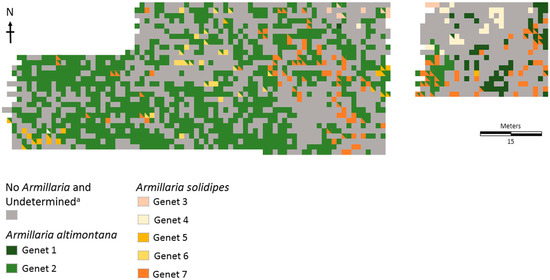

Figure 1. The Armillaria species and genet distribution within the Ida Creek plantation (0.8 ha) at the Priest River Experimental Forest, Idaho, USA: Each square pixel represents 1.2 m × 1.2 m (a single tree location), and the colored pixels indicate trees associated with Armillaria altimontana, A. solidipes, or both. Cells split diagonally show the two unique genets that were identified on that single tree. The grey pixels indicate trees where neither A. altimontana nor A. solidipes were found or trees that were either missing or died early from unknown causes. The sequences (tef1) from G1–G7 (MH879011–MH879017) are deposited in GenBank.
Figure 1. The Armillaria species and genet distribution within the Ida Creek plantation (0.8 ha) at the Priest River Experimental Forest, Idaho, USA: Each square pixel represents 1.2 m × 1.2 m (a single tree location), and the colored pixels indicate trees associated with Armillaria altimontana, A. solidipes, or both. Cells split diagonally show the two unique genets that were identified on that single tree. The grey pixels indicate trees where neither A. altimontana nor A. solidipes were found or trees that were either missing or died early from unknown causes. The sequences (tef1) from G1–G7 (MH879011–MH879017) are deposited in GenBank.
Forests 10 00294 g001
Forests 10 00294 g002 550

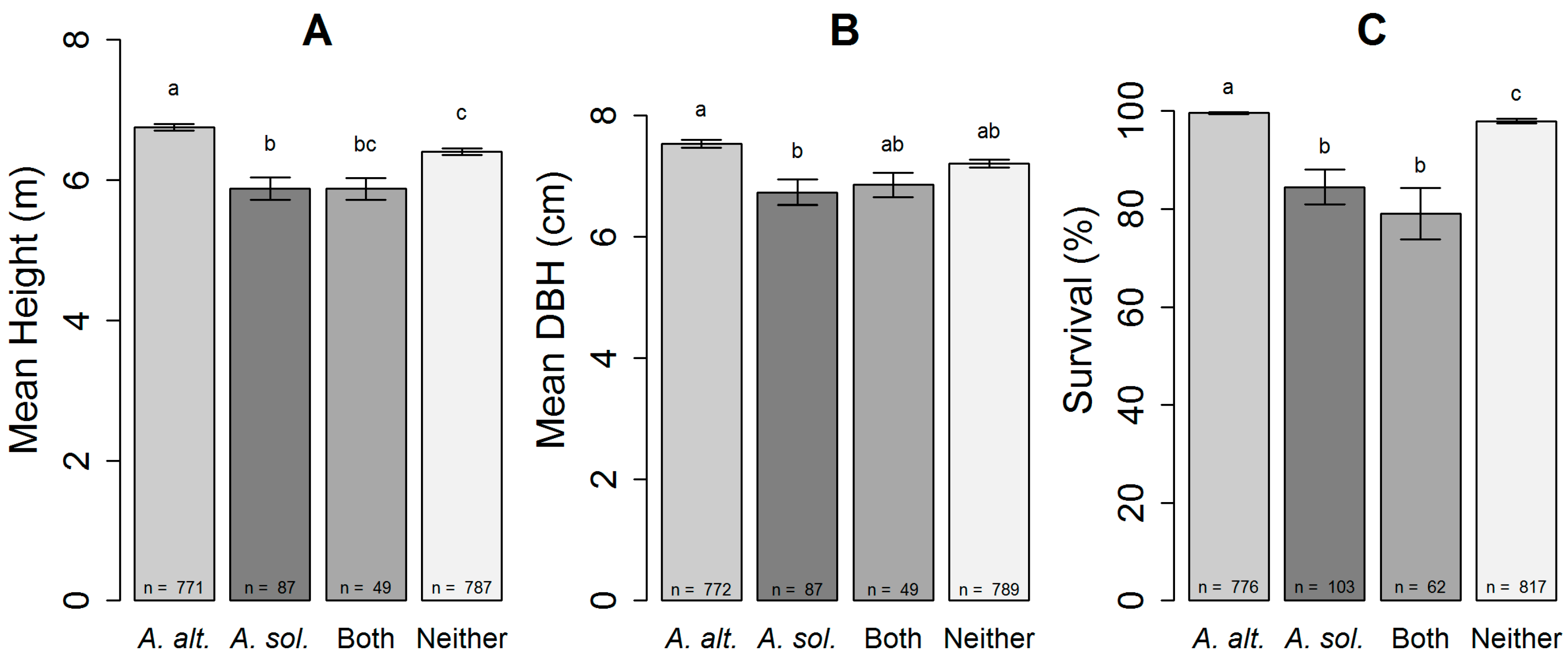

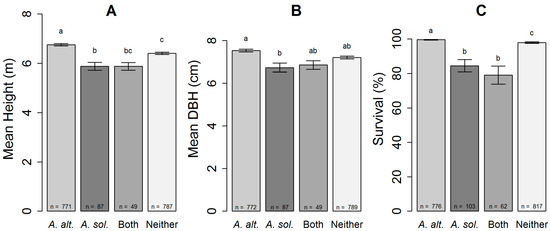

Figure 2. (A) The mean height, (B) mean diameter at breast height (DBH), and (C) percent survival among western white pine (Pinus monticola) growing in association with Armillaria altimontana (A. alt.), A. solidipes (A. sol.), both A. altimontana and A. solidipes (Both), or neither Armillaria species (Neither) at 16 years post-planting at the Priest River Experimental Forest, northern Idaho, USA. The height and DBH measures were not available for every live tree in the dataset. The bars show the standard error. Means sharing a lower case letter within each bar graph (i.e., A, B, and C) are not significantly different (p < 0.05) by Tukey-adjusted means separation.
Figure 2. (A) The mean height, (B) mean diameter at breast height (DBH), and (C) percent survival among western white pine (Pinus monticola) growing in association with Armillaria altimontana (A. alt.), A. solidipes (A. sol.), both A. altimontana and A. solidipes (Both), or neither Armillaria species (Neither) at 16 years post-planting at the Priest River Experimental Forest, northern Idaho, USA. The height and DBH measures were not available for every live tree in the dataset. The bars show the standard error. Means sharing a lower case letter within each bar graph (i.e., A, B, and C) are not significantly different (p < 0.05) by Tukey-adjusted means separation.
Forests 10 00294 g002
Table
Table 1. The Armillaria isolates, genets, and species collected in 1987 from 2076 western white pine (Pinus monticola) planted in a 0.8-ha site at the Priest River Experimental Forest in northern Idaho, USA.
Table 1. The Armillaria isolates, genets, and species collected in 1987 from 2076 western white pine (Pinus monticola) planted in a 0.8-ha site at the Priest River Experimental Forest in northern Idaho, USA.
SpeciesGenet# of IsolatesGenBank Accession No. a
A. altimontanaG163MH879011
G2947MH879012
Total1010
A. solidipes
G311MH879013
G426MH879014
G519MH879015
G627MH879016
G7128MH879017
Total211
A. altimontana & A. solidipes
Total1221
a The partial translation elongation factor 1α (tef1) sequence.
Table
Table 2. The proportion of Armillaria isolates associated with diseased or apparently healthy (epiphytic rhizomorphs only) trees from among 1758 western white pine (Pinus monticola). a Within the Ida Creek plantation (0.8 ha) at the Priest River Experimental Forest, Idaho, USA.
Table 2. The proportion of Armillaria isolates associated with diseased or apparently healthy (epiphytic rhizomorphs only) trees from among 1758 western white pine (Pinus monticola). a Within the Ida Creek plantation (0.8 ha) at the Priest River Experimental Forest, Idaho, USA.
Living TreesDead Trees# of Trees
Clean (no Armillaria) b797 (45.3%)19 (1.1%)816
Epiphytic rhizomorphs (no disease) c807 (45.9%)4 (0.2%)811
Diseased d105 (6%)26 (1.5%)131
a The dataset was refined to exclude the nonlocal provenances, control, and white pine blister rust-afflicted trees. b Clean = no rhizomorphs, mycelial fans, rotten wood, or dead trees with this condition and no basal resinosis. This category includes two trees with rotten wood or mycelial fans but no resinosis. c Epiphytic rhizomorphs = no mycelial fans or rotten wood but colonized by Armillaria (not associated with disease). d Diseased = mycelial fans or rotten wood on living trees or mycelial fans or rotten wood on recently dead trees with basal resinosis.
Table
Table 3. The Armillaria species and genets associated with disease on western white pine (Pinus monticola) planted within the 0.8-ha Ida Creek site, Priest River Experimental Forest, northern Idaho, USA a.
Table 3. The Armillaria species and genets associated with disease on western white pine (Pinus monticola) planted within the 0.8-ha Ida Creek site, Priest River Experimental Forest, northern Idaho, USA a.
SpeciesGenet# of Isolates not Associated with Disease b# of Isolates Associated with Disease bTotal # of Isolates/Genet
A. altimontanaG143043
G272314737
Total766 (98.2%) c14 (1.8%) d780
A. solidipesG3279
G418422
G56814
G632225
G7128092
Total41 (25.3%) c121 (74.7%) d162
a Trees (n = 942) colonized by Armillaria from among 1758 western white pine: Isolates of the same genet derived from epiphytic rhizomorphs, a mycelial fan, and/or rotten wood from a single tree were counted as a single isolate. In one case, Genet 2 and Genet 5 were associated with disease symptoms on the same tree. b Disease signs and symptoms = mycelial fans, rotten wood, or both on living trees or mycelial fans, rotten wood, or both on recently dead trees with basal resinosis. c The percent of isolates not associated with disease (e.g., epiphytic rhizomorphs). d The percent of isolates associated with disease.
Table
Table 4. A summary of the model comparison tests for the effects of Armillaria status and region of seed origin on western white pine (Pinus monticola) height, diameter (DBH), and survival at the Ida Creek site at the Priest River Experimental Forest in northern Idaho, USA.
Table 4. A summary of the model comparison tests for the effects of Armillaria status and region of seed origin on western white pine (Pinus monticola) height, diameter (DBH), and survival at the Ida Creek site at the Priest River Experimental Forest in northern Idaho, USA.
TraitModelTest df (Chi Df)Test Deviance (Chisq)p-Value
HeightArmillaria status (F)331.92<0.0001
Region (F)39.860.0198
Armillaria status × region (F)94.750.8552
Family within provenance and region (R)137.505<0.0001
Row within block (R)110.4470.0012
Column within block (R)1104.35<0.0001
DBHArmillaria status (F)321.453<0.0001
Family within provenance and region (R)124.221<0.0001
Site density (R)19.0950.0026
Row within block (R)13.4290.0641
Column within block (R)123.297<0.0001
SurvivalArmillaria status (F)3102.36<0.0001
Family within provenance and region (R)131.087<0.0001
Row within block (R)124.8<0.0001
Column within block (R)124.607<0.0001
Notes: The model comparison using a maximum likelihood testing was confirmed with similar results using parametric bootstrapping: For each response variable, a sub-model that excluded the listed term was compared to a full model that included all the terms listed for the respective response variable except the interaction. The testing for the interaction of Armillaria status × region of seed origin compared the full model versus a full model with the interaction. Variables treated as fixed or random are indicated by (F) or (R), respectively.

Share and Cite

MDPI and ACS Style

Warwell, M.V.; McDonald, G.I.; Hanna, J.W.; Kim, M.-S.; Lalande, B.M.; Stewart, J.E.; Hudak, A.T.; Klopfenstein, N.B. Armillaria altimontana Is Associated with Healthy Western White Pine (Pinus monticola): Potential in Situ Biological Control of the Armillaria Root Disease Pathogen, A. solidipes. Forests 2019, 10, 294. https://doi.org/10.3390/f10040294

AMA Style

Warwell MV, McDonald GI, Hanna JW, Kim M-S, Lalande BM, Stewart JE, Hudak AT, Klopfenstein NB. Armillaria altimontana Is Associated with Healthy Western White Pine (Pinus monticola): Potential in Situ Biological Control of the Armillaria Root Disease Pathogen, A. solidipes. Forests. 2019; 10(4):294. https://doi.org/10.3390/f10040294

Chicago/Turabian Style

Warwell, Marcus V., Geral I. McDonald, John W. Hanna, Mee-Sook Kim, Bradley M. Lalande, Jane E. Stewart, Andrew T. Hudak, and Ned B. Klopfenstein. 2019. "Armillaria altimontana Is Associated with Healthy Western White Pine (Pinus monticola): Potential in Situ Biological Control of the Armillaria Root Disease Pathogen, A. solidipes" Forests 10, no. 4: 294. https://doi.org/10.3390/f10040294

APA Style

Warwell, M. V., McDonald, G. I., Hanna, J. W., Kim, M.-S., Lalande, B. M., Stewart, J. E., Hudak, A. T., & Klopfenstein, N. B. (2019). Armillaria altimontana Is Associated with Healthy Western White Pine (Pinus monticola): Potential in Situ Biological Control of the Armillaria Root Disease Pathogen, A. solidipes. Forests, 10(4), 294. https://doi.org/10.3390/f10040294

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
