Combining Landscape Fire Simulations with Stand-Level Growth Simulations to Assist Landowners in Building Wildfire-Resilient Landscapes

Abstract

The wildfire regime in Portugal has been responsible for millions of hectares of burnt area, and Alvares parish is no exception. In 2017, a severe wildfire burnt 60% of its area. Land abandonment has been increasing since the mid 20th century, and a large fraction of the forest area belongs to quasi-absent landowners. This has given rise to large, almost unbroken expanses of undermanaged forests that, in combination with rugged topography, originates a landscape prone to large, intense wildfires. Thus, a change in landscape composition and structure capable of reducing flammability and promoting fuel discontinuity is urgently needed. A fire spread simulator and a forest growth simulator were combined to show the impact of improving management at landscape level. It was assumed that the probability of large wildfires may be reduced by setting aside forest area for the implementation of a fuel break network (FBN) and increasing the area under sustainable forest management. Three levels of management intensity were simulated by restricting the area of Quasi-absent non-industrial owners to 34.5%, 20.1%, and 8.5% of the Alvares forest area, in favor of increasing the area of active and semi-active non-industrial owners (current, moderate, and high management scenarios). Different FBN extents, representing four levels of network implementation priority were combined with the management levels, resulting in 12 scenarios. To evaluate the impact of fire, simulations assuming no-fire, no-FBN, and current management intensity were performed, whereas the impact of operation costs was assessed assuming reduced costs for silvicultural operations. Per hectare simulations were then scaled up to the parish level and volume harvested and net present values were used to compare the management improvement scenarios. Results showed that fire has major repercussions on forest income, but these impacts can be minimized. Intensifying forest management and implementing the first priority FBN segments originated substantial improvements in financial outcome from timber production, close to those obtained for the full FBN implementation. Results also evidenced contrasting contributions from industrial and non-industrial owners with the later evidencing unbalanced cash-flows derailing the possibility for interesting forest incomes. The coupling of fire and forest growth simulations can be an interesting approach to assess the impact of different management and policy scenarios and inform policies.

1. Introduction

Wildfires are one of the most important threats to lives and assets in Southern Europe, and particularly relevant in Portugal. These disturbance events ultimately lead to land abandonment and forest degradation, jeopardizing the provision of goods and services and impacting on the subsistence of the populations remaining in these areas [1]. Under changing climate, weather conditions are likely to favor the occurrence of extreme fire events such as those from 2017, in Portugal [2]. In order to reduce the area affected by wildfires in Portugal wildfire suppression measures should be combined with mitigation measures, such as silvicultural practices that reduce fuel accumulation [3,4,5].

Forests cover 36.2% of the area of Portugal [6]. Eucalyptus spp. (mostly E. globulus Labil) and maritime pine (Pinus pinaster Aiton) plantations respectively account for 26% and 22% of this area [6]. However, this has not always been the case and back in 1875 Portugal’s mainland had a forest cover of about 7% [7]. In 30 years, forest area increased by 22% [8]. Until 1955, both private and public agents supported afforestation programs, mainly with maritime pine, leading to a continuous increase in forest area. Nevertheless, since the 1960s, the transfer of labor force from agriculture to other sectors, nationally and abroad, in rugged terrain mostly unfit to mechanization, led to farmland abandonment. This, along with a number of other factors including the international demand for wood fiber and the construction of several pulp mills in Portugal triggered the expansion of eucalypt plantations. In this context, public funded afforestation programs did not fully compensate for the extensive area annually lost to fire. In addition, forest expansion policies did not invest enough in programs to promote fuel management and natural regeneration [9]. The increase in fire frequency affected the survival rate of maritime pine stands, which often burned repeatedly before reaching reproductive maturity and were unable to regenerate. Adding to this, pine wilt nematode (Bursaphelenchus xylophilus (Steiner and Buhrer) Nickle) outbreaks led to the premature harvest of many maritime pine stands, further jeopardizing the future of this forest species in Portugal. Over the years, the area of eucalypt plantations increased, to match the demand for pulp, from a 13% cover in 1985 [10] to 26% in 2015 [6], while the areas of maritime pine decreased from 45% in 1985 [10] to 22% in 2015 [6]. One of the reasons behind this reduction is the set of severe restrictions to commercialization of pine timber affected by the wilt nematode [11], along with the high recurrence of wildfires. The short wildfire cycles compromise the longevity of pine forests, traditionally managed by private owners in 35-year rotations [12], producing low-value salvage wood that usually supplies local timber markets. Conversely, eucalypt, a fast-growing species with resprouting ability, usually managed in three consecutive 10- to 12-year rotations, and having a secure market, became the landowner’s choice. Nevertheless, land abandonment and fire occurrence led to shrubland expansion followed by unmanaged natural regeneration of forests, resulting in overly dense eucalypt and pine stands with high fuel loads [13].

In a recent study, eucalypt plantations were considered a relatively stable financial investment, capable of providing considerable return in medium to high productivity sites, whereas investments in pine stands only become attractive if supported by public subsidies [14]. However, that study did not consider the impact of fire on the attractiveness of investments. Despite being managed in shorter rotations, it is common to find landowners selling burnt eucalypt wood, due to the even shorter fire cycle observed in many areas of Portugal. Recurrent wildfires lead to very low stumpage prices because of massive timber supply from burnt forests, which is aggravated by expensive debarking to avoid charcoal contamination in pulp mills [15].

The forestland ownership structure, characterized by small-sized fragmented properties, several belonging to the same owner, adds complexity and hampers effective forest management and landowner investment capacity [16]. Mere awareness of the high fire risk prevailing in the area contributes to anticipating final harvest, requiring additional investment for site re-installation operations, which in turn represents the most costly set of silvicultural operations. This negatively affects non-industrial private owners, who are left with no option but to reduce forest management to a minimum, inevitably leading to the accumulation of surface fuel loadings and reduced stand productivity (e.g., competition with shrubs, inexistent or reduced fertilization and pest and disease control).

All-embracing measures at different scales are required to address the threats and drivers of forest economic losses. At a local scale, it is recommended to promote forest management and planning among landowners as a means to reduce fire risk [17], and providing easy access to forest management rural extension services is essential. At a landscape level, better planning can be achieved through the implementation of a suitable network of roads and/or fuel-breaks [18] and by reducing fuel loads [19]. This will not only enable creating heterogeneous mosaics (in terms of composition and/or structure) of forest stands, contributing to landscape diversity, but it will also reduce the spread and intensity of upcoming large wildfires and facilitate suppression strategies. Therefore, successful forest management and planning requires mobilizing landowners toward cooperative management based on joint decision-making, shared responsibilities, and shared revenues [20,21,22].

Alvares parish (municipality of Góis), located in central Portugal, gathered the ideal characteristics to constitute a case study: high forest area and high fuel loads, low population density, small-sized ownership, and rugged terrain that hinder forest management. The high fire recurrence in Alvares led to some areas within the parish to burn six times over the past six decades. After the most recent and destructive large wildfire, in 2017, which burned 60% of the parish area, a group of landowners requested support from the Forest Research Centre (University of Lisbon) to develop a plan with the aim of reducing the parish vulnerability to large wildfires [16].

In Alvares, the establishment of a collaborative joint forest management initiative is expected to create opportunities to lower the costs of silvicultural operations, increase stumpage prices, and improve stand-level management and landscape planning with the aim of promoting wildfire risk reduction and higher forest income. This joint management can be achieved, for example, by the creation of a “forest intervention zone” (ZIF)—a legal framework that provides for the joint design of a common forest management plan, which is meant to promote sustainable management and reduced fire risk [20]. Alternatively, the implementation of forest-aggregated areas—pilot forest management projects implemented by a forest owners’ association, which gather contiguous holdings from different owners where joint management is carried out under private quota-based investments and revenues. However, mobilizing forest landowners is a challenging and often long-lasting process because despite them knowing that forest management could contribute to reduce fire occurrence and severity, they need to be shown that investing in forest management will actually compensate economically.

The main objective of the present work is to understand and quantify how much medium-term forest productivity and profitability can be increased in a fire-prone area through improved management and planning and showing local landowners these results.

In Europe, the probability and severity of wildfires are increasing. A recent overview focusing on the diversity of fire patterns and challenges across Europe has evidenced the lack of harmonized wildfire data to allow comparable analysis [23]. The growing importance of wildfire has driven the desire to better understanding ignitions and fire spread to support the simulation of these events. At the same time, it has urged the need for quantifying the economic and environmental impacts resulting from wildfire occurrence. The development of individual tools for simulation of fires across the landscape and for the simulation of the undisturbed growth of forests over time have long been tackled by research. However, combining fire and growth simulations within the same tool has proven a complex and challenging process. Many studies have tried to assess fire risk using, for example, fire behavior models mostly if not exclusively developed in the USA (e.g., NEXUS [24], FARSITE [25], FlamMap [26], BehavePlus [27], and FSIM [28]. These models require as input both constant and changing variables (e.g., topography and wind speed, respectively) that either cannot be controlled by managers or be accurately taken into account in forest growth simulations, which has led some authors to use other approaches such as running growth simulators and using the output runs to estimate fire-risk indicators [29]. More ambitious attempts have tried to couple fire models with forest growth models to be run in parallel (e.g., FVS-FFE [30], RODAL [31]). Nevertheless, few studies have focused on the viability of economic investments in the Mediterranean area [14]. In Quebec, Canada, a study including a cost–benefit analysis for nine fire management scenarios showed that the expenditure of fire management economically compensated the expenditure resulting of fire suppression strategies [32]. To our knowledge, hardly any studies have tried to integrate the impact of fire occurrence on forest stand dynamics and on its economic sustainability.

In this study, a simple methodology based on the use of the same suite of management scenarios by both a fire simulator and a forest growth simulator was designed. StandsSIM.md is a management-driven forest simulator that predicts the growth of stands according to a predefined management prescription describing the silvicultural operations to be performed throughout the life of the stand and the stand harvest age [33]. The approach was based on the premise that whenever severe wildfire occurs, final harvest is anticipated. Being able to determine the wildfire recurrence for different management scenarios, fire-sensitive management prescriptions could be generated. Fire simulations were carried out providing a set of probability mass distributions of “time-since-last-fire” (one by scenario). Then, an algorithm using Monte Carlo Simulation and the “time-since-last-fire” distributions was developed to create fire-sensitive prescriptions reflecting the anticipated harvest occurring for each scenario. The set of fire-sensitive prescriptions were used as input by StandsSIM.md forest simulator to predict the growth and simultaneously conduct an economic analysis for a period of 40 years using net present value (NPV) and harvested volume as indicators. The challenge and novelty of this study lies in developing a methodology for combining short-term landscape fire simulations with medium-term stand-level growth simulations allowing for the integration of wildfire disturbance in growth simulations.

2. Materials and Methods

2.1. Study Area Characterization and the Participatory Approach

Alvares is a 10,000 ha parish located in a mountainous area in central Portugal, with altitude varying between 297 and 1170 m a.s.l. Schist soils predominate in the area [34], generally shallow, especially in steep slopes, requiring deep ripping and/or terracing. Mean annual precipitation ranges from 1100 to 1700 mm, July and August being the driest months [35].

The situation in Alvares is similar to that found in the central and north of Portugal, where private property fragmentation and small-sized properties are scattered across a rugged landscape intersected by deep valleys that make forest management an expensive challenge. The high level of fire hazard is not surprising given the ownership size and structure: 42% of forest landowners have less than 4 ha and 33% own more than 10 ha, not necessarily in a single land parcel [36]. Almost all (96%) of this area is privately owned, belonging to over 3000 owners, including two large pulp and paper companies [19].

Prior to the 2017 wildfire, the parish had very extensive forest coverage (90%), mostly composed by eucalypt (53%) and maritime pine (29%) plantations. Small patches of Quercus robur L., Acacia spp., Pseudotsuga menziesii (Mirbel) Franco, and riparian species of the genus Alnus spp., Salix spp., and Betula spp. were also present. In 2017, the few National Forest Inventory plots located in Alvares were neither sufficient nor updated (inventory reference year was 2005) for a proper characterization of the forest stands. Bearing this in mind, a group of local forest landowners, including the pulp and paper industries, was invited to join the research team. In several meetings, they described the current state of their forest areas after the 2017 fire, their current management practices, and additional information relevant for the simulation of alternative ways to plan land use and forest management for the future. The information collected during several meetings was used to identify five forest owner types: one industrial and four non-industrial (

Table 1. Forest owner type and management description.

Type of Owner	Forest Management Description
Professional industrial	Intensive sustainable management; carry out proper site establishment (1250/1100 trees ha−1); use genetically improved material; fertilize; perform intensive fuel and pest control operations. Usual rotation length of 12 years, with one plantation followed by two coppices; average volume by harvest time is 185 m3ha−1. Share of plantations versus coppice was 50/50.
Active private	Try to mimic the management practiced by the pulp and paper companies, managing slightly less intensively than industrial forest owners do. Planting densities of 1350/1150 trees ha−1; use genetically improved material only in about 80% of the area. Usual rotation length of 12-years, with one plantation followed by two coppices; average volume by harvest time of 140 m3ha−1. Share of plantations versus coppice of 50/50.
Semi-active private	Focus on site establishment operations; have no access to genetically improved material; perform fewer to no fertilizations and/or fuel control operations. Planting densities of 1350/1150 trees ha−1. Usual rotation length of 12-years, with one plantation followed by two coppices, average volume by harvest time is 100 m3ha−1. Share of plantations versus coppice of 35/65.
Quasi-absent private	Focus only on final harvest (usually premature) and benefit from eucalypt resprouting ability for site establishment. When planting cannot be avoided, planting densities are of 1450 trees ha−1. Usual rotation length of 10-years, with one plantation followed by two coppices, average volume by harvest time is 50 m3ha−1. Share of plantations versus coppice of 20/80.
Absent private	Do not explore their unmanaged forests.

). The meetings produced additional information that allowed characterizing understory fuels (see [19] and post-fire stand conditions. All collected information was complemented with the Portuguese 2015 land cover map [37].

2.2. Key Forest Management Concepts

The StandsSIM.md simulator was used to predict the evolution of forest dynamics over consecutive management cycles [33]. Before moving forward, a few important concepts must be introduced. Considering a cycle as the period under which a stand is managed according to a certain forest management approach, in plantations, a cycle is defined as the period from stand regeneration (planting or coppicing) until final harvest. StandsSIM.md requires identifying the list of silvicultural operations to be carried out in each cycle. The number and frequency of silvicultural operations within a cycle determine the management intensity (Figure 1). The set of silvicultural operations characterizing the level of management intensity within a cycle is called the “forest management approach” (FMA). In order to take topographic and physiographic conditions into account, changes to the list of silvicultural operations within an FMA (e.g., terracing operations in steep terrain) can be considered and are referred to as “FMA variants”. Forest simulations can comprise several cycles within a simulation period. The sequence of “FMA variants” that characterize the consecutive cycles considered in a simulation is called “forest prescription”. A “forest prescription” can be composed of several FMAs or only one. The duration of each cycle, i.e., the time during which an FMA or “FMA variant” is applied (e.g., age of final harvest), is defined in the “forest prescription”.

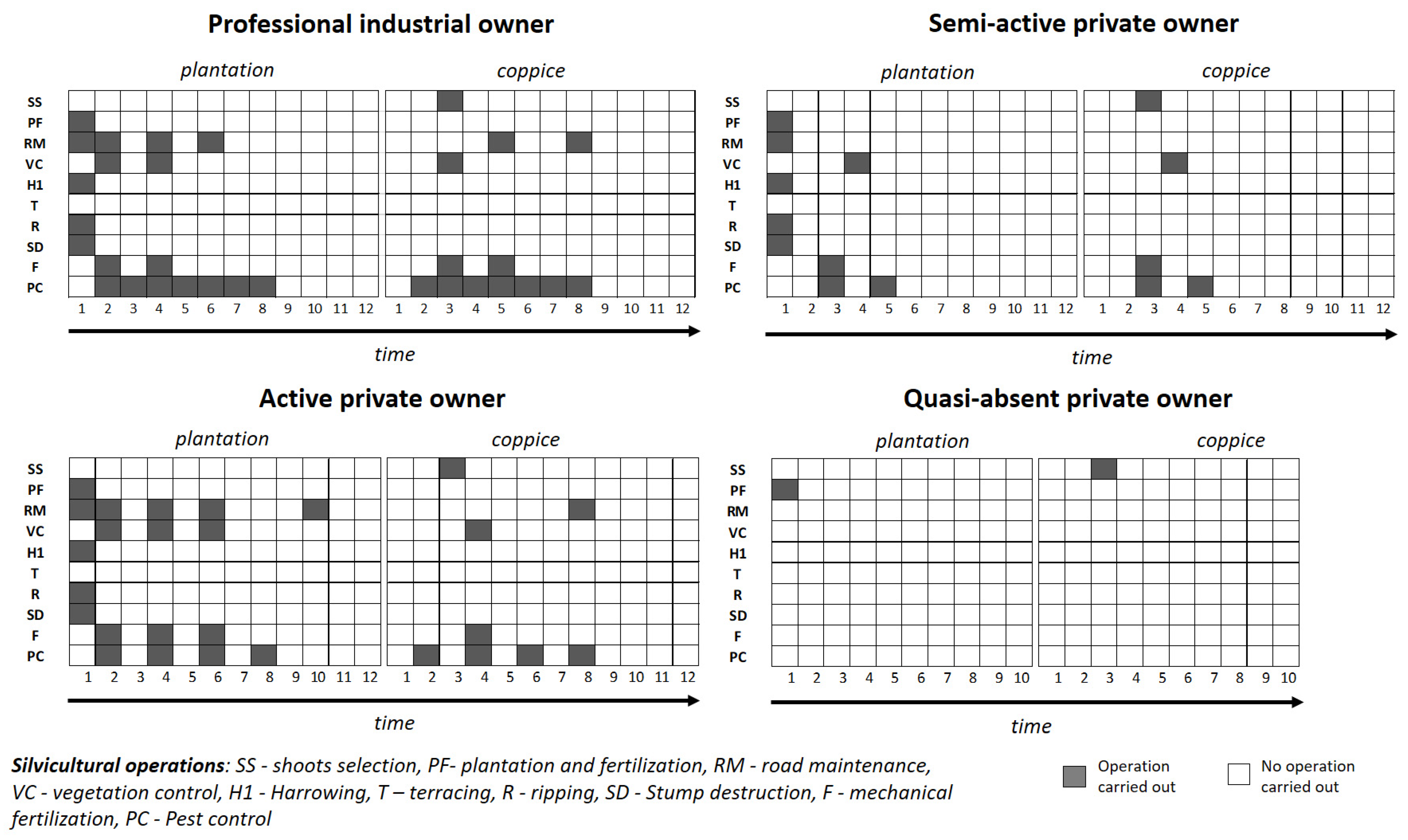

In this study, the description of the different owner types reflects a gradient in terms of forest management, ranging from intensive sustainable forest management (professional industrial owners) to no management whatsoever (absent private owners). Thus, an FMA reflecting a different management intensity level [38] was assigned to each owner type except for the absent owners type (Figure 1).

Located in a mountainous region, the study area includes a broad range of distinct topography and altitude conditions affecting the silvicultural operations required, namely the preparation of soil in terraces in steep slopes and the application of insecticide to control eucalyptus weevil (defoliator), at altitudes higher than 450 m a.s.l. (below this altitude, biological control is effective). Consequently, four “FMA variants” covering the possible situations were considered: no terraces required, but insecticide needed (1); no terraces or insecticide required (2); terraces and insecticide required (3); and terraces required, but no insecticide needed (4). The second variant was the only one considered for quasi-absent owners, given the low-intensity management that characterizes them.

In these simulations, the same “FMA variant” was maintained for all the cycles in each prescription.

2.3. The Improved Forest Management Scenarios

In Alvares, the extensive forest cover and recurrent large wildfires demand urgent changes. To minimize the impact of wildfires and build more resilient, productive, and profitable forests, two different actions were hypothesized to have a positive effect in reducing fire hazard: (i) the improvement of stand-level forest management, and (ii) the implementation of a fuel-break network. A set of 12 forest management scenarios were built, resulting from the combination of three levels of improved stand management with four priority levels for the fuel-break network (FBN) implementation.

The FBN is implemented at the expense of reducing forest area. It ranges from no implementation (FBN0/3) to full FBN implementation (FBN3/3). The first priority level (FBN1/3) corresponds to implementing one third of the FBN in the locations deemed as most relevant to reduce surface fire spread, whereas the second priority level (FBN2/3) integrates the first and second thirds (details on the location of the different priority levels can be found in Benali et al. [19]).

The improved stand-level management strategy was composed of three levels: current, moderate, and High. The participatory approach allowed assigning different shares of area to each FMA for the current situation, evidencing the under-managed conditions of forests in Alvares, given that the absent and quasi-absent private owners represent almost 50% of the forest area. The approach followed for building the scenarios was conservative and assumed that the area managed by professional industrial and absent private owners would remain unchanged, considering that it will be impossible to motivate the latter to activate management practices. Thus, forest management improvement was simulated through shifts in the areas managed by the remaining owner types. For the moderate scenario, an approximately balanced share of area among all owner types was considered. For the high scenario, the area managed by the quasi-absent owners was reduced in 26%, increasing the area managed by active and semi-active owners by 13% each (

Table 2. Management improvement levels expressed by forest area percentages by owner type.

	Management Improvement Levels
	Current (%)	Moderate (%)	High (%)
Professional industrial	23.4	23.4	23.4
Active private	15.3	22.5	28.3
Semi-active private	15.3	22.5	28.3
Quasi-absent private	34.5	20.1	8.5
Absent private	11.5	11.5	11.5
Total	100	100	100

).

A total of 12 scenarios, combining the 4 FBN levels (FBN0/3, FBN1/3, FBN2/3, and FBN3/3) with the 3 management improvement levels (MCur, MMod, and MHgh) under the occurrence of fire (F1) considering currently practiced costs (C0) were considered. Out of these, the one representing current management and no-FBN implementation represents the business-as-usual (FBN0/3_MCur_F1_C0~BAU) conditions. A benchmark scenario without fire was also considered (FBN0/3_MCur_F0_C0), to allow the impact of wildfires on medium-term forest productivity and profitability to be assessed. Finally, the 12 scenarios were run a second time for the active and semi-active private owners, assuming reduced unit area costs for silvicultural operations. These could result from coordinated management of more extensive tracts of forest than those currently dealt with by individual non-industrial landowners.

Table A1. Description of the scenarios in terms of areas assigned by owner type/FMA and area allocated to the fuel break network.

						Eucalypt Area by Owner Type and Area Allocated to the Fuel-Break Network (ha)
Fire	FBN Priority	Management Level		Operations’ Costs	Acronym	Industrial	Active	Semi-Active	Quasi-Absent	Absent	FBN
No (F0)	No fuel-break (FBN 0/3)	Current	(MCur)	CAOF (C0)	FBN0/3_MCur_F0_C0	1246	805	805	1811	604	0
Yes (F1)	No fuel-break (FBN 0/3)	Current	(MCur)~BAU	CAOF (C0)	FBN0/3_MCur_F1_C0	1246	805	805	1811	604	0
				Reduced (C1)	FBN0/3_MCur_F1_C1
		Moderate	(MMod)	CAOF (C0)	FBN0/3_MMod_F1_C0	1246	1182	1182	1057	604	0
				Reduced (C1)	FBN0/3_MMod_F1_C1
		High	(MHgh)	CAOF (C0)	FBN0/3_MHgh_F1_C0	1246	1490	1490	441	604	0
				Reduced (C1)	FBN0/3_MHgh_F1_C1
	1st priority (FBN 1/3)	Current	(MCur)	CAOF (C0)	FBN1/3_MCur_F1_C0	1169	763	763	1716	572	287
				Reduced (C1)	FBN1/3_MCur_F1_C1
		Moderate	(MMod)	CAOF (C0)	FBN1/3_MMod_F1_C0	1169	1140	1140	963	572	287
				Reduced (C1)	FBN1/3_MMod_F1_C1
		High	(MHgh)	CAOF (C0)	FBN1/3_MHgh_F1_C0	1169	1448	1448	346	572	287
				Reduced (C1)	FBN1/3_MHgh_F1_C1
	2nd priority (FBN 2/3)	Current	(MCur)	CAOF (C0)	FBN2/3_MCur_F1_C0	1107	729	729	1639	546	520
				Reduced (C1)	FBN2/3_MCur_F1_C1
		Moderate	(MMod)	CAOF (C0)	FBN2/3_MMod_F1_C0	1107	1105	1105	886	546	520
				Reduced (C1)	FBN2/3_MMod_F1_C1
		High	(MHgh)	CAOF (C0)	FBN 2/3_MHgh_F1_C0	1107	1414	1414	269	546	520
				Reduced (C1)	FBN 2/3_MHgh_F1_C1
	Full priority (FBN 3/3)	Current	(MCur)	CAOF (C0)	FBN 3/3_MCur_F1_C0	1028	685	685	1542	514	816
				Reduced (C1)	FBN 3/3_MCur_F1_C1
		Moderate	(MMod)	CAOF (C0)	FBN3/3_MMod_F1_C0	1028	1062	1062	788	514	816
				Reduced (C1)	FBN3/3_MMod_F1_C1
		High	(MHgh)	CAOF (C0)	FBN 3/3_MHgh_F1_C0	1028	1370	1370	171	514	816
				Reduced (C1)	FBN 3/3_MHgh_F1_C1

—Appendix A provides a description of each scenario and corresponding forest areas by owner type/FMA.

2.4. Forest Growth and Wildfire Simulations

A simple approach was taken based on the premise that fire occurrence anticipates the final harvest of eucalypt stands. It consisted of improving and linking a fire and a forest growth (with an economic module integrated). In both cases, the same suite of alternative forest management scenarios combining different levels of management improvement and FBN implementation were used. The first simulator was used to run fire spread simulations at the landscape level for a given point in time, assuming certain fuel distributions (scenario) in the area [19]. The output was a set of probability mass distribution function (PDF) of “time-since-last-fire”, one for each forest management scenario. An algorithm was developed to include fire occurrence into the “forest prescriptions” using Monte Carlo Simulation and the “time-since-last-fire” PDFs. In each fire-sensitive prescription, the length of each cycle was defined by the minimum of the pair final harvest age and time-since-last-fire. The latter was randomly defined according to the “time-since-last-fire” PDF characterizing the scenario. Using the set of fire-sensitive “forest prescriptions” as the input, StandsSIM.md was run at stand-level to predict the dynamics of forest growth for a 40-year period, with an annual time-step. The simulations took into account the schedule of operations (and corresponding costs) and produced volume-harvested estimates. An economic analysis comparing the different scenarios based on net present value (NPV) was carried out. Finally, simulations were scaled up to parish level by multiplying stand-level estimates by the respective forest area (Figure 2).

2.4.1. Wildfire Simulation and Input Data

To integrate the impact of wildfires in the assessment of medium-term productivity and profitability, a modeling approach to simulate the “time-since-last-fire” in a 40-years time horizon was used. Benali et al. [19] developed FUNC-SIM to simulate some 28,000 hypothetical wildfires with random ignitions sampled from an ignition probability surface map and driven by weather data associated with very large (>1000 ha) historical wildfires. Fuel data were based on the Portuguese national land cover map, expert knowledge, and information provided by local stakeholders, integrating fuel dynamics and associated uncertainties. The more intensive the management level (e.g., industrial FMA), the smaller the proportion of hazardous fuel models. The rate of spread, fireline intensity, and burned area of each individual wildfire were simulated using FARSITE [25]. Each wildfire was simulated using a 100-m resolution grid.

The simulations were useful to estimate wildfire hazard, but did not characterize the temporal dimension of wildfires, required to couple fire with StandsSIM.md (Section 2.4.3). To tackle this limitation, a simple model was developed on top of FUNC-SIM (hereafter FUNC-SIM+) to simulate the spatio-temporal distribution of wildfires in the study region. The model simulates the occurrence of very large wildfires (≥1000 ha) in a 40-year time period, considering N time trajectories (i.e., iterations). The simulation procedure is explained in 10 steps in Appendix A. FUNC-SIM+ calculations were made at a pixel level (grid resolution 100 m). The main output of the model was the distribution of the “time-since-last-fire”, i.e., wildfires burning the same pixel in different years in a given time trajectory. The results of all iterations were combined to create a PDF of “time-since-last-fire”. Values above 40 years (the maximum simulation period) were reclassified as “not burned” (NB).

For the calibration, FUNC-SIM+ was run for the historical period of 1975 to 2017 and its parameters (fp, m, and β, explained in detail in Appendix A) were adjusted using discrete values in fixed intervals, and the estimated and observed “time-since-last-fire” PDF were compared, the latter based on historic fire data [39]. A more sophisticated calibration procedure was not feasible due to computational constraints. The stochastic simulation set used for calibration corresponded to the BAU conditions. It was assumed that the model produced acceptable results if the estimated “time-since-last-fire” PDF and the “total burnt area extent” agreed with the observed historical data.

The calibrated FUNC-SIM+ model was run for all forest management scenarios for a 40-year period starting in the year 2017. The fuel models covering the landscape were considered to change for each scenario depending on the stand management improvement and the FBN implementation level (see [19] for more details). For example, increasing stand management intensity increases the frequency of understory shrub-clearing, decreasing the probability of occurrence of hazardous fuels. Thus, increasing the share of higher intensity FMAs in Alvares contributes to an overall decrease in wildfire hazard. In order to determine the impact of each forest management scenario on the “time-since-last-fire” PDF, the FUNC-SIM+ model was run, changing only the individual simulated burned area selected from the spatial simulation database (using the list of indexes previously saved). Each wildfire was simulated using the same ignition and weather conditions, changing only the fuel distribution across the landscape. The spatial distribution of non-industrial owners was unknown and therefore it was randomly distributed across the corresponding forest area [19].

2.4.2. Forest Growth Simulation and Economic Analysis

StandsSIM.md is organized in several modules. The “growth module”, which comprises the Globulus3.0 and the 3PGOut+ models, is the core module, but two other modules run in parallel with the previous: the “management module” that drives growth predictions through the application of the “forest prescription” and its corresponding “FMA variants”, and the “economic module” that calculates the costs of the silvicultural operations that characterize the “FMA variants” as well as the revenues from timber harvest. The latter is based on net present value (NPV) that was computed as the sum over the whole planning period of the present value of the difference between the revenues and costs in each year, as follows:

$$\mathrm{NPV}={\displaystyle \sum }_{\mathrm{t}=1}^{\mathrm{T}}\left(\frac{{\mathrm{CF}}_{\mathrm{t}}}{{\left(1+\mathrm{i}\right)}^{\mathrm{t}}}\right)-{\mathrm{C}}_0$$

(1)

where CFt is the cash flow (positive or negative balance of costs and revenues) incurred during the simulation year (t), T is the planning horizon, in the same units as t, i is the interest rate, and C0 is the initial investment. The calculation and interpretation of NPV can be found in forest economics manuals and textbooks (e.g., [40,41,42,43,44]).

Typically, NPV is used to determine which investments or projects should be funded. If NPV is positive, the investment might be acceptable, depending on the NPV of other alternative investments. However, when it is negative, it should probably be rejected, because the future cash flows will not cover the periodic costs [41]. Finally, if the NPV is zero, the investment can be considered neutral for the interest rate (i) applied.

Both harvested volume and NPV were used to compare the different management improvement scenarios.

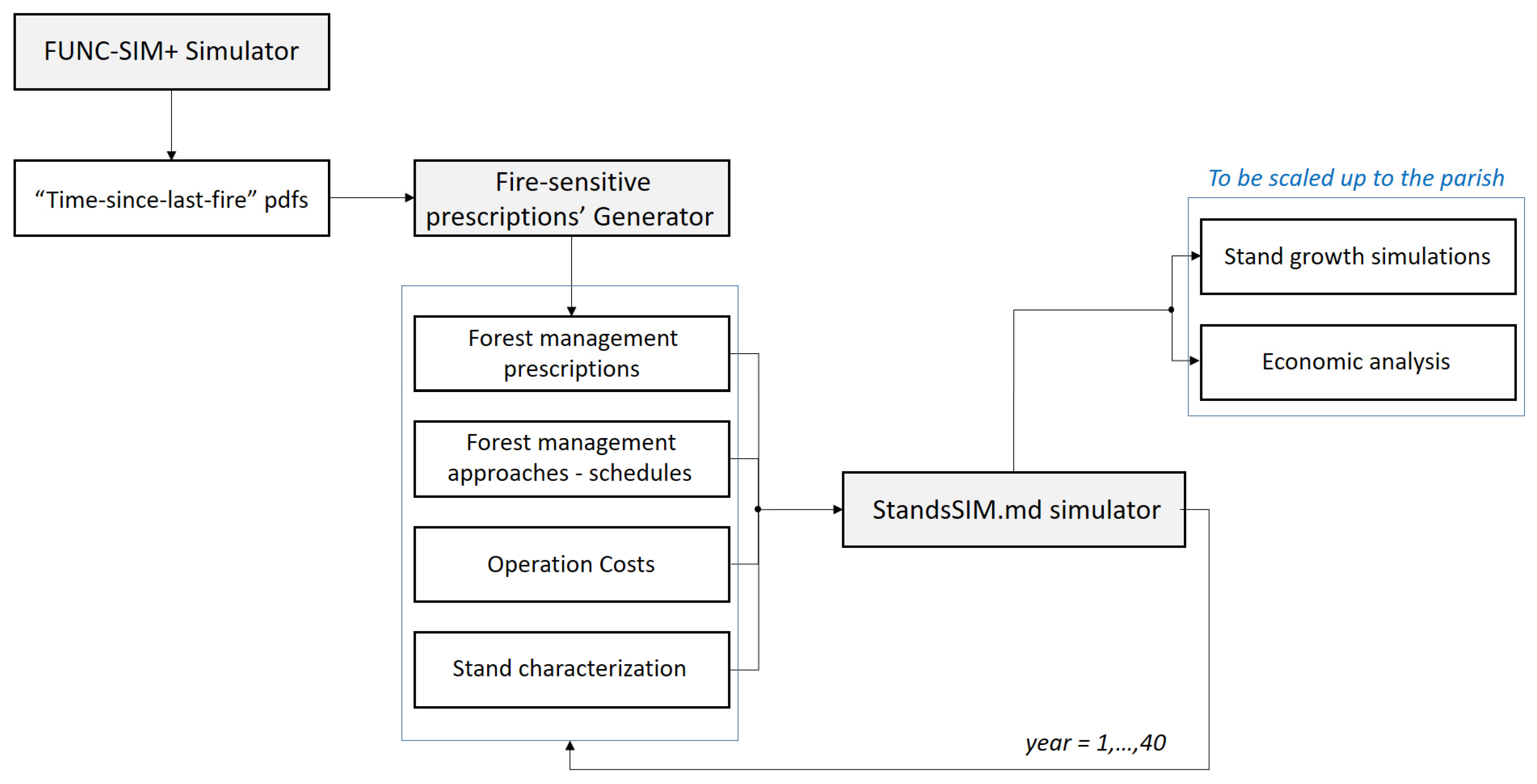

2.4.3. Linking the Fire and Forest Growth Simulators

The integration of wildfire occurrence in the StandsSIM.md was achieved by building fire-sensitive prescriptions in which stands were harvested before their prescribed harvest age, whenever a wildfire occurred. The Monte Carlo Simulation method (described for instance in [45]) was used to randomly sample the occurrence of wildfire in time from the simulated “time-since-last-fire” PDFs for each one of the 12 forest management scenarios (Section 2.4.1). Wildfires were integrated into the fire-sensitive “forest prescriptions” by anticipating the age of final harvest and therefore reducing the length of the cycle (Appendix A, Figure A1). Thus, a fire-sensitive “forest prescription” will have the same or higher number of cycles than an ordinary “forest prescription” (no fire included). The prescription generator requires several user-defined inputs to run, which include: the length of the simulation period, information about the “FMA variant” to apply in each cycle, and the number of prescriptions to be generated.

The harvested volume and NPV characterizing each “FMA variant” under the different scenarios were obtained by averaging the estimates for the 400 simulations.

Burnt wood resulting from wildfires is an important source of fiber for the pulp and paper industries. For this reason, StandsSIM.md considers an amount of salvaged wood determined based on stand age and mean annual volume increment. The reduction in stumpage prices for burnt wood was also considered, based on information obtained from stakeholders.

2.4.4. Running the “Fire-Sensitive” Forest Growth Simulations

The abovementioned meetings allowed characterizing the state of forests after the 2017 fire and detailing forest management operations and costs, to build the simulation inputs.

Stand inputs: Several assumptions were made based on the information provided:

(i)

All stands were pure even-aged;

(ii)

All stands were harvested after the fire;

(iii)

Some stands were replanted, while other entered coppice rotation;

(iv)

Stands of the different owner types/FMA were assigned different average site indices (S): S_Industrial = 19 m; S_Active = 17 m, S_Semi-active = 15 m and S_Quasi-absent = 9 m).

When empirical growth models are used, site index is an essential input to simulate a new plantation. Site index (S) is defined as the average height of the 100 thickest trees per hectare at a species-specific standard age (10 years for eucalypt). The higher the S, the more productive the site. Thus, a participatory approach was used for assigning an average S value to each owner type/FMA.

Based on this information, 8 stands, 2 by each owner type (a plantation and a coppice at age zero), were simulated according to the “FMA variants” and “forest prescriptions” (see Figure A2—Appendix A).

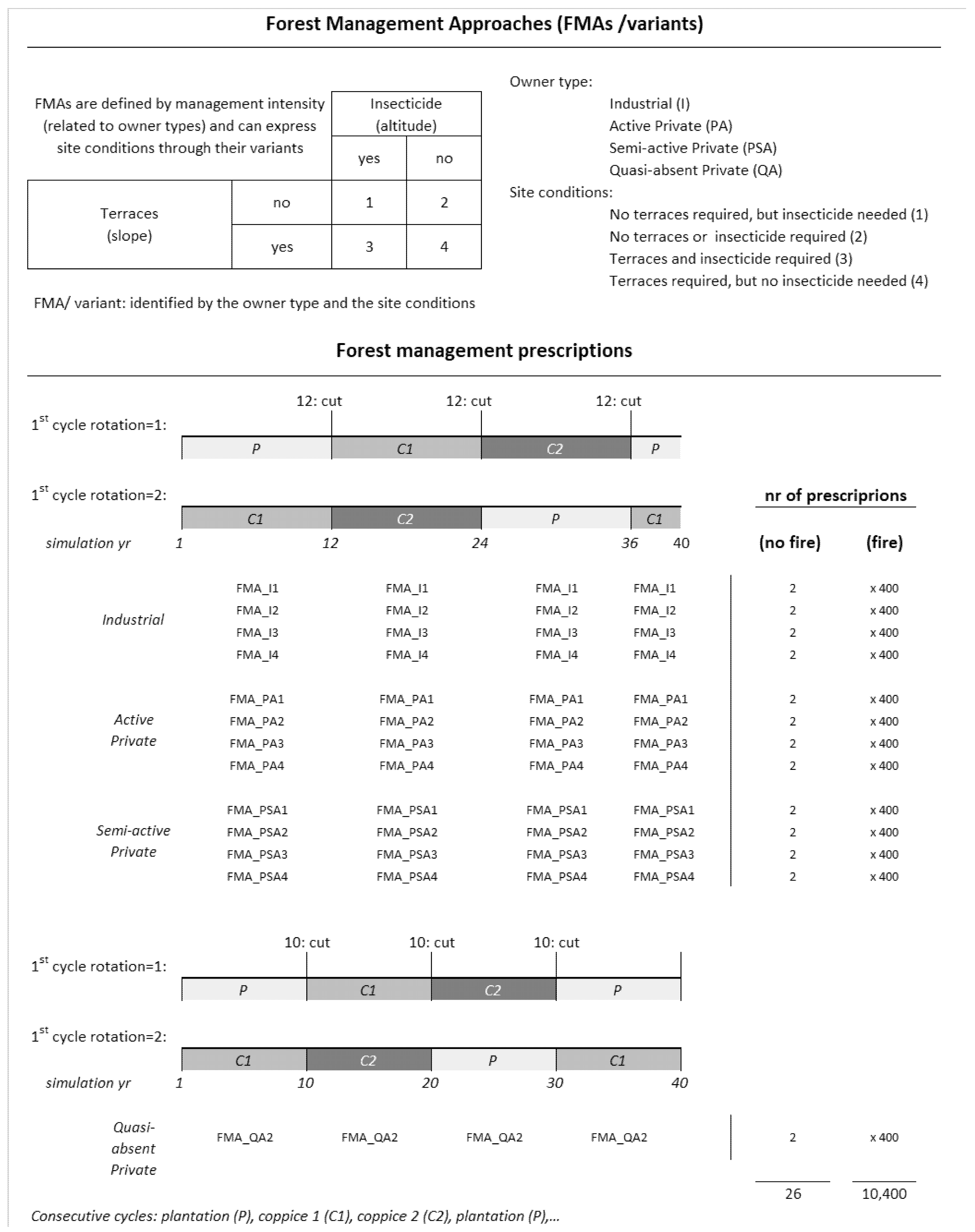

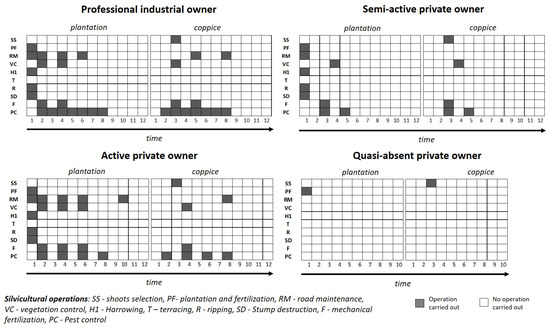

FMA inputs: During the meetings with stakeholders, the set of silvicultural operations characterizing the different management intensity levels and the different site conditions present in Alvares were prepared (see Figure A2—Appendix A). Each “FMA variant” corresponded to an input file.

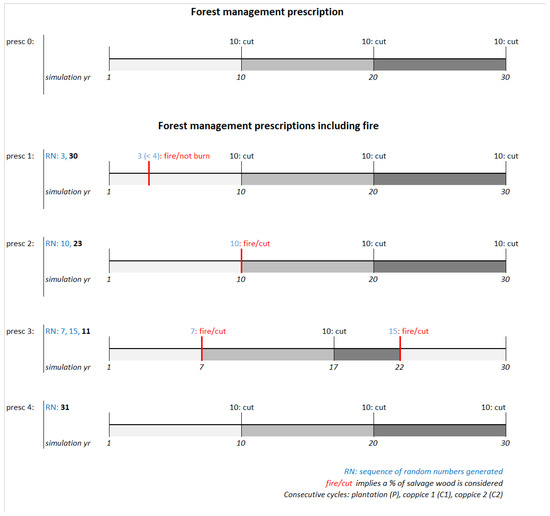

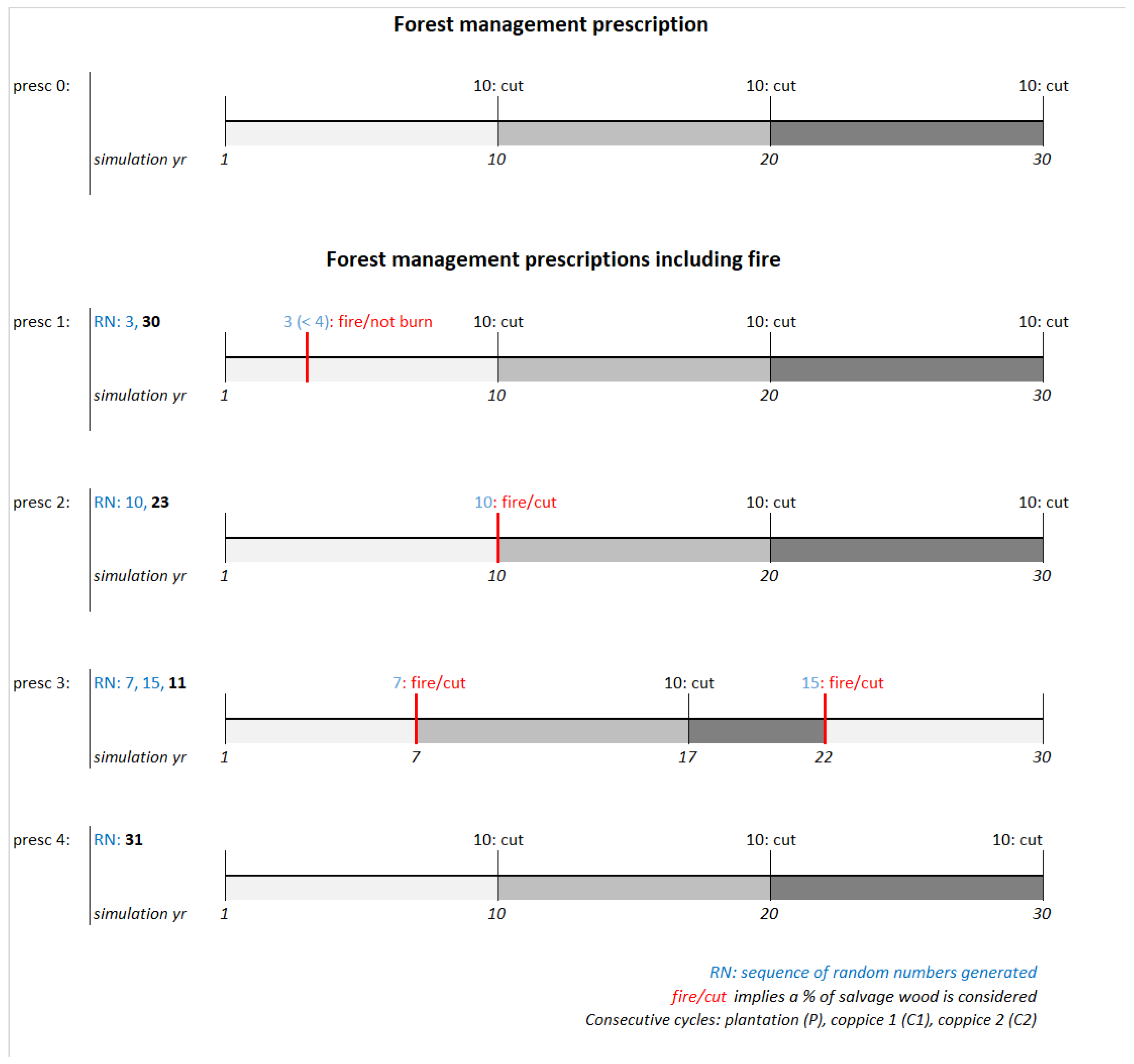

Prescription inputs: The fire-sensitive “forest prescription” for the different scenarios and “FMA variants” were saved in individual input files.

For the “no fire occurrence” scenario, a total of 26 prescriptions were prepared. Two of these to be applied to the “FMA variants” characterizing quasi-absent owners, one for the stands in the first rotation (plantation, P) and the second for stands in the second rotation (first coppice, C1). Both considered the “FMA variant” that assumes no terracing or insecticide spraying. The remaining prescriptions (24) were applied to the first and second rotation stands of Industrial, Active and Semi-active owners, assuming each will be managed under the four “FMA variants”. For the “fire occurrence” scenarios, instead of one prescription by “FMA variant”, a total of 400 fire-sensitive prescriptions were generated (see Figure A2—Appendix A).

Operation costs inputs: The costs for the silvicultural operations practiced for non-industrial private owners were obtained from the available official statistics [46,47]. The costs of operations for the industrial owner type, as well as all stumpage prices considered, were provided by stakeholders. The pulp and paper companies have their own tables of costs, because the size of the areas they manage allows economies of scale. Stumpage prices for industrial and active owners, the ones producing certified wood, were assumed to be 29 €m⁻³, whereas for semi-active and quasi-absent owners’ lower prices were considered, respectively, as 21 and 17 €m⁻³. The reduced costs scenarios, which tried to reflect the impact of a potential joint management and consequent establishment of economies of scale, used the average of costs practiced for industrial and non-industrial owners. An interest rate of 4% was considered for the economic analysis.

The simulations of the 10,400 prescriptions for each scenario were carried out for a period of 40 years. Volume-harvested (m³ha⁻¹) overbark and NPV (€ha⁻¹) estimates for each set of 400 prescriptions were averaged and scaled up to the parish level using the areas described in Table A1—Appendix A.

3. Results

3.1. Fire Simulation

3.1.1. Calibration

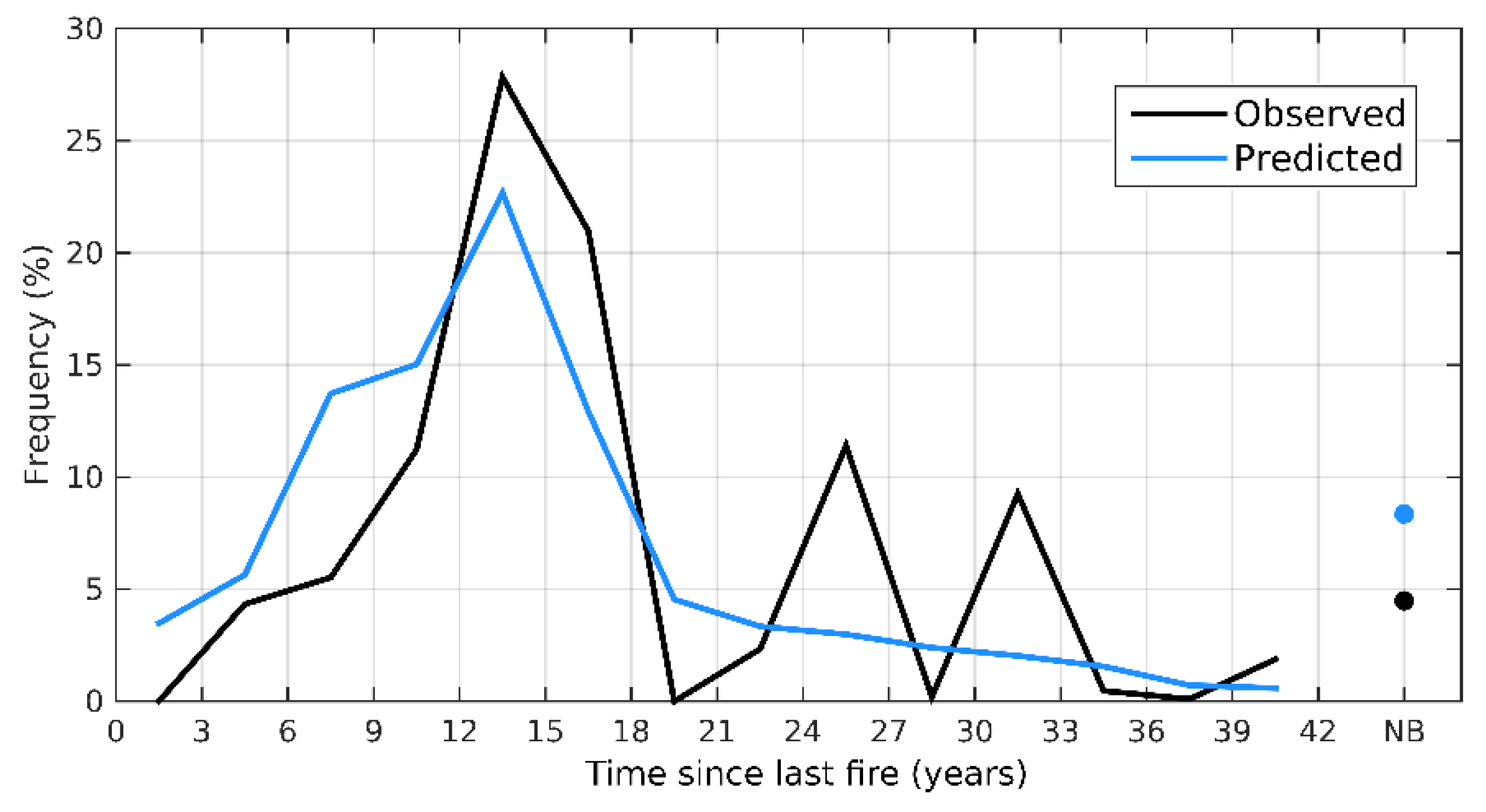

The model parameters that better reproduced the historical distribution of “time-since-last-fire” were fp = 0.90, β = 10, m = 0.01, yielding a r² = 0.63 (Figure 3) which was considered a reasonable agreement. The model reproduced well the main peak between 12 and 18 years, and slightly over- and underestimated up to 12 and greater than 18 years, respectively. The estimated total burned area extent was 18,401 ha (

Table 3. Total simulated burned area for the 40-year period, and annual average decrease in estimated burned area (ha), when compared with the BAU scenario (inside brackets).

Total Burnt Area by Scenario
		Management Improvement Levels
		Current	Moderate	High
FBN priority levels	FBN0/0	18,401 (BAU)	15,996 (60.1)	14,786 (90.4)
	FBN1/3	16,050 (58.8)	14,460 (98.5)	13,405 (124.9)
	FBN2/3	15,207 (79.9)	14,867 (88.3)	13,906 (112.4)
	FBN3/3	13,369 (125.8)	13,152 (131.2)	12,406 (149.9)

), and was very similar to the 17,946 ha that actually burned over the last 40 years because of very large wildfires (>1000 ha).

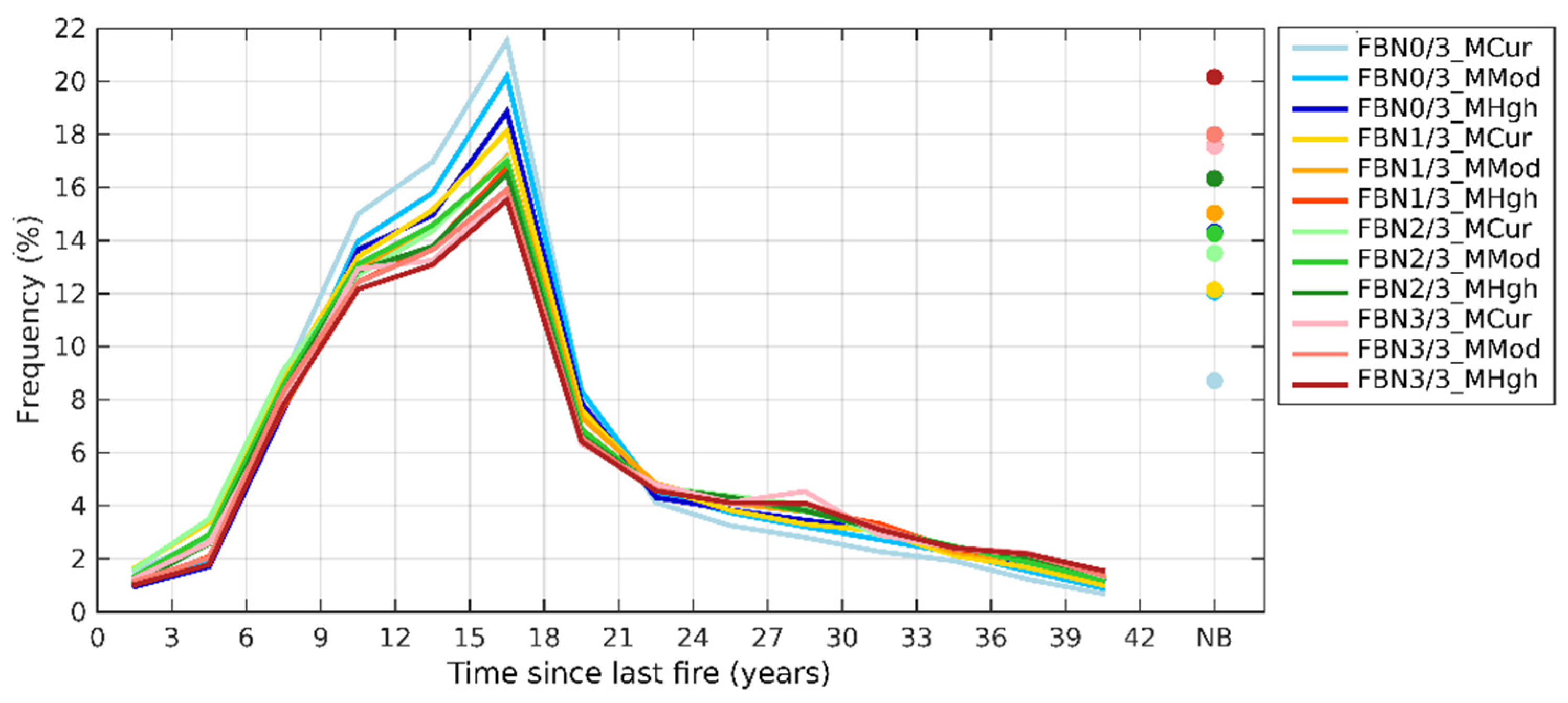

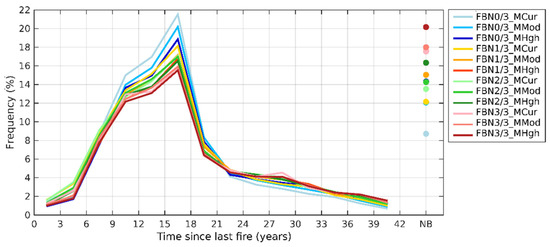

3.1.2. Estimated “Time-Since-Last-Fire” Distributions for the Different Scenarios

Changes in the landscape had impacts on the estimated “time-since-last-fire” PDF, generally increasing the frequency of higher intervals and decreasing the frequency of lower intervals (Figure 4). The effect was particularly pronounced on the percentage of area that did not burn during the 40-years period. Burned area extent decreased to 14,786 ha for the scenario combining the high management intensity level with the no-FBN implementation, and to 13,369 ha for the scenario combining the high management intensity level with the full priority FBN implementation scenario (FBN3/3). These values corresponded to average annual decreases of 90.4 and 125.8 ha burned, respectively.

3.2. Forest Growth Simulation

Several factors affect forest income at parish level. The simultaneous decrease in exposure to wildfire, which results in higher availability of timber, decrease in productive forest area due to implementation of the FBN, and the reallocation of areas between non-industrial forest owners, introduce complexity in the interpretation of results. In order to isolate the impact of fire occurrence and costs, different sets of scenarios were compared.

3.2.1. The Impact of Wildfire Occurrence

The simulation runs performed for the BAU scenario with and without fire occurrence were compared (FBN0/3_MCur_F0_C0 vs. FBN0/3_MCur_F1_C0) (

Table 4. Total and per hectare values for NPV and volume harvested by owner type for the BAU (FBN0/3_MCur_F1_C0), the improved management (FBN3/3_MHgh_F1_C0), and the hypothetical no-fire scenario (FBN0/3_MCur_F0_C0).

Scenarios	Units	Owner Type
		Professional Industrial	Active	Semi-Active	Quasi-Absent	Parish
Forest area:
FBN0/3_MCur_F0_C0	(ha)	1246	805	805	1811	4667
FBN0/3_MCur_F1_C0		1246	805	805	1811	4667
FBN3/3_MHgh_F1_C0		1028	1370	1370	171	3940
Net Present Value:
FBN0/3_MCur_F0_C0	(×103€)	3721	921	111	−272	4481
FBN0/3_MCur_F1_C0		1917	−367	−587	−991	−28
FBN3/3_MHgh_F1_C0		1931	−97	−705	−76	1054
FBN0/3_MCur_F0_C0	(€ha−1)	2987	1144	138	−150	960
FBN0/3_MCur_F1_C0		1539	−456	−730	−547	−6
FBN3/3_MHgh_F1_C0		1879	−70	−515	−443	267
Volume harvested:
FBN0/3_MCur_F0_C0	(×103m3)	561	360	214	257	1393
FBN0/3_MCur_F1_C0		469	300	168	190	1127
FBN3/3_MHgh_F1_C0		407	537	308	20	1271
FBN0/3_MCur_F0_C0	(m3ha−1)	451	447	266	142	299
FBN0/3_MCur_F1_C0		377	372	209	105	242
FBN3/3_MHgh_F1_C0		396	392	225	115	323

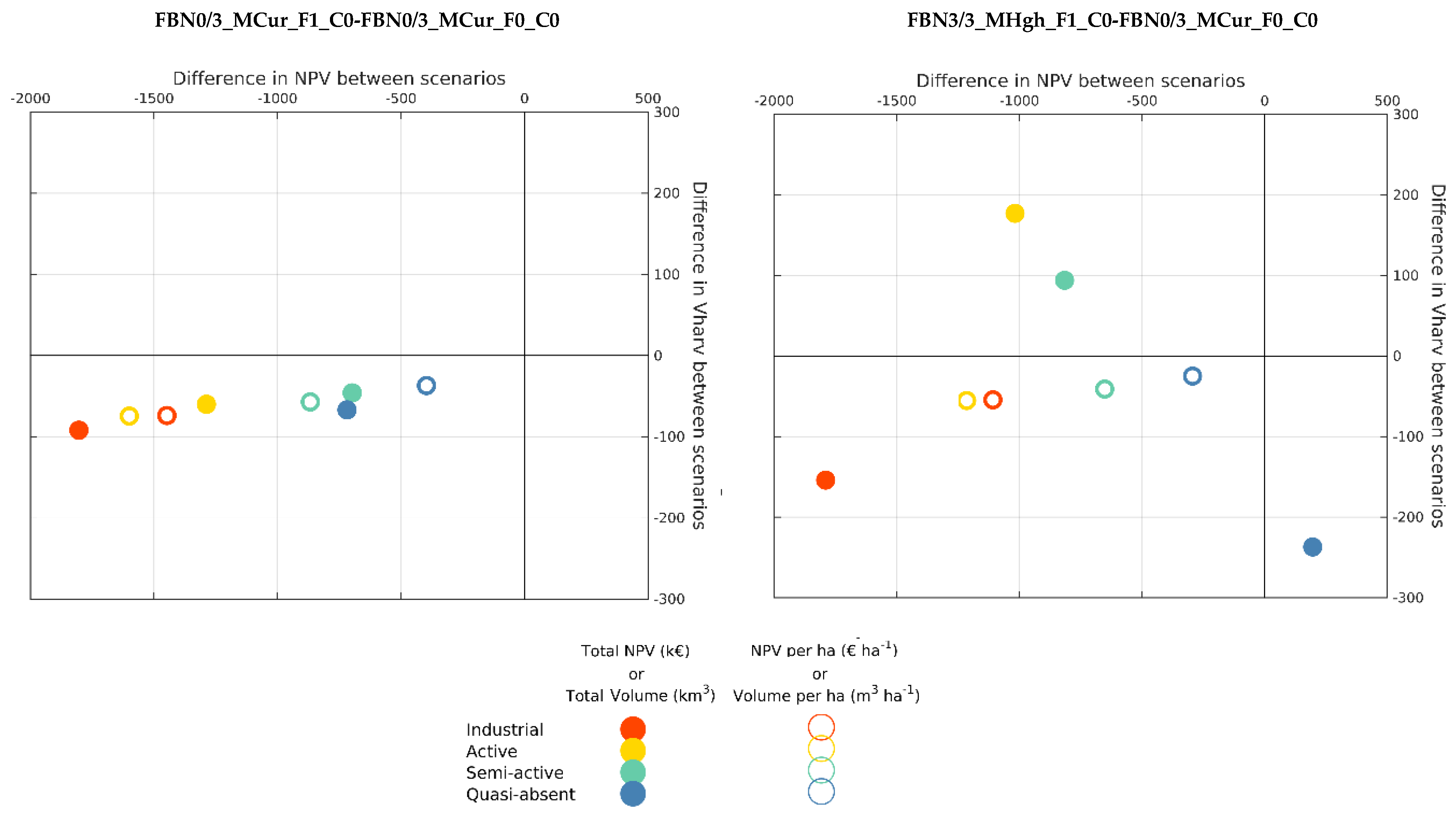

). Results showed that wildfires in Alvares are responsible for negative-to-neutral investments and harvested volume reductions of 266 × 10³m³ if current management is maintained and no FBN is implemented. On the other hand, investments can become profitable and losses in harvested volume less pronounced if stand-level management is combined with the full implementation of the FBN (FBN3/3_MHgh_F1_C0).

At the parish level, very large wildfires result in NPV losses of about 70% (from 4481 × 10³€ to −28 × 10³€), while for harvested volume, losses are less expressive (about 20%).

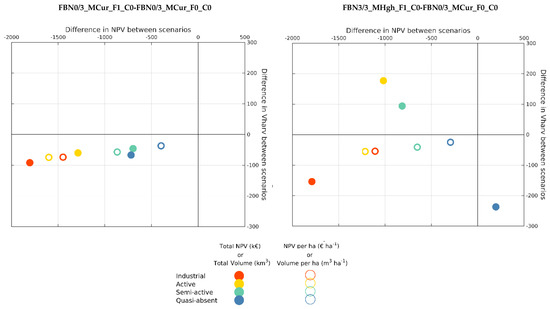

A more detailed analysis highlighted the differences among owner types. Figure 5 shows the relation between losses in volume harvested and NPV due to fire for the BAU (FBN0/3_MCur_F1_C0) and the most intensive management scenario (FBN3/3_MHgh_F1_C0), using the no-fire hypothetical scenario as benchmark.

Wildfire-related losses are more evident for NPV than for volume harvested, which has identical amounts for all owner types. The more an owner type invests in their forest, the more they have to lose when wildfire occurs and NPV losses are closely related to the investment made in management. Thus, wildfire induces greater losses on active and industrial owners, who practice intensive management. Associated silvicultural operations costs escalate, mostly due to site establishment operations that are particularly expensive for non-industrial private owners, and are more often because of wildfire occurrence. Industrial owners have the largest losses in NPV (−1804 × 10³€) and harvested volume (−92 × 10³m³), followed by active owners with −1288 × 10³€ and −60 × 10³m³, respectively. However, active owners evidence the greatest losses on a per hectare basis.

Nevertheless, results also indicate that the negative impacts of wildfire can be minimized if the FBN network is fully implemented and stand-level management is improved (FBN3/3_MHgh_F1_C0). In fact, smaller losses in volume harvested per hectare can be expected for all owner types, while the volume harvested for active and semi-active owners even surpasses the amounts harvested under the hypothetical no-fire scenario, also as a result of the shift in areas from quasi-absent owners to both these types (Table 4).

3.2.2. Isolating the Impact of Improved Management

In the first stage, to evaluate the impact of the different management levels, the three scenarios with no-FBN implementation were compared (FBN0/3_MCur_F1_C0, FBN0/3_MMod_F1_C0, FBN0/3_MHgh_F1_C0).

Table 5. NPV (€ and €ha⁻¹) and volume harvested (m³ and m³ha⁻¹) by owner type and at parish level for the management improvement scenarios considering no-FBN implementation.

Scenarios	Units	Owner Type
		Professional Industrial	Active	Semi-Active	Quasi-Absent	Parish
Forest area:
FBN0/3_MCur_F1_C0	(ha)	1246	805	805	1811	4667
FBN0/3_MMod_F1_C0		1246	1182	1182	1057	4667
FBN0/3_MHgh_F1_C0		1028	1490	1490	441	3940
Net Present Value:
FBN0/3_MCur_F1_C0	(×103€)	1917	−367	−587	−991	−28
FBN0/3_MMod_F1_C0		2118	−325	−738	−556	498
FBN0/3_MHgh_F1_C0		2129	−382	−915	−218	614
FBN0/3_MCur_F1_C0	(€ha−1)	1539	−456	−730	−547	−6
FBN0/3_MMod_F1_C0		1700	−275	−624	−526	107
FBN0/3_MHgh_F1_C0		1709	−256	−614	−495	132
Volume harvested:
FBN0/3_MCur_F1_C0	(×103m3)	469	300	168	190	1127
FBN0/3_MMod_F1_C0		480	451	257	114	1302
FBN0/3_MHgh_F1_C0		480	569	325	49	1423
FBN0/3_MCur_F1_C0	(m3ha−1)	377	372	209	105	242
FBN0/3_MMod_F1_C0		385	382	217	108	279
FBN0/3_MHgh_F1_C0		385	382	218	110	305

shows that as management was improved, NPV at parish level went from negative (−28 × 10³€) to positive (614 × 10³€). The same trend was observed for NPV per hectare. Industrial owners were responsible for the biggest contribution to forest income in the parish. NPV per hectare showed a consistent increasing trend for all owner types as stand-level management was improved, despite the negative values evidenced by non-industrial owners. Overall, the improvement in management was more pronounced from current to moderate management than from moderate to high. Active owners had the largest increase (180 €ha⁻¹ from current to moderate and 19 €ha⁻¹ from moderate to high).

The analysis by owner type showed a slight increase in volume harvested per hectare as management was improved. However, when scaled up to the parish level the impact of improving management upon total volume harvested became evident, showing an increasing trend for active and semi-active owners. In particular, active owners increased harvested volume from 300 to ca. 450 × 10³m³ (moderate) and to ca. 570 × 10³m³ (high). Conversely, quasi-absent owners contributed progressively less to total harvested volume in the parish as management was improved.

Assuming no-FBN implementation, improving management from current to moderate had a greater impact than from moderate to high for all owner types and indicators considered in the analysis, with the exception of total NPV. Moderate management resulted in the highest total NPV for active owners, while for semi-active owners improving management seemed to reduce total NPV (despite NPV per hectare always improving with management).

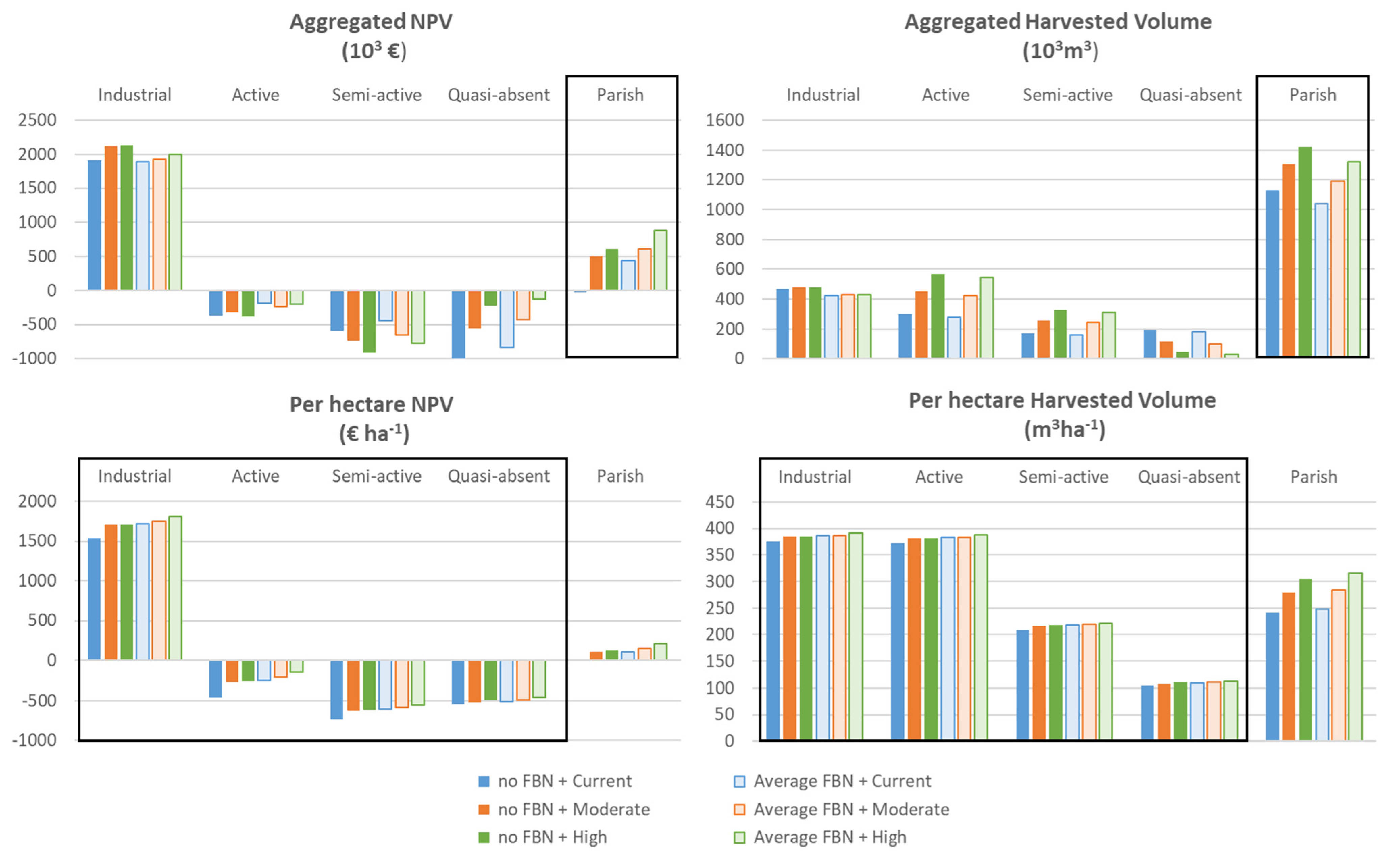

In a second stage, to better assess the individual impact of improving stand-level management, the scenarios for the three priority levels of FBN implementation (FBN0/3) were averaged and compared against the no-FBN scenario (Figure 6). At parish level, as the management level increased, a similar positive trend was found for both the average FBN and the no-FBN implementation, although the averages evidenced higher absolute values for aggregated NPV and lower absolute values for aggregated harvested volume than the values of no FBN. These figures highlight the gain in income for the parish resulting from stand-level management improvement and FBN implementation, despite the decrease in volume harvested (comparison between benchmark and corresponding average scenarios). Only industrial owners seemed to decrease their NPV with the FBN implementation (average of FBN1/3, FBN2/3, and FBN1/3), in particular for moderate- and high-management scenarios.

Nevertheless, improving stand-level management, regardless of whether the FBN is implemented, is not sufficient to generate a positive NPV for the non-industrial owners, who always face cash flow problems (NPV < 0). However, the impact appears to be mitigated if the FBN is implemented.

3.2.3. Isolating the Impact of FBN Implementation

The analysis in the previous section already indicated the combined benefit of implementing the FBN along with increasing stand-level management. In this section, to isolate the impact of the FBN implementation, the scenarios assuming current management were combined with the progressive implementation of the four FBN priority levels (

Table 6. Total and per hectare values for NPV and volume harvested by owner type for the BAU (FBN0/3_MCur_F1_C0) and for the scenarios reflecting the three FBN priority levels (FBN1/3_MCur_F1_C0, FBN2/3_MCur_F1_C0, and FBN3/3_MCur_F1_C0).

Scenarios	Units	Owner Type
		Professional Industrial	Active	Semi-Active	Quasi-Absent	Parish
Forest area:
FBN0/3_MCur_F1_C0	(ha)	1246	805	805	1811	4667
FBN1/3_MCur_F1_C0		1169	763	763	1716	4411
FBN2/3_MCur_F1_C0		1107	729	729	1639	4203
FBN3/3_MCur_F1_C0		1028	685	685	1542	3940
Net Present Value:
FBN0/3_MCur_F1_C0	(×103€)	1917	−367	−587	−991	−28
FBN1/3_MCur_F1_C0		1966	−228	−488	−921	328
FBN2/3_MCur_F1_C0		1878	−197	−455	−855	371
FBN3/3_MCur_F1_C0		1833	−117	−391	−723	603
FBN0/3_MCur_F1_C0	(€ha−1)	1539	−456	−730	−547	−6
FBN1/3_MCur_F1_C0		1681	−298	−640	−537	74
FBN2/3_MCur_F1_C0		1697	−270	−625	−522	88
FBN3/3_MCur_F1_C0		1784	−171	−570	−469	153
Volume harvested:
FBN0/3_MCur_F1_C0	(×103m3)	469	300	168	190	1127
FBN1/3_MCur_F1_C0		449	290	165	184	1089
FBN2/3_MCur_F1_C0		427	279	159	179	1043
FBN3/3_MCur_F1_C0		400	264	151	174	989
FBN0/3_MCur_F1_C0	(m3ha−1)	377	372	209	105	242
FBN1/3_MCur_F1_C0		384	381	216	107	247
FBN2/3_MCur_F1_C0		386	382	218	109	248
FBN3/3_MCur_F1_C0		389	386	220	113	251

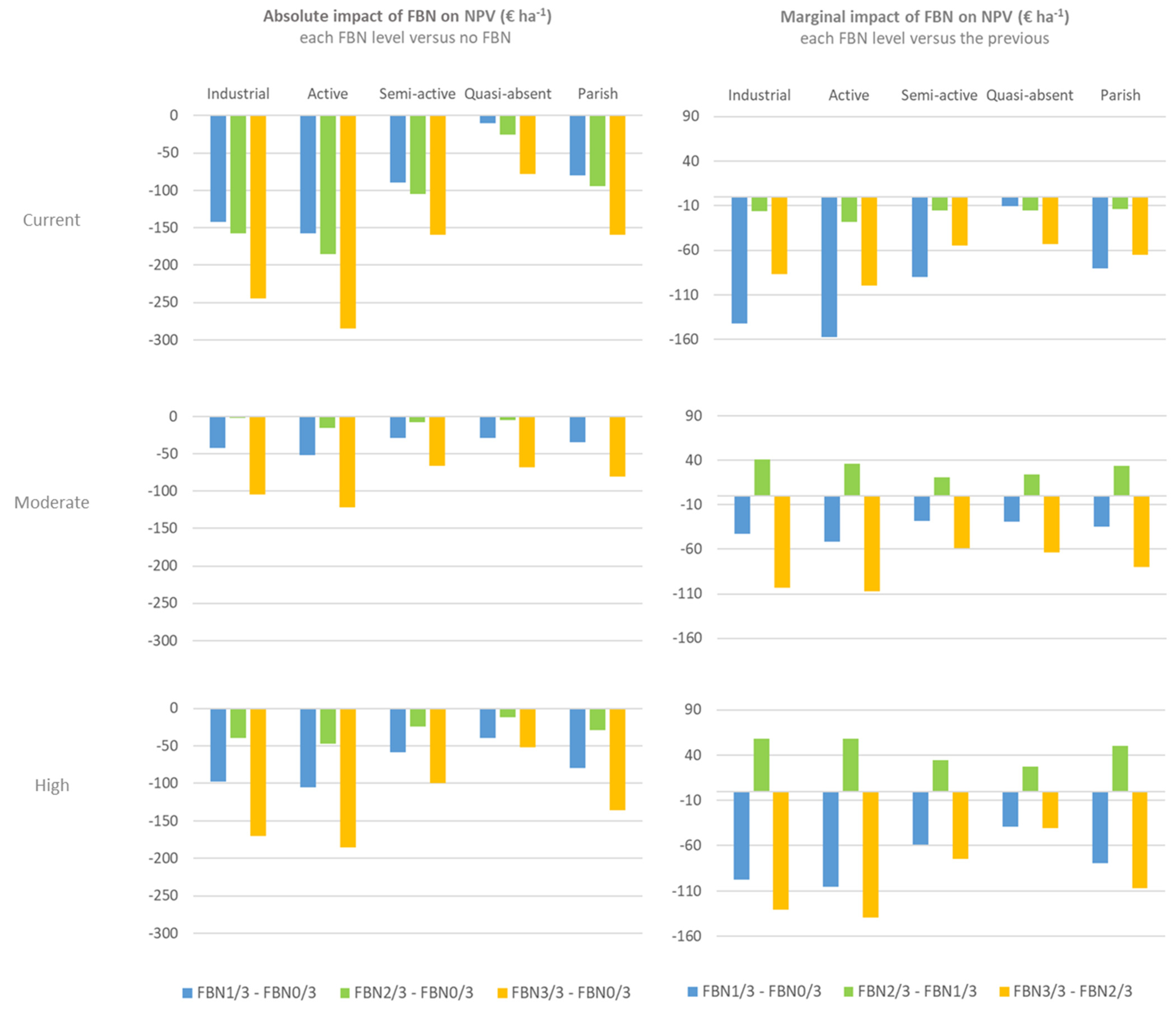

). With increasing levels of FBN implementation, aggregated volume harvested decreased due to reductions in the forest production area. However, increasing FBN implementation increased harvest volume per hectare (242 × 10³m³ to 251 × 10³m³) as well as NPV per hectare (−6 × 10³€ to 153 × 10³€).

Under the current management level, implementing the first priority FBN produced the highest NPV (1966 × 10³€) for industrial owners, whereas for active and semi-active owners, the implementation of the increasing FBN levels resulted in a progressive increase in total NPV. For both owner types, the implementation of the first priority level of the FBN results in the greatest increments in aggregated NPV (139 × 10³m³ and 99 × 10³m³, respectively), while the implementation of the second priority level produces a much milder impact (31 × 10³m³ and 33 × 10³m³, respectively). If only the first priority FBN was implemented and stand-management was held at its current level, a similar increasing trend was found for NPV per hectare, for all owner types. As the different priority levels of FBN were implemented, light increases in harvested volume per ha were observed for all owner types. The opposite was observed for total volume harvested for which the full FBN implementation results in the biggest losses: 27 × 10³€, 14 × 10³€, 8 × 10³€, and 5 × 10³m³ for industrial, active, semi-active, and quasi-absent owners, respectively.

On the one hand, implementing the full priority FBN resulted in an average decrease in harvested volume at the parish level of 151 × 10³m³, at the expense of a reduction in planted forest area. However, volume harvested per hectare showed the opposite trend with the full FBN implementation allowing increases (no FBN as benchmark) of 10 × 10³€, 10 × 10³€, and 18 × 10³€ for the current, moderate, and high stand-level management improvement scenarios, respectively. On the other hand, the full FBN implementation also yielded an increase in NPV, with substantial positive NPVs of industrial owners contrasting with negative NPVs of non-industrial owners (see

Table A2. Aggregated and per ha harvested volume for all the fire scenarios and owner types; the best and second best scenarios by owner type/parish are marked with (++) and (+), respectively.

	Aggregated Harvested Volume (103m3)					Harvested Volume Per Hectare (m3ha−1)
Forest Owner Type	Fuel-Break Network Priorities				Management Level	Fuel-Break Network Priorities
	No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)		No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)
Industrial	469	449	427	400	Current	377	384	386	389
	480 (+)	452	426	402	Moderate	385	386	385	391
	480 (++)	457	428	407	High	385	391 (+)	387	396 (++)
Active	300	290	279	264	Current	372	381	382	386
	451	437	422	411	Moderate	382	383	382	387
	569 (++)	561 (+)	542	537	High	382	388 (+)	384	392 (++)
Semi-active	168	165	159	151	Current	209	216	218	220
	257	249	240	236	Moderate	217	219	218	222
	325 (++)	322 (+)	310	308	High	218	222 (+)	219	225 (++)
Quasi-absent	190 (++)	184 (+)	179	174	Current	105	107	109	113
	114	106	97	89	Moderate	108	110	109	113
	49	39	30	20	High	110	113 (+)	111	115 (++)
Parish	1127	1089	1043	989	Current	242	247	248	251
	1302	1243	1185	1138	Moderate	279	282	282	289
	1423 (++)	1379 (+)	1310	1271	High	305	313 (+)	312	323 (++)

and

Table A3. Aggregated and per ha net present value (NPV) for all the fire scenarios and owner types; the best and second best scenarios by owner type/parish are marked with (++) and (+), respectively.

	Aggregated NPV (103€)					NPV Per Hectare (€ha−1)
Forest Owner Type	Fuel-Break Network Priorities				Management Level	Fuel-Break Network Priorities
	No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)		No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)
Industrial	1917	1966	1878	1833	Current	1539	1681	1697	1784
	2118 (+)	2037	1883	1855	Moderate	1700	1743	1702	1805
	2129 (++)	2112	1935	1931	High	1709	1807 (+)	1748	1879 (++)
Active	−367	−228	−197	−117 (+)	Current	−456	−298	−270	−171
	−325	−255	−287	−162	Moderate	−275	−223	−260	−153
	−382	−219	−296	−97 (++)	High	−256	−151 (+)	−210	−70 (++)
Semi-active	−587	−488	−455 (+)	−391 (++)	Current	−730	−640	−625	−570
	−738	−679	−682	−593	Moderate	−624	−596	−617	−558
	−915	−803	−833	−705	High	−614	−555 (+)	−589	−515 (++)
Quasi-absent	−991	−921	−855	−723	Current	−547	−537	−522	−469
	−556	−479	−462	−361	Moderate	−526	−498	−522	−458
	−218	−158	−130 (+)	−76 (++)	High	−495	−456 (+)	−484	−443 (++)
Parish	−28	328	371	603	Current	−6	74	88	153
	498	624	453	739	Moderate	107	142	108	188
	614	932 (+)	676	1054 (++)	High	132	211 (+)	161	267 (++)

—Appendix B).

The impact of implementing the different priority FBN levels, using the no-FBN situation as benchmark and the marginal impact of implementing the FBN showed additional differences (Figure 7). Under current management, the gains increased with the FBN implementation. However, for moderate management, implementing the second priority level resulted in an almost null gain (108 and 107 €ha⁻¹ for FBN2/3 and FBN0/3, respectively), but when scaled up to the parish a more substantial difference is found 45 × 10³€. If high management was considered, the difference between the benchmark (FBN0/3) and implementing the second priority level of the FBN (FBN2/3) was slightly bigger (161 and 132 €ha⁻¹, respectively), but still highlighted the bigger gain in implementing only the first priority FBN (Figure 7).

Of all owner types, active owners showed the biggest increments in NPV for any level of FBN implementation in comparison with no FBN. Quasi-absent owners benefit from indirect wildfire hazard reduction in the parish and end up improving their NPV, although their forest area, and consequently volume harvested, decreased with FBN implementation. The same applies when analyzing the results scaled up to the parish level (414 × 10³€ and 476 × 10³€, respectively).

3.2.4. The Impact of Reducing Silvicultural Operation Costs

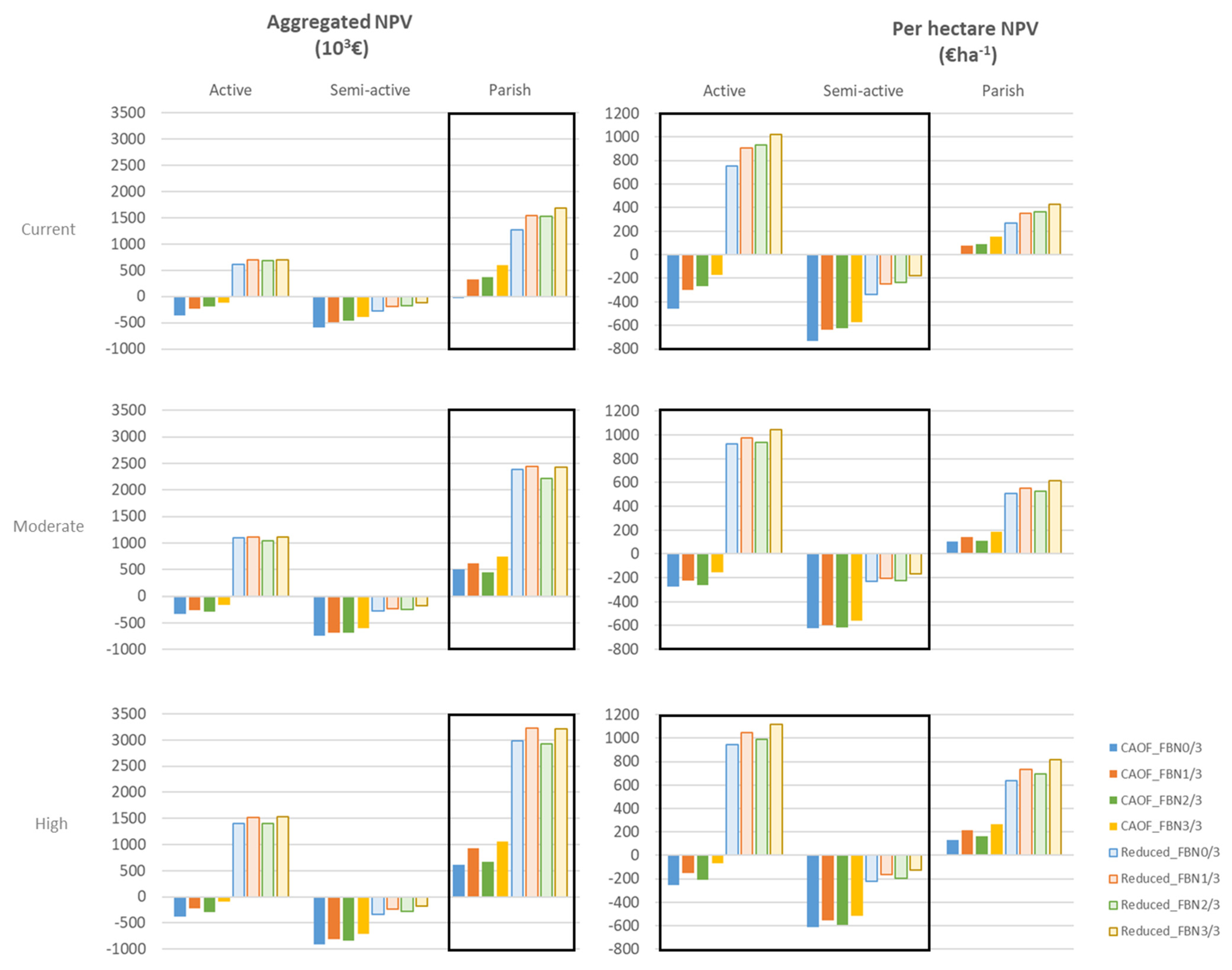

If the CAOF costs associated with non-industrial owners were assumed, the average NPV at parish level was 572 10³€. Assuming reduced costs, the NPV increased to 2320 10³€, roughly four times more than the current setting (Figure 8). Active and semi-active owners had average increases of around 1200 × 10³€ and 400 × 10³€, respectively. Reducing costs allowed active owners to obtain positive NPV for all management and FBN levels; however, semi-active owners were still unable to have positive NPV. Increasing FBN priority levels led to the same trend in NPV values as previously observed, with the implementation of the second priority level evidencing lower marginal gains. The aggregated and per hectare net present values (NPV) for Active owners and Semi-active owners, as well as for the parish, obtained under CAOF and Reduced costs can be found in

Table A4. Aggregated and per ha net present value (NPV) for all the fire scenarios for Active, Semi-active and parish under CAOF and reduced costs; the best and second best scenarios by owner type/parish are marked with (++) and (+), respectively.

		Aggregated NPV (103€)					NPV Per Hectare (€ha−1)
Costs’ Scenario	Forest Owner Type	Fuel-Break Network Priorities				Management Level	Fuel-Break Network Priorities
		No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)		No FBN (FBN 0/3)	1st Priority (FBN 1/3)	2nd Priority (FBN 2/3)	Full Priority (FBN 3/3)
CAOF	Active	−367	−228	−197	−117 (+)	Current	−456	−298	−270	−171
		−325	−255	−287	−162	Moderate	−275	−223	−260	−153
		−382	−219	−296	−97 (++)	High	−256	−151 (+)	−210	−70 (++)
	Semi-active	−587	−488	−455 (+)	−391 (++)	Current	−730	−640	−625	−570
		−738	−679	−682	−593	Moderate	−624	−596	−617	−558
		−915	−803	−833	−705	High	−614	−555 (+)	−589	−515 (++)
	Parish	−28	328	371	603	Current	−6	74	88	153
		498	624	453	739	Moderate	107	142	108	188
		614	932 (+)	676	1054 (++)	High	132	211 (+)	161	267 (++)
Reduced	Active	607	690	678	702	Current	754	905	930	1024
		1094	1112	1039	1107	Moderate	926	976	940	1042
		1406	1512 (+)	1396	1534 (++)	High	944	1044 (+)	988	1119 (++)
	Semi-active	−269	−188	−169 (+)	−123 (++)	Current	−334	−247	−232	−180
		−274	−233	−248	−178	Moderate	−232	−204	−224	−168
		−330	−238	−280	−174	High	−221	−165 (+)	−198	−127 (++)
	Parish	1264	1546	1532	1689	Current	271	350	364	429
		2381	2438	2213	2423	Moderate	510	553	526	615
		2987	3228 (++)	2921	3216 (++)	High	640	732 (+)	695	816 (++)

(Appendix B) for all the fire scenarios.

4. Discussion

Local biophysical and structural features such as steep slopes and small-scale ownership constrain silvicultural operations and increase their costs, leading to low levels of forest income and management. For example, only 29% of the forest owners admitted having carried out fuel reduction operations in all their parcels during the past decade [36]. In Alvares, change towards flammability reduction, fuel discontinuity, and profitability improvements is urgent, but it is also challenging, because the decline of the number of inhabitants by 15.9% during the last decade [48] has led to generalized land abandonment, which is reflected in a currently high share of quasi-absent owners.

Over the 40-year simulation period, wildfires led to substantial losses in forest income, in particular among industrial and active owners (over 1287 × 10³€).

Given the many assumptions made and the several sources of uncertainty in the data input and model estimations, the results should be discussed with an open mind. Some aspects regarding the forest growth simulations that support the economic analysis and the data available for the study require detailed discussion.

The parish had no prior forest inventory and, by the time the study was initiated, a considerable number of burnt stands had already been harvested. Several simplifications and assumptions have been made to deal with the lack of data, including forest inventory, to characterize the individual stands in the parish. The survey results presented in a companion article in this issue [36] indicate that close to 90% of the respondents stated to have been hit by the 2017 wildfire. Meanwhile, many of them would have harvested or reforested their parcels and, thus, it was assumed that all stands had been harvested after 2017 wildfire, which led to the simulation of new plantations or coppices. Notwithstanding, in other situations low severity fires or prescribed burns occurring in relatively mature stands might have positive effects in reducing fuel loads instead of resulting in the death of all the trees in the stands [49]. The lack of data to run simulations for each individual stand in the parish determined the choice for Globulus 3.0 [50]. This empirical growth model was used to estimate harvested wood for the average stands of each owner type, by assigning them a single site index (S) value that reflects the average management intensity (number and timing of the operations, Figure 1). If data had not been a limitation, the 3PG+ growth model, also implemented in StandsSIM.md, could have been chosen instead. Based on eco-physiological processes, the 3PG+ model would have allowed growth predictions to reflect the impact of silvicultural operations that directly interfere with growth, such as fuel control and fertilization, which varied across owner types. Thus, the impact of different management intensities across owner types was only reflected in costs. However, the close collaboration with stakeholders allowed to define penalties that reflect the amounts of industrial salvage wood that is used, which if left unaccounted for, would have led to overestimating harvested volumes.

In the economic analysis, additional simplifications were made. First, the small share of private owners that admitted to carrying out management interventions based on family work alone (26%, [36]) allowed opportunity costs (used family labor and capital) to be ignored and only direct costs without significant bias to be considered. Transaction costs (time to negotiate and supervise contracted services) were also ignored for being difficult to quantify with the existing data. Second, although the CAOF national tables provide higher cost figures for silvicultural operations carried out in hilly and steep areas, it was decided to base the economic analysis on CAOF average costs, because the assignment of different slope conditions to owner types was not possible with the available data. Third, while planted forests also contribute to biodiversity conservation, climate change mitigation, and water provision, only wood production for pulp was considered in the analysis. It is true that environmental benefits are perceived by European citizens, who largely live in (peri)urban areas, as the most important services of forests [51]. Notwithstanding, the valuation of and payment for ecosystem services are still complex processes, often being left unaccounted for, both in research and in practice. Overcoming this limitation could contribute to balance the clash-flow by offsetting the direct costs of forest operations that support those environmental services.

The economic analysis showed that, even in the improved management scenarios, investment should often be disregarded by non-industrial owners because the future cash flows are unable to cover periodic costs (NPV < 0). The impact of currently high operation costs is clearly seen when comparing “CAOF costs’” (C0) with “reduced costs’” (C1) scenarios. The worse NPV values of non-industrial owners when compared to industrial owners also highlight the weight of operational costs. Another aspect not tackled in this study relates to the low stumpage prices that, combined with high costs, lead to non-profitable investments. No scenarios were considered to assess the impact of increasing stumpage prices. Portuguese pulp and paper companies should consider the need to increase stumpage prices paid to forest owners with a good management, to help them covering their periodic costs.

The weight of operation costs is particularly clear when comparing industrial with active owner types, who have similar harvested volumes but different operation costs. On the other hand, the importance of stumpage prices is revealed by comparing active with semi-active owners, both under CAOF prices, but having different stumpage prices, because the latter do not produce certified wood. This contributes to their lower profitability level. Finally, the comparison between semi-active and quasi-absent owners suggests that the latter benefit from their very low level of management, which translates into lower direct costs, while the former are penalized for managing more intensively.

Despite the limitations that result from using a very simple fire model, the total simulated burned area and the distribution of the “number of years between fires” were similar to the historical data for the Alvares parish, which constitutes an element of validation. The latter metric would benefit from improvements in the fire model. For example, the occurrence of wildfire was limited to one event per year, while historical data shows that, in 40 years, ten years had between two and four very large wildfires in the same year. In addition, estimates would benefit from exploring other mathematical forms for Equation (1) (Appendix A), which are expected to decrease the probability of selecting a wildfire with a low number of years since the last wildfire. This would likely reduce the overestimation of short fire intervals (Figure 5). Finally, results would also have benefited from a more extensive model calibration procedure, which would have required larger computation resources.

StandsSIM.md was adapted to account for the average amount of salvage wood for each owner type, estimated based on information provided by stakeholders and implemented through the S figure assigned to each type. These estimates require additional research to corroborate our figures on timber usage reduction. Moreover, the impact that fuel reduction treatments have on wildfire risk reduction is scarce in Europe and the existing studies have focused on other species rather than eucalypt [4]. Therefore, additional research is also needed to integrate shrub growth models, so that the impact of fuel treatments and interspecific competition can be taken into account. One key advantage will be coupling StandsSIM.md with an understory growth module, which, run using the 3PG+ as the selected growth model, will allow exploring ideal fuel treatment cycles that take into account the combined impact of silvicultural operations and climate change. Such improved simulations will widen the application of such an approach by enabling to prioritize fuel treatments in future scenarios when incomes will become negative and fire risks higher.

The definition of the management levels of improved management scenarios as shifts of areas among owner types might have had substantial impacts on results. For example, for non-industrial owners, the impact of area loss to the FBN is camouflaged by the impact of area shifts from quasi-absent to active and semi-active owners, which reflect management intensification. The slight increase in harvested volume per hectare under the second priority of FBN is not enough to fully compensate for the decrease in area, leading to a decrease in NPV and harvested volume when compared to the implementation of the first priority of FBN. Industrial owners lose 75, 139, and 218 ha of productive area as the FBN implementation moves from the first to the full priority, corresponding to losses of 6%, 11%, and 17% in productive areas. In fact, the interpretation of results at the overall parish level is less straightforward, because estimates are highly dependent on the areas assigned to each owner type under the different scenarios (Table 2). For industrial and active owners, the highest NPV was reached in scenarios that assign them the most intensive management (MHgh) combined with the largest forest areas (2129 × 10³m³ and −91 × 10³m³ for FBN0/3_MHgh_F1_C0 and FBN3/3_MHgh_F1_C0, respectively). For semi-active and quasi-absent owners, the scenarios yielding the highest NPV are those with the full FBN implementation combined with the smallest areas (FBN3/3_MCur_F1_C0 and FBN 3/3_MHgh_F1_C0, respectively). For the parish as a whole, the most favorable situation is the scenario combining the most intensive management with the full FBN, although this is the one with the smallest forest area: FBN 3/3_MHgh_F1_C0. Our results indicate a reduction in total burned area for the 40-year period as management is improved when compared to BAU (Table 3). The low effectiveness in reducing burnt area in another fuel treatment study was ascribed to the restrictions to mechanized fuel reduction operations in State forests, which represent 60% of the forest [52]. Considering these restrictions comparable to the lack of fuel reduction operations characterizing Quasi-absent owners, the significant marginal gain in burnt area reduction observed for FBN0/0_MHgh is justified by the increase of the level of fuel treatment at the parish level that is achieved by reducing the area of quasi-absent owners from 34.5% (MCur~BAU) to 8.5% (MHgh).

Climate change (long-lasting severe droughts and high temperatures) is aggravating the combination of factors favorable to the occurrence of severe wildfires. Although it is not easy to prevent them, it is possible to mitigate their impacts. Many defend to shift the focus from fire suppression to preventive and mitigating actions [3,36]. Within the scope of the “National Forest Defense System against Fires” and after the 2017 wildfires, the Law Decree 10/2018 [53] brought important changes to the original Law Decree on fuel management (Law Decree 124/2006, of June 28). With the new law, the implementation of fuel control measures that include cleaning shrubs higher than 50 cm and ensuring a minimum canopy distance of 10 m, as well as 50-m-wide buffers around settlements, which might require thinning operations, became mandatory for forest owners. The short deadlines and the lack of skilled personal and machines for these jobs led to rampant costs of operations and left forest owners struggling with their already poor incomes. The results of this research suggest that eucalypt plantations are only profitable for industrial owners, which leads to almost no investment (−28 × 10³€) at the parish level. Thus, policies to promote fire hazard reduction through forest management are urgently needed. The results of these simulations might help outlining context-specific policies to address stand-level management (including fuel reduction operations) and the implementation of FBN, in particular if the latter becomes compulsory.

Management improvement only focused on increasing stand-level forest management (Table 5) seems to work better. Higher NPV and harvested volumes would be obtained if stand-level forest management was preferred over the FBN implementation (NPV increased from −28 × 10³m³ (BAU) to 614 × 10³€ and harvested volume from 1127 × 10³m³ to 1423 × 10³m³).

These results have also highlighted the differences between industrial and non-industrial owners with the latter struggling to obtain an income from their forest. The scarce number of existing economic studies for eucalypt in Portugal ignore the impact of fire occurrence, and only consider growth rates and stumpage prices as the main factors affecting investment returns [14,54]. In fact, the lower growth rates of semi-active owners’, which generate lower harvested volumes, combined with non-certified management, which leads to lower stumpage prices, do not allow their revenues to offset direct costs. In comparison, active owners secure the highest forest income among all non-industrial owners. According to Santos et al. [36], different owner types in Alvares have different rationalities and thus different responses to policy. Active owners used to carry out silvicultural operations, have higher opportunity costs for setting aside forest area to implement the FBN, but require lower policy payments for active management. On the other hand, quasi-absent owners, with much lower expectations concerning forest income, have lower opportunity costs for giving up area or delivering management to a third party, but require higher payments to carry out silvicultural operations. Therefore, policies addressing stand-level management improvement should consider the prevailing owner types because their management intensity determines their willingness to accept one or the other type of policy payment [36]. Furthermore, the approach proposed in this study can be further developed if the knowledge concerning the spatial distribution of owner types and their corresponding fuel models is improved. This information would allow quantifying the impact of fuel treatment in areas managed under different intensities and improve the understanding of fire behavior in order to spatially target fuel control operations and avoid the development of counterproductive policies.

By choosing to implement the full priority FBN while keeping stand management at the Current level (Table 6), the improvement in NPV would be similar to that found for FBN0/3_MHgh (increasing from −28 × 10³m³ (BAU) to 603 × 10³€). However, the impact on harvested volume would be negative (1127 × 10³m³ to 989 × 10³m³) as a consequence of area reduction. Moreover, results showed that implementing the second priority level represents a small gain in NPV when compared to implementing the first priority level (328 × 10³€ and 371 × 10³€, respectively), but small losses in harvested volume (1089 × 10³m³ and 1043 × 10³€, respectively) as well as an increase in burnt area (ca. 400 ha).

In general, improving stand-level management and implementing the FBN clearly improved eucalypt profitability in the parish, with the scenario reflecting the highest management improvement (high management and full FBN implementation—FBN3/3_MHgh) resulting in the highest aggregated NPV for the parish (Table A3—Appendix B). These results are in line with those of similar research where increased revenues from wood sells were obtained as a consequence of burnt rate reduction achieved as fuel management was increased [32]. On the other hand, aggregated harvested volume decreases with planted forest area set aside for FBN implementation; this is not necessarily negative for owners, since both per ha harvested volume and NPV increase (see Table A2 and Table A3—Appendix B). Even industrial and quasi-absent owner types, who lose forest area for the implementation of the FBN and as a result of area shifts to more active owner types (only the latter) end up benefiting from spillover effects (unmanaged areas benefiting from the intensive management practiced in neighboring areas). The second best scenario is the one combining high management with the implementation of the first priority FBN (FBN1/3_MHgh). Because improvements are not proportional to the amount of FBN implemented, assessing the impacts of implementing the different levels requires deeper research. The current study highlights the need to develop support and regulative mechanisms that somehow control, compensate and subsidize the extremely high costs of silvicultural operations not compensated by the present stumpage prices in order to increase forest income. However, a marginal cost–benefit analysis to determine whether the full implementation of the FBN is worth should be carried out to inform the definition of an efficient FBN compensation policy. This could be possible combining this approach with others based on multi-criteria decision methods, such as the Pareto frontier, which will allow determining when gains resulting from improved management will outweigh fuel management cost. This information will be extremely useful in the design of fire-sensitive management prescriptions that can be integrated in practical forest management planning at the landscape level [29]. Small-sized fragmented ownership structure has been pointed out as the most critical barrier for investments [54]. This study’s results have shown that operation costs are a fundamental pillar of profitable management. Reducing unitary costs at the parish level implies being able to establish scale economies that can only be achieved through the implementation of alternative management programs. An innovative approach to mitigate the impact of small-sized fragmented forest ownership is being coordinated by a forest owners’ association (FOA), the “Associação Florestal do Baixo Vouga”, not far from Alvares. The forest area aggregation program promotes the grouping of contiguous areas under a common management plan. The FOA is responsible for providing all technical support, from plantation to wood selling, with the aim of facilitating management operations and reaching economies of scale. The program relies on quota-based investments and revenues that are distributed among members. At the same time, the program increases wood availability and forest income mitigates the impact of wildfire and pest while promoting the engagement, motivation, and appreciation of all the agents involved.

The effort to implement this type of initiatives, if combined with the development of informed policies to support forest management, focused exclusively on fuel reduction operation or with a more extensive focus, would allow planted forests to become a source of income, instead of a heritage, with all the resulting benefits to ecosystem services and society in general.

5. Conclusions

The simple approach used in this study addressed a major research gap: The absence of knowledge about to what extent improving forest management affects forest income and timber availability in a fire-prone landscape. There are several factors affecting forest income and volume harvested at the parish level. Results have shown that improving management can positively affect forest income in the parish and increase stand-level productivity.

Simulation results at the parish level underlined the impact of wildfires on NPV (70% loss), while the impact is much lower on aggregated harvested volume (BAU hypothetical scenario assuming no fire occurrence versus BAU scenario). The simulations for the improved management scenarios showed that combining the highest level of stand management with the full FBN implementation produced the biggest gains in forest income at parish level (1128 × 10³€), although aggregated harvest volumes decrease as the FBN is implemented. However, the overall improvement in forest income conceals differences among forest owner types, as industrial and non-industrial owners show contrasting contributions. The burden of periodic costs, combined with low stumpage prices paid to non-industrial owners undermines the possibility of attractive incomes from the forest, which discourage investment in non-industrial forest and leads to further abandonment of land management and the consequent increase of wildfire hazard.

Several alternatives to balance the cash flow could be considered. The implementation of public funding mechanisms and forest policies to promote sustainable forest management, which comprise fuel-load control measures and compensation schemes for forest income losses resulting from fuel-break network implementation [36], could be part of the solution. Such measures could be complemented through the establishment of joint management programs capable of merging small-sized odd-shaped properties belonging to several owners scattered across the landscape under a single forest management unit grounded on quota-based investments and revenues.

Despite the limitations and uncertainties in this study, these results highlight the potential to improve forest condition, increasing stand productivity and reducing fire hazard, as well as adding economic value to rural areas where forest prevails. The authors acknowledge the downsides of an approach that is based on the simple development of a linking tool that couples a fire simulator to a forest simulator. Other tools, where fire and forest growth simulations are run in parallel, can produce more valid and precise quantifications of the impacts of management intensification allowing re-assessing risk along the simulation period and adjusting management accordingly. However, the upside of this simple approach lies in the possibility of performing economic analysis for different scenarios of management improvement, considering fire risk—a task that has never been tried before. This approach can be enhanced to improve the assessment of combined impacts of forest management, wildfire risk, and climate change to better assist forest management, guide decision-making processes, and the definition of context-specific, cost-effective forest policies. Moreover, future research may expand beyond the assessment of fire probability and area burned to focus on fire intensity, severity and effects, which will allow for a tighter coupling with forest and fuel management options.
