Article

Research on Wildfires and Remote Sensing in the Last Three Decades: A Bibliometric Analysis

by
Sarah Moura Batista dos Santos
,
António Bento-Gonçalves
* and
António Vieira
Communication and Society Research Centre (CECS), Geography Department, University of Minho, 4800-058 Guimarães, Portugal
*
Author to whom correspondence should be addressed.
Forests 2021, 12(5), 604; https://doi.org/10.3390/f12050604
Submission received: 28 April 2021 / Accepted: 11 May 2021 / Published: 12 May 2021
(This article belongs to the Section Forest Inventory, Modeling and Remote Sensing)

Abstract

:
Evaluating the impact of wildland fires on landscapes, a pursuit increasingly supported by remote sensing techniques, requires an understanding of wildfire dynamics. This research highlights the main insights from the literature related to “wildfires” and “remote sensing” published between 1991 and 2020. The Scopus database was used as a source of information regarding scientific production on these topics, after which bibliometric tools were employed as a means through which to reveal patterns in this network of journals, terms, countries, and authors. The results suggest that these subject areas have undergone significant developments in the last three decades, having been the focus of growing interest among the scientific community. The most relevant contributions to the literature available have been made by researchers working in the areas of earth and environmental sciences (54% of the publications), primarily in the United States, China, Spain, and Canada. Research trends in this field have undergone a significant evolution in recent decades, explained by the strong relationship between the technological evolution of detection methods and remote sensing data acquisition.

1. Introduction

Fire plays a key role in the ecology of many ecosystems [1,2], having been present throughout the history and the development of society. It can also be considered a determining factor in the distribution and dominance of savannas worldwide, even in places where the climate and soil could potentially sustain forests [3,4,5]. Thus, fire can be understood as a natural ecological factor that influences the structure and functioning of several ecosystems [6]. However, a distinction must be made between fires and wildfires, the latter being defined by their uncontrollable nature, causing significant losses [7].
A severe threat to many environments, wildfires are considered one of the most challenging phenomena in environmental sciences [8]. The increase in frequency and intensity of fires has been documented in several ecosystems around the world [9,10,11], producing a significant impact on global warming, as fires often result in a considerable loss of biomass and carbon, which can alter local climates [2,7,12,13,14,15,16].
In this context, remote sensing techniques are a highly feasible and effective tool for describing patterns of the occurrence of fire in various ecosystems, as satellite imaging is an important means through which to delineate the perimeters of fire expansion and characterise the degree of intensity or severity reached by fires [12,13,17,18,19,20,21].
The assessment of changes in vegetation patterns caused by fire over time can be conducted in various ways, from traditional field observations to monitoring carried out using Earth Observation Systems [22]. Earth observation is an important tool for monitoring land surface and vegetation dynamics at regional and global scales over significant periods of time [23,24]. Although their temporal, spatial, and spectral resolutions vary, the various Earth Observation Sensor systems available provide tools with which to assess vegetation attributes from different perspectives [22]. In addition, recent advances in computational methods and free access to medium spatial resolution images, such as Sentinel and Landsat, favour their applicability in studies involving the use of time series to identify disturbances and monitor events [22].
However, some limitations of these methods should be noted, such as cloud cover, which could affect data quality in a given area and make it difficult to identify the fire. Another limitation may be the availability of free data and the relationship to the extended temporal resolution of some sensors, which may make it difficult to quickly acquire data following a fire [25].
An increasing number of studies related to wildfires have been developed since remote sensing applications began gaining popularity [26]. As such, studies must be conducted to present a comprehensive review of the investigations carried out in order to understand the patterns of research in this field. Bibliometric analyses based on mathematical and statistical tools have been carried out to analyse publications, citations, and journals relating to many areas of knowledge [27,28,29]. Researchers can use bibliometric maps to better understand the field in which they are working [30], using scientific methodology to determine the evolution of research on the topics in question (wildfires and remote sensing).
Bibliometrics can be commonly defined as a qualitative and quantitative analysis of research used to assess the impact a researcher, research groups, institutions, countries, or journals have had [27,28,29,31]. Therefore, adopting bibliometric analysis is an appropriate approach to highlight the main results of the literature [28,31,32] and reveal the main knowledge gaps [28,33]. Consequently, bibliometric analyses, along with text mining techniques, can help recognise standards in a scientific body of literature [34,35]. This is important as it enables an analysis of the thematic, methodological, and conceptual trends, taking into account their variations over time, supporting knowledge perception and structuring both developing and consolidated fields of science [34,35].
Although some review studies involving wildfires in conjunction with the use of remote sensing techniques have been proposed [20,25,26,36,37,38,39], it was considered important to list and map the main conceptual and methodological trends, identifying significant theoretical contributions and describing their applications through case studies developed in different parts of the world. Considering the need for a structured revision to be carried out of scientific production addressing the research topics, the objective of this paper is to analyse the scientific publications indexed in the Scopus database, simultaneously encompassing the subjects of forest fires and remote sensing over a 30-year timescale.
As such, the following research questions were proposed to guide the study: (i) Which are the leading scientific journals to address these subjects? (ii) Which are the main countries and research institutes to publish on these subjects? (iii) Which are the most frequent environmental indicators referred to in the publications? (iv) Which authors publish the most?

2. Materials and Methods

To answer the questions proposed, research was based on a bibliometric analysis approach. Thus, quantitative data from reference articles were used to produce graphs, tables, bibliographic data networks, and textual data networks. In terms of a methodological approach, the study was divided into two main stages. The first step included the choice of search database, identifying terms relevant to the subject and implementing filters to the search engine (Step 1). After this first step, a manual screening was performed, in which all the titles and abstracts of the articles returned in the search were read in order to identify and remove any unrelated articles. A standardisation of terms was then performed, in which any repeated words or terms were identified and excluded. The data network was then constructed of all the articles using VOSviewer software (Step 2). The methodological procedures employed to achieve the results required are presented in the following methodological flowchart (Figure 1) and described below.

2.1. Bibliographic Basis

The database used in this study was extracted from Scopus Database [40]. Scopus is the largest multidisciplinary database of abstracts and references of scientific literature, accounting for more than 25,100 titles, with about 23,452 of which being taken from peer-reviewed journals and 5000 from international publishers. Scopus offers the most comprehensive overview of world research production [27,40,41], incorporating efficient analysis tools to recover and aggregate information and export data in various formats, providing a comprehensive view of the total volume of global research produced in various areas of knowledge. All of these reasons contributed to Scopus being chosen as the bibliographic database used for this research [41].
This study was limited to an analysis of publications printed in journals, reducing the bias caused by duplicate publications and minimising false-positive results. Reviews, conference proceedings, book chapters, and books were not considered as they include works that may have been published more than once in different media sources [27].
To identify the articles published relating to the subject studied over the last 30 years, a search for related terms was performed using the Scopus [40] search tool. The possible textual variants that would allow for the research themes to be found in their totality were then determined, producing the following list: “Megafire” OR “Extreme fire” OR “Large forest fire” OR “Wildland fire” OR “Wildfire” OR “Forest fire” OR “Bushfires” AND “Remote Sensing”. These terms were located in the titles, abstracts, and keywords of publications from between 1991 and 2020 on the 19 January 2021. Reviews and book chapters were removed from the search, as were articles unrelated to the subject.

2.2. Bibliometric Analysis

VOSviewer software [42,43] was used as a means through which to provide a visual representation of the data network. The tool is specifically designed for bibliometric analysis, and is used to view data returned by searches conducted in the Scopus Database (as well as other databases, such as Web of Science, Dimensions, PubMed) [42,43]. VOSviewer can be used to build networks of scientific publications, scientific journals, researchers, research organisations, countries, and keywords, for example. Items in these networks can be connected by co-authorship, co-occurrence, citation, bibliographic coupling, or co-citation links [27,28,30,43].
Creating a semantic network, the items are represented by nodes and edges. Nodes are objects such as co-authorship or co-occurrence of words and countries, for example. An edge can exist between any pair of nodes. An edge is a connection or relationship between two nodes. The distance between two nodes on the graph produced indicates the approximate relationship between search terms, and the relationship between the respective terms; smaller distances point to a greater number of co-occurrences. The size of a label on a node is determined by the weight of an item within a network (sizes have a direct correlation with frequency) [27,28,29,30,43].
All articles returned by the conducted search were analysed in terms of their textual and bibliographical data. Based on the textual data, co-occurrences were analysed between terms (in article titles and abstracts). Limiting the terms considered to the titles and abstracts of the articles reduced the risks of terms being repeated in different parts of the same documents being registered [28]. The research topics were categorised into four clusters based on when they were published: 1990s, 2000s, 2010s, and a comprehensive 30-year set.
The following analysis was performed using bibliographic data: bibliographic coupling (relationship between items based on the number of shared references); citation (relationship between items based on the number of times they cite each other); co-authorship (relationship of items based on the number of co-authored documents) and co-citation (relationship of items based on the number of times they are cited together) [28,43].
Each colour represents a cluster in the network visualisation maps obtained using VOSviewer software. These clusters were built by the software following the methodology described by Van Eck and Waltman [43] and Mourão [28]. VOSviewer constructs a map based on a co-occurrence matrix. The construction of a map is a process that consists of three steps. In the first step, a similarity matrix is calculated based on the co-occurrence matrix. In the second step, a map is constructed by applying the VOS mapping technique to the similarity matrix. Finally, in the third step, the map is translated, rotated, and reflected [43].
Other concepts presented in the figures and tables below are also explained in this publication. For example, a cluster is a group of items presented on a map; a link is a relationship between two items and average citations obtained by the documents within which an item appears.

3. Bibliometric Results and Discussion

The results found in the conducted bibliometric analysis shall be detailed in this section for sources, terms, countries, authors, citations, and co-citations. The number of documents obtained in the Scopus database (1722 documents, considering only articles and excluding books, conferences, and other documents) involving wildfires and remote sensing, published between 1991 and 2020.

3.1. General Information

An analysis of the annual distribution of the number of articles published on wildfires and remote sensing (see Figure 2) highlights the period between 2016 and 2020 as the most representative five-year period in the timeframe assessed, accounting for 40% of all publications. This period registers the highest growth rate in the number of publications. Due to the technological evolution that has occurred in recent years, with the development of new sensor systems, time series data, advances in image processing techniques, and the increased availability of free images have been established [26].
Of the 1722 publications, 951 (30.8%) were linked to the earth and planetary sciences subarea, 731(23.7%) with the environmental science subarea, 603 (19.6%) with the agricultural and biological sciences subarea, 193 (6.3%) with the social sciences subarea, 143 (4.6%) with the engineering subarea, 101 (3.3%) with the computer sciences subarea and the rest of the subareas present with low productivity on the subject.

3.2. Bibliographic Coupling and Journal Sources

Figure 3 presents the relationship between journals based on the number of references they share (bibliographic coupling × journal sources). The Remote Sensing of Environment journal had an impact factor of 9.085 in 2019, and the International Journal of Remote Sensing registered an Impact Factor of 2.976 in 2019. These were the sources/journals with the most hits in the conducted search, accounting for half of the documents between them. These two publications were also the focus of most of the citations identified in the research. Strong relationships were registered between the following journals: Remote Sensing of Environment, Remote Sensing, International Journal of Wildland Fire and International Journal of Remote Sensing. The network was drawn up solely encompassing journals with at least eight publications, therefore containing only 43 journals and five clusters.
The size of each node (dot) and link (line) is proportional to the intensity of the node or line link. Table 1 presents additional information, listing the journals in order, from those with the most citations to the least, and according to the number of articles published. Table 1 also shows other relevant values such as the cluster number of each source, the value of its links and the strength of links.
VOSviewer generates clusters considering the individual publications in focus [43]. In this specific case, each source was analysed as an individual and was exclusively grouped into one community; each was built considering the relevance of the specific variable. Consequently, 43 items were displayed in five clusters. In total, 19 items were grouped into cluster 1, which is composed of the most cited sources. This phenomenon is not uncommon in bibliometric analyses [28,44] and reflects a certain publishing preference among journals, which publish articles that cite other works within certain groups of journals, especially those with similar impact factors [28,45].

3.3. Citation of Sources

In this case, connections between items were based on the number of times journals cited each other (Figure 4). It can be concluded that the Remote Sensing of Environment journal (which contained 113 documents, 9777 citations and had a link-strength of 1024), the International Journal of Remote Sensing (118 documents, 4582 citations and a link-strength of 497), the Journal Remote Sensing (89 documents, 937 citations and a link-strength of 365) and the International Journal of Wildland Fire (77 documents, 2745 citations and link-strength of 477) were the sources with the most frequently cited documents. These four publications make up about 44.7% of the total citations registered.
The Izvestiya-Atmospheric and Ocean Physics journal does not show a strong relationship to the others and is placed in an isolated position within the network. It is also important to note that Yaogan Xuebao/Journal of Remote Sensing did not link to any of the journals in the “citation x sources” analysis. However, this journal was still included in the journals with at least eight publications on the research subject.

3.4. Main Terms

Based on the textual data located in the titles, abstracts, and keywords of the articles, and using the frequency of co-occurrence to analyse the textual data, only the terms repeated at least 10 times were considered, repeated terms having been identified and adjusted in the pre-processing phase of the data. The research topics were categorised into four clusters (represented using different colours in Figure 5), with the following composition over time: 1990s (1991 to 2000, 30 terms analysed in three clusters), 2000s (2001 to 2010, 288 terms analysed in four clusters), 2010s (2011 to 2020, 641 terms analysed in four clusters), and a comprehensive 30-year set (1991 to 2020, 951 terms analysed).
The network established for the 1990s (1991 to 2000, see Figure 5) allowed three clusters to be identified. In the first one, the most frequent terms were “data”, “change”, “wildfire”, “analysis”, and “effect”. The second cluster contained the terms: “forest fire”, “fire”, “image”, “burned area”, “detection”. The third contained the terms: “remote sensing”, “use”, “monitoring”, “gis”, “observation”. These results reflect the major scientific interests present in the 1990s within the discussion on the techniques used for conducting image analyses on forest fire research, as well as on the development of remote sensing tools used to analyse changes in land use, monitoring and landscape dynamics related to forest fires [46,47].
Between 2001 and 2010 (Figure 5), a growing number of terms and a consequent increment in the number of network clusters can be identified. The four clusters identified for this period are as follows: (1) cluster one contains the terms “Forest fire”, “satellite”, “detection”, “estimation”, “system”, “use”; (2) cluster two contains “model”, “remote sensing data”, “observation”, “emission”, “modis”, “carbon”; (3) the third cluster contains: “analysis”, “index”, “severity”, “image”, “ndvi”, “nbr”; (4) the fourth cluster contains: “fire”, “forest”, “wildfire”, “landscape”, “change”, “effect”. New trends in scientific research have appeared during this period, focusing on establishing models used to analyse forest fires and develop different analysis indexes [7,48,49,50,51,52].
The last decade included in this analysis (2011–2020, see Figure 5) also presents a network containing four clusters, revealing the consolidation of the use of some terms (relating to some topics), such as fire, data, forest fire, change, index, analysis. The main terms in the first cluster are: “fire”, “forest”, “wildfire”, “change”, “effect”, “severity”, “landscape”; in the second cluster are: “data”, “forest fire”, “image”, “accuracy”, “index”, “algorithm”, “system”; third cluster: “event”, “region”, “observation”, “satellite”, “modis”, “impact”, “emission”; and for the fourth cluster: “remote sensing”, “analysis”, “study”, “land cover”, “occurrence”. The distribution of this set of terms reveals a certain consolidation of some research topics, specifically those related to clusters one and two, as well as the emergence of other topics related to the application of spectral indices for the analysis of the severity of fires and the development of application systems and algorithms for use in satellite imagery processing and analysis [9,10,53,54,55].
If the development of the network as a whole, encompassing the entirety of the period studied, is considered (1991–2020, see Figure 5), the existence of a well-established network of terms is established, exposing a clear conceptual framework resulting from the interconnection of studies involving forest fires and remote sensing. In fact, in cluster one, the emergence of research topics related to the analysis of changes in forest areas following forest fires can be perceived based on the application of spectral indexes and concerning the impact of such events on climate change. Cluster two addresses topics associated with wildfire detection, monitoring and mapping based on satellite imagery. The third cluster demonstrates the relationship between terms connected to the impact of fire, fire emissions, pollution, distribution and value. The final cluster is centred on research topics that assess burnt areas by implementing models applied to remote sensing data. The influence of anthropic factors is also included in this cluster [7,26,46,49,52,53,54,55,56].

3.5. Countries

The nationalities of co-authors were determined in order to pinpoint collaborations established between countries. The search conducted of the Scopus database returned publications from 106 countries and 26 publications with no country identified.
Figure 6 demonstrates that the countries identified in the analysis were grouped into seven clusters (see Table 2). The criteria defined for the selection of countries were those that produced journals with a minimum of 10 published documents and a minimum of 50 citations. A total of 33 countries were selected as a result, with most co-authored documents being registered as from the USA (681 documents, 30% of the studies), China (192 documents, 8.4% of the studies), Spain (176 documents, 7.7% of the studies), and Canada (142 documents, 6.2% of the studies); these four countries make up around 52.3% of the studies among the 33 countries analysed. These analyses of the various co-authorships reveal the international cooperation between authors of different nationalities and affiliations in terms of the themes explored here and related to forest fires and remote sensing.
As expected, the network of collaborations between different nationalities had a positive correlation with the co-citation of works [28]. Table 2 presents additional information quantifying the data presented in Figure 6, displaying the way in which relationship clusters are organised according to the number of publications, citations, and strength of links. The table also shows the interrelations between countries, allowing the data to be considered in terms of trends through the network of publications among countries. It is also possible to observe that the countries with more significant link-strengths in the groups are: United Kingdom (cluster 1), United States (cluster 2), Spain (cluster 3), Australia (cluster 4), India (cluster 5), South Africa (cluster 6) and Turkey (cluster 7). Portugal and Brazil are part of cluster 3, collaborating more closely with Spain, Italy, Belgium, Chile, Mexico, and Argentina.
The USDA Forest Service ranks first among the institutes that have published the most (Table 3). Among the top 20 publishers, 15 are from the United States, two are Chinese, two Canadian, and one is a European centre based in Belgium.

3.6. Authors and Co-Citation

To understand whether the scientific topics addressed within this article tend to be more or less concentrated in terms of their authorship, this subsection shall analyse the most productive authors, co-authorships, and co-citations individually. The following Table 4 therefore presents the single authors with the highest number of publications and citations related to forest fires and remote sensing, as established by the conducted search.

3.6.1. Co-Authorship

When analysing the authors returned in the search from the angle of co-authorship, authors were required to have at least four documents. In order to create links, the relationship between items was based on the number of documents co-authored. Figure 7 presents the network visualisation map of these items and reveals that the various authors were grouped into 18 clusters. Some of the 245 items identified in the network did not connect to any others, with the largest set of interconnected items therefore consisting of 206 items.
In these groups, the authors with the most co-authored documents were Emilio Chuvieco (19 studies), Z. Li (19 studies), and A. T. Hudak (18 studies). Table 5 also details the number of citations of the ten most productive groups. All these authors have been cited a high number of times, demonstrating their significant contribution to the research topic of this paper.

3.6.2. Co-Citation

For links focussing on co-citation, the relationship between the items was based on the number of times cited together. Only authors with a minimum of 50 citations were selected for the analysis. Figure 8 shows that L. Giglio and E. Chuvieco are the most co-cited authors (1273 and 1263 citations, respectively). Other authors with a significant number of citations and with a pronounced relatedness are C. O. Justice (995 citations), E. S. Kasischke (831 citations), and Y. J. Kaufman (708 citations).

4. Conclusions

The bibliographic revision performed within this work centred on publications on the subject of wildland fires and remote sensing in scientific journals that were published in the last three decades (1991–2020). It was possible to identify the leading journals, countries, authors, and institutions involved in the research conducted on the above-mentioned topics and map out the most relevant terms used over this period.
The results show that the number of publications on the subjects increased during the period analysed, demonstrating the growing interest of the scientific community. Of the total publications, 54% were linked to earth and environmental sciences, revealing the interest and connection between the topics analysed and the environmental dynamics. The research trends in this field include the significant developments in remote sensing techniques for studies on forest fires in recent decades. This evolution is explained by the fact that there is a strong correlation between the technological evolution of detection methods and remote sensing data acquisition.
It was also concluded that publications with the highest number of articles and citations were scientific journals, specifically Elsevier’s Remote Sensing of Environment (IF 2019: 9.085) journal, Taylor and Francis’ International Journal of Remote Sensing (IF 2019: 2976) and Csiro Publishing’s International Journal of Wildland Fire (IF 2019: 2988).
In terms of researchers’ countries of origin, the United States of America was the highest contributor, providing 681 co-authored documents, and was also the country with the highest number of international co-operations. China contributed 192 documents, Spain contributed 176 and Canada contributed 142. Consequently, the research institutions with higher contribution rates come from these countries: the USDA Forest Service coming in first place, followed by the Chinese Academy of Sciences and the University of Maryland.
Regarding the most frequent indicators in publications, evolution of the theoretical and methodological field was noted over the three decades analysed. A well-established network was also found to exist between the terms, creating four major relationship clusters. The first cluster involved analysing changes in forests caused by wildland fires over the years and the use of spectral indices in the analysis of climate change. A second cluster involved developing systems to monitor, map and detect wildland fires based on satellite imagery. The third cluster demonstrates the relationship between studies on the impact of emissions, especially in the various biomes. The fourth cluster demonstrates the relationship between studies that analyse burnt areas based on models, using remote sensing data as well as the influence of anthropogenic factors.
Considering the authors with the highest levels of published scientific work identified in this paper, it can be concluded that Emilio Chuvieco has produced the most on the topic studied, both individually and collaboratively. The most cited authors are Y. J. Kaufman (2130 citations), C. O. Justice (1971 citations), L. Giglio (1770 citations) and E. Chuvieco (1413 citations). L. Giglio and E. Chuvieco are the most cited co-authors (1286 and 1261 citations, respectively).
This work presents certain limitations, some of which will serve as a basis for future research. First, the bibliometric analysis could also be developed using other quantitative or qualitative tools (for example, Web of Science or Google Scholar), which may present some differences, especially concerning citations. As databases are not updated immediately once an article is published, slight variations may exist in the number of articles present in the WoS and Scopus databases.

Author Contributions

S.M.B.d.S., A.B.-G. and A.V. have contributed equally to the writing of this manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Portuguese funds through Fundação para a Ciência e a Tecnologia, I.P., within the scope of the research project “O valor económico dos incêndios florestais como suporte ao comportamento preventivo”, reference PCIF/AGT/0153/2018.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data used in this work were retrieved from the Scopus database, which is available online: https://www.scopus.com/ (accessed on 19 January 2021).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bento-Gonçalves, A.; Vieira, A.; Úbeda, X.; Martin, D. Geoderma fire and soils: Key concepts and recent advances. Geoderma 2012. [Google Scholar] [CrossRef]
  2. Ferreira-Leite, F.; Lourenço, L.; Bento-Gonçalves, A. Large forest fires in mainland portugal, brief characterization. Méditerranée 2013, 53–65. [Google Scholar] [CrossRef]
  3. Bond, W.; Keeley, J. Fire as a global ‘herbivore’: The ecology and evolution of flammable ecosystems. Trends Ecol. Evol. 2005, 20, 387–394. [Google Scholar] [CrossRef] [PubMed]
  4. Bond, W.J.; Woodward, F.I.; Midgley, G.F. The global distribution of ecosystems in a world without fire. New Phytol. 2004, 165, 525–538. [Google Scholar] [CrossRef] [PubMed]
  5. Van Langevelde, F.; van de Vijver, C.A.D.M.; Kumar, L.; van de Koppel, J.; de Ridder, N.; van Andel, J.; Skidmore, A.K.; Hearne, J.W.; Stroosnijder, L.; Bond, W.J.; et al. Effects of fire and herbivory on the stability of savanna ecosystems. Ecology 2003, 84, 337–350. [Google Scholar] [CrossRef] [Green Version]
  6. Pausas, J.G.; Keeley, J.E. A burning story: The role of fire in the history of life. Bioscience 2009, 59, 593–601. [Google Scholar] [CrossRef] [Green Version]
  7. Chuvieco, E.; Aguado, I.; Yebra, M.; Nieto, H.; Salas, J.; Martín, M.P.; Vilar, L.; Martínez, J.; Martín, S.; Ibarra, P.; et al. Development of a framework for fire risk assessment using remote sensing and geographic information system technologies. Ecol. Modell. 2010, 221, 46–58. [Google Scholar] [CrossRef]
  8. Granged, A.J.P.; Jordán, A.; Zavala, L.M.; Muñoz-Rojas, M.; Mataix-Solera, J. Short-term effects of experimental fire for a soil under eucalyptus forest (SE Australia). Geoderma 2011, 167–168, 125–134. [Google Scholar] [CrossRef]
  9. Halofsky, J.E.; Peterson, D.L.; Harvey, B.J. Changing wildfire, changing forests: The effects of climate change on fire regimes and vegetation in the Pacific Northwest, USA. Fire Ecol. 2020, 16, 4. [Google Scholar] [CrossRef] [Green Version]
  10. Doerr, S.H.; Santín, C. Global trends in wildfire and its impacts: Perceptions versus realities in a changing world. Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 20150345. [Google Scholar] [CrossRef]
  11. Santos, S.M.B.; Franca-Rocha, W.J.S.; Bento-Gonçalves, A.; Baptista, G.M.M. Quantificação e avaliação dos focos de calor no parque na-cional da chapada diamantina e entorno no período de 2007 a 2016. Rev. Bras. Cartogr. 2017, 69, 701–712. [Google Scholar]
  12. Parker, B.M.; Lewis, T.; Srivastava, S.K. Estimation and evaluation of multi-decadal fire severity patterns using Landsat sensors. Remote Sens. Environ. 2015, 170, 340–349. [Google Scholar] [CrossRef]
  13. Meng, Q.; Meentemeyer, R.K. Modeling of multi-strata forest fire severity using Landsat TM data. Int. J. Appl. Earth Obs. Geoinf. 2011, 13, 120–126. [Google Scholar] [CrossRef]
  14. French, N.H.F.; Kasischke, E.S.; Hall, R.J.; Murphy, K.A.; Verbyla, D.L.; Hoy, E.E.; Allen, J.L. Using Landsat data to assess fire and burn severity in the North American boreal forest region: An overview and summary of results. Int. J. Wildl. Fire 2008, 17, 443. [Google Scholar] [CrossRef]
  15. Robichaud, P.R.; Lewis, S.A.; Laes, D.Y.M.; Hudak, A.T.; Kokaly, R.F.; Zamudio, J.A. Postfire soil burn severity mapping with hyperspectral image unmixing. Remote Sens. Environ. 2007, 108, 467–480. [Google Scholar] [CrossRef] [Green Version]
  16. Westerling, A.L.; Hidalgo, H.G.; Cayan, D.R.; Swetnam, T.W. Warming and Earlier Spring Increase Western U.S. Forest Wildfire Activity. Science 2006, 1161, 940–944. [Google Scholar] [CrossRef] [Green Version]
  17. Veraverbeke, S.; Stavros, E.N.; Hook, S.J. Assessing fire severity using imaging spectroscopy data from the Airborne Visible/Infrared Imaging Spectrometer (AVIRIS) and comparison with multispectral capabilities. Remote Sens. Environ. 2014, 154, 153–163. [Google Scholar] [CrossRef]
  18. Sunderman, S.O.; Weisberg, P.J. Remote sensing approaches for reconstructing fire perimeters and burn severity mosaics in desert spring ecosystems. Remote Sens. Environ. 2011, 115, 2384–2389. [Google Scholar] [CrossRef]
  19. Key, C.H.; Benson, N.C. Landscape assessment: Sampling and analysis methods. In FIREMON: Fire Effects Monitoring and Inventory System; US Department of Agriculture, Forest Service, Rocky Mountain Research Station: Fort Collins, CO, USA, 2006; pp. 1–55. [Google Scholar]
  20. Santos, S.M.B.D.; Bento-Gonçalves, A.; Franca-Rocha, W.; Baptista, G. Assessment of burned forest area severity and postfire regrowth in chapada diamantina national park (Bahia, Brazil) using dNBR and RdNBR spectral indices. Geosciences 2020, 10, 106. [Google Scholar] [CrossRef] [Green Version]
  21. Leite, C.C.S.S.; Santos, S.M.B.; Franca-Rocha, W.J.S.; Silva, A.B.; Baptista, G.M.M. Análise dos incêndios ocorridos no parque nacional da cha-pada diamantina-bahia em 2008 e 2015 com suporte em ín-dices espectrais de vegetação. Rev. Bras. Cartogr. 2017, 69, 1127–1141. [Google Scholar]
  22. Soulard, C.; Albano, C.; Villarreal, M.; Walker, J. Continuous 1985–2012 landsat monitoring to assess fire effects on meadows in yosemite national park, California. Remote Sens. 2016, 8, 371. [Google Scholar] [CrossRef] [Green Version]
  23. Sonnenschein, R.; Kuemmerle, T.; Udelhoven, T.; Stellmes, M.; Hostert, P. Differences in landsat-based trend analyses in drylands due to the choice of vegetation estimate. Remote Sens. Environ. 2011, 115, 1408–1420. [Google Scholar] [CrossRef]
  24. Johansen, K.; Phinn, S.; Taylor, M. Mapping woody vegetation clearing in Queensland, Australia from Landsat imagery using the google earth engine. Remote Sens. Appl. Soc. Environ. 2015, 1, 36–49. [Google Scholar] [CrossRef]
  25. Szpakowski, D.; Jensen, J. A review of the applications of remote sensing in fire ecology. Remote Sens. 2019, 11, 2638. [Google Scholar] [CrossRef] [Green Version]
  26. Chuvieco, E.; Mouillot, F.; van der Werf, G.R.; San Miguel, J.; Tanasse, M.; Koutsias, N.; García, M.; Yebra, M.; Padilla, M.; Gitas, I.; et al. Historical background and current developments for mapping burned area from satellite Earth observation. Remote Sens. Environ. 2019, 225, 45–64. [Google Scholar] [CrossRef]
  27. Vasconcelos, R.N.; Lima, A.T.C.; Lentini, C.A.D.; Miranda, G.V.; Mendonça, L.F.; Silva, M.A.; Cambuí, E.C.B.; Lopes, J.M.; Porsani, M.J. Oil spill detection and mapping: A 50-year bibliometric analysis. Remote Sens. 2020, 12, 3647. [Google Scholar] [CrossRef]
  28. Mourao, P.R.; Martinho, V.D. Forest entrepreneurship: A bibliometric analysis and a discussion about the co-authorship networks of an emerging scientific field. J. Clean. Prod. 2020, 256, 120413. [Google Scholar] [CrossRef]
  29. Uribe-Toril, J.; Ruiz-Real, J.; Haba-Osca, J.; de Pablo Valenciano, J. Forests’ first decade: A bibliometric analysis overview. Forests 2019, 10, 72. [Google Scholar] [CrossRef] [Green Version]
  30. Van Eck, N.J.; Waltman, L.; Noyons, E.C.M.; Buter, R.K. Automatic term identification for bibliometric mapping. Scientometrics 2010, 82, 581–596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Santos, J.J.S.; Franca-Rocha, W.J.S.; Baptista, G.M.M.; Souza, D.T.M.; Silva, A.B.; Santos, S.M.B. Análise bibliometrica da espectrorradiometria e geoestatística de solos: Uma discussão em 10 anos. Rev. Geociências UNESP 2019, 38, 1097–1104. [Google Scholar]
  32. Guan, Y.; Kang, R.; Liu, J. Evolution of the field of ecological restoration over the last three decades: A bibliometric analysis. Restor. Ecol. 2019, 27, 647–660. [Google Scholar] [CrossRef]
  33. Leal, A.I.; Correia, R.A.; Palmeirim, J.M.; Bugalho, M.N. Is research supporting sustainable management in a changing world? Insights from a Mediterranean silvopastoral system. Agrofor. Syst. 2019, 93, 355–368. [Google Scholar] [CrossRef]
  34. Zhang, X.; Estoque, R.C.; Xie, H.; Murayama, Y.; Ranagalage, M. Bibliometric analysis of highly cited articles on ecosystem services. PLoS ONE 2019, 14, e0210707. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, Y.; Thenkabail, P.S.; Wang, P. A bibliometric profile of the remote sensing open access journal published by MDPI between 2009 and 2018. Remote Sens. 2019, 11, 91. [Google Scholar] [CrossRef] [Green Version]
  36. Barmpoutis, P.; Papaioannou, P.; Dimitropoulos, K.; Grammalidis, N. A review on early forest fire detection systems using optical remote sensing. Sensors 2020, 20, 6442. [Google Scholar] [CrossRef]
  37. Leblon, B.; Bourgeau-Chavez, L.; San-Miguel-Ayanz, J. Use of remote sensing in wildfire management. In Sustainable Development—Authoritative and Leading Edge Content for Environmental Management; Curkovic, S., Ed.; InTech: London, UK, 2012. [Google Scholar]
  38. Govil, K.; Welch, M.L.; Ball, J.T.; Pennypacker, C.R. Preliminary results from a wildfire detection system using deep learning on remote camera images. Remote Sens. 2020, 12, 166. [Google Scholar] [CrossRef] [Green Version]
  39. Arruda, V.L.S.; Piontekowski, V.J.; Alencar, A.; Pereira, R.S.; Matricardi, E.A.T. An alternative approach for mapping burn scars using landsat imagery, google earth engine, and deep learning in the Brazilian Savanna. Remote Sens. Appl. Soc. Environ. 2021, 22, 100472. [Google Scholar] [CrossRef]
  40. Scopus Scopus Database. Available online: https://www2.scopus.com/home.uri (accessed on 19 January 2021).
  41. Elsevier Content How Scopus Works—Scopus—Elsevier Solutions. Available online: https://www.elsevier.com/solutions/scopus/how-scopus-works/content (accessed on 12 January 2021).
  42. VOSviewer VOSviewer—Visualizing Scientific Landscapes. Available online: https://www.vosviewer.com/ (accessed on 10 January 2021).
  43. Van Eck, N.J.; Waltman, L. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics 2010, 84, 523–538. [Google Scholar] [CrossRef] [Green Version]
  44. Schramme, T. The Future of Academic Journals? Ethical Theory Moral Pract. 2019, 22, 259–261. [Google Scholar] [CrossRef] [Green Version]
  45. Selmer, J. Are highly ranked academic journals better? J. Glob. Mobil. Home Expatr. Manag. Res. 2018, 6, 126–128. [Google Scholar] [CrossRef] [Green Version]
  46. Chuvieco, E. Measuring changes in landscape pattern from satellite images: Short-term effects of fire on spatial diversity. Int. J. Remote Sens. 1999, 20, 2331–2346. [Google Scholar] [CrossRef]
  47. Kasischke, E.S.; French, N.H.F.; Harrell, P.; Christensen, N.L.; Ustin, S.L.; Barry, D. Monitoring of wildfires in Boreal Forests using large area AVHRR NDVI composite image data. Remote Sens. Environ. 1993, 45, 61–71. [Google Scholar] [CrossRef]
  48. De Santis, A.; Chuvieco, E. Burn severity estimation from remotely sensed data: Performance of simulation versus empirical models. Remote Sens. Environ. 2007, 108, 422–435. [Google Scholar] [CrossRef]
  49. Giglio, L.; Descloitres, J.; Justice, C.O.; Kaufman, Y.J. An Enhanced Contextual Fire Detection Algorithm for MODIS. Remote Sens. Environ. 2003, 87, 273–282. [Google Scholar] [CrossRef]
  50. Fraser, R.; Li, Z. Estimating fire-related parameters in boreal forest using SPOT VEGETATION. Remote Sens. Environ. 2002, 82, 95–110. [Google Scholar] [CrossRef] [Green Version]
  51. Roy, D.P.; Jin, Y.; Lewis, P.E.; Justice, C.O. Prototyping a global algorithm for systematic fire-affected area mapping using MODIS time series data. Remote Sens. Environ. 2005, 97, 137–162. [Google Scholar] [CrossRef]
  52. Giglio, L.; Justice, C.O. Effect of wavelength selection on characterization of fire size and temperature. Int. J. Remote Sens. 2003, 24, 3515–3520. [Google Scholar] [CrossRef]
  53. White, J.C.; Wulder, M.A.; Hermosilla, T.; Coops, N.C.; Hobart, G.W. A nationwide annual characterization of 25 years of forest disturbance and recovery for Canada using Landsat time series. Remote Sens. Environ. 2017, 194, 303–321. [Google Scholar] [CrossRef]
  54. Akther, M.S.; Hassan, Q.K. Remote sensing-based assessment of fire danger conditions over boreal forest. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2011, 4, 992–999. [Google Scholar] [CrossRef]
  55. Caccamo, G.; Chisholm, L.A.; Bradstock, R.A.; Puotinen, M.L. Assessing the sensitivity of MODIS to monitor drought in high biomass ecosystems. Remote Sens. Environ. 2011, 115, 2626–2639. [Google Scholar] [CrossRef]
  56. Dennison, P.E.; Brewer, S.C.; Arnold, J.D.; Moritz, M.A. Large wildfire trends in the western United States, 1984–2011. Geophys. Res. Lett. 2014, 41, 2928–2933. [Google Scholar] [CrossRef]

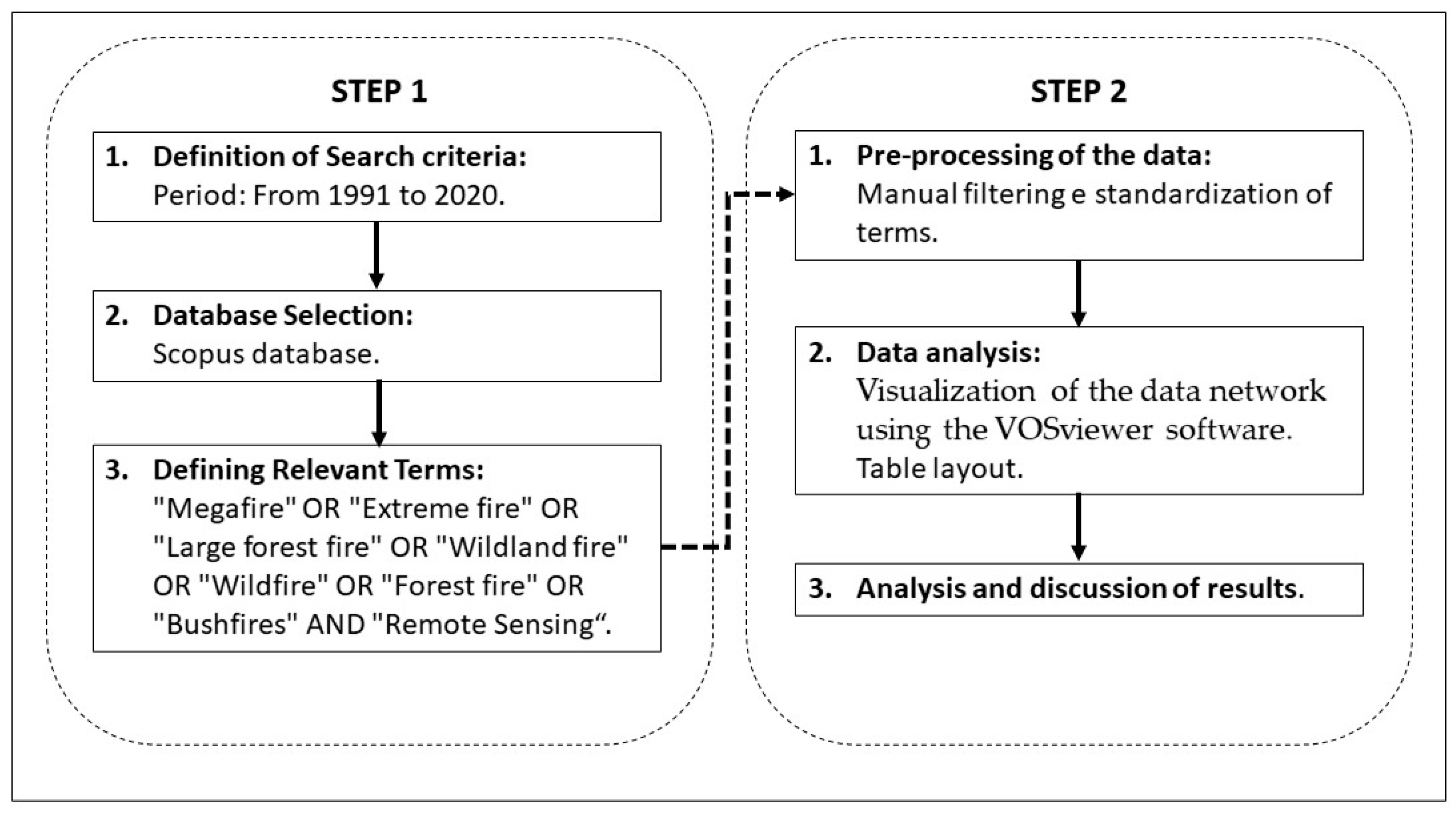

Figure 1. Methodology applied to the bibliometric analysis carried out.
Figure 1. Methodology applied to the bibliometric analysis carried out.
Forests 12 00604 g001

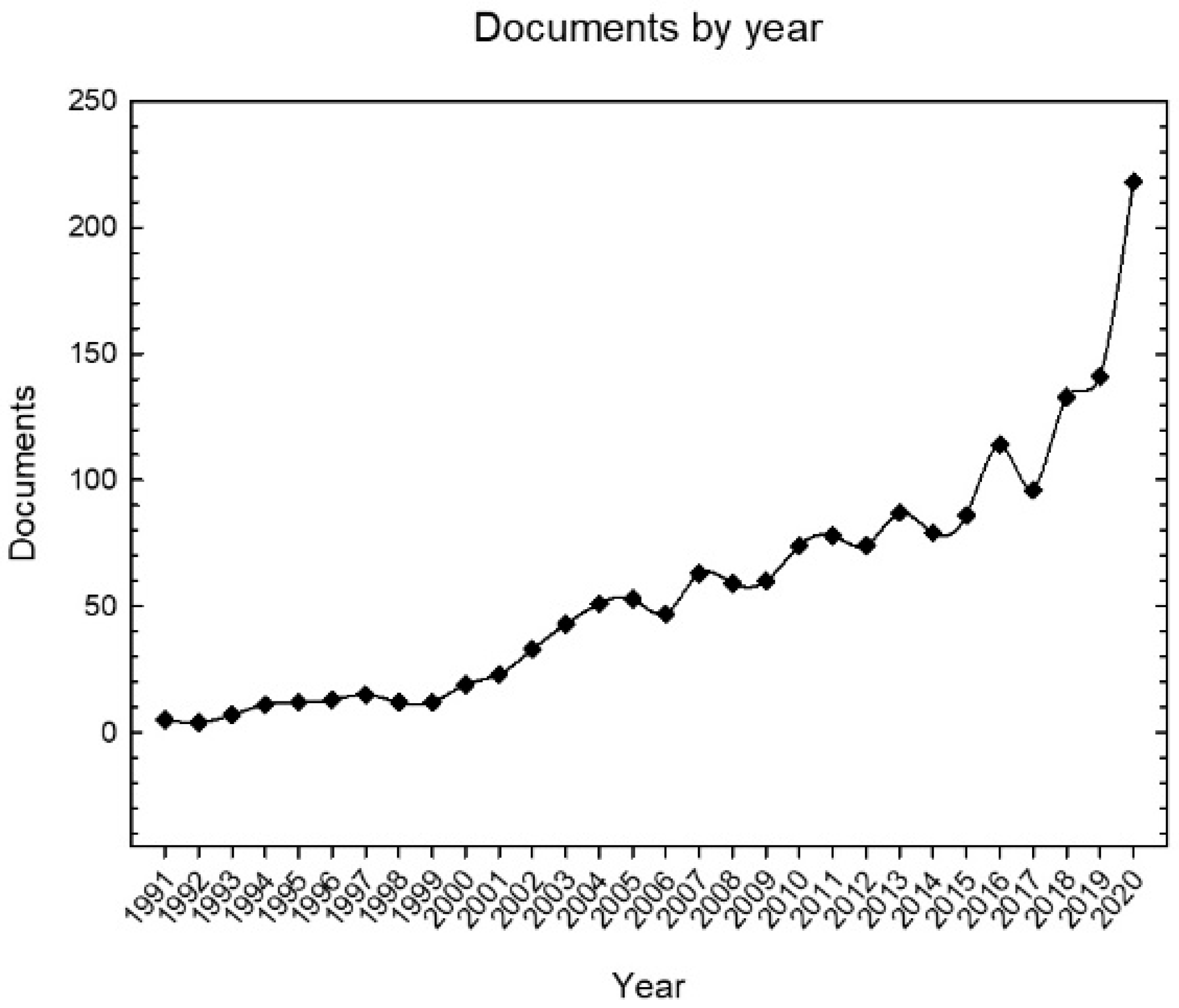

Figure 2. Annual growth in the number of publications on wildfires and remote sensing available in the Scopus database. The blue line indicates the trend of data behaviour. The points indicate the number of publications.
Figure 2. Annual growth in the number of publications on wildfires and remote sensing available in the Scopus database. The blue line indicates the trend of data behaviour. The points indicate the number of publications.
Forests 12 00604 g002
Figure 3. Network visualisation map based on bibliographic data (bibliographic coupling, journal sources).
Figure 3. Network visualisation map based on bibliographic data (bibliographic coupling, journal sources).
Forests 12 00604 g003

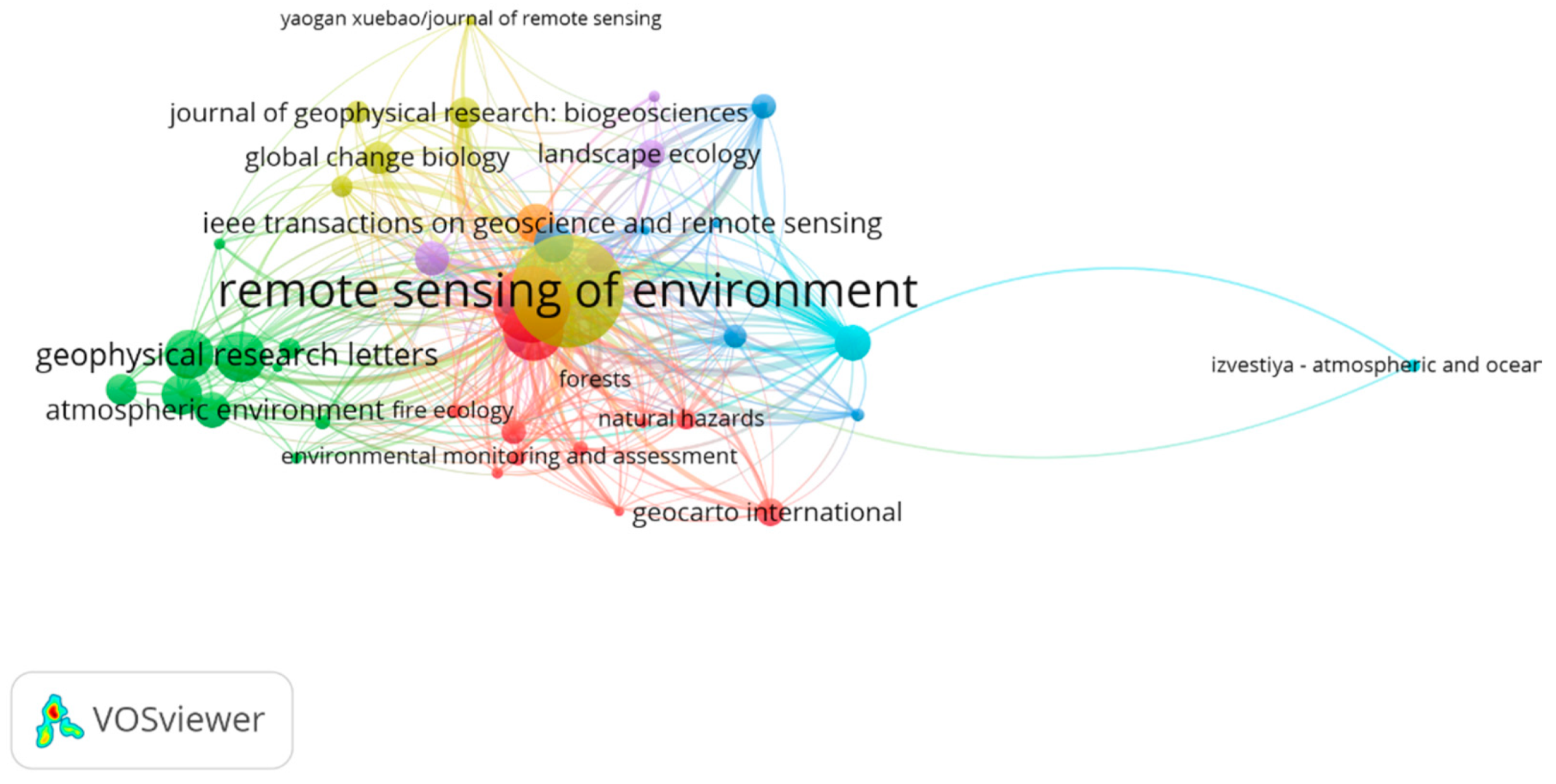

Figure 4. Network visualisation map based on bibliographic data (citation, sources). Caption: The size/width of each node (“dot”) and link (“line”) is proportional to the intensity of the node or link.
Figure 4. Network visualisation map based on bibliographic data (citation, sources). Caption: The size/width of each node (“dot”) and link (“line”) is proportional to the intensity of the node or link.
Forests 12 00604 g004

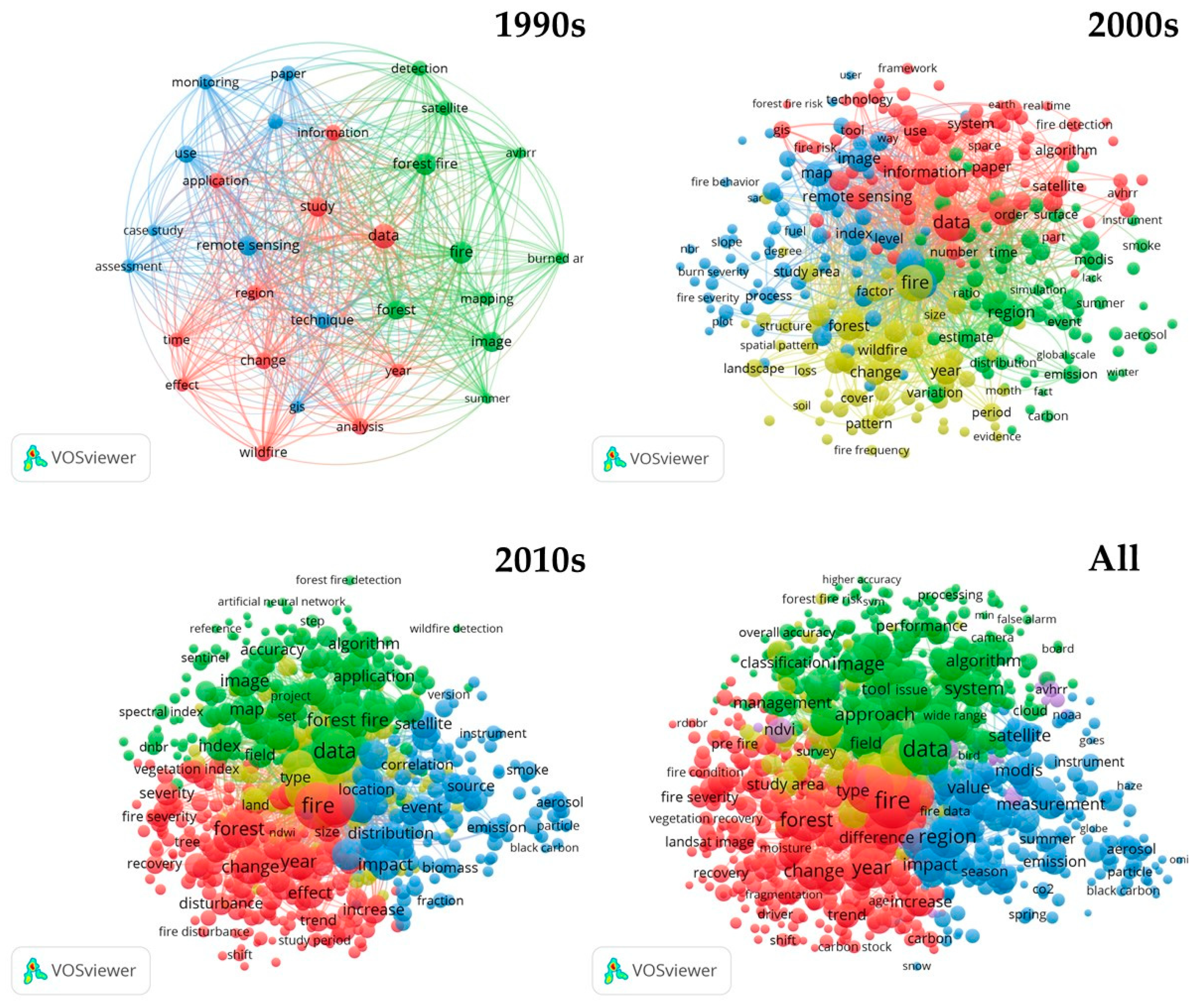

Figure 5. Word co-occurrence network presented in titles, abstracts, and keywords for each decade (the 1990s, 2000s and 2010s) and all scientific articles published in the 30-year time frame (1991–2020).
Figure 5. Word co-occurrence network presented in titles, abstracts, and keywords for each decade (the 1990s, 2000s and 2010s) and all scientific articles published in the 30-year time frame (1991–2020).
Forests 12 00604 g005

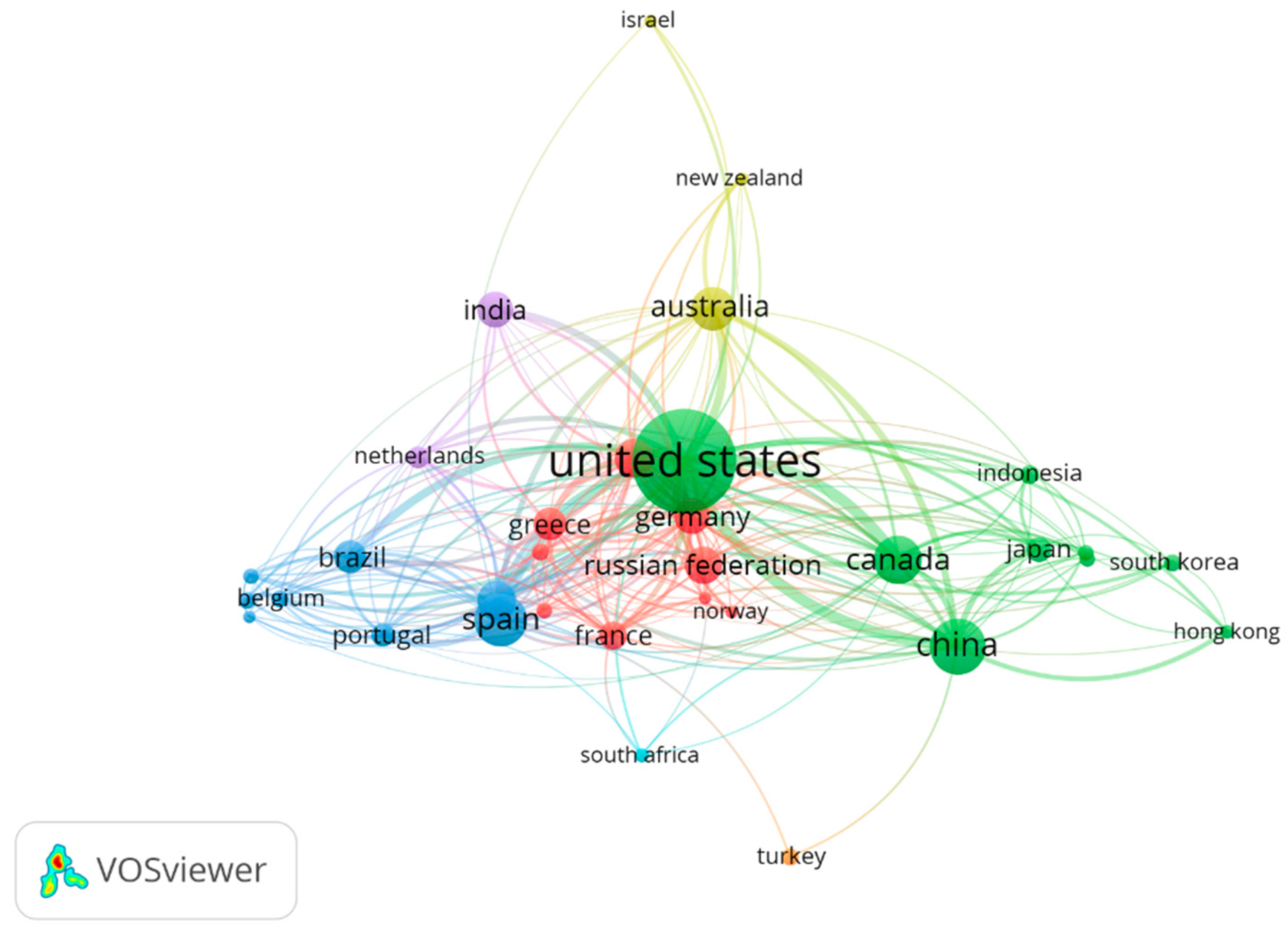

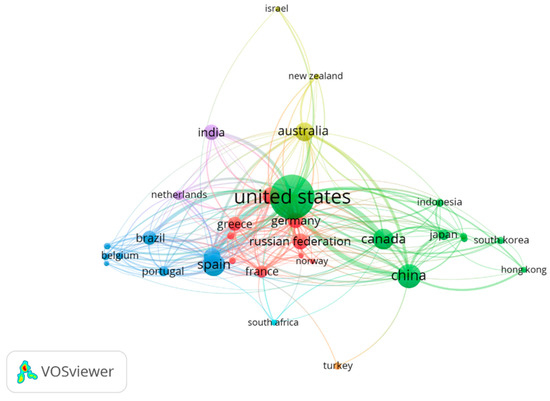

Figure 6. Network visualisation map based on bibliographic data (co-authorship, countries).
Figure 6. Network visualisation map based on bibliographic data (co-authorship, countries).
Forests 12 00604 g006

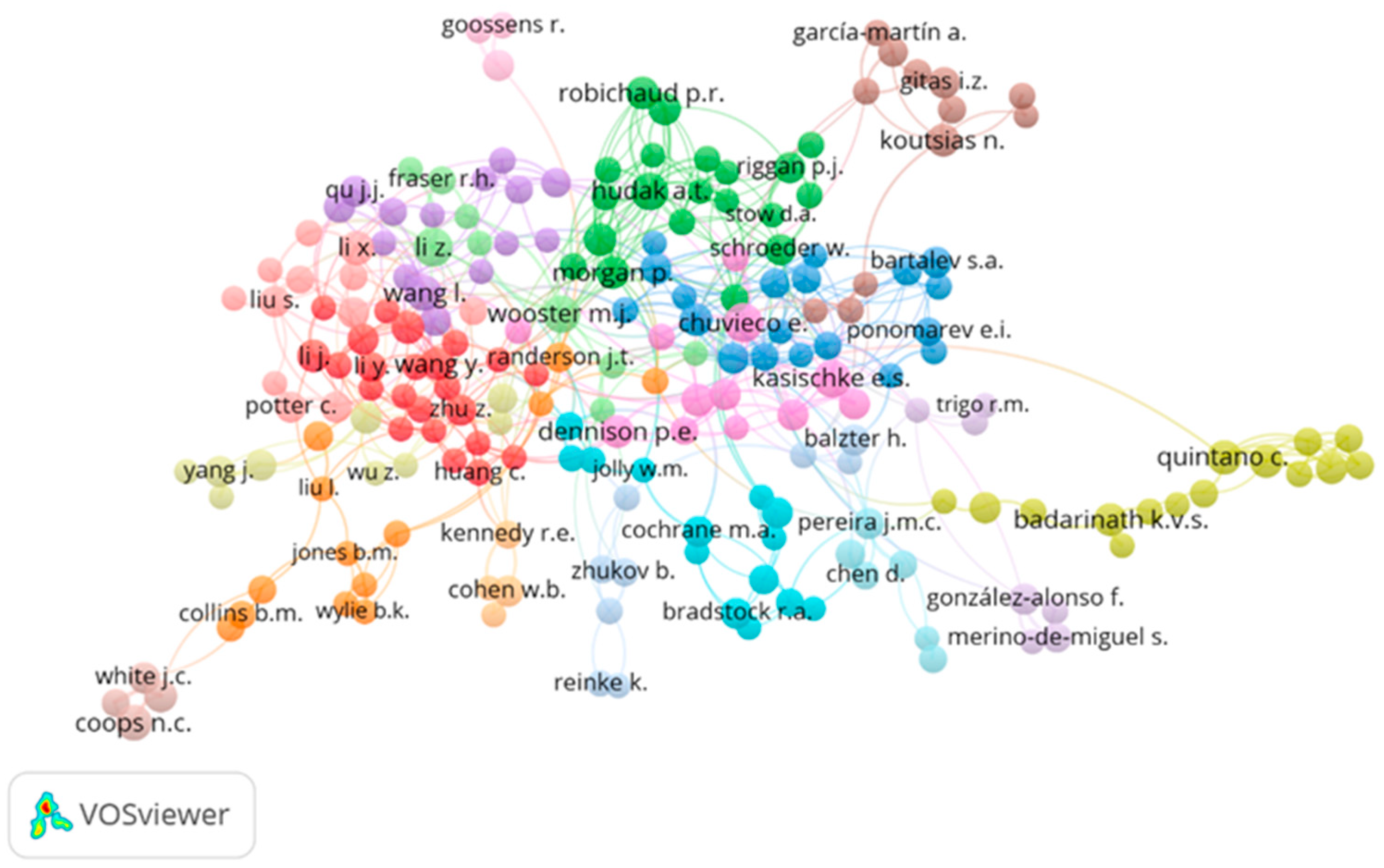

Figure 7. Network visualisation map based on bibliographic data (co-authorship, authors).
Figure 7. Network visualisation map based on bibliographic data (co-authorship, authors).
Forests 12 00604 g007

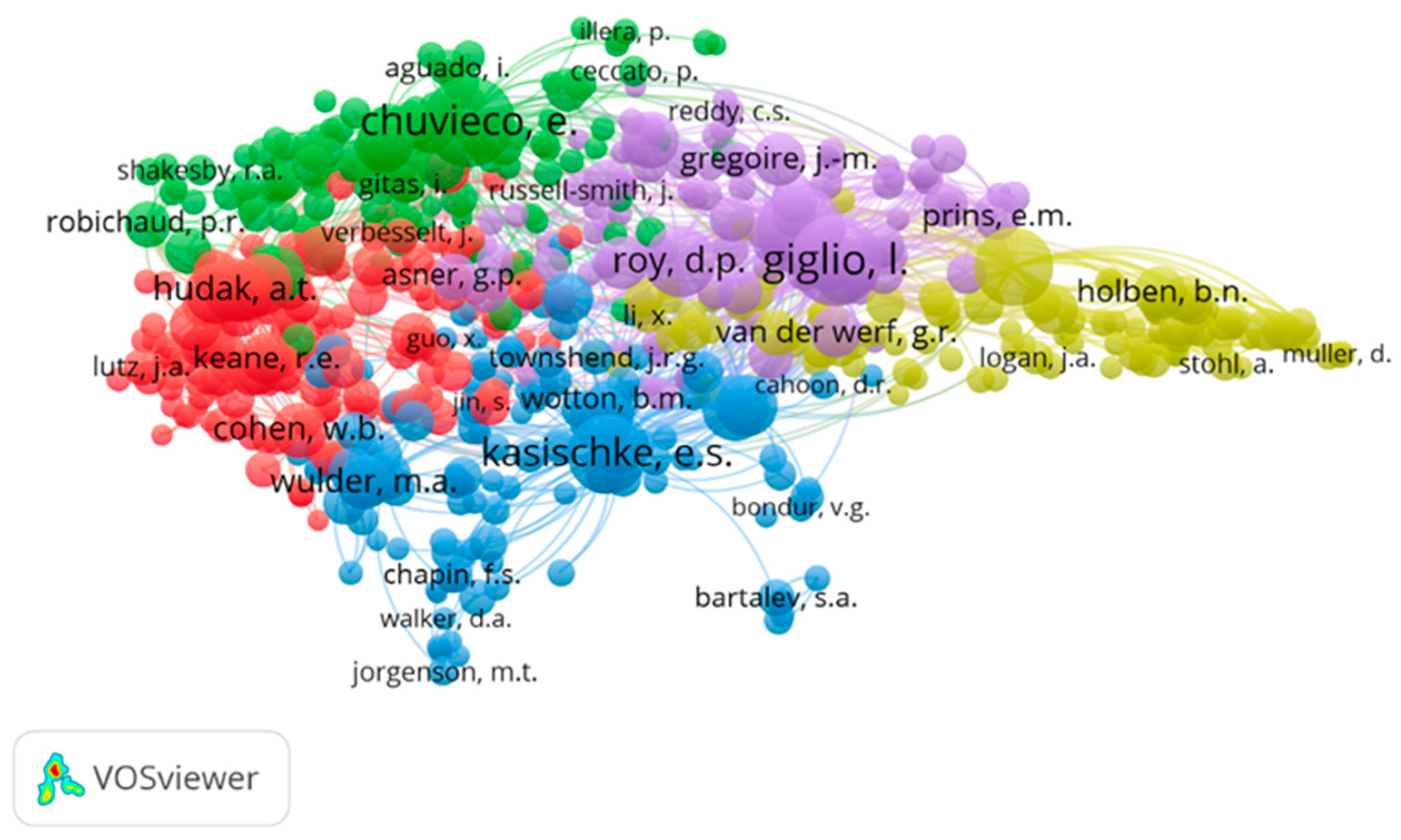

Figure 8. Network visualisation map based on bibliographic data (co-citation, cited authors).
Figure 8. Network visualisation map based on bibliographic data (co-citation, cited authors).
Forests 12 00604 g008
Table 1. Journals publishing articles about the research area.
Table 1. Journals publishing articles about the research area.
TitleCitationsDocumentsClustersLinkTotal Link-Strength
Remote Sensing of Environment97771331423512.1
International Journal of Remote Sensing45821181421724.61
International Journal of Wildland Fire2745771421842.47
Journal of Geophysical Research: Atmospheres256232340559.19
Geophysical Research Letters193825341348.6
Atmospheric Chemistry and Physics125323342468.02
Forest Ecology and Management1210432421007.5
IEEETransactions on Geoscience and Remote Sensing112218141306.2
Atmospheric Environment94732340411.12
Remote Sensing937891422111.45
Ecological Applications85218242607.42
Global Change Biology81915242520.55
Journal of Geophysical Research: Biogeosciences73615241554.91
Landscape Ecology58711238203.82
Geocarto International57417142260.05
Journal of Environmental Management57013142321.42
International Journal of Applied Earth Observation and Geoinformation45916141468.21
ISPRSJournal of Photogrammetry and Remote Sensing43817442660.48
Photogrammetric Engineering and Remote Sensing40618142219.73
Ecosystems3989240228.48
Applied Geography36912141278.58
Environmental Research Letters36120242451.01
Biogeosciences3529242276.08
Natural Hazards29214142304.76
Environmental Management27411142246.22
Environmental Monitoring and Assessment21312141162.3
Forests20627242892.94
Fire Ecology18611241295.57
Science of the Total Environment18210341237.59
IEEEJournal of Selected Topics in Applied Earth Observations and Remote Sensing17615141249.06
Izvestiya-Atmospheric and Ocean Physics13312440100.4
GIScience and Remote Sensing1208141232.23
Sensors (Switzerland)11613542275.62
Earth Interactions1078140143.21
Journal of the Indian Society of Remote Sensing10118141174.16
Journal of Applied Remote Sensing9210340138.73
Ecosphere918242247.43
European Journal of Remote Sensing648142224.75
Sovremennye Problemy Distantsionnogo Zondirovaniya Zemli Iz Kosmosa381344196.03
Atmosphere369338145.53
Fire269542323.46
Beijing Linye Daxue Xuebao/Journal of Beijing Forestry University161042513
Yaogan Xuebao/Journal of Remote Sensing711141134.96
Table 2. Countries to which authors are affiliated.
Table 2. Countries to which authors are affiliated.
CountryClustersDocumentsCitationsTotal Link-StrengthLink
United Kingdom19140047823
Russia8816613116
Germany7730625626
Greece6413853316
France5117913622
Finland206271315
Switzerland167871413
Norway11443912
Austria10218912
United States268127,65521231
China19128408222
Canada14144966725
Japan407832617
Indonesia22397158
South Korea1715778
Malaysia15216917
Iran1428487
Hong Kong12237106
Spain317561377122
Italy9629345122
Brazil6318003515
Portugal368942418
Belgium196791613
Chile173441111
Mexico16291118
Argentina1126448
Australia411935935823
Israel1031643
New Zealand1078796
India5771346229
Netherlands2910662615
South Africa61220256
Turkey71715822
Table 3. The 20 institutes to have published the most articles on wildfires and remote sensing worldwide.
Table 3. The 20 institutes to have published the most articles on wildfires and remote sensing worldwide.
Publication AffiliationNPCountries
1USDA Forest Service123United States
2Chinese Academy of Sciences73China
3University of Maryland69United States
4NASA Goddard Space Flight Centre65United States
5United States Geological Survey58United States
6University of Idaho33United States
7United States Department of Agriculture31United States
8University of Colorado Boulder31United States
9Canadian Forest Service29Canada
10USDA ARS Rocky Mountain Research Station29United States
11Jet Propulsion Laboratory28United States
12Oregon State University28United States
13European Commission Joint Research Centre27Belgium
14University of Chinese Academy of Sciences27China
15Science Systems and Applications, Inc. SSAI26United States
16The University of British Columbia25Canada
17USDA ARS Moscow Forestry Sciences Lab25United States
18University of Alaska Fairbanks25United States
19California Institute of Technology25United States
20NASA Ames Research centre24United States
Table 4. Most productive authors.
Table 4. Most productive authors.
AuthorDocumentsCitationsAffiliationCountries
Chuvieco E.7501University of AlcaláSpain
Hassan Q. K.582University of CalgaryCanada
Kinoshita A. M.481San Diego State UniversityUnited States
Sunar F.465Istanbul Technical UniversityTurkey
Table 5. List of the 10 most cited co-authors within the most productive clusters.
Table 5. List of the 10 most cited co-authors within the most productive clusters.
AuthorDocumentsCitationsAffiliationCountries
Kaufman Y. J.42058NASA Goddard Space Flight CentreUnited States
Justice C. O.91992NASA Goddard Space Flight CentreUnited States
Giglio L.101791University of MarylandUnited States
Chuvieco E.191447University of AlcaláSpain
Wooster M. J.161194Department of Geography, King’s College LondonUnited Kingdom
Kasischke E.S.161006Environmental Research Institute of MichiganUnited States
Dennison P. E.10952University of UtahUnited States
Perry G. L. W.5909University of CanterburyNew Zealand
Cohen W. B.9752USDA Forest ServiceUnited States
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Santos, S.M.B.d.; Bento-Gonçalves, A.; Vieira, A. Research on Wildfires and Remote Sensing in the Last Three Decades: A Bibliometric Analysis. Forests 2021, 12, 604. https://doi.org/10.3390/f12050604

AMA Style

Santos SMBd, Bento-Gonçalves A, Vieira A. Research on Wildfires and Remote Sensing in the Last Three Decades: A Bibliometric Analysis. Forests. 2021; 12(5):604. https://doi.org/10.3390/f12050604

Chicago/Turabian Style

Santos, Sarah Moura Batista dos, António Bento-Gonçalves, and António Vieira. 2021. "Research on Wildfires and Remote Sensing in the Last Three Decades: A Bibliometric Analysis" Forests 12, no. 5: 604. https://doi.org/10.3390/f12050604

APA Style

Santos, S. M. B. d., Bento-Gonçalves, A., & Vieira, A. (2021). Research on Wildfires and Remote Sensing in the Last Three Decades: A Bibliometric Analysis. Forests, 12(5), 604. https://doi.org/10.3390/f12050604

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
