Structural Features of a Post-Clear-Cutting Ecotone between 90-Year-Old Bilberry Spruce Forest and 35-Year-Old Herbs-Forbs Deciduous Stand

by
Nadezhda V. Genikova
*,
Alexander M. Kryshen
,
Roman P. Obabko
,
Anna Yu. Karpechko
and
Aleksey N. Pekkoev
Laboratory for Boreal Forest Dynamics and Productivity, Forest Research Institute, KarRC RAS, 185910 Petrozavodsk, Russia
*
Author to whom correspondence should be addressed.
Forests 2022, 13(9), 1468; https://doi.org/10.3390/f13091468
Submission received: 4 August 2022 / Revised: 29 August 2022 / Accepted: 6 September 2022 / Published: 12 September 2022
(This article belongs to the Section Forest Ecology and Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
In a natural regeneration process, a community dominated by birch and aspen forms in the site 35 years after a bilberry-type spruce stand is logged down. The newly formed ecotone complex consists of four zones, each characterized by certain features of the ground vegetation and epiphytic vegetation structure. The transitional zones and the mature bilberry-type spruce forest feature a clear dominance of boreal dwarf shrubs (bilberry and cowberry). Another feature of the transitional zone is a greater role of hygrophytic mosses of the genera Polytrichum and Sphagnum. Meanwhile, the true mosses Pleurozium schreberi and Hylocomium splendens dominate under spruce forest canopy, and the moss cover in the young deciduous stand is virtually nonexistent. The structure of epiphytic vegetation depends on the habitat conditions—the surface of tree trunks in the transitional zone is better lit and drier than inside the tree stand, which results in a higher abundance of epiphytic lichens of the genus Cladonia. The deciduous–coniferous fine root biomass ratio is dependent on the tree stand structure and is unrelated to ecotone zones. Overall, studies have demonstrated that transitional zones have certain characteristic ecological and community features, which persist for a long time after tree stand removal.

1. Introduction

Russia contains half of all the world’s boreal forests, and their significance for maintaining the climate, supplying people with timber products, and performing other ecosystem services is significant [1,2,3,4,5]. The cutting practice regulations [6] adopted in Russia rather strictly limit the size of sites to be clear-cut as well as the cutting cycle (the period after which the site immediately adjoining a previously clear-cut site can be clear-cut). Allowable clear-cut site areas in mature and over-mature stands in exploitable forests of European Russia cannot exceed 50 hectares irrespective of the tree species composition, and the corresponding cutting cycle is 5–6 years for coniferous stands and 2–4 years for soft-wooded deciduous stands. These restrictions are meant to ensure that natural regeneration can proceed, on the one hand, and that fragments of the forest environment and, hence, the biological diversity are preserved, on the other [7]. As a result, large areas form from transitional forest to clear-cut sites of different ages (Figure 1). The interest in the ecotone complexes forming after clear-cutting (forest—transitional zone—clear-cut site) is explained not only by their wide occurrence, but also by the transformation of the environment and the processes of vegetation regeneration in the transitional zone [8,9,10]. The characteristics of transitional states over space and time in relation to phytosociology and sylviculture have been drawing researchers’ attention since the early 20th century [11,12,13]. Trees immediately neighboring clear-cut sites generate the conditions for mother tree species regeneration, reducing reforestation costs [14,15,16,17,18]. The spatial extent to which the forest edge influences the microclimate and plant community parameters both into the intact forest site and into the clear-cut site has been estimated differently by different authors depending on the climatic belt, type of forest, and period since clear-cutting [19,20,21]. A suggested assumption is that the forest edge effect extends to a distance equaling tree height [22]. In boreal forests, the transitional zone width varies from 5 to 20 m depending on the period since cutting [23,24,25,26,27]. In Russian forestry practice, a regulation for alternate strip cutting is that the cut strip width must not exceed one and a half times the height of trees [6], implying that the extent of the forest edge effect is thought to be less than one tree height. Our previous studies [27] suggest that the forest edge effect does not extend beyond half of the tree height.
As a rule, the objects in edge-effect studies are plant communities in early regeneration stages, within one decade since tree stand removal [19,23,27]. Changes taking place in the contact zone between two communities decades after the disturbances are considered less frequently [28,29,30,31]. Meanwhile, these studies can elucidate important issues such as the effect of the forest edge on woody species regeneration. It is not only the amount of regenerating woody saplings and their survival in the early stage of clear-cut regeneration that matters but also the tree layer formed in the ecotone complex (EC). The EC is a transition between two adjacent plant communities. Our focus here is the structure of the herb-dwarf-shrub, moss-lichen, and epiphytic vegetation.
Our preliminary studies have demonstrated that all EC zones have certain characteristic features of the ground vegetation structure, which persist for a long time [26,27]. What are the causes of the differences? Some papers [32,33] talk about the connection between ground vegetation and the biomass of tree fine roots and the distribution of the latter across the soil profile. The question has therefore been raised regarding the role of fine roots, which provide trees with water and nutrients [34,35], in the making of communities in different ecotone zones. Knowledge about fine root growth and development processes is poor [36], and studies on the distribution of roots in ecotone complexes are all but missing.
Another little-studied matter is the formation of epiphytic vegetation in boreal forests. Epiphytes are commonly researched as an indicator of environmental quality and community age [37,38,39]. Perspectives that are discussed less often include the composition and structure of epiphytic vegetation in communities forming in logged sites [40]. The response of epiphytic vegetation to logging can be indirectly judged from its structure in the forest communities adjoining mire sites, logged sites, and farmland [41,42,43,44,45,46]. At the same time, there is hardly any information available on the structure of epiphytic vegetation several decades after cutting, when the forest no longer borders open space but neighbors a community with fundamentally different tree-layer composition and structure [47].
Relying on our own previous data [26,27] and facts from the literature as background, we set out to answer two main questions in this study:
  • Do the distinct transitional zones on the clear-cut side as well as on the forest side persist 35 years after the clear-cutting of a bilberry-type spruce forest?
  • If the distinct transitional zones between the mature coniferous forest and the deciduous stand do persist, what are the characteristic features of their plant community structure?

2. Materials and Methods

2.1. Study Area

The studies were carried out in 2019–2020 in Pryazhinsky District, Republic of Karelia (61.85° N 33.92° E) (Figure 2). The area belongs to the boreal biome. According to the geobotanic zonation adopted in Russia [48], the study area belongs to the middle taiga subzone. Absolute elevations in the study area vary between 80–150 m a.s.l.; mean annual air temperature (over the past 10 years) is +2.5 °C, and mean annual precipitation is 600–650 mm. The coldest month is January (−10.7 °C). The warmest month is July (+16.3 °C). The snow-covered period lasts from early November through April, and the duration of the growing season is about 140 days—from mid-May through September (Pryazha weather archives (www.rp5.ru, accessed on 28 July 2022)). The most common types of forests in the study area are bilberry spruce and pine stands on sandy loam and sandy soils, respectively. There are also areas of Sphagnum spruce and pine stands. Pristine spruce- and pine-dominated coniferous forests used to prevail until the late 20th century. As of now, areas of secondary mixed forest dominated by birch and aspen have become widespread instead of the coniferous stands.

2.2. Objects

Surveys were carried out in 2018 and 2020 in two sampling sites. Each site consisted of two sampling plots representing adjacent forest communities: (A) 90-year-old bilberry-type spruce forests and (B) 35-year-old deciduous stands occupying the sites where bilberry-type spruce forest had been clear-cut (Figure 2).
Apart from spruce, the tree stand in mature spruce (Picea abies (L.) H. Karst.) forests (1A and 2A) was comprised of birch (Betula pubescens Ehrh.) and aspen (Populus tremula L.) (Table 1). The ground vegetation was dominated by bilberry (Vaccinium myrtillus L.), cowberry (V. vitis-idaea L.), and true mosses (Table 2). Their deciduous counterparts were an aspen stand (1B) and a birch stand (2B), both of the forbs type, 35 years old, emerging after forest clear-cutting in 1983. The ground vegetation dominants were species of forbs, true mosses, and haircap mosses (Table 2).
The 90-year-old bilberry-type spruce forest, 35-year-old deciduous stand formed after clear-cutting, and the transitional zone between them constitute an ecotone complex (Figure 3). We conventionally subdivide the ecotone complex into four zones: bilberry-type spruce forest (or coniferous forest, CF), transitional zone on the forest side (or coniferous forest edge, CFE), transitional zone on the deciduous stand side (or deciduous forest edge, DFE), deciduous forest (DF).
Surveys in bilberry-type spruce forests (1A and 2A) included mapping and complete enumeration of trees in 0.1 ha areas (30 × 30 m2, 25 × 40 m2) with measurement of their height and diameter at 1.3 m height. Trunk volumes (V) were determined by the formula suggested by N. I. Kazimirov [49] applied to the conditions of Karelia:
V = (H + 2)/2.2 × (0.02 + 0.073 × D + 0.0695 × D2),
where H is the average tree height in the diameter class, m; D is the diameter class, cm.
Total timber volume in the sample plot (m3) was found by multiplying trunk volumes by the number of trees in the respective classes and then summing up the products. The resultant total volume was converted to per hectare value. The composition of the stand was estimated in percentages showing the volume contributions of each tree species to the total volume.
The procedure for deciduous stands was different because of high stand density. To map the tree stand characteristics of the deciduous communities, we established two transects 2 m wide and 25 m long. Trees large enough to be inventoried (DBH ≥ 4 cm) were registered along the transects. Trees with smaller diameters were regarded as tree regeneration and analyzed separately. The inventory characteristics of the tree stands are given in Table 1.

2.3. Methods

The structure of the forest communities was studied in transects (three at each sampling site) running from spruce forest into deciduous forest. The transects were 50 m long (25 m on each side of the interface of the forest communities). The transects were split into 50 × 50 cm2 sampling subplots in which the percentage covers of species in the moss-lichen and the herb-dwarf-shrub layers were estimated. There were 100 subplots in each transect. In addition, the average shoot height of dwarf-shrubs (bilberry and cowberry) was measured in each subplot.
We have demonstrated previously [26,50] that in terms of the ground vegetation and tree regeneration characteristics, the transitional zones are approximately 8 m wide in each direction both in a clear-cut site younger than 10 years and in the settings investigated here (Figure 4). Thus, the transect along which forest community characteristics were studied was conventionally split into EC zones of varying extent: CF—17 m, CFE—8 m, DFE—8 m, DF—17 m. The interface between plots (spruce stand and deciduous stand) was 30 to 40 m wide.
The species composition of vascular plants was determined for each EC zone. The vascular species dominance structure in different EC zones was estimated by Pielou’s evenness index, which takes values from 0 to 1, where 1 means that all species are represented in equal numbers. Pielou’s index is a variant of the Shannon index [51]: H/logN, where H is the Shennon index and N is the species number. The measure of similarity of the vascular plant species composition between EC zones was the Jaccard index [52] Kj = c/(a + b − c), where a is the number of species in the first plot, b is the number of species in the second plot, and c is the number of species shared by the first and the second plots. The Jaccard index takes values from 0 (no shared species) to 1 (total similarity of the species compositions). The similarity of the ground vegetation structure between EC zones was examined by cluster analysis (Euclidian distance, Ward’s method).
Trunk-base epiphytic vegetation was described by recording the linear dimensions of clumps of each species in the vertical projection for the four cardinal directions [53]. The parameters recorded for each species were the height at which the species started growing (bottom of the clump) and the height corresponding to the top of the clump. Only solid covers were taken into account; solo plants potentially occurring at greater heights were disregarded. Species’ names are given according to [54] with some modifications [55,56]. Since epiphytic vegetation in 35-year-old communities was not yet fully formed and comparison to the mature community was irrelevant, we studied it only in 90-year-old spruce forests on spruce and aspen trees growing at different distances from the border with the deciduous stand. The selection of the trees from which epiphytes were sampled differed between the sites because of differences in the tree stand composition. The sample set in site 1 was eight aspen trunks, on which the span of Hylocomium splendens (Hedw.) Bruch et al. clumps was measured. In site 2, we examined 40 spruce trees, measuring the clump sizes of Cladonia spp., crustose lichens, and bryophytes. Data from site 2 were grouped into subsets equal intervals of distance from the forest communities’ interface with 5 m step (0 to 5 m, 5 to 10 m, etc.). The arithmetic mean and standard error of the mean were determined for each subset. In addition, the relationship between changes in the abundance of epiphytic species with distance from the interface of the two forest communities into the spruce forest was investigated by correlation analysis (non-parametric Spearman’s rank correlation coefficient).
To determine fine root biomass, 10 × 10 × 20 cm soil monoliths were sampled along the transect running from spruce forest into deciduous forest in five to seven replications for each EC zone (a total of 20–28 samples for each sampling plot). The monolith depth was made 20 cm, considering that this soil layer contains 80%–90% of fine roots according to different sources [36,57]. The monoliths were packed in plastic bags. After delivering the monolith to the laboratory, tree roots (coniferous and deciduous separately, distinguished by morphological traits: color and texture) up to 2 mm in diameter were picked out, oven dried at 105 °C, and weighted using OHAUS PX224 analytical balance.
The data were checked for normality. Due to data inconsistency with the normal distribution, data subsets were compared by the analysis of variance (one-way ANOVA, non-parametric Kruskal–Wallis test).

3. Results

3.1. Ground Vegetation

Overall, the species diversity in the surveyed sites was quite low. The ground layer contained a total of 23 vascular plant species. Deciduous communities (DF), however, generally harbored a greater number of plant species than the mature spruce forest and the transitional zones (Table 2). The average number of species per transect subplots was also reliably higher in deciduous communities compared to other EC zones (p-value < 0.05).
Comparison of the species checklists of vascular plants growing in different EC zones using the Jaccard index revealed no patterns (Table 3) except for the deciduous communities showing the lowest coefficients of similarity with other EC zones. A very different picture appears when the species compositions are compared with regard to the percentage covers (Figure 5). In this case, the eight zones of the two sites formed four clusters based on the abundance of vascular plants (Figure 5) paired by EC zone types, not sites, although the young deciduous stands differed from each other in the tree stand and ground vegetation composition.
The spruce forest and the transitional zones showed relatively low Pielou’s index values (Table 2) because of the dominance of bilberry and cowberry in the ground layer, and the values were the lowest in the transitional zone. Deciduous forest featured high values of this index (0.78 on average) due to the higher species diversity and absence of obvious dominants.
All vascular plant species in all EC zones can be conventionally split into three groups: boreal dwarf shrubs, grasses, and forbs. The prevalent group in the spruce forest and the transitional zone was dwarf shrubs, whereas the contribution of forbs and grasses was minor. The abundance of dwarf shrubs in the transitional zone was much higher than in the forest. Deciduous forest had the lowest total percentage cover because of a thick tree layer, and the role of boreal dwarf shrubs in this zone was minimal, whereas grasses and forbs prevailed (Figure 6).
Bilberry and cowberry in transitional zones were noted both for greater percentage covers and for 1.5–2.5 times greater shoot heights compared to plants growing under spruce forest canopy and in the deciduous community (Table 4).
The moss layer also varied among EC zones. The percentage cover of the typical boreal species Pleurozium schreberi (Brid.) Mitt. and Hylocomium splendens declined from CF towards DF. Mosses associated with moist habitats (Polytrichum commune Hedw., Sphagnum girgensohnii Russow) were the most abundant in the DFE zone (Figure 7).

3.2. Epiphytic Vegetation

Surveys of the plots detected a total of 20 species of epiphytic bryophytes. Of these, nine species occurred on spruce (Brachythecium salebrosum (F. Weber & D. Mohr), Bruch et al.; Dicranum fuscescens, Turner; Dicranum scoparium, Hedw; Plagiomnium cuspidatum, Plagiothecium rossicum (Hedw.), T. J. Kop; Pleurozium schreberi, Ptilidium pulcherrimum (Weber), Vain.; Sciuro-hypnum reflexum (Starke), Ignatov et Huttunen; Sciuro-hypnum starkei (Brid.), Ignatov et Huttunen); 17 species grew on aspen (Brachythecium salebrosum, Campylidium sommerfeltii (Myrin), Ochyra; Chiloscyphus profundus (Nees), J. J. Engel et R. M. Schust.; Dicranum scoparium, Hedw.; Hylocomium splendens, Hypnum cupressiforme Hedw.; Lewinskya elegans (Schwägr. ex Hook. and Grev.); F. Lara, Garilleti and Goffinet, Nyholmiella obtusifolia (Brid.), Holmen and E. Warncke; Plagiomnium cuspidatum (Hedw.), T. J. Kop; Ptilidium pulcherrimum (Weber), Vain.; Pylaisia polyantha (Hedw.), Bruch et al.; Radula complanata (L.), Dumort.; Rhodobryum roseum (Hedw.), Limpr.; Sanionia uncinata (Hedw.), Loeske; Sciuro-hypnum reflexum (Starke), Ignatov et Huttunen; Sciuro-hypnum starkei (Brid.), Ignatov et Huttunen; Seproleskea subtilis (Hedw.), Loeske).
Some species of terricolous mosses can also grow on living tree trunks. One of these, Hylocomium splendens, dominated both in the ground layer and at the base of aspen trunks. In site 1, the occurrence and vertical span of Hylocomium splendens clumps on aspen trunks was found to correlate positively with the phorophyte’s distance from the interface between the two forest communities (r = 0.76, p-value = 0.045). Right at the spruce forest and deciduous stand interface, H. splendens was either totally absent from aspen trunks, or the vertical span of its clumps was minimal (1–2 cm). The span of moss clumps on aspen trunks increased further away from the interface, reaching a maximum of 60 cm at 30 m distance.
The vertical span of all epiphytic organisms on trunks in site 2 remained almost invariable from the spruce forest outer edge into the forest (p-value > 0.5), being some 15 cm (Figure 8).
As we moved away from the interface of the communities, the vertical span of epiphytic Cladonia spp. declined from 13.5 cm at the forest outer edge to 6.5 cm in the forest interior (p-value < 0.001). Linear dimensions of crustose lichen clumps, on the contrary, increased towards the forest interior, reaching a maximum (6.2 cm along the trunk) 15–20 m away from the forest outer edge (p-value < 0.001). The clump length of all bryophytes also increased into the forest, with a maximum 15–20 m away from the forest outer edge (p-value < 0.003).

3.3. Fine Root Biomass

In site 1, the total biomass of fine roots of tree species (spruce and deciduous) varied significantly between zones (Table 5). Spruce root biomass declined steadily (p < 0.01) in the bilberry-type spruce forest—transitional zone—deciduous stand sequence. The saturation of the top layer of soil with deciduous roots showed no significant variation between EC zones (except for the DFE zone, where their biomass was notably lower).
In site 2, there was significant variation of the total (spruce and deciduous) biomass of fine roots among zones (Table 5). The amount of spruce roots was greater in the spruce forest, declining towards the young deciduous stand (p < 0.05). The biomass of deciduous fine roots, on the contrary, increased in this direction (p < 0.01).
Importantly, differences between the CF and CFE zones in deciduous-root and spruce-root biomass were insignificant in both sites.

4. Discussion

A mature stand adjoining middle-aged bilberry-type spruce forest was clear-cut 35 years ago. The ecotone complex forming as a result consisted of four zones: bilberry-type spruce forest, transitional zone on the forest side, transitional zone on the clear-cut side, and clear-cut site. After 35 years of natural community dynamics, these zones persisted although the spruce forest reached maturity and the clear-cut was occupied by naturally forming deciduous communities dominated by birch and aspen.

4.1. Ground Vegetation

Differences between EC zones in our study appeared in the number of vascular plant species, the structure of the herb-dwarf-shrub and moss-lichen layers, and in the abundance of epiphytic species.
The number of herb-dwarf-shrub-layer species was the greatest in the DF zone. Elevation of the species diversity in logging-transformed boreal forest communities has been reported in many studies [29,58,59,60]. In fact, overstorey removal and emergence of many vegetation-free microhabitats triggers a sharp rise in the species diversity, but a year or two later, a system with 2–3 dominant species is established—in bilberry-type spruce forests, these are usually boreal grasses and fireweed. As the tree layer regenerates, the abundance of clear-cut dominants declines, but they do not “leave” altogether. In the relatively rich conditions of young deciduous stands, a mosaic community with many species forms. The mosaic is determined by the tree layer structure and the microtopography. The ground layer in the community we studied was abundant (in addition to grasses) in forest ferns and species typical of young deciduous stands: Melampyrum pratense, Oxalis acetosella, Rubus saxatilis, and Solidago virgaurea. This structure explains the high value of Pielou’s index. The dominant in both transitional zones (CFE, DFE) was bilberry, and in CF, cowberry co-dominated together with bilberry. The presence of clear dominants in combination with a smaller total number of species results in a lower value of Pielou’s index. Similar patterns in the ground vegetation structure have been observed in studies of boreal forest dynamics [58,61,62]. The greatest divergence of DF from all other zones of the ecotone complex is corroborated by Jaccard similarity index values.
The analysis of similarity between EC zones regarding the percentage covers of vascular plants proved they clustered together based on belongingness to a certain type of zone rather than certain plot. As mentioned above, the herb-dwarf shrub layer responds to changes in the tree layer, so similarity between the matching EC zones in different plots is not surprising.
There is another result of practical significance that has to be emphasized. Transitional zones of the EC show a rise in the percentage cover and average height of forest dwarf shrubs. This means that the transitional zone both on the clear-cut side and on the forest side proved to be more favorable for the growth of both bilberry and cowberry compared to mature forest and, especially, compared to deciduous stand, where the abundance of both dwarf shrubs was rather low. The reasons are the somewhat better illumination of the transitional zone compared to spruce forest, on the one hand [63,64], and the lower abundance of grasses and forbs than in deciduous forest, on the other [59,65].
Our results provide further evidence that terricolous mosses can act as indicator species [66]. The abundance of forest mosses (Pleurozium schreberi, Hylocomium splendens) was found to decline steadily from coniferous forest to deciduous stand. The latter had the lowest percentage covers of true mosses, likely as a result of plentiful leaf fall [61]. At the same time, the abundance of forest mosses associated with moist habitats—Polytrichum commune, Sphagnum girgensohnii—was the highest in the DFE zone. Its elevated moisture can be explained by the tree layer effect. The transitional zone between DF and CF is shaded but lacks thick deciduous regeneration that could actively absorb moisture from the soil [67].

4.2. Epiphytic Vegetation

The fact that the structure of epiphytic vegetation depends on distance from the forest edge is explained by the changing ecological conditions. For example, a study of light conditions in an ecotone between a spruce forest site and a 10-year-old deciduous stand [50] showed that illumination was the lowest in the spruce forest (CF) (2.5 kLx on average) and increased (up to 10-fold) depending on aspects in transitional zones (CFE or DFE). The forest edge is better lit and better “ventilated” than the forest, due to which tree trunks are in a drier condition [42]. Further away from the forest edge, the vertical span of relatively xerophytic epiphytes Cladonia spp. declined [47], whereas the total linear dimensions of hygrophytic bryophytes [68] and crustose lichens increased.

4.3. Fine Root Biomass

Fine root biomass is a highly variable parameter influenced by multiple factors: soil properties, tree species composition of the stand, its age, ecological and weather conditions, and so on [35,69]. The similar values of both spruce- and deciduous fine root biomasses in the CF and CFE zones in both plots are probably due to the relatively homogeneous ecological conditions. The prevalence of spruce roots in the total tree root biomass in the coniferous forest is explained by the dominance of the species in the tree stand, as illustrated by stemwood standing stock and basal area values. The lowest biomass of spruce roots was found in DF.
Deciduous species are pioneers that actively colonize territories vacated after clear-cutting. As the root system of deciduous trees grows and develops, they turn into strong competitors of spruce for nutrients [70,71]. In such stands, spruce occupies a subordinated position. This is especially explicit in the DF zone of site 1, where the diameter and height of spruce trees are much lower than those of the dominant deciduous species. Thus, the high biomass of deciduous fine roots in the DF zone of both plots is a consequence of the dominance of deciduous species above the ground.
The total biomass of tree roots in site 2 in general did not vary among zones. The situation in site 1 was different: the total biomass of tree roots in zones DF and DFE was significantly lower than in CF and CFE. Differences in fine root biomass corresponded to differences in the basal areas of the respective stands (Table 1), which, as a number of studies have demonstrated [72,73,74], is related to root biomass.
Our study has demonstrated that the biomass of tree fine roots in ecotone zones is largely dependent on the composition and inventory characteristics of the tree stands. Thus, there is no obvious correlation between topsoil root saturation and alteration of ground vegetation characteristics.

5. Conclusions

Thirty-five years after the clear-cutting of a bilberry-type spruce stand, a community dominated by birch and aspen formed in the site through natural regeneration. Our studies show that a transitional zone composed of 8 m-wide strips on the clear-cut side and the forest side each persisted between the original spruce forest community and the secondary deciduous stand. Thus, the newly formed ecotone complex consists of four zones (bilberry-type spruce forest, transitional zone on the coniferous forest side, transitional zone on the deciduous stand side, and deciduous forest), each with its characteristic features of the ground vegetation and epiphytic vegetation structure.
The transitional zones are more favorable for the growth of the boreal dwarf shrubs bilberry and cowberry: their percentage cover and shoot height in these zones are roughly twice greater than in the mature spruce forest or the deciduous stand. The transitional zone on the deciduous forest side features a relatively high abundance of the hygrophytic mosses Polytrichum commune and Sphagnum girgensohnii. Boreal true mosses, on the other hand, sharply decline in abundance from the bilberry-type spruce forest towards the deciduous stand.
The structure of epiphytic vegetation was studied only in the bilberry-type spruce forest, since its formation in the deciduous stand was not yet completed. The most abundant group of epiphytic vegetation in the spruce forest edge zone was Cladonia spp., whereas dominance in the forest interior belonged to true mosses. The most plausible explanation for this pattern is the higher illuminance and drier surface of tree trunks at the forest edge.
Previous studies have not corroborated the hypothesis about the effect of tree root systems on the structure of the ground vegetation. The total biomass of fine roots did not depend on the ecotone zone. Differences in the spruce–deciduous roots ratio are explained by the structure and characteristics of the tree layer. This aspect, however, requires further study.
Overall, the study of the vegetation structure in two ECs of the same age but differing in the tree species composition of the deciduous stand showed that matching zones of different plots correlated more closely with each other than with other zones in the same plot. This pattern may indicate that the zones of transition from mature forest to transformed communities have some special properties. These properties are not of purely scientific interest but have practical implications as potentially optimal conditions for regeneration of the mother tree species and growth of commercially significant species [27,60].

Author Contributions

Conceptualization, N.V.G. and A.M.K.; methodology, N.V.G.; formal analysis, N.V.G. and R.P.O.; investigation, N.V.G., R.P.O., A.Y.K. and A.N.P.; writing—original draft preparation, N.V.G., A.N.P., A.Y.K. and R.P.O.; writing—review and editing, A.M.K. and A.N.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the federal budget under state research assignment to KarRC RAS (Forest Research Institute), the Kone Foundation (RETROFOR 202 005 775), and the Russian Foundation for Basic Research (20-34-90031\20).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lapenis, A.; Shvidenko, A.; Shepaschenko, D.; Nilsson, S.; Aiyyer, A. Acclimation of russian forests to recent changes in climate. Glob. Chang. Biol. 2005, 11, 2090–2102. [Google Scholar] [CrossRef] [PubMed]
  2. Schepaschenko, D.; Moltchanova, E.; Fedorov, S.; Karminov, V.; Ontikov, P.; Santoro, M.; See, L.; Kositsyn, V.; Shvidenko, A.; Romanovskaya, A.; et al. Russian forest sequesters substantially more carbon than previously reported. Sci. Rep. 2021, 11, 12825. [Google Scholar] [CrossRef] [PubMed]
  3. Lukina, N.V. Global challenges and forest ecosystems. Vestn. Rossijskoj Akad. Nauk. 2020, 90, 528–532. (In Russian) [Google Scholar] [CrossRef]
  4. Filipchuk, A.; Malysheva, N.; Zolina, T.; Yugov, A. The boreal forest of Russia: Opportunities for the effects of climate change mitigation. For. Inf. 2020, 1, 92–113. (In Russian) [Google Scholar] [CrossRef]
  5. Harris, N.L.; Gibbs, D.A.; Baccini, A.; Birdsey, R.A.; de Bruin, S.; Farina, M.; Fatoyinbo, L.; Hansen, M.C.; Herold, M.; Houghton, R.A.; et al. Global maps of twenty-first century forest carbon fluxes. Nat. Clim. Chang. 2021, 11, 234–240. [Google Scholar] [CrossRef]
  6. Regulations for harvesting wood. In The Order of the Ministry of Natural Resources of the Russian Federation; No. 993; Ministry of Natural Resources of the Russian Federation: Moscow, Russia, 2020; p. 53. (In Russian)
  7. Pfeifer, M.; Lefebvre, V.; Peres, C.A.; Banks-Leite, C.; Wearn, O.R.; Marsh, C.J.; Butchart, S.H.M.; Arroyo-Rodríguez, V.; Barlow, J.; Cerezo, A.; et al. Creation of forest edges has a global impact on forest vertebrates. Nature 2017, 551, 187–191. [Google Scholar] [CrossRef]
  8. Baker, S.C.; Spies, T.A.; Wardlaw, T.J.; Balmer, J.; Franklin, J.F.; Jordan, G.J. The harvested side of edges: Effect of retained forests on the re-establishment of biodiversity in adjacent harvested areas. For. Ecol. Manag. 2013, 302, 107–121. [Google Scholar] [CrossRef]
  9. Rudolphi, J.; Gustafsson, L. Forests regenerating after clear-cutting function as habitat for bryophyte and lichen species of conservation concern. PLoS ONE 2011, 6, e18639. [Google Scholar] [CrossRef]
  10. Baker, T.P.; Baker, S.C.; Dalton, P.J.; Fountain-Jones, N.M.; Jordan, G.J. Temporal persistence of edge effects on bryophytes within harvested forests. For. Ecol. Manag. 2016, 375, 223–229. [Google Scholar] [CrossRef]
  11. Odum, E.P.; Barrett, G.W. Fundamentals of Ecology, 3rd ed.; W.B. Saunders Co.: Philadelphia, PA, USA, 1971; p. 574. [Google Scholar]
  12. Solov’eva, V.V.; Rozenberg, G.S. A contemporary concept of ecotones or theory of ecotones. Biol. Bull. Rev. 2006, 126, 531–549. (In Russian) [Google Scholar]
  13. Kark, S. Effects of ecotones on biodiversity. In Encyclopedia of Biodiversity; Elsevier: Amsterdam, The Netherlands, 2013; pp. 142–148. [Google Scholar] [CrossRef]
  14. Kreyling, J.; Schmiedinger, A.; Macdonald, E.; Beiekuhnlein, C. Potentials of natural tree regeneration after clearcutting in subalpine forests. West. J. Appl. For. 2008, 23, 46–52. [Google Scholar] [CrossRef]
  15. Tsvetkov, V.F. Potential of reforestation in felled areas of the Russian European North. Russ. For. J. 2010, 3, 3–14. (In Russian) [Google Scholar]
  16. Belyaeva, N.V.; Gryaz’kin, A.V. Structure transformation of the spruce young generation after selective cutting. Les. Zhurnal 2012, 6, 44–51. (In Russian) [Google Scholar]
  17. Franklin, C.; Harper, K.; Clarke, M. Trends in studies of edge influence on vegetation at human-created and natural forest edges across time and space. Can. J. For. Res. 2021, 51, 274–282. [Google Scholar] [CrossRef]
  18. Martínez Pastur, G.J.; Vanha-Majamaa, I.; Franklin, J.F. Ecological perspectives on variable retention forestry. Ecol. Process. 2020, 9, 12. [Google Scholar] [CrossRef]
  19. Chen, J.; Franklin, J.F.; Spies, T.A. Growing-season microclimatic gradients from clearcut edges into old-growth douglas-fir forests. Ecol. Appl. 1995, 5, 74–86. [Google Scholar] [CrossRef]
  20. Jung, S.H.; Lim, C.H.; Kim, A.R.; Woo, D.M.; Kwon, H.J.; Cho, Y.C.; Lee, C.S. Edge effects confirmed at the clear-cut area of Korean red pine forest in Uljin, Eastern Korea. J. Ecol. Environ. 2017, 41, 36. [Google Scholar] [CrossRef]
  21. Schmidt, M.; Jochheim, H.; Kersebaum, K.; Lischeid, G.; Nendel, C. Gradients of microclimate, carbon and nitrogen in transition zones of fragmented landscapes—A review. Agric. For. Meteorol. 2017, 232, 659–671. [Google Scholar]
  22. Beese, W.J.; Deal, J.; Dunsworth, B.G.; Mitchell, S.J.; Philpott, T.J. Two decades of variable retention in British Columbia: A review of its implementation and effectiveness for biodiversity conservation. Ecol. Process. 2019, 8, 33. [Google Scholar] [CrossRef]
  23. Nelson, C.; Halpern, C. Edge-related responses of understory plants to aggregated retention harvest in the Pacific NorthWest. Ecol. Appl. 2005, 15, 196–209. [Google Scholar] [CrossRef]
  24. Harper, K.A.; Macdonald, S.E.; Mayerhofer, M.S.; Biswas, S.R.; Esseen, P.; Hylander, K.; Stewart, K.J.; Mallik, A.U.; Drapeau, P.; Jonsson, B.; et al. Edge influence on vegetation at natural and anthropogenic edges of boreal forests in Canada and Fennoscandia. J. Ecol. 2015, 103, 550–562. [Google Scholar] [CrossRef]
  25. Harper, K.A.; Drapeau, P.; Lesieur, D.; Bergeron, Y. Negligible structural development and edge influence on the understorey at 16–17-yr-old clear-cut edges in black spruce forest. Appl. Veg. Sci. 2016, 19, 462–473. [Google Scholar] [CrossRef]
  26. Genikova, N.V.; Kharitonov, V.A.; Pekkoev, A.N.; Karpechko, A.Y.; Kikeeva, A.V.; Kryshen, A.M.; Obabko, R.P. Structure of bilberry spruce–grass-forbs aspen forest ecotone communities in the Republic of Karelia. Rastit. Resur. 2020, 56, 151–164. (In Russian) [Google Scholar] [CrossRef]
  27. Genikova, N.V.; Mamontov, V.N.; Kryshen, A.M.; Kharitonov, V.A.; Moshnikov, S.A.; Toropova, E.V. Natural regeneration of the tree stand in the bilberry spruce forest—clear-cutting ecotone complex in the first post-logging decade. Forests 2021, 12, 1542. [Google Scholar] [CrossRef]
  28. Cienciala, E.; Mellander, P.-E.; Kučera, J.; Opluštilová, M.; Ottosson-Löfvenius, M.; Bishop, K. The Effect of a north-facing forest edge on tree water use in a boreal Scots pine stand. Can. J. For. Res. 2002, 32, 693–702. [Google Scholar] [CrossRef]
  29. Selmants, P.C.; Knight, D.H. Understory plant species composition 30–50 years after clearcutting in Southeastern Wyoming coniferous forests. For. Ecol. Manag. 2003, 185, 275–289. [Google Scholar] [CrossRef]
  30. Dupuch, A.; Fortin, D. The extent of edge effects increases during post-harvesting forest succession. Bio. Conserv. 2013, 162, 9–16. [Google Scholar] [CrossRef]
  31. Baker, T.P.; Jordan, G.J.; Steel, E.A.; Fountain-Jones, N.M.; Wardlaw, T.J.; Baker, S.C. Microclimate through space and time: Microclimatic variation at the edge of regeneration forests over daily, yearly and decadal time scales. For. Ecol. Manag. 2014, 334, 174–184. [Google Scholar] [CrossRef]
  32. Shanin, V.N.; Rocheva, L.K.; Shashkov, M.P.; Ivanova, N.V.; Moskalenko, S.V.; Burnasheva, E.R. Spatial distribution features of the root biomass of some tree species (Picea abies, Pinus sylvestris, Betula sp.). Biol. Bull. 2015, 42, 260–268. [Google Scholar] [CrossRef]
  33. Pacé, M.; Fenton, N.J.; Paré, D.; Bergeron, Y. Ground layer composition affects tree fine root biomass and soil nutrient availability in jack pine and black spruce forests under extreme drainage conditions. Can. J. For. Res. 2016, 47, 433–444. [Google Scholar] [CrossRef]
  34. Sun, T.; Dong, L.; Mao, Z.; Li, Y. Fine root dynamics of trees and understorey vegetation in a chronosequence of Betula platyphylla stands. For. Ecol. Manag. 2015, 346, 1–9. [Google Scholar] [CrossRef]
  35. Yuan, Z.Y.; Chen, H.Y.H. Fine root biomass, production, turnover rates, and nutrient contents in boreal forest ecosystems in relation to species, climate, fertility, and stand age: Literature review and meta-analyses. CRC Crit. Rev. Plant Sci. 2010, 29, 204–221. [Google Scholar] [CrossRef]
  36. Vanninen, P.; Makela, A. Fine root biomass of scots pine stands differing in age and soil fertility in Southern Finland. Tree Physiol. 1999, 19, 823–830. [Google Scholar] [CrossRef] [Green Version]
  37. Kuuluvainen, T. Forest management and biodiversity conservation based on natural ecosystem dynamics in Northern Europe: The complexity challenge. AMBIO J. Hum. Environ. 2009, 38, 309–315. [Google Scholar] [CrossRef] [PubMed]
  38. Brumelis, G.; Jonsson, B.; Kouki, J.; Kuuluvainen, T.; Shorohova, E. Forest naturalness in Northern Europe: Perspectives on processes, structures and species diversity. Silva Fenn. 2011, 45, 807–821. [Google Scholar] [CrossRef]
  39. Hylander, K. Aspect modifies the magnitude of edge effects on bryophyte growth in boreal forests. J. Appl. Ecol. 2005, 42, 518–525. [Google Scholar] [CrossRef]
  40. Klein, J.; Low, M.; Thor, G.; Sjögren, J.; Lindberg, E.; Eggers, S. Tree species identity and composition shape the epiphytic lichen community of structurally simple boreal forests over vast areas. PLoS ONE 2021, 16, e0257564. [Google Scholar] [CrossRef] [PubMed]
  41. Kivistö, L.; Kuusinen, M. Edge effects on the epiphytic lichen flora of Picea abies in middle boreal Finland. Lichenologist 2000, 32, 387–398. [Google Scholar] [CrossRef]
  42. Gignac, L.D.; Dale, M.R.T. Effects of fragment size and habitat heterogeneity on cryptogam diversity in the low-boreal forest of Western Canada. Bryologist 2005, 108, 50–66. [Google Scholar] [CrossRef]
  43. Esseen, P. Edge influence on the old-growth forest indicator lichen Alectoria Sarmentosa in natural ecotones. J. Veg. Sci. 2006, 17, 185–194. [Google Scholar] [CrossRef]
  44. Johansson, P. Consequences of disturbance on epiphytic lichens in boreal and near boreal forests. Biodivers. Conserv. 2008, 141, 1933–1944. [Google Scholar] [CrossRef]
  45. Boudreault, C.; Bergeron, Y.; Drapeau, P.; Mascarúa López, L. Edge effects on epiphytic lichens in remnant stands of managed landscapes in the eastern boreal forest of Canada. For. Ecol. Manag. 2008, 255, 1461–1471. [Google Scholar] [CrossRef]
  46. Hofmeister, J.; Hošek, J.; Brabec, M.; Tenčík, A. Human-sensitive bryophytes retreat into the depth of forest fragments in Central European landscape. Eur. J. For. Res. 2016, 135, 539–549. [Google Scholar] [CrossRef]
  47. Lesica, P.; McCune, B.; Cooper, S.V.; Hong, W.S. Differences in lichen and bryophyte communities between old-growth and managed second-growth forests in the Swan Valley, Montana. Can. J. Bot. 1991, 69, 1745–1755. [Google Scholar] [CrossRef]
  48. Aleksandrova, V.D. Geobotanical Zoning of the Non-Chernozem Region of the European Part of the Russian Soviet Federative Socialist Republic; Aleksandrova, V.D., Yurkovskaya, T.K., Eds.; Nauka: Leningrad, Russia, 1989; p. 64. (In Russian) [Google Scholar]
  49. Kazimirov, N.I.; Kabanov, V.V. Forest Inventory Tables; Karelian Branch of the USSR Academy of Sciences: Petrozavodsk, Russia, 1976; 32p. (In Russian) [Google Scholar]
  50. Genikova, N.V.; Mamontov, V.N.; Kryshen, A.M. Abundance of forest dwarf shrubs and microclimatic conditions in the bilberry spruce forest–clear-cut ecotone. Rastit. Resur. 2021, 2, 99–114. (In Russian) [Google Scholar] [CrossRef]
  51. MacArthur, R.H. Fluctuations of animal populations, and measure of community stability. Ecology 1955, 36, 353–356. [Google Scholar] [CrossRef]
  52. Jaccard, P. The Distribution of the Flora in the Alpine Zone. New Phytol. 1912, 11, 37–50. [Google Scholar] [CrossRef]
  53. Degtyareva, S.I. Quantitative accounting of epiphytic groups. In Reproduction, Monitoring and Protection of Natural, Natural-Anthropogenic and Anthropogenic Landscapes; Drapalyuk, M.V., Tregubov, O.V., Tsaralunga, A.V., Kharchenko, N.N., Matveev, S.M., Mikhin, V.I., Yu. Krakhotina, S., Eds.; Voronezh State Forestry Academy: Voronezh, Russia, 2012. [Google Scholar]
  54. Ignatov, M.S.; Afonina, O.M.; Ignatova, E.A. Check-list of mosses of East Europe and North Asia. Arctoa 2006, 15, 1–130. [Google Scholar] [CrossRef]
  55. Ignatov, M.S.; Milyutina, I.A. A revision of the genus Sciuro-hypnum (Brachytheciaceae, Bryophyta) in Russia. Arctoa 2007, 16, 63–86. [Google Scholar] [CrossRef]
  56. Ignatova, E.A.; Fedorova, A.V.; Kuznetsova, O.I.; Ignatov, M.S. Taxonomy of the Plagiothecium laetum Complex (Plagiotheciaceae, Bryophyta) in Russia. Arctoa 2019, 28, 28–45. [Google Scholar] [CrossRef]
  57. Bolte, A.; Villanueva, I. Interspecific competition impacts on the morphology and distribution of fine roots in European beech (Fagus sylvatica L.) and Norway spruce (Picea abies (L.) Karst.). Eur. J. For. Res. 2006, 125, 15–26. [Google Scholar] [CrossRef]
  58. Tonteri, T. Species richness of boreal understorey forest vegetation in relation to site type and successional factors. Ann. Zoo. Fennici. 1994, 31, 53–60. [Google Scholar]
  59. Graae, B.J.; Heskjær, V.S. A Comparison of understorey vegetation between untouched and managed deciduous forest in Denmark. For. Ecol. Manag. 1997, 96, 111–123. [Google Scholar] [CrossRef]
  60. Genikova, N.V.; Gnatiuk, E.P.; Kryshen, A.M. Coenoflora of bilberry spruce forests in Eastern Fennoscandia. Bot. Zhurnal 2019, 104, 699–716. (In Russian) [Google Scholar] [CrossRef]
  61. Marozas, V.; Grigaitis, V.; Brazaitis, G. Edge effect on ground vegetation in clear-cut edges of pine-dominated forests. Scand. J. For. Res. 2005, 20, 43–48. [Google Scholar] [CrossRef]
  62. Kryshen, A.M. Plant Communities of Clearings of Karelia; Nauka: Moscow, Russia, 2006; p. 262. (In Russian) [Google Scholar]
  63. Burova, N.V.; Tarakanov, A.M.; Drozdov, I.I.; Kononov, O.D.; Gelfand, E.D. Edge effect on the condition of separate components of wood biogeocenoses. Bull. Mosc. State Univ. For. Lesn. Vestnik. 2012, 4, 19–22. (In Russian) [Google Scholar]
  64. Sobolev, A.N.; Feklistov, P.A. Microclimate variability in forest stands of the Solovetsky Archipelago. Arct. Environ. Res. 2017, 17, 245–254. (In Russian) [Google Scholar] [CrossRef]
  65. Mölder, A.; Bernhardt-Römermann, M.; Schmidt, W. Herb-layer diversity in deciduous forests: Raised by tree richness or beaten by beech? For. Ecol. Manag. 2008, 256, 272–281. [Google Scholar] [CrossRef]
  66. Frego, K.A. Bryophytes as potential indicators of forest integrity. For. Ecol. Manag. 2007, 242, 65–75. [Google Scholar] [CrossRef]
  67. Kramer, P.D.; Kozlovsky, T.T. Physiology of Woody Plants; Lesnaya Promyshlennost: Moscow, Russia, 1983; p. 464. (In Russian) [Google Scholar]
  68. Caners, R.T.; Macdonald, S.E.; Belland, R.J. Responses of boreal epiphytic bryophytes to different levels of partial canopy harvest. Botany 2010, 88, 315–328. [Google Scholar] [CrossRef]
  69. Vogt, K.A.; Vogt, D.J.; Palmiotto, P.A.; Boon, P.; O’Hara, J.; Asbjornsen, H. Review of root dynamics in forest ecosystems grouped by climate, climatic forest type and species. Plant Soil 1995, 187, 159–219. [Google Scholar] [CrossRef]
  70. Kalliokoski, T.; Nygren, P.; Sievänen, R. Coarse root architecture of three boreal tree species growing in mixed stands. Silva Fenn. 2008, 42, 189–210. [Google Scholar] [CrossRef]
  71. Kalliokoski, T.; Pennanen, T.; Nygren, P.; Sievänen, R.; Helmisaari, H.-S. Belowground interspecific competition in mixed boreal forests: Fine root and ectomycorrhiza characteristics along stand developmental stage and soil fertility gradients. Plant Soil 2010, 330, 73–89. [Google Scholar] [CrossRef]
  72. Finér, L.; Ohashi, M.; Noguchi, K.; Hirano, Y. Factors causing variation in fine root biomass in forest ecosystems. For. Ecol. Manag. 2011, 261, 265–277. [Google Scholar] [CrossRef]
  73. Lehtonen, A.; Palviainen, M.; Ojanen, P.; Kalliokoski, T.; Nöjd, P.; Kukkola, M.; Penttilä, T.; Mäkipää, R.; Leppälammi-Kujansuu, J.; Helmisaari, H.-S. Modelling fine root biomass of boreal tree stands using site and stand variables. For. Ecol. Manag. 2016, 359, 361–369. [Google Scholar] [CrossRef]
  74. Xu, Y.; Zhang, Y.; Yang, J.; Lu, Z. Influence of tree functional diversity and stand environment on fine root biomass and necromass in four types of evergreen broad-leaved forests. Glob. Ecol. Conserv. 2020, 21, e00832. [Google Scholar] [CrossRef]
Forests 13 01468 g001 550

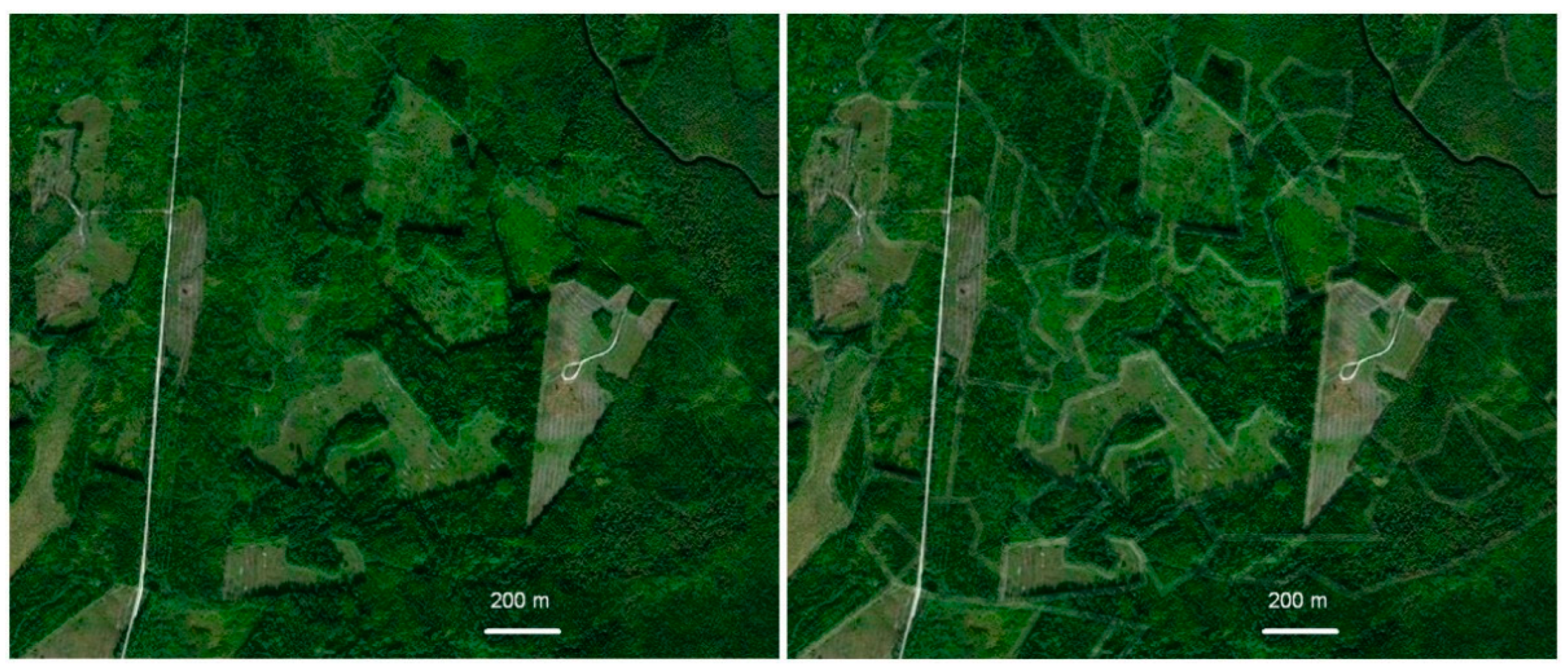

Figure 1. Forest vegetation fragmentation—a mosaic of varying-age clear-cut sites in the study area. Image borrowed from www.bing.com (accessed on 3 February 2022). The original image is on the left; the image on the right has the boundaries between communities in different stages of post-logging regeneration “highlighted”.
Figure 1. Forest vegetation fragmentation—a mosaic of varying-age clear-cut sites in the study area. Image borrowed from www.bing.com (accessed on 3 February 2022). The original image is on the left; the image on the right has the boundaries between communities in different stages of post-logging regeneration “highlighted”.
Forests 13 01468 g001
Forests 13 01468 g002 550

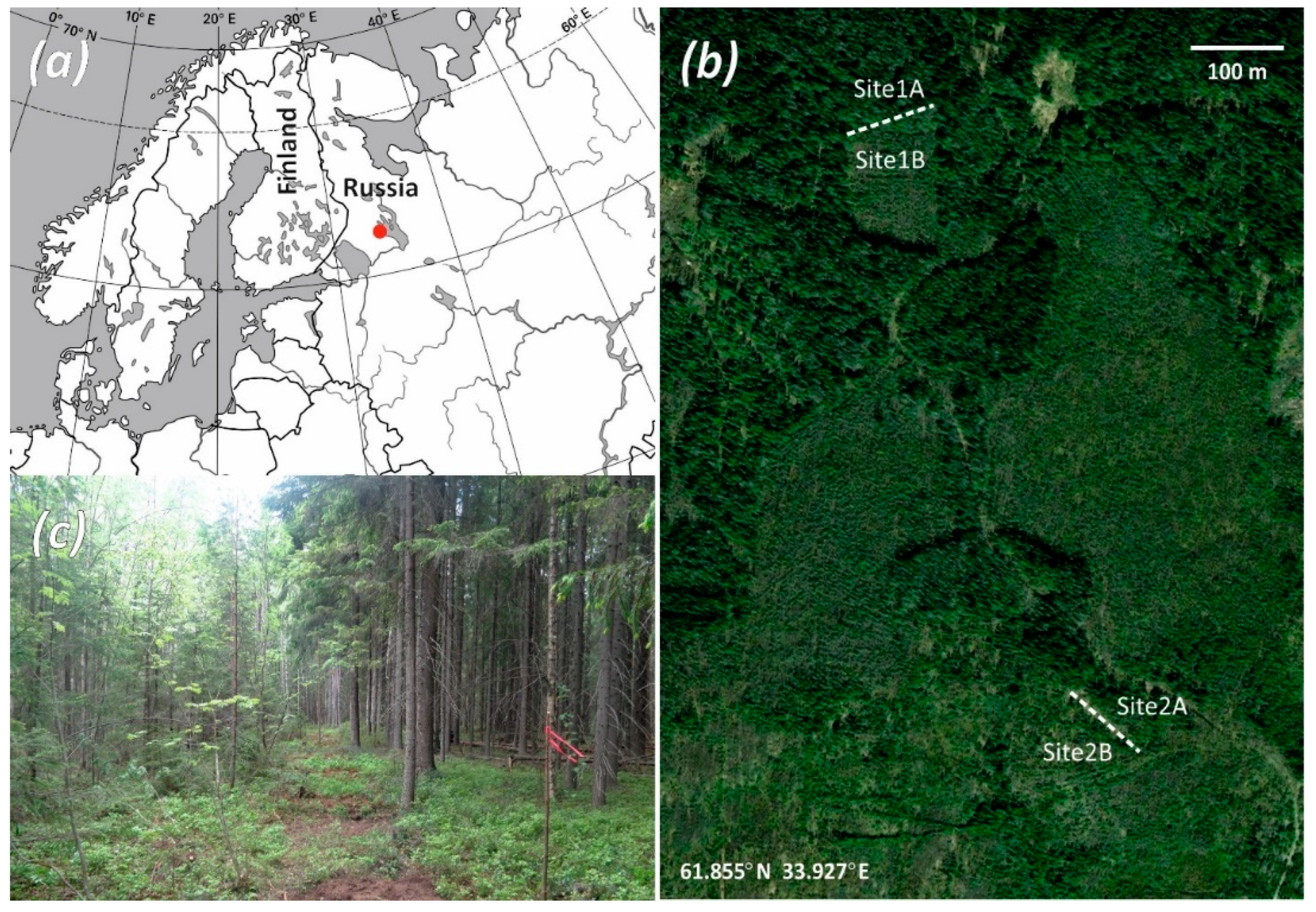

Figure 2. Location of sampling plots: (a) geographic location of the study area; (b) locations of sampling sites and plots; (c) photo from sampling site 2 (deciduous stand on the left, mature bilberry-type spruce forest on the right).
Figure 2. Location of sampling plots: (a) geographic location of the study area; (b) locations of sampling sites and plots; (c) photo from sampling site 2 (deciduous stand on the left, mature bilberry-type spruce forest on the right).
Forests 13 01468 g002
Forests 13 01468 g003 550

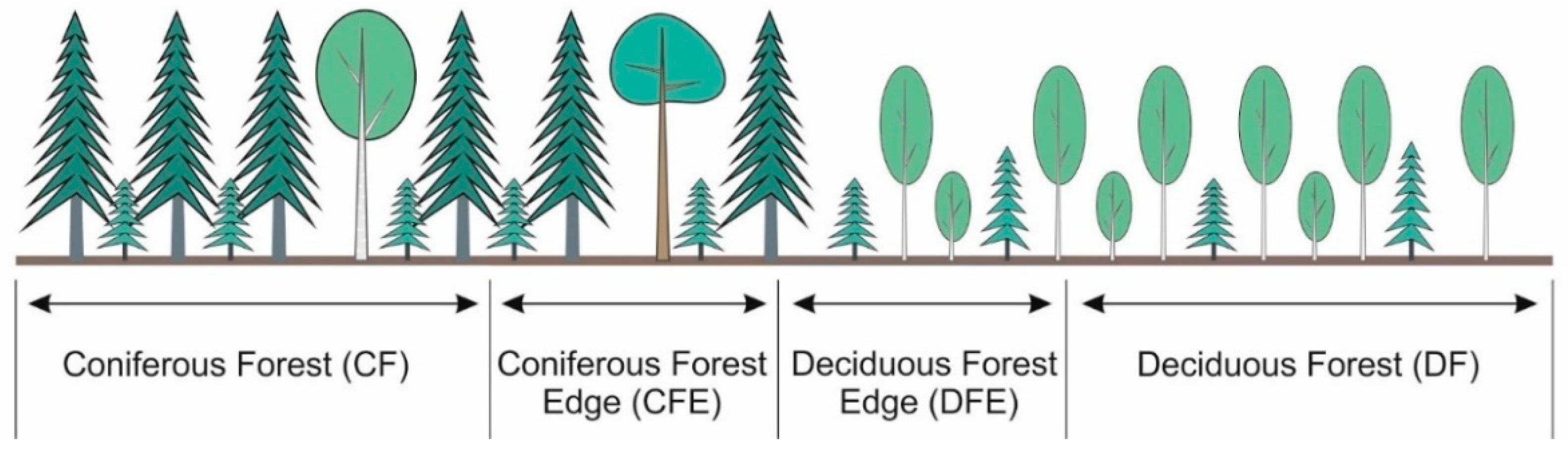

Figure 3. Chart of the ecotone between bilberry-type spruce forest and the deciduous stand formed after clear-cutting.
Figure 3. Chart of the ecotone between bilberry-type spruce forest and the deciduous stand formed after clear-cutting.
Forests 13 01468 g003
Forests 13 01468 g004 550

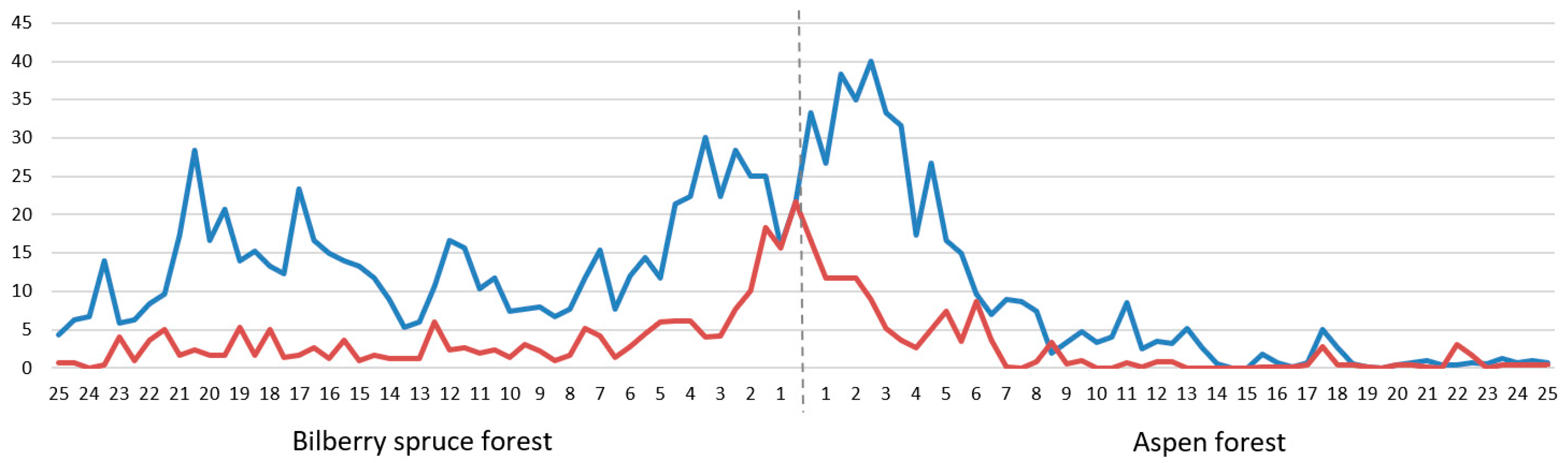

Figure 4. Alteration of the percentage covers of bilberry and cowberry in the transect running from bilberry-type spruce forest (on the left) into grass-forbs-type aspen forest (on the right) (site 1): the ordinate indicates the percentage cover of plant species (Forests 13 01468 i001 bilberry, Forests 13 01468 i002 cowberry); the abscissa represents the distance from the interface of the communities towards the spruce forest and towards the aspen forest (in meters); dashed line is the interface of the communities (quoted from: [26]).
Figure 4. Alteration of the percentage covers of bilberry and cowberry in the transect running from bilberry-type spruce forest (on the left) into grass-forbs-type aspen forest (on the right) (site 1): the ordinate indicates the percentage cover of plant species (Forests 13 01468 i001 bilberry, Forests 13 01468 i002 cowberry); the abscissa represents the distance from the interface of the communities towards the spruce forest and towards the aspen forest (in meters); dashed line is the interface of the communities (quoted from: [26]).
Forests 13 01468 g004
Forests 13 01468 g005 550

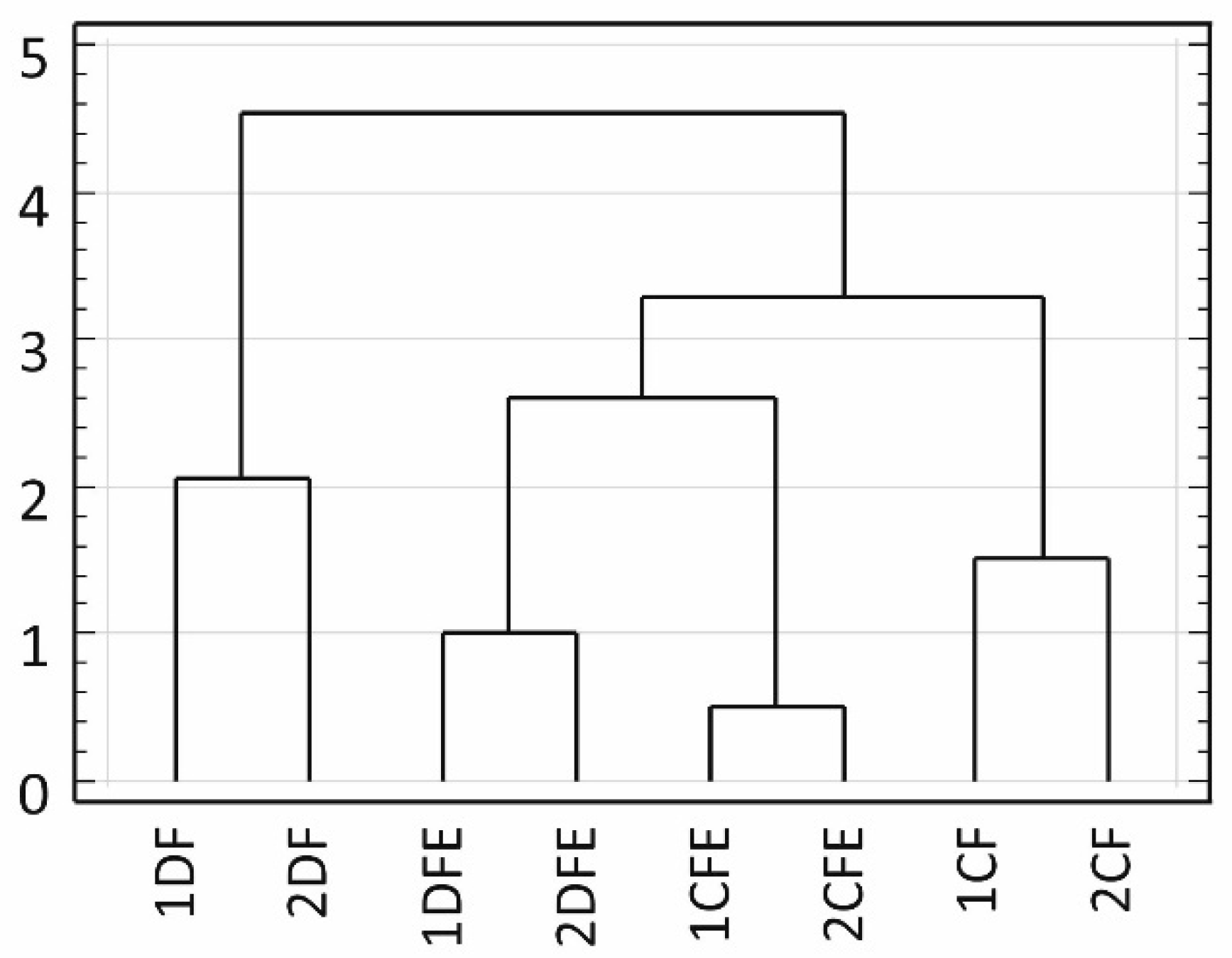

Figure 5. Clustering of ecotone complex zones by the composition and percentage cover of vascular plant species in the ground layer. Ecotone zones are along the abscissa, and distance is along the ordinate. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Figure 5. Clustering of ecotone complex zones by the composition and percentage cover of vascular plant species in the ground layer. Ecotone zones are along the abscissa, and distance is along the ordinate. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Forests 13 01468 g005
Forests 13 01468 g006 550

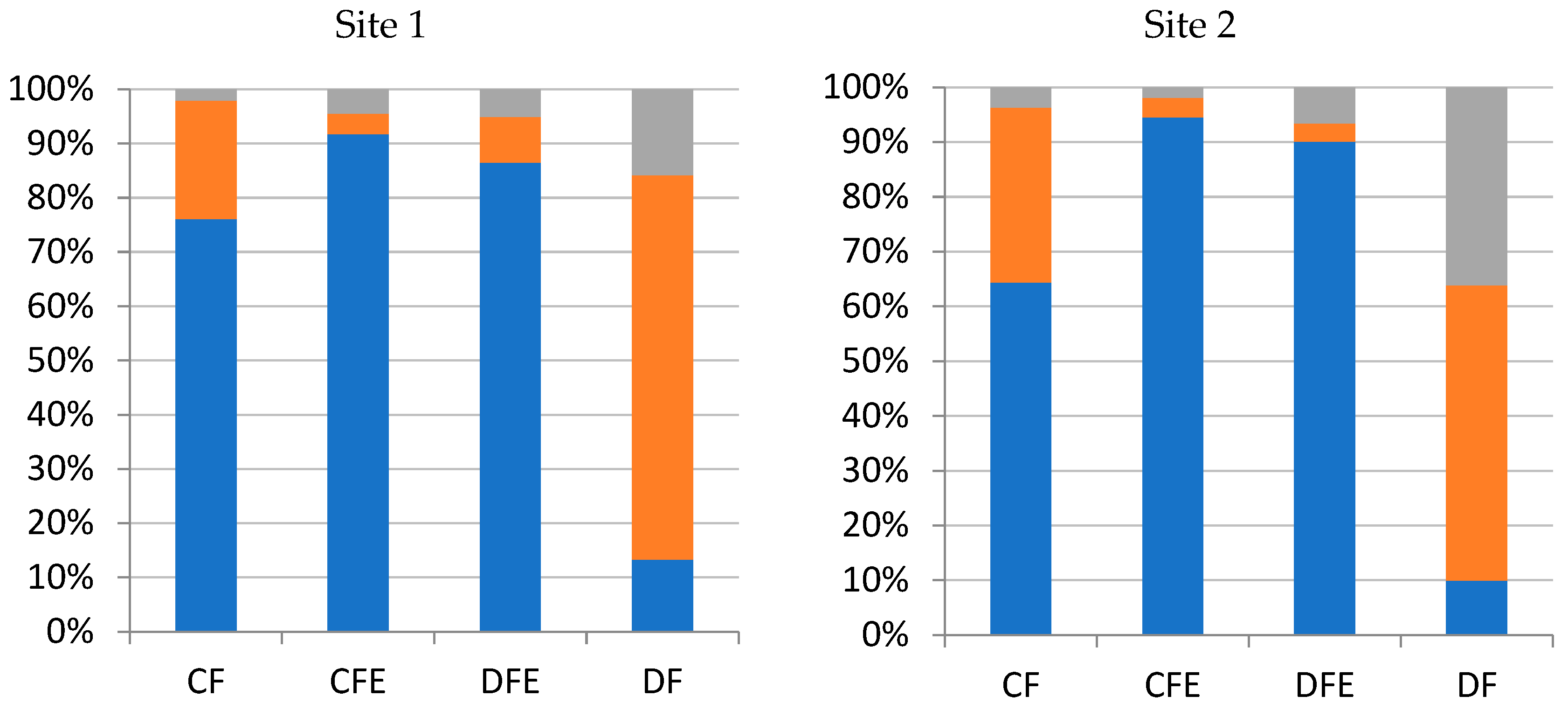

Figure 6. Relative contributions of species groups (Forests 13 01468 i003 dwarf shrubs, Forests 13 01468 i004 forbs, Forests 13 01468 i005 grasses) to the herb-dwarf-shrub layer in different ecotone complex zones. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Figure 6. Relative contributions of species groups (Forests 13 01468 i003 dwarf shrubs, Forests 13 01468 i004 forbs, Forests 13 01468 i005 grasses) to the herb-dwarf-shrub layer in different ecotone complex zones. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Forests 13 01468 g006
Forests 13 01468 g007 550

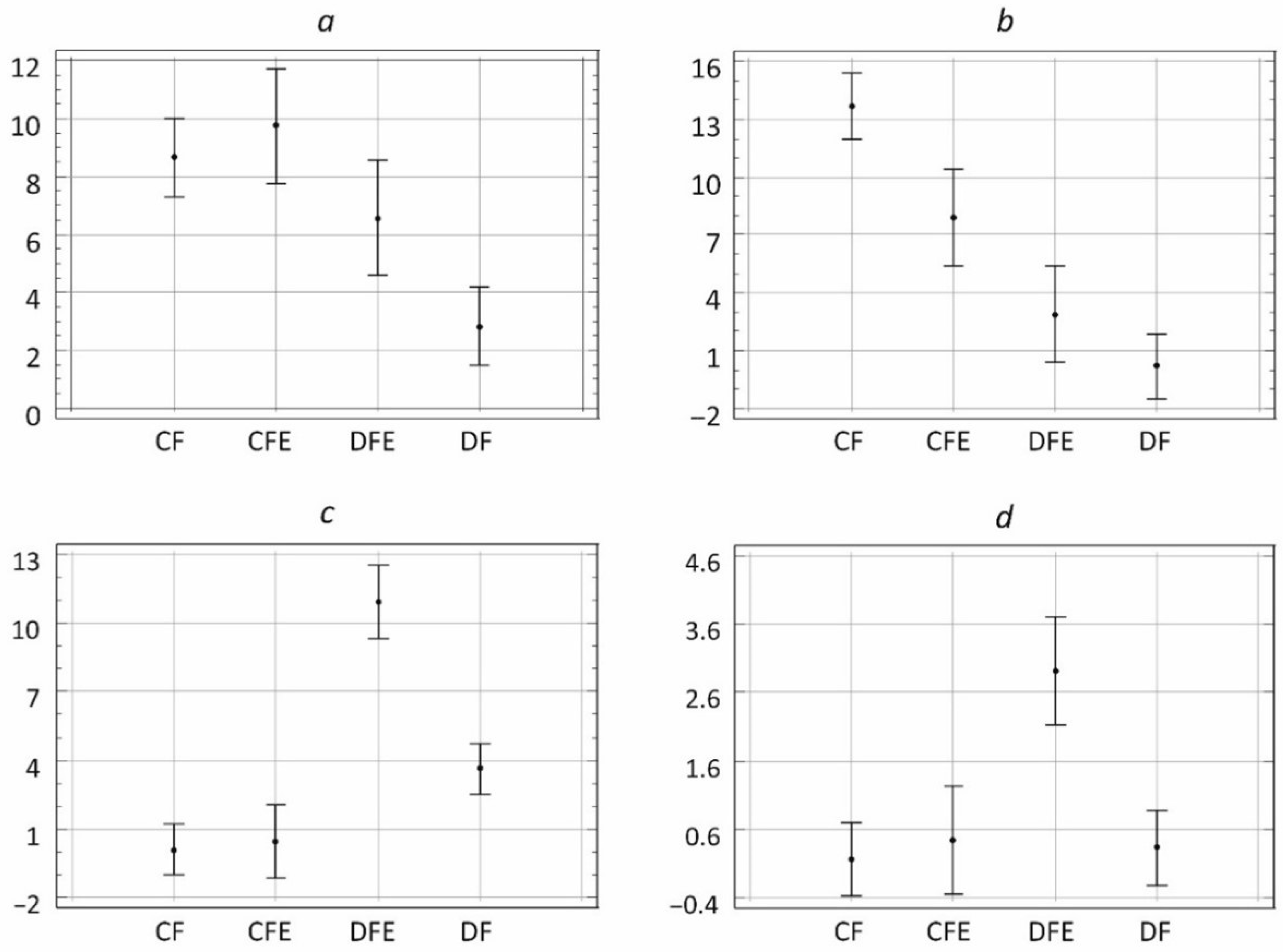

Figure 7. Average percentage covers of moss layer dominants in the ecotone complex. (a) Pleurozium schreberi (site 2), (b) Hylocomium splendens (site 2), (c) Polytrichum commune (site 1), (d) Sphagnum girgensohnii (site 1). Ecotone zones are along the abscissa, and percentage cover is along the ordinate. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Figure 7. Average percentage covers of moss layer dominants in the ecotone complex. (a) Pleurozium schreberi (site 2), (b) Hylocomium splendens (site 2), (c) Polytrichum commune (site 1), (d) Sphagnum girgensohnii (site 1). Ecotone zones are along the abscissa, and percentage cover is along the ordinate. Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Forests 13 01468 g007
Forests 13 01468 g008 550

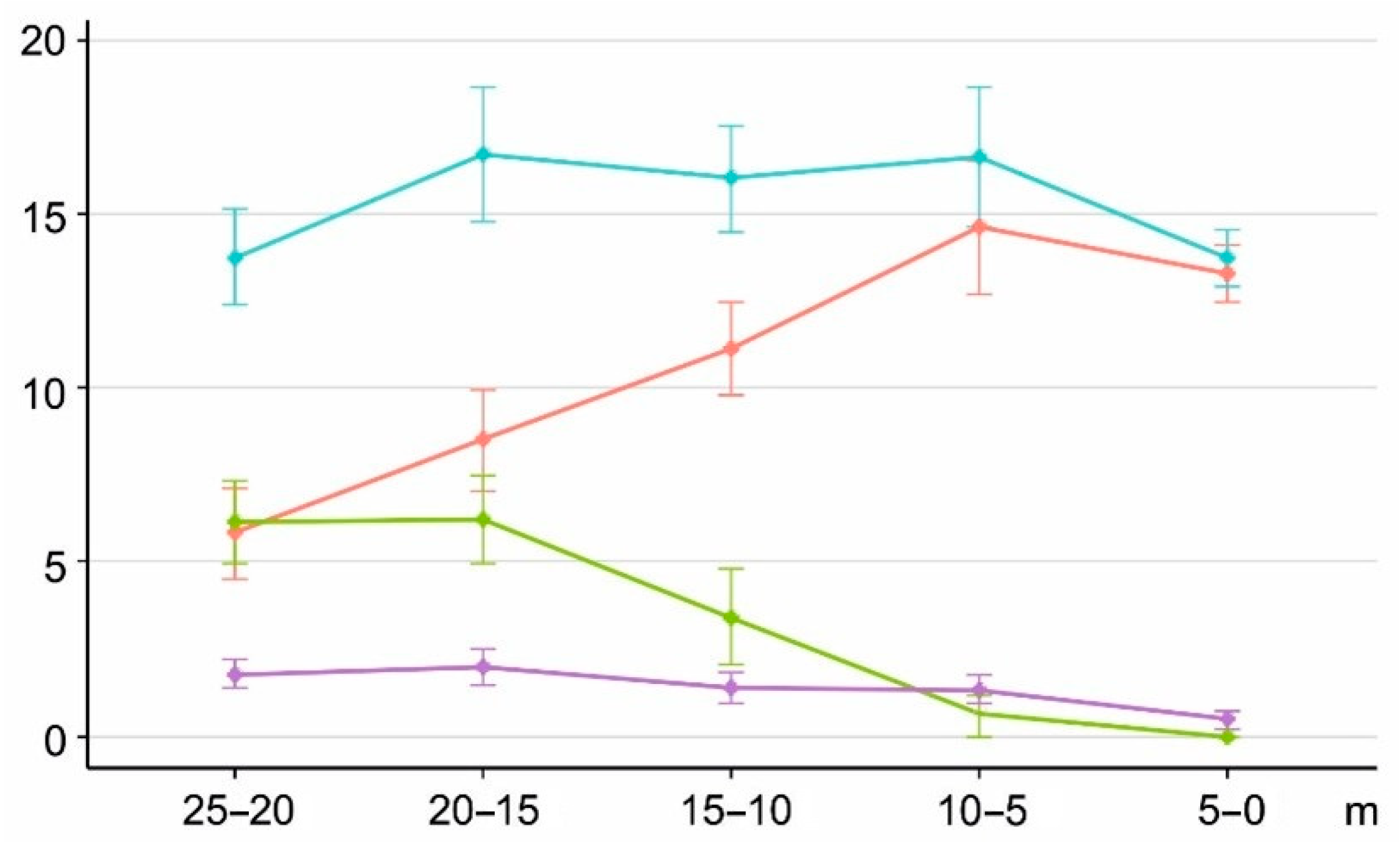

Figure 8. Changes in the abundance of epiphytic species (Forests 13 01468 i006 bryophytes, Forests 13 01468 i007 crustose lichens, Forests 13 01468 i008 epiphytic Cladonia spp., Forests 13 01468 i009 all epiphytes) with distance to spruce forest edge (means and standard errors). The abscissa indicates the distance from the interface between communities into the spruce forest; the ordinate represents the linear dimensions of epiphyte clumps.
Figure 8. Changes in the abundance of epiphytic species (Forests 13 01468 i006 bryophytes, Forests 13 01468 i007 crustose lichens, Forests 13 01468 i008 epiphytic Cladonia spp., Forests 13 01468 i009 all epiphytes) with distance to spruce forest edge (means and standard errors). The abscissa indicates the distance from the interface between communities into the spruce forest; the ordinate represents the linear dimensions of epiphyte clumps.
Forests 13 01468 g008
Table
Table 1. Inventory characteristics of tree stands in the sampling plots.
Table 1. Inventory characteristics of tree stands in the sampling plots.
SitePlotAge, YearsComposition by Volume, %Density,
103 Trees/ha		AverageVolume, m3/haBasal Area, m2/ha
Diameter, cmHeight, m
Site 11A9062 Spruce116.717.225126
15 Birch0.218.420626.2
15 Aspen0.0930.423.7617.2
8 Pine0.0240.223.8302.8
1B3557 Aspen1.5610.314.99212.7
28 Birch1.25.78.4466.2
15 Spruce3.222.7245.3
Site 22A9077 Spruce1.4316.616.828531.1
12 Birch0.251619465
6 Aspen0.0425.424222
5 Pine0.023424.5201.8
2B3573 Birch2.810.414.718723.8
19 Spruce1.079.69.8487.7
8 Aspen0.479.410213.2
Table
Table 2. Composition and average percentage covers of plants in ecotone complex zones.
Table 2. Composition and average percentage covers of plants in ecotone complex zones.
SpeciesAverage Percentage Cover, %
Site 1Site 2
CFCFEDFEDFCFCFEDFEDF
Vascular plants:
Angelica sylvestris-------0.01
Athyrium felix-femina---0.70----
Calamagrostis arundinacea0.201.091.022.220.440.430.912.78
Convallaria majalis-------0.49
Deschampsia flexuosa0.200.180.650.460.150.180.650.49
Dryopteris carthusiana0.050.030.015.24----
Geranium sylvaticum-------0.01
Goodyera repens----0.01---
Gymnocarpium dryopteris---0.94----
Linnaea borealis0.480.320.56-----
Luzula pilosa0.040.020.380.220.040.050.270.09
Lycopodium annotinum0.270.10------
Maianthemum bifolium0.520.250.461.274.710.750.170.45
Melampyrum sp.0.150.170.270.390.090.290.260.61
Orthilia secunda0.260.040.160.05----
Oxalis acetosella2.160.01-0.36----
Potentilla erecta---0.02----
Rubus saxatilis---0.590.09--2.35
Solidago virgaurea0.05-0.521.710.05-0.070.66
Trientalis europaea0.210.100.440.470.07--0.20
Vaccinium myrtillus12.3018.2722.231.788.7220.5216.200.74
Vaccinium vitis-idaea2.227.476.330.461.498.534.930.16
Veronica chamaedrys---0.02----
Total number of vascular plant species:14131217117813
Mean number of vascular plant species per 50 × 50 cm2 subplot7.76.48.410.94.74.45.88.0
Pielou’s evenness index0.500.380.460.800.490.440.460.77
Mosses:
Pleurozium schreberi3.001.292.010.337.649.776.572.20
Hylocomium splendens4.984.855.000.8213.067.892.880.20
D. scoparium3.451.283.511.421.227.512.230.89
D. polysetum0.220.090.790.030.385.318.850.10
Polytr. commune0.060.4510.943.130.010.000.530.24
Sphagnum girgensohnii0.180.442.920.250.000.000.000.00
Rhytidiadelphus triquetrus0.020.130.000.001.580.000.000.00
Aulacomium palustre0.010.020.330.020.000.000.000.00
Rhodobrium roseum0.020.010.020.060.030.000.000.12
Plagiomnium0.000.000.000.000.000.000.000.01
Total number of moss species:99887457
Mean number of moss species per subplot3.73.94.92.73.33.43.72.1
Total number of higher plant species in the ground layer:2322202518111320
Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Table
Table 3. Similarity of vascular plant species compositions between ecotone complex zones in the two plots (Jaccard index).
Table 3. Similarity of vascular plant species compositions between ecotone complex zones in the two plots (Jaccard index).
1CF1CFE1DFE1DF2CF2CFE2DFE2DF
1CF10.930.860.630.560.500.570.50
1CFE 10.790.580.500.540.500.44
1DFE 10.610.640.580.670.56
1DF 10.560.410.470.50
2CF 10.640.730.71
2CFE 10.880.54
2DFE 10.62
2DF 1
Note: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Table
Table 4. Mean percentage cover and shoot height values for bilberry and cowberry in the ecotone complex.
Table 4. Mean percentage cover and shoot height values for bilberry and cowberry in the ecotone complex.
Site 1Site 2
EC ZoneEC Zone
CFCFEDFEDFCFCFEDFEDF
Height of bilberry shoots
M ± m13.3 ± 0.3 a19.1 ± 1.2 b23.7 ± 1.2 c11.6 ± 0.6 a9.5 ± 0.3 a13.4 ± 1.0 b13.3 ± 1.2 b6.0 ± 0.3 c
relative to the value in CF1.01.41.80.91.01.41.40.6
Height of cowberry shoots
M ± m11.1 ± 0.5 a14.8 ± 1.2 b14.6 ± 1.0 b8.2 ± 0.6 c10.1 ± 0.5 a13.7 ± 0.9 b9.3 ± 0.8 a6.2 ± 0.6 c
relative to the value in CF1.01.31.30.71.01.40.90.6
Note: letter indexes refer to significant differences (Kruskal–Wallis test, p < 0.05) in dwarf shrub shoot height among EC zones in each plot. Zones: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Table
Table 5. Biomass of tree roots (diameter ≤ 2 mm) in the top 20 cm of soil.
Table 5. Biomass of tree roots (diameter ≤ 2 mm) in the top 20 cm of soil.
Site 1Site 2
Ecotone Complex ZoneEcotone Complex Zone
CFCFEDFEDFCFCFEDFEDF
Spruce roots, tons/ha2.10 ± 0.2 a1.75 ± 0.4 a1.02 ± 0.16 b0.61 ± 0.1 b3.08 ± 0.9 a2.39 ± 0.6 a1.66 ± 0.13 ab0.50 ± 0.08 b
Deciduous roots, tons/ha1.25 ± 0.3 ab1.78 ± 0.2 a0.70 ± 0.2 b1.56 ± 0.2 a0.88 ± 0.07 a0.74 ± 0.21 a1.55 ± 0.4 a3.05 ± 0.3 b
Roots of all species, tons/ha3.35 ± 0.4 a3.53 ± 0.5 a1.72 ± 0.1 b2.17 ± 0.1 b3.96 ± 0.9 a3.14 ± 0.5 a3.11 ± 0.4 a3.56 ± 0.3 a
Note: letter indexes refer to reliable (p < 0.05) differences in the amount of fine roots between ecotone complex zones (one-way ANOVA, non-parametric Kruskal–Wallis test). Zones: CF—coniferous forest, CFE—coniferous forest edge, DFE—deciduous forest edge, DF—deciduous forest.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Genikova, N.V.; Kryshen, A.M.; Obabko, R.P.; Karpechko, A.Y.; Pekkoev, A.N. Structural Features of a Post-Clear-Cutting Ecotone between 90-Year-Old Bilberry Spruce Forest and 35-Year-Old Herbs-Forbs Deciduous Stand. Forests 2022, 13, 1468. https://doi.org/10.3390/f13091468

AMA Style

Genikova NV, Kryshen AM, Obabko RP, Karpechko AY, Pekkoev AN. Structural Features of a Post-Clear-Cutting Ecotone between 90-Year-Old Bilberry Spruce Forest and 35-Year-Old Herbs-Forbs Deciduous Stand. Forests. 2022; 13(9):1468. https://doi.org/10.3390/f13091468

Chicago/Turabian Style

Genikova, Nadezhda V., Alexander M. Kryshen, Roman P. Obabko, Anna Yu. Karpechko, and Aleksey N. Pekkoev. 2022. "Structural Features of a Post-Clear-Cutting Ecotone between 90-Year-Old Bilberry Spruce Forest and 35-Year-Old Herbs-Forbs Deciduous Stand" Forests 13, no. 9: 1468. https://doi.org/10.3390/f13091468

APA Style

Genikova, N. V., Kryshen, A. M., Obabko, R. P., Karpechko, A. Y., & Pekkoev, A. N. (2022). Structural Features of a Post-Clear-Cutting Ecotone between 90-Year-Old Bilberry Spruce Forest and 35-Year-Old Herbs-Forbs Deciduous Stand. Forests, 13(9), 1468. https://doi.org/10.3390/f13091468

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
