Evaluating Microbial Biofertilizers for Root Colonization Potential in Narra (Pterocarpus indicus Willd.) and Their Efficacy in Heavy Metal Remediation

by
Bethlehem Marie T. Magsayo
1,*,
Nelly S. Aggangan
2,*,
Dennis M. Gilbero
3 and
Ruben F. Amparado, Jr.
1,4
1
Environmental Science Graduate Program, Department of Biological Sciences, College of Science and Mathematics, Mindanao State University-Iligan Institute of Technology, Iligan City 9200, Lanao del Norte, Philippines
2
Biotechnology for Agriculture and Forestry, National Institute of Molecular Biology and Biotechnology, University of the Philippines, Los Baños 4030, Laguna, Philippines
3
College of Agriculture, Agusan del Sur State College of Agriculture and Technology, Bunawan 8506, Agusan del Sur, Philippines
4
Premier Research Institute of Science and Mathematics (PRISM), Mindanao State University-Iligan Institute of Technology, Iligan City 9200, Lanao del Norte, Philippines
*
Authors to whom correspondence should be addressed.
Forests 2024, 15(1), 180; https://doi.org/10.3390/f15010180
Submission received: 28 November 2023 / Revised: 5 January 2024 / Accepted: 8 January 2024 / Published: 16 January 2024
(This article belongs to the Special Issue Organic Fertilization and Sustainable Soil Management Practices in Trees)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bioremediation technology, another strategy known for restoring degraded environments, utilizes beneficial microorganisms, including arbuscular mycorrhizal fungi (AMF) and nitrogen-fixing bacteria (NFB). Despite its potential, the biological processes of these microorganisms in contaminated sites remain poorly understood, hindering effective pollutant toxicity reduction. Establishing a connection between plant root systems and these microorganisms is crucial for enabling plant survival in heavy metal-contaminated soils. Narra (Pterocarpus indicus Willd.), a leguminous plant, typically associates with symbiotic nitrogen-fixing bacteria, forming nodules in the roots. Additionally, Narra forms a symbiotic relationship with AMF, phosphorus-fixing microbes, making it an ideal tree species for rehabilitating mined-out areas. In this study, five microbial biofertilizers, namely: MYKORICH®, MYKOVAM®, newMYC, newNFB, and combined newMYC+newNFB, plus a control were used to test their root colonization potential on Narra seedlings grown in nickel (Ni) and gold (Au) mined-out soils collected from Taganito Mining Corporation (TMC) and Manila Mining Corporation (MMC) in Claver and Placer, Surigao del Norte, Philippines, respectively. The results showed that newMYC had the highest root colonization in Ni mined-out soil, while MYKORICH® excelled in Au mined-out soil. The AMF spore count was highest in MYKORICH® for Ni mined-out soil and newMYC in Au mined-out soil. NFB colonization was highest in newMYC-treated seedlings for Ni mined-out soil and combined newMYC+newNFB for Au mined-out soil. The microbial biofertilizers utilized in this research, such as MY-KORICH®, MYKOVAM, newMYC, newNFB, and combined newNFB and newMYC, naturally occur in the environment and can be easily extracted. This cost-effective characteristic provides an advantage for mining companies seeking treatments for soil amelioration to rehabilitate mined-out areas.

1. Introduction

Understanding the relationship between plants and microorganisms provides a sound basis for the mechanisms behind harnessing critical biological processes necessary for the soil cleanup of heavily contaminated mined-out areas [1]. These microorganisms naturally occur in productive soils and play an essential role in nutrient transformations to provide sufficient nutrients to plants and other organisms living in the soil. Soil microbes hold various enzymes that play crucial roles in soil nutrient transformations, especially nitrogen and phosphorus, the major plant nutrients derived from the soil [2]. In this regard, understanding the interaction between plants and microorganisms in heavily contaminated soils is crucial. This interaction serves as an important mechanism to assess the effective removal of heavy metals from the soil while enabling plants to grow vigorously and luxuriously. Such growth is essential for the successful re-vegetation of formerly mined-out areas. Furthermore, the technology of using microbes to control environmental pollution is promising. Bacteria and other microorganisms offer a valuable platform for an improved bioremediation model of many environmental pollutants [3].
Bioremediation is a widely accepted alternative for cleaning the environment [4], and in situ bioremediation technologies have high public acceptance in developed economies (North America and Europe). In contrast, ex-situ bioremediation technologies are used more in developing regions [5]. In the Philippines, a bioremediation method that uses microorganisms was used, with the most with notable successes [6]. An example of a successful rehabilitation using this technique is the copper mined-out area in Mogpog, Marinduque, where a plant survival rate of 95% was achieved [7]. Before rehabilitating the said mined-out area, it was barren and abandoned due to harsh soil conditions that hindered the rooting of the plant species [8]. Furthermore, rehabilitation success is often judged based on plants’ survival or growth rate [9], selection of suitable restoration techniques, excessive heavy metal content, poor physical structure, and inadequate soil nutrition [10]. Notably, the root colonization potential of Narra seedlings using biofertilizer inoculation has yet to be explored, as demonstrated by other studies with other plant species [11,12,13,14,15].
Phytoremediation is one of the recommended mechanisms for the bioremediation of mined-out areas [16]. Phytoremediation is defined as a bioremediation strategy that uses plants and their physical, chemical, biological, and microbiological processes in contaminated sites to minimize the toxicity of pollutants. This method is a low-cost and environmentally friendly technology that involves not only the degradation of pollutants but also the removal of the pollutants from the environment without causing further degradation (Broda, 1992) as cited by [17]. In the study of [18], there were four (4) tree species, namely Ipil-ipil (Leucaena leucocephala Linn.), Narra (Pterocarpus indicus Willd.), Mansanitas (Muntingia calabura Linn.), and Calumpit (Terminalia macrocarpa Steud.) which exhibited high percentage survival and excellent growth performance in nickel mined-out areas. Pterocarpus indicus Willd., Acacia mangium Willd., and Eucalyptus urophylla S.T. Blake, with microbial biofertilizers and applied with compost and lime, showed significantly higher survival and growth compared to the previously planted seedlings that showed a low survival rate, stunted growth, and unhealthy seedlings as indicated by the yellowing leaves of the plants [15]. Despite the promising effects of these microbial biofertilizers, the results reveal that the different treatments had varying effects on plant growth and were only applied in the Cu-rich soil of Mogpog, Marinduque.
This research focused on nickel and gold mined-out areas situated in Mindanao. This selection was intentional as the objective was to develop bioremediation protocols tailored to the unique conditions of mined-out areas in the Philippines. Further, this study utilized the Narra (Pterocarpus indicus Willd.) species due to their affinity for nitrogen-fixing bacteria (NFB) and their distinctive capacity to establish a symbiotic relationship with microorganisms. Narra seedlings form root nodules associated with nitrogen-fixing bacteria (NFB) and establish connections with mycorrhizal fungi, which are phosphorus-fixing microbes [19]. As a result, Narra seedlings hold so much potential as a bioremediation species in rehabilitating mined-out areas by creating favorable growth conditions in the rhizosphere that increase their survivability in the harsh environment of mined-out areas. The results of this study are essential to developing site-specific protocols for the bioremediation of mined-out areas in the Philippines.

2. Materials and Methods

2.1. Experimental Design

Two concurrent nursery experimental set-ups (see Figure 1) were conducted following a randomized complete block design (RCBD) since this set-up emulates the mined-out area conditions while testing the effectiveness of different treatments on Narra seedlings. The experimental design minimizes variability within a replicate by randomly arranging the treatments in a block. This experiment used ten blocks with six treatments for each block. Different colors represent different treatments; there are ten blocks (1–10) and six treatments [A-control, B-MYKORICH®, C-MYKOVAM®, D-newMYC, E-newNFB, and F-combined newMYC+newNFB] (Please note: each treatment was replicated five times).

2.2. Soil Collection, Processing and Characterization

There were two (2) mined-out soils used in this study, Ni and Au mined-out soils, which were collected in the mining sites of Taganito Mining Corporation (TMC), Claver, Surigao del Norte, and Manila Mining Corporation (MMC), Placer, Surigao del Norte, Philippines, respectively. A total of 400 kilos of mined-out soil were collected from each site. The collected soils from TMC and MMC were independently pooled, air-dried, and sieved using a 0.5′ × 0.5′ metal wire mesh to remove unwanted debris and to collect finer soil particles. The sieved soils were homogenized by mixing thoroughly by hand. After the sieving process, the soils were mixed with compost at a 1:1 ratio. The composite soils were then potted into 6′ × 10′ polyethylene bags, which were used to repot the Narra seedlings one month after inoculating the biofertilizers mentioned previously. A total of 600 potted soils in 6′ × 10′ polyethylene bags were prepared (where 300 potted polybags for each mined-out soil).
Before inoculating these microbial biofertilizers, a pre-assessment of soil nutrient status was conducted. The results of the pre-assessed collected mined-out soils, as shown in Table 1, TMC soils have deficient-to-low nutrient availability (% organic matter, total nitrogen, available P, and exchangeable K) and have a high nickel (7166 ppm) content, which is an order of magnitude higher than the Dutch standard intervention value of 210 ppm.
On the other hand, MMC soils have low-to-moderate nutrient availability and a pH value of 6.14. Additionally, MMC soils have high concentrations of molybdenum and copper, of 39,400 ppm and 449.2 ppm, respectively, which exceed the Dutch standard intervention value of 200 ppm (molybdenum) and 190 ppm (copper), respectively (Table 1). These values indicate severe contamination of the soils, and immediate remediation is highly recommended.

2.3. Inoculation of Seedlings

The collected and prepared Narra seedlings were allowed to grow naturally in a shaded area to recover from stress during the transport from the Department of Environment and Natural Resources (DENR)-Provincial Environment and Natural Resources Office (PENRO) Nursery in Zamboanga del Norte to the Forest and Wetland Research, Development and Extension Center—Ecosystems Research and Development Bureau (FWRDEC-ERDB) Satellite Office in Butuan, Agusan del Norte. After two weeks, Narra seedlings were inoculated with the various formulations of the biofertilizers by making two holes (2–3 inches depth) in the pot using a barbecue stick.
The following treatments were used during the inoculation of Narra seedlings (Table 2).
The treated Narra seedlings were grown for another month in the established nursery at the FWRDEC Satellite Office, Butuan City, Philippines, to allow for the microbes to infect the Narra roots before being transferred into the poly bags filled with composite soils (mined-out soil mixed with compost and complete fertilizer). The experimental seedlings were handled correctly to avoid root disturbance while transplanting into the composite soils.

2.4. Microbial Population Analysis

After six (6) months, three (3) replicates per treatment were collected and processed to assess and analyze the microbial root infection potential of the treatments to the Narra seedlings raised in Ni and Au mined-out soil, respectively. The 18 seedlings from each mined-out soil were brought to the University of the Philippines, Los Baños (UPLB) BIOTECH Laboratory to analyze the mycorrhizal root colonization, spore count, and nitrogen-fixing bacterial population.
The population of NFB in the roots was determined using a Dobereiners’ nitrogen-free agar medium [20], where the pH was adjusted to 7.0 using 1M NaOH. The medium was composed of 5.0 g malic acid, 4.0 g KOH, 0.1 g CaCl2, 0.1 g MgSO4·7H2O, 0.1 g MnSO4·H2O, 0.9 g K2HPO4, 10 mg FeSO4·7H2O, 5.0 mg Na2MoO4·2H2O, 3.0 mL Bromothymol blue, 0.5% alcohol solution, and 15.0 g agar. All components were dissolved in 1 L of distilled water, and the pH was adjusted to 7.0 using 1 M NaOH. The roots were first cleaned under running water, surface sterilized with Clorox, and washed several times with sterile water. The roots were then macerated in a mortar and pestle, where dilutions were prepared. Aliquots were streaked on agar medium. Colonies were counted.
Mycorrhizal root colonization was assessed following the procedure of [21] where fine root samples (0.2 g plant-1 fine roots (<0.2 mm diameter)) were cleared with 10% KOH in a water bath set at 90 °C for 30 min and then cooled at room temperature and bleached overnight with 50% H2O2. After that, the H2O2 was replaced with 0.1 N HCl, washed in water, and stained in 0.05% methylene blue with 70% glycerine for 30 min in a water bath at 90 °C. Excess stain was removed using tap water. Stained roots were mounted on 50% glycerine and observed under a dissecting microscope. Gridline intersect methods described by [21] were used to determine root colonization. All mycorrhizal and non-mycorrhizal roots that crossed the grid lines viewed in ten field views (under the microscope) were counted. Roots with vesicles (round to oval in shape and with dark blue color), hyphae, or spores were counted as mycorrhizal colonized roots. Percent colonization (in each field view at 40× magnification) was computed as the total roots minus the colonized ones divided by the total counted roots and multiplied by 100.

2.5. Statistical Analysis

All data gathered were subjected to a one-way ANOVA procedure using IBM SPSS Statistics 22®. When all the treatment means were rendered significant, mean separation was performed using the Least Square Difference (LSD) method at a 95% significance level. Also, Pearson’s correlation coefficient was used to determine the relationship of the root colonization of the applied biofertilizers to the growth of Narra.

3. Results

3.1. Soil Nutrient Status after Six (6) Months

The results of the soil analysis after six (6) months of the experiment are presented in Table 3 below. Comparisons can be drawn from Table 1, revealing an increase in percentages of organic matter (%OM), total nitrogen (% Total N), and available phosphorus, along with a significant decrease in heavy metal elements like iron and nickel in the Ni mined-out soil. In relation to the application of biofertilizers to soil with heavy metal content, the data indicate that the concentrations of both iron and nickel were highest in the control group soil. Conversely, the soil treated with MYKORICH© exhibited the lowest iron and nickel content in the Narra seedlings. Consequently, for the nickel mined-out soil substrate, MYKORICH© emerged as the most effective treatment for potential heavy metal remediation, as evidenced by the results presented below.
Meanwhile, the results of the soil analysis in the Au mined-out soil after six (6) months are displayed in Table 4 below. Upon comparing with Table 1, it is evident that there is an increase in percentages of organic matter (%OM), total nitrogen (% Total N), and available phosphorus, accompanied by a significant decrease in heavy metal elements present in Au mined-out soil, including copper, manganese, and molybdenum.
In the case of Au mined-out soil, the findings reveal that Cu levels are lowest in newNFB-treated seedlings, Mn levels are lowest in the combined newNFB+newMYC-treated seedlings, and Mo levels are low in both newMYC- and combined newNFB+newMYC-treated seedlings. These results emphasize that newMYC and the combined treatment of newNFB+newMYC are the most effective strategies for mitigating heavy metal concentrations in Au mined-out soils.
These results demonstrate a notable improvement in the soil status of mined-out areas through the application of microbial biofertilizers and complete fertilizer, leading to enhanced growth in Narra seedlings. Specifically, there is a noteworthy increase in key soil parameters, including nutrient levels and overall soil health. The positive impact is evident in the increased percentages of organic matter, total nitrogen, and available phosphorus. Additionally, a significant reduction in the concentration of heavy metal elements in the soil is observed.
These promising findings highlight the potential of biofertilizers as effective tools for bioremediation, particularly in addressing the challenges posed by degraded soils in mined-out areas. The positive influence on soil quality and plant growth underscores the importance of sustainable and environmentally friendly approaches for soil rehabilitation in mining-affected regions.

3.2. Mycorrhizal Spore Count

The number of spore-forming AMF in the roots of Narra seedlings raised in the two different mined-out soils is shown in Figure 2. One-way ANOVA showed a significant difference (p < 0.05) in spore counts between mined-out soils. In the Ni mined-out soil, the spore count in the rhizosphere was highest in the MYKORICH®-inoculated seedlings and lowest in the control (Figure 2a). On the other hand, in the Au mined-out soil, the highest spore count was found in the newMYC-treated seedlings (Figure 2b) and was significantly (p < 0.05) different from the other inoculants six (6) months after inoculation, and the lowest was recorded in the control set-up.

3.3. NFB Colonization

The colony-forming units of NFB in the roots of Narra seedlings grown in the two mined-out soils are shown in Figure 3. One-way ANOVA showed significant results in Narra seedlings grown in Ni mined-out soil (p < 0.05). For the Ni mined-out soil, NFB colony-forming units were highest in newMYC-inoculated seedlings and lowest in the MYKOVAM®-treated seedlings (Figure 3a). Moreover, in Au mined-out soil, the highest NFB count was found in the combined newNFB+newMYC-treated seedlings (Figure 3b) and was lowest in the control.
Each treatment’s microbial root infection potential was measured through the number of spores in the soil [19]. The mycorrhizal fungi that form symbiotic relationships with the plants are abundant in the soil. From the results, we can glean that the MYKORICH®-inoculated Narra seedlings showed the highest mean spore count in the Ni mined-out soil, while the newMYC-inoculated seedlings provided the highest mean spore count in the Au mined-out soil. Also, Figure 4 below shows the NFB cultures in different treatments of both mined-out soils. It is noticeable that the NFB colony is also present in the control, proving that the mined-out soils of both sites were still evident in their soil, which is a reasonable implication of their soil status. However, their population is still low and cannot sustain the growth of plants in the mined-out area.

3.4. Microbial Root Colonization

The microbial root colonization exhibited significance differences among treatments (p < 0.05). Root colonization was most pronounced in newMYC-treated Narra seedlings compared to the control (Figure 5a) in Ni mined-out soil, and MYKORICH©-treated Narra seedlings were highest in Au mined-out soil (Figure 5b). This result conforms to the study of [22], where the root colonization was higher in plants treated with AMF than in uninoculated seedlings.

4. Discussion

This study demonstrated that microbial biofertilizers could colonize the mined-out rhizosphere and infect the Narra roots much better than the control. The root colonization results clearly show that MYKORICH® is a good treatment as a soil ameliorator for Narra seedlings grown in mined-out soil. The results further reveal that MYKORICH® was able to produce spores best in Ni mined-out soil, while it also colonizes best in the Au mined-out soil. On the other hand, the newMYC, which were the Marinduque AMF isolates, performed well when exposed to Au mined-out soils. The results showed that newMYC could produce spores best in the Au mined-out soil, the highest NFB colony in Ni mined-out soil, and colonize the root of Narra seedlings raised in Ni mined-out soil. The results demonstrate that the new isolates from the copper mine tailings in Mogpog, Marinduque, thrived best in the Au mined-out soil in the MMC, given their similar microbial population. Since these new isolates from Marinduque are pioneering microbial biofertilizer formulations applied in the soils of MMC, it can be assumed that newMYC can be applied to other Au mined-out areas but this still needs further verification.
In addition, the study of [23] also proved that microbial biofertilizers-inoculated Guar (Cyamopsis tetragonoloba Linn.), also a leguminous species, have an enhanced rhizosphere and nutrient uptake of 10–70% maximum compared to the uninoculated control. Moreover, using AMF and NFB as biofertilizers enables plants to use mineral elements such as nitrogen and phosphorous effectively, which significantly improves the plants’ nutrition, soil structure, fertility, and heavy metal remediation [24]. Based on the results of this study, MYKORICH®, newMYC, and the combined newMYC+newNFB treatment are the biofertilizers best suited for Ni and Au mined-out soils, respectively, given their promising results in terms of microbial root infection potential.
Mycorrhiza is categorized into two groups, endomycorrhiza and ectomycorrhiza, based on its localization and relationship with the plant roots [25]. Ref. [26] endomycorrhiza is a fungi that colonize the interior of the host plant root cells and form arbuscules and, hence, the term arbuscular mycorrhizal fungi; meanwhile, the fungi in ectomycorrhiza are located outside of the plant root cells. The microbial biofertilizers MYKORICH®, newMYC, and combined newMYC+newNFB are arbuscular mycorrhizal fungi or endomycorrhiza, and the latter is a combination of AMF and nitrogen-fixing bacteria (NFB), respectively. It can be concluded that the AMFs applied in this study provided a very robust association and symbiosis with the Narra seedlings, given the remarkable results of their spore production, NFB colonies, and root colonization. These symbioses can aid Narra seedlings’ growth in the mined-out soil assisted by soil amelioration. Ref. [27] explained that AMF symbioses enhanced the uptake of limited nutrients such as phosphorus, zinc, copper, etc., including water from the soil through plant-associated fungal hyphae.
Additionally, AMF form vesicles, arbuscular, and hyphae in roots, spores, and hyphae in the rhizosphere, which significantly enhance the access of the roots to a large soil surface area, causing improvement in plant growth (Bowles et al. 2016) as cited in [28]. As seen in Figure 6 below, vesicles and spores were present in the roots of Narra seedlings six months after inoculation. Moreover, the inoculation of AMF significantly enhances the concentration of various macro-nutrients and micro-nutrients, which leads to increased photosynthate production and, hence, increased biomass accumulation [28,29,30,31], which supports the claims on the mechanism behind the phenomenal growth of Narra seedlings raised in Ni and Au mined-out soils inoculated with microbial biofertilizers, specifically with AMF, in addition to compost and the complete fertilizer.
Furthermore, Narra, a leguminous species, is already an NFB-loving plant species that also exhibits an enhanced ability to absorb more nutrients and adapt in heavy metal-contaminated soils when inoculated with NFB-rich microbial biofertilizers. The NFB contributes to the plants’ nitrogen requirements through biological nitrogen fixation, an essential biological process for plant growth and development. The symbiotic relationship between the rhizobia and NFB is the formation of nodules (specialized nitrogen structure for nitrogen fixation) on the roots of host legume plants [32], which enable the plants to tolerate the harsh stress conditions of soil salinity, temperature, acidity, alkalinity, drought, and metal toxicities [33]. Nevertheless, the potential interactions between arbuscular mycorrhizal fungi (AMF) and nitrogen-fixing bacteria (NFB) in co-inoculations remain inadequately explored. This gains significance considering the positive impact of mycorrhiza on phosphorus availability, a key factor influencing nodulation by NFBs. Arbuscular mycorrhizal fungi enhance phosphorus uptake in deficient soils by increasing the rate of P uptake per unit of root, attributed to the superior efficiency of hyphal surfaces in comparison to cylindrical root surfaces [34]. And, this uptake of P influences the development of nodules on NFB.
In addition, the response of the inoculated Narra seedlings raised in metal-contaminated soils was remarkable. A notable mechanism of plants to cope with heavy metal stress is phytochelatins (PCs) induction and synthesis. Berreck and Haselwandter (2001), as cited in [35], explained that PCs are essential peptides synthesized enzymatically from glutathione by phytochelatins synthase in the presence of heavy metal ions. It is well-documented that mycorrhiza could improve plant growth in metal-polluted soils by enhancing metal containment in roots and reducing translocation to the shoots. In addition to AMF’s well-known contribution to plant nutrient acquisition and growth, these fungi develop diverse mechanisms that encourage plants to grow in soils with high toxic metal concentrations [27,36,37]. Also, the AMFs can adapt to or resist metal stress, which essentially protects and promotes plant growth, enhancing nutrient acquisition and phytoremediation in heavy metal-contaminated soils [38,39]. Furthermore, detoxification strategies such as avoidance and tolerance have been adopted by plants in response to heavy metal contamination [40,41].
The advanced mechanisms developed in the Narra seedlings treated with different microbial biofertilizers must be considered as one of the rehabilitation strategies for mining companies. The microbial biofertilizers employed in this research, including MYKORICH®, MYKOVAM, newMYC, newNFB, and their combinations, are naturally occurring in the environment and can be easily extracted for bioremediation. Notably, their cost-effective nature offers a distinct advantage, particularly for mining companies seeking efficient solutions for soil amelioration and the rehabilitation of mined-out areas.

5. Conclusions

Rehabilitating mined-out areas has become more evident than ever, particularly with the successful development of a protocol in this study for raising healthy Narra seedlings in a nursery. This achievement contributes to the growing body of research focused on reforestation using specific Narra seedlings. It has been demonstrated that the applied microbial biofertilizers could increase their spores and NFB colonies and colonize the rhizosphere of Narra seedlings raised in mined-out soils.
The major challenge is testing and monitoring how these hardened Narra seedlings can grow and survive in the field. Only then will a working protocol for Narra as a reforestation species be firmly established.
Further, the compost employed for cultivating Narra seedlings could potentially serve as a reservoir of microbes with diverse capabilities. These microorganisms may exert an indirect influence on the observed root colonization and subsequent benefits to the growth of Narra seedlings. Hence, it is recommended to include an experimental control without compost to provide further insights into the role of compost in microbial root colonization.
Additionally, a deeper understanding of the cellular and molecular basis of detoxification with microbial biofertilizer applications such as phytochelatins, metallothioneins, and other related peptides and proteins that protect plants and help them in adapting to metal stress through homeostatic regulation of metals and protection against oxidative stress is further recommended in this study.

Author Contributions

Conceptualization and methodology, B.M.T.M. and N.S.A.; formal analysis, B.M.T.M., N.S.A., R.F.A.J. and D.M.G.; resources, N.S.A. and D.M.G.; data curation, B.M.T.M.; writing-original draft preparation, B.M.T.M.; writing-review and editing, N.S.A., R.F.A.J. and D.M.G.; supervision, R.F.A.J. and D.M.G.; funding acquisition, N.S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research project entitled “Greening Mined-out Area in the Philippines (GMAP) Surigao” was funded by the Department of Science and Technology-National Research Council of the Philippines (DOST-NRCP) and additional funds from the DOST-ASTHRDP scholarship of the corresponding author.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The first author expresses her profound gratitude and thanks to the GMAP Surigao Project of the DOST-National Research Council of the Philippines. This paper also acknowledges the DOST-Accelerated Science and Technology Human Resource Development Program (ASTHRDP) for the scholarship grant to pursue her graduate studies and the additional research grant for this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vergani, L.; Mapelli, F.; Marasco, R.; Crotti, E.; Fusi, M.; di Guardo, A.; Armiraglio, S.; Daffonchio, D.; Borin, S. Bacteria Associated to Plants Naturally Selected in a Historical PCB Polluted Soil Show Potential to Sustain Natural Attenuation. Front. Microbiol. 2017, 8, 1385. [Google Scholar] [CrossRef] [PubMed]
  2. Ramasamy, M.; Geetha, T.; Yuvaraj, M. Role of Biofertilizers in Plant Growth and Soil Health. Nitrogen Fixat. J. 2020. [CrossRef]
  3. Vishwakarma, G.S.; Bhattacharjee, G.; Gohil, N.; Singh, V. Current status, challenges and future of bioremediation. In Bioremediation of Pollutants; Pandey, V.C., Singh, V., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 403–415. ISBN 9780128190258. [Google Scholar] [CrossRef]
  4. Kour, D.; Kaur, T.; Devi, R.; Yadav, A.; Singh, M.; Joshi, D.; Saxena, A.K. Beneficial microbiomes for bioremediation of diverse contaminated environments for environmental sustainability: Present status and future challenges. Environ. Sci. Pollut. Res. 2021, 28, 24917–24939. [Google Scholar] [CrossRef] [PubMed]
  5. Elekwachi, C.O.; Andresen, J.; Hodgman, T.C. Global Use of Bioremediation Technologies for Decontamination of Ecosystems. J. Bioremediation Biodegrad. 2014, 5, 225. [Google Scholar] [CrossRef]
  6. Andrei, M. BioRemediation in Manila, Philippines. ZME Sci. 2013. Available online: https://www.zmescience.com/ecology/bioremediation-in-manila-philippines/ (accessed on 25 August 2022).
  7. Alaira, S.; Padilla, C.; Alcantara, E.; Aggangan, N. Social Acceptability of the Bioremediation Technology for the Rehabilitation of an Abandoned Mined-Out Area in Marinduque, Philippines. J. Environ. Sci. Manag. 2021, 24, 77–91. [Google Scholar] [CrossRef]
  8. Karaca, O.; Cameselle, C.; Reddy, K.R. Mine tailing disposal sites: Contamination problems, remedial options and phytocaps for sustainable remediation. Rev. Environ. Sci. Bio/Technol. 2017, 17, 205–228. [Google Scholar] [CrossRef]
  9. Martinez, J.G.; Balondo, K.A.; Santos, G.D.; van Ranst, E.; Moens, T. Re-establishment of nematode communities in a rehabilitated surface mining area in Sibutad, southern Philippines. Eur. J. Soil Biol. 2021, 102, 103254. [Google Scholar] [CrossRef]
  10. Sun, W.; Ji, B.; Khoso, S.A.; Ji, B.; Khoso, S.A.; Tang, H.; Runqing Liu, R.; Wang, L.; Hu, Y. An extensive review on restoration technologies for mining tailings. Environ. Sci. Pollut. Res. 2018, 25, 33911–33925. [Google Scholar] [CrossRef]
  11. Singh, B.P. Screening and Characterization of Plant Growth Promoting Rhizobacteria (PGPR): An overview. Bull. Environ. Sci. Res. 2015, 4, 1–14. Available online: http://besr.org.in/index.php/besr/article/view/45 (accessed on 20 September 2022).
  12. Sinha, D.; Mukherjee, S.; Mahapatra, D. Multifaceted Potential of Plant Growth Promoting Rhizobacteria (PGPR): An Overview. In Handbook of Research on Microbial Remediation and Microbial Biotechnology for Sustainable Soil; IGI Global: Hershey, PA, USA, 2021; pp. 205–268. [Google Scholar] [CrossRef]
  13. Basu, A.; Prasad, P.; Das, S.N.; Kalam, S.; Sayyed, R.Z.; Reddy, M.S.; El Enshasy, H. Plant growth promoting rhizobacteria (PGPR) as green bioinoculants: Recent developments, constraints, and prospects. Sustainability 2021, 13, 1140. [Google Scholar] [CrossRef]
  14. Campo, S.; Martín-Cardoso, H.; Olivé, M.; Pla, E.; Catala-Forner, M.; Martínez-Eixarch, M.; San Segundo, B. Effect of root colonization by arbuscular mycorrhizal fungi on growth, productivity and blast resistance in rice. Rice 2020, 13, 42. [Google Scholar] [CrossRef] [PubMed]
  15. Aggangan, N.; Anarna, J. Microbial biofertilizers and soil amendments enhanced tree growth and survival in a barren mined-out area in Marinduque, Philippines. J. Environ. Sci. Manag. 2019, 22, 77–88. [Google Scholar] [CrossRef]
  16. Azubuike, C.C.; Chikere, C.B.; Okpokwasili, G.C. Bioremediation techniques-classification based on site of application: Principles, advantages, limitations, and prospects. World J. Microbiol. Biotechnol. 2016, 32, 180. [Google Scholar] [CrossRef] [PubMed]
  17. Pleto, J.V.R.; Arboleda, M.D.M.; Simbahan, J.F.; Migo, V.P. Assessment of the Effect of Remediation Strategies on the Environmental Quality of Aquaculture Ponds in Marilao and Meycauayan, Bulacan, Philippines. J. Health Pollut. 2018, 8, 181205. [Google Scholar] [CrossRef] [PubMed]
  18. Varela, R.P.; Garcia, G.A.A.; Garcia, C.M.; Asube, L.C.S. Ecobelt construction adopting agroforestry for rehabilitation of mined-out nickel areas in Surigao, Philippines. Adv. Environ. Sci. Bioflux 2019, 11, 187–194. Available online: http://www.aes.bioflux.com.ro (accessed on 20 September 2022).
  19. Aggangan, N.; Cortes, A. Screening mined-out indigenous mycorrhizal fungi for the rehabilitation of mine tailing areas in the Philippines. Reforesta 2018, 6, 71–85. [Google Scholar] [CrossRef]
  20. Day, J.M.; Döbereiner, J. Physiological aspects of N2-fixation by a Spirillum from Digitaria roots. Soil Biol. Biochem. 1976, 8, 45–50. [Google Scholar] [CrossRef]
  21. Brundrett, M.; Bougher, N.; Dell, B.; Grove, T.; Malajczuk, N. Working with Mycorrhizas in Forestry and Agriculture; Australian Centre for International Agricultural Research: Canberra, Australia, 1996; Volume 32, p. 374.
  22. Aggangan, N.S.; Cortes, A.D.; Opulencia, R.B.; Jomao-as, J.G.; Yecyec, R.P. Effects of mycorrhizal fungi and bamboo biochar on the rhizosphere bacterial population and nutrient uptake of cacao (Theobroma cacao L.) seedlings. Philipp. J. Crop Sci. 2019, 44, 1–9. [Google Scholar]
  23. Junia, R.; Kasana, R.C.; Jain, N.; Aseri, G.K. Guar (Cyamopsis tetragonoloba L.): A Potential Candidate for the Rehabilitation of Feldspar Mine Spoil Amended with Bioinoculants. Indian J. Agric. Res. 2020, 55, 129–136. [Google Scholar] [CrossRef]
  24. Sharma, M.P.; Grover, M.; Chourasiya, D.; Bharti, A.; Agnihotri, R.; Maheshwari, H.S.; Pareek, A.; Buyer, J.S.; Sharma, S.K.; Schütz, L.; et al. Deciphering the Role of Trehalose in Tripartite Symbiosis Among Rhizobia, Arbuscular Mycorrhizal Fungi, and Legumes for Enhancing Abiotic Stress Tolerance in Crop Plants. Front. Microbiol. 2020, 11, 509919. [Google Scholar] [CrossRef] [PubMed]
  25. Kaur, H.; Garg, N. Chapter 24-Microbial community in soil-plant systems: Role in heavy metal(loid) detoxification and sustainable agriculture. In Rhizosphere Engineering; Academic Press: Cambridge, MA, USA, 2022; pp. 471–498. [Google Scholar] [CrossRef]
  26. Gadd, G.M. Heavy Metal Pollutants: Environmental and Biotechnological Aspects. Ref. Modul. Life Sci. 2019. [CrossRef]
  27. Meier, S.; Borie, F.; Bolan, N.; Cornejo, P. Phytoremediation of metal-polluted soils by arbuscular mycorrhizal fungi. Crit. Rev. Environ. Sci. Technol. 2012, 42, 741–775. [Google Scholar] [CrossRef]
  28. Begum, N.; Qin, C.; Ahanger, M.A.; Raza, S.; Khan, M.I.; Ashraf, M.; Ahmed, N.; Zhang, L. Role of Arbuscular Mycorrhizal Fungi in Plant Growth Regulation: Implications in Abiotic Stress Tolerance. Front. Plant Sci. 2019, 10, 1068. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, M.; Arato, M.; Borghi, L.; Nouri, E.; Reinhardt, D. Beneficial services of arbuscular mycorrhizal fungi–from ecology to application. Front. Plant Sci. 2018, 9, 1270. [Google Scholar] [CrossRef] [PubMed]
  30. Evelin, H.; Devi, T.S.; Gupta, S.; Kapoor, R. Mitigation of salinity stress in plants by arbuscular mycorrhizal symbiosis: Current understanding and new challenges. Front. Plant Sci. 2019, 10, 470. [Google Scholar] [CrossRef] [PubMed]
  31. Kapoor, R.; Evelin, H.; Mathur, P.; Giri, B. Arbuscular mycorrhiza: Approaches for abiotic stress tolerance in crop plants for sustainable agriculture. In Plant Acclimation to Environmental Stress; Springer: New York, NY, USA, 2013; pp. 359–401. [Google Scholar]
  32. Raffi, M.M.; Charyulu, P.B.B. Azospirillum-biofertilizer for sustainable cereal crop production: Current status. Recent Dev. Appl. Microbiol. Biochem. 2021, 2, 193–209. [Google Scholar] [CrossRef]
  33. Sahab, S.; Suhani, I.; Singh, R.P. Valuing each patch of land: Utilizing plant-microbe interactions for the betterment of agriculture. In Microbes in Land Use Change Management; Elsevier: Amsterdam, The Netherlands, 2021; pp. 471–507. [Google Scholar]
  34. Etesami, H.; Jeong, B.R.; Glick, B.R. Contribution of arbuscular mycorrhizal fungi, Phosphate–Solubilizing bacteria, and silicon to P uptake by plant. Front. Plant Sci. 2021, 12, 699618. [Google Scholar] [CrossRef]
  35. Ren, C.G.; Kong, C.C.; Wang, S.X.; Xie, Z.H. Enhanced phytoremediation of uranium-contaminated soils by arbuscular mycorrhiza and rhizobium. Chemosphere 2019, 217, 773–779. [Google Scholar] [CrossRef] [PubMed]
  36. Khade, S.W.; Adholeya, A. Feasible bioremediation through arbuscular mycorrhizal fungi imparting heavy metal tolerance: A retrospective. Bioremediation J. 2007, 11, 33–43. [Google Scholar] [CrossRef]
  37. Leung, H.M.; Zhen-Wen, W.A.; Zhi-Hong, Y.E.; Kin-Lam, Y.U.; Xiao-Ling, P.E.; Cheung, K.C. Interactions between arbuscular mycorrhizae and plants in phytoremediation of metal-contaminated soils: A review. Pedosphere 2013, 23, 549–563. [Google Scholar] [CrossRef]
  38. Gong, X.; Tian, D.Q. Study on the effect mechanism of Arbuscular Mycorrhiza on the absorption of heavy metal elements in soil by plants. IOP Conf. Ser. Earth Environ. Sci. 2019, 267, 052064. [Google Scholar] [CrossRef]
  39. Yu, G.; Ma, J.; Jiang, P.; Li, J.; Gao, J.; Qiao, S.; Zhao, Z. The mechanism of plant resistance to heavy metal. IOP Conf. Ser. Earth Environ. Sci. 2019, 310, 052004. [Google Scholar] [CrossRef]
  40. Yan, A.; Wang, Y.; Tan, S.N.; Mohd Yusof, M.L.; Ghosh, S.; Chen, Z. Phytoremediation: A promising approach for revegetation of heavy metal-polluted land. Front. Plant Sci. 2020, 11, 359. [Google Scholar] [CrossRef] [PubMed]
  41. Shah, V.; Daverey, A. Phytoremediation: A multidisciplinary approach to clean up heavy metal contaminated soil. Environ. Technol. Innov. 2020, 18, 100774. [Google Scholar] [CrossRef]
Forests 15 00180 g001

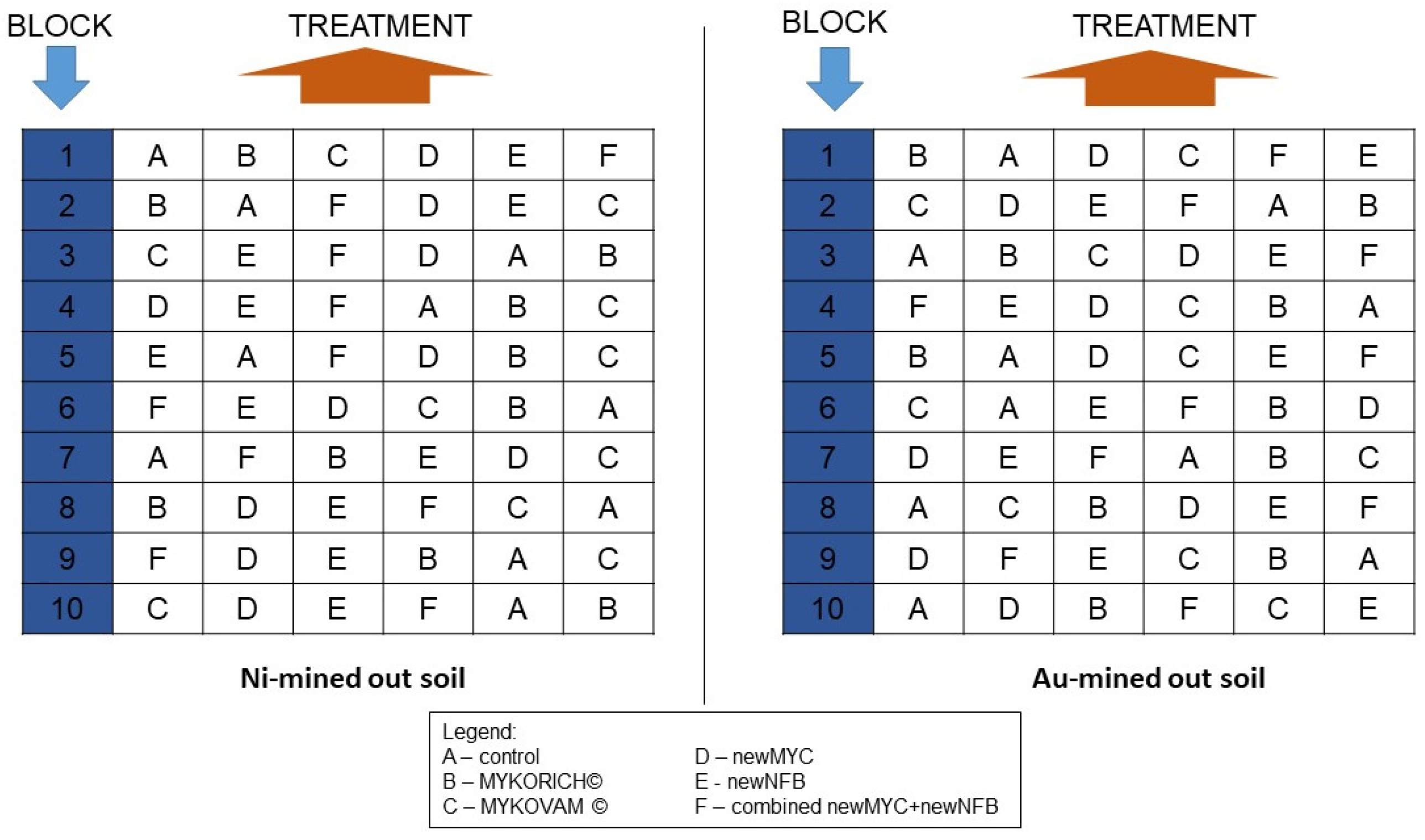

Figure 1. RCBD nursery experimental layout.
Figure 1. RCBD nursery experimental layout.
Forests 15 00180 g001
Forests 15 00180 g002

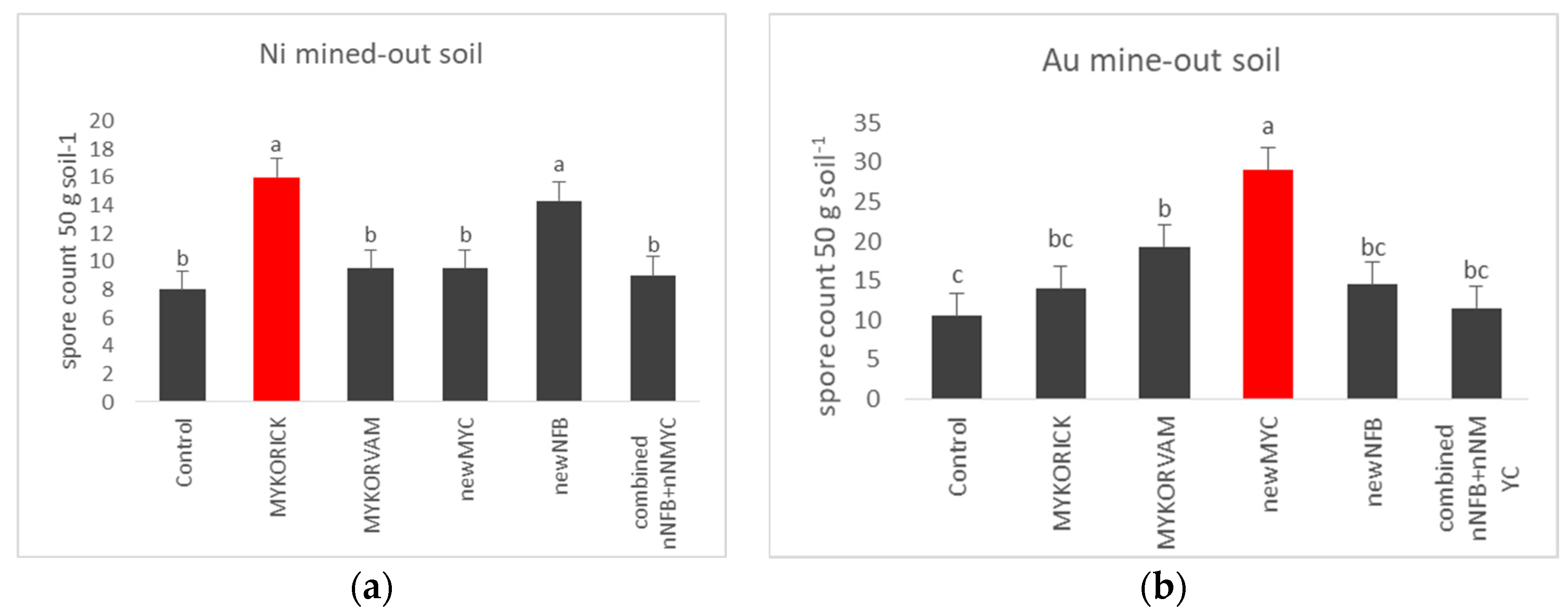

Figure 2. AMF spore count in (a) Ni mined-out and (b) Au mined-out soil (Note: letters above the error bars indicate significance differences at 0.05).
Figure 2. AMF spore count in (a) Ni mined-out and (b) Au mined-out soil (Note: letters above the error bars indicate significance differences at 0.05).
Forests 15 00180 g002
Forests 15 00180 g003
Figure 3. NFB colonization in (a) Ni mined-out and (b) Au mined-out soil (Note: letters above the error bars indicate significance differences at 0.05).
Figure 3. NFB colonization in (a) Ni mined-out and (b) Au mined-out soil (Note: letters above the error bars indicate significance differences at 0.05).
Forests 15 00180 g003
Forests 15 00180 g004
Figure 4. Nitrogen-fixing bacterial cultures on a nitrogen-free Dobereiners agar medium that were extracted from the roots of treated Narra seedlings grown for six months in Ni (TMC) (a) and Au (MMC) (b) mined-out soils. Photo credit: MYKOVAM Laboratory University of the Philippines Los Baños.
Figure 4. Nitrogen-fixing bacterial cultures on a nitrogen-free Dobereiners agar medium that were extracted from the roots of treated Narra seedlings grown for six months in Ni (TMC) (a) and Au (MMC) (b) mined-out soils. Photo credit: MYKOVAM Laboratory University of the Philippines Los Baños.
Forests 15 00180 g004
Forests 15 00180 g005aForests 15 00180 g005b

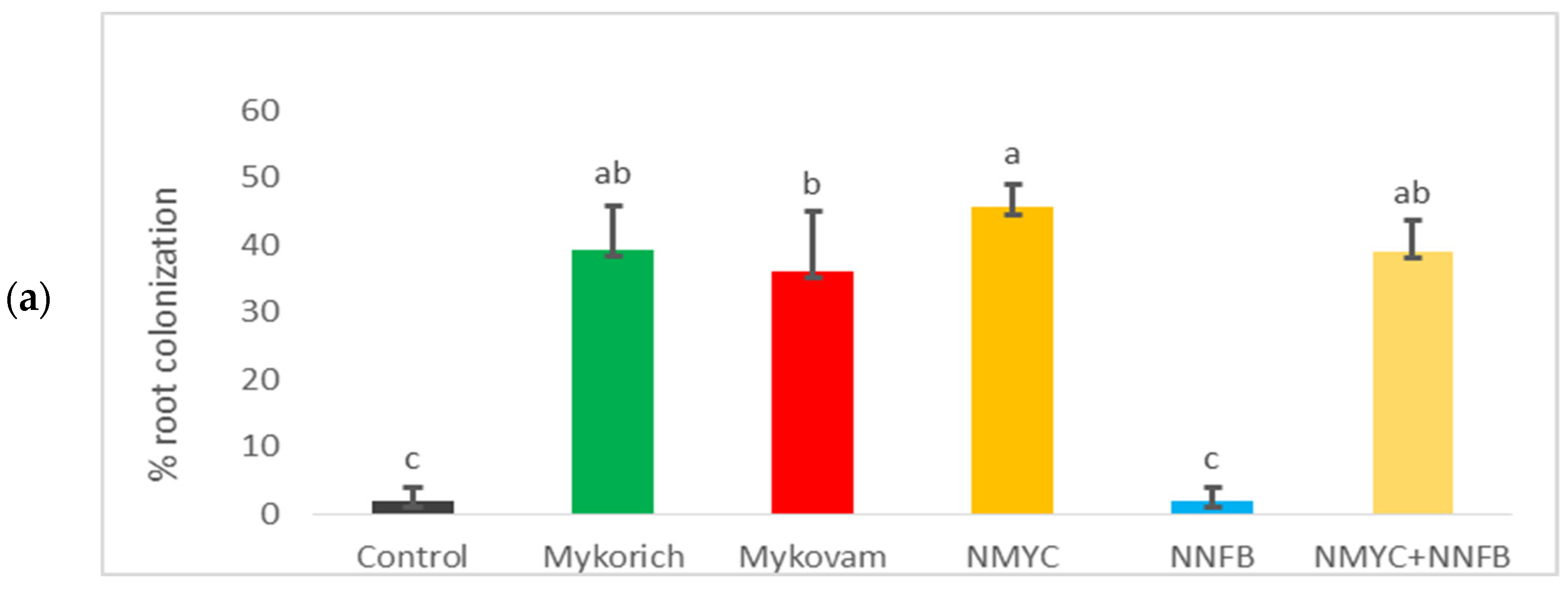

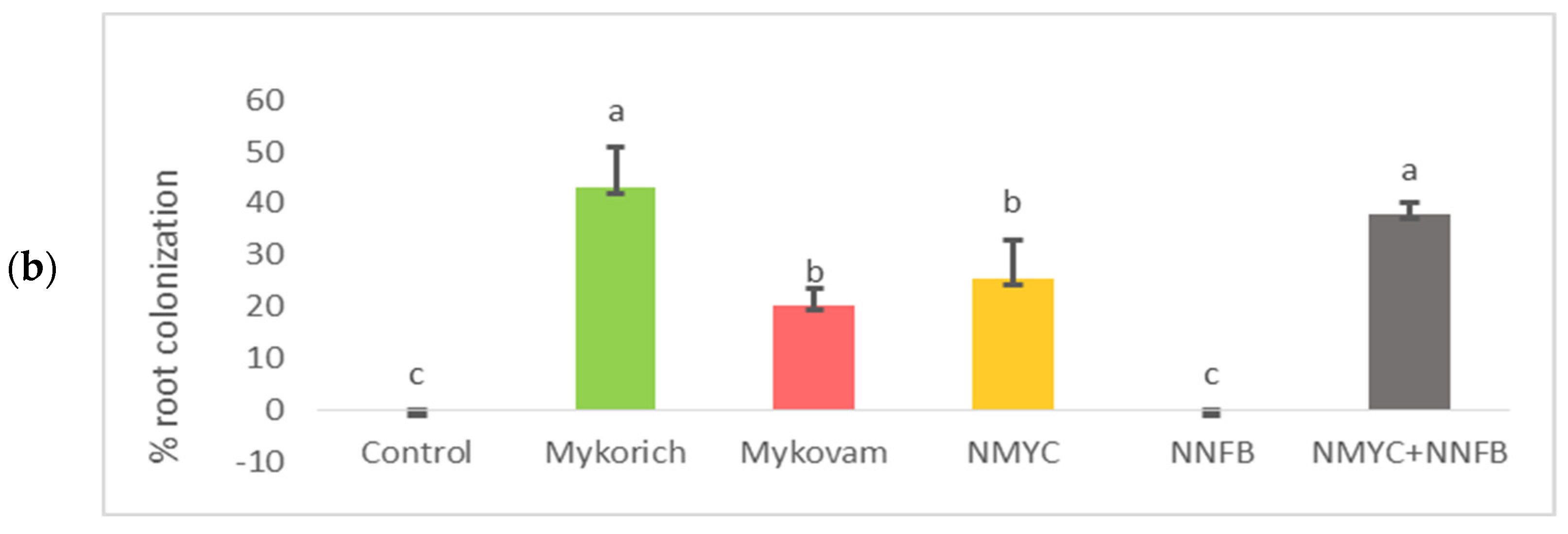

Figure 5. Microbial root colonization (%) in (a) Ni mined-out soil and (b) Au mined-out soil. (Note: letters above the error bars indicates significance differences at 0.05).
Figure 5. Microbial root colonization (%) in (a) Ni mined-out soil and (b) Au mined-out soil. (Note: letters above the error bars indicates significance differences at 0.05).
Forests 15 00180 g005aForests 15 00180 g005b
Forests 15 00180 g006
Figure 6. Roots of Narra not colonized (A) and those with arbuscular mycorrhizal fungi (B) with vesicles (oblong shaped structures in (B2)) and spores (round structures in (B1) and oblong shaped structure in pink on (B2)) six months after inoculation and growth under nursery conditions. Photo credit: MYKOVAM Laboratory University of the Philippines Los Banos.
Figure 6. Roots of Narra not colonized (A) and those with arbuscular mycorrhizal fungi (B) with vesicles (oblong shaped structures in (B2)) and spores (round structures in (B1) and oblong shaped structure in pink on (B2)) six months after inoculation and growth under nursery conditions. Photo credit: MYKOVAM Laboratory University of the Philippines Los Banos.
Forests 15 00180 g006
Table 1. TMC and MMC mined-out soil characterization.
Table 1. TMC and MMC mined-out soil characterization.
ParametersMined-Out Soils
TMC (Ni)MMC (Au)
% Organic matter0.4 (low)0.43 (low)
pH7.176.14 (slightly acid)
Available P (ppm)1.3 (low)7 (moderately high)
Exchangeable K (ppm)6.0 (deficient)77 (moderately sufficient)
Total N (%)-0.048
Electrical conductivity (µS/cm)113.3837.4
Iron (ppm)326,600-
Nickel (ppm)7166.66-
Copper (ppm)-472.1
Manganese (ppm)-449.2
Molybdenum (ppm)-39,400
These indicators were given by the Regional Soil Laboratory, Department of Agriculture, Butuan City.
Table 2. Composition of each microbial biofertilizer and its mode of appplication.
Table 2. Composition of each microbial biofertilizer and its mode of appplication.
TreatmentMode of Application/Inoculation
1Control (no inoculation but applied with complete fertilizer)No inoculation
2MYKORICH® (composed of 12 species of AMF in a capsule)Four capsules were inserted in the holes
(2–3 inches depth) of the seedling
3MYKOVAM® (composed of 12 species of AMF in the sand substrate)10 g was placed in the holes (5 g on each hole)
4newMYC (composed of 5 high sporulating AMF isolated from the rhizosphere of plants growing in the mine tailing areas of Barangay Capayang, Mogpog, Marinduque)10 g was placed in the holes (5 g on each hole)
5newNFB (composed of 5 fast-growing NFBs isolated from the rhizosphere of plants growing in the mine tailing areas of Barangay Capayang, Mogpog, Marinduque)10 g was placed in the holes (5 g on each hole)
6Combined newMYC+newNFB (combination of Mogpog AMF and NFB isolates)10 g was placed in the holes (5 g on each hole)
Table 3. Ni mined out soil status after six (6) months.
Table 3. Ni mined out soil status after six (6) months.
TreatmentTMC (Ni Mined-Out Soil)
% Organic MatterTotal N (%)Available P (ppm)Exchangeable K (ppm)Iron (ppm)Nickel (ppm)
1-control5.50.314055.331064.6716.894217.33
2-MYKORICH3.530.283571.331469.6710.752220.33
3-MYKOVAM4.370.253599.33971.3312.412773
4-newNFB5.70.33817133813.623233
5-newMYC5.670.341691529.3311.982621
6-combined newNFB+newMYC5.330.284046.33130414.453431
Table 4. Au mined-out soil status after six (6) months.
Table 4. Au mined-out soil status after six (6) months.
TreatmentMMC (Au Mined-Out Soil)
% Organic MatterTotal N (%)Available P (ppm)Exchangeable K (ppm)Cu (ppm)Mn (ppm)Mo (ppm)
1-control3.470.1825663412.6745244347.67
2-MYKORICH3.270.1829853082.33295.6753144
3-MYKOVAM3.470.173301.672957292.33477.6743.67
4-newNFB3.930.233857517127449144.67
5-newMYC3.90.2126904368.67335444.676.33
6-combined newNFB+newMYC3.40.1926305922.33351.674198.33
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Magsayo, B.M.T.; Aggangan, N.S.; Gilbero, D.M.; Amparado, R.F., Jr. Evaluating Microbial Biofertilizers for Root Colonization Potential in Narra (Pterocarpus indicus Willd.) and Their Efficacy in Heavy Metal Remediation. Forests 2024, 15, 180. https://doi.org/10.3390/f15010180

AMA Style

Magsayo BMT, Aggangan NS, Gilbero DM, Amparado RF Jr. Evaluating Microbial Biofertilizers for Root Colonization Potential in Narra (Pterocarpus indicus Willd.) and Their Efficacy in Heavy Metal Remediation. Forests. 2024; 15(1):180. https://doi.org/10.3390/f15010180

Chicago/Turabian Style

Magsayo, Bethlehem Marie T., Nelly S. Aggangan, Dennis M. Gilbero, and Ruben F. Amparado, Jr. 2024. "Evaluating Microbial Biofertilizers for Root Colonization Potential in Narra (Pterocarpus indicus Willd.) and Their Efficacy in Heavy Metal Remediation" Forests 15, no. 1: 180. https://doi.org/10.3390/f15010180

APA Style

Magsayo, B. M. T., Aggangan, N. S., Gilbero, D. M., & Amparado, R. F., Jr. (2024). Evaluating Microbial Biofertilizers for Root Colonization Potential in Narra (Pterocarpus indicus Willd.) and Their Efficacy in Heavy Metal Remediation. Forests, 15(1), 180. https://doi.org/10.3390/f15010180

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
