Wastewater-Based Epidemiology for Viral Surveillance from an Endemic Perspective: Evidence and Challenges

by
Marco Verani
†,
Alessandra Pagani
†,
Ileana Federigi
*,
Giulia Lauretani
,
Nebiyu Tariku Atomsa
,
Virginia Rossi
,
Luca Viviani
and
Annalaura Carducci
Laboratory of Hygiene and Environmental Virology, Department of Biology, University of Pisa, Via S. Zeno 35/39, 56123 Pisa, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Viruses 2024, 16(3), 482; https://doi.org/10.3390/v16030482
Submission received: 5 February 2024 / Revised: 23 February 2024 / Accepted: 11 March 2024 / Published: 20 March 2024
(This article belongs to the Special Issue Virology in Italy 2023: National Congress of the Italian Society for Virology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Wastewater-based epidemiology (WBE) is currently used to monitor not only the spread of the viral SARS-CoV-2 pandemic but also that of other viruses in endemic conditions, particularly in the absence of syndromic surveillance. The continuous monitoring of sewage requires high expenditure and significant time investments, highlighting the need for standardized methods and structured monitoring strategies. In this context, we conducted weekly wastewater monitoring in northwestern Tuscany (Italy) and targeted human adenovirus (HAdV), norovirus genogroup II (NoVggII), enterovirus (EV), and SARS-CoV-2. Samples were collected at the entrances of treatment plants and concentrated using PEG/NaCl precipitation, and viral nucleic acids were extracted and detected through real-time reverse transcription qPCR. NoVggII was the most identified target (84.4%), followed by HAdV, SARS-CoV-2, and EV. Only HAdV and EV exhibited seasonal peaks in spring and summer. Compared with data that were previously collected in the same study area (from February 2021 to September 2021), the results for SARS-CoV-2 revealed a shift from an epidemic to an endemic pattern, at least in the region under investigation, which was likely due to viral mutations that led to the spreading of new variants with increased resistance to summer environmental conditions. In conclusion, using standardized methods and an efficient monitoring strategy, WBE proves valuable for viral surveillance in pandemic and epidemic scenarios, enabling the identification of temporal–local distribution patterns that are useful for making informed public health decisions.

1. Introduction

The outbreak of the SARS-CoV-2 pandemic in 2020 has renewed interest in wastewater-based epidemiology, which serves as both an early warning tool and a long-lasting surveillance method for a pathogen’s spread within a population. It was first suggested in the middle of the last century thanks to the research of Joseph Melnick, who focused on research on the poliovirus, the etiologic agent of poliomyelitis, in the wastewaters of the cities of Chicago and New York to evaluate the relationship between the environmental detection of the virus and cases of acute flaccid paralysis [1]. Environmental monitoring of poliovirus is still applied to evaluate the effectiveness of World Health Organization (WHO) strategies adopted for its global disease eradication program [2,3] and to evidence its possible resurgences by monitoring the efficacy of prevention measures and pointing out their failures. Sewage surveillance in 2022 highlighted the circulation of vaccine-derived poliovirus (VDPV) in some countries, including Great Britain [4], Israel [5], and the United States of America, and a genetic analysis revealed the association of the detected strain with a paralytic case in New York [6]. This information allowed the adoption of public health measures to prevent the spread of the virus in the most affected age groups; e.g., the UK government recommended a booster dose of inactivated polio vaccine in August 2022 for all children in London under 9 years of age [4]. During the COVID-19 pandemic, WBE surveillance was applied worldwide (e.g., in Finland, Australia, Bangladesh, India, Japan, and North America [7,8,9,10,11,12]) to improve systems for early warning and variant tracking in parallel with clinical epidemiological surveillance. WBE produced useful results in this context; therefore, there was an increasing interest in improving the detection methods, as well as in extending environmental surveillance to other viruses, especially endemic ones (e.g., enterovirus, norovirus, hepatitis A virus, hepatitis E virus, rotavirus, and adenovirus [13,14,15]). In fact, endemic viruses often lack clinical surveillance, and WBE could provide useful information about their circulation. In Italy, an example of the combined analysis of clinical and environmental data for endemic viruses dates back to 2006, when Carducci et al. [16] investigated the relations between some enteric viruses detected in feces specimens and their occurrence in environmental matrices, revealing the continuous environmental circulation of such viruses despite the fact that the clinical data did not demonstrate any epidemic peaks and despite the concordance of the adenovirus and rotavirus strains between clinical and water samples. In the United States, enterovirus monitoring in feces and sewage revealed similarities with clinical serotypes, thus allowing the forecasting of the clinical viral strains based on those found in the environment [17]. Then, after the COVID-19 pandemic, the application of WBE to enteric viruses (e.g., norovirus, enterovirus) prompted new interest in the early detection of outbreaks and the estimation of the prevalence of infections in endemic scenarios [18,19,20,21,22]. Nevertheless, the routine monitoring of sewage is expensive and time consuming, and its relevance for public health depends on the monitoring strategy (e.g., time, number, and area of sampling) and on the reliability of analytical methods, as widely described during last year’s COVID-19 pandemic (e.g., [23,24]). In fact, a review by Kallem et al. [23] underlined that, when applied to SARS-CoV-2 detection, WBE requires daily sampling and rapid analysis and reporting; moreover, to compare sewage viral data over time and among different communities, it is worth correcting such data according to wastewater flow and to the population size of the study area. On the other hand, the wide use of rapid molecular methods for viral RNA detection requires high efficiency and sensitivity and is strictly associated with the wastewater’s chemical composition, the presence of inhibitors, and a low concentration of the target. Also, Cianella et al. [24] demonstrated the wide range of sample concentration methods used in different studies, thus highlighting the importance of adopting a standardized protocol for the worldwide application of WBE. Such aspects also need to be carefully considered in relation to the epidemiological situation of the selected viral targets in both endemic and epidemic scenarios. This study aimed to collect information on viral circulation in an endemic scenario through one year of sewage monitoring for human adenovirus (HAdV), norovirus genogroup II (NoVggII), enterovirus (EV), and SARS-CoV-2.

2. Materials and Methods

2.1. Environmental Sampling Strategy

From October 2021 to September 2022, 197 weekly 24 h composite samples of raw wastewater were collected at the inlets of four urban wastewater treatment plants (WWTPs) in northwest Tuscany and were stored at 4 °C before analysis (within 48 h). The WWTPs chosen in this study were those involved in the surveillance network of the national project “Environmental Surveillance of SARS-CoV-2 by urban sewages in Italy” (SARI), operated according to an EU recommendation [25], as previously described [26,27]. Briefly, the studied WWTPs served populations of between 42,931 (WWTP1) and 110,871 (WWTP3), and there were some differences in the sewer network structures and population composition. WWTP1 had a separate sewerage system, with a small portion originating from a large hospital; WWTP2 served a small city with a large surrounding area, mostly through combined sewerages (89%); WWTP3 served a moderately sized industrial city with a separate sewerage network characterized by high rainwater infiltration; WWTP4 was situated in a highly touristic area where the population drastically increased during the summer season [27].

2.2. Sample Concentration

Raw sewage samples (45 mL) were pretreated at 56 °C for 30 min to inactivate infectious viral particles prior to being processed. The sample concentration process was performed according to the analytical protocol recommended by the SARI project, based on polyethylene glycol (PEG) and NaCl precipitation [28]. Briefly, after an initial centrifugation at 4500× g for 30 min, supernatant was mixed with PEG 8000 and NaCl. After shaking, the sample was centrifuged at 12,000× g for 2 h at 4 °C, then the pellet was resuspended directly in the nucleic acid extraction lysis buffer (2 mL) of the NucliSense EasyMag kit (BioMérieux, Marcy-l’Étoile, France).

2.3. Extraction and Purification of Viral Nucleic Acids

The extraction of viral nucleic acids was performed with the above-mentioned commercial kit, which allows the simultaneous extraction of DNA and RNA using magnetic silica beads, according to the manufacturer’s instructions [26]. Briefly, 2 mL of guanidine–thiocyanate-based lysis buffer was added to the pellet obtained after the concentration process. The solution was allowed to react at room temperature for 20 min, which facilitated the degradation of protein components of both cells and viral particles. Subsequently, 50 µL of magnetic silica beads was added to allow binding with free nucleic acids. The tubes were then washed three times while placed on a magnetic support. Finally, nucleic acids were released from the beads in an elution phase (100 μL). The final elution volume was purified using OneStep PCR Inhibitor Removal Kits (Zymo Research, Irvine, CA, USA) to remove PCR inhibitors. The extracts were then stored at −80 °C until quantitative determination of viral genomes as specified in Section 2.4.

2.4. Detection of Viral Nucleic Acids

Detection and quantification of viral targets were performed using previously published primer/probe sets (Table 1) and protocols, as described below. Real-time qPCR for HAdV was performed using Taq Man Universal Master Mix (Applied Biosystems, Foster City, CA, USA) in a total volume of 25 μL with 10 μL of DNA extract and primers and probe concentrations of 900 nM and 225 nM, respectively. The thermal protocol included the following conditions: Uracil DNA glycosylase activation at 50 °C for 2 min, AmpliTaq Gold DNA polymerase activation at 95 °C for 10 min, and then 45 cycles of amplification at 95 °C for 15 s and 60 °C for 1 min. The RNA virus genome of EV, NoVggII, and SARS-CoV-2 was screened by a one-step RT-qPCR using AgPath-ID™ One-Step RT-PCR Reagents (Life Technologies, Carlsbad, CA, USA) in a total volume of 25 μL with 5 μL of RNA extract. Primers and probe concentrations were 600 nM (primers) and 250 nM (probe) for EV, 1000 nM (primers) and 100 nM (probe) for NoVggII, 500 nM (forward primer), 900 nM (reverse primer), and 250 nM (probe) for SARS-CoV-2. The amplification conditions for both EV and NoVggII were reverse transcription for 30 min at 48 °C, reverse transcriptase (RT) inactivation at 95 °C for 10 min, and 45 cycles of amplification at 95 °C for 15 s and at 60 °C for 1 min. For SARS-CoV-2, thermal conditions were 30 min at 50 °C, 5 min at 95 °C, then 45 cycles of 15 s at 95 °C and 30 s at 60 °C. All reactions were performed in duplicate in 96-well optical plates using an ABI 7300 Sequence Detector System (Applied Biosystems, Foster City, CA, USA). For each target, viral titers (genomic copies—GC) were estimated using standard curves obtained by serial dilution of synthetic specific dsDNA (from 1.0 × 101 GC/µL to 1.0 × 105 GC/µL). The level at which their amplification was exponential was used as the threshold level that applied to the amplification plot of the samples. Samples with a threshold cycle (Ct) greater than 40 were considered negative. Samples negative for the presence of viral genome were considered equal to half of the limit of detection (LOD) obtained for each target virus by testing serial dilutions of standard dsDNA and by calculating the lowest genome concentration at which all replicates were positive [27]: 3 GCs/reaction for SARS-CoV-2, 2 GCs/reaction for HAdV, and 1 GC/reaction for EV and NoVggII.

2.5. Data Adjustment and Normalization

The concentrations of each target virus were normalized to take into account the daily WWTP flow and the population served by the sewage system [27]. Therefore, the wastewater data were normalized using the following equation:
N o r m a l i z e d   v i r a l   l o a d x = C o n c . v i r u s ×   F d x × 10   5 P x
where the following applies:
-
Normalized Viral Load (hereafter viral load) is expressed as GC/100,000 inhabitants/day, and x is the identification number of each WWTP (namely: 1, 2, 3, 4);
-
Conc.virus is the concentration of virus detected (GC/L);
-
Fd is the daily wastewater flow rate of the WWTPs (L/day);
-
105 is a constant used to relate the viral load to 100,000 inhabitants;
-
P is the number of inhabitants served by each WWTP.

2.6. Historical Data on SARS-CoV-2

Data on SARS-CoV-2 related to the same four WWTPs were extracted from a previous study [26] in order to cover three seasons in the 2021 period, namely, winter (20 data), spring (52 data), and summer (52 data). These data were compared with the monitoring data of the present study.

2.7. Statistical Analysis

For each virus, the chi-squared statistic was used to understand whether the presence of the virus (variable with two categories: presence or absence) was influenced by the sampling period, i.e., the season (variable with four categories: autumn, winter, spring, summer). For the present analysis, the seasons were divided as follows: autumn from 1 October to 31 December 2021, winter from 1 January to 31 March 2022, spring from 1 April to 30 June 2022, and summer from 1 July to 30 September 2022. The chi-squared statistic was also used to test the association between viral presence and sampling site, i.e., the type of WWTP (variable with four categories: WWTP1, WWTP2, WWTP3, WWTP4), separately for each virus. Regarding the viral loads, they were Log10-transformed prior to statistical analysis, and, similarly to as described previously for viral frequencies, a two-way ANOVA test was performed on the viral load to evaluate the influence of the sampling period (season) and of the sampling site (type of WWTP). The results were considered significant when the p-value was < 0.05, highly significant when the p-value was < 0.01, and extremely significant when the p-value was <0.001. All statistical analyses were performed using GraphPad Prism software (GraphPad, Boston, MA, USA, version 5.03, 10 December 2009).

3. Results

3.1. Descriptive Analysis of Virus Data

The occurrence of the target viruses and their viral loads, separately for each WWTP, are reported in Table 2 as pooled data and in Supplementary Materials Tables S1–S4 according to season.
Overall, 98.5% (194/197) of the wastewater samples were positive for at least one of the target viruses; NoVggII was the most prevalent (166/197, 84.3%), followed by HAdV (158/197, 80.2%), SARS-CoV-2 (100/197, 50.8%), and EV (87/197, 44.2%). For HAdV, the frequency of positive samples was statistically different either among seasons (chi-squared, p-value < 0.001) or among WWTPs (chi-squared, p-value < 0.01). In particular, the presence of HAdV was higher during spring and summer, with close to 100% positive samples in all WWTPs (Table S1). Nevertheless, HAdV occurrence was lower for WWTP3 and WWTP4 during autumn and winter, which represent low tourist seasons for these areas. Similarly, EV-positive samples showed significant differences among seasons (chi-squared, p-value < 0.001) and among WWTPs (chi-squared, p-value < 0.001). The highest number of positive samples was observed during warmer periods (Table S2), namely, 59.6% (31/52) in spring and 67.3% (35/52) in summer. Regarding the sampling location, WWTP2 showed a very low occurrence of EV, with no detection in autumn and winter and 15.4% (2/13) in both spring and summer, probably due to the structure of the sewer network (the combined sewage could be responsible for wastewater dilution; Section 2.1). For NoVggII (Table S3), the presence of the virus was significantly influenced by the sampling location (chi-squared, p-value < 0.01), and, as reported for EV, WWTP2 was the least contaminated, with occurrence ranging from 61.5% (8/13) in summer to 80% (8/10) in winter. Finally, there were no statistically significant differences for SARS-CoV-2 either among seasons (chi-squared, p-value = 0.22) or among WWTPs (chi-squared, p-value = 0.17) (Table S4).
Regarding viral load, HAdV showed the highest concentration with 9.4 ± 2.6 Log10 GC/100,000 inh/day, followed by NoVggII (8.5 ± 2.0 Log10 GC/100,000 inh/day), SARS-CoV-2 (6.5 ± 2.1 Log10 GC/100,000 inh/day), and EV (5.9 ± 2.2 Log10 GC/100,000 inh/day) (Table 2; Tables S1–S4). As with viral occurrence, viral load also was influenced by sampling time (seasons) and sampling location (WWTPs), with different patterns depending on the type of virus (Figure 1). For HAdV, viral load was significantly higher during warm seasons, namely, spring (9.5 ± 2.7 Log10 GC/100,000 inh/day) and summer (10.8 ± 1.2 Log10 GC/100,000 inh/day) (two-way ANOVA, p-value < 0.01), also showing differences among WWTPs, with WWTP3 and WWTP4 being less contaminated (two-way ANOVA, p-value < 0.05). Similarly, EV load showed statistically significant differences according to season, with higher viral load in spring (6.7 ± 2.3 Log10 GC/100,000 inh/day) and summer (6.8 ± 2.1 Log10 GC/100,000 inh/day) (two-way ANOVA, p-value < 0.01), and according to WWTP (two-way ANOVA, p-value < 0.01), with lower contamination in WWTP2, as observed for EV occurrence. Regarding NoVggII, statistically significant differences were observed only according to WWTP (two-way ANOVA, p-value < 0.01), with WWTP2 being less contaminated, as reported for EV load. No seasonal pattern was observed. Regarding SARS-CoV-2, no significant differences among seasons or WWTPs were observed.

3.2. SARS-CoV-2 Annual Trend from 2021 to 2022

The availability of historical data for SARS-CoV-2 related to the previous year (February 2021–September 2021; Section 2.6) allowed a comparison with the 2022 surveillance period. This comparison revealed seasonal variability in SARS-CoV-2 load between 2021 and 2022. In 2021, SARS-CoV-2 load gradually decreased from winter (6.4 ± 2.3 Log10 GC/100,000 inh/day) to spring (5.7 ± 2.1 Log10 GC/100,000 inh/day) and summer (5.3 ± 0.9 Log10 GC/100,000 inh/day). Interestingly, in the subsequent 2022 period, such a seasonal pattern was not observed, with consistent viral loads of 6.8 ± 2.2 Log10 GC/100,000 inh/day, 6.7 ± 2.1 Log10 GC/100,000 inh/day, and 6.0 ± 2.1 Log10 GC/100,000 inh/day during winter, spring, and summer, respectively (Figure 2).

4. Discussion

Viruses transmitted by the fecal–oral route, such as enteric viruses, offer a unique opportunity for tracking emerging pathogens and investigating the epidemiology of infectious diseases within the community by studying viral shedding in wastewater. This could be used to study a wide spectrum of viral pathogens shed via the fecal–oral route, not just enteric viruses. Using such a method for epidemiologic surveillance would improve our understanding of virus circulation in different scenarios [32]. In our work, HAdV was detected during all 12 months. A statistically significant variation between seasons was demonstrated using either qualitative analysis based on the frequency of positive samples or quantitative analysis based on viral load, with peaks for these two parameters occurring in spring and summer. This finding is consistent with other work examining enteric viruses in stool samples [33], and suggests a higher level of HAdV DNA in summer, indicating a possible seasonal pattern. However, the literature also presents conflicting evidence, such as an insignificant seasonal distribution [34] or even a greater presence of HAdV in the winter months [35,36]. Our study was conducted in a part of Tuscany that is heavily influenced by summer tourism. This may have increased viral circulation due to a higher flow of people considering that approximately 90% of the human population is positive for at least one serotype of adenovirus [37]. The wastewater-based epidemiology of HAdV is crucial because, although the virus is the second most significant viral pathogen causing infant gastroenteritis and has been associated with outbreaks in various settings [37], there is a lack of consistent syndromic surveillance. Furthermore, in addition to the predominant presence of species associated with gastrointestinal symptoms (HAdV-F), Adenovirus C, responsible for respiratory infections, has also been observed in wastewater [38]. As reported in an epidemiological study of wastewater treatment plants located in different Italian regions, the analysis of 141 raw sewage samples showed a viral positivity of 60%, and the use of next-generation sequencing allowed the identification of up to 19 HAdV types, not only 40 and 41 (species F), but also viruses belonging to species A, B, C, D, and E, confirming the widespread presence of HAdV in raw sewage and, therefore, its circulation in the population with or without respiratory and gastrointestinal symptoms [39]. Similar results were obtained in Venezuela, in 2021–2022, by Zamora-Figueroa et al. [40], who performed a one-year surveillance study on 91 wastewater samples from urban areas of Caracas, revealing a positivity rate for HAdV of 52.7% with the presence of F and non-F species, equally distributed. In Egypt, the isolation and genotyping of HAdV in sewage and clinical samples from 2016 to 2020 revealed that no enteric species represented 5–6% of positive samples, thus suggesting their involvement not only in respiratory infections, but also in diarrheal diseases [41]. In China, Lee et al. [42] thoroughly investigated sewage samples collected from 2021 to March 2022, showing the presence of 14 HAdV C species, further confirming the role of sewage in the environmental spread of non-enteric HAdV with possible occurrence of recombination events and new variants in such matrices. Also in our study, the sequencing analysis of the positive samples revealed the presence of enteric and non-enteric viral species. Moreover, we found a prevalence of respiratory types in winter subsequently replaced by gastrointestinal types in summer [43]. This highlighted the importance of studying the prevalence of HAdV in aquatic environments to effectively monitor and prevent their transmission.
EV also showed a statistically significant difference in distribution across seasons and WWTPs, with the highest number of positive samples and higher concentration of viral RNA detected in the warm months (spring and summer) and in three out of four WWTPs. These results are consistent with previous studies, indicating a peak of EV in summer [44] or during summer and early autumn [45]. In temperate climates, the number of infections is highest during the summer and early autumn months as EV is a resilient organism that can withstand significant temperature fluctuations [46]. However, EV is also not consistently monitored through clinical surveillance, making it difficult to determine the exact number of infections at any given time. Investigating the presence of EV in wastewater and implementing a study with sequencing techniques could significantly improve the understanding of enterovirus infections.
NoVggII and SARS-CoV-2 showed no statistically significant differences between months, neither in the frequency of positive samples nor in the viral load. Regarding NoVggII, our results are in disagreement with some of the literature, showing peaks in February and March [47], while SARS-CoV-2 is still under study. However, in the case of SARS-CoV-2, current evidence suggests increased mortality and infectivity at low temperatures, indicating a prevalence during the colder months. As a result, the circulation of SARS-CoV-2 is influenced by the seasonal cycle, as has been reported also for other respiratory viruses [48]. In fact, sunlight and high environmental temperature are responsible for viral inactivation; e.g., Sharun and collaborators [49] reported that solar radiation could have a significant impact on the rate of decay and viral inactivation. This aspect is supported by our data from the 2021 period, where a slight but consistent decrease in the viral titer was in wastewater from winter to summer. However, the seasonal trend tended to disappear in 2022, suggesting the emergence of new variants potentially more resistant to environmental conditions (e.g., high temperatures, UV rays). Such an observation is supported by the work of Gibson and colleagues [50], who observed that a 17% higher dose of UV254 is required for the disinfection of Delta and Omicron variants compared to the ancestral strain of SARS-CoV-2. In fact, in our study, the SARS-CoV-2 concentration did not vary much across seasons during 2022, showing a constant trend more similar to endemic situations, thus suggesting a possible transition of SARS-CoV-2 from an epidemic to an endemic situation, at least in the region under study. Furthermore, the endemic trend may also be facilitated by the increased transmissibility of the new variants. For example, the Omicron variant was found to be less virulent but more transmissible than the previous ones, thus promoting a higher viral circulation and, consequently, a higher number of infections. This is easily understandable from an evolutionary standpoint as the ultimate goal of the virus is to replicate and circulate, rather than to disappear, as observed with other pathogens [51].
Our study has some limitations, exemplified by the lack of clinical data for HAdV, EV, and NoVggII, which makes it difficult to establish a connection with confirmed infected individuals. In fact, active clinical surveillance of such viral infections is not established in Italy. Nevertheless, recent research papers have highlighted the importance of clinical surveillance for some viruses [32,52,53]. Additionally, the surveillance was conducted in a specific area of Tuscany, and the results obtained may not be generalizable to other regions. To overcome this limitation, it is recommended to expand surveillance to a larger geographic area. Furthermore, in the present paper, the presence and amount of viruses were detected using PCR as the only molecular method, but the analysis could be further improved by employing other molecular approaches that are less sensitive to environmental PCR inhibitors, such as biosensors or digital PCR [54].

5. Conclusions

Despite continuous monitoring of pathogens in sewage having the ability to provide early and timely data on their circulation in a population, it is expensive and time consuming. Therefore, the use of sensitive and standardized techniques, coupled with a well-organized monitoring plan, over time is worthwhile. In our study, weekly monitoring of WWTP inlets and the use of sensitive techniques allowed the identification of a seasonal trend for human adenovirus and enterovirus, with peaks in spring and summer. However, no significant temporal differences were observed for norovirus and SARS-CoV-2. For SARS-CoV-2, using the same methodologies, we have also highlighted a potential transition from epidemic to endemic status, possibly related to the development of new variants. These findings could be of great importance from a public health perspective, enabling the monitoring and prevention of potential peaks. In conclusion, WBE can be considered as an important tool to evaluate the spatio-temporal evolution of endemic–epidemic infection in the absence of clinical surveillance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/v16030482/s1, Table S1: Occurrence and viral load of HAdV according to WWTPs and seasons; Table S2: Occurrence and viral load of enterovirus (EV) according to WWTPs and seasons; Table S3: Occurrence and viral load of norovirus genogroup II (NoVggII) according to WWTPs and seasons; Table S4: Occurrence and viral load of SARS-CoV-2 according to WWTPs and seasons.

Author Contributions

Conceptualization, M.V., A.P., I.F. and A.C.; methodology, M.V., A.P., I.F., G.L., V.R. and A.C.; formal analysis, M.V., A.P., I.F. and G.L.; investigation, M.V., A.P., I.F., G.L., V.R. and L.V.; data curation, M.V. and A.P.; writing—original draft preparation, M.V., A.P. and I.F.; writing—review and editing, M.V., A.P., I.F., N.T.A., G.L. and A.C.; supervision, M.V., I.F. and A.C.; project administration, M.V. and A.C.; funding acquisition, A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Regione Toscana with the project “Monitoring and modeling of SARS-CoV-2 in sewer networks for COVID 19 pandemic spreading early warning system”(Regional Council resolution 8 March 2021, n. 174); by the Italian Ministry of Health’s “CCM 2020 program” with the project “Wastewater-based epidemiology: implementation of a surveillance system for the early detection of pathogens, and specifically SARS-CoV-2”; by the Italian Government, Decree of the Ministry of Health 30 October 10 2021 and 11 December 2021, n. 294; and by the EU Commission, Grant Agreement 060701/2021/864481/SUB/ENV.C2. This work was also supported by the Ministry of University and Research (MUR) as part of the FSE REACT-EU–PON 2014-2020 “Research and Innovation” resources—Green/Innovation Action—DM MUR 1062/2021–Title of the Research: “Risk analysis for the human health derived from sewage management: perspectives for the reuse”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Public SARS-CoV-2 wastewater dataset: https://www.iss.it/cov19-acque-reflue (accessed on 4 January 2024).

Acknowledgments

We wish to thank the personnel of the Integrated Water Service for providing samples and information on sewage networks: Acque Spa (Roberto Salvadori, Simone Lippi, Sara Bacci, Paolo Peruzzi, Elettra Vichi, Silvia Parrini) and Gaia Spa (Daniele Franceschini, Claudia Valentini, Francesco Di Martino, Giada Croce). We also thank Ingegnerie Toscane for the logistic sample transport support (Damasco Morelli, Fabrizio Mancuso) and Claudio Lubello and Tommaso Lotti (University of Florence) for providing sewage network data. We wish also to thank Centro Linguistico (CLI) of the University of Pisa for the English editing of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Melnick, J.L. Poliomyelitis virus in urban sewage in epidemic and in nonepidemic times. Am. J. Epidemiol. 1947, 45, 240–253. [Google Scholar] [CrossRef]
  2. Hovi, T.; Shulman, L.M.; Van Der Avoort, H.; Deshpande, J.; Roivainen, M.; De Gourville, E.M. Role of environmental poliovirus surveillance in global polio eradication and beyond. Epidemiol. Infect. 2012, 140, 1–13. [Google Scholar] [CrossRef]
  3. Zoni, R.; Mezzetta, S.; Affanni, P.; Colucci, M.E.; Fiore, S.; Fontana, S.; Bracchi, M.; Capobianco, E.; Veronesi, L. Poliovirus and non-polio-enterovirus environmental surveillance in Parma within the “Global Polio Eradication Program” (GPEI). Acta Biomed. 2019, 90, 95–97. [Google Scholar] [CrossRef]
  4. Klapsa, D.; Wilton, T.; Zealand, A.; Bujaki, E.; Saxentoff, E.; Troman, C.; Shaw, A.G.; Tedcastle, A.; Majumdar, M.; Mate, R.; et al. Sustained detection of type 2 poliovirus in London sewage between February and July, 2022, by enhanced environmental surveillance. Lancet 2022, 400, 1531–1538. [Google Scholar] [CrossRef]
  5. Zuckerman, N.S.; Bar-Or, I.; Sofer, D.; Bucris, E.; Morad, H.; Shulman, L.M.; Levi, N.; Weiss, L.; Aguvaev, I.; Cohen, Z.; et al. Emergence of genetically linked vaccine-originated poliovirus type 2 in the absence of oral polio vaccine, Jerusalem, April to July 2022. Eurosurveillance 2022, 27, 2200694. [Google Scholar] [CrossRef] [PubMed]
  6. Ryerson, A.B.; Lang, D.; Alazawi, M.A.; Neyra, M.; Hill, D.R.; St George, K.; Fuschino, M.; Lutterloh, E.; Backenson, B.; Rulli, S.; et al. Wastewater Testing and Detection of Poliovirus Type 2 Genetically Linked to Virus Isolated from a Paralytic Polio Case—New York, March 9–October 11, 2022. Available online: https://polioeradication.org/wp-content/uploads/2016/09/ (accessed on 4 January 2024).
  7. Tiwari, A.; Lipponen, A.; Hokajärvi, A.M.; Luomala, O.; Sarekoski, A.; Rytkönen, A.; Österlund, P.; Al-Hello, H.; Juutinen, A.; Miettinen, I.T.; et al. Detection and quantification of SARS-CoV-2 RNA in wastewater influent in relation to reported COVID-19 incidence in Finland. Water Res. 2022, 215, 118220. [Google Scholar] [CrossRef] [PubMed]
  8. Ahmed, W.; Angel, N.; Edson, J.; Bibby, K.; Bivins, A.; O’Brien, J.W.; Choi, P.M.; Kitajima, M.; Simpson, S.L.; Li, J.; et al. First confirmed detection of SARS-CoV-2 in untreated wastewater in Australia: A proof of concept for the wastewater surveillance of COVID-19 in the community. Sci. Total Environ. 2020, 728, 138764. [Google Scholar] [CrossRef] [PubMed]
  9. Islam, M.A.; Rahman, M.A.; Jakariya, M.; Bahadur, N.M.; Hossen, F.; Mukharjee, S.K.; Hossain, M.S.; Tasneem, A.; Haque, M.A.; Sera, F.; et al. A 30-day follow-up study on the prevalence of SARS-COV-2 genetic markers in wastewater from the residence of COVID-19 patient and comparison with clinical positivity. Sci. Total Environ. 2023, 858 Pt 3, 159350. [Google Scholar] [CrossRef] [PubMed]
  10. Kumar, M.; Joshi, M.; Jiang, G.; Yamada, R.; Honda, R.; Srivastava, V.; Mahlknecht, J.; Barcelo, D.; Chidambram, S.; Khursheed, A.; et al. Response of wastewater-based epidemiology predictor for the second wave of COVID-19 in Ahmedabad, India: A long-term data Perspective. Environ. Pollut. 2023, 337, 122471. [Google Scholar] [CrossRef]
  11. Haramoto, E.; Malla, B.; Thakali, O.; Kitajima, M. First environmental surveillance for the presence of SARS-CoV-2 RNA in wastewater and river water in Japan. Sci. Total Environ. 2020, 737, 140405. [Google Scholar] [CrossRef] [PubMed]
  12. Sherchan, S.P.; Shahin, S.; Ward, L.M.; Tandukar, S.; Aw, T.G.; Schmitz, B.; Ahmed, W.; Kitajima, M. First detection of SARS-CoV-2 RNA in wastewater in North America: A study in Louisiana, USA. Sci. Total Environ. 2020, 743, 140621. [Google Scholar] [CrossRef]
  13. World Health Organization. Guidelines for Drinking-Water Quality: Fourth Edition Incorporating the First and Second Addenda, 4th ed.; World Health Organization: Geneva, Switzerland, 2022; ISBN 978-92-4-004506-4. [Google Scholar]
  14. Dzinamarira, T.; Pierre, G.; Iradukunda, P.G.; Tungwarara, N.; Mukwenha, S.; Mpabuka, E.; Kidson Mataruka, K.; Chitungo, I.; Musukaf, G.; Murewanhema, G. Epidemiological surveillance of enteric viral diseases using wastewater in Africa—A rapid review. J. Infect. Public Health 2022, 15, 703–707. [Google Scholar] [CrossRef]
  15. Hellmér, M.; Paxéus, N.; Magnius, L.; Enache, L.; Arnholm, N.; Johansson, A.; Bergström, T.; Norder, H. Detection of pathogenic viruses in sewage provided early warnings of hepatitis A virus and norovirus outbreaks. Appl. Environ. Microbiol. 2014, 80, 6771–6781. [Google Scholar] [CrossRef] [PubMed]
  16. Carducci, A.; Verani, M.; Battistini, R.; Pizzi, F.; Rovini, E.; Andreoli, E.; Casini, B. Epidemiological surveillance of human enteric viruses by monitoring of different environmental matrices. Water Sci. Technol. 2006, 54, 239–244. [Google Scholar] [CrossRef] [PubMed]
  17. Sedmak, G.; Bina, D.; MacDonald, J. Assessment of an Enterovirus Sewage Surveillance System by Comparison of Clinical Isolates with Sewage Isolates from Milwaukee, Wisconsin, Collected August 1994 to December 2002. Appl. Environ. Microbiol. 2003, 69, 7181–7187. [Google Scholar] [CrossRef] [PubMed]
  18. Chacón, L.; Morales, E.; Valiente, C.; Reyes, L.; Barrantes, K. Wastewater-based epidemiology of enteric viruses and surveillance of acute gastrointestinal illness outbreaks in a resource-limited region. Am. J. Trop. Med. Hyg. 2021, 105, 1004–1012. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, H.; Neyvaldt, J.; Enache, L.; Sikora, P.; Mattsson, A.; Johansson, A.; Lindh, M.; Bergstedt, O.; Norder, H. Variations among Viruses in Influent Water and Effluent Water at a Wastewater Plant over One Year as Assessed by Quantitative PCR and Metagenomics. Appl. Environ. Microbiol. 2020, 86, e02073-20. [Google Scholar] [CrossRef] [PubMed]
  20. Gonçalves, J.; Torres-Franco, A.; Rodriguéz, E.; Diaz, I.; Koritnik, T.; Gomes da Silva, P.; Mesquita, J.R.; Trkov, M.; Paragi, M.; Muñoz, R.; et al. Centralized and decentralized wastewater-based epidemiology to infer COVID-19 transmission—A brief review. One Health 2022, 15, 100405. [Google Scholar] [CrossRef] [PubMed]
  21. Brinkman, N.E.; Fout, G.S.; Keely, S.P. Retrospective Surveillance of Wastewater to Examine Seasonal Dynamics of Enterovirus Infections. mSphere 2017, 2, e00099-17. [Google Scholar] [CrossRef] [PubMed]
  22. Guo, Y.; Li, J.; O’Brien, J.; Sivakumar, M.; Jiang, G. Back-estimation of norovirus infections through wastewater-based epidemiology: A systematic review and parameter sensitivity. Water Res. 2022, 219, 118610. [Google Scholar] [CrossRef]
  23. Kallem, P.; Hegab, H.; Alsafar, H.; Hasan, S.W.; Banat, F. SARS-CoV-2 detection and inactivation in water and wastewater: Review on analytical methods, limitations and future research recommendations. Emerg. Microbes Infect. 2023, 12, 2222850. [Google Scholar] [CrossRef]
  24. Ciannella, S.; González-Fernández, C.; Gomez-Pastora, J. Recent progress on wastewater-based epidemiology for COVID-19 surveillance: A systematic review of analytical procedures and epidemiological modeling. Sci. Total Environ. 2023, 878, 162953. [Google Scholar] [CrossRef]
  25. European Commission (EU) Commission Recommendation (EU) n° 2021/472 of 17 March 2021 on a Common Approach to Establish a Systematic Surveillance of SARS-CoV-2 and Its Variants in Wastewaters in the EU-Publications Office of the EU. Available online: https://op.europa.eu/en/publication-detail/-/publication/05b46cb0-8855-11eb-ac4c-01aa75ed71a1/language-en/format-PDF (accessed on 15 January 2024).
  26. Verani, M.; Federigi, I.; Muzio, S.; Lauretani, G.; Calà, P.; Mancuso, F.; Salvadori, R.; Valentini, C.; La Rosa, G.; Suffredini, E.; et al. Calibration of Methods for SARS-CoV-2 Environmental Surveillance: A Case Study from Northwest Tuscany. Int. J. Environ. Res. Public Health 2022, 19, 16588. [Google Scholar] [CrossRef]
  27. Carducci, A.; Federigi, I.; Lauretani, G.; Muzio, S.; Pagani, A.; Atomsa, N.T.; Verani, M. Critical Needs for Integrated Surveillance: Wastewater-Based and Clinical Epidemiology in Evolving Scenarios with Lessons Learned from SARS-CoV-2. Food Environ. Virol, 2024; Online ahead of print. [Google Scholar] [CrossRef]
  28. La Rosa, G.; Bonadonna, L.; Suffredini, E. Protocollo della Sorveglianza di SARS-CoV-2 in reflui urbani (SARI)—rev. 3. 25/07/2021. Istituto Superiore di Sanità, V.le Regina Elena, Roma. Zenodo. Available online: https://zenodo.org/records/5758725 (accessed on 15 January 2024).
  29. Hernroth, B.E.; Conden-Hansson, A.C.; Rehnstam-Holm, A.S.; Girones, R.; Allard, A.K. Environmental factors influencing human viral pathogens and their potential indicator organisms in the blue mussel, Mytilus edulis: The first Scandinavian report. Appl. Environ. Microbiol. 2002, 68, 4523–4533. [Google Scholar] [CrossRef]
  30. Donaldson, K.A.; Griffin, D.W.; Paul, J.H. Detection, quantitation and identification of enteroviruses from surface waters and sponge tissue from the Florida Keys using real-time RT-PCR. Water Res. 2002, 36, 2505–2514. [Google Scholar] [CrossRef]
  31. Skraber, S.; Ogorzaly, L.; Helmi, K.; Maul, A.; Hoffmann, L.; Cauchie, H.M.; Gantzer, C. Occurrence and persistence of enteroviruses, noroviruses and F-specific RNA phages in natural wastewater biofilms. Water Res. 2009, 43, 4780–4789. [Google Scholar] [CrossRef] [PubMed]
  32. Bisseux, M.; Colombet, J.; Mirand, A.; Archimbaud, C.; Peigue-Lafeuille, H.; Roque-Afonso, A.M.; Abravanel, F.; Izopet, J.; Debroas, D.; Bailly, J.L.; et al. Monitoring human enteric viruses in wastewater and relevance to infections encountered in the clinical setting: A one-year experiment in central France. Eurosurveillance 2018, 23, 17–00237. [Google Scholar] [CrossRef] [PubMed]
  33. Vetter, M.R.; Staggemeier, R.; Vecchia, A.D.; Henzel, A.; Rigotto, C.; Spilki, F.R. Seasonal variation on the presence of adenoviruses in stools from non-diarrheic patients. Braz. J. Microbiol. 2015, 46, 749–752. [Google Scholar] [CrossRef] [PubMed]
  34. Maniah, K.; Nour, I.; Hanif, A.; Yassin, M.T.; Alkathiri, A.; Al-Ashkar, I.; Eifan, S. Molecular Identification of Human Adenovirus Isolated from Different Wastewater Treatment Plants in Riyadh, Saudi Arabia: Surveillance and Meteorological Impacts. Water 2023, 15, 1367. [Google Scholar] [CrossRef]
  35. Elmahdy, E.M.; Ahmed, N.I.; Shaheen, M.N.F.; Mohamed, E.C.B.; Loutfy, S.A. Molecular detection of human adenovirus in urban wastewater in Egypt and among children suffering from acute gastroenteritis. J. Water Health 2019, 17, 287–294. [Google Scholar] [CrossRef] [PubMed]
  36. Price, R.H.M.; Graham, C.; Ramalingam, S. Association between viral seasonality and meteorological factors. Sci. Rep. 2019, 9, 929. [Google Scholar] [CrossRef]
  37. Fong, T.T.; Phanikumar, M.S.; Xagoraraki, I.; Rose, J.B. Quantitative detection of human adenoviruses in wastewater and combined sewer overflows influencing a Michigan river. Appl. Environ. Microbiol. 2010, 76, 715–723. [Google Scholar] [CrossRef]
  38. Takuissu, G.R.; Kenmoe, S.; Ebogo-Belobo, J.T.; Kengne-Ndé, C.; Mbaga, D.S.; Bowo-Ngandji, A.; Ondigui Ndzie, J.L.; Kenfack-Momo, R.; Tchatchouang, S.; Kenfack-Zanguim, J.; et al. Exploring adenovirus in water environments: A systematic review and meta-analysis. Int. J. Environ. Health Res. 2023; Online ahead of print. [Google Scholar] [CrossRef]
  39. Iaconelli, M.; Valdazo-González, B.; Equestre, M.; Ciccaglione, A.R.; Marcantonio, C.; Della Libera, S.; La Rosa, G. Molecular characterization of human adenoviruses in urban wastewaters using next generation and Sanger sequencing. Water Res. 2017, 121, 240–247. [Google Scholar] [CrossRef]
  40. Zamora-Figueroa, A.; Rosales, R.E.; Fernández, R.; Ramírez, V.; Bastardo, M.; Farías, A.; Vizzi, E. Detection and diversity of gastrointestinal viruses in wastewater from Caracas, Venezuela, 2021–2022. Virology 2024, 589, 109913. [Google Scholar] [CrossRef]
  41. Allayeh, A.K.; Al-Daim, S.A.; Ahmed, N.; El-Gayar, M.; Mostafa, A. Isolation and Genotyping of Adenoviruses from Wastewater and Diarrheal Samples in Egypt from 2016 to 2020. Viruses 2022, 14, 2192. [Google Scholar] [CrossRef]
  42. Lei, Y.; Zhuang, Z.; Liu, Y.; Tan, Z.; Gao, X.; Li, X.; Yang, D. Whole Genomic Sequence Analysis of Human Adenovirus Species C Shows Frequent Recombination in Tianjin, China. Viruses 2023, 15, 1004. [Google Scholar] [CrossRef]
  43. Carducci, A.; Viviani, L.; Pagani, A.; Atomsa, N.T.; Lauretani, G.; Federigi, I.; Verani, M. Wastewater Based Surveillance of Respiratory Viruses for public health purposes: Opportunities and challenges. In Proceedings of the IWA World Water Congress & Exhibition, Toronto, ON, Canada, 11–15 August 2024. submitted. [Google Scholar]
  44. Pons-Salort, M.; Oberste, M.S.; Pallansch, M.A.; Abedi, G.R.; Takahashi, S.; Grenfell, B.T.; Grassly, N.C. The seasonality of nonpolio enteroviruses in the United States: Patterns and drivers. Proc. Natl. Acad. Sci. USA 2018, 115, 3078–3083. [Google Scholar] [CrossRef] [PubMed]
  45. Baek, K.; Yeo, S.; Lee, B.; Park, K.; Song, J.; Yu, J.; Rheem, I.; Kim, J.; Hwang, S.; Choi, Y.; et al. Epidemics of enterovirus infection in Chungnam Korea, 2008 and 2009. Virol. J. 2011, 8, 297. [Google Scholar] [CrossRef] [PubMed]
  46. Rajtar, B.; Majek, M.; Polański, Ł.; Polz-Dacewicz, M. Enteroviruses in water environment-a potential threat to public health. Ann. Agric. Environ. Med. 2008, 15, 199–203. [Google Scholar] [PubMed]
  47. Rohayem, J. Norovirus seasonality and the potential impact of climate change. Clin. Microbiol. Infect. 2009, 15, 524–527. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, X.; Huang, J.; Li, C.; Zhao, Y.; Wang, D.; Huang, Z.; Yang, K. The role of seasonality in the spread of COVID-19 pandemic. Environ. Res. 2021, 195, 110874. [Google Scholar] [CrossRef] [PubMed]
  49. Sharun, K.; Tiwari, R.; Dhama, K. COVID-19 and sunlight: Impact on SARS-CoV-2 transmissibility, morbidity, and mortality. Ann. Med. Surg. 2021, 66, 102419. [Google Scholar] [CrossRef] [PubMed]
  50. Gibson, J.; Poon, B.P.; Lam, J.; Sultana, A.; Christie-Holmes, N.; Mubareka, S.; Gray-Owen, S.D.; Farnood, R. Exploring the Differences in the Response of SARS-CoV-2 Delta and Omicron to Ultraviolet Radiation. ACS EST Eng. 2023, 3, 1159–1164. [Google Scholar] [CrossRef]
  51. Lorente-González, M.; Suarez-Ortiz, M.; Landete, P. Evolution and Clinical Trend of SARS-CoV-2 Variants. Open Respir. Arch. 2022, 4, 100169. [Google Scholar] [CrossRef]
  52. Fantilli, A.; Cola, G.D.; Castro, G.; Sicilia, P.; Cachi, A.M.; de Los Ángeles Marinzalda, M.; Ibarra, G.; López, L.; Valduvino, C.; Barbás, G.; et al. Hepatitis A virus monitoring in wastewater: A complementary tool to clinical surveillance. Water Res. 2023, 241, 120102. [Google Scholar] [CrossRef]
  53. Casares-Jimenez, M.; Garcia-Garcia, T.; Suárez-Cárdenas, J.M.; Perez-Jimenez, A.B.; Martín, M.A.; Caballero-Gómez, J.; Michán, C.; Corona-Mata, D.; Risalde, M.A.; Perez-Valero, I.; et al. Correlation of hepatitis E and rat hepatitis E viruses urban wastewater monitoring and clinical cases. Sci. Total Environ. 2024, 908, 168203. [Google Scholar] [CrossRef]
  54. Rački, N.; Dreo, T.; Gutierrez-Aguirre, I.; Blejec, A.; Ravnikar, M. Reverse transcriptase droplet digital PCR shows high resilience to PCR inhibitors from plant, soil and water samples. Plant Methods 2014, 10, 42. [Google Scholar] [CrossRef]
Viruses 16 00482 g001aViruses 16 00482 g001b

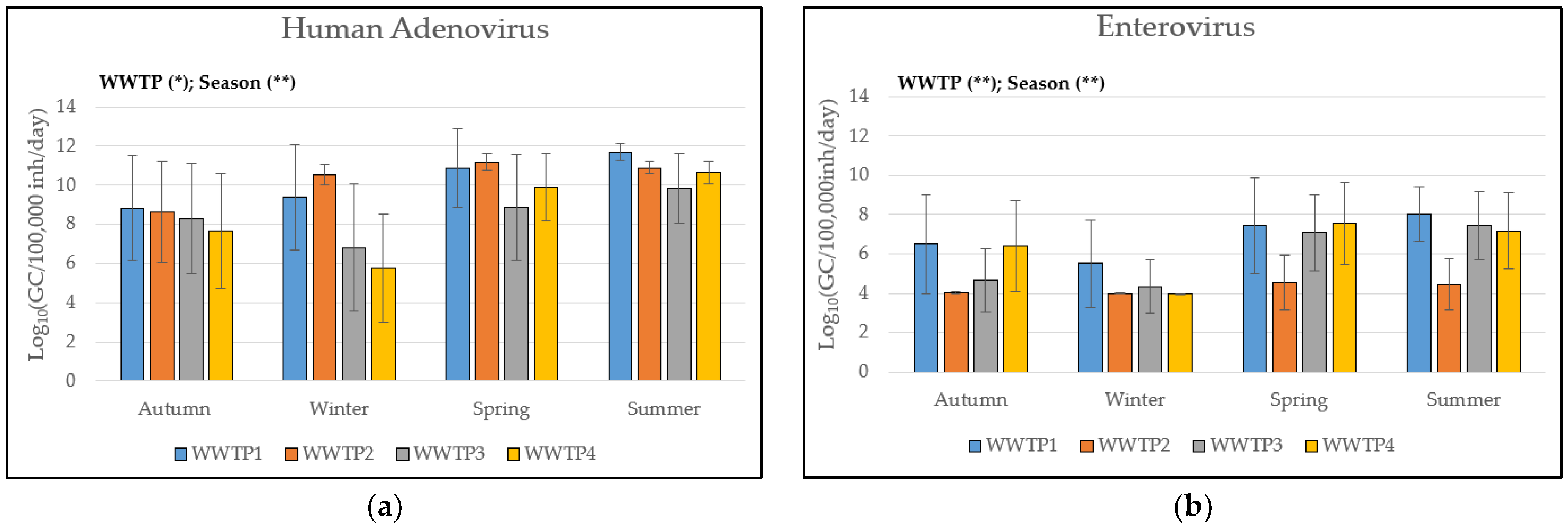

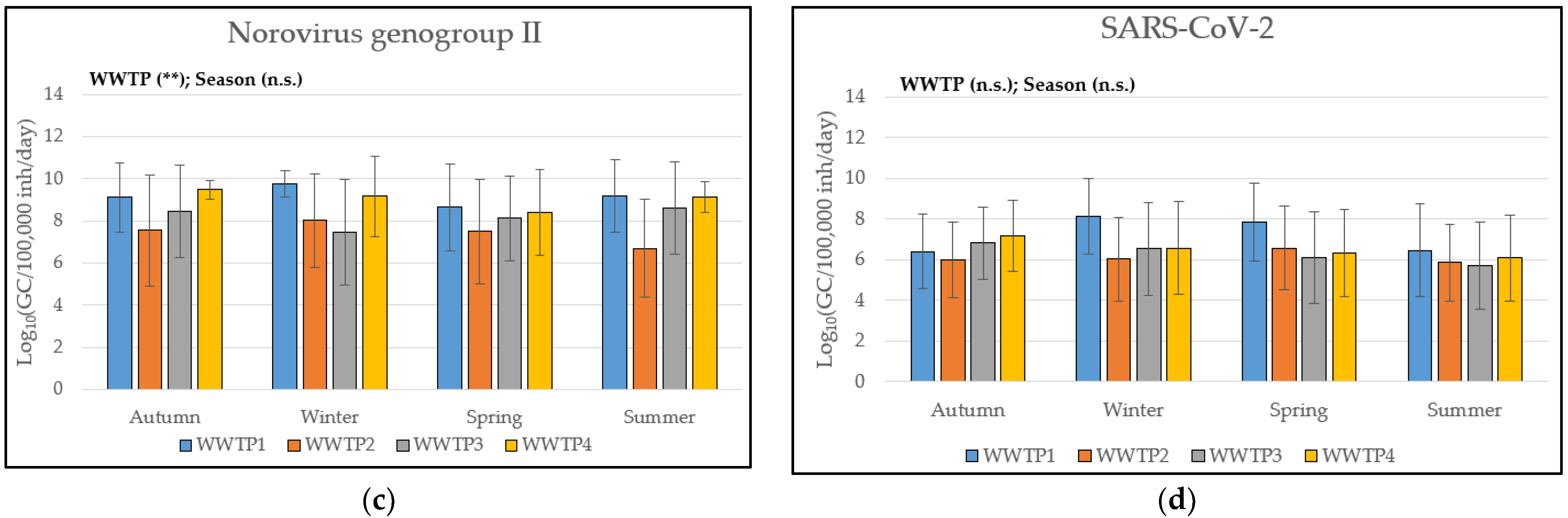

Figure 1. Viral load (Log10 GC/100,000 inh/day) observed in the WWTPs (WWTP1, WWTP2, WWTP3, WWTP4) divided according to season (autumn, spring, winter, summer) for each viral target: (a) HAdV, (b) EV, (c) NoVggII, and (d) SARS-CoV-2. Asterisk indicates statistical significance of two-way ANOVA (* = p-value < 0.05, ** = p-value < 0.01). n.s. = not significant.
Figure 1. Viral load (Log10 GC/100,000 inh/day) observed in the WWTPs (WWTP1, WWTP2, WWTP3, WWTP4) divided according to season (autumn, spring, winter, summer) for each viral target: (a) HAdV, (b) EV, (c) NoVggII, and (d) SARS-CoV-2. Asterisk indicates statistical significance of two-way ANOVA (* = p-value < 0.05, ** = p-value < 0.01). n.s. = not significant.
Viruses 16 00482 g001aViruses 16 00482 g001b
Viruses 16 00482 g002

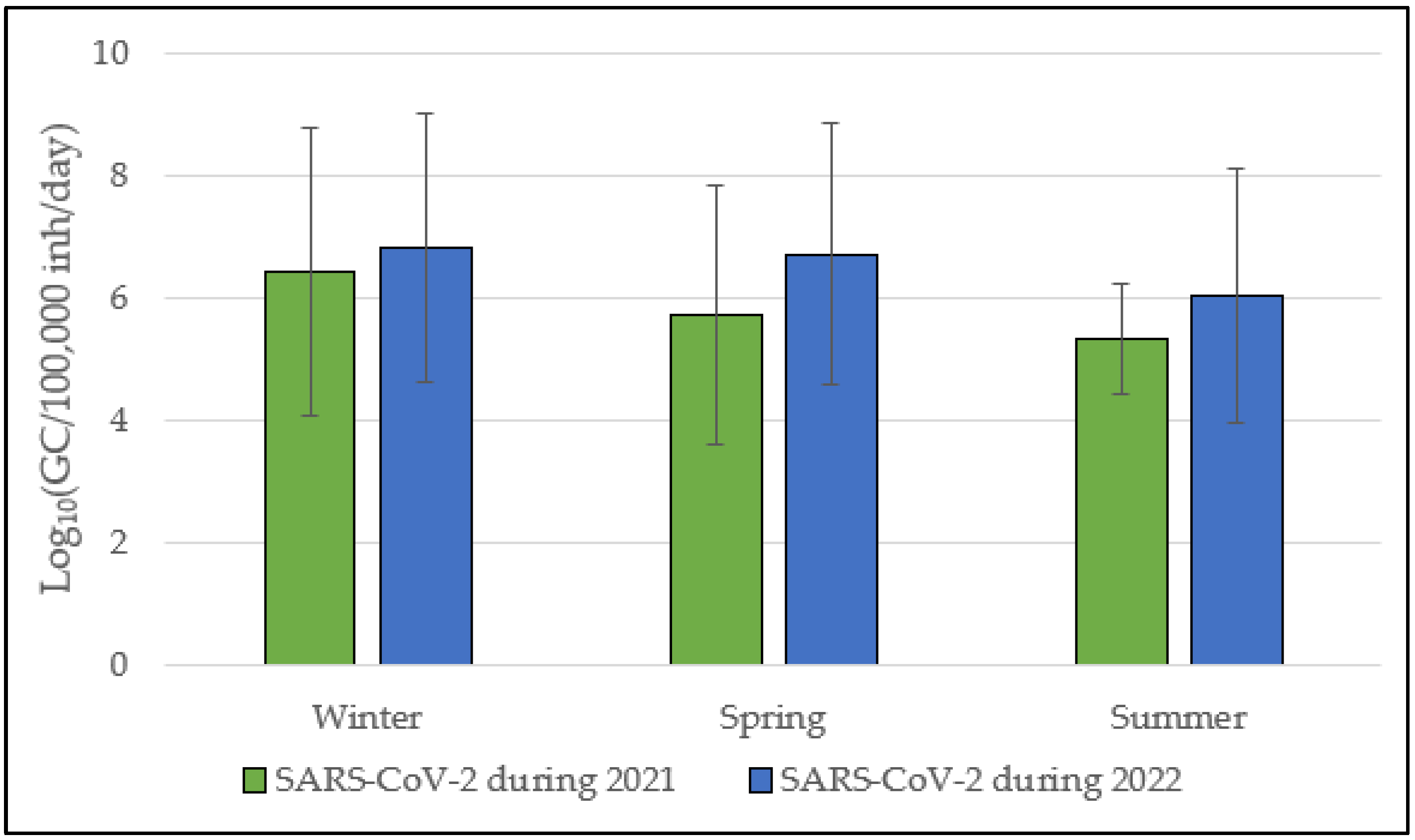

Figure 2. SARS-CoV-2 load during the 2021 (February 2021–September 2021) and 2022 (October 2021–September 2022) surveillance periods. Data are presented as Log10(GC/100,000 inh/day) mean ± standard deviation.
Figure 2. SARS-CoV-2 load during the 2021 (February 2021–September 2021) and 2022 (October 2021–September 2022) surveillance periods. Data are presented as Log10(GC/100,000 inh/day) mean ± standard deviation.
Viruses 16 00482 g002
Table 1. PCR protocols for detection of HAdV, EV, NoVggII, and SARS-CoV-2.
Table 1. PCR protocols for detection of HAdV, EV, NoVggII, and SARS-CoV-2.
VirusTarget RegionPrimers and ProbesSequences (5′-3′)Reference
Human AdenovirusAd hexon geneAdFCWTACATGCACATCKCSGG[29]
AdRCRCGGGCRAAYTGCACCAG
AdP1FAM-CCGGGCTCAGGTACTCCGAGGCGTCCT-TAMRA
Enterovirus5′UTR regionEVFGGCCCCTGAATGCGGCTAAT[30]
EVRCACCGGATGGCCAATCCAA
EVFAM-CGGACACCCAAAGTAGTCGGTTCCG-TAMRA
Norovirus ggIIORF1-ORF2 region: RNA-dependent RNA polymerase (RdRp)JJV2FCAAGAGTCAATGTTTAGGTGGATGAG[31]
COG2RTCGACGCCATCTTCATTCACA
RING2-TPFAM-TGGGAGGGCGATCGCAATCT-BHQ
SARS-CoV-2ORF1ab region:
nsp14; 3′ to 5′ exonuclease		2297 CoV-2-FACATGGCTTTGAGTTGACATCT[26,27]
2298 CoV-2-RAGCAGTGGAAAAGCATGTGG
2299 CoV-2-PFAM-CATAGACAACAGGTGCGCTC-MGBEQ
Table 2. Target viruses in the study area divided by WWTP. Positive samples are reported as number of samples in which the virus was detected out of the total observations and as percentages. The viral load is reported as Log10(GC/100,000 inh/day) mean ± standard deviation.
Table 2. Target viruses in the study area divided by WWTP. Positive samples are reported as number of samples in which the virus was detected out of the total observations and as percentages. The viral load is reported as Log10(GC/100,000 inh/day) mean ± standard deviation.
VirusWWTP1WWTP2WWTP3WWTP4Total
Human AdenovirusPositive samples
(no., %)		42/48, 87.5%45/48, 93.7%36/51, 78.6%35/50, 70%158/197, 80.2%
Viral load
Log10(GC/100,000 inh/day)		10.3 ± 2.310.3 ± 1.68.5± 2.88.6 ± 2.99.4 ± 2.6
EnterovirusPositive samples
(no., %)		30/48, 62.5%4/48, 8.3%24/51, 47%29/50, 58.0%87/197, 44.2%
Viral load
Log10(GC/100,000 inh/day)		7.0 ± 2.34.3 ± 15.9 ± 2.16.6 ± 2.25.9 ± 2.2
Norovirus genogroup IIPositive samples
(no., %)		44/48, 91.7%33/48, 68.7%42/51, 82.3%47/50, 94%166/197, 84.3%
Viral load
Log10(GC/100,000 inh/day)		9.1 ± 1.6 7.4 ± 2.48.2 ± 2.19.1 ± 1.48.5 ± 2.0
SARS-CoV-2Positive samples
(no., %)		30/48, 62.5%21/48, 43.7%22/51, 43.1%27/50, 54%100/197, 50.8%
Viral load
Log10(GC/100,000 inh/day)		7.2 ± 2.16.1 ± 1.96.2 ± 2.16.6 ± 2.16.5 ± 2.1
