Characterization and Genome Analysis of Arthrobacter bangladeshi sp. nov., Applied for the Green Synthesis of Silver Nanoparticles and Their Antibacterial Efficacy against Drug-Resistant Human Pathogens

by
Md. Amdadul Huq
1,* and
Shahina Akter
2,*
1
Department of Food and Nutrition, College of Biotechnology and Natural Resource, Chung-Ang University, Anseong 17546, Korea
2
Department of Food Science and Biotechnology, Gachon University, Seongnam 461-701, Korea
*
Authors to whom correspondence should be addressed.
Pharmaceutics 2021, 13(10), 1691; https://doi.org/10.3390/pharmaceutics13101691
Submission received: 30 August 2021 / Revised: 8 October 2021 / Accepted: 12 October 2021 / Published: 15 October 2021
(This article belongs to the Special Issue Focus on Antibiotics – New Challenges and Steps Forward in Discovery and Development)
Browse Figures
Versions Notes

Abstract

:
The present study describes the isolation and characterization of novel bacterial species Arthrobacter bangladeshi sp. nov., applied for the green synthesis of AgNPs, and investigates its antibacterial efficacy against drug-resistant pathogenic Salmonella Typhimurium and Yersinia enterocolitica. Novel strain MAHUQ-56T is Gram-positive, aerobic, non-motile, and rod-shaped. Colonies were spherical and milky white. The strain showed positive activity for catalase and nitrate reductase, and the hydrolysis of starch, L-tyrosine, casein, and Tween 20. On the basis of the 16S rRNA gene sequence, strain MAHUQ-56T belongs to the Arthrobacter genus and is most closely related to Arthrobacter pokkalii P3B162T (98.6%). Arthrobacter bangladeshi MAHUQ-56T has a genome 4,566,112 bp long (26 contigs) with 4125 protein-coding genes, 51 tRNA and 6 rRNA genes. The culture supernatant of Arthrobacter bangladeshi MAHUQ-56T was used for the easy and green synthesis of AgNPs. Synthesized AgNPs were characterized by UV–vis spectroscopy, FE-TEM, XRD, DLS, and FT-IR. Synthesized AgNPs were spherical and 12–50 nm in size. FT-IR analysis revealed various biomolecules that may be involved in the synthesis process. Synthesized AgNPs showed strong antibacterial activity against multidrug-resistant pathogenic S. typhimurium and Y. enterocolitica. MIC values of the synthesized AgNPs against S. typhimurium and Y. enterocolitica were 6.2 and 3.1 ug/mL, respectively. The MBC of synthesized AgNPs for both pathogens was 12.5 ug/mL. FE-SEM analysis revealed the morphological and structural alterations, and damage of pathogens treated by AgNPs. These changes might disturb normal cellular functions, which ultimately leads to the death of cells.

1. Introduction

The Arthrobacter genus within the Micrococcaceae family was first proposed by Conn and Dimmick [1]. The Arthrobacter genus comprises 54 validly published species at the time of writing (https://lpsn.dsmz.de/genus/Arthrobacter (accessed on 28 August 2021)). Members of this genus are Gram-positive, aerobic (requiring oxygen for growth), nonmotile, rod-coccus-shaped, with negative acidification of glucose, catalase-positive, and contain C15:0 anteiso, C15:0 iso, C16:0 iso and C17:0 anteiso as the major fatty acids, MK-9 (H2) or MK-8/MK-9 as the predominant respiratory quinone, and high DNA G + C content [2,3]. The Arthrobacter genus is one of the most divergent heterotrophic bacterial groups because of metabolic versatility. Members of the Arthrobacter genus were isolated from various environments, such as sewage, soil, water, ice, rhizosphere, marsh, sediment, and pests [4,5,6,7,8]. Many species of this genus were utilized for beneficial purposes [4,5,7]. Here, a novel species of Arthrobacter was isolated from the soil sample of a rice field and applied for the green synthesis of silver nanoparticles (AgNPs). On the basis of the phylogenetic analysis of 16S rRNA gene sequence, genome sequence analysis, digital DNA–DNA hybridization analysis, and physiological and chemotaxonomic characteristics, we demonstrate that strain MAHUQ-56T represents a novel species of the Arthrobacter genus, for which the name Arthrobacter bangladeshi sp. nov. (type strain MAHUQ-56T) is proposed.
Nanotechnology deals with the design, synthesis, and application of nanosized particles in the range of 1–100 nm. There are different kinds of metallic nanoparticles, such as gold, silver, iron, and zinc. Among them, AgNPs are widely used nanoparticles due to their various applications in biological fields such as antimicrobial, anticancer, drug delivery, catalysis, and biomolecular detection [9,10,11]. Due to the various applications of metal nanoparticles in different scientific fields, researchers have devoted extensive efforts to develop easy and ecofriendly techniques for the rapid and mass production of nanoparticles. Chemical, physical, and biological methods are available for the synthesis of nanoparticles [12]. Chemical and physical methods are commonly used for the synthesis of well-characterized nanoparticles. However, these two method types need enormous energy amounts and hazardous chemicals, and produce toxic byproducts that make them unsuitable approaches [13,14]. Therefore, the development of a green approach for the synthesis of nanoparticles is an emerging demand to avoid the drawbacks of conventional physical and chemical methods. Biological methods are an important route for the synthesis of nanoparticles because of their nontoxic, cost-effective, and ecofriendly properties [15,16]. For the ecofriendly synthesis of nanoparticles, various biological resources could be used, such as plants or plant products, and microorganisms such as bacteria, fungi, and algae [13,16,17,18,19]. Among different natural resources, bacteria are mostly chosen for the biosynthesis of nanoparticles because of their easy handling and growth, and large-scale production [20,21].
The emergence of multidrug-resistant bacteria is a major concern for public health. Antibiotic-resistant microorganisms cause life-threatening diseases in humans. Salmonella Typhimurium is a rod-shaped, aerobic, flagellated, Gram-negative bacterium, and a primary enteric pathogen for both humans and animals. Infection begins with the ingestion of contaminated food or water. After consuming the contaminated food or water, the pathogen reaches the intestinal epithelium and triggers gastrointestinal disease [22]. Yersinia enterocolitica is a Gram-negative, rod-shaped bacterium within the Yersiniaceae family. Yersiniosis disease is developed by Y. enterocolitica infection, which is an animal-borne disease occurring in humans and different animals such as cattle, pigs, deer, and birds [23]. Both S. typhimurium and Y. enterocolitica showed resistance against various drugs [24,25]. The development of a novel antibacterial agent is the key solution for this issue. Therefore, green synthesized AgNPs are a promising agent to control these multidrug-resistant bacteria. The present study isolates and characterizes novel bacterial species Arthrobacter bangladeshi sp. nov., used for the easy and ecofriendly extracellular synthesis of AgNPs, and investigates its antibacterial efficacy against drug-resistant pathogenic S. typhimurium and Y. enterocolitica.

2. Materials and Methods

2.1. Materials

Silver nitrate (AgNO3) and bacterial growth media were obtained from Sigma-Aldrich Chemicals (St. Louis, MO, USA). Pathogenic strains Salmonella Typhimurium (ATCC 14028) and Yersinia enterocolitica (ATCC 9610) were collected from American Type Culture Collection (ATCC).

2.2. Isolation of AgNP-Producing Bacteria

Strains were isolated from the soil sample of a rice field located in Dighalgram, Magura, Bangladesh. Samples were collected in 15 mL conical tubes and suspended in sterile NaCl solution (0.85%, w/v). Strains were isolated through a serial dilution technique using an R2A agar medium after incubation for 3 days at 30 °C according to a previous study [18]. To check the AgNPs’ synthesis ability, all isolated strains were separately cultured in 5 mL R2A broth media for 72 h at 30 °C. Then, the culture supernatant was collected and incubated with 1 mM AgNO3 solution (final concentration) in a shaking incubator for 72 h at 30 °C. On the basis of AgNO3 reduction efficacy to AgNPs, strain MAHUQ-56T was selected as the perfect candidate. Strain MAHUQ-56T was stored at −80 °C in R2A broth containing 30% (v/v) glycerol. Strain MAHUQ-56T was deposited into the Korean Agriculture Culture Collection (KACC) and China General Microbiological Culture Collection Center (CGMCC).

2.3. Phenotypic, Physiological, and Biochemical Characteristics

The growth of strain MAHUQ-56T was investigated at 30 °C for 5 days on several agar media, namely, R2A agar, nutrient agar (NA), MacConkey agar, Luria–Bertani (LB) agar, and trypticase soy agar (TSA). To determine the optimal growth temperature, strain MAHUQ-56T was cultivated at different temperatures (5–45 °C with 5 °C intervals) on R2A agar. To investigate the optimal growth pH, strain MAHUQ-56T was cultivated at different pH values (3.0–11.0 at intervals of 0.5 pH unit) in an R2A broth medium. NaCl tolerance was examined in R2A broth medium (0–5% (w/v)). Gram staining (bioMérieux) was examined according to the manufacturer’s instructions. Cell morphology was assessed by transmission electron microscopy after culturing the strain for 2 days at 30 °C on an R2A agar medium. The cell motility and anaerobic growth ability of strain MAHUQ-56T were established according to a previous description [18]. The production of flexirubin-type pigments was checked according to Sheu et al. [26]. The activities of DNase, oxidase, urease, and catalase, and the hydrolysis of starch, gelatin, casein, and Tweens 20 and 80 were found according to a previous description [18]. Additional biochemical and physiological characterization of strain MAHUQ-56T and close relatives was investigated using the API ZYM and API 20NE kits (bioMérieux). Close type strains Arthrobacter pokkalii KCTC 29498T, Pseudarthrobacter defluvii KCTC 19209T, Pseudarthrobacter niigatensis CCTCC AB 206012T, Pseudarthrobacter phenanthrenivorans DSM 18606T, and Pseudarthrobacter enclensis DSM 25279T were used as reference strains, and grown under the same experimental conditions to compare phenotypic properties and fatty acid compositions.

2.4. 16S rRNA Gene Sequencing and Phylogenetic Analysis

Phylogenetic analysis of isolated strain MAHUQ-56T was conducted using the 16S rRNA gene sequence. Having extracted the genomic DNA of strain MAHUQ-56T, the 16S rRNA gene was amplified by PCR using bacterial universal primers 27F and 1492R [27]. The PCR product was purified and sequenced by Biofact Co. Ltd. (Daejeon, South Korea). The 16S rRNA sequence similarity was checked and compared with validly published type strains from the EzTaxon database (http://www.ezbiocloud.net/eztaxon (accessed on 28 August 2021)) [28]. Phylogenic trees were constructed using neighbor-joining and maximum-likelihood algorithms [26] in MEGA software, Version 6 [29] with bootstrap values of 1000 replications [30].

2.5. Genomic Sequence Analysis

The draft genomic sequence of strain MAHUQ-56T was analyzed by Illumina HiSeq X Ten (Illumina, Inc., San Diego, CA, USA), and assembly was carried out using a de novo assembler (SOAPdenovo v. 3.10.1). The NCBI prokaryotic genome annotation pipeline (PGAP) was used for genome annotation. DNA G + C content of strain MAHUQ-56T was directly calculated from its genomic sequence. Average nucleotide identity (ANI) values were analyzed to investigate the level of pairwise relatedness between MAHUQ-56T and close type strains using the EzTaxon-e server (https:// www.ezbio cloud.net/tools/ani (accessed on 28 August 2021)) [28]. Digital DNA–DNA hybridization (dDDH) values were determined using the genome-to-genome distance calculator (http://ggdc.dsmz.de/ggdc.php (accessed on 28 August 2021)) [31]. For functional analysis, the genome of strain MAHUQ-56T was annotated using the Rapid Annotation Subsystems Technology (RAST) server (https://rast.nmpdr.org (accessed on 28 August 2021)) [32].

2.6. Cellular Fatty Acid and Respiratory Quinones Analysis

To identify fatty acid compositions, strain MAHUQ-56T and reference strains were cultured on an R2A agar medium at 30 °C for 48 h. Extraction, purification, and analysis of cellular fatty acids were performed according to a previous description [18,33]. The respiratory quinones of strain MAHUQ-56T were extracted, purified, and analyzed by HPLC using the method of Collins [34].

2.7. Biosynthesis of AgNPs Using Arthrobacter bangladeshi sp. nov.

The green synthesis of AgNPs was performed using the culture supernatant of strain MAHUQ-56T. Briefly, strain MAHUQ-56T was cultured in 100 mL R2A broth medium for 3 days at 30 °C with 180 rpm. Then, the bacterial culture was spun down at 9000 rpm for 10 min to obtain a cell-free supernatant. We added 1 mM of AgNO3 solution (final concentration) to the 100 mL cell-free culture supernatant and incubated it again in dark shaking condition (180 rpm, 35 °C) for 48–72 h. The reaction mixture was observed continuously for the synthesis of nanoparticles by visual inspection and UV–vis spectral analysis. Synthesized AgNPs were collected by high-speed centrifugation (14,000 rpm for 20 min). Collected AgNPs were washed several times with distilled water and obtained in precipitate form. Precipitated AgNPs were air-dried, and used for characterization and antimicrobial application.

2.8. Characterization of Synthesized AgNPs

The UV–vis spectrum of synthesized AgNPs was analyzed by UV–vis spectrophotometer (Optizen POP, Mecasys, Daejeon, South Korea) in the range of 300–800 nm. To investigate the morphology, composition, and metallic nature of synthesized AgNPs, field emission-transmission electron microscopy (FE-TEM) analysis was conducted, operated with voltage of 200 kV (JEM 2100F, JEOL, Tokyo, Japan). An AgNP sample for TEM was prepared by dissolving in distilled water, and spotting onto carbon-coated TEM grid, followed by air-drying at room temperature. The air-dried AgNP sample was used for X-ray diffraction (XRD) analysis using an X-ray diffractometer (D8 Advance, Bruker, Germany) over a 2θ value in the range of 30°–90°. The hydrodynamic diameters and polydispersity index of green synthesized AgNPs were investigated by dynamic light scattering (DLS, Otsuka Electronics, Osaka, Japan) (Malvern Zetasizer Nano ZS90) according to a previous description [35]. Fourier transform-infrared (FTIR, PerkinElmer Inc., Waltham, MA, USA) analysis was performed by scanning the air-dried purified AgNPs using FTIR spectroscopy over the range of 4000–500 cm−1.

2.9. Antimicrobial Activity of Synthesized AgNPs

The antibacterial properties of green synthesized AgNPs against pathogenic S. typhimurium and Y. enterocolitica were investigated by the disc diffusion method. In brief, the tested pathogens were grown overnight in Mueller–Hinton (MH) broth. Then, 100 μL culture suspensions of both S. typhimurium and Y. enterocolitica were spread onto MH agar plates, and 8 mm sterile paper discs were placed on the surface of MH agar plates. Then, 30 and 60 μL (1000 ppm) of green synthesized AgNPs solutions (AgNPs were dissolved in water) were placed onto the paper discs. Plates were incubated at 37 °C for 24 h to observe the inhibition zones. The inhibition zone was calculated in millimeters (mm) after 24 h of incubation. This test was performed three times.

2.10. MIC and MBC Investigation

The bacteriostatic activity of green synthesized AgNPs was determined by measuring minimum inhibitory concentration (MIC) using microdilution assay as follows. Pathogenic strains S. typhimurium and Y. enterocolitica were grown in MH broth medium at 37 °C overnight; then, the culture was diluted to approximately 1 × 106 CFUs/mL. Then, 100 uL of diluted bacterial culture was added into 96-well ELISA plate, followed by an equal volume of AgNPs solutions (AgNPs were dissolved in MH broth medium) with various concentrations (3.1, 6.2, 12.5, 25, 50, 100, and 200 μg/mL). As a control, only MH broth was used instead of an AgNP solution. Samples were incubated at 37 °C for 24 h. Every 3 h of the interval, bacterial growth was calculated using an ELISA plate reader (LabTech 4000, BMG LABTECH, Ortenberg, Germany) by recording OD600. Minimum bactericidal concentration (MBC) was defined as the lowest concentration of synthesized AgNPs that was required to kill the tested pathogenic strains. For measuring MBC, 10 μL of the above mixtures was streaked on MH agar plates and incubated at 37 °C for 24 h. Lastly, MBC was evaluated by determining the lowest concentration that killed the bacteria [36].

2.11. Investigation of Morphological Changes by FE-SEM

Bacterial strains of S. typhimurium and Y. enterocolitica (approximately 1 × 107 CFU/mL) were each incubated with and without biosynthesized AgNPs (at MBC concentration) at 37 °C overnight. Upon the end of the incubation period, samples were processed for FE SEM analysis to investigate structural changes according to a previous report [36]. AgNP-treated cells were collected by centrifugation at 8000 rpm for 5 min. Then, cells were washed by PBS (pH 7.0) and fixed by 2.5% glutaraldehyde for 4 h at room temperature. Cells were again washed by PBS and serially dehydrated by various concentrations of ethanol (from 30% to 100%) in 10 min intervals at room temperature. Subsequently, dehydrated cells were dried using a desiccator, and samples were lastly coated with gold for the investigation of structural changes by FE-SEM (S-4700, Hitachi, Tokyo, Japan).

3. Results and Discussion

3.1. Phenotypic, Physiological, and Biochemical Characteristics

Cells of strain MAHUQ-56T were Gram-positive, aerobic, non-motile, and rod-shaped, 0.6–1.0 μm wide and 1.3–2.5 μm long (Figure 1). Strain MAHUQ-56T grew on R2A agar, NA, TSA, and LB agar media, but not on MacConkey agar. Colonies were spherical, milky white, and 0.4–0.9 mm in diameter when grown on R2A agar medium for 2 days. The strain showed positive activity for catalase, but negative for oxidase- and flexirubin-type pigments. Cells could hydrolyze starch, L-tyrosine, casein and Tween 20, but were negative for DNA, gelatin, esculin, urea, and Tween 80. Strain MAHUQ-56T was positive for the assimilation of glucose, mannose, arabinose, maltose, gluconate, N-acetyl-glucosamine, malate, citrate, mannitol, adipate, and phenyl-acetate (API 20NE). Based on the API ZYM kit, strain MAHUQ-56T was positive for valine arylamidase, esterase, acid phosphatase, esterase lipase (C8), trypsin, alkaline phosphatase, leucine arylamidase, cystine arylamidase, β-glucosidase, naphthol-AS-BI-phosphohydrolase, β-galactosidase, α-glucosidase, α-mannosidase, α-galactosidase, α-chymotrypsin, α-fucosidase, β-glucuronidase and lipase (C14). Strain MAHUQ-56T showed many different phenotypic characteristics from its close relatives, including different growth conditions, and enzymatic and assimilation activities (Table 1). Strain MAHUQ-56 was deposited into KACC (KACC 22003T) and CGMCC (CGMCC 1.18517T).

3.2. 16S rRNA Gene Sequence and Phylogenetic Analysis

The 16S rRNA gene sequence (1451 bp, GenBank accession number, MT514504) similarities showed that strain MAHUQ-56T was most closely related to Arthrobacter pokkalii P3B162T (98.6%), Pseudarthrobacter defluvii 4C1-aT (98.5%), Pseudarthrobacter niigatensis LC4T (98.2%), Pseudarthrobacter phenanthrenivorans Sphe3T (98.2%), and Pseudarthrobacter enclensis NIO-1008T (98.0%). Phylogenetic analysis based on 16S rRNA gene sequences using neighbor-joining (NJ) (Figure 2) and maximum-likelihood (ML) (Supplementary Figure S1) phylogenetic trees revealed that strain MAHUQ-56T clustered within the Arthrobacter genus and formed a monophyletic clade to Arthrobacter pokkalii. From 16s rRNA gene sequence and phylogenetic analysis, it is clear that strain MAHUQ-56T is a new member of the Arthrobacter genus.

3.3. Draft Genome and DNA G + C Content Analysis

The draft genome of strain MAHUQ-56T contains 26 contigs with an N50 size of 360,503 bp. Total genome size was 4,566,112 bp, with an average G + C content of 66.0 mol%. Gene annotation by PGAP revealed 4125 protein-encoding genes, 51 tRNA genes, and 6 rRNA genes (NCBI accession number, JAIFZQ000000000). The common features of the genome sequence of strain MAHUQ-56T are shown in Table 2. Characterization of novel species is increasingly dependent on genomic sequence [37]. Functional annotation by the RAST server showed that 172 genes were involved with the metabolism of proteins, 83 genes were associated with the metabolism of nucleosides and nucleotides, 343 genes were linked with amino acids and derivatives, and 408 genes were involved with carbohydrate metabolism (Figure 3). The closest type strain, Arthrobacter pokkalii GZK-1, contains a 4,415,912 bp long genome with 65.9 mol% GC, 4091 protein-encoding genes, 15 rRNA genes, and 51 tRNA genes (https://www.ezbiocloud.net/genome/explore?puid=230640 (accessed on 28 August 2021)). Genomic ANI values between strain MAHUQ-56T and close type strains A. pokkalii GZK-1T, P. phenanthrenivorans Sphe3T and P. enclensis NIO-1008T were 84.0%, 81.5%, and 82.0%, respectively (Supplementary Table S1), which were well below (≥95–96%) suggesting a novel species. The dDDH values based on the draft genomes between strain MAHUQ-56T and close relatives A. pokkalii GZK-1T, P. phenanthrenivorans Sphe3T and P. enclensis NIO-1008T were 27.5%, 24.5%, and 24.8%, respectively (Supplementary Table S1), which were also far below the threshold value (70%) for species delineation.

3.4. Cellular Fatty Acid and Respiratory Quinones Analysis

The predominant fatty acids of strain MAHUQ-56T were C15:0 anteiso (47.8%), C15:0 iso (11.9%), C16:0 iso (15.8%), and C17:0 anteiso (11.7%). Overall fatty acid composition was similar to those of close type strains. However, there were some clear quantitative and qualitative differences in the fatty acid profiles (Table 3). The major respiratory quinone of strain MAHUQ-56T was MK-9(H2). Closest type strain Arthrobacter pokkalii P3B162T also showed the same major respiratory quinone [4].

3.5. Taxonomic Conclusions

Phenotypic, chemotaxonomic, and biochemical characteristics, and phylogenetic inference and genomic features support that strain MAHUQ-56T represents a novel species of the Arthrobacter genus, for which the name Arthrobacter bangladeshi sp. nov. is proposed.

3.6. Description of Arthrobacter bangladeshi sp. nov.

Arthrobacter bangladeshi (bangla.desh′i. N.L. gen. n. bangladeshi pertaining to Bangladesh, where the rice field is located and the type strain was isolated).
Cells are Gram-stain-positive, aerobic, non-motile, and rod-shaped, 0.6–1.0 μm wide and 1.3–2.5 μm long. Strain MAHUQ-56T grew on R2A agar, NA, TSA, and LB agar media, but not on MacConkey agar. Colonies were spherical, milky white, and 0.4–0.9 mm in diameter when grown on R2A agar medium for 2 days. Growth occurs at 10–40 °C (optimum, 30  °C), at pH 5.0–10.0 (optimum, pH 7.0) and with 0–2% NaCl (optimum, 0%). Positive for catalase activity and the hydrolysis of starch, L-tyrosine, casein and Tween 20. Negative for oxidase, flexirubin-type pigments production, glucose fermentation, and the hydrolysis of DNA, gelatin, esculin, urea, and Tween 80. Nitrate is reduced to nitrite. Strain MAHUQ-56T was positive for the assimilation of glucose, mannose, arabinose, maltose, gluconate, N-acetyl-glucosamine, malate, citrate, mannitol, adipate and phenyl-acetate, but negative for the assimilation of caprate (API 20NE). In API ZYM tests, valine arylamidase, C4 esterase, acid phosphatase, esterase lipase (C8), trypsin, alkaline phosphatase, leucine arylamidase, cystine arylamidase, β-glucosidase, naphthol-AS-BI-phosphohydrolase, β-galactosidase, α-glucosidase, α-mannosidase, α-galactosidase, α-chymotrypsin, α-fucosidase, β-glucuronidase and lipase (C14) activities were present, but N-acetyl-β-glucosaminidase activities were absent. Major fatty acids were C15:0 anteiso, C15:0 iso, C16:0 iso and C17:0 anteiso. The predominant respiratory quinone was MK-9(H2). The DNA G + C content of the type strain MAHUQ-56T was 66.0 mol%.
Type strain was MAHUQ-56T (=KACC 22003T = CGMCC 1.18517T), isolated from soil sample of a rice field, Magura, Bangladesh.

3.7. Green Synthesis of AgNPs Using Arthrobacter bangladeshi sp. nov.

The culture supernatant of Arthrobacter bangladeshi MAHUQ-56T was supplemented with 1 mM AgNO3 for the green synthesis of AgNPs. The synthesis of AgNPs by strain MAHUQ-56T was initially confirmed by visual observation. The color of the reaction mixture changed into deep brown from pale yellow within 72 h of incubation (Figure 4B). The change in color is attributed to the surface plasmon resonance of AgNPs, and indicated the formation of AgNPs [38,39]. There was no color change in the control (Figure 4A). Intracellular and extracellular methods are available for the bacteria-mediated synthesis of AgNPs. The extracellular method is easier and more rapid compared to the intracellular method, which needs complex purification steps [40]. In the current study, a facile and convenient extracellular process was used for the biosynthesis of AgNPs using Arthrobacter bangladeshi MAHUQ-56T.

3.8. Characterization of Green Synthesized AgNPs

The biosynthesis of AgNPs was further confirmed by UV–visible spectral analysis in the range of 300–800 nm. A strong peak appeared at 405 nm (Figure 4C), which ensured the synthesis of AgNPs [41]. Our results agree with those of Du et al., who reported that AgNPs synthesized by Novosphingobium sp. THG-C3 showed an SPR band at 406 nm [35]. The standard SPR peak of biosynthesized Ag-NPs generally shows within 400 to 450 nm [42]. The morphology of synthesized AgNPs was investigated by FE-TEM, which revealed a spherical shape. The size of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs was determined to the range of 12 to 50 nm (Figure 4D,E). Singh et al. reported a similar particle size (10–40 nm) of AgNPs that was synthesized by Cedecea sp. [43]. The elemental composition and purity of synthesized AgNPs was examined by EDX, as shown in Figure 5. The EDX spectrum revealed a strong peak for silver at 3 keV, which ensures the synthesis of metallic AgNPs [44]. Some extra peaks were also found in the EDX spectrum due to the use of copper grids (Figure 5A). Elemental mapping results showed the highest distribution of silver elements in the sample (Figure 5B,C, Table 4). To investigate the phase of AgNPs, selected area electron diffraction (SAED) analysis was performed (Figure 5D). SAED analysis showed a sharp rings corresponding to the following reflections at 111, 200, 220, and 311 of lattice planes (Figure 5D), which indicated the crystalline nature of biosynthesized AgNPs. X-ray diffraction (XRD) analysis was conducted to determine the crystalline property of synthesized AgNPs. The XRD pattern showed four distinct peaks at 2θ values of 38.21°, 46.42°, 64.69°, and 77.41° corresponding to the intensities of 111, 200, 220, and 311 for the reflections of metallic silver (Figure 5E). Some recently reported studies showed similar XRD patterns of AgNPs synthesized by microorganisms [35,45].
The size and polydispersity value of the synthesized AgNPs was investigated by DLS. The average hydrodynamic diameter was 122.5 nm, with a polydispersity index of 0.286 (Supplementary Figure S2). The possible role of biomolecules presence in bacterial culture supernatant for the synthesis and stabilization of AgNPs was identified by Fourier transform infrared (FT-IR) analysis. The FTIR spectrum revealed major intense absorbance peaks at 3438.60, 2921.32, 2848.50, 2352.20, 2330.50, and 1645.20 cm−1 (Figure 6). The vibration peak at 3438.60 cm−1 may have been due to the presence of an O–H (alcohol) and/or N–H (amine) group with synthesized AgNPs. The bands at 2921.32 and 2848.50 cm−1 were due to the stretching vibration of C-H (alkane) group. Absorbance peaks at 2352.20 and 2330.50 cm−1 could have been the presence of O=C=O (carbonyl bond group). The band located at 1645.20 cm−1 may have been due to the presence of a C=O (ester) or –C=C bond. FT-IR data identified the presence of biomolecules, which may have been responsible for the synthesis and stabilization of AgNPs. Some previous studies showed a similar FT-IR spectrum of AgNPs synthesized using microorganisms [43,46]. Supplementary Table S2 shows the physicochemical properties of AgNPs synthesized by Arthrobacter bangladeshi and some other bacterial strains.

3.9. Antimicrobial Activity of Synthesized AgNPs

In the present study, the antibacterial activity of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs was investigated against multidrug-resistant pathogenic S. typhimurium and Y. enterocolitica. Synthesized AgNPs exhibited strong antibacterial activity against both tested pathogens S. typhimurium and Y. enterocolitica. The potential antibacterial activity of synthesized AgNPs against pathogenic microorganisms was confirmed by the formation of an inhibition zone (Figure 7). Figure 7 reveals a clear zone of inhibition (ZOI) around the paper discs treated by synthesized AgNPs. The diameters of the ZOI of biosynthesized AgNPs against S. typhimurium and Y. enterocolitica were 18.3 ± 0.6 and 20.4 ± 0.8 mm, respectively, and are shown in Table 5. The biosynthesized AgNPs showed the highest activity against multidrug-resistant Y. enterocolitica, followed by S. typhimurium. These results suggest that Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs could be useful as an antibacterial agent to control multidrug-resistant S. typhimurium and Y. enterocolitica. These findings were consistent with those of previous studies [35,45].

3.10. MIC and MBC Investigation

The MIC was defined as the lowest concentration of AgNPs that fully inhibited the growth of bacteria. The MIC was determined by a microdilution assay using 96-well plates. The MICs of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs for S. typhimurium and Y. enterocolitica were 6.2 and 3.1 ug/mL, respectively (Figure 8, Table 6). These MIC values were significantly lower than those of some other antibacterial agents, including biosynthesized nanoparticles against both S. typhimurium and Y. enterocolitica. Several studies reported that the MIC values of olive-oil polyphenol extract and Licochalcone A against S. typhimurium were 625 and 62.5–1000 ug/mL, respectively [47,48]. Similarly, the MIC values of chitosan nanoparticles and Parrotia persica leaf extract against Y. enterocolitica were 1500 and 750 ug/mL, respectively [49,50]. MBC is the lowest concentration of antimicrobial agents that fully kills the tested pathogens. The MBC of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs for both S. typhimurium and Y. enterocolitica was 12.5 ug/mL (Figure 9, Table 6). This MBC value was also significantly lower than that of some other antibacterial agents against both S. typhimurium and Y. enterocolitica [47,48,49,50].

3.11. Investigation of Morphological Changes by FE-SEM

Morphological changes in AgNP-treated S. typhimurium and Y. enterocolitica cells were observed by FE-SEM. FE-SEM images showed the nature and degree of the structural alteration of both tested pathogens (Figure 10). Untreated S. typhimurium cells displayed normal morphology and structure without any damage to the cell surface (Figure 10A). However, S. typhimurium cells treated with Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs displayed structural changes with abnormal, wrinkled, damaged, and collapsed cell surface and membrane (Figure 10B). Similar results were found for Y. enterocolitica. Untreated Y. enterocolitica cells exhibited normal rod-shaped structure without any damage to the cell surface (Figure 10C). However, AgNP-treated Y. enterocolitica cells exhibited structural changes with abnormal, damaged, and collapsed cell walls and membrane (Figure 10D). The morphological and structural alterations, and damage indicated that the Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs might disturb the normal cellular functions of multidrug-resistant S. typhimurium and Y. enterocolitica, ultimately leading to the death of cells [44,51].

4. Conclusions

The present study described the isolation and characterization of novel bacterial species Arthrobacter bangladeshi sp. nov., used for the easy and ecofriendly extracellular synthesis of AgNPs, and investigated its antibacterial efficacy against drug-resistant pathogenic S. typhimurium and Y. enterocolitica. A facile and convenient extracellular process was used for the biosynthesis of AgNPs using Arthrobacter bangladeshi MAHUQ-56T. Synthesized AgNPs were characterized by UV-Vis spectroscopy, FE-TEM, XRD, DLS, and FT-IR. Synthesized AgNPs were spherical with a size range of 12–50 nm. FT-IR analysis revealed various biomolecules that may be involved in the synthesis and capping of AgNPs. Biosynthesized AgNPs showed strong antibacterial activity against multidrug-resistant pathogenic S. typhimurium and Y. enterocolitica. AgNPs showed a ZOI of 18.3 ± 0.6 and 20.4 ± 0.8 mm against S. typhimurium and Y. enterocolitica, respectively. MIC values of synthesized AgNPs against S. typhimurium and Y. enterocolitica were 6.2 and 3.1 ug/mL, respectively. The MBC of synthesized AgNPs for both pathogens was 12.5 ug/mL. FE-SEM analysis revealed the morphological and structural alterations, and damage of S. typhimurium and Y. enterocolitica cells treated by synthesized AgNPs. These changes might disturb the normal cellular functions of multidrug-resistant S. typhimurium and Y. enterocolitica, ultimately leading to the death of cells. Results of the present study suggest that novel bacterial species Arthrobacter bangladeshi MAHUQ-56T could be used for the rapid and mass production of AgNPs, and the synthesized AgNPs could be used as an alternative antibacterial agent to treat multidrug-resistant S. typhimurium and Y. enterocolitica.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pharmaceutics13101691/s1, Figure S1: The maximum-likelihood (ML) tree based on 16S rRNA gene sequence analysis showing phylogenetic relationships of strain MAHUQ-56T and the related type strains. Values less than 50 % were not shown. Scale bar, 0.05 substitutions per nucleotide position, Figure S2: Particles size distribution of biosynthesized AgNPs according to intensity (A), number (B) and volume (C), Table S1: dDDH and ANI values between proposed novel strain MAHUQ-56T and the closest type strains, Table S2: The physicochemical properties of AgNPs synthesized by Arthrobacter bangladeshi and some other bacterial strains.

Author Contributions

M.A.H. conceived the original screening and research plans, and wrote the article. M.A.H. and S.A. performed all experiments. All authors have read and agreed to the published version of the manuscript.

Funding

This study was performed with the support of the National Research Foundation (NRF) of Korea grant (project no. NRF-2018R1C1B5041386, grant recipient: Md. Amdadul Huq) funded by Korean government, Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Special thanks to the GM 10K project for analyzing the draft genomic sequence of strain MAHUQ-56T (GCM60020060).

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Conn, H.J.; Dimmick, I. Soil bacteria similar in morphology to Mycobacterium and Corynebacterium. J. Bacteriol. 1947, 54, 291–303. [Google Scholar] [CrossRef] [Green Version]
  2. Chen, Y.G.; Tang, S.K.; Zhang, Y.Q.; Li, Z.Y.; Yi, L.B.; Wang, Y.X.; Li, W.J.; Cui, X.L. Arthrobacter halodurans sp. nov., a new halotolerant bacterium isolated from sea water. Antonie Van Leeuwenhoek 2009, 96, 63–70. [Google Scholar] [CrossRef]
  3. Yan, R.; Liu, D.; Fu, Y.; Zhang, Y.; Ju, H.; Zhao, J.; Wang, X.; Zhang, J.; Xiang, W. Arthrobacter celericrescens sp. nov., isolated from forest soil. Int. J. Syst. Evol. Microbiol. 2019, 69, 3093–3099. [Google Scholar] [CrossRef]
  4. Krishnan, R.; Menon, R.R.; Tanaka, N.; Busse, H.J.; Krishnamurthi, S.; Rameshkumar, N. Arthrobacter pokkalii sp nov, a Novel Plant Associated Actinobacterium with Plant Beneficial Properties, Isolated from Saline Tolerant Pokkali Rice, Kerala, India. PLoS ONE 2016, 11, e0150322. [Google Scholar] [CrossRef] [Green Version]
  5. Kim, K.K.; Lee, K.C.; Oh, H.M.; Kim, M.J.; Eom, M.K.; Lee, J.S. Arthrobacter defluvii sp. nov., 4-chlorophenoldegrading bacteria isolated from sewage. Int. J. Syst. Evol. Microbiol. 2008, 58, 1916–1921. [Google Scholar] [CrossRef] [PubMed]
  6. Ding, L.; Hirose, T.; Yokota, A. Four novel Arthrobacter species isolated from filtration substrate. Int. J. Syst. Evol. Microbiol. 2009, 59, 856–862. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Kallimanis, A.; Kavakiotis, K.; Perisynakis, A.; Spröer, C.; Drainas, C.; Koukkou, A.I. Arthrobacter phenanthrenivorans sp. nov., to accommodate the phenanthrene-degrading bacterium Arthrobacter sp. strain Sphe3. Int. J. Syst. Evol. Microbiol. 2009, 59, 275–279. [Google Scholar] [CrossRef] [PubMed]
  8. Dastager, S.G.; Qin, L.; Tang, S.K.; Krishnamurthi, S.; Lee, J.C.; Li, W.J. Arthrobacter enclensis sp. nov., isolated from sediment sample. Arch. Microbiol. 2014, 196, 775–782. [Google Scholar] [CrossRef] [PubMed]
  9. Burdusel, A.C.; Gherasim, O.; Grumezescu, A.M.; Mogoanta, L.; Ficai, A.; Andronescu, E. Biomedical applications of silver nanoparticles: An up-to-date overview. Nanomaterials 2018, 8, 681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Rai, M.; Yadav, A.; Gade, A. Silver nanoparticles as a new generation of antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef]
  11. Akter, S.; Huq, M.A. Biologically rapid synthesis of silver nanoparticles by Sphingobium sp. MAH-11T and their antibacterial activity and mechanisms investigation against drug-resistant pathogenic microbes. Artif. Cells Nanomed. Biotechnol. 2020, 48, 672–682. [Google Scholar] [CrossRef] [Green Version]
  12. Iravani, S.; Korbekandi, H.; Mirmohammadi, S.V.; Zolfaghari, B. Synthesis of silver nanoparticles: Chemical, physical and biological methods. Res. Pharm. Sci. 2014, 9, 385. [Google Scholar]
  13. Thakkar, K.N.; Mhatre, S.S.; Parikh, R.Y. Biological synthesis of metallic nanoparticles. Nanome. Nanotechnol. Biol. Med. 2010, 6, 257–262. [Google Scholar] [CrossRef]
  14. Binupriya, A.; Sathishkumar, M.; Yun, S.-I. Biocrystallization of silver and gold ions by inactive cell filtrate of Rhizopus stolonifer. Colloids Surf. B Biointerfaces 2010, 79, 531–534. [Google Scholar] [CrossRef]
  15. Narayanan, K.B.; Sakthivel, N. Biological synthesis of metal nanoparticles by microbes. Adv. Colloids Interface Sci. 2010, 156, 1–13. [Google Scholar] [CrossRef] [PubMed]
  16. Li, X.; Xu, H.; Chen, Z.-S.; Chen, G. Biosynthesis of nanoparticles by microorganisms and their applications. J. Nanomater. 2011, 8, 1–16. [Google Scholar] [CrossRef] [Green Version]
  17. Roy, A.; Bulut, O.; Some, S.; Mandal, A.K.; Yilmaz, M.D. Green synthesis of silver nanoparticles: Biomolecule-nanoparticle organizations targeting antimicrobial activity. RSC Adv. 2019, 9, 2673–2702. [Google Scholar] [CrossRef] [Green Version]
  18. Huq, M.A. Paenibacillus anseongense sp. nov. a Silver Nanoparticle Producing Bacterium Isolated from Rhizospheric Soil. Curr. Microbiol. 2020, 77, 2023–2030. [Google Scholar] [CrossRef]
  19. Huq, M.A. Microvirga rosea sp. nov.: A nanoparticle producing bacterium isolated from soil of rose garden. Arch. Microbiol. 2018, 200, 1439–1445. [Google Scholar] [CrossRef] [PubMed]
  20. Vaidyanathan, R.; Gopalram, S.; Kalishwaralal, K.; Deepak, V.; Pandian, S.R.K.; Gurunathan, S. Enhanced silver nanoparticle synthesis by optimization of nitrate reductase activity. Colloids Surf. B Biointerfaces 2010, 75, 335–341. [Google Scholar] [CrossRef]
  21. Gopinath, V.; Velusamy, P. Extracellular biosynthesis of silver nanoparticles using Bacillus sp. Gp-23 and evaluation of their antifungal activity towards fusarium oxysporum. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2013, 106, 170–174. [Google Scholar] [CrossRef] [PubMed]
  22. Galán, J.E. Salmonella Typhimurium and inflammation: A pathogen-centric affair. Nat. Rev. Microbiol. 2021, 19, 716–725. [Google Scholar] [CrossRef] [PubMed]
  23. Raymond, P.; Houard, E.; Denis, M.; Esnault, E. Diversity of Yersinia enterocolitica isolated from pigs in a French slaughterhouse over 2 years. MicrobiologyOpen 2019, 8, e00751. [Google Scholar] [CrossRef] [PubMed]
  24. Nair, D.V.T.; Venkitanarayanan, K.; Johny, A.K. Antibiotic-Resistant Salmonella in the Food Supply and the Potential Role of Antibiotic Alternatives for Control. Foods 2018, 7, 167. [Google Scholar] [CrossRef] [Green Version]
  25. Younis, G.; Mady, M.; Awad, A. Yersinia enterocolitica: Prevalence, virulence, and antimicrobial resistance from retail and processed meat in Egypt. Vet. World 2019, 12, 1078–1084. [Google Scholar] [CrossRef]
  26. Sheu, S.Y.; Su, C.L.; Kwon, S.W.; Chen, W.M. Flavobacterium amniphilum sp. nov., isolated from a stream. Int. J. Syst. Evol. Microbiol. 2017, 67, 5179–5186. [Google Scholar] [CrossRef]
  27. Weisburg, W.G.; Barns, S.M.; Pelletier, D.A.; Lane, D.J. 16S ribosomal DNA amplification for phylogenetic study. J. Bacteriol. 1991, 173, 697–703. [Google Scholar] [CrossRef] [Green Version]
  28. Yoon, S.H.; Ha, S.M.; Kwon, S.; Lim, J.; Kim, Y. Introducing EzBioCloud: A taxonomically united database of 16S rRNA gene sequences and whole-genome assemblies. Int. J. Syst. Evol. Microbiol. 2017, 67, 1613–1617. [Google Scholar] [CrossRef]
  29. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  30. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef]
  31. Meier-Kolthoff, J.P.; Auch, A.F.; Klenk, H.P.; Göker, M. Genome sequence-based species delimitation with confidence intervals and improved distance functions. BMC. Bioinform. 2013, 14, 60. [Google Scholar] [CrossRef] [Green Version]
  32. Aziz, R.K.; Bartels, D.; Best, A.A.; DeJongh, M.; Disz, T.; Edwards, R.A.; Formsma, K.; Gerdes, S.; Glas, E.M.; Kubal, M. The RAST server: Rapid annotations using subsystems technology. BMC Genome 2008, 9, 1–15. [Google Scholar] [CrossRef] [Green Version]
  33. Sasser, M. Identification of Bacteria by Gas Chromatography of Cellular Fatty Acids; MIDI Technical Note 101; MIDI Inc.: Newark, DE, USA, 1990. [Google Scholar]
  34. Collins, M.D. Isoprenoid quinones. In Chemical Methods in Prokaryotic Systematics Chichester; Goodfellow, M., O’Donnell, A.G., Eds.; Wiley: Hoboken, NJ, USA, 1994; pp. 265–309. [Google Scholar]
  35. Du, J.; Sing, H.; Yi, T.H. Biosynthesis of silver nanoparticles by Novosphingobium sp. THG-C3 and their antimicrobial potential. Artif. Cells Nanomed. Biotechnol. 2017, 45, 211–217. [Google Scholar] [CrossRef] [Green Version]
  36. Ansari, M.A.; Baykal, A.; Asiri, S. Synthesis and characterization of antibacterial activity of spinel chromium-substituted copper ferrite nanoparticles for biomedical application. J. Inorg. Organomet. Polym. Mater. 2018, 28, 2316–2327. [Google Scholar] [CrossRef]
  37. Shi, W.; Sun, Q.; Fan, G.; Hideaki, S.; Moriya, O.; Itoh, T.; Zhou, Y.; Cai, M.; Kim, S.G.; Lee, J.S. gcType: A high-quality type strain genome database for microbial phylogenetic and functional research. Nucleic Acids Res. 2021, 49, D694–D705. [Google Scholar] [CrossRef]
  38. Huq, M.A. Green Synthesis of Silver Nanoparticles Using Pseudoduganella eburnean MAHUQ-39 and Their Antimicrobial Mechanisms Investigation against Drug Resistant Human Pathogens. Int. J. Mol. Sci. 2020, 21, 1510. [Google Scholar] [CrossRef] [Green Version]
  39. Zhang, X.F.; Liu, Z.G.; Shen, W.; Gurunathan, S. Silver nanoparticles: Synthesis, characterization, properties, applications, and therapeutic approaches. Int. J. Mol. Sci. 2016, 17, 1534. [Google Scholar] [CrossRef] [PubMed]
  40. Ganesh-Babu, M.M.; Gunasekaran, P. Production and structural characterization of crystalline silver nanoparticles from Bacillus cereus isolate. Colloids Surf. B Biointerfaces 2009, 74, 191–195. [Google Scholar] [CrossRef] [PubMed]
  41. Singh, N.; Khanna, P.K. In situ synthesis of silver nano-particles in polymethylmethacrylate. Mater. Chem. Phys. 2007, 104, 367–372. [Google Scholar] [CrossRef]
  42. Dong, Z.Y.; Rao, N.; Prabhu, M.; Xiao, M.; Wang, H.F.; Hozzein, W.N.; Chen, W.; Li, W.J. Antibacterial activity of silver nanoparticles against Staphylococcus warneri synthesized using endophytic bacteria by photo-irradiation. Front. Microbiol. 2017, 8, 1090. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Singh, P.; Pandit, S.; Jers, C.; Abhayraj, S.; Garnæs, J.; Mijakovic, I. Silver nanoparticles produced from Cedecea sp. exhibit antibiofilm activity and remarkable stability. Sci. Rep. 2021, 11, 12619. [Google Scholar] [CrossRef] [PubMed]
  44. Shankar, S.; Rhim, J.W. Amino acid mediated synthesis of silver nanoparticles and preparation of antimicrobial agar/silver nanoparticles composite films. Carbohydr. Polym. 2015, 130, 353–363. [Google Scholar] [CrossRef] [PubMed]
  45. Huq, M.A.; Akter, S. Bacterial Mediated Rapid and Facile Synthesis of Silver Nanoparticles and Their Antimicrobial Efficacy against Pathogenic Microorganisms. Materials 2021, 14, 2615. [Google Scholar] [CrossRef] [PubMed]
  46. Akter, S.; Lee, S.-Y.; Siddiqi, M.Z.; Balusamy, S.R.; Ashrafudoulla, M.; Rupa, E.J.; Huq, M.A. Ecofriendly synthesis of silver nanoparticles by Terrabacter humi sp. nov. and their antibacterial application against antibiotic-resistant pathogens. Int. J. Mol. Sci. 2020, 21, 9746. [Google Scholar] [CrossRef]
  47. Guo, L.; Gong, S.; Wang, Y.; Sun, Q.; Duo, K.; Fei, P. Antibacterial Activity of Olive Oil Polyphenol Extract Against Salmonella Typhimurium and Staphylococcus aureus: Possible Mechanisms. Foodborne Pathog. Dis. 2020, 17. [Google Scholar] [CrossRef]
  48. Hosseinzadeh, S.; Saei, H.D.; Ahmadi, M.; Salehi, T.Z. Antimicrobial effect of Licochalcone A and Epigallocatechin-3-gallate against Salmonella Typhimurium isolated from poultry flocks. Iran. J. Microbiol. 2018, 10, 51–58. [Google Scholar]
  49. Polinarski, M.A.; Ana, L.B.; Silva, F.E.B.; Bernardi-Wenzel, J. New Perspectives of Using Chitosan, Silver, and Chitosan–Silver Nanoparticles against Multidrug-Resistant Bacteria. Part. Part. Syst. Charact. 2021, 38, 2100009. [Google Scholar] [CrossRef]
  50. Khan, S.U.; Ansarid, M.J.; Khan, M.H.U. Antimicrobial potentials of medicinal plant’s extract and their derived silver nanoparticles: A focus on honey bee pathogen. Saudi J. Biol. Sci. 2019, 26, 1815–1834. [Google Scholar] [CrossRef]
  51. Kim, J.S.; Kuk, E.; Yu, K.N. Antimicrobial effects of silver nanoparticles. Nanomed. Nanotechnol. Biol. Med. 2007, 3, 95–101. [Google Scholar] [CrossRef]
Pharmaceutics 13 01691 g001 550
Figure 1. Transmission electron micrograph of cells of Arthrobacter bangladeshi MAHUQ-56T after negative staining with uranyl acetate; Bar, 2.0 μm.
Figure 1. Transmission electron micrograph of cells of Arthrobacter bangladeshi MAHUQ-56T after negative staining with uranyl acetate; Bar, 2.0 μm.
Pharmaceutics 13 01691 g001
Pharmaceutics 13 01691 g002 550

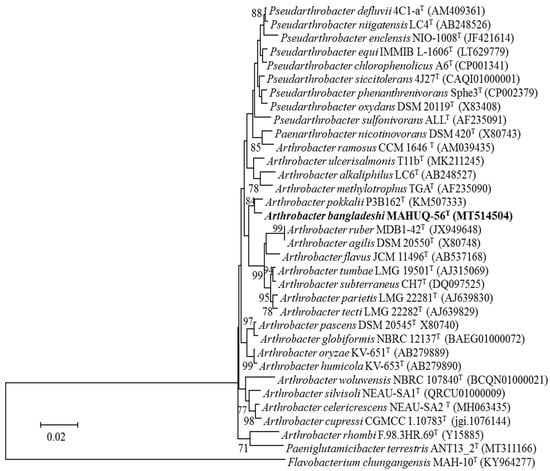

Figure 2. Neighbor-joining (NJ) tree based on 16S rRNA gene sequence analysis showing phylogenetic relationships of strain MAHUQ-56 and the related type strains. Bootstrap values more than 70% based on 1000 replications shown at branching points. Scale bar, 0.02 substitutions per nucleotide position.
Figure 2. Neighbor-joining (NJ) tree based on 16S rRNA gene sequence analysis showing phylogenetic relationships of strain MAHUQ-56 and the related type strains. Bootstrap values more than 70% based on 1000 replications shown at branching points. Scale bar, 0.02 substitutions per nucleotide position.
Pharmaceutics 13 01691 g002
Pharmaceutics 13 01691 g003 550
Figure 3. COG functional genes of Arthrobacter bangladeshi MAHUQ-56T.
Figure 3. COG functional genes of Arthrobacter bangladeshi MAHUQ-56T.
Pharmaceutics 13 01691 g003
Pharmaceutics 13 01691 g004 550

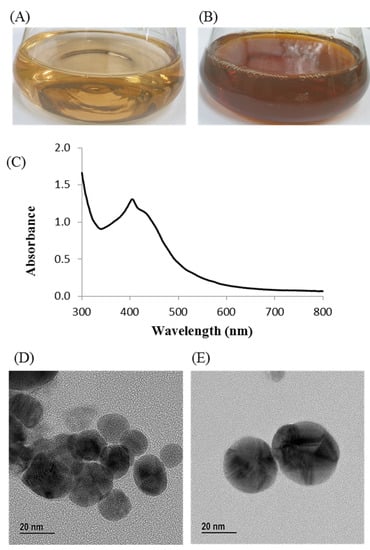

Figure 4. (A) R2A broth with AgNO3 as control, (B) biosynthesized AgNPs, (C) UV–vis spectra, and (D,E) FE-TEM images of synthesized AgNPs.
Figure 4. (A) R2A broth with AgNO3 as control, (B) biosynthesized AgNPs, (C) UV–vis spectra, and (D,E) FE-TEM images of synthesized AgNPs.
Pharmaceutics 13 01691 g004
Pharmaceutics 13 01691 g005 550

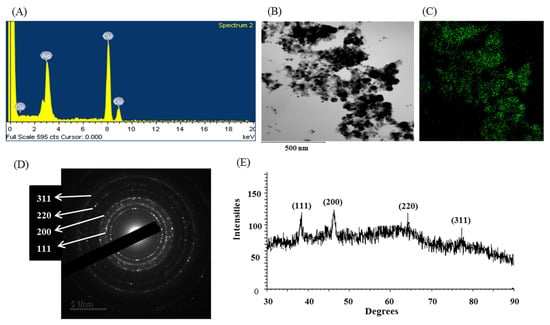

Figure 5. (A) EDX spectrum of synthesized AgNPs, (B) TEM image used for mapping, (C) distribution of silver in elemental mapping, (D) SAED pattern, and (E) X-ray diffraction pattern of biosynthesized AgNPs.
Figure 5. (A) EDX spectrum of synthesized AgNPs, (B) TEM image used for mapping, (C) distribution of silver in elemental mapping, (D) SAED pattern, and (E) X-ray diffraction pattern of biosynthesized AgNPs.
Pharmaceutics 13 01691 g005
Pharmaceutics 13 01691 g006 550

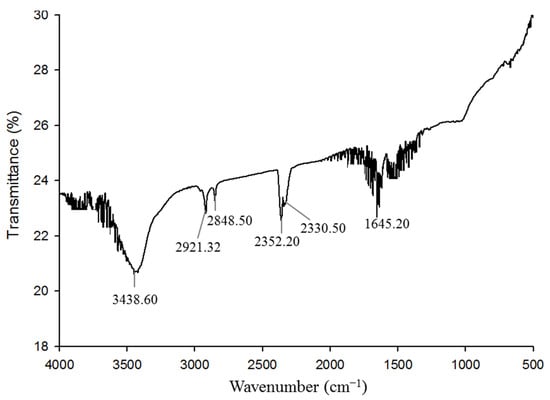

Figure 6. FT-IR spectra of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs.
Figure 6. FT-IR spectra of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs.
Pharmaceutics 13 01691 g006
Pharmaceutics 13 01691 g007 550
Figure 7. Zones of inhibition of 30 and 60 μL of biosynthesized AgNPs at 1000 ppm concentrations in water against S. typhimurium and Y. enterocolitica.
Figure 7. Zones of inhibition of 30 and 60 μL of biosynthesized AgNPs at 1000 ppm concentrations in water against S. typhimurium and Y. enterocolitica.
Pharmaceutics 13 01691 g007
Pharmaceutics 13 01691 g008 550

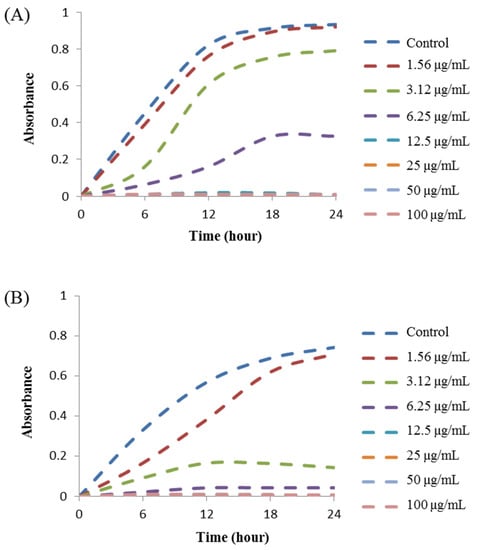

Figure 8. Growth curves of (A) S. typhimurium and (B) Y. enterocolitica cultured in MHB with different concentrations of biosynthesized AgNPs to determine MIC.
Figure 8. Growth curves of (A) S. typhimurium and (B) Y. enterocolitica cultured in MHB with different concentrations of biosynthesized AgNPs to determine MIC.
Pharmaceutics 13 01691 g008
Pharmaceutics 13 01691 g009 550
Figure 9. MBC of biosynthesized AgNPs against (A) S. typhimurium and (B) Y. enterocolitica.
Figure 9. MBC of biosynthesized AgNPs against (A) S. typhimurium and (B) Y. enterocolitica.
Pharmaceutics 13 01691 g009
Pharmaceutics 13 01691 g010 550
Figure 10. SEM images of (A) normal S. typhimurium cells, (B) 1 × MBC AgNPs treated S. typhimurium cells, (C) normal Y. enterocolitica cells, (D) 1 × MBC AgNPs treated Y. enterocolitica cells.
Figure 10. SEM images of (A) normal S. typhimurium cells, (B) 1 × MBC AgNPs treated S. typhimurium cells, (C) normal Y. enterocolitica cells, (D) 1 × MBC AgNPs treated Y. enterocolitica cells.
Pharmaceutics 13 01691 g010
Table
Table 1. Differential characteristics of Arthrobacter bangladeshi MAHUQ-56T and phylogenetically closely related species.
Table 1. Differential characteristics of Arthrobacter bangladeshi MAHUQ-56T and phylogenetically closely related species.
Characteristics123456
Isolation sourceSoil of rice fieldPokkali riceSewageFiltration substrate from trassCreosote-contaminated soilMarine sediments
Cell morphologyRodRodRod–coccusRod–coccusRod–coccusRod–coccus
Colony colorMilky whiteYellowCreamy whiteLight yellowCream to
yellow		Cream to light grey
Growth temperature (°C)10–4018–37 a5–37 b5–40 c4–37 d10–45 e
Growth pH5.0–10.05.5–8.0 a6.0–10.0 b6.0–11.0 c6.5–8.5 d5.0–9.0 e
Hydrolysis of:
Gelatin (API 20 NE)---+--
Urea (API 20 NE)---W--
Enzyme activity (API ZYM):
Esterase (C4)++W+W+
Alkaline phosphatase++-+W+
Esterase lipase (C8)W+-+W+
Acid phosphatase+-++W-
Valine arylamidaseW+-WW+
Trypsin++-+W-
β-glucuronidase+++++-
a-glucosidase++++W-
β-galactosidase++++W-
a-fucosidase+++---
Assimilation of (API 20 NE):
D-glucose+-++-+
D-maltose+++--+
D-mannose+-+--+
D-mannitol+++-W-
Malic acid+++WW+
DNA G + C content (mol%)66.064.0 a64.4 b70.8 c65.7 d61.3 e
Strains: 1, A. bangladeshi MAHUQ-56T; 2, A. pokkalii KCTC 29498T; 3, P. defluvii KCTC 19209T; 4, P. niigatensis CCTCC AB 206012T; 5, P. phenanthrenivorans DSM 18606T and 6, P. enclensis DSM 25279T. All data were obtained in this study, except a–d and e, which were taken from Krishnan et al. [4], Kim et al. [5], Ding et al. [6], Kallimanis et al. [7], and Dastager et al. [8], respectively. All strains were aerobic and nonmotile. All strains were positive for catalase, reduction of nitrate, leucine arylamidase and naphthol-AS-BI-phosphohydrolase. All strains were negative for oxidase. +, positive; W, weakly positive; -, negative.
Table
Table 2. Genome sequence features of Arthrobacter bangladeshi MAHUQ-56T.
Table 2. Genome sequence features of Arthrobacter bangladeshi MAHUQ-56T.
FeaturesStrain MAHUQ-56T
Accession no.JAIFZQ000000000
BiosampleSAMN20721218
BioProjectPRJNA754020
Total sequence length (nt)4,566,112
Scaffold N50360,503
Scaffold N75196,969
Number of scaffold26
Sequencing methodde novo (illumina XTen)
Annotation pipelineNCBI Prokaryotic Genome
DNA G + C content (mol%)66.0
Total genes4233
Genes (coding)4125
Number of RNAs60
tRNAs 51
rRNAs6
Table
Table 3. Cellular fatty acid composition of Arthrobacter bangladeshi MAHUQ-56T and phylogenetically closely related species.
Table 3. Cellular fatty acid composition of Arthrobacter bangladeshi MAHUQ-56T and phylogenetically closely related species.
Fatty Acid123456
C14:02.31.41.51.31.62.0
C14.0 iso3.51.63.41.5ND2.2
C15:0 iso11.98.113.87.815.114.5
C15:0 anteiso47.854.555.652.037.748.3
C16:1 w7cNDNDNDND2.6ND
C16:0 iso15.88.511.912.216.011.2
C16:0 3.87.24.06.07.96.2
C17:0 iso1.61.51.12.04.22.0
C17:0 anteiso11.713.85.913.913.111.3
Strains: 1, A. bangladeshi MAHUQ-56T; 2, A. pokkalii KCTC 29498T; 3, P. defluvii KCTC 19209T; 4, P. niigatensis CCTCC AB 206012T; 5, P. phenanthrenivorans DSM 18606T and 6, P. enclensis DSM 25279T. All data were collected from this study. Tr, trace (less than 1.0%); ND, not detected.
Table
Table 4. Number and percentage of chemical elements present in EDX spectrum of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs.
Table 4. Number and percentage of chemical elements present in EDX spectrum of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs.
ElementWeight %Atomic %
Cu K50.6663.54
Ag L49.3436.46
Totals100.00100.00
Table
Table 5. Antibacterial efficacy of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs against S. typhimurium and Y. enterocolitica.
Table 5. Antibacterial efficacy of Arthrobacter bangladeshi MAHUQ-56T-mediated synthesized AgNPs against S. typhimurium and Y. enterocolitica.
Pathogenic SpeciesZone of Inhibition (mm)
AgNPs (30 μL)AgNPs (60 μL)
Salmonella Typhimurium
(ATCC 14028)		11.5 ± 0.518.3 ± 0.6
Yersinia enterocolitica
(ATCC 9610)		13.5 ± 0.720.4 ± 0.8
Table
Table 6. Minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) of biosynthesized AgNPs against S. typhimurium and Yersinia enterocolitica.
Table 6. Minimum inhibitory concentration (MIC) and minimum bactericidal concentration (MBC) of biosynthesized AgNPs against S. typhimurium and Yersinia enterocolitica.
Pathogenic SpeciesMIC (μg/mL)MBC (μg/mL)
Salmonella Typhimurium
(ATCC 14028)		6.212.5
Yersinia enterocolitica
(ATCC 9610)		3.112.5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huq, M.A.; Akter, S. Characterization and Genome Analysis of Arthrobacter bangladeshi sp. nov., Applied for the Green Synthesis of Silver Nanoparticles and Their Antibacterial Efficacy against Drug-Resistant Human Pathogens. Pharmaceutics 2021, 13, 1691. https://doi.org/10.3390/pharmaceutics13101691

AMA Style

Huq MA, Akter S. Characterization and Genome Analysis of Arthrobacter bangladeshi sp. nov., Applied for the Green Synthesis of Silver Nanoparticles and Their Antibacterial Efficacy against Drug-Resistant Human Pathogens. Pharmaceutics. 2021; 13(10):1691. https://doi.org/10.3390/pharmaceutics13101691

Chicago/Turabian Style

Huq, Md. Amdadul, and Shahina Akter. 2021. "Characterization and Genome Analysis of Arthrobacter bangladeshi sp. nov., Applied for the Green Synthesis of Silver Nanoparticles and Their Antibacterial Efficacy against Drug-Resistant Human Pathogens" Pharmaceutics 13, no. 10: 1691. https://doi.org/10.3390/pharmaceutics13101691

APA Style

Huq, M. A., & Akter, S. (2021). Characterization and Genome Analysis of Arthrobacter bangladeshi sp. nov., Applied for the Green Synthesis of Silver Nanoparticles and Their Antibacterial Efficacy against Drug-Resistant Human Pathogens. Pharmaceutics, 13(10), 1691. https://doi.org/10.3390/pharmaceutics13101691

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
