Manufacturing and Examination of Vaginal Drug Delivery System by FDM 3D Printing

1
Department of Pharmaceutical Technology, Faculty of Pharmacy, University of Debrecen, Nagyerdei Körút 98, H-4032 Debrecen, Hungary
2
Doctoral School of Pharmaceutical Sciences, University of Debrecen, Nagyerdei Körút 98, H-4032 Debrecen, Hungary
3
Department of Computer Graphics and Image Processing, Faculty of Informatics, University of Debrecen, Kassai út 26, H-4028 Debrecen, Hungary
4
Institute of Pharmaceutical Technology and Regulatory Affairs, University of Szeged, Eötvös u. 6, H-6720 Szeged, Hungary
5
Department of Medical Imaging, Faculty of Medicine, University of Debrecen, Nagyerdei Krt. 98, H-4032 Debrecen, Hungary
6
Department of Biomaterials and Prosthetic Dentistry, Faculty of Dentistry, University of Debrecen, Nagyerdei Körút 98, H-4032 Debrecen, Hungary
7
Department of Medical Microbiology, Faculty of Medicine and Pharmacy, University of Debrecen, Nagyerdei Körút 98, H-4032 Debrecen, Hungary
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(10), 1714; https://doi.org/10.3390/pharmaceutics13101714
Submission received: 13 September 2021 / Revised: 7 October 2021 / Accepted: 12 October 2021 / Published: 16 October 2021
(This article belongs to the Collection Advanced Drug Delivery Systems and Technology in Hungary)

Abstract

:
Vaginal drug delivery systems can provide a long-term and constant liberation of the active pharmaceutical ingredient even for months. For our experiment, FDM 3D printing was used to manufacture the vaginal ring samples from thermoplastic polyurethane filament, which enables fast manufacturing of complex, personalized medications. 3D printing can be an excellent alternative instead of industrial manufacturing, which is complicated and time-consuming. In our work, the 3D printed vaginal rings were filled manually with jellified metronidazole or chloramphenicol for the treatment of bacterial vaginosis. The need for manual filling was certified by the thermogravimetric and heatflow assay results. The manufactured samples were analyzed by an Erweka USP type II Dissolution Apparatus, and the dissolution profile can be distinguished based on the applied jellifying agents and the API’s. All samples were considered non-similar based on the pairwise comparison. The biocompatibility properties were determined by prolonged MTT assay on HeLa cells, and the polymer could be considered non-toxic. Based on the microbiological assay on E. coli metronidazole and chitosan containing samples had bactericidal effects while just metronidazole or just chitosan containing samples bacteriostatic effect. None of these samples showed a fungistatic or fungicide effect against C. albicans. Based on our results, we successfully manufactured 3D printed vaginal rings filled with jellified metronidazole.

Graphical Abstract

1. Introduction

Since the first patent of the vaginal ring as a possible drug delivery system in 1970 [1], different vaginal rings had been approved [2], which are mostly used as contraceptives to provide a long-acting effect, including the opportunity to initiate or discontinue use whenever desired [3]. As these drug delivery systems do not provide protection against sexually transmitted diseases, a new approach has been considered, and as a result, dapivirine containing vaginal rings were approved by EMA in 2020, which provides risk reduction of HIV-1 infection [4].
The design and manufacturing methods vary according to each product because neither guidelines nor regulations are provided by the medical agencies. The drug delivery systems can be matrix or reservoir types manufactured by injection molding, hot-melt extrusion, or additive manufacturing as well [5].
Additive manufacturing or 3D printing encompasses a wide range of processes and is used for the manufacturing of a wide variety of drug delivery systems [6]. Fused deposition modeling (FDM) technology is the most commonly used technology and enables the manufacturing of oral dosage forms [7,8], intrauterine systems [9], implants [10,11] or vaginal rings [5,12].
Vaginal infections are extremely widespread. Even though these infections are not resulting in high mortality, but can be long-lasting and difficult to cure, which can result in high levels of anxiety and decrease the quality of life [13]. Relapsing is a serious problem due to the particular anatomy of the vagina and to the bacterial diffusion between the rectum and the vagina, thus, the intestinal tract becomes a pathogen microorganism reservoir and plays an important role in the infection reappearance [14].
Bacterial vaginal infections can be treated both orally or locally. For the oral treatment, mostly clindamycin and metronidazole are used. Despite the majority of women being effectively treated with these antimicrobials, 30% will experience a recurrence after 4 weeks of treatment due to the incomplete eradication of pathogens, unsuccessful reestablishment of lactobacilli flora, or resistance development [13]. The local administration of different vaginal suppositories dates back to the 1980s in Hungary, and the gynecologists mostly prescribe magistral formula of chloramphenicol, nystatin, sulfadimidine or metronidazole combinations (named as suppository CNS or CNS + M) [15].
Chloramphenicol (CAP) is a broad-spectrum and widely-used antibiotic that has a good inhibitory effect on brucella, Gram-positive bacteria, Gram-negative bacteria, rickettsia, and chlamydia. The resistance development is small-scale compared to other antibiotic agents [16,17]. The API belongs to class III according to the Biopharmaceutical Classification System (BCS) [18]. The most important concerns that limit the utility of this antibiotic are the adverse effects, such as neurotoxicity, bone marrow depression and in some cases, severe aplastic anemia [19]. The chloramphenicol can be easily characterized by UV-VIS spectroscopy at the wavelength of 273.8 mm [20].
Metronidazole is the first-line therapy against bacterial vaginosis and is used both orally and locally [21]. The API is a model class I drug according to the BCS System [22]. Side effects of metronidazole include metallic taste, nausea (in 10% of patients), transient neutropenia (7.5%), disulfiram-like effect with alcohol, prolongation of international normalized ratio, and peripheral neuropathy, but these unwanted effects can be eliminated with local administration [23]. The metronidazole’s UV-VIS spectra can be characterized at 320 nm wavelength, but at lower pH the maximum can be at 280 nm [24].
For the manufacturing of a drug delivery system with 3D printing, researchers incorporate the API into the filament with hot-melt extrusion, and then the API-containing filament is printed with FDM technology [25]. The high extrusion temperature used in FDM (more than 120 °C) and in hot-melt extrusion (more than 150 °C) enables only heat-stable APIs incorporation into the polymeric filament [26]. Polymer modification [27] or different added excipients can also decrease the printing temperature, but the lowest used printing temperature was 165 °C, which is still not adequate for a lot of API’s [28]. Even though many research projects are trying to solve the problem of high printing temperature, the most promising solution would be to manufacture a carrier system in which all types of APIs can be incorporated [29].
Our innovative idea was to manufacture the vaginal rings as carrier systems by 3D printing and then fill them with jellified API’s. Vaginal gels are easy to manufacture, comfortable, and have the ability to cover the surface of mucosal membrane and to display the effect on the vaginal mucosa. The use of mucoadhesive polymers can improve the contact time with the mucosa, delay the loss of the formulation, enhance the bioavailability, prolong the effect, cause fewer side-effects and increase patient compliance [30,31].
Drug release of vaginal formulations can differ on the test method, the test medium type and amount, the agitation, and the temperature. Most research groups use 60 rpm, 37 °C, and vaginal fluid simulant (recipe by Owen and Katz). Since none of the major international pharmacopeias mentions dissolution/drug testing for vaginal rings, thus compendial dissolution methods do not exist [32].
The biocompatibility properties of the printed samples were measured by a prolonged MTT cytotoxicity test. MTT assay is a broadly used, rapid colorimetric method to measure the in vitro cytotoxicity of certain compounds, and in this case, even the dissolved xenobiotic can be detected [33]. Several assays may be used, such as MTT assay, LDH test, real-time cell electronic sensing assay (RT-CES), etc., but the ISO standard describes all parameters adequately for the MTT test [34].
The evaluation of antimicrobial effectiveness using reference bacteria strains, fungi strains, or strains obtained from clinical samples has been performed for decades [35]. In the case of metronidazole the antimicrobial efficacy was tested against E. coli because this pathogen can cause bacterial vaginosis as a Gram-negative, anaerobic bacteria [21].
Our aim was to manufacture a vaginal ring as a carrier system by FDM 3D printing and then easily fill these pre-printed samples with the jellified API’s (vaginal gels) depending on the patient’s need. This article focuses on avoiding the loss and decomposition of API through the printing process and manufacturing a drug delivery system, which can be directly printed at the bedside or in the pharmacy. Thus, the preparation is more easily and rapidly accessible for the patients need, which result in increased patient adherence.

2. Materials and Methods

2.1. Materials

2.1.1. Used Polymer Filaments

For the 3D printing process, polylactic acid (PLA), PLA Gypsum, and PLA Foam were purchased from Philament Kft. (Miskolc, Hungary). Thermoplastic polyurethane (TPU) 80A LF was purchased by Ultrafuse FFF (Emmen, The Netherlands). The filament diameters were 1.75 mm. The properties of the commercially available PLA and TPU filaments are compared in Table 1, and the properties of the 3D-printed filaments are provided in Table 2 below. The data were provided by Philament Kft and Ultrafuse FFF.

2.1.2. Jellifying Agents

Carbopol 934 was a gift from Lubrizol GmbH (Ritterhude, Germany). Medium molecular weight chitosan (CAS:9012-76-4) was purchased from Sigma Aldrich Co. (Merck Kft., Budapest, Hungary). Hydroxyl ethyl cellulose (CARN:9004-62-0) was purchased from Molar Chemicals Kft (Halásztelek, Hungary). Agar-agar was purchased from Discovery Bliss Kft. (Csömör, Hungary).

2.1.3. Model API’s

Chloramphenicol and metronidazole were purchased from Molar Chemicals Kft. (Halásztelek, Hungary).

2.2. Methods

2.2.1. Design of the Drug Reservoirs and Printing of the Samples

The digital models of the samples were designed using SolidWorks (Dessault Systèmes, Vélizy-Villacoublay, France), which is a modeling computer-aided design and engineering software. Exporting the digital design into a stl (standard tessellation language) file makes it directly printable on the 3D printer [29].
The shape was based on the commercially available vaginal ring—NuvaRing®, but the edges were chamfered because it was more beneficial for the 3D printing process. Each sample was 5 mm tall and printed in two different diameters (39.19 and 41.19 mm) to provide the perfect fitting. In our article, we referred to these two diameters as lower and upper parts. All the other geometric and additional properties of the samples were determined in the slicing software [36]. Printing parameter adjustment was a critical process, which will affect the mechanical properties of the samples [37]. In our research, the used extrusion width was 0.400 mm, the layer height 0.100 mm, vertical shell 5 loops, top/bottom shell concentric, 10/10 shell.
Batches of 4 drug delivery systems were printed on a Craftbot 3 3D Printer (CraftUnique Kft., Budapest. Hungary). The parameters of the 3D printing process are summarized below (Table 3).

2.2.2. Gel Formation and Sample Manufacturing

Four different formulations were prepared. The first formulation was prepared from Carbopol 934 and a 1 w/w% solution was manufactured with distilled water at 500 rpm shaking [21]. The second and third formulation was prepared by medium molecular weight chitosan and hydroxyethyl cellulose (HEC). The second formulation consisted of 3 w/w% chitosan and 4 w/w% HEC and the third formulation of just 1 w/w% chitosan and 4 w/w% HEC with distilled water, 300 rpm shaking and manual mixing [14,30]. The last formulation was designed by our research group and a 1 w/w% agar-agar solution was prepared with distilled water and heating up to 100 °C.
The sample manufacturing was based on that the vaginal ring was pre-printed in the 3D printer to manufacture a lower and upper part separately. Then 5 g of chloramphenicol or metronidazole was measured on an analytical balance MettlerToledo AX105 DeltaRange (Colombus, OH, USA), and it was suspended in a mortal with 20 g of gel. Then, the suspensions were put into a syringe. The lower part of the vaginal ring was tared on the analytical balance, and 1.5 g gel was filled by the syringe to every lower part. Finally, the upper part was put and closed manually.

2.2.3. Weight Variation and Content Uniformity

Before the experiments, 10 samples from each formulation were individually weighed, and the calculated average with standard deviation gave the weight variation. Then the samples were opened for content uniformity determination. The samples were separately immersed in 200 mL of simulated vaginal fluid and stirred for 60 min. The drug amount was determined using UV spectrophotometry with ThemoScientific™ Multiskan™ GO Microplate Spectrophotometer (Waltham, MA, USA) at a wavelength of 278 nm in case of chloramphenicol and 319 nm in case of metronidazole based on the calibration curve [38].

2.2.4. Characterization

Thermogravimetric (TG) and Heatflow (DSC) Analysis

The thermogravimetric (TG) and heatflow (DSC) analysis of the samples were carried out with a Mettler–Toledo TGA/DSC1 instrument (Mettler–Toledo GmbH, Urdorf, Switzerland). The solid-state samples were placed in a closed aluminum crucible at a volume of 40 µL. The temperature range was 25–500 °C, and the heating rate was 10 °C/min. A nitrogen atmosphere was used (cell gas: 50 mL/min, method gas: 70 mL/min). Evaluation of the TG/DSC curves was performed with STARe software (Mettler–Toledo GmbH, Budapest, Hungary) [39].

Contact Angle

Contact angle measurements with the sessile drop method were performed on a DSA 30 Drop Shape Analyzer (Krüss GmbH, Hamburg, Germany) at room temperature. Drops of deionized water (5 µL) were deposited on the upper surface of the 3D printed vaginal ring (before and after the dissolution test) by an automatic dosing system. The diameter of the used needle was 0.5 mm. The contact angles were automatically calculated by Young–Laplace equation fitting on the imaged drop shape. The average contact angles were calculated from 16 drops measurements (n = 16) [21].

Microcomputed Tomography (MicroCT)

A SkyScan 1272 (Bruker, Kontich, Belgium) compact desktop microcomputed tomography (microCT) system was used for the measurement. Scanning parameters were as follows: image pixel size, 5 μm; matrix size, 2688 × 4032 (rows × columns); source voltage = 50 kV; source current = 200 μA; rotation step (deg) = 0.200. Flat field correction and geometrical correction were used. After scanning, SkyScan NRecon software (version 2.0.4.2) was used to reconstruct cross-section images from tomography projection images. Post-alignment, beam hardening correction, ring artifact correction, and smoothing were conducted. The output formats were DICOM and BPM images. For 3D image visualization, CTwox software (Bruker, Kontich, Belgium) was used [40].

2.2.5. In Vitro Dissolution Test

The dissolution test was carried out using a modified USP Type II Erweka DT 800 dissolution apparatus (Langen, Germany) with an automatic sampling system, Ismatec IPC High-Precision Multichannel Dispenser (Wertheim, Germany). As a dissolution medium, 200 mL of simulated vaginal fluid (pH 4.2) was used based on the recipe of Owen and Katz [41]. The rotation speed was set to 60 rpm and the temperature to 37 °C. All samples were fixed to the bottom by the top part of the basket used in the USP Type I apparatus. This top part was found heavy enough to attach the sample to the bottom, but as it was composed of two parts, the samples were not affected. Samples of 2 mL were collected at 0.083, 0.25, 0.5, 1, 2, 4, 6, 8, 16, 24, 24.025, 24.5, 25, 26, 28, 30, 32, 40, 48 h using the autosampler [32,42]. 10 µL of all samples at all measurement points were put in 96-well UV-Star® microplates (Greiner Bio-One Kft., Mosonmagyaróvár, Hungary) and were diluted with 190 µL of SVF. The absorbance of the release drug was determined by UV spectrophotometry with Thermo Scientific™ Multiskan™ GO Microplate Spectrophotometer at a wavelength of 278 nm in case of chloramphenicol and 319 nm in case of metronidazole. Dissolution experiments were conducted with four replicates [43,44].
To compare the dissolution data of the different samples, similarity and difference factors were calculated; as a model-independent approach, the difference—f1 factor and similarity—f2 factor was calculated for each sample:
f 1 = j = 1 n R j T j j = 1 n R j × 100 ,
where n is the number of samples and Rj and Tj are the percent dissolved of the reference and the test products at time point j.
f 2 = 50 × log { ( 1 + ( 1 n ) j = 1 n w j   ( R j T j ) 2 ) 0.5 × 100 } ,
where wj is an optional weight factor.
For the determination of release kinetics, the dissolved API amount was fitted to zero-order and first-order model equations:
Q = Q 0 + k 0 t
Q t = Q 0 × e k 1 t ,
where Q is the amount of drug released at time t, Q0 is the initial amount of the drug, and Qt is the amount of drug remaining at time t. k0 and k1 are the kinetic constants for the zero-order and first-order models, respectively [40].

2.2.6. Biocompatibility Experiments

Cytotoxicity Experiments

1.
Sterilization
The 3D-printed carrier systems were immersed in 70% (v/v) ethanol in a laminar air flow (LAF) cabinet for 12 h, and were individually placed to sterile medical-grade paper for drying to avoid the infection [43].
2.
Cell Culture
The human Negroid cervix epithelioid carcinoma (HeLa) cell line was received from the European Collection of Cell Cultures (ECACC, Salisbury, UK, catalog no. 93031013), which is a well-established cell culture from ECACC, and the protocol is based on the authors’ research. Cells were seeded in plastic cell culture flasks (Thermo Fisher Scientific Inc., Budapest, Hungary) in DMEM medium supplemented with 3.7 g/L NaHCO3, 10% (v/v) heat-inactivated fetal bovine serum (FBS), 1% (v/v) nonessential amino acid solution, 1% (v/v) l-glutamine, 100 IU/mL penicillin and 100 µg/mL streptomycin at 37 °C in an atmosphere of 5% CO2. For the cytotoxicity experiments, cells with 20 to 40 passages were used. The cells were passaged every three or four days [45].
3.
MTT Cell Viability Assay
Cells were seeded on flat-bottomed 96-well tissue culture plates at a density of 104 or 3 × 104 cells/well. After separate sterilization of the test samples, they were put in sterile centrifuge tubes, immersed in 20 mL of DMEM medium, and stored in a cell incubator at 37 °C. The tests were performed on 4th, 8th, and 12th days, and the samples were stored under the same conditions. The first step of the MTT assay was to remove the culture media from the cells, and then the cells were treated with 200 µL of the test sample solution and incubated for 30 min. After the incubation, the samples were removed, and the cells were washed with 200 µL PBS solution/well. Then, the cells were incubated with 100 µL 0.5 mg/mL MTT dye (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide dye) for at least 3 h. Finally, the formazan crystals were dissolved in acidic isopropanol (isopropanol: 1.0 N hydrochloric acid = 25:1). The absorbance was measured at 570 nm against a 690 nm reference with a FLUOstar OPTIMA Microplate Reader (BMG LABTECH, Offenburg, Germany). Cell viability was expressed as the percentage of the untreated control [46].
4.
Microbiological Evaluation
Candida albicans SC5314 reference strain and Escherichia coli ATCC 25922 strain were used in this study. Colonies were subcultured on Sabouraud dextrose agar and Mueller-Hinton agar for C. albicans and E. coli, respectively. The growth of the individual strains in coculture was evaluated to examine the effect of vaginal rings containing different compounds. The tested samples were as follows: (a) empty vaginal ring; (b) metronidazole containing vaginal ring; (c) 3 w/w% chitosan and 4 w/w% hydroxyethyl cellulose-containing vaginal ring; (d) 3 w/w% chitosan and metronidazole containing vaginal ring.
The final cell concentrations were adjusted to 2–5 × 105 cells/mL in RPMI-1640 broth + Mueller-Hinton broth (50:50 v/v%) both for C. albicans and E. coli, respectively. The total broth volume was 20 mL in each flask. Flasks were incubated with agitation in darkness at 35 °C. A total of 100 μL were removed at 0, 2, 4, 6, 8, 10, 12, and 24 h, serially diluted 10-fold in sterile physiological saline then plated onto either Sabouraud dextrose agar supplemented with 8 mg/L metronidazole and Mueller-Hinton agar supplemented with 8 mg/L amphotericin B. Plates were incubated for 24 and 48 h at 35 °C for E. coli and C. albicans, respectively.

2.2.7. Statistical Analysis

Data were analyzed using GraphPad Prism (version 7.0; GraphPad Software, Inc., San Diego, CA, USA) and presented as means ± standard deviation (SD). If it is not mentioned in the method description, then the experiments were carried out in triplicate [46].

3. Results

3.1. Design of the Drug Reservoirs and Printing of the Samples

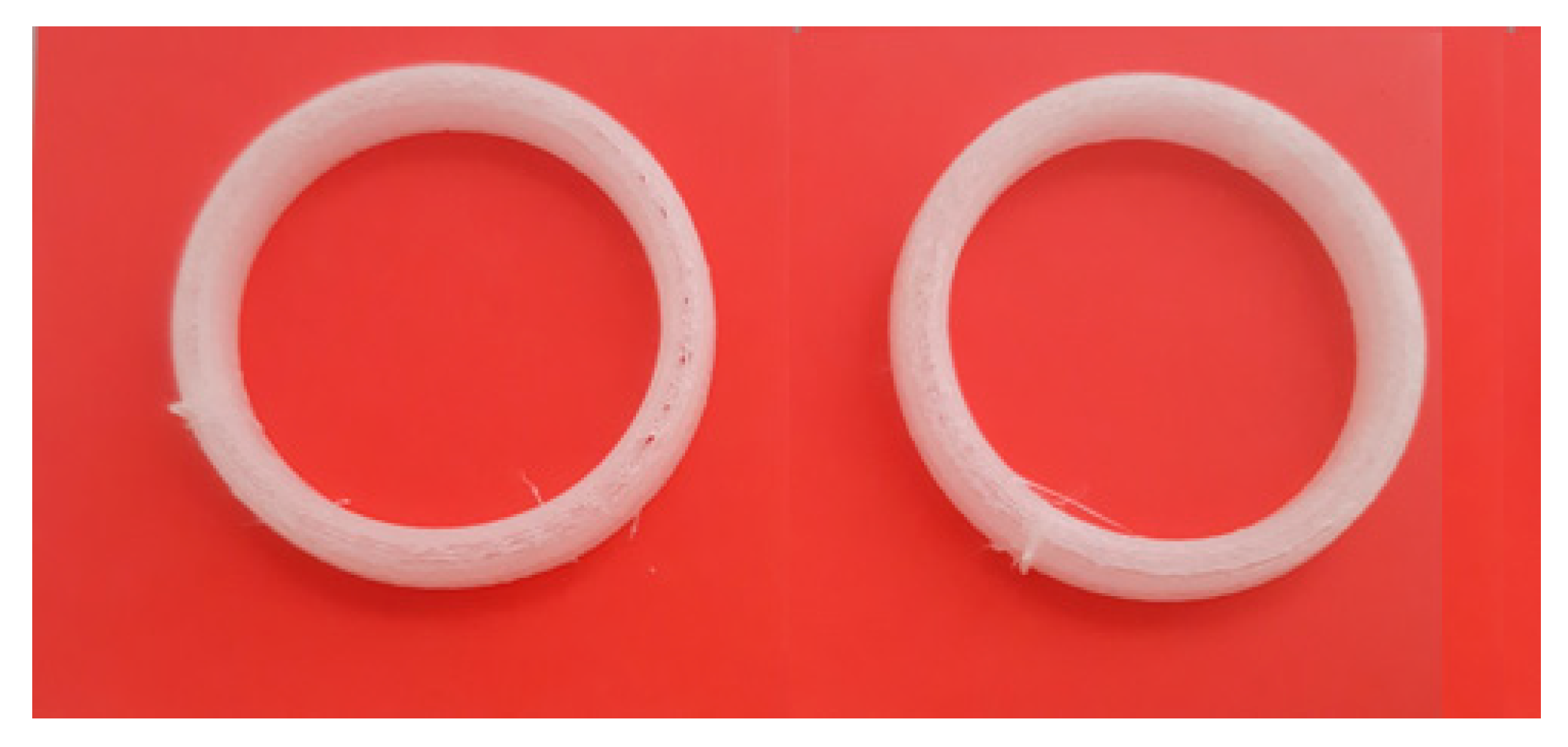

In our experiments, four different polymers, polylactic acid (PLA), PLA Gypsum PLA Foam, and thermoplastic polyurethane (TPU) were used for the 3D printing. The sample thickness was 5 mm, and the diameter was 39.39 and 41.39 (Figure 1). At the beginning of our research, we started our experiments on different PLA filaments but based on our performed experiments, none of them proved to be flexible enough for the requirement of a vaginal ring. Based on our results, TPU showed adequate texture properties, which were confirmed by the manufacturer as well. Then the printing parameters were determined. In the case of the TPU the 32nd printing parameter adjustment was acceptable for the manufacturing.

3.2. Gel Formation and Sample Manufacturing

The 1st formulation with Carbopol 934 was found inappropriate for our experiments because the gel was too watery in the applied w/w% and was not soluble in the simulated vaginal fluid. The 2nd formulation with 3 w/w% chitosan was consistent and homogenous. The 3rd formulation was more watery than 2nd formulation, but both formulations could be dissolved in SVF. The 4th formulation was a semisolid gel after cooling.

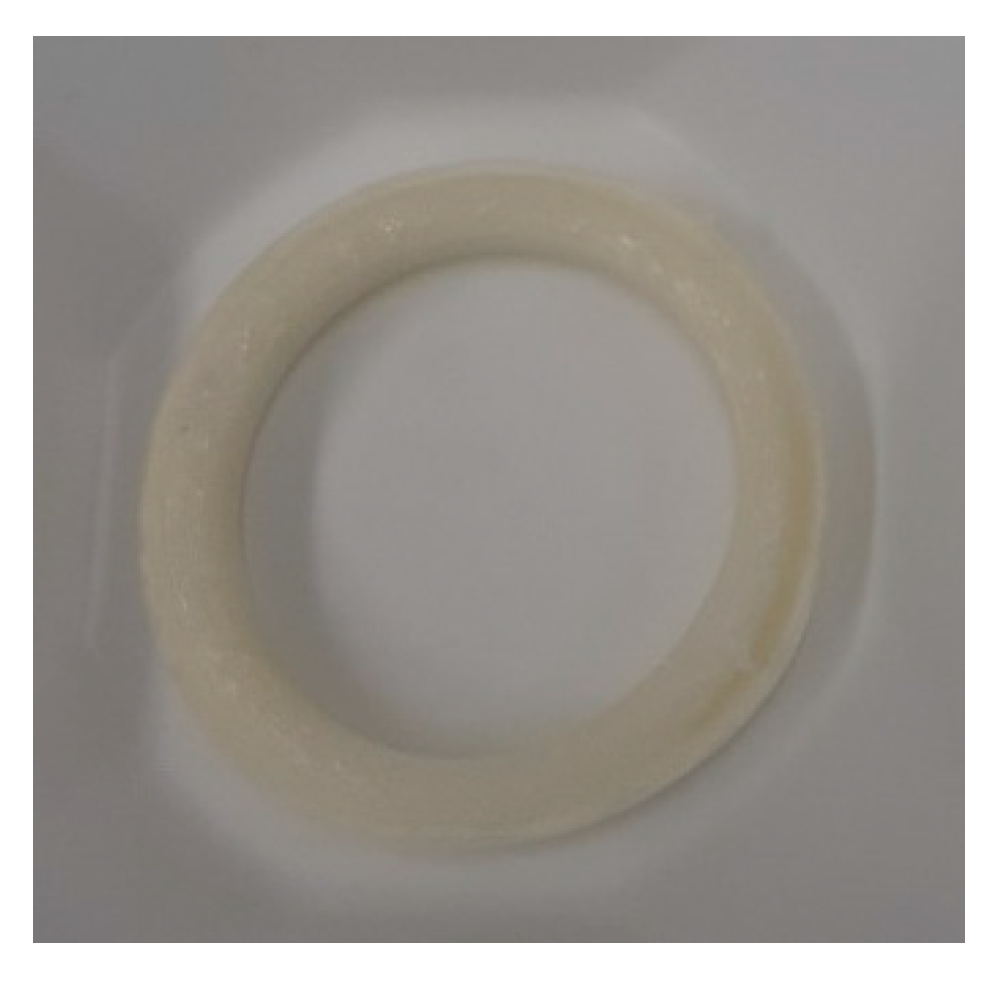

The API’s were suspended with the gels and manually filled into the pre-printed vaginal rings. The samples fitting was adequate (Figure 2).

3.3. Weight Variation and Content Uniformity

The measured weight and the content uniformity results can be seen in Table 4. The samples’ average weight (g) was similar in all cases. The samples were filled with 1.5 g API containing jellified agent.

3.4. Characterization

3.4.1. Thermogravimetric (TG) and Heatflow (DSC) Analysis

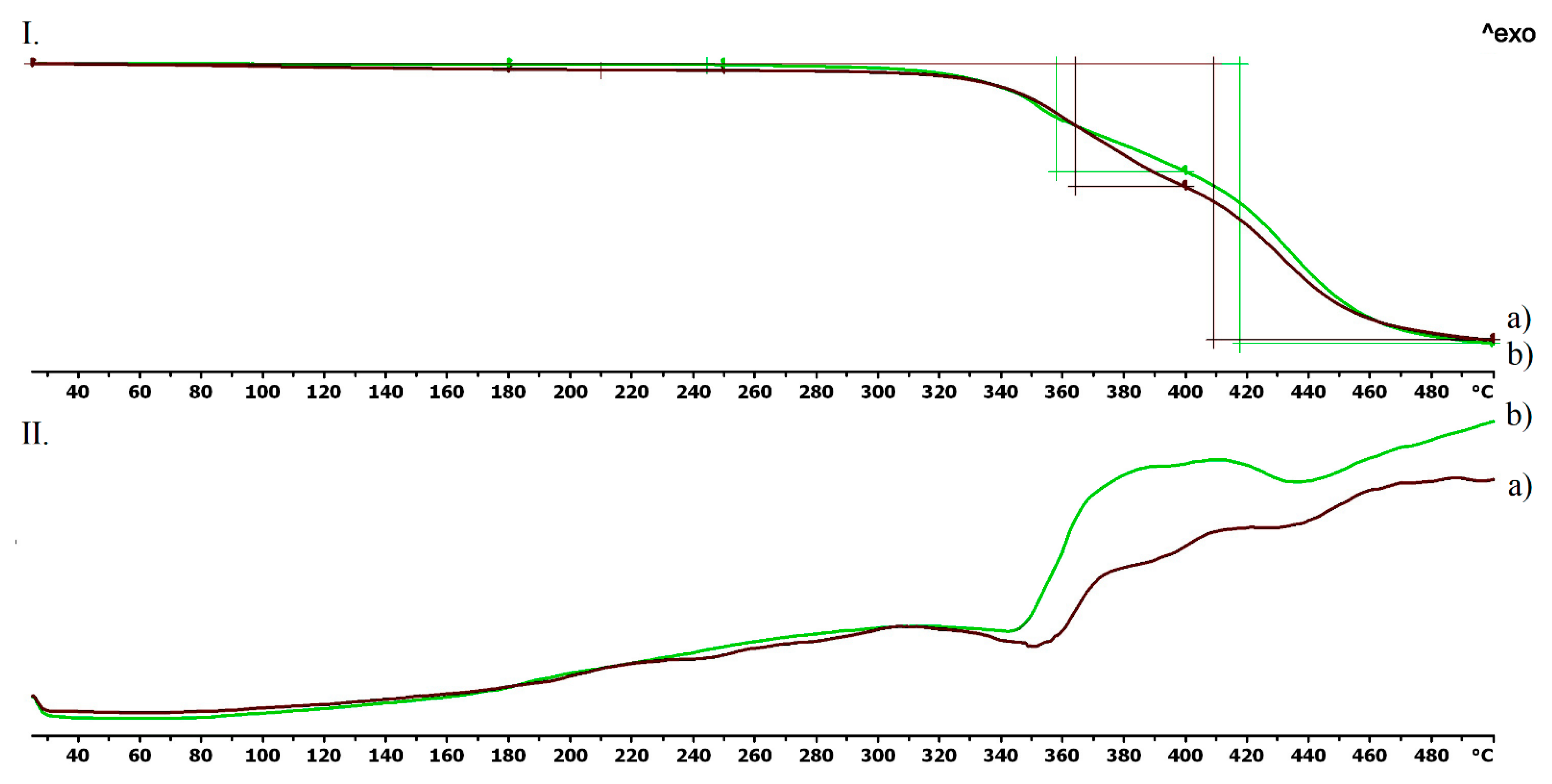

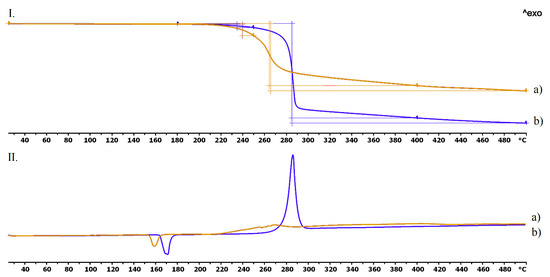

The TG curve of the TPU filament (Figure 3(I.a)) and empty vaginal ring (Figure 3(I.b)) showed thermal stability until 300–320 °C, and no kind of difference could be seen until 370 °C, thus, the used polymer is stable at the applied printing temperature. The decomposition was around 39% until 400 °C and 89% until 500 °C. In the case of the DSC curves, neither a characteristic endothermic peak nor an exothermic peak could be determined. In the case of the TPU filament, there was a flattened endothermic peak at 352 °C when the decomposition started (Figure 3(II.a)). In the case of the empty vaginal ring, the decomposition started after 348 °C, and a flattened exothermic peak could be determined (Figure 3(II.b)).
The thermogravimetric and heatflow analysis of the chloramphenicol and metronidazole could be seen in Figure 4. The curves proved that chloramphenicol was stable until 210 °C and metronidazole until 220 °C. In the case of chloramphenicol the decomposition was around 56% until 500 °C, and metronidazole’s was around 84% until 500 °C (Figure 4I). The DSC curve showed an endothermic peak at 159 °C in the case of the chloramphenicol, which is the melting point and not followed by a mass decrease until 210 °C (Figure 4(II.a)). On the DSC curve of the metronidazole, an endothermic peak at 170 °C could be characterized without a mass decrease. A characteristic exothermic peak was determined at 288 °C, which was followed by decomposition (Figure 4(II.b)).

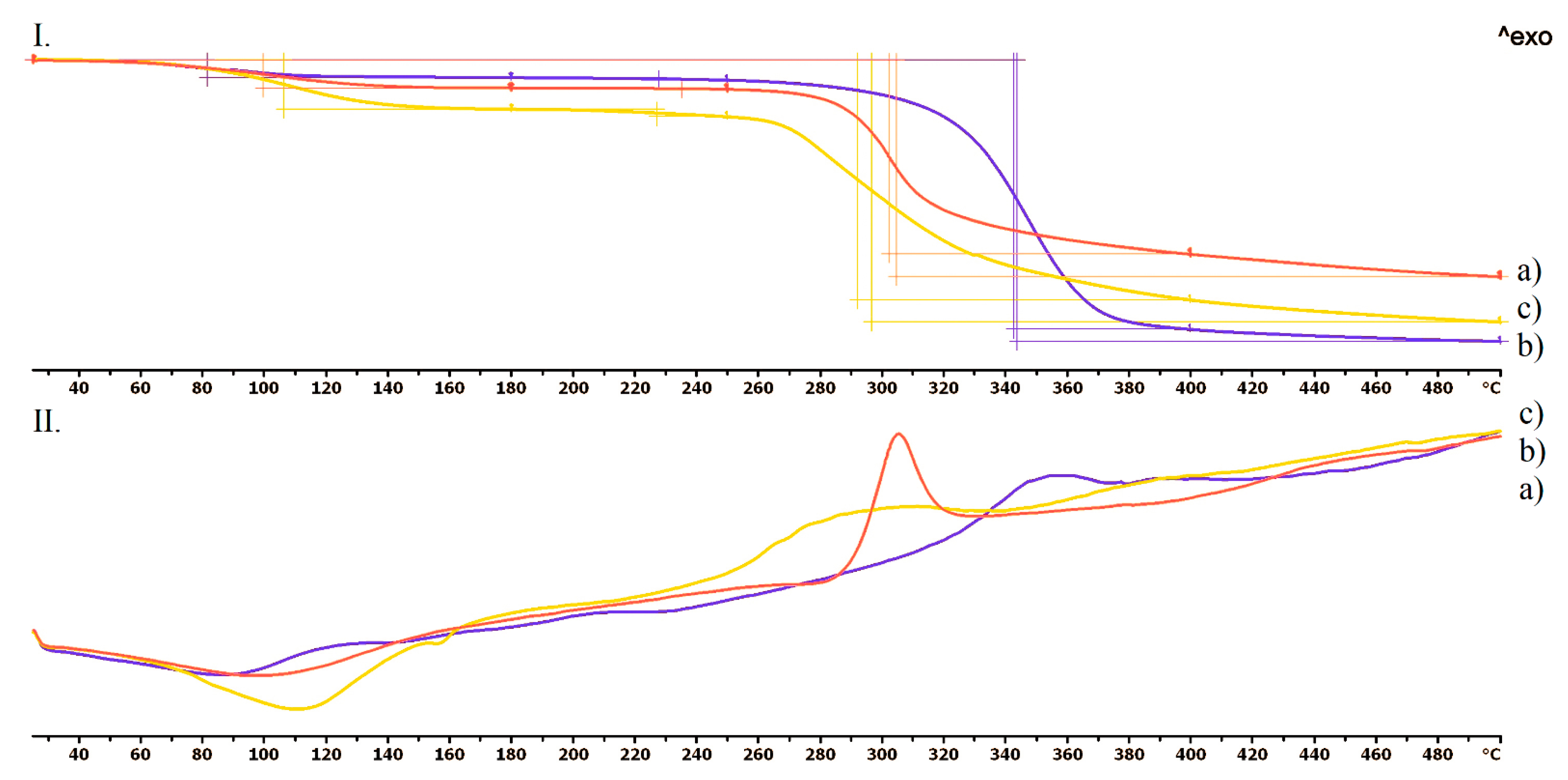

In Figure 5, the three jellifying agents: chitosan (a), hydroxyethyl cellulose (b), and agar-agar (c) thermogravimetric and heatflow analysis could be seen. In the case of the chitosan, an extended endothermic peak was realized, and an 8% decomposition was detected until 180 °C. Based on our experiments, this was due to the evaporation of the surface absorbed moisture. The decomposition took place in one step right after the exothermic peak at 306 °C (Figure 5(II.a)). Hydroxyethyl cellulose showed a 5% decomposition until 180 °C, which was the evaporation of the absorbed water as well. The flattened exothermic peak was around 351 °C. The decomposition was around 79% until 500 °C (Figure 5(II.b)). Agar-agar was stable until 260 °C, when a flattened exothermic peak started. The decomposition was around 74% until 500 °C. Agar-agar showed a 13% decomposition until 180 °C, which was the consequence of the evaporation.

3.4.2. Contact Angle

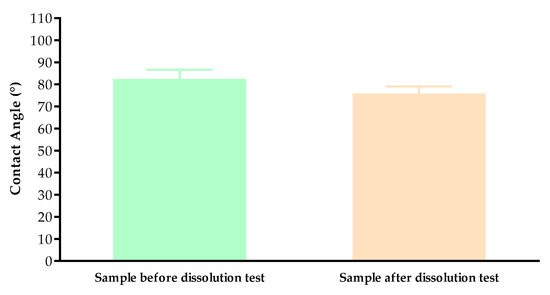

The contact angle values are given in Figure 6. The contact angle values were measured on the surface of the printed vaginal ring samples before and after the dissolution test. The two different samples had different contact angle values: before the dissolution test 82.48 and after the dissolution test 75.84. The results were statistically analyzed, and a significant difference **** was found (p < 0.0001).

3.4.3. Microcomputed Tomography (MicroCT)

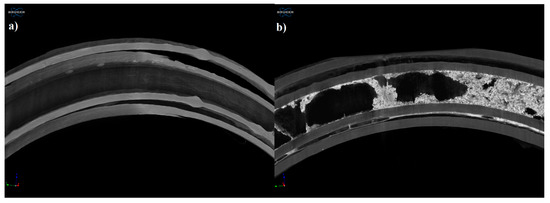

The samples were examined by microcomputed tomography (microCT) before and after the dissolution test to determine their morphology. Figure 7 represents the printed sample (a) and the examined sample after the dissolution test (b). The localization of the remaining gel could be clearly seen after the dissolution test.

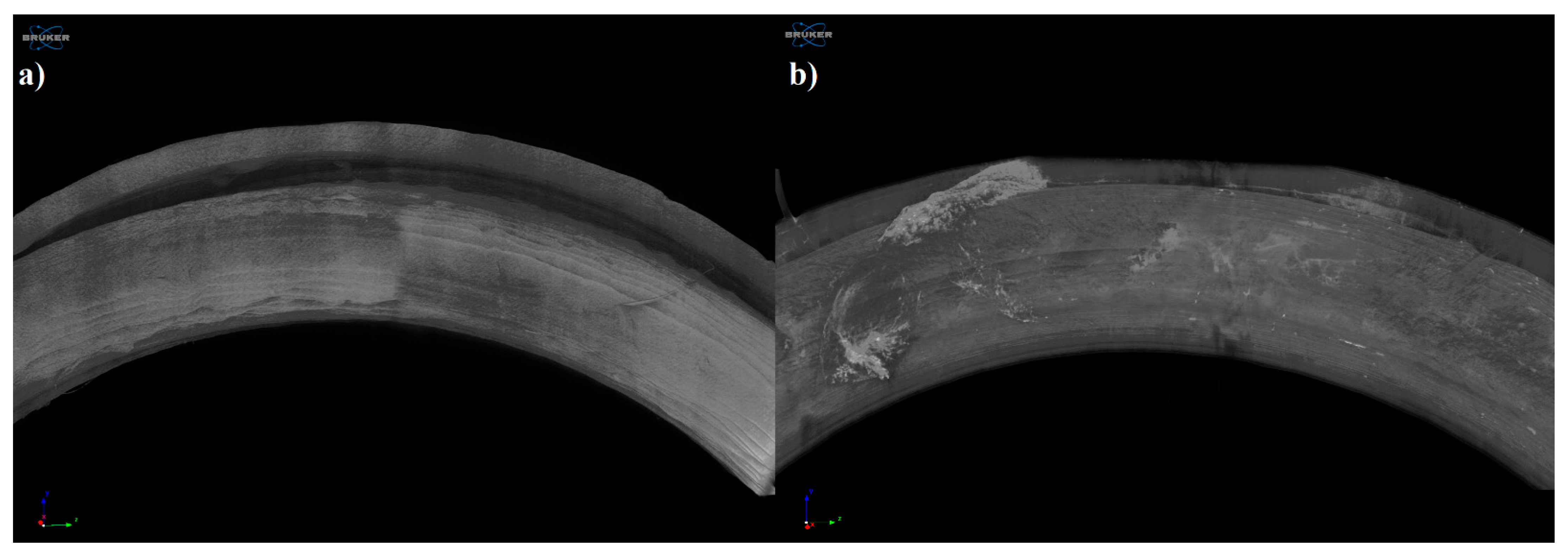

Figure 8 represents the upper surface of the printed sample (a) and examined sample after the dissolution test (b). On the surface of the dissolved sample, no kind of change or alteration was detected.

3.5. In Vitro Dissolution Test

The dissolution profiles of the samples were determined by a modified USP type II in vitro dissolution apparatus to determine the dissolution profiles. The dissolved API amount (%) at every sampling time and the standard deviation (±SD) results can be found in Appendix A, but the dissolved API amount (%) at 2 h, 8 h, and 48 h can be found in Table 5. At 2 h, the dissolved API amount varied from 0% to 39.89% and at 8 h from 0% to 52.31%, respectively. The dissolution from the chloramphenicol 4th formulation did not start in the first 8 h. At 48 h, we found that the dissolved API amount varied between 2.14% and 47.98% depending on the API and the jellifying agent type.

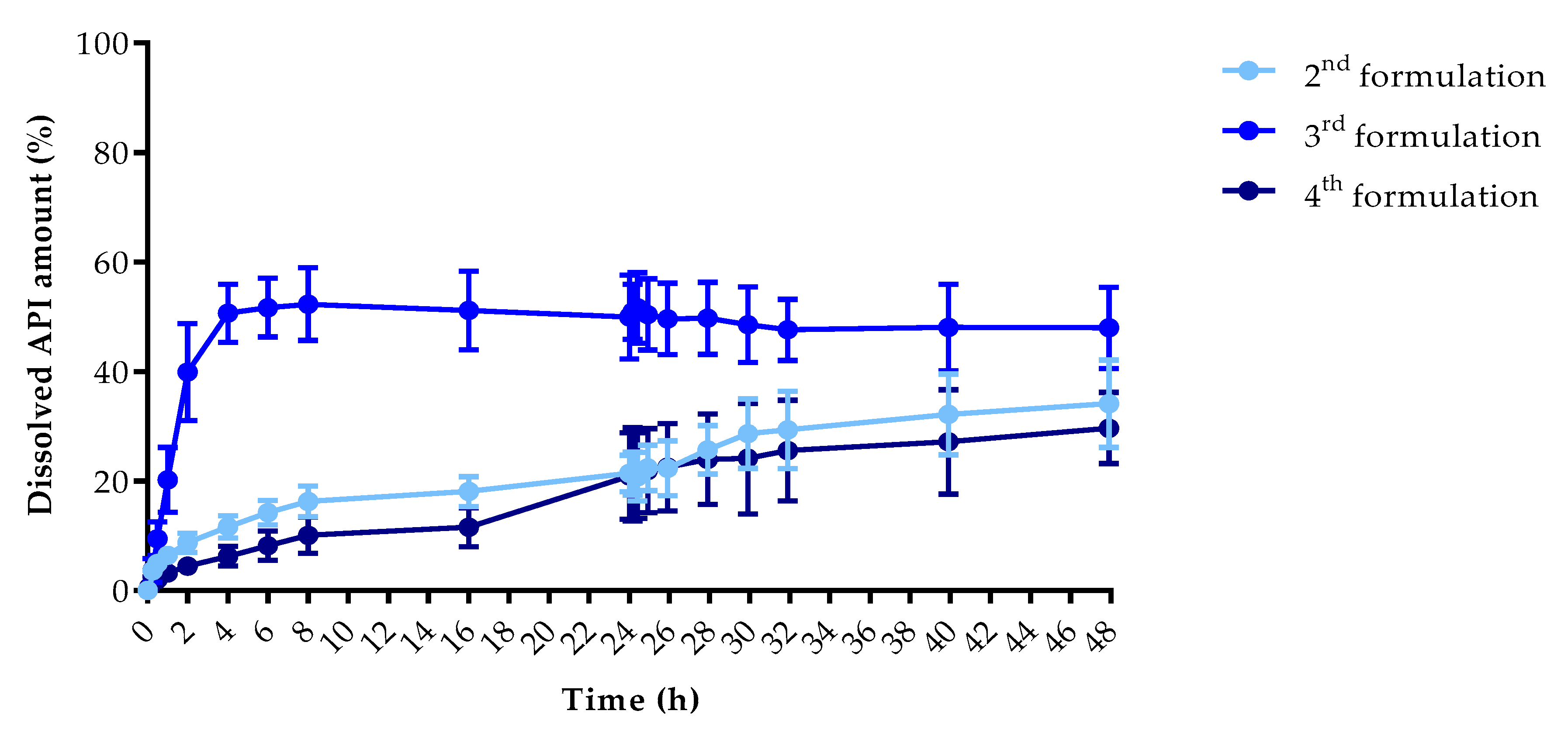

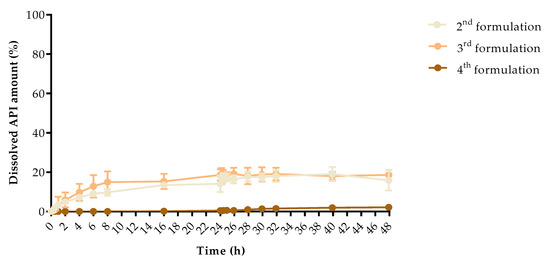

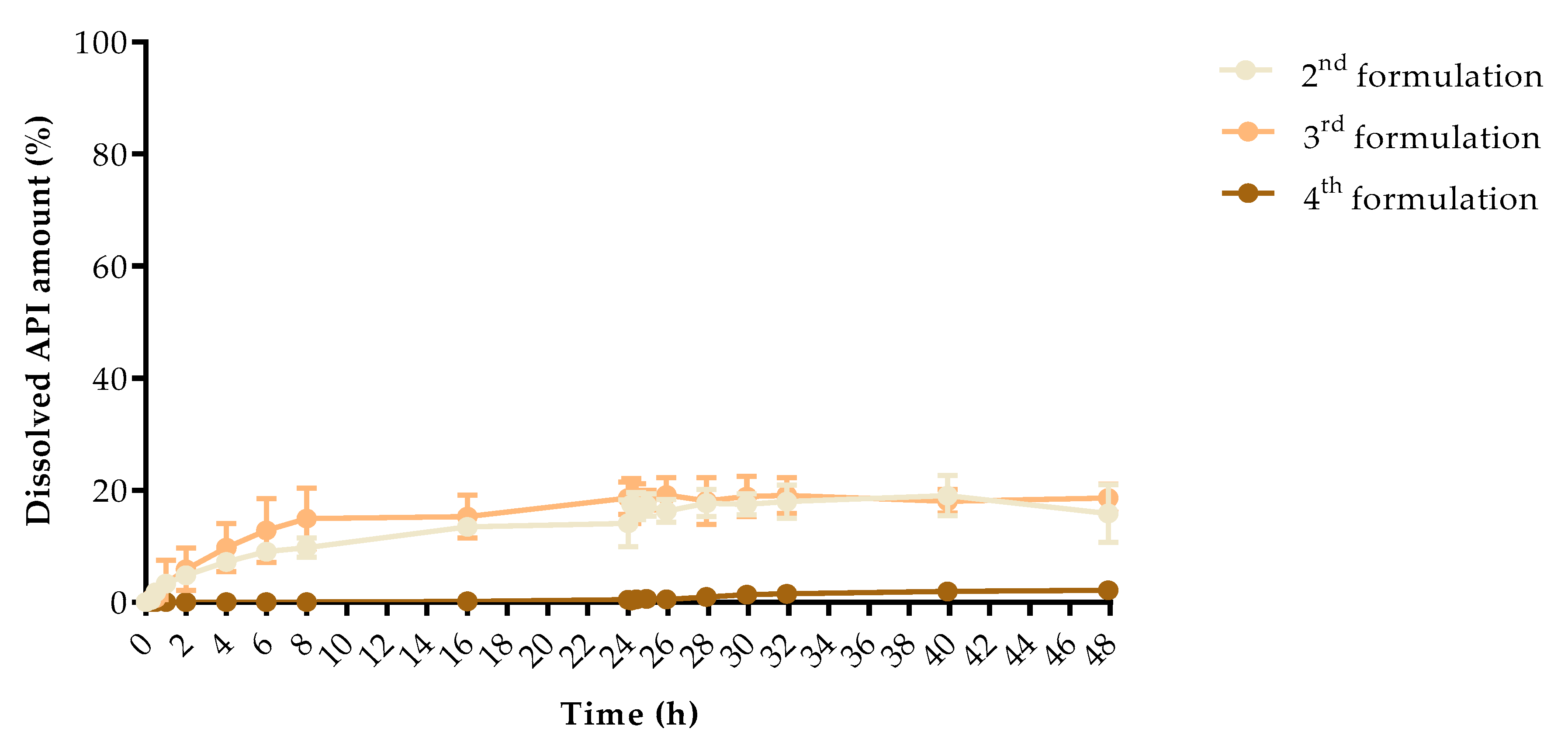

The dissolved API amount (%) was plotted against the time (h) for the chloramphenicol (Figure 9) and metronidazole samples (Figure 10). The results are means ± SD, n = 4.
Pairwise comparison results of the different samples dissolution profiles can be found in Appendix B: f1 value of the difference factor calculation and f2 value of the similarity value calculation. The interpretation was based on the FDA guideline. We found that all of our sample dissolution profile was considered non-similar. Based on this comparison, all samples had different dissolution curves.
Drug release data were fitted to zero-order and first-order models (Table 6). Determination coefficients were used to determine the best fit. The metronidazole 2nd formulation sample fitted to the first-order model, which confirmed the linear curve shape (Figure 10). The calculations revealed that other samples could not be fitted to these models if we compared the results from 0–48 h. In the case of metronidazole 4th formulation, the results were the same, thus, we decided not to interpret a conclusion from it. The dissolved API amounts were fitted to the same kinetic models, but separately between 0–8 h and 8–24 h. From the chloramphenicol 4th formulation, the API was not dissolved in the first 8 h, thus, the kinetic determination is inadequate, but all other samples fitted to the first-order kinetic model. In the 8–48 h interval the chloramphenicol 4th formulation and metronidazole 2nd formulation can be fitted to first-order kinetic model.

3.6. Biocompatibility Experiments

3.6.1. Cytotoxicity Experiments

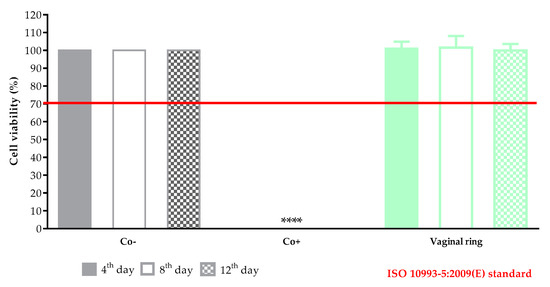

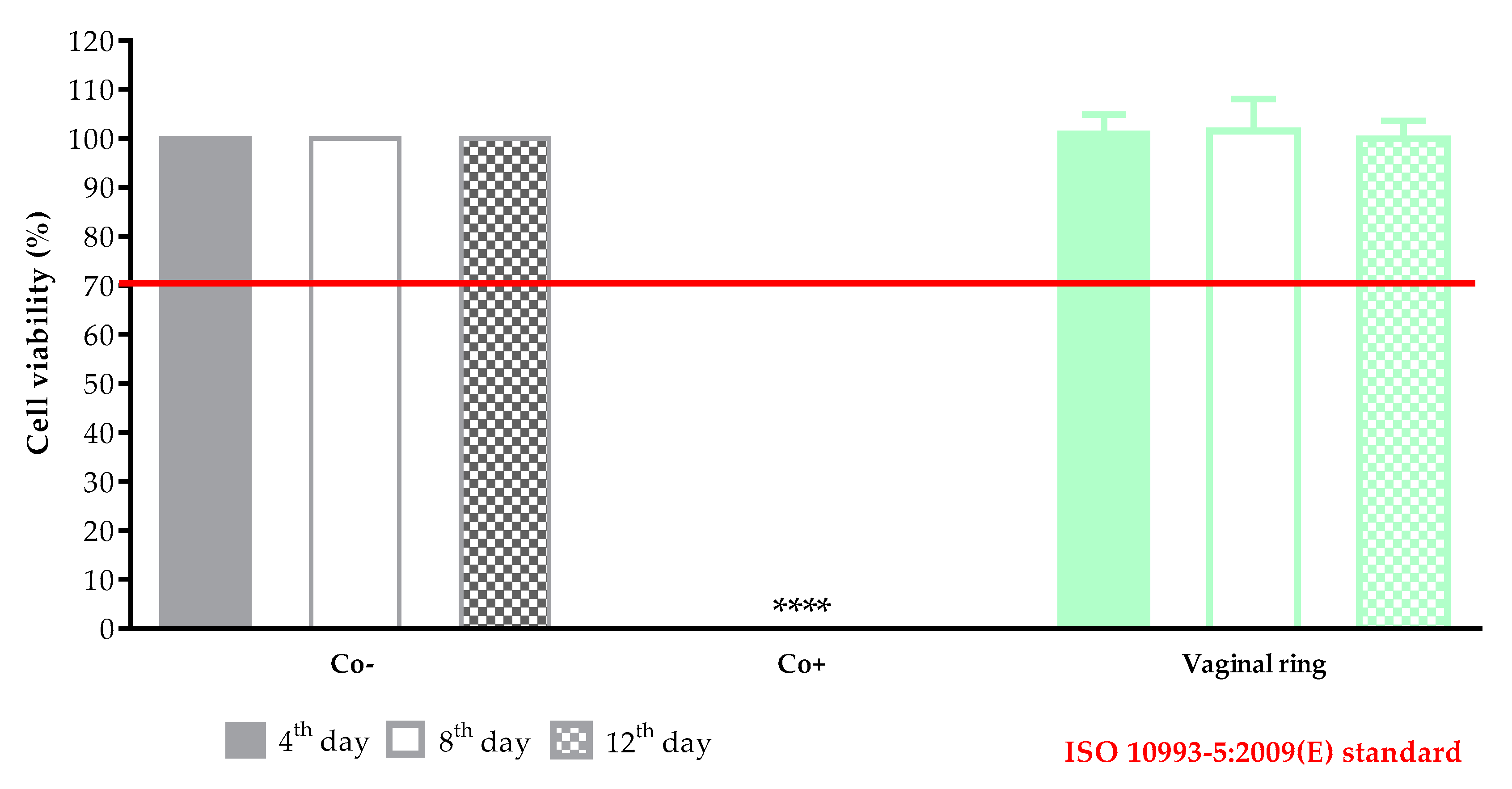

A prolonged cell viability test was performed to gain information about the cytocompatibility of the 3D printed vaginal rings. The samples were incubated in the cell culture medium for 4, 8, and 12 days, and the monolayer formed by HeLa cells was treated with this medium to determine if any kind of xenobiotic was dissolved from the sample. This method differed from the original MTT assay because the cell viability was expressed as the percentage of negative or untreated control (DMME medium, Co-) in harmonization with the ISO standard. As a positive control (Co+), Triton-X 100 (10% w/v) solubilizing agent was used, which had significant differences from the two other examined samples. Based on the ISO 10993-5:2009(E) standard, if the relative cell viability was higher than 70% in comparison with the control group (100%), the materials could be considered non-cytotoxic [47]. According to this regulation, the printed vaginal ring sample could be qualified as cytocompatible (Figure 11).

3.6.2. Microbiological Evaluation

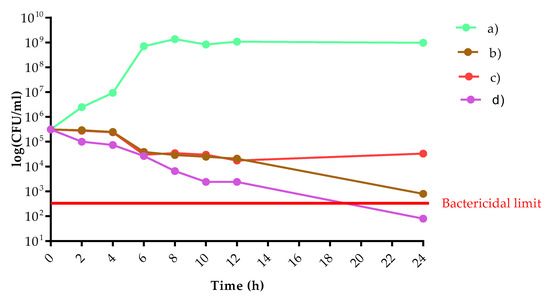

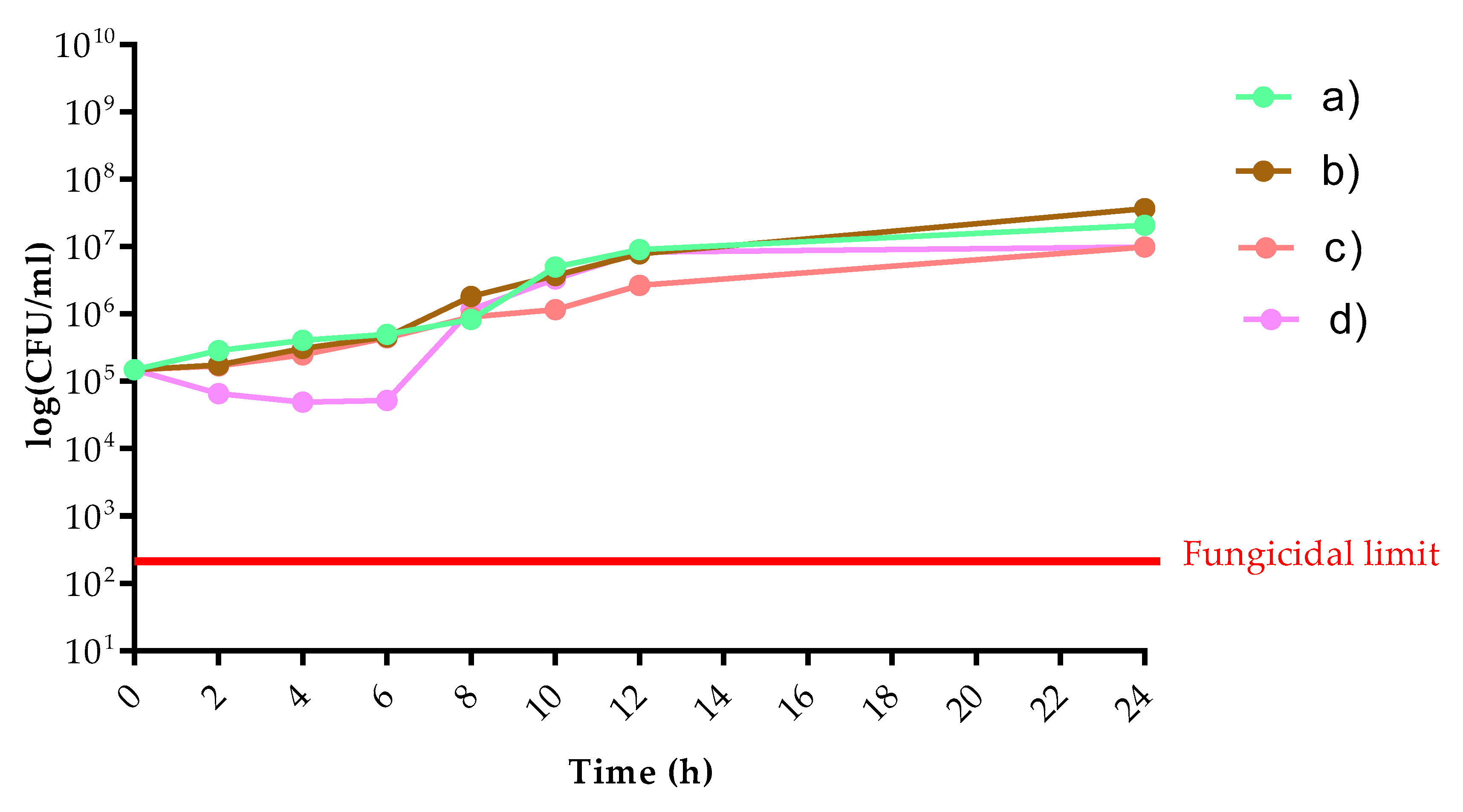

E. coli cell count showed a significant decrease in the presence of three tested rings. It is noteworthy that the ring containing chitosan with metronidazole in combinations produced a bactericidal effect at 24 h. While the metronidazole alone produced only a static effect after 24 h (Figure 12). In case of C. albicans the ring containing chitosan with metronidazole exerted a weak fungistatic effect between 2 and 6 h. However, the observed cell counts between 8 and 24 h were similar compared to untreated control cells (Figure 13).

4. Discussion

In our study, vaginal rings were manufactured with 3D printing from commercially available polymer filaments. Then, the vaginal ring samples as carrier systems were filled with jellified chloramphenicol or metronidazole. The reason for these investigations were to certify the applicability of FDM printing in the field of personalized medication manufacturing. The APIs can be delivered at the right dose locally in the vagina, which provide an excellent response [48,49].
3D printing significantly speeds up the design cycle, both in development and in industrial manufacturing [29]. One of the newest articles published in 2021 was about the manufacturing of a 3D printed vaginal ring from thermoplastic polyurethane filled with clotrimazole to treat vulvovaginal candidiasis. Even though the two research groups had the same ideas but with different manufacturing processes and API, Tiboni et al. used hot-melt extrusion for the manufacturing of the clotrimazole containing filament [50]. Based on another research, the endothermic peak of the clotrimazole on the DSC curve was at 145.6 °C but without decomposition until 160 °C [51].
In our previous article, we already bothered with the problem of the required high printing temperature and how difficult it can be to fill the samples with the API [29]. One study showed that the APIs’ weight loss was around 5% after the FDM printing, but in the pharmaceutical industry, only a maximum of 1% API deviation could be accepted [52]. Our research group developed an easy method to fill the samples with the API. Furthermore, the amount and stability of the API were not affected. As it is a pre-printed carrier system, API can be directly applied in the desired amount to the immediately printed drug delivery system, and the patient can start the application earlier with the hope of a better outcome.
The thermogravimetric and heatflow analysis of the TPU filament and empty vaginal ring showed thermal stability until 300–320 °C, thus the used polymer is stable at the applied printing temperature. The TGA curves proved that chloramphenicol was stable until 210 °C and metronidazole until 220 °C. The three jellifying agents: chitosan, hydroxyethyl cellulose, and agar-agar were stable on the printing temperatures. These results are in agreement with the scientific data [53,54]. Based on these results, these API’s should not be mixed with the TPU polymer because the applied printing temperature was 233 °C. Our method was adequate because the API’s were added after the vaginal ring was pre-printed.
Contact angle results showed that the printed sample and the sample after dissolution test had different wettability properties and after the dissolution test in simulated vaginal fluid, the sample was more hydrophilic than before the test. Based on the results, our samples can be identified as moderate with wettability properties, which can affect the samples’ mucoadhesion properties in the vagina [55].
Based on the dissolution profiles, the dissolved API amount varied from 0% to 52.31% at 8 h. The dissolution from the chloramphenicol 4th formulation did not start in the first 8 h. The dissolved API amount was higher from the metronidazole-containing samples than the chloramphenicol-containing samples. If we compare the jellifying agents, the 3 w/w% chitosan showed the highest dissolution amount and agar-agar the less within 48 h.
Based on the microCT results, the jellified API was just partly dissolved from the vaginal ring, which is in correlation with our dissolution test results. On the surface of the dissolved sample, no kind of change or alteration was detected.
The dissolution from drug delivery systems depends on various physical and chemical properties, which results in difficulties at describing proper mathematical models [56], thus, our samples were examined with first-order and zero-order kinetics at different time intervals [57,58]. All of our samples could be fitted to first-order kinetics model independently from the used API or auxiliary material [59].
The in vitro cytotoxicity profile of the samples was determined with a long-term MTT assay. The method was harmonized with the ISO 10993 standard but with a shorter incubation period [60]. The sterile samples were stored in DMEM medium at 37 °C and the potentially dissolved xenobiotics were measured by MTT assay on days 4, 8, and 12. The in vitro cytotoxicity method as a compulsory test can be the first filter through the determination of biocompatibility and can be a good predictor of the in vivo results [29,61]. Based on the prolonged MTT assay on the HeLa cell line, results were in accordance with the ISO 10993:5 standard, and the printed vaginal ring samples can be considered cytocompatible.
The microbiological evaluation is part of the biocompatibility determination, and with the results of the MTT assay can give us a good prediction about the in vivo data. We determined the effect against E. coli and C. albicans as reference isolates [62]. E. coli cell count showed a significant decrease in the presence of all three tested rings. The vaginal ring that contains chitosan with chloramphenicol in combinations produced a bactericidal effect at 24 h. While the chloramphenicol alone produced only a static effect after 24 h. Thus, we can state that the previously well-described effect of chitosan can help to suppress bacterial vaginosis [63,64].
In conclusion, vaginal rings from thermoplastic polyurethane were successfully 3D printed by FDM technology. The pre-printed samples were filled with chloramphenicol or metronidazole and jellified with chitosan/HEC or agar-agar. The special experimental arrangement ensures that all kinds of API can be utilized during printing without heat damage or API loss, confirmed by TGA results. Based on the dissolution curves, the used API and jellifying agent can modify the dissolved API amount. Based on the MTT assay results, TPU polymer can be considered cytocompatible. The microbiological evaluation confirmed that metronidazole and chitosan have a synergistic effect against E. coli. Based on the overall project, TPU polymer filled with metronidazole was suggested for further investigations.

Author Contributions

P.A. performed 3D printing, gel formulation and filling, MTT assay and dissolution experiments, carried out the statistical analysis, and wrote the abstract, materials and methods section of the article. I.P. and M.Z. designed the structure of the 3D-printed samples. G.R.J. performed and analyzed the thermogravimetry and heatflow analysis. M.B. performed the microCT experiments. M.S. performed contact angle measurements. R.K. designed and performed microbiology assays. P.F. and Z.U. wrote the introduction. M.V. was responsible for drawing the figures. I.B. conceived the overall project, checked the introduction, and wrote the discussion. All authors have read and agreed to the published version of the manuscript.

Funding

Supported by the ÚNKP-20-3 New National Excellence Program of the Ministry for Innovation and Technology from the source of the National Research, Development and Innovation Fund. The project was supported by the Gedeon Richter’s Talentum Foundation (1103 Budapest, Gyömrői út 19-21, Hungary). This work was supported by the European Union and the European Regional Development Fund [GINOP-2.3.2.-15-2016-00011]. The publication is supported by the GINOP-2.3.4-15-2020-00008 project. The project is co-financed by the European Union and the European Regional Development Fund. The research was supported by the Thematic Excellence Programme (TKP2020-IKA-04) of the Ministry for Innovation and Technology in Hungary.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

SampleChloramphenicolMetronidazole
2nd Formulation3rd Formulation4th Formulation2nd Formulation3rd Formulation4th Formulation
Sampling Time (h)Dissolved API (%)±SDDissolved API (%)±SDDissolved API (%)±SDDissolved API (%)±SDDissolved API (%)±SDDissolved API (%)±SD
00.000.000.000.000.000.000.000.000.000.000.000.00
0.0830.000.000.000.000.000.000.000.170.050.090.670.66
0.250.360.490.500.740.000.003.630.753.702.162.571.07
0.51.771.010.760.840.000.004.981.109.483.071.990.33
13.361.013.314.150.000.006.421.0020.205.903.180.47
24.791.365.893.770.000.008.761.7439.898.874.470.72
47.211.239.754.330.000.0011.632.0250.645.326.251.82
69.010.7512.815.710.000.0014.242.2451.685.378.182.65
89.761.7014.935.420.000.0016.312.7952.316.6410.113.33
1613.440.9215.323.830.160.3218.082.6951.157.1611.543.55
2414.114.1518.602.850.430.5821.403.3549.997.6620.927.86
24.08317.451.5418.104.020.350.4121.333.9350.915.0421.198.52
24.2517.152.4418.103.130.530.5220.794.4451.636.4320.987.80
24.517.362.0218.221.770.610.5422.424.1550.426.4921.907.66
2616.312.0319.173.060.530.5722.345.0149.636.5522.517.98
2817.692.4218.084.190.980.7925.714.4349.736.5623.988.26
3017.491.8618.913.591.400.9528.656.3248.556.8724.1310.07
3217.942.9619.063.201.520.6829.347.0847.615.5725.579.22
4019.033.6018.042.141.960.6432.157.3848.057.9227.169.51
4815.865.1018.572.512.140.9234.127.9747.987.4229.676.50

Appendix B

Pairwise Comparison of Dissolution Profiles
Sample 1 vs.Sample 2f1f2 (%)
Chloramphenicol 2nd formulationChloramphenicol 3rd formulation13.3276.07
Chloramphenicol 2nd formulationChloramphenicol 4th formulation2156.9839.86
Chloramphenicol 2nd formulationMetronidazole 2nd formulation35.7450.57
Chloramphenicol 2nd formulationMetronidazole 3rd formulation71.5619.96
Chloramphenicol 2nd formulationMetronidazole 4th formulation24.5561.43
Chloramphenicol 3rd formulationChloramphenicol 4th formulation2434.1137.36
Chloramphenicol 3rd formulationMetronidazole 2nd formulation27.8453.95
Chloramphenicol 3rd formulationMetronidazole 3rd formulation68.0721.20
Chloramphenicol 3rd formulationMetronidazole 4th formulation24.8863.33
Chloramphenicol 4th formulationMetronidazole 2nd formulation97.1530.20
Chloramphenicol 4th formulationMetronidazole 3rd formulation98.7413.00
Chloramphenicol 4th formulationMetronidazole 4th formulation96.5333.80
Metronidazole 2nd formulationMetronidazole 3rd formulation55.7524.62
Metronidazole 2nd formulationMetronidazole 4th formulation22.7962.45
Metronidazole 3rd formulationMetronidazole 4th formulation176.2821.99

References

  1. Duncan, G.W. Medicated Devices and Methods. U.S. Patent US3545439A, 8 December 1970. [Google Scholar]
  2. Bashi, Y.H.D.; Murphy, D.J.; McCoy, C.F.; Boyd, P.; Brown, L.; Kihara, M.; Martin, F.; McMullen, N.; Kleinbeck, K.; Dangi, B.; et al. Silicone elastomer formulations for improved performance of a multipurpose vaginal ring releasing dapivirine and levonorgestrel. Int. J. Pharm. X 2021, 3, 100091. [Google Scholar]
  3. Brache, V.; Payán, L.J.; Faundes, A. Current status of contraceptive vaginal rings. Contraception 2013, 87, 264–272. [Google Scholar] [CrossRef]
  4. Liu, A.Y.; Islas, C.D.; Gundacker, H.; Neradilek, B.; Hoesley, C.; van der Straten, A.; Hendrix, C.W.; Beamer, M.; Jacobson, C.E.; McClure, T.; et al. Phase 1 pharmacokinetics and safety study of extended duration dapivirine vaginal rings in the United States. J. Int. AIDS Soc. 2021, 24, 1–10. [Google Scholar] [CrossRef]
  5. Welsh, N.R.; Malcolm, R.K.; Devlin, B.; Boyd, P. Dapivirine-releasing vaginal rings produced by plastic freeforming additive manufacturing. Int. J. Pharm. 2019, 572, 118725. [Google Scholar] [CrossRef]
  6. Sandeep, B.; Kannan, T.T.M.; Chandradass, J.; Ganesan, M.; Rajan, A.J. Materials Today: Proceedings Scope of 3D printing in manufacturing industries—A review. Mater. Today Proc. 2021, 45, 6941–6945. [Google Scholar] [CrossRef]
  7. Goyanes, A.; Robles Martinez, P.; Buanz, A.; Basit, A.W.; Gaisford, S. Effect of geometry on drug release from 3D printed tablets. Int. J. Pharm. 2015, 494, 657–663. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, X.; Robles-Martinez, P.; Madla, C.M.; Joubert, F.; Goyanes, A.; Basit, A.W.; Gaisford, S. Stereolithography (SLA) 3D printing of an antihypertensive polyprintlet: Case study of an unexpected photopolymer-drug reaction. Addit. Manuf. 2020, 33, 101071. [Google Scholar] [CrossRef]
  9. Genina, N.; Holländer, J.; Jukarainen, H.; Mäkilä, E.; Salonen, J.; Sandler, N. Ethylene vinyl acetate (EVA) as a new drug carrier for 3D printed medical drug delivery devices. Eur. J. Pharm. Sci. 2016, 90, 53–63. [Google Scholar] [CrossRef]
  10. Boetker, J.; Water, J.J.; Aho, J.; Arnfast, L.; Bohr, A.; Rantanen, J. Modifying release characteristics from 3D printed drug-eluting products. Eur. J. Pharm. Sci. 2016, 90, 47–52. [Google Scholar] [CrossRef]
  11. Wang, Y.; Sun, L.; Mei, Z.; Zhang, F.; He, M.; Fletcher, C.; Wang, F.; Yang, J.; Bi, D.; Jiang, Y.; et al. 3D printed biodegradable implants as an individualized drug delivery system for local chemotherapy of osteosarcoma. Mater. Des. 2020, 186, 108336. [Google Scholar] [CrossRef]
  12. Fu, J.; Yu, X.; Jin, Y. 3D printing of vaginal rings with personalized shapes for controlled release of progesterone. Int. J. Pharm. 2018, 539, 75–82. [Google Scholar] [CrossRef]
  13. Palmeira-de-Oliveira, R.; Palmeira-de-Oliveira, A.; Martinez-de-Oliveira, J. New strategies for local treatment of vaginal infections. Adv. Drug Deliv. Rev. 2015, 92, 105–122. [Google Scholar] [CrossRef]
  14. Perioli, L.; Ambrogi, V.; Venezia, L.; Pagano, C.; Ricci, M.; Rossi, C. Chitosan and a modified chitosan as agents to improve performances of mucoadhesive vaginal gels. Colloids Surf. B Biointerfaces 2008, 66, 141–145. [Google Scholar] [CrossRef]
  15. Pelle, P.; Pete, I.; Végh, G.; Illei, G. Preparation and clinical use of combined broad spectrum vaginal suppositories. Orv. Hetil. 1980, 17, 1015–1017. [Google Scholar]
  16. Wu, G.; Kong, W.; Gao, Y.; Kong, Y.; Dai, Z.; Dan, H.; Shang, Y.; Wang, S.; Yin, F.; Yue, Q.; et al. Removal of chloramphenicol by sulfide-modified nanoscale zero-valent iron activated persulfate: Performance, salt resistance, and reaction mechanisms. Chemosphere 2021, 286, 131876. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, R.; Kumar, S.; Rao, B.M.; Prasad, K.P.; Raman, P.; Prasad, M. Antibiotic resistance of culturable heterotrophic bacteria isolated from shrimp (Penaeus vannamei) aquaculture ponds. Mar. Pollut. Bull. 2021, 172, 112887. [Google Scholar]
  18. Farah, K.; Syed, M.F.H.; Madiha, M.; Rabia, N.; Sana, G.; Iyad, N.M.; Fouzia, H. Comparative analysis of biopharmaceutic classification system (BCS) based biowaiver protocols to validate equivalence of a multisource product. Afr. J. Pharm. Pharmacol. 2020, 14, 212–220. [Google Scholar] [CrossRef]
  19. Magoulas, G.E.; Kostopoulou, O.N.; Garnelis, T.; Athanassopoulos, C.M.; Kournoutou, G.G.; Leotsinidis, M.; Dinos, G.P.; Papaioannou, D.; Kalpaxis, D.L. Synthesis and antimicrobial activity of chloramphenicol-polyamine conjugates. Bioorganic Med. Chem. 2015, 23, 3163–3174. [Google Scholar] [CrossRef] [PubMed]
  20. Trivedi, M.K.; Patil, S.; Shettigar, H.; Bairwa, K.; Trivedi, M.K.; Patil, S.; Shettigar, H.; Bairwa, K.; Spec-, S.J.; Acta, A. Spectroscopic characterization of chloramphenicol and tetracycline: An impact of biofield treatment. Pharm. Anal. Acta 2016, 6, 395. [Google Scholar]
  21. Singh, V.K.; Anis, A.; Banerjee, I.; Pramanik, K.; Bhattacharya, M.K.; Pal, K. Preparation and characterization of novel carbopol based bigels for topical delivery of metronidazole for the treatment of bacterial vaginosis. Mater. Sci. Eng. C 2014, 44, 151–158. [Google Scholar] [CrossRef]
  22. Tentor, F.; Siccardi, G.; Sacco, P.; Demarchi, D.; Marsich, E.; Almdal, K.; Bose Goswami, S.; Boisen, A. Long lasting mucoadhesive membrane based on alginate and chitosan for intravaginal drug delivery. J. Mater. Sci. Mater. Med. 2020, 31, 25. [Google Scholar] [CrossRef]
  23. Sobel, R.; Sobel, J.D. Metronidazole for the treatment of vaginal infections. Expert Opin. Pharmacother. 2015, 16, 1109–1115. [Google Scholar] [CrossRef]
  24. Naveed, S.; Qamar, F. Simple UV Spectrophotometric Assay of Metronidazole. OALib 2014, 01, 1–4. [Google Scholar] [CrossRef]
  25. Tan, F.; Zhu, Y.; Ma, Z.; Al-Rubeai, M. Recent advances in the implant-based drug delivery in otorhinolaryngology. Acta Biomater. 2020, 108, 46–55. [Google Scholar] [CrossRef]
  26. Khaled, S.A.; Alexander, M.R.; Irvine, D.J.; Wildman, R.D.; Wallace, M.J.; Sharpe, S.; Yoo, J.; Roberts, C.J. Extrusion 3D Printing of Paracetamol Tablets from a Single Formulation with Tunable Release Profiles Through Control of Tablet Geometry. AAPS PharmSciTech 2018, 19, 3403–3413. [Google Scholar] [CrossRef] [Green Version]
  27. Kollamaram, G.; Croker, D.M.; Walker, G.M.; Goyanes, A.; Basit, A.W.; Gaisford, S. Low temperature fused deposition modeling (FDM) 3D printing of thermolabile drugs. Int. J. Pharm. 2018, 545, 144–152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Coppola, B.; Cappetti, N.; Di Maio, L.; Scarfato, P.; Incarnato, L. 3D printing of PLA/clay nanocomposites: Influence of printing temperature on printed samples properties. Materials 2018, 11, 1947. [Google Scholar] [CrossRef] [Green Version]
  29. Arany, P.; Papp, I.; Zichar, M.; Csontos, M.; Elek, J.; Regdon, G.; Budai, I.; Béres, M.; Gesztelyi, R.; Fehér, P.; et al. In Vitro Tests of FDM 3D-Printed Diclofenac Sodium-Containing Implants. Molecules 2020, 25, 5889. [Google Scholar] [CrossRef] [PubMed]
  30. Bonferoni, M.C.; Giunchedi, P.; Scalia, S.; Rossi, S.; Sandri, G.; Caramella, C. Chitosan gels for the vaginal delivery of lactic acid: Relevance of formulation parameters to mucoadhesion and release mechanisms. AAPS PharmSciTech 2006, 7, 3–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Badawi, N.M.; Elkafrawy, M.A.; Yehia, R.M.; Attia, D.A. Clinical comparative study of optimized metronidazole loaded lipid nanocarrier vaginal emulgel for management of bacterial vaginosis and its recurrence. Drug Deliv. 2021, 28, 814–825. [Google Scholar] [CrossRef]
  32. Tietz, K.; Klein, S. In vitro methods for evaluating drug release of vaginal ring formulations—A critical review. Pharmaceutics 2019, 11, 538. [Google Scholar] [CrossRef] [Green Version]
  33. van Tonder, A.; Joubert, A.M.; Cromarty, A.D. Limitations of the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay when compared to three commonly used cell enumeration assays. BMC Res. Notes 2015, 8, 47. [Google Scholar] [CrossRef] [Green Version]
  34. Stockert, J.C.; Blázquez-Castro, A.; Cañete, M.; Horobin, R.W.; Villanueva, Á. MTT assay for cell viability: Intracellular localization of the formazan product is in lipid droplets. Acta Histochem. 2012, 114, 785–796. [Google Scholar] [CrossRef]
  35. Adriana, C.; Morales-dorantes, V.; Ayala-herrera, J.L.; Castillo-aguill, M.; Soto-barreras, U.; Ver, C. Antibiotic Resistance Decreases the Efficacy of Endodontic Filling Pastes for Root Canal Treatment in Children’s Teeth. Children 2021, 8, 692. [Google Scholar] [CrossRef]
  36. Zichar, M.; Papp, I. Interaction Between 3D Printing and Geometry Studies. In Proceedings of the ICGG 2018—The 18th International Conference on Geometry and Graphics, Milan, Italy, 3–7 August 2018; Cocchiarella, L., Ed.; Springer International Publishing: Cham, Switzerland, 2018; pp. 1177–1190. [Google Scholar]
  37. Okafor-Muo, O.L.; Hassanin, H.; Kayyali, R.; ElShaer, A. 3D Printing of Solid Oral Dosage Forms: Numerous Challenges with Unique Opportunities. J. Pharm. Sci. 2020, 109, 3535–3550. [Google Scholar] [CrossRef]
  38. Khaled, S.A.; Burley, J.C.; Alexander, M.R.; Yang, J.; Roberts, C.J. 3D printing of tablets containing multiple drugs with defined release profiles. Int. J. Pharm. 2015, 494, 643–650. [Google Scholar] [CrossRef] [PubMed]
  39. Regdon, G.; Hegyesi, D.; Pintye-Hódi, K. Thermal study of ethyl cellulose coating films used for modified release (MR) dosage forms. J. Therm. Anal. Calorim. 2012, 108, 347–352. [Google Scholar] [CrossRef]
  40. Vasvári, G.; Haimhoffer, Á.; Horváth, L.; Budai, I.; Trencsényi, G.; Béresová, M.; Dobó-Nagy, C.; Váradi, J.; Bácskay, I.; Ujhelyi, Z.; et al. Development and Characterisation of Gastroretentive Solid Dosage Form Based on Melt Foaming. AAPS PharmSciTech 2019, 20, 1–11. [Google Scholar] [CrossRef] [PubMed]
  41. Owen, D.H.; Katz, D.F. A vaginal fluid simulant. Contraception 1999, 59, 91–95. [Google Scholar] [CrossRef]
  42. Fetherston, S.M.; Geer, L.; Veazey, R.S.; Goldman, L.; Murphy, D.J.; Ketas, T.J.; Klasse, P.J.; Blois, S.; Colla, P.L.; Moore, J.P.; et al. Partial protection against multiple rt-shiv162p3 vaginal challenge of rhesus macaques by a silicone elastomer vaginal ring releasing the nnrti mc1220. J. Antimicrob. Chemother. 2013, 68, 2013. [Google Scholar] [CrossRef] [Green Version]
  43. Seyednejad, H.; Gawlitta, D.; Kuiper, R.V.; De Bruin, A.; Van Nostrum, C.F.; Vermonden, T.; Dhert, W.J.A.; Hennink, W.E. In vivo biocompatibility and biodegradation of 3D-printed porous scaffolds based on a hydroxyl-functionalized poly(ε-caprolactone). Biomaterials 2012, 33, 4309–4318. [Google Scholar] [CrossRef]
  44. Srinivasan, P.; Moss, J.A.; Gunawardana, M.; Churchman, S.A.; Yang, F.; Dinh, C.T.; Mitchell, J.M.; Zhang, J.; Fanter, R.; Miller, C.S.; et al. Topical delivery of tenofovir disoproxil fumarate and emtricitabine from pod-intravaginal rings protects macaques from multiple SHIV exposures. PLoS ONE 2016, 11, e0157061. [Google Scholar] [CrossRef] [PubMed]
  45. Ujhelyi, Z.; Kalantari, A.; Vecsernyés, M.; Róka, E.; Fenyvesi, F.; Póka, R.; Kozma, B.; Bácskay, I. The enhanced inhibitory effect of different antitumor agents in self-microemulsifying drug delivery systems on human cervical cancer HeLa cells. Molecules 2015, 20, 13226–13239. [Google Scholar] [CrossRef] [PubMed]
  46. Arany, P.; Róka, E.; Mollet, L.; Coleman, A.W.; Perret, F.; Kim, B.; Kovács, R.; Kazsoki, A.; Zelkó, R.; Gesztelyi, R.; et al. Fused Deposition Modeling 3D Printing: Test Platforms for Evaluating Post-Fabrication Chemical Modifications and In-Vitro Biological Properties. Pharmaceutics 2019, 11, 277. [Google Scholar] [CrossRef] [Green Version]
  47. Mohseni, M.; Hutmacher, D.W.; Castro, N.J. Independent evaluation of medical-grade bioresorbable filaments for fused deposition modelling/fused filament fabrication of tissue engineered constructs. Polymers 2018, 10, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Aquino, R.P.; Barile, S.; Grasso, A.; Saviano, M. Envisioning smart and sustainable healthcare: 3D Printing technologies for personalized medication. Futures 2018, 103, 35–50. [Google Scholar] [CrossRef]
  49. Raijada, D.; Wac, K.; Greisen, E.; Rantanen, J.; Genina, N. Integration of personalized drug delivery systems into digital health. Adv. Drug Deliv. Rev. 2021, 176, 113857. [Google Scholar] [CrossRef]
  50. Tiboni, M.; Campana, R.; Frangipani, E.; Casettari, L. 3D printed clotrimazole intravaginal ring for the treatment of recurrent vaginal candidiasis. Int. J. Pharm. 2021, 596, 6. [Google Scholar] [CrossRef] [PubMed]
  51. Grimling, B.; Karolewicz, B.; Nawrot, U.; Włodarczyk, K.; Górniak, A. Physicochemical and antifungal properties of clotrimazole in combination with high-molecular weight chitosan as a multifunctional excipient. Mar. Drugs 2020, 18, 591. [Google Scholar] [CrossRef] [PubMed]
  52. Goyanes, A.; Wang, J.; Buanz, A.; Martínez-Pacheco, R.; Telford, R.; Gaisford, S.; Basit, A.W. 3D Printing of Medicines: Engineering Novel Oral Devices with Unique Design and Drug Release Characteristics. Mol. Pharm. 2015, 12, 4077–4084. [Google Scholar] [CrossRef] [Green Version]
  53. Balla, E.D.; Bikiaris, N.D.; Nanaki, S.G.; Papoulia, C.; Chrissafis, K.; Klonos, P.A.; Kyritsis, A.; Kostoglou, M.; Zamboulis, A.; Papageorgiou, G.Z. Chloramphenicol loaded sponges based on PVA/nanocellulose nanocomposites for topical wound delivery. J. Compos. Sci. 2021, 5, 208. [Google Scholar] [CrossRef]
  54. de Souza, N.A.; De Souza, F.S.; Basílio, I.D.; Medeiros, A.C.; Oliveira, E.J.; Santos, A.F.; Macwdo, R.O.; Macędo, R.O. Thermal Stability of Metronidazole Drug and Tablets. J. Therm. Anal. Calorim. 2003, 72, 535–538. [Google Scholar] [CrossRef]
  55. De Araújo Pereira, R.R.; Bruschi, M.L. Vaginal mucoadhesive drug delivery systems. Drug Dev. Ind. Pharm. 2012, 38, 643–652. [Google Scholar] [CrossRef] [PubMed]
  56. Wójcik-Pastuszka, D.; Krzak, J.; Macikowski, B.; Berkowski, R.; Osiński, B.; Musiał, W. Evaluation of the release kinetics of a pharmacologically active substance from model intra-articular implants replacing the cruciate ligaments of the knee. Materials 2019, 12, 1202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Paulo Costa, J.M.S.L. Modeling and comparison of dissolution profiles. Eur. J. Pharm. Sci. 2001, 13, 123–133. [Google Scholar] [CrossRef]
  58. Dash, S.; Murthy, P.N.; Nath, L.; Chowdhury, P. Kinetic modeling on drug release from controlled drug delivery systems. Acta Pol. Pharm. Drug Res. 2010, 67, 217–223. [Google Scholar]
  59. Karl Malcolm, R.; Fetherston, S.M.; McCoy, C.F.; Boyd, P.; Major, I. Vaginal rings for delivery of HIV microbicides. Int. J. Women’s Health 2012, 4, 595–605. [Google Scholar] [CrossRef] [Green Version]
  60. ISO. ISO 10093-10:2010, 3rd ed.; International Standard Office: Geneva, Switzerland, 2010. [Google Scholar]
  61. Pizzoferrato, A.; Ciapetti, G.; Stea, S.; Cenni, E.; Arciola, C.R.; Granchi, D.; Savarino, L. Cell culture methods for testing biocompatibility. Clin. Mater. 1994, 15, 173–190. [Google Scholar] [CrossRef]
  62. Cirri, M.; Maestrelli, F.; Scuota, S.; Bazzucchi, V.; Mura, P. Development and microbiological evaluation of chitosan and chitosan-alginate microspheres for vaginal administration of metronidazole. Int. J. Pharm. 2021, 598, 120375. [Google Scholar] [CrossRef]
  63. Kandimalla, K.K.; Borden, E.; Omtri, R.S.; Boyapati, S.P.; Smith, M.; Lebby, K.; Mulpuru, M.; Gadde, M. Ability of Chitosan Gels to Disrupt Bacterial Biofilms and Their Applications in the Treatment of Bacterial Vaginosis. J. Pharm. Sci. 2013, 99, 2386–2398. [Google Scholar] [CrossRef]
  64. Andersen, T.; Mishchenko, E.; Flaten, G.E.; Sollid, J.U.E.; Mattsson, S.; Tho, I.; Škalko-Basnet, N. Chitosan-based nanomedicine to fight genital Candida Infections: Chitosomes. Mar. Drugs 2017, 15, 64. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Figure 1. Image of the printed samples.
Figure 1. Image of the printed samples.
Pharmaceutics 13 01714 g001
Figure 2. Image of the manufactured samples.
Figure 2. Image of the manufactured samples.
Pharmaceutics 13 01714 g002
Figure 3. Thermogravimetric (I) and heatflow (II) analysis of the TPU filament (a) and the empty vaginal ring (b). Thermal behavior was analyzed between 25 °C and 500 °C.
Figure 3. Thermogravimetric (I) and heatflow (II) analysis of the TPU filament (a) and the empty vaginal ring (b). Thermal behavior was analyzed between 25 °C and 500 °C.
Pharmaceutics 13 01714 g003
Figure 4. Thermogravimetric (I) and heatflow (II) analysis of the chloramphenicol (a) and the metronidazole (b). Thermal behavior was analyzed between 25 °C and 500 °C.
Figure 4. Thermogravimetric (I) and heatflow (II) analysis of the chloramphenicol (a) and the metronidazole (b). Thermal behavior was analyzed between 25 °C and 500 °C.
Pharmaceutics 13 01714 g004
Figure 5. Thermogravimetric (I) and heatflow (II) analysis of the chitosan (a), hydroxyethyl cellulose (b) and agar-agar (c). Thermal behavior was analyzed between 25 °C and 500 °C.
Figure 5. Thermogravimetric (I) and heatflow (II) analysis of the chitosan (a), hydroxyethyl cellulose (b) and agar-agar (c). Thermal behavior was analyzed between 25 °C and 500 °C.
Pharmaceutics 13 01714 g005
Figure 6. Contact angle values of the printed TPU samples before the dissolution test and the filled samples after the dissolution test. Data are expressed as means ± SD. Experiments were performed sixteen times, n = 16.
Figure 6. Contact angle values of the printed TPU samples before the dissolution test and the filled samples after the dissolution test. Data are expressed as means ± SD. Experiments were performed sixteen times, n = 16.
Pharmaceutics 13 01714 g006
Figure 7. Reconstructed microCT image from a vertical cut of the printed sample (a) and examined sample after the dissolution test (b). Image pixel size is 5 μm.
Figure 7. Reconstructed microCT image from a vertical cut of the printed sample (a) and examined sample after the dissolution test (b). Image pixel size is 5 μm.
Pharmaceutics 13 01714 g007
Figure 8. Reconstructed microCT image from the upper surface of the printed sample (a) and examined sample after the dissolution test (b). Image pixel size is 5 μm.
Figure 8. Reconstructed microCT image from the upper surface of the printed sample (a) and examined sample after the dissolution test (b). Image pixel size is 5 μm.
Pharmaceutics 13 01714 g008
Figure 9. Dissolved API amount (%) versus time (h) for samples jellified with chloramphenicol; mean ± SD, n = 4.
Figure 9. Dissolved API amount (%) versus time (h) for samples jellified with chloramphenicol; mean ± SD, n = 4.
Pharmaceutics 13 01714 g009
Figure 10. Dissolved API amount (%) versus time (h) for samples jellified with metronidazole; mean ± SD, n = 4.
Figure 10. Dissolved API amount (%) versus time (h) for samples jellified with metronidazole; mean ± SD, n = 4.
Pharmaceutics 13 01714 g010
Figure 11. The prolonged cytotoxicity of the 3D printed sample byTPU. MTT cell viability tests were performed on days 4, 8, and 12. Cell viability was expressed as the percentage of untreated control (Co−). As a positive control (Co+), Triton X 100 (10% w/v) was used. Data were expressed as means of four independent experiments ± SD.
Figure 11. The prolonged cytotoxicity of the 3D printed sample byTPU. MTT cell viability tests were performed on days 4, 8, and 12. Cell viability was expressed as the percentage of untreated control (Co−). As a positive control (Co+), Triton X 100 (10% w/v) was used. Data were expressed as means of four independent experiments ± SD.
Pharmaceutics 13 01714 g011
Figure 12. The logarithmical colony-forming unit (CFU)/mL in case of E. coli versus time (h) where (a) empty vaginal ring; (b) metronidazole containing vaginal ring; (c) 3 w/w% chitosan and 4 w/w% hydroxyethyl cellulose-containing vaginal ring; (d) 3 w/w% chitosan and metronidazole containing vaginal ring.
Figure 12. The logarithmical colony-forming unit (CFU)/mL in case of E. coli versus time (h) where (a) empty vaginal ring; (b) metronidazole containing vaginal ring; (c) 3 w/w% chitosan and 4 w/w% hydroxyethyl cellulose-containing vaginal ring; (d) 3 w/w% chitosan and metronidazole containing vaginal ring.
Pharmaceutics 13 01714 g012
Figure 13. The logarithmical colony-forming unit (CFU)/mL in case of C. albicans versus time (h) where (a) empty vaginal ring; (b) metronidazole containing vaginal ring; (c) 3 w/w% chitosan and 4 w/w% hydroxyethyl cellulose containing vaginal ring; (d) 3 w/w% chitosan and metronidazole containing vaginal ring.
Figure 13. The logarithmical colony-forming unit (CFU)/mL in case of C. albicans versus time (h) where (a) empty vaginal ring; (b) metronidazole containing vaginal ring; (c) 3 w/w% chitosan and 4 w/w% hydroxyethyl cellulose containing vaginal ring; (d) 3 w/w% chitosan and metronidazole containing vaginal ring.
Pharmaceutics 13 01714 g013
Table 1. Properties of the commercially available filaments.
Table 1. Properties of the commercially available filaments.
PropertiesMethodPLAPLA GypsumPLA FoamTPU
Specific gravity (g/cm3)D7921.241.251.001.2
Heat distortion temperature at 0.45 MPa (°C)D790555555106
Glass Trans. temperature (°C)D341855–6055–6055–60150–230
Tensile strength (MPa)ISO 527605453No break
Tensile modulus (MPa)ISO 527380032006040No break
Notched Izod impact (kJ/m2)ISO 180161412No break
Table 2. Properties of the 3D-printed filaments.
Table 2. Properties of the 3D-printed filaments.
PropertiesMethodPLAPLA GypsumPLA FoamTPU
Tensile strength (MPa)ISO 52731.625.020.0No break
Tensile modulus (GPa)ISO 5271.81.45.1No break
Notched Izod impact (kJ/m2)ISO 1802.62.92.2No break
Table 3. Printing characteristics of the samples.
Table 3. Printing characteristics of the samples.
Filament TypePLAPLA GypsumPLA FoamTPU
Filament Diameter (mm)1.751.751.751.75
Extruder Nozzle Diameter (µm)400400400400
Infill Percentage (%)0000
Extrusion Temperature (°C)215215215233
Bed Temperature (°C)60606065
Layer Thickness (µm)100100100100
Table 4. The samples’ average weight (g) with standard deviation (SD) and the average content uniformity (g) results with SD in case of the three different formulations containing chloramphenicol and metronidazole.
Table 4. The samples’ average weight (g) with standard deviation (SD) and the average content uniformity (g) results with SD in case of the three different formulations containing chloramphenicol and metronidazole.
Sample WeightContent Uniformity
Average (g)±SDAverage (g)±SD
2nd formulationChloramphenicol2.830.421.510.20
3rd formulation2.820.381.490.14
4th formulation2.860.241.520.23
2nd formulationMetronidazole2.810.411.520.01
3rd formulation2.840.121.480.25
4th formulation2.840.361.500.11
Table 5. The dissolved API amount (%) results at 2 h, 8 h, and 48 h can be found in the table and the other sampling time results in Appendix A, with the standard deviation results.
Table 5. The dissolved API amount (%) results at 2 h, 8 h, and 48 h can be found in the table and the other sampling time results in Appendix A, with the standard deviation results.
Sample2 h8 h48 h
Dissolved API Amount (%)±SDDissolved API Amount (%)±SDDissolved API Amount (%)±SD
Chloramphenicol2nd formulation4.791.369.761.7015.865.10
3rd formulation5.893.7714.935.4218.572.51
4th formulation0.000.000.000.002.140.92
Metronidazole2nd formulation8.761.7416.312.7934.127.97
3rd formulation39.898.8752.316.6447.987.42
4th formulation4.470.7210.113.3329.676.50
Table 6. The kinetic analysis of the dissolved samples. Drug release data were fitted to zero-order and first-order kinetic models for 0–48 h, 0–8 h, and 8–48 h.
Table 6. The kinetic analysis of the dissolved samples. Drug release data were fitted to zero-order and first-order kinetic models for 0–48 h, 0–8 h, and 8–48 h.
SampleZero-Order
Kinetics
First-Order
Kinetics
Zero-Order
Kinetics
First-Order
Kinetics
Zero-Order
Kinetics
First-Order
Kinetics
0–48 h0–48 h0–8 h0–8 h8–48 h8–48 h
Chloramphenicol2nd formulation0.8080.8060.9220.9250.1770.176
3rd formulation0.7300.7260.9670.9710.2150.214
4th formulation0.7650.7630.0000.0000.8700.871
Metronidazole2nd formulation0.9210.9440.8910.9780.9020.910
3rd formulation0.4100.3610.7960.8180.6350.632
4th formulation0.8960.8960.9500.9730.4650.473
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arany, P.; Papp, I.; Zichar, M.; Regdon, G., Jr.; Béres, M.; Szalóki, M.; Kovács, R.; Fehér, P.; Ujhelyi, Z.; Vecsernyés, M.; et al. Manufacturing and Examination of Vaginal Drug Delivery System by FDM 3D Printing. Pharmaceutics 2021, 13, 1714. https://doi.org/10.3390/pharmaceutics13101714

AMA Style

Arany P, Papp I, Zichar M, Regdon G Jr., Béres M, Szalóki M, Kovács R, Fehér P, Ujhelyi Z, Vecsernyés M, et al. Manufacturing and Examination of Vaginal Drug Delivery System by FDM 3D Printing. Pharmaceutics. 2021; 13(10):1714. https://doi.org/10.3390/pharmaceutics13101714

Chicago/Turabian Style

Arany, Petra, Ildikó Papp, Marianna Zichar, Géza Regdon, Jr., Mónika Béres, Melinda Szalóki, Renátó Kovács, Pálma Fehér, Zoltán Ujhelyi, Miklós Vecsernyés, and et al. 2021. "Manufacturing and Examination of Vaginal Drug Delivery System by FDM 3D Printing" Pharmaceutics 13, no. 10: 1714. https://doi.org/10.3390/pharmaceutics13101714

APA Style

Arany, P., Papp, I., Zichar, M., Regdon, G., Jr., Béres, M., Szalóki, M., Kovács, R., Fehér, P., Ujhelyi, Z., Vecsernyés, M., & Bácskay, I. (2021). Manufacturing and Examination of Vaginal Drug Delivery System by FDM 3D Printing. Pharmaceutics, 13(10), 1714. https://doi.org/10.3390/pharmaceutics13101714

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
