Improving the Physicochemical and Biopharmaceutical Properties of Active Pharmaceutical Ingredients Derived from Traditional Chinese Medicine through Cocrystal Engineering

by
Danyingzi Guan
1,†,
Bianfei Xuan
2,†,
Chengguang Wang
3,†,
Ruitao Long
1,
Yaqin Jiang
1,
Lina Mao
1,
Jinbing Kang
1,
Ziwen Wang
1,
Shing Fung Chow
2,* and
Qun Zhou
1,*
1
Hubei Key Laboratory of Natural Medicinal Chemistry and Resource Evaluation, School of Pharmacy, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430030, China
2
Department of Pharmacology and Pharmacy, Li Ka Shing Faculty of Medicine, The University of Hong Kong, Hong Kong, China
3
Pharmaceutical Materials Science and Engineering Laboratory, Department of Pharmaceutics, College of Pharmacy, University of Minnesota, Minneapolis, MN 55455, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceutics 2021, 13(12), 2160; https://doi.org/10.3390/pharmaceutics13122160
Submission received: 9 November 2021 / Revised: 8 December 2021 / Accepted: 10 December 2021 / Published: 15 December 2021
(This article belongs to the Special Issue Stability and Dissolution Behavior of Pharmaceutical Cocrystals)
Browse Figures
Versions Notes

Abstract

:
Active pharmaceutical ingredients (APIs) extracted and isolated from traditional Chinese medicines (TCMs) are of interest for drug development due to their wide range of biological activities. However, the overwhelming majority of APIs in TCMs (T-APIs), including flavonoids, terpenoids, alkaloids and phenolic acids, are limited by their poor physicochemical and biopharmaceutical properties, such as solubility, dissolution performance, stability and tabletability for drug development. Cocrystallization of these T-APIs with coformers offers unique advantages to modulate physicochemical properties of these drugs without compromising the therapeutic benefits by non-covalent interactions. This review provides a comprehensive overview of current challenges, applications, and future directions of T-API cocrystals, including cocrystal designs, preparation methods, modifications and corresponding mechanisms of physicochemical and biopharmaceutical properties. Moreover, a variety of studies are presented to elucidate the relationship between the crystal structures of cocrystals and their resulting properties, along with the underlying mechanism for such changes. It is believed that a comprehensive understanding of cocrystal engineering could contribute to the development of more bioactive natural compounds into new drugs.

Graphical Abstract

1. Introduction

In China, there are several thousand natural medicines available in nature for preventing and curing diseases [1]. Herbal medicines utilized under the guidance of Chinese medical theory established in ancient China are collectively termed as traditional Chinese medicines (TCMs). A large number of compounds have been extracted and isolated from TCMs, mainly being grouped as flavonoids, coumarins, alkaloids, glycosides, terpenoids, phenolic acids and lignans, etc. For example, there are at least 341 compounds extracted from the genus Lindera plants, including sesquiterpenoids, alkaloids, flavonoids, butanolides, lucidones and phenylpropanoids [2]. The majority of active pharmaceutical ingredients (APIs) of TCMs (T-APIs) exist in crystalline solids. Many of them possess a wide range of pharmacological activities, such as anti-oxidation, anti-inflammatory, anti-viral, anti-bacteria, anti-tumor and anti-malaria properties, enhancing immunity, regulating blood lipids and lowering blood sugar [3,4,5]. These T-APIs have gained increasing attention for their therapeutic effects on a variety of diseases, including cardiovascular disease, diabetes mellitus, Alzheimer’s disease, hepatic cirrhosis and cancers [3]. Thus, they are worthy of further evaluation for their underlying mechanisms in disease prevention or therapy. For example, paclitaxel, a drug derived from the bark of the Pacific yew tree, is currently used for the first-line treatment of ovarian cancer, breast cancer and non-small cell lung cancer [4,5]. Ursodeoxycholic acid exerts a good pharmacological activity in primary biliary cirrhosis. Andrographolide (AP), known as a natural antibiotic, is commonly applied in treating dysentery, bacterial and viral upper respiratory tract infections without drug resistance [6]. Artemisinin (ART) has saved millions of lives worldwide due to its excellent anti-malarial activity. Youyou Tu, a Chinese medicinal botanist, was awarded the 2015 Nobel Prize in Physiology or Medicine for her significant effort in extracting ART from Artemisia annua Linn.
Although plenty of T-APIs in the early stage of development have demonstrated good pharmacological activities, they suffer from poor physicochemical properties, such as low aqueous solubility, poor stability, high hygroscopicity and erratic bioavailability (Table 1). As a result, the overwhelming majority of T-APIs thwart their success as new chemical entities for numerous clinical indications [7]. Only less than 1% of T-APIs can be eventually commercialized [8] and documented in the latest Chinese Pharmacopoeia (CP) 2020 edition. This extremely low percentage undoubtedly causes huge economic and resource losses to drug research centers and enterprises. In addition, the therapeutic performances of existed T-APIs were not fully maximized by their poor physicochemical properties.
The physicochemical properties of an API have a direct impact on its processing, delivery and therapeutic performance [10]. Currently, various formulation strategies have been utilized to improve the drug absorption and thus bioavailability, including milling [11]; self-emulsification [12]; solid dispersion [13]; hot melt extrusion [14]; inclusion complex [15]; nanoparticles [16]; liposomal formulations [17]; chemical modifications; and formation of other crystalline solids such as salts, hydrates and polymorphs; however, there are some limitations for each strategy. For example, salt is not practical for those very weakly ionized or nonionized compounds. Some APIs such as terpenoids are also not suitable for salt formation due to pH-dependent degradation [18]. In addition, many salts exhibit strong hygroscopicity, which is prone to deliquescence or mildew upon moisture sorption, thus affecting the drug quality (e.g., vinblastine sulfate). Polymorphs and hydrates are virtually governed by the intrinsic properties of drugs, and thus their formation is not guaranteed, and it is hard to be predicted beforehand. The limitation of chemical modification is mainly from a regulatory perspective as the modified drug is considered as a new drug entity that requires extensive evaluation on safety and efficacy.
Pharmaceutical cocrystals provide a superior alternative to amorphization and formation of other crystalline solids including salts, hydrates and polymorphs (Figure 1). Unlike salts, cocrystals are applicable to non-ionized compounds [19] with more flexibility in choosing suitable coformers for cocrystallization. In contrast to amorphous solids, cocrystals can render a higher thermodynamic stability but possible to remain solubility advantage. In general, compared to solvates and polymorphs, cocrystals normally present a superior physical stability as cocrystal coformers are seldom likely to volatilize or sublimate, while it is common for solvates and polymorphs to undergo undesirable phase transformations such as desolvation or polymorphic transition. However, it is worth mentioning that some cocrystals may also exist polymorphs or solvates. In addition to the solid states mentioned above, eutectic mixtures [20] could also enhance solubility, dissolution rate and oral bioavailability of poorly water-soluble drugs [21]. From the viewpoint of thermodynamics, it is much easier to form eutectics than cocrystals, but their relatively low thermal stability and unpredictable stoichiometry may cause problems during drug development. Temperature-composition phase diagram and powder X-ray diffraction (PXRD) are useful to distinguish cocrystals from eutectics. Furthermore, cocrystals offer unique merits over other techniques to modify physicochemical properties of drugs by non-covalent interactions without altering the pharmacological properties [22]. Cocrystals are currently considered as drug product intermediates rather than new APIs or pro-drugs under the regulatory framework of the U.S. Food and Drug Administration (FDA) [23].

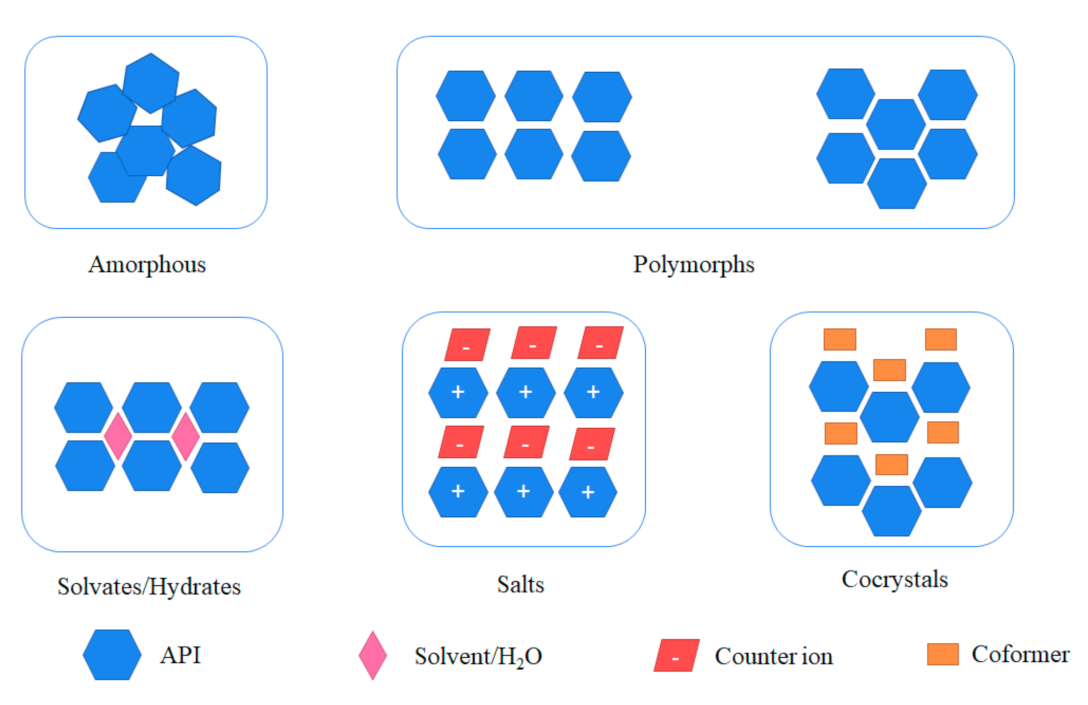

Cocrystallization can be defined as combining two or more discrete molecules together in a fixed stoichiometric ratio in a crystalline lattice via non-covalent interactions, such as hydrogen bonds, π–π interactions and halogen bonds [24]. Cocrystal engineering involves designing extensive supramolecular synthons in crystal lattice and ultimately gives rise to formation of cocrystals [22]. The primary hurdle of cocrystal screening is identification of appropriate coformers, and the trial-and-error approach is still the main strategy as knowledge of synthons cannot guarantee the formation of cocrystals [25]. In order for the screening efficiency to be improved, various strategies have emerged for cocrystal screening, such as pKa rule, Hansen solubility parameters calculation [26] and virtual screening techniques [27] (conductor-like screening model for real solvents (COSMO-RS) [28] and quantitative structure-activity/property relationships (QSAR/QSPR) [29]). In the COSMO-RS approach, the measurement of cocrystallization tendency depends on the excess enthalpy between the API-coformer mixture relative to the pure components. For example, COSMO-RS was used for the cocrystal screening of dicarboxylic acids with phenylpiperazine derivatives [30], and QSAR/QSPR descriptors were utilized for phenolic acid cocrystal screening with predicted physicochemical properties and biological activities [29]. These techniques are beneficial to the development of pharmaceutical industry for rapid cocrystal screening and thus drug development. Cocrystallization is a promising approach with great applicability and flexibility, and flexible dosing regimens are possible for T-APIs as their dosing control are less strict than drugs, allowing more flexibility in T-API cocrystallization. In particular, without altering its chemical structure and function, cocrystallization can manipulate physicochemical and biopharmaceutical properties of APIs for desired therapeutic outcomes, including solubility, dissolution rate, hygroscopicity, taste, chemical stability, tabletability and bioavailability [31]. Cocrystals hold great promise to improve the therapeutic efficacy of drugs and have a profound impact on pre-clinical research and dosage form design of drugs.
Some pharmaceutical cocrystal formulations, i.e., valproate semisodium (Depakote®), chloral betaine (Beta-Chlor®), escitalopram oxalate (Lexapro®) and caffeine citrate (Cafcit®) have been commercialized in different countries. In 2015, a drug–drug cocrystal Entresto® containing a hemi-pentahydrate form of sacubitril’s sodium salt and the disodium salt of valsartan was approved by the U.S. FDA for the treatment of heart failure. It is worth noting that the cocrystal can cut down the dosing frequency of valsartan due to a rise in the bioavailability upon cocrystallization [32].
According to the Cambridge Structural Database (CSD) 2020, the number of cocrystals involving TCM ingredients has been significantly increasing in the last decade [33]. While the modifications of pharmaceutical properties through cocrystal engineering have been extensively reported frequently, the designs and applications of T-API cocrystals are still in an early research stage without any approved TCM cocrystal in current drug market.
In this review, the pharmaceutical applications and underlying mechanisms of cocrystal engineering in manipulating physicochemical and biopharmaceutical properties of T-APIs are systematically discussed. This review also provides a collective summary and an insight of the potentials and challenges of applying cocrystal engineering into new drug development of problematic T-APIs.

2. The Physicochemical Properties of Flavonoids, Terpenoids, Alkaloids, and Phenolic Acids in T-APIs

T-APIs generally originate from Chinese traditional oral decoctions. Compared to other delivery routes, oral administration is the most common drug delivery route due to its greater convenience, lower pain, higher patient compliance and reduced risk of cross-infection, etc. [34]. Unfortunately, most of the T-APIs have poor physicochemical properties, such as low solubility, poor stability and high hygroscopicity. The physicochemical problems of the main structural types of T-APIs (flavonoids, terpenoids, alkaloids and phenolic acids) are shown in Table 1 and Table 2. Some T-APIs with poor bioavailability have to be formulated for intravenous injection, leading to some drawbacks such as high cost, inconvenience in terms of use, and some adverse reactions [35].

2.1. Flavonoids

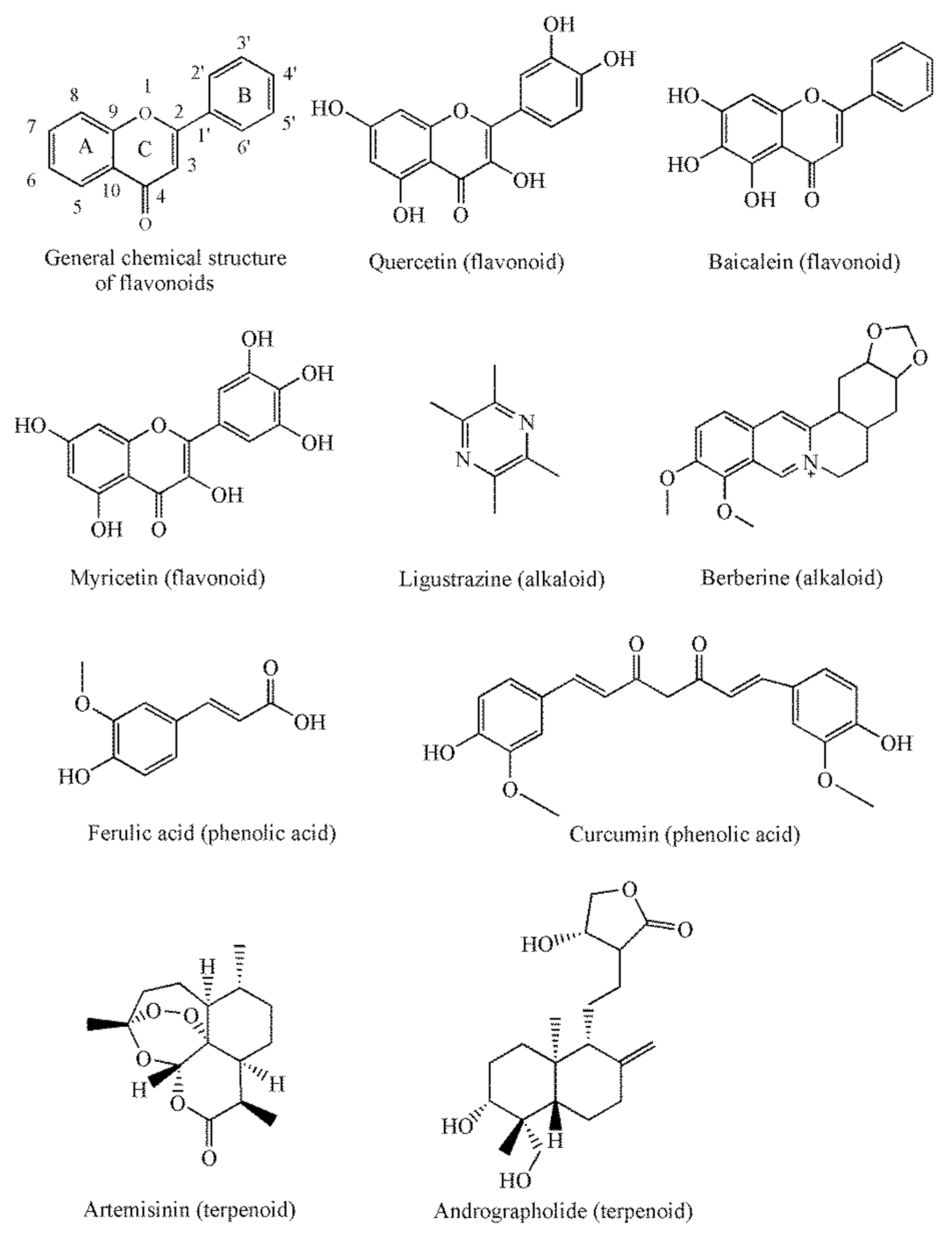

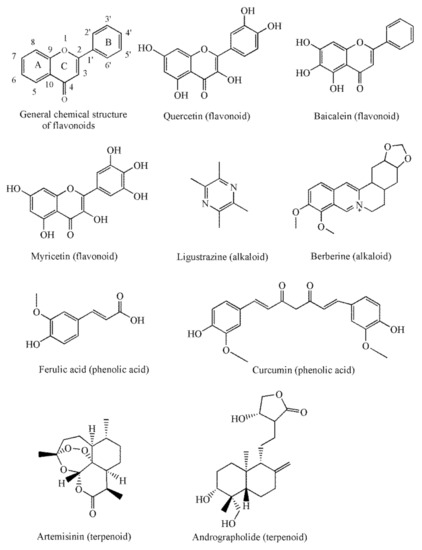

Flavonoids represent a group of natural phenolic compounds that are characterized by a phenyl benzo (γ) pyrone-derived structure consisting of two benzene rings (A and B) linked via pyrane rings (C) (Figure 2) [3]. The molecular structures of bioflavonoids contain phenolic hydroxyl groups.
The existence of carbonyl and phenolic hydroxyl groups in the flavonoid leads to the formation of intramolecular and intermolecular hydrogen bonds, which makes the molecules tightly linked [37]. In addition, π–π interaction of aromatic rings contributes to the binding of molecules, and thus flavonoids generally present a planar structure. For instance, the double bond between positions 2 and 3 of flavones and flavonols are amenable to form the planar structures, leading to tight molecular arrangement, and are consequently hard to be penetrated by solvent molecules [38,39]. This causes their low aqueous solubility and poor bioavailability. For example, baicalein (BAI), a flavonoid compound, is practically insoluble in water [40]. Myricetin, a typical flavonol with planar structure, showed only 9.62% oral bioavailability in rats, likely owing to its low aqueous solubility of 16.60 μg/mL [41]. The multiple phenolic hydroxyl groups contained in quercetin whose aqueous solubility is only 7 mg·L−1, are easy to form hydrogen bonds between molecules, exhibiting high lattice energy [42]. Therefore, solubility is an important consideration for the development of flavonoids as drugs [3].
Aside from solubility problems, flavonoids possess other disadvantages as well. For example, baicalein molecules are combined into dimers by hydrogen bonds. Their dimers are arranged in parallel and stacked together through π–π interactions, and as a result represent a very dense structure. Baicalein (BAI) is not prone to plastic deformation due to the π–π interactions, resulting in deficient tabletability.
Flavonoid hydrates and glycosides suffer from different problems than flavonoids. Some flavonoids can readily form hydrates via formation of intermolecular hydrogen bonds between their polar groups and water molecules. Hydrates adopt a more planar conformation than anhydrous forms, which allows them to pack more closely by strong π–π stacking interaction, thus resulting in a greater chemical stability in the crystal lattice [43]. Therefore, aqueous solubilities of hydrates, such as quercetin dihydrate, are lower than their anhydrous forms [43]. Although the aqueous solubilities of flavonoid glycosides are higher than that of aglycones, it is difficult for them to be absorbed passively through the small intestine. The existence of multiple hydroxyl groups in the molecular structure (such as hydrogen bonding) is the reason for the poor passive diffusion absorption [44].

2.2. Alkaloids

Alkaloids are a class of naturally occurring organic nitrogen-containing bases, which widely exist in medicinal plants. According to the structures of parent nucleus, alkaloids are mainly divided into five types, namely, isoquinoline, piperidine, scopoletin, indole and organic amine alkaloids.
Most alkaloids exhibit physicochemical problems, such as poor aqueous solubility, low bioavailability and a distinct bitter taste [45]. For instance, berberine (BB), a quaternary protoberberine isoquinoline alkaloid, is slightly soluble in water due to its strong hydrophobic functional groups, including isoquinoline, phenyl ring nucleus and oxymethyl side chain. Moreover, in vivo pharmacokinetic studies showed that the apparent permeability co-efficient cross the intestinal tissue was in the order of only 10−7 cm/s [46]. Berberine chloride (BCl), a salt form of berberine, showed temperature-dependent solubilities of 5.27 ± 0.29 and 8.50 ± 0.40 mM at 25 ℃ and 37 ℃, respectively [47]. Ligustrazine (TMP) is insoluble in cold water, and its pyrazine ring makes its structure planar [48].
In addition, some alkaloids have shown poor thermal stability or strong hygroscopicity. For example, TMP is prone to sublimate at 22 °C. Four oxygen atoms in the structure of BCl could easily interact with external water molecules as hydrogen bond acceptors and form monohydrate, dihydrate and tetrahydrate under different humidities.

2.3. Phenolic Acids

Phenolic acids have multiple phenolic hydroxyl substitutions on the benzene ring, and therefore are photosensitive and unstable. For example, some phenolic acids are prone to degradation, such as salvianolic acid B and curcumin [49]. Some phenolic acids possess low aqueous solubilities, such as olanolic acid, rhubaric acid, ferulic acid and curcumin.
Ferulic acid is one of the effective components of Ferula sinkiangensis K. M., Angelica sinensis, Ligusticum chuanxiong hort and other TCMs. Ferulic acid is soluble in hot water but slightly soluble in cold water. Two ferulic acid molecules can form carboxylic acid dimers through hydrogen bonds, and these dimer synthons are connected to each other through O–H (phenolic) ⋯O (carboxyl) hydrogen bonds to form a flat aqueous solubility sheet-like arrangement, which are further filled with π–π interactions as well as various C–H⋯O interactions between the benzene ring and the C–C region [50]. The salt form of ferulic acid, namely, sodium ferulate, shows better aqueous solubility than that of ferulic acid. However, after oral administration of sodium ferulate, it showed shorter peak time and faster elimination in humans (tmax is about 25 min, t1/2 is about 50 min), and thus multiple administration is needed to maintain the effective blood drug concentration for a period of time, which significantly hinders its clinical use.
Curcumin is a natural bioactive compound extracted from turmeric’s rhizome of the family Zingiberaceae. Curcumin, with both intramolecular and intermolecular hydrogen bonds, has a poor solubility in water (8.7 mg/L) [51]. There was a report claiming that the blood concentration of curcumin after 1 h was only 4.18 ng/mL after orally taking two soft capsules containing 70 mg curcumin in total, indicating its poor bioavailability [52].

2.4. Terpenoids

Terpenoids are the largest group, with most diverse structures derived from natural sources and widely distributed in many herbal plants. Many terpenoids have been proven to be the main active compounds in TCMs, such as artemisinin (ART), AP, ginkgolide, paeoniflorin, paclitaxel, camphor, linalool, menthol and ginsenoside.
According to isoprene numbers, terpenoids can be divided into hemi-, mono-, sesqui-, di-, tri-, tetra- and polyterpenes. In addition to the terpene forms, it also exists in the form of various oxygen-containing derivatives, such as terpene alcohols, terpene aldehydes, terpene ketones, terpenic acids, terpene esters and terpene glycosides.
Terpenoids are often structurally characterized by abundant carbon skeletons. Most terpenoids possess poor aqueous solubilities, which leads to poor drug absorption and thus low bioavailability when orally administered. On the other hand, terpenoids could easily penetrate across cell membrane due to their lipophilic properties. In general, most terpenoids are classified as biopharmaceutics classification system (BCS) class II drugs characterized by low solubility and high permeability that is rate-limiting to oral absorption [53]. It is very important to improve the solubility and oral bioavailability of poor water-soluble terpenoids and consequently increase their pharmacological efficacy. In addition, some terpenoids are sensitive to strong acid or basic conditions.
Artemisinin (ART) has some derivatives such as dihydroartemisinin, artemether and artesunate. Although famous for their excellent anti-malarial activity, their aqueous solubilities are extremely low. Aqueous solubilities of ART and 11-azartemisinin (11-AZA) were 0.0076 and 0.025 g/100 mL at 25 °C, respectively, showing their extremely low bioavailability when taken orally [54]. In addition, frequent drug administration is needed due to their rapid metabolism and short half-life [55]. ART, a sesquiterpene lactone, is an orthorhombic crystal under common conditions. Four independent ART molecules are arranged in a unit cell, and multiple unit cells are packed into regular layered network closely by non-covalent forces, resulting in its poor aqueous solubility [56]. Moreover, few polar groups and complex carbocyclic ring in ART are likely to help to decrease its aqueous solubility.
Andrographolide (AP) is a diterpene lactone compound extracted from Andrographis paniculata, showing a white square prism or flaky crystal. AP is known as a widely used natural antibiotic, while it is practically insoluble in water (3.16 ± 1.2 mg/L). Two AP molecules form an asymmetric unit by C–H⋯O hydrogen bonds [57]. Commercial AP tablets and capsules have the disadvantages of slow dissolution and onset. The structural modification compounds should solve the slow dissolution and onset problem while increasing toxic and side effects [45].

3. Design of T-API Cocrystals

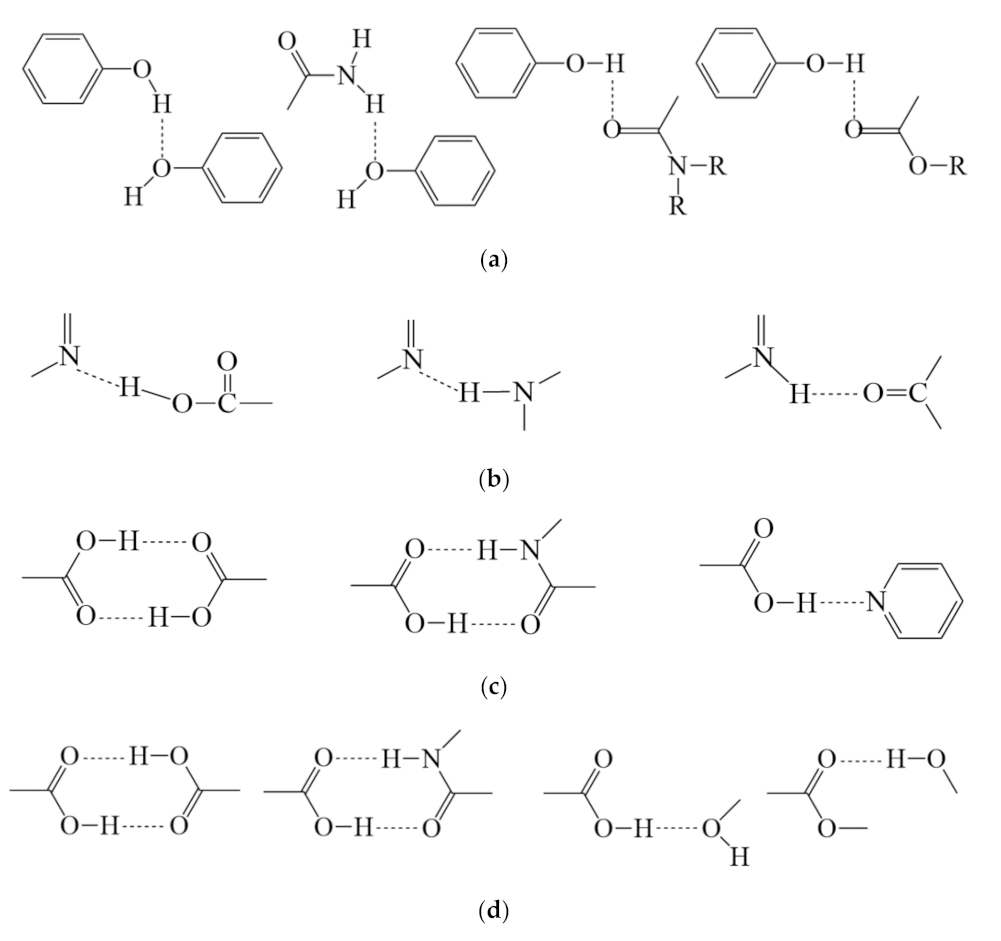

Table 3 shows the supramolecular interactions formed in the reported T-API cocrystals. From the perspective of chemical structures, alkaloids, flavonoids, phenolic acids and phenolic acids have their own characteristic carbon skeleton or landmark functional groups, such as amino, amide, hydroxy and carboxyl groups. Coformers can be selected to prepare cocrystals by forming supramolecular interactions with APIs through intermolecular recognition based on knowledge of geometries and preferred orientations of existing intermolecular interactions [58]. Synthons are the common non-covalent intermolecular interactions of specified geometries identified in the literature that make up the structural units within a supramolecular structure [58]. When an API has been selected for pharmaceutical cocrystallization, a pharmaceutically acceptable and non-toxic conformer should be chosen. This limits the selection scope of coformers within those that have been approved for consumption by humans, for example 216 pharmaceutical excipients and compounds classified as generally recognized as safe (GRAS) for use as food additives by the U.S. Department of Health and Human Services [59]. Cocrystallization of two or three APIs has also been designed as a combination product to offer potentially synergistic effects.

3.1. Flavonoids

Active hydrogens in multiple hydroxyl groups of flavonoids usually act as a hydrogen bond donor, forming hydrogen bonds with ligands of oxygen and nitrogen atoms that have lone pair electrons or conformation. The ligands of flavonoid cocrystals are mostly compounds containing amino or amide groups (e.g., nicotinamide, isonicotinamide), or hydroxyl or carboxyl groups (i.e., picolinic acid, L-proline). Typical examples of synthons are shown in Figure 3a.
Furthermore, the active hydrogen atom in the phenolic hydroxyl group of flavonoids is weakly acidic and capable of salt cocrystals formation with certain hydrochlorides or chlorides, such as berberine chloride–myricetin (BER-MYR) salt cocrystal and berberine chloride–dihydromyricetin (BER-DMY) salt cocrystal. The formation of these two cocrystals was mainly contributed by the intermolecular interaction of O–H⋯Cl– formed between myricetin and dihydromyricetin with chloride ions (Figure 4), indicating that the phenolic hydroxyl groups of flavonoids played an important role in the formation of salt cocrystals [64].
As most flavonoid glycoside compounds are highly water-soluble, their cocrystallization applications are less explored in the literature. There was only one report that claimed the successful formation of rutin–carbamide and rutin–polyethylene glycol cocrystals currently [112].

3.2. Alkaloids

The lone electron pair on the nitrogen atom in many alkaloids is able to accept protons. If some coformers containing hydroxyl and carbonyl groups have small molecular weight and space volume (especially small molecular organic acids), they can easily form N–H⋯O or other similar hydrogen bonds to obtain cocrystals. Therefore, alkaloids could serve as coformers to each other. The typical hydrogen-bonding synthon structure in alkaloid cocrystals is shown in Figure 3b. For example, in the theophylline-nicotinamide cocrystal prepared by Lu et al., the N of theophylline and the N–H of the amide bond of nicotinamide formed a strong hydrogen bond, while the C=O of nicotinamide formed a slightly weaker hydrogen bond with the H of theophylline [113]. In addition, some alkaloids contain nitrogen positive ions, which can be combined with some anions, such as chlorine ions of hydrochloric acid, to produce a charge-assisted effect to form a cocrystal salt by hydrogen bonding.

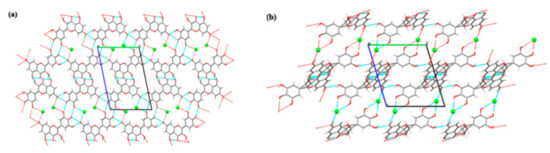

Berberine chloride (BCl) is used to form cocrystals or cocrystal salts with coformers of polybasic organic acids such as fumaric acid, citric acid, pyromellitic acid and succinic acid. In the structure of BCl-fumaric acid cocrystal, one FA molecule connects with two BCl molecules through O–H⋯Cl hydrogen bonding and π–π stacking interaction. Berberine saccharine (BbSac) and berberine acesulfame (BbAs) salt cocrystals were obtained via the anion exchange reaction [114]. Only weak C–H⋯O hydrogen bonds without classic hydrogen bonds can be found to stabilize the crystal structures of both salts. A salt cocrystal between berberine and chrysin was also reported [66]. Crystal structure analysis demonstrateed that charge-assisted strong hydrogen bonding interactions between phenolic anions and hydroxyl groups of chrysin dominated the structure. Moreover, the ring structure of berberine participated in the π–π conjugation with the chrysin C ring structure (Figure 5).

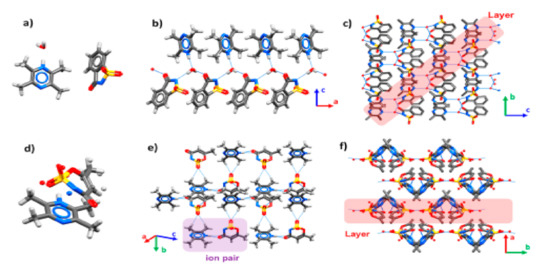

Ligustrazine–saccharine (TMP-SAC) and TMP–acesulfame (TMP-ACS) salt cocrystals were prepared by Hu et al. [31]. The active hydrogen ion (H+) on SAC was transferred to TMP in the TMP-SAC cocrystal. TMP+, SAC– and water molecule formed a long molecular chain through hydrogen bonding interactions of O–H⋯O=C, O–H⋯N– and N+–H⋯O. Adjacent chains were assembled into 2D layers along the (0–11) plane by S=O⋯H–C, and each layer was stacked to form a stable 3D structure via S=O⋯H–C. In the TMP-ACS cocrystal, the active hydrogen ion (H+) on ACS was transferred to TMP. The TMP+ and ACS– ion pairs mainly acted as charge-assisted hydrogen bonding through N–H⋯O=C. Neighboring ion pairs further interacted through S=O⋯H–C to form a planar 2D layer. These layers were stacked to form a 3D stacking structure, which was stabilized by the weak hydrogen bonds between adjacent layers. The sublimation trend of TMP-ACS was much lower than the commercial salts such as TMP phosphate monohydrate (TMP-Pho) and TMP hydrochloride dihydrate (TMP-HCl) (Figure 6).
Wang et al. obtained organic supramolecular cocrystals through combining TMP with different acid coformers, such as 1,4-cyclohexanedicarboxylic acid, 6-hydroxy-2-naphthoic acid, 2,6-pyridinedicarboxylic acid, 2,6-dihydroxybenzoic acid, 3-nitrophthalic acid, o-phthalic acid and 3-hydroxybenzoic acid [115]. These cocrystal structures were assembled without charge transfer, and composed of classic O–H⋯O, O–H⋯N, C–H⋯O and π–π stacked non-covalent interaction to form 2D or 3D supramolecular structures. Meanwhile, the classical O–H⋯N and weak C–H⋯O interacting carboxyl/pyrazine supramolecular heterozygotes R22 (6) and R22 (8), etc., participated in the construction of hydrogen-bonded supramolecular networks [115].

3.3. Formation of Cocrystals of Phenolic Acids

Phenolic acids are widely distributed in nature, especially in many common Chinese medicines, such as Lonicera japonica, Angelica sinensis, Ligusticum chuanxiong Hort and Salvia miltiorrhiza Bge. Representative compounds, such as ferulic acid, curcumin, oleanolic acid and salvianolic acid B, usually have a wide range of physiological activities, including anti-oxidant, anti-inflammatory, cardiovascular protection and anti-bacterial properties. Phenolic acids have phenolic hydroxyl groups and carboxyl groups in their structures, which are capable of forming cocrystals or salt cocrystals through hydrogen bonding, conjugation, or charge-assisted conjugation with other compounds containing carbonyl groups, hydroxyl groups and nitrogen compounds, especially some basic molecules. Figure 3c shows several examples of typical synthesizers.

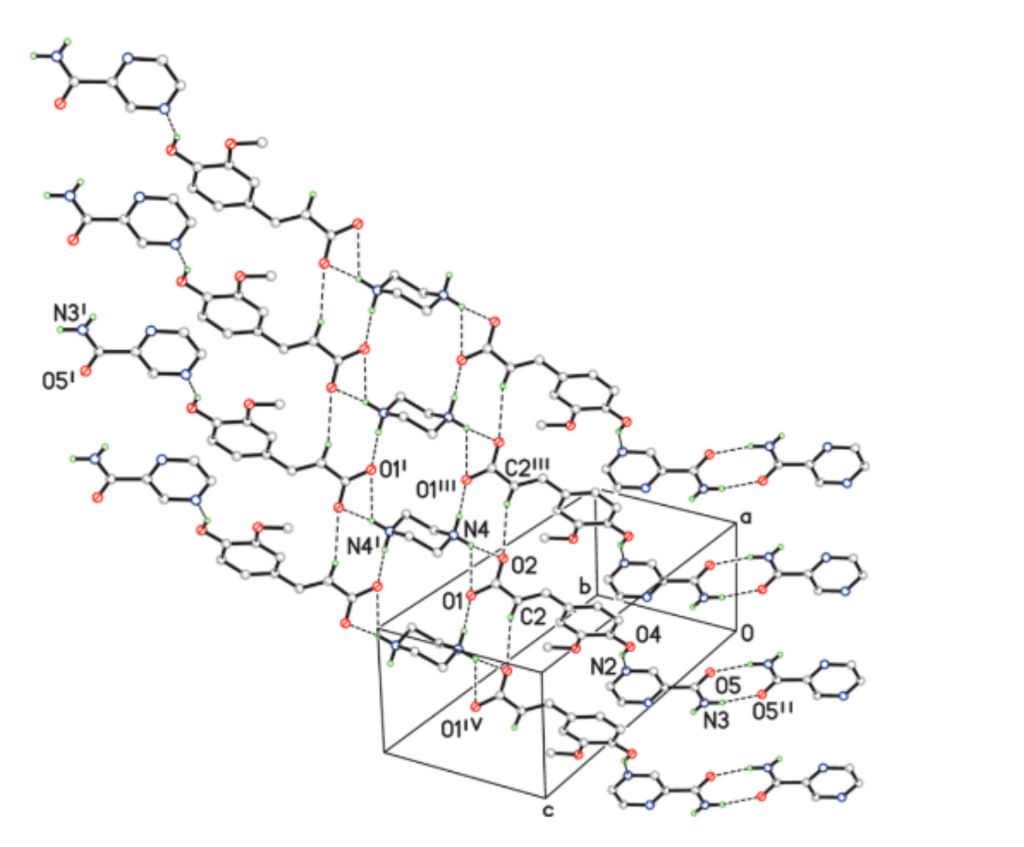

Xu et al. combined curcumin and lysine in a 1:1 stoichiometric ratio to form a cocrystal [116]. The oxygen atom in the phenolic hydroxyl group of curcumin is highly electronegative, and the surrounding steric hindrance is small. Thus, it can act as a hydrogen bond donor to attach to the guanidine group and amino group in lysine, which acts as the hydrogen bond acceptor, forming a cocrystal by O–H⋯N hydrogen bonds. Interestingly, there were two crystal forms of curcumin–lysine cocrystal. The unit cell of a-type cocrystal containing two molecules of curcumin and lysine was not linked with adjacent unit cells, and thus stacked to form spherulites. The unit cell of b-type cocrystal contained three molecules of curcumin and lysine, which was connected with adjacent unit cells through partial hydrogen bonds, thus forming ribbon-like crystals.

3.4. Terpenoids

Small molecule compounds containing carboxyl groups and hydroxyl groups are suitable coformers for the preparation of terpenoid cocrystals. These small molecules could easily access some terpenoids with large space and complex carbon skeleton and form strong O–H⋯O hydrogen bonds with the oxygen-containing functional groups of terpenoid compounds. For example, the hydroxyl groups in AP can be complementary to coformer molecules containing –C=O, –COOH and –OH functional groups, resulting in strong O–H⋯O hydrogen bonds to form cocrystals. In addition, amides or amines can also be used as coformers to form cocrystals through N–H⋯O hydrogen bonds. Some cocrystals of sesquiterpenes (i.e., artemisinin) [18], diterpenes (i.e., rographolide) and triterpenes (i.e., oleanolic acid) were reported. Figure 3d shows several examples of typical synthesizers.
ART is not appropriate for salt formation due to its lack of ionizable sites and sensitivity of the endoperoxide moiety to acidic and basic conditions [18]. Moreover, solvate is not a suitable form for ART, owning to its low stability, whereas the cocrystal form could tackle the above problems. Karki et al. prepared a 2:1 artemisinin–resorcinol (ART-RES) cocrystal and 1:1 artemisinin–orcinol (ART-ORC) cocrystals. ART-RES cocrystal formed an O–H⋯O hydrogen bond from the carbonyl group of ART and hydroxyl group of RES, constituting a trimer unit of one molecule of ART and two molecules of RES. Then, the trimer unit formed a layered structure with a certain twisted surface through extensive C–H⋯O contact network interaction. A basic unit of R22 (8) in ART-ORC cocrystal was firstly formed with a certain distortion from O–H⋯O hydrogen bond between hydroxyl of ORC and carbonyl group of ART, and then connected into molecular chains. Furthermore, C–H⋯O interactions existed between carbon atoms of ORC and bridged oxygen atoms, and the resulting tape was further assembled through interactions of C–H⋯π and C–H⋯O [18].
11-Aza-artemisinin (11-AZA) is a derivative of ART. A variety of 11-AZA cocrystals were prepared with different coformers, such as salicylic acid, benzoic acid, succinic acid and pimelic acid, exhibiting high solubility. Strong C=O⋯H–O bonds supplemented by weaker NH⋯O=C bonds form the basic unit of R22 (8), including lactams and acid hetero-molecule, in most of the 11-AZA cocrystals [54,117].

4. Preparation of Cocrystals

Compared to conventional chemical synthesis, cocrystallization could be performed under relatively mild reaction conditions. The preparation methods of cocrystals can be broadly categorized as solid-state and solution-based. Table 4 summarizes the methods reported for cocrystallization of T-APIs.
Solution cocrystallization means dissolving APIs and coformers in a certain stoichiometric ratio in a suitable solvent and subsequently removing the solvent to induce supersaturation of solutes for cocrystal formation. Solution cocrystallization consists of solvent evaporation (slow evaporation and rapid solvent removal), reaction cocrystallization, slurry and antisolvent diffusion. It relies on stronger intermolecular interactions between APIs and coformers rather than intramolecular interactions to enable cocrystal formation. For solution cocrystallization, prevention of the least soluble component from sole precipitation is needed, and choosing components with congruent solubilities could improve the phase purity of cocrystals [92]. Thus, in addition to selection of APIs and conformers, judicious selections of a solvent system, a stoichiometric ratio and crystallization temperature are also important [118]. The analysis of cocrystal structures from the CSD suggests that components with similar shapes and polarities are favorable to cocrystallize with each other [119].
Solid state grinding is a method that mixing APIs with coformers in mortar or ball mill to prepare cocrystals under mechanical power, and its mechanism depends on the molecular mobility and complementarity of APIs and coformers.
Liquid-assisted grinding refers to the addition of solvents in very small amount to a dry solid prior to the initiation of milling. The solvent has a catalytic role in assisting cocrystal formation that should persist during the grinding process. Compared with the neat method, the liquid-assisted method is more efficient in cocrystal formation. With the increase of the solvent added to the grinding medium, the kinetics of cocrystal formation tends to increase [120], but this has not been confirmed yet. The liquid component is thought to accelerate reaction kinetics by wetting the solid surface. Liquid-assisted grinding has been reported in many different forms.
Except from the supercritical fluids, aforementioned methods, high throughput crystallization and spray drying are also applied for pharmaceutical cocrystallization [121,122].
Table
Table 4. The preparation methods of T-API cocrystals.
Table 4. The preparation methods of T-API cocrystals.
Preparation MethodsDrugCo-Former
Slow evaporationBaicaleinCaffeine [123]
BerberinePhthalic acid * [65]
Curcumin2-Aminopyridine * [124],
2,5-Dihydroxybenzoic acid * [125]
RutinCarbamide [112], polyethylene glycol * [112]
PuerarinLornoxicam [86]
Ferulic acidNicotinamide [100]
Ursolic acidEthylenediamine * [107], piperazine [108]
Oleanolic acidEthylenediamine * [126],
piperazine [127]
LigustrazineSaccharine [128], febuxostat [129]
Rapid solvent removalCurcuminIsoniazid [90], hydroquinone * [91],
phloroglucinol [92]
SlurryBerberine chlorideFumaric acid [62], myricetin [64], dihydromyricetin [64]
RecrystallizationMatrineSalvianolic acid B [130]
Supercritical fluidsResveratrolCurcumin [104]
Antisolvent precipitationUrsolic acidMetformin [109], arginine [109], lysine [109], N-methylglucamine [109]
Neat grindingCurcuminTrimesic acid [95]
Solvent assisted grindingBerberine chlorideCitric acid [60], ibuprofen [61], fumaric acid [62]
LigustrazineEthinylestradiol [131]
BaicaleinNicotinamide [69]
CelastrolThreonine [132], phenylalanine [132], L-tyrosine [132]
Note: * indicates belonging to non-GARS or non-drug compounds.

5. Modifications of Physicochemical Properties of API of TCMs through Cocrystal Engineering

Physicochemical properties are crucial properties for consideration during the development of new dosage forms [22]. Cocrystals offer advantages over other techniques to modulate different physicochemical properties of drugs without altering the pharmacological properties by non-covalent interactions [22]. Herein, we summarize the applications of cocrystal engineering of T-APIs on the basis of some key physicochemical properties, such as solubility, stability, dissolution performance and bioavailability (Table 5).

5.1. Stability

Stability is the most important parameter to be studied during drug development. The drug self-life mainly depends on the physicochemical stabilities [22]. The following properties are the detailed aspects to be considered for stability testing.

5.1.1. Thermal Stability

Sublimation is a critical physical phenomenon underlying a number of important industrial processes, such as freeze drying, purification, and dye sublimation printing [31]. If APIs shows fast sublimation at ambient environments, uncontrolled loss of drug during manufacturing and storage would occur. As a result, it will lead to inaccurate dose and suboptimal therapeutic outcomes. This problem will be aggravated if there is any unit operation involving heating (e.g., drying and milling) during manufacturing. Special packaging or formulation may be required to address volatility of such drugs to maintain stability on storage. In the examination of the thermal stability, differential scanning calorimetry (DSC) and thermal gravimetric analysis (TGA) are two important techniques for capturing the change of melting points and weight loss, respectively [133]. For example, TMP will sublimate at 22 °C, and commercial TMP hydrochloride and TMP phosphate also tend to sublime readily [31]. It brings challenges for the storage of these compounds and dosage form production. TMP–acetylsulfonamide (TMP-ACS) salt cocrystal was prepared by Hu et al. to improve the thermal stability of TMP, and it exhibits a significantly reduced sublimation tendency and hygroscopicity compared to the TMP hydrochloride and phosphate salts [31].
Wang et al. reported the formation of several TMP cocrystals with improved stabilities when cocrystallizing with various coformers, including 1,4-cyclohexanedicarboxylic acid, 6-hydroxy-2-naphthoic acid, 2,6-dihydroxybenzoic acid, o-phthalic acid, 2,6-pyridinedicarboxylic acid, 3-hydroxybenzoic acid, and 3-nitrophthalic acid [115]. The sublimation temperature of these cocrystals was found to be above 100 °C, which is suitable for the actual storage environment and higher than that of TMP hydrochloride (75 °C), indicating its better thermal stability than TMP hydrochloride. For example, there was a sharp weight loss ending at 270 °C for TMP-2,6-dihydroxybenzoic acid cocrystal, 250 °C for TMP-3-hydroxybenzoic acid cocrystal and 320 °C for TMP-1,4-cyclohexanedicarboxylic acid cocrystal, respectively. All cocrystals were air stable and could retain their structural integrity at ambient conditions for a considerable length of time [115]. In addition, a literature showed that berberine–fumaric acid (BBC-FA) cocrystals highly improved the stability of BBC at high humidity and temperature. The decomposition temperature of BBC-FA cocrystal was 224.07 °C, which was higher than that of BCL dihydrate (BCD) and BCl tetrahydrate (BCT) (181.40 and 176.33 °C, respectively) [62].

5.1.2. Hygroscopicity

Berberine chloride (BCl) is an example with strong hygroscopicity. At relative humidity (RH) of 10%, BCl quickly absorbed water and obtained a weight equivalent to its dihydrate. The total weight gain at 95% RH was consistent with the expected water content in the tetrahydrate (16.3%). However, absorbed water in BCl–citric acid (BCl-CA) cocrystal reached less than 2% at 70% RH and 8% at 95% RH. Therefore, BCl-CA cocrystal was superior to BCl·2H2O in physical stability against RH changes [60]. Berberine chloride–myricetin (BER-MYR) salt cocrystal and berberine chloride–dihydromyricetin (BER-DMY) salt cocrystal showed low moisture adsorption up to 95% of relative humidity [64]. Berberine–chrysin salt cocrystal presented a low moisture adsorption, which absorbed 0.7% of water at 80% RH, and the water sorption was up to 1.6% at 95% RH. The decrease in hygroscopicity may be caused by the hydrogen bonding between the berberine molecule and its coformer, which occupied the berberine hydration site [66].
Table
Table 5. Physicochemical properties modified through pharmaceutical cocrystals.
Table 5. Physicochemical properties modified through pharmaceutical cocrystals.
Pharmaceutical ApplicationsDrugCoformer
Enhanced solubility and dissolution rateAndrographolideSalicylic acid [110]
11-Aza-artemisininBenzoic acid [54], salicylic acid [54], succinic acid [54], heptanedioic acid [54]
Baicalein Isoniazid [70], caffeine [70], isonicotinamide [70], theophylline [70], betaine [71]
Berberine chlorideFumaric acid [62], lactic acid * [63]
CelastrolThreonine [132], phenylalanine [132], L-tyrosine [12]
CurcuminResorcinol [93], phloroglucinol [92], Hydroquinone * [91]
LigustrazineSaccharine [128]
MyricetinBerberine chloride [64]
Oleanolic acidEthylenediamine [126], piperazine [127]
PuerarinLornoxicam [86]
QuercetinIsonicotinamide [7], caffeine [7], theobromine dihydrate [7], betaine [71]
Ursolic acidPiperazine [108], ethylenediamine [107]
HygroscopicityBaicaleinIsoniazid [70], isonicotinamide [70], caffeine [70]
BerberineChrysin [66]
Berberine chlorideSaccharin [114], acesulfame [114]
CurcuminResorcinol [93], pyrogallol [93]
DihydromyricetinBerberine chloride [64]
Ferulic acidIsonicotinamide [100]
MyricetinBerberine chloride [64]
Oleanolic acidEthylenediamine [126], piperazine [127]
QuercetinBetaine [71]
Ursolic acidPiperazine [108], ethylenediamine [107]
Extended release Curcumin Isoniazid [90]
Piperazine ferulatePyrazinamide [134]
Improved tabletabilityBaicaleinNicotinamide [69], caffeine [69], isoniazid [69]
Berberine chlorideSaccharine [114], acesulfame [114]
PuerarinLornoxicam [86]
Improved thermal stabilityBerberine chlorideFumaric acid [62]
LigustrazineSaccharin [31], 1,4-cyclohexanedicarboxylic acid * [115], 2,6-dihydroxybenzoic acid * [115], 2,6-pyridinedicarboxylic acid * [115], 6-hydroxy-2-naphthoic acid * [115], 3-hydroxybenzoic acid * [115]
Taste maskingBerberine chlorideSaccharin [114], acesulfame [114]
Ligustrazinesaccharine [128]
Increased Chemical stabilityAndrographolideSalicylic acid [110]
Note: * indicates belonging to non-GARS or non-drug compounds.

5.1.3. Chemical Stability

AP and AP–salicylic acid (AP-SLA) cocrystal were treated with HSO3– solution (in the presence of HSO4– and excess amount of Na2SO3) to simulate the biological transformation process [110]. Through analysis by LC–MS and NMR spectroscopy, AP was found to be converted to AP–SO3H under the action of HSO3–, while no transformation of AP–SO3H could be detected in the AP-SLA cocrystal. It was speculated that SLA possessed inhibitory effects on the chemical transformation of AP to AP–SO3H, owing to its acidic property and low pKa of the –COOH group.

5.2. Organoleptic Properties

Bitterness is one of the greatest challenges for commercialization of berberine due to a lack of patient compliance, especially in pediatric patients. Sun et al. prepared BbAs and BbSac salt cocrystals by cocrystallizing BB with the acesulfame or sweetener saccharine to alleviate the bitter taste of BB [114].
TMP also faces the same problem of bitter taste and low oral bioavailability by the commercial phosphate salt (TMP-PHO). Sun et al. tackled these problems by forming salts with two sweeteners, acesulfame (ACS) and saccharine (SAC) [128], which effectively masked the bitter taste of TMP. Moreover, both TMP-ACS and TMP-SAC cocrystals exhibited approximately 40% higher bioavailability through reducing the absorption rate of TMP. Thus, salt cocrystal formation with both sweeteners simultaneously addressed the issues brought by the bitter taste and lower bioavailability of TMP.

5.3. Solubility

In contrast to amorphous forms, cocrystals can maintain thermodynamic stability in the solid state while providing solubility advantage over a drug [58].
Hong et al. manufactured myricetin cocrystals with caffeine, isonicotinamide, nicotinamide and 4-cyanopyridine [135]. The solubility of myricetin in these cocrystal forms was increased by 3–80 times in different media, and the time required to reach the maximum concentration was reduced to 10–20 min, which greatly improved the solubility of myricetin. A variety of 11-AZA cocrystals were prepared with coformers, such as benzoic acid (BEN), salicylic acid, succinic acid and pimelic acid, exhibiting significantly higher solubility than that of 11-AZA and ART. For example, the solubility of 11-AZA-BEN cocrystal was 0.11 g/100 mL, while the solubility of 11-AZA was 0.025 g/100 mL in 25 °C water [117]. The solubility of andrographolide–salicylic acid (AP-SLA) cocrystal was 12 times higher than that of AP, and intrinsic dissolution rate (IDR) was three times higher than that of AP [110]. The equilibrium solubility of the quercetin–betaine (QUE-BTN) cocrystal in phosphate buffer pH 6.8 was about four times that of quercetin dehydrate [71].
Zhu et al. prepared cocrystals of baicalein (BAI) with isoniazid, isonicotinamide, caffeine and theophylline [70]. The amide part of these coformers can easily form medium-strength hydrogen bonds with the carbonyl and hydroxyl groups of BAI to obtain cocrystals. The in vitro dissolution experiment results exhibited that all these BAI cocrystals showed a faster dissolution rate and larger apparent solubility (Smax) than pure BAI. For example, the solubility of BAI-CAF cocrystal improved by approximately 2.5-fold and 1.5-fold in pH 2.0 and pH 4.5 buffer solutions, respectively. According to the value of AUC0−24 h, the relative bioavailability of BAI-CAF cocrystal improved by about 4.1-fold in comparison with that of crystalline BAI [70].

5.4. Dissolution Performances

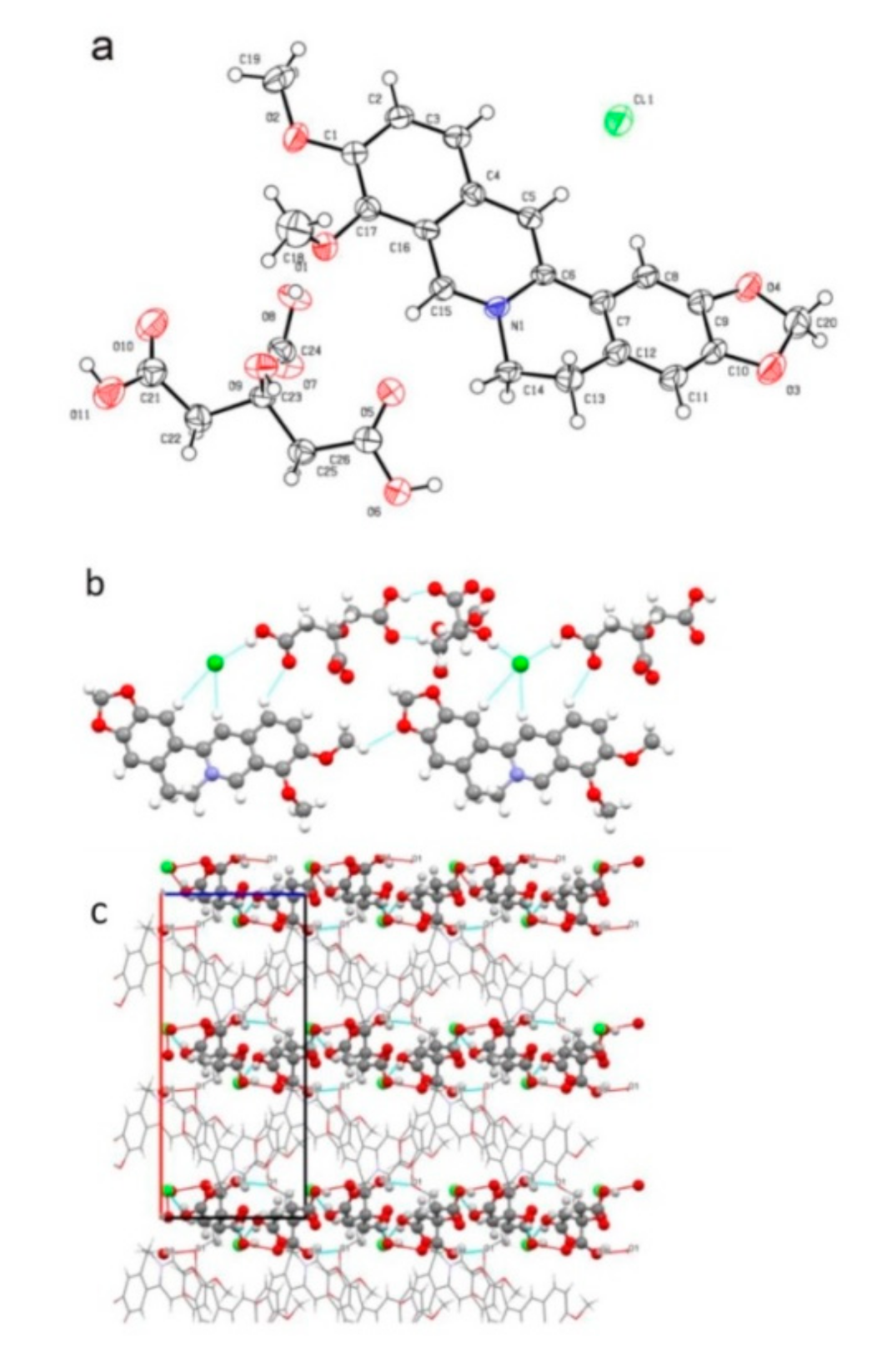

After berberine (BBC) and fumaric acid (FA) were synthesized as BBC-FA cocrystals, the dissolution and stability were significantly improved [62]. The IDR of BCD and BCT were 0.3258 and 0.3214 mg·cm−2·min−1, respectively, while the IDR of BBC-FA cocrystal was 1.0397 mg·cm−2·min−1, about threefold more than that of the two hydrates.
When curcumin forms cocrystals with nicotinamide (NAM), ferulic acid, hydroquinone (HQ), p-hydroxybenzoic acid (PHBA) and L-tartaric acid (TA), the characteristic dissolution rates of various cocrystals in 40% ethanol/water solution (V:V) at 30 °C were 10.60, 6.75, 5.64, 4.43, and 2.16 times that of curcumin, respectively [136]. The amount of dissolved curcumin after 5 h (AUC 0–5 h) was 315.1 mg·h/L for CUR, 1842.6 mg·h/L for CUR–NAM, 1256.0 mg·h/L for CUR–ferulic acid, 1059.7 mg·h/L for CUR–PHBA, 1016.5 mg·h/L for CUR–HQ and 530.7 mg·h/L for CUR–TA, respectively. High AUC value exhibited large amount of total dissolved curcumin in a given period. CUR–NAM cocrystal showed six times higher AUC and 10-fold faster IDR in comparison with curcumin.
Apart from improving dissolution performance, cocrystallization of T-APIs to achieve extended release profiles is a promising application as well. Xuan et al. successfully prepared an extended release form of a curcumin-isoniazid (CUR-INH) cocrystal [90]. This CUR-INH cocrystal could lower the dosing frequency of long-term usage of INH and alleviate its hepatotoxicity due to the hepatoprotective effect of CUR. In the pH 1.2 phosphate buffer, only 28% of INH was released from the CUR-INH cocrystal after 15 min, while INH was completely released from the physical mixture. Figure 7 shows that the extended release of INH was observed in both pH 1.2 and 6.8 buffers, lasting for 48 h and 24 h of INH release without using polymers, respectively. Xuan et al. explained the reduced dissolution rates of INH for two reasons: (1) CUR would block the solvation sites of INH to decrease its release rate, and (2) metastable CUR form III recrystallized from the buffers with varied sizes to cover the surface of CUR-INH cocrystals. In addition, Xuan et al. further studied the impact of cocrystal solution-state stability on cocrystal dissociation and polymorphic drug recrystallization during dissolution by three CUR cocrystals, confirming that stable CUR cocrystal required a higher supersaturation level than metastable CUR cocrystals due to the difference of intermolecular interactions [137]. Yu et al. have synthesized and characterized a novel sustained-release drug–drug ternary salt cocrystal of piperazine ferulate (PRZ-FLA) with pyrazinamide (PRA), which represents a nephropathy treatment drug and an anti-tuberculosis drug, respectively [134]. The inherent dissolution rates of ternary PRZ-FLA-PRA salt cocrystal in pH 1.2, 4.0, and 6.8 buffers were only 1/5–1/3 of PRZ-FLA, decreasing the fast elimination of FLA, which resolved the issues of short half-life of PRZ-FLA. In addition, it provides an optional cooperative treatment for the kidney injury complications and tuberculosis.

5.5. Bioavailability

Vasisht et al. have prepared quercetin–nicotinamide cocrystal and quercetin–picolinic acid cocrystal. The maximum solubility concentrations (Smax) of these two cocrystals in pH 7.4 phosphate buffer were 5-fold and 10-fold that of quercetin, respectively [138]. The relative bioavailability (calculated by dividing the AUCtot of the cocrystal by the AUCtot of quercetin) in rats after oral administration was more than one times higher than that of quercetin. Meanwhile, these two cocrystals showed stronger DPPH free radical scavenging effects and rat erythrocyte hemolysis inhibitory effects in vitro than quercetin, which could be explained by the fact that these cocrystals have higher solubility and bioavailability and higher effective concentration accordingly, which was reflected in the enhancement of related pharmacological activities. Smith et al. synthesized four quercetin cocrystals with better bioavailability than quercetin. Among them, the quercetin–theobromine dihydrate cocrystal exhibited the highest AUC increase, which was 10 times more than that of quercetin [7].

5.6. Tabletability

Tabletability refers to the capacity of powders to be transformed into tablets under the compaction pressure. The tablet is an attractive dosage form since it is convenient to carry, administer and identify [139]. Other advantages include precise dosage, good storage stability, potential of controlled drug release, low production cost, and options for specialized formulations. The extremely poor compaction property of some commercial solid forms of APIs, however, is one of the main challenges for successful tablet development because the expected dose is frequently higher than 200 mg. To conquer this compaction issue, a large number of excipients are normally needed in the formulation, which will inevitably make the size of the tablets unduly large [139].

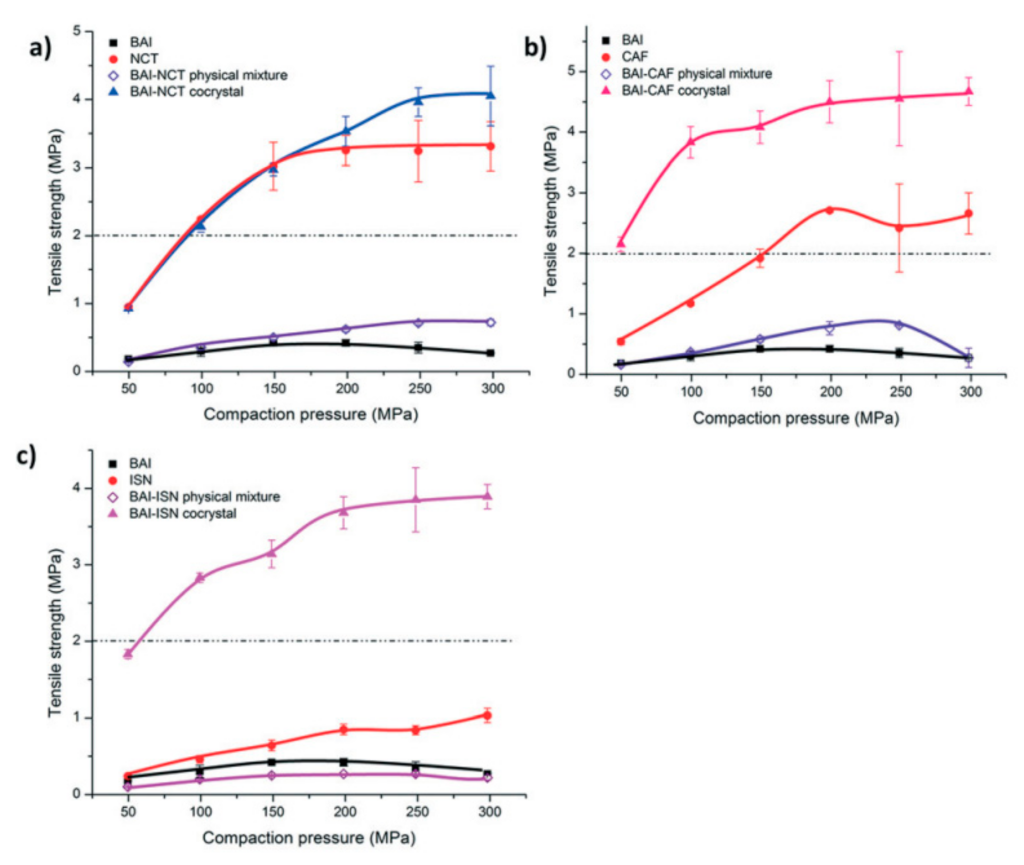

Liu et al. prepared BAI cocrystals with three coformers, nicotinamide (NCT), caffeine (CAF) and isoniazid (ISN) [69]. Surprisingly, all three cocrystals exhibited excellent tabletability (Figure 8), indicating that the tabletability of cocrystals was decoupled from that of coformers. The interaction energy between middle layers of BAI-CAF cocrystal was much lower than that of inner layer. Under the action of external force, BAI-CAF cocrystal showed plastic bending behavior and tensile strength more than several times higher than BAI, indicating better tableting property (Figure 9 and Figure 10) [69].

5.7. Others

As melting point has a correlation with aqueous solubility and vapor pressure, it is used for purity identification and characterization. It is common for a cocrystal to achieve intermediate melting point [140]. In some cases, however, a cocrystal may have a higher or lower melting point than that either of its parent components because of the significant change in crystal structure or lattice packaging. It is therefore viable to tune the melting point of a cocrystal to a required process, if appropriate cocrystal phases can be prepared for a given API.
A plenty of APIs could be served as coformers for cocrystal formation, and drug– drug cocrystal can play synergistic effects of two APIs to treat disease along with the advantage of cocrystal content more prominently. For example, berberine (BER) was made a salt cocrystal with a drug coformer MYR or DMY with similar efficacy, and both BER-MYR and BER-DMY salt cocrystals showed the synergistic anticancer effect in vitro [64]. Piperazine and TMP have circulatory improvement activities similar to ferulic acid. After administration of drug–drug cocrystal of piperazine ferulate, the mean perfusion flow of coronary artery in isolated guinea pig heart was increased by 35.83%, which was higher than that of sodium ferulate (21.7%).

6. Mechanisms for Modifications of Physicochemical Properties

6.1. Solubility

The solubility depends mainly on the solvent affinity and lattice strength. Cocrystals have the ability to improve solvent affinity and lessen lattice strength [141]. Moreover, chlorine-free acid ion can be provided by coformers to reduce common ion effect in gastric juice. Therefore, bioavailability and efficacy of a drug could be influenced by the change of its aqueous solubility.
Plenty of studies in the literature relate the solubility of cocrystals to the solubility of coformers. Coformers could affect the solvation barrier of cocrystals. This behavior is a result of a decrease in the solvation barrier for a cocrystal to an extent proportional to that of the pure API. Cocrystal solubility ratio as a function of ligand solubility for the solvent confirms that high ligand solubility equates to high cocrystal solubility [142]. Many studies have shown that some coformers with good aqueous solubility (such as nicotinamide and isonicotinamide) can significantly improve the solubility of T-APIs.
Intramolecular and intermolecular hydrogen bonds, C–H⋯π interactions, and packing interactions of T-APIs constitute the hydrophobic region of the crystal structure. The introduction of appropriate coformer molecules by cocrystal technology allows T-APIs to form new structures, spatial arrangements, and hydrophilic regions, thereby improving their water solubility. For example, the maximum solubilities of quercetin–caffeine·MeOH (QUE-CAF·MeOH) cocrystal, QUE-INM cocrystal, and QUE·2H2O were 2.018, 1.22, and 0.267 mg/mL in ethanol/water (1:1 V/V), respectively. The solubilities of the two cocrystals were several times higher than that of QUE dehydrate [7]. In the ferulic acid–TMP cocrystal, there were one TMP molecule and two ferulic acid molecules at the crystal inversion center. The O–H⋯N hydrogen bond between the molecules and the weak C–H⋯O interaction led to the formation of supramolecular network. Compared with planar structure of ferulic acid, ferulic acid–TMP cocrystal was not coplanar with the dihedral angle of 69.45(9)° between the phenyl and pyrazine ring. Such a structure change may enable the cocrystals to provide a large space gap for water molecules, thus increasing aqueous solubility of cocrystals. The ternary salt cocrystal has a formula of (PRZ2+)·(FLA–)2·(PRA) 2 revealed by single-crystal X-ray diffraction, in which the PRZ2+ and FLA– ions form a 1D chain through the strong charge-assisted hydrogen bonds with hydrogen bond N+–H⋯O–, N–H⋯O, and C–H⋯π conjugation, and then interact with neutral PRA molecules by hydrogen bonds C–H⋯O to form a supramolecular network (Figure 11). As a result, a three-dimensional hydrogen-bonding supramolecular structure was obtained. The 3D structure of the ternary cocrystal had relatively tight intermolecular bonding, resulting in a lower inherent dissolution rate than the PRZ-FLA binary cocrystal in the buffers of pH 1.2, 4.0, and 6.8, which could decline the initial concentration of PRZ-FLA [134].
APIs form cocrystals with coformers through hydrogen bonds, which could disrupt the original hydrogen bonding between API molecules. Because of the higher free energy, greater molecular mobility and weaker intermolecular interaction, cocrystals often possess high solubilities and faster dissolution rates [51]. The solubilities of the mixed cocrystal curcumin–lysine of type a and b were higher than that of curcumin. The in vitro dissolution results showed that the curcumin cocrystal powder dissolved rapidly in the pH 6.8 phosphate buffer. More than 95% of curcumin could be released from the mixed cocrystal, while the pure curcumin powder only dissolved about 40% in the dissolution buffer after five minutes [116].

6.2. Hygroscopicity

Aitipamula et al. prepared ferulic acid–isonicotinamide (FA-INA) cocrystal to lower hygroscopicity [100]. At 40 °C/75% RH, the stability of FA-INA cocrystal after three months of storage was significantly better than that of FA-INA physical mixture. The results showed that the moisture absorption rate of FA-INA cocrystal was less than 0.2% and did not convert to hydrates, indicating that the cocrystal is stable. In the asymmetric unit of the cocrystal structure, FA and INA molecules formed supramolecular amide–amide and acid–acid homozygotes, respectively. The amide–amide synthon further dimerized along the crystalline α axis and forms a chain of tetrameric units composed of INA molecules. The hydroxyl group of FA formed an O–H⋯N hydrogen bond with the pyridine N of INA and connected INA molecules to form a hydrogen bond chain (Figure 12). It was illustrated that formation of the cocrystal hydrate requires breaking of their original hydrogen bonds in anhydrous cocrystal and formation of strong hydrogen bonds, which was not possible within the time scale of a DVS experiment.
Wong et al. prepared curcumin–resorcinol and curcumin–pyrogallol cocrystals, both of which showed stability against high RH (no deliquescent under 95% relative humidity), while curcumin would obviously absorb moisture and increase weight under RH 75% [93]. The reduction of the hygroscopicity can be explained by the interaction between the phenol groups of coformers (resorcinol and pyrogallol) and the phenol groups and carbonyl groups of curcumins to form phenol–phenol intermolecular hydrogen bonds and phenol–carbonyl intermolecular hydrogen bonds. This makes it hard for the interaction between the phenolic groups in curcumin and water vapor molecules through O–H⋯O hydrogen bonds. Therefore, a stronger crystal lattice contributes to better moisture resistance.
Berberine chloride–citric acid (BCl-CA) cocrystal was advantageous over BCl·2H2O in term of physical stability against variations in RH. The crystal packing of BCl-CA cocrystal was stabilized by a dense hydrogen bond network consisting of O–H⋯Cl– and O–H⋯O intermolecular hydrogen bonds, thereby fixing berberine chloride on the CA layer. Therefore, the crystal structure of BCl-CA consisted of alternating layers of CA and BCl [60]. Each chloride ion in BCl-CA interacted with two carboxylic acid groups in adjacent CA molecules (Figure 13). These interactions must be overcome if BCl-CA cocrystal wants to bind to water molecules. A higher energy barrier can prevent BCl-CA cocrystal from moisture sorption and hydrate formation.

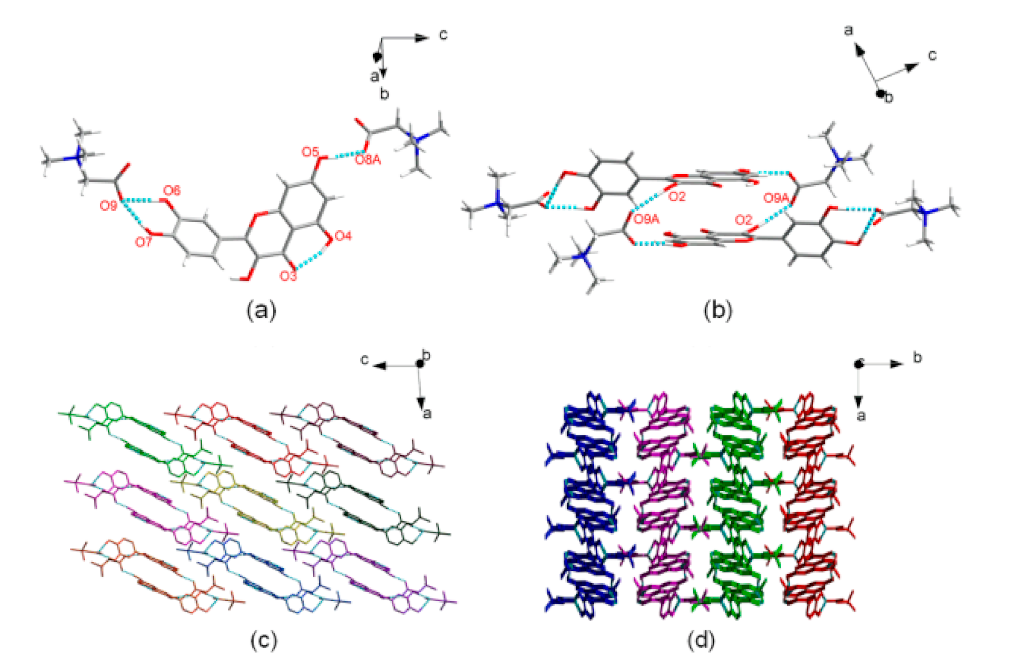

Zhang et al. made quercetin–betaine cocrystal [71], and two nonequivalent betaine (BTN) molecules formed O7–H7⋯O9, O6–H6⋯O9, O2–H2⋯O9A, and O5–H5⋯O8A interactions. This mode of interaction also resulted in a short intramolecular (O6) H6⋯H7 (O7) distance (1.94). Two asymmetric units formed an R44 (24) dimeric structure through two O2–H2⋯O9A hydrogen bonds (Figure 14b). The dimeric units were arranged in a parallel and staggered from head to tail, composing the layered structure in the ac-plane (Figure 14c). The layered and inverted structure was further packed alternately along the b axis to form a 3D arrangement of the crystal structure (Figure 14d). QUE-BTN could maintain its crystal phase when the RH was lower than 75%. It is believed that this hydrogen bonding and molecular packing of the cocrystal can prevent the combination of quercetin and external water molecules to a certain extent. Compared with the pure form of flavonoids, all cocrystals appeared to exhibit improved solubilities.

7. Conclusions and Future Perspectives

The physicochemical properties of T-APIs, such as solubility, dissolution, stability and bioavailability, play an important role in their safety and efficacy. Cocrystallization is a promising formulation strategy for resurrection of T-APIs with high therapeutic potentials but suffering from poor pharmaceutical properties. The majority groups of T-APIs used in cocrystal engineering involve flavonoids, followed by phenolic acids, and relatively few alkaloids and terpenoids, providing abundant hydrogen bond donors and acceptors for cocrystal formation. In addition, flexible dosing regimens are possible for T-APIs as their dosing control are less strict when compared to drugs, allowing more flexibility in T-API cocrystallization. At present, most studies about T-API cocrystals are still in an early preclinical stage, focusing on screening, solid state characterization, and simple pharmaceutical evaluation. However, the mechanism guiding the TCM cocrystal design, novel TCM cocrystal formulations (e.g., modified release and inhalable TCM cocrystals), and comprehensive in vitro and in vivo evaluation remains to be largely unexplored.
In addition, the long-term clinical experience of TCMs for thousands of years has shown that they have a good biocompatibility with the human body. Many T-APIs could be designed for combination therapy in the form of drug–drug or herbal–drug cocrystals to exert potentially synergistic therapeutic effects along with improving manufacturability and stability. Moreover, the abundant T-API compounds could serve as a useful database for virtual screening as many T-APIs are structurally similar.
In conclusion, the present review provides up-to-date information regarding the pharmaceutical applications of T-API cocrystals and mechanisms for modulating physicochemical properties through cocrystallization. With continuous research effort in expediting the basic theory and applications of cocrystals, it is believed that increasingly more innovative T-API cocrystals could be developed as a better treatment option for various diseases.

Author Contributions

D.G., B.X., C.W.: writing—original draft; D.G., B.X., C.W., S.F.C., Q.Z.: revision of the manuscript; D.G., B.X., R.L., Y.J., J.K.: data collection; D.G., Z.W.: data analysis; D.G., C.W., L.M., Q.Z.: graphics; S.F.C., Q.Z.: supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (grant no. 31972865) and the University of Hong Kong (grant no. 104006162) for financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

Q.Z. would like to thank the National Natural Science Foundation of China (31972865), and S.-F. C. would like to thank the University of Hong Kong (104006162) for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

11-AZA, 11-azartemisinin; ACS, acesulfame; AP, andrographolide; APIs, active pharmaceutical ingredients; ART, artemisinin; BbAs, berberine acesulfame; BB, berberine; BbSac, berberine saccharine; BCD, BCL dihydrate; BCl, berberine chloride; BCS, biopharmaceutics classification system; BCT, BCl tetrahydrate; BEN, benzoic acid; BER, berberine chloride; Beta-Chlor®, chloral betaine; BTN, betaine; CA, citric acid; CAF, caffeine; Cafcit®, caffeine citrate; CAF·MeOH, caffeine·MeOH; CSD, Cambridge Structural Database; CP, Chinese Pharmacopoeia; CUR, curcumin; Depakote®, valproate semisodium; DMY, dihydromyricetin; DSC, differential scanning calorimetry; FA, fumaric acid; FDA, Food and Drug Administration; FLA, ferulate; GRAS, generally recognized as safe; HQ, hydroquinone; IDR, intrinsic dissolution rate; INA, isonicotinamide; INH, isoniazid; ISN, isoniazid; Lexapro®, escitalopram oxalate; MYR, myricetin; NAM, nicotinamide; NCT, nicotinamide; ORC, orcinol; PHBA, p-hydroxybenzoic acid; PHO, phosphate; PRA, pyrazinamide; PRZ, piperazine; PXRD, powder X-ray diffraction; QUE, quercetin; RES, resorcinol; SAC, saccharine; SLA, salicylic acid; TA, L-tartaric acid; T-APIs, active pharmaceutical ingredients of traditional Chinese medicine; TCMs, traditional Chinese medicines; TGA, thermal gravimetric analysis; TMP, ligustrazine (tetramethylpyrazine).

References

  1. Liu, H.W. Traditional Herbal Medicine Research Methods: Identification, Analysis, Bioassay, and Pharmaceutical and Clinical Studies, 1st ed.; John Wiley and Sons Ltd.: Chichester, UK, 2011. [Google Scholar]
  2. Cao, Y.; Xuan, B.F.; Peng, B.; Li, C.; Chai, X.Y.; Tu, P.F. The genus Lindera: A source of structurally diverse molecules having pharmacological significance. Phytochem. Rev. 2016, 15, 869–906. [Google Scholar] [CrossRef]
  3. Zhao, J.; Yang, J.; Xie, Y. Improvement strategies for the oral bioavailability of poorly water-soluble flavonoids: An overview. Int. J. Pharm. 2019, 570, 118642. [Google Scholar] [CrossRef]
  4. Grazia, A.; Sabino, D.P.; Carmine, D.A. Nab-paclitaxel for the management of triple-negative metastatic breast cancer: A case study. Anti-Cancer Drugs 2015, 26, 117–122. [Google Scholar]
  5. Kumar, A.; Hoskins, P.J.; Tinker, A.V. Dose-dense paclitaxel in advanced ovarian cancer. Clin. Oncol 2015, 27, 40–47. [Google Scholar] [CrossRef]
  6. Banerjee, M.; Chattopadhyay, S.; Choudhuri, T.; Bera, R.; Mukherjee, S.K. Cytotoxicity and cell cycle arrest induced by andrographolide lead to programmed cell death of MDA-MB-231 breast cancer cell line. J. Biomed. Sci. 2016, 23, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Smith, A.J.; Kavuru, P.; Wojtas, L.; Zaworotko, M.J.; Shytle, R.D. Cocrystals of quercetin with improved solubility and oral bioavailability. Mol. Pharm. 2011, 8, 1867–1876. [Google Scholar] [CrossRef]
  8. Zhuang, C.; Xiao-Qin, M.A.; Zhu, B.L.; Chen, Q.W.; Lin, N.; Chen, Q. Progress on co-crystal of active ingredients of Chinese materia medica. Chem. Reagents 2018, 40, 943–952. [Google Scholar]
  9. Editorial Board of Chinese Materia Medica, National Administration of Traditional Chinese Medicine. Chinese Materia Medica; Shanghai Scientific and Technical Publishers: Shanghai, China, 2009. [Google Scholar]
  10. Maryam, K.J.; Luis, P.; Walker, G.M.; Croker, D.M. Creating cocrystals: A review of pharmaceutical cocrystal preparation routes and applications. Cryst. Growth Des. 2018, 18, 6370–6387. [Google Scholar]
  11. Loh, Z.H.; Samanta, A.K.; Heng, P.W.S. Overview of milling techniques for improving the solubility of poorly water-soluble drugs. Asian J. Pharm. Sci. 2015, 10, 255–274. [Google Scholar] [CrossRef] [Green Version]
  12. Gurav, N.P.; Dandagi, P.M.; Gadad, A.P.; Masthiholimath, V.S. Solubility enhancement of satranidazole using self- emulsified drug delivery systems. Indian J. Pharm. Educ. Res. 2016, 50 (Suppl. S3), 68–76. [Google Scholar]
  13. Kulthe, V.V.; Chaudhari, P.D. Solubility enhancement of etoricoxib by solid dispersions prepared by spray drying technique. Indian J. Pharm. Educ. Res. 2011, 45, 248–258. [Google Scholar]
  14. Gao, N.; Guo, M.; Fu, Q.; He, Z. Application of hot melt extrusion to enhance the dissolution and oral bioavailability of oleanolic acid. Asian J. Pharm. Sci. 2017, 12, 66–72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Atipairin, A.; Sawatdee, S. Inclusion complexes between sildenafil citrate and cyclodextrins enhance drug solubility. Asian J. Pharm. Sci. 2016, 11, 104–105. [Google Scholar] [CrossRef]
  16. Burapapadh, K.; Takeuchi, H.; Sriamornsak, P. Development of pectin nanoparticles through mechanical homogenization for dissolution enhancement of itraconazole. Asian J. Pharm. Sci. 2016, 11, 365–375. [Google Scholar] [CrossRef] [Green Version]
  17. Lankalapalli, S.; Tenneti, V.S.V.K.; Nimmali, S.K. Design and development of vancomycin Liposomes. Indian J. Pharm. Educ. Res. 2015, 49, 208–215. [Google Scholar] [CrossRef] [Green Version]
  18. Karki, S.; Friši, T.; Fábián, L.; Jones, W. New solid forms of artemisinin obtained through cocrystallisation. CrystEngComm 2010, 12, 4038–4041. [Google Scholar] [CrossRef]
  19. Childs, S.L.; Hardcastle, K.I. Cocrystals of piroxicam with carboxylic acids. Cryst. Growth Des. 2007, 7, 1291–1304. [Google Scholar] [CrossRef]
  20. Hyun, S.M.; Lee, B.J.; Abuzar, S.M.; Lee, S.; Joo, Y.; Hong, S.H.; Kang, H.; Kwon, K.A.; Velaga, S.; Hwang, S.J. Preparation, characterization, and evaluation of celecoxib eutectic mixtures with adipic acid/saccharin for improvement of wettability and dissolution rate. Int. J. Pharm. 2019, 554, 61–71. [Google Scholar] [CrossRef]
  21. Bazzo, G.G.; Pezzini, B.R.; Stulzer, H.K. Eutectic mixrtures as an approach to enhance solubility, dissolution rate and oral bioavailability of poorly water-soluble drugs. Int. J. Pharm. 2020, 588, 119741. [Google Scholar] [CrossRef]
  22. Vemuri, V.D.; Lankalapalli, S. Insight into concept and progress on pharmaceutical co-crystals: An overview. Indian J. Pharm. Educ. Res. 2019, 53, 522–538. [Google Scholar] [CrossRef] [Green Version]
  23. Douroumis, D.; Ross, S.A.; Nokhodchi, A. Advanced methodologies for cocrystal synthesis. Adv. Drug Deliv. Rev. 2017, 117, 178–195. [Google Scholar] [CrossRef] [PubMed]
  24. Aakeröy, C.B.; Salmon, D.J. Building co-crystals with molecular sense and supramolecular sensibility. CrystEngComm 2005, 7, 439–448. [Google Scholar] [CrossRef]
  25. Wong, S.N.; Chen, Y.C.S.; Xuan, B.F.; Sun, C.C.; Chow, S.F. Cocrystal engineering of pharmaceutical solids: Therapeutic potential and challenges. CrystEngComm 2021, 23, 7005–7038. [Google Scholar] [CrossRef]
  26. Mohammad, M.A.; Alhalaweh, A.; Velaga, S.P. Hansen solubility parameter as a tool to predict cocrystal formation. Int. J. Pharm. 2011, 407, 63–71. [Google Scholar] [CrossRef]
  27. Khalaji, M.; Potrzebowski, M.J.; Dudek, M.K. Virtual cocrytal screening methods as tools to understand the formation of pharmaceutical cocrystals-a case study of linezolid, a wide-range antibacterial drug. Cryst. Growth Des. 2021, 21, 2301–2314. [Google Scholar] [CrossRef]
  28. Yuan, J.C.; Liu, X.T.; Wang, S.M.; Chang, C.; Zeng, Q.; Song, Z.T.; Jin, Y.D.; Zeng, Q.; Sun, G.X.; Ruan, S.G.; et al. Virtual conformer screening by a combined machine learning and physics-based approach. CrystEngComm 2021, 23, 6039–6044. [Google Scholar] [CrossRef]
  29. Przybylek, M.; Cysewski, P. Distinguishing cocrystals from simple eutectic mixtures: Phenolic acids as potential pharmaceutical coformers. Cryst. Growth Des. 2018, 18, 3524–3534. [Google Scholar] [CrossRef]
  30. Cysewski, P. In silico screening of dicarboxylic acids for cocrystallization with phenylpiperazine derivatives based on both cocrystallization propensity and solubility advantage. J. Mol. Model. 2017, 23, 136. [Google Scholar] [CrossRef] [Green Version]
  31. Hu, S.; Wang, C.; He, X.; Sun, C.C. Reducing sublimation tendency of ligustrazine through salt formation. Cryst. Growth Des. 2020, 20, 2057–2063. [Google Scholar] [CrossRef]
  32. Roy, P.; Ghosh, A. Progress on cocrystallization of poorly soluble NME’s in the last decade. CrystEngComm 2020, 22, 6958–6974. [Google Scholar] [CrossRef]
  33. Cambridge Crystallographic Data Centre. Cambridge Structural Database. Available online: http://webcsd.ccdc.cam.ac.uk/ (accessed on 9 November 2021).
  34. Das, S.; Chaudhury, A. Recent advances in lipid nanoparticle formulations with solid matrix for oral drug delivery. AAPS PharmSciTech 2011, 12, 62–76. [Google Scholar] [CrossRef] [Green Version]
  35. Tan, L.J.; Wang, M.; Zhu, Y. Research progress of adverse reactions of traditional Chinese medicine injections. China J. Chin. Mater. Med. 2014, 39, 3889–3998. [Google Scholar]
  36. National Pharmacopoeia Commission. Pharmacopoeia of the People’s Republic of China; China Medical Science Press: Beijing, China, 2020. [Google Scholar]
  37. Sinha, A.S.; Maguire, A.R.; Lawrence, S.E. Cocrystallization of nutraceuticals. Cryst. Growth Des. 2015, 15, 984–1009. [Google Scholar] [CrossRef]
  38. Fukuhara, K.; Nakanishi, I.; Kansui, H.; Sugiyama, E.; Kimura, M.; Shimada, T.; Urano, S.; Yamaguchi, K.; Miyata, N. Enhanced radical-scavenging activity of a planar catechin analogue. J. Am. Chem. Soc. 2002, 124, 5952–5953. [Google Scholar] [CrossRef] [PubMed]
  39. Shih-Yi, C.; Lin, Y.K.; Lin, C.F.; Wang, P.W.; Chen, E.L.; Fang, J.Y. Elucidating the skin delivery of aglycone and glycoside flavonoids: How the structures affect cutaneous absorption. Nutrients 2017, 9, 1304. [Google Scholar]
  40. Zhu, B.; Wang, J.R.; Mei, X. Insight into the phase transformation among various solid forms of baicalein. Cryst. Growth Des. 2015, 15, 4959–4968. [Google Scholar] [CrossRef]
  41. Dang, Y.; Lin, G.; Xie, Y.; Duan, J.; Ma, P.; Li, G.; Ji, G. Quantitative determination of myricetin in rat plasma by ultra performance liquid chromatography tandem mass spectrometry and its absolute bioavailability. Drug Res. 2013, 64, 516–522. [Google Scholar] [CrossRef]
  42. Xiang, L.U.; Jiang, C. Research progress on cocrystal of flavonoids. Her. Med. 2019, 38, 921–926. [Google Scholar]
  43. Klitou, P.; Rosbottom, I.; Simone, E. Synthonic modeling of quercetin and its hydrates: Explaining crystallization behavior in terms of molecular conformation and crystal packing. Cryst. Growth Des. 2019, 19, 4774–4783. [Google Scholar] [CrossRef]
  44. Peng, L.; Huang, X.W.; Lv, Q.J. Advances in studies on absorption, distribution, metabolism of flavonoids. China J. Chin. Mater. Med. 2007, 32, 1961–1964. [Google Scholar]
  45. Zhou, X.B.; Wu, S.X.; Sun, M.Y.; Hu, X.R. Research progress on co-crystal of insoluble active ingredients of Chinese materia medica. Chin. Tradit. Herb. Drugs 2016, 47, 336–343. [Google Scholar]
  46. Alan, W.B.; Cormac, T.T.; David, J.B. Non-antibiotic anti-diarrhoeal drugs: Factors affecting oral bioavailability of berberine and loperamide intestinal tissue. Adv. Drug Deliv. Rev. 1997, 23, 111–120. [Google Scholar]
  47. Battu, S.K.; Repka, M.A.; Maddineni, S.; Chittiboyina, A.G.; Avery, M.A.; Majumdar, S. Physicochemical characterization of berberine chloride: A perspective in the development of a solution dosage form of oral delivery. AAPS PharmSciTech 2010, 11, 1466–1475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Cromer, D.T.; Ihde, A.J.; Ritter, H.L. The crystal structure of tetramethylpyrazine. J. Am. Chem. Soc. 1951, 73, 5587–5590. [Google Scholar] [CrossRef]
  49. Zhou, L.; Zhang, X.; Xu, W.; Ma, X.; Zhen, J.; Zheng, Y.; You, S. Studies on the stability of salvianolic acid B as potential drug material. Phytochem. Anal. 2011, 22, 378–384. [Google Scholar] [CrossRef]
  50. Thomas, S.P.; Pavan, M.S.; Guru Row, T.N. Charge density analysis of ferulic acid: Robustness of a trifurcated C-H·O hydrogen bond. Cryst. Growth Des. 2012, 12, 6083–6091. [Google Scholar] [CrossRef]
  51. Cheng, G.L.; Deng, C.Y.; Jiang, C.J. Research progress on co-crystal of curcumin. Zhejiang Chem. Ind. 2017, 48, 12–17. [Google Scholar]
  52. Dai, B.; Zhang, H.; Dai, T.; Wang, J.; Cao, J. Determination of drug concentration in human plasma of Jiangzhi Tongluo soft capsule. Asia-Pac. Tradit. Med. 2018, 14, 63–66. [Google Scholar]
  53. Nan-Nan, L.I.; Lao, Y.S.; Dong, Z.Q. Advances in research on BCS classication of active constituents of Chinese wolfberry. World Latest Med. Inf. 2019, 19, 56–58. [Google Scholar]
  54. Nisar, M.; Wong, L.-Y.; Sung, H.-Y.; Haynes, R.K.; Williams, I.D. Cocrystals of the antimalarial drug 11-azaartemisinin with three alkenoic acids of 1:1 or 2:1 stoichiometry. Acta Cryst. 2018, 74, 742–751. [Google Scholar] [CrossRef]
  55. Zhang, D.; Wang, M.Y.; Yang, L. Progress in new formulation studies of artemisinins. Chin. Pharm. J. 2015, 50, 189–193. [Google Scholar]
  56. Chan, K. Polymorphism of artemisinin from Artemisia annua. Phytochemistry 1997, 46, 1209–1214. [Google Scholar]
  57. Huang, L.H.; Xu, H.W.; Liu, G.Z.; Dai, G.F.; Liu, H.M. Synthesis, crystal structure and glucosidase inhibitory activities of (8R,13R)-8,12,13,17-tetrahydroandrographolide. Chin. Pharm. J. 2007, 7, 1304–1306. [Google Scholar]
  58. Kuminek, G.; Cao, F.; Alanny, B.; Cardoso, S.G.A.; Rodríguez-Hornedo, N. Cocrystals to facilitate delivery of poorly soluble compounds beyond-rule-of-5. Adv. Drug Deliv. Rev. 2016, 101, 143–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Blagden, N.; Matas, M.; Gavan, P.T.; York, P. Crystal engineering of active pharmaceutical ingredients to improve solubility and dissolution rates. Adv. Drug Deliv. Rev. 2007, 59, 617–630. [Google Scholar] [CrossRef] [PubMed]
  60. Lu, Q.; Dun, J.; Chen, J.M.; Liu, S.; Sun, C.C. Improving solid-state properties of berberine chloride through forming a salt cocrystal with citric acid. Int. J. Pharm. 2019, 554, 14–20. [Google Scholar] [PubMed]
  61. Cao, J.; Du, G.; Yang, L.; Yang, S.; Zhao, X. Berberine Hydrochloride and Ibuprofen Eutectic Substance as Well as Preparation Method, Composition and Application Thereof. Patent CN110041325A, 23 July 2019. [Google Scholar]
  62. Yang, D.; Cao, J.; Jiao, L.; Yang, S.; Du, G. Solubility and stability advantages of a new cocrystal of berberine chloride with fumaric acid. ACS Omega 2020, 5, 8283–8292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Liu, S.; Lu, Q. Berberine Hydrochloride and Lactic Acid Eutectic, and Preparation Method and Application Thereof. Patent CN109400598A, 1 March 2019. [Google Scholar]
  64. Li, P.; Ramaiah, T.; Zhang, M.; Zhang, Y.; Lou, B. Two cocrystals of berberine chloride with myricetin and dihydromyricetin: Crystal structures, characterization, and antitumor activities. Cryst. Growth Des. 2019, 20, 157–166. [Google Scholar] [CrossRef]
  65. Liu, L.; Liu, Y.; Zhang, Y. Berberine-Phthalic Acid Medicine Salt Single Crystal and Preparation Method Thereof. Patent CN 109081839 A, 18 September 2018. [Google Scholar]
  66. Rongjian, S.; Yanjie, Z.; Yanping, D.; Yali, H.; Mei, Z.; Benyong, L. Novel salt cocrystal of chrysin with berberine: Preparation, characterization, and oral bioavailability. Cryst. Growth Des. 2018, 18, 4724–4730. [Google Scholar]
  67. Ren, S.Y.; Jiao, L.T.; Yang, S.Y.; Zhang, L.; Song, J.K.; Yu, H.Y.; Wang, J.R.; Lv, T.T.; Sun, L.; Lu, Y.; et al. A novel co-crystal of bexarotene and ligustrazine improves pharmacokinetics and tissue distribution of bexarotene in SD rats. Pharmaceutics 2020, 12, 906. [Google Scholar] [CrossRef]
  68. Ma, X.Q.; Zhuang, C.; Wang, B.C.; Huang, Y.F.; Chen, Q.; Lin, N. Cocrystal of apigenin with higher soubility, enhanced oral bioavilability and anti-inflammatory effect. Cryst. Growth Des. 2019, 19, 5531–5537. [Google Scholar] [CrossRef]
  69. Liu, L.; Wang, C.; Dun, J.; Chow, A.; Sun, C.C. Lack of dependence of mechanical properties of baicalein cocrystals on those of the constituent components. CrystEngComm 2018, 20, 5486–5489. [Google Scholar] [CrossRef]
  70. Zhu, B.; Zhang, Q.; Wang, J.R.; Mei, X. Cocrystals of baicalein with higher solubility and enhanced bioavailability. Cryst. Growth Des. 2017, 17, 1893–1901. [Google Scholar] [CrossRef]
  71. Zhang, Z.; Li, D.; Luo, C.; Huang, C.; Zhang, H. Cocrystals of natural products: Improving the dissolution performance of flavonoids using betaine. Cryst. Growth Des. 2019, 19, 3851–3859. [Google Scholar] [CrossRef]
  72. Chadha, R.; Bhalla, Y.; Nandan, A.; Chadha, K.; Karan, M. Chrysin cocrystal: Characterization and evaluation. J. Pharm. Biomed. Anal. 2017, 134, 361–371. [Google Scholar] [CrossRef]
  73. Liu, L.; Li, Y.G.; Zhang, M.; Zhang, Y.J.; Lou, B.Y. A drug-drug cocrystal of dihydromyricetin and pentoxifylline. J. Pharm Sci. 2021, in press. [Google Scholar] [CrossRef] [PubMed]
  74. Wang, C.G.; Tong, Q.; Hou, X.L.; Hu, S.Y.; Fang, J.G.; Sun, C.Q. Enhancing bioavailability of dihydromyricetin through inhibiting precipitation of soluble cocrystals by a crystallization inhibitor. Cryst. Growth Des. 2016, 16, 5030–5039. [Google Scholar] [CrossRef]
  75. Sowa, M.; Slepokura, K.; Matczk-Jon, E. Cocrystals of fisetin, luteolin and genistein with pyridinecarboxamide coformers: Crystal structures, analysis of intermolecular interactions, spectral and thermal characterization. CrystEngComm 2013, 15, 7696–7708. [Google Scholar] [CrossRef]
  76. Sowa, M.; Slepokura, K.; Matczak-Jon, E. A 1:2 cocrystal of genistein with isonicotinamide: Crystal structure and Hirshfeld surface analysis. Acta Crystallogr C 2013, 69, 1267–1272. [Google Scholar] [CrossRef]
  77. Zhang, Y.N.; Yin, H.M.; Zhang, Y.; Zhang, D.J.; Su, X.; Kuang, H.X. Preparation of a 1:1 cocrystal of genistein with 4,4’-bipyridine. J. Cryst. Growth 2017, 458, 103–109. [Google Scholar] [CrossRef]
  78. Sowa, M.; Slepokura, K.; Matczak-Jon, E. Solid-state characterization and solubility of a genistein-caffeine cocrystal. J. Mol. Struct. 2014, 1076, 80–88. [Google Scholar] [CrossRef]
  79. Chadha, K.; Karan, M.; Bhalla, Y.; Chadha, R.; Khullar, S.; Mandal, S.; Vasisht, K. Cocrystals of hesperetin: Structural, pharmacokinetic, and pharmacodynamic evaluation. Cryst. Growth Des. 2017, 17, 2386–2405. [Google Scholar] [CrossRef]
  80. Wang, J.; Dai, X.L.; Lu, T.B.; Chen, J.M. Temozolomide-hesperetin drug-drug cocrystal with optimized performance in stability, dissolution, and tabletability. Cryst. Growth Des. 2021, 21, 838–846. [Google Scholar]
  81. Zhang, Y.N.; Yin, H.M.; Zhang, Y.; Zhang, D.J.; Su, X.; Kuang, H.X. Cocrystals of keampferol, quercetin and myricetin with 4’4-bipyridine: Crystal structures, analysese of intermolecular interactions and antibacterial properties. J. Mol. Struct. 2017, 1130, 199–207. [Google Scholar] [CrossRef]
  82. Xiao, Y.T.; Zhou, L.; Hao, H.X.; Bao, Y.; Yin, Q.X.; Xie, C. Cocrystals of propylthiouracil and nutraceuticals toward sustained-release: Design, structure analysis, and solid-state characterization. Cryst. Grwoth Des. 2021, 21, 1202–1217. [Google Scholar] [CrossRef]
  83. Khandavilli, U.B.R.; Skorepova, E.; Sinha, A.S.; Bhogala, B.R.; Maguire, N.M.; Maguire, A.R.; Lawrence, S.E. Cocrsytals and a salt of the bioactive flavonoid: Naringenin. Cryst. Growth Des. 2018, 18, 4571–4577. [Google Scholar] [CrossRef]
  84. Luo, C.; Liang, W.D.; Chen, X.; Wang, J.M.; Deng, Z.W.; Zhang, H.L. Pharmaceutical cocrystals of naringenin with improved dissolution performance. CrystEngComm 2018, 20, 3025–3033. [Google Scholar] [CrossRef]
  85. Zhou, F.Y.; Zhou, J.L.; Zhang, H.L.; Tong, H.Y.; Nie, J.J.; Li, L.; Zhang, Y.Y.; Du, J.; Ma, A.; Yang, X.M.; et al. Structure determination and in vitro/vivo study on carbamazepine-naringenin (1:1) cocrystal. J. Drug Deliv. Sci. Technol. 2019, 54, 101244. [Google Scholar] [CrossRef]
  86. Cheng, R.; Gao, Y.; Hua, Y.; Luo, M.; Xue, Y.; Zhang, J.; Zhu, H. Lornoxicam and Puerarin Eutectic Crystal and Preparation Method Thereof. Patent CN111004256A, 14 April 2020. [Google Scholar]
  87. Liu, F.; Wang, L.Y.; Yu, M.C.; Li, Y.T.; Wu, Z.Y.; Yan, C.W. A new cocrystal of isoniazid-quercetin with hepatoprotective effect: The design, structure, and in vitro/in vivo performance evaluation. Eur. J. Pharm. Sci. 2020, 144, 105216. [Google Scholar] [CrossRef] [PubMed]
  88. Wu, N.; Zhang, Y.; Ren, J.; Zeng, A.G.; Liu, J.T. Preparation of quercetin-nicotinamide cocrystals and their evaluation under in vivo and in vitro conditions. RSC Adv. 2020, 10, 21852–21859. [Google Scholar] [CrossRef]
  89. Veverka, M.; Dubaj, T.; Gallovic, J.; Jorik, V.; Veverkova, E.; Danihelova, M.; Simon, P. Cocrystals of quercetin: Synthesis, characterization, and screening of biological activity. Monatsh. Chem. Chem. Mon. 2015, 146, 99–109. [Google Scholar] [CrossRef]
  90. Xuan, B.; Wong, S.; Zhang, Y.; Weng, J.; Tong, H.; Wang, C.; Sun, C.; Chow, S. Extended release of highly water soluble isoniazid attained through cocrystallization with curcumin. Cryst. Growth Des. 2020, 20, 1951–1960. [Google Scholar] [CrossRef]
  91. Nga, W.S.; Hu, S.; Wing, N.W.; Xu, X.; Lun, L.K.; Thomas, L.; Lum, C.; Sun, C.C.; Fung, C.S. Cocrystallization of curcumin with benzenediols and benzenetriols via rapid solvent removal. Cryst. Growth Des. 2018, 18, 5534–5546. [Google Scholar]
  92. Chow, S.F.; Shi, L.; Ng, W.W.; Leung, K.; Nagapudi, K.; Sun, C.; Chow, A. Kinetic entrapment of a hidden curcumin cocrystal with phloroglucinol. Cryst. Growth Des. 2014, 14, 5079–5089. [Google Scholar] [CrossRef]
  93. Sanphui, P.; Goud, N.R.; Khandavilli, U.B.R.; Nangia, A. Fast dissolving curcumin cocrystals. Cryst. Growth Des. 2011, 11, 4135–4145. [Google Scholar] [CrossRef]
  94. Pantwalawalkar, J.; More, H.; Bhange, D.; Patil, U.; Jadhav, N. Novel curcumin ascorbic acid cocrystal for improved solubility. J. Drug Deliv. Sci. Technol. 2021, 61, 102233. [Google Scholar] [CrossRef]
  95. Sathisaran, I.; Bhatia, D.D.; Dalvi, S.V. New curcumin-trimesic acid cocrystal and anti-invasion activity of curcumin multicomponent solids against 3D tumor models. Int. J. Pharm. 2020, 587, 119667. [Google Scholar] [CrossRef]
  96. Zheng, K.; Li, A.; Wu, W.W.; Qian, S.S.; Liu, B.H.; Pang, Q.X. Preparation, characterization, in vitro and in vivo evaluation of metronidazole-gallic acid cocrystal: A combined experimental and theoretical investigation. J. Mol. Struct. 2019, 1197, 727–735. [Google Scholar] [CrossRef]
  97. Song, J.X.; Chen, J.M.; Lu, T.B. Lenalidomide-gallic acid cocrystals with constant high solubility. Cryst. Growth Des. 2015, 15, 4869–4875. [Google Scholar] [CrossRef]
  98. Kaur, R.; Perumal., S.S.R.R.; Bhattacharyya, A.J.; Yashonath, S.; Row, T.N.G. Structural insights into proton conduction in gallic acid-isoniazid cocrystals. Cryst. Growth Des. 2014, 14, 423–426. [Google Scholar] [CrossRef]
  99. Al-Otaibi, J.S.; Mary, Y.S.; Mary, Y.S.; Panicker, C.Y.; Thomas., R. Cocrystals of pyrazinamide with p-tolunesulfonic and ferulic acids: DFT investigations and molecular docking studies. J. Mol. Struct. 2019, 1175, 916–926. [Google Scholar] [CrossRef]
  100. Aitipamula, S.; Das, S. Cocrystal Formulations: A case study of topical formulations consisting of ferulic acid cocrystals. Eur. J. Pharm. Biopharm. 2020, 149, 95–104. [Google Scholar] [CrossRef] [PubMed]
  101. Fadipe, V.O.; Haruna, M.S.; Opoku, A.R. Isoniazid-oleanolic acid co-crystal system: Synthesis, anti-TB and toxicological effect on the human embryonic kidney (HEK293) and human hepatocellular carcinoma (HepG2) cell lines. J. Nanometer. Mol. NanoTechnol. 2019, 8, 31. [Google Scholar] [CrossRef]
  102. Bofill, L.; Barbas, R.; Sande, D.; Font-Bardia, M.; Rafols, C.; Alberti, J.; Prohens, R. A novel, extremely bioavailable cocrystal of pterostilbene. Cryst. Growth Des. 2021, 21, 2315–2323. [Google Scholar] [CrossRef]
  103. Schultheiss, N.; Bethune, S.; Henck, J.O. Nutraceutical cocrystals: Utilizing pterostilbene as a cocrystal former. CrystEngComm 2010, 12, 2436–2442. [Google Scholar] [CrossRef]
  104. Magro., C.D.; Santos, A.E.; Ribas, M.M.; Aguiar, G.P.S.; Volfe, G.R.B.; Lopes, M.; Siebel, A.M.; Muller, L.G.; Bortoluzzi, A.J.; Lanza, M.; et al. Production of curcumin-resveratrol cocrystal using cocrystallization with supercritical solvent. J. Supercrit. Fluids 2021, 171, 105190. [Google Scholar] [CrossRef]
  105. Rosa, J.; Machado, T.C.; Silva, A.K.; Kuminek, G.; Bortolluzzi, A.J.; Caon, T.; Cardoso, S.G. Isoniazid-resveratrol cocrystal: A novel alternative for topical treatment of cutaneous tuberculosis. Cryst. Growth Des. 2019, 19, 5029–5036. [Google Scholar] [CrossRef]
  106. Zhou, Z.Z.; Li, W.Y.; Sun, W.J.; Lu, T.B.; Tong, H.; Sun, C.C.; Zheng, Y. Resveratrol cocrystals with enhanced solubility and tabletability. Int. J. Pharm. 2016, 509, 391–399. [Google Scholar] [CrossRef] [PubMed]
  107. Shi, B.; Zhang, Z. Ursolate as Well as Preparation Method and Crystal Thereof. Patent CN102241723A, 12 November 2011. [Google Scholar]
  108. Shi, B.; Zhang, Z. Ursolic acid Salt, Preparation Method Thereof, and Crystal Thereof. Patent CN102234304A, 9 November 2011. [Google Scholar]
  109. Mylari, B.L.; Fleming, G.A. Ursolic Acid Salts for Treating Diabetes and Obesity. U.S. Patent Application No 13/864,509, 23 January 2014. [Google Scholar]
  110. Suresh, K.; Goud, N.R.; Nangia, A. Andrographolide: Solving chemical instability and poor solubility by means of cocrystals. Chem. Asian J. 2013, 8, 3032–3041. [Google Scholar] [CrossRef] [PubMed]
  111. Setyawan, D.; Sari, R.; Yusuf, H.; Primaharinastiti, R. Preparation and characterization of artesunate-nicotinamide cocrystal by solvent evaporation and slurry method. Asian J. Pharm. Clin. Res. 2014, 7, 62–65. [Google Scholar]
  112. Ni, G.; Wang, H.; Ren, H. Water-Solubility Rutoside and Method of Manufacturing the Same and Oral Preparation. Patent CN101108193 A, 23 January 2008. [Google Scholar]
  113. Jie, L.; Rohani, S. Preparation and characterization of theophylline—Nicotinamide cocrystal. Org. Process Res. Dev. 2009, 13, 1269–1275. [Google Scholar]
  114. Wang, C.; Perumalla, R.S.; Lu, R.; Fang, J.; Sun, C.C. Sweet berberine. Cryst. Growth Des. 2016, 16, 933–939. [Google Scholar]
  115. Wang, L.; Xue, R.; Li, Y.; Zhao, Y.; Liu, F.; Huang, K. Hydrogen-bonding patterns in a series of multi-component molecular solids formed by 2,3,5,6-tetramethylpyrazine with selected carboxylic acids. CrystEngComm 2014, 16, 7074–7089. [Google Scholar] [CrossRef]
  116. Hui, X.; Zhang, F.; Chi, Z.; Cai, B. Preparation of curcumin-lysine cocrystal and solubility comparison of different crystal forms. China Pharm. 2017, 20, 208–212. [Google Scholar]
  117. Madiha, N.; Sung, H.H.-Y.; Horst, P.; Richard, L. 11-Azaartemisinin cocrystals with preserved lactam: Acid heterosynthons. CrystEngComm 2018, 20, 1205–1219. [Google Scholar]
  118. Wong, S.N.; Chan, S.W.S.; Peng, X.X.; Xuan, B.F.; Lee, H.W.; Tong, H.H.Y.; Chow, S.F. Effects of the glass-forming ability and annealing conditions on cocrystallization behaviors via rapid solvent removal: A case study of voriconazole. Pharmaceutics 2020, 12, 1209. [Google Scholar] [CrossRef]
  119. Cambridge structural database analysis of molecular complementarity in cocrystals. Cryst. Growth Des. 2009, 9, 1436–1443. [CrossRef]
  120. Padrela, L.; Azevedo, E.D.; Velaga, S.P. Powder X-ray diffraction method for the quantification of cocrystals in the crystallization mixture. Drug Dev. Ind. Pharm. 2012, 38, 923–929. [Google Scholar] [CrossRef]
  121. Thakuria, R.; Delori, A.; Jones, W.; Lipert, M.P.; Roy, L.; Rodríguez-Hornedo, N. Pharmaceutical cocrystals and poorly soluble drugs. Int. J. Pharm. 2013, 453, 101–125. [Google Scholar] [CrossRef]
  122. Weng, J.W.; Wong, S.N.; Xu, X.Y.; Xuan, B.F.; Wang, C.G.; Chen, R.P.; Sun, C.C.; Lakerveld, R.; Kwok, P.C.L.; Chow, S.F. Cocrystal engineering of itraconazole with suberic acid via rotary evaporation and spray drying. Cryst. Growth Des. 2019, 19, 2736–2745. [Google Scholar]
  123. Mei, X.; Wang, J.; Zhu, B.; Zhu, L. Baicalein Caffeine Eutectic Crystal, Preparation Method Therefor, Pharmaceutical Composition, and Application Thereof. Patent WO2017076169A1, 11 May 2017. [Google Scholar]
  124. Jin, Q.; Li, J.; Liu, X.; Pan, R.; Zheng, H. Curcumin-2-Aminopyridine Eutectic Crystal and Preparation Method Thereof. Patent CN107721916A, 23 February 2018. [Google Scholar]
  125. Jin, Q.; Li, J.; Liu, X.; Pan, R.; Zheng, H. Curcumin-2,5-Dihydroxy-Benzoic Acid Eutectic Crystal and Preparation Method Thereof. Patent CN107827724A, 23 March 2018. [Google Scholar]
  126. Shi, B.; Zhang, Z. Oleanolic Acid Salt and its Preparation Method and Crystal. Patent CN102241724A, 16 November 2011. [Google Scholar]
  127. Shi, B.; Li, Y. Oleanolic Acid Piperazine Salt and Preparation Method Thereof. Patent CN101987863A, 23 March 2011. [Google Scholar]
  128. Zhao, X.; Li, Q.; Wang, C.; Hu, S.; He, X.; Sun, C.C. Simultaneous taste-masking and oral bioavailability enhancement of Ligustrazine by forming sweet salts. Int. J. Pharm. 2020, 577, 119089. [Google Scholar] [CrossRef] [PubMed]
  129. Guan, S.; Li, L.; Zhang, L. Febuxostat-Ligustrazine Eutectic and Preparation and Application Methods Thereof. Patent CN108530382A, 14 September 2018. [Google Scholar]
  130. Li, Y. Matrine Salviol Acid B Complex Salt and Kuh-Seng Native Salviol Acid B Complex Salt, Preparation Method and Application Thereof. Patent CN101367799A, 18 February 2009. [Google Scholar]
  131. Chen, X.; Li, P.; Ling, L.; Ning, L.; Wang, H.; Xu, J. Pharmaceutical Co-Crystal of Ethinylestradiol and Ligustrazine and Application of Pharmaceutical Co-Crystal. Academy of Science and Tech Research National Health Commission, China Patent CN110003122A, 12 July 2019. [Google Scholar]
  132. Chen, K.; Ma, Q.; Miao, M.; Tian, Q.; Wu, X.; Zeng, H.; Zhu, X. Amino Acid Eutectics of Celastrol, Preparation Method and Application Thereof. Patent CN110229210A, 13 September 2019. [Google Scholar]
  133. Zhou, Z.Z.; Chan, H.M.; Sung, H.H.; Tong, H.; Zheng, Y. Identification of new cocrystal systems with stoichiometric diversity of salicylic acid using thermal methods. Pharm. Res. 2016, 33, 1030–1039. [Google Scholar] [CrossRef] [PubMed]
  134. Yu, X.Z.; Wang, L.Y.; Liu, F.; Li, Y.T.; Yan, C.W. A sustained-release dual-drug ternary salt cocrystal of piperazine ferulate with pyrazinamide: The synthesis, structure and Hirshfeld surface analysis. Cryst. Growth Des. 2020, 20, 2064–2073. [Google Scholar] [CrossRef]
  135. Hong, C.; Xie, Y.; Yao, Y.; Li, G.; Yuan, X. A novel strategy for pharmaceutical cocrystal generation without knowledge of stoichiometric ratio: Myricetin cocrystals and a ternary phase diagram. Pharm. Res. 2015, 32, 47–60. [Google Scholar] [CrossRef] [PubMed]
  136. Goud, N.R.; Suresh, K.; Sanphui, P.; Nangia, A. Fast dissolving eutectic compositions of curcumin. Int. J. Pharm. 2012, 439, 63–72. [Google Scholar] [CrossRef]
  137. Xuan, B.F.; Chen, Y.C.S.; Wong, K.C.; Chen, R.P.; Lo, P.S.; Lakerveld, R.; Tong, H.; Chow, S.F. Impact of cocrytal solution-state stability on cocrytal dissociation and polymorphic drug recrystallization during dissolution. Int. J. Pharm. 2021, 610, 121239. [Google Scholar] [CrossRef]
  138. Vasisht, K.; Chadha, K.; Karan, M.; Bhalla, Y.; Jena, A.K.; Chadha, R. Enhancing biopharmaceutical parameters of bioflavonoid quercetin by cocrystallization. CrystEngComm 2016, 18, 1403–1415. [Google Scholar] [CrossRef]
  139. Shi, L.; Sun, C. Overcoming poor tabletability of pharmaceutical crystals by surface modification. Pharm. Res. 2011, 28, 3248–3255. [Google Scholar] [CrossRef]
  140. Berry, D.J.; Steed, J.W. Pharmaceutical cocrystals, salts and multicomponent systems; intermolecular interactions and property based design. Adv. Drug Deliv. Rev. 2017, 117, 3–24. [Google Scholar] [CrossRef] [Green Version]
  141. Serajuddin, A. Salt formation to improve drug solubility. Adv. Drug Deliv. Rev. 2007, 59, 603–616. [Google Scholar] [CrossRef] [PubMed]
  142. Good, D.J.; Nair, R.-H. Solubility advantage of pharmaceutical cocrystals. Cryst. Growth Des. 2009, 9, 2252–2264. [Google Scholar] [CrossRef]
Pharmaceutics 13 02160 g001 550
Figure 1. Different solid-state forms of an API.
Figure 1. Different solid-state forms of an API.
Pharmaceutics 13 02160 g001
Pharmaceutics 13 02160 g002 550
Figure 2. The representative compounds of flavonoids, alkaloids, phenolic acids and terpenoids in this review.
Figure 2. The representative compounds of flavonoids, alkaloids, phenolic acids and terpenoids in this review.
Pharmaceutics 13 02160 g002
Pharmaceutics 13 02160 g003 550
Figure 3. Typical hydrogen bounded elements in pharmaceutical cocrystals observed in (a) flavonoids, (b) alkaloids, (c) phenolic acids and (d) terpenoids.
Figure 3. Typical hydrogen bounded elements in pharmaceutical cocrystals observed in (a) flavonoids, (b) alkaloids, (c) phenolic acids and (d) terpenoids.
Pharmaceutics 13 02160 g003
Pharmaceutics 13 02160 g004 550

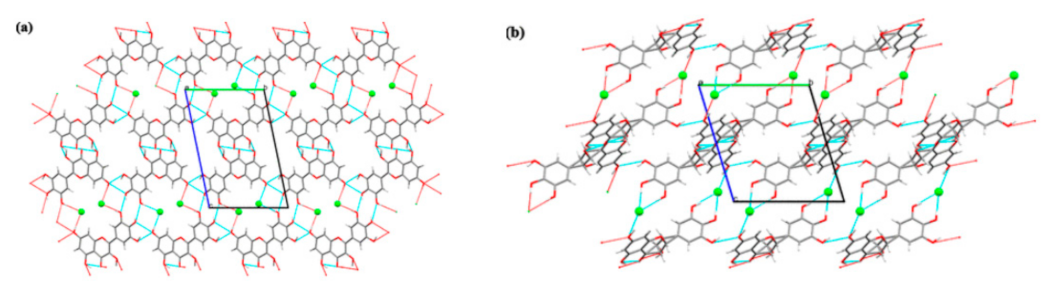

Figure 4. (a) Two-dimensional network formed between chloride anion and myricetin moieties via O–H⋯O and O–H⋯Cl– interactions viewed along the a-axis (capped stick model). (b) Two-dimensional network formed between chloride anion and dihydromyricetin moieties via O–H⋯O and O–H⋯Cl– interactions viewed along the a-axis (capped stick model) [64] (with permission from [64]; Copyright 2019 American Chemical Society).
Figure 4. (a) Two-dimensional network formed between chloride anion and myricetin moieties via O–H⋯O and O–H⋯Cl– interactions viewed along the a-axis (capped stick model). (b) Two-dimensional network formed between chloride anion and dihydromyricetin moieties via O–H⋯O and O–H⋯Cl– interactions viewed along the a-axis (capped stick model) [64] (with permission from [64]; Copyright 2019 American Chemical Society).
Pharmaceutics 13 02160 g004
Pharmaceutics 13 02160 g005 550

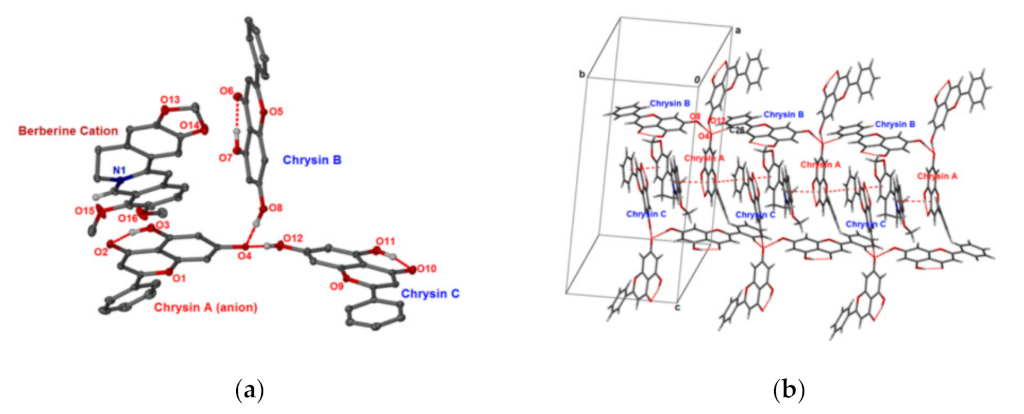

Figure 5. (a) ORTEP plot of berberine–chrysin cocrystal with 35% probability level. H atoms on C were omitted for clarity. Dashed lines represent hydrogen-bonding interactions. (b) Supramolecular structure resulting from C–H⋯O and π–π interactions [66] (adapted with permission from [66]; Copyright 2018 American Chemical Society).
Figure 5. (a) ORTEP plot of berberine–chrysin cocrystal with 35% probability level. H atoms on C were omitted for clarity. Dashed lines represent hydrogen-bonding interactions. (b) Supramolecular structure resulting from C–H⋯O and π–π interactions [66] (adapted with permission from [66]; Copyright 2018 American Chemical Society).
Pharmaceutics 13 02160 g005
Pharmaceutics 13 02160 g006 550

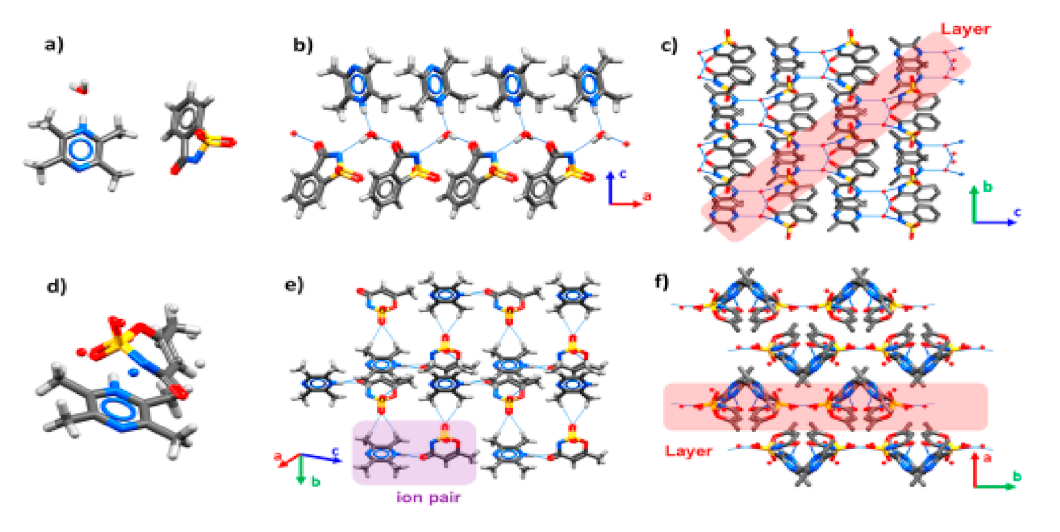

Figure 6. Crystal structures of TMP-SAC (a–c) and TMP-ACS (d–f). The blue lines represent hydrogen bonds [31] (with permission from [31]; Copyright 2020 American Chemical Society).
Figure 6. Crystal structures of TMP-SAC (a–c) and TMP-ACS (d–f). The blue lines represent hydrogen bonds [31] (with permission from [31]; Copyright 2020 American Chemical Society).
Pharmaceutics 13 02160 g006
Pharmaceutics 13 02160 g007 550
Figure 7. (a) Dissolution profiles of INH from different samples in pH 1.2 buffer solution (n = 3); (b) dissolution profile of INH from 2:1 INH-CUR cocrystal in the presence of RIF in pH 1.2 and pH 6.8 buffer solutions (n = 3) [90] (with permission from [90]; Copyright 2020 American Chemical Society).
Figure 7. (a) Dissolution profiles of INH from different samples in pH 1.2 buffer solution (n = 3); (b) dissolution profile of INH from 2:1 INH-CUR cocrystal in the presence of RIF in pH 1.2 and pH 6.8 buffer solutions (n = 3) [90] (with permission from [90]; Copyright 2020 American Chemical Society).
Pharmaceutics 13 02160 g007
Pharmaceutics 13 02160 g008 550
Figure 8. Tabletability of (a) BAI-NCT, (b) BAI-CAF, and (c) BAI-ISN cocrystal systems (n = 3). Some error bars are hidden by symbols. The dashed lines correspond to 2 MPa tensile strength [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Figure 8. Tabletability of (a) BAI-NCT, (b) BAI-CAF, and (c) BAI-ISN cocrystal systems (n = 3). Some error bars are hidden by symbols. The dashed lines correspond to 2 MPa tensile strength [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Pharmaceutics 13 02160 g008
Pharmaceutics 13 02160 g009 550

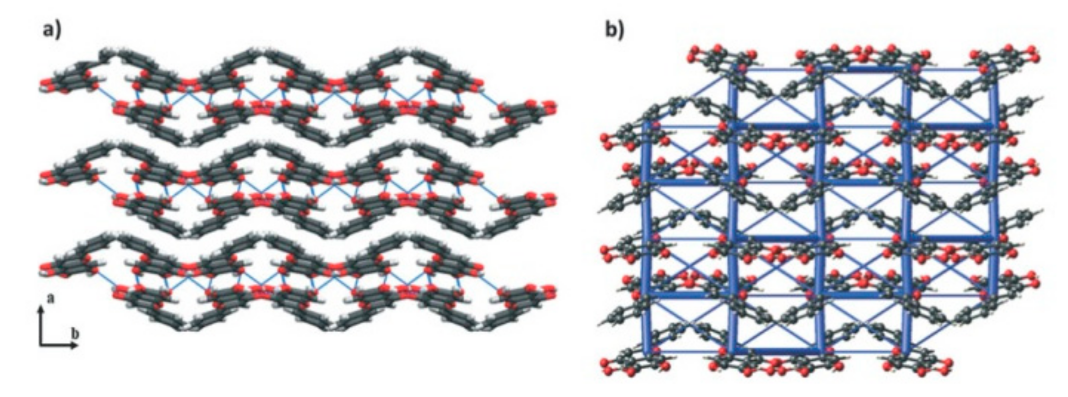

Figure 9. (a) Crystal packing diagram (hydrogen bonds are shown as blue lines) and (b) energy framework of BAI α form viewed into c axis (radius of each cylinder represents the relative strength of interaction). The threshold interaction energy is set at −5 kJ mol−1 [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Figure 9. (a) Crystal packing diagram (hydrogen bonds are shown as blue lines) and (b) energy framework of BAI α form viewed into c axis (radius of each cylinder represents the relative strength of interaction). The threshold interaction energy is set at −5 kJ mol−1 [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Pharmaceutics 13 02160 g009
Pharmaceutics 13 02160 g010 550

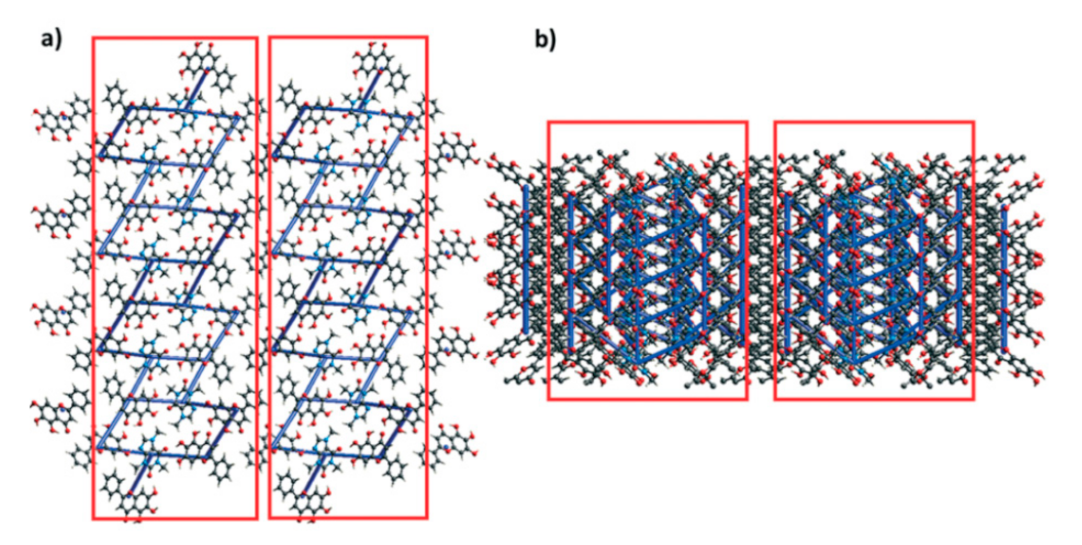

Figure 10. Energy framework of BAI–CAF viewed along (a) b axis and (b) c axis. The layers are boxed. The threshold interaction energy is set at −20 kJ mol−1 [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Figure 10. Energy framework of BAI–CAF viewed along (a) b axis and (b) c axis. The layers are boxed. The threshold interaction energy is set at −20 kJ mol−1 [69] (Reproduced from ref. [69] with permission from the Royal Society of Chemistry).
Pharmaceutics 13 02160 g010
Pharmaceutics 13 02160 g011 550

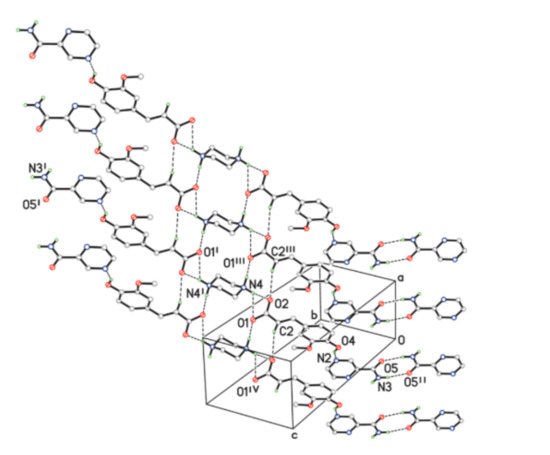

Figure 11. A two-dimensional classical hydrogen bonding network, in which an aromatic stacking interaction is observed between the benzene ring of FLA and the near pyrazine ring of PRA. Symmetry codes: (i) 2—x, 3—y, 1—z; (ii) –x—1, -y, -z; (iii) x + 1, y, z; (iv) x—1, y, z [134] (with permission from [134]; Copyright 2020 American Chemical Society).
Figure 11. A two-dimensional classical hydrogen bonding network, in which an aromatic stacking interaction is observed between the benzene ring of FLA and the near pyrazine ring of PRA. Symmetry codes: (i) 2—x, 3—y, 1—z; (ii) –x—1, -y, -z; (iii) x + 1, y, z; (iv) x—1, y, z [134] (with permission from [134]; Copyright 2020 American Chemical Society).
Pharmaceutics 13 02160 g011
Pharmaceutics 13 02160 g012 550

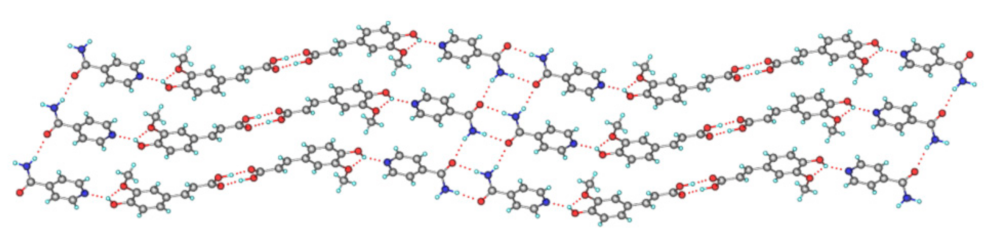

Figure 12. Crystal packing of FA-INA cocrystal showing hydrogen-bonded sheet structure mediated by acid–acid and amide–amide homosynthons and hydroxyl-pyridine heterosynthon [100] (With permission from [100]; Copyright 2020 Elsevier).
Figure 12. Crystal packing of FA-INA cocrystal showing hydrogen-bonded sheet structure mediated by acid–acid and amide–amide homosynthons and hydroxyl-pyridine heterosynthon [100] (With permission from [100]; Copyright 2020 Elsevier).
Pharmaceutics 13 02160 g012
Pharmaceutics 13 02160 g013 550
Figure 13. The crystal structures of BCl–CA cocrystal: (a) thermal ellipsoid drawing including atomic labelling scheme, (b) key intermolecular interactions (hydrogen bonds are teal colored), (c) molecular packing [60] (with permission from [60]; Copyright 2019 Elsevier).
Figure 13. The crystal structures of BCl–CA cocrystal: (a) thermal ellipsoid drawing including atomic labelling scheme, (b) key intermolecular interactions (hydrogen bonds are teal colored), (c) molecular packing [60] (with permission from [60]; Copyright 2019 Elsevier).
Pharmaceutics 13 02160 g013
Pharmaceutics 13 02160 g014 550
Figure 14. Crystal structure of QUE-BTN. (a) The asymmetric unit. (b) Two asymmetric units formed R44 (24) dimeric structure. (c) 2D layered structure in the ac plane. Each dimeric structure in c is displayed in a different color. (d) 3D packing structure viewed along the c axis. In (d), adjacent molecular layers are displayed in different colors [71] (with permission from [71]; Copyright 2019 American Chemical Society).
Figure 14. Crystal structure of QUE-BTN. (a) The asymmetric unit. (b) Two asymmetric units formed R44 (24) dimeric structure. (c) 2D layered structure in the ac plane. Each dimeric structure in c is displayed in a different color. (d) 3D packing structure viewed along the c axis. In (d), adjacent molecular layers are displayed in different colors [71] (with permission from [71]; Copyright 2019 American Chemical Society).
Pharmaceutics 13 02160 g014
Table
Table 1. The problematic physiochemical properties of some T-APIs as new potential drugs [9].
Table 1. The problematic physiochemical properties of some T-APIs as new potential drugs [9].
Name of T-APIsMain Sources of PlantsProblematic Physicochemical PropertiesMajor Indications
Alkaloids
DauricineMenispermum dauricum DC.Slightly solubleTachyarrhythmia
LycorineLycoris radiata (L’Her.) Herb., Narcissus tazetta Linn. var. chinensis M.Roener, Zephyranthes candida Herb., Crinum asiaticum Linn. var. sinicum (Roxb.ex Herb.) Baker, Galanthus woronawii Losink., Clivia miniata Regel.Practically insolubleIntestinal and external amoeba
MatrineSophora flavescens Alt., Euchresta japonica Hook. f. ex Regel.-Chronic cervicitis, dysentery, enteritis, skin disease
SophocarpineSophora alopecuroides Linn., Sophora flavescens Alt., Sophora japonica L., Sophora davidii (Franch.) Skeels.Slightly solubleCancer, chronic bronchial asthma, malignant mole
ToddalineChelidonium majus Linn., Toddalia asiatica (L.) Lam.Slightly solubleRheumatic pain
Flavonoids
ApigeninApium graveolens Linn., Veronica linariifolia Pall.ex Link subsp.dilatata (NakaietKitag.) Hong., Reynoutria japonica Houtt., Veratrum grandiflorum Loes.Practically insolubleHIV and other viral infections, inflammation
BaicaleinScutellaria baicalensis Georgi, Oroxylum indicum (Linn.) Bentham ex Kurz, Plantago major Linn.Practically insoluble, unstable, prone to oxidationFever, sore throat, and upper respiratory tract infection
ChrysinOroxylum indicum (Linn.) Bentham ex Kurz, Pinus mon-ticola Dougl., P.aristata Engelm.Practically insolubleCardiovascular and cerebrovascular diseases, inflammation
DihydromyricetinAmpelopsis grossedentata (Hand-Mazz)WT WanHygroscopic, prone to oxidation and decompositionAlcoholism, alcoholic liver, fatty liver
GenisteinEuchresta japonica Hook. f. ex Regel, Genista tinctoria Linn.Practically insolubleCancer
HesperidinCitrus sinensis (Linn.) Osbeck, Citrus limon (L.) Burm. F.Practically insolubleVarious diseases related to venous and lymphatic insufficiency, hypertension, and myocardial infarction
KaempferolKaempferia galanga Linn.Slightly solubleOsteoclast bone resorption
LuteolinReseda odorata Linn., Lonicera japonica Thunb., Dendranthema morifolium (Ramat.) Tzvel., Nepeta cataria Linn., Ajuga nipponensis Makino.Slightly soluble, low bioavailabilityCardiovascular disease, amyotrophic lateral sclerosis
MyricetinMyricaceae, Vitaceae, Leguminosae, Ericaceae, and Euphorbiaceae.Slightly soluble, low bioavailabilityCardiovascular disease
NaringeninAmacardi-um occidentale L., Prunus yedoensis Mats., Armeniaca mume Sieb.Practically insoluble, low bioavailabilityBacterial infection, cough, cancer
QuercetinSophora japonica Linn., Platycladus orientalis (Linn.) Franco, Alpinia officinarum Hance, Tussilago farfara Linn., Taxillus sutchuenensis (Lecomte) Danser, Ginkgo biloba Linn., Sambucus williamsii Hance, etc.Practically insoluble, low bioavailabilityBacterial infection, viral infection, tumor, diabetes, hyperlipidemia, and immune system diseases
Phenolic acids
CurcuminCurcuma aromatica Salisb., Curcuma longa Linn., Curcuma zedoaria (Christm.) Rosc., Acorus calamus Linn.Practically insoluble, poor stability, prone to degradation, poor solubility in acidic condition, low dissolution rate and bioavailabilityInflammatory bowel disease, pancreatitis, arthritis
Ferulic acidFerula assafoetida L., Angelica sinensis (Oliv.) Diels, Ligusticum chuanxiong Hort., Cimicifuga foetida L., Ziziphus jujuba Mill. var. spinosa (Bunge) Hu ex H.F.Chow.Practically insolubleCardiovascular diseases, cerebrovascular diseases, leukopenia, and other diseases
Gallic acid monohydrateRhus chinensis Mill.Slightly solubleHigh blood pressure, hyperlipidemia, colon cancer, skin tumors
Oleanolic acidOlea europaea Linn., Swertia mileensis T. N. Ho et W. L. Shi, Fructus Ligustri Lucidi, Hemsleya macrosperma C. Y. Wu ex C. Y. Wu et C. L. Chen.Practically insolubleBronchitis, pneumonia, acute tonsillitis, periodontitis, bacillary dysentery, acute gastroenteritis, urinary infection, acute hepatitis
PterostilbenePterocarpus indicus willd., Vitis vinifera Linn., and Ormosia henryi Prain.Practically insolubleHigh blood pressure, hyperlipidemia, colon cancer, skin tumors
ResveratrolReynoutria japonica Houtt., Cassia tora Linn., Morus alba L.Practically insoluble, photosensitive, thermally unstableCancer, high blood cholesterol
RheinRheum officinale Baill.Practically insolubleHyperlipidemia, constipation
Ursolic acidPrunella vulgaris Linn., Ilex rotunda Thunb.Practically insolubleViral hepatitis, depression, primary hyperlipidemia
Salvianolic acid BSalvia miltiorrhiza Bge.Photosensitive, thermally unstable, prone to degradationIschemic stroke
Terpenoids
LoganinStrychnos nux-vomica Linn., Cornus officinalis Sieb. Et Zucc.Practically insolubleCancer
TriptolideTripterygium wilfordii Hook. F.Practically insolubleRheumatoid arthritis
Notes: According to the British Pharmacopoeia, <0.1 mg/mL refers to practically insoluble, 1–10 mg/mL refers to slightly soluble, both of which will lead to low bioavailability.
Table
Table 2. Sources of plants, physicochemical problems, and major indications of T-APIs, including alkaloids, flavonoids, phenolic acids and terpenoids, recorded in Volume II, Chinese Pharmacopoeia (2020 edition) [36].
Table 2. Sources of plants, physicochemical problems, and major indications of T-APIs, including alkaloids, flavonoids, phenolic acids and terpenoids, recorded in Volume II, Chinese Pharmacopoeia (2020 edition) [36].
Name of T-APIsMain Sources of PlantsProblematic Physicochemical PropertiesMajor Indications
Alkaloids
Berberine chlorideCoptis chinensis Franch., Phellodendron amurense Rupr.Slightly soluble, low bioavailability, bitter tasteDiabetes, high blood pressure
Bulleyaconitine AThe subgenus Subgen. Aconitum.Practically insolubleRheumatoid arthritis
HomoharringtonineThe genus Cephalotaxus.Slightly solubleAcute myelogenous
leukemia,
acute monocytic
leukemia,
malignant lymphoma
Huperzine-AThe genus Huperzia, i.e., Huperzia serrata (Thunb. ex Murray) Trev.Practically insoluble, hygroscopicSenile dementia,
myasthenia gravis
Pseudoephedrine hydrochlorideEphedra sinica Stapf.-Nasal congestion caused
by cold, allergic rhinitis,
rhinitis, sinusitis
RaceanisodamineAtropa belladonna Linn., Datura metel L.-Choline drug resistance,
smooth muscle spasm,
gastrointestinal colic,
biliary tract spasm,
organophosphorus poisoning
ReserpineThe genus Rauvolfia.Slightly soluble, photosensitiveMild and moderate
hypertension
Tetrahydropalmatine sulfateCorydalis yanhusuo W. T. Wang.Slightly soluble, prone to oxidation, photosensitivemedical ailments, prenatal
labor pains,
postpartum contractions,
menstrual pain,
headache, insomnia
Ligustrazine hydrochlorideLigusticum chuanxiong Hort., Curcuma aromatica Salisb.Prone to sublimation, hygroscopicVasodilator, occlusive cerebrovascul-
ar disease, ischemic vascular disease
Vinblastine sulfateCatharanthus roseus (Linn.) G. Don.Hygroscopic, photosensitive, prone to thermal degradationHodgkin’s disease,
chorioepithelial carcinoma,
lymphoid sarcoma,
acute leukemia,
breast cancer,
testicular tumor,
choriocarcinoma
Vincristine sulfateCatharanthus roseus (Linn.) G. Don.Hygroscopic, photosensitive, prone to thermal degradationAcute leukemia
Flavonoids
BaicalinScutellaria baicalensis Georgi.Slightly soluble, low bioavailability, poor tabletabilityAcute and chronic hepatitis,
persistent hepatitis,
nephritis,
pyelonephritis, and
allergic diseases
RutinumSophora japonica Linn., Platycladus orientalis (Linn.) Franco, Alpinia officinarum Hance, Tussilago farfara Linn., Taxillus sutchuenensis (Lecomte) Danser, Ginkgo biloba Linn., Sambucus williamsii Hance, etc.Practically insoluble, hygroscopicHypertensive encephalopathy,
cerebral hemorrhage,
retinal hemorrhage
Phenolic acids
7-Hydroxy-4-methylcoumarin-Practically insolubleCholecystitis, cholelithiasis,
biliary tract infection,
cholecystectomy syndrome
Propyl gallateRhus chinensis Mill.Slightly solubleCerebral thrombosis,
coronary heart disease, thrombophlebitis
Terpenoids
AndrographolideAndrographis paniculata (Burm. f.) Nees.Practically insolubleUpper respiratory tract infection,
bacterial dysentery, bacterial and
viral upper respiratory tract
infections, dysentery
ArtemetherArtemisia annua Linn.Practically insolublePlasmodium falciparum, dangerous malaria resistant to chloroquine
ArtemisininArtemisia annua Linn.Practically insoluble, low bioavailability, short biological half-life, frequent drug administration is neededMalaria, pulmonary hypertension
ArtesunateArtemisia annua Linn.Slightly solubleCerebral malaria and various critical malaria
Dihydroartemisinin-Slightly solubleMalaria
Plasmodium falciparum, dangerous malaria resistant to chloroquine and piperaquine
(R)-CamphorCinnamomum camphora (Linn.) Presl.Low aqueous soluable, volatileSkin irritant
TaxolSome various plants of the genus Taxus Linn.Practically insolubleOvarian cancer,
breast cancer, non-small cell lung cancer
Notes: According to the British Pharmacopoeia, <0.1 mg/mL refers to practically insoluble, 1–10 mg/mL refers to slightly soluble, both of which will lead to low bioavailability.
Table
Table 3. Supramolecular interactions formed in the reported T-APIs.
Table 3. Supramolecular interactions formed in the reported T-APIs.
DrugCoformerSingle Crystal StructureSupramolecular Interactions
Alkaloids
Berberine chlorideCitric acid [60]
Ibuprofen [61]
Fumaric acid [62]

Lactic acid * [63]
Myricetin [64]
Dihydromyricetin [64]		Reported
-
Reported

-
Reported
Reported		−COOH···Cl
-
O−H···Cl,
π–π interaction
-
O−H···Cl
O−H···Cl
BerberinePhthalic acid * [65]
Chrysin [66]
-
Reported
-
O−H···O,
interaction
LigustrazineBexarotene [67]ReportedO−H···N
Flavonoids
Apigenin4,4′-Bipyridine * [68]
Reported
O−H···N,
π–π interaction
BaicaleinNicotinamide [69]


Caffeine [69]


Isoniazid [69]
Isonicotinamide [70]
Theophylline [70]
Betaine [71]		Reported


Reported


-
Reported
Reported
Reported		O−H···N,
O−H···O,
N−H···O
O−H···N,
O−H···O,
π–π interaction
-
O−H···Narom
O−H···Narom
O−H···O
ChrysinCytosine [72]
Thiamine hydrochloride * [72]		Reported
Reported		N−H···N
N−H···O
DihydromyricetinPentoxifylline [73]
Caffeine [74]
Urea* [74]		Reported
-
-		O−H···O
-
-
FisetinNicotinamide [75]
Isonicotinamide [75]		Reported
Reported		O−H···Narom
O−H···Narom
GenisteinIsonicotinamide [76]
4,4′-Bipyridine * [77]
Caffeine [78]

Nicotinamide [75]		Reported
Reported
Reported

Reported		O−H···N
O−H···N
O−H···N,
O−H···O
O−H···Narom
HesperidinCaffeine [79]
Nicotinamide [79]

Picolinic acid * [79]
Temozolomide [80]		Reported
Reported

Reported
Reported		O−H···N
N−H···Narom,
C=O···OH−
C=O···OH−
O−H···N
Kaempferol5-Fluorouracil [81]



4,4′-Bipyridine * [81]

Propylthiouracil [82]		Reported



Reported

Reported		O−H···N,
O−H···O,
N−H···O,
C−H···O
O−H···N,
π–π interaction
C−H···O
LuteolinIsonicotinamide [75]ReportedO−H···Narom
Myricetin4,4′-Bipyridine * [81]
Reported
O−H···N,
π–π interaction
Naringenin4-Hydroxypyridine [83]
Anthranilamide [83]
Flavone [83]
4,4′-Bipyridine * [83]
Isonicotinamide [84]

Picolinic acid * [84]
Betaine [84]
Carbamazepine [85]
Reported
Reported
Reported
Reported
Reported

-
Reported
Reported
O−H···C=O
O−H···C=O
O−H···C=O
O−H···C=O
O−H···N,
N−H···O
-
O−H···O
O−H···O,
N−H···O
PuerarinLornoxicam [86]--
Quercetin4,4′-Bipyridine * [81]

Caffeine [7]

Isonicotinamide [7]

Theobromine dihydrate [7]
Isoniazid [87]
Nicotinamide [88]
Pyrazole * [89]
Imidazolidinone * [89]
Baclofen [89]		Reported

Reported

Reported

-
Reported
-
-
-
-		O−H···N,
π–π interaction
O−H···O,
O−H···Narom
O−H···C=O,
O−H···Narom
-
N−H···O
-
-
-
-
Phenolic acids
CurcuminIsoniazid [90]
Hydroquinone * [91]
Phloroglucinol [92]
Resorcinol [93]


Pyrogallol [93]


Ascorbic acid [94]
Trimesic acid [95]		-
-
-
Reported


Reported


-
-		-
-
-
O−H···O,
C−H···O,
C−H···π
O−H···O,
C−H···O,
C−H···π
-
-
Gallic acidMetronidazole [96]
Lenalidomide [97]

Isoniazid [98]

Reported
Reported

Reported

O−H···O
O−H···O,
N−H···O
O−H···O,
O−H···N,
π–π interaction
Ferulic acidPyrazinamide [99]
Urea [100]
Nicotinamide [100]
Isonicotinamide [100]		Reported
Reported
Reported
Reported		C=O···N−H
N−H···N
O−H···NO−H···N
Oleanolic acidIsoniazid [101]--
PterostilbeneEthylenediamine * [102]
Caffeine [103]

Carbamazepine [103]
Reported
Reported

Reported
C−H···π
O−H···N,
O−H···O
O−H···N,
O−H···O
ResveratrolCurcumin [104]
Isoniazid [105]
4-Aminobenzamide * [106]		-
Reported
-		-
N−H···O
-
Ursolic acidEthylenediamine * [107]
Piperazine [108]
Metformin [109]
Arginine [109]
Lysine [109]
N-Methylglucamine [109]		-
-
-
-
-
-		-
-
-
-
-
-
Terpenoids
AndrographolideSalicylic acid [110]

Vanillin [110]

Vanillic acid [110]

Guaiacol [110]
Resorcinol [110]		Reported

Reported

Reported

Reported
Reported		O−H···O,
C−H···O
O−H···O,
C−H···O
O−H···O,
C−H···O
O−H···O
O−H···O
ArtemisininOrcinol [18]

Resorcinol [18]
Reported

-
C−H···O,
O−H···π
C−H···O,
O−H···O
ArtesunateNicotinamide [111]--
11-Aza-artemisininBenzoic acid [54]
Salicylic acid [54]
Succinic acid [54]
Heptanedioic acid [54]		-
-
-
-		-
-
-
-
Note: * indicates belonging to non-GARS or non-drug compounds.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Guan, D.; Xuan, B.; Wang, C.; Long, R.; Jiang, Y.; Mao, L.; Kang, J.; Wang, Z.; Chow, S.F.; Zhou, Q. Improving the Physicochemical and Biopharmaceutical Properties of Active Pharmaceutical Ingredients Derived from Traditional Chinese Medicine through Cocrystal Engineering. Pharmaceutics 2021, 13, 2160. https://doi.org/10.3390/pharmaceutics13122160

AMA Style

Guan D, Xuan B, Wang C, Long R, Jiang Y, Mao L, Kang J, Wang Z, Chow SF, Zhou Q. Improving the Physicochemical and Biopharmaceutical Properties of Active Pharmaceutical Ingredients Derived from Traditional Chinese Medicine through Cocrystal Engineering. Pharmaceutics. 2021; 13(12):2160. https://doi.org/10.3390/pharmaceutics13122160

Chicago/Turabian Style

Guan, Danyingzi, Bianfei Xuan, Chengguang Wang, Ruitao Long, Yaqin Jiang, Lina Mao, Jinbing Kang, Ziwen Wang, Shing Fung Chow, and Qun Zhou. 2021. "Improving the Physicochemical and Biopharmaceutical Properties of Active Pharmaceutical Ingredients Derived from Traditional Chinese Medicine through Cocrystal Engineering" Pharmaceutics 13, no. 12: 2160. https://doi.org/10.3390/pharmaceutics13122160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
