Review

Polymer–Lipid Pharmaceutical Nanocarriers: Innovations by New Formulations and Production Technologies

by
Sabrina Bochicchio
1,
Gaetano Lamberti
1,2 and
Anna Angela Barba
1,3,*
1
Eng4Life Srl, Spin-Off Accademico, Via Fiorentino, 32, 83100 Avellino, Italy
2
Dipartimento di Ingegneria Industriale, Università Degli Studi di Salerno, Via Giovanni Paolo II, 132, 84084 Fisciano, Italy
3
Dipartimento di Farmacia, Università Degli Studi di Salerno, Via Giovanni Paolo II, 132, 84084 Fisciano, Italy
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(2), 198; https://doi.org/10.3390/pharmaceutics13020198
Submission received: 28 December 2020 / Revised: 24 January 2021 / Accepted: 29 January 2021 / Published: 2 February 2021
(This article belongs to the Special Issue Lipid- and/or Polymer-Based Drug Delivery Systems)
Browse Figures
Versions Notes

Abstract

:
Some issues in pharmaceutical therapies such as instability, poor membrane permeability, and bioavailability of drugs can be solved by the design of suitable delivery systems based on the combination of two pillar classes of ingredients: polymers and lipids. At the same time, modern technologies are required to overcome production limitations (low productivity, high energy consumption, expensive setup, long process times) to pass at the industrial level. In this paper, a summary of applications of polymeric and lipid materials combined as nanostructures (hybrid nanocarriers) is reported. Then, recent techniques adopted in the production of hybrid nanoparticles are discussed, highlighting limitations still present that hold back the industrial implementation.

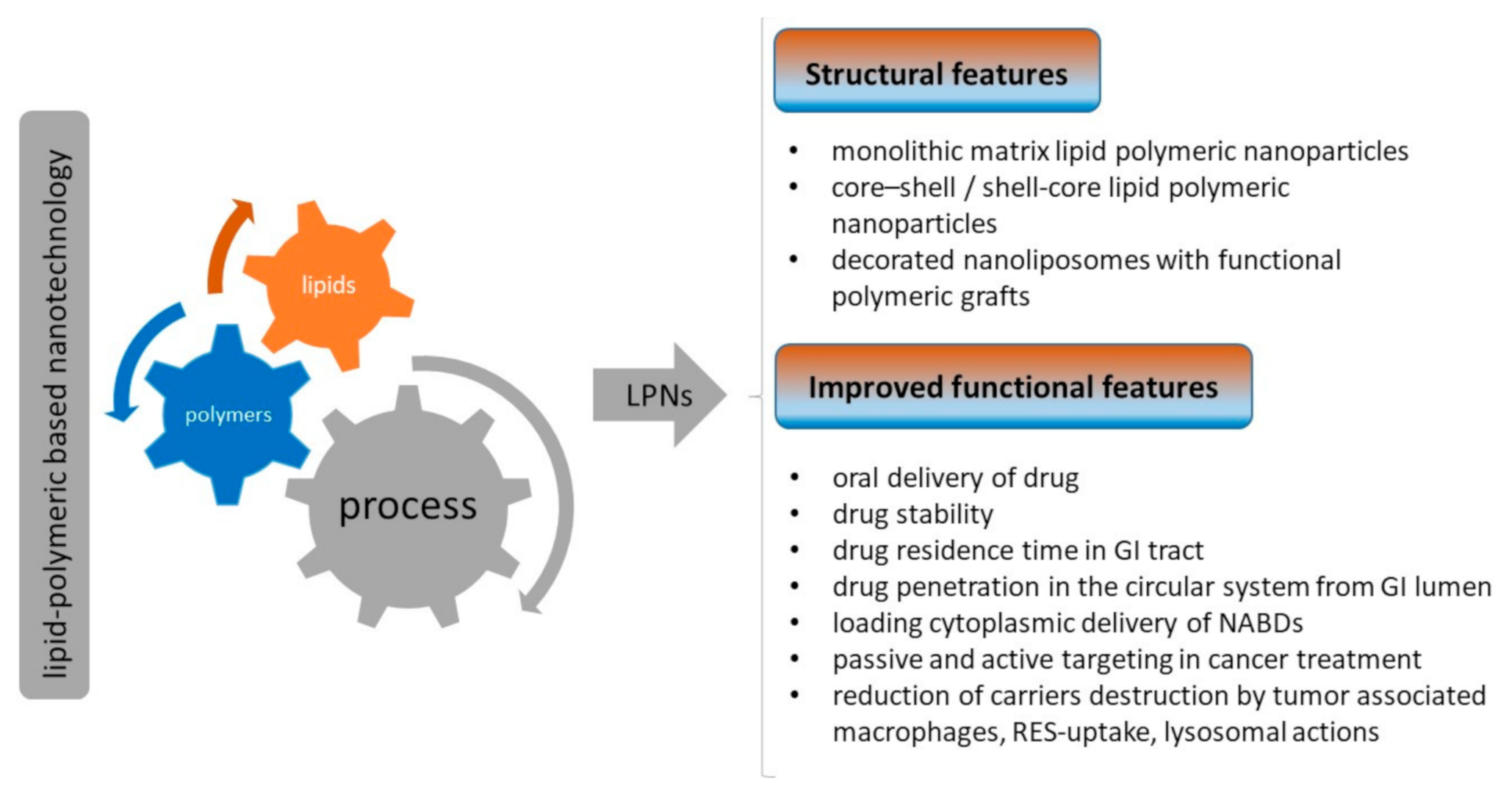

Graphical Abstract

1. Introduction

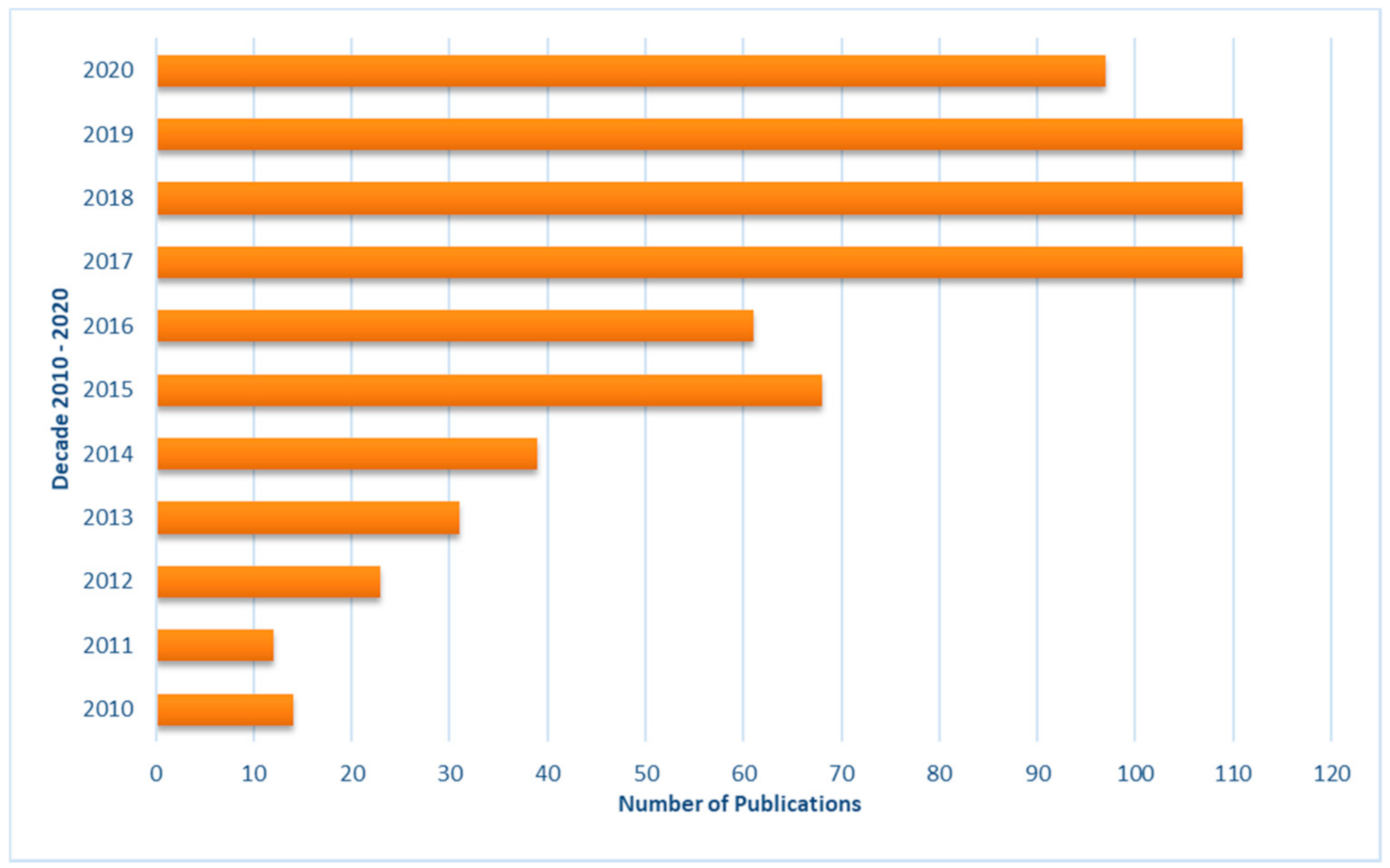

Nanoparticle (NP) technology represents a revolutionary drug delivery platform that enhances the conveyance of active molecules to maximize their therapeutic index and to minimize undesirable side-effects, improving the treatment of several diseases [1,2]. In a scenario characterized by the rapid pharmaceutical development of new drug products such as gene silencing molecules based on RNA interference, recombinant proteins/peptides, and other promising biotech-therapeutics, NP engineering stands as an advanced strategy that, projected towards the continuous optimization of carrier material; size; and physical, chemical and structural properties, allows us to overcome issues of instability, biocompatibility, poor membrane permeability, and bioavailability of drugs, improving their pharmacokinetics and pharmacodynamics.
The biomimetic behavior of the lipid materials and the mechanical advantages linked to the polymeric materials are the strengths of the latest generation nanocarrier systems. The latter are characterized by the combination of several kinds of natural/synthetic lipids and polymers [3], showing different properties (i.e., architectures, size, external charge, response to external stimuli) and being suitable for encapsulating a multitude of active molecules that cannot be delivered effectively through conventional routes and could not even be efficiently encapsulated in a carrier system entirely composed of lipid or polymeric materials. Biocompatibility is a topic of spirited discussion and relevance.
Indeed, each with its own peculiarities, these lipid polymeric nanoparticles (LPNs), including polymer-modified liposomes [4,5], polymeric micelles [6], surface-modified solid lipid nanoparticles (SMSLNs) [7] lipid–polymer hybrid nanoparticles (LPHNs) [8], and other combinations of polymer and lipid building blocks, allow for the overcoming of the non-negligible limitations of “pure nanoparticles” totally composed of lipids (i.e., liposomes) or polymers, offering countless advantages in various fields of applications such as biomedical, pharmaceutical, and nutraceutical spheres. The interest of the scientific community in these hybrid systems has increased tremendously over the last decade, as attested by the number of papers published in last 10 years, with more than 670 products focused on the concept of lipid polymer hybrid nanostructures (see Figure 1).
Under formulation point of view, one key point about the use of lipids and polymers to design and to realize nano-delivery systems is the biocompatibility of the starting ingredients. Biocompatibility is defined as the “ability of a biomaterial to perform its desired functions … without eliciting any undesirable effect …” [9]. The biocompatibility should be tested by in vivo experiments, which, however, are costly and have ethical issues. Therefore, several in vitro methods have been defined and used, mainly cytotoxicity and MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assays, to assess the cell metabolic activity [9]. For commonly used polymers and lipids, the biocompatibility is well studied and well known (readers can refer to recent reviews, for polymers [10], as well as for lipids [11]). Lipids (and in particular the membrane-forming phospholipids) are inherently well tolerated, since they are the natural constituent of living cell membranes. Among them, the cationic phospholipids, which are the ideal candidates to build delivery systems for negatively charged molecules (nucleic acid-based drugs, for example, such as mRNA and short interfering RNA (siRNA)), may pose biocompatibility issues. Therefore, for cationic lipids and cationic liposomes, the biocompatibility is often the starting point for the research, even before to test their usability [12,13].
Under the production point of view, the advancements in design of performant LPN blended delivery systems require a continuous improvement of the production strategies that can be easily adopted at an industrial level to effectively translate the potential of these smart particles from the laboratory to the market. To date, the greatest limitation in the production of these sophisticated systems lies precisely in the use of conventional techniques that do not reflect industrial needs. Indeed, traditional batch techniques, operating on small volumes and requiring long preparation times, without offering a control over the final carriers features, must be urgently replaced by versatile and economic methodologies, which, working in continuous, can allow for rapid and massive production.
This work is focused on products and production technologies, at the nanoscale, involving lipid and polymeric materials. It is structured in two sections. In the first section, features of representative polymeric and lipid nanoparticles are briefly introduced. Then, examples of blended nanometric carriers obtained by lipid–polymeric technologies are presented in terms of structural and functional main features. In the second section, the problem related to the use of “ancient” techniques to produce the increasingly sophisticated “new generation” delivery systems is emphasized by highlighting the advantages and disadvantages of the conventional and latest used methodologies.

2. Polymeric, Lipid, and Hybrid Nanostructures

Polymeric nanoparticles (PNs) are biodegradable delivery systems with several interesting properties that strictly depend on the type of matter they are made up of [14]. They can be composed of natural (i.e., chitosan, hyaluronic acid, starch, dextran, alginate, albumin, and heparin), semi-synthetic (i.e., poly(methacrylic acid) and polysorbate 80-grafted starch), or synthetic polymers (i.e., PLGA, PLA, PCL, PEG, PHEMA, PHPMA, PVA, PNIPAm, amphiphilic polymer, polystyrene, PAA, PEI, and PBAE—see Table 1 for the full names) and can assume different architectures such as solid nanoparticles, core–shell structures, polymeric micelles, and polyplexes [3,15,16,17,18]. The notable advantages of PNs lie in their great stability (higher than that possessed by lipid particles), which guarantees a sustained drug delivery, and in their stimuli-responsive properties (such as temperature, pH, redox, ionic strength), which allow for the obtaining of a precise control over the intracellular release of the active molecule [4,19]. However, due to the poor biocompatibility and the low affinity to the cell membrane, PNs present a low cell interaction, resulting in a poor drug delivery efficiency [5]. To overcome these specific lacks, polymeric nanoparticles have recently been used as a “bearing structure” for a revolutionary class of biomimetic delivery systems. In particular, we applied the idea to use cell membranes for coating nanoparticles in an attempt to mimic the ability of cells to interface and interact with physiological environments [20]. This approach falls inside the development of biomimetic nanotechnologies based on the “camouflaging” methods. The biomimetic NPs not only retain the physicochemical features of the synthetic vehicles but also inherit the cell membranes’ intrinsic functionalities [21,22]. As examples, erythrocytes (red blood cell (RBC) membrane-camouflaged nanocarriers (RBC-MCNs)) are used in studies for tunable paclitaxel (PTX) release kinetics from biocompatible isotactic and atactic polylactide (PLA) polymeric vesicles [23] and 5-fluorouracil (5-FU) delivery from by chitosan-coated poly(lactide-co-glycolic acid) nanoparticles [24].
Lipid nanoparticles (LNs) are safe and effective carriers made from natural or synthetic lipids, among which the ones generally most used are fatty acids (i.e., palmitic, myristic, and stearic acids), glycerides (i.e., glyceryl monostearate and caprate), steroids (i.e., cholesterol (Chol)), phospholipids (i.e., PC, DPPC, DSPE, DMPC, DOPE, DOPC, POPC, HSPC, PE, and lecithin—see Table 2 for the full names), and other lipids such as 1,2-dioleoyl-3-trimethylammonium propane (DOTAP) and 1,2-dipalmitoyl-3-trimethylammonium-propane (DPTAP) [3,18,25].

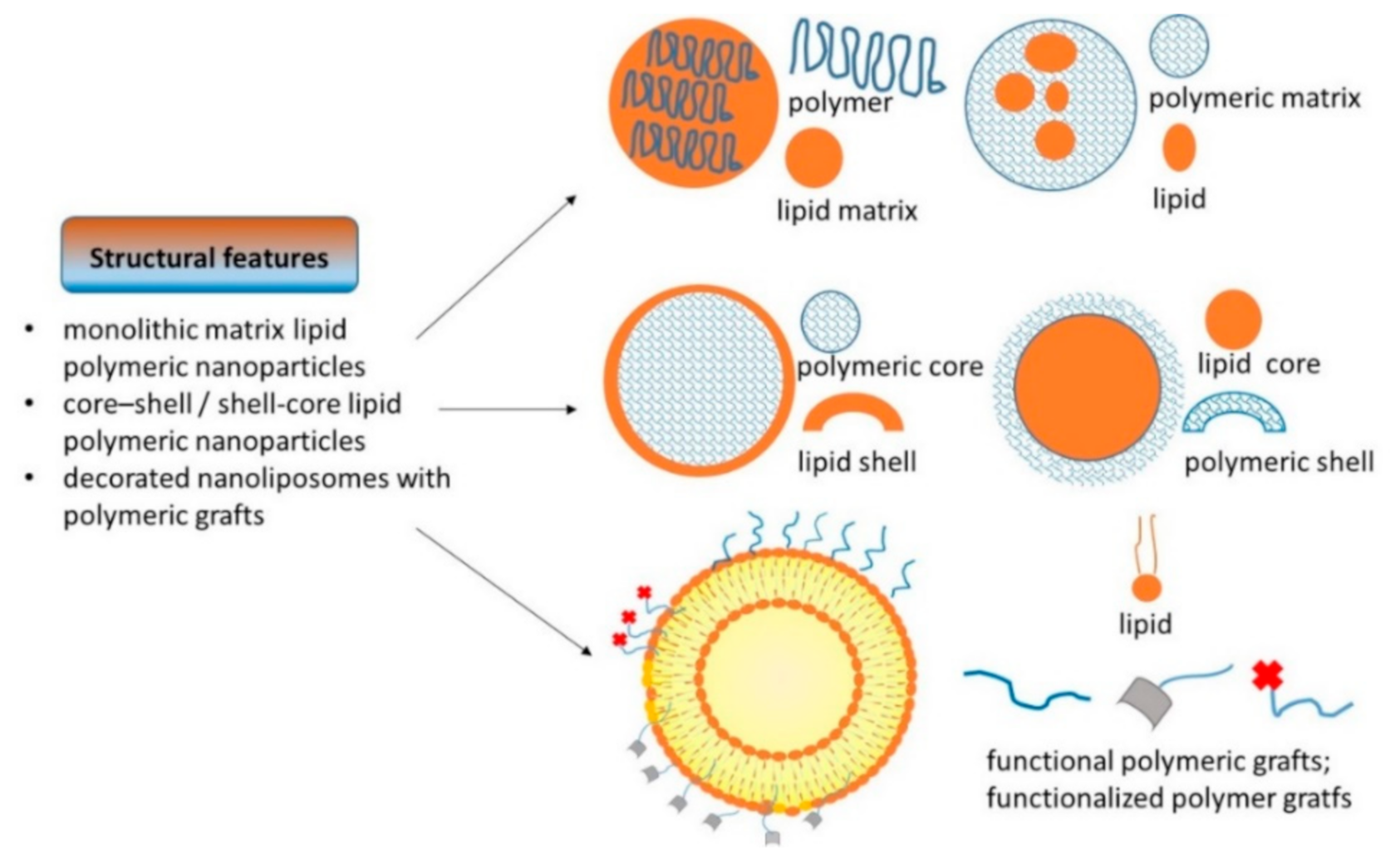

In particular, LNs can assume disparate structures and can be classified into solid lipid nanoparticles (SLNs), nanostructured lipid carriers (NCLs), lipid nanocapsules (LNCs), micelles, and liposomes [26]. LNs are highly appreciated for their extraordinary biocompatibility, higher than that of polymeric particles, which allows for a prompt cellular uptake of the therapeutic substances. However, lipid particles show relevant limitations given their poor drug loading capacity, which is often restricted by the solubility of drug in the lipid melt, the rapid drug loss due to the structure of the lipid matrix, its expulsion during storage, the tendency to aggregate, as well as a high instability in biological fluids [27,28]. An emblematic example is represented by liposomes that, although reflecting the main features of an ideal drug delivery system [29] and being in great demand for their large affinity for plasma membrane due to their remarkable biomimetic properties, are characterized by several issues related to the rapid degradation by the reticuloendothelial system (RES), the difficulty to achieve a sustained drug delivery for long periods of time, and the tendency to aggregate with serum proteins (typical of cationic liposomes) [20].
In light of the above, in recent years, an attempt has been made to merge the advantages of polymeric and lipid materials in a single smart carrier system by suitable technique and through a careful selection of biocompatible polymer–lipid combinations, which guarantee a high affinity with biological membranes, allow a controlled drug release over a prolonged period of time, and provide the possibility to co-encapsulate therapeutics with different properties [30,31] (conceptualization schemed in Figure 2).
Among these new blended particles, the most explored and appreciated are the lipid–polymer hybrid nanoparticles (LPHNs) and the liposomes covered with polymers, especially chitosan, carriers capable of loading and transporting a wide range of functional molecules from anticancer to vitamins, peptides, proteins, gene material (see also in following paragraphs), metallic inclusions, cells, and other therapeutics [32] (in Table 3 are several examples of LPHNs loaded with different active ingredients and produced by different preparation methods).
The lipid–polymeric-based technology can concern the modification of single lipids (i.e., polyethyleneimine (PEI) stearate, poly(lactic-co-glycolic acid) (PLGA) lipid, polyethylene glycol (PEG) lipid) [30] or of entire lipid/polymeric particles with the consequent production of hybrid systems that, according to their architecture and manufacturing process, can be classified into monolithic matrix lipid polymeric nanoparticles, in which a lipid phase contains an homogeneously dispersed polymeric drug complex (or otherwise a polymeric core covered by a lipid shell); core–shell lipid polymeric nanoparticles, characterized by a polymeric core surrounded by a lipid shell (or otherwise a lipid core covered by a polymer shell); and liposomes, whose surface is decorated with polymeric materials [2,3,30,32,33,34] (a simplified schematic representation in Figure 3).
Release properties and payload entity of LPHNs are based on features of the used ingredients and on architecture of the final delivery structure. Mechanisms of release such as erosion and diffusion, and actions such as membrane fusion, endocytosis, and passive and active targeting are also inducible and tunable by suitable formulations that can also confer the capability to respond to external physical stimuli (stress, electricity, light irradiation) or to internal chemical or biochemical triggers (pH, metabolites, antigens, or enzyme presences) [8,26,33,35].
LPHNs find their application in various fields. First, they have been applied in the pharmaceutical field, improving the oral delivery of drugs, increasing their stability; prolonging their residence time in the gastrointestinal (GI) tract; increasing their penetration in the circular system from GI lumen [30]; and improving the systemic delivery of several active molecules, i.e., increasing the loading and ameliorating the cytoplasmic delivery of nucleic acid-based drugs (NABDs) [3,36]. LPHNs play a crucial role in the field of cancer treatment for the delivery of cytotoxic drugs (i.e., hormonal therapy, gene targeted therapy, immunotherapy) by improving the passive and active targeting of the loaded drug, and overcoming the limitations related to the therapeutics off-target accumulation, carrier destruction by tumor-associated macrophages, RES uptake, and the lysosomal degradation of nanocarriers [28,37].
Table
Table 3. Examples of lipid–polymeric hybrid nanoparticles loaded with different active ingredients and by different preparation methods.
Table 3. Examples of lipid–polymeric hybrid nanoparticles loaded with different active ingredients and by different preparation methods.
LPHN Composition/Active Ingredient/Preparative MethodApplicationReference
Lipid, lipoid S75-chitosan, low molecular weight (monolithic nanostructures)/cisplatin/ionic gelation (ethanolic solution dropped in chitosan acidulate solution with cisplatin)cancer therapiesKhan et al., 2019 [38]
Nanoparticles with PLGA core layered by lecithin lipid PEG modified with iRGD peptides/isoliquiritingenin/modified single-step nanoprecipitationbreast tumor therapyGao et al., 2017 [39]
  • Poly(lactide-co-glycolic acid) layered by chitosan, erythrocyte membrane*/fluorouracil/double emulsion (w/o/w) method (5-FU aqueous solution in PLGA-dichloromethane and, finally, dropped into an aqueous phase)
*NEs were added by incubation into 5-FU polymeric nanoparticle suspension
  • 1,2-Dipalmitoyl-snglycero-3-phosphocholine, cholesterol, erythrocyte membrane*/fluorouracil/thin film hydration method—liposomes; liposomes incubated in chitosan acidulate solution then membrane extrusion methods—chitosomes, i.e., liposomes with chitosan coating
*NEs were added by incubation into 5-FU nanochitosome suspension		liver cancer therapiesAlQahtani et al., 2021 [24]
Ionizable lipid L319, distearoylphosphatidylcholine, cholesterol, and 1,2-dimyristoyl-rac-glycero-3-methoxy-PEG (nanoliposomes PEGylated)/siRNA/spontaneous vesicle formations method by pumping ethanolic solution with lipids and citrate buffer solution with siRNA within a chromatography tubingvaccine therapy against SARS-CoV-2Polack et al., 2020 [40]
Walsh et al., 2020 [41]
Maier et al., 2013 [42]
Pardi et al., 2015 [43]
1,2-Distearoyl-sn-glycero-3-phosphoethanolamine—PEG, gelucire, PLA, (fructose-tethered phospholipid coated lipophilic polymeric core)/beta carotene and methotrexate/modified single-step nanoprecipitation methodbreast cancer therapyJain et al. 2017 [44]
L-α-Phosphatidylcholine, cholesterol, chitosan (nanoliposomes coated by chitosan)/indomethacin/simil-microfluidic methodcancer therapiesDalmoro et al., 2018 [45]
L-α-Phosphatidylcholine, cholesterol, chitosan (nanoliposomes coated by chitosan)/D3, K2 vitamins/simil-microfluidic methodfood supplementsDalmoro et al., 2019 [46]
PLA, soya lecithin, stearylamine (lipid shell, polymer core with antimicrobic)/norfloxacin/emulsification solvent evaporation methodantimicrobial therapiesDave et al., 2017 [47]
PLGA, soybean lecithin, and PEG (polymer core-encapsulating gold crystals, lipid monolayer surrounding, outer lipid PEG)/gold nanocrystals/nanopreciptitation methodbioimaging purposesMukherjee et al., 2019 [48]

Examples of Application

Recent literature providing promising approaches are discussed in the following section. In Table 3, examples of lipid–polymeric hybrid nanoparticles (composition and field of application) are shortly summarized.
In 2019, Khan and collaborators produced and tested cisplatin-loaded lipid–chitosan hybrid nanoparticles, demonstrating a supported controlled delivery of the drug with enhanced mean residence time and half-life in rabbits, suggesting the promising application of these new LPHNs for the controlled delivery of cisplatin in cancer therapy [38].
In 2021, AlQahtani and collaborators, in order to contrast liver cancer, developed a membrane using hybrid NPs coated with nanoerythrocytes (NEs) with the aim of prolonging the 5-FU delivery circulation time. Several formulations of hybrid biomimetic nanocarriers have been used for in vitro and in vivo tests: NE-decorated, 5-FU-loaded, chitosan-coated poly(lactide-co-glycolic acid) nanoparticles (5-FU-C-NPs-NEs); chitosomes—chitosan in combination with liposomes made by 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and cholesterol as lipids—(5-FU-C-LPsNEs); and 5-FU-NEs (nanostructures without NEs were also prepared as control). The achieved results revealed that 5-FU-C-NPs-NEs showed the most desirable characteristics in terms of sustained release profile, drug load efficiency, and retention of erythrocyte membrane properties [24].
In the work of Gao and collaborators (2017), in order to improve the therapeutic outcome of isoliquiritigenin, the authors developed a natural anti-breast cancer dietary compound characterized by low bioavailability, a tumor-targeting lipid–polymer hybrid nanoparticle system composed of a polymeric PLGA core coated with a layer of lecithin lipids, and an additional PEG film modified by the iRGD (9-amino acid cyclic) peptides. The in vitro and in vivo studies’ outcome showed that the developed nanoparticles did not have damaging effects on normal tissue, and increased the cell-uptake efficiency and improved the targeting ability with an accumulation in breast tumors [39].
It is well known that the recent vaccine therapy against SARS-COV-2 (severe acute respiratory syndrome-coronavirus-2), as reported in Polak and collaborators (2020) and Walsh and collaborators (2020), is based on mRNA molecule delivered by LNs [40,41]. The vaccine, commercially known as Comirnaty, is based on a LN technology that has been pointed out in recent years [42,43]. It is based on a combination of four components: an ionizable lipid designed for the purpose of increasing bioavailability by a tailored biodegradation (cleavage), a PEGylated molecule to modulate the half-life of the formulation, and the common components of liposomes (phosphatidylcholine and cholesterol). The approach is the most promising for the delivery of drugs that are based on RNA molecules, particularly for vaccines [49], which are, currently, a highly topical issue.
The targeting potential of new fructose-tethered lipid-polymeric hybrid nanoparticles (F-BC-MTX-LPHNPs) co-loaded with beta carotene (BC) and methotrexate (MTX), for intravenous administration, was also investigated by Jain et al. (2017), showing the ability of these systems to selectively convey the chemotherapeutic agent to the breast cancers, with an improvement of MTX-induced hepatic and renal toxicity due to the co-delivery of BC [44]. Finally, in a recent work of Dalmoro and collaborators (2018) [45], chitosan–lipid hybrid delivery systems for indomethacin dosage, to be used for the oral-controlled release of the drug, were produced, showing a gastro-retentive behavior in simulated gastric and intestinal fluids.
It should be noted that, in addition to the oral and systemic traditional pathways, LPNs can be administered by alternative routes such as ocular, pulmonary, rectal, nasal, buccal, sublingual, and transdermal routes, expanding their fields of application and patient compliance [50,51,52]. By way of example, buccal adhesive drug delivery systems, exploiting polymers as the adhesive component (i.e., chitosan and polyacrylates), have been studied for the production of water-soluble bioadhesive formulations, with a strong affinity for mucosal membranes [53]. In that regard, in a work of Dalmoro and coworkers (2019), polymer–lipid hybrid nanoparticles, encapsulating vitamin D3 and vitamin K2, with improved features in terms of stability, loading, and mucoadhesiveness, were produced for potential nutraceutical and pharmaceutical applications. The work, which concerns the production of liposomes coated with chitosan, is deepened in the next section in terms of the innovativeness of the production technique presented [46].
In the dermatological field, LPNs are highly appreciated for the treatment of several topical infections caused by bacteria, fungi, surgery, and accidental injury or abrasion [54]. In a work of Dave and coworkers (2017), PLA and soya lecithin-based lipid–polymer hybrid nanoparticles were prepared for the topical and site targeting delivery of norfloxacin and tested for their antimicrobial properties against Staphylococcus aureus and Pseudomonas aeruginosa, showing their high potential for usage as a topical antibiotic drug carriers [47].
Moreover, with the growing interest in health/enriched/functional foods, polymer–lipid hybrid systems are also highly desirable in nutraceuticals and food supplement fields to exceed the restrictions of poor water solubility, low bioavailability, bad taste and aroma, pH sensitivity, and easy degradation of a wide number of active molecules [55]. Finally, LPNs also find application in the bioimaging field as delivery systems for contrast agents (diagnostic tools) [48,56].

3. Innovations and Performances of Production Technologies

In actuality, the setup of more effective scaled-up industrial processes, by exploring new and sustainable technologies or re-adapting conventional ones to the chemistry of new materials, is one of the main objectives of the scientific community, aimed at translating the innovations from the laboratory to the market. Indeed, one of the major problems and controversies related to the field of nanotechnologies applied to drug delivery lies within the limits of the “old” conventional techniques currently used for the production of smart and “innovative” systems.
Conventional techniques such as nanoprecipitation [48], emulsification-solvent evaporation [8], mechanical mixing, and dropwise [57,58] (i.e., the layer-by layer (LbL) [59,60]) constitute, to date, the most used techniques for the preparation of lipid–polymeric nanocomplexes, including LPHNPs and polymer-coated liposomes (brief notes on techniques are summarized in Table 4). LPHNPs, characterized by PEG surface surrounding a lipid layer that contains a polymer core encapsulating the drug, are generally prepared by the mechanical mixing of preformed polymeric particles with a dried lipid film or, directly, with lipid particles previously produced by maintaining the temperature above that of lipids phase transition. Subsequently, in order to obtain hybrid nanoparticles of homogeneous dimensions, researchers must adopt homogenization or extrusion processes [48].
The nanoprecipitation and the emulsification-solvent evaporation methods are the most used techniques for the production of LPHNPs. Briefly, nanoprecipitation consists in the dropwise addition of the polymer, previously dispersed in a water-miscible organic solvent containing the drug, to an aqueous dispersion of lipid under continuous stirring. LPHNPs are formed after the organic solvent evaporation [61]. Examples of the recent application of this technique, with some modifications, are found in the work of Dehaini et al. (2016), wherein ultra-small lipid–polymer hybrid nanoparticles for the tumor-penetrating delivery of docetaxel were produced [62]. Liu and coworkers used this method for the production of paclitaxel- and triptolide-coloaded lipid–polymer hybrid nanoparticles for lung cancer therapy [63], while Tahir et al. produced methotrexate-loaded LPHNPs through a single-step modified nanoprecipitation method [64].
In the emulsification-solvent evaporation, LPHNPs are formed through an oil-in-water (o/w) emulsion or through a w/o/w (water/oil/water) emulsion, as detailed in [48]. By this method, Dave and collaborators (2017) recently produced lipid–polymer hybrid nanoparticles for the topical and site-targeting delivery of norfloxacin to be used as topical drug delivery systems [47]. Leng et al. (2018) used this method for the fabrication of budesonide-loaded LPHNPs, on the basis of PLGA and the cationic lipid DOTAP, which could be combined with siRNA for the cure of chronic obstructive pulmonary disease [65].
Despite the excellent results obtained in vitro and in vivo, which demonstrate the extraordinary performance of these carriers, the production methods do not allow a scale-up of the formulations whose advantages do not materialize on the market.
New emerging technologies are being explored for the production of LPHNPs and concern the spray drying [66,67], microfluidics [56,68,69], and its combination with multi-inlet vortex mixer (MIVM) systems (brief notes on techniques are summarized in Table 4). In 2019, Dormenval and collaborators used the spray drying method for the production of siRNA-loaded lipidoid–polymer hybrid nanoparticles for inhalation [70], and, in the same year, the herringbone-patterned 3D printed reactor was explored by Bokare and collaborators for the production of rifampicin-loaded LPHNPs [71].
Unfortunately, even these technologies are not very accessible given the high costs of the equipment used.
The picture is not very different in reference to polymer-coated liposomes, for which a promising novel technology has recently been developed, as described below. In the last decade, in the light of the medical goals achieved by pegylated liposomal-based therapeutics approved for clinical use, among which Onpattro (the first PEG lipid-based nanoformulation encapsulating siRNA that was approved in 2018 for the treatment of transthyretin amyloidosis) represents just one example [32,72,73], the scientific community has focused on the engineering of these promising lipid vesicles by combining them with polymeric materials to improve their performance. Given the huge potentiality of polymer-modified lipid vesicles in different fields of application, there is a strong interest in increasing their production.
To date, liposome polymeric coating is carried out through conventional methods such as the simple incubation of a liposomal suspension with a polymeric solution [74,75] or through the dropwise method, which in the early 1990s was explored for the coating of liposomes with chitosan [76], is still the most popular form for the production of these carrier systems. The strategy involves the dropwise addition of a polymeric solution, through the use of a syringe pump, to a preformed liposomal suspension, while stirring [77], or, on the contrary, the polymeric solution is added drop by drop to a previously produced liposome solution [78].
Over the years, the technique has led to the production of coated liposomes, mainly of the chitosan polymer, for the delivery of various active molecules such as indomethacin [79], clotrimazole [80], resveratrol [81], doxorubicin [56,82] quercetin [83], proteins [84,85], curcumin [78], and other therapeutics [86,87], but the fabrication processes have remained at the bench-scale, leading to the production of restricted volumes in output. In addition to the low productivity, being a bulk technique, it is also characterized by a poor control over the final features of the covered lipid vesicles and requires high energy and long periods of time for process.
An innovative technique focused on supercritical reverse-phase evaporation technology was explored in 2006 for the production of chitosan-coated cationic liposomes, but involved an expensive apparatus that does not meet the industrial needs [88].
Recently, in order to overcome the aforementioned problems and with a focus on a cheap and easy plant setup, the authors of [77] presented a novel liposome-covering method based on microfluidic principles, with great potential for the industrial sector. In particular, a semi-continuous setup, whose layout is described in [89], was firstly developed for the production of lipid vesicles and then adapted for the fabrication of chitosan-covered liposomes, as detailed in [77]. Briefly, the coating process consists of the realization of a contact between two flows, a previously prepared nanoliposomes suspension and a chitosan solution, which are pushed through peristaltic pumps (at equal volumetric flow rates) into the production section where their continuous and uniform interaction leads to the production of completely covered liposomal systems, characterized by a core–shell structure. In Reference [59], in a comparison between this novel method and the conventional dropwise technique in terms of phenomenological aspects underlying the formation of chitosan-covered nanoliposomes, the product quality and the manufacturing yield obtained is presented, underlining the innovativeness of the simil-microfluidic process in reducing the cost impact on manufacturing and guaranteeing a massive production yield [77]. This novel method has been applied for covering nanoliposomes containing indomethacin as the active ingredient, obtaining nanoliposomes characterized by high loading and drug encapsulation efficiency, with a chitosan layer thicker and smoother than that achievable by the dropwise method [45]. Moreover, by the same technology, stable and mucoadhesive chitosan-coated liposomal carriers, loaded with vitamin D3 and K2, were produced for nutraceutical purpose [46]. Finally, in 2019, the novel simil-microfluidic technique was used to produce a vegan alternative formulation composed of cholesterol-free liposomes coated by guar hydroxypropyltrimonium chloride (Guar-HC) obtaining stable mucoadhesive carrier systems without aggregation phenomena [90].
Table
Table 4. Several examples of lipid–polymeric hybrid nanoparticle production techniques (schematizations and procedures are shown in the reported references).
Table 4. Several examples of lipid–polymeric hybrid nanoparticle production techniques (schematizations and procedures are shown in the reported references).
LPHN Production Techniques/Output StructureMain AdvantagesMain DisadvantagesReferences
Conventional techniques
Nanoprecipitation method/monolithic nanosystemseasy to perform,
inexpensive		bulk technique (bench-scale),
long process times,
limited output volumes,
poor control		Mukherejee et al., 2019 [48]
Dehaini et al., 2016 [62]
Zhang et al., 2010 [8]
Dropwise (layer-by-layer) method/coated nanosystemseasy to perform,
inexpensive		bulk technique (bench-scale),
long process times,
limited output volumes,
poor control		Hasan et al., 2016 [57]
Tan et al., 2016 [58]
Bochicchio et al., 2018 [77]
Emulsification-solvent evaporation method/coated nanosystemseasy to perform,
inexpensive		bulk technique (bench-scale),
long process times,
limited output volumes,
poor control		Mukherejee et al., 2019 [48]
Zhang et al., 2010
Emerging technologies
Spray drying/monolithic or layered nanosystemscontinuous technique, massive production,
precise control		high energy consumptionDormenval et al., 2019 [70]
Microfluidic method/layered polymeric core, outer lipid–PEGprecise controllimited output volumes (bench-scale),
expensive apparatus		Wei et al., 2020 [69]
Mieszawska et al., 2013 [56]
Simil-microfluidic method/chitosan or guar gum-coated nanoliposomescontinuous technique, massive production,
precise control,
operative room conditions		presence of residual solventBochicchio et al., 2018 [77]
Barba et al., 2019 [90]
Super critical fluid technique/chitosan-coated liposomesorganic solvent-free preparationsexpensive apparatus,
high energy consumption		Otake et al., 2006 [88]

4. Conclusions and Perspectives

In this article, a concise overview of the potential of lipid–polymer hybrid nanocarriers was presented. Examples of improved characteristics in terms of functional activity of polymer–lipid nanostructures discussed in the literature were reported. The recent techniques adopted in the production of hybrid nanoparticles were briefly described, underlining the shortcomings still present (limited output volumes, low productivity being bulk techniques, high energy consumption, expensive configuration, long process times) to make the translation of the production of these intelligent particles from the laboratory to the market be sustainable, easy, and fast.
The current scenario on the topic of hybrid nanoparticles reveals a powerful potential of these conceptualized vectors—their uses can range from cancer treatments to nutraceutical, cosmeceutical purposes and diagnostic applications.
From a formulation point of view, research is conducting a careful selection of biocompatible polymer–lipid combinations through more extensive in vivo experiments (about 100 articles have been published on this topic in the last decade—source: Web of Science, Core Collection 2000–2021 query search: “biocompatible polymer–lipid AND in vivo”, last access 19 January 2021).
From a general production point of view, specific impasses in the production of LPHNs are linked to their stability and manipulation. Liquid suspensions are the most diffuse form of the hybrid nanoparticle preparations; otherwise a solid state can be achieved but often after further preparative steps such as, for example, lyophilization. Liquid suspension status often can constitute a limitation for stability and manipulation issues (undesired aggregation and microbiological contamination effects, storage at low or very low temperature, loss of ingredient effectiveness by oxidation phenomena, etc.). To this aim, processes such as concentration (by solvent evaporation unit operation), liquid–solid separation (by mechanical operations), and drying (freeze drying, spray drying—the latter of which is also a main preparative process, as discussed in this work) are currently under investigation. Of course, the features of these post-treatments also must fall in the needs to have sustainable (technologically and in terms of resources) processes for the pharmaceutical industry modernization.

Author Contributions

Conceptualization, A.A.B.; methodology, S.B.; writing—original draft preparation, S.B.; writing—review and editing, S.B. and A.A.B.; supervision, A.A.B. and G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. S.B., G.L. and A.A.B. are the employees of the Eng4Life Srl. The company had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

Abbreviations

GIgastrointestinal (tract, lumen)
LNCslipid nanocapsules
LNslipid nanoparticles
LPHNslipid–polymeric hybrid nanoparticles
LPNsLipid–polymeric nanoparticles
NABDsnucleic acid-based drugs
NCLsnanostructured lipid carriers
NEsnanoerithrocytes
NPnanoparticle
MTT3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide
PNslipid nanoparticles
RBCsred blood cells
RBC-MCNsrbc-membrane-camouflaged nanocarriers
RESreticuloendothelial system
siRNAshort interfering RNA
SLNssolid lipid nanoparticles
SMSLNssurface-modified solid lipid nanoparticles

References

  1. Du, Y.; Chen, B. Combination of drugs and carriers in drug delivery technology and its development. Drug Des. Dev. Ther. 2019, 13, 1401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Mandal, B.; Bhattacharjee, H.; Mittal, N.; Sah, H.; Balabathula, P.; Thoma, L.A.; Wood, G.C. Core–shell-type lipid–polymer hybrid nanoparticles as a drug delivery platform. Nanomed. Nanotechnol. Biol. Med. 2013, 9, 474–491. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, R.X.; Ahmed, T.; Li, L.Y.; Li, J.; Abbasi, A.Z.; Wu, X.Y. Design of nanocarriers for nanoscale drug delivery to enhance cancer treatment using hybrid polymer and lipid building blocks. Nanoscale 2017, 9, 1334–1355. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, J.; Ayano, E.; Maitani, Y.; Kanazawa, H. Tunable surface properties of temperature-responsive polymer-modified liposomes induce faster cellular uptake. ACS Omega 2017, 2, 316–325. [Google Scholar] [CrossRef]
  5. Nagase, K.; Hasegawa, M.; Ayano, E.; Maitani, Y.; Kanazawa, H. Effect of polymer phase transition behavior on temperature-responsive polymer-modified liposomes for siRNA transfection. Int. J. Mol. Sci. 2019, 20, 430. [Google Scholar]
  6. Barve, A.; Jain, A.; Liu, H.; Zhao, Z.; Cheng, K. Enzyme-responsive polymeric micelles of cabazitaxel for prostate cancer targeted therapy. Acta Biomater. 2020, 113, 501–511. [Google Scholar] [CrossRef]
  7. Ganesan, P.; Ramalingam, P.; Karthivashan, G.; Ko, Y.T.; Choi, D.-K. Recent developments in solid lipid nanoparticle and surface-modified solid lipid nanoparticle delivery systems for oral delivery of phyto-bioactive compounds in various chronic diseases. Int. J. Nanomed. 2018, 13, 1569. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, L.; ZHANG, L. Lipid–polymer hybrid nanoparticles: Synthesis, characterization and applications. Nano Life 2010, 1, 163–173. [Google Scholar] [CrossRef]
  9. Celerino de Moraes Porto, I.C. Polymer biocompatibility. In Polymerization; De Souza Gomes, A., Ed.; InTech Open: Rijeka, Croatia, 2012; pp. 47–62. [Google Scholar] [CrossRef] [Green Version]
  10. Arif, U.; Haider, S.; Haider, A.; Khan, N.; Alghyamah, A.A.; Jamila, N.; Khan, M.I.; Almasry, W.A.; Kang, I.K. Biocompatible Polymers and their Potential Biomedical Applications: A Review. Curr. Pharm. Des. 2019, 25, 3608–3619. [Google Scholar] [CrossRef]
  11. Kim, M.W.; Kwon, S.H.; Choi, J.H.; Lee, A. A Promising Biocompatible Platform: Lipid-Based and Bio-Inspired Smart Drug Delivery Systems for Cancer Therapy. Int. J. Mol. Sci. 2018, 19, 3859. [Google Scholar] [CrossRef] [Green Version]
  12. Sun, M.; Yuan, Y.; Lu, F.; Di Pasqua, A.J. Physicochemical Factors That Influence the Biocompatibility of Cationic Liposomes and Their Ability to Deliver DNA to the Nuclei of Ovarian Cancer SK-OV-3 Cells. Materials 2021, 14, 416. [Google Scholar] [CrossRef] [PubMed]
  13. Montis, C.; Sostegni, S.; Milani, S.; Baglioni, P.; Berti, D. Biocompatible cationic lipids for the formulation of liposomal DNA vectors. Soft. Matter. 2014, 10, 4287–4297. [Google Scholar] [CrossRef] [PubMed]
  14. Begines, B.; Ortiz, T.; Pérez-Aranda, M.; Martínez, G.; Merinero, M.; Argüelles-Arias, F.; Alcudia, A. Polymeric nanoparticles for drug delivery: Recent developments and future prospects. Nanomaterials 2020, 10, 1403. [Google Scholar] [CrossRef] [PubMed]
  15. Karlsson, J.; Vaughan, H.J.; Green, J.J. Biodegradable polymeric nanoparticles for therapeutic cancer treatments. Annu. Rev. Chem. Biomol. Eng. 2018, 9, 105–127. [Google Scholar] [CrossRef] [PubMed]
  16. George, A.; Shah, P.A.; Shrivastav, P.S. Natural biodegradable polymers based nano-formulations for drug delivery: A review. Int. J. Pharm. 2019, 561, 244–264. [Google Scholar] [CrossRef] [PubMed]
  17. Venditti, I. Morphologies and functionalities of polymeric nanocarriers as chemical tools for drug delivery: A review. J. King Saud Univ.-Sci. 2019, 31, 398–411. [Google Scholar] [CrossRef]
  18. Barba, A.A.; Gaetano, L.; Carla, S.; Barbara, D.; Michela, A.; Mario, G.; Rossella, F.; Federica, T.; Giancarlo, F.; Francesco, M.; et al. Novel Lipid and Polymeric Materials as Delivery Systems for Nucleic Acid Based Drugs. Curr. Drug Metab. 2015, 16, 427–452. [Google Scholar] [CrossRef]
  19. Mufamadi, M.S.; Pillay, V.; Choonara, Y.E.; Du Toit, L.C.; Modi, G.; Naidoo, D.; Ndesendo, V.M. A review on composite liposomal technologies for specialized drug delivery. J. Drug Deliv. 2011, 2011, 939851. [Google Scholar] [CrossRef]
  20. Jimenez-Jimenez, C.; Manzano, M.; Vallet-Regi, M. Nanoparticles Coated with Cell Membranes for Biomedical Applications. Biology 2020, 9, 406. [Google Scholar] [CrossRef]
  21. Chen, H.Y.; Deng, J.; Wang, Y.; Wu, C.Q.; Li, X.; Dai, H.W. Hybrid cell membrane-coated nanoparticles: A multifunctional biomimetic platform for cancer diagnosis and therapy. Acta Biomater. 2020, 112, 1–13. [Google Scholar] [CrossRef]
  22. Xu, C.H.; Ye, P.J.; Zhou, Y.C.; He, D.X.; Wei, H.; Yu, C.Y. Cell membrane-camouflaged nanoparticles as drug carriers for cancer therapy. Acta Biomater. 2020, 105, 1–14. [Google Scholar] [CrossRef] [PubMed]
  23. Lin, Y.N.; Elsabahy, M.; Khan, S.; Zhang, F.W.; Song, Y.; Dong, M.; Li, R.C.; Smolen, J.; Letteri, R.A.; Su, L.; et al. Erythrocyte-Membrane-Camouflaged Nanocarriers with Tunable Paclitaxel Release Kinetics via Macromolecular Stereocomplexation. ACS Mater. Lett. 2020, 2, 595–601. [Google Scholar] [CrossRef]
  24. AlQahtani, S.A.; Harisa, G.I.; Alomrani, A.H.; Alanazi, F.K.; Badran, M.M. Improved pharmacokinetic and biodistribution of 5-fluorouracil loaded biomimetic nanoerythrocytes decorated nanocarriers for liver cancer treatment. Colloids Surf. B-Biointerfaces 2021, 197, 111380. [Google Scholar] [CrossRef] [PubMed]
  25. Mohapatra, S.; Ranjan, S.; Dasgupta, N.; Kumar, R.; Thomas, S. Nanocarriers for Drug Delivery: Nanoscience and Nanotechnology in Drug Delivery; Elsevier: Amsterdam, The Netherlands, 2018. [Google Scholar]
  26. Duan, Y.; Dhar, A.; Patel, C.; Khimani, M.; Neogi, S.; Sharma, P.; Kumar, N.S.; Vekariya, R.L. A brief review on solid lipid nanoparticles: Part and parcel of contemporary drug delivery systems. RSC Adv. 2020, 10, 26777–26791. [Google Scholar] [CrossRef]
  27. Mukherjee, S.; Ray, S.; Thakur, R. Solid lipid nanoparticles: A modern formulation approach in drug delivery system. Indian J. Pharm. Sci. 2009, 71, 349. [Google Scholar] [CrossRef] [Green Version]
  28. Date, T.; Nimbalkar, V.; Kamat, J.; Mittal, A.; Mahato, R.I.; Chitkara, D. Lipid-polymer hybrid nanocarriers for delivering cancer therapeutics. J. Control. Release 2018, 271, 60–73. [Google Scholar] [CrossRef]
  29. Bochicchio, S.; Dalmoro, A.; Barba, A.A.; dAmore, M.; Lamberti, G. New preparative approaches for micro and nano drug delivery carriers. Curr. Drug Deliv. 2017, 14, 203–215. [Google Scholar] [CrossRef]
  30. Rizwanullah, M.; Ahmad, J.; Amin, S.; Mishra, A.; Ain, M.R.; Rahman, M. Polymer-lipid hybrid systems: Scope of intravenous-to-Oral switch in Cancer chemotherapy. Curr. Nanomed. Former. Recent Pat. Nanomed. 2020, 10, 164–177. [Google Scholar] [CrossRef]
  31. Vargas, K.M.; Shon, Y.-S. Hybrid lipid–nanoparticle complexes for biomedical applications. J. Mater. Chem. B 2019, 7, 695–708. [Google Scholar] [CrossRef]
  32. Wakaskar, R.R. General overview of lipid–polymer hybrid nanoparticles, dendrimers, micelles, liposomes, spongosomes and cubosomes. J. Drug Target. 2018, 26, 311–318. [Google Scholar] [CrossRef]
  33. Zangabad, P.S.; Mirkiani, S.; Shahsavari, S.; Masoudi, B.; Masroor, M.; Hamed, H.; Jafari, Z.; Taghipour, Y.D.; Hashemi, H.; Karimi, M. Stimulus-responsive liposomes as smart nanoplatforms for drug delivery applications. Nanotechnol. Rev. 2018, 7, 95–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Campani, V.; Giarra, S.; De Rosa, G. Lipid-based core-shell nanoparticles: Evolution and potentialities in drug delivery. OpenNano 2018, 3, 5–17. [Google Scholar] [CrossRef]
  35. Majumder, J.; Minko, T. Multifunctional and stimuli-responsive nanocarriers for targeted therapeutic delivery. Expert. Opin. Drug. Deliv. 2020, 1–23. [Google Scholar] [CrossRef] [PubMed]
  36. Siewert, C.D.; Haas, H.; Cornet, V.; Nogueira, S.S.; Nawroth, T.; Uebbing, L.; Ziller, A.; Al-Gousous, J.; Radulescu, A.; Schroer, M.A. Hybrid Biopolymer and Lipid Nanoparticles with Improved Transfection Efficacy for mRNA. Cells 2020, 9, 2034. [Google Scholar] [CrossRef] [PubMed]
  37. Garg, N.K.; Tyagi, R.K.; Sharma, G.; Jain, A.; Singh, B.; Jain, S.; Katare, O. Functionalized lipid–polymer hybrid nanoparticles mediated codelivery of methotrexate and aceclofenac: A synergistic effect in breast cancer with improved pharmacokinetics attributes. Mol. Pharm. 2017, 14, 1883–1897. [Google Scholar] [CrossRef] [PubMed]
  38. Khan, M.M.; Madni, A.; Torchilin, V.; Filipczak, N.; Pan, J.; Tahir, N.; Shah, H. Lipid-chitosan hybrid nanoparticles for controlled delivery of cisplatin. Drug Deliv. 2019, 26, 765–772. [Google Scholar] [CrossRef] [Green Version]
  39. Gao, F.; Zhang, J.; Fu, C.; Xie, X.; Peng, F.; You, J.; Tang, H.; Wang, Z.; Li, P.; Chen, J. iRGD-modified lipid–polymer hybrid nanoparticles loaded with isoliquiritigenin to enhance anti-breast cancer effect and tumor-targeting ability. Int. J. Nanomed. 2017, 12, 4147. [Google Scholar] [CrossRef] [Green Version]
  40. Polack, F.P.; Thomas, S.J.; Kitchin, N.; Absalon, J.; Gurtman, A.; Lockhart, S.; Perez, J.L.; Pérez Marc, G.; Moreira, E.D.; Zerbini, C.; et al. Safety and Efficacy of the BNT162b2 mRNA Covid-19 Vaccine. N. Engl. J. Med. 2020, 383, 2603–2615. [Google Scholar] [CrossRef]
  41. Walsh, E.E.; Frenck, R.W.; Falsey, A.R.; Kitchin, N.; Absalon, J.; Gurtman, A.; Lockhart, S.; Neuzil, K.; Mulligan, M.J.; Bailey, R.; et al. Safety and Immunogenicity of Two RNA-Based Covid-19 Vaccine Candidates. N. Engl. J. Med. 2020, 383, 2439–2450. [Google Scholar] [CrossRef]
  42. Maier, M.A.; Jayaraman, M.; Matsuda, S.; Liu, J.; Barros, S.; Querbes, W.; Tam, Y.K.; Ansell, S.M.; Kumar, V.; Qin, J.; et al. Biodegradable Lipids Enabling Rapidly Eliminated Lipid Nanoparticles for Systemic Delivery of RNAi Therapeutics. Mol. Ther. 2013, 21, 1570–1578. [Google Scholar] [CrossRef] [Green Version]
  43. Pardi, N.; Tuyishime, S.; Muramatsu, H.; Kariko, K.; Mui, B.L.; Tam, Y.K.; Madden, T.D.; Hope, M.J.; Weissman, D. Expression kinetics of nucleoside-modified mRNA delivered in lipid nanoparticles to mice by various routes. J. Control. Release 2015, 217, 345–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Jain, A.; Sharma, G.; Kushwah, V.; Garg, N.K.; Kesharwani, P.; Ghoshal, G.; Singh, B.; Shivhare, U.S.; Jain, S.; Katare, O.P. Methotrexate and beta-carotene loaded-lipid polymer hybrid nanoparticles: A preclinical study for breast cancer. Nanomedicine 2017, 12, 1851–1872. [Google Scholar] [CrossRef] [PubMed]
  45. Dalmoro, A.; Bochicchio, S.; Nasibullin, S.F.; Bertoncin, P.; Lamberti, G.; Barba, A.A.; Moustafine, R.I. Polymer-lipid hybrid nanoparticles as enhanced indomethacin delivery systems. Eur. J. Pharm. Sci. 2018, 121, 16–28. [Google Scholar] [CrossRef] [PubMed]
  46. Dalmoro, A.; Bochicchio, S.; Lamberti, G.; Bertoncin, P.; Janssens, B.; Barba, A.A. Micronutrients encapsulation in enhanced nanoliposomal carriers by a novel preparative technology. RSC Adv. 2019, 9, 19800–19812. [Google Scholar] [CrossRef] [Green Version]
  47. Dave, V.; Yadav, R.B.; Kushwaha, K.; Yadav, S.; Sharma, S.; Agrawal, U. Lipid-polymer hybrid nanoparticles: Development & statistical optimization of norfloxacin for topical drug delivery system. Bioact. Mater. 2017, 2, 269–280. [Google Scholar]
  48. Mukherjee, A.; Waters, A.K.; Kalyan, P.; Achrol, A.S.; Kesari, S.; Yenugonda, V.M. Lipid–polymer hybrid nanoparticles as a next-generation drug delivery platform: State of the art, emerging technologies, and perspectives. Int. J. Nanomed. 2019, 14, 1937. [Google Scholar] [CrossRef] [Green Version]
  49. Pardi, N.; Hogan, M.J.; Porter, F.W.; Weissman, D. mRNA vaccines—A new era in vaccinology. Nat. Rev. Drug Discov. 2018, 17, 261–279. [Google Scholar] [CrossRef] [Green Version]
  50. Goyal, A.K.; Singh, R.; Chauhan, G.; Rath, G. Non-invasive systemic drug delivery through mucosal routes. Artif. Cells Nanomed. Biotechnol. 2018, 46, 539–551. [Google Scholar] [CrossRef] [Green Version]
  51. Bajracharya, R.; Song, J.G.; Back, S.Y.; Han, H.-K. Recent advancements in non-invasive formulations for protein drug delivery. Comput. Struct. Biotechnol. J. 2019, 17, 1290–1308. [Google Scholar] [CrossRef]
  52. Guilherme, V.A.; Ribeiro, L.N.; Tofoli, G.R.; Franz-Montan, M.; de Paula, E.; de Jesus, M.B. Current challenges and future of lipid nanoparticles formulations for topical drug application to oral mucosa, skin, and eye. Curr. Pharm. Des. 2017, 23, 6659–6675. [Google Scholar] [CrossRef]
  53. Teelavath, M.; Patnaik, K.R. Review on Buccal Adhesive Drug Delivery System: A Promising Strategy for Poorly Soluble Drugs. J. Drug Deliv. Ther. 2019, 9, 778–792. [Google Scholar]
  54. Meraj Anjum, M.; Kanoujia, J.; Parashar, P.; Arya, M.; K Yadav, A.; A Saraf, S. Evaluation of a polymer-lipid-polymer system utilising hybrid nanoparticles of dapsone as a novel antiacne agent. Curr. Drug Ther. 2016, 11, 86–100. [Google Scholar] [CrossRef]
  55. Helal, N.A.; Eassa, H.A.; Amer, A.M.; Eltokhy, M.A.; Edafiogho, I.; Nounou, M.I. Nutraceuticals’ Novel Formulations: The Good, the Bad, the Unknown and Patents Involved. Recent Pat. Drug Deliv. Formul. 2019, 13, 105–156. [Google Scholar] [PubMed]
  56. Mieszawska, A.J.; Kim, Y.; Gianella, A.; van Rooy, I.; Priem, B.; Labarre, M.P.; Ozcan, C.; Cormode, D.P.; Petrov, A.; Langer, R.; et al. Synthesis of Polymer–Lipid Nanoparticles for Image-Guided Delivery of Dual Modality Therapy. Bioconjugate Chem. 2013, 24, 1429–1434. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Hasan, M.; Messaoud, G.B.; Michaux, F.; Tamayol, A.; Kahn, C.J.; Belhaj, N.; Linder, M.; Arab-Tehrany, E. Chitosan-coated liposomes encapsulating curcumin: Study of lipid–polysaccharide interactions and nanovesicle behavior. RSC Adv. 2016, 6, 45290–45304. [Google Scholar] [CrossRef]
  58. Tan, C.; Feng, B.; Zhang, X.; Xia, W.; Xia, S. Biopolymer-coated liposomes by electrostatic adsorption of chitosan (chitosomes) as novel delivery systems for carotenoids. Food Hydrocoll. 2016, 52, 774–784. [Google Scholar] [CrossRef]
  59. Cuomo, F.; Lopez, F.; Piludu, M.; Miguel, M.G.; Lindman, B.; Ceglie, A. Release of small hydrophilic molecules from polyelectrolyte capsules: Effect of the wall thickness. J. Colloid Interface Sci. 2015, 447, 211–216. [Google Scholar] [CrossRef]
  60. Van Tran, V.; Moon, J.-Y.; Lee, Y.-C. Liposomes for delivery of antioxidants in cosmeceuticals: Challenges and development strategies. J. Control. Release 2019, 300, 114–140. [Google Scholar] [CrossRef]
  61. Zhang, L.; Chan, J.M.; Gu, F.X.; Rhee, J.-W.; Wang, A.Z.; Radovic-Moreno, A.F.; Alexis, F.; Langer, R.; Farokhzad, O.C. Self-assembled lipid− polymer hybrid nanoparticles: A robust drug delivery platform. ACS Nano 2008, 2, 1696–1702. [Google Scholar] [CrossRef] [Green Version]
  62. Dehaini, D.; Fang, R.H.; Luk, B.T.; Pang, Z.; Hu, C.-M.J.; Kroll, A.V.; Yu, C.L.; Gao, W.; Zhang, L. Ultra-small lipid–polymer hybrid nanoparticles for tumor-penetrating drug delivery. Nanoscale 2016, 8, 14411–14419. [Google Scholar] [CrossRef] [Green Version]
  63. Liu, J.; Cheng, H.; Le Han, Z.Q.; Zhang, X.; Gao, W.; Zhao, K.; Song, Y. Synergistic combination therapy of lung cancer using paclitaxel-and triptolide-coloaded lipid–polymer hybrid nanoparticles. Drug Des. Dev. Ther. 2018, 12, 3199. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Tahir, N.; Madni, A.; Balasubramanian, V.; Rehman, M.; Correia, A.; Kashif, P.M.; Mäkilä, E.; Salonen, J.; Santos, H.A. Development and optimization of methotrexate-loaded lipid-polymer hybrid nanoparticles for controlled drug delivery applications. Int. J. Pharm. 2017, 533, 156–168. [Google Scholar] [CrossRef] [PubMed]
  65. Leng, D.; Thanki, K.; Fattal, E.; Foged, C.; Yang, M. Engineering of budesonide-loaded lipid-polymer hybrid nanoparticles using a quality-by-design approach. Int. J. Pharm. 2018, 548, 740–746. [Google Scholar] [CrossRef] [PubMed]
  66. Bhardwaj, A.; Mehta, S.; Yadav, S.; Singh, S.K.; Grobler, A.; Goyal, A.K.; Mehta, A. Pulmonary delivery of antitubercular drugs using spray-dried lipid–polymer hybrid nanoparticles. Artif. Cells Nanomed. Biotechnol. 2016, 44, 1544–1555. [Google Scholar] [CrossRef] [PubMed]
  67. Wang, T.; Xue, J.; Hu, Q.; Zhou, M.; Chang, C.; Luo, Y. Synthetic surfactant-and cross-linker-free preparation of highly stable lipid-polymer hybrid nanoparticles as potential oral delivery vehicles. Sci. Rep. 2017, 7, 1–15. [Google Scholar]
  68. Takami, E.A.; Erogbogbo, F. Microfluidic synthesis of lipid-polymer hybrid nanoparticles for targeted drug delivery. MRS Adv. 2016, 1, 2155–2160. [Google Scholar] [CrossRef]
  69. Wei, W.; Sun, J.; Guo, X.-Y.; Chen, X.; Wang, R.; Qiu, C.; Zhang, H.-T.; Pang, W.-H.; Wang, J.-C.; Zhang, Q. Microfluidic-Based Holonomic Constraints of siRNA in the Kernel of Lipid/Polymer Hybrid Nanoassemblies for Improving Stable and Safe In Vivo Delivery. ACS Appl. Mater. Inter. 2020, 12, 14839–14854. [Google Scholar] [CrossRef]
  70. Dormenval, C.; Lokras, A.; Cano-Garcia, G.; Wadhwa, A.; Thanki, K.; Rose, F.; Thakur, A.; Franzyk, H.; Foged, C. Identification of factors of importance for spray drying of small interfering RNA-loaded lipidoid-polymer hybrid nanoparticles for inhalation. Pharm. Res. 2019, 36, 142. [Google Scholar] [CrossRef]
  71. Bokare, A.; Takami, A.; Kim, J.H.; Dong, A.; Chen, A.; Valerio, R.; Gunn, S.; Erogbogbo, F. Herringbone-Patterned 3D-Printed Devices as Alternatives to Microfluidics for Reproducible Production of Lipid Polymer Hybrid Nanoparticles. ACS Omega 2019, 4, 4650–4657. [Google Scholar] [CrossRef] [Green Version]
  72. Germain, M.; Caputo, F.; Metcalfe, S.; Tosi, G.; Spring, K.; Åslund, A.K.; Pottier, A.; Schiffelers, R.; Ceccaldi, A.; Schmid, R. Delivering the power of nanomedicine to patients today. J. Control. Release 2020, 326, 164–171. [Google Scholar] [CrossRef]
  73. Barba, A.A.; Bochicchio, S.; Dalmoro, A.; Lamberti, G. Lipid Delivery Systems for Nucleic-Acid-Based-Drugs: From Production to Clinical Applications. Pharmaceutics 2019, 11, 360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Wu, Z.; Ping, Q.; Wei, Y.; Lai, J. Hypoglycemic efficacy of chitosan-coated insulin liposomes after oral administration in mice. Acta Pharm. Sin. 2004, 25, 966–972. [Google Scholar]
  75. Gradauer, K.; Barthelmes, J.; Vonach, C.; Almer, G.; Mangge, H.; Teubl, B.; Roblegg, E.; Dünnhaupt, S.; Fröhlich, E.; Bernkop-Schnürch, A. Liposomes coated with thiolated chitosan enhance oral peptide delivery to rats. J. Control. Release 2013, 172, 872–878. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Henriksen, I.; Smistad, G.; Karlsen, J. Interactions between liposomes and chitosan. Int. J. Pharm. 1994, 101, 227–236. [Google Scholar] [CrossRef]
  77. Bochicchio, S.; Dalmoro, A.; Bertoncin, P.; Lamberti, G.; Moustafine, R.I.; Barba, A.A. Design and production of hybrid nanoparticles with polymeric-lipid shell–core structures: Conventional and next-generation approaches. RSC Adv. 2018, 8, 34614–34624. [Google Scholar] [CrossRef] [Green Version]
  78. Tai, K.; Rappolt, M.; Mao, L.; Gao, Y.; Li, X.; Yuan, F. The stabilization and release performances of curcumin-loaded liposomes coated by high and low molecular weight chitosan. Food Hydrocoll. 2020, 99, 105355. [Google Scholar] [CrossRef]
  79. Badawi, A.A.; El-Laithy, H.M.; El Qidra, R.K.; El Mofty, H.; El Dally, M. Chitosan based nanocarriers for indomethacin ocular delivery. Arch. Pharmacal. Res. 2008, 31, 1040–1049. [Google Scholar] [CrossRef]
  80. Jøraholmen, M.W.; Vanić, Ž.; Tho, I.; Škalko-Basnet, N. Chitosan-coated liposomes for topical vaginal therapy: Assuring localized drug effect. Int. J. Pharm. 2014, 472, 94–101. [Google Scholar] [CrossRef] [Green Version]
  81. Park, S.N.; Jo, N.R.; Jeon, S.H. Chitosan-coated liposomes for enhanced skin permeation of resveratrol. J. Ind. Eng. Chem. 2014, 20, 1481–1485. [Google Scholar] [CrossRef]
  82. Mady, M.M.; Darwish, M.M. Effect of chitosan coating on the characteristics of DPPC liposomes. J. Adv. Res. 2010, 1, 187–191. [Google Scholar] [CrossRef] [Green Version]
  83. Hao, J.; Guo, B.; Yu, S.; Zhang, W.; Zhang, D.; Wang, J.; Wang, Y. Encapsulation of the flavonoid quercetin with chitosan-coated nano-liposomes. Lwt-Food Sci. Technol. 2017, 85, 37–44. [Google Scholar] [CrossRef]
  84. Li, Z.; Paulson, A.T.; Gill, T.A. Encapsulation of bioactive salmon protein hydrolysates with chitosan-coated liposomes. J. Funct. Foods 2015, 19, 733–743. [Google Scholar] [CrossRef]
  85. Rengel, R.G.; Barišić, K.; Pavelić, Ž.; Grubišić, T.Ž.; Čepelak, I.; Filipović-Grčić, J. High efficiency entrapment of superoxide dismutase into mucoadhesive chitosan-coated liposomes. Eur. J. Pharm. Sci. 2002, 15, 441–448. [Google Scholar] [CrossRef]
  86. Deygen, I.M.; Seidl, C.; Kölmel, D.K.; Bednarek, C.; Heissler, S.; Kudryashova, E.V.; Bräse, S.; Schepers, U. Novel Prodrug of Doxorubicin Modified by Stearoylspermine Encapsulated into PEG-Chitosan-Stabilized Liposomes. Langmuir 2016, 32, 10861–10869. [Google Scholar] [CrossRef] [PubMed]
  87. Nguyen, T.X.; Huang, L.; Liu, L.; Abdalla, A.M.E.; Gauthier, M.; Yang, G. Chitosan-coated nano-liposomes for the oral delivery of berberine hydrochloride. J. Mater. Chem. B 2014, 2, 7149–7159. [Google Scholar] [CrossRef]
  88. Otake, K.; Shimomura, T.; Goto, T.; Imura, T.; Furuya, T.; Yoda, S.; Takebayashi, Y.; Sakai, H.; Abe, M. One-step preparation of chitosan-coated cationic liposomes by an improved supercritical reverse-phase evaporation method. Langmuir 2006, 22, 4054–4059. [Google Scholar] [CrossRef]
  89. Bochicchio, S.; Dalmoro, A.; Recupido, F.; Lamberti, G.; Barba, A.A. Nanoliposomes production by a protocol based on a simil-microfluidic approach. In Advances in Bionanomaterials; Springer: Berlin/Heidelberg, Germany, 2018; pp. 3–10. [Google Scholar]
  90. Barba, A.A.; Bochicchio, S.; Bertoncin, P.; Lamberti, G.; Dalmoro, A. Coating of Nanolipid Structures by a Novel Simil-Microfluidic Technique: Experimental and Theoretical Approaches. Coatings 2019, 9, 491. [Google Scholar] [CrossRef] [Green Version]
Pharmaceutics 13 00198 g001 550
Figure 1. Number of publications from the years 2010 to 2020 (source: Web of Science Core Collection, query search: “lipid polymer hybrid nanoparticles”, last accessed 27 December 2020).
Figure 1. Number of publications from the years 2010 to 2020 (source: Web of Science Core Collection, query search: “lipid polymer hybrid nanoparticles”, last accessed 27 December 2020).
Pharmaceutics 13 00198 g001
Pharmaceutics 13 00198 g002 550
Figure 2. Schematic representation of structures and potential improvements of functional features of lipid–polymeric nanoparticles for pharmaceutical purposes.
Figure 2. Schematic representation of structures and potential improvements of functional features of lipid–polymeric nanoparticles for pharmaceutical purposes.
Pharmaceutics 13 00198 g002
Pharmaceutics 13 00198 g003 550
Figure 3. Simplified schematic representation of structural features of lipid–polymeric nanoparticles.
Figure 3. Simplified schematic representation of structural features of lipid–polymeric nanoparticles.
Pharmaceutics 13 00198 g003
Table
Table 1. Full name of polymers cited in the text.
Table 1. Full name of polymers cited in the text.
AbbreviationFull Name
PLGApoly(lactic-co-glycolic acid)
PLApoly(lactic acid)
PCLpolycaprolactone
PEGpolyethylene glycol
PHEMApoly hydroxyethyl methacrylate
PHPMApoly(2-hydroxypropyl methacrylate)
PVApolyvinyl alcohol
PNIPAmpoly(N-isopropylacrylamide)
PAApoly(amidoamine)
PEIpolyethyleneimine
PBAEpoly-(β-amino ester)
Table
Table 2. Full name of lipids cited in the text.
Table 2. Full name of lipids cited in the text.
AbbreviationFull Name
Cholcholesterol
PCsoybean phosphatidylcholine
DPPC1,2-dipalmitoyl-sn-glycero-3-phosphocholine
DSPE1,2-distearoyl-sn-glycero-3-phosphoethanolamine
DSPC1,2-distearoyl-sn-glycero-3-phosphocholine
DMPC1,2-dimyristoleoyl-sn-glycero-3-ethylphosphocholine
DOPE1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
DOPC1,2-dioleoyl-sn-glycero-3-phosphocholine
POPC1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine
HSPChydrogenated soy phosphatidylcholine
PEphosphor-ethanolamine
DOTAP1,2-dioleoyl-3-trimethylammonium propane
DPTAP1,2-dipalmitoyl-3-trimethylammonium-propane
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bochicchio, S.; Lamberti, G.; Barba, A.A. Polymer–Lipid Pharmaceutical Nanocarriers: Innovations by New Formulations and Production Technologies. Pharmaceutics 2021, 13, 198. https://doi.org/10.3390/pharmaceutics13020198

AMA Style

Bochicchio S, Lamberti G, Barba AA. Polymer–Lipid Pharmaceutical Nanocarriers: Innovations by New Formulations and Production Technologies. Pharmaceutics. 2021; 13(2):198. https://doi.org/10.3390/pharmaceutics13020198

Chicago/Turabian Style

Bochicchio, Sabrina, Gaetano Lamberti, and Anna Angela Barba. 2021. "Polymer–Lipid Pharmaceutical Nanocarriers: Innovations by New Formulations and Production Technologies" Pharmaceutics 13, no. 2: 198. https://doi.org/10.3390/pharmaceutics13020198

APA Style

Bochicchio, S., Lamberti, G., & Barba, A. A. (2021). Polymer–Lipid Pharmaceutical Nanocarriers: Innovations by New Formulations and Production Technologies. Pharmaceutics, 13(2), 198. https://doi.org/10.3390/pharmaceutics13020198

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
