The Antimicrobial Properties of Modified Pharmaceutical Bentonite with Zinc and Copper

by
Fotini Martsouka
1,*,
Konstantinos Papagiannopoulos
1,
Sophia Hatziantoniou
2,
Martin Barlog
3,
Giorgos Lagiopoulos
4,
Triantafyllos Tatoulis
5,
Athanasia G. Tekerlekopoulou
5,
Paraskevi Lampropoulou
1 and
Dimitrios Papoulis
1
1
Department of Geology, University of Patras, 26504 Patras, Greece
2
Department of Pharmacy, University of Patras, 26504 Patras, Greece
3
Institute of Inorganic Chemistry, Slovak Academy of Sciences (SAS), Dúbravská Cesta 9, 845 36 Bratislava, Slovakia
4
Microbiology Department, Quality Assurance and Control Systems—QACS Labs, Antigonis 1, Metamorfosis, 14451 Athens, Greece
5
Department of Environmental Engineering, University of Patras, 2 G. Seferi Str., 30100 Agrinio, Greece
*
Author to whom correspondence should be addressed.
Pharmaceutics 2021, 13(8), 1190; https://doi.org/10.3390/pharmaceutics13081190
Submission received: 1 July 2021 / Revised: 27 July 2021 / Accepted: 28 July 2021 / Published: 2 August 2021
Browse Figures
Versions Notes

Abstract

:
Pharmaceutical grade bentonite, containing a high amount of montmorillonite, enriched with zinc (Zn) or copper (Cu) (ZnBent and CuBent, respectively) was used as the main component for the creation of formulations for cutaneous use and tested for their antimicrobial capacity. Bentonite (Bent) with added phenoxyethanol (PH) as a preservative and unmodified bentonite were used as control groups. The mineralogical composition, structural state, and physical or chemical properties, before and after the modification of the samples, were characterized utilizing X-ray Diffraction Analysis (XRD), Fourier-Transform Infrared Spectroscopy (FTIR) and X-ray Fluorescence (XRF) techniques, and Scanning Electron Microscope-Energy Dispersive Spectroscopy (SEM, SEM-EDS) analyses. In addition, the profile of zinc and copper concentration from two types of surfaces ZnBent and CuBent, and into Phosphate-Buffered Saline (PBS) are discussed. Finally, the formulations in the form of basic pastes were challenged against bacteria, molds, and yeasts, and their performance was evaluated based on the European Pharmacopeia criteria. The Cu-modified bentonite performed excellently against bacteria and yeasts, while the Zn-modified bentonite only showed great results against yeasts. Therefore, Cu-modified bentonite formulations could offer antimicrobial protection without the use of preservatives.

Graphical Abstract

1. Introduction

Clay minerals offer a great alternative for a vast variety of applications due to their unique physical (small particle size and shape, high specific surface area, color, and texture), chemical (low or null toxicity) [1], and physicochemical properties (high ion exchange capacity, sorptive capacity) [2,3,4]. Specifically, they are used as topical semi-solid products in the form of paste and poultices in the pharmaceutical and cosmetic industries. Before considering their use for pharmaceutical—cosmetic preparations, certain pharmaceutical tests (challenge test) should be performed, the results of which must meet the strict chemical, physical and toxicological standards laid down by the European Pharmacopoeia or the United States Pharmacopoeia [4,5]. Many of the chemicals (parabens) used intensively in pharmaceuticals and cosmetics preparations can be durable, bioactive, have a potential for accumulation in the organism, as well as causing endocrine disorders [6,7,8,9]. Although the acute toxicity of these chemicals is considered low, some of them cause serious environmental impacts [10]. In cosmetology, clay minerals are used as protection from sunlight, in creams, powders, and emulsions [11]. The use of clay minerals in medicine is due to their astringent and hemostatic action as well as the treatment of skin diseases [1,12]. In the field of dermatology and cosmetics, their use is equally important and due to the ingredients they contain, they prove to be beneficial against skin lesions in various parts of the body [1,13]. In addition, they act locally as antiseptics [14], disinfectants [14] anti-inflammatory [14,15,16], as dermatological protections [14,15,17], as well as local anesthetics [13,18,19]. They have been used as carriers and have great interest, especially when they are combined with metals known for their antimicrobial and antibacterial properties [19,20,21]. Bentonites are vastly used in the pharmaceutical and cosmetics industry, due to their healing and cosmetic properties [4]. They are generally used in pharmaceutical and cosmetic applications for their indirect antibacterial activity, controlled mainly by their very high cation exchange capacity, high surface area, high swelling capacity, high water dispersibility, high absorption capacity, and non-toxic properties [13,22,23,24]. Bentonite consists chiefly of crystalline clay minerals belonging to the smectite group [25]. The structure of the smectites is 2:1 and consists of a central octahedral sheet of aluminum located between two tetrahedral sheets of silicon dioxide. They have an oily appearance, odorless, soft texture, small particle size (0.2–2 μm), high plasticity and viscosity, similar to skin pH, high swelling capacity high exchange capacity cations (100–200 meq/100 g) [4,26,27,28,29,30,31,32,33,34,35,36,37,38,39] and color ranging from yellow, pink, and gray [4,40].
Systemic antimicrobials are widely used to treat the vast majority of skin infections [40] with the potential for systemic side-effects such as diarrhea and abdominal cramping, while also increasing the antimicrobial resistance within intestinal microflora [41]. The use of topical agents neglects such risks and adds certain advantages such as providing a higher concentration of antibiotics to the affected area and lowering the quantity of active ingredients needed [40]. Copper and zinc, are metals that have been used to create alginate fibers [42,43] or other cosmetic and pharmaceutical formulations [44,45,46,47] and are known for their anti-microbial and inhibitory action on microorganisms, and their help in tissue regeneration without causing cytotoxicity problems in the human body. Various studies have been performed to examine the antimicrobial activities of bentonite or silver-modified bentonite [48,49,50]. However, due to the high cost of silver [50,51], its high cytotoxicity [52,53,54], and the problem of 'argyria' after continuous use of silver [55], new metals may be considered. Recently, Cu-loaded kaolinite showed excellent preservation activity against bacteria and adequate population reduction for molds, while Zn-loaded talc demonstrated significant antimicrobial protection on yeasts [56]. Modified bentonite with metals like zinc or copper, which do not display the above-mentioned negative properties of silver, has not been tested until now for the evaluation of antimicrobial protection in topical use. The combined antimicrobial properties of bentonites and metals (zinc, copper), the low risk of using them, as well as and the abundance of such materials in the markets motivate our research team to conduct this research. The purpose was to determine the suitability of using pharmaceutical-grade bentonites in topical administration in paste form by enriching them with copper and zinc to develop the best possible antimicrobial properties (Supplementary Materials).

2. Material and Methods

2.1. Materials

Pharmaceutical-grade bentonite was purchased from CHEMCO by Syndesmos S.A. (Athens, Greece). The zinc (ZnCl2) and copper (CuCl2) precursors were purchased from Chem-Lab (Zedelgem, Belgium).

2.2. Samples Preparation

To load the clay particles with Zn or Cu ions, the samples were saturated with 1 M ZnCl2 and CuCl2 solutions respectively. The solutions were prepared by mixing the molar mass of the chlorides with 1 L of distilled water [57].
The bentonite sample and the solution were mixed (ratio of 10 g/150 mL), stirred for 10 min, and then the mixture was centrifuged. The separated chloride solution was disposed of and refilled with the chloride solutions. This procedure was repeated five times [57] and the samples were washed with distilled water to remove excess chloride. Finally, each sample was dried and pulverized to powder. The samples obtained were labeled as CuBent (Cu-bentonite) and ZnBent (Zn-bentonite). Also, the unmodified bentonite was labeled as Bent.
The preparation of the pastes included the mixing of clay powders (25% w/w), with starch (25% w/w), glycerin (5% w/w), and deionized water (45% w/w) and then stirring until total homogeneity. Consequently, pastes containing unmodified bentonite powder (Bentp), modified-clay powders (ZnBentp, CuBentp), and unmodified bentonite with added phenoxyethanol (PHBentp) were created. The PHBentp sample was created by replacing 1% w/w of water with 1% w/w phenoxyethanol that served as the preservative. Each paste weighed 120 g [58,59,60,61].

2.3. Characterization

2.3.1. X-ray Diffraction Analysis

The X-ray diffraction technique was used to determine the mineralogical composition of the samples. A Bruker D8 advance diffractometer (Bruker, Billerica, MA, USA) with nickel-filtered copper Kα radiation was used complemented by DIFFRAC plus EVA12® software (Bruker-AXS) [62] based on ICDD (International Centre for Diffraction Data) Powder Diffraction File of PDF-2 2006. The XRD patterns were obtained between 2o and 60° at a scanning rate of 2°/min. The samples were prepared by the dropper method. Semi-quantitative analyses were performed by TOPAS 3.0® software (TOPAS MC Inc., Oakland, CA, USA), based on the Rietveld method refinement routine as well as by the peak area method using the DIFFRAC plus EVA12® software and its “Area” tool. The errors of each phase were estimated under 1%.

2.3.2. Scanning Electron Microscope-Energy Dispersive Spectroscopy

Images revealing the surface morphology of the clay particles were obtained by using a scanning electron microscope SEM JEOL 6300 (JEOL, Tokyo, Japan) operating at 30 kV with an energy dispersive spectrometer (EDS). By utilizing energy dispersive spectroscopy, microelemental analysis was conducted and the presence of the metals was represented by pseudocolorization. Carbon coating under vacuum on all samples was used for the best efficiency.

2.3.3. Fourier-Transform Infrared Spectroscopy

Any structural change after the chemical modification was investigated using infrared spectra obtained on a Nicolet 6700 Fourier Transform Infrared (FTIR) spectrometer from Thermo Scientific™, (Thermo Scientific, Waltham, MA, USA) while IR source (wolfram wire), KBr beamsplitter, and DTGS detector were used for measurement in the middle IR region (MIR 4000–400 cm−1). The KBr pellet press technique (0.5–1 mg of sample homogenized with 200 mg KBr) was also used to collect MIR transmission spectra. The minimization of adsorbed water was achieved by heating the pellets overnight at 140 °C. For each sample, 128 scans with a resolution of 4 cm−1 were recorded.

2.3.4. X-ray Fluorescence

The elemental analysis of the samples was conducted by X-ray fluorescence (XRF) diffusion using a ZSX PRIMUS II, from Rigaku (Tokyo, Japan), with an elemental range of Be to U.

2.3.5. Profile of Metals Concentration

In addition, zinc and copper profile concentrations for both types of surfaces ZnBent and CuBent into PBS from Sigma-Aldrich (Darmstadt, Germany) were determined. Four different times were examined (t0 = 5 min, t1 = 30 min, t2 = 60 min, and t3 = 120 min), while 5 mL of phosphate-buffered saline (PBS) was added each time. Phosphate-buffered saline (PBS) is a buffer that is often used in biological research and studies because its concentrations of ions and osmotic molecules match those of microorganisms. It is a saline isotonic solution containing sodium phosphate, sodium chloride, and in some cases potassium chloride and potassium phosphate. Specifically, one PBS buffer tablet was dissolved in 200 mL of deionized water to give 0.01 M phosphate buffer, 0.0027 M potassium chloride, and 0.137 M sodium chloride, pH 7.4, at 25 °C (Sigma-Aldrich, Merck KGaA, Darmstadt, Germany). Specifically, four different falcons were made for each surface tested (ZnBent or CuBent), each falcon containing 0.25 g of material. 5 mL of phosphate-buffered saline (PBS) was then added to each of the eight falcons. PBS was in contact with the material for four different reaction times (t0 = 5 min, t1 = 30 min, t2 = 60 min, and t3 = 120 min), with one falcon of each material corresponding to one contact time. The samples for homogenization were then stirred with the Vortex laboratory stirrer for 30 seconds and then centrifuged at 3000 rpm and then the solid was separated from the supernatant (liquid) by a pipette and collected in falcons. The procedure for each surface was repeated three times (triplicate) to create zinc and copper release curves of ZnBent and CuBent samples.
Subsequently, a specific quantity of samples ZnBent and CuBent were withdrawn in 5, 30, 60, and 120 min while nitric acid (2%) was used for metal dissolution and stabilization for ICP-MS analysis. Zinc and copper concentrations were determined using the Optima 8000ICP-OES (Perkin Elmer, Inc., Waltham, MA, USA) instrument that specializes in the determination of metals and trace elements. Argon was used with the ICP-OES system while nitrogen for the optical purge gas. The wavelength used for Zn and Cu was 213.855 and 324.747 nm, respectively, while the plasma view for the metals was axial for both metals. The experimental conditions used were: Plasma gas flow: 15 L/min, Auxiliary gas flow: 0.2 L/min, Nebulizer gas flow: 0.55 L/min, RF power: 1300 Watts, Purge flow: Normal, Peristaltic pump flow rate: 1.5 mL/min. The average values and standard deviations were estimated by three independent experiments Axis X: Exposure time (min), Axis Y: Concentration (Cu/Zn mg L−1).

2.4. Statistical Analysis

The experimental sets were conducted in triplicate and the results were expressed as mean ± standard deviation (SD) of measurements. Mean values were obtained from three samples taken from three independent bioreactors characterized by the same operating conditions. Statistically significant differences between data were evaluated using Student’s t-test (Microsoft Office Excel 2007, Redmond, WA, USA) confidence interval for 95% probability, and a value of p ≤ 5% was considered statistically significant.

2.5. Evaluation of Antimicrobial Protection

The Preservation Efficacy Test (PET), also known as the Challenge test, has been used for the determination of each formula’s antimicrobial effectiveness. PET is a reference method, primarily designed for multiuse water-soluble or water-miscible products, during which, the formulation is challenged by several specified micro-organisms (i.e., bacteria, yeasts, and molds), to evaluate if the formulation is adequately preserved. More specifically, the test consists of challenging the preparation under test, with a prescribed inoculum of suitable micro-organisms, storing the inoculated preparation at 20–25 °C, avoiding sunlight, withdrawing samples from the container at specified intervals of time, and counting the micro-organisms in the samples so removed. The preservative properties of the preparation are adequate if, in the conditions of the test, there is a significant fall or no increase, as appropriate, in the number of micro-organisms in the inoculated preparation after 2, 7, 14, and 28 days. Results are expressed in log reduction values.

3. Results and Discussion

3.1. X-ray Diffraction Analysis (XRD)

Figure 1 illustrates the XRD patterns of the unmodified bentonite, Zn modified bentonite, and Cu modified bentonite. The main component of the samples is montmorillonite with its characteristic peaks appearing at 14.48 Å and 4.44 Å, while quartz presence is indicated slightly above detection limits as its two main peaks are slightly visible. Some new peaks are revealed after the modification at 7.8 Å for ZnBent and 5.5 Å for CuBent. This implies that new phases were synthesized during the modification process, possibly salt compounds in the form of oxides in low amounts of 4% (PDF card numbers: 7-155 & 18-0439 for ZnBent and CuBent samples, respectively) as indicated by their relatively low reflections. The absence of other impurities corresponds to the purity expected in pharmaceutical clay.

3.2. Fourier-Transform Infrared Spectroscopy (FTIR)

The MIR spectra of bentonite were measured to obtain information on the composition of initial (Bent) and modified (ZnBent, CuBent) samples. The spectra showed bands characteristic for the dioctahedral smectite with low iron content (Figure 2). The stretching region shows the typically broad band at 3623 cm−1 assigned to the vibrations of the OH groups coordinated to octahedral cations (Al2OH, AlMgOH, and AlFe3+OH) [63]. The complex band in the 1100–1030 cm−1 region corresponded to the in-plane Si–O–Si stretching vibrations of montmorillonite at 1035 cm−1, stretching vibrations of quartz at 1090 cm−1 and from 2nd derivation of spectra (not shown) was observed weak band assigned to Si-O perpendicular vibrations of montmorillonite at 1100 cm−1. In the bending region, two peaks at 916 cm−1 and 844 cm−1 are related to δ (Al2OH) and δ (AlMgOH). The Al–O–Si bending band appeared at 520 cm−1 and Si–O–Si bending at 466 cm−1 [63]. The peak at 625 cm−1 was assigned to coupled Al–O out-of-plane and Si–O bending vibrations. The quartz admixture was also found in the examined samples at 792 cm−1. By comparison of the positions of the bands, no significant differences between samples were found.

3.3. Surface Characterizations

Scanning Electron Microscope-SEM-Energy Dispersive Spectroscopy (SEM-EDS)

As shown in Figure 3, montmorillonite is in the form of thick flakes exhibiting irregular and curling edges [64]. The clay particles are usually found as particle aggregates and not as single particles. As a result, the particle (mainly particle aggregates) size ranges from 5 μm to 30 μm which is a lot larger than montmorillonite's usual particle size. The distribution of the metal ions is illustrated via elemental mapping utilizing energy dispersive X-ray spectrometry. As seen in Figure 3, the metal ions are distributed homogenously and densely upon the smectite crystals. This is the desired result, as microbial growth could occur in large areas where metal ions are scarce or absent. Moreover, this distribution validates the theory that the metals have not formed distinguishable aggregates, which would be susceptible to mechanical removal, thus downgrading the antimicrobial potential of the material.

3.4. Chemical Characterization

X-ray Fluorescence Spectroscopy Analysis (XRF)

Table 1 shows the trace elements present in each sample. The modified bentonite is richer in copper and zinc for CuBent and ZnBent respectively in comparison to the unmodified bentonite (Table 2).

3.5. Profile of Metal Concentration

The concentration of Zn and Cu ions released from ZnBent and CuBent respectively in the PBS is presented in Figure 4. The concentrations of both metals elevated rapidly to a maximum value of 500 ppm (zinc) and 100 ppm (copper) after 5 min of contact time. Regarding Zn, the concentration of zinc ions was decreased until reaching the minimum value of 370 ppm at 60 min and then was increased again up to the value of 470 ppm at 120 min. Statistically significant differences were reported between the sets of t0–t1, t0–t2, t0–t3, t1–t2, t2–t3 (p < 0.05), while no difference was noted between set t1–t3 (p = 0.52). Concerning, copper ions their concentration was decreased to 80 ppm at 30 min of contact time and remained at this level until the 120 min mark. The concentration of free copper ions decreases with the formation of oxides, while more copper ions are released from the smectite to compensate for this decrease until an equilibrium is achieved. Statistically significant differences were reported between sets t0–t1, t0–t2, t0–t3, t1–t2, t2–t3 (p < 0.05), while no difference was noted between set t1–t3 (p = 0.26). Additionally, it is worth noting that the difference between the maximum concentrations of each metal can be attributed to the adsorption preference of smectites between Zn and Cu ions. Sipos et al., (2018) [65], and Baghenejad et al., (2016) [66] refer that Cu is characterized by higher sorption than Zn in soils with smectite clay mineralogy. Specifically, the affinity sequence of the various metals studied by Sipos et al. (2018) [65] is as follows: Pb > Cu > Cd > Zn.

3.6. Challenge Test

There are several PET Protocols, like the compendial methods of European and U.S. Pharmacopoeia, or ISO 11930. During this study, an alternative PET Protocol has been used, known as mixed Protocol, which is based on the compendial protocols but is more demanding [56]. The mixed protocol is based on the compendia methods and includes eleven (11) Gram-positive and Gram-negative bacteria, yeast, and molds (Table 3). The selection of the 11 stains is based on spoiling microorganisms usually found on cosmetics production sites and are also representative of the contaminants that are likely to be exposed, during the product's intended use. The contamination level is of the same level with the compendial protocols (105–106 colony-forming units, cfu/g) and the key difference lies in the mixed inoculation. Unlike the Compendial Pharmacopoeia tests and ISO 11930, in which five specified micro-organisms are used as single strain inoculations, the PET mixed protocol includes 11 specified micro-organisms used as grouped (mixed) inocula. The multi-strain contamination simulates the real-life conditions and the increased number of strains challenges in a greater level, the formulation under test. The mixed protocol involves, for each group of test micro-organisms, placing the formulation in contact with calibrated inoculums (10 g of the test formulation, 0.1 mL of calibrated inoculums) and measuring the number of surviving micro-organisms at defined intervals (2nd, 7th, 14th, and 28th day) during a period of 28 days. The containers of inoculation formulation are stored in a dark place at (22.5 ± 2.5 °C).
The enumeration method used was the plate count method-pour plate technique, using 1ml as inoculation quantity. For each time interval and group of micro-organisms, the log reduction value was calculated and compared to the minimum values required for evaluation according to criteria A or B (European Pharmacopoeia, current edition).
The preservative properties of the preparation are adequate if, in the conditions of the test, there is a significant fall or no increase, as indicated by the European Pharmacopoeia criteria. The criteria for the evaluation of PET are given in Table 4 in terms of the log reduction in the number of viable micro-organisms (cfu) against the value obtained for the inoculums. Criteria A expresses the recommended efficacy to be achieved. In justified cases where Criteria A cannot be attained, for example, for reasons of an increased risk of adverse reactions, Criteria B must be satisfied.
The microbial load of all samples was evaluated prior to the challenge test, to determine whether the initial microbial load is low enough for reliable results to be obtained. Any paste that exceeds the limits for total aerobic microbial count, molds, and yeasts given by the European Pharmacopoeia 10.0 is not eligible to proceed to the challenge test. Specifically, all samples passed the sterility test except for the unmodified bentonite paste (Bentp) which developed a total aerobic microbial load >3 × 103 cfu/g five days after its preparation (Table 5). Moreover, this result is corroborated by other authors like Jou et al., (2016) [67] and Holesova et al., (2013) [68] which reported that natural clay minerals show no antibacterial effect. Therefore, the antibacterial properties of clay minerals are attributed to coexisting inorganic species such as Zn [56,69,70] and Cu ions [56,71,72,73].
The total count of bacteria, molds, and yeasts starting from the initial inoculation at the predetermined time intervals are summarized in Table 6, while the logarithmic reduction of CFU and the score for each sample according to the relevant criteria are presented in Table 7. Specifically, CuBentp showed excellent resistance to bacteria and yeasts with similar results to the phenoxyethanol sample, as the total count for bacteria and yeasts was found lower than 100 cfu/g within two days and reduced to a minimum count of <10 cfu/g until the seventh day, thus passing criterion A. Additionally, it demonstrated an adequate reduction of CFU for molds barely missing criterion A with 1.41 instead of 2 log reduction at day 14, overall satisfying criterion B. In this case, the microbiological risk of the product should be assessed during the product development phase, taking into consideration control factors other than the formulation. Such a factor may be the type of container, like an airless container with a pump, that prevents the contact of the product with the environment, providing higher protection, or the strict application of good manufacturing practices during production [74]. The excellent antibacterial behavior of copper-enriched bentonite was also referred to by Das et al., (2014) [75] and Khurana et al., (2015) [76] in their studies.
Moreover, ZnBentp showed excellent resistance to yeasts, satisfying criterion A, although its performance against molds and yeasts was poor rendering it unable to satisfy any criteria. Finally, the results of the antimicrobial protection for the PHBentp paste were excellent, satisfying criterion A for each microorganism. Total counts for each day paired with the corresponding reduction rates are plotted logarithmically in Figure 5.

4. Conclusions

In the present study, the antimicrobial protection of pastes composed of copper or zinc-modified bentonite was evaluated. Firstly, mineralogical analyses via XRD verified the purity of the pharmaceutical bentonite, identifying montmorillonite as its main characteristic phase, while scanning electron microscopy revealed a homogenous dispersion of copper and zinc ions on the main surfaces and edges of clay crystals. Moreover, the abundance of each metal ion was confirmed via chemical analysis (XRF). On the other hand, the structural composition of the samples after the chemical modification was not affected, as no differences were detected between the examined FTIR spectra of modified and unmodified samples. According to the ion release results, the concentrations of both Zn and Cu ions in the PBS peaked within the first 5 min of contact time, thus implying that most ions were released immediately after the samples were submerged into the solution. Overall, the modified pastes have shown excellent results against microbial contamination achieving similar results to the phenoxyethanol control sample. The excess antimicrobial metals that form salts have probably increased the antimicrobial properties of the samples. Specifically, CuBentp demonstrated excellently against bacteria and yeasts satisfying criterion A, while also performing adequately against molds satisfying criterion B. Despite this, controlling certain factors like using airless containers or the strict application of good manufacturing practices can ensure total antimicrobial protection. Contrary, ZnBentp showed no significant antimicrobial protection against bacteria or molds but performed excellently against yeasts satisfying criterion A. Both ingredients could be used in combination with other preservatives that are active against molds, reducing their concentration, or with other natural ingredients with complementary antimicrobial action that are not listed in Annex V of the cosmetic regulation EU 1223/2009. In conclusion, the chemically modified semi-solid bentonite formulations could serve as an alternative solution that offers antimicrobial protection without the use of preservatives, which are responsible for human health and environmental degradation.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pharmaceutics13081190/s1, Figure S1. SEM photomicrographs of montmorillonite showing crystals in flakes exhibiting irregular and curling edges in different magnifications 200 nm, 300 nm, 1 μm, and 10 μm, respectively.

Author Contributions

Conceptualization, D.P.; data curation, F.M., K.P., T.T., A.G.T. and P.L.; formal analysis, F.M., K.P., S.H., A.G.T., P.L. and D.P.; investigation, F.M., K.P., S.H., G.L., T.T., A.G.T., P.L. and D.P.; methodology, S.H., A.G.T. and D.P.; project administration, D.P.; resources, S.H., M.B., A.G.T. and D.P.; software, F.M., K.P., M.B., T.T., A.G.T. and P.L.; supervision, S.H. and D.P.; validation, F.M., K.P., S.H., G.L., T.T., A.G.T. and P.L.; visualization, F.M., K.P., S.H. and D.P.; writing—original draft, F.M., K.P., M.B. and P.L.; writing—review and editing, S.H., A.G.T. and D.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing does not apply to this article.

Acknowledgments

This research is co-financed by Greece and the European Union (European Social Fund—ESF) through the Operational Programme «Human Resources Development, Education and Lifelong Learning» in the context of the project “Strengthening Human Resources Research Potential via Doctorate Research—2nd Cycle” (MIS-5000432), implemented by the State Scholarships Foundation (ΙΚΥ).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carretero, M.I. Clay minerals and their beneficial effects upon human health. A review. Appl. Clay Sci. 2002, 21, 155–163. [Google Scholar] [CrossRef]
  2. Murray, H.H. Traditional and new applications for kaolin, smectite, and palygorskite: A general overview. Appl. Clay Sci. 2000, 17, 207–221. [Google Scholar] [CrossRef]
  3. Harben, P.W. The Industrial Mineral. Handy Book. A Guide to Markets, Specifications and Prices, 4th ed.; Industrial Mineral Information: Worcester Park, UK, 2002; p. 412. [Google Scholar]
  4. López-Galindo, A.; Viseras, C.; Cerezo, P. Compositional, technical and safety specifications of clays to be used as pharmaceutical and cosmetic products. Appl. Clay Sci. 2007, 36, 51–63. [Google Scholar] [CrossRef]
  5. Viseras, C.; Lopez-Galindo, A. Pharmaceutical applications of some spanish clays (sepiolite, palygorskite, bentonite): Some preformulation studies. Appl. Clay Sci. 1999, 14, 69–82. [Google Scholar] [CrossRef]
  6. Daughton, C.G.; Ternes, T.A. Pharmaceuticals and personal care products in the environment: Agents of subtle change? Environ. Health Perspect 1999, 107, 907–938. [Google Scholar] [CrossRef]
  7. Darbre, P.D. Environmental oestrogens, cosmetics and breast cancer. Best Pract. Res. Clin. Endocrinol. Metab. 2006, 20, 121–143. [Google Scholar] [CrossRef]
  8. Taxvig, C.; Vinggaard, A.M.; Hass, U.; Axelstad, M.; Boberg, J.; Hansen, P.R.; Nellemann, C. Do parabens have the ability to interfere with steroidogenesis? Toxicol. Sci. 2008, 106, 206–213. [Google Scholar] [CrossRef] [Green Version]
  9. Caliman, F.A.; Gavrilescu, M. Pharmaceuticals, personal care products and endocrine disrupting agents in the environment—A review. Clean Soil Air Water 2009, 37, 277–303. [Google Scholar] [CrossRef]
  10. Dhanirama, D.; Gronow, J.; Voulvoulis, N. Cosmetics as a potential source of environmental contamination in the UK. Environ. Technol. 2012, 33, 1597–1608. [Google Scholar] [CrossRef]
  11. Carretero, M.I.; Pozo, M. Clay and non-clay minerals in the pharmaceutical and cosmetic industries part II active ingredients. Appl. Clay Sci. 2010, 47, 171–181. [Google Scholar] [CrossRef]
  12. Favero, J.S.; Parisotto-Peterle, J.; Weiss-Angeli, V.; Brandalise, R.N.; Gomes, L.B.; Bergmann, C.P.; dos Santos, V. Physical and chemical characterization and method for the decontamination of clays for application in cosmetics. Appl. Clay Sci. 2016, 124–125, 252–259. [Google Scholar] [CrossRef]
  13. Dardir, F.M.; Mohamed, A.S.; Abukhadra, M.R.; Ahmed, E.A.; Soliman, M.F. Cosmetic and pharmaceutical qualifications of egyptian bentonite and its suitability as drug carrier for praziquantel drug. Eur. J. Pharm. Sci. 2018, 115, 320–329. [Google Scholar] [CrossRef]
  14. Viseras, C.; Carazo, E.; Borrego-Sánchez, A.; García-Villén, F.; Sánchez-Espejo, R.; Cerezo, P.; Aguzzi, C. Clay Minerals in Skin Drug Delivery. Clays Clay Miner. 2019, 67, 59–71. [Google Scholar] [CrossRef]
  15. Awad, M.E.; López-Galindo, A.; Setti, M.; El-Rahmany, M.M.; Iborra, C.V. Kaolinite in pharmaceutics and biomedicine. Int. J. Pharm. 2017, 533, 34–48. [Google Scholar] [CrossRef]
  16. Intekom. Pharmaceutical Information about Caloplast Kaolin Poultice (Medicinal Informative Website, South African Electronic Package). Available online: http://home.intekom.com/pharm/allied/caloplst.html/ (accessed on 19 September 2017).
  17. Schliemann, S.; Petri, M.; Elsner, P. Preventing irritant contact dermatitis with protective creams: Influence of the application dose. Contact Dermat. 2013, 70, 19–26. [Google Scholar] [CrossRef]
  18. Gamoudi, S.; Srasra, E. Characterization of Tunisian clay suitable for pharmaceutical and cosmetic applications. Appl. Clay Sci. 2017, 146, 162–166. [Google Scholar] [CrossRef]
  19. Ohashi, F.; Oya, A.; Duclaux, L.; Beguin, F. Structural model calculation of antimicrobial and antifungal agents derived from clay minerals. Appl. Clay Sci. 1998, 12, 435–445. [Google Scholar] [CrossRef]
  20. Zhao, D.; Zhou, J.; Liu, N. Preparation and Characterization of Mingguang Palygorskite Supported with Silver and Copper for Antibacterial Behavior. Appl. Clay Sci. 2006, 33, 161–170. [Google Scholar] [CrossRef]
  21. Magaña, S.M.; Quintana, P.; Aguilar, D.H.; Toledo, J.A.; Ángeles-Chávez, C.; Cortés, M.A.; Sánchez, R.M.T. Antibacterial activity of montmorillonites modified with silver. J. Mol. Catal. A Chem. 2008, 281, 192–199. [Google Scholar] [CrossRef]
  22. Pajarito, B.B.; Castañeda, K.C.; Jeresano, S.D.M.; Repoquit, D.A.N. Reduction of offensive odor from natural rubber using zinc-modified bentonite. Adv. Mater. Sci. Eng. 2018, 2018, 9102825. [Google Scholar] [CrossRef] [Green Version]
  23. Murray, H.H. Current industrial applications of clays. Clay Sci. 2006, 12, 106–112. [Google Scholar] [CrossRef]
  24. Özdemir, G.; Yapar, S. Preparation and characterization of copper and zinc adsorbed cetylpyridinium and N-lauroylsarcosinate intercalated montmorillonites and their antibacterial activity. Colloids Surf. B Biointerfaces 2020, 188, 110791. [Google Scholar] [CrossRef]
  25. Park, J.; Shin, H.; Kim, M.H.; Kim, J.; Kang, N.; Lee, J.; Kim, D. Application of montmorillonite in bentonite as a pharmaceutical excipient in drug delivery systems. J. Pharm. Investig. 2016, 46, 363–375. [Google Scholar] [CrossRef]
  26. Veniale, F.; Setti, M. L’argilla di Pontestura (AL): Potenzialità d´impiego nella formulazione di fanghi peloid. In Atti Conveqno “Argille Curative”; Veniale, F., Ed.; Gruppo Italiano AIPEA; Salice Terme, Italy; Tipografia Trabella: Milano, Italy, 1996; pp. 139–145. [Google Scholar]
  27. Veniale, F. Applicazioni e utilizzazioni medico-sanitarie di materialiargillosi (naturali emodificati). In Argille e MineralidelleArgille. Guidaalla Definizione di Caratteristiche e Proprieta per gliUsiIndustriali; Corso di Formazione; Morandi, N., Dondi, M., Eds.; Gruppo Ital. AIPEA: Rimini, Italy, 1997; pp. 205–239. [Google Scholar]
  28. Summa, V.; Tateo, F. The use of pelitic raw materials in thermal centres: Mineralogy, geochemistry, grain size and leaching tests. Examples from the lucania area (southern italy). Appl. Clay Sci. 1998, 12, 403–417. [Google Scholar] [CrossRef]
  29. Bettero, A.; Marcazzan, M.; Semenzato, A. Aspetti reologici e tensiometrici di matrici fangose di impiego termali e cosmético, Proposta di un protocollo per la loro qualificazione, Atti Simposio “Argille per fanghi peloidi termali e per trattamenti dermatologici e cosmetici”, Montecatini Terme. Mineral. Petrogr. Acta 1999, 42, 277–286. [Google Scholar]
  30. Gorgoni, C.; Bertolani, M.; Ghittoni, A.G.; Pallante, P. Comoposizione, radiottivitá, mineralogia e reologia dei fanghi delle Salse Emiliane. In Abstracts Book of Simposio “Argille per Fanghi Peloidi Termali e per Trattamenti Dermatologici e Cosmetici”; Montecatini Terme, Gruppo Italiano AIPEA: Pisa, Italy, 1999. [Google Scholar]
  31. Minguzzi, V.; Morandi, N.; Tagnin, S.; Tateo, F. Le argille curative in uso negli stabilimenti termali emiliano-romagnoli: Verifica della composizione e delle proprietà. Mineral. Petrogr. Acta 1999, 42, 287–298. [Google Scholar]
  32. Cara, S.; Carcangiu, G.; Padalino, G.; Palomba, M.; Tamanini, M. The bentonites in pelotherapy: Chemical, mineralogical and technological properties of materials from Sardinia deposits (Italy). Appl. Clay Sci. 2000, 16, 117–124. [Google Scholar] [CrossRef]
  33. Sánchez, C.; Parras, J.; Carretero, M.I.; Barba, P. Aplicaciones terapéuticas de las arcillas de Santa Cruz de Mudela (Ciudad Real). In Integración Ciencia-Tecnologia de las Arcillas en el Contexto Tecnológico-Social del Nuevo Milenio; Pascual, J., Ed.; Sociedad Española de Arcillas: Granada, Spain, 2000; pp. 31–40. [Google Scholar]
  34. Cara, S.; Carcangiu, G.; Padalino, G.; Palomba, M.; Tamanini, M. The bentonites in pelotherapy: Thermal properties of clay pastes from Sardinia (Italy). Appl. Clay Sci. 2000, 16, 125–132. [Google Scholar] [CrossRef]
  35. Veniale, F.; Barberis, E.; Carcagiu, G.; Morandi, N.; Setti, M.; Tamanini, M.; Tessier, D. Formulation of muds for pelotherapy: Effects of “maduration” by different mineral waters. Appl. Clay Sci. 2004, 25, 135–148. [Google Scholar] [CrossRef]
  36. Viseras, C.; Aguzzi, C.; Cerezo, P.; Lopez-Galindo, A. Uses of clay minerals in semisolid health care and therapeutic products. Appl. Clay Sci. 2007, 36, 37–50. [Google Scholar] [CrossRef]
  37. Legido, J.L.; Medina, C.; Lourdes Mourelle, M.; Carretero, M.I.; Pozo, M. Comparative study of the cooling rates of bentonite, sepiolite and common clays for their use in pelotherapy. Appl. Clay Sci. 2007, 36, 148–160. [Google Scholar] [CrossRef]
  38. Chang, P.; Jiang, W.; Li, Z. Mechanism of tyramine adsorption on ca-montmorillonite. Sci. Total Environ. 2018, 642, 198–207. [Google Scholar] [CrossRef] [PubMed]
  39. Mosaleheh, N.; Sarvi, M.N. Minimizing the residual antimicrobial activity of tetracycline after adsorption into the montmorillonite: Effect of organic modification. Environ. Res. 2020, 182, 109056. [Google Scholar] [CrossRef]
  40. Gelmetti. Local antibiotics in dermatology. Dermatol. Ther. 2008, 21, 187–195. [Google Scholar] [CrossRef]
  41. Rist, T.; Parish, L.C.; Capin, L.R.; Sulica, V.; Bushnell, W.D.; Cupo, M.A. A comparison of the efficacy and safety of mupirocin cream and cephalexin in the treatment of secondarily infected eczema. Clin. Exp. Dermatol. 2002, 27, 14–20. [Google Scholar] [CrossRef] [PubMed]
  42. Lansdown, A.B.G.; Mirastschijski, U.; Stubbs, N.; Scanlon, E.; Ågren, M.S. Zinc in wound healing: Theoretical, experimental, and clinical aspects. Wound Repair Regen. 2007, 15, 2–16. [Google Scholar] [CrossRef] [PubMed]
  43. Gong, Y.; Han, G.; Zhang, Y.; Pan, Y.; Li, X.; Xia, Y.; Wu, Y. Antifungal activity and cytotoxicity of zinc, calcium, or copper alginate fibers. Biol. Trace Elem. Res. 2012, 148, 415–419. [Google Scholar] [CrossRef] [PubMed]
  44. Pasquet, J.; Chevalier, Y.; Pelletier, J.; Couval, E.; Bouvier, D.; Bolzinger, M.A. The contribution of zinc ions to the antimicrobial activity of zinc oxide. Colloids Surf. A Physicochem. Eng. Asp. 2014, 457, 263–274. [Google Scholar] [CrossRef]
  45. Sirelkhatim, A.; Mahmud, S.; Seeni, A. Review on zinc oxide nanoparticles: Antibacterial activity and toxicity mechanism. Nano Micro Lett. 2015, 7, 219–242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Linlin, L.; Hualin, W.; Chongyang, J.; Minmin, C.; Suwei, J.; Junfeng, C.; Shaotong, J. Antibacterial activity and cytotoxicity of l-phenylalanine-oxidized starch-coordinated zinc (II). Int. J. Biol. Macromol. 2018, 123, 133–139. [Google Scholar] [CrossRef]
  47. Do Rosário, J.A.; De Moura, G.B.G.; Gusatti, M.; Riella, H.G. Synthesis of silver-treated bentonite: Evaluation of its antibacterial properties. Chem. Eng. Trans. 2009, 17, 1795–1800. [Google Scholar] [CrossRef]
  48. Taaca, K.L.M.; Dahonog, L.A.; Argayosa, V.B.; Rubio, R.O.; Olegario, E.M. Cell viability and bacterial reduction activity of Ag-modified bentonite. Mater. Today Proc. 2019, 16, 1782–1788. [Google Scholar] [CrossRef]
  49. Clegg, F.; Breen, C.; Muranyi, P.; Schönweitz, C. Antimicrobial, starch based barrier coatings prepared using mixed silver/sodium exchanged bentonite. Appl. Clay Sci. 2019, 179. [Google Scholar] [CrossRef]
  50. Jones, V.; Grey, J.E.; Harding, K.G. Wound dressings. Br. Med. J. 2006, 332, 777–780. [Google Scholar] [CrossRef]
  51. Enoch, S.; Grey, J.E.; Harding, K.G. Non-surgical and drug treatments. Br. Med. J. 2006, 332, 900–903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Lansdown, A.B.G. A pharmacological and toxicological profile of silver as an antimicrobial agent in medical devices. Adv. Pharmacol. Sci. 2010, 2010, 910686. [Google Scholar] [CrossRef] [Green Version]
  53. White, J.M.; Powell, A.M.; Brady, K.; Russell-Jones, R. Severe generalized argyria secondary to ingestion of colloidal silver protein. Clin. Exp. Dermatol. 2003, 28, 254–256. [Google Scholar] [CrossRef]
  54. Fan, W.; Sun, Q.; Li, Y.; Tay, F.R.; Fan, B. Synergistic mechanism of Ag+-Zn2+ in anti-bacterial activity against enterococcus faecalis and its application against dentin infection. J. Nanobiotechnol. 2018, 16, 10. [Google Scholar] [CrossRef] [PubMed]
  55. Trop, M.; Novak, M.; Rodl, S.; Hellbom, B.; Kroell, W.; Goessler, W. Silver-coated dressing acticoat caused raised liver enzymes and argyria-like symptoms in burn patient. J. Trauma Acute Care Surg. 2006, 60, 648–652. [Google Scholar] [CrossRef] [PubMed]
  56. Martsouka, F.; Papagiannopoulos, K.; Hatziantoniou, S.; Barlog, M.; Lagiopoulos, G.; Tekerlekopoulou, A.G.; Papoulis, D. Evaluation of the antimicrobial protection of pharmaceutical kaolin and talc modified with copper and zinc. Materials 2021, 14, 1173. [Google Scholar] [CrossRef]
  57. Bekiari, V.; Panagopoulos, G.; Papoulis, D.; Panagiotaras, D. Use of halloysite nanotubes to reduce ammonium concentration in water and wastewaters. Mater. Res. Innov. 2017, 21, 313–319. [Google Scholar] [CrossRef]
  58. Rowe, L.W. The USP strophanthus standard. J. Am. Pharm. Assoc. 1912, 19, 563–566. [Google Scholar]
  59. Pharmaceutical Formulas. Proposed for A. Ph. A. Recipe book. J. Am. Pharm. Assoc. 1917, 6, 393–396. [Google Scholar] [CrossRef]
  60. Haldin-Davis, H. Treatment of simple inflammation of the skin (dermatitis). Br. Med. J. 1935, 1, 289–291. [Google Scholar] [CrossRef] [Green Version]
  61. USPPharmacopeia. Available online: http://ftp.uspbpep.com/v29240/usp29nf24s0_m89710.html (accessed on 21 May 2021).
  62. DIFFRAC Plus EVA12® Software (Bruker-AXS). Available online: https://www.bruker.com/content/bruker/int/en/productsand-solutions/diffractometers-and-scattering-systems/x-ray-diffractometers/diffrac-suite-software/diffrac-eva.html (accessed on 28 February 2021).
  63. Madejová, J.; Gates, W.P.; Petit, S. IR Spectra of Clay Minerals. Infrared Raman Spectrosc. Clay Miner. 2017, 107–149. [Google Scholar] [CrossRef]
  64. Murray, H.H. Overview—Clay mineral applications. Appl. Clay Sci. 1991, 5, 379–395. [Google Scholar] [CrossRef]
  65. Sipos, P.; Balázs, R.; Németh, T. Sorption properties of cd, cu, pb and zn in soils with smectitic clay mineralogy. Carpathian J. Earth Environ. Sci. 2018, 13, 175–186. [Google Scholar] [CrossRef] [Green Version]
  66. Baghenejad, M.; Javaheri, F.; Moosavi, A.A. Adsorption isotherms of some heavy metals under conditions of their competitive adsorption onto highly calcareous soils of southern Iran. Arch. Agron. Soil Sci. 2016, 62, 1462–1473. [Google Scholar] [CrossRef] [Green Version]
  67. Jou, S.K.; Malek, N.A.N.N. Characterization and antibacterial activity of chlorhexidine loaded silver-kaolinite. Appl. Clay Sci. 2016, 127, 1–9. [Google Scholar] [CrossRef]
  68. Holešová, S.; Samlíková, M.; Pazdziora, E.; Valášková, M. Antibacterial activity of organomontmorillonites and organovermiculites prepared using chlorhexidine diacetate. Appl. Clay Sci. 2013, 83–84, 17–23. [Google Scholar] [CrossRef]
  69. Tan, S.-Z.; Zhang, K.-H.; Zhang, L.-L.; Xie, Y.-S.; Liu, Y.L. Preparation and Characterization of the Antibacterial Zn2+ or/and Ce3+ Loaded Montmorillonites. Chin. J. Chem. 2008, 26, 865–869. [Google Scholar] [CrossRef]
  70. Özdemir, G.; Limoncu, M.H.; Yapar, S. The antibacterial effect of heavy metal and cetylpridinium-exchanged montmorillonites. Appl. Clay Sci. 2010, 48, 319–323. [Google Scholar] [CrossRef]
  71. Malachová, K.; Praus, P.; Rybková, Z.; Kozák, O. Antibacterial and antifungal activities of silver, copper and zinc montmorillonites. Appl. Clay Sci. 2011, 53, 642–645. [Google Scholar] [CrossRef]
  72. Song, J.; Li, Y.L.; Hu, C.H. Effects of copper-exchanged montmorillonite, as alternative to antibiotic, on diarrhea, intestinal permeability and proinflammatory cytokine of weanling pigs. Appl. Clay Sci. 2013, 77–78, 52–55. [Google Scholar] [CrossRef]
  73. Martsouka, F.; Papagiannopoulos, K.; Gianni, E.; Papoulis, D.; Hatziantoniou, S. Antibacterial activity of pharmaceutical kaolin modified with copper. In Proceedings of the International Multidisciplinary Scientific GeoConference Surveying Geology and Mining Ecology Management (SGEM), Albena, Bulgaria, 28 June–7 July 2019; Volume 19, pp. 27–33. [Google Scholar]
  74. ANNEX ISO 11930. Cosmetics—Microbiology—Evaluation of the Antimicrobial Protection of a Cosmetic Product; ISO: Geneva, Switzerland, 2019. [Google Scholar]
  75. Das, G.; Kalita, R.D.; Gogoi, P.; Buragohain, A.K.; Karak, N. Antibacterial activities of copper nanoparticle-decorated organically modified montmorillonite/ epoxy nanocomposites. Appl. Clay Sci. 2014, 90, 18–26. [Google Scholar] [CrossRef]
  76. Khurana, I.S.; Kaur, S.; Kaur, H.; Khurana, R.K. Multifaceted role of clay minerals in pharmaceuticals. Future Sci. 2015, 1. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 13 01190 g001 550

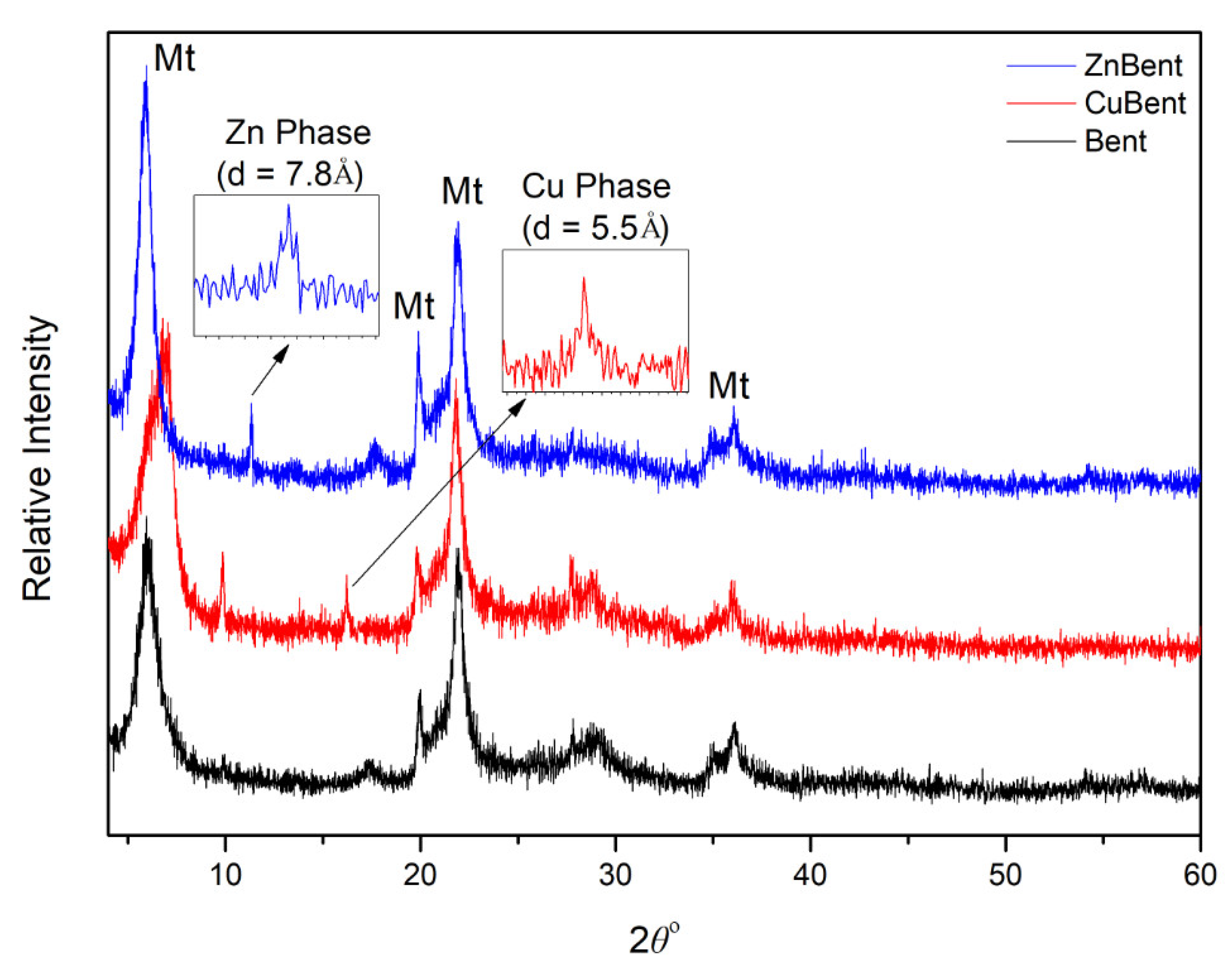

Figure 1. X-ray diffraction patterns of Unmodified Bentonite (Bent), Zinc Modified Bentonite (ZnBent), and Copper Modified Bentonite (CuBent). (Legend: Mt: Montmorillonite, Zn Phase: Simonkolleite syn, Cu Phase: Copper chloride hydroxide).
Figure 1. X-ray diffraction patterns of Unmodified Bentonite (Bent), Zinc Modified Bentonite (ZnBent), and Copper Modified Bentonite (CuBent). (Legend: Mt: Montmorillonite, Zn Phase: Simonkolleite syn, Cu Phase: Copper chloride hydroxide).
Pharmaceutics 13 01190 g001
Pharmaceutics 13 01190 g002 550

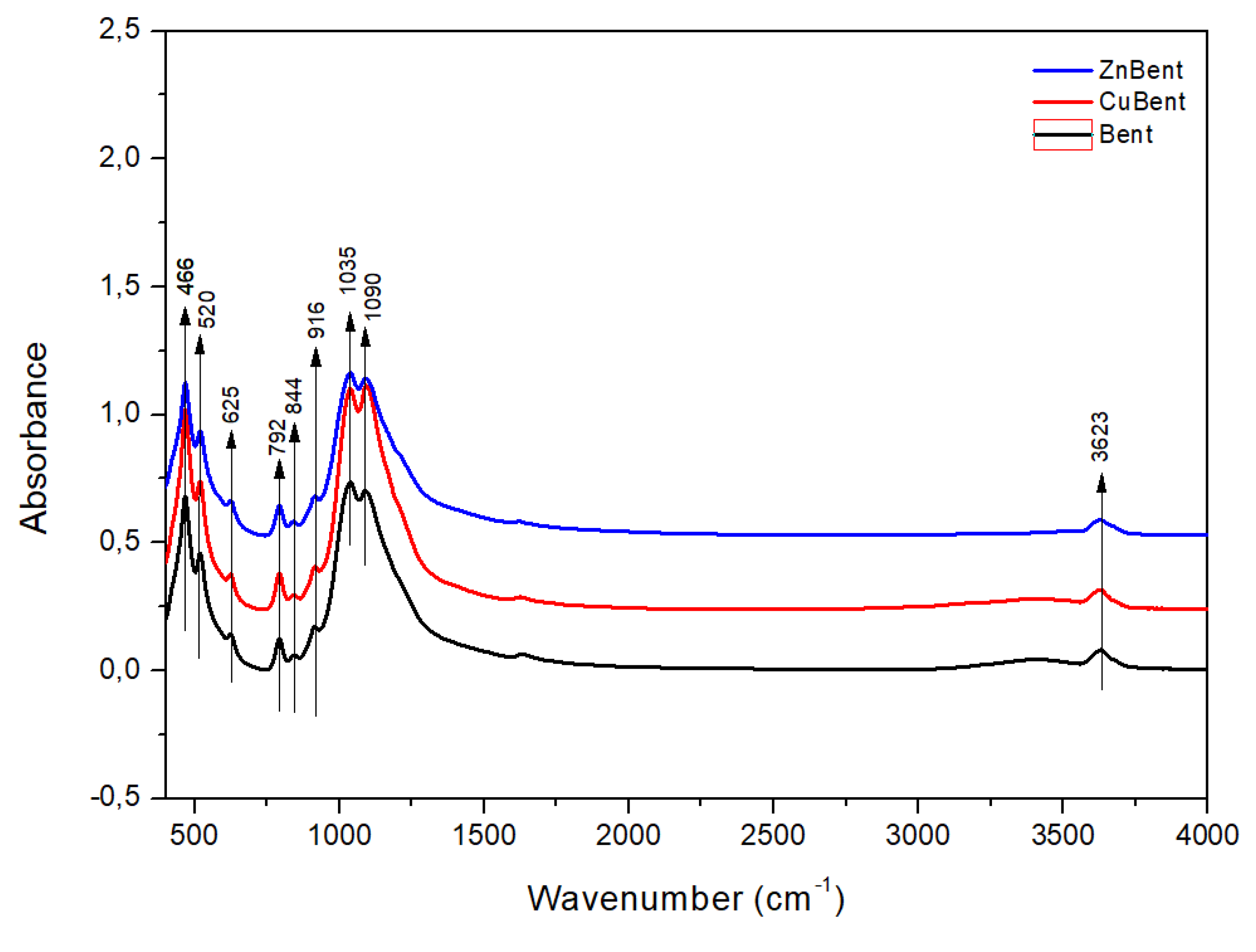

Figure 2. FT-IR spectra diagram of Bent, ZnBent, and CuBent and powder samples.
Figure 2. FT-IR spectra diagram of Bent, ZnBent, and CuBent and powder samples.
Pharmaceutics 13 01190 g002
Pharmaceutics 13 01190 g003 550
Figure 3. SEM photomicrographs showing before (left) and after (right) elemental mapping of (a,b) ZnBent and (c,d) CuBent, respectively. The distribution of zinc and copper, respectively, is indicated by red dots.
Figure 3. SEM photomicrographs showing before (left) and after (right) elemental mapping of (a,b) ZnBent and (c,d) CuBent, respectively. The distribution of zinc and copper, respectively, is indicated by red dots.
Pharmaceutics 13 01190 g003
Pharmaceutics 13 01190 g004 550

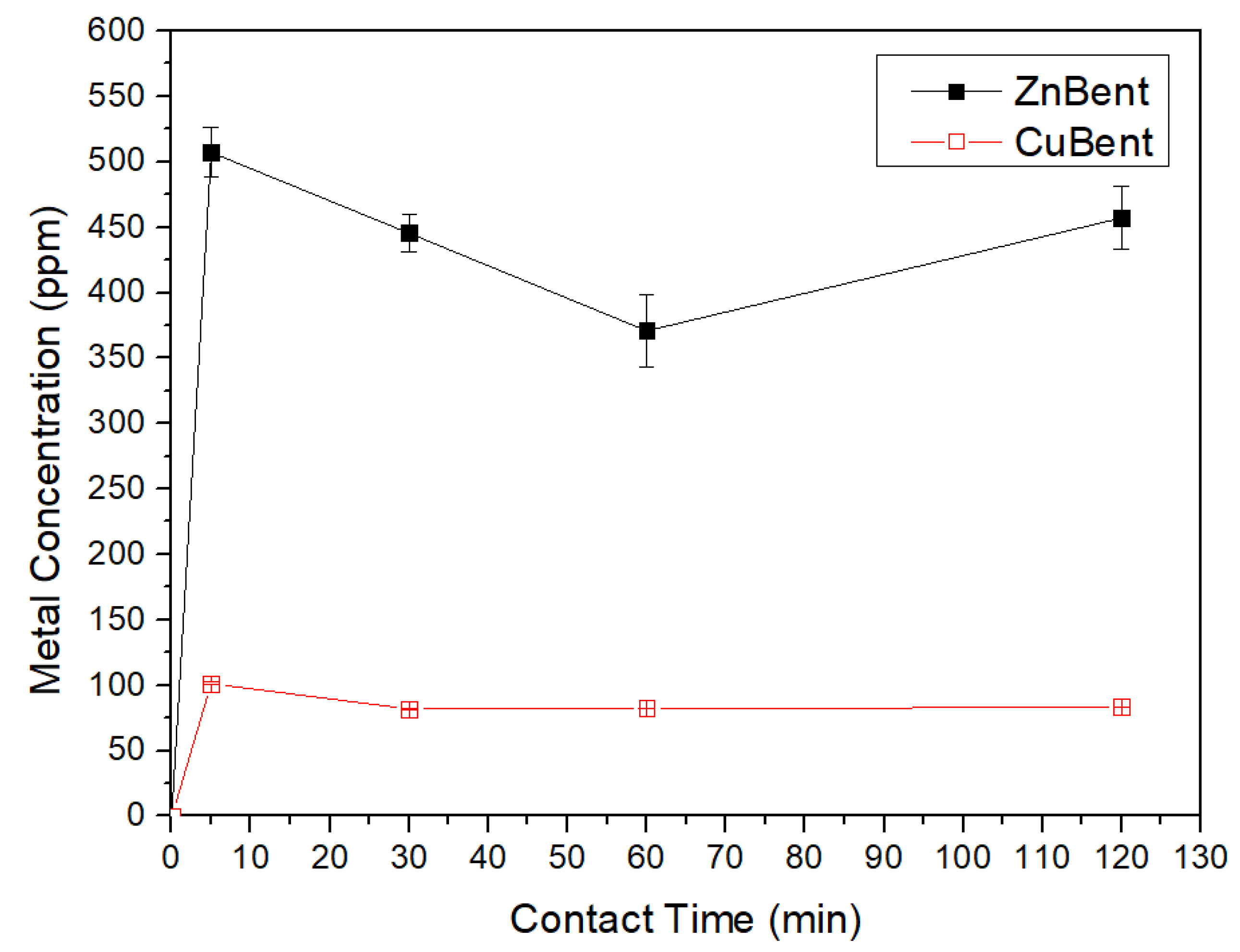

Figure 4. Concentrations of Ζn and Cu in PBS in relation to contact time.
Figure 4. Concentrations of Ζn and Cu in PBS in relation to contact time.
Pharmaceutics 13 01190 g004

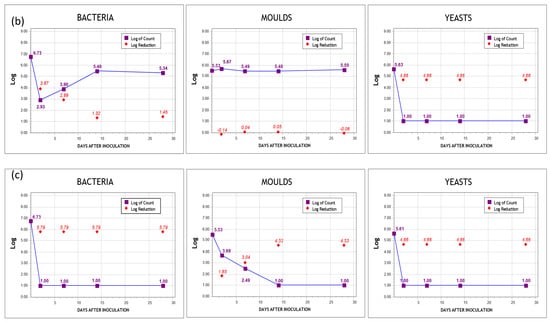

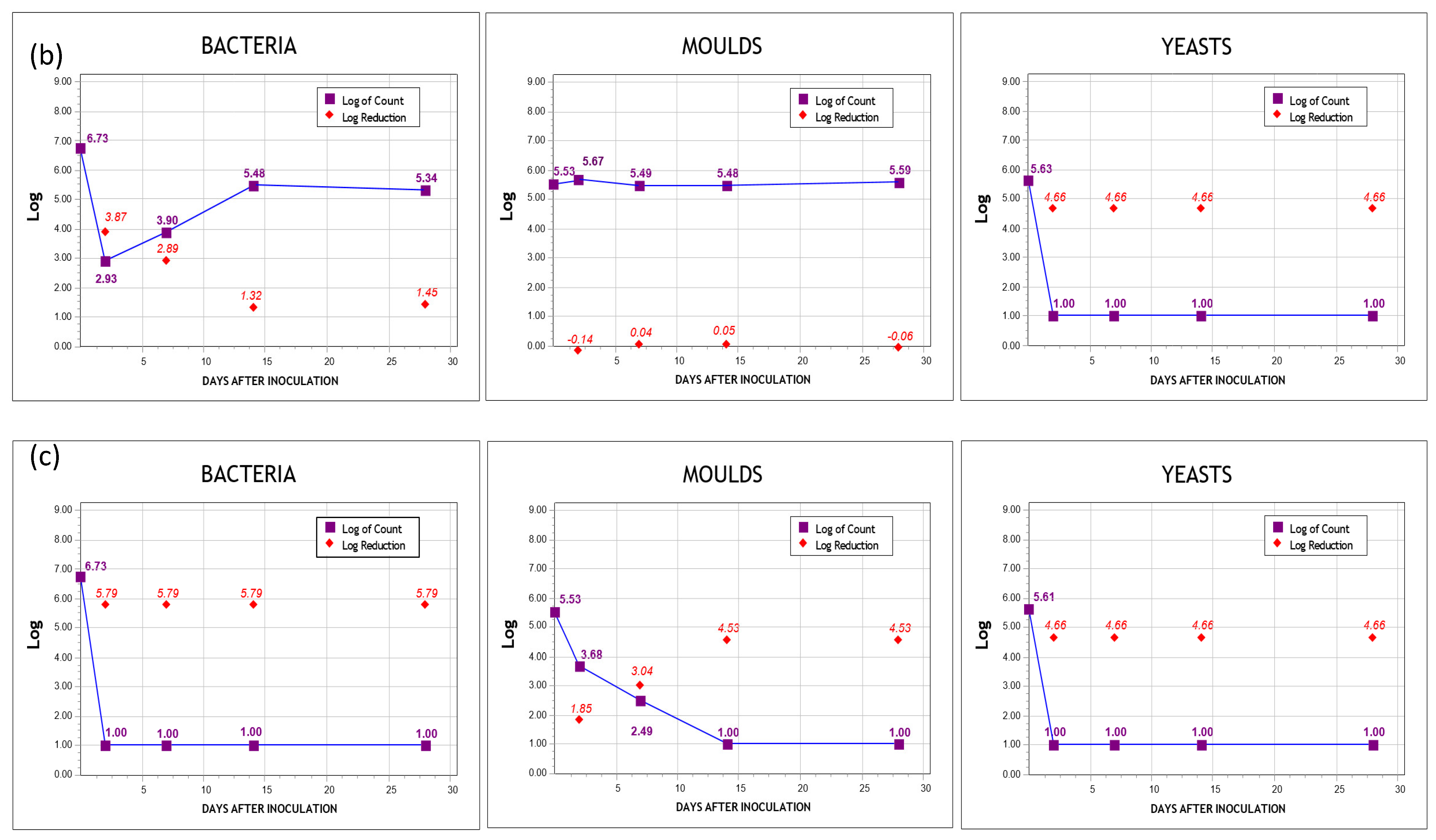

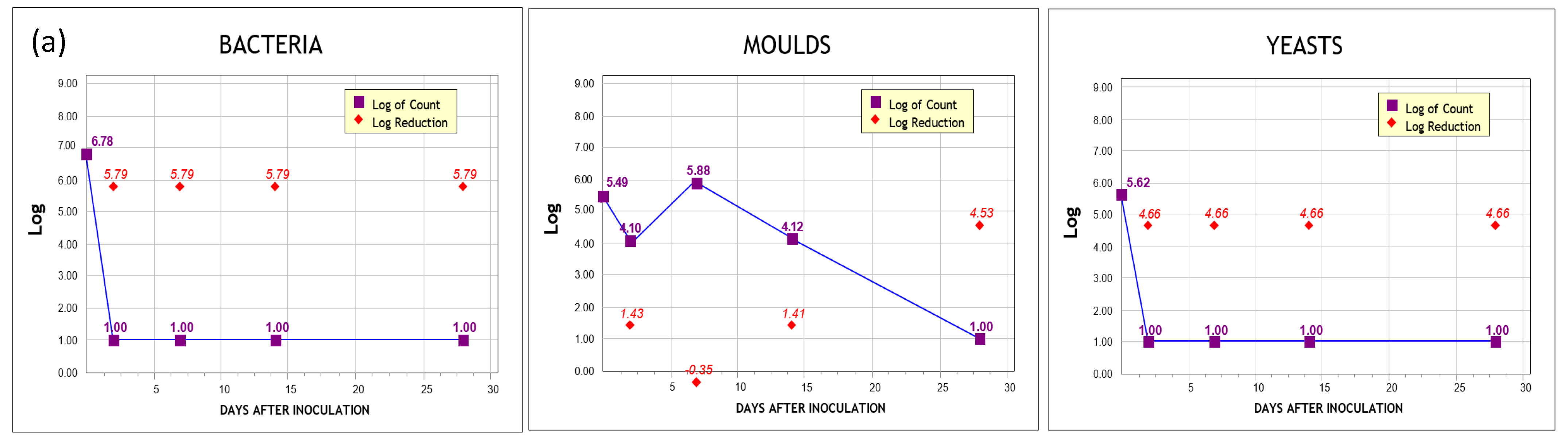

Pharmaceutics 13 01190 g005a 550Pharmaceutics 13 01190 g005b 550
Figure 5. Logarithmic reduction charts of each sample against bacteria, molds, and yeasts (a) CuBentp, (b) ZnBentp, and (c) PHBentp.
Figure 5. Logarithmic reduction charts of each sample against bacteria, molds, and yeasts (a) CuBentp, (b) ZnBentp, and (c) PHBentp.
Pharmaceutics 13 01190 g005aPharmaceutics 13 01190 g005b
Table
Table 1. Major element composition (% oxides) (XRF) of Bent, ZnBent, and CuBent powder samples.
Table 1. Major element composition (% oxides) (XRF) of Bent, ZnBent, and CuBent powder samples.
OxideBentZnBentCuBent
SiO277.4474.5375.35
Al2O39.879.079.13
Fe2O30.80.690.83
MnO0.010.010.00
MgO4.533.753.78
CaO0.780.30.21
Na2O0.870.770.33
K2O0.80.730.57
TiO20.070.06BDL
P2O50.190.110.02
LOI4.46.977.37
Sum99.7696.9997.59
BDL = Below Detection Limit LOI = Loss of ignition.
Table
Table 2. Trace element composition (ppm) (XRF) of Bent, ZnBent, and CuBent powder samples.
Table 2. Trace element composition (ppm) (XRF) of Bent, ZnBent, and CuBent powder samples.
ElementBentZnBentCuBent
Cr710BDL
CoBDLBDLBDL
CuBDL345,637
Zn9738,26637
Sr914342
Y4631136
Hf6748
PbBDLBDL26
BDL = Below Detection Limit.
Table
Table 3. Types of microorganisms tested.
Table 3. Types of microorganisms tested.
Test Organisms
Gram-positive bacteriaStaphylococcus aureus
ATCC 6538		Staphylococcus epidermis
ATCC 12228		Kokuria rhizophilia
ATCC 9341
Gram-negative bacteriaEnterobacteriaPseudomonas
Escherichia coli
ATCC 8739		Enterobacter
gergoviae
ATCC 33028		Pseudomonas
aeruginosa
ATCC 9027		Burkholderia
cepacia
In house		Pseudomonas
luteola
ATCC 43330
YeastsCandida albicans
ATCC 10231		MoldsAspergillus
brasiliensis
ATCC 16404		Penicillium
aurantiogriseum
ATCC 16025
ATCC (Wesel, Germany).
Table
Table 4. European Pharmacopoeia, Criteria A and B, for cutaneous application, minimum reduction in log units.
Table 4. European Pharmacopoeia, Criteria A and B, for cutaneous application, minimum reduction in log units.
Criteria A
Time2nd Day7th Day14th Day28th Day
Bacteria2 log3 log-NI
Yeasts--2 logNI
Molds--2 logNI
Criteria Β
Time2nd Day7th Day14th Day28th Day
Bacteria--3 logNI
Yeasts--1 logNI
Molds--1 logNI
NI: No increase.
Table
Table 5. Initial microbial load test according to the European Pharmacopoeia method.
Table 5. Initial microbial load test according to the European Pharmacopoeia method.
PasteParameterResult (cfu/g)Limits (cfu/g)
BentpTotal Aerobic Microbial Count
Molds & Yeasts		>3.0 × 103
<10		<1.0 × 102
<10
Table
Table 6. Mixed culture—Preservation efficacy test.
Table 6. Mixed culture—Preservation efficacy test.
PasteParameterSterility ControlInoculation0 Time2nd Day7th Day14th Day28th Day
CuBentpBacteria<106.2 × 1066.1 × 106<100<10<10<10
Molds<103.4 × 1053.1 × 1051.3 × 1047.6 × 1051.3 × 104<10
Yeasts<104.6 × 1054.2 × 105<100<10<10<10
ZnBentpBacteria<106.2 × 1065.4 × 1068.5 × 1028.0 × 1033.0 × 1052.2 × 105
Molds<103.4 × 1053.4 × 1054.7 × 1053.1 × 1053.0 × 1053.9 × 105
Yeasts<104.6 × 1054.3 × 105<100<10<10<10
PHBentpBacteria<106.2 × 1065.4 × 106<100<10<10<10
Molds<103.4 × 1053.4 × 1054.8 × 1033.1 × 102<10<10
Yeasts<104.6 × 1054.1 × 105<100<10<10<10
Units: cfu/g.
Table
Table 7. Criteria of acceptance. (Evaluation Criteria).
Table 7. Criteria of acceptance. (Evaluation Criteria).
PasteLog Reduction2nd Day7th Day14th Day28th DayCriterion ACriterion BTest Result
CuBentpBacteria5.795.795.795.79✓ Satisfactory
Molds1.43−0.551.414.53 ✓meet the relevant
Yeasts4.664.664.664.66✓ B-criteria
ZnBentpBacteria3.872.891.231.46 Failed does not
Molds−0.140.040.06-0.06 meet the relevant
Yeasts4.664.664.664.66✓ A/B-criteria
PHBentpBacteria6.796.796.796.79✓ Satisfactory
Molds1.063.044.654.65✓ meet the relevant
Yeasts4.064.064.064.06✓ A-criteria
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martsouka, F.; Papagiannopoulos, K.; Hatziantoniou, S.; Barlog, M.; Lagiopoulos, G.; Tatoulis, T.; Tekerlekopoulou, A.G.; Lampropoulou, P.; Papoulis, D. The Antimicrobial Properties of Modified Pharmaceutical Bentonite with Zinc and Copper. Pharmaceutics 2021, 13, 1190. https://doi.org/10.3390/pharmaceutics13081190

AMA Style

Martsouka F, Papagiannopoulos K, Hatziantoniou S, Barlog M, Lagiopoulos G, Tatoulis T, Tekerlekopoulou AG, Lampropoulou P, Papoulis D. The Antimicrobial Properties of Modified Pharmaceutical Bentonite with Zinc and Copper. Pharmaceutics. 2021; 13(8):1190. https://doi.org/10.3390/pharmaceutics13081190

Chicago/Turabian Style

Martsouka, Fotini, Konstantinos Papagiannopoulos, Sophia Hatziantoniou, Martin Barlog, Giorgos Lagiopoulos, Triantafyllos Tatoulis, Athanasia G. Tekerlekopoulou, Paraskevi Lampropoulou, and Dimitrios Papoulis. 2021. "The Antimicrobial Properties of Modified Pharmaceutical Bentonite with Zinc and Copper" Pharmaceutics 13, no. 8: 1190. https://doi.org/10.3390/pharmaceutics13081190

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
