Review

Ocular Drug Delivery: Advancements and Innovations

by
Bo Tian
1,2,†,
Evan Bilsbury
1,†,
Sean Doherty
1,
Sean Teebagy
1,
Emma Wood
1,
Wenqi Su
1,
Guangping Gao
2,3,4,5,* and
Haijiang Lin
1,2,*
1
Department of Ophthalmology and Visual Sciences, University of Massachusetts Chan Medical School, Worcester, MA 01655, USA
2
Horae Gene Therapy Center, University of Massachusetts Chan Medical School, Worcester, MA 01605, USA
3
Department of Microbiology and Physiological Systems, University of Massachusetts Chan Medical School, Worcester, MA 01605, USA
4
Viral Vector Core, University of Massachusetts Chan Medical School, Worcester, MA 01605, USA
5
Li Weibo Institute for Rare Diseases Research, University of Massachusetts Chan Medical School, Worcester, MA 01605, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceutics 2022, 14(9), 1931; https://doi.org/10.3390/pharmaceutics14091931
Submission received: 1 August 2022 / Revised: 24 August 2022 / Accepted: 6 September 2022 / Published: 13 September 2022
(This article belongs to the Special Issue Drug Delivery in Ophthalmology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Ocular drug delivery has been significantly advanced for not only pharmaceutical compounds, such as steroids, nonsteroidal anti-inflammatory drugs, immune modulators, antibiotics, and so forth, but also for the rapidly progressed gene therapy products. For conventional non-gene therapy drugs, appropriate surgical approaches and releasing systems are the main deliberation to achieve adequate treatment outcomes, whereas the scope of “drug delivery” for gene therapy drugs further expands to transgene construct optimization, vector selection, and vector engineering. The eye is the particularly well-suited organ as the gene therapy target, owing to multiple advantages. In this review, we will delve into three main aspects of ocular drug delivery for both conventional drugs and adeno-associated virus (AAV)-based gene therapy products: (1) the development of AAV vector systems for ocular gene therapy, (2) the innovative carriers of medication, and (3) administration routes progression.

1. Introduction

The anatomical and physiological barriers of the eye render this organ largely impervious to external factors, protecting against pathogen entry while simultaneously impeding drug permeation. The anterior and posterior segments of the eye both present their own unique challenges for drug delivery, as illustrated in Figure 1. The anterior chamber comprises the cornea, aqueous humor, and lens [1]. In the anterior of the eye, the blood–aqueous barrier, consisting of the iris/ciliary blood vessels and nonpigmented ciliary epithelium, limits access to the anterior of the eye and hampers therapeutic entry to the intraocular environment [2]. In the posterior of the eye, the blood retinal barrier, comprised of the retinal capillary endothelial cells and retinal pigment epithelial cells, prevents therapeutic agents from entering the posterior segment from the bloodstream [3]. Due to the high compartmentalization and broad range of ophthalmic pathology, the drug formulation, delivery devices, and administration routes need to be tailored to therapeutic strategies, overcoming the pharmacokinetic limitations, meanwhile achieving the adequate bioavailability. Ocular pharmaceutical sciences, therefore, have been advancing the delivery system for prolonging retention and reducing elimination to enhance the drug treatment efficiency.
As a novel form of “drug”, gene therapy that produces therapeutic biological agents within specifically targeted cells has shown significant clinical therapeutic progression in the past decade. Ophthalmic gene therapy has been at the forefront of gene therapy research; the compartmentalization, privileged immunity, physical accessibility, and the post-mitotic status of the cells render the eye an extremely attractive organ for adeno-associated virus (AAV)-based gene therapy, a leading platform of ocular gene therapy. Since the advent of the first FDA-approved gene therapy, LuxturnaTM, for the treatment of type 2 Leber congenital amaurosis (LCA) [4], ophthalmic gene therapy research has blossomed. Despite of the initial exploration for inherited disorders in the field, applications of gene therapy are expanding beyond rare inherited diseases to acquired disorders with higher prevalence, including age-related macular degeneration (AMD), diabetic retinopathy (DR), glaucoma, and corneal diseases [5]. There are over 40 clinical trials ongoing for AAV-based ocular gene therapy products, aiming to treat both inherited and non-inherited eye diseases, listed in Table 1. Hence, as the viral vectors, the AAV gene therapy products will be mainly reviewed. Ocular gene therapy to date has mostly involved viruses as carriers of the gene, although the research in non-viral vectors has also advanced significantly to overcome some of the unique limitations of viral vectors, such as immunogenicity and packaging limitation. The development of non-viral vectors will be also discussed.
Overall, this review will discuss the advancements of ocular drug delivery for both conventional pharmaceutical compounds and AAV-mediated gene therapy products, including the development and advancement of AAV vectors for ocular gene therapy, drug delivery systems, and technological advances in ocular drug administration.

2. Ocular Gene Therapy

Driven by the advances in viral vector technology and discovery in genetic basis for ocular disorders, gene therapies in this field have been surging in past decades, culminated in the FDA approval of Luxturna™ in 2017, the first ocular gene therapy product. This milestone event further boosts the research and clinical interests in gene therapy for a broader scope of ophthalmic diseases. There are more than 350 hereditary ocular diseases, including retinitis pigmentosa, choroideremia, Stargardt disease, Leber’s congenital amaurosis (LCA), involving a wide diversity of genetic loci [6,7]. With multiple clinical trials underway, gene therapy is acknowledged as having potential in the treatment of the inherited eye diseases. Further, the gene therapy approach is also being developed and expanded to conditions not associated with a single genetic defect, such as corneal and retinal vascular diseases in the retina and cornea, or age-related macular degeneration (AMD) [8,9]. AAV, as the most common viral vector for ocular gene therapy, will be reviewed in this article.
The vector engineering, transgene packaging has greatly contributed to transgene expression improvement and phenotypic rescue after intraocular delivery. Despite the success of viral vectors in ocular gene therapy, there are concerns in viral genome heterogeneity during manufacture, packaging capacity, and immunological reactions. Non-viral vectors are being developed to obviate these limitations in gene therapy. We here review the growing body of literature and clinical trials, covering the gene therapies for inherited and acquired eye diseases, as well as the advances in the viral and non-viral vectors in this field.

2.1. AAV-Based Ocular Gene Therapy

2.1.1. Adeno-Associated Viruses (AAVs)

Adeno-associated viruses (AAVs) were originally discovered in the mid-1960s as satellite viruses associated with adenoviruses, hence the name ‘adeno-associated’ [10]. They are small (~26 nm diameter), icosahedral-structured capsid, non-enveloped, single-stranded DNA, non-pathogenic viruses [11]. The viral life cycle of AAV cannot initiate or complete without genes provided by helper viruses, such as adenoviruses, herpesvirus, papillomaviruses, and baculovirus [10]. The viral genome of AAV is linear, containing four known open reading frames (ORFs) for viral genes, flanked by 145 bp inverted terminal repeats (ITRs) at both 5′ and 3′ ends (Figure 2). To package the vector construct, AAV was engineered to generate recombinant AAV (rAAV). The rAAV was created by removing all viral genomic components other than the ITRs, resulting in a packaging capacity up to 4.9 kb for therapeutic applications (Figure 2) [12]. The rep and cap are provided in trans during the production of the AAV vector. Due to its efficiency, low immunogenicity, and lack of pathogenicity, rAAV is currently the leading platform for gene delivery to treat inherited and non-inherited human diseases in both preclinical and clinical settings.
In 2017, LuxturnaTM was the first gene therapy to be approved by the US Food and Drug Administration (FDA). It is a rAAV2-based platform that delivers an RPE65 expression cassette to treat type 2 Leber Congenital Amaurosis (LCA), a recessive monogenetic retinal dystrophy caused by biallelic pathogenic mutation in the RPE65 gene [13]. With the clinical success for LCA2 patients, AAV-based gene transfer is now being explored clinically for other forms of hereditary retinal diseases, including choroideremia, Leber hereditary optic neuropathy (LHON; NCT01267422 and NCT02161380), Stargardt disease (NCT01367444), X-linked retinoschisis (NCT02317887, NCT02416622), and X-linked retinitis pigmentosa (NCT04671433, NCT03116113, NCT04517149, NCT04850118). All current clinical trials targeting inherited retinal diseases are listed in Table 1. The preclinical and clinical trials are flourishing though, the complexity and challenges of retinal gene therapy have become clear this past year with pivotal clinical trials for RPGR (X-linked retinitis pigmentosa GTPase regulator), retinitis pigmentosa (NCT03116113), and choroideremia (NCT03496012) failing to meet their respective primary endpoints.
AAV-directed gene therapy also offers novel treatment regimens for tackling a range of common acquired ocular disorders. Although the pathologies of these disorders are more complex than monogenetic inherited diseases, the identification of specific therapeutic targets and the lack of need for repeat dosing has generated much interest for the potential of AAV-mediated gene therapy to treat diseases, such as age-related macular degeneration (AMD) [14], diabetic retinopathy (DR) [15], and glaucoma [16]. These are diseases that necessitate repeated administration of therapeutic agents, a problem that could be overcome by a one-time dose of an AAV-based gene therapy product.

2.1.2. Age-Related Macular Degeneration (AMD)

Age-related macular degeneration (AMD) is the leading cause of irreversible central vision loss in individuals over 65 years of age, affecting more than 1.8 million Americans [17]. There are two forms of AMD, a ‘dry’, non-neovascular form and a ‘wet’, neovascular form. Although advances in cancer biology have given the field potent neovascularization inhibitors, the underlying pathology of the dry form is still poorly understood [17]. Recent advances have identified the complement cascade as playing a role in the development of drusen, which forms over the macula, leading to central-vision loss [18,19]. Although there is still no cure for dry AMD, several AAV-based pharmaceuticals are currently revolutionizing AMD treatment by targeting components of the complement cascade. An AAV-mediated soluble form of CD59 (HMR59, AAV.CAG.sCD59) was developed to block complement in the membrane attack complex (MAC) by Hemera Biosciences Inc. The trial of HMR-1001 evaluated 17 eyes of 17 subjects with geographic atrophy at the advanced stage of non-neovascular AMD. Participants received a single intravitreal dose of HMR59 in phase I study to evaluate the safety and tolerability the of HMR-1001 (NCT03144999). The subsequent phase I trial, HMR-1002, has evaluated the safety and efficacy of HMR59 (AAV2.CAG.sCD59) among 25 patients with new-onset neovascular AMD. Participants received two doses (3.56 × 1011 vg and 1.071 × 1012 vg; vg: viral genomes) of HMR59 by intravitreal injection 7 days after a single intravitreal injection of anti-VEGF (day 0). A seven-day tapering dose of oral prednisone was started at day 30 by all participants (NCT03585556). Similar trials targeting components of the complement cascade are being carried out by Iveric Bio. These trials are summarized in Table 1.
Anti-VEGF (vascular endothelial growth factor) therapy blocks the activity of VEGF and has demonstrated significant benefits to neovascular AMD patients [20,21]. However, anti-VEGF therapy is hampered by the short half-life of the protein drug and, therefore, demands frequent intravitreal injections, which places a high burden on both the patient and provider [22]. AAV-based gene therapy has the potential to overcome this issue by mediating a sustained expression of anti-VEGF molecules. AAV-based anti-VEGF gene therapy products have been developed for the treatment of neovascular AMD and evaluated in clinical trials. RGX-314 (RegenxBio Inc., Rockville, MD, USA) is an AAV8-mediated monoclonal anti-VEGF Fab, designed to neutralize VEGF activity. In March 2017, a phase 1/2 trial was launched to evaluate the safety and tolerability of a, single subretinal injection of RGX-314 with five dosing cohorts: 3 × 109, 1 × 1010, 6 × 1010, 1.6 × 1011 and 2.5 × 1011 GC/eye (GC: genome copy) (NCT03066258). Overall, a dose-dependent increase in RGX-314 protein expression was observed across all five dosing cohorts at 1 year, which was stable over 2 years in cohort 3, and over 1 year in cohorts 4 and 5. This implies a significant reduction in injection frequency and burden for patients with neovascular AMD, who traditionally receive regular monthly anti-VEGF injections. In September 2020, RegenxBio initiated a phase 2 trial (NCT04514653) to evaluate the efficacy, safety, and tolerability of RGX-314 delivered to suprachoroidal space (SCS) using the suprachoroidal microinjector. SCS injections are a less invasive procedure than intravitreal injections that could potentially offer a higher transduction efficiency of the RPE and photoreceptor cell layer [23]. The SC administration route will be separately discussed in Section 4.
Additionally, ADVM-022, an AAV2.7m8 encoding aflibercept, was developed to express the humanized recombinant protein that is constructed by fusing binding domains from VEGF receptor-1 and receptor-2. The phase 1 clinical trial (OPTIC; NCT03748784) of ADVM-022 demonstrates the potential of ADVM-022 to reduce the injection frequency. A single of intravitreal delivered ADVM-022 (6 × 1011 vg/eye) combined with a single dose of oral steroids resulted in a maintained therapeutic effect for over 15 months. A complete list of current clinical trials using AAVs to treat AMD is available in Table 1.

2.1.3. Diabetic Retinopathy

Diabetic retinopathy (DR) is one of the most common complications of diabetes mellitus (DM) and is one of the leading causes of preventable vision loss in the developed world [24]. The onset of diabetic retinopathy is characterized by morphologic alteration of microvessels, with selective loss of pericytes, thickening of the basement membrane, and loss of inter-endothelial tight junctions. These changes lead to increased vascular permeability, capillary occlusion, and microaneurysms, eventually leading to proliferative diabetic retinopathy (PDR) [25]. The increase in vascular permeability, similarly, leads macular edema to neovascular AMD. Due to the overlapping treatment targets between AMD and PDR there has been much concurrent progress in the development of AAV-based gene therapy products targeting these two diseases. Pivotal studies, such as RISE/RIDE (NCT00473382/NCT00473330) and VIVID/VISTA (NCT01331681, NCT01363440) have established the critical role of anti-VEGF intravitreal injections in the treatment of diabetic macular edema (DME) by exhibiting better visual outcomes than focal macular laser photocoagulation. Clinical trials for AAV-based anti-VEGF products, including RGX-314 and ADVM-022, for the treatment of PDR and DME have run alongside the trials for AMD. The similarities and differences between these respective types of clinical trials are displayed in Table 1.

2.1.4. Glaucoma

As a neurodegenerative disease, damaging retinal ganglion cells and their axons, glaucoma is the leading cause of irreversible blindness worldwide and comprises a group of eye diseases that can cause vision loss by damaging the optic nerve [26]. Elevated intraocular pressure (IOP) is a major risk factor associated with optic neuropathy [27]. By the year 2040, glaucoma is projected to affect 111.8 million people worldwide [28]. Despite multiple mechanisms that are involved in glaucoma development and progression, lowering the IOP is currently the main treatment regimen, including daily eye drops or surgery [29]. Patient’s compliance with topical drop instillation is notoriously poor due to the frequency of the eye drops that must be strictly followed to achieve efficacious control of the IOP [30]. Laser treatment and invasive surgery, on the other hand, are not always effective in IOP control. As a group of non-monogenic diseases with unknown etiology, glaucoma is amenable to gene therapy, reducing the treatment burden of glaucoma patients. IOP is maintained physiologically by the trabecular meshwork (TM) in the anterior chamber of the eye [31]. It has been shown in pre-clinical studies using animal models that single-stranded DNA AAVS (ssAAVs) are unable to transfect the TM, despite their high-degree of effectiveness at transfecting cells in the posterior compartment. Instead, double-stranded self-complementary DNA AAVs (scAAVs) have been shown to preferentially transfect the TM when injected into the anterior compartment [32]. A single intracameral injection of scAAV2.CMV.GFP in non-human primates (NHPs) was shown to result in fluorescence in the TM for 2 years post-injection [33]. Recently, Rodriguez-Estevez et al. examined the transduction efficiency and cellular entry of seven serotypes of AAV in both the ss and ds forms and found that the ds form consistently had a 10x higher transduction efficiency [34].
Additionally, to prevent glaucomatous neurodegeneration, the neuroprotection approach has drawn substantial attention. Recent work has focused on the delivery of neuroprotective factors to the retina to protect against the optic nerve and retinal ganglion cell damage that occurs in the setting of elevated IOP [35]. Current pre-clinical trials exploring the potential of AAV-mediated gene therapy to treat glaucoma are listed in Table 2.

2.1.5. Corneal Diseases

Corneal disease is the fourth leading cause of blindness worldwide after cataracts, glaucoma, and age-related macular degeneration [49]. Corneal diseases encompass a range of pathologies, including genetic diseases, mechanical injuries, chemical burns, allergic reactions, and infections [8]. Due to the immune-privileged nature of the cornea and the minimal invasive routes required for vector administration, significant progression in the arena of gene therapy for both inherited and acquired corneal disorders has been achieved over the decades. Although these therapies have not yet advanced to the stage of clinical trials, there is great as-yet-unexplored potential for AAVs in the treatment of corneal diseases.
The success of AAV-based gene therapy in treating inherited retinal diseases has logically pointed to inherited corneal diseases as a potential new frontier. Corneal dystrophies (CDs) that display a Mendelian inheritance pattern due to their monogenetic nature are attractive candidates for gene therapy [50,51]. The size limitation of the cargo for AAV-based gene therapy means that only genes with sizes ranging from 0.9 kb to 2.7 kb can be delivered using AAV. Recessive CDs, such as macular corneal dystrophy (MCD), gelatinous drop-like corneal dystrophy (GDCD), and congenital hereditary endothelial dystrophy II (CHED II), are attractive targets for AAV-based gene therapy because the open-reading frames (ORF) of the three genes involved (CHST6, M1S1, and SLC4A11) range from 0.9 to 2.7 kb, the ideal size for an AAV-based gene complementation approach [52]. All CDs with identified gene mutations are listed in Table 3.
In addition to genetic diseases of the cornea, AAV-mediated gene therapy has a role in the treatment of acquired diseases, such as corneal neovascularization (CoNV), corneal haze, and corneal fibrosis, which are all acquired pathologies of the cornea that AAV-mediated gene therapy displays high-potential to treat, efficaciously and safely. AAV-based approaches to reducing corneal inflammation, CoNV, and fibrosis have been shown to improve outcomes following mechanical or chemical insult to the cornea. We recently showed that a single intrastromal injection of AAV8-KH902 (AAV-vectored conbercept, a VEGF-inhibitor) has been shown to effectively inhibit corneal neovascularization (CoNV) in the alkali burn model of CoNV for upwards of 3 months [40]. In contrast, a single intrastromal injection of conbercept was only efficacious in inhibiting CoNV for 10–14 days [40]. Other strategies are outlined in Table 2.
Similar strategies have been employed for the treatment of infectious keratitis. With the exception of herpes simplex virus (HSV)-mediated keratitis and bacterial keratitis where anti-microbial strategies may be pursued, infectious keratitis treatment focuses on preventing and limiting inflammation, which can lead to corneal haze. For this reason, AAV-mediated gene therapy to reduce inflammation has been pursued; recent strategies are listed and briefly described in Table 2.
Despite aggressive medical treatment, the cornea can still become irreversibly damaged or scarred. When this occurs, the only viable option available to restore vision is corneal transplantation. Although this operation is generally highly successful, in ‘high-risk’ corneas, which are significantly inflamed or show a high degree of neovascularization, the success rate may be as low as 30% over 10 years [53]. Recently, VEGF-inhibitors delivered via intrastromal injection have been used clinically to lower the risk of rejection [54]. However, these agents must be delivered frequently, which introduces the risk of corneal scarring, leading to vision loss. Therefore, to facilitate the process of corneal transplantation and prevent scarring from repeated injections, AAV-mediated anti-VEGF therapeutics may be used to reduce CoNV and improve graft survival rate. We recently showed that AAV8-KH902 is effective in reducing corneal transplant rejection in a rat model of high-risk keratoplasty [45], achieving superior allograft survival rates and sustained anti-VEGF expression, compared to the traditional administration of anti-VEGF agents.
A summary of pre-clinical studies that use AAVs as vectors for ocular gene therapy in the cornea is provided in Table 2.

2.2. Organic Nanoparticles (NPs)

Significant research efforts have been directed towards the development of non-viral DNA delivery systems. Although there has been much focus on using replication-deficient viral vectors to deliver gene therapy products to the eye, non-viral vectors offer some unique advantages over viral vectors. Notably, non-viral vectors have significantly lower immunogenicity, limited size constraints, and ease of large-scale production [55]. Conversely, non-viral vectors lack the cell-type specific tropism of viral vectors and are generally less effective at inducing sustained transgene expression. The lack of tropism makes the method by which cells uptake non-viral vectors extremely important. Target cells may engulf the vector by endocytosis or phagocytosis. Notably, while photoreceptors are predominantly endocytic cells, RPE cells are mainly phagocytic, due to their role in phagocytizing photoreceptor outer segments in vivo [56]. The bioavailability of gene therapy products may be enhanced by non-viral vectors due to the presence of P-gp and multi-drug efflux pumps, which limit the bioavailability of conventional drugs [57,58]. Additionally, functionalization of the outer membrane, as well as the addition of nanostructured lipid carriers (NLCs) to the gene therapy product, serve to enhance tissue/cell-specific tropism and enhance transduction efficiency.
Non-viral NPs can be broadly classified into two groups: organic and inorganic. Inorganic NPs, such as gold NPs, sliver NPs, silica NPs, magnetic NPs, and nanoceria are also being explored in this field, while the discussing all of them would be space prohibitive and reviews illustrating them have been published [59]. Organic NPs include liposomes, niosomes, solid lipid NPs (SLNs), nanostructured lipid carriers (NLCs), polymer/peptide NPs, dendrimers, and nanoemulsions [60]. The properties of these vectors, as well as examples of their uses and advantages and disadvantages, will be discussed below.

2.2.1. Solid Lipid Nanoparticles (SLNs) and Nanostructured Lipid Carriers (NLCs)

Solid lipid nanoparticles (SLNs) and nanostructured lipid carriers (NLCs) are modified liposomes that have been engineered to be more suited for gene/drug delivery than simple phospholipid bilayers (Figure 3). Although liposomes typically have an aqueous core surrounded by a lipid bilayer, SLNs feature a solid-lipid crystal core that is stabilized by surfactants, which act as emulsifiers. Although any lipids could theoretically be used as components of the core and outer bilayer, physiologic lipids are preferred because they do not confer any toxicity or inflammatory response. Importantly, these particles are able to undergo autoclave sterilization while retaining their functionality [61].
SLNs are assembled electrostatically from cationic liposomes and anionic protamine-DNA complexes that form liposome protamine/DNA lipoplexes (LPDs). Protamine temporarily replaces histones in the process of spermatogenesis and efficiently condenses DNA, making it very useful in preventing the replication of pathologic cells and, therefore, the spread of disease. Despite their many advantages, SLNs are limited in their drug-loading capacity and can erroneously expel drugs during their storage. As SLNs sit in storage, the formation of a regularly structured crystal lipid core causes the expulsion of drug molecules from the core. A new class of lipid NPs has been developed to overcome this; the nanostructured lipid carriers (NLCs) consist of an irregular solid-lipid crystal matrix that contains a liquid lipid (oil) core in which drugs can be [62]. Although there are no clinical trials employing organic NPs to deliver genes to treat inherited retinal diseases yet, Sun et al. showed that nanolipids integrated into DNA can efficiently deliver the Rpe65 gene into the retinal pigmented epithelium in the Leber congenital amaurosis (LCA) model of Rpe65−/− mice to restore vision [63]. DNA nanoparticles administrated via suprachoroidal is comparable with that injected into subretinal space, resulting in comparable transfection of retina and RPE-choroid in rabbits [64] The irregularity of the crystal lipid core facilitates drug storage and substantially decreases drug expulsion during storage time. Because of this, NLCs generally have higher loading capacities compared to SLNs and have a lower frequency of drug expulsion during storage [61].
Adding to the effectiveness of gene transduction, the protamine-DNA core can contain various peptides, such as nuclear localization signals (NLS), transactivator of transcription (TAT), and other functionalizing units. These elements ensure the DNA is localized to the nucleus and that transcription of the carried gene occurs. These additions remarkably increase the transduction efficiency of the particles. For example, the addition of target peptides serves to bind membrane-bound receptors of target cells and facilitate endocytosis. In addition to their use in ocular gene therapy delivery and delivery of conventional ophthalmic drugs, these particles have recently gained acclaim as the vectors used to deliver viral mRNA for the spike protein of the SARS-CoV-2 virus in the Moderna and Pfizer-BioNTech vaccines.

2.2.2. Polymer Nanoparticles and Peptide Nanoparticles (PNPs)

Polymer nanoparticles and peptide nanoparticles (PNPs) are being investigated as an alternative to lipid-based NPs for the compaction and delivery of DNA (Figure 3). Of many peptides, proteins, and polymers, the most ideally suited to this task is poly-lysine (K). The positive charge of K allows it to stabilize anionic nucleic acids. The ability of poly-lysine NPs to condense DNA and efficiently transduce cells was demonstrated as early as 1996 [65]. Other polymers have been developed for use in PNPs, such as poly-lactic acid (PLA), poly-cryanoacrylate (PCA), and poly-D-D-lactide-co glycolide (PLGA) [66,67,68]. The biodegradable PLGA nanoparticles conjugated with peptide (Gly-Arg-Gly-Asp-Ser-Pro-Lys)-carrying transgene-encoding anti-VEGF intraceptors efficiently decrease the neovascularization and lymphangiogenesis in mice cornea [69]. Recently, much attention has been given to synthetic polyamines, such as polyethylenimine (PEI), as well as polysaccharides, including inulin and chitosan. PEI has been widely explored by numerous investigators as a gene-delivery vector [70]. Biodegradable PNPs are advantageous in that there is no concern of accumulation of NP material following drug delivery [71]. There are countless possible formulations of PNPs, all of which confer different properties to the particle and affect transduction efficacy, cell-type specificity, and potential toxicity.
Currently, the most popular PNP for ocular drug delivery are CK30PEG10k NPs, which are created by PEGylation of polyethylene glycol (PEG) to poly-lysine. PEGylation is a common modification used to increase the half-life, reduce the immunogenicity, increase the transduction efficiency, and improve the biological activity of drug delivery system (DDS) [72]. PEGylation also improves the stability of compacted DNA within the NP and prevents significant aggregation of the particles during storage. CK30PEG NPs have been used to deliver the Rds gene into the retina of a mouse model of retinitis pigmentosa [73]. In 2012, CK30PEG was used to deliver the coding sequence for the ABCA4 gene to Abca4−/− mice and stable expression was noted after 8 months of injection [74].

2.2.3. Dendrimers

Dendrimers are organic polymers that consist of a central core from which ‘branches’ extend outwards to form a spherical shape (Figure 3). These particles are advantageous for ocular drug delivery due to their high loading capacity, versatility of outer functional motif, and controlled drug release. Like liposomes, dendrimers can be made water-soluble by the addition of hydrophilic groups to the outer branches that then interact with water. The ends of these polymeric branches can contain a variety of functional groups to which hydrophilic drugs can be conjugated. Dendrimers using poly(amidoamine) (PAMAM) as their structural motif have become commonly used for ocular gene therapy as they are commercially available. Dendrimers are unique in their ability to buffer endosomal acidification. In addition to their high buffering capacity, they are able to promote an osmotically driven rupture of endosomes, facilitating gene transfer efficiency.
Currently, there is a phase 1 clinical trial evaluating the safety, tolerability, and pharmacokinetics of D-4517.2, a hydroxyl dendrimer that delivers a VEGFR tyrosine kinase inhibitor to healthy volunteers via subcutaneous administration (NCT05105607). This, along with other emerging drug delivery systems, is shown in Table 4.

2.2.4. Nanoemulsions

Nanoemulsions are a special type of emulsion, which is a mixture of two, normally immiscible liquids, such as oil and water, with one or more surfactants. Nanoemulsions are kinetically stable but thermodynamically unstable. The thermodynamic instability allows for the separation for emulsion over time. The main advantages of using nanoemulsions as gene therapy vectors include enhanced bioavailability and absorption due to the high surface area imparted by the small droplet size. Since the late 1990s, work has been done to optimize cationic nanoemulsions (CNEs) and improve the transfection efficiency and stability of nucleic acids in the CNE. Factors that affect the biologic viability of CNEs include cytotoxicity (mainly a function of the cationic lipids used), resistance to endonuclease-mediated degradation, in vivo particle distribution, and gene transfection efficiency [75]. Although they are relatively non-toxic, the nature of the cationic surfactants can cause some toxicity due to their ability to disrupt cell membranes [76]. This can still be a marked improvement over other common preservatives, such as benzalkonium chloride (BAK). A cationic nanoemulsion containing latanoprost (Catioprost®) was shown to have equivalent efficacy and a superior safety profile to Xalatan®, an aqueous BAK-preserved latanoprost solution [77].

2.2.5. Lipid-Based Nanoparticles

Although SLNs have emerged as the dominant lipid-based carrier system, nanomicelles; liposomes; and niosomes have also been used in ocular drug delivery. They are structurally similar and all feature spherical configurations of lipids with hydrophilic and hydrophobic components. Ideally, the materials utilized to prepare lipid-based NPs should be biodegradable and/or biocompatible. Biodegradation eliminates the inactive polymers from ocular tissue. In addition to concern about biodegradation, it is essential that the degradation products are not toxic or inflammatory to ocular tissue as some lipid-based carriers have been shown to trigger a strong inflammatory process [78].
Proper delivery must also account for the kinetic and thermodynamical stability of NP, in addition to precorneal retention time, to ensure that there is a limited loss of formulation via precorneal clearance mechanisms. In addition to stability within the precorneal environment, reflux tearing and vitreous humor environment must be considered for proper delivery [79]. Reflux tearing can remove a significant amount of drug; this issue can be avoided by maintaining the appropriate size, isotonicity, and osmolarity of the solution [80]. Additionally, vitreous humor is relatively stagnant, and the release rate depends on the physical stability of the NP.

2.2.6. Nanomicelles

Nanomicelles are colloidal drug delivery systems that assemble instantaneously in solutions. Nanomicelles are ideal for the delivery of hydrophobic drugs to the eye by prolonging drug retention times due to their hydrophilic surface. Nanomicelles can be broadly classified as surfactant nanomicelles and polymeric nanomicelles. Polymeric micelles are typically characterized as more stable, whereas surfactant nanomicelles aggregates are weak and susceptible to physical instability upon dilution [79]. The potential for nanomicelles for sustained drug release longer than a few days is limited, although this still represents a large improvement over conventional eye drops.
Surfactant nanomicellar formulations have been used for more ideal diffusion of topically delivered drugs through the cornea resulting in improved bioavailability. In 2019, positively charged nanomicelles were used to deliver tacrolimus, a hydrophobic macrolide immunosuppressant. The research hypothesized that due to the presence of the negatively charged mucin layer on the outer surface of the eye, the addition of positively charged peptides to micelles should prolong the interface of the solution with the eye. The authors found that this formulation was able to significantly improve tacrolimus retention on the eye surface and improve corneal permeability and bioavailability both ex vivo and in vivo. Furthermore, the total immunosuppressant effect on the eye was observed to be larger than conventionally delivered tacrolimus [81].

2.2.7. Liposomes

Liposomes are self-assembling spherical vesicles composed of cationic lipids, which can encapsulate hydrophilic particles, such as DNA, small molecules, and biologics, in an aqueous core (Figure 4). Liposomes enter the cell by either phagocytosis or endocytosis. In the clathrin-mediated endocytic pathway, endosome components are usually degraded as the endosome is transformed into a lysosome. However, the use of pH-dependent cationic lipids can facilitate escape from endosomes following endocytosis by selectively becoming cationic at a low pH (such as inside lysosomes). Recently, the use of triggers, such as light, pH, heat, and ultrasound waves, have been used to disrupt the lipid bilayer of the vesicles to improve their release efficiency.
Liposome-mediated subconjunctival injection of the BAI1-ECR gene has shown to effectively reduce experimental corneal neovascularization corneal angiogenesis in rabbits by Yoon et al. in 2005 [82]. Although there has not been much progression in loading gene therapy products in recent decades, liposome has been advanced for pharmaceutical drug delivery. In 2020, Dos Santos et al. explored the role of besifloxacin integrated into liposomes to explore the influence of a cationic liposome delivery system for bacterial conjunctivitis. The liposome integration formulation showed higher permeation than the control (Besivance). The study concluded that besifloxacin incorporation into positively charged liposomes improved passive topical delivery and can be an effective strategy to improve topical ophthalmic treatments [83].
There are several clinical trials evaluating the safety and efficacy of liposomal-delivered drugs to the eye, including two trials evaluating the performance of subconjunctival injections of liposomal latanoprost for the treatment of primary open-angle glaucoma (NCT01987323, NCT02466399). The largest clinical trial involving liposomes to date is a Phase 4 trial, which enrolled 200 participants and evaluated the safety and efficacy of liposomal ozone-based solution (OZODROP®) in preventing ocular infections following cataract surgery (NCT04087733).

2.2.8. Niosomes

Niosomes are similar to liposomes in that they are also composed of a lipid bilayer. In niosomes, the bilayer is composed of non-ionic, single-tailed amphiphilic surfactants that surround an aqueous core (Figure 4). This allows for the delivery of both hydrophilic drugs in the aqueous core and lipophilic drugs embedded in the vesicular bilayer [61]. Advantages of niosomes over liposomes include improved chemical stability, storage time, and sustained drug delivery [84]. Furthermore, niosomes are biodegradable and non-immunogenic, and functionalization of the surface hydrophilic head groups is possible [85].
Gene delivery to the retina using niosomes has been investigated by Puras et al. Using Tween 80 as the surfactant, 2,3-di(tetradecycloxy)propan-1-amine as a cationic lipid, and squalene as a helper lipid, the group was able to deliver a pCMS-EGFP plasmid (prepared with the O/W emulsification method) to rat retinas in vivo [86]. More recently, Qin et al. used hyaluronic acid-modified cationic niosomes composed of Tween 80/squalene/1, 2-dioleoyl-3-trimethylammonium-propane (DOTAP) to deliver eGFP to RPE cells with a 6–6.5 times higher than eGFP alone [87].

3. Carrier Technology for Ocular Therapeutics

As advances have been made in ocular vectors for gene therapy, novel and non-novel carrier systems have been modified to better maintain therapeutic drug concentration at target sites, overcome various ocular barriers, reduce drug frequency, and enhance drug bioavailability. Human ocular developed, in part, to prevent foreign and toxic substances from reaching the tissues of the eye. Meanwhile, these barriers serve as challenges for drug administration as they often reduce ocular absorption and, therefore, bioavailability. Additionally, factors, such as tear production and blinking, reduce the absorption of many formulations [88,89,90]. In the anterior segment of the eye, chemical and mechanical barriers produced by the cornea prevent the passage of any foreign bodies, including drugs, into the eye [91]. The scleral, choroidal, and retina epithelial in the posterior segment play a major role in limiting bioavailability in the posterior of the eye [92]. Despite these barriers, there are many ocular drug delivery systems that continue to be developed and modified to further increase bioavailability and tissue targeting.

3.1. Conventional Carrier Systems

3.1.1. Topical Ophthalmic Solutions

Topical ophthalmic solutions (eye drops) have been the mainstay of treatment and prevention of a variety of ocular pathologies, including glaucoma, microbial infection, inflammatory conditions, and dry eye syndrome for many years. Topical drops serve as a safe, noninvasive, and simple means of delivering medications to the anterior segment of the eye with low systemic absorption [93].
While topical drug administration remains the most common route, it does face certain challenges, compared to other methods. Topical drugs typically have very low bioavailability, with less than 5% of administered drug reaching target tissues [94]. This is the result of tear formation, rapid absorption from the conjunctival vasculature, and poor patient compliance [95].
Current research has focused on improving the efficacy of topical administered drugs with anterior segment tissue targets. Recently, Vicente-Pascual et al. have developed a means of topically administering SLNs, combined with ligands, which included protamine, dextran, and hyaluronic acid, to increase IL-10 production in the setting of corneal inflammation [96].

3.1.2. Cyclodextrins

Ophthalmic solutions have been improved by the formation of cyclodextrins (CDs) and the addition of permeation enhancers. CDs allow hydrophobic drugs to complex around the structure and result in increased solubility and bioavailability in the ocular environment. These complexes also reduce tissue inflammation while increasing corneal residence time [97]. CDs may provide a unique solution to overcome the natural barriers of the eye by increasing solubility and permeability, allowing topically administered drugs to penetrate to the posterior segment [98]. Most recently, αCDPPRs containing natamycin were investigated using single or mixed micelles of Pluronic P103 and Soluplus [79]. Key to the future development of CDPPRs was the finding that CDPPRs made from mixed micelles of both polymers showed intermediate drug permeability, suggesting that combining copolymers may be a way to fine-tune the drug release and permeability profiles of CDPPR-based formulations [99].

3.1.3. Suspensions

Eye drops of poorly soluble drugs are frequently formulated as suspensions. Suspensions finely disperse insoluble drug particles in an aqueous solution of solubilizing agents. Suspensions are beneficial, as the precorneal cavity retains drug particles in suspension, thereby enhancing the contact time of the drug. The bioavailability of drugs in suspension depends on both the retention and the dissolution of drug particles in tears [100]. Additionally, a recent study showed that both viscosity and size have a clear impact on ocular absorption [101]. Toropainen et al. compared the FDA-approved indomethacin suspension (Indom® 0.5%) to experimental suspension (INDO1, INDO2, INDO3, INDO4, INDO5, INDO6), which has a different size and viscosity. In this study, median particle size (d50) categories were 0.37–1.33 and 3.12–3.50 µm and particle viscosity levels were 1.3, 7.0, and 15 mPa·s. The results concluded that higher viscosity increased ocular absorption 3.4–4.3-fold for suspensions with similar particle sizes. Additionally, the bioavailability range for the suspensions was about 8-fold, with small particles yielding a higher concentration of dissolved indomethacin in the tear fluid, thereby leading to improved ocular bioavailability [102].

3.2. Innovative Carrier Technology

3.2.1. Punctal Plugs

Punctal plugs are biocompatible instruments inserted in the tear duct opening (punctum). Punctal Plugs are often used to block tear drainage and can also be used to provide controlled drug release for up to 180 days to the anterior segment of the eye [103]. Recent trials by Ocular Therapeutix have studied punctal plugs efficacy in delivering a variety of drugs. In 2018, Ocular Therapeutix successfully completed Phase III trials and received FDA approval of Dextenza (dexamethasone punctal plug insert) for the treatment of post-surgical ocular inflammation and pain. However, in 2019, a Phase III trial of OTX-TP (travoprost punctal plug insert) for the treatment of glaucoma failed to show statistically significant superiority of mean reduction in IOP, compared with the placebo [104].

3.2.2. Drug-Eluting Contact Lenses

Contact lenses were first evaluated for their use as drug delivery systems in 1965 by J. Sedlavek [105]. The embedding of drugs in contact lenses for sustained, continuous-release or pulsatile release in response to some stimuli offers some unique advantages among drug delivery systems [106]. Compared with other drug delivery systems, contact lenses have a high rate of patient compliance due to their superb biocompatibility. Polymeric hydrogels, surface-modified polymeric hydrogels, and molecularly imprinted polymeric hydrogels have all been used to absorb and subsequently slowly release drugs while worn. A list of drug-soaked and imprinted contact lenses with ocular drugs has been covered in a comprehensive review by Xu et al. [106].

4. Advancements in Intraocular Administration Routes and Systemic Drug Delivery

Static and dynamic barriers of the eye render the drug penetration to both the anterior and posterior segment a major challenge via systemic delivery. With rapid advancements in ocular pharmacology, there has been a growing body of studies to improve drug bioavailability, safety, stability, and tolerability of drug administrated, bypassing the barriers. Despite the fact that there is less progression regarding the systemic administration targeting eye diseases specifically, the new developed treatment regimen to adopt systemic routes targeting central serous chorioretinopathy and the secondary eye disorders following systemic diseases are reviewed.

4.1. Anterior Segment

4.1.1. Subconjunctival Administration

Subconjunctival drug administration has been used to decrease the injection risks and treatment burden seen in current intravitreal therapies. This route is less invasive and can provide sustained drug delivery to the anterior segment of the eye for longer durations than intravitreal drug administration (Figure 5) [96,107]. Subconjunctival injection allows for the bypass of structures that impede drug permeability, such as the cornea and conjunctiva, allowing for improved penetration [108]. Although those barriers are no longer an issue with subconjunctival injection, the systemic absorption through blood and lymphatics remains, which is particularly an issue for the administration of free drug [109].
In 2021, Zhang et al. evaluated the therapeutic potential of subconjunctival tumor necrosis factor-alpha-treated bone marrow-derived mesenchymal stem cells in rat corneal alkali burns. This intervention increased corneal epithelium repair, as well as decreased inflammatory cell infiltration and fibrosis, compared to control. This study suggested that it may be mediated through the upregulation of prostaglandin-endoperoxide synthase 2 and TNF-inducible gene 6 protein, which may serve as potential treatment modality [110].
A recent case report about the management of post-cataract surgery cystoid macular edema (CME) discussed the use of subconjunctival interferon alpha 2b for refractory disease [111]. Despite clinically significant CME being reported in only 0.1–2.35% of cataract surgeries, it remains the leading cause of decreased vision after cataract surgery. Although the majority of cases of CME resolve spontaneously, there is still a need for management of chronic CME after cataract surgery [112]. This case report details the first use and potential of subconjunctival interferon alpha 2b as alternative treatment for refractory CME.

4.1.2. Intrastromal Administration

In corneal diseases that involve the deeper stroma, topical and subconjunctival drug administration show decreased effectiveness, which is particularly true for infectious corneal diseases, such as fungal keratitis. Moreover, there are few antifungal drugs that can adequately penetrate the deeper layers of the cornea. To increase drug penetration, intrastromal injections, which can effectively deliver drugs to the site of pathology, have been utilized clinically for the past decade. The use of intrastromal amphotericin B, voriconazole, and natamycin have been reported as a safe, effective adjuvant therapy in the management of recalcitrant fungal keratitis [113,114].
The intrastromal administration of AAVs has also recently been used in a canine model to treat mucopolysaccharidosis type I, a lysosomal storage disorder in which patients can experience corneal clouding. Researchers used AAV8G9-expressing IUDA, an enzyme required for glycosaminoglycan degradation, to reverse corneal opacity within one week of intrastromal administration, which persisted for at least 25 weeks [48]. Further evaluation of intrastromal AAV-containing IUDA showed minimal toxicity and inflammation in rabbits [115].

4.1.3. Intracameral Administration

Intracameral injections involved the administration of therapeutic agents to the anterior segment of the eye though the cornea (Figure 5) [116]. This technique is often used to administer antibiotics to the anterior segment during cataract surgery, as well as to introduce IOP-lowering agents to the area. Currently, there is one FDA-approved intracameral implant, Bimatoprost sustained release, which allows for the maintenance of drug concentration for up to four months after insertion [117].

4.2. Posterior Segment

4.2.1. Intravitreal Administration

The delivery of therapeutic agents to the eye by means of intravitreal injection has been widely used in clinics to treat ocular diseases. From 1997 to 2001, there were less than 5000 intravitreal injections performed each year worldwide [118]. As of 2016, there were 5.9 million intravitreal injections performed in the United States alone [119]. This increase is the result of the introduction of humanized monoclonal antibodies against vascular endothelial growth factor (VEGF), which has become first-line therapy in the treatment of neovascular age-related macular degeneration, diabetic macular edema, and other vascular pathologies of the eye. Despite their influence on the treatment of ocular diseases, intravitreal injections pose the risk of endophthalmitis, retinal detachments, cataract formation, and ocular hypertension, among others [120]. Furthermore, the treatment burden associated with injection of monoclonal anti-VEGF agents can be very high, as many patients require treatment every four weeks.

4.2.2. Subretinal Administration

Subretinal drug administration is being investigated for gene therapy, particularly regarding the treatment of inherited retinal diseases. Although this technique directly exposes the retina to therapeutic agents, it is arguably the most invasive administration route as it requires vitrectomy prior to administration in an operating room, which put the patient at risk of complications (Figure 6) [121].
As discoveries are made in subretinal gene therapy delivery, there is an increasing need for the development of new techniques that safely achieve required drug concentrations in the posterior segment of the eye. Recently, there has been interest in using robotic assist devices for subretinal injections. A recent clinical trial compared the use of robot assist devices against vitreoretinal surgeons not using assistive devices (NCT03052881). The results showed that both groups were able to successfully complete the procedure, with the results and surgery times similar between both groups. Although the difference in results for each arm of the study was not statistically significant, this comparison confirmed that assistive devices may have utility in this procedure and could be utilized to overcome the limit of human capabilities in surgery [122].

4.2.3. Suprachoroidal Administration

Suprachoroidal (SC) space injection technique involves the delivery of medication to a 30-micron thick area of tissue between the sclera and choroid using hollow microneedles (Figure 6). Importantly, SC injections are able to be performed in the clinic, in contrast to subretinal injections. This technique would allow for a more direct means of delivering medications to the posterior segment of the eye in the clinic, minimizing drug loss in the process [123,124]. This technique is not currently being employed in clinical practice widely; however, current clinical trials are exploring the use of suprachoroidal triamcinolone in the treatment of serous retinal detachments, macular edema secondary to vascular occlusions and DME, and non-infectious uveitis.
Notably, Regenxbio is utilizing suprachoroidal injections to deliver its gene therapy RGX-314, an AAV8 vector containing a transgene coding for an anti-VEGF fab, for the treatment of nAMD and diabetic retinopathy. There are concurrent clinical trials evaluating the safety and efficacy of RGX-314 when administered using IVT or subretinal injections as well.

4.2.4. Systemic Delivery

In addition to the numerous increased toxicities that can result from the systemic delivery of viral and non-viral vectors, there are robust anatomic barriers that prevents substances in systemic circulation from reaching the posterior segment of the eye. The blood–retinal barrier (BRB) is a part of the blood–ocular barrier (BOB) and functions analogously to the blood–brain barrier (BBB) preventing large, hydrophilic molecules from entering the eye from the blood. These barriers result in the inability of many drugs to be delivered in a way that provides therapeutic concentrations at the target site without reaching toxic levels systemically. For this reason, many drugs that can be delivered orally have been adapted to be delivered topically. Examples of this include antihistamines for allergic conjunctivitis and antiviral drugs in the treatment of viral infections, such as varicella zoster and herpes simplex.
Compared to other routes of administration, there is less investigation to improve orally administered drugs. Recently there have been studies exploring orally administered drugs for a noninvasive means of medically managing central serous chorioretinopathy (CSCR). Of the many drugs investigated, the mineralocorticoid receptor antagonist eplerenone has shown the most potential [125,126]. Since being implicated in the pathogenesis of CSCR, mineralocorticoid receptor blockade has been studied as a means of managing CSCR, but the value of eplerenone in clinical practice is highly disputed [127,128,129].
Recently there has been investigation into the use of subcutaneously administered medication for the treatment of ocular disease (Figure 6). For instance, in recent years subcutaneous tocilizumab has been used instead of an intravenous administration in the treatment thyroid eye disease, giant cell arteritis, and neuromyelitis optica [130,131]. Although intravenous tocilizumab infusion is generally well tolerated, it is very time consuming for patients and an expensive off-label treatment. Furthermore, in 2021, tocilizumab was granted an emergency use authorization for the treatment of individuals hospitalized due to severe COVID-19 infection. As a result, there was interest to reduce the burden on patients and help to avoid potentially limited supplies of the medication. A recent study investigated the use of subcutaneous tocilizumab, compared to prednisolone taper, showed that weekly and biweekly subcutaneous tocilizumab injections achieved remission at 52 weeks in 56% and 53% of patients. Comparatively, 14% of patients that underwent a 26 week taper and 18% of patients that underwent a 52 week taper were in remission at 52 weeks [132]. As mentioned in the subsection on dendrimers, there is also a phase 1 clinical trial investigating the safety, tolerability, and pharmacokinetics of D-4517.2, which is a hydroxyl dendrimer that delivers VEGF tyrosine kinase inhibitor by subcutaneous injection (NCT05105607).

5. Conclusions

Effective ocular drug delivery has posed a challenge to ophthalmologists for decades. Despite the obstacles, the compartmentalization, accessibility, and immune privilege of the eye still make it an excellent candidate for gene therapy research. The increase in the development and availability of gene therapy products has prompted the study of viral and non-viral-based vectors administration and expanded the scope of drug delivery. Transgene construct optimization, vector selection, and vector engineering are now essential to further development and eventual approval of disease-specialized gene therapy products. Although both viral and non-viral vectors have advantages and disadvantages, current research trends point to adeno-associated viruses (AAV) as an area of great interest in ocular drug administration. AAVs are efficient at transducing photoreceptors (PRs) and retinal pigment epithelium (RPE) cells, and future studies should seek to increase capacity while reducing immunogenicity [133,134].
With advances in ocular vector technology, carrier system technology and ocular therapeutic administration routes will improve to maintain therapeutic concentration at the target site, reduce administration frequency, overcome various ocular barriers, and enhance drug bioavailability. The unique anatomy and natural barriers of the eye present challenges to such systems, but advancements in novel and non-novel delivery systems continue to show promising results in multiple clinical trials. Topical solutions have increased their effectiveness through the development of cyclodextrins, the addition of permeation enhancers, and delivery via suspensions or emulsions [76,98,102,135]. Although topical instillation is the least invasive treatment option, administration via topical routes is not effective against diseases that affect posterior tissues, such as age-related macular degeneration, diabetic retinopathy, posterior uveitis, and retinitis due to glaucoma.
Furthermore, topical drugs typically have low bioavailability and are often used incorrectly by patients [30]. Intravitreal or subretinal injections are currently used as delivery systems for the posterior of the eye but with risk. Suprachoroidal space injection is emerging as a promising new administration route to minimize drug loss [107]. Novel lipid-based solutions that encapsulate the drug are promising injectable solutions because of their high loading capacity, versatility of outer functional groups and controlled drug release, but must account for kinetic and thermodynamic stability, precorneal retention time, and toxicity to ensure proper delivery [61,96,136]. Subconjunctival administration has the potential to decrease risks of injection reaching the posterior segment of the eye, and while there are two polymer implants available on the market in the United States, more research is needed to robustly assess clinical viability.
Despite the challenges of ocular drug delivery, advancements in gene therapy for ocular diseases are occurring at a rapid pace. The combined efforts of academia, industry, and regulatory agencies are continually improving the state-of-the-art and safer, more efficacious drug delivery systems are being developed, which will continue to improve therapeutic outcomes.

Author Contributions

Conceptualization, H.L. and G.G.; writing—original draft preparation, B.T., E.B., S.D., S.T., E.W. and W.S.; writing—review and editing, B.T., H.L. and G.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by BrightFocus Foundation [M2019074].

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barar, J.; Javadzadeh, A.R.; Omidi, Y. Ocular novel drug delivery: Impacts of membranes and barriers. Expert Opin. Drug Deliv. 2008, 5, 567–581. [Google Scholar] [CrossRef] [PubMed]
  2. Bill, A. The blood-aqueous barrier. Trans. Ophthalmol. Soc. UK 1986, 105, 149–155. [Google Scholar] [PubMed]
  3. Runkle, E.A.; Antonetti, D.A. The blood-retinal barrier: Structure and functional significance. Blood-Brain Other Neural Barriers 2011, 2011, 133–148. [Google Scholar]
  4. Russell, S.; Bennett, J.; Wellman, J.A.; Chung, D.C.; Yu, Z.-F.; Tillman, A.; Wittes, J.; Pappas, J.; Elci, O.; McCague, S. Efficacy and safety of voretigene neparvovec (AAV2-hRPE65v2) in patients with RPE65-mediated inherited retinal dystrophy: A randomised, controlled, open-label, phase 3 trial. Lancet 2017, 390, 849–860. [Google Scholar] [CrossRef]
  5. Prado, D.A.; Acosta-Acero, M.; Maldonado, R.S. Gene therapy beyond luxturna: A new horizon of the treatment for inherited retinal disease. Curr. Opin. Ophthalmol. 2020, 31, 147–154. [Google Scholar] [CrossRef] [PubMed]
  6. Musarella, M.A. Gene mapping of ocular diseases. Surv. Ophthalmol. 1992, 36, 285–312. [Google Scholar] [CrossRef]
  7. Cheng, K.J.; Hsieh, C.M.; Nepali, K.; Liou, J.P. Ocular disease therapeutics: Design and delivery of drugs for diseases of the eye. J. Med. Chem. 2020, 63, 10533–10593. [Google Scholar] [CrossRef]
  8. Mendell, J.R.; Al-Zaidy, S.A.; Rodino-Klapac, L.R.; Goodspeed, K.; Gray, S.J.; Kay, C.N.; Boye, S.L.; Boye, S.E.; George, L.A.; Salabarria, S. Current clinical applications of in vivo gene therapy with AAVs. Mol. Ther. 2021, 29, 464–488. [Google Scholar] [CrossRef]
  9. Dunbar, C.E.; High, K.A.; Joung, J.K.; Kohn, D.B.; Ozawa, K.; Sadelain, M. Gene therapy comes of age. Science 2018, 359, eaan4672. [Google Scholar] [CrossRef]
  10. Carter, B.J. Adeno-associated virus and the development of adeno-associated virus vectors: A historical perspective. Mol. Ther. 2004, 10, 981–989. [Google Scholar] [CrossRef]
  11. Naso, M.F.; Tomkowicz, B.; Perry, W.L.; Strohl, W.R. Adeno-Associated Virus (AAV) as a Vector for Gene Therapy. BioDrugs 2017, 31, 317–334. [Google Scholar] [CrossRef] [Green Version]
  12. Philpott, N.J.; Giraud-Wali, C.; Dupuis, C.; Gomos, J.; Hamilton, H.; Berns, K.I.; Falck-Pedersen, E. Efficient integration of recombinant adeno-associated virus DNA vectors requires a p5-rep sequence in cis. J. Virol. 2002, 76, 5411–5421. [Google Scholar] [CrossRef]
  13. Acland, G.M.; Aguirre, G.D.; Ray, J.; Zhang, Q.; Aleman, T.S.; Cideciyan, A.V.; Pearce-Kelling, S.E.; Anand, V.; Zeng, Y.; Maguire, A.M. Gene therapy restores vision in a canine model of childhood blindness. Nat. Genet. 2001, 28, 92–95. [Google Scholar] [CrossRef]
  14. Khanani, A.M.; Thomas, M.J.; Aziz, A.A.; Weng, C.Y.; Danzig, C.J.; Yiu, G.; Kiss, S.; Waheed, N.K.; Kaiser, P.K. Review of gene therapies for age-related macular degeneration. Eye 2022, 36, 303–311. [Google Scholar] [CrossRef]
  15. Wang, J.-H.; Roberts, G.E.; Liu, G.-S. Updates on gene therapy for diabetic retinopathy. Curr. Diabetes Rep. 2020, 20, 22. [Google Scholar] [CrossRef]
  16. Komáromy, A.M.; Koehl, K.L.; Park, S.A. Looking into the future: Gene and cell therapies for glaucoma. Vet. Ophthalmol. 2021, 24, 16–33. [Google Scholar] [CrossRef]
  17. Mehta, S. Age-Related Macular Degeneration. Prim. Care Clin. Off. Pract. 2015, 42, 377–391. [Google Scholar] [CrossRef]
  18. Khandhadia, S.; Cipriani, V.; Yates, J.; Lotery, A.J. Age-related macular degeneration and the complement system. Immunobiology 2012, 217, 127–146. [Google Scholar] [CrossRef]
  19. Anderson, D.H.; Radeke, M.J.; Gallo, N.B.; Chapin, E.A.; Johnson, P.T.; Curletti, C.R.; Hancox, L.S.; Hu, J.; Ebright, J.N.; Malek, G. The pivotal role of the complement system in aging and age-related macular degeneration: Hypothesis re-visited. Prog. Retin. Eye Res. 2010, 29, 95–112. [Google Scholar] [CrossRef]
  20. Ferrara, N.; Mass, R.D.; Campa, C.; Kim, R. Targeting VEGF-A to treat cancer and age-related macular degeneration. Annu. Rev. Med. 2007, 58, 491–504. [Google Scholar] [CrossRef]
  21. Campa, C.; P Harding, S. Anti-VEGF compounds in the treatment of neovascular age related macular degeneration. Curr. Drug Targets 2011, 12, 173–181. [Google Scholar] [CrossRef] [PubMed]
  22. Senra, H.; Ali, Z.; Balaskas, K.; Aslam, T. Psychological impact of anti-VEGF treatments for wet macular degeneration—A review. Graefe’s Arch. Clin. Exp. Ophthalmol. 2016, 254, 1873–1880. [Google Scholar] [CrossRef] [PubMed]
  23. Kansara, V.; Muya, L.; Wan, C.-r.; Ciulla, T.A. Suprachoroidal delivery of viral and nonviral gene therapy for retinal diseases. J. Ocul. Pharmacol. Ther. 2020, 36, 384–392. [Google Scholar] [CrossRef]
  24. Li, J.Q.; Welchowski, T.; Schmid, M.; Letow, J.; Wolpers, C.; Pascual-Camps, I.; Holz, F.G.; Finger, R.P. Prevalence, incidence and future projection of diabetic eye disease in Europe: A systematic review and meta-analysis. Eur. J. Epidemiol. 2020, 35, 11–23. [Google Scholar] [CrossRef]
  25. Stewart, M.W. Pathophysiology of diabetic retinopathy. Diabet. Retin. 2010, 2010, 1–30. [Google Scholar]
  26. Mantravadi, A.V.; Vadhar, N. Glaucoma. Prim. Care Clin. Off. Pract. 2015, 42, 437–449. [Google Scholar] [CrossRef]
  27. Davanger, M.; Ringvold, A.; Blika, S. The probability of having glaucoma at different IOP levels. Acta Ophthalmol. 1991, 69, 565–568. [Google Scholar] [CrossRef]
  28. Tham, Y.-C.; Li, X.; Wong, T.Y.; Quigley, H.A.; Aung, T.; Cheng, C.-Y. Global prevalence of glaucoma and projections of glaucoma burden through 2040: A systematic review and meta-analysis. Ophthalmology 2014, 121, 2081–2090. [Google Scholar] [CrossRef]
  29. Lusthaus, J.; Goldberg, I. Current management of glaucoma. Med. J. Aust. 2019, 210, 180–187. [Google Scholar] [CrossRef]
  30. Kholdebarin, R.; Campbell, R.J.; Jin, Y.-P.; Buys, Y.M.; Group, C.C.S. Multicenter study of compliance and drop administration in glaucoma. Can. J. Ophthalmol. 2008, 43, 454–461. [Google Scholar] [CrossRef]
  31. Llobet, A.; Gasull, X.; Gual, A. Understanding trabecular meshwork physiology: A key to the control of intraocular pressure? Physiology 2003, 18, 205–209. [Google Scholar] [CrossRef]
  32. Borrás, T.; Xue, W.; Choi, V.W.; Bartlett, J.S.; Li, G.; Samulski, R.J.; Chisolm, S.S. Mechanisms of AAV transduction in glaucoma-associated human trabecular meshwork cells. J. Gene Med. A Cross-Discip. J. Res. Sci. Gene Transf. Its Clin. Appl. 2006, 8, 589–602. [Google Scholar] [CrossRef]
  33. Buie, L.K.; Rasmussen, C.A.; Porterfield, E.C.; Ramgolam, V.S.; Choi, V.W.; Markovic-Plese, S.; Samulski, R.J.; Kaufman, P.L.; Borrás, T. Self-complementary AAV virus (scAAV) safe and long-term gene transfer in the trabecular meshwork of living rats and monkeys. Investig. Ophthalmol. Vis. Sci. 2010, 51, 236–248. [Google Scholar] [CrossRef]
  34. Rodriguez-Estevez, L.; Asokan, P.; Borrás, T. Transduction optimization of AAV vectors for human gene therapy of glaucoma and their reversed cell entry characteristics. Gene Ther. 2020, 27, 127–142. [Google Scholar] [CrossRef]
  35. Shen, J.; Wang, Y.; Yao, K. Protection of retinal ganglion cells in glaucoma: Current status and future. Exp. Eye Res. 2021, 205, 108506. [Google Scholar] [CrossRef]
  36. Abbasi, M.; Gupta, V.K.; Chitranshi, N.; Gupta, V.; Ranjbaran, R.; Rajput, R.; Pushpitha, K.; Devaraj, K.; You, Y.; Salekdeh, G.H. Inner retinal injury in experimental glaucoma is prevented upon AAV mediated Shp2 silencing in a caveolin dependent manner. Theranostics 2021, 11, 6154. [Google Scholar] [CrossRef]
  37. Liu, D.; Deng, Q.; Lei, X.; Lu, W.; Zhao, Q.; Shen, Y. Overexpression of BMP4 protects retinal ganglion cells in a mouse model of experimental glaucoma. Exp. Eye Res. 2021, 210, 108728. [Google Scholar] [CrossRef]
  38. Komaromy, A.M.; Harman, C.; Koehl, K.; Anderson, A.; Boye, S.L.; Steibel, J.P.; Teixeira, L.; Toris, C.B.; Moroi, S.E.; Boye, S.E. Four-year follow up of intraocular pressure (IOP) control in a canine model of open-angle glaucoma (OAG) treated with adeno-associated virus (AAV)-mediated modification of gene expression within the aqueous humor outflow pathways (AHOP). Investig. Ophthalmol. Vis. Sci. 2021, 62, 2783. [Google Scholar]
  39. Visuvanathan, S. The Effects of AAV-Mediated XIAP Gene Therapy in a Mouse Model of Glaucoma. Master’s Thesis, Université d’Ottawa/University of Ottawa, Ottawa, ON, Canada, 2019. [Google Scholar]
  40. Su, W.; Sun, S.; Tian, B.; Tai, P.W.L.; Luo, Y.; Ko, J.; Zhan, W.; Ke, X.; Zheng, Q.; Li, X.; et al. Efficacious, safe, and stable inhibition of corneal neovascularization by AAV-vectored anti-VEGF therapeutics. Mol. Ther. Methods Clin. Dev. 2021, 22, 107–121. [Google Scholar] [CrossRef]
  41. Hirsch, M.L.; Conatser, L.M.; Smith, S.M.; Salmon, J.H.; Wu, J.; Buglak, N.E.; Davis, R.; Gilger, B.C. AAV vector-meditated expression of HLA-G reduces injury-induced corneal vascularization, immune cell infiltration, and fibrosis. Sci. Rep. 2017, 7, 17840. [Google Scholar] [CrossRef]
  42. Mohan, R.R.; Tovey, J.C.; Sharma, A.; Schultz, G.S.; Cowden, J.W.; Tandon, A. Targeted decorin gene therapy delivered with adeno-associated virus effectively retards corneal neovascularization in vivo. PLoS ONE 2011, 6, e26432. [Google Scholar] [CrossRef] [PubMed]
  43. Gupta, S.; Rodier, J.T.; Sharma, A.; Giuliano, E.A.; Sinha, P.R.; Hesemann, N.P.; Ghosh, A.; Mohan, R.R. Targeted AAV5-Smad7 gene therapy inhibits corneal scarring in vivo. PLoS ONE 2017, 12, e0172928. [Google Scholar] [CrossRef] [PubMed]
  44. Mohan, R.R.; Tandon, A.; Sharma, A.; Cowden, J.W.; Tovey, J.C. Significant inhibition of corneal scarring in vivo with tissue-selective, targeted AAV5 decorin gene therapy. Investig. Ophthalmol. Vis. Sci. 2011, 52, 4833–4841. [Google Scholar] [CrossRef] [Green Version]
  45. Bilsbury, E.; Su, W.; Sun, S.; Doherty, S.; Wood, E.; Ke, X.; Zheng, Q.; Tai, P.W.; Lin, H.; Gao, G. AAV-mediated anti-VEGF therapeutics increase corneal allograft survival-rate in a model of high-risk corneal transplantation. Investig. Ophthalmol. Vis. Sci. 2022, 63, 72-A0045. [Google Scholar]
  46. Watson, Z.L.; Washington, S.D.; Phelan, D.M.; Lewin, A.S.; Tuli, S.S.; Schultz, G.S.; Neumann, D.M.; Bloom, D.C. In vivo knockdown of the herpes simplex virus 1 latency-associated transcript reduces reactivation from latency. J. Virol. 2018, 92, e00812-18. [Google Scholar] [CrossRef] [PubMed]
  47. Gilger, B.C.; Salmon, J.H.; Roberts, D.; Song, L.; Bower, J.; Hirsch, M. Intracorneal sequential dosing of AAV-ArsB clears corneal opacity associated with mucopolysaccharidosis VI in a feline model. Investig. Ophthalmol. Vis. Sci. 2021, 62, 801. [Google Scholar]
  48. Miyadera, K.; Conatser, L.; Llanga, T.A.; Carlin, K.; O’Donnell, P.; Bagel, J.; Song, L.; Kurtzberg, J.; Samulski, R.J.; Gilger, B. Intrastromal gene therapy prevents and reverses advanced corneal clouding in a canine model of mucopolysaccharidosis I. Mol. Ther. 2020, 28, 1455–1463. [Google Scholar] [CrossRef]
  49. Mathews, P.M.; Lindsley, K.; Aldave, A.J.; Akpek, E.K. Etiology of global corneal blindness and current practices of corneal transplantation: A focused review. Cornea 2018, 37, 1198–1203. [Google Scholar] [CrossRef]
  50. Di Iorio, E.; Barbaro, V.; Alvisi, G.; Trevisan, M.; Ferrari, S.; Masi, G.; Nespeca, P.; Ghassabian, H.; Ponzin, D.; Palù, G. New frontiers of corneal gene therapy. Hum. Gene Ther. 2019, 30, 923–945. [Google Scholar] [CrossRef]
  51. Maeno, A.; Naor, J.; Lee, H.M.; Hunter, W.S.; Rootman, D.S. Three decades of corneal transplantation: Indications and patient characteristics. Cornea 2000, 19, 7–11. [Google Scholar] [CrossRef]
  52. Bastola, P.; Song, L.; Gilger, B.C.; Hirsch, M.L. Adeno-Associated Virus Mediated Gene Therapy for Corneal Diseases. Pharmaceutics 2020, 12, 767. [Google Scholar] [CrossRef]
  53. Armitage, W.J.; Goodchild, C.; Griffin, M.D.; Gunn, D.J.; Hjortdal, J.; Lohan, P.; Murphy, C.C.; Pleyer, U.; Ritter, T.; Tole, D.M.; et al. High-risk Corneal Transplantation: Recent Developments and Future Possibilities. Transplantation 2019, 103, 2468–2478. [Google Scholar] [CrossRef]
  54. Dohlman, T.H.; Omoto, M.; Hua, J.; Stevenson, W.; Lee, S.; Chauhan, S.K.; Dana, R. VEGF-trap aflibercept significantly improves long-term graft survival in high-risk corneal transplantation. Transplantation 2015, 99, 678–686. [Google Scholar] [CrossRef]
  55. Ramamoorth, M.; Narvekar, A. Non viral vectors in gene therapy-an overview. J. Clin. Diagn. Res. 2015, JCDR 9, GE01. [Google Scholar] [CrossRef]
  56. Zu, H.; Gao, D. Non-viral vectors in gene therapy: Recent development, challenges, and prospects. AAPS J. 2021, 23, 78. [Google Scholar] [CrossRef]
  57. Agban, Y.; Thakur, S.S.; Mugisho, O.O.; Rupenthal, I.D. Depot formulations to sustain periocular drug delivery to the posterior eye segment. Drug Discov. Today 2019, 24, 1458–1469. [Google Scholar] [CrossRef]
  58. Huang, H.; Feng, W.; Chen, Y.; Shi, J. Inorganic nanoparticles in clinical trials and translations. Nano Today 2020, 35, 100972. [Google Scholar] [CrossRef]
  59. Khiev, D.; Mohamed, Z.A.; Vichare, R.; Paulson, R.; Bhatia, S.; Mohapatra, S.; Lobo, G.P.; Valapala, M.; Kerur, N.; Passaglia, C.L.; et al. Emerging Nano-Formulations and Nanomedicines Applications for Ocular Drug Delivery. Nanomaterials 2021, 11, 173. [Google Scholar] [CrossRef]
  60. Grassiri, B.; Zambito, Y.; Bernkop-Schnürch, A. Strategies to prolong the residence time of drug delivery systems on ocular surface. Adv. Colloid Interface Sci. 2021, 288, 102342. [Google Scholar] [CrossRef]
  61. Seyfoddin, S.J.; Al-Kassas, R. Solid lipid nanoparticles for ocular drug delivery. Drug Deliv. 2010, 17, 467–489. [Google Scholar] [CrossRef]
  62. Müller, R.H.; Radtke, M.; Wissing, S.A. Nanostructured lipid matrices for improved microencapsulation of drugs. Int. J. Pharm. 2002, 242, 121–128. [Google Scholar] [CrossRef]
  63. Sun, D.; Sahu, B.; Gao, S.; Schur, R.M.; Vaidya, A.M.; Maeda, A.; Palczewski, K.; Lu, Z.R. Targeted Multifunctional Lipid ECO Plasmid DNA Nanoparticles as Efficient Non-viral Gene Therapy for Leber’s Congenital Amaurosis. Mol. Ther. Nucleic Acids. 2017, 7, 42–52. [Google Scholar] [CrossRef] [PubMed]
  64. Kansara, V.S.; Cooper, M.; Sesenoglu-Laird, O.; Muya, L.; Moen, R.; Ciulla, T.A. Suprachoroidally Delivered DNA Nanoparticles Transfect Retina and Retinal Pigment Epithelium/Choroid in Rabbits. Transl. Vis. Sci. Technol. 2020, 9, 21. [Google Scholar] [CrossRef] [PubMed]
  65. Vitiello, L.; Chonn, A.; Wasserman, J.D.; Duff, C.; Worton, R.G. Condensation of plasmid DNA with polylysine improves liposome-mediated gene transfer into established and primary muscle cells. Gene Ther. 1996, 3, 396–404. [Google Scholar]
  66. Makadia, H.K.; Siegel, S.J. Poly lactic-co-glycolic acid (PLGA) as biodegradable controlled drug delivery carrier. Polymers 2011, 3, 1377–1397. [Google Scholar] [CrossRef]
  67. Mahapatro, A.; Singh, D.K. Biodegradable nanoparticles are excellent vehicle for site directed in-vivo delivery of drugs and vaccines. J. Nanobiotechnol. 2011, 9, 55. [Google Scholar] [CrossRef] [Green Version]
  68. Rai, R.; Alwani, S.; Badea, I. Polymeric Nanoparticles in Gene Therapy: New Avenues of Design and Optimization for Delivery Applications. Polymers 2019, 11, 745. [Google Scholar] [CrossRef]
  69. Cho, Y.K.; Uehara, H.; Young, J.R.; Tyagi, P.; Kompella, U.B.; Zhang, X.; Luo, L.; Singh, N.; Archer, B.; Ambati, B.K. Flt23k nanoparticles offer additive benefit in graft survival and anti-angiogenic effects when combined with triamcinolone. Investig. Ophthalmol. Vis. Sci. 2012, 53, 2328–2336. [Google Scholar] [CrossRef]
  70. de Oliveira, F.A.; Albuquerque, L.; Delecourt, G.; Bennevault, V.; Guégan, P.; Giacomelli, F.C. Current Designs of Polymeric Platforms Towards the Delivery of Nucleic Acids Inside the Cells with Focus on Polyethylenimine. Curr. Gene Ther. 2021, 21, 431–451. [Google Scholar] [CrossRef]
  71. Bolhassani, A.; Javanzad, S.; Saleh, T.; Hashemi, M.; Aghasadeghi, M.; Sadat, S. Polymeric nanoparticles potent vectors for vaccine delivery targeting cancer and infectious diseases. Hum. Vaccin. Immunother. 2014, 10, 321–332. [Google Scholar] [CrossRef]
  72. Conley, S.M.; Naash, M.I. Nanoparticles for retinal gene therapy. Prog. Retin. Eye Res. 2010, 29, 376–397. [Google Scholar] [CrossRef]
  73. Cai, X.; Conley, S.M.; Nash, Z.; Fliesler, S.J.; Cooper, M.J.; Naash, M.I. Gene delivery to mitotic and postmitotic photoreceptors via compacted DNA nanoparticles results in improved phenotype in a mouse model of retinitis pigmentosa. FASEB J. 2010, 24, 1178–1191. [Google Scholar] [CrossRef]
  74. Han, Z.; Conley, S.M.; Makkia, R.S.; Cooper, M.J.; Naash, M.I. DNA nanoparticle-mediated ABCA4 delivery rescues Stargardt dystrophy in mice. J. Clin. Investig. 2012, 122, 3221–3226. [Google Scholar] [CrossRef]
  75. Teixeira, H.F.; Bruxel, F.; Fraga, M.; Schuh, R.S.; Zorzi, G.K.; Matte, U.; Fattal, E. Cationic nanoemulsions as nucleic acids delivery systems. Int. J. Pharm. 2017, 534, 356–367. [Google Scholar] [CrossRef]
  76. Dhahir, R.K.; Al-Nima, A.M.; Al-Bazzaz, F.Y. Nanoemulsions as Ophthalmic Drug Delivery Systems. Turk. J. Pharm. Sci. 2021, 18, 652–664. [Google Scholar] [CrossRef]
  77. Garrigue, J.-S.; Lambert, G.; Rabinovich, L.; Daull, P.; Serle, J.B. A Comparative Study of Latanoprost-Cationic Emulsion (Catioprost) and Latanoprost Aqueous Solution (Xalatan) in Preclinical Efficacy and Safety Models. Investig. Ophthalmol. Vis. Sci. 2011, 52, 238. [Google Scholar]
  78. Omri, S.; Behar-Cohen, F.; de Kozak, Y.; Sennlaub, F.; Verissimo, L.M.; Jonet, L.; Savoldelli, M.; Omri, B.; Crisanti, P. Microglia/Macrophages migrate through retinal epithelium barrier by a transcellular route in diabetic retinopathy: Role of PKC in the goto kakizaki rat model. Am. J. Pathol. 2011, 179, 942–953. [Google Scholar] [CrossRef]
  79. Gote, V.; Sikder, S.; Sicotte, J.; Pal, D. Ocular drug delivery: Present Innovations and Future Challenges. J. Pharmacol. Investig. Ther. 2019, 370, 602–624. [Google Scholar] [CrossRef]
  80. Vaishya, R.D.; Khurana, V.; Patel, S.; Mitra, A.K. Controlled ocular drug delivery with nanomicelles. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2014, 6, 422–437. [Google Scholar] [CrossRef]
  81. Lin, S.; Ge, C.; Wang, D.; Xie, Q.; Wu, B.; Wang, J.; Nan, K.; Zheng, Q.; Chen, W. Overcoming the anatomical and physiological barriers in topical eye surface medication using a peptide-decorated polymeric micelle. ACS Appl. Mater. Interfaces 2019, 11, 39603–39612. [Google Scholar] [CrossRef]
  82. Yoon, K.C.; Ahn, K.Y.; Lee, J.H.; Chun, B.J.; Park, S.W.; Seo, M.S.; Park, Y.G.; Kim, K.K. Lipid-mediated delivery of brain-specific angiogenesis inhibitor 1 gene reduces corneal neovascularization in an in vivo rabbit model. Gene Ther. 2005, 12, 617–624. [Google Scholar] [CrossRef]
  83. Dos Santos, G.A.; Ferreira-Nunes, R.; Dalmolin, L.F.; dos Santos Re, A.C.; Anjos, J.L.V.; Mendanha, S.A.; Aires, C.P.; Lopez, R.F.; Cunha-Filho, M.; Gelfuso, G.M.; et al. Besifloxacin liposomes with positively charged additives for an improved topical ocular delivery. Sci. Rep. 2020, 10, 19285. [Google Scholar] [CrossRef]
  84. Verma, A.; Tiwari, A.; Saraf, S.; Panda, P.K.; Jain, A.; Jain, S.K. Emerging potential of niosomes in ocular delivery. Expert Opin. Drug Deliv. 2021, 18, 55–71. [Google Scholar] [CrossRef]
  85. Biswas, G.R.; Majee, S.B. Niosomes in ocular drug delivery. Eur. J. Pharm. Med. Res 2017, 4, 813–819. [Google Scholar]
  86. Puras, G.; Mashal, M.; Zarate, J.; Agirre, M.; Ojeda, E.; Grijalvo, S.; Eritja, R.; Diaz-Tahoces, A.; Navarrete, G.M.; Aviles-Tregueros, M.; et al. A novel cationic niosome formulation for gene delivery to the retina. J. Control. Release 2014, 174, 27–36. [Google Scholar] [CrossRef]
  87. Qin, Y.; Tian, Y.; Liu, Y.; Li, D.; Zhang, H.; Yang, Y.; Qi, J.; Wang, H.; Gan, L. Hyaluronic acid-modified cationic niosomes for ocular gene delivery: Improving transfection efficiency in retinal pigment epithelium. J. Pharm. Pharmacol. 2018, 70, 1139–1151. [Google Scholar] [CrossRef]
  88. Avti, P.; Patel, S.; Sitharaman, B. Nanobiomaterials Handbook; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
  89. Morrison, P.W.; Khutoryanskiy, V.V. Advances in ophthalmic drug delivery. Ther. Deliv. 2014, 5, 1297–1315. [Google Scholar] [CrossRef] [PubMed]
  90. Shirasaki, Y. Molecular design for enhancement of ocular penetration. J. Pharm. Sci. 2008, 97, 2462–2496. [Google Scholar] [CrossRef] [PubMed]
  91. Molokhia, S.A.; Thomas, S.C.; Garff, K.J.; Mandell, K.J.; Wirostko, B.M. Anterior eye segment drug delivery systems: Current treatments and future challenges. J. Ocul. Pharmacol. Ther. 2013, 29, 92–105. [Google Scholar] [CrossRef] [PubMed]
  92. Gupta, H. Updates on drug bioavailability and delivery to posterior segment of eye. J. Pharm. Bioallied Sci. 2013, 5, 173. [Google Scholar] [CrossRef] [PubMed]
  93. Jumelle, C.; Gholizadeh, S.; Annabi, N.; Dana, R. Advances and limitations of drug delivery systems formulated as eye drops. J. Control. Release 2020, 321, 1–22. [Google Scholar] [CrossRef]
  94. Achouri, D.; Alhanout, K.; Piccerelle, P.; Andrieu, V. Recent advances in ocular drug delivery. Drug Dev. Ind. Pharm. 2013, 39, 1599–1617. [Google Scholar] [CrossRef]
  95. Gaudana, R.; Jwala, J.; Boddu, S.H.; Mitra, A.K. Recent perspectives in ocular drug delivery. Pharm. Res. 2009, 26, 1197–1216. [Google Scholar] [CrossRef]
  96. Vicente-Pascual, M.; Gomez-Aguado, I.; Rodrigues-Castejon, J.; Rodriguez-Gascon, A.; Muntoni, E.; Battaglia, L.; del Pozo-Rodriguez, A.; Solinis Aspiazu, M.A. Topical Administration of SLN-Based Gene Therapy for the Treatment of Corneal Inflammation by De Novo IL-10 Production. Pharmaceutics 2020, 12, 584. [Google Scholar] [CrossRef]
  97. Liu, C.-H.; Lee, G.-W.; Wu, W.-C.; Wang, C.-C. Encapsulating curcumin in ethylene diamine-β-cyclodextrin nanoparticle improves topical cornea delivery. Colloids Surf. B Biointerfaces 2020, 186, 110726. [Google Scholar] [CrossRef]
  98. Loftsson, T.; Stefánsson, E. Aqueous eye drops containing drug/cyclodextrin nanoparticles deliver therapeutic drug concentrations to both anterior and posterior segment. Acta Ophthalmol. 2022, 100, 7–25. [Google Scholar] [CrossRef]
  99. Lorenzo-Veiga, B.; Sigurdsson, H.H.; Loftsson, T.; Alvarez-Lorenzo, C. Cyclodextrin–amphiphilic copolymer supramolecular assemblies for the ocular delivery of natamycin. Nanomaterials 2019, 9, 745. [Google Scholar] [CrossRef]
  100. Van Ooteghem, M.M. Biopharmaceutics of Ocular Drug Delivery; CRC Press: Boca Raton, FL, USA, 2019; pp. 27–42. [Google Scholar]
  101. Vooturi, S.; Bourne, D.; Panda, J.J.; Choi, S.; Kim, H.; Yandrapu, S.K.; Kompella, U.B. Effect of particle size and viscosity of suspensions on topical ocular bioavailability of budesonide, a corticosteroid. J. Ocul. Pharmacol. Ther. 2020, 36, 404–409. [Google Scholar] [CrossRef]
  102. Toropainen, E.; Fraser-Miller, S.J.; Navakovic, D.; Del Amo, E.M.; Vellonen, K.S.; Ruponen, M.; Viitala, T.; Korhonen, O.; Auriola, S.; Hellinen, L.; et al. Biopharmaceutics of topical ophthalmic suspensions: Importance of viscosity and particle size in ocular absorption of indomethacin. Pharmaceutics 2021, 13, 452. [Google Scholar] [CrossRef]
  103. Varma, D.K. Sustained release drug delivery: Closer than you think. Glaucoma Today 2018, 3, 58–60. [Google Scholar]
  104. Kompella, U.B.; Hartman, R.R.; Patil, M.A. Extraocular, periocular, and intraocular routes for sustained drug delivery for glaucoma. Prog. Retin. Eye Res. 2021, 82, 100901. [Google Scholar] [CrossRef]
  105. Sedlavek, J. Possibilities of application of ophthalmic drugs with the aid of gel contact lens. Cesk. Oftalmol. 1965, 21, 509–514. [Google Scholar]
  106. Xu, J.; Xue, Y.; Hu, G.; Lin, T.; He, H.; Zhang, Y.; Tang, X. A comprehensive review on contact lens for ophthalmic drug delivery. J. Control. Release 2018, 281, 97–118. [Google Scholar] [CrossRef]
  107. Nayak, K.; Misra, M. A review on recent drug delivery systems for posterior segment of eye. Biomed. Pharmacother. 2018, 107, 1564–1582. [Google Scholar] [CrossRef]
  108. Rafiei, F.; Tabesh, H.; Farzad, F. Sustained subconjunctival drug delivery systems: Current trends and future perspectives. Int. Ophthalmol. 2020, 40, 2385–2401. [Google Scholar] [CrossRef]
  109. Chu, H.S.; Hu, F.R.; Yang, C.M.; Yeh, P.T.; Chen, Y.M.; Hou, Y.C.; Chen, W.L. Subconjunctival injection of bevacizumab in the treatment of corneal neovascularization associated with lipid deposition. Cornea 2011, 30, 60–66. [Google Scholar] [CrossRef]
  110. Zhang, N.; Luo, X.; Zhang, S.; Liu, R.; Liang, L.; Su, W.; Liang, D. Subconjunctival injection of tumor necrosis factor-α pre-stimulated bone marrow-derived mesenchymal stem cells enhances anti-inflammation and anti-fibrosis in ocular alkali burns. Graefes Arch. Clin. Exp. Ophthalmol. 2021, 259, 929–940. [Google Scholar] [CrossRef] [PubMed]
  111. Maleki, A.; Aghaei, H.; Lee, S. Topical interferon alpha 2b in the treatment of refractory pseudophakic cystoid macular edema. Am. J. Ophthalmol. Case Rep. 2018, 10, 203–205. [Google Scholar] [CrossRef] [PubMed]
  112. Daien, V.; Papinaud, L.; Domerg, C.; Lacombe, S.; Daures, J.P.; Villain, M. Incidence and Characteristics of Cystoid Macular Edema after Cataract Surgery. Ophthalmology 2016, 123, 663–664. [Google Scholar] [CrossRef]
  113. Saluja, G.; Sharma, N.; Agarwal, R.; Sharma, H.P.; Singhal, D.; Maharana, P.K.; Sinha, R.; Agarwal, T.; Velpandian, T.; Titiyal, J.S.; et al. Comparison of Safety and Efficacy of Intrastromal Injections of Voriconazole, Amphotericin B and Natamycin in Cases of Recalcitrant Fungal Keratitis: A Randomized Controlled Trial. Clin. Ophthalmol. 2020, 15, 2437–2446. [Google Scholar] [CrossRef] [PubMed]
  114. Konar, P.; Joshi, S.; Mandhare, S.J.; Thakur, R.; Deshpande, M.; Dayal, A. Intrastromal voriconazole: An adjuvant approach for recalcitrant mycotic keratitis. Indian J. Ophthalmol. 2020, 68, 35–38. [Google Scholar] [CrossRef]
  115. Song, L.; Bower, J.J.; Llanga, T.; Salmon, J.H.; Hirsch, M.L.; Gilger, B.C. Ocular Tolerability and Immune Response to Corneal Intrastromal AAV-IDUA Gene Therapy in New Zealand White Rabbits. Mol. Ther. Methods Clin. Dev. 2020, 18, 24–32. [Google Scholar] [CrossRef]
  116. Liebmann, J.M.; Barton, K.; Weinreb, R.N.; Eichenbaum, D.A.; Gupta, P.K.; McCabe, C.M.; Wolfe, J.D.; Ahmed, I.; Sheybani, A.; Craven, E.R. Evolving guidelines for intracameral injection. J. Glaucoma 2020, 29, S1–S7. [Google Scholar] [CrossRef]
  117. Lewis, R.A.; Christie, W.C.; Day, D.G.; Craven, E.R.; Walters, T.; Bejanian, M.; Lee, S.S.; Goodkin, M.L.; Zhang, J.; Whitcup, S.M.; et al. Bimatoprost sustained-release implants for glaucoma therapy: 6-month results from a phase I/II clinical trial. Am. J. Ophthalmol. 2017, 175, 137–147. [Google Scholar] [CrossRef]
  118. Ramulu, P.Y.; Do, D.V.; Corcoran, K.J.; Corcoran, S.L.; Robin, A.L. Use of retinal procedures in medicare beneficiaries from 1997 to 2007. Arch. Ophthalmol. 2010, 128, 1335–1340. [Google Scholar] [CrossRef]
  119. Grzybowski, A.; Told, R.; Sacu, S.; Bandello, F.; Moisseiev, E.; Loewenstein, A.; Schmidt-Erfurth, U. 2018 Update on Intravitreal Injections: Euretina Expert Consensus Recommendations. Ophthalmologica 2018, 239, 181–193. [Google Scholar] [CrossRef]
  120. Sampat, K.M.; Garg, S.J. Complications of intravitreal injections. Curr. Opin. Ophthalmol. 2010, 21, 178–183. [Google Scholar] [CrossRef]
  121. Ross, M.; Ofri, R. The future of retinal gene therapy: Evolving from subretinal to intravitreal vector delivery. Neural Regen. Res. 2021, 16, 1751–1759. [Google Scholar]
  122. Cehajic-Kapetanovic, J.; Xue, K.; Edwards, T.L.; Meenink, T.C.; Beelen, M.J.; Naus, G.J.; de Smet, M.D.; MacLaren, R.E. First-in-Human Robot-Assisted Subretinal Drug Delivery Under Local Anesthesia. Am. J. Ophthalmol. 2021, 237, 104–113. [Google Scholar] [CrossRef]
  123. Allyn, M.M.; Luo, R.H.; Hellwarth, E.B.; Swindle-Reilly, K.E. Considerations for Polymers Used in Ocular Drug Delivery. Front. Med. 2021, 8, 787644. [Google Scholar] [CrossRef]
  124. Rai, U.D.J.; Young, S.A.; Thrimawithana, T.R.; Abdelkader, H.; Alani, A.W.; Pierscionek, B.; Alany, R.G. The suprachoroidal pathway: A new drug delivery route to the back of the eye. Drug Discov. Today 2015, 20, 491–495. [Google Scholar] [CrossRef] [PubMed]
  125. Fusi-Rubiano, W.; Saedon, H.; Patel, V.; Yang, Y.C. Oral medications for central serous chorioretinopathy: A literature review. Eye 2020, 34, 809–824. [Google Scholar] [CrossRef] [PubMed]
  126. Lotery, A.; Sivaprasad, S.; O’Connell, A.; Harris, R.A.; Culliford, L.; Ellis, L.; Cree, A.; Madhusudhan, S.; Behar-Cohen, F.; Chakravarthy, U.; et al. Eplerenone for chronic central serous chorioretinopathy in patients with active, previously untreated disease for more than 4 months (VICI): A randomised, double-blind, placebo-controlled trial. Lancet 2020, 395, 294–303. [Google Scholar] [CrossRef]
  127. Singh, R.P.; Sears, J.E.; Bedi, R.; Schachat, A.P.; Ehlers, J.P.; Kaiser, P.K. Oral eplerenone for the management of chronic central serous chorioretinopathy. Int. J. Ophthalmol. 2015, 8, 310–314. [Google Scholar] [PubMed]
  128. Iqbal, F.; Iqbal, K.; Inayat, B.; Arjumand, S.; Ghafoor, Z.; Sattar, W.; Abbas, K. Eplerenone Treatment in Chronic Central Serous Chorioretinopathy. Cureus 2021, 13, e18415. [Google Scholar] [CrossRef] [PubMed]
  129. Cakir, B.; Fischer, F.; Ehlken, C.; Buhler, A.; Stahl, A.; Schlunck, G.; Bohringer, D.; Agostini, H.; Lange, C. Clinical experience with eplerenone to treat chronic central serous chorioretinopathy. Graefes Arch. Clin. Exp. Ophthalmol. 2016, 254, 2151–2157. [Google Scholar] [CrossRef]
  130. Lotan, I.; Charlson, R.W.; Ryerson, L.Z.; Levy, M.; Kister, I. Effectiveness of subcutaneous tocilizumab in neuromyelitis optica spectrum disorders. Mult. Scler. Relat. Disord. 2019, 39, 101920. [Google Scholar] [CrossRef]
  131. Silkiss, R.Z.; Paap, M.K.; Roelofs, K.A.; Agi, J.; Weis, E. Treatment of corticosteroid-resistant thyroid eye disease with subcutaneous tocilizumab. Can. J. Ophthalmol. 2021, 56, 66–70. [Google Scholar] [CrossRef]
  132. Stone, J.H.; Tuckwell, K.; Dimonaco, S.; Klearman, M.; Aringer, M.; Blockmans, D.; Brouwer, E.; Cid, M.C.; Dasgupta, B.; Rech, J.; et al. Trial of Tocilizumab in Giant-Cell Arteritis. N. Engl. J. Med. 2017, 377, 317–328. [Google Scholar] [CrossRef]
  133. Ramlogan-Steel, C.A.; Murali, A.; Andrzejewski, S.; Dhungel, B.; Steel, J.C.; Layton, C.J. Gene therapy and the adeno-associated virus in the treatment of genetic and acquired ophthalmic diseases in humans: Trials, future directions and safety considerations. Clin. Exp. Ophthalmol. 2019, 47, 521–536. [Google Scholar] [CrossRef]
  134. Büning, H.; Srivastava, A. Capsid Modifications for Targeting and Improving the Efficacy of AAV Vectors. Mol. Ther. Methods Clin. Dev. 2019, 12, 248–265. [Google Scholar] [CrossRef]
  135. Silva, M.; Peng, T.; Zhao, X.; Li, S.; Farhan, M.; Zheng, W. Recent trends in drug-delivery systems for the treatment of diabetic retinopathy and associated fibrosis. Adv. Drug Deliv. Rev. 2021, 173, 439–460. [Google Scholar] [CrossRef]
  136. Wang, Y.; Rajala, A.; Rajala, R.V.S. Lipid Nanoparticles for Ocular Gene Delivery. J. Funct. Biomater. 2015, 6, 379–394. [Google Scholar] [CrossRef] [Green Version]
Pharmaceutics 14 01931 g001 550

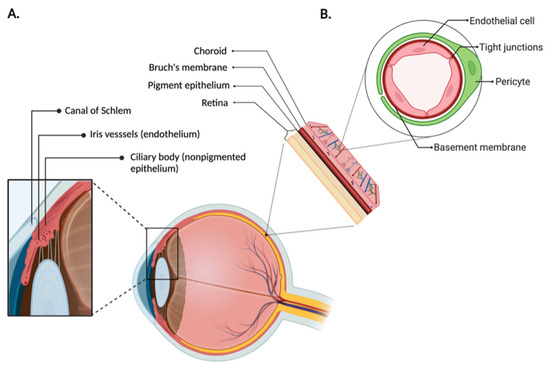

Figure 1. Anatomical barriers of the eye. (A) In the anterior of the eye, the blood–aqueous barrier, consisting of the iris/ciliary blood vessels and nonpigmented ciliary epithelium, limits access to the anterior of the eye and prevents therapeutic entry to the intraocular environment. (B) In the posterior of the eye, the blood-retinal barrier, comprised of the retinal capillary endothelial cells and retinal pigment epithelium cells, prevents therapeutics from entering the posterior segment from the bloodstream.
Figure 1. Anatomical barriers of the eye. (A) In the anterior of the eye, the blood–aqueous barrier, consisting of the iris/ciliary blood vessels and nonpigmented ciliary epithelium, limits access to the anterior of the eye and prevents therapeutic entry to the intraocular environment. (B) In the posterior of the eye, the blood-retinal barrier, comprised of the retinal capillary endothelial cells and retinal pigment epithelium cells, prevents therapeutics from entering the posterior segment from the bloodstream.
Pharmaceutics 14 01931 g001
Pharmaceutics 14 01931 g002 550

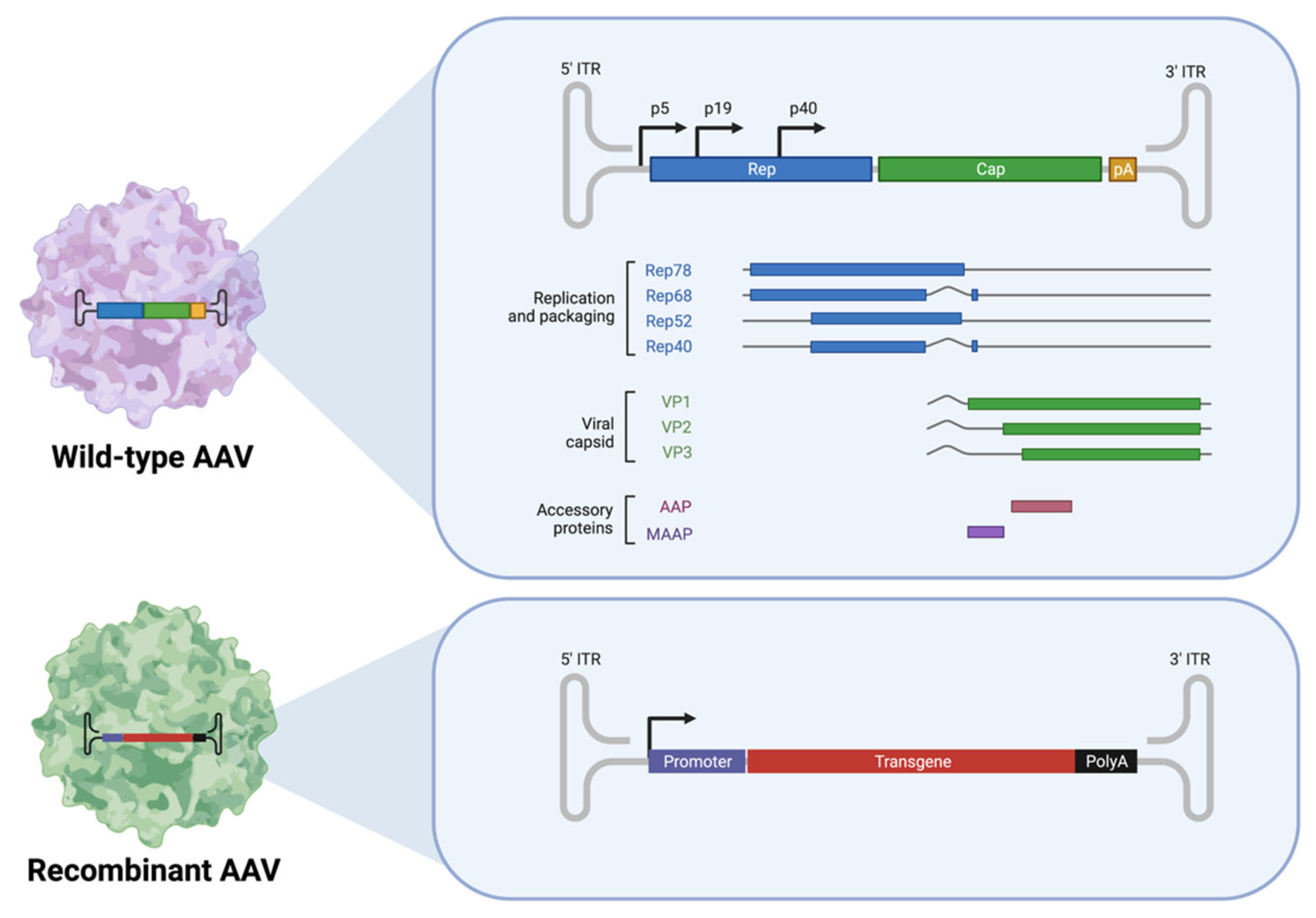

Figure 2. Schematic of the wild type and recombinant AAV genome. The wild type AAV genome comprised four known open reading frames, rep (blue), cap (green), MAAP (burgundy), and AAP (purple), flanked by inverted terminal repeats (ITRs, grey color). The rep gene encodes four regulatory proteins: Rep78, Rep68, Rep52, and Rep40. Cap gene encodes viral proteins, VP1, VP2, and VP3. Rep and cap genes are removed from the genome of recombinant AAV, instead the transgene expression cassette was inserted, flanked by ITRs. Created with BioRender.com.
Figure 2. Schematic of the wild type and recombinant AAV genome. The wild type AAV genome comprised four known open reading frames, rep (blue), cap (green), MAAP (burgundy), and AAP (purple), flanked by inverted terminal repeats (ITRs, grey color). The rep gene encodes four regulatory proteins: Rep78, Rep68, Rep52, and Rep40. Cap gene encodes viral proteins, VP1, VP2, and VP3. Rep and cap genes are removed from the genome of recombinant AAV, instead the transgene expression cassette was inserted, flanked by ITRs. Created with BioRender.com.
Pharmaceutics 14 01931 g002
Pharmaceutics 14 01931 g003 550

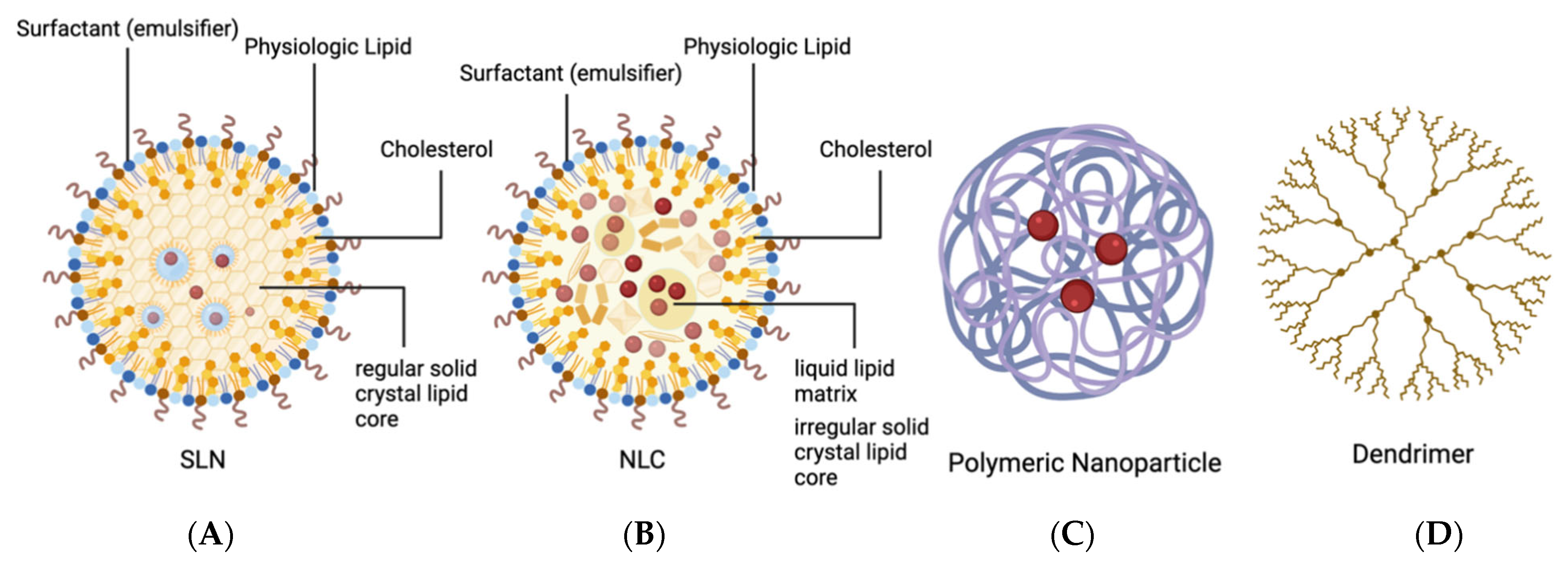

Figure 3. The structure of organic nanoparticles (NPs). (A) Solid lipid nanoparticles (SLNs) range from 50 to 1000 nm and consist of a solid crystal lipid core that is stabilized by surfactant, which acts as an emulsifier. Rather than a simple phospholipid bilayer, the exterior of an SLN feature a bilayer of physiologic lipids, such as triglycerides and cholesterol. (B) Nanostructured lipid carriers (NLCs) range from 30 to 100 nm in size and have a similar outer layer to SLNs and contain a surfactant that acts as an emulsifier, but they utilize an irregular solid lipid crystal matrix and a liquid lipid (oil) core. (C) Polymeric nanoparticles range from 1 to 1000 nm. They utilize a polymetric core that can be loaded with active compounds to produce countless variations of the nanoparticle. (D) Dendrimers are organic polymers, which consist of a central core from which ‘branches’ extend outwards to form a spherical shape. They range from 1 to 10 nm in size.
Figure 3. The structure of organic nanoparticles (NPs). (A) Solid lipid nanoparticles (SLNs) range from 50 to 1000 nm and consist of a solid crystal lipid core that is stabilized by surfactant, which acts as an emulsifier. Rather than a simple phospholipid bilayer, the exterior of an SLN feature a bilayer of physiologic lipids, such as triglycerides and cholesterol. (B) Nanostructured lipid carriers (NLCs) range from 30 to 100 nm in size and have a similar outer layer to SLNs and contain a surfactant that acts as an emulsifier, but they utilize an irregular solid lipid crystal matrix and a liquid lipid (oil) core. (C) Polymeric nanoparticles range from 1 to 1000 nm. They utilize a polymetric core that can be loaded with active compounds to produce countless variations of the nanoparticle. (D) Dendrimers are organic polymers, which consist of a central core from which ‘branches’ extend outwards to form a spherical shape. They range from 1 to 10 nm in size.
Pharmaceutics 14 01931 g003
Pharmaceutics 14 01931 g004 550

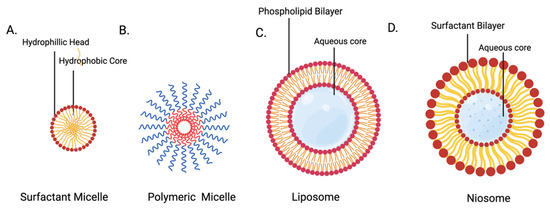

Figure 4. The structures of nanomicelles., liposomes, and niosomes (A) Surfactant micelles are grouped molecules of amphipathic lipids that create a hydrophobic core. Their sizes can vary but generally range from 10–100 nm. (B) Polymeric micelles contained amphiphilic copolymer that, when exposed to water, automatically forms a core/shell structure that can be loaded with insoluble drugs. They are typically between 10–100 nm in size. (C) Liposomes consist of an amphiphilic phospholipid bilayer that encloses hydrophilic substances and are typically between 25 and 2500 nm in size. (D) Niosomes are composed of non-ionic surfactant that form a vesicle to transport aqueous material. They are typically between 25 and 100 nm in size.
Figure 4. The structures of nanomicelles., liposomes, and niosomes (A) Surfactant micelles are grouped molecules of amphipathic lipids that create a hydrophobic core. Their sizes can vary but generally range from 10–100 nm. (B) Polymeric micelles contained amphiphilic copolymer that, when exposed to water, automatically forms a core/shell structure that can be loaded with insoluble drugs. They are typically between 10–100 nm in size. (C) Liposomes consist of an amphiphilic phospholipid bilayer that encloses hydrophilic substances and are typically between 25 and 2500 nm in size. (D) Niosomes are composed of non-ionic surfactant that form a vesicle to transport aqueous material. They are typically between 25 and 100 nm in size.
Pharmaceutics 14 01931 g004
Pharmaceutics 14 01931 g005 550

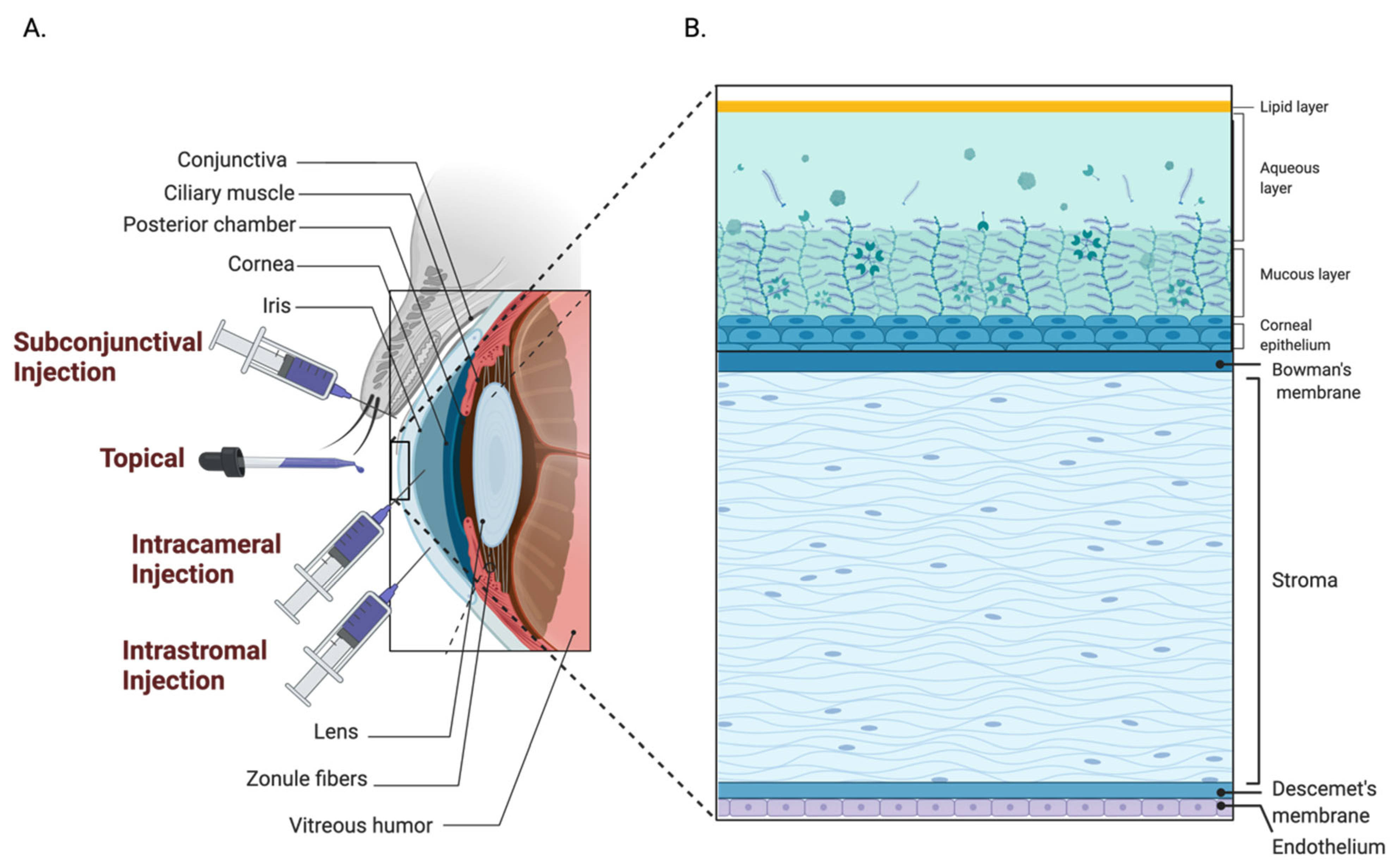

Figure 5. Drug administration routes to the anterior segment of the eye. (A) Subconjunctival injections are a type of periocular route of administration where the drug is injected under the conjunctiva (epibulbar) or underneath the conjunctiva lining the eyelid (subpalpebral). Intracameral injection delivers medication directly to the anterior chamber/aqueous humor of the eye. Topical administration is most used in drop form and delivers the solution to the exterior of the eye. Intrastromal injection administers the drug directly to the thick, fibrous stroma of the cornea. (B) Figure 3B depicts the layers of the tear film and cornea. The tear film stretches from the lipid layer to the mucous layer and the cornea from the corneal epithelium to the endothelium.
Figure 5. Drug administration routes to the anterior segment of the eye. (A) Subconjunctival injections are a type of periocular route of administration where the drug is injected under the conjunctiva (epibulbar) or underneath the conjunctiva lining the eyelid (subpalpebral). Intracameral injection delivers medication directly to the anterior chamber/aqueous humor of the eye. Topical administration is most used in drop form and delivers the solution to the exterior of the eye. Intrastromal injection administers the drug directly to the thick, fibrous stroma of the cornea. (B) Figure 3B depicts the layers of the tear film and cornea. The tear film stretches from the lipid layer to the mucous layer and the cornea from the corneal epithelium to the endothelium.
Pharmaceutics 14 01931 g005
Pharmaceutics 14 01931 g006 550

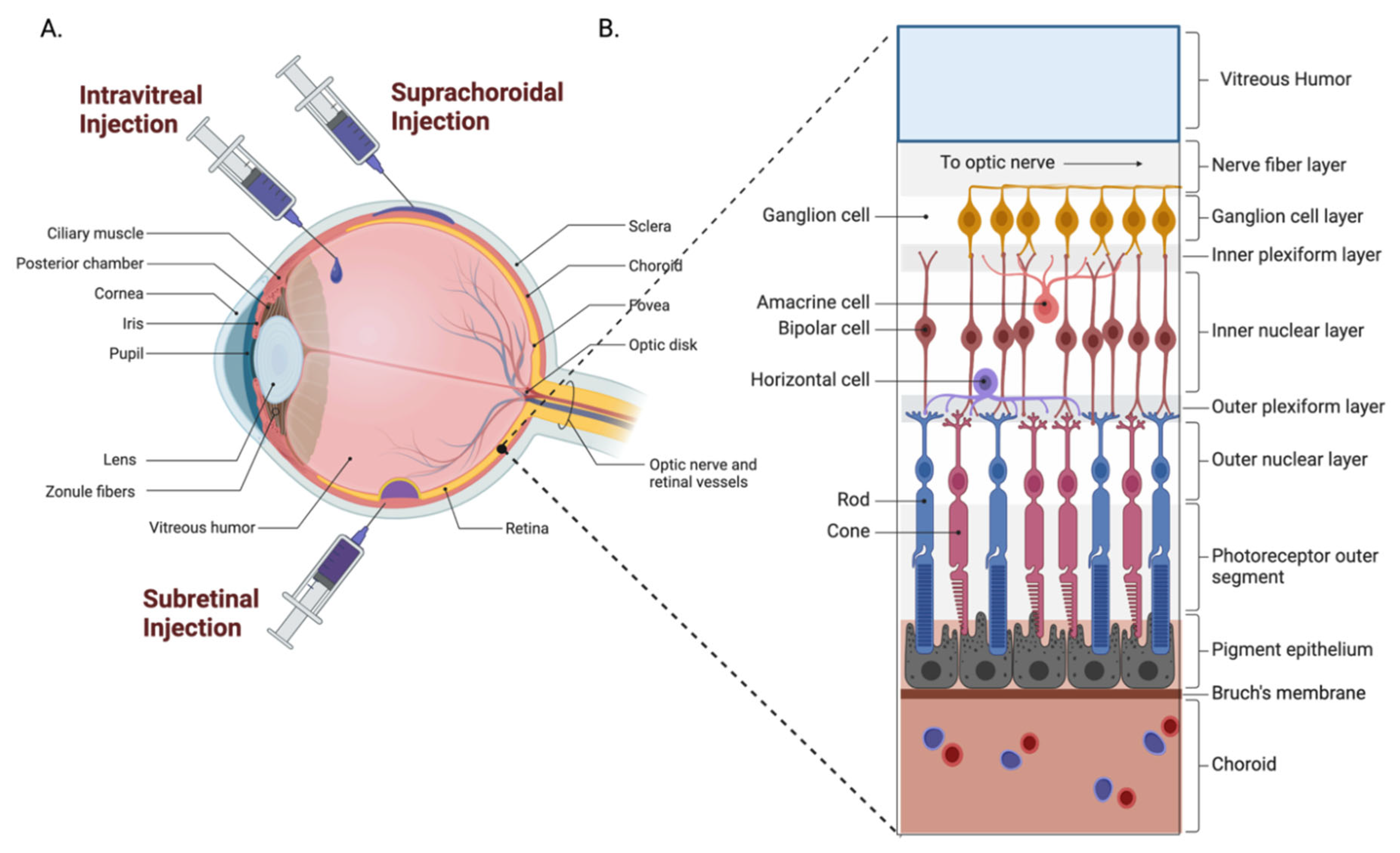

Figure 6. Drug administration routes to the posterior anatomy of the eye. (A) Intravitreal injections administer the drug directly to the vitreous humor. Suprachoroidal injections deliver directly into the suprachoroidal space. Implants are non-biodegradable systems often anchored to the sclera or injected into the vitreous that release drugs at a predetermined rate. Subretinal injections target the subretinal space or the area directly between retinal pigment epithelium (RPE) cells and photoreceptors. (B) The posterior anatomy of the eye consists of the vitreous humor and the retina, which contains layers of terminally differentiated cells used for light perception.
Figure 6. Drug administration routes to the posterior anatomy of the eye. (A) Intravitreal injections administer the drug directly to the vitreous humor. Suprachoroidal injections deliver directly into the suprachoroidal space. Implants are non-biodegradable systems often anchored to the sclera or injected into the vitreous that release drugs at a predetermined rate. Subretinal injections target the subretinal space or the area directly between retinal pigment epithelium (RPE) cells and photoreceptors. (B) The posterior anatomy of the eye consists of the vitreous humor and the retina, which contains layers of terminally differentiated cells used for light perception.
Pharmaceutics 14 01931 g006
Table
Table 1. Current and past clinical trials using AAVs as vectors for gene therapy.
Table 1. Current and past clinical trials using AAVs as vectors for gene therapy.
ConditionsSponsorAAV SerotypeGene Therapy ProductTransgeneAdministration RouteClinical Trial StatusNCT Number(s)
Neovascular AMDRegenxbio Inc.AAV8RGX-314mAb fragment, anti-VEGFSuprachoroidal injection(s)Phase 1/2a, 2, 2/3, long-term follow-upNCT03066258, NCT04514653, NCT05210803
Regenxbio Inc.AAV8RGX-314mAb fragment, anti-VEGFOne-time intravitreal injectionPhase 2/3NCT04704921
Regenxbio Inc.AAV8RGX-314mAb fragment, anti-VEGFOne-time subretinal injectionPhase 2, long-term follow-upNCT04832724, NCT03999801
Adverum Biotechnologies, Inc.AAV7ADVM-022afliberceptOne-time intravitreal injectionPhase 1, long-term follow-upNCT03748784, NCT04645212
Genzyme/Sanofi AAV2AAV2-sFLT01sFLT-1One-time intravitreal injectionPhase 1NCT01024998
Lions Eye Institute-rAAV.sFlt-1sFLT-1One-time subretinal injectionPhase 1/2NCT01494805
Gyroscope Therapeutics LimitedAAV2GT005Complement factor I (CFI) geneOne-time subretinal injectionPhase 2NCT03846193
4D Molecular TherapeuticsR100 capsid 4D-150Anti-VEGF-C miRNA and codon-optimized sequence encoding afliberceptOne-time intravitreal injectionPhase 2NCT05197270
Diabetic macular edemaAdverum Biotechnologies, Inc.AAV7ADVM-022afliberceptOne-time intravitreal injectionPhase 2NCT04418427
Diabetic retinopathy Regenxbio Inc.AAV8RGX-314mAb fragment anti-VEGFOne or two suprachoroidal injectionsPhase 2, long-term follow-upNCT04567550, NCT05296447
X-linked retinitis pigmentosaMeiraGT UK II Ltd.AAV2/5AAV2/5-RPGRRPGR coding sequenceOne-time subretinal injectionPhase 1/2, 3NCT03252847, NCT04671433
NightstaRx Ltd./Biogen AAV8BIIB112RPGR coding sequenceSix-time subretinal injectionPhase 1/2NCT03116113
4D Molecular TherapeuticsR100 capsid 4D-125Codon-optimized RPGR geneOne-time intravitreal injectionPhase 1/2NCT04517149
Applied Genetic Technologies Corp.AAV2tYFAGTC-501 (rAAV2tYF-GRK1-hRPGRco)G Protein-Coupled Receptor Kinase 1 (GRK1) and RPGR coding sequencesOne-time subretinal injectionPhase 1/2, 2/3NCT03316560, NCT04850118
Retinitis pigmentosaCoave TherapeuticsAAV2/5AAV2/5-hPDE6BPDE6B geneSubretinal injectionPhase 1/2NCT03328130
STZ eye trial-rAAV.hPDE6APDE6A geneOne-time subretinal injectionPhase 1/2NCT04611503
King Khaled Eye Specialist HospitalAAV2rAAV2-VMD2-hMERTKVMD2-hMERTK gene vectorSubretinal injectionPhase 1NCT01482195
Nanoscope Therapeutics Inc.AAV2vMCO-1Multi-Characteristic Opsin 1 gene expression. cassetteOne-time intravitreal injectionPhase 1/2NCT04919473
GenSight BiologicsAAV2GS030 (rAAV2.7m8-CAG-ChrimsonR-tdTomato)-Medical DeviceChannel rhodopsin ChrimsonR-tdTomato gene with Visual Interface Stimulating GlassesOne-time intravitreal injectionPhase 1/2NCT03326336
OcugenAAV5OCU400Nuclear Hormone Receptor (NR2E3) geneOne-time subretinal injectionPhase 1/2NCT03326336
Nanoscope Therapeutics Inc.AAV2vMCO-101Multi-characteristic opsin (MCO) gene expression cassetteOne-time intravitreal injectionPhase 2NCT04945772
ChoroideremiaUniversity of OxfordAAV2rAAV2.REP1Rab-escort Protein 1 (REP1) coding sequenceSubretinal injectionPhase 1/2NCT01461213
Spark TherapeuticsAAV2AAV2-hCHM (human choroideremia gene, same as REP1)Rab-escort Protein 1 (REP1) coding sequenceSubretinal injectionPhase 1/2NCT02341807
Byron LamAAV2AAV2-REP1Rab-escort Protein 1 (REP1) coding sequenceSubretinal injectionPhase 2NCT02553135
4D Molecular TherapeuticsR100 4D-R100Codon-optimized Rab-escort Protein 1 (REP1) coding sequenceOne-time intravitreal injectionPhase 1NCT04483440
STZ eye trialAAV2rAAV2.REP1Rab-escort Protein 1 (REP1) coding sequenceOne-time subretinal injectionPhase 2NCT02671539
Ian M. MacDonaldAAV2rAAV2.REP1Rab-escort Protein 1 (REP1) coding sequenceOne-time subretinal injectionPhase 1/2NCT02077361
Leber congenital amaurosisSpark TherapeuticsAAV2LUXTURNA, voretigene neparvovec-rzyl (AAV2-hRPE65v2)RPE65 geneOne-time subretinal injectionPhase 1, 1/2, 5-year follow-up, 3, 15-year follow-upNCT00516477, NCT01208389, NCT03597399, NCT00999609, NCT03602820
MeiraGTx UK II Ltd.AAV2AAV2/5-OPTIRPE65RPE65 geneOne-time subretinal injectionPhase 1/2, long-term follow-upNCT02781480, NCT02946879
University College, LondonAAV2tgAAG76 (rAAV 2/2.hRPE65p.hRPE65)RPE65 geneOne-time subretinal injectionPhase 1/2NCT00643747
Applied Genetic Technologies CorpAAV2rAAV2-CB-hRPE65RPE65 geneOne-time subretinal injectionPhase 1/2NCT00749957
Autosomal recessive Leber congenital amaurosis Atsena Therapeutics Inc.AAV5SAR-439483GUCY2D geneOne-time subretinal injectionPhase 1/2NCT03920007
Leber Hereditary Optic NeuropathyGenSight BiologicsAAV2GS010 (rAAV2/2-ND4)ND4 gene (mitochondrial)One-time intravitreal injectionPhase 3NCT03293524
Byron LamSelf-complementary AAV2scAAV2-P1ND4v2ND4 gene (mitochondrial)One-time intravitreal injectionPhase 1NCT02161380
MeiraGTx UK II Ltd.AAV2/8AAV2/8-hG1.7p.coCNGA3CNGA3 geneOne-time subretinal injectionPhase 1/2NCT03758404
Applied Genetic Technologies CorpAAV2AGTC-402 (rAAV2tYF-PR1.7-hCNGA3)CNGA3 geneOne-time subretinal injectionPhase 1/2NCT02935517
Applied Genetic Technologies CorpAAV2AGTC-401 (rAAV2tYF-PR1.7-hCNGB3)CNGB3 geneOne-time subretinal injectionPhase 1/2NCT02599922
Variant Late-Infantile Neuronal Ceroid LipofuscinosisAmicus Therapeutics
Self-complementary AAV9scAAV9.CB.CLN6CLN6 GeneOne-time intrathecal injectionPhase 1/2NCT02725580
X-linked Juvenile RetinoschisisNational Eye Institute (NEI)AAV8AAV8-scRS/IRBPhRSRS1 geneOne-time intravitreal injectionPhase 1/2NCT02317887
Genetic Technologies CorpAAV2rAAV2tYF-CB-hRS1RS1 geneOne-time intravitreal injectionPhase 1/2NCT02416622
Table
Table 2. Pre-clinical trial gene therapy products for the treatment of glaucoma and corneal dystrophy.
Table 2. Pre-clinical trial gene therapy products for the treatment of glaucoma and corneal dystrophy.
Condition TreatedGene Therapy
Product		AAV SerotypeDelivery MethodAnimal ModelComments/MechanismReferences
Open-angle-glaucomascAAV2.CMV.GFPAAV2Intracameral injectionNHPsResulted in fluorescence in TM for 2 years[34]
Open-angle glaucomaAAV2-Shp2 eGFP-shRNAAAV2Intravitreal injectionCav-1 deficient mouse model of glaucomaPrevented inner retinal injury due to ocular hypertension[36]
Open-angle glaucomaAAV2-BMP4AAV2Intravitreal injectionMagnetic microbead-induced glaucoma, mouseRetinal ganglion cell survival was enhanced and the amplitude of the PhNR was restored in ERG[37]
Open-angle glaucomaAAV2(Y444F)-smCBA-hADAMTS10AAV2Intracameral injectionSix ADAMTS10-mutant dogs Treated eyes showed almost complete prevention of extracellular plaque formation[38]
Open-angle glaucomaAAV2-XIAPAAV2Intravitreal injectionIntracameral injections of microbeads, mouseXIAP overexpression resulted in significant protection of RGCs [39]
CoNVAAV8-KH902AAV8Intrastromal injectionAlkali burn model, mouseAAV8 showed superior efficacy to AAV2[40]
CoNVscAAV8G9-optHLA-G1 + G5AAV8Intrastromal injectionBurn-induced CoNV, rabbitHLA-G upregulates Treg cells, preventing foreign body rejection [41]
CoNVAAV5-decorinAAV5TopicalCorneal micropocket assay model of CoNV, rabbitDecorin is a TGF-β inhibitor[42]
Corneal FibrosisAAV5-Smad7AAV5TopicalPRK-induced corneal fibrosis, rabbitSmad7 is a negative regulator of TGF-β[43]
Corneal FibrosisAAV5-decorinAAV5TopicalPRK-induced corneal fibrosis, rabbitDecorin is a TGF-β inhibitor[44]
Corneal Transplant RejectionAAV8-KH902AAV8Intrastromal injectionCornel suture model, ratCoNV and corneal opacity were decreased, graft survival rate was increased[45]
HSV-mediated keratitisscAAV2-LATAAV2Abrasion followed by topical administrationHSV-infected rabbitsViral reactivation was blocked in 60% or rabbits[46]
Mucopolysaccharidosis VIAAV8-ArsBAAV8Intrastromal injection and sequential (opposite eye) intrastromal injectionOne ArsB homozygous and one heterozygous ArsB feline mutants Corneal opacity was reversed, and no signs of an inhibitory capsid antibody response observed in opposite eye[47]
Mucopolysaccharidosis IAAV8G9-opt-IDUA (AAV8 and 9 chimeric capsid-optimized-IDUA)AAV8Intrastromal injectionMPS I canine model, homozygous for the IDUA gene mutationTreatment was able to prevent and reverse visual impairment[48]
Table
Table 3. Corneal dystrophies and their identified gene mutations.
Table 3. Corneal dystrophies and their identified gene mutations.
Corneal Dystrophy TypeGene/Chromosomal LocusGene SizeOpen-Reading Frame SizeInheritance Pattern
Avellino TypeTGFBI34.8 kb2.05 kbAD
Congenital Endothelial 120p11.2–q11.2 locusunknownunknownAD
Congenital StromalDCN42.3 kb1.08 kbAD
Epithelial Basement MembraneTGFBI34.8 kb2.05 kbAD
FleckPIKFYVE92.7 kb6.29 kbAD
Fuchs Endothelial, Early OnsetCOL8A229.9 kb2.11 kbAD
Fuchs Endothelial, Late OnsetZEB1211.4 kb3.37 kbAD
Fuchs Endothelial, Late Onset 2TCF4442.6 kb2 kbAD
GranularTGFBI34.8 kb2.05 kbAD
Lattice Type ITGFBI34.8 kb2.05 kbAD
Lattice Type IIGSN131.4 kb2.35 kbAD
MeesmannKRT12, KRT35.92 kb, 6.43 kb1.48 kb, 1.88 kbAD
Posterior Amorphous12q21.33 deletionunknownunknownAD
Posterior Polymorphous 1OVOL2102.2 kb0.83 kbAD
Posterior Polymorphous 2COL8A229.9 kb2.1 kbAD
Posterior Polymorphous 3ZEB1211.4 kb3.37 kbAD
Posterior Polymorphous 4GRHL2188.7 kb1.86 kbAD
Recurrent Epithelial ErosionsunknownunknownunknownAD
Reis–BücklersTGFBI34.8 kb2.05 kbAD
SchnyderUBIAD126.4 kb1.01 kbAD
Stocker–HoltKRT125.92 kb1.48 kbAD
Subepithelial MucinousunknownunknownunknownAD
Thiel–BehnkeTGFBI34.8 kb2.05 kbAD
Band-ShapedunknownunknownunknownUnknown
Congenital Endothelial 2SLC4A1112.1 kb2.63 kbAR
Gelatinous Drop-likeTACSTD21.82 kb0.97 kbAR
MacularCHST623.4 kb1.19 kbAR
Lisch EpithelialunknownunknownunknownX-linked, dominant
Endothelial X-LinkedXq25 locusunknownunknownX-linked, unclear
Table
Table 4. Current and past clinical trials using emerging drug delivery system.
Table 4. Current and past clinical trials using emerging drug delivery system.
NanoparticleDrug CarriedCondition TreatedDelivery MethodSponsorClinical Trial StatusNCT Number(s)
Cyclodextrin NPDexamethasoneDiabetic macular edemaTopicalKing Saud UniversityPhase 2/3NCT01523314
D-4517.2 (Hydroxyl Dendrimer)VEGFR Tyrosine Kinase InhibitorAMDSubcutaneous injectionAshvattha Therapeutics, Inc.Phase 1NCT05105607
TLC399 (ProDex)
Multi-layered lipid NP		DexamethasoneRetinal vein occlusion; macular edemaOne-time intravitreal injectionTaiwan Liposome CompanyPhase 2NCT03093701
SeeQ CdSe 655 Alt Nanoparticles (cadmium-selenium) NPSeeQ DeviceRetinitis PigmentosaTwo intravitreal injections2C Tech CorpPhase 1NCT04008771
Albumin-stabilized nanoparticlePaclitaxelIntraocular melanomaIntravenous injectionsOhio State University Comprehensive Cancer CenterPhase 2NCT00738361
EggPC liposomesLatanoprostGlaucomaSubconjunctival injectionSingapore Eye Research InstitutePhase 1/2NCT01987323
Pluronic® F-127(PF) polymeric NPUreaCataractsTopicalAssiut UniversityPhase 2NCT03001466
Ethylenediaminetetraacetic acid (EDTA) disodium salt and crocin liposomesHyaluronic acidMeibomian gland dysfunctionTopicalUniversity of SevilleNot applicableNCT03617315
Nanoemulsion (OCU-310)Brimonidine TartrateMeibomian gland dysfunctionTopicalOcugenPhase 3NCT03785340
Sunitinib Malate (GB-102) MPAfliberceptNeovascular AMDIntravitreal injection(s)Graybug VisionPhase 1NCT03249740
(LAMELLEYE)
Liposomal NP		Slecithin phospholipids, sphingomyelin and cholesterol, suspended in salineDry eye secondary to Sjögren SyndromeTopicalNHS Greater Glasgow and ClydeNot applicableNCT03140111
AXR-159 ophthalmic solution (Micelles)Integrins α4β1 and α4β7 antagonistsDry eyeTopicalAxeroVision, Inc.Phase 2NCT03598699
KPI-121 (submicron suspension)loteprednol etabonateOcular infections, irritations, and inflammationTopicalKala Pharmaceuticals, Inc.Phase 3NCT02163824
KPI-121 (submicron suspension)loteprednol etabonateDry eye, keratoconjunctivitis siccaTopicalKala Pharmaceuticals, Inc.Phase 3NCT02813265
AR-1105DexamethasoneMacular edema due to retinal vein occlusionIntravitreal implantAerie PharmaceuticalsPhase 2NCT03739593
AR-13503 implantAfliberceptNeovascular age-related macular degenerationIntravitreal implantAerie PharmaceuticalsPhase 1NCT03835884
REMOGEN® OMEGA
(Microemulsion of polyunsaturated fatty acids and hydrating polymers)		Omega-3 fatty acidsDry eyeTopicalTRB Chemedica AGNot applicableNCT02908282
LiposomesArtificial tearsDry eyeSprayAston UniversityNot applicableNCT02420834
ENV 515TravoprostGlaucomaIntracameral implantEnvisia TherapeuticsPhase 2NCT02371746
OCS-01 (Cyclodextrin NP)DexamethasoneCorneal inflammation and post-operative painTopicalOculisPhase 2NCT04130802
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tian, B.; Bilsbury, E.; Doherty, S.; Teebagy, S.; Wood, E.; Su, W.; Gao, G.; Lin, H. Ocular Drug Delivery: Advancements and Innovations. Pharmaceutics 2022, 14, 1931. https://doi.org/10.3390/pharmaceutics14091931

AMA Style

Tian B, Bilsbury E, Doherty S, Teebagy S, Wood E, Su W, Gao G, Lin H. Ocular Drug Delivery: Advancements and Innovations. Pharmaceutics. 2022; 14(9):1931. https://doi.org/10.3390/pharmaceutics14091931

Chicago/Turabian Style

Tian, Bo, Evan Bilsbury, Sean Doherty, Sean Teebagy, Emma Wood, Wenqi Su, Guangping Gao, and Haijiang Lin. 2022. "Ocular Drug Delivery: Advancements and Innovations" Pharmaceutics 14, no. 9: 1931. https://doi.org/10.3390/pharmaceutics14091931

APA Style

Tian, B., Bilsbury, E., Doherty, S., Teebagy, S., Wood, E., Su, W., Gao, G., & Lin, H. (2022). Ocular Drug Delivery: Advancements and Innovations. Pharmaceutics, 14(9), 1931. https://doi.org/10.3390/pharmaceutics14091931

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
