Green Synthesis of Blue-Emitting Graphene Oxide Quantum Dots for In Vitro CT26 and In Vivo Zebrafish Nano-Imaging as Diagnostic Probes

by
Govinda Gorle
1,
Ganesh Gollavelli
2,3,
Gowreeswari Nelli
4 and
Yong-Chien Ling
1,*
1
Department of Chemistry, National Tsing Hua University, Hsinchu 30013, Taiwan
2
Department of Humanities and Basic Sciences, Aditya Engineering College, Surampalem 533437, India
3
Jawaharlal Nehru Technological University, Kakinada 533003, India
4
Department of Chemistry, Andhra University, Visakhapatnam 530003, India
*
Author to whom correspondence should be addressed.
Pharmaceutics 2023, 15(2), 632; https://doi.org/10.3390/pharmaceutics15020632
Submission received: 1 December 2022 / Revised: 2 January 2023 / Accepted: 7 February 2023 / Published: 13 February 2023
(This article belongs to the Special Issue Nanoparticles for Imaging and Drug Delivery)
Browse Figures
Review Reports Versions Notes

Abstract

:
Graphene oxide quantum dots (GOQDs) are prepared using black carbon as a feedstock and H2O2 as a green oxidizing agent in a straightforward and environmentally friendly manner. The process adopted microwave energy and only took two minutes. The GOQDs are 20 nm in size and have stable blue fluorescence at 440 nm. The chemical characteristics and QD morphology were confirmed by thorough analysis using scanning electron microscope (SEM), transmission electron microscope (TEM), atomic force microscope (AFM), Fourier transmission infra-red (FT-IR), and X-ray photoelectron spectroscopy (XPS). The biocompatibility test was used to evaluate the toxicity of GOQDs in CT26 cells in vitro and the IC50 was found to be 200 µg/mL with excellent survival rates. Additional in vivo toxicity assessment in the developing zebrafish (Danio rerio) embryo model found no observed abnormalities even at a high concentration of 400 μg/mL after 96 h post fertilization. The GOQDs luminescence was also tested both in vitro and in vivo. They showed excellent internal distribution in the cytoplasm, cell nucleus, and throughout the zebrafish body. As a result, the prepared GOQDs are expected to be simple and inexpensive materials for nano-imaging and diagnostic probes in nanomedicine.

1. Introduction

Recent research has focused on GOQDs because of their intriguing photoelectric and optical characteristics, which are brought about by their quantum confinement and edge effect [1,2]. The GOQDs have zero dimensions and range in size from 1–30 nm. Quantum confinement, a non-zero tunable band gap, a broad absorption spectrum between 270 and 370 nm, and size-dependent photoluminescent emission are some of the fundamental features of GOQDs [3]. The first GOQDs boom was initiated in 2010 by Pan et al. [4]. GOQDs have a higher crystallinity than their relatives and epitomize a unique class of carbon. GOQDs have excellent prospects for multiple applications including bioimaging, drug delivery, biosensors, environmental sensors, catalysis, energy conversion and harvesting [5,6,7,8,9].
Both the top-down approach and the bottom-up approach are used to prepare the GOQDs. Electrochemical redox, sonochemical destratification, chemical ablation, chemical exfoliation, and plasma treatment are all parts of the top-down approach [4,10,11,12,13]. Graphite [14], carbon nanofibers [15], carbon nanotubes (CNTs) [16], fullerenes [17], and other carbon sources [18] are frequently used as precursors to this strategy. According to the bottom-up approach, the carbon cores form from tiny molecules which typically are conjugated polycyclic aromatics or carbon atoms [19]. The size, shape, surface flaws (defects), and synthetic parameters of GOQDs all affect their chemical characteristics [20]. Both photoluminescence and UV-Vis absorption spectra are used to monitor the optical characteristics of GOQDs. The UV-Vis region is strong in all GOQDs’ UV-Vis spectra [21]. The physical attributes of GOQDs may be improved by tuning their usual band gap [22].
The hydrophilic properties, biocompatibility, chemical and photostability, and stable fluorescence (FL) emission inherent in GOQDs have led them to emerge as one of the most promising substitutes for highly toxic semiconductor QD in bioimaging, therapy, and sensing [22,23,24,25]. GOQDs are typically prepared by oxidizing, exfoliating, and then chopping large carbon precursors into nanosized pieces. Chemical oxidation, hydrothermal treatment, or solvothermal treatment has been used to prepare GOQDs. These processes involved extreme circumstances such as the continuous use of concentrated acids HNO3 or H2SO4 [1,4,26]. As a result, none of these synthetic processes was deemed “green” and all posed environmental problems. These processes also need to go through various processing stages to get acid residues out. The need for ecofriendly preparation of GOQDs is deemed to be indispensable.
Graphite [27,28], graphite oxide [29], graphene oxide (GO) [30], carbon and graphene nanofibers, and other specific carbon sources [31,32] are the most frequently used precursors in the synthesis of GOQDs. These materials are typically synthesized by following the Hummers method or its variations. However, the synthesis approach has certain drawbacks, including safety and environmental issues. It is very challenging to obtain a “metal-free” precursor despite multiple washings during the synthesis process. Hence, a substantial volume of concentrated H2SO4 or HNO3 is required. The accompanied production of hazardous gases such as N2O4 and NO2 during the oxidation process is inevitable [26]. The purity of the generated GOQDs may be impacted by the existence of trace metallic (Mn2+) contaminants from the KMnO4 precursor used for oxidation [33,34]. (2) This requires a long reaction and purification time. High concentrations of acid and inorganic salt residues have to be removed at the end of the reaction. Hence, finding alternative precursors is imperative.
Black carbon (BC), the world’s cheapest and most abundant wood material, is produced by heating C. lanceolata wood in minimal oxygen to remove water and volatiles. It has recently been investigated as a potential alternative precursor for the synthesis of GOQDs [35]. Yao et al. published a one-pot, eco-friendly hydrothermal technique for preparing GOQDs from BC [36]. Despite being effective in the preparation of GOQDs, it still needs high temperatures for a prolonged period (90 min). The synthesis of GOQDs from BC is being investigated here using a unique synthetic technique called microwave irradiation. Within 2 min, this technique generated GOQDs with diameters ranging from 20 to 25 nm. The synthesized GOQDs display strong photostability and great biocompatibility. The GOQDs have been effectively used as an acceptable FL probe. The GOQDs have been successfully demonstrated in FL nano-imaging of CT26 cells, as well as in zebrafish as an in vivo modal. This is the quickest and greenest approach for preparing GOQDs to date among the published works.

2. Materials and Methods

2.1. Materials and Reagents

The BC (Ningxia Yongruida Carbon Co., Ltd., Ningxia, China) was purchased from a local RT-MART. The reagents used are all analytical grade from Sigma-Aldrich (Merck Ltd., Taipei City, Taiwan) and were used straight away without any additional processing. Throughout the experimental work, 18.2 MΩ ultrapure water from the Merck Millipore pure water system (Merck Ltd., Taipei City, Taiwan) was employed.

2.2. Instrumental Measurements of GOQDs

A JASCO V-570 UV-Vis-NIR spectrometer was used to record the UV-Vis-NIR spectra in the 250 to 1200 nm wavelength range at 1 nm resolution. A JEOL JEM-2100 transmission electron microscope (HRTEM, 200 keV, JEOL, JEM-2100) and a scanning electron microscope (SEM, JEOL, JSM-7000F, FESEM) were used. High-resolution X-ray photoelectron spectroscopy (HRXPS) measurements were measured with a PHI Quantera SXM, ULVac-PHI Inc. A QM40 fluorescence spectrophotometer (PTI Ltd., Edmonton, AB, Canada) was used to record the fluorescence spectra. A Thermo Fisher Scientific K-Alpha 1063 X-ray photoelectron spectrometer (XPS, Thermo Fisher Scientific, Horsham, UK) was used for chemical analysis. A Perkin-Elmer system 2000 Fourier Transform Infrared spectrophotometer (FTIR) (Bomem model, DA-83FT) was used to record the FTIR spectra at 2 cm−1 resolution. An atomic force microscope (Agilent, 5100 PicoLE) was used to record the AFM images and measure the size and thickness of GOQDs.

2.3. Synthesis of GOQDs

The GOQDs were prepared using the microwave-assisted method with the following experimental conditions. A 100 mL thick glass vial was filled with 50 mg BC powder and 50 mL 1% H2O2, which was then placed into a household microwave oven (2.45 GHz) and irradiated at 600 W for 2 min at 30 s intervals (power off time gap). The chemical mixture obtained after the reaction was cooled to room temperature and centrifuged at 8000 rpm. The synthesized GOQDs were collected from the supernatant.

2.4. Determination of the Fluorescence Quantum Yield of GOQDs

The fluorescence quantum yield (Φx) of the synthesized GOQDs was calculated [37] using the following equation:
Φx = Φr(FX/Fr)(Ar/Ax)(nx/nr)2
where Φ, F, A, and n respectively represent the FL quantum yield, integrated FL intensity of the emitted light, the absorbance of the solution, and the refractive index of the solvent. The subscripts “x” and “r” refer to the unknown and reference fluorophore, respectively. Herein, we employed quinine sulfate (whose Φx is 0.54 when dissolved in 0.1 M H2SO4). The absorbance of GOQDs and quinine sulfate solution in a 10 mm fluorescence cuvette were adjusted to never exceed 0.05 at the excitation wavelength to reduce the effects of re-absorption. The quinine sulfate was dissolved in 0.1 M H2SO4.

2.5. Biocompatibility Assays

Using the MTT (3-(4, 5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay, the biocompatibility of GOQDs on CT26 cells (the murine colorectal carcinoma cell line, CT26 WT, ATCC® CRL-2638TM) obtained from ATCC (American type culture collection) was used for assessment [38]. Each well containing 2.0 × 104 cells in 1 mL of RPMI-1640 medium was taken into a 24-well plate and cultured for 24 h. The 24-well plate was then filled with various concentrations (0 to 200 μg/mL) of blue-emitting GOQDs aqueous solution followed by culturing for a further two days. The 24-well plate was filled with 50 µL of MTT reagent (0.5 mg/mL). The incubation was extended for another 4 h after the cells had been treated with GOQDs for 2 days. The top layer of the solution in each plating cell was then removed and a 1 mL DMSO aliquot was added to each well thereafter. Appropriate pipette stirring was carried out to dissolve the violet formazan product. The finished solution was then centrifuged in each well for five min at 13,000 rpm to remove any remaining solids. Finally, the optical absorbance at 570 nm was measured. The optical absorbance of the control and the GOQDs in comparison with the standard curve was converted to cell viability.

2.6. In Vitro Imaging of GOQDs by Confocal Laser Scanning Microscope (CLSM)

The seeding of the cells for pretreating the CT26 cells with GOQDs was the same as previously discussed in Section 2.5, and the further steps were as follows. Briefly, PBS was used to clean the blue-emitting GOQDs internalized in CT26 cells. The cells were rinsed three times with PBST (5% Tween 20 in PBS) and fixed on a glass slide with paraformaldehyde solution (4%) in PBS for 5 min. Triton X-100 solution (1 mL) was then added. The cells were stained with DAPI (4′,6-diamidino-2-phenylindole) (1 ng/mL PBS, 30 min) after being exposed to Triton X-100 for 1 h. The cells were imaged using a CLSM (Zeiss LSM 700, Oberkochen, Germany) equipped with a UV laser (e-Max 405 nm; detector 420–450 nm) and an Ar laser (e-Max 488 nm; detector 510–540 nm).

2.7. In Vivo Zebrafish Compatibility and Fluorescence Imaging of GOQDs

All in vivo tests were conducted using male and female zebrafish (Danio rerio) of the wild type and AB strains [39]. The in vivo biocompatibility and nano-imaging of GOQDs were assessed on wild-type and AB strains of male and female zebrafish. Their use was reviewed by the Taiwan Zebrafish Core Facility and approved by the Ethical Committee of Affidavit of Approval of Animal Use Protocol (approval on 20 March 2014) by the National Tsing Hua University. All animal experiments were performed in compliance with the Animal Management Rules at National Tsing Hua University. The zebrafish were kept in a fish container at 28 °C with regulated light and dark cycles of 10 h and 13 h, respectively. Fresh zebrafish seeds (embryos) were harvested for the tests on biocompatibility and fluorescence imaging. Zebrafish seeds were distributed into groups of ten and given separate treatments with various concentrations of GOQDs (0, 25, 50, 100, 200, and 400 μg/mL). Based on the counting of the survived embryos at various periods of development from 3 to 96 hpf (hour-post fertilization), the in vivo toxicity was determined. The embryonic development from 3–96 hpf was observed using a bright field microscope (inverted model) with a DP73 digital camera (SZX10, Olympus, Tokyo, Japan). Using a fluorescent microscope, the zebrafish fluorescence images were captured (Olympus IX71, Tokyo, Japan). The following formulas were used to predict the survival rates at a hatching time of 96 hpf.
Embryo survival rate (%) = Viable embryos no/total embryos no × 100%
Hatching rate (%) = Hatched embryos no/embryos total no × 100%

3. Results and Discussion

3.1. Synthesis and Characterization of GOQDs

BC and hydrogen peroxide were used to prepare the GOQDs in a single pot with microwave assistance. The following benefits of the oxidant H2O2 are anticipated: (1) When exposed to microwave radiation, H2O2 is broken down into free radicals such as •OH and •O. Due to their powerful oxidizing abilities and high reactivity, these free radicals may easily oxidize and cleave the graphene structure of BC, negating the need for a strong concentrated acid to achieve robust oxidation; (2) It prevents the release of harmful gases which are toxic to the environment; and (3) H2O2 has only H and O as its constituent elements, preventing contamination from even minute amounts of metallic impurities that occurs in the case of using KMnO4. The advantage of the microwave technique was that it is green, required less skill for operation, and took a very short time to react (just 2 min). The same microwave technique has been adopted by Romero et al. recently by considering citric acid as a starting material to produce carbon dots for the in vitro and in vivo phototherapy of bacteria. However, the process takes 8 min to complete [40]. By shortening the time, Kang et al. produced GOQDs from coal in 5 min for bioimaging. In comparison with other microwave methods, the current report is advanced in terms of process time and the green chemicals’ adaptation for the preparation of graphene QDs (GQDs) [41]. Table 1 shows the comparison between various preparation methods of GOQDs along with the current report [42,43,44,45,46,47,48,49,50,51,52,53,54,55].
SEM, TEM, and AFM were used to analyze the as-prepared GOQDs’ morphology. Before microwave treatment, BC appeared as a wrinkled and folded sheet-like structure of around 5 μm as seen in the SEM and TEM images in Figure 1a,b, respectively.
However, following microwave irradiation, GOQD diameters substantially shrank to ~20 nm with extremely thin morphology, as shown in Figure 2a–c. The nano size and thin dot/sphere-like morphology have been demonstrated with low and high magnification images of TEM (Figure 2a,b). The ring-like electron diffraction patterns from Figure 2c represent the poly crystallinity of the GOQDs. The GOQDs’ AFM images in Figure 2d,e reveal the rough topography with dot-like structural features and a size of ~20 nm. This is comparable to the HRTEM results. The height distribution of ~3–6 nm along with some aggregates are seen in Figure 2e (a 3D reconstructed image). The height represents the normal thickness of GO (3 nm) and a few layered GO (6 nm) and indicates that the GOQDs are made of thin graphene GO layers [56].
After morphological and physical structural conformation from electron microscope techniques, FT-IR spectral recordings were used to identify the GOQDs’ chemical functionality. As seen in Figure 3a, the strong band for aromatic C=C stretching vibration was seen at 1590 cm−1, and two other bands for the aromatic C-H out-of-plane deformations were seen between 873 cm−1 and 753 cm−1. Additionally, the existence of the C-O, C-O-C, C-OH, C=O, and -OH groups was indicated by the peaks at approximately 1087 cm−1, 1255 cm−1, 1381 cm−1, 1719 cm−1, and 3411 cm−1 [57]. These oxygen-containing functional groups are an indication of the formation of GOQDs (successful oxidation of BC) and their hydrophilic properties help to keep GOQDs stable in aqueous solutions. Additionally, a faint C=O peak at 1719 cm−1 in the FTIR spectrum of BC revealed that BC had fewer oxygen functional groups. The FTIR spectrum of GOQDs, however, showed that this peak (1719 cm−1) was more pronounced, indicating that GOQDs possessed more oxygen-containing groups than BC. The XPS spectrum provides additional confirmation of the GOQDs’ chemical composition. Figure 3b (survey scan spectrum GOQDs) revealed clear peaks at about 284.9 eV and 532.4 eV corresponding to the C1s and O1s, respectively. The binding values of C=C at 284 eV, C-OH at 286.0 eV, C=O at 287.8 eV, and O-C=O at 289 eV are significant for carbon, as it contains oxygen functional groups from GOQDs that are demonstrated in the C1s deconvolution spectrum (Figure 3c) [46]. A high-intensity signal at 533.3 eV in the HRXPS O1s spectrum of GOQDs (Figure 3d) further supports the richness of the oxygen-related functional groups and the profound oxidation during microwave irradiation. The deconvolution results reveal that the single broad O1s peak further displays two distinct peaks at 531.6 eV and 533.1 eV, corresponding to the C=O and C-OH oxygen functional groups on the surface of the GOQDs derived from BC [58,59]. The peak at 531.6 eV has less intensity than at 533.1 eV, which is an indication that the GO surface was less enriched with carbonyl functional groups than alcohol and epoxide types of oxygen functionalities. The computed C/O ratio of 1.84 indicates that GOQDs have undergone additional oxidation, which is consistent with the FT-IR findings. The TEM, AFM, XPS, and FT-IR results are in good agreement with previous reports demonstrating the morphology, size, and surface chemistry of the GOQDs prepared by microwave, hydrothermal, and electrochemical methods [60].

3.2. Optical Properties of GOQDs

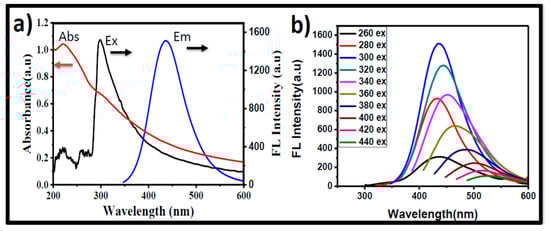

Figure 4a depicts the UV-Vis absorption of GOQDs solution showing that GOQDs displayed two characteristic absorption peaks related to the GO structure. The peak at ~220 nm corresponding to π→π* transition is the indication of C=C and the peak at roughly 320 nm is related to n→π* transitions of C=O in GOQDs. The UV-Vis absorption consists of excitation and emission peaks at 300 nm and 440 nm. The blue PL emission characteristic of GOQDs was then examined. The synthesized GOQDs displayed maximum emission at 440 nm when excited with a wavelength of 320 nm, as shown in Figure 4b. The FL quantum yield was determined by using the reference compound quinine sulfate (in 0.1 M H2SO4, the quantum yield was 54%) and computed for GOQDs at about 3.13%. As shown in Figure 4b the GOQDs FL was excitation-dependent. It was suggested that the defects and functional groups present on the surface may be responsible for the FL emission [61].
GQDs and GOQDs have exhibited superior PL properties for bioimaging as conventional inorganic and organic fluorophores. They have inspired researchers to use them for cancer cell bioimaging. Table 2 lists various synthesized GQDs and GOQDs as well as their physical parameters such as size, quantum yields, and color of luminescence [62,63,64,65,66,67,68,69,70,71]. The reported GOQDs synthesized by the green synthesis method have blue emission at 440 nm with 20 nm size, which is suitable for in vitro and in vivo imaging.

3.3. In Vitro Biocompatibility and Nano-Imaging of GOQDs in CT26 Cells

The cytotoxicity of the GOQDs was assessed on CT26 cells using the MTT assay at different dosages (0 to 200 μg/mL). The toxicity profiles are very important before examining the potential use of GOQDs for nano-imaging applications. The results revealed that the cell viability remained over 85% for all concentrations tested (Figure 5a) signifying good in vitro biocompatibility of the GOQDs. Kang et al. and Cunci et al. have reported that most of the GOQDs are significantly less toxic to mammalian cells and have the highest biocompatibility [46,72]. Hence, the GOQDs prepared in this work are potential candidates for use in nano-imaging applications. The GOQDs are later added to the CT26 cells for 24 h before being examined with the CLSM. After being incubated with GOQDs, the CT26 cells displayed blue fluorescence, as shown in Figure 5c,d. These images show that the synthesized GOQDs are internalized through a non-targeted endocytosis internalization mechanism and are well distributed throughout the cytoplasm and nucleolus [73].
The advantage of GOQDs as a nano-imaging agent is the smaller size, which can facilitate the cell membrane crossover, as well as their very good water solubility in the biological media with less toxicity than other carbon materials and metal and metal oxide nanomaterials [74]. Apart from this, the surface π bonds and oxygen functional groups at the edges can help to functionalize different biomarkers and other potent organic drugs through covalent and non-covalent approaches for efficient theranostics [75]. Previously, we have prepared multifunctional magnetic graphene by functionalizing the GQDs with Gd, folate, and doxorubicin (folate–GdGQD/Dox) for targeted imaging and the therapy of HeLa and HepG2 cells. The material has shown excellent MRI, CLSM imaging, and good DOX loading, thereby promising therapeutic capability [54]. In addition, we have also explored the microwave synthesis of multifunctional MGQDs from crab shells with different metals such as Gd3+, Mn2+, and Eu3+ for MRI and CLSM imaging followed by targeted cancer therapy. The MGQDs have shown excellent toxicity against cancer cells compared to normal cells [55]. Herein, we have developed simple, green, and metal-free GOQDs for nano-imaging in vitro and in vivo, which is very affordable compared to the previous works reported in Table 1 and Table 2. We are anticipating that this method could be one of the best to synthesize the GOQDs-based nanodrugs for future nano-imaging and therapeutic applications.

3.4. In Vivo Biocompatibility and Nano-Imaging of GOQDs in Zebrafish Embryos

The in vivo biocompatibility and nano-imaging of GOQDs were assessed on wild-type and AB strains of male and female zebrafish (Danio rerio). Their use was reviewed and permitted by the Taiwan Zebrafish Core Facility at National Tsing Hua University. The zebrafish were raised in an aquarium at 28 °C under controlled 10 h/13 h light/dark conditions. All animal experiments were performed in compliance with the Animal Management Rules of the National Tsing Hua University.
Danio rerio is a precious non-mammalian vertebrate model that is frequently used to investigate diseases such as cancer. The significant evolutionary preservation of cancer-related genes among zebrafish and humans enables the extrapolation of study findings from fish to people. These species have been a reliable model for cancer research due to their high fecundity, economical maintenance, feasibility to dynamically visualize tumor progression in vivo, and for the toxicity evaluation of drugs at affordable prices. To understand the pathophysiology of a complicated disease like cancer, it may be crucial to look at both genetic and epigenetic changes. Zebrafish have proven to be a trustworthy animal system to use for research on human cancer. Rapid, extensive analyses of zebrafish in vivo drug reactions and kinetics will likely result in novel applications in combination therapy and personalized medicine. Zebrafish are on the verge of joining the mouse as a pre-clinical cancer model due to all of the aforementioned factors [76].
For our preliminary in vivo imaging studies, zebrafish embryos were used as a live model at various developmental stages, including the cleavage (3 hpf), pharyngula (24 hpf), hatching (48 hpf), and larval (96 hpf) stages. The images of zebrafish embryos exposed or not (0 mg/L) to GOQDs are displayed in Figure 6. The findings showed that even at high concentrations, GOQDs had no harmful effects on embryonic development and had no effect at any stage of development at all. In addition, the developed fish showed the same morphology despite having different levels of GOQDs exposure and control experiments. The reported values agreed with our previously reported zebrafish biocompatibility studies with MG/MFG and other carbon nanomaterials [77,78,79]. The imaging and bio-compatibility experiments led by Kang et al. have also reported that there is no effect of the carbon quantum dots (CQDs) on the growth of the zebrafish and showed good distribution throughout the zebrafish body [79]. Our preliminary in vivo biocompatibility results suggest the potential of GOQDs for future nano-imaging and diagnostic applications as a theranostic delivery system for carrying various drugs [54].
Zebrafish embryos were employed as a model for the in vivo imaging application in order to confirm the presence and distribution of GOQDs. A well grown zebrafish embryo is shown in Figure 7a, with its entire body without GOQDs solution at 96 h as a control. Zebrafish embryos treated with 100 μg/mL GOQDs show an improvement in color which demonstrates that the GOQDs were successfully internalized and sustained to the larvae (Figure 7b). GOQDs might enter the embryo’s body via skin absorption or swallowing. In Figure 7b, the fluorescence image of zebrafish shows that the dorsal aorta is bright, indicating that GOQDs have entered the circulatory system, which is crucial for GOQD transport in zebrafish. Skin absorption is a significant way for GOQDs to enter zebrafish, and their metabolism might eliminate some GOQDs from the zebrafish embryos. Therefore, the fluorescence released by GOQDs serves as an illustration of the zebrafish’s outline. Thus, the distribution of GOQDs in zebrafish reveals the ADME (absorption, distribution, metabolism, and excretion) route. The brightness of the blood vessels and the tissue in the tail provides evidence that certain GOQDs enter the cardiovascular system and spread throughout the body. In this sense, GOQDs are a type of in vivo imaging-appropriate biocompatible probe without obvious quenching. Zebrafish and mammals share many biological similarities, hence the findings from zebrafish are utilized to simulate biological consequences in other higher animals. Xu et al. prepared N-doped CDs from urea, aniline, and ethylenediamine as a starting material. The prepared N-doped CDs have exhibited green fluorescence and demonstrated Hg2+ FL sensing and imaging in the zebrafish [78]. Another study by Yue et al. prepared red luminescent CQDs by Ru doping. The resultant Ru-CQDs were also demonstrated for zebrafish imaging and the photodynamic therapy of cancer [80]. In comparison, the GOQDs prepared in this work have very good luminescence, which is similar to or better than these green and red CQDs reported. CQDs have a pronounced importance in curing brain cancers by minimizing the limitations of the blood-brain barrier (BBB). The BBB completely blocks nearly all drugs targeting brain neoplasms, which has been one of the major challenges for brain cancer treatments. The tunable and small sizes of CQDs with excellent luminescence could be of great advantage in treating the brain cancers reported [81]. In addition to CQDs ultrasmall size, shape, solubility, and biocompatibility, they can be triggered by external stimuli such as pH, temperature, ultrasound, and near-infrared (NIR) light for the controlled release of drugs, all of which are added advantages in nanomedicine and future theranostics applications [82]. Moreover, the CQDs have excellent biodistribution with great biocompatibility compared with other nanomaterials [83]. Hence, we are anticipating that the GOQDs presented in the study will provide an important contribution in cancer diagnosis and therapy. We would like to investigate the elimination of colon cancer in zebrafish using modified GOQDs, which could serve as an imaging and therapeutic probe in our future studies.

4. Conclusions

In summary, we used BC as the starting material and green oxidant H2O2 in a one-pot microwave-assisted oxidation process to successfully prepare GOQDs. Under microwave circumstances, H2O2 produced free radicals that can also break huge BC to form GO fragments and GOQDs. The benefits of this synthetic approach are as follows: (1) the method can avoid using strong concentrated acid and producing poisonous fumes; (2) the strategy can prevent metal impurity contamination; (3) it only involves affordable, environmentally friendly reagents; and (4) the synthesis process is very simple and only takes a short time (2 min). The formation of GOQDs is confirmed by electron microscopic and spectroscopic techniques. The synthesized GOQDs shown good photo-stability and admirable biocompatibility in vitro against CT26 cancer cells and in vivo zebrafish (Danio rerio) embryo model. The FL imaging of CT26 cancer cells and zebrafish indicate that the GOQDs can be excellent nano-imaging and diagnostic probes with biocompatibility.

Author Contributions

Conceptualization, G.G. (Govinda Gorle) and Y.-C.L.; methodology, G.G. (Govinda Gorle) and G.G. (Ganesh Gollavelli); investigation, G.G. (Govinda Gorle) and G.N.; writing—original draft preparation, G.G. (Govinda Gorle) and G.N.; writing—review and editing, G.G. (Ganesh Gollavelli) and Y.-C.L.; funding acquisition, Y.-C.L.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially supported by the Ministry of Science and Technology, Taiwan, ROC. under Grant No. MOST 104-2113-M-007-008-MY3. Any opinions, findings, or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of the MOST.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Ethical Committee of Affidavit of Approval of Animal Use Protocol of National Tsing Hua University (Approval NO 10314 on 20 March 2014) for studies involving animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Liu, Z.; Li, F.; Luo, Y.; Li, M.; Hu, G.; Pu, X.; Tang, T.; Wen, J.; Li, X.; Li, W. Size Effect of Graphene Quantum Dots on Photoluminescence. Molecules 2021, 26, 3922. [Google Scholar] [CrossRef]
  2. Zhao, C.; Song, X.; Liu, Y.; Fu, Y.; Ye, L.; Wang, N.; Wang, F.; Li, L.; Mohammadniaei, M.; Zhang, M.; et al. Synthesis of graphene quantum dots and their applications in drug delivery. J. Nanobiotechnol. 2020, 18, 142. [Google Scholar] [CrossRef] [PubMed]
  3. Younis, M.R.; He, G.; Lin, J.; Huang, P. Recent Advances on Graphene Quantum Dots for Bioimaging Applications. Front. Chem. 2020, 8, 424. [Google Scholar] [CrossRef] [PubMed]
  4. Pan, D.; Zhang, J.; Li, Z.; Wu, M. Hydrothermal route for cutting graphene sheets into blue-luminescent graphene quantum dots. Adv. Mater. 2010, 22, 734–738. [Google Scholar] [CrossRef]
  5. Arkan, E.; Barati, A.; Rahmanpanah, M.; Hosseinzadeh, L.; Moradi, S.; Hajialyani, M. Green synthesis of carbon dots derived from walnut oil and an investigation of their cytotoxic and apoptogenic activities toward cancer cells. Adv. Pharm. Bull 2018, 8, 149–155. [Google Scholar] [CrossRef]
  6. Kazemi, S.; Pourmadadi, M.; Yazdian, F.; Ghadami, A. The synthesis and characterization of targeted delivery curcumin using chitosan-magnetite-reduced graphene oxide as nano-carrier. Int. J. Biol. Macromol. 2021, 186, 554–562. [Google Scholar] [CrossRef] [PubMed]
  7. Xu, X.; Ray, R.; Gu, Y.; Ploehn, H.J.; Gearheart, L.; Raker, K.; Scrivens, W.A. Electrophoretic analysis and purification of fluorescent single-walled carbon nanotube fragments. J. Am. Chem. Soc. 2004, 126, 12736–12737. [Google Scholar] [CrossRef] [PubMed]
  8. Zhu, S.; Zhang, J.; Qiao, C.; Tang, S.; Li, Y.; Yuan, Y.; Li, B.; Tian, L.; Liu, F.; Hu, R.; et al. Strongly green-photoluminescent graphenequantum dots for bioimaging applications. Chem. Commun. 2011, 47, 6858–6860. [Google Scholar] [CrossRef]
  9. Magaela, B.N.; Ndlovu, K.S.; Tshangana, C.S.; Muleja, A.A.; Mamba, B.B.; Nyokong, T.; Managa, M. Photodegradation of ibuprofen using 5-10-15-20-tetrakis(4-bromophenyl) porphyrin conjugated to graphene quantum dots. Opt. Mater. 2022, 134, 113147. [Google Scholar] [CrossRef]
  10. Habiba, K.; Makarov, V.I.; Avalos, J.; Guinel, M.J.F.; Weiner, B.R.; Morell, G. Luminescent graphene quantum dots fabricated by pulsed laser synthesis. Carbon N. Y. 2013, 64, 341–350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Xia, C.; Qiu, Y.; Xia, Y.; Zhu, P.; King, G.; Zhang, X.; Wu, Z.; Kim, J.Y.T.; Cullen, D.A.; Zheng, D.; et al. General synthesis of single-atom catalysts with high metal loading using graphene quantum dots. Nat. Chem. 2021, 13, 887–894. [Google Scholar] [CrossRef] [PubMed]
  12. Jin, S.; Ni, Y.; Hao, Z.; Zhang, K.; Lu, Y.; Yan, Z.; Wei, Y.; Lu, Y.R.; Chan, T.S.; Chen, J. A Universal Graphene Quantum Dot Tethering Design Strategy to Synthesize Single-Atom Catalysts. Angew. Chem. Int. Ed. Engl. 2020, 59, 21885–21889. [Google Scholar] [CrossRef] [PubMed]
  13. Bressi, V.; Ferlazzo, A.; Iannazzo, D.; Espro, C. Graphene Quantum Dots by Eco-Friendly Green Synthesis for Electrochemical Sensing: Recent Advances and Future Perspectives. Nanomaterials 2021, 11, 1120. [Google Scholar] [CrossRef] [PubMed]
  14. Kang, S.; Jeong, Y.K.; Jung, K.H.; Son, Y.; Choi, S.C.; An, G.S.; Han, H.; Kim, K.M. Simple preparation of graphene quantum dots with controllable surface states from graphite. RSC Adv. 2019, 9, 38447–38453. [Google Scholar] [CrossRef] [PubMed]
  15. Torres, D.; Pinilla, J.L.; Gálvez, E.M.; Suelves, I. Graphene quantum dots from fishbone carbon nanofibers. RSC Adv. 2016, 6, 48504–48514. [Google Scholar] [CrossRef]
  16. Al Jahdaly, B.A.; Elsadek, M.F.; Ahmed, B.M.; Farahat, M.F.; Taher, M.M.; Khalil, A.M. Outstanding Graphene Quantum Dots from Carbon Source for Biomedical and Corrosion Inhibition Applications: A Review. Sustainability 2021, 13, 2127. [Google Scholar] [CrossRef]
  17. Lu, J.; Yeo, P.S.; Gan, C.K.; Wu, P.; Loh, K.P. Transforming C60 molecules into graphene quantum dots. Nat. Nanotechnol. 2011, 6, 247–252. [Google Scholar] [CrossRef]
  18. Ding, L.; He, H.; Zhou, J.; Wang, D.; Nian, Q.; Li, S.; Qian, S.; Li, W.; Liu, C.; Liang, Z. Preparation of high-quality graphene oxide-carbon quantum dots composites and their application for electrochemical sensing of uric acid and ascorbic acid. Nanotechnology 2021, 32, 135501. [Google Scholar] [CrossRef] [PubMed]
  19. Yoon, H.; Park, M.; Kim, J.; Novak, T.G.; Lee, S.; Jeon, S. Toward highly efficient luminescence in graphene quantum dots for optoelectronic applications. Chem. Phys. Rev. 2021, 2, 031303. [Google Scholar] [CrossRef]
  20. Kang, S.; Jung, K.H.; Mhin, S.; Son, Y.; Lee, K.; Kim, W.R.; Choi, H.; Ryu, J.H.; Han, H.; Kim, K.M. Fundamental Understanding of the Formation Mechanism for Graphene Quantum Dots Fabricated by Pulsed Laser Fragmentation in Liquid: Experimental and Theoretical Insight. Small 2020, 16, e2003538. [Google Scholar] [CrossRef]
  21. Deka, M.J.; Dutta, A.; Chowdhury, D. Tuning the wettability and photoluminescence of graphene quantum dots via covalent modification. New J. Chem. 2018, 42, 355–362. [Google Scholar] [CrossRef]
  22. Luo, Y.; Xu, Y.; Li, M.; Sun, L.; Hu, G.; Tang, T.; Wen, J.; Li, X. Tuning the Photoluminescence of Graphene Quantum Dots by Fluorination. J. Nanomater. 2017, 2017, 9682846. [Google Scholar] [CrossRef]
  23. Chong, Y.; Ma, Y.; Shen, H.; Tu, X.; Zhou, X.; Xu, J.; Dai, J.; Fan, S.; Zhang, Z. The in vitro and in vivo toxicity of graphene quantum dots. Biomaterials 2014, 35, 5041–5048. [Google Scholar] [CrossRef] [PubMed]
  24. Fasbender, S.; Zimmermann, L.; Cadeddu, R.P.; Luysberg, M.; Moll, B.; Janiak, C.; Heinzel, T.; Haas, R. The Low Toxicity of Graphene Quantum Dots is Reflected by Marginal Gene Expression Changes of Primary Human Hematopoietic Stem Cells. Sci. Rep. 2019, 9, 12028. [Google Scholar] [CrossRef]
  25. Tsoi, K.M.; Dai, Q.; Alman, B.A.; Chan, W.C. Are quantum dots toxic? Exploring the discrepancy between cell culture and animal studies. Acc. Chem. Res. 2013, 46, 662–671. [Google Scholar] [CrossRef]
  26. Abbas, A.; Tabish, T.A.; Bull, S.J.; Lim, T.M.; Phan, A.N. High yield synthesis of graphene quantum dots from biomass waste as a highly selective probe for Fe3+ sensing. Sci. Rep. 2020, 10, 21262. [Google Scholar] [CrossRef]
  27. Liu, B.; Xie, J.; Ma, H.; Zhang, X.; Pan, Y.; Lv, J.; Ge, H.; Ren, N.; Su, H.; Xie, X.; et al. From Graphite to Graphene Oxide and Graphene Oxide Quantum Dots. Small 2017, 13, 1601001. [Google Scholar] [CrossRef]
  28. Hirata, M.; Gotou, T.; Horiuchi, S.; Fujiwara, M.; Ohba, M. Thin-film particles of graphite oxide 1: High-yield synthesis and flexibility of the particles. Carbon 2004, 42, 2929–2937. [Google Scholar] [CrossRef]
  29. Tian, R.; Zhong, S.; Wu, J.; Jiang, W.; Wang, T. Facile hydrothermal method to prepare graphene quantum dots from graphene oxide with different photoluminescences. RSC Adv. 2016, 6, 40422–40426. [Google Scholar] [CrossRef]
  30. Chen, W.; Lv, G.; Hu, W.; Li, D.; Chen, S.; Dai, Z. Synthesis and applications of graphene quantum dots: A review. Nanotechnol. Rev. 2018, 7, 157–185. [Google Scholar] [CrossRef]
  31. Chen, A.; Zhao, C.; Yu, Y.; Yang, J. Graphene quantum dots derived from carbon fibers for oxidation of dopamine. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2016, 31, 1294–1297. [Google Scholar] [CrossRef]
  32. Melo, J.P.; Ríos, P.L.; Povea, P.; Morales-Verdejo, C.; Camarada, M.B. Graphene Oxide Quantum Dots as the Support for the Synthesis of Gold Nanoparticles and Their Applications as New Catalysts for the Decomposition of Composite Solid Propellants. ACS Omega 2018, 3, 7278. [Google Scholar] [CrossRef] [PubMed]
  33. Hu, H.; Quan, H.; Zhong, B.; Li, Z.; Huang, Y.; Wang, X.; Zhang, M.; Chen, D. A Reduced Graphene Oxide Quantum Dot-Based Adsorbent for Efficiently Binding with Organic Pollutants. ACS Appl. Nano Mater. 2018, 1, 6502–6513. [Google Scholar] [CrossRef]
  34. Wang, C.-C.; Lu, S.-Y. Carbon black-derived graphene quantum dots composited with carbon aerogel as a highly efficient and stable reduction catalyst for the iodide/tri-iodide couple. Nanoscale 2015, 7, 1209–1215. [Google Scholar] [CrossRef]
  35. Liu, J.; Li, R.; Yang, B. Carbon Dots: A New Type of Carbon-Based Nanomaterial with Wide Applications. ACS Cent. Sci. 2020, 6, 2179–2195. [Google Scholar] [CrossRef]
  36. Lu, Q.; Wu, C.; Liu, D.; Wang, H.; Su, W.; Li, H.; Zhang, Y.; Yao, S. A facile and simple method for synthesis of graphene oxide quantum dots from black carbon. Green Chem. 2017, 19, 900–904. [Google Scholar] [CrossRef]
  37. Grabolle, M.; Spieles, M.; Lesnyak, V.; Gaponik, N.; Eychmüller, A.; Resch-Genger, U. Determination of the Fluorescence Quantum Yield of Quantum Dots: Suitable Procedures and Achievable Uncertainties. Anal. Chem. 2009, 81, 6285–6294. [Google Scholar] [CrossRef]
  38. Kuthala, N.; Shanmugam, M.; Kong, X.; Chiang, C.-S.; Hwang, K.C. Salt-mediated, plasmonic field-field/field-lattice coupling-enhanced NIR-II photodynamic therapy using core-gap-shell gold nanopeanuts. Nanoscale Horiz. 2022, 7, 589–606. [Google Scholar] [CrossRef]
  39. Choi, T.-Y.; Choi, T.-I.; Lee, Y.-R.; Choe, S.-K.; Kim, C.-H. Zebrafish as an animal model for biomedical research. Exp. Mol. Med. 2021, 53, 310–317. [Google Scholar] [CrossRef]
  40. Romero, M.P.; Alves, F.; Stringasci, M.D.; Buzzá, H.H.; Ciol, H.; Inada, N.M.; Bagnato, V.S. One-Pot Microwave-Assisted Synthesis of Carbon Dots and in vivo and in vitro Antimicrobial Photodynamic Applications. Front. Microbiol. 2021, 12, 662149. [Google Scholar] [CrossRef]
  41. Singh, D.R.; Kumar, D.R.; Singh, D.; Savu, R.; Moshkalev, S. Progress in microwave-assisted synthesis of quantum dots(graphene/carbon/semiconducting) for bio applications: A review. Mater. Today Chem. 2019, 12, 282–314. [Google Scholar] [CrossRef]
  42. Shi, Y.; Pramanik, A.; Tchounwou, C.; Pedraza, F.; Crouch, R.A.; Chavva, S.R.; Vangara, A.; Sinha, S.S.; Jones, S.; Sardar, D.; et al. Multifunctional Biocompatible Graphene Oxide Quantum Dots Decorated Magnetic Nanoplatform for Efficient Capture and Two-Photon Imaging of Rare Tumor Cells. ACS Appl. Mater. Interfaces 2015, 7, 10935–10943. [Google Scholar] [CrossRef] [PubMed]
  43. Ghosh, T.; Edamana, P. White-Light Emission from Unmodified Graphene Oxide Quantum Dots. J. Phys. Chem. C 2015, 119, 150126160901000. [Google Scholar] [CrossRef]
  44. Park, M.; Ha, H.D.; Kim, Y.T.; Jung, J.H.; Kim, S.H.; Kim, D.H.; Seo, T.S. Combination of a Sample Pretreatment Microfluidic Device with a Photoluminescent Graphene Oxide Quantum Dot Sensor for Trace Lead Detection. Anal. Chem. 2015, 87, 10969–10975. [Google Scholar] [CrossRef]
  45. Wei, J.; Qiu, J.; Ren, L.; Zhang, K.; Wang, S.; Weeks, B. Size Sorted Multicolor Fluorescence Graphene Oxide Quantum Dots Obtained by Differential Velocity Centrifugation. Sci. Adv. Mater. 2014, 6, 1052–1059. [Google Scholar] [CrossRef]
  46. Kang, S.; Kim, K.M.; Jung, K.; Son, Y.; Mhin, S.; Ryu, J.H.; Shim, K.B.; Lee, B.; Han, H.; Song, T. Graphene Oxide Quantum Dots Derived from Coal for Bioimaging: Facile and Green Approach. Sci. Rep. 2019, 9, 4101. [Google Scholar] [CrossRef]
  47. Yeh, T.-F.; Teng, C.-Y.; Chen, S.-J.; Teng, H. Nitrogen-Doped Graphene Oxide Quantum Dots as Photocatalysts for Overall Water-Splitting under Visible Light Illumination. Adv. Mater. 2014, 26, 3297–3303. [Google Scholar] [CrossRef]
  48. Zhao, H.-X.; Wang, Y.-C.; Zhang, L.-Y.; Wang, M. One- and two-photon luminescence in graphene oxide quantum dots. New J. Chem. 2015, 39, 98–101. [Google Scholar] [CrossRef]
  49. Sun, Y.; Zheng, Y.; Chen, J.; Zhang, W.; Tang, N.; Du, Y. Intrinsic magnetism of monolayer graphene oxide quantum dots. Appl. Phys. Lett. 2016, 108, 033105. [Google Scholar] [CrossRef]
  50. Dong, Y.; Lin, J.; Chen, Y.; Fu, F.; Chi, Y.; Chen, G. Graphene quantum dots, graphene oxide, carbon quantum dots and graphite nanocrystals in coals. Nanoscale 2014, 6, 7410–7415. [Google Scholar] [CrossRef]
  51. Chen, W.; Li, D.; Tian, L.; Xiang, W.; Wang, T.; Hu, W.; Hu, Y.; Chen, S.; Chen, J.; Dai, Z. Synthesis of graphene quantum dots from natural polymer starch for cell imaging. Green Chem. 2018, 20, 4438–4442. [Google Scholar] [CrossRef]
  52. Wang, G.; Guo, Q.; Chen, D.; Liu, Z.; Zheng, X.; Xu, A.; Yang, S.; Ding, G. Facile and Highly Effective Synthesis of Controllable Lattice Sulfur-Doped Graphene Quantum Dots via Hydrothermal Treatment of Durian. ACS Appl. Mater. Interfaces 2018, 10, 5750–5759. [Google Scholar] [CrossRef] [PubMed]
  53. Ding, Z.; Li, F.; Wen, J.; Wang, X.; Sun, R. Gram-scale synthesis of single-crystalline graphene quantum dots derived from lignin biomass. Green Chem. 2018, 20, 1383–1390. [Google Scholar] [CrossRef]
  54. Huang, C.-L.; Huang, C.-C.; Mai, F.-D.; Yen, C.-L.; Tzing, S.-H.; Hsieh, H.-T.; Ling, Y.-C.; Chang, J.-Y. Application of paramagnetic graphene quantum dots as a platform for simultaneous dual-modality bioimaging and tumor-targeted drug delivery. J. Mater. Chem. B 2015, 3, 651–664. [Google Scholar] [CrossRef] [PubMed]
  55. Yao, Y.-Y.; Gedda, G.; Girma, W.M.; Yen, C.-L.; Ling, Y.-C.; Chang, J.-Y. Magneto fluorescent Carbon Dots Derived from Crab Shell for Targeted Dual-Modality Bioimaging and Drug Delivery. ACS Appl. Mater. Interfaces 2017, 9, 13887–13899. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, Y.; Gao, H.; Niu, J.; Liu, B. Facile synthesis and photoluminescence of graphene oxide quantum dots and their reduction products. New J. Chem. 2014, 38, 4970–4974. [Google Scholar] [CrossRef]
  57. Pathan, S.; Jalal, M.; Prasad, S.; Bose, S. Aggregation-induced enhanced photoluminescence in magnetic graphene oxide quantum dots as a fluorescence probe for As(iii) sensing. J. Mater. Chem. A 2019, 7, 8510–8520. [Google Scholar] [CrossRef]
  58. Dong, S.; Yuan, Z.; Zhang, L.; Lin, Y.; Lu, C. Rapid Screening of Oxygen States in Carbon Quantum Dots by Chemiluminescence Probe. Anal. Chem. 2017, 89, 12520–12526. [Google Scholar] [CrossRef]
  59. Qin, X.; Liu, J.; Zhang, Q.; Chen, W.; Zhong, X.; He, J. Synthesis of Yellow-Fluorescent Carbon Nano-dots by Microplasma for Imaging and Photocatalytic Inactivation of Cancer Cells. Nanoscale Res Lett. 2021, 16, 14. [Google Scholar] [CrossRef]
  60. Xu, Q.; Gao, J.; Wang, S.; Wang, Y.; Liu, D.; Wang, J. Quantum dots in cell imaging and their safety issues. J. Mater. Chem. B 2021, 9, 5765–5779. [Google Scholar] [CrossRef]
  61. Liang, L.; Peng, X.; Sun, F.; Kong, Z.; Shen, J.-W. A review on the cytotoxicity of graphene quantum dots: From experiment to simulation. Nanoscale Adv. 2021, 3, 904–917. [Google Scholar] [CrossRef]
  62. Ge, J.; Lan, M.; Zhou, B.; Liu, W.; Guo, L.; Wang, H.; Jia, Q.; Niu, G.; Huang, X.; Zhou, H.; et al. A graphene quantum dot photodynamic therapy agent with high singlet oxygen generation. Nat. Commun. 2014, 5, 4596. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, S.; Hai, X.; Xia, C.; Chen, X.W.; Wang, J.H. Preparation of excitation-independent photoluminescent graphene quantum dots with visible-light excitation/emission for cell imaging. Chemistry 2013, 19, 15918–15923. [Google Scholar] [CrossRef] [PubMed]
  64. Thakur, M.; Mewada, A.; Pandey, S.; Bhori, M.; Singh, K.; Sharon, M.; Sharon, M. Milk-derived multi-fluorescent graphene quantum dot-based cancer theranostic system. Mater. Sci. Eng. C 2016, 67, 468–477. [Google Scholar] [CrossRef] [PubMed]
  65. Hasan, M.T.; Gonzalez-Rodriguez, R.; Ryan, C.; Faerber, N.; Coffer, J.L.; Naumov, A.V. Photo-and Electroluminescence from Nitrogen-Doped and Nitrogen–Sulfur Codoped Graphene Quantum Dots. Adv. Funct. Mater. 2018, 28, 1804337. [Google Scholar] [CrossRef]
  66. Deng, J.; Hu, J.; Zhao, J.; An, N.; Liang, K.; Wang, Q.; Zhang, Z.; Wu, R.; Zhang, F. Eco friendly synthesis of fluorescent carbon dots for the sensitive detection of ferric ions and cell imaging. Arab. J. Chem. 2021, 14, 103195. [Google Scholar] [CrossRef]
  67. Qiu, J.; Zhang, R.; Li, J.; Sang, Y.; Tang, W.; Rivera Gil, P.; Liu, H. Fluorescent graphene quantum dots as traceable, pH-sensitive drug delivery systems. Int. J. Nanomed. 2015, 10, 6709–6724. [Google Scholar]
  68. Jiang, F.; Chen, D.; Li, R.; Wang, Y.; Zhang, G.; Li, S.; Zheng, J.; Huang, N.; Gu, Y.; Wang, C.; et al. Eco-friendly synthesis of size-controllable amine-functionalized graphene quantum dots with antimycoplasma properties. Nanoscale 2013, 5, 1137–1142. [Google Scholar] [CrossRef] [PubMed]
  69. Dong, J.; Wang, K.; Sun, L.; Sun, B.; Yang, M.; Chen, H.; Wang, Y.; Sun, J.; Dong, L. Application of graphene quantum dots for simultaneous fluorescence imaging and tumor-targeted drug delivery. Sens. Actuators B Chem. 2018, 256, 616–623. [Google Scholar] [CrossRef]
  70. Nair, R.V.; Thomas, R.T.; Sankar, V.; Muhammad, H.; Dong, M.; Pillai, S. Rapid, Acid-Free Synthesis of High-Quality Graphene Quantum Dots for Aggregation Induced Sensing of Metal Ions and Bioimaging. ACS Omega 2017, 2, 8051–8061. [Google Scholar] [CrossRef]
  71. Halder, A.; Godoy-Gallardo, M.; Ashley, J.; Feng, X.; Zhou, T.; Hosta-Rigau, L.; Sun, Y. One-Pot Green Synthesis of Biocompatible Graphene Quantum Dots and Their Cell Uptake Studies. ACS Appl. Bio Mater. 2018, 1, 452–461. [Google Scholar] [CrossRef] [PubMed]
  72. Cunci, L.; González-Colón, V.; Vargas-Pérez, B.L.; Ortiz-Santiago, J.; Pagán, M.; Carrion, P.; Cruz, J.; Molina-Ontoria, A.; Martinez, N.; Silva, W.; et al. Multicolor Fluorescent Graphene Oxide Quantum Dots for Sensing Cancer Cell Biomarkers. ACS Appl. Nano Mater. 2021, 4, 211–219. [Google Scholar] [CrossRef]
  73. An, Y.; Ren, Y.; Bick, M.; Dudek, A.; Hong-Wang Waworuntu, E.; Tang, J.; Chen, J.; Chang, B. Highly fluorescent copper nanoclusters for sensing and bioimaging. Biosens. Bioelectron. 2020, 154, 112078. [Google Scholar] [CrossRef]
  74. Kumawat, M.K.; Thakur, M.; Bahadur, R.; Kaku, T.; Prabhuraj, R.S.; Ninawe, A.; Srivastava, R. Preparation of graphene oxide-graphene quantum dots hybrid and its application in cancer theranostics. Mater. Sci. Eng. C Mater. Biol. Appl. 2019, 103, 109774. [Google Scholar] [CrossRef] [PubMed]
  75. Gollavelli, G.; Ling, Y.C. Multi-functional graphene as an in vitro and in vivo imaging probe. Biomaterials 2012, 33, 2532–2545. [Google Scholar] [CrossRef]
  76. Hason, M.; Bartůněk, P. Zebrafish Models of Cancer-New Insights on Modeling Human Cancer in a Non-Mammalian Vertebrate. Genes 2019, 10, 935. [Google Scholar] [CrossRef] [PubMed]
  77. Gollavelli, G.; Chang, C.-C.; Ling, Y.-C. Facile Synthesis of Smart Magnetic Graphene for Safe Drinking Water: Heavy Metal Removal and Disinfection Control. ACS Sustain. Chem. Eng. 2013, 1, 462–472. [Google Scholar] [CrossRef]
  78. Xu, Q.; Zhang, M.; Liu, Y.; Cai, W.; Yang, W.; He, Z.; Sun, X.; Luo, Y.; Liu, F. Synthesis of multi-functional green fluorescence carbon dots and their applications as a fluorescent probe for Hg2+ detection and zebrafish imaging. New J. Chem. 2018, 42, 10400–10405. [Google Scholar] [CrossRef]
  79. Kang, Y.F.; Li, Y.H.; Fang, Y.W.; Xu, Y.; Wei, X.M.; Yin, X.B. Carbon Quantum Dots for Zebrafish Fluorescence Imaging. Sci. Rep. 2015, 5, 11835. [Google Scholar] [CrossRef]
  80. Yue, L.; Li, H.; Sun, Q.; Zhang, J.; Luo, X.; Wu, F.; Zhu, X. Red-Emissive Ruthenium-Containing Carbon Dots for Bioimaging and Photodynamic Cancer Therapy. ACS Appl. Nano Mater. 2020, 3, 869–876. [Google Scholar] [CrossRef]
  81. Calabrese, G.; De Luca, G.; Nocito, G.; Rizzo, M.G.; Lombardo, S.P.; Chisari, G.; Forte, S.; Sciuto, E.L.; Conoci, S. Carbon Dots: An Innovative Tool for Drug Delivery in Brain Tumors. Int. J. Mol. Sci. 2021, 22, 11783. [Google Scholar] [CrossRef]
  82. Truskewycz, A.; Yin, H.; Halberg, N.; Lai, D.T.H.; Ball, A.S.; Truong, V.K.; Rybicka, A.M.; Cole, I. Carbon Dot Therapeutic Platforms: Administration, Distribution, Metabolism, Excretion, Toxicity, and Therapeutic Potential. Small 2022, 18, 2106342. [Google Scholar] [CrossRef] [PubMed]
  83. Jana, P.; Dev, A. Carbon quantum dots: A promising nanocarrier for bioimaging and drug delivery in cancer. Mater. Today Commun. 2022, 32, 104068. [Google Scholar] [CrossRef]
Pharmaceutics 15 00632 g001 550

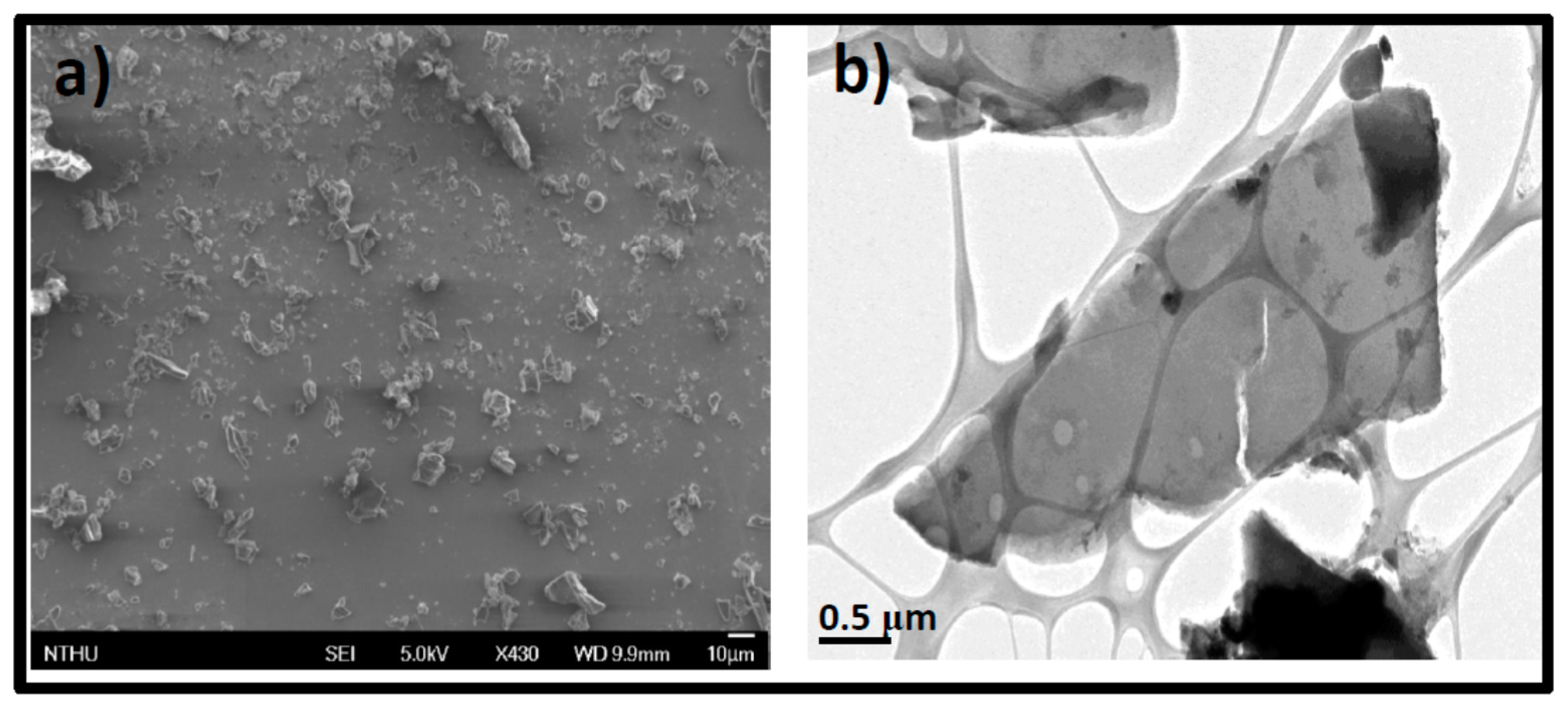

Figure 1. Electron microscope images of BC before microwave irradiation (a) SEM. (b) TEM.
Figure 1. Electron microscope images of BC before microwave irradiation (a) SEM. (b) TEM.
Pharmaceutics 15 00632 g001
Pharmaceutics 15 00632 g002a 550Pharmaceutics 15 00632 g002b 550

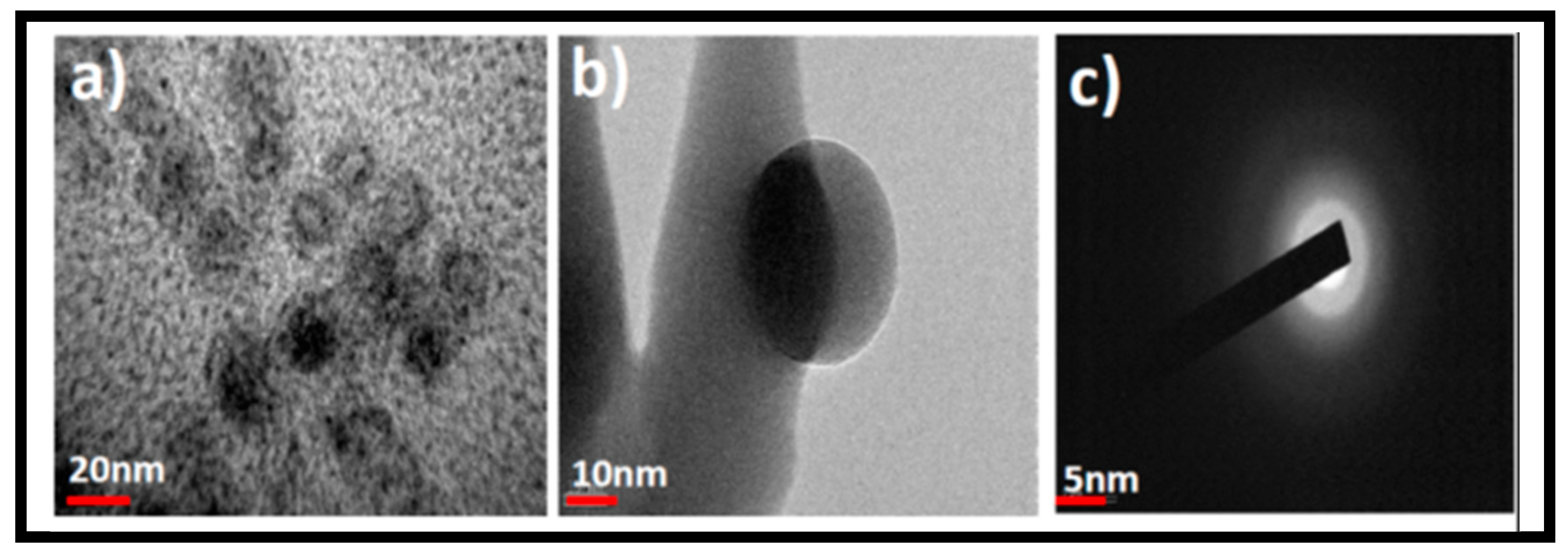

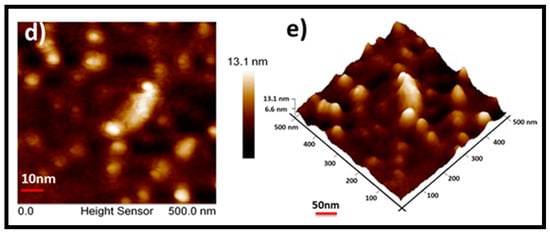

Figure 2. HRTEM images of synthesized GOQDs (a) Low magnification (scale bar, 20 nm). (b) High magnification (scale bar, 10 nm). (c) The electron diffraction pattern recording. (d) AFM of synthesized GOQDs and its 3-D imaging profile. (e). The AFM was recorded at the length of 500 nm.
Figure 2. HRTEM images of synthesized GOQDs (a) Low magnification (scale bar, 20 nm). (b) High magnification (scale bar, 10 nm). (c) The electron diffraction pattern recording. (d) AFM of synthesized GOQDs and its 3-D imaging profile. (e). The AFM was recorded at the length of 500 nm.
Pharmaceutics 15 00632 g002aPharmaceutics 15 00632 g002b
Pharmaceutics 15 00632 g003 550

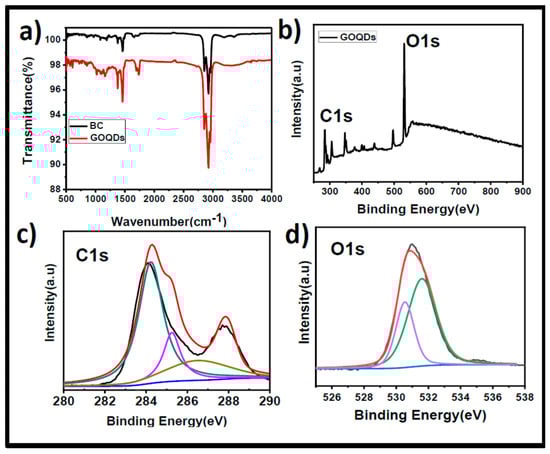

Figure 3. (a) FTIR spectra of synthesized GOQDs. (b) XPS survey spectrum of GOQDs. (c) C1s deconvolution XPS spectra of GOQDs. (d) O1s deconvolution XPS spectra of GOQDs. The black color line is for the original spectrum and the other colored lines are the deconvoluted spectral lines in both subfigures c and d.
Figure 3. (a) FTIR spectra of synthesized GOQDs. (b) XPS survey spectrum of GOQDs. (c) C1s deconvolution XPS spectra of GOQDs. (d) O1s deconvolution XPS spectra of GOQDs. The black color line is for the original spectrum and the other colored lines are the deconvoluted spectral lines in both subfigures c and d.
Pharmaceutics 15 00632 g003
Pharmaceutics 15 00632 g004 550
Figure 4. (a) UV−Vis absorption, fluorescence excitation and emission spectra of the green synthesized GOQDs. The arrows indicate the direction towards the respective ax (absorption or FL). (b) Corresponding fluorescence spectra of GOQDs with variable intensities at different excitation wavelengths ranging from 260 nm to 440 nm.
Figure 4. (a) UV−Vis absorption, fluorescence excitation and emission spectra of the green synthesized GOQDs. The arrows indicate the direction towards the respective ax (absorption or FL). (b) Corresponding fluorescence spectra of GOQDs with variable intensities at different excitation wavelengths ranging from 260 nm to 440 nm.
Pharmaceutics 15 00632 g004
Pharmaceutics 15 00632 g005 550

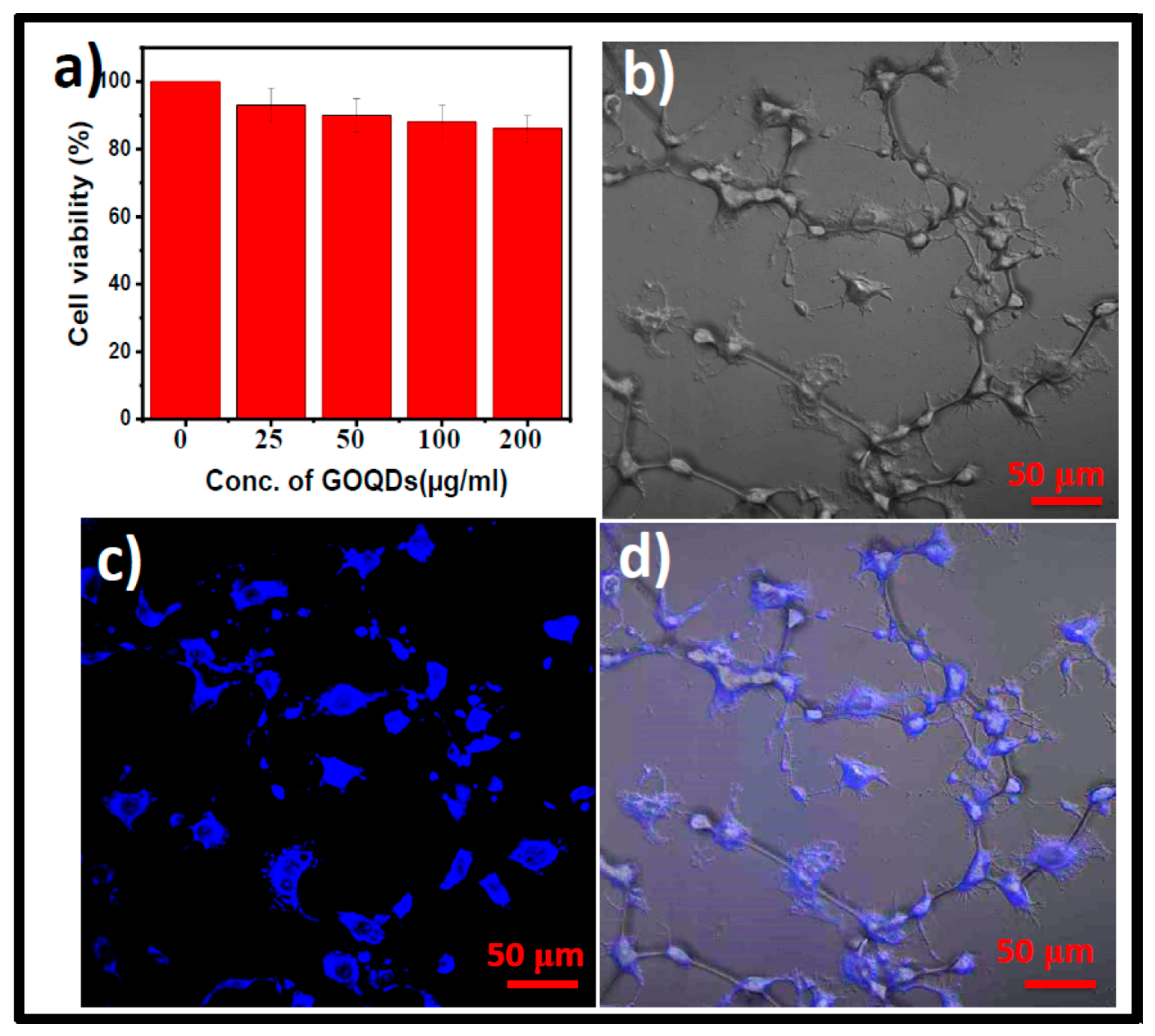

Figure 5. (a) Cell viability assay of GOQDs at different concentrations. Confocal fluorescence images of GOQDs in CT26 cells. (b) Bright-field image. (c) Blue emission of GOQDs within the cells recorded at 405 nm excitation. (d) The overlay of bright-field (b) and fluorescence (c) images. (The concentration of GOQDs used was 200 µg/mL).
Figure 5. (a) Cell viability assay of GOQDs at different concentrations. Confocal fluorescence images of GOQDs in CT26 cells. (b) Bright-field image. (c) Blue emission of GOQDs within the cells recorded at 405 nm excitation. (d) The overlay of bright-field (b) and fluorescence (c) images. (The concentration of GOQDs used was 200 µg/mL).
Pharmaceutics 15 00632 g005
Pharmaceutics 15 00632 g006 550
Figure 6. Optical microscopy images of representative developmental stages of zebrafish embryos in water containing different concentrations of GOQDs at different times. Scale bar 100 µm.
Figure 6. Optical microscopy images of representative developmental stages of zebrafish embryos in water containing different concentrations of GOQDs at different times. Scale bar 100 µm.
Pharmaceutics 15 00632 g006
Pharmaceutics 15 00632 g007 550
Figure 7. (a) Control (0 μg/mL) optical image of zebrafish. (b) Fluorescence image of GOQDs treated zebrafish (100 μg/mL). The images recorded at 96 hpf.
Figure 7. (a) Control (0 μg/mL) optical image of zebrafish. (b) Fluorescence image of GOQDs treated zebrafish (100 μg/mL). The images recorded at 96 hpf.
Pharmaceutics 15 00632 g007
Table
Table 1. Methods for synthesizing GOQDs.
Table 1. Methods for synthesizing GOQDs.
S. NoPrecursorSynthetic Process (Method, Reagents, Time)Post-Processing StepsTimeRef. No
1Graphite
Powder		Step 1: Oxidation method
H2SO4/KMnO4/NaNO3/H2O2, >1 d
Step 2: Hydrothermal method, Ndimethylformamide, 6 h		Dialysis, filtration, and rotary evaporation>8 h[42]
2GraphiteStep 1: Oxidation method
H2SO4/KMnO4/NaNO3/H2O2, >1 d
Step 2: Acid refluxing, HNO3, 8 h
Step 3: Ultrasonic, NaOH, 0.5 h		Centrifugation,
dialysis, and filtration.		>1 week[43]
3Graphite
Nanoparticles		Step 1: Ultrasonication H2SO4/HNO3,
Step 2: Acid refluxing, H2SO4/HNO3
12 h		Centrifugation, and
dialysis		>2 d[44]
4Graphene
nanofibers		Step 1: Acid oxidizing, NaClO3, fuming HNO3, 12 h
Step 2: Acid refluxing, NaClO3, fuming HNO3,
HNO3, 6 h
Step 3: Ultrasonication, HCl, 1 h		Dialysis and vacuum drying1 week[45]
5CoalThe coal and ethanol added in 50 mL of Bottom of a glass vessel, and applied Q-switch ND:YAG laser system, pulsed laser beam with an ablation energy of 0.1 J.Filtered microporous membrane and dialysis for two days5 min[46]
6GraphiteStep 1: Oxidation by Hummers method,
H2SO4/KMnO4/NaNO3/H2O2, >1 d
Step 2: further oxidation by Hummers method,
H2SO4/KMnO4/NaNO3/H2O2, >1 d		Centrifugation, and
dialysis.		>2 d[47]
7XC-72
carbon black		Step 1: Ultrasonication, HNO3, 2 h
Step 2: Acid refluxing, HNO3, 24 h 		Centrifugation,
evaporation, and redispersion		>24 h[48]
8XC-72
carbon black		Acid refluxing, HNO3, 24 hCentrifugation,
vacuum filtration, and
vacuum freeze drying		>24 h[49]
9CoalAcid refluxing, HNO3, 12 hCentrifugation,
vacuum dry, and
redispersion		>12 h[50]
10StarchStarch solution in water, Hydrothermal
method at 190 °C for 120 min.		Centrifugation, and
dialysis		2 h[51]
11Durian extractDurian flesh suspension in water,
Hydrothermal method at 150 °C for 12 h.		Filter membrane, and centrifugation.12 h[52]
12LigninLignin acidic solution, Hydrothermal
method at 180 °C for 12 h. 		Filter membrane, and centrifugation12 h[53]
13Crab shellsStep 1: Dried crab shells powder in acetic acid solution by stirring for 12 h at TR
Step 2: The upper layer solution and GdCl3 added in glass vessel then heated using a single-mode microwave reactor at 220 °C for 10 min.		Filter membrane, and centrifugation12 h[54]
14GraphiteStep 1: oxidation by Hummer’s method, H2SO4/KMnO4/NaNO3/H2O2, >1 d
Step 2: Graphene oxide in water was hydrothermally treated at 120 °C for 10 h. GQDs were purified by membrane filtration. 		Filter membrane, and centrifugation22 h[55]
15Black carbonMicrowave-assisted method.
No chance of heavy metal contamination and required excessive purification with acids or other solvents		Simple membrane filtration.2 minThis work
Table
Table 2. Physical parameters of synthesized GQDs/GOQDs.
Table 2. Physical parameters of synthesized GQDs/GOQDs.
S. NoMaterialsSizePL ColorEmission (nm)Quantum Yield (%)Ref.
1GQDs2−6Red6001.4[62]
2GQDs3−5Blue427, 516 (shoulder)4.1[63]
3GQDs-Cyc-HCl5Green400−50058[64]
4N-GQD/N−S-GQD5.5−3.9 avg.Green425, 44860[65]
5Carbon dots (CDs).3Blue44225[66]
6GQD-RGD4Blue-green420NA[67]
7GQD-amine7.5Green5001.5[68]
8GQD-RGD3.7Yellow-green460NA[69]
9Graphene quantum dots (GQDs)5Blue43023.8[70]
10GQDs6Blue40028[71]
11GOQDS20Blue4003.13Present work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gorle, G.; Gollavelli, G.; Nelli, G.; Ling, Y.-C. Green Synthesis of Blue-Emitting Graphene Oxide Quantum Dots for In Vitro CT26 and In Vivo Zebrafish Nano-Imaging as Diagnostic Probes. Pharmaceutics 2023, 15, 632. https://doi.org/10.3390/pharmaceutics15020632

AMA Style

Gorle G, Gollavelli G, Nelli G, Ling Y-C. Green Synthesis of Blue-Emitting Graphene Oxide Quantum Dots for In Vitro CT26 and In Vivo Zebrafish Nano-Imaging as Diagnostic Probes. Pharmaceutics. 2023; 15(2):632. https://doi.org/10.3390/pharmaceutics15020632

Chicago/Turabian Style

Gorle, Govinda, Ganesh Gollavelli, Gowreeswari Nelli, and Yong-Chien Ling. 2023. "Green Synthesis of Blue-Emitting Graphene Oxide Quantum Dots for In Vitro CT26 and In Vivo Zebrafish Nano-Imaging as Diagnostic Probes" Pharmaceutics 15, no. 2: 632. https://doi.org/10.3390/pharmaceutics15020632

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
