Article

Fluorinated and N-Acryloyl-Modified 3,5-Di[(E)-benzylidene]piperidin-4-one Curcuminoids for the Treatment of Pancreatic Carcinoma

by
Hindole Ghosh
1,
Sangita Bhattacharyya
1,
Rainer Schobert
2,
Prasad Dandawate
1 and
Bernhard Biersack
2,*
1
Cancer Biology, University of Kansas Medical Center, 3901 Rainbow Boulevard, Kansas City, KS 66160, USA
2
Organic Chemistry 1, University of Bayreuth, Universitaetsstrasse 30, 95440 Bayreuth, Germany
*
Author to whom correspondence should be addressed.
Pharmaceutics 2023, 15(7), 1921; https://doi.org/10.3390/pharmaceutics15071921
Submission received: 29 April 2023 / Revised: 30 June 2023 / Accepted: 8 July 2023 / Published: 11 July 2023
(This article belongs to the Special Issue Curcumin in Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
Pancreatic carcinoma is a cancer disease with high mortality. Thus, new and efficient treatments for this disease are badly needed. Curcumin has previously shown promising effects in pancreatic cancer patients; however, this natural compound suffers from inadequate efficacy and bioavailability, preventing its clinical approval. The synthetic curcuminoid EF24 was developed with activities superior to curcumin against various cancer types. In this study, a series of analogs of EF24 were investigated for anticancer effects on pancreatic carcinoma models. A distinct activity boost was achieved by straightforward N-acrylation of EF24 analogs, in particular, of compounds bearing 3-fluoro-4-methoxybenzylidene, 3,4-difluorobenzylidene, and 4-trifluoromethylbenzylidene moieties, while no improvement was seen for N-acryloyl-modified EF24. Apoptosis induction and suppression of phospho-STAT3 levels were determined, the latter corroborated by docking of active curcuminoids into STAT3. Hence, promising new clues for the development of efficient and superior curcuminoids as valuable treatment options for one of the most lethal cancer diseases were discovered in this study.

1. Introduction

Pancreatic cancer is one of the most lethal human cancer diseases, and current treatment options include surgery, chemotherapy (e.g., gemcitabine, erlotinib, FOLFIRINOX), and radiotherapy [1,2]. Pancreatic ductal adenocarcinoma (PDAC) embodies an especially lethal form of pancreatic cancer, and the development of new potent drugs against PDAC turned out to be an unexpectedly great challenge [3]. Hence, prevention of PDAC outbreaks is an important issue, and in addition to the reduction of risk factors such as smoking, alcohol, and obesity, the chemoprevention of PDAC by dietary compounds (e.g., curcumin, flavonoids, retinoids, capsaicin) and synthetic drugs (e.g., cyclooxygenase/COX inhibitors, metformin, statin, gefitinib, histone deacetylase/HDAC inhibitors) can be a reasonable strategy to avoid PDAC formation [4]. Nevertheless, the quest for new drugs and drug targets to combat PDAC is of the highest priority.
The pleiotropic anticancer activities of curcumin (diferuloylmethane), which is the main constituent of the spice turmeric (i.e., the roots of Curcuma longa), are well documented, and are especially promising to overcome cancer resistance (Figure 1) [5]. Its chemo-preventive and anticancer efficacies were demonstrated in various preclinical and clinical studies [6,7,8,9]. Curcumin was well tolerated in a phase II trial with advanced pancreatic cancer patients [9]. In addition to cancer, curcumin was also beneficial for the treatment of diabetes and the prevention of pregnancy complications, which highlights the general importance of this natural product for the treatment of human ailments [10,11].
Mechanistically, curcumin revealed versatile and relevant properties such as suppression/inhibition of Akt, nuclear factor-κB (NF-κB), signal transducer and activator of transcription-3 (STAT3), COX-2, and matrix metalloproteinase-2 (MMP-2) [12,13,14]. Moderate cytotoxicity and poor intestinal absorption hampered the advance of curcumin to clinical application until now [15,16]. Thus, (semi-)synthetic analogs of curcumin were developed having increased activity and bioavailability [17,18]. Bis(arylidene)acetones and their cyclic carbonyl analogs are of interest because of their significantly higher activities when compared with curcumin [8,18,19,20,21,22,23,24]. In particular, EF24 (1a), i.e., (3E,5E)-3,5-bis[(2-fluorophenyl)methylene]-4-piperidinone (Figure 1), was thoroughly investigated since it has shown considerable antimigratory, antiangiogenic, and antiproliferative activities, and because it interferes with crucial biochemical pathways in cancer cells [18,25,26,27,28,29,30,31,32]. Our groups also developed fluorinated piperidin-4-one-based curcuminoids with sound anticancer activities exceeding the potency of EF24 distinctly [33,34].
N-Acryloylation of piperidin-4-one-based curcuminoids led to the inhibition of deubiquitinases (DUBs) as a promising new anticancer mode of action of this compound class. Compound b-AP15 is a prominent example of an acryloyl-modified curcuminoid with DUB-inhibitory activity and the parent compound of the more recent derivative VLX1570 (Figure 1) [35,36,37]. The EF24-analog 2a was also described as an anticancer active compound, albeit less active than its parent compound EF24 (Figure 1) [38].
Herein, we present some new fluorinated derivatives and N-acryloyl analogs of EF24 with promising anticancer activities against pancreatic carcinoma cells.

2. Materials and Methods

2.1. Chemistry

Starting compounds and reagents were purchased from Alfa Aesar (Karlsruhe, Germany), Merck (Darmstadt, Germany), and TCI (Zwijndrecht, Belgium). The known compounds 1a, 1b, 1d, 1i, 1j, 2a, 2d, 2i, and 2j were prepared following the literature procedures, and their analytical data matched with the published data [38,39]. Column chromatography: silica gel 60 (230–400 mesh). Melting points (uncorrected), Electrothermal 9100; IR spectra, Perkin-Elmer Spectrum One FT-IR spectrophotometer with ATR sampling unit; NMR spectra, Bruker Avance 300/500 spectrometer; chemical shifts (δ) are given in parts per million (ppm) downfield from tetramethylsilane as the internal standard; Mass spectra, Thermo Finnigan MAT 8500 (EI), UPLC/Orbitrap (ESI).
(3E,5E)-3,5-Bis-(3-fluoro-4-methoxybenzylidene)-piperidine-4-one (1c)
Piperidin-4-one monohydrate hydrochloride (153 mg, 1.0 mmol) and 3-fluoro-4-methoxydehyde (308 mg, 2.0 mmol) were dissolved in MeOH (10 mL) and NaOH (40 mg) in H2O (1 mL) was added. The reaction mixture was stirred at room temperature for 2 h. The formed precipitate was collected, washed with MeOH/H2O, and dried in a vacuum. Yield: 110 mg (0.30 mmol, 30%); yellow solid of m.p. 198–199 °C; υmax(ATR)/cm−1 3306, 2935, 2881, 2845, 1662, 1602, 1576, 1516, 1473, 1444, 1421, 1346, 1311, 1280, 1245, 1226, 1210, 1186, 1166, 1122, 1069, 1019, 997, 945, 921, 873, 840, 811, 761, 744, 728, 712, 670, 612, 597; 1H NMR (300 MHz, DMSO-d6) δ 3.89 (6 H, s), 3.9–4.0 (4 H, m), 7.2–7.4 (6 H, m), 7.50 (2 H, s); 13C NMR (75.5 MHz, DMSO-d6) δ 47.4, 56.1, 113.8, 115.2, 117.5–117.7 (m), 127.7–128.0 (m), 132.4, 135.1, 147.7–147.9 (m), 149.4, 152.7, 187.2; m/z (%) 371 (100) [M+], 343 (93), 204 (48), 178 (81), 164 (96), 149 (72), 121 (33), 101 (35).
(3E,5E)-3,5-Bis-(2,3-difluorobenzylidene)-piperidine-4-one (1e)
Piperidin-4-one monohydrate hydrochloride (153 mg, 1 mmol) and 2,5-difluorobenzaldehyde (284 mg, 2.0 mmol) were dissolved in methanol (10 mL) and NaOH (200 mg, dissolved in 2 mL H2O) was added. The reaction mixture was stirred at room temperature for 1 h. The formed precipitate was collected and dried in a vacuum. Yield: 190 mg (0.55 mmol, 55%); yellow solid of m.p. 224–225 °C; υmax(ATR)/cm−1 3314, 2940, 2907, 2835, 1670, 1622, 1602, 1581, 1472, 1435, 1426, 1325, 1288, 1258, 1247, 1210, 1198, 1064, 1051, 1022, 998, 966, 947, 909, 883, 814, 788, 754, 744, 707, 600, 677, 642; 1H NMR (300 MHz, DMSO-d6) δ 2.8–2.9 (1 H, m), 3.88 (4 H, s), 7.2–7.3 (4 H, m), 7.4–7.6 (2 H, m), 7.61 (2 H, s); 13C NMR (75.5 MHz, DMSO-d6) δ 47.3, 118.1–118.3 (m), 124.7–125.0 (m), 126.2, 138.6, 146.2–151.5 (m), 187.0; m/z (%) 347 (47) [M+], 319 (77), 192 (35), 151 (100).
(3E,5E)-3,5-Bis-(2,5-difluorobenzylidene)-piperidine-4-one (1f)
Piperidin-4-one monohydrate hydrochloride (153 mg, 1 mmol) and 2,5-difluorobenzaldehyde (284 mg, 2.0 mmol) were dissolved in methanol (10 mL) and NaOH (200 mg, dissolved in 2 mL H2O) was added. The reaction mixture was stirred at room temperature for 1 h. The formed precipitate was collected and dried in a vacuum. Yield: 228 mg (0.66 mmol, 66%); yellow solid of m.p. 230 °C; υmax(ATR)/cm−1 3316, 3083, 2940, 2829, 1679, 1635, 1621, 1605, 1587, 1478, 1427, 1316, 1281, 1244, 1202, 1193, 1177, 1147, 1091, 1006, 984, 966, 950, 929, 909, 876, 809, 797, 773, 744, 729, 707, 694, 678, 648, 602; 1H NMR (300 MHz, DMSO-d6) δ 2.7–2.8 (1 H, m), 3.90 (4 H, s), 7.3–7.4 (6 H, m), 7.55 (2 H, s); 13C NMR (75.5 MHz, DMSO-d6) δ 47.1, 116.7–117.9 (m), 123.7–124.0 (m), 124.9, 138.5, 154.9–159.4 (m), 187.0; m/z (%) 347 (52) [M+], 319 (76), 192 (36), 151 (100).
(3E,5E)-3,5-Bis-(2,4,5-trifluorobenzylidene)-piperidine-4-one (1g)
Piperidin-4-one monohydrate hydrochloride (77 mg, 0.5 mmol) and 2,4,5-trifluorobenzaldehyde (160 mg, 1.0 mmol) were dissolved in MeOH (5 mL). NaOH (40 mg, 1 mmol) and H2O (1 mL) were added and the reaction mixture was stirred at room temperature for 1 h. The formed precipitate was collected, washed with MeOH, and dried in a vacuum. Yield: 100 mg (0.26 mmol, 52%); yellow solid of m.p. 212–213 °C; υmax(ATR)/cm−1 3317, 3090, 2937, 2831, 1678, 1626, 1603, 1493, 1425, 1337, 1304, 1238, 1226, 1201, 1160, 1107, 1017, 986, 959, 912, 891, 878, 859, 850, 762, 736, 707, 687; 1H NMR (300 MHz, CDCl3/DMSO-d6) δ 3.98 (4 H, s), 7.1–7.3 (4 H, m), 7.53 (2 H, s); 13C NMR (75.5 MHz, CDCl3/DMSO-d6) δ 47.1, 105.4, 105.7, 105.8, 106.0, 117.7, 118.0, 119.0, 119.2, 124.6, 127.9, 137.3, 144.2, 147.5, 151.3, 157.3, 186.1; m/z (%) 383 (16) [M+], 355 (49), 210 (31), 169 (100).
(3E,5E)-3,5-Bis-(3-chloro-4-fluorobenzylidene)-piperidine-4-one (1h)
Piperidin-4-one monohydrate hydrochloride (153 mg, 1.0 mmol) and 3-chloro-4-fluorobenzaldehyde (316 mg, 2.0 mmol) were dissolved in MeOH (10 mL) and NaOH (40 mg) in H2O (1 mL) was added. The reaction mixture was stirred at room temperature for 2 h. The formed precipitate was collected, washed with MeOH/H2O, and dried in a vacuum. Yield: 146 mg (0.38 mmol, 38%); yellow solid of m.p. 162–163 °C; υmax(ATR)/cm−1 3315, 2953, 2834, 1656, 1594, 1574, 1497, 1462, 1402, 1292, 1269, 1243, 1186, 1135, 1060, 995, 940, 916, 879, 821, 778, 756, 741, 729, 711, 687, 666, 618; 1H NMR (300 MHz, DMSO-d6) δ 3.9–4.0 (4 H, m), 7.4–7.6 (6 H, m), 7.7–7.8 (2 H, m); C NMR (75.5 MHz, DMSO-d6) δ 47.2, 112.8, 117.0–117.2 (m), 119.7–119.9 (m), 131.0–131.4 (m), 132.3, 132.8, 136.8, 155.5, 158.8, 187.3; m/z (%) 381 (37) [M+], 379 (57) [M+], 351 (42), 168 (68), 133 (100).
(3E,5E)-3,5-Bis-(3-fluorobenzylidene)-1-acryloylpiperidone (2b)
Compound 1b (61 mg, 0.20 mmol) was dissolved in acetone and treated with acryloyl chloride (30 µL, 0.37 mmol). K2CO3 (140 mg, 1.01 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 30 mg (0.082 mmol, 41%); yellow solid of m.p. 119–120 °C; υmax(ATR)/cm−1 3062, 1672, 1652, 1615, 1579, 1489, 1437, 1421, 1294, 1268, 1252, 1206, 1150, 1125, 1080, 1006, 993, 977, 947, 888, 872, 818, 789, 777, 758, 740, 687, 670, 610; 1H NMR (300 MHz, CDCl3) δ 4.7–5.0 (4 H, m), 5.59 (1 H, dd, J = 9.3 Hz, 2.9 Hz), 6.1–6.3 (2 H, m), 7.0–7.2 (6 H, m), 7.3–7.4 (2 H, m), 7.78 (2 H, s); 13C NMR (75.5 MHz, CDCl3) δ 116.5–116.8 (m), 126.1, 126.4, 129.2, 130.4, 130.5, 132.4, 136.4–136.4 (m), 161.1–164.4 (m), 165.5, 186.2; m/z (ESI, %) 366.2 (100) [M+], 135.1 (80).
(3E,5E)-3,5-Bis-(3-fluoro-4-methoxybenzylidene)-1-acryloylpiperidone (2c)
Compound 1c (71 mg, 0.19 mmol) was dissolved in acetone and treated with acryloyl chloride (35 µL, 0.43 mmol). K2CO3 (197 mg, 1.43 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 63 mg (0.15 mmol, 79%); yellow solid of m.p. 208 °C; υmax(ATR)/cm−1 3075, 2979, 2939, 2843, 1671, 1646, 1599, 1573, 1517, 1456, 1439, 1424, 1364, 1309, 1294, 1286, 1266, 1247, 1234, 1218, 1176, 1134, 1121, 1060, 1018, 1000, 978, 962, 932, 918, 871, 857, 821, 790, 763, 737, 729, 711, 686, 664, 611, 599; 1H NMR (300 MHz, DMSO-d6) δ 3.91 (6 H, s), 4.9–5.0 (4 H, m), 5.6–5.7 (1 H, m), 6.0–6.1 (1 H, m), 6.5–6.6 (1 H, m), 7.3–7.4 (2 H, m), 7.4–7.6 (4 H, m), 7.6–7.7 (2 H, m); 13C NMR (75.5 MHz, DMSO-d6) δ 40.3, 46.4, 56.2, 113.9, 117.7–118.0 (m), 127.5, 128.2, 131.4, 135.0, 148.3–148.4 (m), 149.5, 152.8, 164.8, 185.6; m/z (%) 425 (96) [M+], 370 (100), 354 (92), 163 (27), 55 (43).
(3E,5E)-3,5-Bis-(2,3-difluorobenzylidene)-1-acryloylpiperidone (2e)
Compound 1e (100 mg, 0.29 mmol) was suspended in acetone and treated with acryloyl chloride (53 µL, 0.66 mmol). K2CO3 (301 mg, 2.18 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 95 mg (0.24 mmol, 83%); yellow solid of m.p. 159–161 °C; υmax(ATR)/cm−1 3053, 3032, 2847, 1676, 1651, 1618, 1587, 1473, 1447, 1401, 1376, 1287, 1266, 1234, 1201, 1180, 1135, 1062, 1023, 1001, 979, 962, 937, 896, 839, 820, 797, 788, 776, 735, 706, 679, 646; 1H NMR (300 MHz, DMSO-d6) δ 4.7–4.9 (4 H, m), 5.59 (1 H, d, J = 12.7 Hz), 6.00 (1 H, d, J = 16.7 Hz), 6.5–6.6 (1 H, m), 7.3–7.4 (4 H, m), 7.5–7.6 (2 H, m), 7.70 (2 H, s); 13C NMR (75.5 MHz, DMSO-d6) δ 42.6, 46.3, 118.7–118.9 (m), 124.0, 125.1–125.2 (m), 126.2, 127.3, 128.3, 135.1, 146.3–151.6 (m), 164.9, 185.3; m/z (%) 401 (100) [M+], 346 (27), 326 (25), 151 (58), 55 (60).
(3E,5E)-3,5-Bis-(2,5-difluorobenzylidene)-1-acryloylpiperidone (2f)
Compound 1f (100 mg, 0.29 mmol) was suspended in acetone and treated with acryloyl chloride (53 µL, 0.66 mmol). K2CO3 (301 mg, 2.18 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 70 mg (0.17 mmol, 59%); yellow solid of m.p. 153–154 °C; υmax(ATR)/cm−1 3089, 3003, 2860, 1678, 1652, 1615, 1588, 1485, 1462, 1441, 1428, 1394, 1344, 1326, 1302, 1277, 1266, 1256, 1227, 1196, 1179, 1130, 1091, 1054, 1029, 1004, 976, 967, 933, 874, 839, 815, 806, 788, 734, 710, 696, 680, 668, 608; 1H NMR (300 MHz, DMSO-d6) δ 4.7–4.9 (4 H, m), 5.61 (1 H, d, J = 12.7 Hz), 6.01 (1 H, d, J = 16.7 Hz), 6.6–6.7 (1 H, m), 7.3–7.5 (6 H, m), 7.65 (2 H, s); 13C NMR (75.5 MHz, DMSO-d6) δ 42.6, 46.2, 116.9–117.7 (m), 118.1–118.6 (m), 123.2, 127.4, 127.7, 128.3, 135.0, 154.9–159.5 (m), 165.0, 185.4; m/z (%) 401 (100) [M+], 346 (32), 151 (65), 55 (81).
(3E,5E)-3,5-Bis-(2,4,5-trifluorobenzylidene)-1-acryloylpiperidone (2g)
Compound 1g (91 mg, 0.24 mmol) was suspended in acetone and treated with acryloyl chloride (30 µL, 0.37 mmol). K2CO3 (168 mg, 1.22 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 50 mg (0.12 mmol, 50%); yellow solid of m.p. 118–119 °C; υmax(ATR)/cm−1 3042, 1643, 1612, 1582, 1502, 1453, 1429, 1327, 1289, 1265, 1246, 1195, 1173, 1110, 1018, 975, 940, 876, 852, 799, 764, 750, 711, 698; 1H NMR (300 MHz, CDCl3) δ 4.6–4.8 (4 H, br s), 5.63 (1 H, dd, J = 3.0 Hz, 9.2 Hz), 6.2–6.3 (2 H, m), 7.0–7.1 (4 H, m), 7.73 (2 H, s); 13C NMR (75.5 MHz, CDCl3) δ 56.6, 106.2–106.5 (m), 118.1–118.4 (m), 126.2, 129.2, 129.4, 133.8, 145.2, 148.8, 152.3, 165.5, 185.1; m/z (%) 437 (96) [M+], 382 (46), 362 (25), 239 (23), 169 (77), 145 (22), 55 (100).
(3E,5E)-3,5-Bis-(3-chloro-4-fluorobenzylidene)-1-acryloylpiperidone (2h)
Compound 1h (73 mg, 0.19 mmol) was dissolved in acetone and treated with acryloyl chloride (35 µL, 0.43 mmol). K2CO3 (197 mg, 1.43 mmol, dissolved in 2 mL H2O) was added and the reaction mixture was stirred at room temperature for 24 h. Water (20 mL) was added and the formed precipitate was collected, washed with water, and dried in a vacuum. Yield: 65 mg (0.15 mmol, 79%); yellow solid of m.p. 122–123 °C; υmax(ATR)/cm−1 3033, 2848, 1675, 1639, 1615, 1582, 1497, 1463, 1441, 1403, 1361, 1342, 1262, 1244, 1226, 1207, 1196, 1176, 1127, 1062, 1027, 996, 977, 962, 943, 917, 899, 880, 828, 815, 790, 761, 728, 705, 691, 674, 653, 600; 1H NMR (300 MHz, DMSO-d6) δ 4.8–5.0 (4 H, m), 5.6–5.7 (1 H, m), 6.0–6.1 (1 H, m), 6.5–6.7 (1 H, m), 7.5–7.7 (6 H, m), 7.8–7.9 (2 H, m); 13C NMR (75.5 MHz, DMSO-d6) δ 42.7, 46.3, 109.2, 117.2–117.4 (m), 119.9–120.2 (m), 127.4, 128.4, 131.2, 132.5, 133.3, 134.0, 155.9, 159.2, 164.8, 185.8; m/z (%) 436 (63) [M+], 434 (100) [M+], 381 (36), 379 (61), 133 (47), 55 (68).

2.2. Anticancer Activity

2.2.1. Cell Line and Culture Conditions

The pancreatic cancer cell lines MiaPaCa-2 and Panc-1 (American Type Culture Collection, Manassas, VA, USA), HPNE and THP-1 cells were a gift from Dr. Shrikant Anant’s lab. These cell lines were cultured in complete Dulbecco’s Modified Eagle Medium (DMEM). The complete media was prepared by mixing a heat-inactivated fetal bovine serum (10% concentration, FBS) (Sigma-Aldrich, St. Louis, MO, USA) and 1% antibiotic-antimycotic solution (Corning, Tewksbury, MA, USA) to DMEM media supplemented with 4.5 g/L of glucose, L-glutamine, and sodium pyruvate (Corning, MA, USA). All cell lines were cultured at 37 °C in a 5% CO2 humidifier and used within 15 passages.

2.2.2. Proliferation Assay

A total of 5 × 103 MiaPaCa-2 and Panc-1 cells/well were added in 96-well plates. Post 24 h of plating, the cells were treated with increasing concentrations of curcuminoids (0–10 μM concentration). An enzymatic hexosaminidase assay [40] was used to record the viability of pancreatic cancer cells at different time points. For THP-1 cells, a CCK-8 assay (Abcam#ab228554, Burlingame, CA, USA) was used. Briefly, 3 × 103 were plated and treated with curcuminoids after 24 h of plating. The CCK8 regent was incubated with THP1 cells for 60 min at 37 °C, and the absorbance (OD value) was recorded at 450 nm [41]. The percent inhibition of proliferation was estimated by comparing the treated groups’ cell viability to the untreated cells.

2.2.3. Caspase 3/7 Assay

To study the caspase3/7 activity in pancreatic cancer cells (MiaPaCa-2 and Panc-1) after EF24 and 2d treatments, we used the Apo-one Homogeneous Caspase-3/7 Assay kit (Promega Corporation, Madison, WI, USA). We followed the manufacturer’s instructions to perform this assay.

2.2.4. Western Blot

A total of 5 × 105 MiaPaCa-2 and Panc-1 were added in 10 cm dishes for Western blot analysis. Cells were treated with vehicle, 2d, and EF24 (at IC50 concentrations) after 24 h of plating. After 48 h of the treatment, the media was aspirated, washed with PBS, and the cells were lysed and sonicated in a lysis buffer + protease inhibitor cocktail (ThermoScientific, Rockford, IL, USA). The cell lysates were further centrifuged at 6000 rpm for 10 min in the cool centrifuge. The total protein levels were calculated by using a BCA method (ThermoScientific, IL, USA). Equal amounts of protein were loaded into the gels for separation using gel electrophoresis. The separated proteins on the gel were then transferred onto PVDF membranes (Immobilon, Millipore, Bedford, MA, USA) for 2 h at 90 V. The membranes were removed from the transfer assembly, incubated in 5% skimmed milk for 1 h, and washed with TBST thrice for 5 min. Finally, these membranes were probed with primary antibodies and kept overnight at 4 °C on a shaker. The next day, the blots were washed, probed with the respective secondary antibodies for 1 h, and rewashed before identification. The chemiluminescence system reagents (GE Health Care, Piscataway, NJ, USA) were used to develop the blots. The ChemiDoc-XRS+ instrument (Biorad) was used to record the protein levels and image lab software was used to quantify the protein levels. BCL2 (CST#4223), Bax (CST#2772), BCL-XL (CST#2762), PARP (CST#9542), and p-STAT3 (CST#4113s) antibodies were obtained from CST (Cell Signaling Technology, Beverly, MA, USA), and β-actin (sc-47778) was purchased from Santa Cruz Biotech, Inc. (Santa Cruz, CA, USA). The antibodies were diluted at a 1:1000 dilution in 5% BSA in TBST.

2.2.5. Molecular Docking

The molecular docking was executed using the Autodock Vina 1.1.2 software program to study the interaction of active curcuminoids with the STAT3 protein (PDB ID: 6NJS) [42,43]. This pdb has a high resolution of 2.70 Å and a co-crystallized ligand and is ideal for studying STAT3 inhibitors [44]. The 3D grid was designed around the SH2 domain containing interacting amino acids with a co-crystallized ligand. A grid box was designed for docking using a grid center spacing of 1.0 Å and a 56 × 82 × 68-point size. The curcuminoid ligands and STAT3 protein preparation was conducted by using the default parameters of Autodock vina tools 1.5.7 and total Kollman and Gasteiger charges were added to the STAT3 proteins. We used the Lamarckian generic algorithm to calculate the STAT3–curcuminoid conformations. We evaluated ten predicted conformations of the curcuminoid–STAT3 complex, and the most stable predicted conformation based on the binding energy and hydrogen bonds. The curcuminoid–STAT3 complexes were evaluated and visualized using the educational Pymol program (https://pymol.org/2/ (accessed on 14 April 2023)) [45].

2.2.6. Statistical Analysis

All data values are given as mean ± standard deviation (SD). Experimental data were examined in comparison with the control group by using an unpaired two-tailed t-test and one-way ANOVA.

3. Results

The 3,5-bisbenzylidene-4-piperidinones 1a–j were prepared from piperidin-4-one and the corresponding fluorinated aryl aldehydes under basic conditions (Scheme 1). The N-acryloyl derivatives 2a–j were generated from 1a–j by treatment with acryloyl chloride in the presence of K2CO3. All compounds 1 and 2 were obtained as yellow solids.
Compounds 1a, 1b, 1g–j, and 2a–j were tested for their antiproliferative activity against human MiaPaCa-2 and Panc-1 pancreatic carcinoma cells (Table 1). Compounds 1c–f showed only low solubility in DMSO and, thus, were unavailable for testing. The 3-fluoro-4-methoxybenzylidene derivative 2c and the 3,4-difluorobenzylidene analog 2d showed the highest activities against MiaPaCa-2 and Panc-1 cells, and were more active than the anticancer drug irinotecan. Compounds 2h and 2i were also considerably active against the pancreatic carcinoma cells. While in most cases, the activities of the acryloyl derivatives exceeded those of their precursors, 1a (EF24) was distinctly more active than 2a, and 1b exhibited virtually the same activities as 2b. Additionally, 1j, 2a, and 2j were the least active derivatives. Hence, the trifluoromethyl substituent was superior to the pentafluorosulfanyl substituent regarding antiproliferative activity against pancreatic cancer cells.
EF24 (1a) and the active N-acryloyl compounds 2c, 2d, 2g–i were also investigated for their time-dependent activities against MiaPaCa-2 and Panc-1 pancreatic carcinoma cells. Dose–response curves of these compounds after 24 h, 48 h, and 72 h are shown in Figure 2 (for associated p values see Table S2). All curcuminoids exerted a high degree of antiproliferative activity after 48 h, which was maintained up to 72 h. After 24 h, compounds 2 showed reduced but still considerable activity. However, EF24 was distinctly less active than the acryl amide derivatives against Panc-1 cells after 24 h. Further, to understand the effects of EF24 and 2d on noncancerous cells, we used the monocyte cell line (THP1) and immortalized pancreatic ductal cell line (HPNE). EF24 and compound 2d treatment for 72 h did not induce cytotoxicity to THP1 cells at a concentration of 10 µM (Table S1). Similarly, both curcuminoids did not affect the viability of HPNE cells considerably and inhibited the proliferation of these cells only at doses above 1 µM. The IC50 value of 2d in HPNE cells was ~8 times higher than in cancer cells, while in the case of EF24, it was ~2 times (Table S1). These data suggest that EF24 and compound 2d were preferentially cytotoxic to pancreatic cancer cells compared to noncancerous cell lines.
Apoptosis induction by EF24 and 2d was studied in MiaPaCa-2 and Panc-1 pancreatic cancer cells (Figure 3). Compound 2d led to a more robust caspase-3 activation than EF24 at equimolar concentrations of 0.3 µM (Figure 3A). Even three-fold higher doses of EF24 (0.9 µM) only reached (in MiaPaCa-2 cells) or were still less potent (in Panc-1 cells) than 2d. Both EF24 and 2d suppressed anti-apoptotic BCL2 and BCL-XL protein expression in MiaPaCa-2 cells, while Bax expression remained unchanged compared with untreated cells (Figure 2B, Figure S1). A distinctly increased poly(ADP-ribose)polymerase (PARP) cleavage in MiaPaCa-2 cells treated with 2d was observed compared to EF24 and untreated cells (Figure 3C, Figure S1), which aligns with the strong caspase-3 activation by 2d.
The influence of EF24 and 2d on phospho-STAT3 (p-STAT3) levels was investigated in MiaPaCa-2 and Panc-1 pancreatic cancer cells (Figure 4, Figure S2). Both compounds suppressed p-STAT3 levels in these cancer cell lines after 48 h. Compound 2d appeared to be slightly more active than EF24 in terms of p-STAT3 suppression in Panc-1 cells.
Based on the observed effects of EF24 and 2d on p-STAT3 levels, docking studies of the curcuminoids 1a (EF24), 2c, 2d, and 2g–I were carried out (Figure 5). EF24 binds to the site of STAT3, which interacts with the SH2-domain of a STAT3 protein. Compounds 2d, 2g, and 2i bind to this site. In contrast, 2c and 2h bind differently and occupy a pocket near the EF24 binding site, which belongs to the DNA-binding domain (DBD). The highest binding energy was calculated for 2g (−8.3 kcal/mol), closely followed by 2d (−7.9 kcal/mol, Table 2). Furthermore, 1a (EF24) exhibited a distinctly lower binding energy (−7.3 kcal/mol) when compared with 2g and 2d, which form two H bonds with the STAT3 protein in contrast to EF24 with only one H bond. Additionally, 2d, 2g, and 2i interact with ASP566, while EF24 forms an H bond with LYS574.
In terms of the binding site adjacent to the EF24 binding site, it is noteworthy that 2h showed a higher binding affinity to this site than EF24 to the EF24 binding site. The lowest binding affinity was determined for 2c (−6.6 kcal/mol), which interacts with the same site as 2h. However, both compounds differ in the formation and number of H bonds. Compound 2h forms one H bond with PRO333, while 2c establishes two H bonds with different amino acids.

4. Discussion

The curcuminoids 1a–j and 2a–j were prepared according to straightforward procedures from commercially available starting compounds. Their antiproliferative activities against pancreatic carcinoma cells revealed promising results. Most N-acryloyl derivatives 2 were more active than EF24 (1a) and the anticancer drug irinotecan. The bis-3-fluoro-4-methoxyphenyl 2c and the bis-3,4-difluorophenyl derivative 2d displayed the highest activities with IC50 values in the low nanomolar concentration range. Thus, the combination of the N-acryloyl-piperidin-4-one with 3,4-difluoro- or 3-fluoro-4-methoxy-substituted phenyl rings appears to be favorable for anti-pancreatic cancer activity, while the 2-fluorophenyl derivative EF24 and its N-acryloyl analog 2a were distinctly less active. In addition, a quicker onset of activity was observed for 2c, 2d, 2i, and other acryl amide derivatives in Panc-1 cells when compared with EF24. Notably, compound 2j with the pentafluorosulfanyl substituent, also called the ’’super-trifluoromethyl´´ group, was much less active than the trifluoromethyl analog 2i [46]. This is rather surprising because considerable anticancer effects were recently described for N-(m)ethyl-piperidin-4-one-based curcuminoids with SF5-substituents [33,34].
Since high antiproliferative activities were observed for compounds 2c, 2d, and 2g–i, these active compounds were docked into STAT3, which is a reasonable target of curcumin and structurally related compounds in pancreatic cancer [47,48]. Two different STAT3 binding modes were observed, and 2c and 2h interacted with STAT3 differently when compared with the STAT3 binding mode of EF24 and compounds 2d, 2g, and 2i. This discovery has the potential to pave the way for the development of two different groups of anticancer-active curcuminoids depending on their phenyl substitution pattern. In addition, mutant STAT3 proteins might be addressed more efficiently, leading to an improved curcuminoid response in various cancer diseases [49]. EF24 and 2d also suppressed phospho-STAT3 levels in pancreatic cancer cells, corroborating the docking results obtained for these two curcuminoids. Inhibition of STAT3 was identified as a meaningful strategy to overcome acquired cancer drug resistance [50]. In terms of PDAC, STAT3 inhibition by the quinone-based STAT3 inhibitor napabucasin enhanced the response to chemoradiotherapy [51]. In addition, STAT3 inhibition has the potential to sensitize PDAC to immunotherapy [52]. This is of great relevance since pancreatic cancers are usually weak responders to immune checkpoint inhibitors [53].
Anti-apoptotic mechanisms are a hallmark of cancer, and a considerable induction of apoptosis in pancreatic cancer cells is mandatory for new drug candidates against this cancer disease [54]. Compound 2d exhibited promising pro-apoptotic activities in pancreatic cancer cells, which distinctly surpassed the apoptosis induction properties of the control compound EF24. Mechanistically, activation of caspase-3, suppression of anti-apoptotic BCL2 and BCL-XL expression, and increased PARP cleavage were detected in pancreatic cancer cells upon treatment with low doses of 2d. Thus, in terms of apoptosis induction, 2d adds well to other previously studied apoptosis inducers of curcuminoid-type structures [27,47].
In summary, the activities of 2c, 2d, and 2i against pancreatic carcinoma cells are considerable. Based on these preliminary findings, the described curcuminoids can become treatment options for pancreatic cancer, which is a disease of high mortality where efficient drugs are badly required. Their activities warrant advanced studies in pancreatic carcinoma models, which may include in vivo experiments, as well as testing for DUB inhibitory activity compared with the bis-nitrophenyl analog b-AP15 [36].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics15071921/s1, Tables S1 and S2, Figures S1 and S2, original NMR and mass spectra of the new compounds. Table S1. Inhibitory concentrations (IC50 in µM)1 of EF24 and compound 2d when applied to immortalized normal pancreatic ductal cells HPNE and monocyte cell line THP-1 after 72 h. Table S2. Statistical analysis of dose-response curves of EF24 (1a), 2c, 2d, and 2g–i in MiaPaCa-2 and Panc-1 pancreatic cancer cells at the indicated time points. Figure S1. Apoptosis induction by EF24 (1a) and 2d in pancreatic cancer cell line MiaPaCa-2. Western blots of apoptotic proteins were quantified using Bio-Rad’s Image lab software and expressed as compared to actin in arbitrary units. Figure S2. Protein levels of STAT3 and p-STAT3 in MiaPaCa-2 and Panc-1 pancreatic cancer cells upon treatment with EF24 and 2d. Western blot of p-STAT3 protein was quantified using Bio-Rad’s Image lab software and expressed as compared to total STAT3 in arbitrary units.

Author Contributions

Conceptualization, P.D. and B.B.; methodology, H.G. and B.B.; validation, H.G., P.D. and B.B.; formal analysis, H.G., S.B. and B.B.; investigation, H.G., S.B. and B.B.; resources, P.D. and R.S.; data curation, H.G.; writing—original draft preparation, B.B.; writing—review and editing, H.G., P.D. and R.S.; supervision, P.D. and B.B.; project administration, B.B.; funding acquisition, P.D. and R.S.. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Original data is available from the authors upon request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McGuigan, A.; Kelly, P.; Turkington, R.C.; Jones, C.; Coleman, H.G.; McCain, R.S. Pancreatic cancer: A review of clinical diagnosis, epidemiology, treatment and outcomes. World J. Gastroenterol. 2018, 24, 4846–4861. [Google Scholar] [CrossRef]
  2. Pereira, N.P.; Correa, J.R. Pancreatic cancer: Treatment approaches and trends. J. Cancer Metastasis Treat. 2018, 4, 30. [Google Scholar] [CrossRef] [Green Version]
  3. Orth, M.; Metzger, P.; Gerum, S.; Mayerle, J.; Schneider, G.; Belka, C.; Schnurr, M.; Lauber, K. Pancreatic ductal adenocarcinoma: Biological hallmarks, current status, and future perspectives of combined modality treatment approaches. Radiat. Oncol. 2019, 13, 141. [Google Scholar] [CrossRef] [Green Version]
  4. Benzel, J.; Fendrich, V. Chemoprevention and treatment of pancreatic cancer: Update and review of the literature. Digestion 2018, 97, 275–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Shaikh, S.; Shaikh, J.; Naba, Y.S.; Doke, K.; Ahmed, K.; Yusufi, M. Curcumin: Reclaiming the lost ground against cancer resistance. Cancer Drug Resist. 2021, 4, 298–320. [Google Scholar] [CrossRef] [PubMed]
  6. Carroll, R.E.; Benya, R.V.; Turgeon, D.K.; Vareed, S.; Neuman, M.; Rodriguez, L.; Kakarala, M.; Carpenter, P.M.; McLaren, C.; Meyskens, F.L., Jr.; et al. Phase II clinical trial of curcumin for the prevention of colorectal neoplasis. Cancer Prev. Res. 2011, 4, 354–364. [Google Scholar] [CrossRef] [Green Version]
  7. Sharma, R.A.; Euden, S.A.; Platton, S.L.; Cooke, D.N.; Shafayat, A.; Hewitt, H.R.; Marczylo, T.H.; Morgan, B.; Hemingway, D.; Plummer, S.M.; et al. Phase I clinical trial of oral curcumin: Biomarkers of systemic activity and compliance. Clin. Cancer Res. 2004, 10, 6847–6854. [Google Scholar] [CrossRef] [Green Version]
  8. Cen, L.; Hutzen, B.; Ball, S.; DeAngelis, S.; Chen, C.-L.; Fuchs, J.R.; Li, C.; Li, P.-K.; Lin, J. New structural analogues of curcumin exhibit potent growth suppressive activity in human colorectal carcinoma cells. BMC Cancer 2009, 9, 99. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Dhillon, N.; Aggarwal, B.B.; Newman, R.A.; Wolff, R.A.; Kunnumakkara, A.B.; Abbruzzese, J.L.; Ng, C.S.; Badmaev, V.; Kurzrock, R. Phase II trial of curcumin in patients with advanced pancreatic cancer. Cancer Res. 2008, 14, 4491–4499. [Google Scholar] [CrossRef] [Green Version]
  10. Perugini, J.; Di Mercuri, E.; Tossetta, G.; Severi, I.; Monaco, F.; Reguzzoni, M.; Tomasetti, M.; Dani, C.; Cinti, S.; Giordano, A. Biological effects of ciliary neurotrophic factor on hMADS adipocytes. Front. Endocrinol. 2019, 10, 768. [Google Scholar] [CrossRef] [Green Version]
  11. Tossetta, G.; Fantone, S.; Giannubilo, S.R.; Marzioni, D. The multifaceted actions of curcumin in pregnancy outcome. Antioxidants 2021, 10, 126. [Google Scholar] [CrossRef]
  12. Bharti, A.C.; Donato, N.; Singh, S.; Aggarwal, B.B. Curcumin (diferuloylmethane) down-regulates the constitutive activation of nuclear factor-kappa B and IkappaBalpha kinase in human multiple myeloma cells, leading to suppression of proliferation and induction of apoptosis. Blood 2003, 101, 1053–1062. [Google Scholar] [CrossRef] [Green Version]
  13. Woo, J.-H.; Kim, Y.-H.; Choi, Y.-J.; Kim, D.-G.; Lee, K.-S.; Bae, J.H.; Min, D.S.; Chang, J.-S.; Jeong, Y.-J.; Lee, Y.H.; et al. Molecular mechanisms of curcumin-induced cytotoxicity: Induction of apoptosis through generation of reactive oxygen species, down-regulation of Bcl-XL and IAP, the release of cytochrome c and inhibition of Akt. Carcinogenesis 2003, 24, 1199–1208. [Google Scholar] [CrossRef] [Green Version]
  14. Plummer, S.M.; Holloway, K.A.; Manson, M.M.; Munks, R.J.; Kaptein, A.; Farrow, S.; Howells, L. Inhibition of cyclo-oxygenase 2 expression in colon cells by chemopreventive agent curcumin involves inhibition of NF-kappaB activation via the NIK/IKK signaling complex. Oncogene 1999, 18, 6013–6020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Adams, B.K.; Ferstl, E.M.; Davis, M.C.; Herold, M.; Kurtkaya, S.; Camalier, R.F.; Hollingshead, M.G.; Kaur, G.; Sausville, E.A.; Rickles, F.R.; et al. Synthesis and biological evaluation of novel curcumin analogs as anti-cancer and anti-angiogenesis agents. Bioorg. Med. Chem. 2004, 12, 3871–3883. [Google Scholar] [CrossRef]
  16. Shoba, G.; Joy, D.; Joseph, T.; Majeed, M.; Rajendran, R.; Srinivas, P. Influence of piperine on the pharmacokinetics of curcumin in animals and human volunteers. Planta Med. 1998, 64, 353–356. [Google Scholar] [CrossRef] [PubMed]
  17. Singletary, K.; MacDonald, C.; Iovinelli, M.; Fisher, C.; Wallig, M. Effect of the β-diketones diferuloylmethane (curcumin) and dibenzoylmethane on rat mammary DNA adducts and tumors by 7,12-dimethylbenz[a]anthracene. Carcinogenesis 1998, 19, 1039–1043. [Google Scholar] [CrossRef] [Green Version]
  18. Adams, B.K.; Cai, J.; Armstrong, J.; Herold, M.; Lu, Y.J.; Sun, A.; Snyder, J.P.; Liotta, D.C.; Jones, D.P.; Shoji, M. EF24, a novel synthetic curcumin analog, induces apoptosis in cancer cells via a redox-dependent mechanism. Anticancer Drugs 2005, 16, 263–275. [Google Scholar] [CrossRef] [PubMed]
  19. Leow, P.C.; Bahety, P.; Boon, C.P.; Lee, C.Y.; Tan, C.Y.; Yang, T.; Ee, P.-L.R. Functionalized curcumin analogs as potent modulators of the Wnt/β-catenin signaling pathway. Eur. J. Med. Chem. 2014, 71, 67–80. [Google Scholar] [CrossRef]
  20. Manohar, S.; Khan, S.I.; Kandi, S.K.; Raj, K.; Sun, G.; Yang, X.; Molina, A.D.C.; Ni, N.; Wang, B.; Rawat, D.S. Synthesis, antimalarial and cytotoxic potential of new monocarbonyl analogues of curcumin. Bioorg. Med. Chem. Lett. 2013, 23, 112–116. [Google Scholar] [CrossRef]
  21. Brown, A.; Shi, Q.; Moore, T.W.; Yoon, Y.; Prussia, A.; Maddox, C.; Liotta, D.C.; Shim, H.; Snyder, J.P. Monocarbonyl curcumin analogues: Heterocyclic pleiotropic kinase inhibitors that mediate anticancer properties. J. Med. Chem. 2013, 56, 3456–3466. [Google Scholar] [CrossRef] [Green Version]
  22. Yamaguchi, M.; Moore, T.W.; Sun, A.; Snyder, J.P.; Shoji, M. Novel curcumin analogue UBS109 potently stimulates osteoblastogenesis and suppresses osteoclastogenesis: Involvement in Smad activation and NF-κB inhibition. Integr. Biol. 2012, 4, 905–913. [Google Scholar] [CrossRef] [PubMed]
  23. Helal, M.; Das, U.; Bandy, B.; Islam, A.; Nazarali, A.J.; Dimmock, J.R. Mitochondrial dysfunction contributes to the cytotoxicity of some 3,5-bis(benzylidene)-4-piperidone derivatives in colon HCT-116 cells. Bioorg. Med. Chem. Lett. 2013, 23, 1075–1078. [Google Scholar] [CrossRef]
  24. Thakur, A.; Manohar, S.; Gerena, C.E.V.; Zayas, B.; Kumar, V.; Malhotra, S.V.; Rawat, D.S. Novel 3,5-bis(arylidiene)-4-piperidone based monocarbonyl analogs of curcumin: Anticancer activity evaluation and mode of action. MedChemComm 2014, 5, 576–586. [Google Scholar] [CrossRef]
  25. Selvendiran, K.; Tong, L.; Vishwanath, S. EF24 induces G2/M arrest and apoptosis in cisplatin-resistant human ovarian cancer cells by increasing PTEN expression. J. Biol. Chem. 2007, 282, 28609–28618. [Google Scholar] [CrossRef] [Green Version]
  26. Thomas, S.L.; Zhong, D.; Zhou, W.; Malik, S.; Liotta, D.; Snyder, J.P.; Hamel, E.; Giannakakou, P. EF24, a novel curcumin analog, disrupts the microtubule cytoskeleton and inhibits HIF-1. Cell Cycle 2008, 7, 2409–2417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Subramaniam, D.; May, R.; Sureban, S.M.; Lee, K.B.; George, R.; Kuppusamy, P.; Ramanujam, R.P.; Hideg, K.; Dieckgraefe, B.K.; Houchen, C.W.; et al. Diphenyl difluoroketone: A curcumin derivative with potent in vivo anticancer activity. Cancer Res. 2008, 68, 1962–1969. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Lagisetty, P.; Powell, D.R.; Awasthi, V. Synthesis and structural determination of 3,5-bis(2-fluorobenzylidene)-4-piperidone analogs of curcumin. J. Mol. Struct. 2009, 936, 23–28. [Google Scholar] [CrossRef]
  29. Ohori, H.; Yamakoshi, H.; Tomizawa, M.; Shibuya, M.; Kakudo, Y.; Takahashi, A.; Takahashi, S.; Kato, S.; Suzuki, T.; Ishioka, C.; et al. Synthesis and biological analysis of new curcumin analogues bearing an enhanced potential for the medical treatment of cancer. Mol. Cancer Ther. 2006, 5, 2563–2671. [Google Scholar] [CrossRef] [Green Version]
  30. Kasinski, A.L.; Du, Y.; Thomas, S.L. Inhibition of IκB kinase-nuclear factor-κB signaling pathway by 3,5-bis(2-fluorobenzylidene)piperidin-4-one (EF24), a novel monoketone analog of curcumin. Mol. Pharmacol. 2008, 74, 654–661. [Google Scholar] [CrossRef] [Green Version]
  31. Kálai, T.; Kuppusamy, M.L.; Balog, M.; Selvendiran, K.; Rivera, B.K.; Kuppusamy, P.; Hideg, K. Synthesis of N-substituted 3,5-bis(arylidene)-4-piperidones with high antitumor and antioxidant activity. J. Med. Chem. 2011, 54, 5414–5421. [Google Scholar] [CrossRef] [Green Version]
  32. He, G.; Feng, C.; Vinothkumar, R.; Chen, W.; Dai, X.; Chen, X.; Ye, Q.; Qiu, C.; Zhou, H.; Wang, Y.; et al. Curcumin analog EF24 induces apoptosis via ROS-dependent mitochondrial dysfunction in human colorectal cancer cells. Cancer Chemother. Pharmacol. 2016, 78, 1151–1161. [Google Scholar] [CrossRef]
  33. Schmitt, F.; Gold, M.; Begemann, G.; Andronache, I.; Biersack, B.; Schobert, R. Fluoro and pentafluorothio analogs of the antitumoral curcuminoid EF24 with superior antiangiogenic and vascular-disruptive effects. Bioorg. Med. Chem. 2017, 25, 4894–4903. [Google Scholar] [CrossRef] [PubMed]
  34. Linder, B.; Köhler, L.H.F.; Reisbeck, L.; Menger, D.; Subramaniam, D.; Herold-Mende, C.; Anant, S.; Schobert, R.; Biersack, B.; Kögel, D. A new pentafluorothio-substituted curcuminoid with superior antitumor activity. Biomolecules 2021, 11, 947. [Google Scholar] [CrossRef] [PubMed]
  35. Dimmock, J.R.; Padmanilayam, M.P.; Puthucode, R.N.; Nazarali, A.J.; Motaganahalli, N.L.; Zello, G.A.; Quail, J.W.; Oloo, E.O.; Kraatz, H.-B.; Prisciak, J.S.; et al. A conformational and structure-activity relationship study of cytotoxic 3,5-bis(arylidene)-4-piperidones and related N-acryloyl analogues. J. Med. Chem. 2001, 44, 586–593. [Google Scholar] [CrossRef] [PubMed]
  36. Oh, Y.-T.; Deng, L.; Deng, J.; Sun, S.-Y. The proteasome deubiquitinase inhibitor b-AP15 enhances DR5 activation-induced apoptosis through stabilizing DR5. Sci. Rep. 2017, 7, 8027. [Google Scholar] [CrossRef] [Green Version]
  37. Wang, X.; Mazurkiewicz, M.; Hillert, E.-K.; Olofsson, M.H.; Pierrou, S.; Hillertz, P.; Gullbo, J.; Selvaraju, K.; Paulus, A.; Akhtar, S.; et al. The proteasome deubiquitinase inhibitor VLX1570 shows selectivity for ubiquitin-specific protease-14 and induced apoptosis of multiple myeloma cells. Sci. Rep. 2016, 6, 26979. [Google Scholar] [CrossRef] [Green Version]
  38. Liu, G.-Y.; Jia, C.-C.; Han, P.-R.; Yang, J. 3,5-Bis(2-fluorobenzylidene)-4-piperidone induce reactive oxygen species-mediated apoptosis in A549 cells. Med. Chem. Res. 2018, 27, 128–136. [Google Scholar] [CrossRef]
  39. Al Nasr, I.S.; Hanachi, R.; Said, R.B.; Rahali, S.; Tangour, B.; Abdelwahab, S.I.; Farasani, A.; Taha, M.M.E.; Bidwai, A.; Koko, W.S.; et al. p-Trifluoromethyl- and p-pentafluorothio-substituted curcuminoids of the 2,6-di[(E)-benzylidene)]cycloalkanone type: Syntheses and activities against Leishmania major and Toxoplasma gondii parasites. Bioorg. Chem. 2021, 114, 105099. [Google Scholar] [CrossRef]
  40. Landegren, U. Measurement of cell numbers by means of the endogenous enzyme hexosaminidase. Applications to detection of lymphokines and cell surface antigens. J. Immunol. Methods 1984, 67, 379–388. [Google Scholar] [CrossRef]
  41. Wu, F.; Yin, Y.-Y.; Fan, W.-H.; Zhai, Y.; Yu, M.-C.; Wang, D.; Pan, C.-Q.; Zhao, Z.; Li, G.-Z.; Zhang, W. Immunological profiles of human oligodendrogliomas define two distinct molecular subtypes. EBioMedicine 2023, 87, 104410. [Google Scholar] [CrossRef] [PubMed]
  42. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Bai, L.; Zhou, H.; Xu, R.; Zhao, Y.; Chinnaswamy, K.; McEachern, D.; Chen, J.; Yang, C.-Y.; Liu, Z.; Wang, M.; et al. A potent and selective small-molecule degrader of STAT3 achieves complete tumor regression in vivo. Cancer Cell 2019, 36, 498–511. [Google Scholar] [CrossRef] [PubMed]
  44. Jaradat, N.J.; Alshaer, W.; Hatmal, M.; Taha, M.O. Discovery of new STAT3 inhibitors as anticancer agents using ligand-receptor contact fingerprints and docking-augmented machine learning. RSC Adv. 2023, 13, 4623–4640. [Google Scholar] [CrossRef] [PubMed]
  45. Alexander, N.; Woetzel, N.; Meiler, J. bcl::Cluster: A method for clustering biological molecules coupled with visualization in the Pymol Molecular Graphics System. In Proceedings of the 2011 IEEE 1st International Conference on Computational Advances in Bio and Medical Sciences (ICCABS), Orlando, FL, USA, 3–5 February 2011; 2011; 2011, pp. 13–18. [Google Scholar]
  46. Altomonte, S.; Zanda, M. Synthetic chemistry and biological activity of pentafluorosulphanyl (SF5) organic molecules. J. Fluor. Chem. 2012, 143, 57–93. [Google Scholar] [CrossRef] [Green Version]
  47. Hutzen, B.; Friedman, L.; Sobo, M.; Lin, L.; Cen, L.; De Angelis, S.; Yamakoshi, H.; Shibata, H.; Iwabuchi, Y.; Lin, J. Curcumin analogue GO-Y030 inhibits STAT3 activity and cell growth in breast and pancreatic carcinomas. Int. J. Oncol. 2009, 35, 867–872. [Google Scholar]
  48. Lin, L.; Hutzen, B.; Zuo, M.; Ball, S.; Deangelis, S.; Foust, E.; Pandit, B.; Ihnat, M.A.; Shenoy, S.S.; Kulp, S.; et al. Novel STAT3 phosphorylation inhibitors exhibit potent growth-sensitive activity in pancreatic and breast cancer cells. Cancer Res. 2010, 70, 2445–2454. [Google Scholar] [CrossRef] [Green Version]
  49. Kasembeli, M.M.; Kaparos, E.; Bharadwaj, U.; Allaw, A.; Acot, B.; Tweardy, D.J. Aberrant function of pathogenic STAT3 mutant proteins is linked to altered stability of monomers and homodimers. Blood 2023, 141, 1411–1424. [Google Scholar] [CrossRef]
  50. Singh, S.; Gomez, H.J.; Thakkar, S.; Singh, S.P.; Parihar, A.S. Overcoming acquired drug resistance to cancer therapies through targeted STAT3 inhibition. Int. J. Mol. Sci. 2023, 24, 4722. [Google Scholar] [CrossRef]
  51. Flebbe, H.; Spitzner, M.; Marquet, P.E.; Gaedcke, J.; Ghadimi, B.M.; Rieken, S.; Schneider, G.; Koenig, A.O.; Grade, M. Targeting STAT3 signaling facilities responsiveness of pancreatic cancer cells to chemoradiotherapy. Cancers 2022, 14, 1301. [Google Scholar] [CrossRef]
  52. Hussain, N.; Das, D.; Pramanik, A.; Pandey, M.K.; Joshi, V.; Pramanik, K.C. Targeting the complement system in pancreatic cancer drug resistance: A novel therapeutic approach. Cancer Drug Resist. 2022, 5, 317–327. [Google Scholar] [CrossRef] [PubMed]
  53. Sahin, I.; Turen, S.; Santapuram, P.; Sahin, I.H. The tumor microenvironment of pancreatic adenocarcinoma and immune checkpoint inhibitor resistance: A perplex relationship. Cancer Drug Resist. 2020, 3, 699–709. [Google Scholar] [CrossRef] [PubMed]
  54. Westphal, S.; Kalthoff, H. Apoptosis: Targets in pancreatic cancer. Mol. Cancer 2003, 2, 6. [Google Scholar] [CrossRef] [PubMed]
Pharmaceutics 15 01921 g001 550

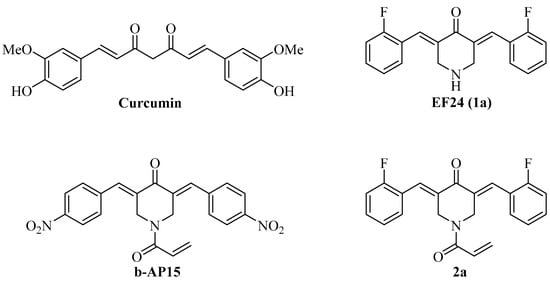

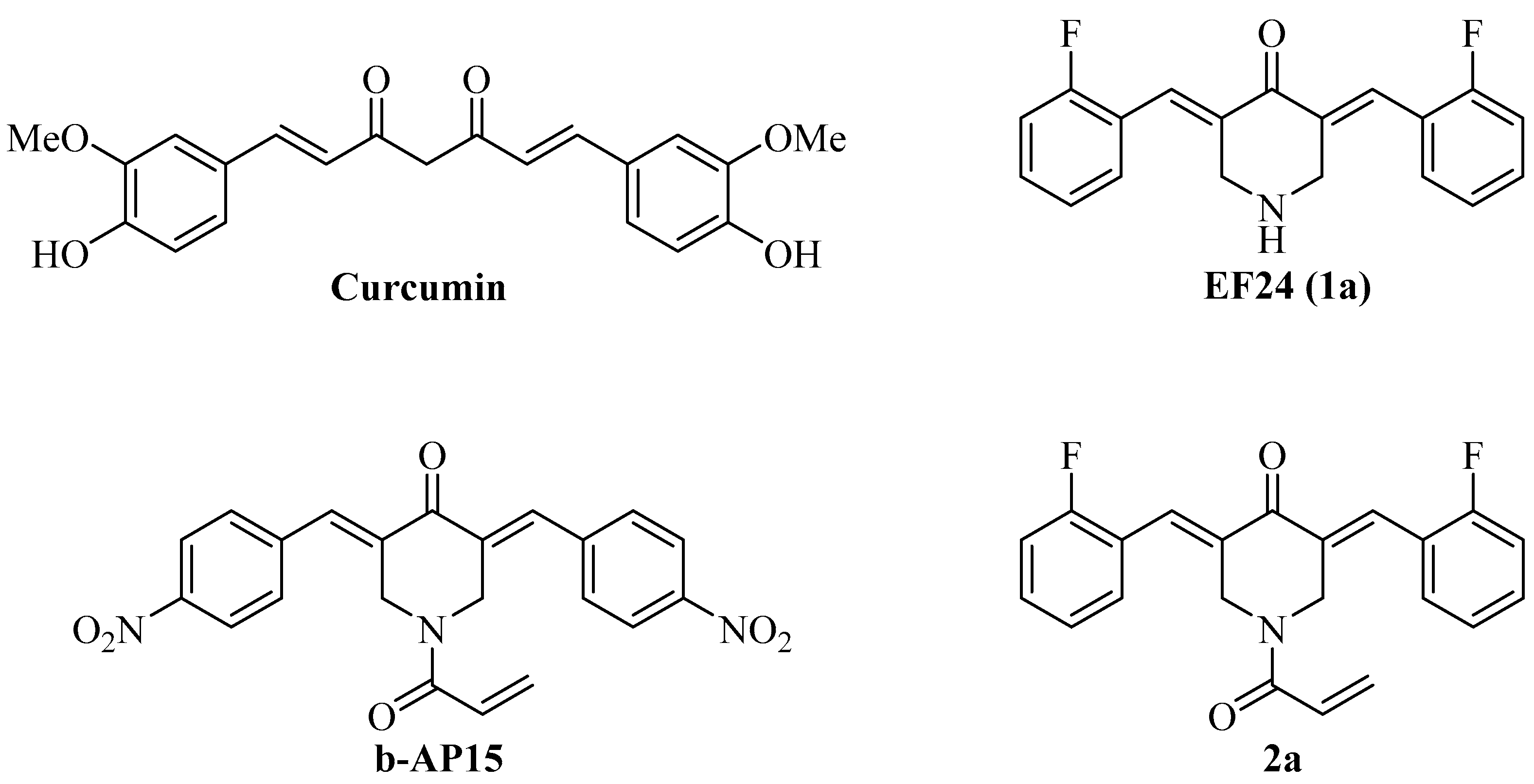

Figure 1. Curcumin and bioactive curcuminoids.
Figure 1. Curcumin and bioactive curcuminoids.
Pharmaceutics 15 01921 g001
Pharmaceutics 15 01921 sch001 550

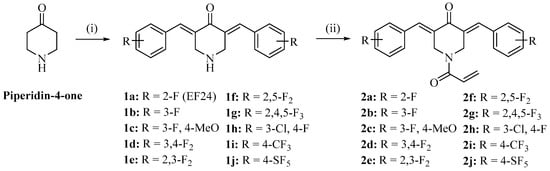

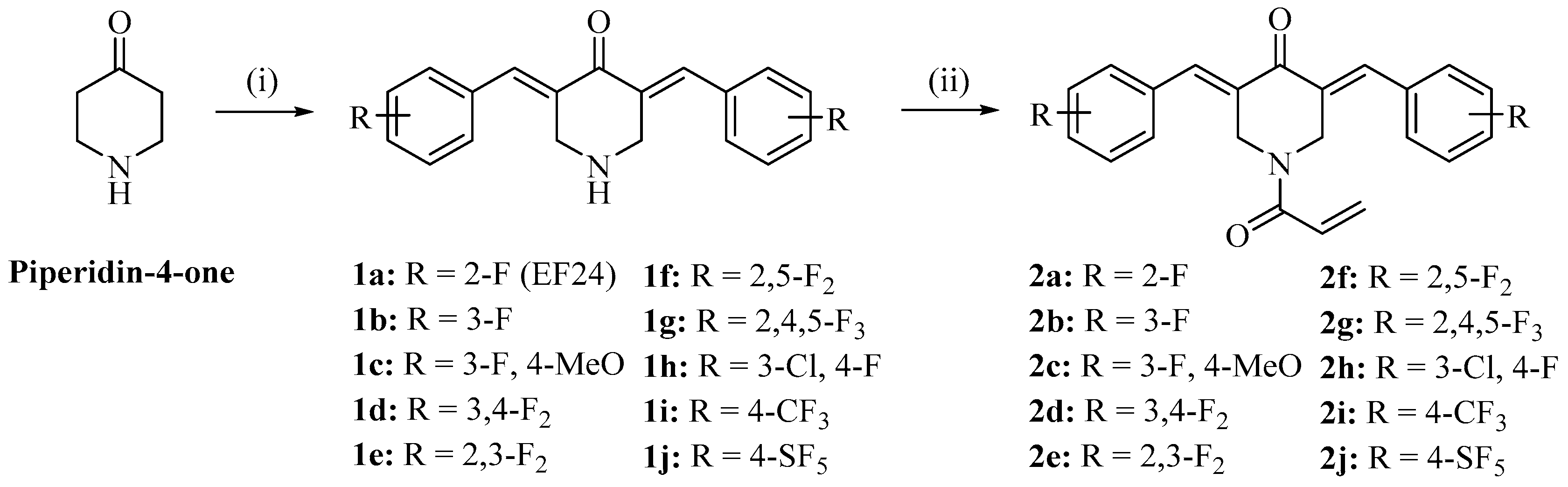

Scheme 1. Reagents and conditions: (i) aryl aldehyde, NaOH, MeOH/H2O, r.t., 2 h, 30–66%; (ii) acryloyl chloride, K2CO3, acetone/H2O, r.t., 24 h, 41–83%.
Scheme 1. Reagents and conditions: (i) aryl aldehyde, NaOH, MeOH/H2O, r.t., 2 h, 30–66%; (ii) acryloyl chloride, K2CO3, acetone/H2O, r.t., 24 h, 41–83%.
Pharmaceutics 15 01921 sch001
Pharmaceutics 15 01921 g002 550

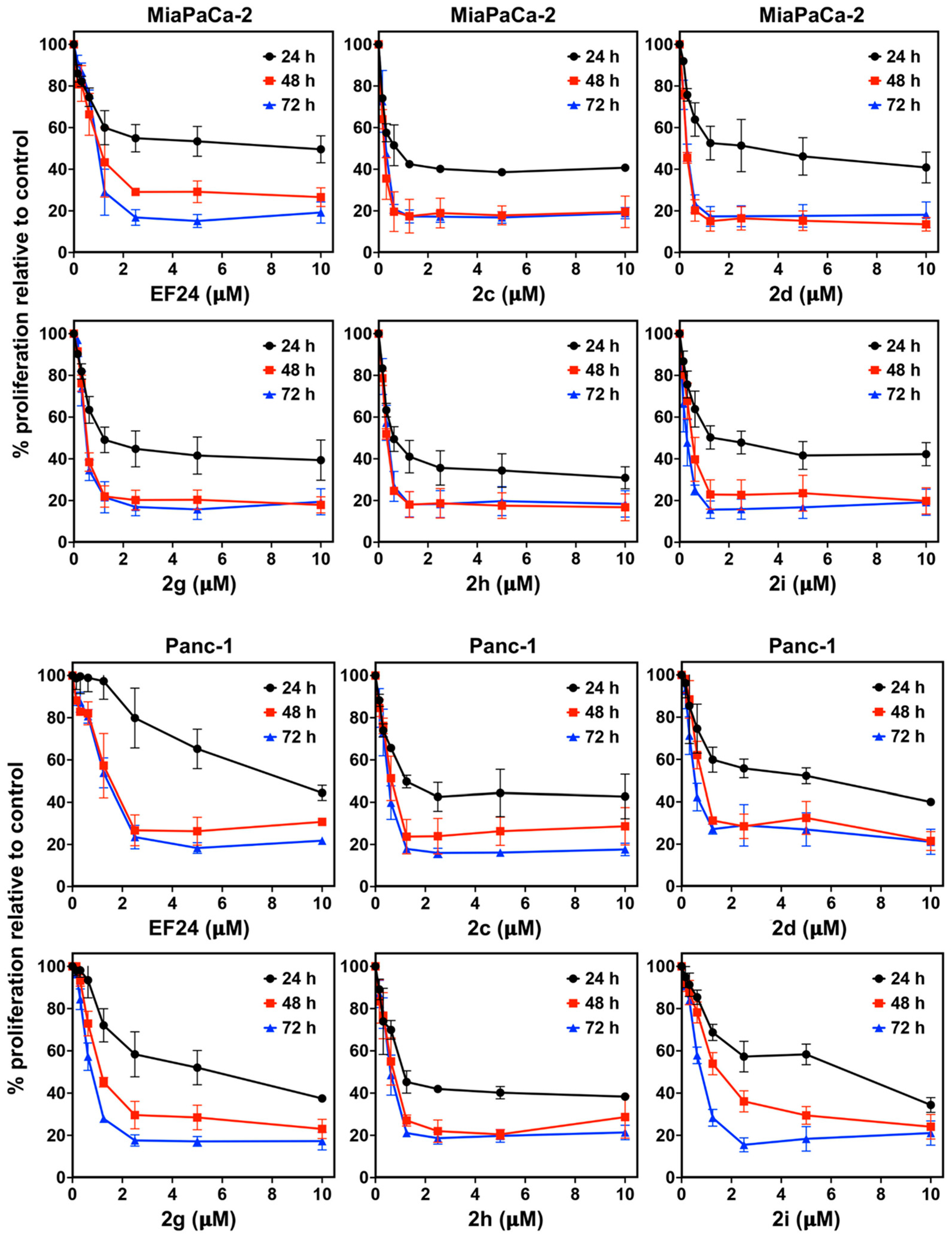

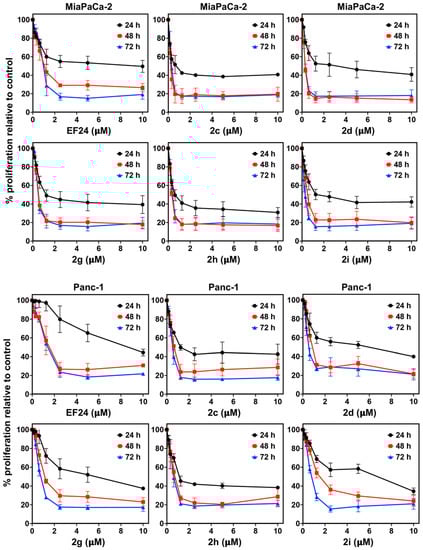

Figure 2. Dose–response curves of EF24 (1a), 2c, 2d, and 2g–i in MiaPaCa-2 (top) and Panc-1 (bottom) pancreatic cancer cells at the indicated time points. Each dose–response curve was obtained from three independent experiments.
Figure 2. Dose–response curves of EF24 (1a), 2c, 2d, and 2g–i in MiaPaCa-2 (top) and Panc-1 (bottom) pancreatic cancer cells at the indicated time points. Each dose–response curve was obtained from three independent experiments.
Pharmaceutics 15 01921 g002
Pharmaceutics 15 01921 g003 550

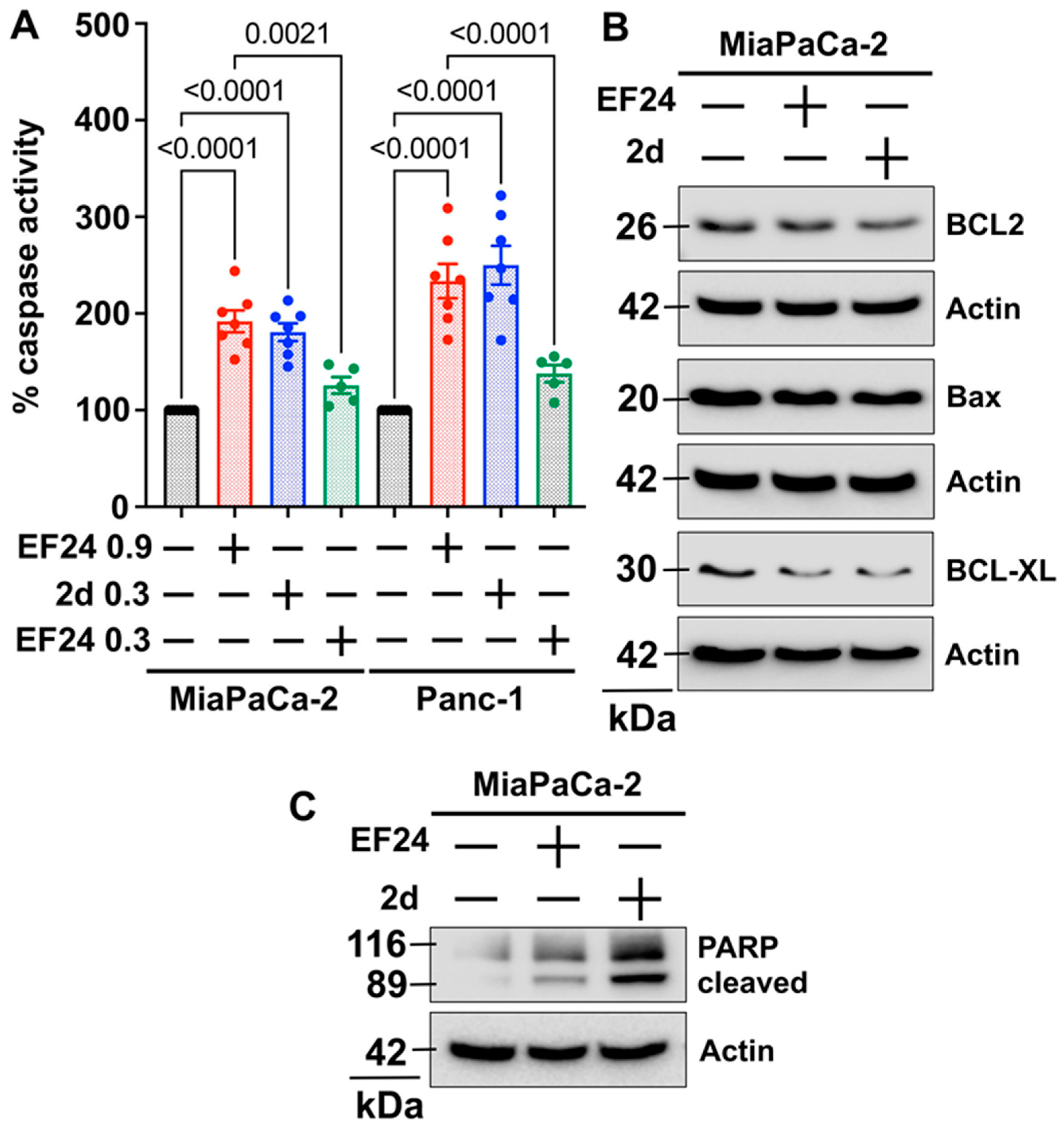

Figure 3. Apoptosis induction by EF24 (1a) and 2d in pancreatic cancer cells. (A) Induction of caspase-3 activity by EF24 and 2d in MiaPaCa-2 and Panc-1 cells (doses in µM). (B) Western blot investigation of the expression of apoptosis proteins Bax, BCL2, and BCL-XL in MiaPaCa-2 pancreatic cancer cells upon treatment with EF24 and 2d. (C) Induction of PARP cleavage in MiaPaCa-2 cells upon treatment with EF24 and 2d.
Figure 3. Apoptosis induction by EF24 (1a) and 2d in pancreatic cancer cells. (A) Induction of caspase-3 activity by EF24 and 2d in MiaPaCa-2 and Panc-1 cells (doses in µM). (B) Western blot investigation of the expression of apoptosis proteins Bax, BCL2, and BCL-XL in MiaPaCa-2 pancreatic cancer cells upon treatment with EF24 and 2d. (C) Induction of PARP cleavage in MiaPaCa-2 cells upon treatment with EF24 and 2d.
Pharmaceutics 15 01921 g003
Pharmaceutics 15 01921 g004 550

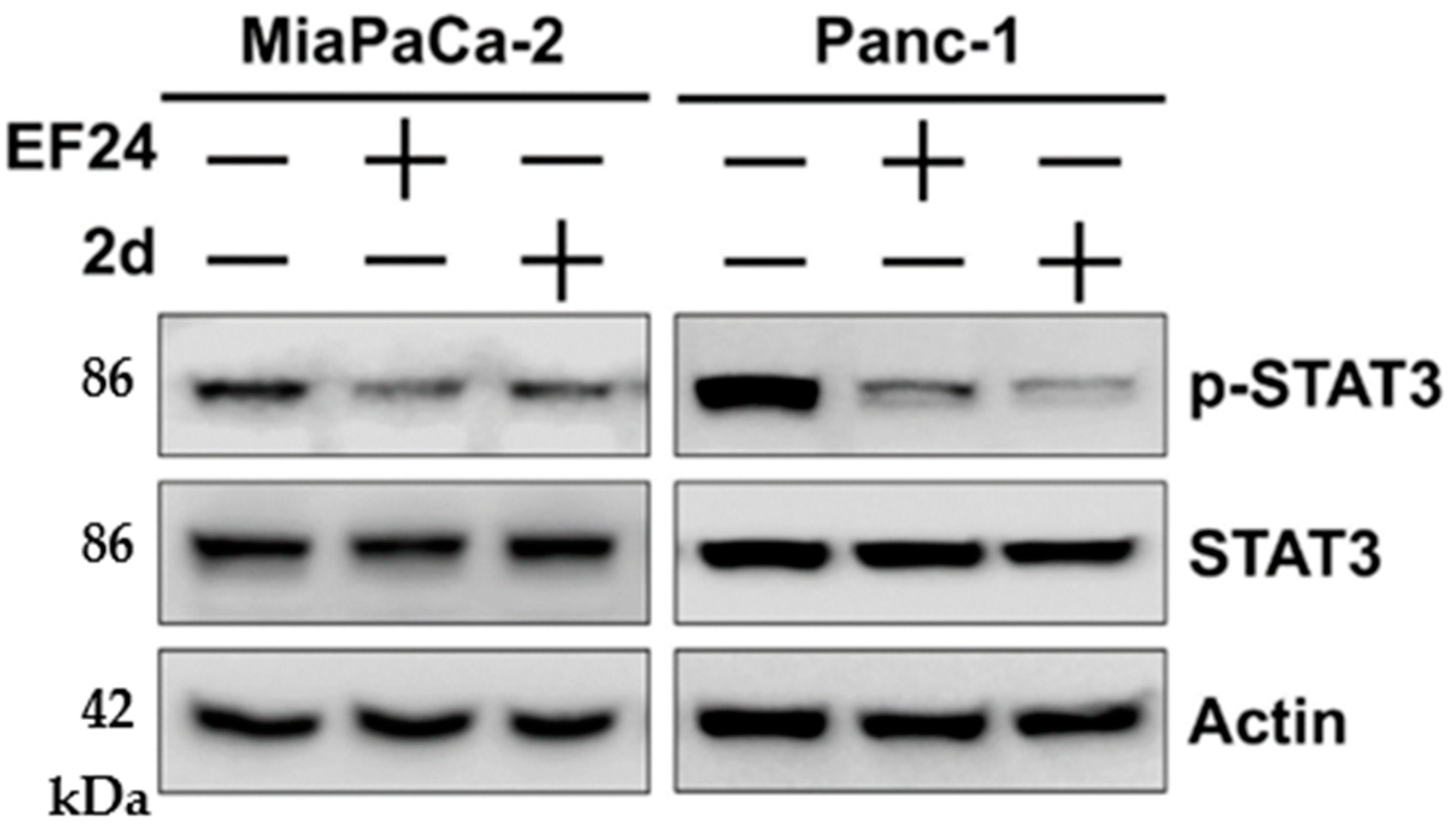

Figure 4. Protein levels of STAT3 and p-STAT3 in MiaPaCa-2 and Panc-1 pancreatic cancer cells upon treatment with EF24 and 2d.
Figure 4. Protein levels of STAT3 and p-STAT3 in MiaPaCa-2 and Panc-1 pancreatic cancer cells upon treatment with EF24 and 2d.
Pharmaceutics 15 01921 g004
Pharmaceutics 15 01921 g005 550

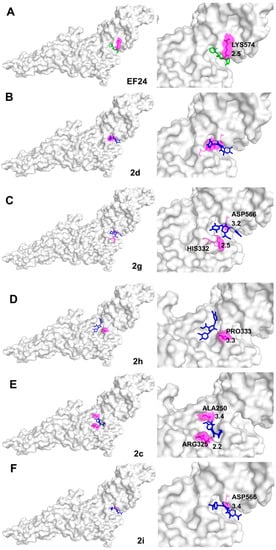

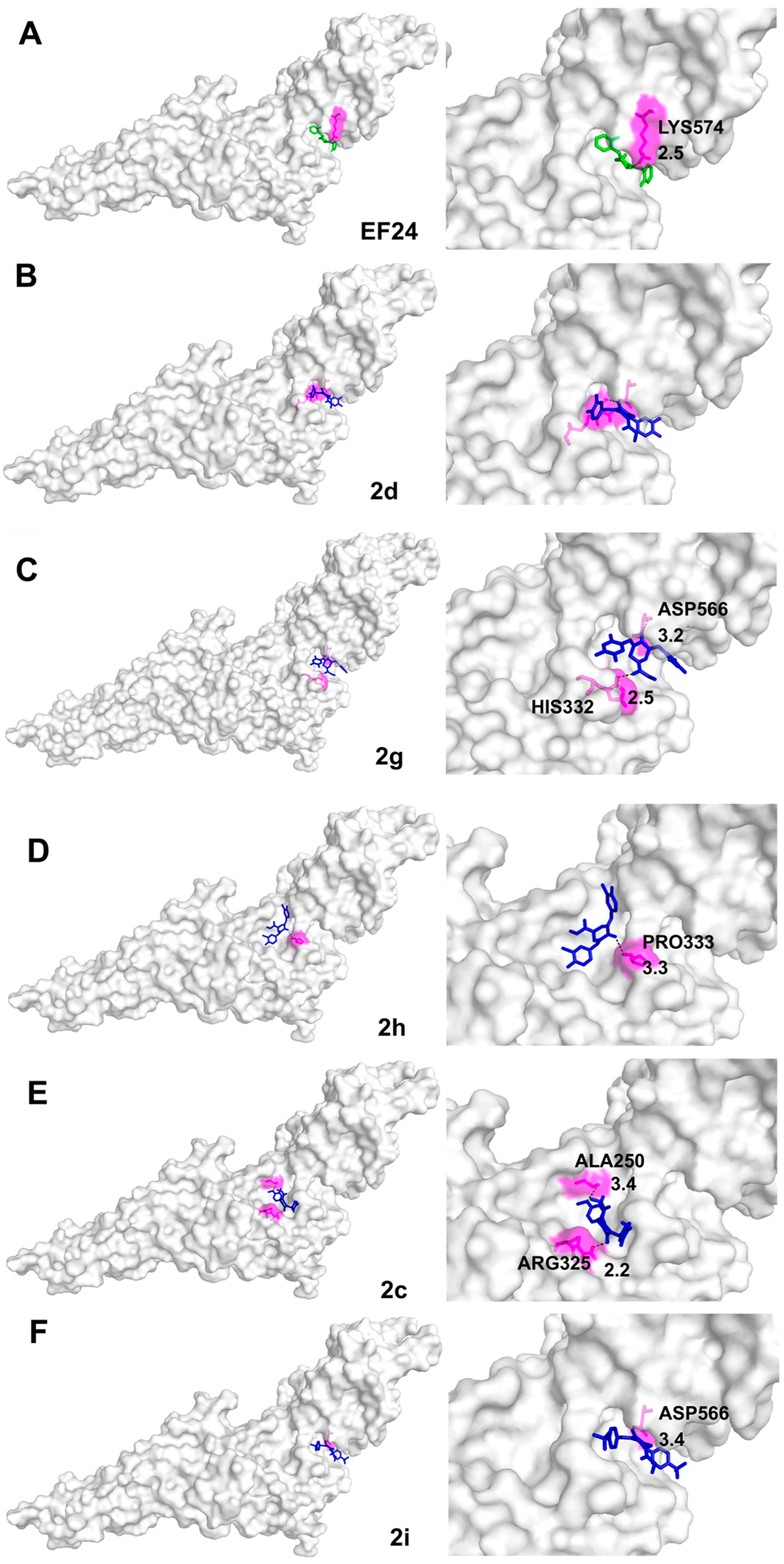

Figure 5. Molecular docking of EF24 (1a, (A)) and analogs 2c (E), 2d (B), 2g (C), 2h (D), and 2i (F) in STAT3.
Figure 5. Molecular docking of EF24 (1a, (A)) and analogs 2c (E), 2d (B), 2g (C), 2h (D), and 2i (F) in STAT3.
Pharmaceutics 15 01921 g005
Table
Table 1. Inhibitory concentrations (IC50 in µM) 1 of test compounds when applied to pancreatic cancer cells MiaPaCa-2 and Panc-1 after 72 h. Irinotecan served as a positive control. Compounds 1c–f were not tested because of their low solubility.
Table 1. Inhibitory concentrations (IC50 in µM) 1 of test compounds when applied to pancreatic cancer cells MiaPaCa-2 and Panc-1 after 72 h. Irinotecan served as a positive control. Compounds 1c–f were not tested because of their low solubility.
CompoundMiaPaCa-2Panc-1
1a (EF24)1.03 ± 0.191.52 ± 0.25
1b0.73 ± 0.031.13 ± 0.06
1g0.73 ± 0.121.32 ± 0.18
1h0.98 ± 0.032.03 ± 0.06
1i0.93 ± 0.062.78 ± 0.35
1j2.87 ± 0.217.32 ± 0.53
2a4.14 ± 0.187.37 ± 0.31
2b0.68 ± 0.041.05 ± 0.05
2c0.29 ± 0.120.51 ± 0.15
2d0.31 ± 0.050.53 ± 0.20
2e0.58 ± 0.031.02 ± 0.03
2f0.78 ± 0.031.13 ± 0.06
2g0.50 ± 0.100.74 ± 0.16
2h0.37 ± 0.140.64 ± 0.20
2i0.32 ± 0.120.77 ± 0.18
2j2.48 ± 0.083.78 ± 0.29
Irinotecan1.29 ± 0.361.49 ± 0.58
1 IC50 values ± SD were calculated from the dose–response curves of three independent experiments.
Table
Table 2. Binding energies (B.E.) and H bond formation for 1a, 2c, 2d, 2g–i when docked into STAT3.
Table 2. Binding energies (B.E.) and H bond formation for 1a, 2c, 2d, 2g–i when docked into STAT3.
CompoundB.E. (kcal/mol)No. of H BondsAmino AcidsDistance (Å)
1a (EF24)−7.31LYS5742.5
2d−7.92ASP566
ARG335		3.2
2.6
2g−8.32HIS332
ASP566		2.5
3.2
2i−7.51ASP5663.2
2h−7.51PRO3333.3
2c−6.62ALA250
ARG325		3.4
2.2
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ghosh, H.; Bhattacharyya, S.; Schobert, R.; Dandawate, P.; Biersack, B. Fluorinated and N-Acryloyl-Modified 3,5-Di[(E)-benzylidene]piperidin-4-one Curcuminoids for the Treatment of Pancreatic Carcinoma. Pharmaceutics 2023, 15, 1921. https://doi.org/10.3390/pharmaceutics15071921

AMA Style

Ghosh H, Bhattacharyya S, Schobert R, Dandawate P, Biersack B. Fluorinated and N-Acryloyl-Modified 3,5-Di[(E)-benzylidene]piperidin-4-one Curcuminoids for the Treatment of Pancreatic Carcinoma. Pharmaceutics. 2023; 15(7):1921. https://doi.org/10.3390/pharmaceutics15071921

Chicago/Turabian Style

Ghosh, Hindole, Sangita Bhattacharyya, Rainer Schobert, Prasad Dandawate, and Bernhard Biersack. 2023. "Fluorinated and N-Acryloyl-Modified 3,5-Di[(E)-benzylidene]piperidin-4-one Curcuminoids for the Treatment of Pancreatic Carcinoma" Pharmaceutics 15, no. 7: 1921. https://doi.org/10.3390/pharmaceutics15071921

APA Style

Ghosh, H., Bhattacharyya, S., Schobert, R., Dandawate, P., & Biersack, B. (2023). Fluorinated and N-Acryloyl-Modified 3,5-Di[(E)-benzylidene]piperidin-4-one Curcuminoids for the Treatment of Pancreatic Carcinoma. Pharmaceutics, 15(7), 1921. https://doi.org/10.3390/pharmaceutics15071921

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
