A Human Brain-Chip for Modeling Brain Pathologies and Screening Blood–Brain Barrier Crossing Therapeutic Strategies

Abstract

Background/Objectives: The limited translatability of preclinical experimental findings to patients remains an obstacle for successful treatment of brain diseases. Relevant models to elucidate mechanisms behind brain pathogenesis, including cell-specific contributions and cell-cell interactions, and support successful targeting and prediction of drug responses in humans are urgently needed, given the species differences in brain and blood-brain barrier (BBB) functions. Human microphysiological systems (MPS), such as Organ-Chips, are emerging as a promising approach to address these challenges. Here, we examined and advanced a Brain-Chip that recapitulates aspects of the human cortical parenchyma and the BBB in one model. Methods: We utilized human primary astrocytes and pericytes, human induced pluripotent stem cell (hiPSC)-derived cortical neurons, and hiPSC-derived brain microvascular endothelial-like cells and included for the first time on-chip hiPSC-derived microglia. Results: Using Tumor necrosis factor alpha (TNFα) to emulate neuroinflammation, we demonstrate that our model recapitulates in vivo-relevant responses. Importantly, we show microglia-derived responses, highlighting the Brain-Chip’s sensitivity to capture cell-specific contributions in human disease-associated pathology. We then tested BBB crossing of human transferrin receptor antibodies and conjugated adeno-associated viruses. We demonstrate successful in vitro/in vivo correlation in identifying crossing differences, underscoring the model’s capacity as a screening platform for BBB crossing therapeutic strategies and ability to predict in vivo responses. Conclusions: These findings highlight the potential of the Brain-Chip as a reliable and time-efficient model to support therapeutic development and provide mechanistic insights into brain diseases, adding to the growing evidence supporting the value of MPS in translational research and drug discovery.

1. Introduction

The aging global population and the increasing prevalence of age-related diseases of the Central Nervous System (CNS), such as Alzheimer’s and other neurodegenerative diseases, pose significant social and economic challenges. In the USA alone, the economic burden of these diseases reached USD 305 billion in 2020 and is projected to soar to USD 1.1 trillion by 2050 [1,2].

Despite significant advancements in animal models and the valuable insights they have provided into brain physiology, data from animal research have often failed to predict human clinical trial outcomes, underlying the very limited availability of effective drugs for a number of brain diseases [3,4,5,6,7]. A major contributor to this limited translatability is the brain’s complexity and function, which involves dynamic signaling between the numerous neuronal circuits and interactions of neurons with their surrounding cells, such as microglia and astrocytes, and the vasculature [3,6,8,9,10]. This inherent complexity of the brain along with species-specific differences in its function pose substantial challenges to the in vivo investigation of the contribution of different cell types in the mechanisms underlying brain diseases and, therefore, the identification of specific druggable targets for patients. Furthermore, it hampers our understanding of the interactions between the blood–brain barrier (BBB) with the parenchymal cells and its potential role in disease pathogenesis and effective therapeutic targeting [10,11,12,13].

The BBB is a complex network of endothelial cells, pericytes and astrocytes with a number of species-specific features [14,15,16,17,18,19,20,21,22]. The tight junctions between the endothelial cells exert stringent control over the passage of molecules and harmful substances circulating in the bloodstream, ensuring CNS homeostasis and protection against neurotoxic insults. Therefore, much effort is devoted to the understanding of the biology of the human BBB and to developing strategies to overcome its restrictive properties for the successful delivery of brain therapeutics [13,23,24,25].

Considering these challenges, the low success rate in translating experimental findings into effective patient treatments is not unsurprising and underscores the urgent need for the development of more effective models for testing CNS drugs before the first in-human studies [3,26]. Addressing the challenge of modeling the BBB and the complexity of brain function necessitates the development of models that may recapitulate critical aspects of their physiological complexity, thereby increasing the chances of successfully predicting drug responses in humans. This need is further endorsed by the recent FDA Modernization Act 2.0, which authorizes the use of certain alternatives to animal testing, including cell-based and computer models, to obtain an exemption from the FDA to investigate the safety and effectiveness of a new drug (congress.gov/bill/117th-congress/senate-bill/5002; [27]).

Recent advancements in human microphysiological systems (MPS) and Organ-Chip technologies are emerging as promising approaches to achieve this goal and provide robust and reproducible systems for disease modeling and drug development [6,7,28,29,30,31,32,33,34,35]. Microengineered Organ-Chips enable recreating a more physiological microenvironment, including the co-culture of relevant cells on tissue-specific extracellular matrices (ECMs), exposure to continuous flow, and other in vivo-relevant mechanical forces such as fluidic shear stress [28,34,36,37,38,39]. Several BBB-Chip models have been designed to reconstitute the neurovascular interface [40,41,42,43,44] and have shown potential for exploring the BBB permeability of compounds [45], nanoshuttles [46], screening for identification of Adeno-associated viruses (AAVs) with enhanced BBB penetration [47], or endothelial cell receptor-mediated transcytosis for putative brain shuttle application [48]. However, the majority of these models have not included combinations of all key BBB cell types with neurons and microglia, critical for the function of the neurovascular unit and better emulation of in vivo conditions [12,49]. In addition, omitting key brain parenchymal cell types limits the potential for characterizing the brain cell populations targeted by a BBB-crossing therapeutic and the early identification of therapeutic range and potentially adverse effects.

In this study, we aimed to develop a Brain-Chip to bridge some of these gaps. Using a commercially available platform, we developed a chip that includes key cell types of the cortical neurovascular unit in a single model and has a BBB with physiologically relevant permeability. We utilized human wild-type primary astrocytes and pericytes, human induced pluripotent cell (hiPSC)-derived cortical glutamatergic and GABAergic neurons to better mimic the neurocircuitry, hiPSC-derived brain microvascular endothelial-like cells (iBMECs), and, for the first time, reported a Brain-Chip, hiPSC-derived microglia. We provide strong evidence that our model shows in vivo-relevant responses to pharmacological and inflammatory challenges, including disruption of the BBB, and can identify cell-specific contributions. Most importantly, we demonstrate in vivo-relevant specificity and sensitivity in screening human transferrin receptor 1 (hTfR1)-based BBB-crossing therapeutic strategies, while enabling the evaluation of target engagement in brain parenchymal cells. Altogether, our data demonstrate the value of using a human brain cell-based microphysiological system (Brain-Chip) as a reliable and time-sensitive model for therapeutic development and mechanistic insights into human brain diseases, an unmet medical need.

2. Materials and Methods

2.1. Cell Culture

Commercial human iPSC-derived cortical glutamatergic and GABAergic neurons and human primary astrocytes were purchased from NeuCyte (Mountain View, CA, USA; SynFire^® Co-Culture kit; Cat.# 1010-7.5). The cells were cultured in Neucyte cell maintenance media. Primary human brain pericytes (isolated from human cerebral cortex tissue) were purchased from Cell Systems (Kirkland, WA, USA; Cat.# ACBRI 498) and cultured according to the manufacturer’s protocol. Human iPSC-derived microglia were purchased from Fujifilm Cellular Dynamics (Madison, WI, USA; Cat.# C1110).

2.2. Differentiation of hiPSCs into Human Brain Microvascular Endothelial-like Cells (iBMECs)

Human-induced pluripotent stem cells (hiPSCs) were purchased from iXCell Biotechnologies (San Diego, CA, USA; Cat.# 30HU-002; Lot.# 400221) and maintained in mTeSR™ Plus medium (Cambridge, MA, USA; Stemcell Technologies, Cat#. 100-0276) in six-well culture plates coated with Matrigel (Glendale, AZ, USA; Corning, Cat.# 354277). Directed differentiation of hiPSCs was adapted from a previous publication [50]. Briefly, hiPSCs were expanded in mTeSR™ Plus medium. The cells were then treated with 6 µM CHIR99021 (Reprocell, Beltsville, MD, USA; Cat.# 04-0004-10) in DeSR1 medium, which is composed of DMEM/Ham’s F12 (Thermo Fisher Scientific, Carlsbad, CA, USA; Cat.# 11039021), 1% MEM-NEAA (Thermo Fisher Scientific, Carlsbad, CA, USA; Cat.# 11140050), and 0.1 mM 2-Mercaptoethanol (Sigma, St. Louis, MO, USA; Cat.# M3148). Twenty-four hours later, the medium was replaced by DeSR2 medium [DeSR1 plus 1x B27 (Thermo Fisher Scientific, Carlsbad, CA, USA; Cat.# 17504044)]; the medium was refreshed every day for a period of another 5 days. On day 6, the medium was switched to hECSR1 [Human Endothelial SFM (Thermo Fisher Scientific, Carlsbad, CA, USA; Cat.# 11111044) supplemented with 20 ng/mL bFGF (R&D Systems, Minneapolis, MN, USA; Cat.# 233-FB), 10 μM retinoic acid (Sigma, St. Louis, MO, USA; Cat.# R2625), and 1x B27]. On day 8, the medium was replenished with freshly prepared hECSR1. On day 9, the cells were switched to hESCR2 medium (Human Endothelial SFM supplemented with 1x B27). On day 10, the cells were dissociated with Accutase (Stemcell Technologies, Cambridge, MA, USA; Cat.# 07920) and replated in a T-75 flask coated with 400 μg/mL Collagen IV (Sigma, St. Louis, MO, USA; Cat.# C5533), 100 μg/mL Fibronectin (Corning, Glendale, AZ, USA; Cat.# 356008), and 20 μg/mL Laminin (Thermo Fisher Scientific, Carlsbad, CA, USA; Cat.# 23017015). After 20 min, the unattached cells were removed using Human Endothelial SFM supplemented with 5% human serum (Sigma, St. Louis, MO, USA; Cat.# P2918) and 10 µM Y27632. The iBMECs were maintained in Human Endothelial SFM supplemented with 5% human serum until seeding into the Brain-Chip.

2.3. Brain-Chip Microfabrication and Zoë^® Culture Module

Organ-Chips (Chip-S1^®, Emulate, Inc. Boston, MA, USA) were used to setup the human Brain-Chip [51,52]. The chip is made of transparent, flexible polydimethylsiloxane (PDMS), an elastomeric polymer, and contains the following parallel microchannels: the top (brain) channel and the bottom (vascular) channel (dimensions: 1 × 1 mm and 1 × 0.2 mm, respectively). The two channels are separated by a thin (50 μm) porous membrane (pore diameter: 7 μm; pore spacing: 40 μm) made of PDMS. The co-culture area of two parallel channels is 17.1 mm². Flow can be introduced to each channel independently to provide essential nutrients to the cells continuously, while effluent containing any secretion/waste components from cells is collected on the outlet of each channel separately. The Zoë^® culture module (Emulate) is the instrumentation designed to automate the maintenance of the chips (12 chips per module) in a controlled manner.

2.4. Human Brain-Chip and Cell Seeding

Prior to cell seeding, the chips were functionalized using Emulate’s proprietary protocols and reagents. Briefly, ER-1 (Emulate, Boston, MA, USA; Cat.# ER-105) and ER-2 (Emulate, Boston, MA, USA; Cat.# ER-225) were mixed at a concentration of 1 mg/mL before their addition to the top and bottom channels of the chip. The platform was then irradiated with high-power UV light having peak wavelength of 365 nm and intensity of 100 μJ/cm² for 20 min using a UV oven (AnalytiK-Jena, Tewksbury, MA, USA; CL-1000 Ultraviolet Crosslinker, Cat.# 95-0228-01). After surface functionalization, both channels of the chip were coated with Collagen IV (400 μg/mL), Fibronectin (100 μg/mL), and Laminin (20 μg/mL), and incubated at 4 °C overnight. Before cell seeding, the chips were incubated at 37 °C for 1 h, followed by a PBS wash. The top (brain) channel was then seeded with a mix of hiPSC-derived glutamatergic and GABAergic neurons (4 × 10⁶ cells/mL and 2 × 10⁶ cells/mL, respectively), human primary astrocytes (2 × 10⁶ cells/mL), human iPSC-derived microglia (8 × 10⁵ cells/mL), and primary pericytes (2 × 10⁵ cells/mL). The cells were mixed in “seeding medium” (NeuCyte, Mountain View, CA, USA) and incubated in the channel for three hours (37 °C and 5% CO₂). The top channel was then washed with seeding medium to remove unattached cells and incubated overnight at the same conditions. The next day, the iBMECs were seeded in the vascular channel at a density of 16 × 10⁶ cells/mL using iBMEC seeding medium (human serum-free endothelial cell medium supplemented with 5% human serum from platelet-poor human plasma (Sigma, St. Louis, MO, USA; Cat.# P2918) and allowed to attach to the membrane overnight (the bottom side of the chip was facing up during this period). The iBMECs were incubated in the channel for 3 h and then washed with iBMEC seeding medium to remove unattached cells. After overnight incubation (37 °C and 5% CO₂), the chips were flipped back to their original orientation and connected to the Zoë^® Culture Module. The medium supplying the brain channel was switched to maintenance medium (Neucyte, Mountain View, CA, USA), whereas the serum of the vascular medium was lowered to 2% (vascular maintenance medium). The chips were maintained under constant one-way flow (30 μL/h for both the brain and vascular channel; shear stress: 0.01 dyn/cm²) at 37 °C with 5% CO₂.

We used cell densities consistent with those reported in previous Brain-Chip studies, specifically those using the Emulate platform [51,52]. The cell proportions are comparable to those reported in vivo [53,54,55], although we acknowledge that it is challenging to exactly replicate the natural (in vivo) cellular environment in an in vitro setting.

2.5. Immunofluorescence Microscopy

The chips were fixed with 4% paraformaldehyde in PBS for 15 min and then washed with PBS six times. Incubation of the chips in blocking/permeabilization buffer (10% donkey serum, 0.1% Saponin in PBS) for 2 h was the next step followed by an overnight incubation at 4 °C with primary antibodies diluted in blocking/permeabilization buffer (for antibody dilutions, see the “Antibodies” Section of “Material and Methods”). After six washes with washing buffer (PBS with 0.1% Saponin), the cells were incubated for 1 h at room temperature with secondary antibodies conjugated with Alexa Fluorophores in blocking/permeabilization. The cells were washed six times with PBS. Incubation for 2 min with Hoechst 33342 (NucBlue™ Live ReadyProbes™ Reagent; Invitrogen, Carlsbad, CA, USA; Cat.# R37605) for nuclear stain was the next step, followed by six washes with PBS and final mounting with (Ibidi, Gräfelfing, Germany; Cat.# 50001). Images were acquired with an LMS880 Zeiss confocal microscope (Zeiss, White Plains, NY, USA).

2.6. Antibodies

The antibodies used in this study included chicken anti-MAP2 (Abcam, Waltham, MA, USA; Cat.# ab5392, 1:200), mouse anti-GFAP (Abcam, Waltham, MA, USA; Cat.# ab279290, 1:300), rabbit anti-IBA1 (Fujifilm Cellular Dynamics, Madison, WI, USA; Cat.# 019-19741, 1:50), mouse anti-CD68 (Abcam, Waltham, MA, USA; Cat.# ab955, 1:100), rabbit anti-NG2 (Abcam, Waltham, MA, USA; Cat.# ab83178, 1:100), mouse anti-VGLUT1 (Invitrogen, Carlsbad, CA, USA; Cat.# MA5-31373, 1:100), rabbit anti-VGAT (Millipore, Burlington, MA, USA; Cat.# AB5062P, 1:100), rabbit anti-GLUT1 (Abcam, Waltham, MA, USA; Cat.# ab115730, 1:200), and rabbit anti-ZO1 (Invitrogen, Carlsbad, CA, USA; Cat.# 40-2200, 1:50). Secondary antibodies conjugated with Alexa Fluor-488 (Abcam, Waltham, MA, USA; Cat.# ab63507 and ab150073), Alexa Fluor-568 (Abcam, Waltham, MA, USA; Cat.# ab175470) and Alexa Fluor-647 (Abcam, Waltham, MA, USA; Cat.# ab150075 and ab150107) were used at 1:300 dilution.

2.7. BBB Permeability Assay

To evaluate the integrity of the BBB, 3 kDa Dextran-Cascade Blue (Invitrogen, Carlsbad, CA, USA; Cat.# D7132) was added to the vascular compartment of the Brain-Chip at 0.1 mg/mL. The effluents from both channels were collected daily for 1 or more days (depending on the experiment) for fluorescence measurements by SpectraMax M4 (Molecular Devices, San Jose, CA, USA). The apparent permeability (Papp) was calculated based on a standard curve and using the following formula, as previously described [52]:

$$P_{app}={\displaystyle \frac{Q_R+Q_D}{SA\ast \left(Q_R+Q_D\right)}}\ast \ln \left[1-{\displaystyle \frac{C_{R,0}\ast \left(Q_R+Q_D\right)}{\left(Q_R\ast C_{R,0}+Q_D\ast C_{D,0}\right)}}\right]$$

where SA represents the surface area of the overlapping sections of the channels (0.17 cm²), indicating the area through which the tracer (dextran) is able to transport from the dosing channel to the receiving channel, and the permeability is assessed. QR refers to the fluid flow rate in the dosing (vascular) channel, measured in cm³/s. This parameter represents the movement of dextran across the endothelial barrier. QD is the flow rate in the receiving (brain) channel, also measured in cm³/s. This value indicates the rate at which fluid is collected from the outlet of the receiving channel for analysis. CR,O refers to the concentration of dextran recovered from the outlet of the dosing (vascular) channel, used to evaluate permeability relative to the original concentration. CD,O represents the concentration of dextran recovered from the outlet of the receiving (brain) channel, reflecting the amount of dextran that permeated through the endothelial barrier [56,57].

2.8. Pharmacological Studies with Bicuculline

Bicuculline to block γ-Aminobutyric acid type A (GABA_A) receptors and GABAergic transmission was purchased from Tocris and used at 20 μM (Minneapolis, MN, USA; Cat.# 0130). The AMPA receptor antagonist CNQX (6-cyano-7-nitroquinoxaline-2,3-dione) was used at 25 μM (Tocris, Minneapolis, MN, USA; Cat.# 0190) to block glutamatergic transmission simultaneously. Prior to the addition of the drugs, the effluents of the chips were removed from the outlets to ensure the collection of fresh effluents during the experiment. After two hours and immediately before the drug administrations, the brain channel effluents were collected for the measurement of the baseline levels of glutamate. Brain channel effluents were again collected at the end of the 2 h perfusion of the drugs. Perfusion of the chips continued with fresh and drug-free maintenance culture media for four more hours. Brain channel effluents were collected 2 and 4 h after the removal of the drugs. Glutamate was measured using an assay kit purchased from Abcam (Waltham, MA, USA; Cat.# ab83389). The chips treated with DMSO were used as controls, given that DMSO was used to reconstitute bicuculline and CNQX.

2.9. TNF-α Induced Neuroinflammation

The Brain-Chips were incubated in microfluidics prior to exposure to TNFα (R&D Systems, Minneapolis, MN, USA; Cat.# 210-TA), which was perfused to the brain channel at a 100 ng/mL concentration starting on day 2. On day 3, the brain channel media were replenished with freshly prepared TNFα. Effluents from the brain channel collected immediately before the administration of TNFα (day 2) were used for baseline measurements. During the two days of the administration of TNFα, effluents were collected on a daily basis (days 3 and 4) for analysis. Extracellular glutamate was measured in effluents collected at the end of TNFα administration (day 4) using the same kit used for the glutamate measurements in the bicuculline experiment (Abcam, Waltham, MA, USA; Cat.# ab83389). The chips were then fixed for immunostaining and confocal microscopy. BBB permeability assays to examine the integrity of the barrier were performed on a daily basis, as described above. The levels of secreted cytokines and chemokines in the collected effluents were measured using the MILLIPLEX MAP Human Cytokine/Chemokine Magnetic Bead Panel-Immunology Multiplex Assay from Millipore (Burlington, MA, USA; Cat.# HCYTOMAG-60K), following the manufacturer’s directions. Chips with similar culture conditions but perfused with PBS were used as controls. The experimenter was blinded to the treatment groups.

2.10. BBB Crossing Studies

We tested the specificity of the Brain-Chip using a human TfR1 antibody (JCR Pharmaceuticals clone 3) [58] and a mouse TfR1 antibody (8D3 clone) [59]. The antibodies were added in vascular maintenance medium at 10 μg/mL concentration and flowed to the vascular channel at 30 μL/h for 24 h, at which point the brain channel effluents were collected for analysis. The detection and quantification of antibodies were performed by a human IgG1-specific ELISA kit (Abcam, Waltham, MA, USA; Cat.# ab100548).

The purified hTfR1 antibodies used to test the sensitivity of the Brain-Chip to detect BBB crossing differences were internally generated (Regeneron Pharmaceuticals, Inc., Tarrytown, NY, USA). We replaced the culture media of the iBMECs with serum-free Human Endothelial SFM one hour prior to the perfusion of the antibodies. The antibodies were added in the serum-free media (10 μg/mL) and flowed to the vascular channel at 30 μL/h for eight hours, at which point the brain channel effluents were collected for detection and quantification of the antibodies using ELISA (Abcam, Waltham, MA, USA; Cat.# ab157709).

All AAV9 were obtained from the Viral Production Core at Regeneron Pharmaceuticals, Inc. (Tarrytown, NY, USA). The packaged genome contained a single-stranded GFP reporter driven by the scCBh promoter. The viruses (1 × 10¹⁰ viral genomes per chip) were added in the vascular maintenance medium and flowed to the vascular channel at 30 μL/h for 2 days. Cell lysates were collected from the top and bottom channels two days after the perfusion of the viruses. GFP protein quantification was performed using the Ella™ Automated ELISA platform (Bio-techne, Minneapolis, MN, USA; Cat.# SPCKB-OT-002820). For the quantification of viral genomes, DNA was collected from the cell lysates at the end of the viral perfusion using the DNA Extract All Reagents Kit from Thermo Fisher Scientific (Carlsbad, CA, USA; Cat.# 4402616). Digital PCR was performed to quantify the AAV ITR2 sequence (5′-3′; Forward primer: GGAACCCCTAGTGATGGAGTT-3′, Reverse primer: CGGCCTCAG-TGAGCGA, Probe Sequence: CACTCCCTCTCTGCGCGCTCG) using the QIAcuity Probe PCR Kit (Qiagen, Germantown, MD, USA; Cat.# 250103) and the QIAcuity Digital PCR System (Qiagen, Germantown, MD, USA; Cat.# 911050), following the manufacturer’s protocol. The experimenter was blinded to the treatment groups in all BBB crossing experiments.

2.11. Statistical Analysis

Statistical analysis was performed using GraphPad Prism software (Version 10). When comparing two groups, we applied an unpaired Student’s t-test, while for multiple group comparisons (e.g., BBB crossing studies), we utilized one-way ANOVA followed by Tukey’s test. Additionally, Papp analysis for chips with and without TNFα treatment across multiple days was evaluated using two-way ANOVA with Tukey’s post hoc test. The significance level was set at p < 0.05 for all tests. The error bars in our figures represent the standard error of the mean (SEM), and sample sizes are described in each figure legend.

3. Results

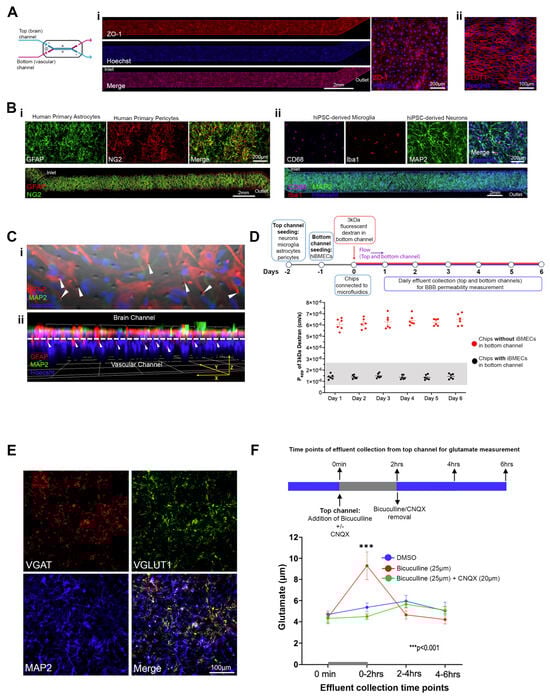

3.1. Development and Characterization of the Human Cortical Brain-Chip Model

To generate our Brain-Chip model, we first seeded the top channel (referred to as the “brain” channel) with human primary astrocytes and pericytes, human iPSC-derived cortical glutamatergic (excitatory) and GABAergic (inhibitory) neurons, to better mimic the neurocircuitry of the human brain cortex, and hiPSC-derived microglia, which is reported in the system for the first time. Previous Brain-Chip and BBB-Chip models used a microglial cell line derived from SV40-dependent immortalization of human fetal brain primary microglia (CRL-3304) [51,52] or no microglia at all [43,60]. We chose to utilize hiPSC-derived microglia to develop a model that would enable future examination of the effects of CNS disease-associated genetic mutations in microglia cells and their contributions to cell–cell interactions and disease pathology, a role increasingly apparent in recent years [61,62,63,64,65].

Twenty-four hours after seeding the brain channel (Day 1), we seeded the bottom channel (referred to as the “vascular” channel) with iBMECs. On Day 2, the Brain-Chips were connected to the automated microfluidics system using a constant fluid flow of 30 μL/h for both the brain and vascular channels (Figure S1).

To confirm the attachment and presence of all cell types in the chip, we performed immunocytochemistry after six days in microfluidics, using the following cell-type-specific markers: Glucose transporter 1 (GLUT1) for iBMECs, Glial fibrillary acidic protein (GFAP) for astrocytes, Neural/glial antigen 2 (NG2) for pericytes, Ionized calcium binding adaptor molecule 1 (Iba1) and Cluster of Differentiation 68 protein (CD68) for microglia, and the neuronal dendritic marker MAP2 (microtubule-associated protein 2) for the detection of neurons. All cells were present and uniformly distributed throughout the respective channel (Figure 1A,B for iBMECs and brain cells, respectively). Using immunofluorescence labeling, confocal microscopy, and digital 3D image reconstruction, we also show that the astrocytes extend end-feet-like processes through the pores of the membrane reaching the endothelial cells in the vascular channel (Figure 1C), consistent with previous studies [43,51] and the role of astrocytes in the formation of the neurovascular unit and a tight BBB [66].

To ensure formation of a functional barrier, we first examined the formation of tight junctions by iBMECs using immunostaining against ZO-1 (Zona Occludens-1), a main marker of tight junctions. The iBMECs formed a uniform layer of tight junctions throughout the vascular channel (Figure 1A). Next, we measured the barrier’s apparent permeability (Papp) for a 3 kDa fluorescent dextran, starting on Day 1 in microfluidics and continuing for six days (Figure 1D). Papp ranged between 1.0 × 10⁻⁶ cm/s and 1.7 × 10⁻⁶ cm/s, values comparable with those shown in previous studies with Brain-Chips and in rodent models (Figure 1D) [51,52,67,68].

We confirmed the presence of glutamatergic and GABAergic neurons in our chips by immunostaining against Vesicular Glutamate Transporter 1 (VGLUT1) and Vesicular GABA Transporter (VGAT), respectively (Figure 1E). We then tested whether these two types of neurons form functional synaptic connections and communicate. Since the chip is a closed system and electrophysiology is not possible, we used pharmacology and pulse-chase experiments. Neuronal and circuit excitability result from the synergistic action of excitatory and inhibitory inputs. Accordingly, blockade of inhibitory transmission results in enhanced excitatory transmission and increased glutamate release and extracellular glutamate levels [69,70,71]. After four days in microfluidics, GABAergic transmission in the Brain-Chips was blocked by local (brain channel) transfusion of the GABA_A receptor blocker, bicuculline (20 μΜ). Brain channel effluents for glutamate measurement were collected immediately before the addition of bicuculline, at the end of its perfusion, which lasted 2 h, and two and four hours later. As shown in Figure 1F, extracellular glutamate was significantly increased 2 h after the application of bicuculline and returned to baseline levels two hours after the removal of the drug. Consistent with increased excitatory neurotransmission, the effect of bicuculline on extracellular glutamate was abolished when the drug was administered together with CQNX, an AMPA receptor antagonist, in a parallel experiment (Figure 1F).

In summary, our data demonstrate good reconstitution of our Brain-Chip model with all the seeded cortical brain parenchyma cell types present, with functional inhibitory and excitatory neuronal connections and circuitry, and a tight BBB, for at least six days in microfluidics.

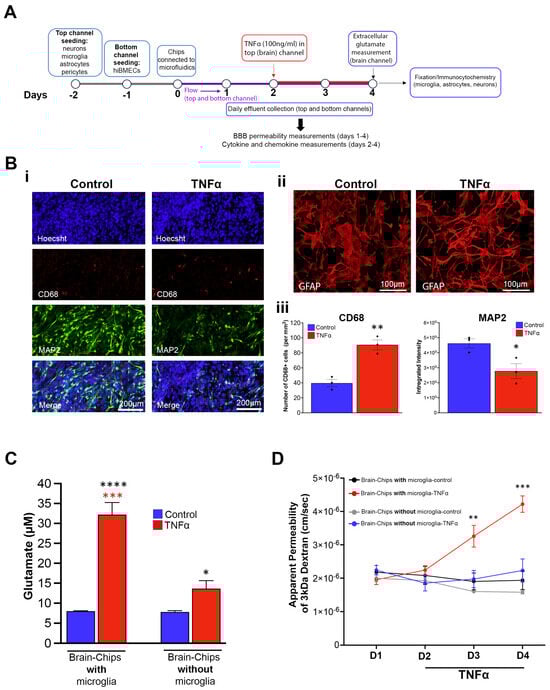

3.2. The Brain-Chip Model Recapitulates TNFα-Induced Neuroinflammation and Provides Evidence of Microglia-Specific Responses

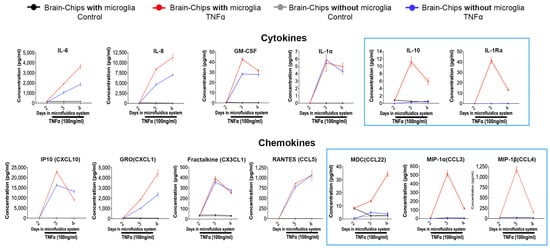

Previous studies using Brain-Chips with the same cell types, but with a human microglial cell line, have shown that the system is functional and responsive to challenges associated with brain pathology, such as TNFα, and consequent induction of neuroinflammation, as demonstrated by assessment of three cytokines 2 days after exposure to TNFα [51]. To validate our model and, importantly, the functionality of the hiPSC-derived microglia used in it, we followed a similar approach, which is outlined in Figure 2A. Briefly, the Brain-Chips were perfused with TNFα directly into the brain channel at a concentration of 100 ng/mL starting on Day 2 in microfluidics for two days. The concentration of TNFα was the same as that used in previous studies and has been shown to induce the release of proinflammatory factors and compromise the integrity of the BBB [51,72,73,74]. Effluents for analysis were collected on Day 2, just before TNFα dosing, and then every 24 h for two more days (Days 3 and 4), at which point the chips were fixed for immunofluo-rescence staining. Chips dosed with PBS were used as the control. The brain channel effluents were collected for examination of cytokines and chemokines. Extracellular glutamate was also measured in the brain effluent collected on Day 4. Compared with the control chips, we observed that exposure to TNFα resulted in (1) microglia activation, as evidenced by the increased number of cells positive to CD68, which is a lysosomal marker of microglia indicative of microglial reactivity (Figure 2B and Figure S2), (2) transition of the morphology of astrocytes from a polygonal to a thinner and more elongated shape with longer processes, suggesting reactive astrogliosis (Figure 2B and Figure S3), (3) reduction in the neuronal dendritic marker MAP2, indicating reduced neuronal complexity and potential neuronal dysfunction (Figure 2B and Figure S2), (4) a significant increase in extracellular glutamate levels (Figure 2C), (5) disruption of the integrity of the BBB, as evidenced by the significant increase in its apparent permeability to 3kDa dextran (Figure 2D), and (6) induction of pro- and anti-inflammatory cytokines and chemokines (Figure 3). Of note, the daily collection of effluents enabled the identification of the temporal profile of the cytokine and chemokine responses to TNFα.

In addition to examining the Brain-Chips with all the cell types included in the model, we also examined, in parallel, the Brain-Chips without microglia. We found that the TNFα-induced increase in extracellular glutamate was ameliorated, and the disruption of the BBB was abolished in the Brain-Chips without microglia (Figure 2C,D). This is consistent with the important contribution of these cells to neuroinflammation and BBB disruption and in agreement with published works [12,75,76,77,78,79,80]. Additionally, we mapped the contribution of microglia to the temporal profile of cytokine and chemokine changes induced by TNFα. Indeed, a subset of cytokines (IL-6, IL-8, GM-CSF) and chemokines (GRO) continued to be induced by TNFα, but these responses were significantly lower in the chips without microglia. Notably, some cytokines and chemokines were not affected by the lack of microglia (IL-1a, IP-10, Fractalkine, and RANTES), whereas the TNFα-mediated induction of proinflammatory IL-10 and anti-inflammatory IL-1Ra and the chemokines MDC, MIP-1α, and MIP-1β was completely abolished (Figure 3). The microglial-specific induction of IL-10, IL-1Ra, MDC, MIP-1α, and MIP-1β levels are compatible with their expression profile, which is restricted to microglia and macrophages [81], in further support of the specificity of the responses obtained with the Brain Chip.

In summary, our validation data demonstrate the functionality of our Brain-Chip and the hiPSC-derived microglia used in the system for the first time, as well as the capability of our model to emulate pathological conditions affecting the brain. Moreover, we demonstrate that our model has the resolution to determine cell-specific contributions, leading to a better understanding the dynamic cell–cell interactions in brain pathogenesis.

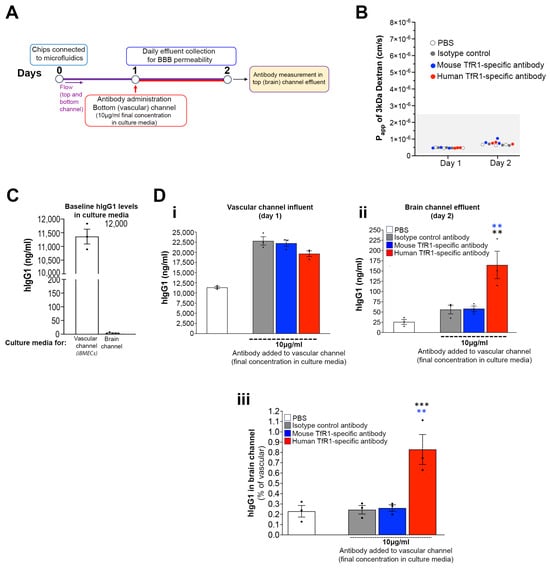

3.3. Human TfR1 but Not Mouse TfR1-Specific Antibody BBB Crossing in the Brain-Chip

A promising method extensively studied to overcome the BBB challenge for brain-targeting therapeutics is crossing the BBB via endothelial receptor-mediated transcytosis. Thus, we examined whether our cortical human Brain-Chip could serve as a screening platform for testing BBB-crossing therapeutic strategies, focusing on the human transferrin receptor 1 (hTfR1), a widely used approach for targeted brain drug delivery [82].

First, we examined the specificity of our model to detect hTfR1-mediated BBB crossing. After reconstitution and 24 h incubation in microfluidics (Day 1), the chips were perfused in the vascular channel for 24 h with a human antibody specific for human TfR1 [58] or mouse TfR1 [59] (10 μg/mL concentration in the endothelial cell culture media). Chips perfused with human IgG1 (isotype) or treated with PBS were used as negative controls. A 3 kDa fluorescent dextran was perfused in the vascular channel starting at the beginning of incubation in microfluidics (Day 0) for daily BBB permeability measurements to ensure that all chips had a tight BBB with comparable permeability (Days 1 and 2; Figure 4B).

The vascular channel media initially contained detectable human IgG1 (~11.3 ± 0.27 μg/mL), which was due to the supplementation of 2% human serum. After antibody dosing, hIgG1 levels increased in the media accordingly and were similar across the treatment groups (mean ± SEM; μg/mL for hIgG1, mTfR1 and hTfR1: 22.4 ± 1 μg/mL, 22.9 ± 0.74 μg/mL and 20.2 ± 0.7 μg/mL, respectively; Figure 4C,D). The brain channel media lacked human serum and had undetectable hIgG1 before dosing.

Twenty-four hours post-treatment, we collected brain channel effluents and measured hIgG1. The chips dosed with the hTfR1 antibody had significantly more hIgG1 in the brain channel compared with the chips dosed with the mTfR1 antibody (mean ± SEM; μg/mL; 150.8 ± 0.03 and 57.6 ± 0.007; hTfR1 and mTfR1, respectively). The hIgG1 levels in the brain channel of the mTfR1-treated chips were similar to those in the chips with isotype control antibody (64.8 ± 0.01 μg/mL) and slightly higher than the PBS-treated groups (25.9 ± 0.006 μg/mL) (Figure 4D). The normalized data showed that the percentage of vascular hIgG1 detected in the brain channel of the PBS-treated chips, which is likely due to paracellular transport, was indistinguishable from mTfR1- and isotype control-treated chips (mean ± SEM; 0.24 ± 0.05%, 0.26 ± 0.04% and 0.28 ± 0.05%; PBS, hIgG1 and mTfR1, respectively). In contrast, this percentage was significantly greater than all the other groups in the chips treated with the hTfR1 antibody (0.756 ± 0.1%). This effect was not due to changes in BBB integrity, as we identified no differences in permeability between the chips (Figure 4B). These data demonstrate human TfR1-specific BBB crossing in the human cortical Brain-Chip model.

3.4. The Brain-Chip Identifies BBB Crossing Differences between hTfR1 Antibodies

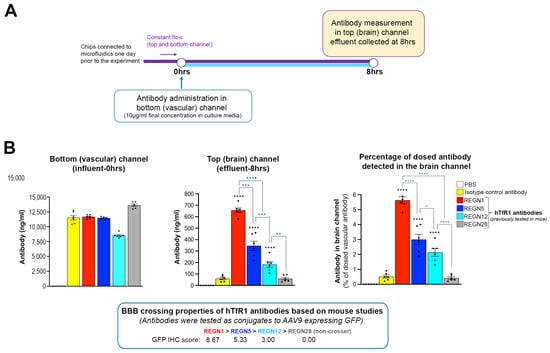

After establishing that the Brain-Chip can detect hTfR1-specific BBB crossing, we examined its ability to discern varying levels of hTfR1 antibody permeation. For this purpose, we tested internally generated hTfR1-specific antibodies. These antibodies had previously been evaluated in human TfR1 knock-in (KI) mice as hTfR1:AAV9_GFP formats (conjugated to AAV9 expressing GFP). Their BBB crossing ability was determined based on immunohistochemical detection of GFP in the mouse brain parenchyma and blinded scoring of the GFP signal (Figure S4).

For our Brain-Chip experiment, we used purified antibodies and selected a range of them based on their BBB crossing properties. Specifically, we tested the best crosser from the in vivo screening (REGN1), a good and a moderate crosser (REGN5 and REGN12, respectively), and a non-crosser (REGN28). The experimental design was similar to that used to test the specificity of the Brain-Chip with two modifications. First, we replaced the culture media of the iBMECs with serum-free media in order to eliminate the serum-derived IgG levels and, therefore, precisely measure the dosed antibodies. Second, we perfused the antibodies for eight hours (Figure 5A). The chips were equilibrated for 24 h in microfluidics prior to perfusion with the antibodies, which were dosed in the vascular channel at a concentration of 10 μg/mL in the culture media. Brain channel effluents were collected at the end of the antibody perfusion. As shown in Figure 5B, the REGN1 antibody levels in the brain channel effluent were nearly double of those of the REGN5 antibody, which were significantly higher than REGN12 (mean ± SEM; ng/mL; REGN1, REGN5 and REGN12, respectively: 656.4 ± 20.7, 345.3 ± 40.6 and 184.1 ± 25.4). REGN28, a non-crosser in vivo, was detected at low levels (50.5 ± 11.1 ng/mL) comparable to the isotype control antibody (59.6 ± 10.1 ng/mL), suggesting paracellular transport. Normalization with vascular channel antibody levels showed similar results (Figure 5B; mean ± SEM; percentage of dosed antibodies detected in the brain channel; REGN1, 5.6 ± 0.23; REGN5, 3.0 ± 0.35; REGN12, 2.2 ± 0.26; REGN28, 0.35 ± 0.07; isotype control, 0.5 ± 0.10).

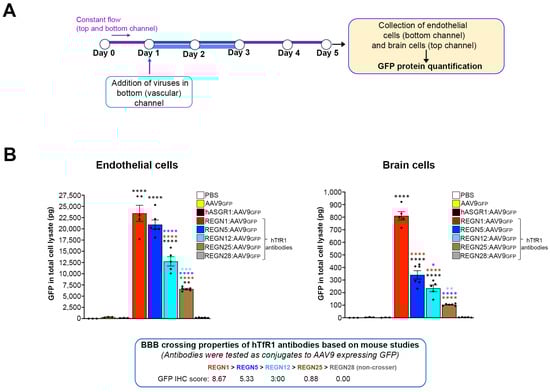

3.5. The Human Brain-Chip Detects BBB Crossing Differences between hTfR1 Antibody-Conjugated AAV9

To further validate the Brain-Chip, we re-examined the internally developed hTfR1 antibodies, now conjugated to AAV9 expressing GFP, the same format used in mice. To refine our model’s resolution, we included an additional antibody, REGN25, which exhibited low BBB crossing in mice [BBB crossing ability in vivo: REGN1 > REGN5 > REGN12 > REGN25 > REGN28 (non-crosser)]. The chips treated with PBS, AAV9 without any conjugated antibody, and AAV9 conjugated with an antibody specific to the liver-expressed Asialoglycoprotein receptor 1 (hASGR1) served as controls.

Twenty-four hours post-calibration in the microfluidics (Day 1), the chips were exposed to the virus in the vascular channel for two consecutive days (6.94 × 10⁶ viral genomes/μL; 1 × 10¹⁰ viral genomes in total). On Day 3, the vascular media were replaced with fresh media without the virus, and the chips were incubated for two additional days (Day 3 to Day 5) to allow for maximal GFP expression. Endothelial and brain parenchymal cells were then collected and GFP protein levels measured using automated ELISA (Figure 6A and Materials and Methods). The total protein in cell lysates was comparable between the groups (Figure S5B).

As shown in Figure 6B, the total GFP in the endothelial cells of the chips treated with REGN1:AAV9 and REGN5:AAV9 was comparable, indicating similar virus uptake (mean ± SEM; 23.02 ± 1.78 ng and 20.10 ± 1.02 ng, respectively). The GFP in the endothelial cells from the chips treated with REGN12:AAV9 (12.69 ± 1.03 ng) was significantly lower compared with REGN1:AAV9 and REGN5:AAV9 but significantly higher compared with REGN25:AAV9 (6.61 ± 0.16 ng). The GFP levels in the endothelial cells from the chips treated with REGN28:AAV9 (non-crosser), hASGR1:AAV9, and unconjugated AAV9 were minimal (mean (ng) ± SEM; 0.18 ± 0.021, 0.13 ± 0.013, 0.35 ± 0.055, respectively).

In the brain parenchymal cells, the GFP level difference closely matched the in vivo BBB crossing studies and our Brain-Chip experiment with purified antibodies. REGN1 showed the greatest GFP expression, followed by REGN5, REGN12, and REGN25. The non-crosser REGN28 and all control viruses showed no GFP expression [mean (pg) ± SEM; 798.3 ± 33.29, 349.4 ± 33.51; and 252.7 ± 26.45, 105.1 ± 3.15, respectively]. The GFP expression differences were statistically significant. A parallel experiment where chips were perfused with the same viruses and cells collected at the end of viral dosing (Day 3) for viral genome measurements showed consistent results with the GFP expression analysis and BBB crossing properties in mice (Figure S5B).

4. Discussion

Enhancing the likelihood for successful translation of preclinical findings into clinical settings necessitates an in-depth understanding of the mechanisms driving disease development and progress in patients, along with capabilities for the best possible prediction of safety and efficacy of therapeutics before the first-in-human studies. Addressing such requirements poses a particular challenge for brain diseases and cannot be easily met using animal models because of limited predictive and face validity given the remaining unknowns in disease pathogenesis and related phenotypes. The key reasons include species differences in brain and BBB biology, as well as the impact of genetics including the frequent lack of similarities in genotype/phenotype associations between humans and experimental animal models. Along the same lines, several disease risk variants lie in non-coding regions, which are markedly different between humans and animals [83]. Potential conformational and tissue expression differences of disease-associated targets can also limit the effectiveness of animal models in predicting successful therapeutic targeting [3,6,84,85].

Human cell-based systems recapitulating the human brain microenvironment are emerging as a promising approach to elucidate brain disease mechanisms and enable the establishment of reliable and time-saving drug screening platforms [28,34,86]. Given the BBB’s importance and the critical roles of neurons, glial, immune, and vascular cells in brain physiology in health and disease through both cell-autonomous and non-cell autonomous effects [62,87,88,89,90,91,92,93,94,95,96], significant efforts have been directed toward developing platforms incorporating all key cell types and vasculature in a single model [34,97,98] emulating critical elements of the organ microenvironment.

In the present study, we utilized a commercially available Organ-Chip platform to develop a human cortical Brain-Chip that includes five major brain cell types and recreates the neurovascular unit and the BBB to further expand on the capabilities of previously reported ex vivo systems. Cortical neurons, astrocytes, microglia, and pericytes form the brain parenchymal side (top channel of the chip), while brain microvascular endothelial-like cells make up the vascular side (bottom channel). Astrocytes extend end-feet-like processes to the vascular side through membrane pores, indicating the recreation of the abluminal aspect of brain microvessels. The astrocytes and microglia remain in a quiescent state, suggested by the very low or nearly undetectable baseline levels of secreted cytokines and chemokines (Figure 3). Over six days of culture under constant flow, the endothelial-like monolayer maintains a tight barrier, comparable to animal models [67,68].

Besides combining key brain parenchymal cell types and the BBB in a single model, we demonstrated functional connectivity between inhibitory (glutamatergic) and excitatory (GABAergic) cortical neurons by pulse-chase experiments with bicuculline and CNQX and extracellular glutamate measurements. The baseline levels of glutamate across all chips and experiments were comparable (6–7 μM; Figure 2 and Figure 3) and within the range observed in the human brain cortex (0.1–20 μM, depending on the cortical area) [99,100], indicating a physiologically relevant circuitry and excitatory/inhibitory (E/I) balance. Upon TNFα challenge, extracellular glutamate levels rose to concentrations typically used for the induction of excitotoxicity in neuronal cultures [101,102,103], consistent with the role of TNFα in inducing glutamate-mediated excitotoxicity [104,105] and the disturbed E/I balance observed in several brain diseases and neuroinflammation [106,107,108]. Thus, our Brain-Chip enables measurements of a neurocircuitry-related and physiologically relevant endpoint for mechanistic and pharmacological studies. Our results with bicuculline demonstrate the chip’s suitability for pulse-chase experiments and its sensitivity to capture responses to transient pharmacological challenges. The return of the extracellular glutamate levels to baseline after the wash-out of bicuculline indicates healthy and plastic neurons and neural circuitry. It also proves that the setup of this engineered model permits well-controlled and precise pharmacological manipulations without disturbing the cells, most likely because of the constant and automated control of flow, an advantage over Transwells, organoids and other static culture systems.

To validate the in vivo relevant responses of our Brain-Chip to disease-associated challenges, we assessed responses to TNFα exposure through the brain channel. We observed glutamate excitotoxicity, microglial and astrocytic reactivity, activation of the secretion of cytokines and chemokines, neuronal damage, and compromised BBB, consistent with previous in vitro and in vivo studies [51,76,77,104,105,109,110,111,112,113,114,115,116,117,118,119] and the role of TNFα in neuroinflammation, a major component in the pathogenesis of CNS diseases [120,121,122,123,124,125,126,127]. These data demonstrate the functionality of our Brain-Chip and the hiPSC-derived microglia used in the system for the first time, as well as the capability of our model to emulate pathological conditions affecting brain function. Importantly, we demonstrate microglia-specific inflammatory responses and microglia-dependent BBB disruption. This aligns with published studies [78] and further supports the critical role of microglia in the neuroimmune mechanisms involved in human brain pathology [62]. Our data also demonstrate the advantage of our model to map cell-specific contributions and dynamic cell–cell interactions critical in disease-associated pathology. Additionally, we generate a temporal secretory profile for cytokines and chemokines over several days, before and during TNFα exposure. Such fine mapping of inflammatory responses is important for disease modeling and comparison of genetic variants associated with brain disease traits. The ability of the chip to capture time-dependent phenotypic and functional changes within the same sample chip (or same “individual”) in response to experimental interventions is another of its main advantages compared to static multicellular systems.

Preclinical testing of brain-targeting therapeutics, particularly biologics, remains challenging. Given the limitations of animal studies, developing clinically relevant human in vitro models for predicting penetration, efficacy, and investigating transcytosis mechanisms for BBB-crossing therapeutic strategies and drug development is a major need. Brain endothelial cell receptors and receptor-mediated transcytosis (RMT) represent an emerging strategy for BBB crossing and potentiating therapeutic delivery to the brain [23,128,129]. Strategies utilizing RMT involve creating a complex between the therapeutic modality and a receptor-targeting entity, such as an endogenous receptor ligand, mimetic peptide ligand, or receptor-targeting antibody. The therapeutic can be chemically linked to the entity (i.e., chemical compound or siRNA linked to a receptor-specific antibody) or incorporated in a vehicle decorated with the RMT-targeting entity, such as in the case of adeno-associated viruses (AAVs) expressing a therapeutic protein [128,130,131,132,133]. Human transferrin receptor 1 (hTfR1) is among the most studied RMT targets in brain endothelial cells [82,131,134,135,136]. Mice have provided important insights into the therapeutic potential of the approach, although they are not hTfR1-specific. hTfR1 KI mice have been generated to overcome this issue and are currently used in proof-of-concept studies for therapeutic testing. This important animal model has great potential, but the question of its predictive value because of differences in the biology of the BBB between rodents and humans remains open. Considering that human TfR1 acts in the context of a mouse cell environment, BBB crossing studies in hTfR1 KI mice would be greatly benefited by complementary studies in exclusively human cell-based systems. In vivo screening of hTfR1-specific entities and therapeutic modalities can be also challenging. Effective BBB crossing and brain-targeting is a multistep process including efficient uptake by endothelial cells, efficient transcytosis, and successful release to the brain parenchymal side and engagement in the targeted cells. Meeting these criteria requires screening numerous versions of the examined entity; for example, multiple antibody clones and formats in the case of hTfR1-targeting antibodies. Such in vivo screening efforts take a lot of time (several months), are labor-intensive, and, importantly, require a very large number of mice, which is not aligned with the 3R principles of animal use in biomedical research—reduction, refinement, replacement—aiming for significant reduction in the use of animal models in preclinical studies [137].

The Brain-Chip we describe in this study, shows the sensitivity and specificity to qualify as a screening platform for hTfR1-based BBB crossing therapeutic strategies and the prediction of in vivo responses. We demonstrated that the model could identify BBB crossing differences between different hTfR1 antibodies tested in hTfR1 KI mice, aligning with the associated in vivo findings. By measuring BBB permeability during these experiments, we ensured a tight barrier with comparable permeability in all examined chips, indicating that the observed differences were due to transcytosis rather than a leaky barrier.

We examined BBB crossing differences in hTfR1 antibodies in the following formats: (1) conjugated to AAV9, the format used for in vivo testing, and (2) unconjugated. This was possible because of the versatility of the chip, which enables collection of cells and effluents from the brain and vascular sides for appropriate readout measurement methods for each antibody format. The comparable results from the two experiments demonstrate the robustness, reproducibility, and sensitivity of the model. In addition, the selected readouts, which are quantitative, are more reliable than qualitative methods such as measuring changes in immunostaining intensity. Of note, the identification of BBB crossing differences was possible in just four or eight days (hTfR1 and hTfR1:AAV9, respectively), including the two days required for the seeding of the cells and the preincubation of the chips under flow for one day, a significantly faster process compared with animal studies. Furthermore, our results with hTfR1:AAV9 illustrate the Brain-Chip’s suitability for analyzing endothelial cell uptake and determining target engagement in the brain parenchymal compartment. With the right design and bioassays, future studies that combine biochemical analysis with cell imaging will allow for the examination of the cell types targeted by the tested therapeutic modalities as well as the prediction of target engagement, safety and, potential efficacy in one single study. Considering the time required to generate and test multiple antibody clones and formats, and the large number of animals necessary for such experiments, our human Brain-Chip holds great potential to facilitate screening efforts and advance therapeutic development. Furthermore, a comparison between basal (healthy) and disease states, such as in neuroinflammation or genetic models, might provide disease-specific insights that could further support drug development.

Our data demonstrate several advantages of the Brain-Chip. However, the model in its current stage has certain limitations. It is composed of five different cell types from different human donors, and a mix of primary (astrocytes and pericytes) and hiPSC-derived cells (neurons, microglia, and iBMECs). This setup is less than ideal for disease modeling studies. Although there has been significant progress in developing protocols for differentiating human iPSCs into microglia, astrocytes, pericytes, and oligodendrocyte-lineage cells, the functionality of each of these cells in complex in vitro models requires experiments beyond the scope of this study. As a first step, we selected to use hiPSC-derived microglia and examine their functionality in the chip, which is the first time this has been performed. The cells are functional and exhibit neuroinflammatory responses upon exposure to TNFα, consistent with in vivo data and a recent study using a similar Brain-Chip configuration but with the human microglial cell line CRL-3304 [51]. Our Brain-Chip established a tight barrier with in vivo-relevant permeability. However, the exact identity of iBMECs is still debatable [138], so we chose to refer to them as endothelial-like cells. The iBMECs used in our study express genes regulating key BBB attributes, such as genes encoding for the tight junction proteins ZO-1 (TJP1), Occludin (OCLN), and Claudin (CLDN), solute carrier transporters, ATP-binding cassette transporters and GLUT1 (SLC2A1), and the TfR1-encoding gene, TFRC [50].

The closed format of the Organ-Chip design does not support the examination of Transendothelial Electrical Resistance (TEER), an in vitro measure of electrical resistance across a cell layer considered a sensitive measure of barrier integrity [139,140]. Therefore, we measured the Papp of the barrier using fluorescent dextran, an accepted alternative used in several published works using Organ-Chips and animal models [43,51,52,67,68,141]. Papp is a relevant surrogate to TEER and a corollary in the clinic, enabling in vivo comparison of barrier integrity, which is not possible with TEER measurements.

Despite these caveats, our Brain-Chip model in its current configuration provides unique advancements compared with previous Brain-Chip and BBB-Chip models. It confirms functionality at the pharmacological level, as shown both for BBB crossing and neuronal responses to relevant pharmacologic challenges. Further, it recapitulates phenotypic changes and responses to neuroinflammation-relevant challenges in a time-dependent manner while highlighting microglia-dependent cytokine release, a major area of investigation for a great number of brain diseases. These findings provide evidence that the human Brain-Chip holds strong potential for modeling and therapeutic development for neuroinflammatory and neurodegenerative diseases. Importantly, our Brain-Chip enables timesaving, specific, and accurate detection of different levels of permeation of in vivo-tested hTfR1-specific antibodies and associated therapeutic modalities (AAV9), demonstrating its value in facilitating and advancing the development of human brain-targeting therapies. Future advancements should incorporate oligodendrocyte precursor cells (OPCs) and oligodendrocytes (OLs) and develop Brain-Chip models with all cell types fully isogenic and derived from hiPSCs. This would enable detailed mapping of the mechanism of action of disease-associated genetic variants, including the determination of cell-autonomous and non-cell autonomous effects, to further inform cell-specific targeting and the identification of biomarkers to guide patient stratification. The continuous improvements in cell differentiation protocols, the scientific community’s and pharmaceutical companies’ growing interest in human cell systems [34,142], and the FDA Modernization Act provide realistic optimism for the engagement of human cell systems in facilitating drug development and fighting brain diseases.
