1. Introduction
Ruxolitinib, marketed under the brand name Jakavi
® (Novartis Pharmaceuticals Corporation, Basel, Switzerland), is a potent and selective Janus Kinase (JAK) 1 and 2 inhibitor approved for the treatment of myelofibrosis and polycythemia vera [
1]. As a potent and selective inhibitor of Janus Associated Kinases (JAK1 and JAK2), Jakavi
® has demonstrated significant efficacy in alleviating disease-related symptoms and improving the quality of life for patients [
2].
Jakavi
® is classified as a Biopharmaceutics Classification System (BCS) Class 1 drug, characterized by high solubility and high permeability. Ruxolitinib is rapidly absorbed after oral administration, with a time to maximum concentration (Tmax) of approximately 1 h [
3,
4]. The drug is extensively metabolized, primarily by CYP3A4, and mainly excreted as metabolites, with less than 1% of the dose recovered as an unchanged drug in urine [
4]. It exhibits dose-proportional pharmacokinetics and has a relatively short half-life of 3 h [
4], necessitating the development of sustained release formulation [
5].
Despite these favorable pharmacokinetic properties, the current immediate-release (IR) formulation of Jakavi
® requires twice-daily dosing due to its short half-life [
6]. This dosing regimen can lead to challenges in patient adherence and potentially suboptimal therapeutic outcomes, particularly in chronic conditions that require long-term treatment [
7]. For ruxolitinib, a well-designed sustained-release (SR) formulation could potentially reduce dosing frequency, minimize peak-to-trough fluctuations in plasma concentrations, and thereby enhance patient convenience and compliance while maintaining or even improving efficacy [
3,
8].
For BCS Class 1 drugs like ruxolitinib, the application of pharmacokinetic and in vitro-in vivo correlation (IVIVC) analysis can be valuable in optimizing SR formulations, as it allows for the exploration of various release profiles and their potential impact on systemic exposure without the need for extensive in vivo studies [
9]. IVIVC enabled us to establish a relationship between in vitro drug dissolution or release and in vivo drug absorption or exposure [
10]. For BCS Class 1 drugs, the development and application of IVIVCs present both opportunities and challenges. On the one hand, the high solubility and permeability of these drugs can simplify the establishment of correlations between dissolution and absorption. On the other hand, the rapid and complete absorption typical of BCS Class 1 drugs may limit the discriminatory power of traditional IVIVC approaches, necessitating careful consideration of formulation strategies and dissolution testing conditions [
11]. A bilayer tablet approach offers several advantages compared to other SR formulations. Bi-layer tablets allow for a combination of IR layer to provide a rapid onset of action and SR layer to maintain therapeutic plasma concentrations over a prolonged period, enhancing therapeutic effects and patient compliance [
12,
13,
14,
15]. Such a formulation strategy could address the pharmacokinetic limitations of the current IR formulation while capitalizing on the favorable BCS Class 1 properties of ruxolitinib.
The present study aims to develop an IR and SR bilayer formulation of ruxolitinib as a sustained dosage form of the current ruxolitinib IR formulation, Jakavi®. By utilizing a discriminative pharmacokinetic and IVIVC analysis using Beagle dog, we seek to optimize the IR and SR ratio of a bilayer tablet formulation. This approach allows for the rational design of a formulation that meets the desired pharmacokinetic profile while minimizing the need for extensive in vivo testing during the development phase.
2. Materials and Methods
2.1. Materials
Ruxolitinib phosphate was purchased from MSN Laboratories Pvt. Ltd. (Telangana, India). Microcrystalline cellulose (HW101®, JRS pharma, Rosenberg, Germany), lactose monohydrate (Supertab® 11SD, DFE pharma, Goch, Germany), sodium starch glycolate (Roquette, Lestrem, France), povidone (Kollidon® 30, BASF, Ludwigshafen, Germany), hydroxypropyl cellulose (HPC-L®, Nippon soda, Tokyo, Japan), polyethylene glycol 6000 (Vasudha chemicals, Mumbai, India), magnesium stearate (FACI), and colloidal silicon dioxide (SYLOID® 244FP) were purchased from IMCD Korea (Seoul, Republic of Korea). Polyethylene oxide (Polyox™, Dupont/IFF, Wilmington, NC, USA), which has various molecular weights (POLYOX WSR 205, POLYOX WSR N60K), and Opadry® coating agent (Opadry® 20A, Opadry® 200F) were purchased from Colorcon Korea (Suwon, Republic of Korea). The reference standard of ruxolitinib phosphate was received from MSN Laboratories Pvt. Ltd. (Telangana, India), and ruxolitinib-d9 was purchased from Clearsynth Labs Ltd. (Maharashtra, India) Unless otherwise indicated, all other chemicals were of analytic or high-performance liquid chromatography (HPLC) grade.
2.2. Preparation of Bilayer SR Tablet
The formulations were designed as bilayer tablets combining IR and SR components in varying ratios: 5:35 (test formulation F1), 10:30 (test formulation F2), 15:25 (test formulation F3), and 20:20 (test formulation F4). Each layer has its separate granulation process. For the preparation of IR granules, ruxolitinib phosphate, microcrystalline cellulose, lactose monohydrate, and sodium starch glycolate were mixed with a binding solution, which is povidone and hydroxypropyl cellulose dissolved in purified water, using Simens a TP G Lab high shear mixer (COMASA, Buenos Aires, Argentina). After mixing, the granules were dried using an FO-600M Drying Oven (JEIO TECH, Daejeon, Republic of Korea). Dried granules were sized using the 1.0 mm mesh and lubricated with magnesium stearate and colloidal silicon dioxide. For the preparation of SR granules, ruxolitinib phosphate, polyethylene oxide, polyethylene glycol 6000, and hydroxypropyl cellulose were passed through the 1.0 mm mesh and mixed using V-mixer (DOTT Bonapace and C V-MIX MP6C, Cusano Milanino, Italy). After mixing, the granules were lubricated with magnesium stearate.
The granules were compressed to form bilayer tablets consisting of IR and SR layers using an AutoTab-200TR tablet press (ICHIHASHI SEIKI, Kyoto, Japan) using oval shape punches. The compaction pressure was 10 kN, and the average hardness of tablets was 20–25 kp, respectively. The batch size was 200 tablets per formulation. After forming bilayer tablets, the tablets were coated with Opadry
® coating agent using a ighcoater
® (Freund Bldg, Tokyo, Japan). The detailed compositions of each formulation are shown in

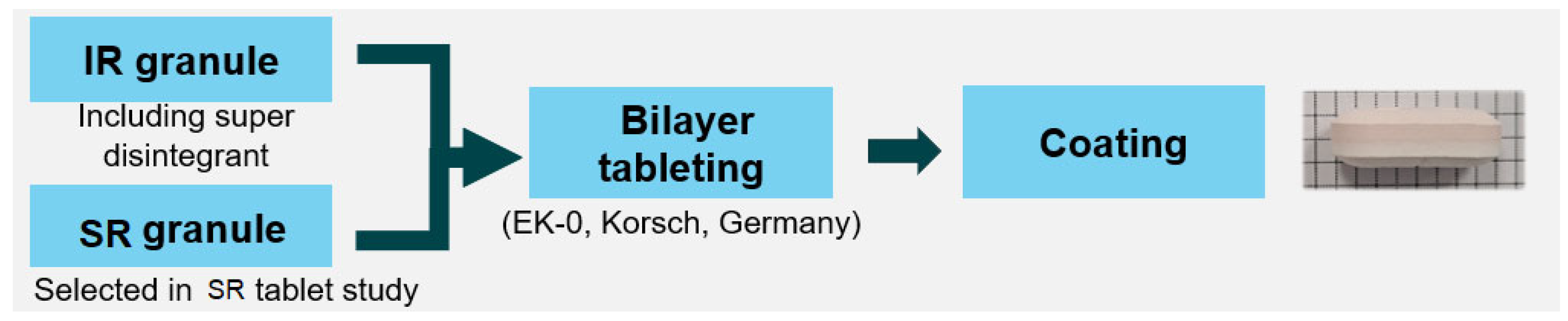

Table 1. The manufacturing scheme is shown in
Figure 1.

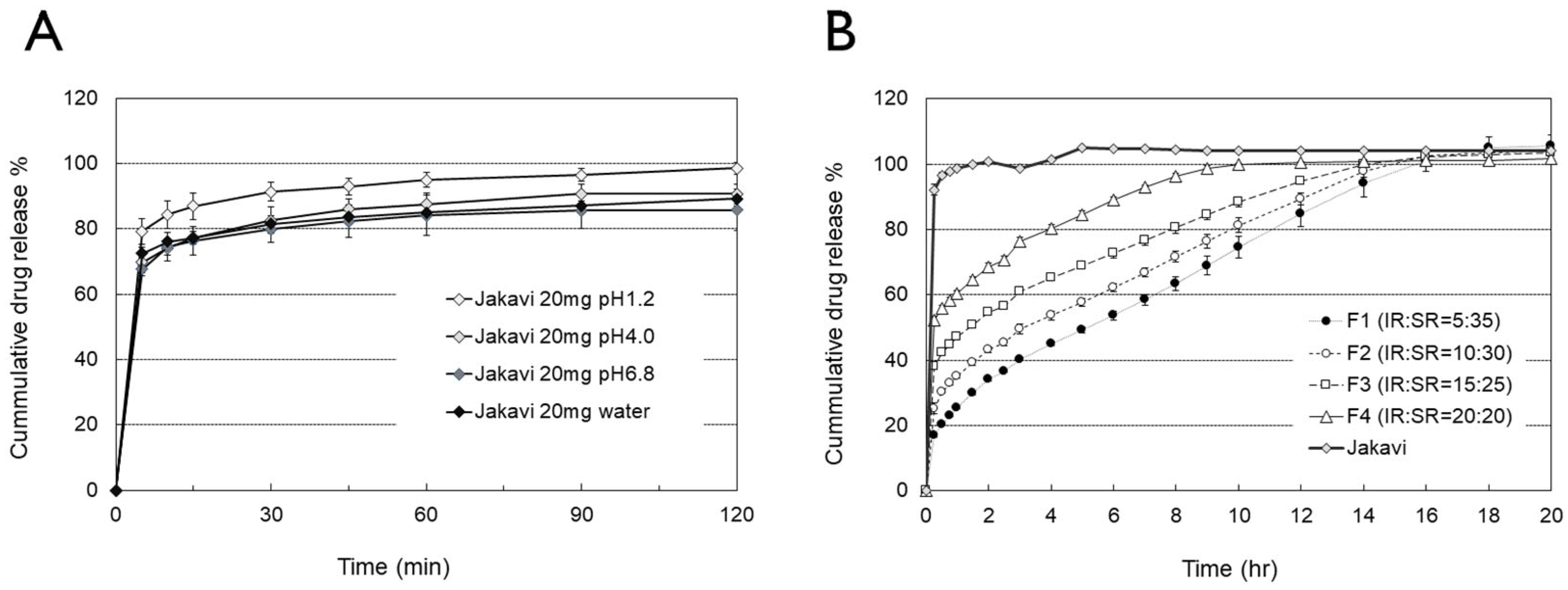

2.3. In Vitro Dissolution Tests
The in vitro drug release studies were carried out using the USP apparatus II (PTWS1210 dissolution apparatus and DSR-M13 sampling station, Pharma Test Apparatebau AG, Hainburg, Germany) at a paddle rotation speed of 50 rpm. The release patterns of the reference (Jakavi®, Novartis Pharma stein AG, Stein, Switzerland) were confirmed in various media (0.1 M HCl (pH 1.2), 0.05 M acetate buffer (pH 4.0), 0.2 M phosphate buffer (pH 6.8), and distilled water, as stipulated in the Korean Pharmacopoeia) maintained at 37 ± 0.5 °C. To evaluate the sustained release of test drugs, dissolution tests were carried out using Method A of delayed-release dosage forms in USP’s extended-release dosage forms, which involves a pH shift from acidic to buffered conditions.
Acid stage: The test drug was dissolved in 750 mL of 0.1 N hydrochloric acid at 37 ± 0.5 °C for 2 h. After 2 h, withdraw an aliquot of the fluid.
Buffer stage: 250 mL of 0.20 M tribasic sodium phosphate was added to the fluid in the vessel. The final pH was pH was 6.6~6.7.
The samples withdrawn at each time point were filtered using 10 µm porous PVDF sampling filters. An Agilent HPLC 1260 series instrument (Santa Clara, CA, USA), equipped with an ODS silica column (4.6 × 250 mm, 5 µm), was used to determine the concentrations of ruxolitinib, respectively, in the dissolution samples. The HPLC analysis was conducted using a mobile phase with a 4:6 ratio (
v/
v) of acetonitrile to purified water (including 0.1%
v/
v formic acid), and the flow rate was set to 1.0 mL/min. The column effluent was monitored at 225 nm. Additionally, the dissolution curve of the SR portion of the bilayer tablet was calculated by subtracting the dissolution curve of the Jakavi
® at pH 1.2 from the dissolution curve of the entire bilayer tablet, assuming that the dissolution property of the IR portion in the bilayer tablet is similar to that of Jakavi
®. In this process, the ratio of the IR portion was considered.
where
ASR,t and
AIR,t denote the amount released at time
t from the SR layer and IR layer, respectively;
ATotal,t represents the total amount released at same time; and
AJak,t refers to the amount released from Jakavi
® at time
t.
The following procedure was used to determine the saturated concentration of ruxolitinib in each pH medium. Ruxolitinib phosphate was added to each pH medium at a concentration of 10 mg/mL, which corresponds to 13.2 mg/mL of ruxolitinib phosphate. Each solution was shaken at 37 °C for 24 h and then filtered using 0.2 µm porous PVDF sampling filters. The filtered solution was diluted to a ratio of 1:100. HPLC analysis was conducted to determine the saturated concentration in each pH medium, following the same method used for the dissolution test.

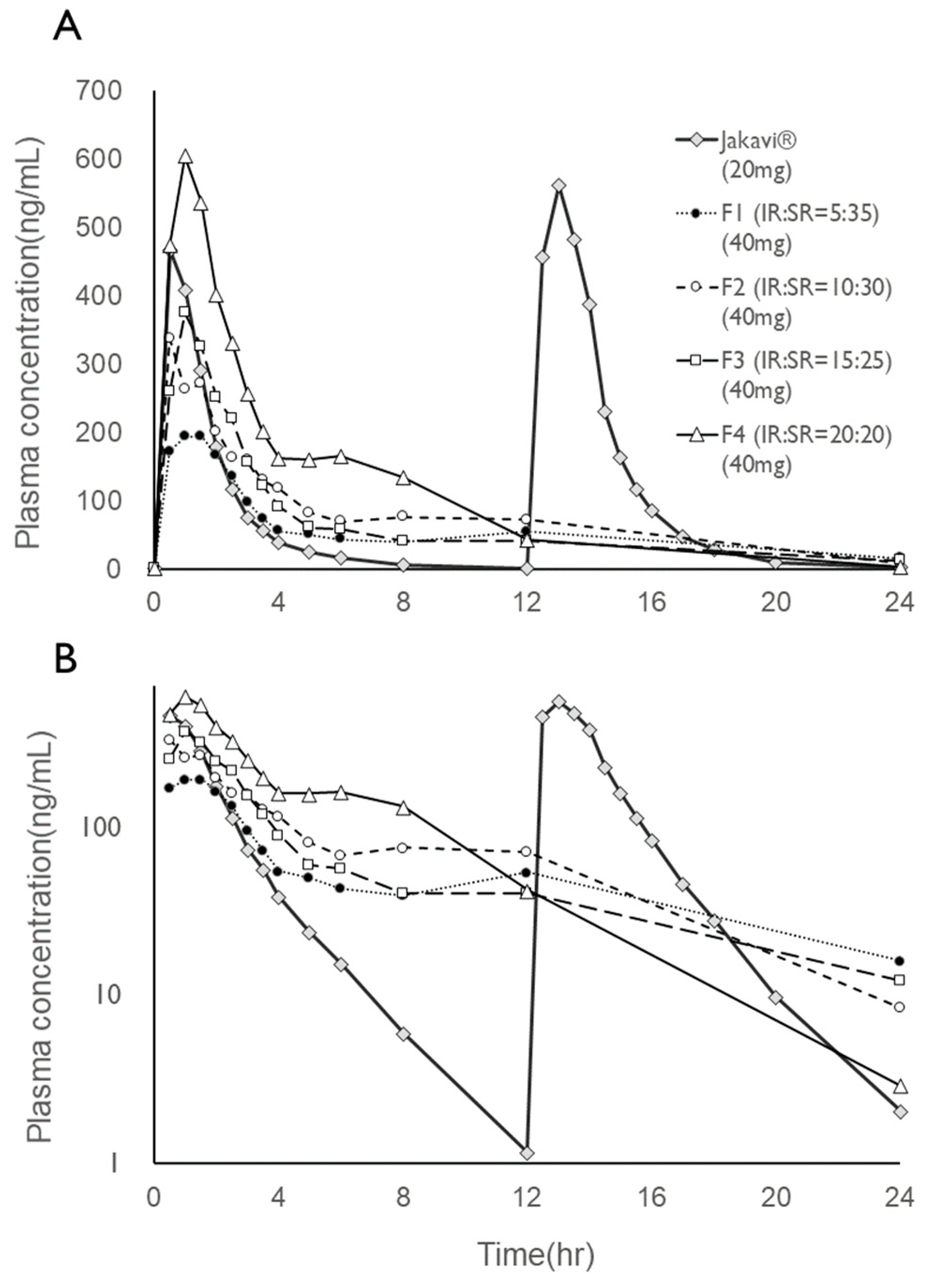

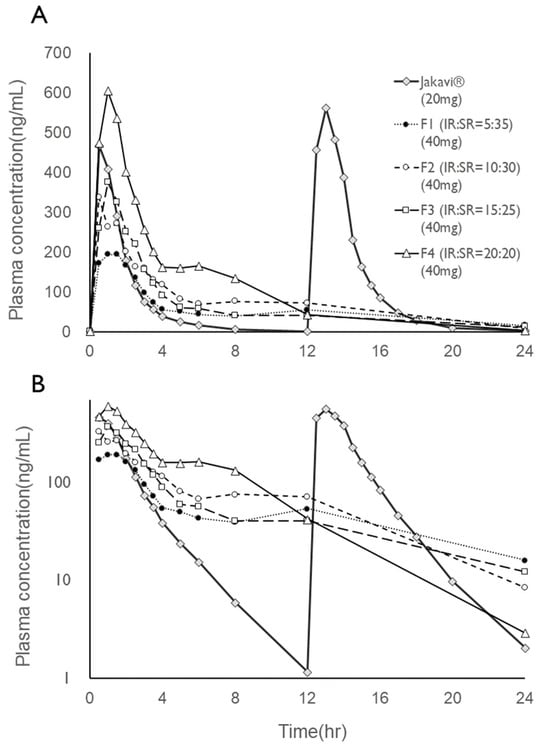

2.4. Beagle Bioavailability Study
To confirm the bioavailability and its interchangeability, Jakavi® 20 mg and ruxolitinib bilayer tablets were administered to Beagle. A 20 mg dose of Jakavi® was administered twice a day (0 and 12 h), and a 40 mg dose of the test formulation was administered only once (0 h). The Beagle dogs were purchased from Xi’an Dilepu Biology and Medicine Co., Ltd. (by Saeronbio Inc., Uiwang, Republic of Korea) and kept in a controlled room at a temperature of 23 ± 3 °C, a 12:12 h light/dark cycle, and 55 ± 15% relative humidity. All experiments were conducted according to the protocols approved by the institutional animal care and use committee of KNOTUS Co., Ltd. (Inchon, Republic of Korea).
The experiments were carried out as 2 × 2 crossover studies (n = 6 in one group) with a 2-week washout period. A combination of Jakavi® and test drugs (F1, F2, F3, and F4) were tested independently. The reference drug was administered twice daily at 12 h intervals, while the test drug was administered once daily after a 16 h fast. The dogs were allowed free access to water during the pharmacokinetic study, while dog food was provided 8 h following drug administration.
Blood samples (1 mL) were collected from the cephalic vein at designated time points, and the plasma was separated by centrifugation at 3000 rpm for 5 min. All plasma samples were stored at −70 °C until analyzed. After sampling was completed, the frozen plasma samples were transferred to Samyang Holdings’ Instrumental Analysis Team for analysis.
2.5. Rat PK Study
A rat PK study was conducted to confirm the restriction of the absorption site of Ruxolitinib. Male Sprague-Dawley rats (7 weeks, weight 240 g, Orient Bio, Seongnam, Korea) were used for in vivo PK studies. Experimental animals were separated into two groups: the gastric dosing group and the intestinal dosing group. Ruxolitinib phosphate was dissolved in saline at a concentration of 5.28 mg/mL. Under anesthesia, the abdomen of SD rats was incised, and 0.3 mL per rat (1.2 mg as Ruxolitinib) of the drug solution was injected into the target organ (gastric, small intestine) using an insulin syringe (n = 7/group). After suturing the incision site, the SD rats were recovered for 10 min. Blood samples were collected at appropriate intervals, starting from 30 min and continuing up to 4 h. Blood samples were collected in heparinized tubes and immediately separated into plasma. The separated plasma samples were stored at −70 °C until analysis. All experimental procedures were reviewed and approved by the Instrumental Analysis Team, Samyang Holdings Biopharm group.
2.6. Analytical Method
Ruxolitinib in Beagle and rat plasma was analyzed using the LC-MS/MS method. The following procedure was used to determine the plasma concentrations of ruxolitinib. Ruxolitinib phosphate standard was dissolved in methanol to prepare a solution with a concentration of 1000 µg/mL as ruxolitinib. This solution was then serially diluted with methanol to prepare standard solutions for the calibration curve, with final ruxolitinib concentrations of 0.005, 0.01, 0.05, 0.2, 1, 5, 10, and 20 µg/mL. All samples were processed with protein precipitation. In a 2 mL tube, 100 µL of the sample was mixed with 10 µL of internal standard (ruxolitinib-d9, 10 µg/mL) and 400 µL of acetonitrile. The mixture was vortexed and then centrifuged at 4 °C, 12,500 rpm for 7.5 min. The supernatant (200 µL) was transferred to a new LC vial, and 100 µL of mobile phase A (10 mM ammonium formate with 0.1% formic acid in DW) was added. A 5 µL aliquot of this solution was injected into the LC/MS/MS system. The calibration curve was constructed using the peak area ratio of Ruxolitinib to the internal standard.
The LC/MS/MS analysis conditions for Ruxolitinib were as follows.
The 5 μL of the aliquot was injected into the LC-MS/MS system. A 1260 series (Agilent, Santa Clara, CA) with an Agilent 6460 mass spectrometer (Agilent, Santa Clara, CA) and a Synergi™ Polar-RP 2.0 × 50 mm, 4 µm (Phenomenex, Torrance, CA), was used for the study. An isocratic mobile phase consisting of a 45:55 mixture of acetonitrile (ACN) and 10 mM ammonium formate with 0.1% formic acid in distilled water was delivered at a flow rate of 0.25 mL/min. Quantification was achieved using electrospray ionization-MS/MS detection in the positive ion mode for the ruxolitinib and IS. The optimal instrumental parameters were as follows: a capillary voltage of 3.5 kV and a source temperature of 350 °C. The collision energy (CE) was 28 V. Detection of the ions was carried out in the multiple reaction-monitoring mode, and the settings are shown in
Table 2.
2.7. Pharmacokinetic Analysis and Evaluation of the IVIVC
The calculations of pharmacokinetic parameters and statistical analyses were conducted using the WinNonlin® program (Pharsight Corporation, Mountain View, CA, USA). When the ratios of the area under the plasma concentration–time curve (AUC) and peak concentration (Cmax) of the reference and test drugs fell within the range of 80–125%, the pharmacokinetic profiles of the test drugs were considered to meet the initial development goals.
Following the oral administration of Jakavi®, plasma concentration followed a two-compartment pharmacokinetic model. The predicted in vivo fraction of drug absorption was acquired through deconvolution using the Loo–Riegelman method. For IVIVC, the fraction absorbed and the amount fraction released over time were subsequently plotted.
Pharmacokinetic parameters derived from the Loo–Riegelman method, including the central volume of distribution, inter-compartment rate constants, and elimination rate constants, were determined for the IR product Jakavi®. This was achieved by fitting a two-compartment model using WinNonlin® (Version 8.5.2) (Pharsight Corporation, Mountain View, CA). The initial parameters for the fitting process were based on intravenous data (n = 1) included in the registration filing document of Jakavi®. Moreover, to minimize errors in the Loo–Riegelman method, plasma concentrations not obtained at equal intervals six hours post-drug administration were calculated using interpolation. Additionally, the dissolution test results were also corrected to equal intervals of one hour through interpolation.

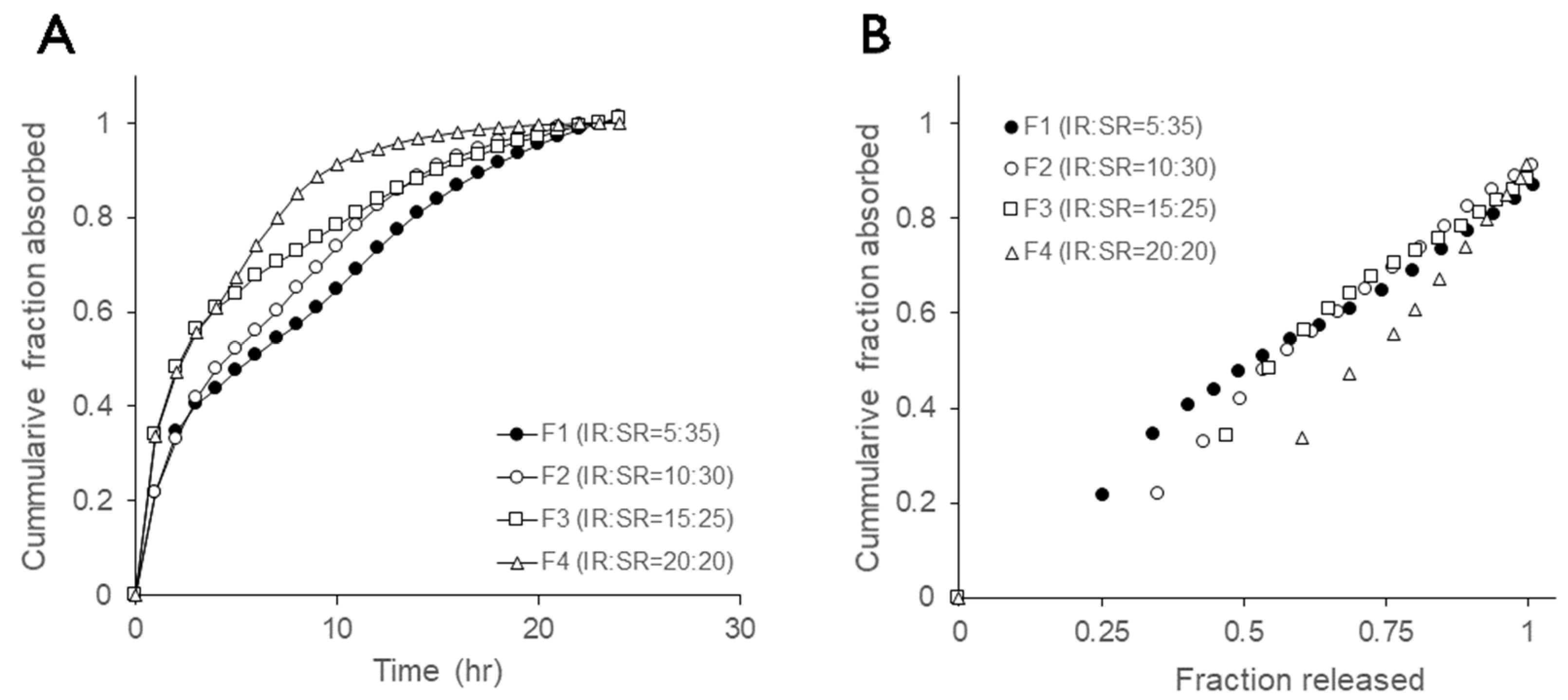

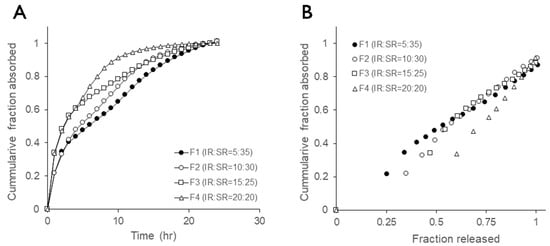

The relationship between in vitro cumulative dissolution data and in vivo cumulative absorption data was illustrated using linear regression.

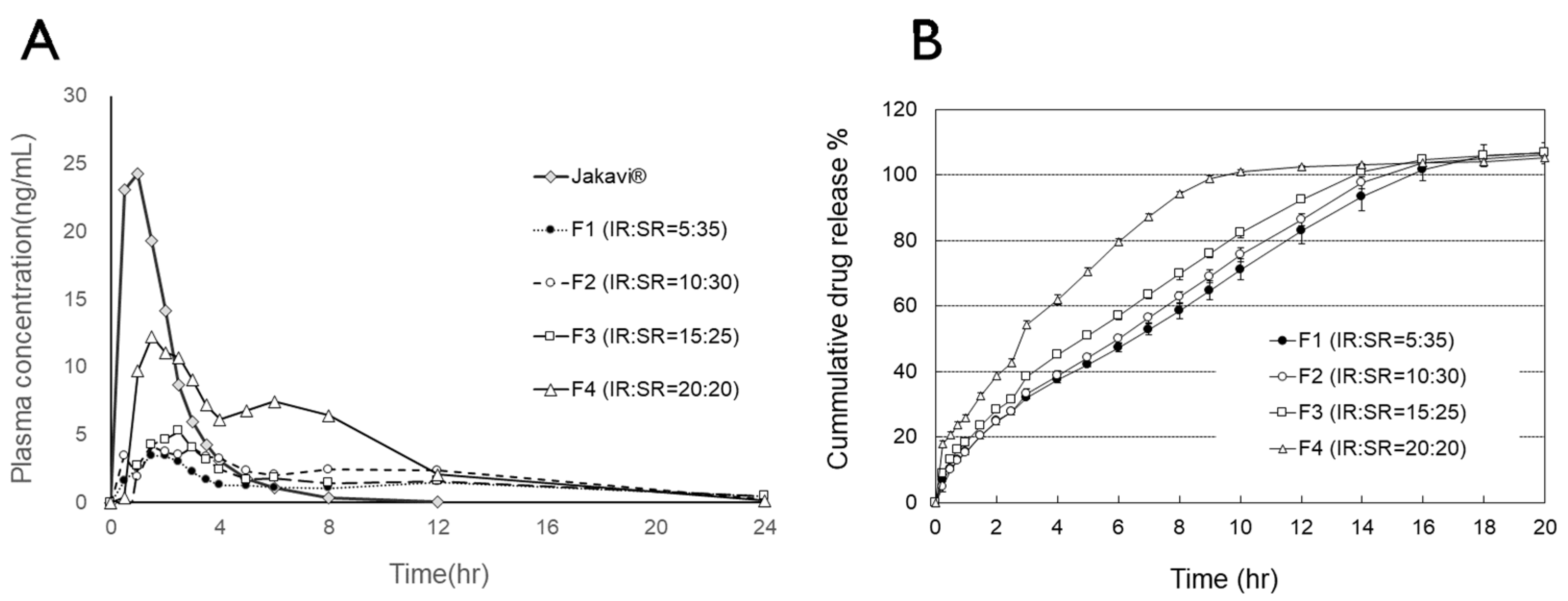

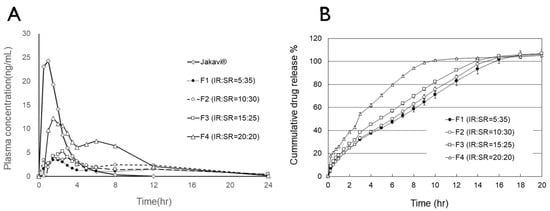

For discriminative pharmacokinetic analysis, the plasma concentration of the SR portion of the test drug was determined by subtracting the average blood concentration of the reference drug from the individual blood concentration measured after administering the test drug. The average blood concentration of the reference drug was calculated using data from all reference drug groups (n = 16) involved in the experiment, taking into account the immediate-release (IR) ratio of the bilayer tablets in the calculation.
An example of the blood concentration calculation method for the SR portion of formulation F1 (with an IR:SR ratio of 5:35) is illustrated below.
In this equation, ConcSR,t refers the plasma concentration corresponding to the SR layer at time t; Conct represents the individual plasma concentration at that same time; and Conct_avg,Jak denotes the average plasma concentration of the Jakavi®. The value of 5 represents the milligram portion of F1, and 20 indicates the mg dosage of Jakavi®.
4. Discussion
In this study, we developed an SR formulation of ruxolitinib aimed to address the pharmacokinetic limitations of its IR counterpart, Jakavi®, which necessitates twice-daily dosing due to its short half-life. The results of this study demonstrate the feasibility of a bilayer tablet approach to achieve a sustained drug release profile, potentially enhancing patient compliance and therapeutic outcomes.
The pharmacokinetic profiles of the test formulations demonstrated varied outcomes. Test formulation F1, with a balanced IR:SR ratio, achieved the sustained dosage form of the reference drug, exhibiting comparable AUC values and extended MRT, suggesting that a balanced proportion of IR and SR components can effectively mimic the pharmacokinetic profile of Jakavi® while potentially reducing dosing frequency. The double-peak phenomena observed in some formulations are indicative of complex absorption dynamics, likely influenced by the dissolution characteristics of the SR layer.
Conversely, formulations with higher SR proportions (e.g., test formulation F1, F2, and F3) demonstrated reduced bioavailability, likely due to incomplete absorption within the gastrointestinal tract.
In terms of bioavailability, only test formulation F4 met the criteria for bioequivalence, reflecting the challenges in achieving consistent systemic exposure with higher SR content. These findings underscore the importance of optimizing the SR component to maintain bioavailability and ensure consistent therapeutic outcomes.
The discriminative analysis of the SR portion for plasma concentration and dissolution curve revealed that the SR portion of F1, F2, and F3 have low bioavailability. Considering the high bioavailability of ruxolitinib, this should be defined [
16]. Since the difference in solubility in the stomach and small intestine or the presence of specific absorption site and gut wall metabolism is often pointed out as the cause of the decrease in bioavailability due to extended-release [
17,
18,
19], this study examined absorption specificity using rats. However, in rats, similar bioavailability was observed when the drug was administered to the stomach and intestine. However, since absorption specificity by the small intestine site was not examined in this experiment, there may still be an absorption window for the drug at a specific small intestine site, and this may have caused the decrease in bioavailability due to excessive sustained release. It is thought that further research on this aspect will be necessary in the future. The enhanced gut wall metabolism by the slow release of the drug also should be evaluated [
19]. To date, decreased bioavailability has been noted for isosorbide dinitrate, propranolol, and diazepam in sustained-release formulations, indicating an increased first-pass effect [
20,
21,
22]. However, these findings have been reported only for specific drugs and cannot be generalized to all sustained-release formulations. Although the mechanism is not yet known and further intensive study is expected, in the case of ruxolitinib, excessive sustained release may lead to a decrease in bioavailability, which should be considered in future development.
As part of an attempt to investigate the validity of the dual-release strategy for the SR dosage form and the cause of the change in bioavailability according to the ratio of the SR layer of the bilayer tablet, discriminative pharmacokinetic analysis and IVIVC were performed on four test formulations. The observation of a Level A correlation between the dissolution rate and absorption rate of the test drug suggests that the decrease in bioavailability observed in F1, F2, and F3 formulations with a high proportion of sustained-release drugs may be due to biological causes other than pharmaceutical factors such as release rate.
An accurate PK/PD model that can be applied to Beagles and humans would be needed to define the optimal plasma concentration profile of the SR formulation of ruxolitinib, but information on such models is currently unknown. Therefore, the best judgment on the optimal formulation would be to rely on an intuitive interpretation of the current Beagle dog results, such as dose-adjusted AUC (T/R ratio %) and Cmax (T/R ratio %). Compared to the reference drug, Jakavi®, F4 formulation showed equivalent bioavailability. The dose-adjusted AUC (T/R ratio %) and Cmax (T/R ratio %) were 94.8% and 104.8%, respectively.
It was reported that the IC50 of ruxolitinib was 0.065 mg/L, and the target, pSTAT3, was inhibited to a maximum of 60–70% within 1 h, which declined to 25% inhibition at 12–16 h after a single dose of ruxolitinib 25 mg in a human subject. Interestingly, in this study, the period during which ruxolitinib plasma concentrations were greater than IC50 was about 4 h of 12 h for Jakavi®. Among test formulations, F4 showed the most extended period, i.e., 10.5 h of 24 h. In light of all this information, the F4 formulation should be given the highest priority for consideration as an SR formulation of ruxolitinib.
