Natural Stabilized Earth Panels versus Conventional Façade Systems. Economic and Environmental Impact Assessment

by
Carmen Galán-Marín
1,*,
Alejandro Martínez-Rocamora
2,
Jaime Solís-Guzmán
3 and
Carlos Rivera-Gómez
1
1
Departamento de Construcciones Arquitectónicas 1, Escuela Técnica Superior de Arquitectura, Universidad de Sevilla, Avda. Reina Mercedes, 2, 41012 Seville, Spain
2
GACS Research Group, Department of Construction Sciences, Faculty of Architecture, Construction and Design, University of Bío-Bío, Av. Collao, 1202 Concepción, Chile
3
ArDiTec Research Group, Department of Architectural Constructions II, Higher Technical School of Building Engineering, University of Seville, Av. Reina Mercedes, 4-a, 41012 Seville, Spain
*
Author to whom correspondence should be addressed.
Sustainability 2018, 10(4), 1020; https://doi.org/10.3390/su10041020
Submission received: 7 March 2018 / Revised: 21 March 2018 / Accepted: 22 March 2018 / Published: 30 March 2018
(This article belongs to the Collection Sustainable Built Environment)

Abstract

:
More effective construction technologies are needed nowadays in order to reduce construction energy consumption during the life-cycle of buildings. Besides which, it is necessary to consider the economic feasibility and associated costs within the framework of these alternative technologies so as to favouring their practical implementation in the construction sector. In this sense, this paper presents an economic and environmental comparison of a new non-bearing façade construction solution based on the extruded unfired stabilized clay panels as opposed to three traditional solutions with similar physical, thermal, and aesthetic characteristics in terms of the exterior cladding. The proposed panels are a sandwich type configuration with an intermediate insulating material and two exterior pieces manufactured by extrusion with raw earth stabilized with alginate and animal wool fibers. In this paper, details of the constructive technology of the system are provided. From the results obtained, it is possible to conclude that the solution is a valid alternative from the environmental point of view, considerably reducing the Global Warming Potential and the Cumulative Energy Demand. And although the environmental improvement of the system can be considered the primary objective of this investigation, on the other hand, once executed, it will also be a competitive constructive technology from the perspective of the system’s final costs.

1. Introduction

According to current knowledge, earthen building materials have been used worldwide since the Neolithic times. However, in spite of its antiquity, nowadays the use of these materials continues to be generalized mainly due to its eco-friendliness profile [1,2,3,4,5] and also for restoration purposes and for the conservation of traditional architecture [6,7]. Taking into account the fact that most of the current ceramic construction technologies are based on the use of high temperature furnaces for the drying and hardening of the materials—which implies a significant increase of the embodied energy and CO2 emissions—the development of techniques and materials that avoid these baking processes would substantially reduce the environmental impact of the building [8,9,10,11,12,13,14].
Notwithstanding the above, the natural drying process is considerably slower than conventional technologies and the long duration processes are large penalties in terms of the effective costs and construction time. That reason justifies that a major requirement for the production system of these earthen materials is to produce them as industrialized as possible so that they can cope with the rhythm marked by the construction and thus, mitigate the slower production process effects through efficient production scheduling. The factors, in order of impact, that significantly prevent the effective application of sustainable materials are the lack of demand, the green construction culture, the high costs of sustainable construction materials, and the lack of knowledge regarding sustainable construction materials. The second of these factors is especially important in terms of truly implementing green materials in the construction sector. It should be pointed out that the selection of building materials is a very important and complex task in every construction project [15], which can be determined with numerous preconditions, decisions, considerations, and detailed information on the building materials and products [16]. With regard to this issue, there are several studies performed in order to reveal the cost of green buildings in comparison to conventional-standard buildings. The first published studies yielded considerably higher global cost values than the most recent ones [17,18,19,20]. Conversely, current research suggests that the cost of green buildings is nowadays only slightly higher than conventional technologies [21,22].
However, more importantly, the use of sustainable materials in construction to replace conventional materials enhances the overall environmental sustainability and reduces the environmental impacts during the building life cycle. The use of environmentally friendly materials in building construction preserves natural resources and reduces pollution [23]. Therefore, the main objective of this work is to verify both aspects simultaneously. That is to say, to confront with different conventional non-bearing façade systems with a new alternative made from stabilized earth panels, verifying the environmental and economic costs at the same time; understanding that this both-sides analysis is a more realistic decision-making methodology that provides effective options for green materials to be incorporated gradually into the construction sector.

2. Stabilized Soil Panels

Stabilized soil panels are blocks (Figure 1) formed by extruding a combination of clay soil, water, calcium alginate, and sheep wool [1,2,3,4,5]. Alginate acts as a natural stabilizer for the mixture, while sheep wool exerts the reinforcing role in the form of fiber.
Two different stabilized clay elements are manufactured: a 30 mm thick block by horizontal extrusion for the exterior piece as an outer layer and a 60 mm thick block by vertical extrusion for the inner layer. Both clay pieces have nominal measures of 600 × 440 mm and are used as the formwork for a 45 mm thick polyurethane foam insulation layer. In addition to both layers, there is also an outer and inner coating to avoid excessive material weight. The sandwich panels, formed by these three layers are designed to fit together with alternate horizontal and vertical joints with 5–8 mm of cement mortar (Figure 2).

3. Research Aim and Methods

The main aim of this study is to carry out an economic and environmental comparison of a non-bearing façade solution based on the extruded panels made of stabilized soil versus three traditional solutions of similar physical, thermal, and aesthetic characteristics; the latter in terms of the outer and inner cladding. The functional unit is defined as a meter squared façade in order to balance the necessary quantities of material and determine the economic cost and environmental impact of each solution.
For the economic comparison, unitary cost studies are developed based on the Andalusian Construction Cost Database (ACCD) [24], a cost control support in the construction sector with more than 30 years of continuous development and use, which is based on the contributions of a considerable number of professionals with extensive experience in this sector. In this case, a cost development methodology with a hierarchical structure is used, developing simple costs (SC) for each layer of the façade solutions to be studied, and complex costs (CC) for the complete solutions, which are composed of several SCs.
The data for the environmental impact study of the solutions are obtained through life cycle assessment (LCA) using the Cumulative Energy Demand (CED) methodology to obtain their embodied energy and the Global Warming Potential (GWP 100a) category of CML 2001 for the emission factor. Simapro 8 [25] is used for this assessment, with Ecoinvent 3 [26] as the LCA database, which was identified by Martínez-Rocamora et al. [27] as the most comprehensive database for environmental studies in the construction sector. Data for the embodied energy and emission factor of sheep wool and alginate were obtained from recent studies by Barber and Pellow [28] and Resurrección et al. [29], respectively. Table 1 shows a list of the extracted data for every material and process included in the environmental assessment of the façade solutions that are under study.
The analysis covers the manufacturing, construction, deconstruction, and final disposal processes. The total service life of the façade solutions has been estimated at 50 years, according to ISO 14040 [30] and ISO 14044 [31]. The operational energy has not been considered in the calculations since the thickness of the thermal insulation for all the façade solutions that are under study has been chosen to equal their thermal transmittance values (U-value) (~0.500 W/m2·K), which will cause scarce differences in energy consumption. Likewise, maintenance operations are dismissed, since they just consist of repairing 2% of the outer and inner coatings every 25 years [32], which does not influence the decision of which base material to choose for the façade. Therefore, the life cycle phases included in the system are the following:
  • Manufacturing. For each construction material used, a cradle-to-gate life cycle assessment is carried out, leaving transport included in the construction phase, and the final disposal in the last phase in this list.
  • Construction. This phase covers the transport of materials from the manufacturing point to the construction site, as well as the energy and fuel consumption for the construction of the studied solutions.
  • Demolition. This phase considers the energy and fuel required for the demolition of the façade components and their transport to the final disposal location.
  • Final disposal. This phase includes the disposal and recycling processes for the waste generated by the demolition process.
The calculation procedure to obtain the life cycle inventory for the environmental assessment is described by García-Martínez [33], which consists of the following steps:
  • Identify and quantify the main and auxiliary products.
  • Identify and quantify the basic processes related to construction and demolition. The electricity and fuel consumption in the construction and demolition works are obtained through a conversion factor proportional to the total volume of construction materials involved, according to the procedure described by Kellenberger et al. [34].
  • Determine the inputs and outputs of each unitary process. In this study, a selective final disposal has been assumed, where the waste materials are classified according to their nature. The quantification of the materials for their final disposal is equal to the quantity of materials originally consumed to build the various façade solutions.
  • Elaboration of the life cycle inventory and the application of assessment methodologies. In this case, as it has been stated before, the CML 2001 and Cumulative Energy Demand methodologies have been applied in order to obtain the emissions of equivalent CO2 (kgCO2eq) and the embodied energy (MJ) for the materials and processes identified.

4. Conventional and Unconventional Materials Analyzed

The conventional constructive solutions selected for this study are most commonly used in residential buildings in Spain according to the Spanish Technical Code—CTE—in the construction sector [35].
These solutions are (Figure 3) a double-sheet façade made of ceramic brick (FCBF), a façade where the inner sheet is replaced with plasterboard (PBF), and another double-sheet façade of concrete block masonry (CBF). The unconventional solution consists of a double-sheet façade of stabilized soil panels (SSPF). In all of them, the use of polyurethane foam is assumed as a thermal insulator, with different thicknesses to balance their U-values. Likewise, they are all coated with cement mortar on the outside and gypsum plaster on the inside, except the PBF, whose inner sheet already consists of plasterboard. Thus, the results of the comparison clearly reflect the implications of the use of one material or another for the support sheets.

4.1. Fired Clay Brick Façade (FCBF)

The first façade solution under study consists of a double sheet of ceramic brick with an intermediate thermal insulation. The outer sheet has a thickness of 11.5 cm, with perforated bricks of 240 × 115 × 50 mm3 taken with cement mortar, while the inner sheet—7 cm thick—is built with double hollow bricks of 240 × 115 × 70 mm3. Ceramic bricks are subjected to temperatures between 1000 °C and 1200 °C, which translates into an embodied energy of 3.81 MJ/kg and an emission factor of 317 kgCO2eq/kg. The thermal insulation required to match the thermal characteristics of the solutions under study must be 35 mm thick in this case.

4.2. Plasterboard Façade (PBF)

This solution requires a supporting outer sheet with a minimum solidity, for which an 11.5 cm thick ceramic brick masonry is usually used, as in the previous solution (FCBF). The inner sheet, on the other hand, is formed by plasterboard panels anchored to the support wall with metal profiles every 40–60 cm. In the space between both sheets and the profiles, a 40 mm thick thermal insulation layer is placed in order to obtain a U-value of 0.500 W/m2·K. This solution does not have an internal coating of gypsum plaster since the inner sheet is already formed by that material and is directly coated. The use of the gypsum board involves the emission of 0.406 kgCO2eq/kg and an embodied energy of 5.73 MJ/kg, but the main disadvantage of its use is that it involves the installation of a galvanized steel structure that produces 4.55 kgCO2eq/kg and consumes 6.36 MJ/kg, only to be relieved by the savings on the environmental impact in future cycles due to the recycling processes.

4.3. Concrete Block Façade (CBF)

This façade solution consists of two sheets of concrete blocks, with thermal insulation between them and cement mortar coatings on the outside and gypsum plaster on the inside. Most of the environmental impact of the concrete blocks depends on the amount of cement used in the mixture, but on average they generate 0.0905 kgCO2eq/kg and consume 0.884 MJ/kg. In the solution studied, blocks of 390 × 190 × 140 mm3 are used for the outer sheet, and 390 × 190 × 80 mm3 for the inner sheet, with apparent densities of 1000 and 1220 kg/m3, respectively.

4.4. Stabilized Soil Panel Façade (SSPF)

The mixture of components described in Section 2 is made in proportions by weight of 76.75% clay, 20% water, 3% alginate, and 0.25% sheep wool fiber. However, only 7% of water remains incorporated into the piece once it is dry, while the remaining 13% is lost through evaporation.
Unlike conventional façade systems made of compressed soil blocks in which the weight of the material penalizes GWP and Embodied Energy EE, the present design aims to lighten the piece through a method of stabilization of the soil and by including a molding extrusion in the manufacturing of a sandwich which also incorporates an inner layer for thermal insulation.
Table 2 shows the calculation of the emission factor and the embodied energy per kg of stabilized soil material, which serves as the basis for the life cycle assessment of the façade solution. The calculation has been carried out for both the outer and inner panels in order to ensure the coherence and solidity of the data obtained. As a result, the emission factor and the embodied energy to be considered in this study are 0.088 kgCO2eq/kg and 1.924 MJ/kg, respectively.
In order to illustrate the procedure followed for the environmental and economic analysis of the different façade solutions, the corresponding calculations for the façade of stabilized soil panels are used as an example. Table 3 shows the calculations of thermal transmittance (U-value), volume, and weight of the materials that make up the façade. The U-value is obtained through the thermal resistance of the materials of each layer, according to Spanish regulations CTE DA DB-HE1 [36]. This procedure has been used to adapt the thermal insulation thicknesses of each solution in order to be comparable as possible substitutes for each other for the same climatic demands. The volume and weight of the materials serve as the basis for calculating the environmental impact of all the processes related to the different phases of their life cycle, given that LCA databases usually contain emission and embodied energy factors by kg of material.
Once the weight of each material that forms the façade solution (per m2, chosen as a functional unit) is obtained, the emission and embodied energy factors from Table 1 are applied to determine the environmental impact of both the complete solution and each phase of its life cycle (see below Table 4).
For the economic assessment, a total of 11 simple costs (SC) and 4 complex costs (CC), as defined in Section 3 (one for each façade solution), have been developed; the latter comprising 3–5 SCs, depending on the number of layers of which they are composed. In Table 5, Table 6 and Table 7 the elaboration of the 3 SCs that make up the SSPF solution are shown, all of them being included in the CC of Table 8, which has 1 m2 of each of them.

5. Results and Discussion

The calculation described in the previous section is carried out with each of the four façade solutions in the comparison, thus, allowing for the study of the differences in terms of GWP (Figure 4) and EE (Figure 5) in each phase of their life cycle. The construction and demolition phases show a proportionality between the results, obviously because the calculation method used depends exclusively on the weight and volume of materials, with higher electricity and fuel consumption factors for the first phase. Precisely for this reason, although the CBF solution has a lower impact in the manufacturing phase, this difference is compensated in the total by its greater weight and volume, which affects the results of the construction and demolition phases, hence, overcoming the total environmental impact of the PBF option despite the latter having a considerably lower weight and volume.
Regarding the results obtained for the SSPF solution, these are clearly lower than the rest of the options in all of the phases, which is explained by the absence of any firing processes in their manufacture, as well as by their lower weight and volume. In addition, being made up of inert materials—with the exception of thermal insulation—the final disposal provokes a smaller impact, although, as it has been proven, the last phase represents a less significant part of the total environmental impact of materials (~4%).
These analyses allow for the determination that the environmental impact of the SSPF solution, both in terms of GWP and EE, is approximately 40% that of the rest of solutions. This is a very satisfactory result compared to those obtained in previous studies in which this type of solution was applied to load-bearing walls [37,38].
According to the cost evaluation in Table 5, Table 6, Table 7 and Table 8, the total cost obtained for the SSPF solution is 52.43 €/m2, a significantly lower value compared to the rest of the solutions, mainly due to the absence of the base material’s firing process. Although, at the moment, the difference is less significant due to the scarce industrialization of the production since it is a new material currently in development. It is estimated that, with a greater insertion into the market of construction products and greater automation in the manufacturing system, it could become more profitable, with its cost per m2 decreasing down to 30% below the levels of the other façade solutions.
Finally, Table 9 shows a comparative summary of the results in terms of volume, weight, thermal transmittance, environmental impact, and costs. As can be observed, with similar thermal characteristics, the volume of the façade required with the SSPF solution is lower than that of traditional solutions, partly caused by the use of a thermal insulation 10 mm thicker than that of the FCBF solution.
The weight of the unconventional solution presented in this study also becomes a decisive factor since it can serve to diminish the load that the structure of the building must support, which would allow for the reduction of the consumption of structural material and with it, the environmental impact of the entire building. In addition, the considerable difference in environmental impact with respect to conventional solutions confirms that the way to reduce the emissions generated by the construction sector is to develop materials with slower but more natural raw materials and manufacturing processes, which is not always applicable to countries in intensive development.
In light of the above, and considering that the operational energy has been equalised for all four systems by means of their U-values, it can be concluded that the main comparison factors are the EE, the GWP, and the economic cost of all four solutions.
Regarding the EE, the energy demand of the proposed new system (the SSPF) was 45% lower than the most demanding one, the FCBF, and even 28% lower than the conventional one which showed the lowest embodied energy, that is, PBF. Concerning GWP, SSPF produces 54% fewer emissions than FCBF and even 40% less than PBF, the conventional solutions with the highest and lowest values, respectively.
Last but not least, the economic analysis shows that the proposed system (the SSPF) is 30.5% cheaper than CBF—the most expensive among the conventional solutions—and 22% cheaper than the cheapest solution, PBF.

6. Conclusions

This research verifies the methodology followed by means of conducting a parallel environmental and economic evaluation in order to reduce not only the environmental cost but also the global cost of the building. In this sense, the paper underline the need to focus on green materials competent enough to match the performance of conventional ones and also to improve the environmental bill of buildings without implying a cost increase or even resulting in a lower cost.
The previous results confirm that, in the case of the building envelope, the use of environmentally friendly products in building construction to replace conventional ones not only enhances the environmental sustainability and reduces environmental impacts during the building life cycle, but can also be an affordable and competitive solution.

Acknowledgments

The authors wish to acknowledge the IUACC “Instituto Universitario de Arquitectura y Ciencias de la Construcción” for the necessary support to develop this research. We would also like to express our gratitude to the Foundation INNOVARCILLA, also known as the Andalusian Ceramics Technology Centre. This research project and the costs to publish in open access have been partially funded by the TEP-1988 project PANEL of the 2012 call of the Dirección General de Investigación, Tecnología y Empresa. Consejería de Economía, Innovación, Ciencia y Empleo. Junta de Andalucía.

Author Contributions

Galán-Marín and Rivera-Gómez conceived and designed the prototype; Martínez-Rocamora and Solís-Guzmán conceived and performed the experiments; Martínez-Rocamora and Solís-Guzmán analyzed the data; Galán-Marín, Martínez-Rocamora, Solís-Guzmán, and Rivera-Gómez wrote the paper.

Conflicts of Interest

The authors declare no conflicts of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; and in the decision to publish the results.

References

  1. Galán-Marín, C.; Rivera-Gómez, C.; Petric, J. Clay-based composite stabilized with natural polymer and fibre. Constr. Build. Mater. 2010, 24, 1462–1468. [Google Scholar] [CrossRef]
  2. Kinuthia, J.M.; Nidzam, R.M. Towards zero industrial waste: Utilisation of brick dust waste in sustainable construction. Waste Manag. 2011, 31, 1867–1878. [Google Scholar] [CrossRef] [PubMed]
  3. Oti, J.E. The Development of Unfired Clay Building Materials for Sustainable Building Construction; University of Glamorgan: Pontypridd, UK, 2010. [Google Scholar]
  4. Oti, J.E.; Kinuthia, J.M. Stabilised unfired clay bricks for environmental and sustainable use. Appl. Clay Sci. 2012, 58, 52–59. [Google Scholar] [CrossRef]
  5. Minke, G. Handbuch Lehmbau: Baustoffkunde, Techniken, Lehmarchitektur (Earth Construction Handbook: Material, Technics, Adobe Architecture); Ökobuch Verlag: Kassel, Germany, 2009. [Google Scholar]
  6. Alva Balderrama, A. The Getty Conservation Institute. Available online: http://www.getty.edu/conservation/publications_resources/newsletters/16_1/feature.html (accessed on 27 February 2018).
  7. Minke, G. Earth Construction Handbook: The Building Material Earth in Modern Architecture; WIT Press: Ashurst, UK, 2000. [Google Scholar]
  8. Venkatarama Reddy, B.V.; Jagadish, K.S. Embodied energy of common and alternative building materials and technologies. Energy Build. 2003, 35, 129–137. [Google Scholar] [CrossRef]
  9. Vázquez Espí, M. Construcción e impacto sobre el ambiente: El caso de la tierra y otros materiales. Inf. Constr. 2001, 52, 29–43. [Google Scholar] [CrossRef]
  10. Janssen, G.M.T.; Hendriks, C.F. Sustainable use of recycled materials in building construction. In Proceedings of the International Conference on Advances in Building Technology, Hong Kong, China, 4–6 December 2002. [Google Scholar]
  11. Walker, P.J. Strength, durability and shrinkage characteristics of cement stabilised soil blocks. Cem. Concr. Compos. 1995, 17, 301–310. [Google Scholar] [CrossRef]
  12. Houben, H.; Guillard, H. Earth Construction: A Comprehensive Guide; Practical Action: Yorkshire, UK, 1994. [Google Scholar]
  13. Walker, P.; Venkatarama Reddy, B.V.; Mesbah, A.; Morel, J.C. The case of compressed earth block construction. In Proceedings of the 6th International Seminar on Structural Masonry for Developing Countries, Bangalore, India, 11–13 October 2000. [Google Scholar]
  14. Shukla, A.; Tiwari, G.N.; Sodha, M.S. Embodied energy analysis of adobe house. Renew. Energy 2009, 34, 755–761. [Google Scholar] [CrossRef]
  15. Ogunkah, I.; Yang, J. Investigating factors affecting material selection: The impacts on green vernacular building materials in the design-decision making process. Buildings 2012, 2, 1–32. [Google Scholar] [CrossRef]
  16. Chan, J.W.K.; Tong, T.K.L. Multi-criteria material selections and end-of-life product strategy: Grey relational analysis approach. Mater. Des. 2007, 28, 1539–1546. [Google Scholar] [CrossRef]
  17. Eberhard, W.T. Analyzing the Cost of Obtaining LEED Certification; Northbridge Environmental Management Consultants, American Chemistry Council: Westford, MA, USA, 2007. [Google Scholar]
  18. Costing Green: A Comprehensive Cost Database and Budgeting Methodology. Available online: https://www.usgbc.org/sites/default/files/Costing%20Green_A%20Comprehensive%20Cost%20Database%20and%20Budgeting%20Methodology.pdf (accessed on 22 February 2018).
  19. Morris, P.; Matthiessen, L.F. Cost of Green Revisited: Reexamining the Feasibility and Cost Impact of Sustainable Design in the Light of Increased Market Adoption; Davis Langdon: London, UK, 2007. [Google Scholar]
  20. Mapp, C.; Nobe, M.; Dunbar, B. The cost of leed—An analysis of the construction costs of leed and non-leed banks. J. Sustain. Real Estate 2011, 3, 254–273. [Google Scholar]
  21. Kats, G. Greening Our Built World: Costs, Benefits, and Strategies; Island Press: Washington, DC, USA, 2009. [Google Scholar]
  22. Uğur, L.O.; Leblebici, N. An examination of the LEED green building certification system in terms of construction costs. Renew. Sustain. Energy Rev. 2018, 81, 1476–1483. [Google Scholar] [CrossRef]
  23. Zabalza Bribián, I.; Valero Capilla, A.; Aranda Usón, A. Life cycle assessment of building materials: Comparative analysis of energy and environmental impacts and evaluation of the eco-efficiency improvement potential. Build. Environ. 2011, 46, 1133–1140. [Google Scholar] [CrossRef]
  24. Base de Costes de la Construcción de Andalucía (BCCA). Available online: http://www.juntadeandalucia.es/organismos/fomentoyvivienda/areas/vivienda-rehabilitacion/planes-instrumentos/paginas/bcca-sept-2017.html (accessed on 22 February 2018).
  25. PRé Sustainability SimaPro 8. 2016. Available online: https://www.pre-sustainability.com/ (accessed on 22 February 2018).
  26. Ecoinvent Association Ecoinvent Database v3. Available online: http://www.ecoinvent.org/database/database.html (accessed on 22 February 2018).
  27. Martínez-Rocamora, A.; Solís-Guzmán, J.; Marrero, M. LCA databases focused on construction materials: A review. Renew. Sustain. Energy Rev. 2016, 58, 565–573. [Google Scholar] [CrossRef]
  28. Barber, A.; Pellow, G. Life Cycle Assessment: New Zealand Merino Industry, Merino Wool Total Energy Use and Carbon Dioxide Emissions; The Agribusiness Group: Canterbury, New Zealand, 2006. [Google Scholar]
  29. Resurrección, E.P.; Colosi, L.M.; White, M.A.; Clarens, A.F. Comparison of algae cultivation methods for bioenergy production using a combined life cycle assessment and life cycle costing approach. Bioresour. Technol. 2012, 126, 298–306. [Google Scholar] [CrossRef] [PubMed]
  30. UNE-EN ISO 14040 Environmental Management—Life Cycle Assessment—Principles and Framework. Available online: http://www.aenor.es/aenor/normas/normas/fichanorma.asp?tipo=N&codigo=N0038060&PDF=Si#.WrZGzy7wbIU (accessed on 24 February 2018).
  31. UNE-EN ISO 14044 Environmental Management—Life Cycle Assessment—Requirements and Guidelines. 2006. Available online: http://www.aenor.es/aenor/normas/normas/fichanorma.asp?tipo=N&codigo=N0038060&PDF=Si#.WrZGzy7wbIU (accessed on 23 February 2018).
  32. Lufkin, P.; Abate, D.; Romani, L.; Towers, M.; Dotz, R.; Miller, J. The Whitestone Facility Maintenance and Repair Cost Reference 2014–2015; Whitestone Research Corporation: Santa Barbara, CA, USA, 2014. [Google Scholar]
  33. García-Martínez, A. Life cycle assessment (LCA) of buildings. In Methodological Proposal for the Development of Environmental Declarations of Dwellings in Andalusia; University of Seville: Seville, Spain, 2010. [Google Scholar]
  34. Life Cycle Inventories of Chemicals. Available online: https://db.ecoinvent.org/reports/08_Chemicals.pdf (accessed on on 25 February 2018).
  35. Catálogo de Elementos Constructivos (Construction Elements Catalog) (CEC). Available online: http://nol.infocentre.es/ictnol/pdf/Catalogo%20Elementos%20Constructivos%20v05.0_MAYO08.pdf (accessed on 18 February 2018).
  36. Spain MPW CTE, DA DB-HE1—Cálculo de Parámetros Característicos de la Envolvente. Available online: https://www.codigotecnico.org/images/stories/pdf/ahorroEnergia/DA-DB-HE-1-Calculo_de_parametros_caracteristicos.pdf (accessed on 15 February 2018).
  37. Galán-Marín, C.; Rivera-Gómez, C.; García-Martínez, A. Embodied energy of conventional load-bearing walls versus natural stabilized earth blocks. Energy Build. 2015, 97, 146–154. [Google Scholar] [CrossRef]
  38. Galán-Marín, C.; Rivera-Gómez, C.; García-Martínez, A. Use of natural-fiber bio-composites in construction versus traditional solutions: Operational and embodied energy assessment. Materials 2016, 9, 465–482. [Google Scholar] [CrossRef] [PubMed]

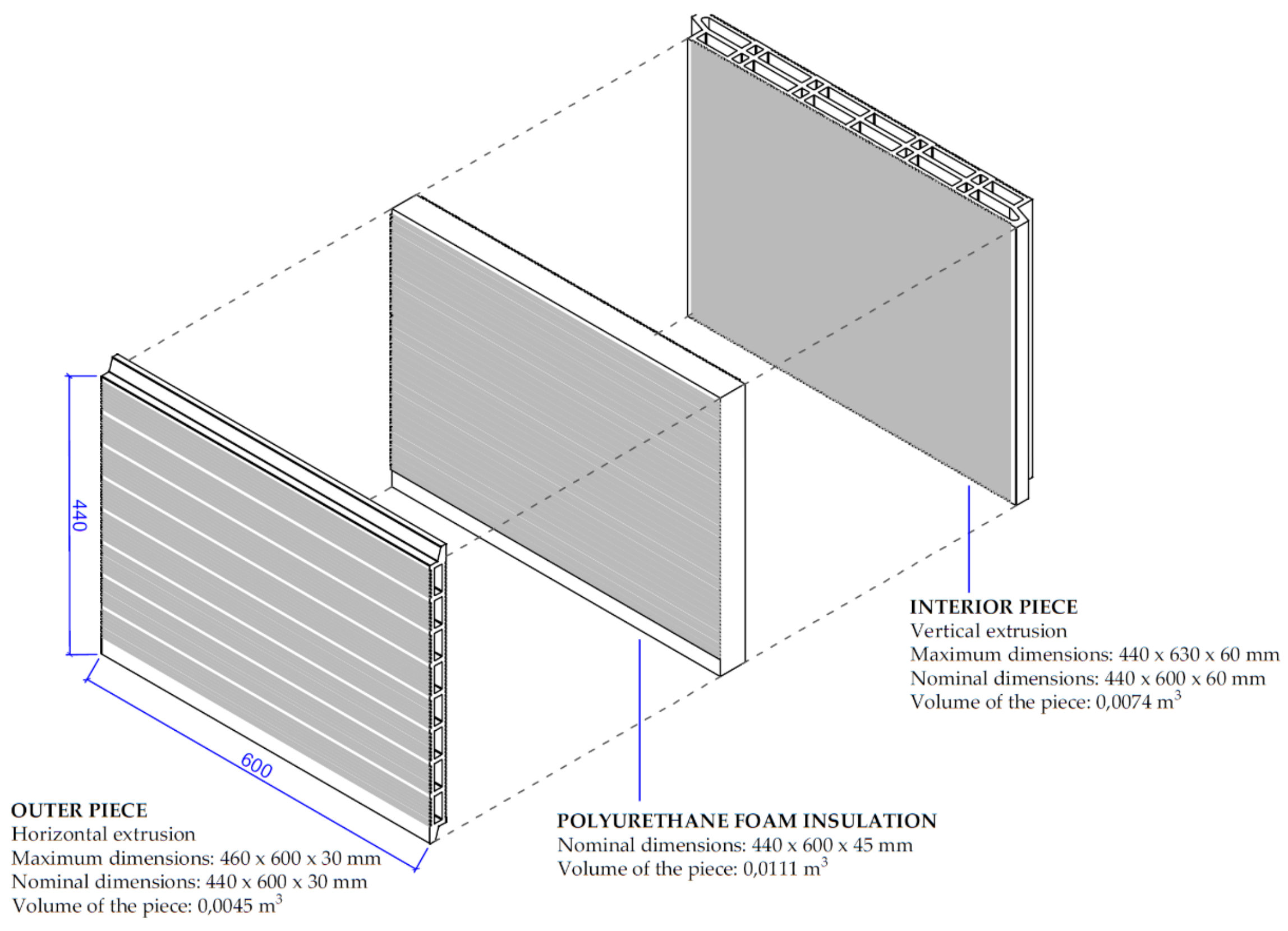

Figure 1. Stabilized soil panels. Detail of composition.
Figure 1. Stabilized soil panels. Detail of composition.
Sustainability 10 01020 g001

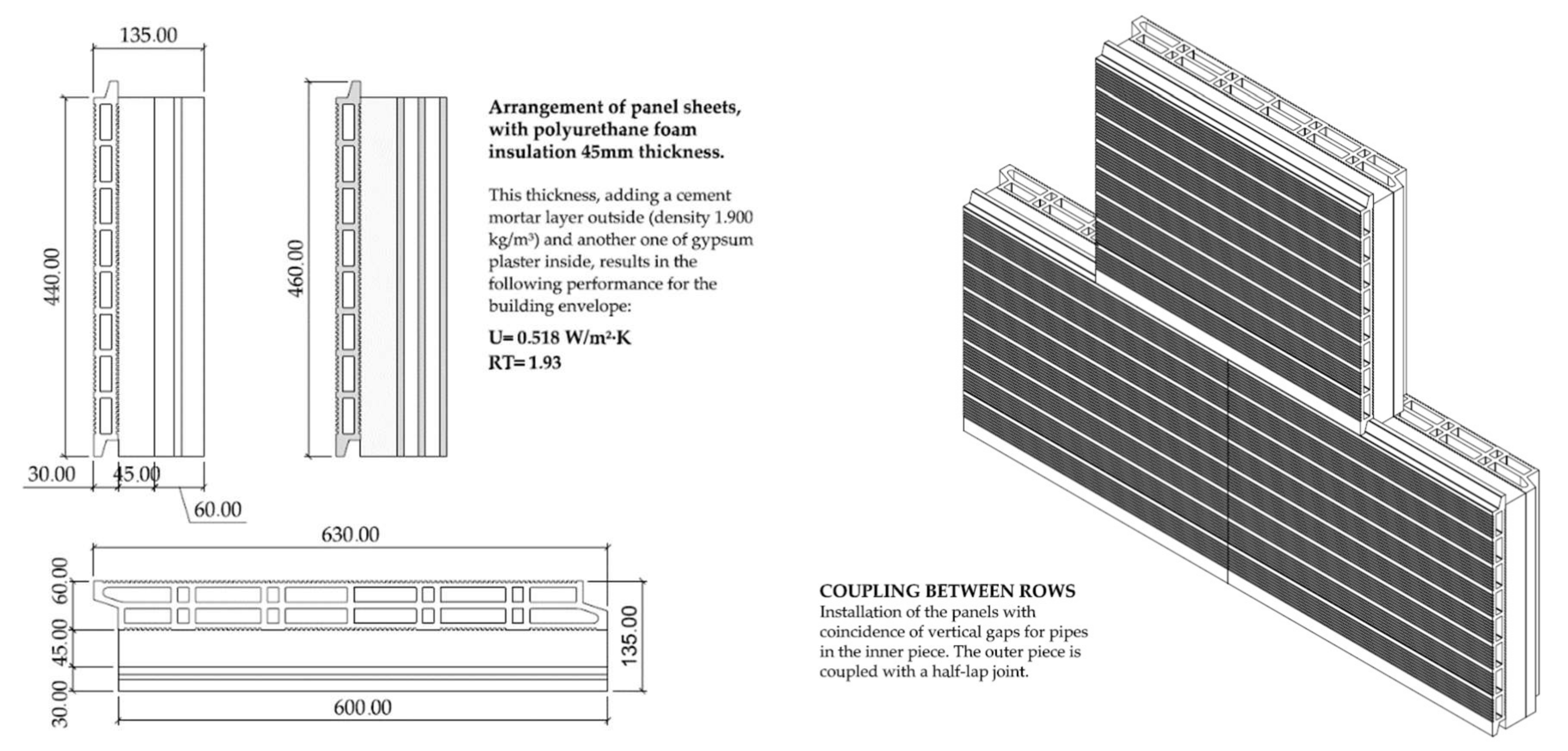

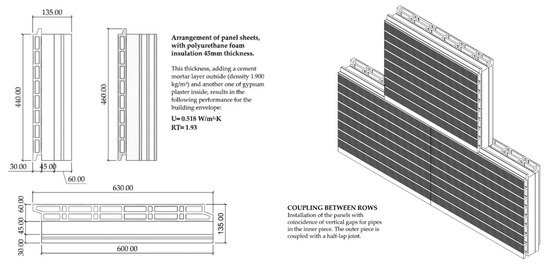

Figure 2. Stabilized soil panels. The total dimensions and blocks’ layout.
Figure 2. Stabilized soil panels. The total dimensions and blocks’ layout.
Sustainability 10 01020 g002

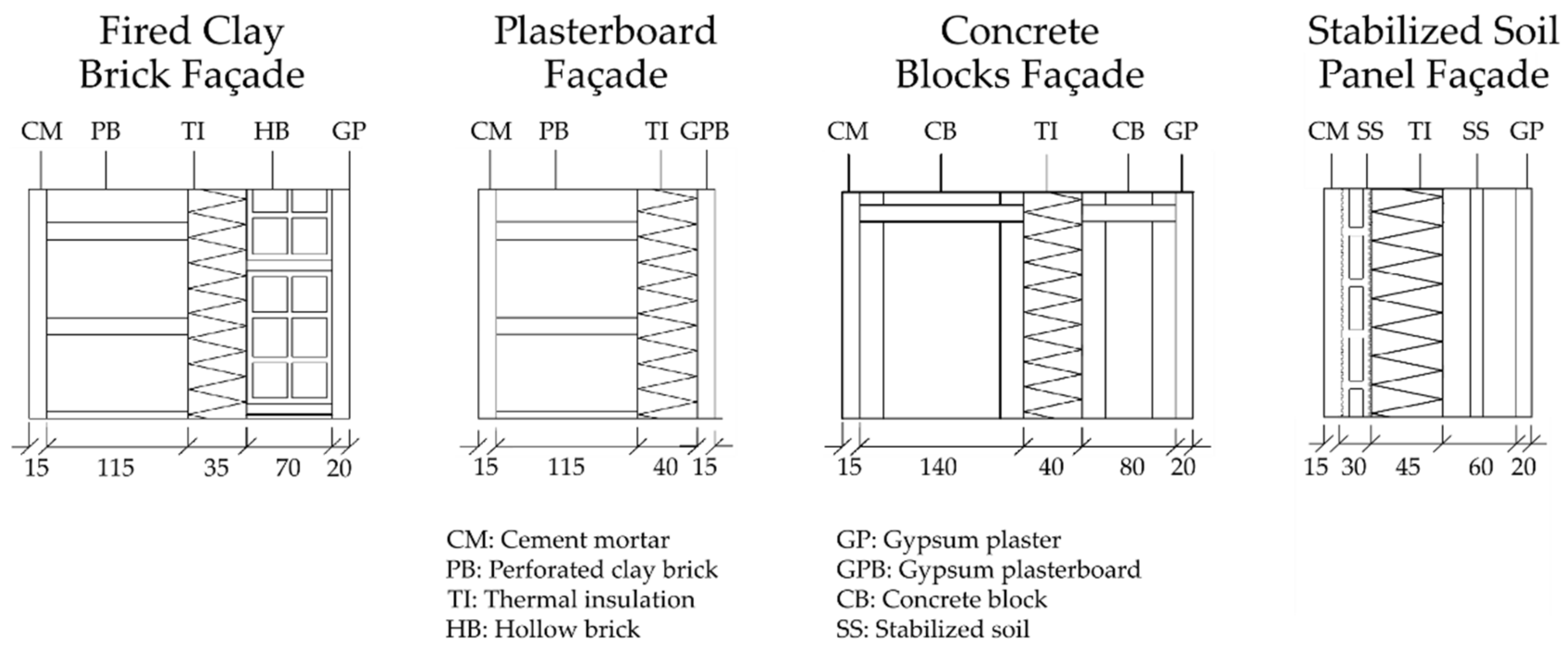

Figure 3. The façade solutions under study.
Figure 3. The façade solutions under study.
Sustainability 10 01020 g003

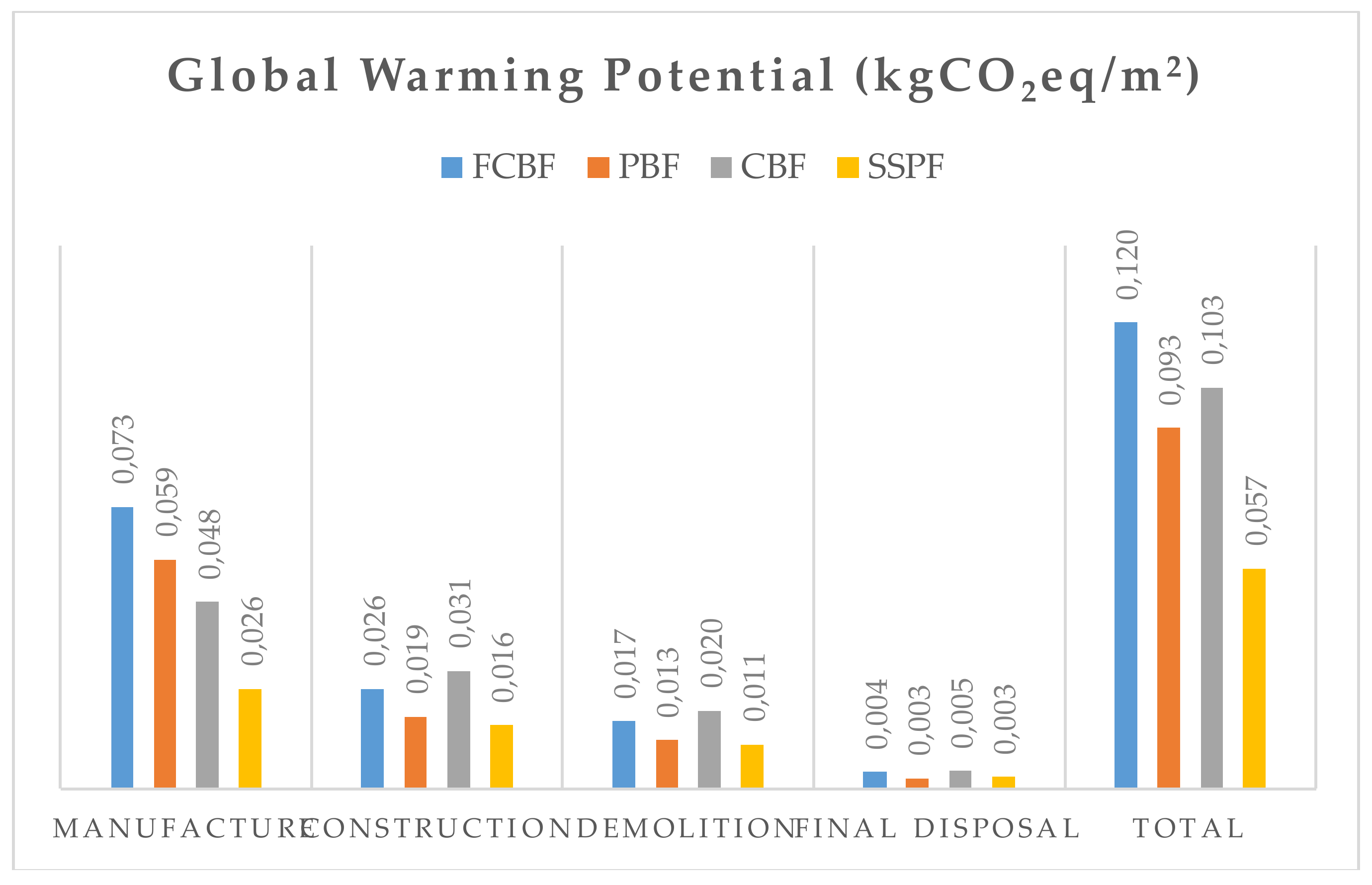

Figure 4. The Global Warming Potential of the four façade solutions in each phase of their life cycle.
Figure 4. The Global Warming Potential of the four façade solutions in each phase of their life cycle.
Sustainability 10 01020 g004

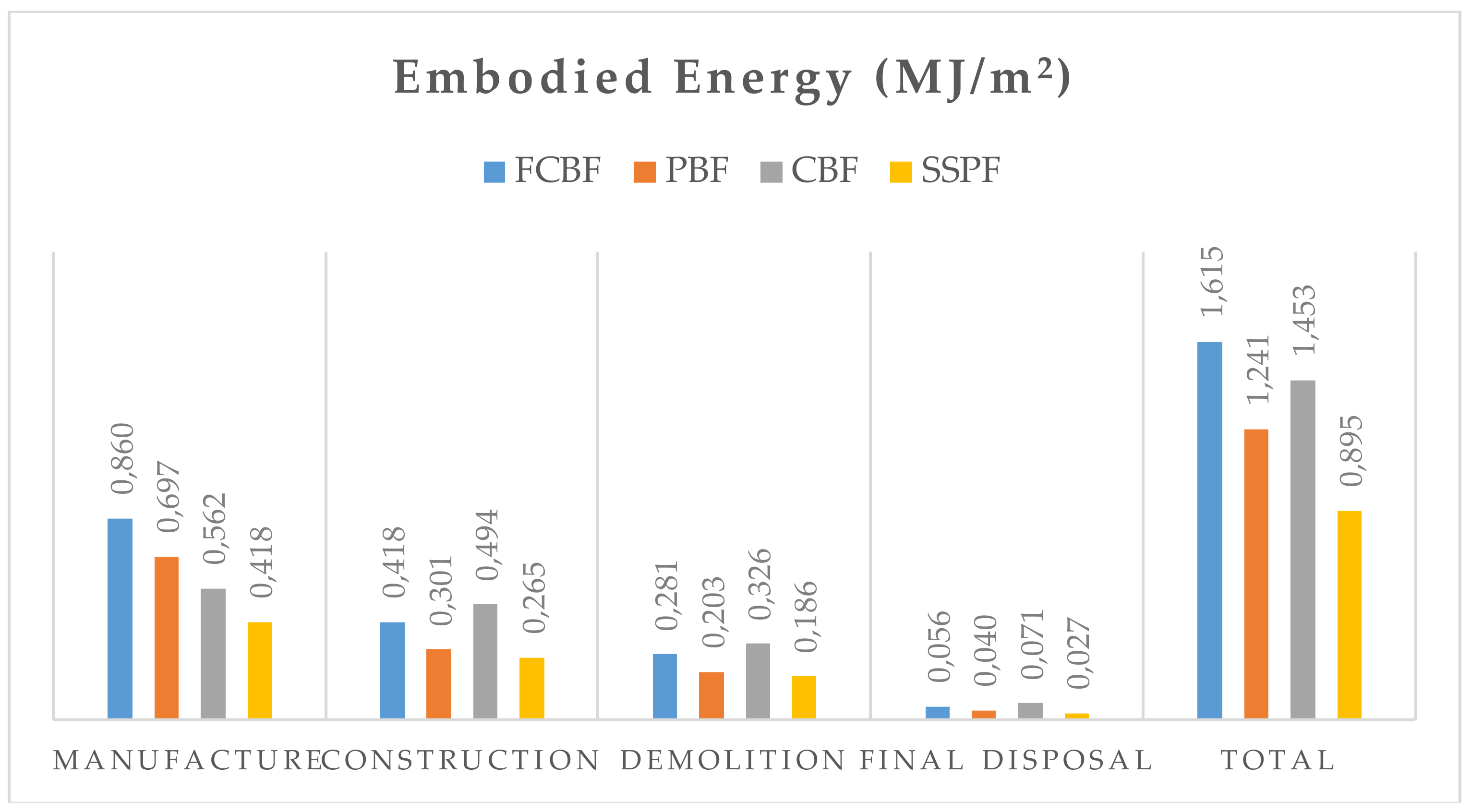

Figure 5. The Cumulative Energy Demand of the four façade solutions in each phase of their life cycle included in this study.
Figure 5. The Cumulative Energy Demand of the four façade solutions in each phase of their life cycle included in this study.
Sustainability 10 01020 g005
Table 1. Materials used and their name in the Ecoinvent database v3. Unitary values for Global Warming Potential and Embodied Energy.
Table 1. Materials used and their name in the Ecoinvent database v3. Unitary values for Global Warming Potential and Embodied Energy.
ComponentName (Ecoinvent)UnitGlobal Warming Potential 100a CML 2001 (kgCO2eq) [26]Embodied Energy Cumulative Energy Demand (MJ) [26]
FINISHES
Cement mortarCement mortarkg0.26902.1600
Gypsum plasterCover plaster, mineralkg0.14802.2000
Gypsum plasterboardGypsum plasterboardkg0.40605.7300
Chromium steelSteel, chromium steel 18/8kg4.55006.3600
BLOCKS
Clay brickClay brickkg0.31703.8100
Concrete blockConcrete blockkg0.09050.8840
Clay plasterClay plasterkg0.11101.6800
Algae [29]Algaekg0.020020.0000
Sheep Wool [28]Wool matkg0.985013.4200
Tap waterTap waterkg0.00040.0072
Stabilized soil blockStabilized soil blockkg0.08831.9244
THERMAL INSULATION
PolyurethanePolyurethane, flexible foamkg4.9400105.0000
ENERGY
ElectricityElectricity, low voltagekWh0.467010.9000
Diesel (Construction-Demolition)Diesel, burned in building machineMJ0.20102.8600
TRANSPORT
Transport lorry 16–32 ton EURO4Transport, freight, lorry 16–32 metric ton, EURO4tkm0.16602.6500
WASTE
Inert wasteInert waste, for final disposalkg0.00770.2140
Waste concreteWaste concretekg0.00840.2190
Waste brickWaste brickkg0.01180.2240
Waste cement mortarWaste cement in concrete and mortarkg0.01570.3210
Waste polyurethane foamWaste polyurethane foamkg1.03001.2500
Waste gypsumWaste gypsumkg0.01390.3310
Waste gypsum plasterboardWaste gypsum plasterboardkg0.01170.2620
Waste mineral plasterWaste mineral plasterkg0.00880.2050
Recycling of steel and ironRecycling of steel and ironkg−1.7100−1.6100
Table 2. Determination of the unitary Global Warming Potential GWP and Embodied Energy EE per kg of stabilized soil.
Table 2. Determination of the unitary Global Warming Potential GWP and Embodied Energy EE per kg of stabilized soil.
WALL/ComponentWeight (kg)Global Warming Potential 100a CML 2001 (kgCO2-eq)Embodied Energy Cumulative Energy Demand (MJ)
OUTERClay plaster15.0371.66925.263
Alginate0.5880.01211.755
Water (incorporated)1.3710.0010.010
Water (evaporated)2.5470.0010.018
Sheep wool0.0490.0480.657
TOTAL19.5921.73137.704
TOTAL (per kg) 0.0881.924
INNERClay plaster24.7282.74541.543
Alginate0.9670.01919.331
Water (incorporated)2.2550.0010.016
Water (evaporated)4.1880.0020.030
Sheep wool0.0810.0791.081
TOTAL32.2192.84662.002
TOTAL (per kg) 0.0881.924
Table 3. The thermal, volumetric, and physical analysis of the stabilized soil panel façade as a basis for the environmental and economic assessment.
Table 3. The thermal, volumetric, and physical analysis of the stabilized soil panel façade as a basis for the environmental and economic assessment.
THERMAL RESISTANCE AND TRANSMITTANCEWidth (m)Conductivity (W/m·K) [35]Thermal Resistance (m²·K/W)
1Rse (thermal superficial resistance of outdoor air)--0.040
2Cement mortar0.0151.3000.012
3Outer wall (stabilized soil)0.0300.7800.038
4Polyurethane foam0.0450.0281.607
5Inner wall (stabilized soil)0.0600.7800.077
6Gypsum plaster0.0200.5700.035
7Rsi (thermal superficial resistance of indoor air)--0.130
TOTAL RESISTANCE1.939
Transmittance (U) W/m2·K0.516
VOLUME AND WEIGHT OF MATERIALSVolume (m³)Density (kg/m³) [35]Weight (kg)
1Cement mortar0.01501.90028.50
2Outer wall (stabilized soil) **0.0170*1.00017.05
3Outer wall (cement mortar)0.00061.9001.17
4Polyurethane foam0.0450452.03
5Inner wall (stabilized soil) **0.0280*1.00028.03
6Inner wall (cement mortar)0.00091.9001.62
7Gypsum plaster0.02001.15023.00
TOTAL0.1700 101.39
* Real (not apparent) volume and density.
Table 4. The environmental impact assessment of the stabilized soil panel façade according to the materials and processes involved in each phase of its life cycle.
Table 4. The environmental impact assessment of the stabilized soil panel façade according to the materials and processes involved in each phase of its life cycle.
PHASE/ElementUnitQuantityGlobal Warming Potential 100a CML 2001 (kgCO2eq/m2)Embodied Energy Cumulative Energy Demand (MJ/m2)
MANUFACTURE 25.805417.544
Cement mortarkg28.5007.66761.560
Outer wall (stabilized soil)kg17.0451.50632.802
Outer wall (cement mortar)kg1.1650.3142.517
Polyurethane foamkg2.02510.004212.625
Inner wall (stabilized soil)kg28.0302.47653.941
Inner wall (cement mortar)kg1.6200.4363.498
Gypsum plasterkg23.0003.40450.600
CONSTRUCTION 16.369264.824
Electricity (Construction)kWh6.8123.18174.254
Diesel (Construction)MJ57.23911.505163.704
Transport (Construction)tkm10.1391.68326.867
DEMOLITION 11.466185.731
Electricity (Demolition)kWh5.2402.44757.118
Diesel (Demolition)MJ44.0308.850125.926
Transport (Final disposal)tkm1.0140.1682.687
FINAL DISPOSAL 3.10626.637
Waste cement mortarkg28.5000.4479.149
Waste inert materialkg47.8610.37010.242
Waste polyurethane foamkg2.0252.0862.531
Waste gypsum plasterkg23.0000.2024.715
TOTAL 56.746894.736
Table 5. Breakdown of the simple cost (SC) of the cement mortar on the wall [24].
Table 5. Breakdown of the simple cost (SC) of the cement mortar on the wall [24].
m2CEMENT MORTAR ON WALL
UNITCONCEPTQTYCOSTTOTAL
hMasonry team (master and assistant)0.35038.7513.56
m3Cement mortar M5 (1:6)0.02154.581.15
DIRECT COSTS14.71
10.62%I.C.1.56
TOTAL16.27
Table 6. Breakdown of the SC of the stabilized soil panel wall including polyurethane.
Table 6. Breakdown of the SC of the stabilized soil panel wall including polyurethane.
m2STABILIZED SOIL PANEL WALL W/POLYURETHANE w = 13.5 cm
UNITCONCEPTQTYCOSTTOTAL
hMaster mason0.40019.857.94
hMasonry assistant0.20018.903.78
m3Cement mortar M5 (1:6)0.00256.200.11
uStabilized soil panel with polyurethane 60 × 44 cm3.7003.4212.66
DIRECT COSTS24.49
10.62%I.C.2.60
TOTAL27.09
Table 7. Breakdown of the SC of the gypsum plaster on the wall [24].
Table 7. Breakdown of the SC of the gypsum plaster on the wall [24].
m2GYPSUM PLASTER ON WALL
UNITCONCEPTQTYCOSTTOTAL
hMaster plasterer0.30019.855.96
m3Black gypsum plaster0.015111.051.67
m3White gypsum plaster0.005115.200.58
DIRECT COSTS8.20
10.62%I.C.0.87
TOTAL9.07
Table 8. Breakdown of the CC of the stabilized soil panel façade with cement mortar and gypsum plaster finishes.
Table 8. Breakdown of the CC of the stabilized soil panel façade with cement mortar and gypsum plaster finishes.
m2STABILIZED SOIL PANEL FAÇADE
UNITCONCEPTQTYCOSTTOTAL
m2Cement mortar on wall1.00014.7114.71
m2Stabilized soil panel wall with polyurethane w = 13.5 cm1.00024.4924.49
m2Gypsum plaster on wall1.0008.208.20
DIRECT COSTS47.40
10.62%I.C.5.03
TOTAL52.43
Table 9. Multivariable comparison of the four façade solutions according to volumetric, physical, thermal, environmental, and economic aspects.
Table 9. Multivariable comparison of the four façade solutions according to volumetric, physical, thermal, environmental, and economic aspects.
Façade SolutionVolume (m3)Weight (kg)U-Value (W/m2·K)Global Warming Potential 100a CML 2001 (kgCO2eq/m2)Embodied Energy Cumulative Energy Demand (MJ/m2)Cost (€/m2)
FCBF0.255231.670.497120.2091615.13568.97
PBF0.185159.470.50093.0331241.48467.20
CBF0.295304.200.493103.4371452.59375.53
SSPF0.170101.390.51656.746894.73652.43

Share and Cite

MDPI and ACS Style

Galán-Marín, C.; Martínez-Rocamora, A.; Solís-Guzmán, J.; Rivera-Gómez, C. Natural Stabilized Earth Panels versus Conventional Façade Systems. Economic and Environmental Impact Assessment. Sustainability 2018, 10, 1020. https://doi.org/10.3390/su10041020

AMA Style

Galán-Marín C, Martínez-Rocamora A, Solís-Guzmán J, Rivera-Gómez C. Natural Stabilized Earth Panels versus Conventional Façade Systems. Economic and Environmental Impact Assessment. Sustainability. 2018; 10(4):1020. https://doi.org/10.3390/su10041020

Chicago/Turabian Style

Galán-Marín, Carmen, Alejandro Martínez-Rocamora, Jaime Solís-Guzmán, and Carlos Rivera-Gómez. 2018. "Natural Stabilized Earth Panels versus Conventional Façade Systems. Economic and Environmental Impact Assessment" Sustainability 10, no. 4: 1020. https://doi.org/10.3390/su10041020

APA Style

Galán-Marín, C., Martínez-Rocamora, A., Solís-Guzmán, J., & Rivera-Gómez, C. (2018). Natural Stabilized Earth Panels versus Conventional Façade Systems. Economic and Environmental Impact Assessment. Sustainability, 10(4), 1020. https://doi.org/10.3390/su10041020

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
