1. Introduction
Road network is the backbone of urban space development and construction by supporting the flow of people and vehicles as the basic channel; it plays a critical and core role in urban economic and social development. Since Hansen first proposed the concept of traffic "accessibility" in 1959, that is, the size of interaction chance between nodes in road network and travel convenience from departure to destination [
1], traffic accessibility research has rapidly become an important part of urban and regional planning, traffic planning, urban geography, traffic geography, and other related disciplines [
2]; it is also a core index to evaluate the degree of traffic network accessibility, and the higher the value, the better the connectivity of the road network will be [
3]. If the accessibility of urban road network is worse, it can lead to urban congestion and large emissions of automobile exhaust, and even increase the risk of air pollution. This poses a serious challenge to the sustainable development of urban ecological environment. On the other hand, accessibility reflects the relative location value of a certain location within a city and the convenience of integration into social and economic activities from the perspective of economic and social development [
4]. The development of the urban economy and society is inseparable from the flow of people, vehicles, and various material resources in space. Without the support of the urban road network, the process of production, consumption, and transportation in the urban economy and society cannot be successful. If the accessibility of urban road network is worse, it will increase the time cost, transaction cost, and production cost of travel and transportation, which will reduce the opportunity of economic and social exchanges among different people and regions, and ultimately reduce the operational efficiency of the urban economic and social system and the ability of the city to create various kinds of wealth. This also poses a great challenge to the sustainable development of the urban economy and society. Therefore, the accessibility level of a road network is an important factor affecting the sustainable development of cities.
To this day, rich achievements have been made in traffic accessibility studies, including basic theory research [
5,
6], spatial patterns and evolution analysis of accessibility [
7,
8], relevant influencing mechanisms of accessibility [
9], and technical method of accessibility measurement [
10,
11,
12]. Accessibility measurement is the core issue, and other related research should be based on measurement. Although accessibility has been thoroughly studied in the past 60 years, it has not yet been unified in the accessibility measurement method. The current methods mainly represent accessibility by calculating the travel time, such as the shortest travel time and the weighted average travel time [
13]. Since the 1980s, Bill Hiller has put forward and developed the theory of Spatial Syntax [
14,
15]. After entering the 21st century, especially since 2010, the theory of Spatial Syntax has been introduced into the study of accessibility measurement of the urban road network and has achieved rich results [
16,
17,
18,
19,
20,
21]. As a new method of accessibility measurement, Spatial Syntax theory provides a new measurement model. It should be pointed out that the applications of the Space Syntax theory in the accessibility study mainly focuses on the accessibility of a specific city [
22,
23], region, and other single space [
24,
25], but there is still a lack of comparative study on traffic accessibility of multiple cities, such as 36 major cities in China in this paper, by using the Space Syntax techniques. Therefore, as a useful exploration and attempt of accessibility measurement research, this paper applies the Spatial Syntax theory to measure the accessibility of road networks of 36 major cities in China, which will expand the application scope of Spatial Syntax theory in accessibility measurement by extending it from a traditional single city to multiple cities. It is hoped that this will provide a methodological reference for the study of accessibility measurement based on Spatial Syntax.
For Chinese cities, with the rapid increase of urban area and population, the accessibility level of China’s urban road network is not optimistic. Urban congestion caused by poor accessibility has become one of the important problems that restrict the sustainable development of Chinese cities. Automobile exhaust has become one of the main sources of urban air pollution in China, which has brought serious harm to human health and urban ecological environment [
26]. When traffic congestion occurs, the time of vehicle exhaust emission is greatly prolonged, and air pollution is more intense. Urban traffic congestion and air pollution show a high degree of correlation [
27]. The Chinese government has attached great importance to the accessibility of urban road networks in recent years. In February 2016, the Central Committee of the Communist Party of China and the State Council issued
Some Opinions on Further Strengthening the Management of Urban Planning and Construction, which clearly put forward the need to "form a complete road network and improve road accessibility"; it can be seen that the accessibility of the urban road network has been highly valued at the national level.
Based on this understanding, this paper presents a study on the accessibility of 36 major cities in China, using the Space Syntax technology to quantitatively measure the accessibility of each urban road network, analyze the characteristics of spatial differences of accessibility, and then put forward strategies and suggestions to improve accessibility. The research can not only enrich the content system of traffic accessibility research but also provide decision-making information regarding the sustainable development of urban traffic planning and construction in China. The methods part of the paper gives the principle and calculation formula of Space Syntax techniques. The case study part analyzes the road network accessibility level and spatial difference of 36 major cities in China. The conclusion part gives the research conclusion and points out the future research direction.
2. Methodology
Providing a physical carrier for human spatial movement is the fundamental purpose of the urban road network. The relationship between road, space, and people is the focus of accessibility study; it also constitutes an integrated unity of subjectivity and objectivity. The Space Syntax theory is a classical theory to explore and characterize this relationship [
28,
29,
30]. The spatial syntactic model subtly represents the relationship between roads, space, and people through a series of measurable quantitative indicators. Commonly used Space Syntax indicators include
Ci (Connection),
Ii (Integration), Intelligibility, and Synergy. Where
Ci is the connection of the
ith cell space, which is equal to the number of other cell spaces connected with
i. The larger the
Ci, the closer the relationship between
ith space and other spaces, and the better is the accessibility.
To calculate the Integration degree, the Depth value must be calculated first. The Depth
D is an important intermediate variable for calculating the integration index; it refers to the minimum number of connection steps (the shortest distance) of a certain unit space to all other unit spaces. The Mean Depth value
MDi is usually used to represent the average minimum number of connecting steps from unit space
i to all other unit spaces, the calculation formula is:
where the numerator represents the total Depth value of unit space
i,
dij represents the Depth of
i to
j (
j ≠
i), namely the minimum number of connection steps from
i to
j. The sum of the minimum number of connection steps from
i to all other nodes is the total Depth of
i.
n is the total number of nodes in the urban space, and (
n − 1) indicates that at most (
n − 1) nodes are connected with
i. Moreover, Integration degree
Ii is the most commonly used and most effective syntax indicator, and it represents the degree of aggregation or dispersion between a unit space and all other spaces or parts of space within a few steps from it. The Integration degree and Mean Depth are greatly affected by the number of nodes in space. To eliminate the interference of redundant nodes, Space Syntax standardizes Mean Depth with relative asymmetric value (
RAi) and real relative asymmetric value (
RRAi).
where
MDi is the Mean Depth and
n is the total number of nodes in the urban spatial structure. The reciprocals of
RAi and
RRAi are used to represent the Global Integration degree
Ii and the Local Integration degree
LIi of the unit space
I, to conform to the conventional rule of "the larger the value, the greater the integration degree", namely:
The degree of Integration reflects the accessibility and convenience of the space unit and the ability to gather attractive flow and logistics, which in turn reflects the centrality of a unit space relative to the rest of the unit space. When the degree of Integration is greater than 1, and the value is larger, the accessibility and agglomeration of the space are stronger, and vice versa. Besides, the Integration core is also an important concept, which is defined as adding the Integration Ii of all unit spaces to obtain a total value I, and sorting Ii in descending order, from the maximum value begins to accumulate downwards, when the accumulated value reaches at least 5% of the total value I, the unit space set participating in the accumulation at this time can constitute an integrated core. In theory, the integrated core has the strongest attraction in the urban space and will be the most accessible area in the urban transportation network.
There is a correlation between local variables (Ci, LI) and the overall variable (I), that is, space with good local accessibility has higher overall accessibility. To quantitatively describe the relationship between part and the whole, Space Syntax provides two evaluation indicators of Intelligibility and Synergy. Intelligibility is the discriminant coefficient (R2) of the linear fitting equation of Global Integration (y) and Connection (x). The higher the value, the easier the space is understood by the person walking through it, and the more it is possible to infer the overall structural features of the space from the locally acquired spatial connection information (the number of other spaces seen in the local space that intersect with the space), and the easier it is to form a humanized, recognizable spatial structure. Synergy is the discriminant coefficient (R2) of the linear fitting equation of Global Integration degree (y) and Local Integration degree (x). The higher the value, the overall space is perceived by local space accessibility. The greater the ability to communicate, the more the local spatial structure helps to establish a global picture of the entire space system. In general, the degree of Intelligibility and Synergy is greater than 0.5, the Intelligibility and Synergy are better, and vice versa.
The above-mentioned spatial syntactic indicators represent the functional relationship between the urban road networks and their ability to bring together people flow and vehicles flow, which further forms the level of urban traffic accessibility. The spatial syntactic indicator is an inherent attribute of the urban road network. Through revealing this inherent attribute, we can analyze the social attributes, such as accessibility, convenience, and agglomeration, of urban traffic. Among the spatial syntactic indicators, connection value is the most critical one. It is the basis of calculating other syntactic indicators, and its value affects all other syntactic indicators. If the connection value of a road is greater than 1, it indicates that it is connected to at least one other road. Generally, road with high connection value has high integration, which is a road network system with good intelligibility, and vice versa. At the same time, as an objective quantitative value, the Integration degree is the core index. Like the traditional travel time index, the Integration degree provides a new way to represent the accessibility level of the urban road network. Generally, if the Integration degree of a road is greater than 1, it indicates that the level of accessibility is good, and the larger the value, the better the accessibility. When the Integration degree is less than 1, the accessibility is poor, and the smaller the value, the worse the accessibility.
In summary, the key to accessibility measurement by using Spatial Syntax lays in calculating the Integration degree index of each road. The general calculation method and process can be summarized as follows: Firstly, the Mean Depth value is calculated by formula (1); secondly, the standardized Mean Depth values are obtained by formula (2) and formula (3); Finally, the formula (4) is applied to calculate the Global Integration degree Ii and the Local Integration degree LIi, thus realizing the quantitative measurement on the accessibility of the urban road networks.
3. Study Area and Data
The study presented in this paper took the road networks of the built-up area in the central districts of 36 major cities in China as the research object, including four municipalities, five municipalities with independent planning status, and 27 provincial capital cities (See
Table 1 for details). These 36 cities have accumulated 23% of the national population with a land area of 5.5% of the national land size, creating 40% of the national GDP. As a whole, 36 cities are the concentrated representative of 656 cities in China [
31]. Each of them is the central city in the region, even at the national level, and plays a central leading role in national and regional economic and social development. At the same time, the road network planning and construction of these 36 cities are also the targets of the Chinese government’s key monitoring [
32], but there is still a lack of quantitative measurement and comparative analysis of the accessibility of the road networks in these 36 cities.
From the perspective of urban sustainable development, 36 major cities in China, which have been taken as the research object, are typical and representative. As mentioned above, the accessibility level of a road network is an important factor affecting the sustainable development of cities. This is particularly remarkable in 36 cities. Compared with other cities in China, these 36 cities are subject to different degrees of traffic congestion and air pollution caused by poor accessibility. More importantly, behind the poor accessibility and traffic congestion is the huge waste of energy and the aggravation of pollution. "Poor accessibility–Congestion–Waste–Pollution" has formed a vicious circle in these 36 cities. This not only causes the continuous deterioration of the urban ecological environment but also leads to the decline of various functions of urban economy and society, which has become one of the main obstacles to the sustainable development of 36 cities. When accessibility is poor, traffic congestion is more likely to occur and more exhaust will be generated, which can further aggravate urban air pollution and affect the sustainable development of urban ecological environment. Taking PM
2.5, the most common urban air pollutant in China, as an example, automobile exhaust emissions have become an important source of PM
2.5 in 36 cities. The automobile exhaust emissions in Beijing, Shanghai, Hangzhou, Jinan, Guangzhou, and Shenzhen are the primary sources of PM
2.5, accounting for 45.0%, 29.2%, 28.0%, 32.6%, 21.7%, and 52.1%, respectively. The automobile exhaust emissions in Nanjing, Wuhan, Changsha, Ningbo, and Shijiazhuang are the second-largest sources of PM
2.5, accounting for 24.6%, 27.0%, 24.8%, 22.0%, and 15.0% respectively. In the other 25 cities, the proportion of automobile exhaust emissions to the sources of PM
2.5 is all 10% or more [
33]. Besides, the poor accessibility can lead to the decline of the average speed of urban automobiles, thus affecting the operational efficiency of urban economy and society and bringing about certain economic losses, which can restrict the sustainable development of urban economy and society. In the central areas of 36 cities, the average speed of automobiles is less than 25 km per hour due to poor accessibility and congestion, which is much lower than the design speed of 40–60 km per hour of urban roads in China. Meanwhile, the annual economic loss per capita in 36 cities caused by poor accessibility and congestion is about 4000–12,000 Yuan, of which Beijing has the largest value of 11,747 Yuan, and Urumqi has the smallest value of 4273 Yuan [
34]. Therefore, using the Space Syntax technology to quantitatively measure the accessibility of road networks in the 36 major cities and analyze their spatial pattern characteristics have an important guiding value for the planning and construction of China’s urban road transportation system and sustainable development. It can provide an important decision-making basis for the Chinese government to grasp the accessibility level of China’s urban roads in general and formulate urban traffic development policies. It also provides a reference for other cities’ traffic accessibility research.

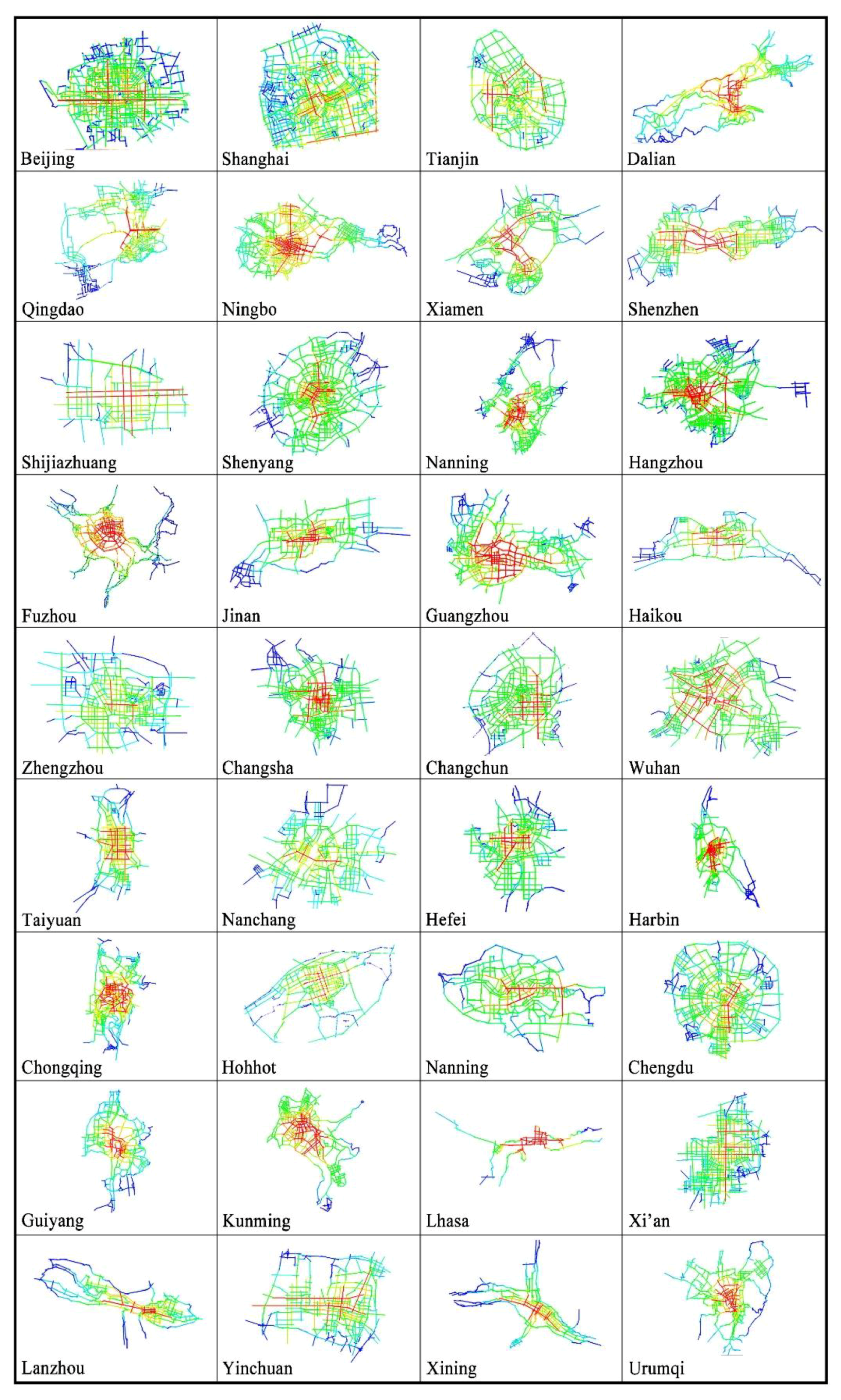

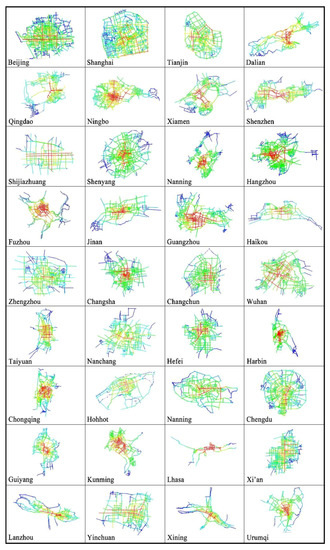

The study adopted the axis map model in Space Syntax analysis. First, the 2018 China Major Urban Road Network Density Monitoring Report released by the Ministry of Housing and Urban-Rural Development in April was taken as the basic data source; the road network status map of each city was extracted; the spatial projection transformation in ArcGIS, spatial correction, and other processing was performed; then the raster maps of the 36 urban road networks were obtained. Secondly, the axial map vector data according to the grid map were digitized, and the topology check to ensure that there was no independent axis was performed. Finally, after the inspection, according to the spatial syntactic calculation principle of the above formulas (1)~(4), the spatial syntactic index measurements and their visual expressions of the 36 urban road networks were obtained; thus the accessibility level of major urban road networks in China was quantitatively measured.
5. Discussion
As the concentrated representative of 656 cities in China, 36 major cities generally reflect the accessibility level of China’s urban road network. There is still a lack of quantitative measurement and comparative analysis of the accessibility of the road networks in these 36 cities. Because of this research situation, the accessibility of the 36 major urban road networks in China was measured by using the Space Syntax, and the spatial differences of accessibility were also analyzed by using Moran index in spatial autocorrelation analysis. Therefore, it can provide important decision-making basis for Chinese cities to improve the accessibility level of the road network and realize the sustainable development of urban traffic system. More importantly, this paper explores the application scope of Spatial Syntax theory in accessibility measurement and expands it from the traditional single city accessibility measurement to the accessibility measurement and comparative analysis of multiple cities, which will enrich the theoretical and methodological system of traffic accessibility research.
The research still needs to be further explored in some aspects: the accessibility of some developed eastern cities, such as Guangzhou, Shenzhen, Nanjing, Dalian, and Qingdao, was at a low or lower level, which is deviated from traditional perception, and the reasons behind are worth exploring. The three cities of Dalian, Shijiazhuang, and Beijing were typical and representative in terms of accessibility. The reasons why their accessibility is low and high are still worth further analysis, to provide experience for other cities. This paper only quantitatively measures accessibility, but the possible influencing factors of accessibility, for instance, road density, road length, road area, spatial form, and the relationship between accessibility and these factors, have not been analyzed, which will be another important direction for future research. Despite the limitations, this paper provides a method to measure the accessibility and spatial differences of the 36 major urban road networks in China by the comprehensive application of Space Syntax and spatial autocorrelation analysis, which can be regarded as one useful attempt and exploration in urban traffic accessibility research field. It is believed that with the deepening of the research and the continuous deepening of the accessibility study of major urban road networks in China, some deeper causes and mechanisms will be gradually discovered and analyzed. Accessibility measurement will play a more scientific guiding role in the planning and construction of urban traffic networks.
6. Conclusions
The accessibility level of the road network is an important factor affecting the sustainable development of cities. This is particularly remarkable in 36 major cities of China. Research on accessibility measurement and spatial difference analysis of road networks in 36 major cities of China is a critical starting point to improve the accessibility level of the urban road network in China, which has important practical and theoretical significance. The main conclusions are as follows: there are 18 cities whose Global Integration average value is greater than 1 and also 18 cities whose Global Integration average value is less than 1, which shows that the accessibility level of major cities in China is not optimistic. The road accessibility of 36 major cities is divided into four grades: low, lower, higher, and high, and the number of four grades of cities presents a typical normal distribution. The spatial difference in the accessibility of urban road network in the three regions is obvious, forming a spatial pattern of "central-high, east-middle, and west-low"; the overall accessibility level of the cities in the central region is the highest. There are significant spatial autocorrelations among the Global Integration, Intelligibility, and Synergy index; the local spatial agglomeration distribution is dominated by high-high type. Beijing, Shijiazhuang, Hohhot, Taiyuan, and Zhengzhou, together form the spatial pattern with the inverted "T" shape of high-value agglomeration.
In the past, Chinese cities paid more attention to enlarging the scale (length and width) of the road network, while the accessibility level of the road network was once neglected. For example, the cities in developed eastern China, such as Nanjing and Guangzhou, already have huge road network scales, but their accessibility levels are not high. At the same time, the congestion and environmental pollution caused by poor accessibility have affected the sustainable development of these cities. Fortunately, the Chinese government has realized this problem since 2016. Improving the accessibility of the urban road network has been regarded as an important national policy. Therefore, the study of accessibility measurement and spatial difference analysis of road networks in 36 major cities of China is helpful to provide important decision-making information for the Chinese government to grasp the accessibility level of China’s urban road network in general and lay a scientific foundation for the formulation of urban traffic sustainable development policy in the future in China.
