Analysis of the Impact of the Use Profile of HVAC Systems Established by the Spanish Standard to Assess Residential Building Energy Performance
Abstract
:1. Introduction
2. Methodology

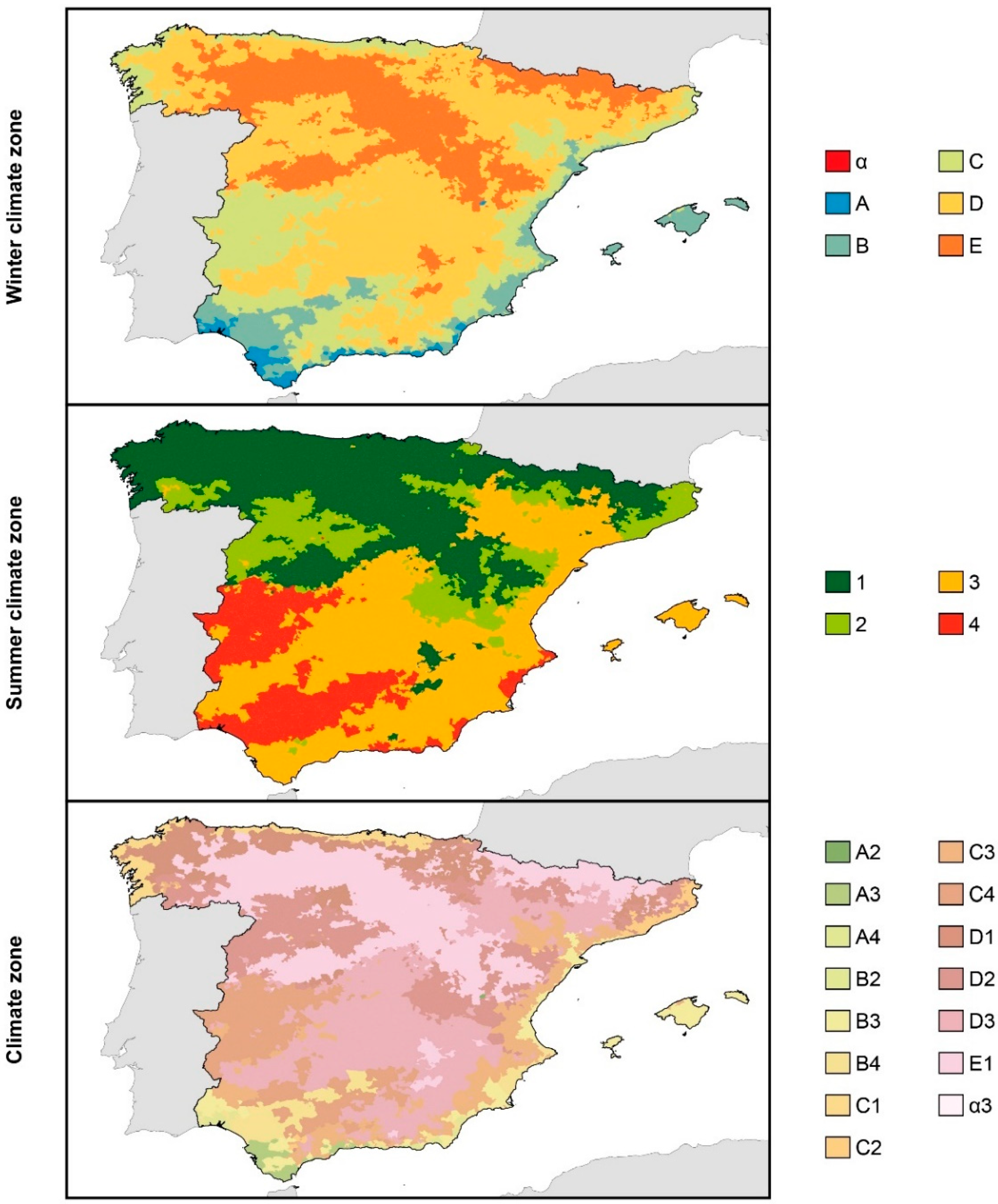

2.1. Climate Zones from the CTE and Limitations of the Thermal Properties of the Envelope

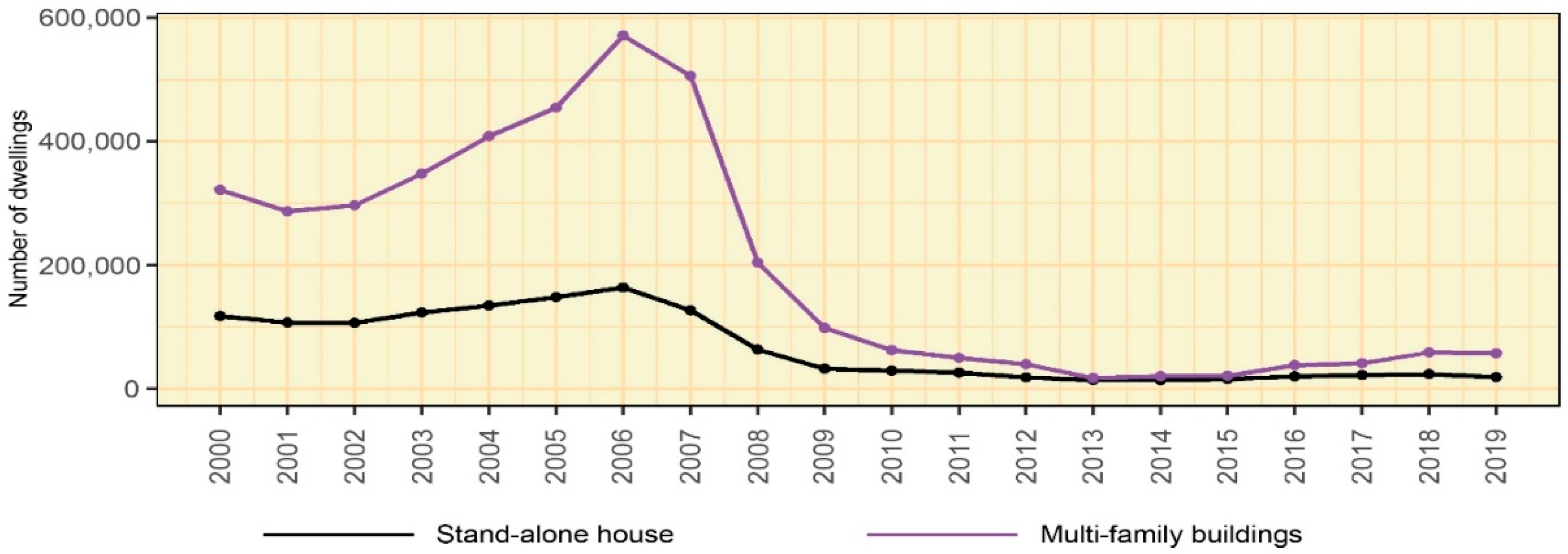

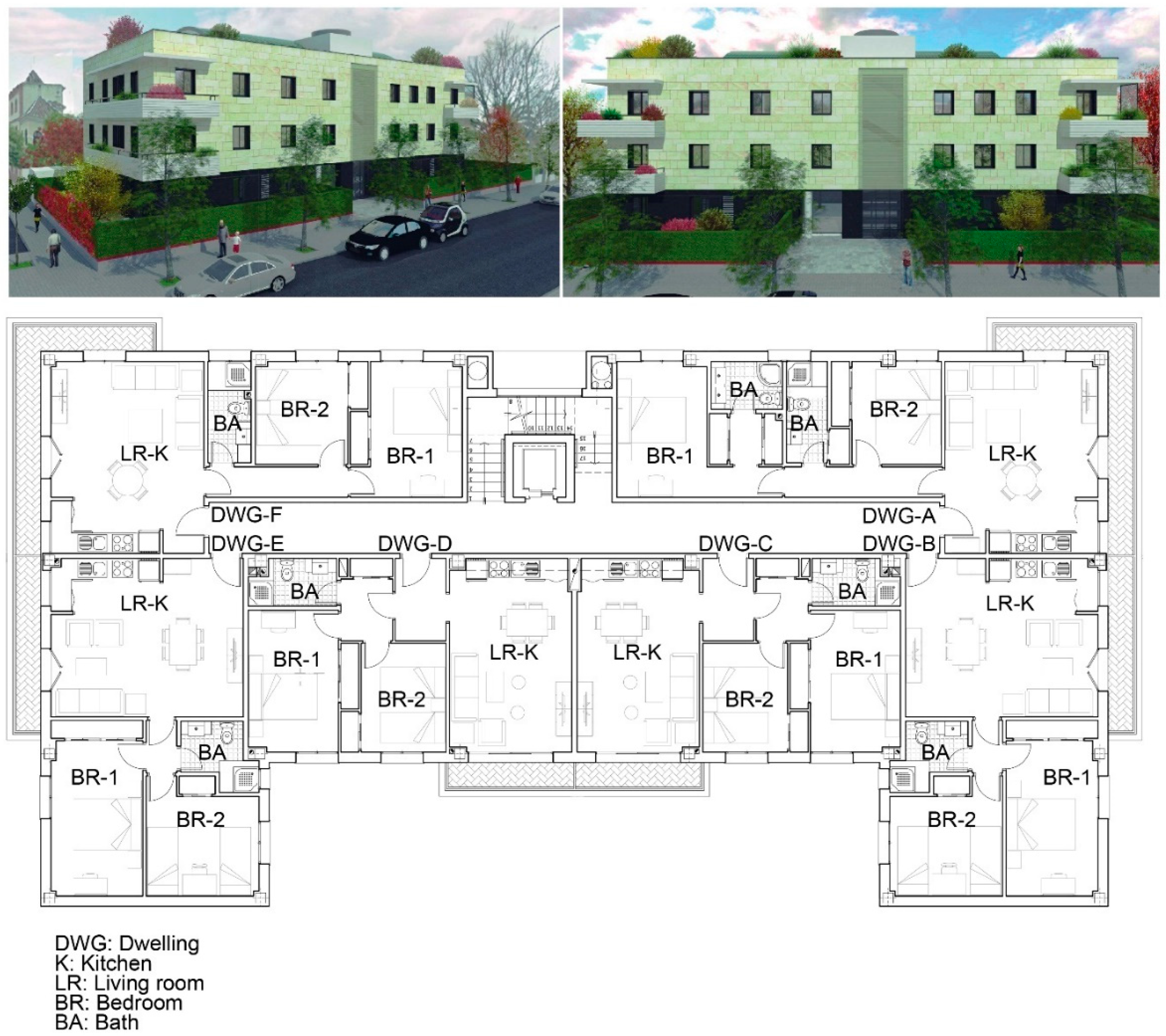

2.2. Case Study

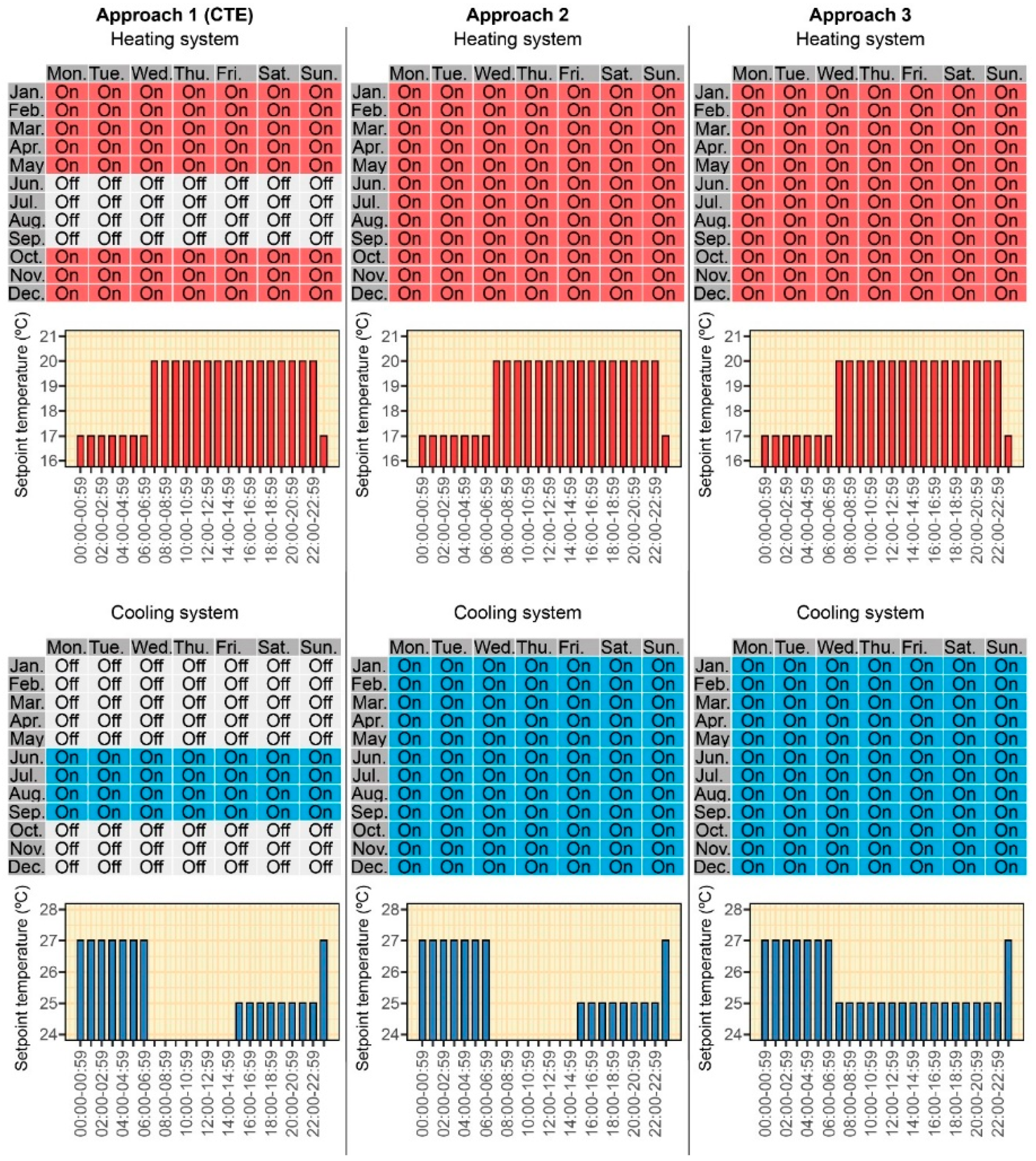

2.3. Operational Condition Approaches of the Indoor Spaces Analyzed
- -
- Approach 1 corresponded to the residential profile from the CTE. This approach considered a use of the heating systems for the months between October and May, whereas the use of cooling systems corresponded to the summer months. These months coincide with the months corresponding to the calculation of winter and summer climate severities. Regarding the daily use profile, the use varies depending on the system (heating or cooling): the heating system is used throughout the day, whereas the cooling system is not used from 07:00 to 14:59. Indoor setpoint temperatures also vary: (i) as for heating, the indoor setpoint temperature is 20 °C between 7:00 and 22:59, and 17 °C between 23:00 and 6:59; and (ii) as for cooling, the indoor setpoint temperature is 25 ºC between 15:00 and 22:59, and 27 °C between 23:00 and 6:59.
- -
- Approach 2 corresponded to a modification of the residential profile from the CTE. This modification considered that the use of heating and cooling systems is not limited according to the time of year, so that cooling systems could be used in the months considered winter months by the CTE (i.e., October, November, December, January, February, March, April, and May), and the heating systems in summer months (i.e., June, July, August, and September). In such way, it is possible to verify if there is a heating or cooling energy demand in those months in which the CTE considered their use not suitable. Regarding the daily use profile, the same as that used in the residential profile from the CTE was applied.
- -
- Approach 3 corresponded to a modification of the residential profile used in Approach 2. In this case, the criterion of using heating and cooling systems throughout the year was the same. The modification takes place in the daily profile of cooling systems. A daily profile is used to use the cooling system between 07:00 and 14:59, with an indoor setpoint temperature of 25 °C for cooling.

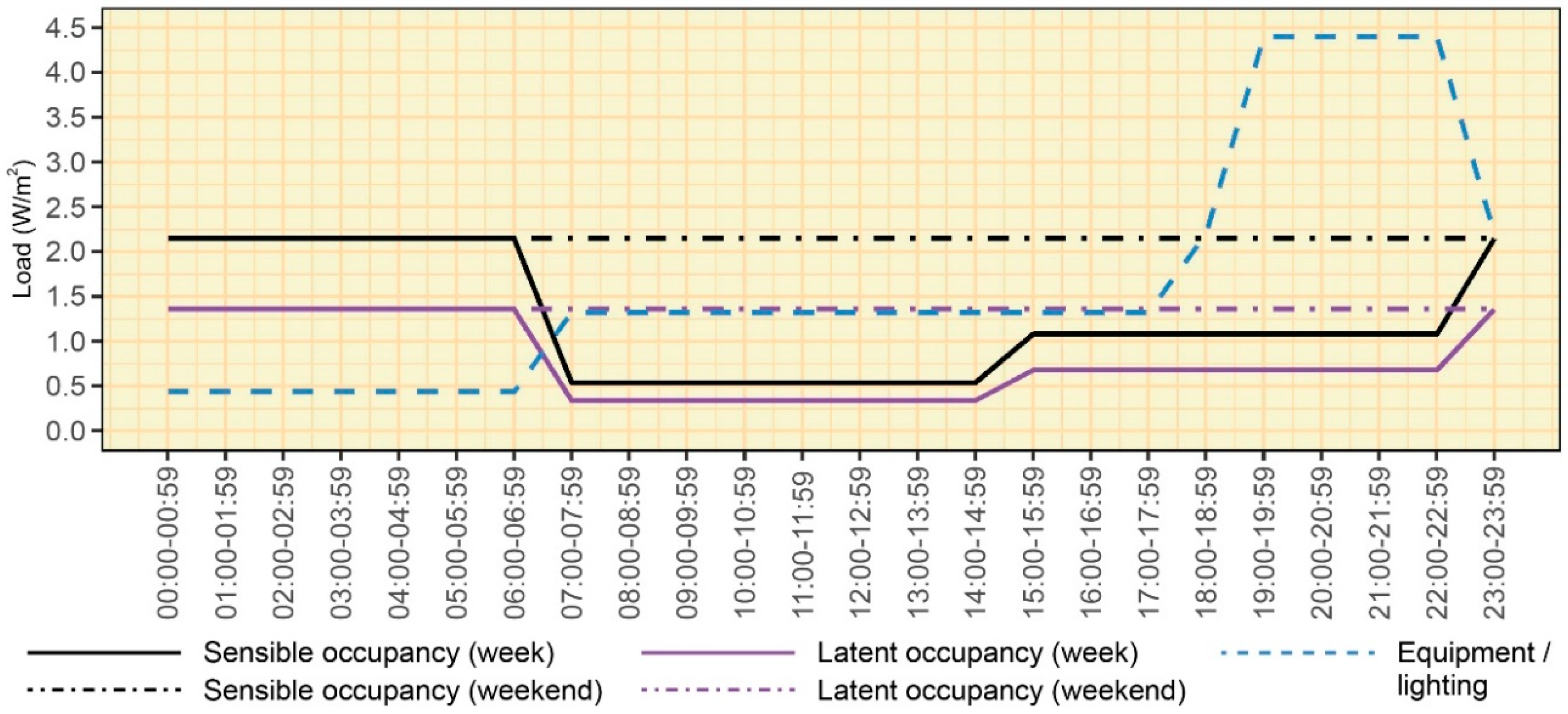

2.4. Energy Simulation Procedure
3. Results and Discussion

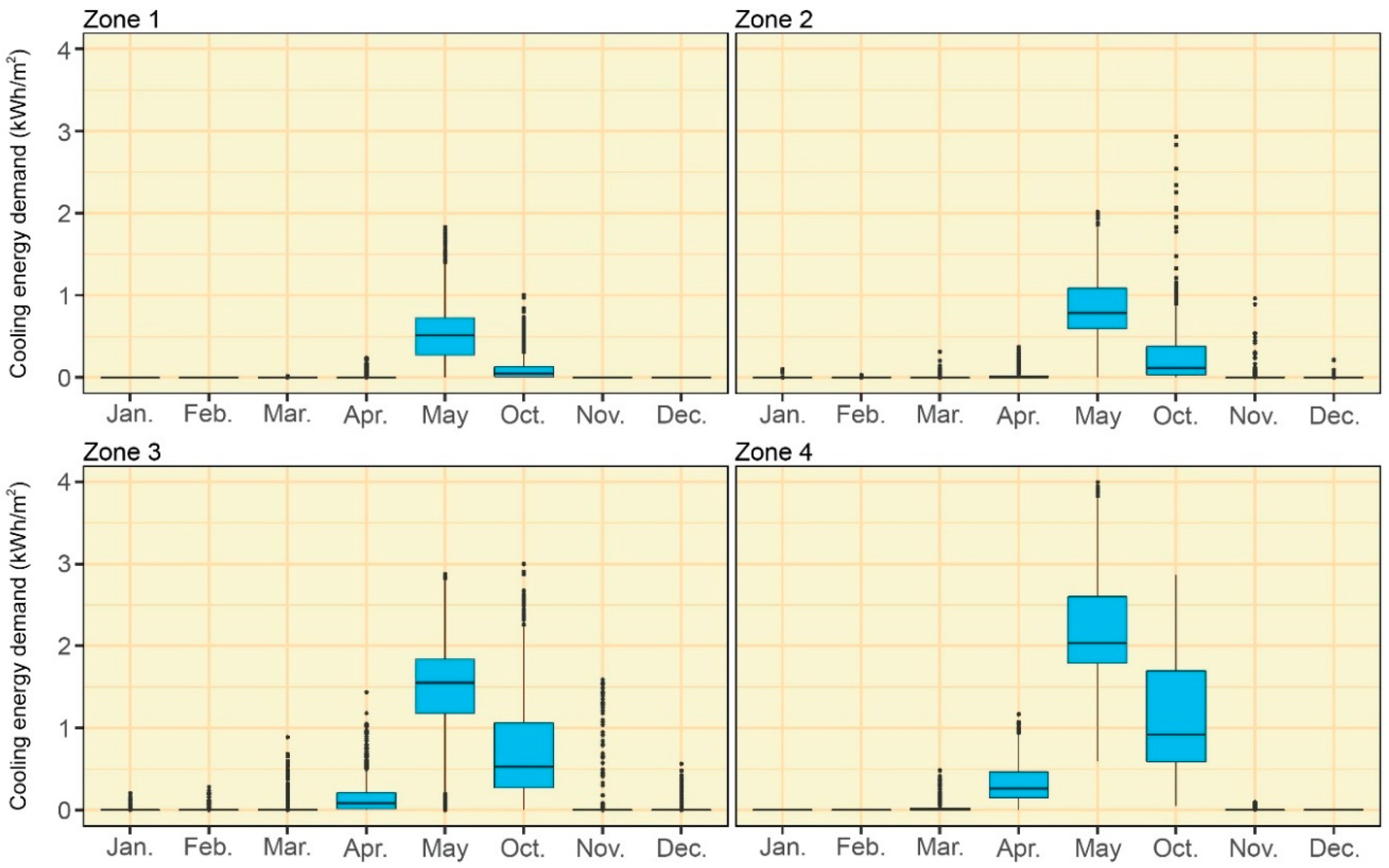

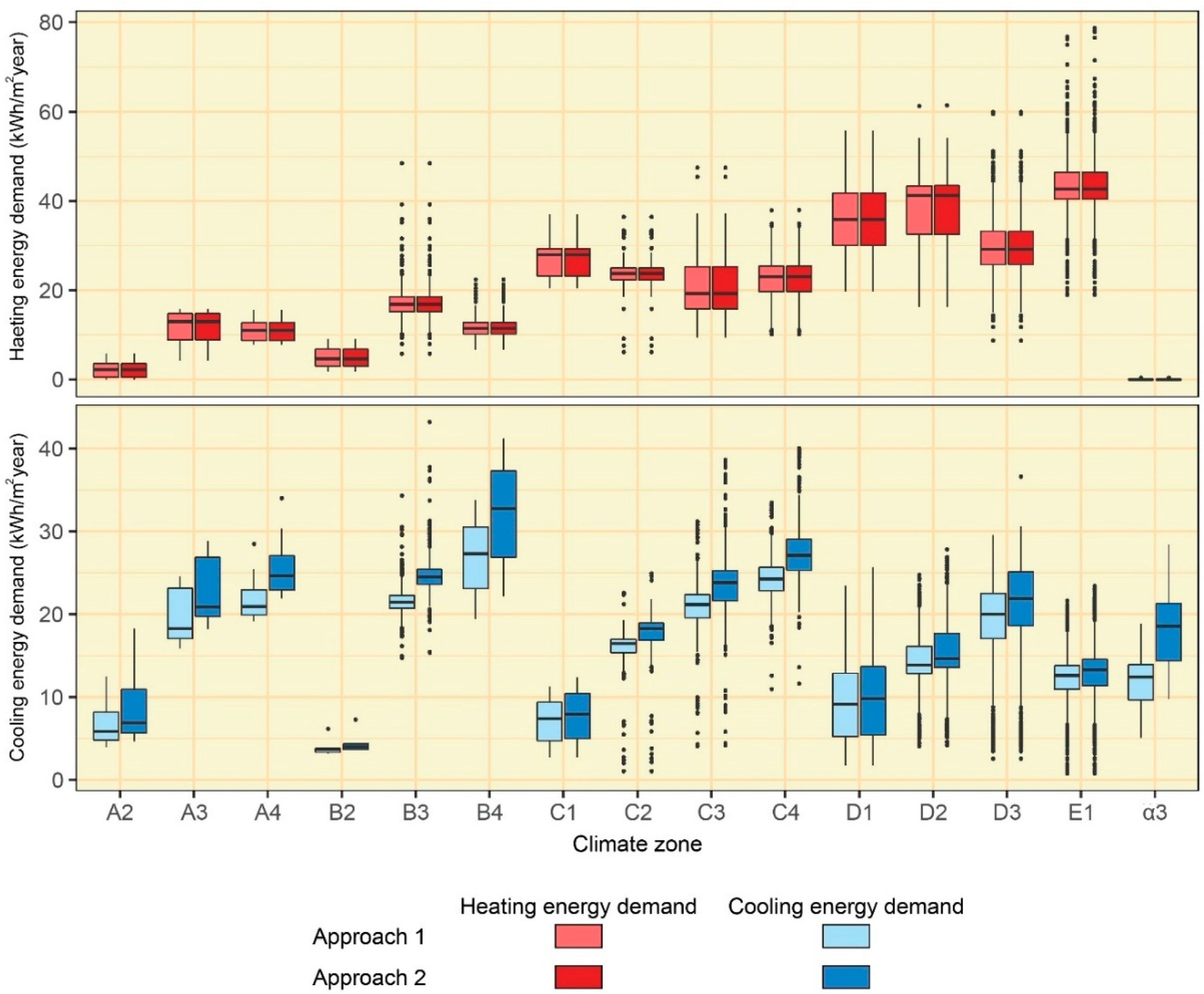

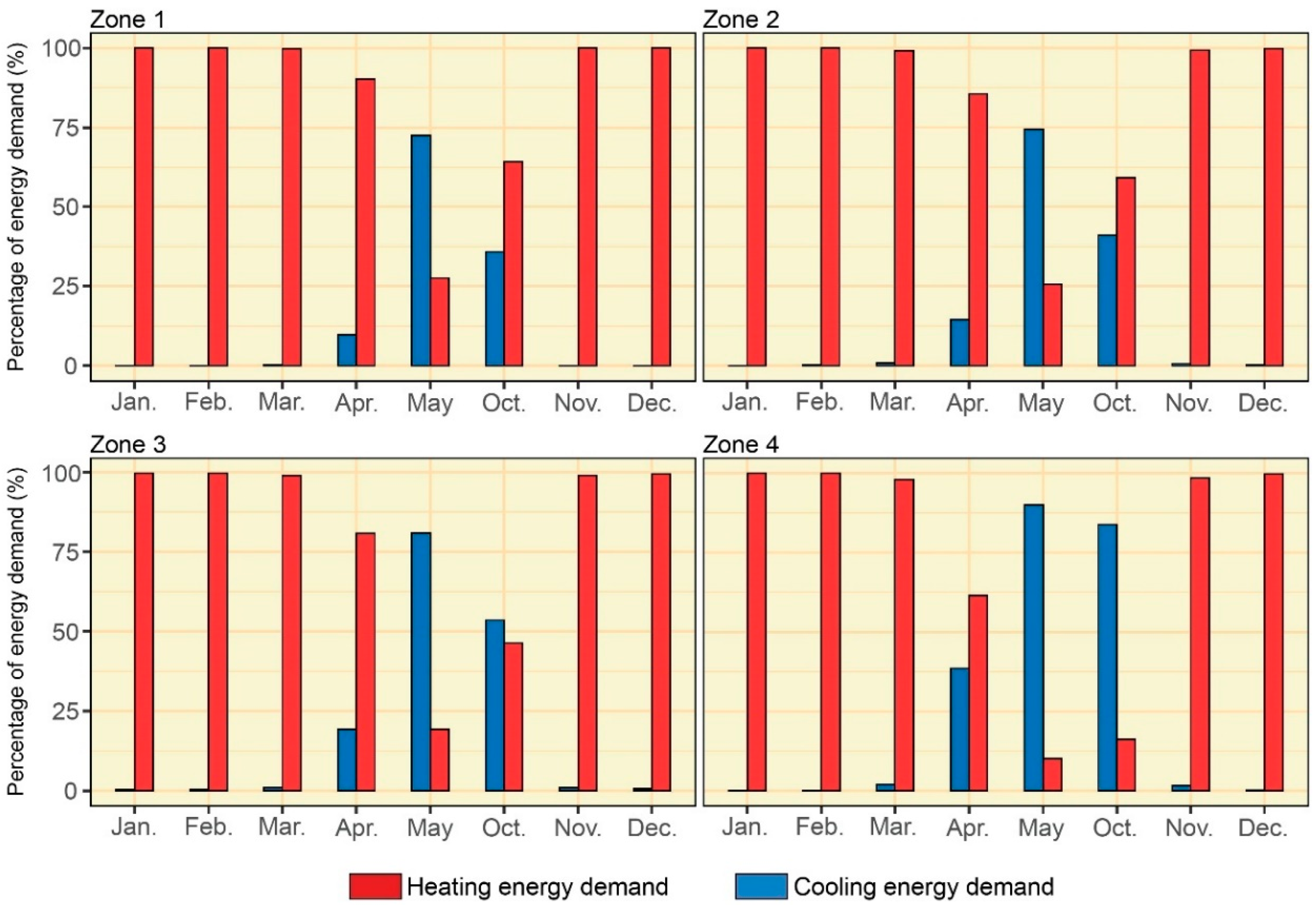

3.1. The Effect of Increasing Calendars to Use HVAC Systems (Approach 2)

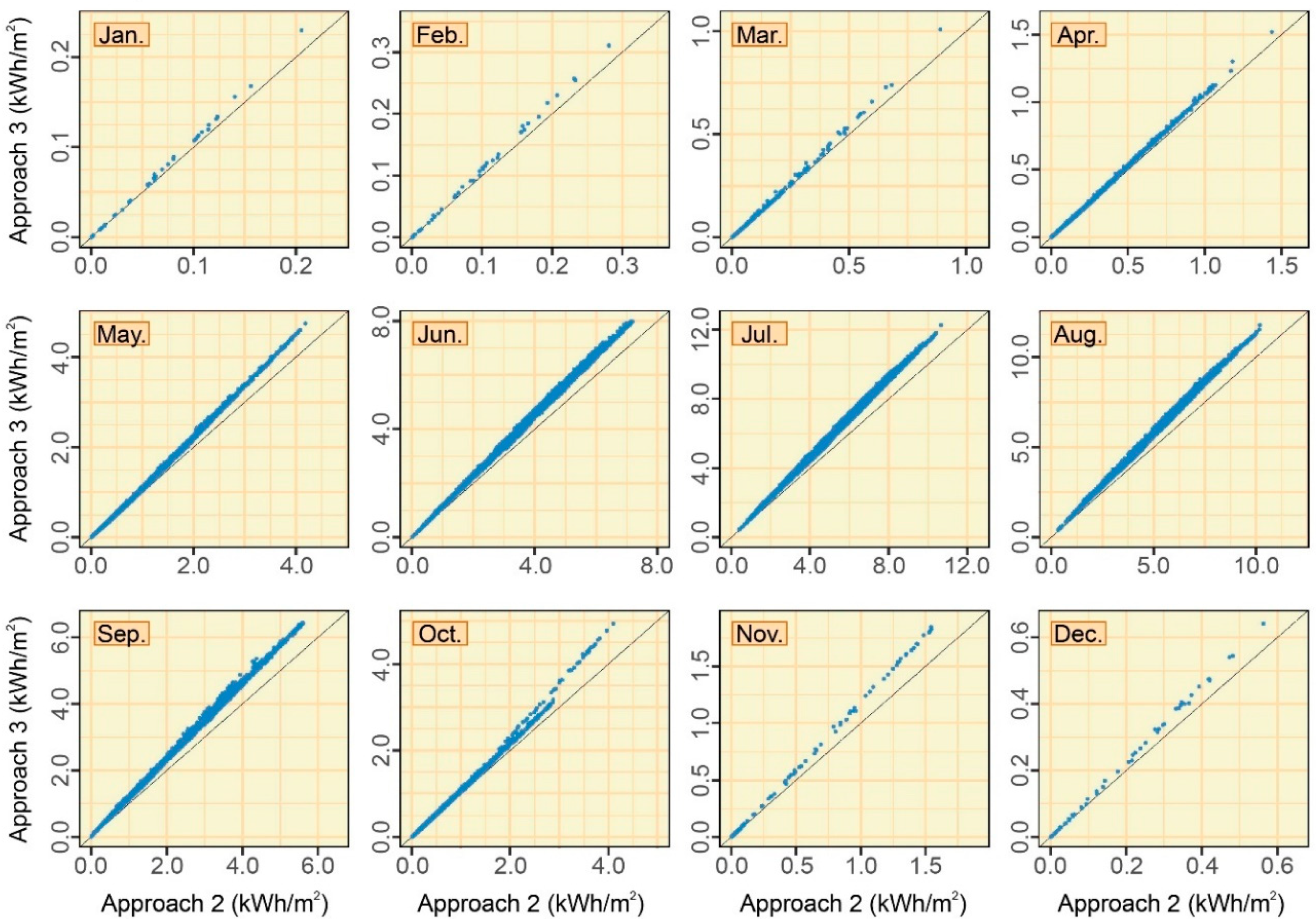

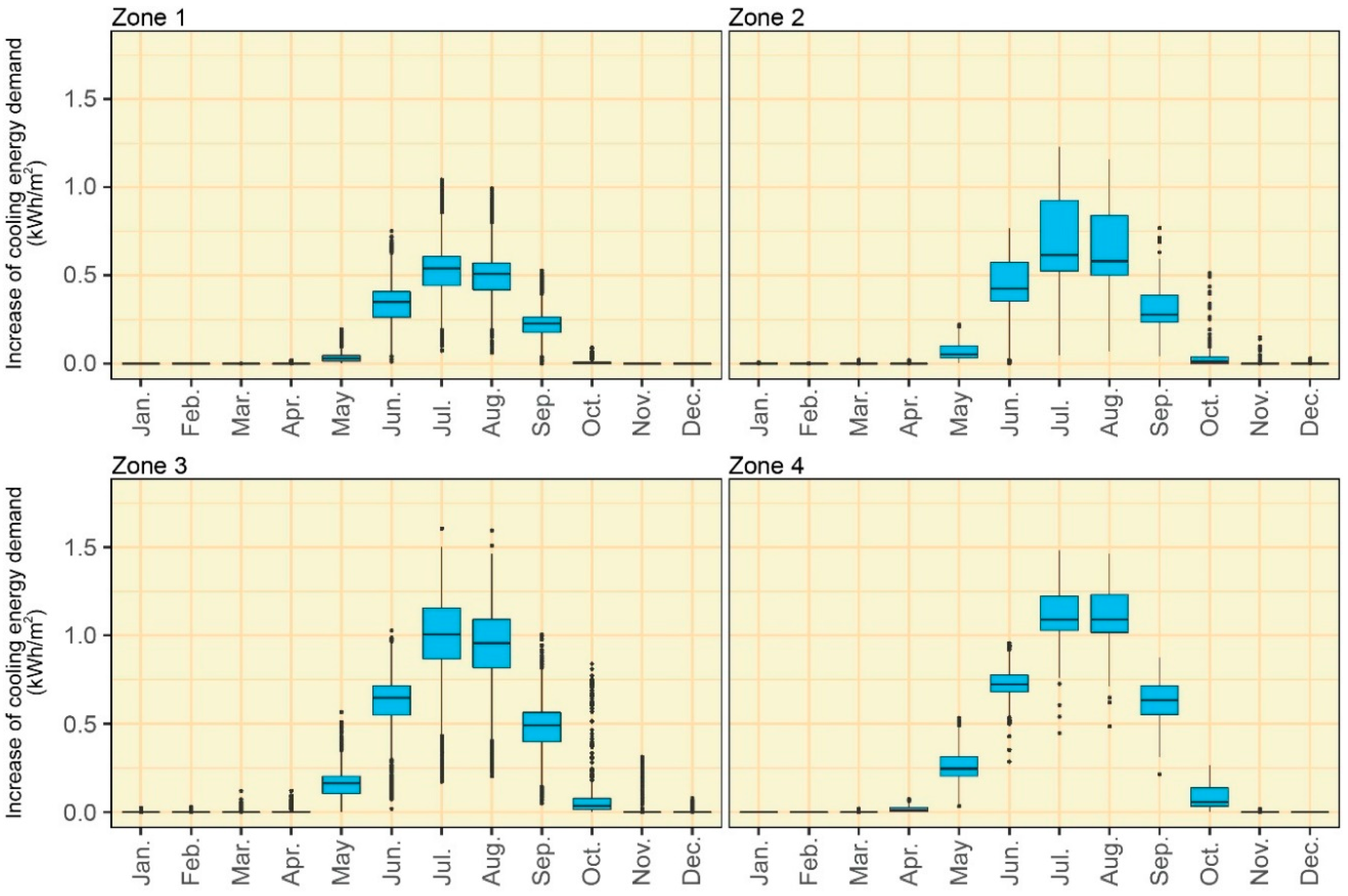

3.2. Effect of Increasing the Daily Use of Cooling Systems (Approach 3)
4. Conclusions
- -
- The increase of calendars to use heating and cooling systems influenced in different ways. Whereas in the cooling energy demand the increase was almost null in the summer months, in the cooling energy demand there were significant values of cooling energy demand in April, May, and October, and outliers with values of cooling energy demand in the months between November and March. This increase of calendars to use cooling systems varied the heating and cooling percentage contributions in the total energy demand of each month, so the cooling energy demand was the most important in May and October.
- -
- There was also a different tendency of the effect of increasing calendars to use cooling systems according to the summer climate severity. In this regard, SCZ showed a greater influence of the increase of using cooling systems on the increase of cooling energy demand. This aspect showed that the assessment of fulfilling the energy efficiency of buildings according to the Spanish Building Technical Code could imply that, in cities with warm climates, the building energy consumption is greater than that analyzed according to the regulation.
- -
- Also using cooling systems from 07:00 to 14:59 increased the cooling energy demand in all months of the year, although the impact was greater in July and August. The annual energy demand also increased, ranging between 0.15 and 6.1 kWh/m2 year, according to the climate conditions of the city.
Funding
Conflicts of Interest
References
- World Wildlife Fund. Living Planet Report 2014: Species and Spaces, People and Places; WWF International: Gland, Switzerland, 2014; Volume 1, ISBN 9780874216561. [Google Scholar]
- The United Nations Environment Programme, Building Design and Construction: Forging Resource Efficiency and Sustainable; United Nations: Nairobi, Kenya, 2012.
- Pérez-Lombard, L.; Ortiz, J.; Pout, C. A review on buildings energy consumption information. Energy Build. 2008, 40, 394–398. [Google Scholar] [CrossRef]
- Lowe, R. Technical options and strategies for decarbonizing UK housing. Build. Res. Inf. 2007, 35, 412–425. [Google Scholar] [CrossRef] [Green Version]
- Park, K.; Kim, M. Energy Demand Reduction in the Residential Building Sector: A Case Study of Korea. Energies 2017, 10, 1506. [Google Scholar] [CrossRef]
- Di Pilla, L.; Desogus, G.; Mura, S.; Ricciu, R.; Di Francesco, M. Optimizing the distribution of Italian building energy retrofit incentives with Linear Programming. Energy Build. 2016, 112, 21–27. [Google Scholar] [CrossRef]
- Theodoridou, I.; Papadopoulos, A.M.; Hegger, M. A typological classification of the Greek residential building stock. Energy Build. 2011, 43, 2779–2787. [Google Scholar] [CrossRef]
- Thomson, H.; Bouzarovski, S.; Snell, C. Rethinking the measurement of energy poverty in Europe: A critical analysis of indicators and data. Indoor Built Environ. 2017, 26, 879–901. [Google Scholar] [CrossRef]
- Liddell, C.; Morris, C.; Thomson, H.; Guiney, C. Excess winter deaths in 30 European countries 1980–2013: A critical review of methods. J. Public Health (Bangkok). 2016, 38, 806–814. [Google Scholar] [CrossRef] [Green Version]
- Teller-Elsberg, J.; Sovacool, B.; Smith, T.; Laine, E. Fuel poverty, excess winter deaths, and energy costs in Vermont: Burdensome for whom? Energy Policy 2016, 90. [Google Scholar] [CrossRef] [Green Version]
- European Commission. A Roadmap for Moving to a Competitive Low Carbon Economy in 2050; European Commission: Brussels, Belgium, 2011; pp. 1–15. [Google Scholar]
- Collins, L. Predicting annual energy consumption with thermal simulation: A UK perspective on mitigation of risks in estimation and operation. Build. Simul. 2012, 5, 117–125. [Google Scholar] [CrossRef]
- Carpio, M.; Martín-Morales, M.; Zamorano, M. Comparative study by an expert panel of documents recognized for energy efficiency certification of buildings in Spain. Energy Build. 2015, 99, 98–103. [Google Scholar] [CrossRef]
- Gangolells, M.; Casals, M.; Forcada, N.; MacArulla, M.; Cuerva, E. Energy mapping of existing building stock in Spain. J. Clean. Prod. 2016, 112, 3895–3904. [Google Scholar] [CrossRef]
- Hjortling, C.; Björk, F.; Berg, M.; Klintberg, T. af Energy mapping of existing building stock in Sweden – Analysis of data from Energy Performance Certificates. Energy Build. 2017, 153, 341–355. [Google Scholar] [CrossRef]
- Las-Heras-Casas, J.; López-Ochoa, L.M.; López-González, L.M.; Paredes-Sánchez, J.P. A tool for verifying energy performance certificates and improving the knowledge of the residential sector: A case study of the Autonomous Community of Aragón (Spain). Sustain. Cities Soc. 2018, 41, 62–72. [Google Scholar] [CrossRef]
- Yoshino, H.; Hong, T.; Nord, N. IEA EBC annex 53: Total energy use in buildings—Analysis and evaluation methods. Energy Build. 2017, 152, 124–136. [Google Scholar] [CrossRef] [Green Version]
- Cuerda, E.; Guerra-Santin, O.; Sendra, J.J.; Neila González, F.J. Comparing the impact of presence patterns on energy demand in residential buildings using measured data and simulation models. Build. Simul. 2019, 12, 985–998. [Google Scholar] [CrossRef]
- Dong, B.; Yan, D.; Li, Z.; Jin, Y.; Feng, X.; Fontenot, H. Modeling occupancy and behavior for better building design and operation—A critical review. Build. Simul. 2018, 11, 899–921. [Google Scholar] [CrossRef]
- Lee, B.; Trcka, M.; Hensen, J.L.M. Building energy simulation and optimization: A case study of industrial halls with varying process loads and occupancy patterns. Build. Simul. 2014, 7, 229–236. [Google Scholar] [CrossRef] [Green Version]
- Parry, M.L.; Canziani, O.F.; Palutikof, J.P.; van der Linden, P.J.; Hanson, C.E. Contribution of Working Group II to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
- Wan, K.K.W.; Li, D.H.W.; Lam, J.C. Assessment of climate change impact on building energy use and mitigation measures in subtropical climates. Energy 2011, 36, 1404–1414. [Google Scholar] [CrossRef]
- Spyropoulos, G.N.; Balaras, C.A. Energy consumption and the potential of energy savings in Hellenic office buildings used as bank branches—A case study. Energy Build. 2011, 43, 770–778. [Google Scholar] [CrossRef]
- Sánchez-García, D.; Rubio-Bellido, C.; del Río, J.J.M.; Pérez-Fargallo, A. Towards the quantification of energy demand and consumption through the adaptive comfort approach in mixed mode office buildings considering climate change. Energy Build. 2019, 187, 173–185. [Google Scholar] [CrossRef]
- Bienvenido-Huertas, D.; Sánchez-García, D.; Rubio-Bellido, C. Comparison of energy conservation measures considering adaptive thermal comfort and climate change in existing Mediterranean dwellings. Energy 2020, 190. [Google Scholar] [CrossRef]
- Castaño-Rosa, R.; Solís-Guzmán, J.; Marrero, M. A novel Index of Vulnerable Homes: Findings from application in Spain. Indoor Built Environ. 2018, 29, 311–330. [Google Scholar] [CrossRef]
- Ren, Z.; Chen, D. Modelling study of the impact of thermal comfort criteria on housing energy use in Australia. Appl. Energy 2018, 210, 152–166. [Google Scholar] [CrossRef]
- The Government of Spain. Royal Decree 314/2006. Approving the Spanish Technical Building Code; The Government of Spain: Madrid, Spain, 2013.
- López-Ochoa, L.M.; Las-Heras-Casas, J.; López-González, L.M.; Olasolo-Alonso, P. Towards nearly zero-energy buildings in Mediterranean countries: Energy Performance of Buildings Directive evolution and the energy rehabilitation challenge in the Spanish residential sector. Energy 2019, 176, 335–352. [Google Scholar] [CrossRef]
- Fanger, P.O. Calculation of thermal comfort: Introduction of a basic comfort equation. ASHRAE Trans. 1967, 73, III4.1–III4.20. [Google Scholar]
- Sánchez-García, D.; Rubio-Bellido, C.; Tristancho, M.; Marrero, M. A comparative study on energy demand through the adaptive thermal comfort approach considering climate change in office buildings of Spain. Build. Simul. 2019, 1–13. [Google Scholar] [CrossRef]
- Rubio-Bellido, C.; Pérez-Fargallo, A.; Pulido-Arcas, J.A.; Trebilcock, M. Application of adaptive comfort behaviors in Chilean social housing standards under the influence of climate change. Build. Simul. 2017, 10, 933–947. [Google Scholar] [CrossRef]
- López-Ochoa, L.M.; Las-Heras-Casas, J.; López-González, L.M.; Olasolo-Alonso, P. Environmental and energy impact of the EPBD in residential buildings in hot and temperate Mediterranean zones: The case of Spain. Energy 2018, 161, 618–634. [Google Scholar] [CrossRef]
- López-Ochoa, L.M.; Las-Heras-Casas, J.; López-González, L.M.; García-Lozano, C. Environmental and energy impact of the EPBD in residential buildings in cold Mediterranean zones: The case of Spain. Energy Build. 2017, 150, 567–582. [Google Scholar] [CrossRef]
- Suárez, R.; Fragoso, J. Passive strategies for energy optimisation of social housing in the Mediterranean climate. Inf. Constr. 2016, 68, e136. [Google Scholar] [CrossRef]
- Rodríguez-Jiménez, C.E.; Carretero-Ayuso, M.J.; Claro-Ponce, J.C. Influence of infiltrations in the energy retrofit of the envelope. A case study from the action plans in the public housing stock of Andalusia. Inf. Constr. 2018, 70, 271. [Google Scholar] [CrossRef]
- Irulegi, O.; Serra, A.; Hernández, R.; Ruiz-Pardo, A.; Torres, L. Ventilated active façades to reduce heating demand in office buildings. The case of Spain. Inf. Constr. 2012, 64, 575–585. [Google Scholar] [CrossRef] [Green Version]
- Montalbán Pozas, B. Energy assesment of housing in extremadura community. Inf. Constr. 2018, 70, 265. [Google Scholar] [CrossRef]
- Sánchez-García, D.; Bienvenido-Huertas, D.; Tristancho-Carvajal, M.; Rubio-Bellido, C. Adaptive Comfort Control Implemented Model (ACCIM) for Energy Consumption Predictions in Dwellings under Current and Future Climate Conditions: A Case Study Located in Spain. Energies 2019, 12, 1498. [Google Scholar] [CrossRef] [Green Version]
- Soto Francés, V.M.; Serrano Lanzarote, A.B.; Escribano, V.V.; Escudero, M.N. Improving schools performance based on SHERPA project outcomes: Valencia case (Spain). Energy Build. 2020, 225, 110297. [Google Scholar] [CrossRef]
- Ruiz, G.R.; Bandera, C.F. Validation of calibrated energy models: Common errors. Energies 2017, 10. [Google Scholar] [CrossRef] [Green Version]
- Ryan, E.M.; Sanquist, T.F. Validation of building energy modeling tools under idealized and realistic conditions. Energy Build. 2012, 47, 375–382. [Google Scholar] [CrossRef]
- Cuerda, E.; Guerra-Santin, O.; Neila González, F.J. Defining occupancy patterns through monitoring existing buildings. Inf. Constr. 2018, 69, 223. [Google Scholar] [CrossRef] [Green Version]
- Sánchez-García, D.; Bienvenido-Huertas, D.; Pulido-Arcas, J.A.; Rubio-Bellido, C. Analysis of energy consumption in different European cities: The adaptive comfort control implemented model (ACCIM) considering representative concentration pathways (RCP) scenarios. Appl. Sci. 2020, 10, 1513. [Google Scholar] [CrossRef] [Green Version]
- Bienvenido-Huertas, D.; Quiñones, J.A.F.; Moyano, J.; Rodríguez-Jiménez, C.E. Patents Analysis of Thermal Bridges in Slab Fronts and Their Effect on Energy Demand. Energies 2018, 11, 2222. [Google Scholar] [CrossRef] [Green Version]
- The Government of Spain. Royal Decree 2429/79. Approving the Basic Building Norm NBE-CT-79, about the Thermal Conditions in Buildings; The Government of Spain: Madrid, Spain, 1979.
- Haffner, M.E.A.; Dol, C.P. Housing Statistics in the European Union 2000; European Commission: Brussels, Belgium, 2000. [Google Scholar]
- Fernández-Agüera, J.; Domínguez-Amarillo, S.; Sendra, J.J.; Suárez, R. An approach to modelling envelope airtightness in multi-family social housing in Mediterranean Europe based on the situation in Spain. Energy Build. 2016, 128, 236–253. [Google Scholar] [CrossRef]
- Ministry of Transport Mobility and Urban Agenda Number of Dwellings by Type of Construction. Available online: https://apps.fomento.gob.es/BoletinOnline/?nivel=2&orden=10000000 (accessed on 2 March 2020).
- METEONORM. Handbook Part II: Theory (Version 7.3.1); METEONORM: Bern, Switzerland, 2019. [Google Scholar]
- National Geographic Information Center Download Center. Available online: http://centrodedescargas.cnig.es/CentroDescargas/index.jsp (accessed on 2 March 2020).
- Auffhammer, M.; Aroonruengsawat, A. Simulating the impacts of climate change, prices and population on California’s residential electricity consumption. Clim. Change 2011, 109, 191–210. [Google Scholar] [CrossRef]
Type | Period | Time/Indoor Setpoint Temperature (°C) | |||
---|---|---|---|---|---|
0:00–6:59 | 07:00–14:59 | 15:00–22:59 | 23:00–23:59 | ||
Heating setpoint temperature | From January to May | 17 | 20 | 20 | 17 |
From June to September | - | - | - | - | |
From October to December | 17 | 20 | 20 | 17 | |
Cooling setpoint temperature | From January to May | - | - | - | - |
From June to September | 27 | - | 25 | 27 | |
From October to December | - | - | - | - |
Class | Value | Class | Value |
---|---|---|---|
α | 1 | ||
A | 2 | ||
B | 3 | ||
C | 4 | ||
D | |||
E |
Element | Maximum Thermal Transmittance (W/(m²K)) | |||||
---|---|---|---|---|---|---|
Winter Climate Zone (WCZ) | ||||||
α | A | B | C | D | E | |
Wall | 0.80 | 0.70 | 0.56 | 0.49 | 0.41 | 0.37 |
Elements in contact with the ground | 0.90 | 0.80 | 0.75 | 0.70 | 0.65 | 0.59 |
Roof | 0.55 | 0.50 | 0.44 | 0.40 | 0.35 | 0.33 |
Window | 3.2 | 2.7 | 2.3 | 2.1 | 1.8 | 1.8 |
Room | Surface (m2) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Ground Floor | First Floor (Typical Floor) | |||||||||||
A | B | C | D | E | F | A | B | C | D | E | F | |
LR-K | 26.34 | 27.49 | 27.46 | 27.46 | 27.49 | 28.98 | 29.42 | 27.49 | 27.46 | 27.46 | 27.49 | 28.99 |
BR-1 | 12.15 | 13.76 | 12.08 | 12.08 | 13.76 | 12.20 | 15.65 | 13.76 | 12.08 | 12.08 | 13.76 | 12.2 |
BR-2 | 8.03 | 10.85 | 8.71 | 8.71 | 10.85 | 9.00 | 9.03 | 10.85 | 8.71 | 8.71 | 10.85 | 9.00 |
BA-1 | 3.53 | 3.61 | 3.34 | 3.34 | 3.61 | 3.78 | 2.96 | 3.61 | 3.34 | 3.34 | 3.61 | 3.73 |
BA-2 | - | - | - | - | - | - | 4.25 | - | - | - | - | - |
Total | 50.05 | 55.71 | 51.59 | 51.59 | 55.71 | 53.96 | 61.31 | 55.71 | 51.59 | 51.59 | 55.71 | 53.92 |
Climate Zone | Cooling Energy Demand (kWh/m2 Year) | |||||
---|---|---|---|---|---|---|
Approach 1 | Approach 2 | |||||
Q1 | Q2 | Q3 | Q1 | Q2 | Q3 | |
A2 | 4.82 | 5.83 | 8.32 | 5.64 | 6.89 | 11.10 |
A3 | 17.00 | 18.26 | 23.20 | 19.68 | 20.88 | 26.99 |
A4 | 19.84 | 20.93 | 22.98 | 22.94 | 24.63 | 27.15 |
B2 | 3.22 | 3.68 | 3.84 | 3.63 | 4.05 | 4.42 |
B3 | 20.73 | 21.47 | 22.28 | 23.60 | 24.49 | 25.43 |
B4 | 23.09 | 27.28 | 30.57 | 26.87 | 32.73 | 37.30 |
C1 | 4.76 | 7.38 | 9.39 | 4.96 | 7.93 | 10.45 |
C2 | 15.33 | 16.46 | 16.95 | 16.83 | 18.24 | 18.95 |
C3 | 19.54 | 21.16 | 22.37 | 21.64 | 23.82 | 25.26 |
C4 | 22.87 | 24.25 | 25.64 | 25.29 | 27.11 | 29.03 |
D1 | 5.21 | 9.13 | 12.89 | 5.41 | 9.82 | 13.70 |
D2 | 12.86 | 13.83 | 16.14 | 13.59 | 14.62 | 17.68 |
D3 | 17.03 | 20.03 | 22.54 | 18.59 | 21.88 | 25.15 |
E1 | 10.97 | 12.6 | 13.82 | 11.39 | 13.28 | 14.57 |
α3 | 9.58 | 12.42 | 13.96 | 14.39 | 18.56 | 21.36 |
Month | Percentage (%) | |||||||
---|---|---|---|---|---|---|---|---|
SCZ 1 | SCZ 2 | |||||||
Approach 2 | Approach 3 | Approach 2 | Approach 3 | |||||
Heating | Cooling | Heating | Cooling | Heating | Cooling | Heating | Cooling | |
January | 100.00 | 0.00 | 100.00 | 0.00 | 99.97 | 0.03 | 99.97 | 0.03 |
February | 100.00 | 0.00 | 100.00 | 0.00 | 99.96 | 0.04 | 99.96 | 0.04 |
March | 99.84 | 0.16 | 99.84 | 0.16 | 99.18 | 0.82 | 99.17 | 0.83 |
April | 90.25 | 9.75 | 90.15 | 9.85 | 85.49 | 14.51 | 85.39 | 14.61 |
May | 27.56 | 72.44 | 26.91 | 73.09 | 25.60 | 74.40 | 25.00 | 75.00 |
June | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
July | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
August | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
September | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
October | 64.10 | 35.90 | 63.68 | 36.32 | 59.05 | 40.95 | 58.67 | 41.33 |
November | 99.98 | 0.02 | 99.97 | 0.03 | 99.37 | 0.63 | 99.34 | 0.66 |
December | 100.00 | 0.00 | 100.00 | 0.00 | 99.89 | 0.11 | 99.89 | 0.11 |
SCZ 3 | SCZ 4 | |||||||
January | 99.62 | 0.38 | 99.62 | 0.38 | 99.92 | 0.08 | 99.92 | 0.08 |
February | 99.57 | 0.43 | 99.57 | 0.43 | 99.88 | 0.12 | 99.88 | 0.12 |
March | 98.91 | 1.09 | 98.90 | 1.10 | 97.91 | 2.09 | 97.88 | 2.12 |
April | 80.77 | 19.23 | 80.62 | 19.38 | 61.51 | 38.49 | 61.28 | 38.72 |
May | 19.18 | 80.82 | 18.70 | 81.30 | 10.04 | 89.96 | 9.82 | 90.18 |
June | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
July | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
August | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
September | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 | 0.00 | 100.00 |
October | 46.40 | 53.60 | 45.92 | 54.08 | 16.20 | 83.80 | 15.81 | 84.19 |
November | 98.99 | 1.01 | 98.97 | 1.03 | 98.37 | 1.63 | 98.31 | 1.69 |
December | 99.40 | 0.60 | 99.40 | 0.60 | 99.72 | 0.28 | 99.72 | 0.28 |
