Research and Application of New Technology of Bionic Enhanced Wellbore and Strong Lubrication Water-Based Drilling Fluid

by
Xiaohu Quan
1,2,
Guancheng Jiang
1,2,*,
Xuwu Luo
1,2,3,
Yinbo He
1,2 and
Tengfei Dong
1,2
1
State Key Laboratory of Petroleum Resources and Prospecting, China University of Petroleum (Beijing), Beijing 102249, China
2
College of Petroleum Engineering, China University of Petroleum (Beijing), Beijing 102249, China
3
Drilling Fluid Branch of CNPC Western Drilling Company, Karamay 834009, China
*
Author to whom correspondence should be addressed.
Sustainability 2020, 12(20), 8387; https://doi.org/10.3390/su12208387
Submission received: 10 September 2020 / Revised: 9 October 2020 / Accepted: 9 October 2020 / Published: 12 October 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
After more than a century of development, drilling fluid technology has become capable of dealing with various extreme conditions. As the exploration and development targets shift towards complex oil and gas resources, however, the geological and surface conditions encountered get increasingly complex, which poses a greater challenge to drilling fluid. In this paper, bionics is introduced into the field of drilling fluids, imitating the characteristics, functions, structures, and principles of mussels and earthworms, and a bionic wall-fixing agent with side chains containing catechol functional groups to strengthen the wellbore is prepared. A bionic bonding lubricant that when making the direct friction between the two is changed to the sliding between the membranes is prepared. Compared with the advanced technology introduced from abroad, the strength of the rock is not only reduced but increased by more than 14%, the friction reduction rate is improved by 12.3%. Their mechanism of action and influencing factors are revealed from the macro and micro perspectives. Combined with the formation conditions encountered, other treatment agents are applied to develop a novel technology of bionic strengthened borehole and high lubricity water-based drilling fluid with comparable inhibition and lubricity to oil-based drilling fluid. In comparison with technology, the rate of well collapse is reduced by as much as 82.6%, the accident rate of stuck pipe is brought down by as much as 86.4%, the complication of stuck block is reduced by as much as 79.7%, and the overall cost is lowered by more than 30%. It is truly a safe, efficient, economic, environmentally friendly drilling fluid technology.

1. Introduction

Drilling fluid, which is the blood of drilling engineering, is a complex multilevel dispersion fluid. Since the application of clear water natural pulping as drilling fluid during the period from 1904 to 1921, it has successively experienced the start-development-improvement-redevelopment stage [1,2,3,4,5,6]. Over more than a century of relentless development, over 100 varieties of drilling fluid systems have been developed, which has played a critical role in reducing drilling complications, exploring reservoirs, boosting yield, preventing complicated downhole conditions or accidents, and dealing with various extreme conditions. However, most of the oil and gas resources newly discovered in China and around the world are low permeability, unconventional, deep water, deep layers, and other difficult-to-use oil and gas resources, and are concentrated in mountainous areas, deserts, plateaus, loess plateaus, the Arctic Circle, and ocean-covered areas [7,8,9,10]. Currently, geological and surface conditions are becoming more and more complex, which means exploration and development are made increasingly difficult. Due to such complex underground and surface conditions as well collapse, stuck pipe, environmental pollution related to drilling fluids or frequent occurrence of accidents, high costs and high efficiency and the low level, drilling fluid technology is faced with unprecedented challenges [11,12,13].
In general, oil-based drilling fluid is considered the top choice for drilling difficult wells due to its excellent wall stability and lubricity. In spite of this, it shows drawbacks such as severe environmental damage, high preparation costs, the difficulty in spillage treatment, and poor cementing quality [14,15,16]. Due to the stringent requirements for environmental preservation and significant fluctuations in oil prices, research has been conducted both at home and abroad on the high-performance water-based drilling fluids with the advantages of water-based and oil-based drilling fluids, despite no breakthroughs having been made over the past decade. Therefore, it is necessary to introduce the advanced basic theoretical knowledge in other disciplines, pursue theoretical method innovation and key technological breakthroughs, create new drilling fluid theories and technologies, and achieve the goals of safe, efficient, economical, and environmental protection exploration and development.
Nature provides an inexhaustible source of various technical ideas and inventions. Since ancient times, bionic activities have always accompanied humanity, and many major inventions that have affected the progress of human civilization have benefited from bionics. The first bionics symposium held in the United States in 1960 marked the emergence of bionics as an independent discipline. The bionic technology developed using bionics has the technical superiority that cannot be solved by conventional technical means, and has the advantages of originality and being forward-looking, occupying the commanding heights of high and new technology [17,18,19,20,21,22,23,24].
Based on the consideration stated above, this paper aims to:
(1) Introduce bionics into the field of drilling fluids, and uses the functions, principles, and structures of marine mussels and earthworms as learning models to address the inherent defects of wellbore stability and lubricity in water-based drilling fluids.
(2) Develop biomimetic wall-fixing agents and biomimetic bonding lubricants, and reveal their mechanism of action to achieve ‘borehole strengthening and strong lubrication’, and establish new technologies for bionic strengthened boreholes and strong lubricating water-based drilling fluids, through indoor system evaluation and on-site. According to the results of large-scale promotion and application, the inhibition and lubricity of water-based drilling fluids are comparable to oil-based drilling fluids, thus providing technical support for safe, efficient, economical, and environmentally friendly drilling in difficult wells under exceptional and complex formation conditions.

2. Materials and Methods

2.1. Apparatus

Point testing is conducted in YSD-2 rock uniaxial compressive strength testing machine (Tianjin Meites testing machine factory); Linear expansion experiment is conducted in two channel intelligent linear expansion meter (Kendall instruments (Shanghai) Co., Ltd); Contact angle testing is conducted in JC2000DM series contact angle measuring instrument (Beijing Zhongyi Kexin Technology Co., Ltd); Lubricant performance testing is conducted in Fann212 extreme pressure lubricator; Quanta 200F field emission environmental scanning electron microscope; T100 multifunctional friction and wear tester; ZNN-D6 digital display six speed rotational viscometer, roller heating furnace, SD6-SD6B six link medium pressure filtration meter, GGS71-A high temperature and high pressure filtration meter are purchased from Sidilaibo.

2.2. Developing of Bionic Wall-Fixing Agent

Wellbore instability has long been causing trouble in the safety and efficiency of drilling [25,26,27,28,29,30]. In some extreme cases, it can result in drilling failure. People have established a series of mechanical, chemical, mechanical-chemical coupling, and multi-coupling wellbore stabilization drilling fluid technologies after decades of research work, and have achieved good results, but they cannot improve the wellbore rock cohesion. The strength and rock cementing power, the inability to suppress surface hydration, and the difficulty in plugging nano-scale pores, etc., making the effect of stabilizing the wellbore limited and far from the oil-based drilling fluid’s ability to stabilize the wellbore.

2.3. Research and Development of Bionic Wall-Fixing Agent

Marine mussel organisms cement rocks by secreting high-strength, high-toughness, extremely strong adhesion, and waterproof adhesion proteins [31,32,33,34,35,36]. The main component of adhesion proteins, dopa, demonstrates good biocompatibility and degradability, and its molecular structure contains a large number of catechol groups with chemical versatility and affinity diversity. It can adhere to the base surface tightly through conformational changes, cross-linking between chains, and electrostatic and chemical interactions with the substrate. A microscopic biological network serves to increase the adhesion and cohesion of mussel adhesion protein.
Inspired by this, acrylic acid was first grafted onto polyvinyl alcohol. Then, with -COOH and -NH2 in the adhesion functional element as the reactive functional groups, through the acylation reaction, the adhesion of the catechol group-containing monomer occurred. The body was grafted onto part of the polyacrylic acid on the side chain of polyvinyl alcohol to obtain catechol-containing functional groups on the side chain. It can chelate and crosslink with Fe3+ ions and divalent metal ions such as Ca2+ and Mg2+ in the rock of the well wall. A microbial bionet was developed on the rock of the well wall. By solidifying the well wall, it can improve the adhesion and cohesion of the rock wall. The preparation process is illustrated in Figure 1.

2.4. Mechanism of Action of Bionic Wall-Fixing Agent

The bentonite was dried at 105 °C for 4 h, cooled to room temperature, and placed in a dryer for standby. A sample of 5–10 g was weighed with a balance and loaded into the die. The die was patted by hand to make the end face of the sample flat, and a piece of filter paper was placed on the surface. The pressure bar was placed in the mold, the combined sample was placed on the hydraulic press platform, pressurized for 4 MPa, and the pressure was released after 5 min to obtain the man-made mudstone core.
The same man-made mudstone core was immersed in deionized water and 0.5% bionic fixative solution for different periods of time, as shown in Figure 2. It can be seen from Figure 2 that the core completely collapsed after being immersed in deionized water for 10 min. By contrast, it remained well after being immersed in 0.5% bionic wall-fixing agent solution for 30 h, with a thin layer of gel film similar to the biological net observed on the surface. The beaker shown in the left of each picture contained deionized water, while the beaker on the right contained a 0.5% bionic fixative solution.

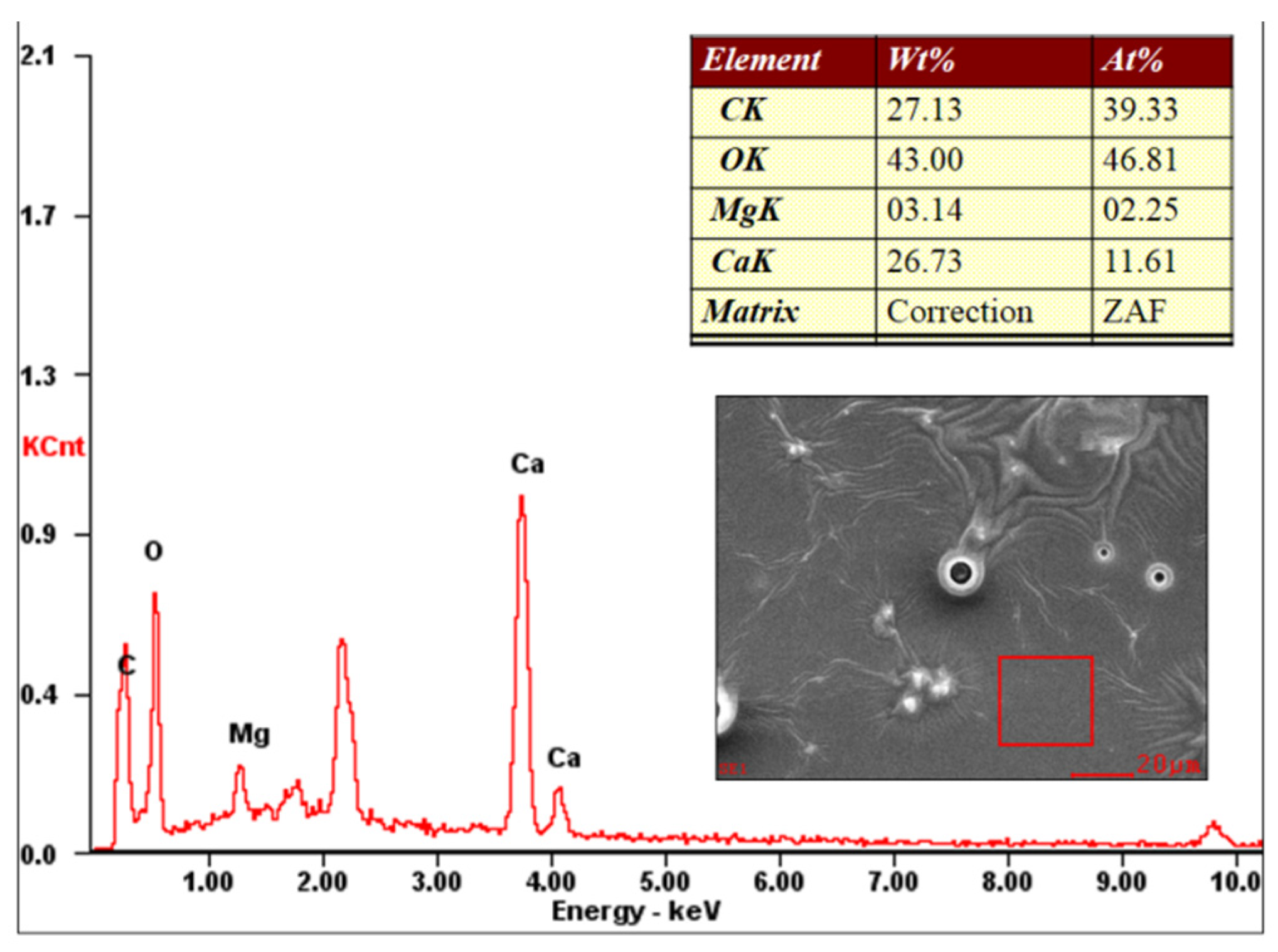

As revealed by X-ray fluorescence spectroscopy analysis of the mudstone core (Table 1), in addition to Al and Si as two main elements, the mudstone also contains a small amount of such elements as Na, Mg, Ca, and Fe. From the results (Figure 3) of energy dispersive X-ray spectroscopy (EDS) spectrum analysis of the biomimetic cementing agent forming a gel film on the surface of mudstone, however, it was found out that in addition to the elements C and O (bionic cementing agent contained), the gel film also contains biomimetic solids Ca and Mg which are not present in the wall solution, and that the concentration of Ca is significantly higher than in the original mudstone, suggesting that the gel film on the surface of mudstone results from chelating and crosslinking reaction between the bionic wall-fixing agent and Ca2+ and Mg2+. In the meantime, when the chelating and crosslinking reaction occurs, Ca2+ migrates from the interior of the mudstone to the surface on a continuous basis. Thus, the mechanism of action of the biomimetic wall-fixing agent is that when the solution of the biomimetic wall-fixing agent invades the pores of the mudstone, the exchangeable cations (such as Ca2+, Mg2+, etc.) inside the mudstone are continuously replaced with the ionized H+ of the biomimetic wall-fixing agent, thus leading to the concentration of mud shale on the surface. Then, the functional groups contained in the bionic wall-solidifying agent are adsorbed onto the surface of the mudstone chelate and crosslink with the surface-concentrated Ca2+, Mg2+ plasma to generate a bio-like gel film, thus improving the adhesion of the mudstone core force and cohesion, which is beneficial not only for preventing water molecules from intruding into the mudstone, but also to improve the strength of cement shale bonding and the stability of the shaft wall. This is consistent with the mechanism of marine mussel secretions cementing rocks.

3. Results

3.1. Performance Evaluation of Bionic Wall-Fixing Agent

3.1.1. Fixing Wall Performance

Since the bionic gel film generated by the bionic wall-fixing agent on the rock surface of the well wall can produce the effect of cementing the rock, qualitative and quantitative evaluations were conducted separately to assess its effectiveness in improving the strength of the rock.

Qualitative Evaluation of Soaking Experiment

A 2% solution containing different treatment agents was prepared for the core immersion experiment at room temperature and atmospheric pressure. As shown in Figure 4, the morphology of the mudstone core in each solution changes over time. It can be seen from Figure 4 that the mudstone core remained intact and showed no visible cracks after 72 h of immersion in the bionic wall-fixing agent solution, while the cores immersed in other solutions cracked and collapsed to varying degrees after around 24 h, which happened because the bionic wall-fixing agent bound onto the rock surface and inside. As a result, the bonding ability between the core particles improved, and the ingress of free water into the core was hindered. The result was also better than that reported in previous literatures [37,38].

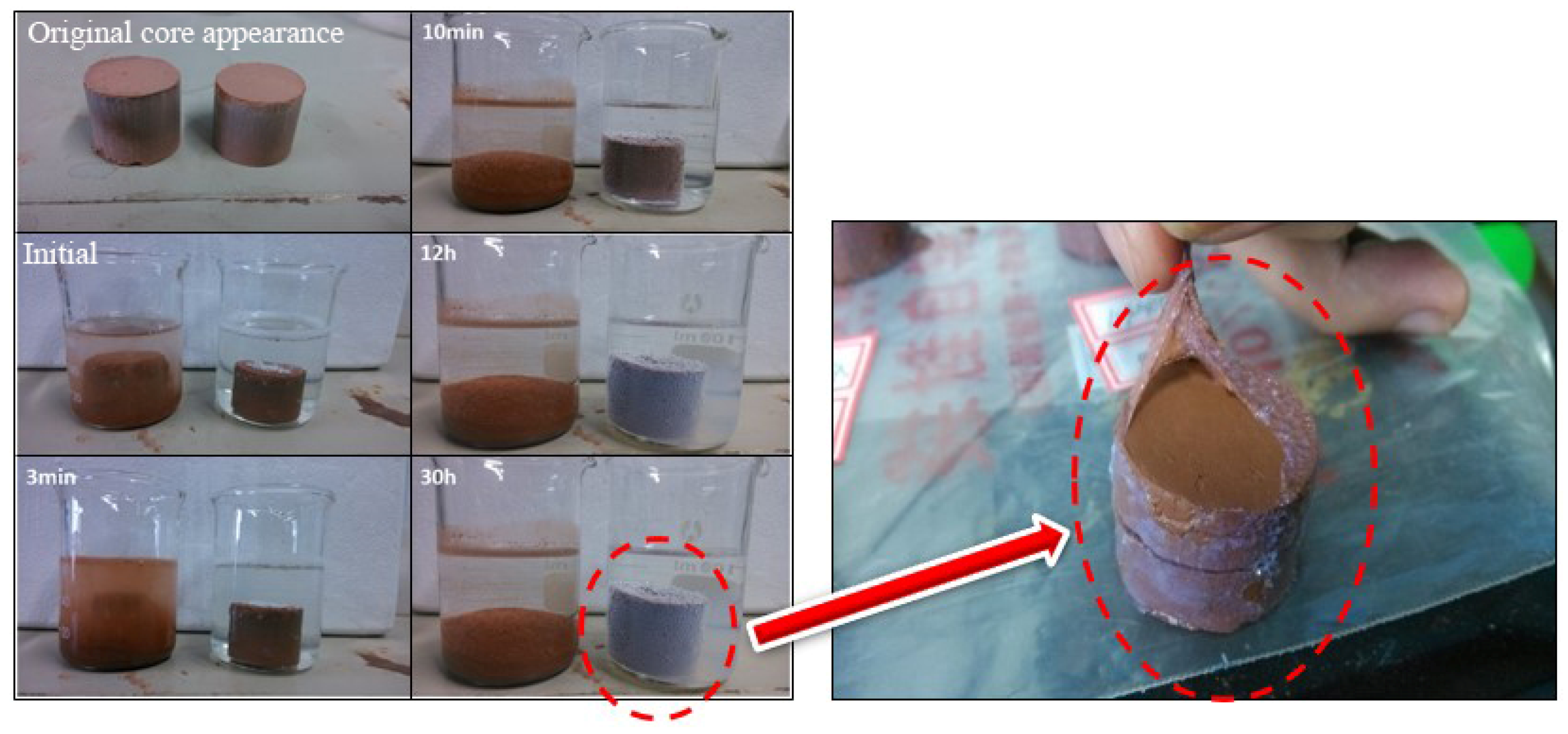

After the mudstone cuttings were immersed in clear water and 2% bionic wall-fixing agent solution for 1 h, the large parts were completely hydrated and dispersed in the clear water to obtain a red mud. Not only did dispersion occur in the bionic wall-fixing agent solution, the gel is also bound more tightly, as shown in Figure 5.

Quantitative Evaluation

(1) Point load test
Point load test is a method to test the compressive strength of rock under point load. During the test, the specimen is clamped between two spherical loading cones, and the load is applied until the fracture sample is fractured. According to the maximum load at failure and the distance between the ends of two cone heads, the tensile strength of the specimen can be calculated, and the compressive strength of the specimen can be calculated.

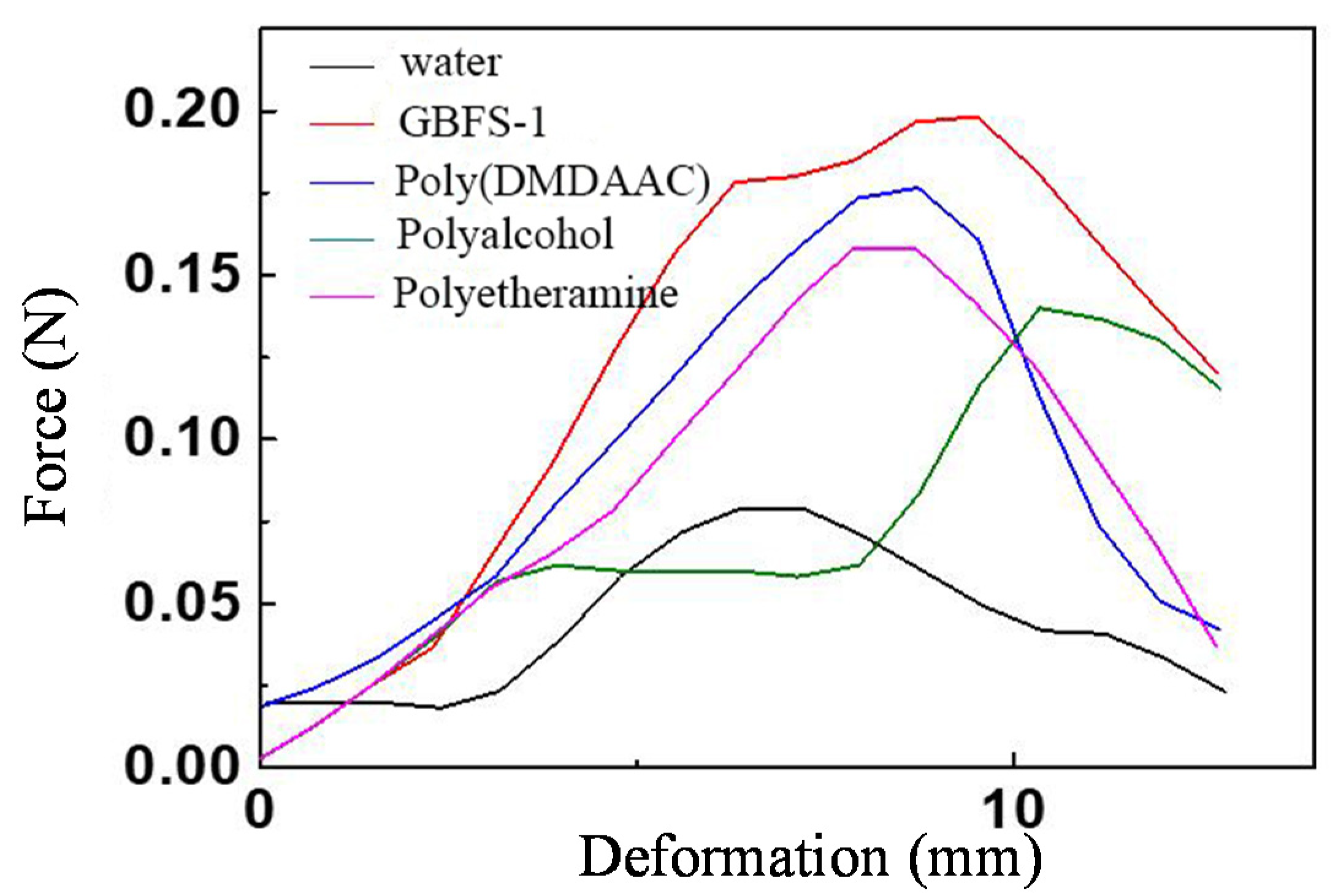

According to the data shown in Figure 6, the force of the core after immersion in clear water deteriorated significantly was up to as low as 0.08 N, indicating a severe hydration of the core. The force was improved to 0.2 N, with the effect being clearly better than that of the other three treatment agents after soaking.
(2) Core breaking strength
The core uniaxial stress experiment was used to test the breaking strength of core. The uniaxial compressive strength of rock is called uniaxial compressive strength when the rock sample is subjected to compression failure under the action of longitudinal pressure under the condition of unconfined pressure.
Upon a uniaxial stress test of the core, the rock strengthening ability of the bionic wall-fixing agent to the core was assessed, as shown in Table 2, which indicates that the fracture strength of the treated core increased by 22.9%, the elastic modulus was reduced by 17.9%, and the Poisson’s ratio rose by 51.4%. Therefore, it can be judged that the bionic wall-fixing agent led to a significant improvement of rock strength.

3.1.2. Suppression Performance

Linear Expansion Experiment

According to the experimental results obtained from the linear expansion of mudstone core in different wall-fixing agents, the swelling volume of mudstone core in clear water is 3.87 mm, and the swelling volume in 0.5% bionic wall-fixing agent solution is merely 1.62 mm, down by 58.14%. Compared with similar experiments in other papers, the wall-fixing agent was more effective [39,40,41].

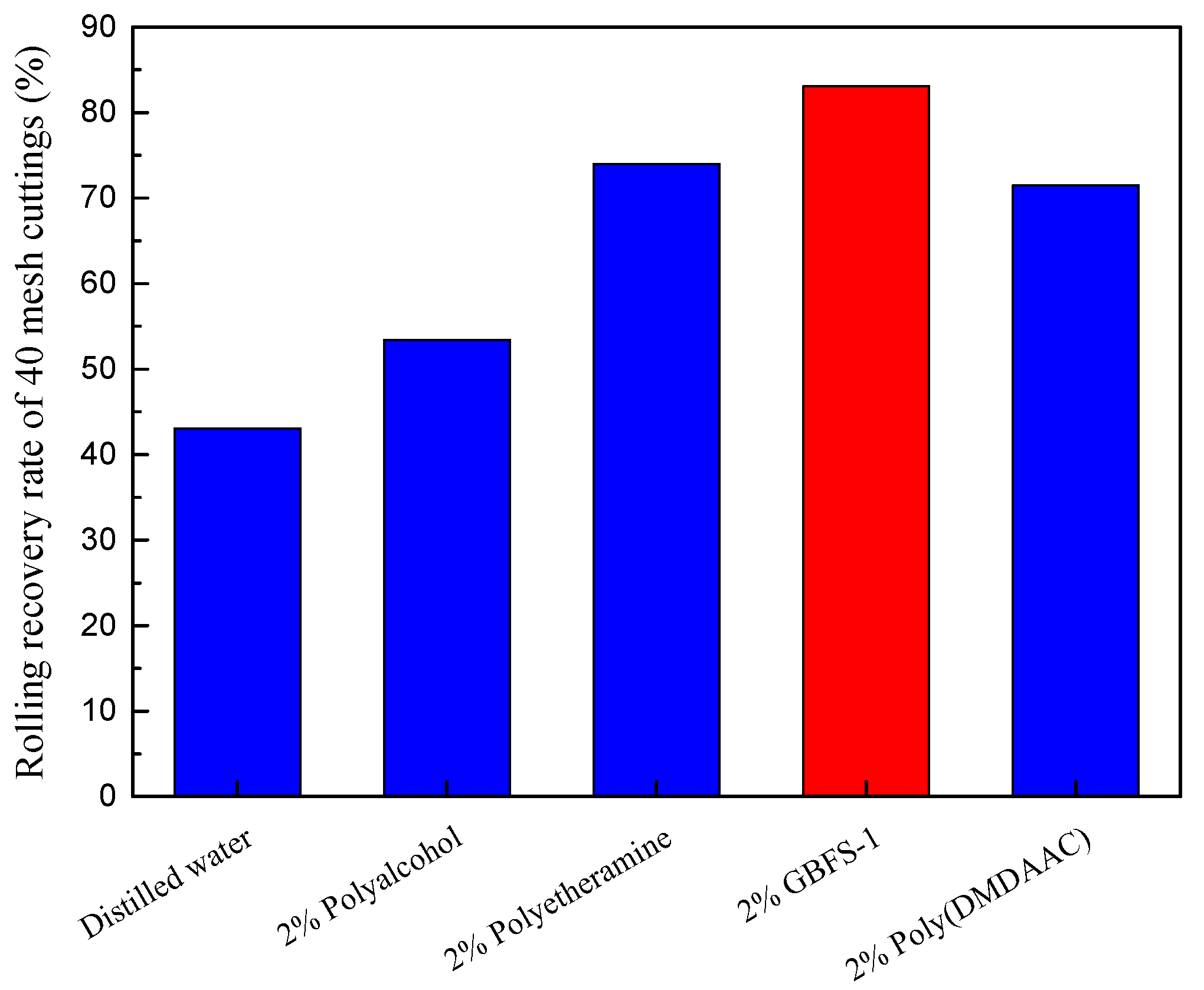

Rolling Recycling Experiment

Figure 7 shows the preparation of different treatment solution at 150 °C under the conditions of a rock cutting rolling recovery experiment. It can be seen from Figure 7 that the rolling recovery rate of shale cuttings in the bionic wall-fixing agent solution reached 83.04%, while the rolling recovery rate was higher compared with other domestic and foreign advanced inhibitors of the same concentration. Moreover, the recovery value of bionic wall-fixing agent solution was approximately equal to or higher than that of other common additives [42,43,44].
In summary, the biomimetic wall-fixing agent developed by simulating the functional group of marine mussel adhesion protein can be used to generate a hydrogel with strong adhesion and cohesion through chelation and cross-linking reaction with the surface Ca2+, Mg2+ plasma, etc. It improves the cementation strength of shale and inhibits the hydration expansion of clay minerals.

3.2. Using the Mucus Secreted by Earthworms as a Model to Develop Bionic Bonding Lubricants

3.2.1. Development of Bionic Bonded Lubricants Based on the Principle of Earthworms Secreting Mucus

Invertebrate earthworms can move freely in the soil, and they are not clay, because the mucus secreted by the body surface has a good viscosity reduction and drag reduction function, which is related to the size and shape of the body, surface morphology and material composition, and the hydrophobicity of the body surface [15,45,46,47]. The higher the surface hydrophobicity and negative potential, the better the viscosity reduction and drag reduction effect. The surface of its body contains P, Si, S, Na, Mg, K, Ca and other trace elements mainly in the form of inorganic salts. Resistance is favorable. Therefore, bionic design can be carried out from two perspectives to achieve viscosity reduction and resistance reduction. One is to make surface modification to the solid materials with low surface energy polymer materials for them to possess strong hydrophobic properties. The other is that the bionics on the surface of solid materials composition design, in order to achieve the effect of reducing viscosity and resistance.
In the course of drilling, the movement of the drill bit and drilling tool in the stratum is highly similar to that of soil animals inhabiting the soil. Therefore, in line with the principle of reducing viscosity and drag of soil animals, the adsorption groups -NH2 and -COO- were taken as the reactive functional groups for esterification reaction, and the research and development can form metal chelate rings and multiple hydrogen bonds with the well wall and drilling tool surface. It can be reversed from hydrophilic to hydrophobic, and contains a trace amount of S, P, and other extreme pressure elements. The bionic bonding lubricant is effective in controlling the inherent eddy current in the flow interface, reducing the friction at the time of drilling, and improving the outcome of mechanical drilling. Thus, the overall efficiency of speed and drilling can be enhanced.
According to the infrared characterization of the biomimetic bonding lubricant shown in Figure 8, the characteristic peak of methyl-CH3- stretching vibration is 2924.9 cm−1 while the characteristic peak of methylene-CH2- stretching vibration is 2853.6 cm−1. The characteristic peak of ester bond -COO- in -C = O is 1741.9 cm−1, the peak of methyl-CH3-deformation vibration absorption is 1463.9 cm−1, and the vibration absorption peak of the C-O single bond in the ester bond is 1168.4 cm−1. Whereas, no absorption peaks can be found for carboxylic acid and the hydroxyl group, indicating the relatively complete esterification.

3.2.2. Mechanism of action of bionic bonded lubricant

Bonding

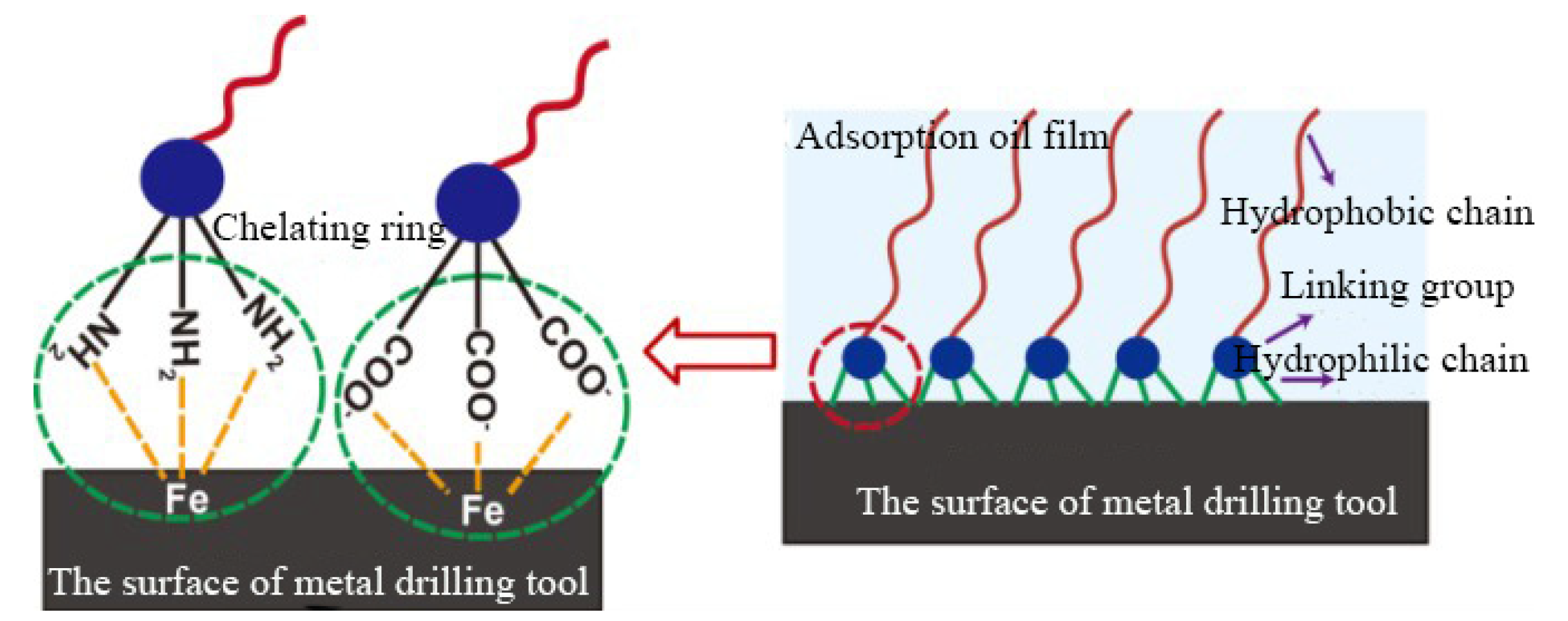

As a variety of amphiphilic molecule, the biomimetic bonding lubricant contains multi-branched polar adsorption groups, which can develop into a ‘metal chelate ring’ on the surface of metal drilling tools. Among them, the multi-branch polar adsorption groups -NH2 and -COO- in the biomimetic bonding lubricant play a role in the provision of paired electrons, while the Fe atoms on the surface of the metal drilling tool donate empty electron orbits, improving the strength of the lubricant adsorption film through chelation, as shown in Figure 9.

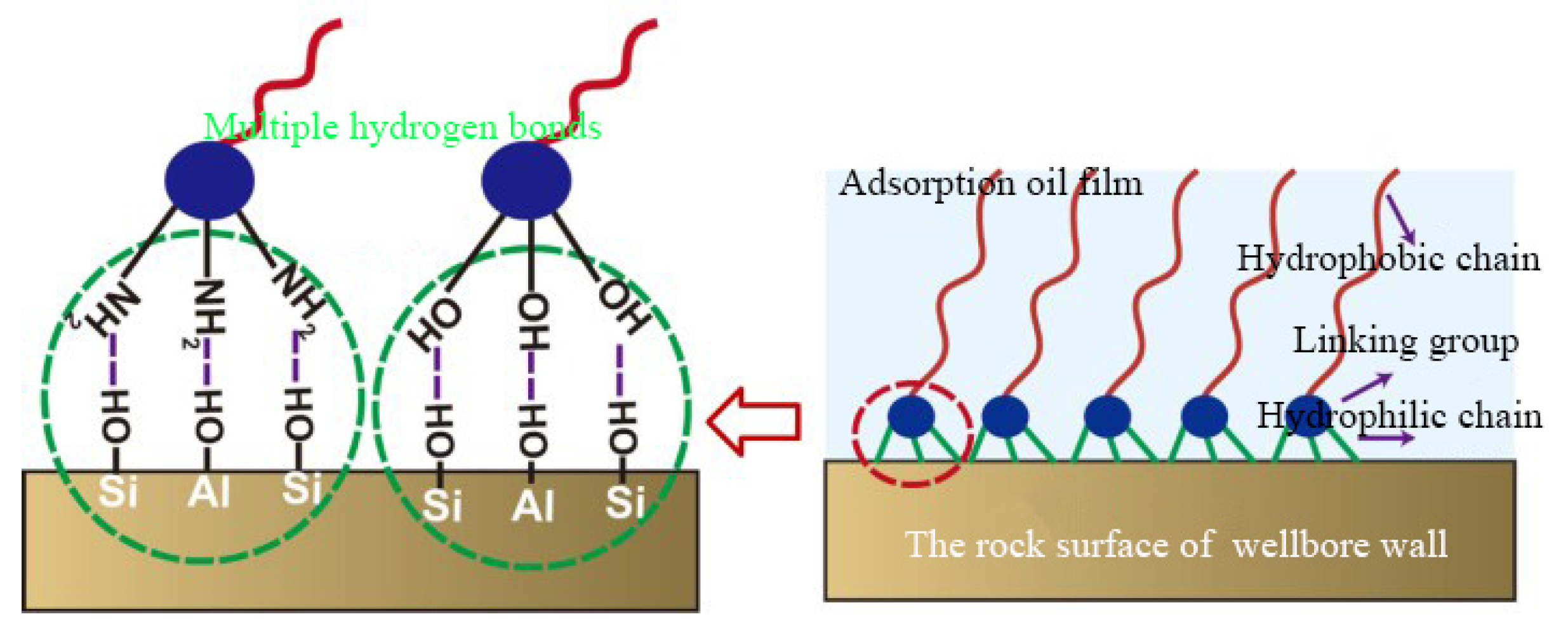

On the other hand, the bonded lubricant can generate a strong adsorption lubricating oil film on the well wall according to the principle of ‘multiple hydrogen bonding’. Among them, the amino groups and carboxyl groups in the multi-branched polar adsorption groups in the bonded lubricant form ‘multiple hydrogen bonds’ with the Si-OH and Al-OH on the rock surface of the well wall, which is conducive to enhancing the absorption strength of the oil film and increasing the shear resistance performance of the lubricating oil film, as shown in Figure 10.

Contact Angle Measurement

According to the measurement results of the water phase contact angle before and after the treatment of glass and steel sheets using different lubricants (Figure 11 and Figure 12), foreign lubricants and bionic bonding lubricants have a certain degree of adsorption on the surface of glass and steel sheets, thus improving hydrophobicity. However, the hydrophobic effect of the bionic bonded lubricant is very significant, and is much greater than that of foreign advanced lubricants.
Therefore, the biomimetic bonding lubricant generated a film that possessed strong hydrophobicity, high strength and high lubricity due to the interaction of the ‘metal chelate ring’ and ‘multiple hydrogen bonds’ with the solid surface. Earthworms have a similar mechanism of viscosity reduction and resistance reduction.

3.2.3. Performance Evaluation of Bionic Bonded Lubricant

In this paper, the extreme pressure lubrication coefficient, four-ball friction test, and filter cake adhesion coefficient were applied to comparatively evaluate the lubricating effect of the bionic bond lubricant against the commonly used lubricants.

Coefficient of Extreme Pressure Friction

To obtain the base slurry, 4% bentonite and 0.2% sodium carbonate were added into deionized water and stirred at 1200 rpm for 24 h. Afterwards, 1% different lubricants were added into 4% base slurry, and extreme pressure (EP) lubricator was used to measure their extreme pressure lubrication coefficient, as shown in Table 3, which indicates that the lubrication effect of the bionic bonding lubricant is clearly superior to other commonly used lubricants both at home and abroad, and that it does not foam. In comparison with the blank base slurry, the reduction rate of the extreme pressure friction coefficient was 83.3% before aging and 90.4% after aging. Moreover, the lubricating effect after high temperature hot rolling was improved.

Comparison of Filter Cake Adhesion Coefficient

The NF-2 adhesion coefficient tester was used to measure the reduction rate of adhesion torque of different lubricants to 4% fresh water-based slurry filter cake, as shown in Table 4. It can be seen from the table that the bionic bonding lubricant is effective in significantly improving the lubricating performance of the filter cake in fresh water-based slurry. The reduction rate of the filter cake adhesion coefficient at 1% dosage exceeds 62% before and after aging.

Flow Resistance Reduction Rate in Base Slurry

A simulation was conducted regarding the flow of drilling fluid in a 6-meters-long circulation pipeline, and the pressure drop of the circulation line of the base slurry was measured at the same displacement under different dosages of bionic bonded lubricants, as shown in Table 5. It can be known from the experimental results that the flow resistance declines gradually as the amount of bonded lubricant increases. When the amount of bonded lubricant reaches 0.5%, the flow resistance of the drilling fluid is reduced by as much as 12.5%.

Four-Ball Friction Evaluation

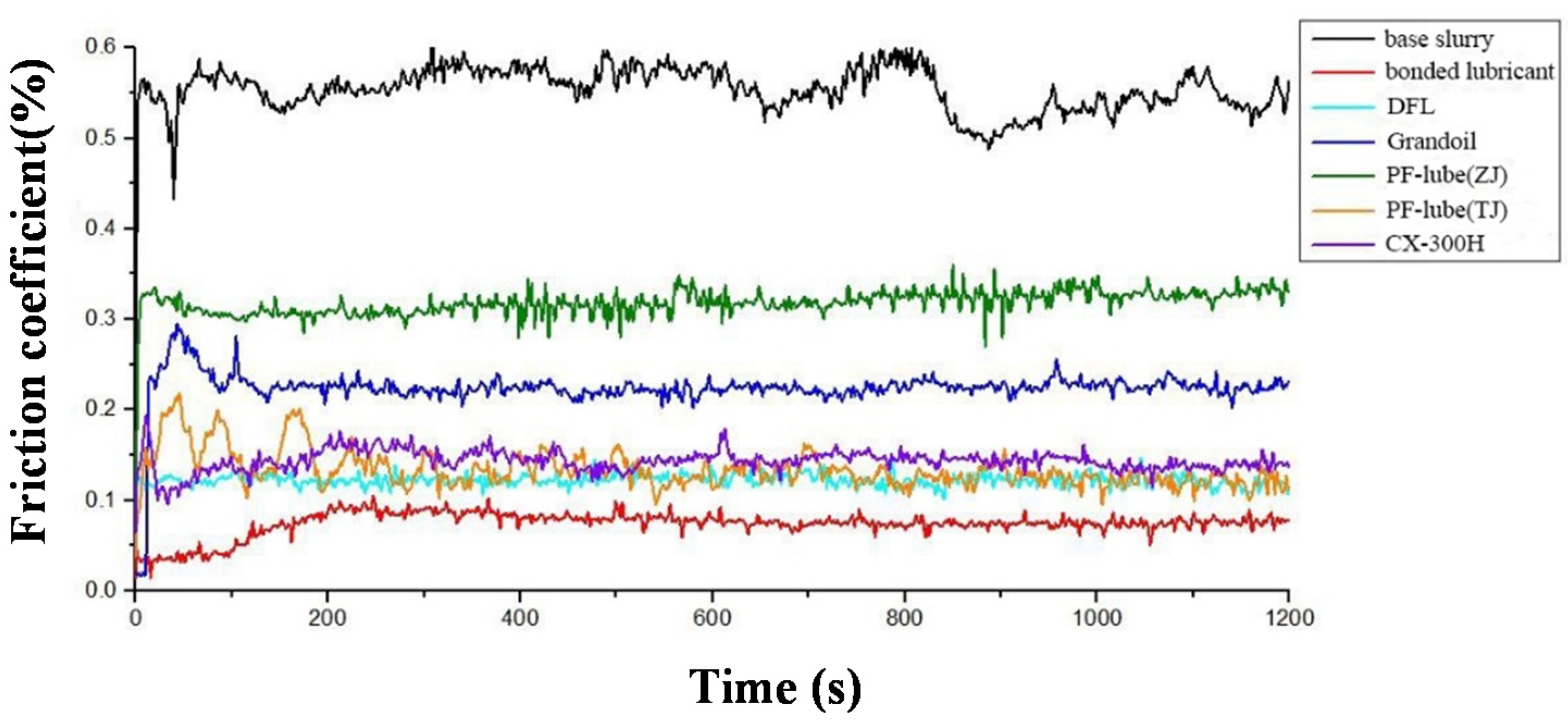

First, 0.5% bonding lubricant and advanced lubricants were added into clean water. Clean water is a blank group. A four-ball friction tester was used to grind for 30 min at a load of 150 N and a speed of 100 r/min. Then, an observation was made using Quanta 200 F field launch Environmental scanning electron microscope and an analysis was conducted of the wear marks of the steel ball after a long time of grinding, with the experimental results shown in Figure 13. It can be seen from Figure 13 that the scratches in clear water are visible, with deeper furrows and the largest wear scar area observed. After the addition of lubricant, the diameter of wear scar was reduced, and the wear marks are the least obvious and the friction surface is the smoothest. However, after adding advanced lubricants at home and abroad, there are still more obvious scratches.
In addition, in Figure 12, 0.5% of each lubricant was added into 4% base slurry for 20 min of grinding at a load of 150 N and a rotational speed of 150 r/min. The coefficient of friction was measured in real time, with the results shown in Figure 14, which indicates that the addition of lubricant to 4% of the base slurry at room temperature is effective in significantly reducing the lubricating coefficient of the base slurry. Among them, the bonding lubricant performs best, with the friction coefficient reaching about 0.08. Moreover, DFL lubricant and PF-Lube lubricant products demonstrate excellent lubricating properties, with a coefficient of friction of approximately 1.2.

Evaluation of Salt Resistance

First, 1% of the bonding lubricant was added into the 4% base slurry, followed by a certain amount of NaCl, CaCl2 and KCl, and the blank experimental group. Then, the extreme pressure lubrication coefficient of each group was measured before and after aging, as shown in Table 6, which indicates that the bionic bonding lubricant resists up to 30% of NaCl and CaCl2, and has good salt and calcium resistance. The aging conditions are 150 °C and 16 h.

Evaluation of Temperature Resistance

1% of the bonding lubricant was added into 4% of the base slurry for aging at different temperatures for 16 h each. Then, the lubricating coefficient of the aging base slurry was measured and compared, as shown in Table 7, which indicates that after aging at 120 °C, the lubricity of the bonding lubricant was improved. Subsequently, as the temperature rose, the reduction rate of friction sparseness showed a slight decline, despite the retention of an excellent lubricating ability. Therefore, this bonding type lubricant has strong temperature resistance.
Thus, it can be known that the biomimetic bonding lubricant reduces the friction coefficient between the solid particles in the drilling tool and drilling fluid and the rock shaft wall through the adsorption onto the surface of the drilling tool and the rock, therefor resulting in better lubricity property compared with other lubricants reported in previous articles [48,49,50,51].

4. Discussion

4.1. Bionic Enhanced Wellbore and Super-Lubricated Water-Based Drilling Fluid Technology Establishment and Field Application

With bionic wall-fixing agent and bionic bonding lubricant as the core, combined with the drilling situation, according to the “chemical-engineering-geology” integrated thinking, and supporting other treatment agents, a bionic reinforced wellbore and strong lubricating water-based drilling were formed.
The basic formula of bionic reinforced wellbore and strong lubricating water-based drilling fluid is detailed as 0.15% base slurry + 2–3% bionic wall-fixing agent + 1–2% bonding lubricant + 1–3% fluid loss control agent + 7% KCl + barite (adjusted to the required density).
The typical oil-based drilling fluid is detailed as 80% No.3 white oil + 3% auxiliary emulsifier + 1% main emulsifier + 4% wetting agent + 20% calcium chloride solution + 1% organic clay + 0.5% cutting agent + 4% fine calcium carbonate + 2% plugging fluid loss agent + barite (adjusted to the required density).

4.1.1. Performance Evaluation of Bionic Reinforced Wellbore and Strong Lubricating Water-Based Drilling Fluid

Evaluation of Salt Resistance

NaCl and CaCl2 of different amounts were added into the basic system of the bionic water-based drilling fluid for investigating its salt and calcium resistance. From Table 8, it can be seen that with 30% NaCl and 0.5% CaCl2 added, the rheological properties of the system vary less significantly, the fluid loss still meets the requirements despite a slight increases, and it shows a strong salt and calcium resistance.

Evaluation of Temperature Resistance

The field mud in Xinjiang Oilfield was taken (System 1#), then System 1# was transformed into a bionic reinforced wellbore and strong lubricating water-based drilling fluid (System 2#), after aging at 80 °C, 100 °C, and 120 °C for 16 h. The measured performance is shown in Table 9, which indicates that, as the temperature rises, the viscosity of the system declines slightly, while the filtration loss at medium pressure, high temperatures, and high pressure slightly increases. Overall, the temperature resistance of the bionic water-based drilling fluid system exceeds 150 °C. As for high-temperature and high-pressure filtration loss, the test temperature was set to 80 °C, 100 °C, and 120 °C.

Core Compressive Strength Evaluation

1# and 2# drilling fluids were added into two aging tanks containing the same artificial core, for subsequent aging at 120 °C for 16 h. Then, the core was taken out, and the compressive strength of the core was measured, as shown in Table 10. It can be seen from the table that the strength of the core is improved by 14.11%, thus achieving the purpose of strengthening.

Environmental Performance Evaluation

According to the results of bio-toxicity and biodegradability tests shown in Table 11, the system constructed using the calcium drilling fluid system technology is safe, toxin-free and biodegradable.

4.1.2. Performance Comparison with Typical Oil-Based Drilling Fluids

Basic Performance Comparison

In Table 12, a comparison is performed of the basic performance of bionic reinforced wellbore and strong lubricating water-based drilling fluid and typical oil-based drilling fluid. From this table, it can be seen that the bionic water-based drilling fluid is characterized by lower apparent viscosity, better rheology, lower medium pressure filtration loss, and the same filter cake friction coefficient as oil-based drilling fluid. The drilling fluid density is 2.41 g/cm3, the aging temperature is 130 °C × 16 h, the high-temperature and high-pressure temperature is 130 °C and 3.5 MPa.

Inhibitory Comparison

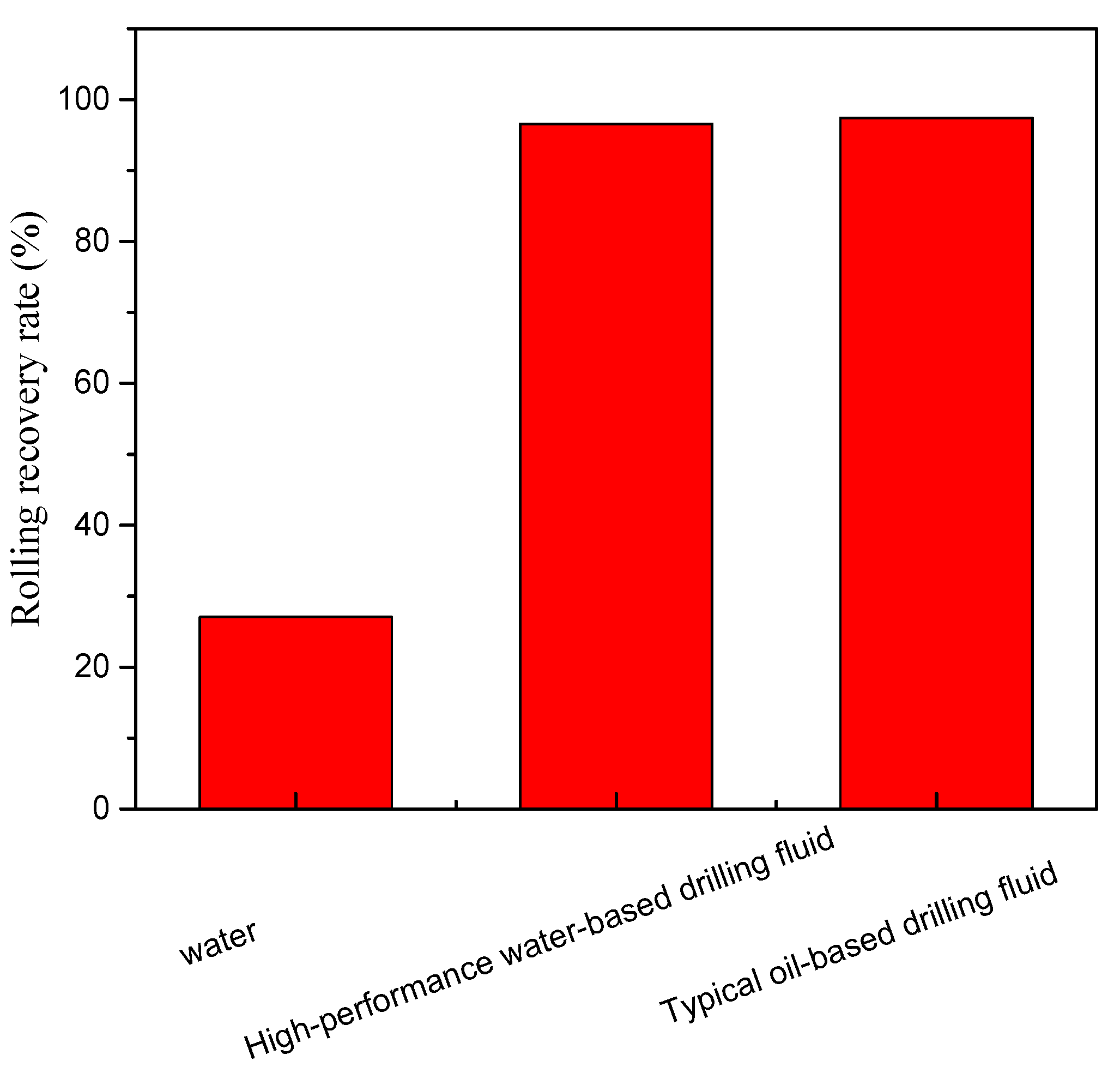

The inhibition performance of the two drilling fluids was evaluated using a rolling recovery and linear expansion method, as shown in Figure 15, which indicates that the inhibition of bionic water-based drilling fluids is comparable to that of typical oil-based drilling fluids, thus meeting the demanding requirements for inhibition performance in exceptional and complex oil and gas drilling processes such as dense and shale.
As revealed by the above-mentioned evaluation, the bionic water-based drilling fluid possesses good rheology and filtration, with its inhibition and lubricity comparable to typical oil-based drilling fluids. Furthermore, it is environmentally friendly, which makes it effective in solving unconventional, tight gas, shale, and other unconventional gas. The bionic water-based drilling fluid performed more excellent performance than other reported drilling fluids [52,53,54].

4.2. Field Application Effect

At present, bionic reinforced wellbore and strong lubricating water-based drilling fluid have been widely applied in various unconventional and complex oil and gas wells both at home and abroad. Compared with the previous drilling fluid technology in the same block, the average rate of well collapse accidents is reduced by as much as 82.6%, the accident rate of stuck drill is significantly reduced by 86.4%, and the complication of stuck card is reduced by as much as 79.7%. In the meantime, it was introduced by an internationally renowned company and used in the scale of tight gas wells in Yanan Pagoda, Zichang County, Ansai, and other regions. The average drilling speed was improved by more than 32.8%, and the overall cost of drilling fluid was lowered by 42.3%.
For example, the deployment of this technology prevented the drilling failure of the HW8003 tight oil horizontal well in the Junggar Basin. The avalanche collapse occurring in the borehole wall and the jamming was serious. The failure of the sidetracking of the well filling caused a total loss of 2.334354 million yuan in drilling fluid material cost and 25.58 d (614 h) of lost time. The third wellbore was converted to this technology, and the drilling of the well suffered severe damaged twice. During the process, there were no complicated downhole conditions.
Prior to 2013, when drilling the horizontal section of Sulige Su 53 block, if mudstone layers were encountered, all accidents such as scoring, stuck pipe, and collapsed blocks would occur (Table 13) [41]. To solve this problem, polysulfonate drilling fluid system, silicone drilling fluid system, organic salt drilling fluid system, oil-based drilling fluid system, and so on, were trialed separately, but the outcome was not satisfactory. After 2013, this drilling fluid technology was applied to reduce downhole complex conditions or accidents to 0, drilling rate was improved by 27%, and drilling fluid unit cost was lowered by 36.4%. Table 14 shows some of its applications [55].

5. Conclusions

(1) Bionics is introduced into the field of drilling fluids. By studying and imitating the function, the principle and composition of marine mussel secretion of adhesion proteins and earthworm secretion of mucus, the biomimetic wall-fixing agent and biomimetic bonding lubricant developed in the borehole wall, respectively, succeeded in chelating and cross-linking the rock to form a bio-gel network, and forming a smooth film through the bond between the rock and the surface of the drilling tool to achieve the purpose of strengthening the wellbore and strong lubrication.
(2) Compared with the advanced technology introduced from abroad, the strength of the rock is not only reduced but increased by more than 14%, the friction reduction rate is improved by 12.3%. The rolling recovery rate of shale cuttings in the bionic wall-fixing agent solution reached 83.04%. The reduction rate of the filter cake adhesion coefficient at 1% dosage exceeds 62% before and after aging.
(3) Compared with the previous drilling fluid technology in the same block, the average rate of well collapse accidents is reduced by as much as 82.6%, the accident rate of stuck drill is significantly reduced by 86.4%, and the complication of stuck card is reduced by as much as 79.7%. The average drilling speed was improved by more than 32.8%, and the overall cost of drilling fluid was lowered by 42.3%.

Author Contributions

Conceptualization, G.J. and Y.H.; methodology, X.Q.; investigation, X.Q.; resources, X.L.; data curation, T.D.; writing—original draft preparation, X.Q.; writing—review and editing, G.J.; visualization, Y.H.; supervision, G.J.; project administration, G.J.; funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundation of China (grant No. 51874329), the National Science and Technology Major Project of China (2016ZX05040-005 and 2017ZX05009), National Natural Science Innovation Population of China (Grant No. 51821092), Project of The Fourth Branch Company of CNPC Bohai Drilling Engineering Company Limited (2019Z22K) and Project of CNPC Engineering Technology R&D Company Limited (2019D-4507).

Acknowledgments

Authors wish to acknowledge assistance and encouragement from colleagues (Changyu Ni and Pengcheng Li).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mahmoud, H.; Hamza, A.; Nasser, M.S.; Hussein, I.A.; Ahmed, R.; Karami, H. Hole cleaning and drilling fluid sweeps in horizontal and deviated wells: Comprehensive review. J. Pet. Sci. Eng. 2020, 186, 106748. [Google Scholar] [CrossRef]
  2. Akpan, E.U.; Enyi, G.C.; Nasr, G.; Yahaya, A.A.; Ahmadu, A.A.; Saidu, B. Water-based drilling fluids for high-temperature applications and water-sensitive and dispersible shale formations. J. Pet. Sci. Eng. 2019, 175, 1028–1038. [Google Scholar] [CrossRef] [Green Version]
  3. Saleh, T.A.; Ibrahim, M.A. Advances in functionalized Nanoparticles based drilling inhibitors for oil production. Energy Rep. 2019, 5, 1293–1304. [Google Scholar] [CrossRef]
  4. Huang, T.; Cao, L.; Cai, J.; Xu, P. Experimental investigation on rock structure and chemical properties of hard brittle shale under different drilling fluids. J. Pet. Sci. Eng. 2019, 181, 106185. [Google Scholar] [CrossRef]
  5. Xie, B.Q.; Zhang, X.B.; Li, Y.G.; Liu, W.; Luo, M.W. Application a novel thermo-sensitive copolymer as a potential rheological modifier for deep-water water-based drilling fluids. Colloids Surf. A Physicochem. Eng. Asp. 2019, 581, 123848. [Google Scholar]
  6. Magalhães, S.; Borges, R.; Calçada, L.; Scheid, C.; Folsta, M.; Waldmann, A.; Martins, A. Development of an expert system to remotely build and control drilling fluids. J. Pet. Sci. Eng. 2019, 181, 106033. [Google Scholar] [CrossRef]
  7. Luan, J.; Dong, P.; Zheng, J. Experimental studies on reaction laws during the process of air injection into the oil reservoirs with low permeability. J. Pet. Sci. Eng. 2020, 194, 107526. [Google Scholar] [CrossRef]
  8. Song, Y.; Li, Z.; Jiang, Z.; Luo, Q.; Liu, D.; Gao, Z. Progress and development trend of unconventional oil and gas geological research. Pet. Explor. Dev. 2017, 44, 675–685. [Google Scholar] [CrossRef]
  9. Wang, Z.; Tong, S.; Wang, C.; Zhang, J.; Fu, W.; Sun, B. Hydrate deposition prediction model for deep-water gas wells under shut-in conditions. Fuel 2020, 275, 117944. [Google Scholar] [CrossRef]
  10. Zheng, L.; Chen, B.; Zhang, Z.; Tang, J.; Sun, H. Anti-collapse mechanism of CBM fuzzy-ball drilling fluid. Nat. Gas Ind. B 2016, 3, 152–157. [Google Scholar] [CrossRef] [Green Version]
  11. Brandon, N.; Panesar, S.; Bonanos, N.; Fogarty, P.; Mahmood, M. The effect of cathodic currents on friction and stuck pipe release in aqueous drilling muds. J. Pet. Sci. Eng. 1993, 10, 75–82. [Google Scholar] [CrossRef]
  12. Al Sandouk-Lincke, N.A.; Schwarzbauer, J.; Antic, V.; Antić, M.; Caase, J.; Grünelt, S.; Reßing, K.; Littke, R. Off-line-pyrolysis–gas chromatography–mass spectrometry analyses of drilling fluids and drill cuttings—Identification of potential environmental marker substances. Org. Geochem. 2015, 88, 17–28. [Google Scholar] [CrossRef]
  13. Beydokhti, A.K.; Hajiabadi, S.H. Rheological investigation of smart polymer/carbon nanotube complex on properties of water-based drilling fluids. Colloids Surf. A Physicochem. Eng. Asp. 2018, 556, 23–29. [Google Scholar] [CrossRef]
  14. Zhong, H.; Shen, G.; Qiu, Z.; Lin, Y.; Fan, L.; Xing, X.; Li, J. Minimizing the HTHP filtration loss of oil-based drilling fluid with swellable polymer microspheres. J. Pet. Sci. Eng. 2019, 172, 411–424. [Google Scholar] [CrossRef]
  15. Paswan, B.K.; Mahto, V. Development of environment-friendly oil-in-water emulsion based drilling fluid for shale gas formation using sunflower oil. J. Pet. Sci. Eng. 2020, 191, 107129. [Google Scholar] [CrossRef]
  16. Xu, Z.; Song, X.; Li, G.; Zhu, Z.; Zhu, B. Gas kick simulation in oil-based drilling fluids with the gas solubility effect during high-temperature and high-pressure well drilling. Appl. Therm. Eng. 2019, 149, 1080–1097. [Google Scholar] [CrossRef]
  17. Ke, G.; Youhong, S.; Runfeng, G.; Liang, X.; Chuanliu, W.; Yumin, L. Application and prospect of bionic non-smooth theory in drilling engineering. Pet. Explor. Dev. 2009, 36, 519–541. [Google Scholar] [CrossRef]
  18. Jiang, J.; Peng, X.; Li, J.; Chen, Y. A comparative study on the performance of typical types of bionic groove dry gas seal based on bird wing. J. Bionic Eng. 2016, 13, 324–334. [Google Scholar] [CrossRef]
  19. Yin, B.; Xu, T.; Hou, D.; Zhao, E.; Hua, X.; Han, K.; Zhang, Y.; Zhang, J. Superhydrophobic anticorrosive coating for concrete through in-situ bionic induction and gradient mineralization. Constr. Build. Mater. 2020, 257, 257. [Google Scholar] [CrossRef]
  20. Chen, C.; Zhao, Y.; Mei, H.; Kong, Z.; Mao, M.; Cheng, L. Excellent lubrication properties of 3D printed ceramic bionic structures. Ceram. Int. 2020. [Google Scholar] [CrossRef]
  21. Kamil, N.; Ewa, L.; Piotr, S.; Katarzyna, E.N.; Jacek, P.S. Bionic eye review—An update. J. Clin. Neurosci. 2020, 78, 8–19. [Google Scholar]
  22. Han, J.; Hui, Z.; Tian, F.; Chen, G. Review on bio-inspired flight systems and bionic aerodynamics. Chin. J. Aeronaut. 2020. [Google Scholar] [CrossRef]
  23. Zhan, X.; Yi, P.; Liu, Y.; Jiang, Y.; Jin, Y.; Dong, G.; Zhang, Y. Effects of texture spacing and bulges of bionic sinusoidal texture on the adhesion properties and fracture mechanism of plasma-sprayed coatings. Surf. Coat. Technol. 2020, 393, 125772. [Google Scholar] [CrossRef]
  24. Xie, Y.; Bai, H.; Liu, Z.; Chen, N. A Novel Bionic Structure Inspired by Luffa Sponge and Its Cushion Properties. Appl. Sci. 2020, 10, 2584. [Google Scholar] [CrossRef] [Green Version]
  25. Zheng, L.; Su, G.; Li, Z.; Peng, R.; Wang, L.; Wei, P.; Han, S. The wellbore instability control mechanism of fuzzy ball drilling fluids for coal bed methane wells via bonding formation. J. Nat. Gas Sci. Eng. 2018, 56, 107–120. [Google Scholar] [CrossRef]
  26. Shen, Y.; Liu, H.; Wang, H.; Wu, H. Wellbore instability induced by alternating water injection and well washing with an elasto-plastic erosion model. J. Nat. Gas Sci. Eng. 2015, 27, 1863–1870. [Google Scholar] [CrossRef]
  27. Dokhani, V.; Yu, M.; Bloys, B. A wellbore stability model for shale formations: Accounting for strength anisotropy and fluid induced instability. J. Nat. Gas Sci. Eng. 2016, 32, 174–184. [Google Scholar] [CrossRef]
  28. Yu, M.; Chenevert, M.E.; Sharma, M.M. Chemical–mechanical wellbore instability model for shales: Accounting for solute diffusion. J. Pet. Sci. Eng. 2003, 38, 131–143. [Google Scholar] [CrossRef]
  29. Zhao, X.; Qiu, Z.; Wang, M.; Xu, J.; Huang, W. Experimental investigation of the effect of drilling fluid on wellbore stability in shallow unconsolidated formations in deep water. J. Pet. Sci. Eng. 2019, 175, 595–603. [Google Scholar] [CrossRef]
  30. Rafieepour, S.; Zamiran, S.; Ostadhassan, M. A cost-effective chemo-thermo-poroelastic wellbore stability model for mud weight design during drilling through shale formations. J. Rock Mech. Geotech. Eng. 2020. [Google Scholar] [CrossRef]
  31. Chen, X.; Huang, Y.; Yang, G.; Li, J.-X.; Wang, T.; Schulz, O.; Jennings, L. Polydopamine Integrated Nanomaterials and Their Biomedical Applications. Curr. Pharm. Des. 2015, 21, 4262–4275. [Google Scholar] [CrossRef] [PubMed]
  32. Holten-Andersen, N.; Waite, J.H. Mussel-designed protective coatings for compliant substrates. J. Dent. Res. 2008, 87, 701–709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Danner, E.W.; Kan, Y.; Hammer, M.U.; Israelachvili, J.N.; Waite, J.H. Adhesion of Mussel Foot Protein Mefp-5 to Mica: An Underwater Superglue. Biochemistry 2012, 51, 6511–6518. [Google Scholar] [CrossRef] [Green Version]
  34. Fan, C.; Fu, J.; Zhu, W.; Wang, D.-A. A mussel-inspired double-crosslinked tissue adhesive intended for internal medical use. Acta Biomater. 2016, 33, 51–63. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, A.; Neumeyer, J.L.; Baldessarini, R.J. Recent Progress in Development of Dopamine Receptor Subtype-Selective Agents: Potential Therapeutics for Neurological and Psychiatric Disorders. Chem. Rev. 2007, 107, 274–302. [Google Scholar] [CrossRef]
  36. Lee, H.; Dellatore, S.M.; Miller, W.M.; Messersmith, P.B. Mussel-Inspired Surface Chemistry for Multifunctional Coatings. Science 2007, 318, 426–430. [Google Scholar] [CrossRef] [Green Version]
  37. Xu, J.-g.; Qiu, Z.; Zhao, X.; Zhong, H.; Huang, W. Study of 1-Octyl-3-methylimidazolium bromide for inhibiting shale hydration and dispersion. J. Pet. Sci. Eng. 2019, 177, 208–214. [Google Scholar] [CrossRef]
  38. Yang, L.; Jiang, G.; Shi, Y.; Yang, X. Application of Ionic Liquid and Polymeric Ionic Liquid as Shale Hydration Inhibitors. Energy Fuels 2017, 31, 4308–4317. [Google Scholar] [CrossRef]
  39. Gou, S.; Yin, T.; Xia, Q.; Guo, Q. Biodegradable polyethylene glycol-based ionic liquids for effective inhibition of shale hydration. RSC Adv. 2015, 5, 32064–32071. [Google Scholar] [CrossRef]
  40. Balaban, R.d.C.; Vidal, E.L.F.; Borges, M.R. Design of experiments to evaluate clay swelling inhibition by different combinations of organic compounds and inorganic salts for application in water base drilling fluids. Appl. Clay Sci. 2015, 105–106, 124–130. [Google Scholar] [CrossRef]
  41. Jiang, G.; Zhang, X.; Dong, T.; Xuan, Y.; Wang, L.; Jiang, Q. A new inhibitor of P(AM-DMDAAC)/PVA intermacromolecular complex for shale in drilling fluids. J. Appl. Polym. Sci. 2018, 135, 45584. [Google Scholar] [CrossRef]
  42. Zhong, H.; Qiu, Z.; Sun, D.; Zhang, D.; Huang, W. Inhibitive properties comparison of different polyetheramines in water-based drilling fluid. J. Nat. Gas Sci. Eng. 2015, 26, 99–107. [Google Scholar] [CrossRef]
  43. Xu, J.-G.; Qiu, Z.; Zhao, X.; Mou, T.; Zhong, H.; Huang, W. A polymer microsphere emulsion as a high-performance shale stabilizer for water-based drilling fluids. RSC Adv. 2018, 8, 20852–20861. [Google Scholar] [CrossRef] [Green Version]
  44. Teixeira, G.T.; Lomba, R.F.T.; Francisco, A.D.d.S.; da Silva, J.F.C.; Nascimento, R.S.V. Hyperbranched Polyglycerols, Obtained from Environmentally Benign Monomer, as Reactive Clays Inhibitors for Water-Based Drilling Fluids. J. Appl. Polym. Sci. 2014, 131, 40384. [Google Scholar]
  45. Saffari, H.; Soltani, R.; Alaei, M.; Soleymani, M. Tribological properties of water-based drilling fluids with borate nanoparticles as lubricant additives. J. Pet. Sci. Eng. 2018, 171, 253–259. [Google Scholar] [CrossRef]
  46. Lan, P.; Iaccino, L.L.; Bao, X.; Polycarpou, A.A. The effect of lubricant additives on the tribological performance of oil and gas drilling applications up to 200 °C. Tribol. Int. 2020, 141, 105896. [Google Scholar] [CrossRef]
  47. Jiang, G.; Ni, X.; Li, W.; Quan, X.; Luo, X. Super-amphiphobic, strong self-cleaning and high-efficiency water-based drilling fluids. Pet. Explor. Dev. 2020, 47, 421–429. [Google Scholar] [CrossRef]
  48. Nunes, D.G.; da Silva, A.d.P.M.; Cajaiba, J.; Pérez-Gramatges, A.; Lachter, E.R.; Nascimento, R.S.V. Influence of Glycerides–Xanthan Gum Synergy on Their Performance as Lubricants for Water-Based Drilling Fluids. J. Appl. Polym. Sci. 2014, 131, 41085. [Google Scholar]
  49. Dong, X.; Wang, L.; Yang, X.; Lin, Y.; Xue, Y. Effect of ester based lubricant SMJH-1 on the lubricity properties of water based drilling fluid. J. Pet. Sci. Eng. 2015, 135, 161–167. [Google Scholar] [CrossRef]
  50. Liu, X.; Gao, L.; Wang, Q.; Gu, X.; Du, W.; Zhang, J.; Gang, C. Evaluation and application of poly(ethylene glycol) as lubricant in water-based drilling fluid for horizontal well in Sulige Gas Field. Polym. Int. 2020. [Google Scholar] [CrossRef]
  51. Aftab, A.; Ali, M.; Sahito, M.F.; Mohanty, U.S.; Jha, N.K.; Akhondzadeh, H.; Azhar, M.R.; Ismail, A.R.; Keshavarz, A.; Iglauer, S. Environmental Friendliness and High Performance of Multifunctional Tween 80/ZnO-Nanoparticles-Added Water-Based Drilling Fluid: An Experimental Approach. ACS Sustain. Chem. Eng. 2020, 8, 11224–11243. [Google Scholar] [CrossRef]
  52. Yang, X.; Shang, Z.; Liu, H.; Cai, J.; Jiang, G. Environmental-friendly salt water mud with nano-SiO2 in horizontal drilling for shale gas. J. Pet. Sci. Eng. 2017, 156, 408–418. [Google Scholar] [CrossRef]
  53. Zhao, X.; Qiu, Z.; Wang, M.; Huang, W.; Zhang, S. Performance Evaluation of a Highly Inhibitive Water-Based Drilling Fluid for Ultralow Temperature Wells. J. Energy Resour. Technol. 2018, 140, 57. [Google Scholar] [CrossRef]
  54. Zhao, X.; Qiu, Z.; Zhang, Y.; Zhong, H.; Huang, W.; Tang, Z. Zwitterionic Polymer P(AM-DMC-AMPS) as a Low-Molecular-Weight Encapsulator in Deepwater Drilling Fluid. Appl. Sci. 2017, 7, 594. [Google Scholar] [CrossRef] [Green Version]
  55. Jiang, G.C.; Dong, T.F.; Zhang, X.M.; Li, Y.L.; Zhao, L.; Liu, P. Study and application of a new high performance water base drilling fluid XZ. Drill. Fluid Complet. Fluid 2018, 35, 49–55. [Google Scholar]
Sustainability 12 08387 g001 550

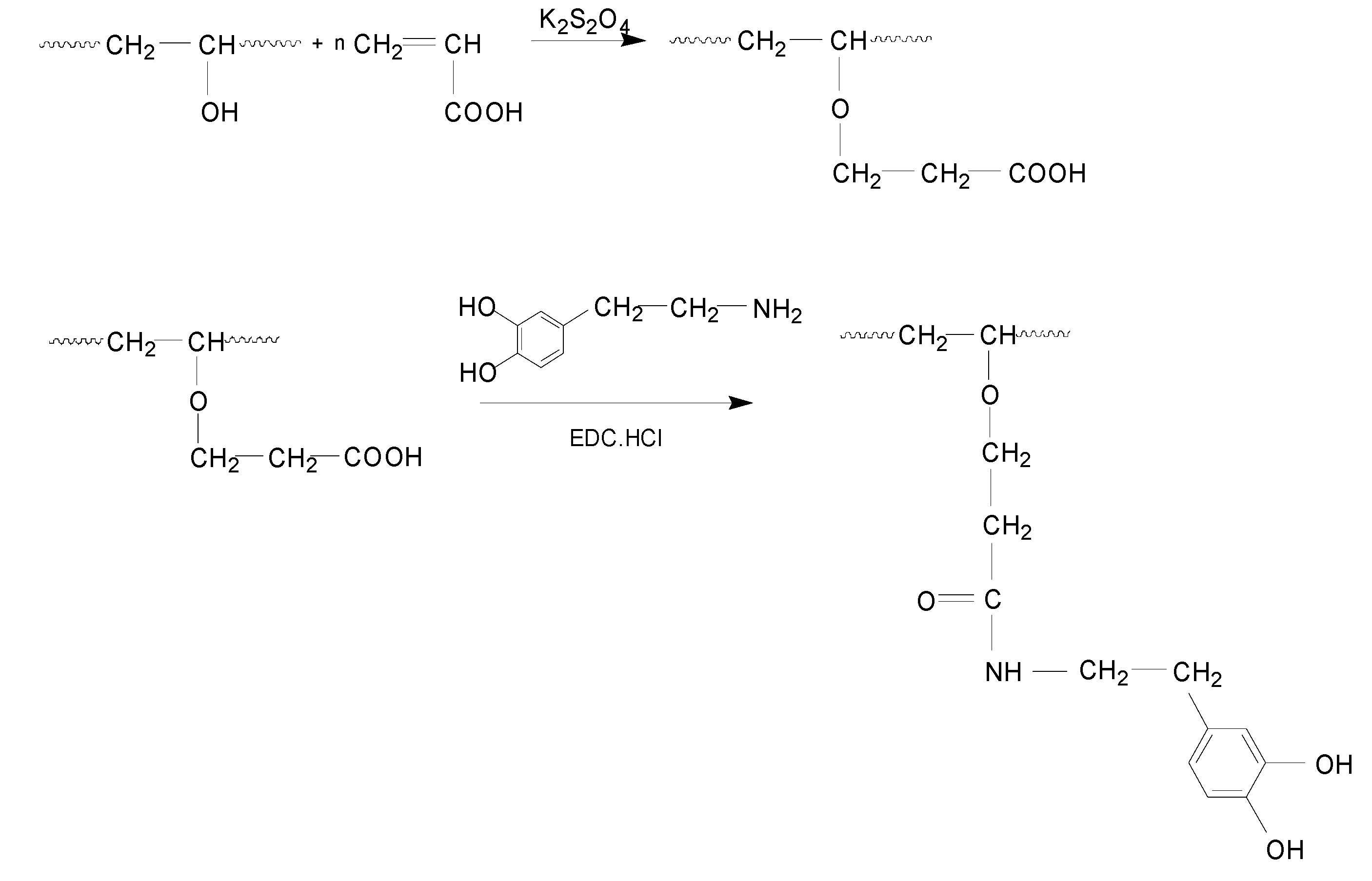

Figure 1. Synthetic steps of bionic wall-fixing agent.
Figure 1. Synthetic steps of bionic wall-fixing agent.
Sustainability 12 08387 g001
Sustainability 12 08387 g002 550
Figure 2. Morphological changes of mudstone core immersed in deionized water and bionic wall-fixing agent solution at different times.
Figure 2. Morphological changes of mudstone core immersed in deionized water and bionic wall-fixing agent solution at different times.
Sustainability 12 08387 g002
Sustainability 12 08387 g003 550
Figure 3. EDS spectrum analysis result of gel film formed on the surface of mudstone by bionic wall-fixing agent.
Figure 3. EDS spectrum analysis result of gel film formed on the surface of mudstone by bionic wall-fixing agent.
Sustainability 12 08387 g003
Sustainability 12 08387 g004 550
Figure 4. Variation of mudstone core shape with time in distilled water (R1), 2% polyalcohol (R2), 2% polyetheramine (R3) and 2% bionic wall-fixing agent (GBFS-1) solution (L1), 2% poly diallyl dimethyl ammonium chloride (DMDAAC) (L2) solution.
Figure 4. Variation of mudstone core shape with time in distilled water (R1), 2% polyalcohol (R2), 2% polyetheramine (R3) and 2% bionic wall-fixing agent (GBFS-1) solution (L1), 2% poly diallyl dimethyl ammonium chloride (DMDAAC) (L2) solution.
Sustainability 12 08387 g004
Sustainability 12 08387 g005 550
Figure 5. Changes in morphology of mudstone cuttings immersed in fresh water and 2% bionic fixative solution.
Figure 5. Changes in morphology of mudstone cuttings immersed in fresh water and 2% bionic fixative solution.
Sustainability 12 08387 g005
Sustainability 12 08387 g006 550
Figure 6. Force-deformation curve of point load test.
Figure 6. Force-deformation curve of point load test.
Sustainability 12 08387 g006
Sustainability 12 08387 g007 550
Figure 7. Rolling recovery rate evaluation.
Figure 7. Rolling recovery rate evaluation.
Sustainability 12 08387 g007
Sustainability 12 08387 g008 550
Figure 8. Infrared spectrum of bionic bonded lubricant.
Figure 8. Infrared spectrum of bionic bonded lubricant.
Sustainability 12 08387 g008
Sustainability 12 08387 g009 550
Figure 9. Chelation mechanism of bonded lubricant and drilling tool surface.
Figure 9. Chelation mechanism of bonded lubricant and drilling tool surface.
Sustainability 12 08387 g009
Sustainability 12 08387 g010 550
Figure 10. The principle of ‘multiple hydrogen bonds’ between bonded lubricant and rock surface.
Figure 10. The principle of ‘multiple hydrogen bonds’ between bonded lubricant and rock surface.
Sustainability 12 08387 g010
Sustainability 12 08387 g011 550
Figure 11. Compared with foreign countries, the difference of water phase contact angle of bionic bonding lubricant on the surface of glass sheet ((a) blank; (b) advanced lubricants DFL(Eco Global Solutios); (c) bionic bonded lubricant).
Figure 11. Compared with foreign countries, the difference of water phase contact angle of bionic bonding lubricant on the surface of glass sheet ((a) blank; (b) advanced lubricants DFL(Eco Global Solutios); (c) bionic bonded lubricant).
Sustainability 12 08387 g011
Sustainability 12 08387 g012 550
Figure 12. Compared with foreign countries, the difference of water phase contact angle of bionic bonding lubricant on the surface of steel sheet ((a) blank; (b) advanced lubricants DFL; (c) bionic bonded lubricant).
Figure 12. Compared with foreign countries, the difference of water phase contact angle of bionic bonding lubricant on the surface of steel sheet ((a) blank; (b) advanced lubricants DFL; (c) bionic bonded lubricant).
Sustainability 12 08387 g012
Sustainability 12 08387 g013 550
Figure 13. Four-ball friction scratches ((a) water; (b) PF-lube; (c) DFL; (d) bionic bonded lubricant).
Figure 13. Four-ball friction scratches ((a) water; (b) PF-lube; (c) DFL; (d) bionic bonded lubricant).
Sustainability 12 08387 g013
Sustainability 12 08387 g014 550
Figure 14. Real-time determination of friction coefficient.
Figure 14. Real-time determination of friction coefficient.
Sustainability 12 08387 g014
Sustainability 12 08387 g015 550
Figure 15. Evaluation of the inhibition performance of drilling fluid system.
Figure 15. Evaluation of the inhibition performance of drilling fluid system.
Sustainability 12 08387 g015
Table
Table 1. X-ray fluorescence spectrum analysis results of mudstone.
Table 1. X-ray fluorescence spectrum analysis results of mudstone.
ElementContent/%
Al17.87
Si55.50
Na1.32
Mg3.70
Ca9.78
Fe7.02
Others4.81
Table
Table 2. Rock mechanical parameters of test core.
Table 2. Rock mechanical parameters of test core.
CoreRock Mechanics Parameters
Breaking Strength (MPa)Elastic Modulus (GPa)Poisson’s Ratio
Before processing6.8032.2590.035
After processing8.3611.8550.053
Table
Table 3. Lubricity of different lubricants in base slurry.
Table 3. Lubricity of different lubricants in base slurry.
ConditionSampleEP Coefficient of FrictionFriction Coefficient Reduction RateYes or No Foams
Before aging4% base slurry0.54-No
4% base slurry + 1% PF-lube0.3240.7%Slight blistering
4% base slurry + 1% CX-300H0.1670.4%Severe blistering
4% base slurry + 1% PF-lube0.3142.6%Slight blistering
4% base slurry + 1% Grandoil0.2259.3%blistering
4% base slurry + 1% DFL0.1081.5%Slight blistering
4% base slurry + 1% bionic bonded lubricant0.0983.3%No
After aging4% base slurry0.52-No
4% base slurry + 1% PF-lube0.3238.5%Obviously blistering
4% base slurry + 1% CX-300H0.1571.2%Severe blistering
4% base slurry + 1% PF-lube0.1375.0%Obviously blistering
4% base slurry + 1% Grandoil0.1178.8%Blistering
4% base slurry + 1% DFL0.0884.6%Slight blistering
4% base slurry + 1% bionic bonded lubricant0.0590.4%No
Table
Table 4. The adhesion coefficient of bonded lubricant filter cake compared with other lubricants at home and abroad.
Table 4. The adhesion coefficient of bonded lubricant filter cake compared with other lubricants at home and abroad.
SampleBefore AgingAfter Aging
Coefficient of AdhesionReduction RateCoefficient of AdhesionReduction Rate
4% base slurry0.1225-0.1098-
4% base slurry + 1% PF-lube0.084531.0%0.067638.5%
4% base slurry + 1% CX-300H0.059251.7%0.059246.2%
4% base slurry + 1% PF-lube0.067644.8%0.046557.7%
4% base slurry + 1% Grandoil0.059251.7%0.044859.2%
4% base slurry + 1% DFL0.054955.2%0.046557.7%
4% base slurry + 1% bionic bonded lubricant0.046562.1%0.038065.4%
Table
Table 5. Flow resistance changes of simulated drilling fluid after adding a bonding lubricant.
Table 5. Flow resistance changes of simulated drilling fluid after adding a bonding lubricant.
Lubricant dosage, %00.10.20.30.40.50.6
Drilling fluid flow resistance reduction rate, %05.47.18.910.712.512.5
Table
Table 6. Evaluation of salt and calcium resistance.
Table 6. Evaluation of salt and calcium resistance.
ConditionSampleCoefficient of FrictionFriction Coefficient Reduction Rate
Before aging4% base slurry0.52-
4% base slurry + 1% lubricant0.0884.6%
4% base slurry + 10%NaCl + 1% lubricant0.0884.6%
4% base slurry + 20%NaCl + 1% lubricant0.0884.6%
4% base slurry + 30%NaCl + 1% lubricant0.0982.7%
4% base slurry + 10%CaCl2 + 1% lubricant0.0884.6%
4% base slurry + 20%CaCl2 + 1% lubricant0.0982.7%
4% base slurry + 30%CaCl2 + 1% lubricant0.0884.6%
After aging4% base slurry0.51-
4% base slurry + 1% lubricant0.0590.2%
4% base slurry + 10%NaCl + 1% lubricant0.0590.2%
4% base slurry + 20%NaCl + 1% lubricant0.0688.2%
4% base slurry + 30%NaCl + 1% lubricant0.0786.3%
4% base slurry + 10%CaCl2 + 1% lubricant0.0590.2%
4% base slurry + 20%CaCl2 + 1% lubricant0.0688.2%
4% base slurry + 30%CaCl2 + 1% lubricant0.1080.4%
Table
Table 7. Temperature resistance test.
Table 7. Temperature resistance test.
Aging TemperatureSampleCoefficient of FrictionFriction Coefficient Reduction Rate
Room temperature4% base slurry0.54-
4% base slurry + 1% bonding lubricant0.0983.3%
Aging at 120 °C for 16 h4% base slurry0.52-
4% base slurry + 1% bonding lubricant0.0492.3%
Aging at 150 °C for 16 h4% base slurry0.50-
4% base slurry + 1% bonding lubricant0.0492.0%
Aging at 180 °C for 16 h4% base slurry0.50-
4% base slurry + 1% bonding lubricant0.0590.0%
Aging at 200 °C for 16 h4% base slurry0.48-
4% base slurry + 1% bonding lubricant0.0785.4%
Aging at 220 °C for 16 h4% base slurry0.45-
4% base slurry + 1% bonding lubricant0.0784.4%
Table
Table 8. Anti-salt and anti-calcium properties of drilling fluid system.
Table 8. Anti-salt and anti-calcium properties of drilling fluid system.
FormulaAV
mPa·s		PV
mPa·s		YP
Pa		YP/PVHTHP
mL
Bionic water-based drilling fluid system37.5352.50.07145
Bionic water-based drilling fluid system + 30% NaCl403280.25008
Bionic water-based drilling fluid system + 0.5% CaCl236.5 32 4.5 0.1406 8.4
Table
Table 9. Test results and evaluation table after system aging.
Table 9. Test results and evaluation table after system aging.
Temperature, °CSystem NumberG10’’PaG10’PaAV, mPa·sPV, mPa·sYPPaFluid Loss, mLρ, g/cm3
APIHTHP
801#15292453.29.81.29
2#14.52722539.61.29
1201#15282353.29.81.29
2#1425.5205.53.09.61.29
1501#1527.5225.539.81.29
2#1424.5195.53.4101.29
Table
Table 10. Conventional mechanical parameters of core.
Table 10. Conventional mechanical parameters of core.
Core NumberLength (mm)Diameter (mm)Mass (g)Density (g/cm3)Compressive Strength (MPa)
2#50.1824.7845.201.874.101
4#50.1824.4442.361.804.68
Table
Table 11. Environmental performance evaluation.
Table 11. Environmental performance evaluation.
SampleEC50
(mg/L)		CODCr
(mg/L)		BOD5
(mg/L)		BOD5/CODCrBiodegradability
Water-based drilling fluid3.18 × 1041.32 × 1052.54 × 1040.192Degradable
Table
Table 12. Comparison of basic performance of drilling fluid.
Table 12. Comparison of basic performance of drilling fluid.
Drilling Fluid TypeFLAPI
mL		AV
mPa·s		PV
mPa·s		YP
Pa		GEL, Pa/PaFLHTHP
mL		Friction Coefficient
Bionic water-based010382215.5/252.40.0369
Oil-based0.2129.510524.54.5/182.40.0369
Table
Table 13. Complicated conditions caused by drilling fluid technologies for horizontal wells in Block Su 53.
Table 13. Complicated conditions caused by drilling fluid technologies for horizontal wells in Block Su 53.
Well NumberComplex Situation TypeLost Time (h)Well NumberComplex TypeLost Time (h)
Su53-70-28HCollapse and leakage115Su53-78-12HCollapsing and scratching15.5
Su53-74-40HCollapsing and scratching84Su53-78-12HCollapse and leakage155
Su53-74-40HCollapse and fill well42.5Su53-78-24H1Well collapse and drop drill tools356
Su53-74-41HCollapsing and scratching79Su53-78-28H1Collapse and leakage187
Su53-74-42HWell collapse, stuck pipe9Su53-78-28H1Collapse and leakage210
Notes: Data in this table comes from statistics of downhole complex accidents in Changqing Oilfield Sulige block in 2013.
Table
Table 14. Part of the application wells in Block Su 53.
Table 14. Part of the application wells in Block Su 53.
NumberWell NumberSituation
1Su53-86-15H1 WellSolved the problems of frequent accidents and high drilling fluid cost during the drilling of horizontal wells in the block, creating the record of the fastest drilling speed and the shortest construction period of the Great Wall Drilling Horizontal Wells in Sulige Gas Field.
2Su53-86-15H Well1. Creating a record of the continuous long section of mudstone (1028 m), there is no record of the complex conditions and the fastest drilling speed related to drilling fluid;
2. Compared with other wells containing mudstone, the average ROP of the whole well increased by 35.8% and the drilling fluid cost decreased by 42.3%).
3Su53-70-22H WellThe average ROP increased by 37.2%, the drilling fluid cost was reduced by more than 31.8%, and there were no accidents related to drilling fluid.
Notes: Data in this table comes from statistics of downhole complex accidents in Changqing Oilfield Sulige block in 2020.

Share and Cite

MDPI and ACS Style

Quan, X.; Jiang, G.; Luo, X.; He, Y.; Dong, T. Research and Application of New Technology of Bionic Enhanced Wellbore and Strong Lubrication Water-Based Drilling Fluid. Sustainability 2020, 12, 8387. https://doi.org/10.3390/su12208387

AMA Style

Quan X, Jiang G, Luo X, He Y, Dong T. Research and Application of New Technology of Bionic Enhanced Wellbore and Strong Lubrication Water-Based Drilling Fluid. Sustainability. 2020; 12(20):8387. https://doi.org/10.3390/su12208387

Chicago/Turabian Style

Quan, Xiaohu, Guancheng Jiang, Xuwu Luo, Yinbo He, and Tengfei Dong. 2020. "Research and Application of New Technology of Bionic Enhanced Wellbore and Strong Lubrication Water-Based Drilling Fluid" Sustainability 12, no. 20: 8387. https://doi.org/10.3390/su12208387

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
