Evaluating Cost Trade-Offs between Hydropower and Fish Passage Mitigation

Abstract

To promote the sustainable management of hydropower, decision makers require information about cost trade-offs between the restoration of fish passage and hydropower production. We provide a systematic overview of the construction, operational, monitoring, and power loss costs associated with upstream and downstream fish passage measures in the European context. When comparing the total costs of upstream measures across different electricity price scenarios, nature-like solutions (67–88 EUR/kW) tend to cost less than technical solutions (201–287 EUR/kW) on average. Furthermore, nature-like fish passes incur fewer power losses and provide habitat in addition to facilitating fish passage, which presents a strong argument for supporting their development. When evaluating different cost categories of fish passage measures across different electricity price scenarios, construction (45–87%) accounts for the largest share compared to operation (0–1.2%) and power losses (11–54%). However, under a high electricity price scenario, power losses exceed construction costs for technical fish passes. Finally, there tends to be limited information on operational, power loss, and monitoring costs associated with passage measures. Thus, we recommend that policy makers standardize monitoring and reporting of hydraulic, structural, and biological parameters as well as costs in a more detailed manner.

1. Introduction

While hydropower represents the largest renewable energy source in Europe, it also poses risks to river ecosystems, an array of animal species, and the downstream transport of sediments [1]. To ensure the sustainability of future hydropower development, ecological targets have been established. The primary political instrument is the EU Water Framework Directive (Directive 2000/60/ EC, WFD), which, among other goals, mandates an improvement in the ecological status of waters including the restoration of fish passage and river connectivity of European rivers. While many studies focus on technical advancements and ecological assessments of fish passage technologies [2,3,4,5,6,7], there has been limited research on the costs of these measures in the European context [8]. However, it is important for decision makers to understand the trade-offs between restoring fish passage and hydropower production when they establish and plan cost-effective mitigation measures.

Despite worldwide hydropower operation and mitigation programs, overviews of costs related to fish passage measures mainly come from North America [8]. However, it can be problematic to translate costs from one region to another, given differences related to legal and political frameworks, technologies, and input costs (i.e., land, labor, materials).

Across countries, there are differing degrees of environmental regulation related to hydropower. While some countries require mitigation for facilitating fish passage and ensuring flow release, others lack formal rules [1,9]. Further, a variety of incentives, including competitive tariffs, private sector investments, rural electrification programs, and simplified licensing processes, have been used to incentivize the development of small hydropower [9]. In Europe, there are established guidelines for habitat protection in rivers as well as targets for the expansion of renewable energy under the recast RED II (Directive (EU) 2018/2001) of the Renewable Energy Directive [10,11,12,13], which have led to incentives for the development of small hydropower. For example, the German Renewable Energy Act facilitated the implementation of small hydropower facilities by providing feed-in tariffs for small hydropower, which were linked to ecological improvements and the restoration of fish passage [13,14]. In contrast, Brazil and India do not require a full environmental impact assessment for licensing of small hydropower plants, while small plants (less than 10 MW) are exempt from some licensing requirements in the United States [9,15].

Another difference is related to technology. Many of Europe’s hydropower plants are often run-of-the-river (also called diversion) schemes [14], whereas the United States holds a greater share of large reservoir schemes [16]. In the literature, there are mixed findings as to whether the size and technology of hydropower affect its ecological impact and public acceptance [17,18]. However, given the financial incentives to build small hydropower plants across Europe, there is growing concern that cumulative effects can occur [1] in addition to the significant environmental impacts of individual plants.

Construction costs may also differ between the United States and Europe. According to the Power Capital Costs Index, the average cost for building a power plant between 2000 and 2013 increased by 226% in North America compared to 193% in Europe [19], which implies that trends in construction costs differ. Further, land availability has been noted as one of the key factors for determining how and where river restoration will be conducted [20]. Given the greater availability of land in the United States, it is likely that land acquisition will be more expensive in Europe [21].

For fish passage measures, there are various costs. We distinguish between financial and economic costs, which can be non-recurring and recurring. Non-recurring costs refer to costs that occur once and are not expected to be incurred again. Recurring costs refer to ongoing, regular costs incurred usually on an annual basis. Financial costs include capital (pre-construction and construction), operational (management, monitoring, maintenance), and other expenses (compensation of land and habitat, legal work). Most reports focus primarily on planning, construction, and maintenance costs [8] with no or limited consideration of monitoring, effectiveness, and power losses.

However, economic costs related to reduced power production and system flexibility may represent a significant loss for operators [22,23], and are thus likely to influence decision processes related to the construction of hydropower facilities as well as investment in mitigation measures. When measures modify water flow, they can reduce power production [4]. Depending on their design, some measures may not require flow releases, while others may redirect significant amounts of water. These power losses can be highly site-specific, dependent on the head, storage capacity, inflow, season (dry or wet periods), the type of required operation, and the power market [24]. The revenue losses associated with reductions or changes in timing of power production are highly dependent on the power market. When revenue losses are calculated based on the hourly energy prices of the day-ahead market, they can vary significantly, based on the hour, day, month, and year [22]. The timing of lost power production may also reduce overall system flexibility as dispatchable power plants (including hydropower) help to balance variability in renewable energy sources [24]. When there is greater demand for water (e.g., dry season, additional water needed for the fish passage facility), some flexibility may be lost. Further, the extent to which flexibility is reduced depends on the type of hydropower plant. As run-of-the-river hydropower plants are not typically used to cover peak demand, we will not quantify the value of lost system flexibility.

Cost-effective fish passage design must balance several objectives: overcoming the fall height and minimizing the length of the fish pass, effects on hydraulic conditions and costs [25]. There are different approaches to designing fish passage facilities. Traditionally, design is based on species-specific formulas [25], which consider fish-specific traits including the duration of migration (long/short), size (small/large), swimming ability (strong/weak), and orientation (pelagic/benthic) [26]. However, others advocate for the integration of natural variation in fish passage design [27].

Varieties of measures to facilitate fish passage across barriers in rivers exist. We distinguish between upstream and downstream fish passage measures. Upstream measures may also support downstream passage but their design (e.g., placement in the river, position of entrance) is optimized for upstream passage. Following the nomenclature of fish passes proposed by the Food and Agriculture Organization of the United Nations, we distinguish between technical, nature-like, and special designs for upstream fish passages [28].

Technical designs for upstream passage include roughened ramps with pool structures, vertical slot passes, and Denil (i.e., baffle) passes. Pool passes are the most common technical design, in which fish move upstream from pool to pool [27]. The vertical slot fish pass is another common technical design that enables passage through a vertical, top-to-bottom opening [29]. Roughened ramps with pool structures are designed similar to slot passes but with natural materials (e.g., pool transitions are formed by more or less strongly dissolved stone bars) [26]. Denil passes are suitable for low head heights and larger species (i.e., >30 cm in length).

In our case studies, nature-like fish passes include roughened bypass channels with pool structures as well as combined roughened bypass channels with pool structures and vertical slot passes (mostly built at the entrance and the outlet of the fish pass). Such nature-like fish passes use natural materials like boulders and rocks to dissipate energy, provide habitat, facilitate the natural displacement of material (e.g., sediment transport), and support structural changes (e.g., displacement of gravel banks, development of riparian vegetation, and deadwood dynamics). They include three types: rock (bottom) ramps, fish ramps, and bypass channels [25]. While rock and fish ramps are more suitable for small differences in the height of the head and tailwater, bypass channels can be built to overcome larger obstacles. However, long natural bypass channels may result in high construction and land acquisition costs [29].

Fish locks, lifts, screws, pumps, and canons are considered special solutions. As non-volitional passage structures, they transport fish upstream using mechanical means rather than voluntary swimming [29].

Compared to upstream passage, measures to support downstream passage tend to be less advanced [30]. This is in part due to downstream moving fish following the main current, the complexity of design, and the view that fish can pass downstream via the turbines [31,32]. However, passage via the turbines is likely to lead to serious injuries or death [33,34]. Downstream fish passage can be facilitated either actively (i.e., with screens, louvers, sensory or behavioral barriers, and other guidance structures) by adapting power intake solutions with special design of trash racks, or passively with water release to provide attraction flow and operation of the hydropower infrastructure [35].

Our review of downstream measures includes bypasses, fish protection screens/racks, combined screens/racks with bypass systems, and guiding walls/dams. Bypasses refer to systems that funnel fish downstream usually via pipes, gates, or open channels [29]. The type of passing fish will affect the costs of a bypass facility based on their flow preferences [36]. Additionally, maintenance costs may be incurred when drifting debris blocks the bypass and must be removed [30]. On the other hand, fish protection screens/racks directly block fish from turbine intakes using physical structures made of plastic, metal, wedge wire, or bars [30]. Combined screen/rack bypass systems use a mixture of both technologies. Guiding walls or dams are used to deflect species that tend to migrate close to the water surface [37]. The walls repel and guide fish to a nearby bypass channel. The success of these downstream measures in fish protection and facilitating the undisturbed passage of fish is controversial and generally considered to be rather low [38]. Although significant progress has been made in the past decade to improve downstream passage technology, the costs of these measures often fuel debate about their necessity.

Following the categories of fish passage measures described, our study reviews costs of 327 case studies from European hydropower plants. To our knowledge, most studies in the European context have primarily outlined individual case studies. Further, recent literature on the costs of measures to support migratory fish has mainly focused on financial costs associated with passage measures, while potentially significant economic costs were not considered. To shed light on the cost trade-offs associated with sustainable hydropower, we compare the costs of technical and nature-like fish passage measures. Given our limited data about special passes, we cannot draw conclusions about them in this comparison. We investigate the extent to which unit metrics are useful for predicting construction costs and how planning costs differ from actual costs. As they are a common reference point for many operators, we hypothesize that unit metrics can accurately predict costs. Further, we compare how different types of costs (construction, maintenance, power and income losses) contribute to lifetime mitigation costs. To estimate the costs associated with power losses, we compare power losses under low and high electricity price scenarios. We hypothesize that construction and power losses account for the largest shares. Finally, we hypothesize that technical measures for fish passage show lower construction costs than their nature-like counterparts. This is because nature-like measures may require additional land, which can be expensive to acquire [25]. Further, planners can standardize technical measures across sites, thus incurring fewer costs during the planning stages.

2. Materials and Methods

2.1. Data Acquisition

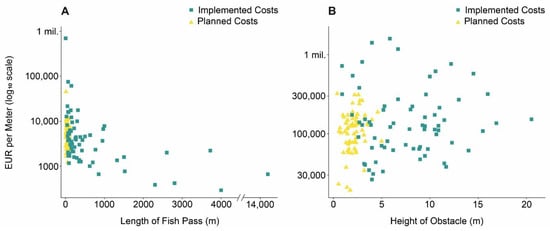

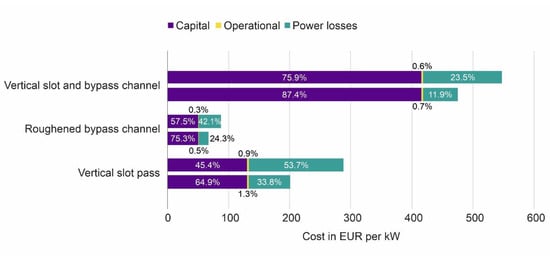

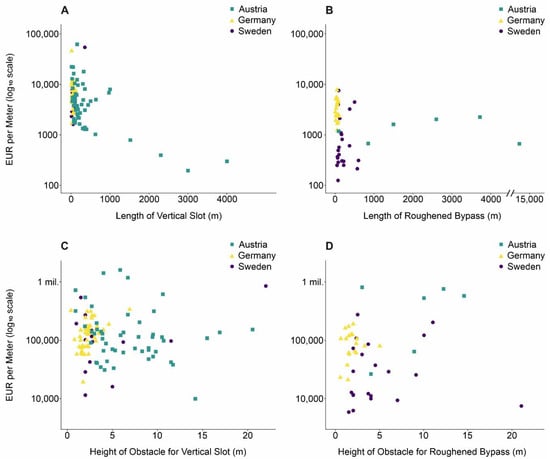

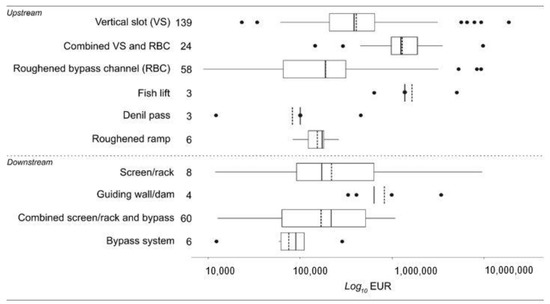

We compared the costs of building, maintaining, and monitoring fish passage measures using 327 case studies (Germany: 151, Austria: 101, Sweden: 58, France: 16, Switzerland: 1). The data were collected from available reports and through a questionnaire sent to European hydropower operators and from a search of online available data. The German data came from the Thüringen State Office for the Environment, Mining and Nature Conservation, which published reports and data on the planned costs of river connectivity measures for various rivers, including the Ilm, Saale, Unstrut, Werra, Gera, Apfelstädt, and Ohra Rivers [39,40,41,42,43]. (The data can be accessed on Thüringer State Office for the Environment, Mining and Nature Conservation (Landesamt für Umwelt, Bergbau und Naturschutz)’s website at https://tlubn.thueringen.de/wasser/fluesse-baeche/durchgaengigkeit/) The Austrian data came from the Österreichs Energie [44] reports about the National Water Management Plan 2009, which reviewed a total of 133 measures for the implementation of the Water Framework Directive. This analysis did not include all Austrian measures as some of them were related to flow and habitat improvements. The Swedish, French, and Swiss data were collected using an online questionnaire with operators (Vattenfall) and the French small hydropower association (France Hydro Electricité). While the data were not representative for all of Europe or the respective countries, they covered a variety of geographic areas (Alpine region, Scandinavia, France), plant sizes (3.5 kW to 5.88 GW), and technologies (reservoir and run-of-the-river).

Table A1. Overview of all fish passage case studies used in the analysis.

Country	Type of Plant	Plant Capacity (kW)	Measure
Sweden		55	Vertical slot pass
Sweden			Denil fish pass
Sweden	Run-of-the-River	4000	Roughened bypass channel with pool structures
Sweden			Denil fish pass
Sweden			Denil fish pass
Sweden		350	Vertical slot pass
Sweden		40,000	Vertical slot pass
Sweden		599,400	Vertical slot pass
Sweden		90	Vertical slot pass
Sweden			Vertical slot pass
Sweden		5000	Roughened bypass channel with pool structures
Sweden			Vertical slot pass
Sweden			Roughened bypass channel with pool structures
Sweden		1200	Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden		2100	Roughened bypass channel with pool structures
Sweden		600	Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden		3100	Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden		300	Vertical slot pass
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden		40	Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Vertical slot pass
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden			Roughened bypass channel with pool structures
Sweden		1800	Guiding dam or wall
Sweden		5200	Guiding dam or wall
Sweden		29	Combined vertical slot and roughened bypass channel
Sweden		600	Vertical slot pass
Sweden		235	Vertical slot pass
Sweden		9500	Vertical slot pass
Sweden		19	Vertical slot pass
Sweden		300	Vertical slot pass
Sweden		7500	Vertical slot pass
Sweden		2500	Vertical slot pass
Sweden		13,000	Vertical slot pass
Sweden		3100	Screen/rack
Sweden		3300	Screen/rack
Sweden		40,000	Guiding dam or wall
Sweden		5,994,000	Guiding dam or wall
Sweden		7500	Vertical slot pass
Sweden		2500	Vertical slot pass
Sweden		300	Vertical slot pass
Sweden			Vertical slot pass
Germany	Run-of-the-River	13,000	Roughened bypass channel with pool structures
Germany	Run-of-the-River	135	Vertical slot pass
Germany	Run-of-the-River	34	Roughened bypass channel with pool structures
Germany	Run-of-the-River	1800	Combined vertical slot and roughened bypass channel
Germany	Run-of-the-River	1300	Combined vertical slot and roughened bypass channel
Germany	Run-of-the-River	6000	Vertical slot pass
Germany	Run-of-the-River	20,000	Vertical slot pass
Germany	Run-of-the-River	5000	Roughened bypass channel with pool structures
Germany			Roughened bypass channel with pool structures
Germany	Run-of-the-River	34	Combined screen/rack and bypass
Germany	Run-of-the-River	34	Vertical slot pass
Germany	Run-of-the-River	30	Roughened ramp with pool structures
Germany	Run-of-the-River	30	Combined screen/rack and bypass
Germany	Run-of-the-River	20	Roughened bypass channel with pool structures
Germany	Run-of-the-River	20	Combined screen/rack and bypass
Germany	Run-of-the-River	5	Roughened ramp with pool structures
Germany	Run-of-the-River	5	Combined screen/rack and bypass
Germany	Run-of-the-River	8	Vertical slot pass
Germany	Run-of-the-River	8	Combined screen/rack and bypass
Germany	Run-of-the-River	4	Roughened ramp with pool structures
Germany	Run-of-the-River	4	Combined screen/rack and bypass
Germany	Run-of-the-River	90	Vertical slot pass
Germany	Run-of-the-River	90	Combined screen/rack and bypass
Germany	Run-of-the-River	7	Roughened bypass channel with pool structures
Germany	Run-of-the-River	7	Combined screen/rack and bypass
Germany	Run-of-the-River	30	Roughened bypass channel with pool structures
Germany	Run-of-the-River	30	Combined screen/rack and bypass
Germany	Run-of-the-River	135	Combined screen/rack and bypass
Germany	Run-of-the-River	60	Vertical slot pass
Germany	Run-of-the-River	69	Roughened ramp with pool structures
Germany	Run-of-the-River	69	Combined screen/rack and bypass
Germany	Run-of-the-River	69	Vertical slot pass
Germany	Run-of-the-River	10	Roughened ramp with pool structures
Germany	Run-of-the-River	10	Combined screen/rack and bypass
Germany	Run-of-the-River	46	Vertical slot pass
Germany	Run-of-the-River	46	Combined screen/rack and bypass
Germany	Run-of-the-River	41	Vertical slot pass
Germany	Run-of-the-River	41	Combined screen/rack and bypass
Germany	Run-of-the-River	560	Vertical slot pass
Germany	Run-of-the-River	560	Screen/rack
Germany	Run-of-the-River	560	Vertical slot pass
Germany	Run-of-the-River	560	Combined screen/rack and bypass
Germany	Run-of-the-River	800	Vertical slot pass
Germany	Run-of-the-River	800	Combined screen/rack and bypass
Germany	Run-of-the-River	600	Vertical slot pass
Germany	Run-of-the-River	600	Combined screen/rack and bypass
Germany	Run-of-the-River	540	Vertical slot pass
Germany	Run-of-the-River	496	Vertical slot pass
Germany	Run-of-the-River	496	Combined screen/rack and bypass
Germany	Run-of-the-River	554	Vertical slot pass
Germany	Run-of-the-River	554	Combined screen/rack and bypass
Germany	Run-of-the-River	1300	Vertical slot pass
Germany	Run-of-the-River	1300	Combined screen/rack and bypass
Germany	Run-of-the-River	60	Combined screen/rack and bypass
Germany	Run-of-the-River	80	Vertical slot pass
Germany	Run-of-the-River	300	Vertical slot pass
Germany	Run-of-the-River	300	Combined screen/rack and bypass
Germany	Run-of-the-River	300	Combined screen/rack and bypass
Germany	Run-of-the-River	300	Combined screen/rack and bypass
Germany	Run-of-the-River	300	Combined screen/rack and bypass
Germany			Roughened bypass channel with pool structures
Germany	Run-of-the-River	512	Vertical slot pass
Germany	Run-of-the-River	512	Combined screen/rack and bypass
Germany	Run-of-the-River	960	Vertical slot pass
Germany	Run-of-the-River	960	Screen/rack
Germany	Run-of-the-River	960	Combined screen/rack and bypass
Germany	Run-of-the-River	280	Vertical slot pass
Germany	Run-of-the-River	280	Combined screen/rack and bypass
Germany	Run-of-the-River	290	Roughened bypass channel with pool structures
Germany	Run-of-the-River	290	Combined screen/rack and bypass
Germany	Run-of-the-River	270	Vertical slot pass
Germany	Run-of-the-River	150	Combined screen/rack and bypass
Germany	Run-of-the-River	190	Vertical slot pass
Germany	Run-of-the-River	190	Vertical slot pass
Germany	Run-of-the-River	190	Combined screen/rack and bypass
Germany	Run-of-the-River	190	Roughened bypass channel with pool structures
Germany	Run-of-the-River	190	Bypass system
Germany	Run-of-the-River	30	Vertical slot pass
Germany	Run-of-the-River	29	Vertical slot pass
Germany	Run-of-the-River	80	Combined screen/rack and bypass
Germany	Run-of-the-River	55	Vertical slot pass
Germany	Run-of-the-River	55	Bypass system
Germany	Run-of-the-River	40	Vertical slot pass
Germany	Run-of-the-River	40	Bypass system
Germany	Run-of-the-River	33	Vertical slot pass
Germany	Run-of-the-River	33	Bypass system
Germany	Run-of-the-River	33	Roughened bypass channel with pool structures
Germany	Run-of-the-River	33	Bypass system
Germany	Run-of-the-River	50	Combined screen/rack and bypass
Germany	Run-of-the-River	21	Vertical slot pass
Germany	Run-of-the-River	11	Roughened bypass channel with pool structures
Germany	Run-of-the-River	11	Bypass system
Germany	Run-of-the-River	18	Roughened bypass channel with pool structures
Germany	Run-of-the-River	15	Vertical slot pass
Germany	Run-of-the-River	15	Screen/rack
Germany	Run-of-the-River	681	Roughened bypass channel with pool structures
Germany	Run-of-the-River	681	Combined screen/rack and bypass
Germany	Run-of-the-River	681	Vertical slot pass
Germany	Run-of-the-River	681	Combined screen/rack and bypass
Germany	Run-of-the-River	480	Vertical slot pass
Germany	Run-of-the-River	480	Combined screen/rack and bypass
Germany	Run-of-the-River	480	Vertical slot pass
Germany	Run-of-the-River	22	Roughened ramp with pool structures
Germany	Run-of-the-River	520	Roughened bypass channel with pool structures
Germany	Run-of-the-River	520	Combined screen/rack and bypass
Germany	Run-of-the-River	520	Combined screen/rack and bypass
Germany	Run-of-the-River	520	Combined screen/rack and bypass
Germany	Run-of-the-River	520	Combined screen/rack and bypass
Germany	Run-of-the-River	315	Vertical slot pass
Germany	Run-of-the-River	315	Combined screen/rack and bypass
Germany	Run-of-the-River	315	Vertical slot pass
Germany	Run-of-the-River	315	Combined screen/rack and bypass
Germany	Run-of-the-River	400	Roughened bypass channel with pool structures
Germany	Run-of-the-River	400	Combined screen/rack and bypass
Germany	Run-of-the-River	400	Vertical slot pass
Germany	Run-of-the-River	400	Roughened bypass channel with pool structures
Germany	Run-of-the-River	230	Vertical slot pass
Germany	Run-of-the-River	230	Combined screen/rack and bypass
Germany	Run-of-the-River	250	Vertical slot pass
Germany	Run-of-the-River	250	Combined screen/rack and bypass
Germany	Run-of-the-River	250	Vertical slot pass
Germany	Run-of-the-River	250	Vertical slot pass
Germany	Run-of-the-River	250	Vertical slot pass
Germany	Run-of-the-River	11	Vertical slot pass
Germany	Run-of-the-River	11	Combined screen/rack and bypass
Germany	Run-of-the-River	13	Roughened bypass channel with pool structures
Germany	Run-of-the-River	13	Combined screen/rack and bypass
Germany	Run-of-the-River	13	Vertical slot pass
Germany	Run-of-the-River	13	Vertical slot pass
Germany	Run-of-the-River	9	Vertical slot pass
Germany	Run-of-the-River	18	Vertical slot pass
Germany	Run-of-the-River	18	Combined screen/rack and bypass
Germany	Run-of-the-River	18	Vertical slot pass
Germany	Run-of-the-River	18	Vertical slot pass
Germany	Run-of-the-River	11	Vertical slot pass
Germany	Run-of-the-River	11	Combined screen/rack and bypass
Germany	Run-of-the-River	35	Roughened bypass channel with pool structures
Germany	Run-of-the-River	21	Roughened bypass channel with pool structures
Germany	Run-of-the-River	21	Combined screen/rack and bypass
Germany	Run-of-the-River	35	Roughened bypass channel with pool structures
Germany	Run-of-the-River	35	Combined screen/rack and bypass
Germany	Run-of-the-River	20	Vertical slot pass
Germany	Run-of-the-River		Combined screen/rack and bypass
Germany	Run-of-the-River	19	Roughened bypass channel with pool structures
Germany	Run-of-the-River	19	Combined screen/rack and bypass
Germany	Run-of-the-River	35	Combined screen/rack and bypass
Germany	Run-of-the-River	40	Roughened bypass channel with pool structures
Germany	Run-of-the-River	40	Combined screen/rack and bypass
Germany	Run-of-the-River	110	Vertical slot pass
Germany	Run-of-the-River	110	Combined screen/rack and bypass
Germany	Run-of-the-River	100	Vertical slot pass
Germany	Run-of-the-River	100	Combined screen/rack and bypass
France	Run-of-the-River	380	Vertical slot pass
France	Run-of-the-River	4381	Combined screen/rack and bypass
France	Run-of-the-River	2610	Screen/rack
France	Run-of-the-River	400	Roughened bypass channel with pool structures
France	Run-of-the-River	400	Vertical slot pass
France	Reservoir	1800	Denil fish pass
France	Reservoir	1800	Combined screen/rack and bypass
France	Run-of-the-River	380	Combined screen/rack and bypass
France	Run-of-the-River	1700	Vertical slot pass
France	Run-of-the-River	1700	Screen/rack
France	Run-of-the-River	320	Screen/rack
France	Run-of-the-River	900	Vertical slot pass
France	Run-of-the-River	1600	Vertical slot pass
France	Run-of-the-River	1600	Vertical slot pass
Switzerland	Run-of-the-River	4000	Combined vertical slot and roughened bypass channel
Switzerland	Run-of-the-River	4000	Screen/rack
Austria			Vertical slot pass
Austria			Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	880	Vertical slot pass
Austria	Run-of-the-River	2360	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	43,200	Vertical slot pass
Austria		24,800	Combined vertical slot and roughened bypass channel
Austria		2900	Combined vertical slot and roughened bypass channel
Austria		900	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	179,000	Roughened bypass channel with pool structures
Austria	Run-of-the-River	179,000	Vertical slot pass
Austria	Run-of-the-River	168,000	Vertical slot pass
Austria			Vertical slot pass
Austria		3000	Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria	Run-of-the-River	73,000	Roughened bypass channel with pool structures
Austria	Run-of-the-River	187,000	Roughened bypass channel with pool structures
Austria	Run-of-the-River	187,000	Roughened bypass channel with pool structures
Austria			Roughened bypass channel with pool structures
Austria			Vertical slot pass
Austria	Run-of-the-River	328,000	Vertical slot pass
Austria	Run-of-the-River	293,000	Roughened bypass channel with pool structures
Austria			Fish lift
Austria			Vertical slot pass
Austria	Run-of-the-River	172,000	Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria	Run-of-the-River	41,000	Guiding dam or wall
Austria	Run-of-the-River	41,000	Vertical slot pass
Austria			Vertical slot pass
Austria			Roughened bypass channel with pool structures
Austria	Run-of-the-River	25,000	Vertical slot pass
Austria	Run-of-the-River	25,000	Vertical slot pass
Austria			Combined vertical slot and roughened bypass channel
Austria			Vertical slot pass
Austria	Run-of-the-River	80,000	Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria		198,000	Vertical slot pass
Austria	Run-of-the-River	79,000	Vertical slot pass
Austria	Run-of-the-River	28,000	Vertical slot pass
Austria	Run-of-the-River	22,000	Vertical slot pass
Austria	Run-of-the-River	10,000	Vertical slot pass
Austria			Roughened bypass channel with pool structures
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria	Run-of-the-River	14,000	Vertical slot pass
Austria			Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	12,000	Vertical slot pass
Austria	Run-of-the-River	18,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	19,000	Combined vertical slot and roughened bypass channel
Austria			Fish lift
Austria	Run-of-the-River	19,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	16,000	Vertical slot pass
Austria	Run-of-the-River	15,000	Vertical slot pass
Austria	Run-of-the-River	15,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	13,000	Vertical slot pass
Austria	Run-of-the-River	13,000	Vertical slot pass
Austria	Run-of-the-River	390	Vertical slot pass
Austria			Vertical slot pass
Austria			Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	13,000	Vertical slot pass
Austria	Run-of-the-River	17,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	6400	Vertical slot pass
Austria	Run-of-the-River	1600	Vertical slot pass
Austria	Run-of-the-River	17,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	17,000	Vertical slot pass
Austria	Run-of-the-River	16,000	Vertical slot pass
Austria			Vertical slot pass
Austria	Run-of-the-River	18,000	Roughened bypass channel with pool structures
Austria			Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	16,000	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	8600	Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	11,700	Vertical slot pass
Austria	Run-of-the-River	2600	Vertical slot pass
Austria	Run-of-the-River	500	Vertical slot pass
Austria			Combined vertical slot and roughened bypass channel
Austria	Run-of-the-River	12,200	Fish lift
Austria	Run-of-the-River	3600	Combined vertical slot and roughened bypass channel
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria			Vertical slot pass
Austria	Run-of-the-River	45,800	Vertical slot pass
Austria	Run-of-the-River	2000	Combined vertical slot and roughened bypass channel

in Appendix A lists the case studies used in our analysis by country, capacity, and measures type. Because the data came from different sources, it is important to note that some observations are missing variables. Thus, the number of observations is noted at each stage of our analysis.

2.2. Types of Costs

Financial and economic costs are associated with upstream and downstream passage facilities.

Table 1. Financial and economic costs associated with upstream and downstream fish passage measures.

Category	Sub-Category	Types of Costs	Upstream	Downstream
Financial	Capital	Pre-construction	2	2
		Construction	2	2
	Operational	Management	1	1
		Monitoring	2	2
		Maintenance	2	1
	Other	Legal costs	2	0
		Compensation for land and habitat	2	0
Economic		Lost power production	2	2
		Lost system flexibility	1	0

Note: 2 indicates obligatory associated costs; 1 indicates facultative associated cost, and 0 indicates no associated costs.

outlines the specific types of financial and economic costs associated with both. Notably, there were differences for maintenance, legal costs, as well as compensation for land and habitat. Certain downstream measures may not have required any or very little maintenance like passive downstream measures such as guiding walls/dams. On the other hand, downstream measures like screens/racks may have incurred recurrent maintenance costs associated with removing debris and cleaning the screen/rack, unless they were self-cleaning [30]. Further, downstream measures were unlikely to incur legal costs or require compensation for land and habitat as they normally do not require additional space.

2.3. Data Analysis

Before analysis, we deflated our cost data (1992–2017) to 2019 Euro values to adjust for changes in values over time. We first deflated the data to the base year (2019) using average yearly inflation rates based on the Consumer Price Index (CPI) in the respective countries in the year of costing [45]. We assumed that the start year of the project was the year of costing as planners tend to make decisions based on cost estimates made in the first year of construction. For the Swedish data, we then converted Swedish krona (2019) to Euros using the average 2019 exchange rate after deflating the data. The Swiss data were already reported in Euros. As we indicate which countries the costs come from, we did not correct for purchasing power parity between countries.

2.3.1. Analysis of Non-Recurring Costs

First, we discussed the capital costs (construction and planning) of different types of mitigation measures. These are non-recurring costs. In the data, capital costs refer to those associated with constructing the measure. As the data came from different sources, the exact itemization was unavailable. However, it was assumed that the capital costs included the costs of planning, engineering, materials, and labor.

During the planning process, operators often estimate the capital (construction) costs. However, planned costs may differ from actual implementation. To investigate this discrepancy, we visualized the unit costs for planned and actual upstream measures for vertical slot passes (technical) and roughened bypass channels (nature-like). We selected these measures as they tended to be the most common installations for technical and nature-like passes, respectively [25], which was also reflected by the greatest number of observations in our data. We only visualized the data from Austria and Germany. As many companies in Austria and Germany plan and build fish passes in both countries, the price difference for planning and construction between Austria and Germany is likely negligent. Furthermore, many regions in Austria (northern Alps) are logical comparison units to the southern part of Germany (Bavarian Alps) from a landscape perspective.

To understand how plant and passage facility characteristics affect the capital costs for upstream passes, we estimated a linear mixed model fit by restricted maximum likelihood (REML). Observations were limited to those with complete information for the variables (n = 127). We estimated three models. The first model controlled for the specific type of measures:

$$\begin{gathered} {\log }_{e}Cost{s}_i={\beta }_0+{\beta }_1{\log }_{e}Heigh{t}_i+{\beta }_2{\log }_{e}Lengt{h}_i+{\beta }_3{\log }_{e}PlantCapacit{y}_i+ \\ {\delta }_i+{\gamma }_i+{\epsilon }_i \end{gathered}$$

(1)

${\log }_{e}Cost{s}_i$ is the total capital (construction) cost associated with upstream fish passes. ${\log }_{e}Heigh{t}_i$ and ${\log }_{e}Lengt{h}_i$ are the height of the obstacle to be passed and length of the pass, both in meters. ${\log }_{e}PlantCapacity$ is the capacity of the plant in kW, which controls for the size of the plant. By including the logarithmic transformation of cost, we assumed that capital costs would increase exponentially, which we confirmed through visual inspection of the data. We also included measure type (${\gamma }_i$) controls as we expected differences across types of measures. Random effects for the country (${\delta }_i$) are included and ${\epsilon }_i$ is the error term.

We then estimated a second version of the model, which included a binary variable ($Implemente{d}_i$) for whether the costs are based on a planned or implemented project. This tested whether there is a difference between planned and implemented costs while controlling for structural characteristics and the type of measure.

$$\begin{gathered} {\log }_{e}Cost{s}_i={\beta }_0+{\beta }_1{\log }_{e}Heigh{t}_i+{\beta }_2{\log }_{e}Lengt{h}_i+{\beta }_3{\log }_{e}PlantCapacit{y}_i \\ +{\beta }_{4}Implemente{d}_i+{\delta }_i+{\gamma }_i+{\epsilon }_i. \end{gathered}$$

(2)

In our third model, we replaced the specific measure variables by grouping them into three categories: technical, nature-like, and combined. The technical design was the baseline and we included interaction terms to investigate how the categories relate to the height of the obstacle and length of the pass. This tested whether generalizations can be made about cost differences between technical, nature-like, and combined fish passes and their structural characteristics. Within the categories, we expected that there would not be significant differences between measure types as technical passes always use concrete and nature-like always use natural materials for construction. Thus, construction costs should be similar but the quantity that is needed might differ. However, we controlled for the quantity by including the height, length, and plant capacity. We therefore estimate the following:

$$\begin{array}{cc}\hfill {\log }_{e}Cost{s}_i=& {\beta }_0+{\beta }_1{\log }_{e}Heigh{t}_i+{\beta }_2{\log }_{e}Lengt{h}_i+{\beta }_3{\log }_{e}PlantCapacit{y}_i\hfill \\ \hfill & +{\beta }_{4}NatureLik{e}_i+{\beta }_{5}Combine{d}_i+{\beta }_6{\log }_{e}Heigh{t}_i\ast NatureLik{e}_i\hfill \\ \hfill & +{\beta }_7{\log }_{e}Lengt{h}_i\ast NatureLik{e}_i+{\beta }_8{\log }_{e}Heigh{t}_i\ast Combine{d}_i\hfill \\ \hfill & +{\beta }_9{\log }_{e}Lengt{h}_i\ast Combine{d}_i+{\delta }_i+{\epsilon }_i\hfill \end{array}$$

(3)

Similarly, to understand how structural characteristics affect the capital costs for downstream measures, we estimated a model using generalized least squares fit by REML. We estimated the costs of downstream mitigation measures (i.e., screen and bypass) as a function of screen/rack area (${\log }_{e}Are{a}_i$) and a binary variable for rack configuration ($Vertica{l}_i$) of vertical (1) or horizontal (0). ${\epsilon }_i$ is the error term. Observations were limited to those with complete information for the variables (n = 17). As all observations came from Germany, we did not include country random effects. Due to missing information, we did not include other factors, such as the angle of the screen/rack.

$${\log }_{e}Cost{s}_i={\beta }_0+{\beta }_1{\log }_{e}Are{a}_i+{\beta }_{2}Vertica{l}_i+{\epsilon }_i.$$

(4)

For the 40 case studies that reported the configuration of the screen/rack (includes both fish protection screens/racks and combined screen/rack bypass systems), we tested whether there are significant differences in costs between horizontal (n = 27) and vertical (n = 13) racks.

2.3.2. Analysis of Recurring Costs

We then presented descriptive statistics for annual maintenance and lost power for both upstream and downstream passage measures and for the monitoring of upstream measures. These are recurring costs. While maintenance and monitoring are expressed in Euros, we presented the lost power production in kWh.

2.3.3. Analysis of Lifetime Costs

Finally, we combined capital, maintenance, and lost power costs in a levelized cost of mitigation (LCOM) using the following formula:

$$\mathrm{LCOM}=\frac{Sumofcostsoverlifetime}{Plantcapacity}=\frac{I+{{\displaystyle \sum }}_{t=1}^n\frac{M_t+L_t}{{\left(1+r\right)}^t}}{C}.$$

(5)

There are a variety of methods for estimating the levelized cost of a technology [46]. In this formula, $I$ represents the investments (construction) expenditures of the mitigation measure, $M_t$ represents the maintenance expenditures in the year $t$, $L_t$ represents the power production losses (EUR) in the year $t$, $C$ represents the plant capacity (kW), $r$ represents the discount rate, and $n$ represents the expected lifetime of the measure. Discounting represents the time value of money by expressing the value of future currency in the present. Thus, the discount rate captures how the market and inflation rates change over time. We used a discount rate of 4% as recommended by the European Commission [47]. We assumed a lifetime of 30 years for the passage measures as most hydropower concessions in Europe cannot be granted beyond this period [48]. Although the lifetime of passage measures may be longer than 30 years, the duration of concession is more important for the calculation of levelized costs. This is because when concessions expire, additional modernization may be required, which incurs further costs.

The electricity prices will vary based on the time, country and market in which they operate. However, given that we lacked information about when the power losses occur, detailed assumptions about prices may overpromise precision. Thus, we compared two prices based on the feed-in tariffs for retrofitted (including ecological measures) German hydropower plants under the German Renewable Energy Act in 2014. The 2014 EEG tariffs are based on the size of the plant. We selected these prices as they represent low (0.055 EUR/kWh) and high (0.125 EUR/kWh) remuneration.

Our estimation is similar to the levelized cost of electricity (LCOE) proposed by the United Kingdom’s Department for Business, Innovation and Skills, which expresses the average net present cost of generation over a plant’s lifetime. Notably, the LCOE is the ratio of total discounted costs over the plant’s lifetime divided by the discounted sum of electricity generated. To levelize costs, we used capacity in place of electrical energy generation as information on the annual generation of each plant was missing. It is difficult to make assumptions about annual power generation based on the plant capacity as hydropower operation hours can vary greatly among plants and by season and location. Some power plants are built and used for peaking (with few operating hours), whereas others are built to run almost constantly.

As many of the case studies included only costs for certain categories, we removed observations that did not have information for all three categories of construction, maintenance, and power losses for the calculation of the LCOM. While the maintenance and power losses can plausibly be zero, we removed them unless this was explicitly stated. We also removed two measures with only one observation (guiding dam/wall and fish lift).

3. Results

The costs of a large variety of upstream and downstream measures are presented in

Table 2. Overview of case studies by type of fish passage measure and country of origin.

Measure	Austria	France	Germany	Sweden	Switzerland	Total
Upstream
Technical designs
Vertical slot pass	68	6	55	21		150
Roughened ramp with pool structures			6			6
Denil pass		1		3		4
Nature-like designs
Roughened bypass channel with pool structures	9	1	23	27		60
Combined vertical slot and roughened bypass channel with pool structures	20	2	1	1		24
Special designs
Fish lift	3					3
Downstream
Combined screen/rack and bypass		3	57			60
Fish protection screen/rack		3	3	2	1	9
Bypass			6			6
Guiding wall/dam	1			4		5
Total						327

. For upstream fish passage, we had most data about technical solutions (n = 160). Geographically, these measures were not evenly distributed. Of the 100 Austrian upstream case studies, the majority (71%) were technical solutions such as vertical slot passes (n = 68) and fish lifts (n = 3). Combined vertical slot and roughened bypass channels accounted for the next largest share with 20 case studies, while there were only nine nature-like measures. Similarly, of the 86 German case studies, the majority (70%) were technical solutions such as vertical slot passes (n = 55) and roughened ramps (n = 6). However, nature-like solutions such as roughened bypass channels (n = 23) accounted for the next largest share, while there were only two combined solutions. In contrast, of the 52 Swedish case studies, there was an almost equal number of technical (n = 24) and nature-like passes (n = 27), while there was only one combined measure. Seven of the eight French case studies were technical measures and the Swiss case study was a combined solution.

For downstream measures, operators most frequently reported using a combined screen/rack and bypass, followed by a fish protection screen/rack. Combined screen/rack bypass systems were reported from Germany (n = 57) and France (n = 3). Fish protection by screens/racks in front of the intake to the power plant included a Coanda effect intake screen (n = 1), horizontal rack (n = 3), horizontal rack with cleaner (n = 2), and trash racks (n = 3) and were reported from a variety of countries including France (n = 3), Germany (n = 3), Sweden (n = 2), and Switzerland (n = 1). All bypasses were reported from Germany and guiding walls/dams were from Sweden (n = 4) and Austria (n = 1).

3.1. Non-Recurring Costs of Passage Measures

Capital (construction) costs varied across measures and there were often wide ranges within the same mitigation measure (Figure 1). Among upstream measures, fish lifts and combined vertical slot and vertical slot passes had the greatest total costs. However, between the remaining technical types (roughened ramps, Denil passes) and nature-like solutions (roughened bypass channels), there were no major differences in median costs. Notably, there were many outlier observations for vertical slot passes and roughened bypass channels.

There was less variability for downstream measures. Guiding walls/dams were the most expensive to construct whereas combined screens/racks and bypasses, fish protection screens/racks, and bypasses were relatively similar in costs.

3.1.1. Unit Costs of Upstream Passage for Implemented and Planned Measures

As hypothesized, there were differences between planned and implemented unit costs (Figure 2). For costs per meter height, planned costs averaged 124,608 EUR/m (SD = 65,187 EUR/m) while implemented costs were 235,408 EUR/m (SD = 310,862 EUR/m). For costs per meter length, planned costs averaged 6156 EUR/m (SD = 5179 EUR/m) while implemented costs were 16,642 EUR/m (SD = 83,352 EUR/m).

Between technical (vertical slot) and nature-like (roughened bypass channels) upstream passes, there were also differences in unit costs (Figure 3), but no clear trends related to increasing length or height of the pass. In terms of fish pass length, the majority of passes were shorter than 250 m. Costs ranged between 194 EUR/m and 61,301 EUR/m for vertical slot passes. Comparatively, roughened bypass channels had a narrower range with costs between 125 EUR/m and 7720 EUR/m. The mean cost per meter length of vertical slot passes (6914 EUR/m) and roughened bypass channels (2233 EUR/m) was statistically different (p < 0.001). In terms of height, both types of measures overcame heights of around 20 m. There was a weak positive relationship between the height of the pass and cost per meter for vertical slot passes, which implied that as the height increases, the unit cost increases. For vertical slot passes, costs ranged between 9949 EUR and 1,592,769 EUR whereas costs ranged between 5866 EUR and 807,920 EUR for roughened bypass channels. The mean unit costs of vertical slot passes (6914 EUR/m) and roughened bypass channels (2233 EUR/m) were statistically different (p < 0.001). The mean cost per meter height of vertical slot passes (177,788 EUR/m) and roughened bypass channels (122,667 EUR/m) was marginally significant (p < 0.10).

3.1.2. Factors Predicting Capital Costs

Across all three regression models for upstream passage measures, the coefficient estimates were robust (

Table 3. Regression estimates for the costs of upstream fish passage measures from Austria, Germany, France, and Sweden.

	Loge of Capital Costs
	Model 1: Type of Upstream Measure		Model 2: Implemented vs. Planned Costs		Model 3: Nature-Like vs. Technical vs. Combined Passes
Fixed Effects	Coeff. (S.E.)	t-value	Coeff. (S.E.)	t-value	Coeff. (S.E.)	t-value
Intercept	9.01 (0.50)	17.89	9.65 (0.37)	26.06	9.76 (0.46)	21.00
Log of length (m)	0.55 (0.08)	6.72	0.54 (0.08)	6.71	0.27 (0.08)	3.32
Log of obstacle height (m)	0.53 (0.13)	3.94	0.54 (0.13)	4.06	0.78 (0.14)	5.42
Log of plant capacity (kW)	0.11 (0.04)	2.87	0.11 (0.04)	2.90	0.12 (0.04)	3.07
Implemented (binary)			−0.97 (0.29)	−3.39
Nature-like (binary)					−1.64 (0.50)	−3.27
Combined (binary)					3.95 (1.60)	2.46
Nature-like *log of height					−0.28 (0.30)	−0.95
Nature-like *log of length					0.35 (0.15)	2.32
Combined *log of height					−0.85 (0.48)	−1.80
Combined *log of length					−0.31 (0.25)	−1.28
Fish lift	2.89 (0.81)	3.56	2.84 (0.81)	3.51
Roughened bypass channel	−0.55 (0.25)	−2.18	−0.52 (0.25)	−2.11
Roughened ramp	0.01 (0.35)	0.02	0.01 (0.35)	0.04
Vertical slot pass	−0.15 (0.23)	−0.66	−0.14 (0.23)	−0.61
Random Effects	Var. (S.D.)		Var. (S.D.)		Var. (S.D.)
Intercept	0.33 (0.58)		0.03 (0.16)		0.27 (0.52)
Residual	0.40 (0.63)		0.40 (0.63)		0.41 (0.64)
REML Criterion	261.10		256.90		265.20
n	127		127		127

Note: S.E. denotes standard error, S.D. denotes standard deviation, Var. denotes variance, REML is restricted maximum likelihood. * is a multiplication sign.

). Models 1 and 2 compared the inclusion of the implemented binary variable. Both models found positive and statistically significant relationships between length of the pass and construction costs. A 1% increase in length was associated with an increase between 0.54% and 0.55% in capital costs and a 1% increase in the height of the obstacle was associated with an increase between 0.53% and 0.54% for Models 1 and 2, respectively. Also, as expected, capital costs increased with plant capacity. For the type of measures in both models, the variables for fish lift and roughened bypass channels with pool structures were statistically significant. The parameter estimate for fish lift was positive while that of roughened bypass channels was negative, implying that costs are higher for fish lifts than for combined vertical slot and roughened bypass channels (the baseline) while costs are comparatively lower for roughened bypass channels. The variables for roughened ramps and vertical slot passes were not significant. In Model 2, a variable for whether the costs are based on an implemented measure was included. The parameter estimate was negative and significant. This finding implied that costs are lower for implemented measures than planned ones when other structural characteristics are considered. The parameter estimates for Model 3 were slightly different due to the inclusion of the nature-like and combined binary variables (rather than the specific measure types) as well as the interaction terms. Our decision to differentiate between nature-like, technical, and combined passes aligned with the findings of significant differences between measure types in Models 1 and 2. Height, length, and plant capacity were statistically significant and positive. Both binary variables, nature-like and combined, were significant. The parameter for nature-like was negative while that of combined measures was positive. For the interaction terms for nature-like measures, the length of the pass was significant and negative. For the interaction terms for combined measures, the height of the obstacle was significant and negative. The results implied that nature-like passes are less expensive than technical solutions (the baseline), but that this difference diminishes as the pass increases in length. In contrast, combined solutions tend to be more expensive than technical ones, but this difference diminishes as the height of the obstacle increases. When Models 1 and 2 were estimated with Ordinary Least Squares (OLS), the models explained 77% of the total variance observed (R-squared). Model 3 explained 78% of the total variance observed.

Table A2. Confidence intervals (95%) for the three upstream models presented in Table 3.

	Loge of Capital Costs
	Model 1: Type of Upstream Measure		Model 2: Implemented vs. Planned Costs		Model 3: Nature-Like vs. Technical vs. Combined Passes
	95% C.I.		95% C.I.		95% C.I.
Fixed Effects
Intercept	8.02	9.95	9.05	10.32	8.84	10.62
Log of length (m)	0.39	0.70	0.38	0.68	0.11	0.43
Log of obstacle height (m)	0.26	0.78	0.29	0.80	0.50	1.05
Log of plant capacity (kW)	0.03	0.18	0.03	0.17	0.04	0.19
Implemented (binary)			−1.31	−0.54
Nature-like (binary)					−2.59	−0.69
Combined (binary)					0.81	6.94
Nature-like *log of height					−0.85	0.29
Nature-like *log of length					0.06	0.64
Combined *log of height					−1.74	0.08
Combined *log of length					−0.78	0.16
Fish lift	1.31	4.44	1.23	4.30
Roughened bypass channel with pool structures	−1.02	−0.04	−0.92	−0.01
Roughened ramp with pool structures	−0.65	0.70	−0.62	0.71
Vertical slot pass	−0.58	0.32	−0.52	0.33
Sig01	0.17	1.40	0.00	0.22	0.15	1.26
Sigma	0.55	0.70	0.55	0.70	0.55	0.70

Note: * is a multiplication sign.

shows the 95% confidence intervals for the upstream models.

For downstream measures, one model was estimated with 17 observations of combined screen/rack and bypass systems from Germany (

Table 4. Regression estimates for the costs of downstream fish passage measures from Germany.

Variable	Coeff. (S.E.)	t-Value
Intercept	8.62 (0.29)	29.49
Log of Area (m2)	1.18 (0.09)	13.80
Vertical configuration (binary)	−0.09 (0.20)	−0.43
Log-Likelihood	−11.10
Degrees of freedom	14
Residual standard error	0.41
n	17

). The area of the rack was positively and significantly associated with cost. The estimate indicated that, on average, each additional percent of square meter was associated with a 1.18% increase in capital costs. The configuration of the rack (vertical or horizontal) was not significant. When the model was estimated with Ordinary Least Squares, it explained approximately 93% of the variance. When we tested for differences in costs related to the configuration of the rack with a t-test for additional case studies, the difference in mean costs of horizontal (210,671 EUR) and vertical (243,793 EUR) racks was also not statistically significant.

Table A3. Confidence Intervals (95%) for the downstream model presented in Table 4.

Variable	95% Confidence Interval
Intercept	8.04	9.19
Log of Area (m2)	1.02	1.35
Vertical configuration (binary)	−0.49	0.31

shows the 95% confidence intervals for the downstream model.

3.2. Recurring Costs of Passage Measures

For upstream measures, recurring costs such as annual maintenance and monitoring did not account for a large share of lifetime costs (

Table 5. Overview of the annual maintenance costs for upstream fish passage measures from Austria, Germany, France, and Sweden in Euros.

Category	n	Median	Mean	S.D.	Min.	Max.
Upstream
Vertical slot pass	59	10,762	12,206	9143	0	50,220
Combined vertical slot and bypass channel	21	10,944	12,096	4815	6622	32,285
Roughened bypass channel	13	12,946	16,887	15,199	0	39,731
Fish lift	2	23,806	23,806	11,991	15,327	32,285
Downstream
Guiding dam/wall	2	16,581	16,581	23,449	0	33,162
Total	97	10,762	13,139	9835	0	50,220

). For all measures, the annual maintenance costs ranged from 0 EUR/year to 50,220 EUR/year with an overall average of 13,139 EUR per year. Fish lifts had the highest average maintenance costs compared to other measures, but the case study with the highest maintenance costs was a vertical slot pass. In terms of variation, there were large standard deviations across categories, particularly for the roughened bypass channel.

For downstream measures, only two case studies with a guiding dam/wall reported maintenance costs. Between these two case studies, there was large variation.

Our review of monitoring costs found high variability across case studies and notable differences between the monitoring of simple technical, complex technical, nature-like, and combined upstream measures (

Table 6. Overview of monitoring costs related to different upstream fish passage measures from Austria, Germany, France, and Sweden in Euros.

Measure	n	Median	Mean	S.D.	Min.	Max.
Vertical slot pass	59 a	22,958	92,918	214,389	0	1,456,388
Combined vertical slot and bypass channel	20 b	62,498	71,262	46,562	10,762	168,956
Roughened bypass channel	7	161,584	443,503	571,168	23,303	1,279,866
Fish lift	3	185,206	160,456	128,550	21,331	274,831
Total	89	39,839	117,902	250,576	0	1,456,388

Note: ^a Includes 5 fish traps and 1 image-based scanner, ^b Includes 1 fish trap and 1 image-based scanner.

). Monitoring for complex technical (i.e., fish lift) and nature-like measures was most expensive as fish lifts had a mean monitoring cost of 160,456 EUR and roughened bypass channels had a mean cost of 443,503 EUR. Comparatively, vertical slot passes had a mean cost of 92,918 EUR and combined solutions cost of 71,262 EUR on average. However, these values were highly variable as indicated by the large standard deviations.

Beyond costs, additional information about the type of monitoring was limited. Only eight measures specified what kind of monitoring was conducted. This included one-time monitoring of water variables (temperature, quality, discharge, etc.) as well continuous monitoring (over a few months) of habitat availability and fish pass functionality. Fish pass functionality was monitored with fish traps, both alone or combined with video, as well as image-based scanner systems. With the exception of fish traps, the specific types of monitoring tended to be more expensive than the average reported overall. For the three cases of fish traps, the mean cost was 14,215 EUR with a standard deviation of 8740 EUR. Comparatively, monitoring with video in addition to fish traps had a mean cost of 157,223 EUR for three case studies with a standard deviation of 104,405 EUR. Finally, image-based scanner systems cost an average of 142,401 EUR for two case studies. Only five measures reported the time span of monitoring, which ranged from one to 24 months.

Annual power losses also represented a recurring cost, which differed sizably across measures (

Table 7. Overview of power losses related to different fish passage measures from Austria, Germany, France, and Sweden in GWh per year.

Category	n	Median	Mean	S.D.	Min.	Max.
Upstream
Vertical slot pass	74	149	859	2481	0	17,950
Denil pass	1	0.438
Combined vertical slot and bypass channel	22	308	534	768	0	3400
Roughened bypass channel	12	613	2631	4163	0	14,000
Fish lift	3	1500	8098	12,309	495	22,300
Downstream
Combined screen/rack and bypass system	3	0	0.002	0.003	0	0.006
Fish protection screen/rack	3	0	0.083	0.144	0	0.25
Total	118	1112	199	3136	0	22,300

). For upstream measures, fish lifts and roughened bypass channels incurred the greatest costs on average, although these were highly variable. The majority of observations were vertical slot passes with an average of 149 GWh lost per year and combined vertical slot and bypass channels with an average of 307 GWh lost per year.

For downstream measures, fish protection screens/racks and combined screen and bypass systems reported minimal power losses. For both measures, only three case studies reported power losses, which may be unrepresentative of downstream mitigation measures.

3.3. Levelized Costs of Upstream Passage Measures

In total, 55 observations were included from Austria (52) and Germany (3). Our results demonstrated that regardless of the electricity price selected, capital (construction) costs tended to account for the largest share of lifetime costs with the exception of vertical slot passes under the high price scenario (Figure 4). Under the high price scenario for vertical slot passes, capital accounted for 45% while power losses accounted for 54% of lifetime costs. For all other scenarios, capital costs represented between 57–76% of lifetime costs compared to 64–87% under the low price scenario. On average, capital costs were highest for combined measures (415 EUR/kW) compared to technical (130 EUR/kW) or nature-like (50 EUR/kW). However, this was highly variable as combined solutions had a standard deviation of 540 EUR/kW. There was also a high variability of technical (214 EUR/kW) passes, but less variability for nature-like passes (48 EUR/kW).

Across all measures, maintenance costs accounted for a comparatively small share of levelized lifetime costs. On average, maintenance costs were greatest for combined measures (3 EUR/kW), followed by technical vertical slots (2 EUR/kW). Some missing observations may have represented zero for maintenance costs. Since missing data and zeros cannot be distinguished unless specified, this may have upwardly biased the results. Of the observations included, three reported maintenance costs of zero.

Despite our simplified representation of electricity prices, the comparison of low and high prices revealed that costs associated with power losses can vary greatly. Comparing the low (high) electricity prices, vertical slot passes had the highest mean cost of 68 EUR/kW (154 EUR/kW), compared to 56 EUR/kW (128 EUR/kW) for combined vertical slot/bypass channel and 16 EUR/kW (37 EUR/kW) for roughened bypass channels. The median, however, showed that roughened bypass channels have the greatest costs (16 EUR/kW; 36 EUR/kW) compared to combined (13 EUR/kW; 31 EUR/kW) and vertical slot (8 EUR/kW; 20 EUR/kW). Similar to maintenance costs, power losses could be zero. Since missing data and zeros cannot be distinguished, this may have upwardly biased the average power losses associated with each measure type. Of the observations included, five reported power losses of zero.

4. Discussion

To understand the cost trade-offs associated with sustainable hydropower, we established several hypotheses about the costs of fish passage mitigation. We hypothesized that planned costs and unit metrics can accurately predict costs. Further, we posited that construction and power losses account for the largest shares of lifetime mitigation costs. Finally, we hypothesized that technical measures incur lower costs than their nature-like counterparts.

However, we found that planning costs differ substantially from actual costs. This may be because planned costs often cannot account for difficulties that arise throughout the construction process (e.g., shortages and changes in the prices of materials) as well as site-specific factors (e.g., target species, difficulty of site accessibility, ground conditions, and local regulations) [25]. As many of these complications cannot be foreseen or quantified, we investigated whether other variables can improve predictions about the construction costs of fish passage mitigation.

For upstream passes, we investigated the extent to which the height, length, or type of pass predicts construction costs. Understanding whether height or length is the key driver of upstream passage costs may affect the decision-making process of operators. For example, if an operator is deciding between a fish lift and vertical slot pass, they may find it is cheaper to build the lift if length is the main driver of costs. We found a strong relationship between construction costs and the height of the obstacle and length of the fish pass. A possible exception to the usefulness of height for predicting upstream construction costs are fish lifts, as previous literature suggested that their construction costs are relatively independent of dam height [49].

For downstream passes, we investigated whether the area and configuration of the rack/screen predicts construction costs. Our analysis confirmed that the area can be useful for predicting costs. While a rack/screen is a standard installation for hydropower plants used to repel debris, some can be adapted to function as fish protection and a guiding structure. For this purpose, adaptations in bar spacing (narrowing) or angle as well as inclination are typical but may contribute to higher expenditures (purchase price, reduction in flow during operation, which reduces power production) [29]. Ideally, other variables about the presence of a cleaning device and inclination (angle) of the rack, and the cost of the bypass structure would have been relevant to potentially explain more variance. As our data did not comprehensively provide information on inclination or other specific characteristics of the racks/screens, only a comparison of the orientation was possible. However, we found no significant difference in construction costs for vertical and horizontal racks/screens.

The first step of our analysis only considered how these factors affect construction costs, but mitigation can also entail maintenance costs and power losses. Power losses can be difficult to quantify. Thus, upfront construction costs may be assumed to account for the largest share, which may lead decision makers to underestimate the total costs of fish passage mitigation if power losses represent a large share of lifetime costs.

For upstream measures, we hypothesized that capital (construction) costs and power losses account for the largest shares of lifetime costs. Under almost all price scenarios, capital costs accounted for the largest share. However, in the high price scenario for vertical slot passes, power losses accounted for a greater share. This means that when electricity prices are high, power losses may represent a significant concern for operators. However, it is difficult to generalize findings about power losses of measures as there may be significant variation in power loss among sites. Fish passage facilities may be designed to operate only during the migration season [50]. Thus, they do not necessarily operate year-round. Smart management of water release should ideally be adapted to both fish migration and power production needs. This could potentially reduce power and income loss while still maintaining fish passage. Such solutions depend on site-specific conditions, fish species composition, legal requirements, and operational constraints. Our finding is significant because previous cost reports of fish passage measures primarily focused on construction and operation [8], rather than quantifying the role of power losses. As a result of lack of data, a comparison of lifetime costs for downstream passage measures was not possible. Thus, it represents a potential avenue of future research.

Both of these analyses allow us to compare the costs of different types of upstream passage measures. We hypothesized that technical designs are often favored since less space is needed, which incurs fewer costs related to land acquisition. This can be most severe in congested urban areas of Europe. Our analysis of construction costs, however, showed that nature-like fish passes were comparatively cheaper, even when controlling for interactions between nature-like builds and the length or height of the pass. We found that nature-like passes are less expensive than technical solutions, but that this difference diminishes as the pass increases in length. In contrast, combined solutions tend to be more expensive than technical ones, but this difference diminishes as the height of the obstacle increases. This finding was consistent with the analysis of lifetime costs.

When considering lifetime costs, nature-like solutions incurred relatively fewer costs, specifically, fewer power losses compared to combined and technical solutions. When comparing combined and technical solutions, combined solutions were more expensive. This may be because combined solutions are often built when the height is too great for the available space. When compared across sites, natural materials may be cheaper for construction, particularly if autochthonous materials with fewer transportation costs are used [51]. Given that our results showed that nature-like solutions cost less to build and operate, incur fewer power losses, and provide habitat [52] in addition to facilitating fish passage, there is a strong basis for supporting their development in Europe.

Our study also yielded differences in the monitoring costs of upstream passage measures. The lack of data related to the costs and types of monitoring is evident. Approximately one-third of the case studies reported monitoring costs. However, only eight reported the type and five reported the timeline. While it is unclear whether the case studies simply did not report the costs or whether no monitoring took place, recent studies have noted the dearth of effectiveness monitoring related to fish passage measures [53]. In contrast, a study of river restoration measures showed that 80% of the projects are monitored [54]. This may stem from the belief that standardized passage design based on species-specific formulas [55] ensures success. Hence, additional monitoring is often not considered necessary and may result in additional costs if functionality is not proven after all. Recent literature argued that most design criteria are primarily based on salmonids in the Northern Hemisphere, which fails to account for the variation in individuals, populations, and species at individual sites [27].

Our data reveal that when a complex technical solution is built (e.g., fish lift), operators often invest in intensive monitoring. In turn, simpler technical measures (e.g., vertical slot pass) may require less monitoring as proven solutions do not need to be tested. In comparison to vertical slot passes, which can be standardized, nature-like solutions like roughened bypass channels tend to be adapted to local landscape conditions, which may also result in additional monitoring expenses. Nature-like passes may also be more complicated to monitor without standardized and pre-fabricated monitoring gear.

Additionally, there is an array of possible indicators for passage effectiveness. While environmental variables such as temperature, discharge, water depth, and water velocities are regularly used for evaluating passage mechanisms, they are not suitable for cross-site comparisons as they cannot imply a cause and effect [53]. However, detailed reporting of hydraulic and structural parameters may make studies more comparable across sites [53]. Given the high costs of fish passage restoration, assessing the costs and ecological benefits is important to develop evidence-based solutions in the future [55,56]. Thus, we recommend that policy makers standardize monitoring and reporting of the hydraulic, structural, and biological parameters as well as costs in a much more detailed manner.

Future analysis of upstream fish passage costs can be strengthened by clear reporting of structural characteristics. For many variables, data were missing, which reduced the observations in a complete case analysis. Further, it was often unclear how the variables were reported. For example, sometimes the reported length was the shortest distance between the entrance and exit of a fish pass, while other times it was the true length of the fish pass. In the analysis, it was not possible to account for such data inconsistencies as it was not always clear how operators reported length. Additional information about the target fish species may also help to account for the variation observed, as technical and nature-like designs may be built for different types of target species. While we did not have information about the target species for all measures, we found that there were no major differences in the target species for technical or nature-like passes (i.e., technical fish passes were not specifically built for stronger swimmers).

For downstream fish passage measures, our analysis was largely limited by missing data, especially related to maintenance and power losses. These costs can be difficult to identify as some downstream measures may be installed at hydropower plants for reasons unrelated to fish (e.g., trash rack to repel debris). However, if they are designed properly, they can serve the dual purpose of protecting fish. Thus, we recommend that future research focus on the costs of downstream passage facilities. Finally, future research can conduct cost-benefit or cost-effectiveness analyses. While we found that nature-like solutions tend to cost less, it will be important to quantify the possible additional ecological benefits (e.g., providing habitat) to assess their value relative to other types of fish passage measures.

Given the costs, the question arises of how the sustainable management of hydropower and fish passage can be financed and how effective solutions can be incentivized. Present financing instruments include support schemes, feed-in tariffs and green power labels [12]. While support schemes compensate for the modernization of existing plants through direct financing, grants, or loans, feed-in tariffs guarantee a fixed price for renewable energy fed into the public grid and green power labels set minimum standards related to electricity production [12]. Specific to passage restoration, direct financing and loans may cover construction costs, whereas feed-in tariffs may offset the recurring costs associated with power losses.

In some countries, mitigation is financed by state authorities using taxes. In Switzerland, for example, all plants built before 2011 are eligible for financing of upgrades. Ecological improvements are supported by a tax of 0.1 Rappen/kWh on all consumer electricity bills, which amounts to the “Swiss Grid Fund” with a maximum of 50 million CHF/year. To incentivize upgrades, the Swiss Grid Fund is available on a first-come-first-serve basis until the program expires in 2030. After the program’s end, operators will be fully responsible for financing, which is in line with the polluter-pays principle [57]. In contrast, Austria supports approximately 50% through national funding such as the Environmental Aid Act. However, this excludes losses stemming from electricity production [57,58]. In Sweden, green power labels are used to incentivize ecological restoration. For operators to qualify for green power labels, they must make annual contributions to environmental projects [12]. The approach of targeted financial contributions may ensure that measures are carried out at sites with the greatest need, which could maximize effectiveness.

In some cases, the amount of funding provided is assessed on a case-by-case basis, which can be time-consuming and costly. On the other hand, arguments can be made for a simpler system based on standard refunds determined by the type, length, and height of the measure or a percentage of costs. While simplification is desirable, the results here do not support a standardization of costs. Within each category, the standard deviation is often greater than the mean, which indicates a wide range of possible costs.

To offset production losses resulting from fish passage measures, feed-in tariffs may be useful. Feed-in tariffs may be conditional on improvements as in Switzerland, France, and Germany [12]. Typically, different rates apply, based on the size of the plant. The larger the plant, the lower the rate. However, given the fluctuations in time of lost power production and market rates, our analysis cannot assess whether feed-in tariff rates are sufficient to offset the losses of power production. When establishing priorities related to financing of fish passage measures for hydropower, decision makers must weigh these factors with societal and political values.

5. Conclusions

As sustainable management of hydropower must balance mitigation measures for fish with renewable energy production, decision makers require information about cost trade-offs. This systematic overview detailed non-recurring (construction) and recurring (maintenance, monitoring, power losses) costs of passage measures.

Construction tends to account for the largest share of lifetime costs and while unit metrics (height and length) can be used for estimation of upstream fish passage measures, one should be aware that planning costs often differ substantially from actual costs. In particular, factors such as the target species, site conditions, difficulty of site accessibility, and local regulations contribute to the overall costs of mitigation measures. Comparatively, maintenance accounts for a relatively small share of lifetime costs. As there is limited research on power losses related to fish passage measures, our findings provide a basis for including economic aspects in hydropower decision-making. Under the high price scenario for vertical slot passes, power losses exceed construction as a share of lifetime costs. In most markets, power prices vary significantly over the year, week, and day. Thus, balanced solutions that consider both ecological aspects such as key migration seasons of target species as well as power prices are likely to create win-win situations.

When comparing technical and nature-like upstream passage measures, nature-like measures tend to incur lower costs, even when considering power losses. Given that nature-like solutions cost less to build and operate, incur fewer power losses and provide habitat in addition to facilitating fish passage, there is a strong basis for supporting their development in Europe.

In addition to the limited information on costs, there tends to be limited monitoring of mitigation measures and reporting of their costs, which makes it difficult to explore their efficiency after implementation and enable statements about cost-effectiveness. Thus, we recommend that policy makers standardize monitoring and reporting of hydraulic, structural, and biological parameters as well as costs in a much more systematic and detailed manner.
