Removal of Basic Brown 16 from Aqueous Solution Using Durian Shell Adsorbent, Optimisation and Techno-Economic Analysis

Abstract

Azo dyes including C. I. Basic Brown 16 (BB16) are one of the coloured organic compounds that have adverse effects on human health and the environment. The current work aims to optimise the adsorption of C.I BB16 in aqueous solution using durian (Durio zibethinus murray) shell as a low-cost green adsorbent. Durian shell was characterised by Fourier transform infrared spectroscopy (FTIR) and scanning electron microscopy (SEM). The adsorption process was optimised with response surface methodology (RSM) based on pH (4–8), time (30–240 min), durian shell dosage (0.1–1.0 g/L) and initial concentration of C.I BB16 (10–20 ppm). The removal efficiency was determined based on the reduction of chemical oxygen demand (COD) and the decolourisation of C.I BB16. The techno-economic analysis was described in the current work to know the economic feasibility of durian shells as an adsorbent. The SEM images showed that durian shell adsorbent has a smooth surface with no pores. FTIR spectra confirmed the presence of -C-O, =C–H, C=C, -C-O-C and O-H bonds in durian shell. Maximum decolourisation (77.6%) and COD removal (80.6%) for C.I BB16 was achieved with the interaction between pH, time and adsorbent dose and initial concentration of C.I BB16. The optimal operating factors for adsorption of C.I BB16 recorded at pH 8, time (30 min), durian shell dosage (1 g/L) and 15 mg /L of C.I BB16 concentrations were 77.61 vs. 74.26 (%) of C.I BB16 removal and 80.60 vs. 78.72 (%) of COD removal with an R² coefficient of 0.94 at p < 0.05. The specific cost of durian shell coagulant production is USD 172.71 per ton which is lower than the market price of honeydew peels-activated carbon (HDP-AC) (USD 261.81) and the commercial market price of activated carbon which is USD 1000.00/tons. These findings indicated that the durian adsorbent provides alternative methods for treating hair dye wastewater. These findings indicated that durian shells have a high potential for the adsorption of C.I BB16 in aqueous solution.

1. Introduction

Azo dyes are coloured organic compounds bearing the functional group R−N=N−R′, in which R and R′ are aryl or heteroaryl. More than 0.7 million tons of these compounds are produced every year from which 10–15% enters into the environment through industrial wastewater, especially textile industries [1]. The improper disposal of these wastewaters is the main problem of environmental pollution because of its high toxicity and stability to withstand degradation even under extreme circumstances [2]. The main concerns related to the presence of azo dyes in water ecosystems are its effect on water transparency, photosynthetic activity reduction and the harmful consequences on aquatic flora and fauna. Moreover, most of the azo dyes have been documented to be mutagens or carcinogens to human beings [3]. C. I. BB16 is one of the most applicable dyes in the textile and biological dyeing industries. It contains (-N=N-) as chromophore connected to aromatic systems with lateral groups, including CH₃, which can be very harmful and resistant to conventional treatment processes. Although C.I BB16 has caused health hazards because of which it has been prohibited in many areas, it is still widely practised in several countries [4].

Several treatment technologies for removing azo dyes from industrial wastewater have been used such as coagulation-flocculation [5], chemical and electrochemical oxidation [6], ozonation [7], ion exchange [2] and anaerobic-aerobic system [8]. However, most of the azo dyes are still persistent in the treated wastewater because of their high stability. Therefore, the removal of azo dyes required an advanced removal technology such as adsorption which is one of the most favourable processes in comparison to other practices because of its simplicity, practicality, productivity and inexpensiveness [9]. Adsorption is also known as physical attachment or binding of ions and molecules onto the surface of other molecular substances [10]. The exploration for new adsorbents has been concentrated on biomaterials because of their high availability, eco-friendliness, economic feasibility and source i.e., from renewable materials. These resources are locally and easily accessible in considerable quantities in the agroindustry. Thus, they are typically inexpensive and have little or no economic significance. For instance, these resources are wastes with no industrial or agricultural use, with their accumulation being problematic in many cases [11]. The adsorbents comprise proteins, polysaccharides, cellulose and lignin, which contain various functional groups such as phenolic and amino groups that are accountable for pollutant adsorption. Among several plants, pineapple plant stem [12], leaves of Prunus Dulcis [13], tomato waste and apple juice residue [14], grape peel [15], Thapsia transtagana stems [16], mushroom [17] have been reported to produce biocompatible adsorbents.

In this study, Durio Zibethinus Murray (durian) shell was utilised for the adsorption of C.I BB16 because of its richness in proteins, polysaccharides, cellulose and lignin that contain various functional groups such as phosphate, carboxyl, sulphate, phenolic and amino groups that are accountable for azo dyes adsorption [18]. Moreover, the durian shell contains high fibre content that contributes to the adsorption process [19]. Durian peels are broadly obtainable as a waste from the durian processing business at a cheaper rate in comparison to other natural supplies. This is because only one-third of durian is digestible (20–30% flesh), whereas the shell and the seed (55–66%) are generally disposed of [20]. The productivity of durian in Malaysia alone was 3800 metric tons in the year 2016 and 22,000 metric tons in the year 2020. With every 10 tons, more than 7 tons of durian shells are produced [21]. Although durian shell as adsorbent was investigated by previous researchers [21,22], no comprehensive study has been conducted on the optimisation of adsorption of C.I BB16 by using a response surface methodology (RSM) and this emphasises the novelty of the current work.

Figure 1 presents the bibliometric analysis of 43 papers published on the durian shell according to the Scopus database using specific keywords such as “durian” AND “adsorption”. It was noted that the durian shell was used as an adsorbent for removing methylene blue, basic dyes, brilliant green, basic green four dye, crystal violet, gentian violate, acid green 25 as well as heavy metals such as chromium, lead, zinc from different wastewater sources. The main factors affecting the adsorption process included pH, time, the concentration of pollutants, moisture and particle size of the durian shell powder. The durian shells have been subjected to acid treatment to prepare charcoal, biochar and carbon active which are the most common adsorbents.

The factors affecting adsorption need to be optimised to reinforce the process of adsorption. Response surface methodology (RSM) is a tool that uses the mathematical and statistical approach to develop, optimise and enhance products and industrial processes. The main aim of RSM is to lessen the number of experimental runs and attain maximum data output. It allows changing numerous variables at the same time to plan fewer number of experiments needed to optimise the desired process [23]. RSM can be used to study the effects of independent variables, multiple factors and their interaction effects [24]. The effects of two or more variables are determined by factorial design. Meanwhile, central composite design (CCD) with RSM is used for the optimisation process. Besides, the application of CCD prevents deceiving conclusions and grant conclusions that are appropriate for several experimental conditions. Only one study has been optimised for the durian seed prepared as activated carbon for removing C.I methylene blue [25]. However, RSM is not used as a modelling and optimisation tool for the adsorption of C. I BB16. Moreover, techno-economic analysis is used for evaluating the potential of agriculture wastes as an alternative adsorbent for the commercial activated carbon (AC). No study has investigated the final price of the durian shell compared with that of commercial products in the market. The current price of 1 ton AC from coal ranges from USD 1190 to 16343/tons AC [26]. Therefore, the current study aims to optimise the factors affecting the adsorption of C.I BB16 by durian shell as an adsorbent by RSM. Moreover, techno-economic analysis for the preparation and application of durian shell adsorbent was conducted and compared with that of commercial AC products.

2. Materials and Methods

2.1. Preparation of Durian Shell as an Adsorbent

The durian shells were gathered locally from the neighbourhood shops. The durian shell was rinsed two to three times by water for the removal of dirt and impurities followed by open-air drying for 48 h. Thereafter, it was oven-dried at 150 °C for 24 h. The dried durian shell was then ground and sieved to the particle size <150 μm. The ground durian shell was kept in the airtight plastic container for the adsorption studies [22]. It was noted that 1 kg of durian shell generates 500 g of the powder adsorbent with particle size <150 μm.

2.2. Characterisation of Adsorbent

2.2.1. Field Emission Scanning Electron Microscope (FESEM)

The surface texture and morphology of the durian shell was analysed by field emission scanning electron microscopy (FESEM; Ion Company, New York, NY, USA). The sample was prepared by mixing two drops of 100% ethanol with 0.1 g durian shell on clean silicon wafers and then dried at 50 °C for 2 min to eliminate the solvent, coated with gold using the sputtering technique, fractured and observed at a beam energy of 20 kV.

2.2.2. Fourier Transform Infrared (FTIR)

The functional groups in the durian shell were identified by Fourier transform infrared (FTIR) spectroscopy using Nicolet iS50 (Thermo Scientific, Waltham, MA, USA) with a scanning range of 400–4000 cm⁻¹ using attenuated total reflection (ATR) technique. First, the crystal plate (sample holder) was cleaned with acetone. The durian shell sample (5 mg) was placed directly on the crystal plate and then pressed using the metallic pressing device and scanned to get the IR spectrum [27].

2.3. Preparation of C.I BB16 in Aqueous Solution

C.I BB16 was supplied by Sigma-Aldrich (M) Sdn Bhd, Malaysia, and used as received without further purification. A stock solution of 1000 mg/L was prepared by dissolving the appropriate amount (1000 mg) of C.I BB16 in a litre of deionised water. The working solution was prepared by diluting the stock solution with deionised water to give the appropriate concentration of the working solutions [28].

2.4. Experimental Set-up

The experimental set-up in this study includes the preparation of durian shell and C.I BB16 solution, independent factors and optimisation process. Factorial complete randomised design (CRD) ($3\times 3\times 3$) in triplicate was executed to investigate the independent factors that affect the adsorption of C.I BB16. Four independent factors that are pH (4–8), time (30–240 min), durian shell dosage (0.1–1.0 g) and initial C.I BB16 concentration (10–20 ppm) were investigated. The range for each independent factor was chosen based on previous investigations [29,30].

2.4.1. Adsorption of C.I BB16

The adsorption of C.I BB16 experiments were performed using a 250 mL Erlenmeyer conical flask that holds 100 mL of an aqueous solution of C.I BB16. To ascertain the pH condition, the pH was modified deliberately for the solution, ranging between 4 and 8. These were conducted by using 0.1 M sodium hydroxide (NaOH) and 0.1 hydrochloric acid (HCI) to acquire the desired pH value [31]. The mixture was stirred using the orbital shaker at 150 rpm and the contact time was specified between 30 min and 4 h. Treated C.I BB16 samples were filtered using the membrane filter (0.2 µm) [16]. The efficiency of the durian shell in the adsorption of C.I BB16 was investigated by determining the absorbance of C.I BB16 sample before and after each experimental run using UV-Vis spectrophotometer (DR6000) at 661 and 620 nm. The adsorption of C.I BB16 efficiency was determined by calculating the decolourisation according to Equation (1) [32]

$$\mathit{Decolorisation} \left(\%\right) =\frac{A_0-A}{A_0}$$

(1)

where A₀ is the initial absorbance of C.I BB16 in samples before the adsorption and A is the absorbance of C.I BB16 after the adsorption—moreover, the mineralisation of C.I BB16 was confirmed by COD analysis, according to Gonçalves et al., [11]. COD reduction was calculated using Equation (2)

$$\mathit{COD} \left(\%\right)=\frac{C_0-C_f}{C_0}$$

(2)

where $C_0$ is the initial COD concentration (mg/L) and $C_f$ is the final COD concentration (mg/L) after the adsorption.

2.4.2. Optimisation of Adsorption of C.I BB16

The experimental set-up of the current work consists of C.I BB16 solutions and durian shell adsorbent as well as pseudo-first and second-order kinetic model for adsorption process using response surface methodology (RSM). The factorial complete randomised design (CRD) (4 × 2) in triplicates was used to study the optimal factors affecting the adsorption process with four (4) independent factors ((pH 4–8),$x_2$ (time, 30–240 min), $x_3$ (adsorbent dosage (0.1–1 g/L),$x_4$ (initial concentration of C.I BB16) (10–20 mg/L) and two dependent variables $y_1$ (decolourisation of C.I BB16) (%),$y_2$ (COD removal) (%). The independent factors were selected and used for designing the experimental runs using Design Expert 6.0.10, central composite design (CCD) (Stat-Ease Inc., Minneapolis, MN, USA) software that suggested 25 experimental runs. The experimental runs (one run recommended) were carried out to authenticate the efficiency of the results of the evaluated elements. Four independent variables including pH, time, durian shell dosage and initial concentration of C.I BB16 were optimised for adsorption of C.I BB16. The optimisation experiments were also operated in three replicates to enhance the estimated data accuracy by inferring that no bias and systematic error exist. Moreover, the variables’ ranges (high and low) in this study are depicted as (low, medium and high, being coded as −1, 0 and +1). The efficiency of adsorption of C.I BB16 was verified by the percentage of the removal ($y$) which was denoted as the responses of the parameters of the experimental design. The parameters examined for adsorption of C.I BB16 were decolourisation (%) ($y_1$) and COD removal (%) ($y_2$) and the working variables were $x_1, x_2, x_3$ and $x_4$. The quadratic model used to get the optimisation of the responses as a function of the independent process variables is as follows:

$$y=\beta 0+{{\displaystyle \sum }}_{i=1}^k{\beta }_i{x}_i+{{\displaystyle \sum }}_{i=1}^k{\beta }_{ii}{x}_i{}^2+{\displaystyle \sum }_{i=1}^n{\displaystyle \sum }_{i<j}^n{\beta }_{ij}{x}_i{x}_j$$

(3)

where $y$ is the expected response for the adsorption, while β0, β_i, β_ii and β_ij are the linear model coefficients, x_i is the coded independent factors, and $x_i$ is the independent factors in a coded form, while k represents independent variable numbers.

The relationship between the experimental data and the coded variable is represented as:

$$x_i={\mathrm{\epsilon }}_i \frac{\left[\mathrm{HL}+\mathrm{LL}\right]/2}{\left[\mathrm{HL}-\mathrm{LL}\right]/2}$$

(4)

where x_i represents the coded variable, ${\mathrm{\epsilon }}_i$ is the experimental laboratory data, HL and LL represent the maximum and minimum values of the independent factors respectively.

2.5. Techno-Economic Analysis for Hair Dye Greywater Treatment Using Durian Shell Adsorbent

The annual time for the fill operation including preparation and application is 5760 h/year (which is equivalent to 240 operating days). The TCI for a proposed preparation and application processes includes WCC and FCE (Equation (5)) [33,34].

$$\mathit{TCI}=\mathit{WCC}+\mathit{FCE}$$

(5)

where TCI is the total capital investment, WCC is the working capital cost and FCE is the fixed capital estimation.

The annual operation cost (AOC) for the preparation of durian shell as adsorbent and then the application of the adsorbent in the hair dye greywater and the costs of raw materials ($C_{RM}$), waste generated from the preparation process ($C_{WG}$), utilities ($C_U$) and extra cost ($C_E$) were calculated on an annual basis according to Equation (6).

$$\mathit{AOC}=C_{RM}+C_{WG}+C_U+C_E)$$

(6)

According to the mathematical model designed by the specific cost of durian shell adsorbent production $C_Z$ (kg/USD) is calculated based on the annual costs of capital $C_C$, utilities cost $C_U$, raw material cost $C_{RM}$ and extra cost $C_E$ divided by the annual durian shell adsorbent production (Equation (7)) [35].

$$C_Z=\frac{\left(C_C+ C_U+C_{RM}+C_E\right)}{E_P}$$

(7)

2.6. Statistical Analysis

The significant role of the independent factors as well as the interactions between these factors was analysed using ANOVA (p < 0.05). The contribution of independent factors in the adsorption as a function for the quadratic model was identified by the adjusted coefficient of determination (R² adj). The relationship between the independent factors and their effects on the adsorption was represented in a three-dimensional graphical representation, which is RSM.

3. Results and Discussion

3.1. Characteristics of Durian Adsorbent

The surface morphology of the durian shell before and after the adsorption process is presented in Figure 2. It was noted that the adsorbent surface having a smooth surface with no pores might be due to the existence of pectin and lignin. These findings are inconsistent with those reported by Lazim et al. [22]. In contrast, the durian shell after the adsorption process have rough surface morphology with dye residues.

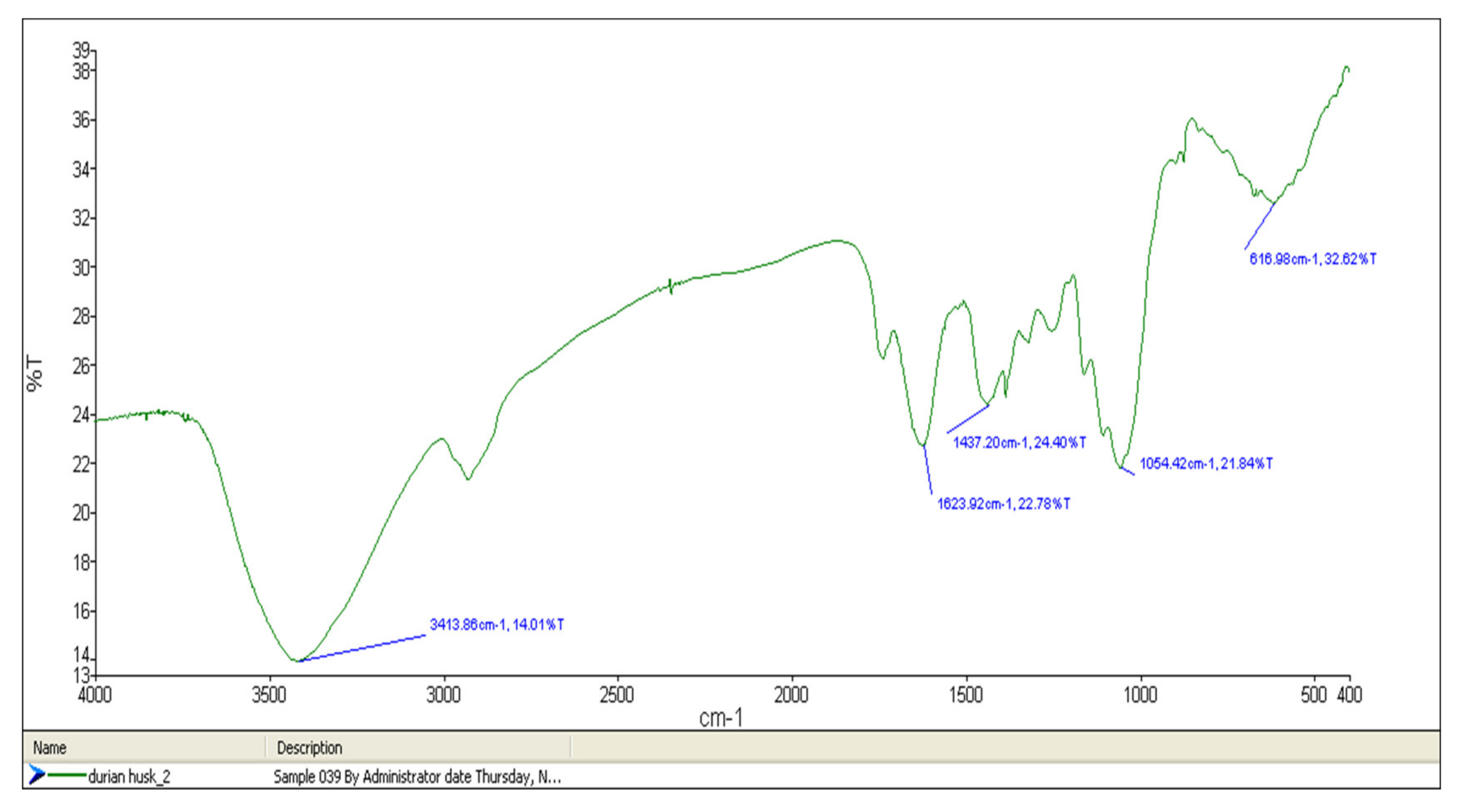

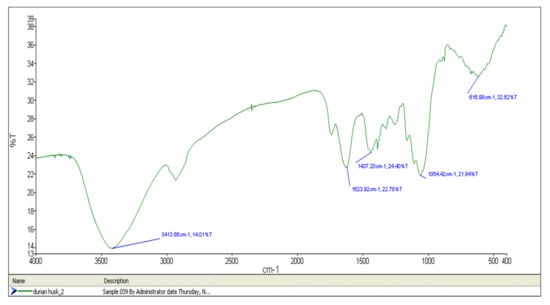

The FT-IR spectrum of the durian shell is shown in Figure 3. The FTIR spectra showed a broad peak at 3413.86 cm⁻¹ which specifies the existence of phenol group of lignin and cellulose. The peaks at 1623.92 are assigned as the C=C aromatic bond or amide areas that are characteristics of proteins and enzymes. The spectrum exhibited at 1437.20 is classified as the C-O stretching vibrations of carboxylic acids (-COOH) and the spectrum at 1054.42 cm⁻¹ corresponds to the asymmetric stretch of C-N bonds from substituted amines [36]. The small band at 616.98 cm⁻¹ owing to the C-Cl stretching of alkyl halides [37]. Similarly, Tham et al. [38] observed 3334 cm⁻¹ which is related to the hydroxyl (O-H) group such as alcohol and phenols. They also observed peaks at 1024 cm⁻¹ and 1420 cm⁻¹ respectively representing coupled C–O stretching and amides functional groups of primary amides and aliphatic amides respectively.

3.2. Optimisation of Adsorption of C.I BB16

The parameter for optimisation of the adsorption of C.I BB16 using durian shell as adsorbent was performed in the current study by Design-Expert software—the maximum decolourisation of C.I BB16 80.7% recorded at pH 4, 30 min, 0.1 g/L of the adsorbent dosage and 10 mg/L of the initial concentration of C.I BB16. In contrast, the maximum reduction of COD was 86.2% at pH 6, after 30 min, with 1 g/L of adsorbent dosage and 10 mg/L of C.I BB16 initial concentrations (

Table 1. Central composite design arrangement and responses for adsorption of C.I BB16 in aqueous solution.

Run	${\mathit{x}}_1$	${\mathit{x}}_2$	${\mathit{x}}_3$	${\mathit{x}}_4$	${\mathit{y}}_1$	${\mathit{y}}_2$
1	4.00	30.00	0.10	10.00	80.65	57.52
2	8.00	30.00	0.10	10.00	77.36	63.82
3	8.00	30.00	1.00	15.00	72.81	78.09
4	8.00	30.00	0.10	20.00	72.01	55.14
5	8.00	30.00	0.10	20.00	77.24	59.79
6	4.00	30.00	1.00	20.00	82.07	62.06
7	4.00	30.00	0.10	10.00	76	78.22
8	6.00	30.00	1.00	10.00	71.04	86.18
9	6.00	30.00	0.55	15.00	72.82	79.54
10	8.00	30.00	1.00	15.00	77.61	80.6
11	4.00	135.00	0.55	15.00	72.78	30.11
12	4.00	135.00	1.00	10.00	70.26	68.33
13	8.00	135.00	1.00	20.00	72.07	53.08
14	8.00	135.00	1.00	20.00	72.54	52.02
15	6.00	135.00	0.10	15.00	40.03	18.08
16	4.00	135.00	0.10	20.00	50	10.64
17	8.00	135.00	0.55	15.00	56.28	29.53
18	6.00	135.00	1.00	15.00	57.64	58.85
19	8.00	240.00	0.10	10.00	46	28.54
20	8.00	240.00	0.10	20.00	38.82	26.23
21	8.00	240.00	1.00	10.00	51.22	56.74
22	4.00	240.00	0.10	10.00	40.61	24.88
23	4.00	240.00	1.00	20.00	69.34	48.65
24	8.00	240.00	1.00	10.00	62.86	67.94
25	6.00	240.00	0.55	15.00	52.05	32.46

$x_1$(pH),$x_2$ (time), $x_3$ (adsorbent dosage (g/L),$x_4$ (initial concentration of C.I BB16) (mg/L), $y_1$ (decolourisation of C.I BB16) (%),$y_2$ (COD removal) (%).

).

In comparison Lazim et al. [22] revealed that a durian peel had removed 69.60% of bisphenol with an adsorption capacity of 4.20 mg/g for 24 h. These differences would be related to the types of pollutants treated in their investigations. Lazim et al. [22] studied the bisphenol, while in this study, C.I BB16 dye was treated. Moreover, they treated the durian peel with sulfuric acid before the adsorption bisphenol. Besides, Abd Latib et al. [39] revealed that 99% of methylene blue had been removed using durian shell activated carbon at the conditions 0.60 M H₂O₂ at 700 °C for 30 min. The findings in the present study indicated that the investigated factors play an important role in the adsorption and mineralisation rate of C.I BB16. Decolourisation and mineralisation in the adsorption process are affected by pH, time, durian shell dosage and initial C.I BB16 concentration. In this study, the effect of pH on the adsorption and mineralisation of C.I BB16 was studied at different pH values ranging from 4.0 to 8.0. It is well accepted that the pH of the solution plays a vital part in the adsorption process, which influences the surface charge of the adsorbent and the degree of ionisation and specification of the adsorbate. Generally, it can be deduced that adsorption of C.I BB16 dye by durian shell adsorbent was low at low pH. Therefore, the findings recommended that the adsorption of C.I BB16 on durian shell is favourable in alkaline solutions compared to in neutral and acidic conditions. This is because at the low pH environment, the competition between excess hydroxyl ions, H^+, and the cationic groups on the C.I BB16 dye for adsorption sites will make the surface of the adsorbent to exist as a positively charged molecule [40,41].

The adsorption of C.I BB16 investigated the contact time of 30 min to 240 min. It can be deduced that the adsorption and mineralisation rate of C.I BB16 increases as contact time increases. However, a further increase in contact time did not enhance the C.I BB16 decolorisation process and mineralisation rate. The quick absorption rate at the beginning is attributed to the availability of plentiful active binding sites on the adsorbent surface. Nevertheless, the adsorption process develops an attachment-controlled route owing to less accessibility of adsorption sites as contact time increases. Besides, different durian shell dosages were investigated, ranging from 0.1 to 1 g. The results indicated the decolourisation mineralisation rate of C.I BB16 increased when the durian shell dosage increased. This is assigned to a rise in the adsorptive surface area and the accessibility of more active binding sites on the surface of the durian shell. However, the presence of excess durian shell decreases the adsorption capacity of C.I BB16—the decrease in total surface area available for C.I BB16 from aggregation or overlying of adsorption sites [42]. Hence, as the dosage of durian shell adsorbent increases, the amount of C.I BB16 adsorbed onto durian shell adsorbent gets reduced, thus causing a decrease in adsorption capacity. In some cases, a further increase in adsorbent dose did not remarkably alter the adsorption capacity. This is owing to the non-accessibility of active sites on the adsorbent and establishment of equilibrium between the C.I BB16 and the durian shell adsorbent [43]. The rate of adsorption and mineralisation rate is a function of the initial concentration of the adsorbate, which makes it an important factor to be considered for effective adsorption—the percentage removal of C.I BB16 decreased with increasing the initial C.I BB16 concentration (Figure 4 and Figure 5). It seems that all adsorbents have a limited number of active sites and at a certain concentration, the active sites become saturated. The initial concentration may provide the necessary driving force to overcome the mass transfer resistance of C.I BB16 between the aqueous and the solid phase [44]—the increase in the initial C.I BB16 concentration also enhances the interaction between the C.I BB16 anion in the aqueous phase and the biomass surface; resulting in higher uptake of C.I BB16 for the given amount of biomass [29,42].

The regression coefficients for the independent factors are illustrated in

Table 2. Regression coefficient and their significance of the quadratic model for the adsorption of C.I BB16 in aqueous solution.

Term	Coefficient		Standard Error		F Value		p Value
	${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$
Model	57.76	35.79	3.37	5.26	11.35	11.55	0.0002	0.0002
$X_1$	−1.09	2.13	1.31	2.05	0.69	1.08	0.4246	0.3234
$X_2$	−12.41	−14.64	1.43	2.23	75.67	43.05	<0.0001	<0.0001
$X_3$	7.73	15.55	1.25	1.96	38.04	62.86	<0.0001	<0.0001
$X_4$	0.20	−6.73	1.43	2.24	0.020	9.04	0.8895	0.0132
$X_1^2$	7.55	−2.66	3.27	5.11	5.33	0.27	0.0436	0.6146
$X_2^2$	3.90	16.90	2.58	4.04	2.28	17.54	0.1619	0.0019
$X_3^2$	−7.97	3.31	4.08	6.38	3.83	0.27	0.0790	0.6154
$X_4^2$	4.20	1.41	4.04	6.32	1.08	0.050	0.3230	0.8275
$X_1$$X_2$	−0.26	0.87	1.60	2.51	0.025	0.12	0.8766	0.7353
$X_1$$X_3$	−1.63	−1.42	1.42	2.22	1.32	0.41	0.2772	0.5354
$X_1$$X_4$	1.32	5.00	1.49	2.32	0.79	4.64	0.3937	0.0566
$X_2{X}_3$	4.65	4.65	1.48	2.31	9.91	4.04	0.0104	0.0721
$X_2{X}_4$	0.36	1.37	1.58	2.48	0.053	0.31	0.8234	0.5920
$X_3{X}_4$	2.83	−0.48	1.36	2.13	4.33	0.052	0.0641	0.8250

$x_1$ (pH),$x_2$ (time), $x_3$ (adsorbent dosage (g/L),$x_4$ (initial concentration of C.I BB16), $y_1$ (decolourisation of C.I BB16) (%), $y_2$, (COD removal) (%).

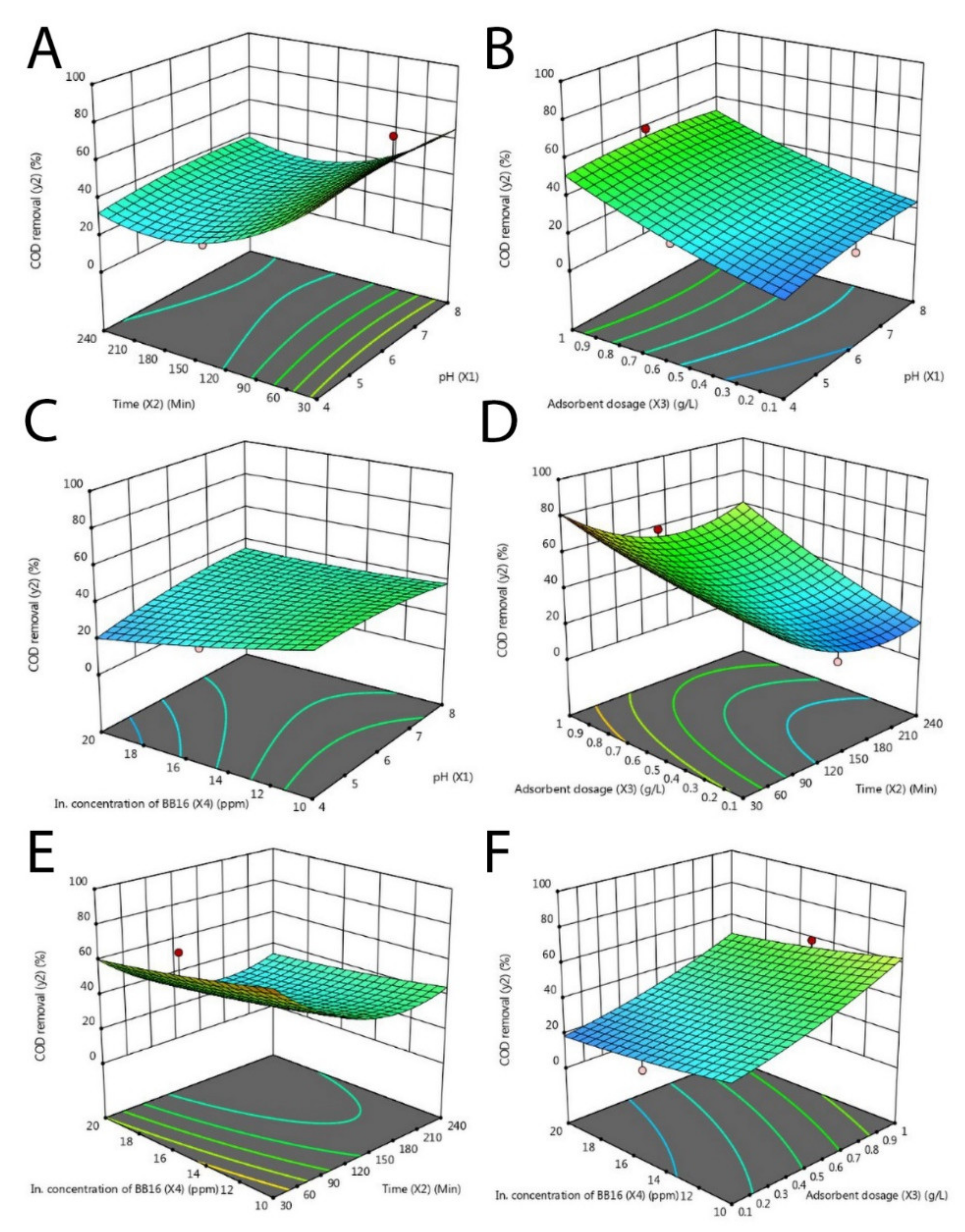

. The interactions between these factors and the linear and quadratic regression coefficients were identified by the least square method. p-value with 95% of the confidence level was used as a sign for the importance of each independent factor. The results noted that factors $x_1$, $x_2$, $x_3$ and $x_4$ have a significant quadratic effect on the decolourisation of C.I BB16 (p < 0.0002), as well as for COD removal (%). Moreover, these factors have a synergistic effect on the decolourisation of C.I BB16, final pH and COD removal (%) (p < 0.05). The second-order model described the relationship between decolourisation and COD reduction and selected factors as given by final equations in terms of actual factors as following:

$$\begin{array}{l}{y}_1=57.76-1.09x_1-12.41x_2+7.73x_3+0.20x_4+7.55x_1^2{A}^2+3.90x_2^2-7.97x_3^2\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+4.20x_4^2-0.26x_1{x}_2-1.63x_1{x}_3+1.32x_1{x}_4+4.65x_2{x}_3+0.36x_2{x}_4\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+2.83x_3{x}_4\end{array}$$

(8)

$$\begin{array}{l}{y}_2=35.79+2.130x_1-14.64x_2+15.55x_3-6.73x_4-2.66x_1^2+16.90x_2^2+3.31x_3^2\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+1.41x_4^2+0.87x_1{x}_2-1.42x_1{x}_3+5.00x_1{x}_4+4.65x_2{x}_3+1.37x_2{x}_4\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}-0.48x_3{x}_4\end{array}$$

(9)

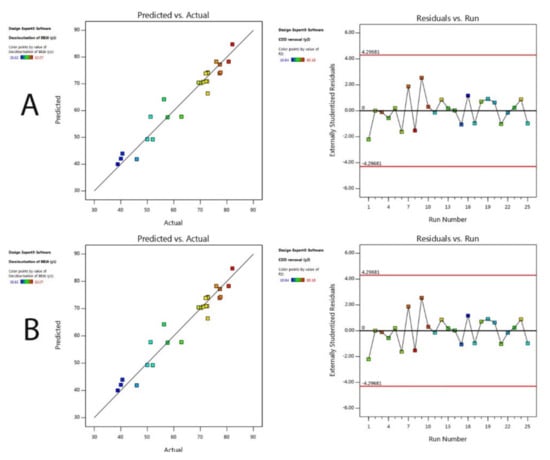

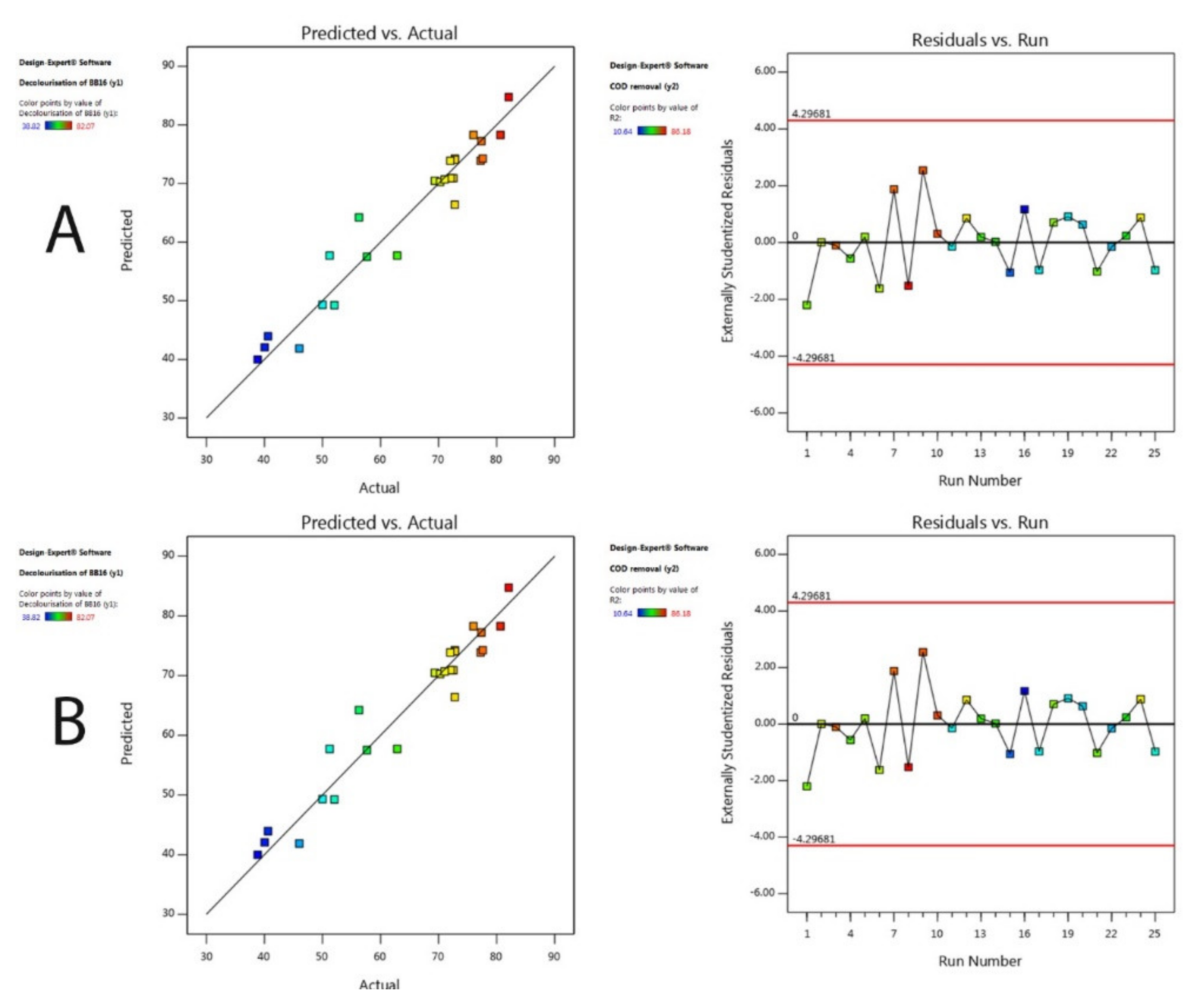

The summary of the analysis of variance (ANOVA) for the quadratic model is shown in

Table 3. Analysis of the variance (ANOVA) of the response surface quadratic model for the adsorption of C.I BB16 in aqueous solution.

Source	Degree of Freedom	Sum of Squares		Mean Square		F Value		p-Value
		${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$	${\mathit{y}}_1$	${\mathit{y}}_2$
Model	14	4248.69	10578.36	303.48	755.60	11.35	11.55	0.0002 significant	0.0002 significant
Residual error	10	267.35	654.04	26.74	65.40
Lack-of-fit	5	163.49	362.55	32.70	72.51	1.57	1.24	0.3154 non-significant	0.4083 non-significant
Pure error	5	103.86	291.49	20.77	58.30
Total	24	4516.04	11232.40

$y_1$ (decolourisation of C.I BB16) (%),$y_2$ (COD removal) (%); $y_1$ R² = 0.9408; R² (adj) = 0.8579; $y$ R² = 0.9418; R² (adj) = 0.8603.

. It can be deduced that the linear model for decolourisation (%) and COD removal (%) was significant at a confidence level of (p < 0.05) with determination coefficients (R² adj) equal to R² (adj) are 0.8879 and 0.8603 respectively.

These results ascertain the suitability of the model. The lack of fit for the model was non-significant value (p > 0.05), which specifies that the model was predicted for the decolourisation (%) and COD removal (%), while was suitable for prediction within the range of the independent factors explored in the current investigation. Moreover, the small residual values are an emblem for the worthy agreement of the experimental data with the mathematical model. RSM with CCD analysis was executed to examine the interactions between the variable factors within the tested range when one factor is an actual factor at the centre point. For the decolourisation (%) and COD removal (%), a significant (p < 0.05) interaction between $x_1$ (4–8), $x_2$ (30–240 min), $x_3$ (0.1–1 g) and $x_4$(10–20 ppm) as actual factors is shown in Figure 4 and Figure 5. The correlation plot between model-predicted value vs. actual value and residuals vs. run number; A; decolourisation ($y_1$), B; COD removal ($y_2$) is depicted in Figure 6. The results revealed a significant correlation between the independent factors and the removal percentage of the dependent variables.

Validation of the Optimal Parameters

The possible direction for maximising the adsorption of C.I BB16 is by using point optimisation technique with expert design software. The optimal operation parameters of the adsorption of C.I BB16 were recorded at pH 8 ($x_1$), 30 min ($x_2$), 1.0 g of adsorbent ($x_3$) and 15 ppm of C.I BB16 ($x_4$). At the optimal conditions of the adsorption of C.I BB16, the independent factors interacted significantly (p < 0.05) (

Table 4. The best operating parameters for the adsorption of C.I BB16 in aqueous solution.

Responses	${\mathit{x}}_1$	${\mathit{x}}_2$	${\mathit{x}}_3$	${\mathit{x}}_4$	Predicted Results	Experimental Results
${\mathit{y}}_{\mathbf{1}}$	8.00	30.00	1.00	15.00	77.61	74.26
${\mathit{y}}_{\mathbf{2}}$					80.60	78.72

$x_1$(pH),$x_2$ (time), $x_3$ (adsorbent dosage (g/L),$x_4$ (initial concentration of C.I BB16), $y_1$ (Decolourisation of C.I BB16) (%), $y_2$ (COD removal) (%).

).

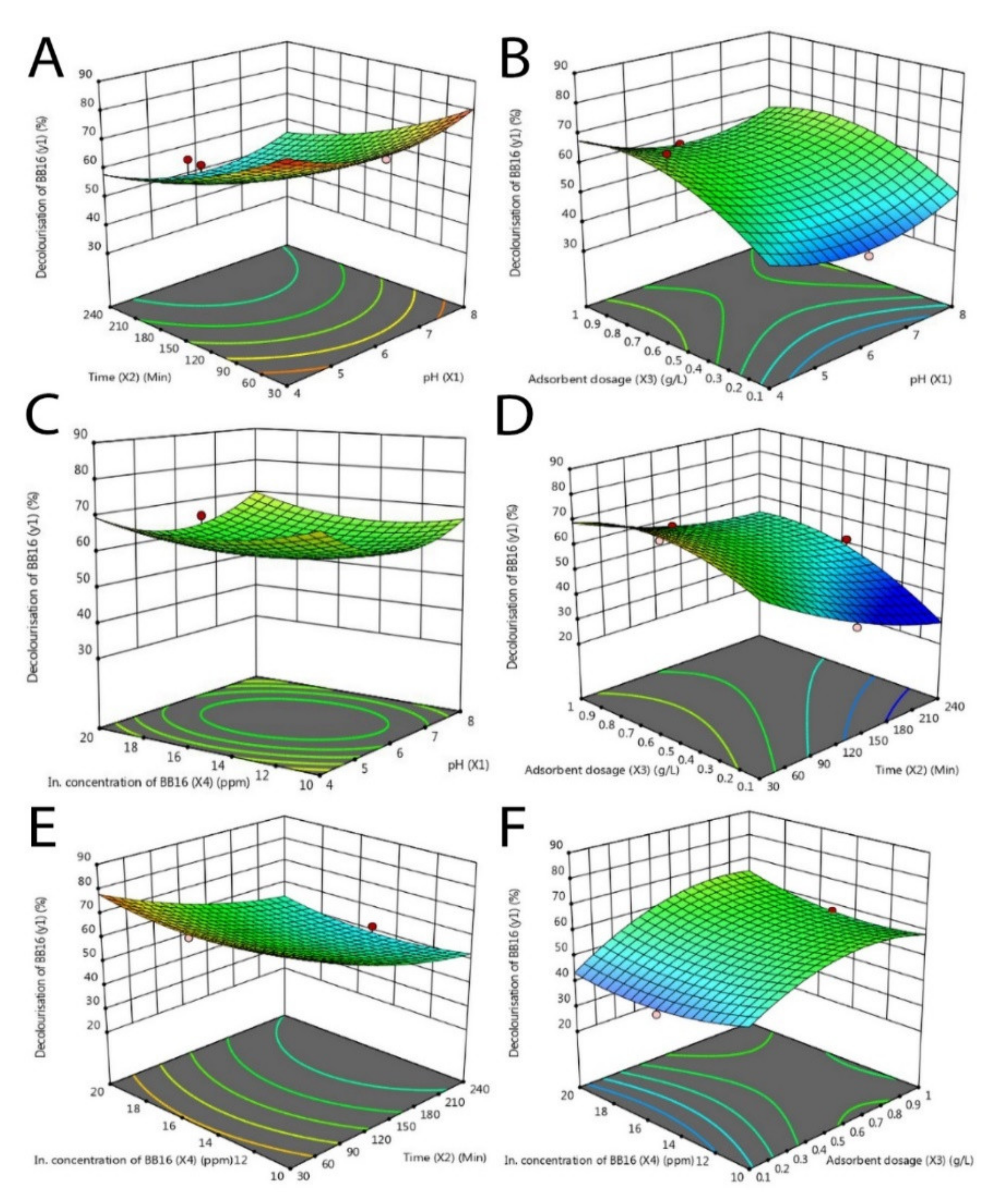

This specifies that interaction effects occur as a consequence of one factor influenced by another factor. The pH, time, durian shell adsorbent dosage and initial concentration of C.I BB16 act together very well to attain the maximum decolourisation and COD removal rate. The percentage error among the actual and predicted values was recorded less than 5% (confidence level 95%) which indicates that no substantial difference was observed and therefore, affirms that the RSM method was suitable to optimise the operational settings of adsorption of C.I BB16. In comparison with the previous studies by Mohammed et al. [19], it was noted that durian shell sorbents achieved 95.91% and 97.81% decolourisation of C. I Methylene Blue and C. I Brilliant Green, respectively. The differences in the results occurred as these factors were investigated individually, whereas, in their study, the interactions between these independent factors were not considered. In the current investigations, the optimisation of the adsorption of C.I BB16 achieved more than 77.61%, which designate the role of RSM design in attaining the maximum and optimum conditions for the adsorption of C.I BB16. The high effectiveness of adsorption of C.I BB16 in reaction to the examined independent variables would be described based on the occurrence of a significant synergic relationship between the parameters. These outcomes are constant with the authors in the literature, who directed that the investigated factors play a significant part in the adsorption of C.I BB16, Mondal et al. [29]. The optimisation process using RSM regulates the best operation parameters to reach high adsorption efficiency.

3.3. Mechanism of Adsorption

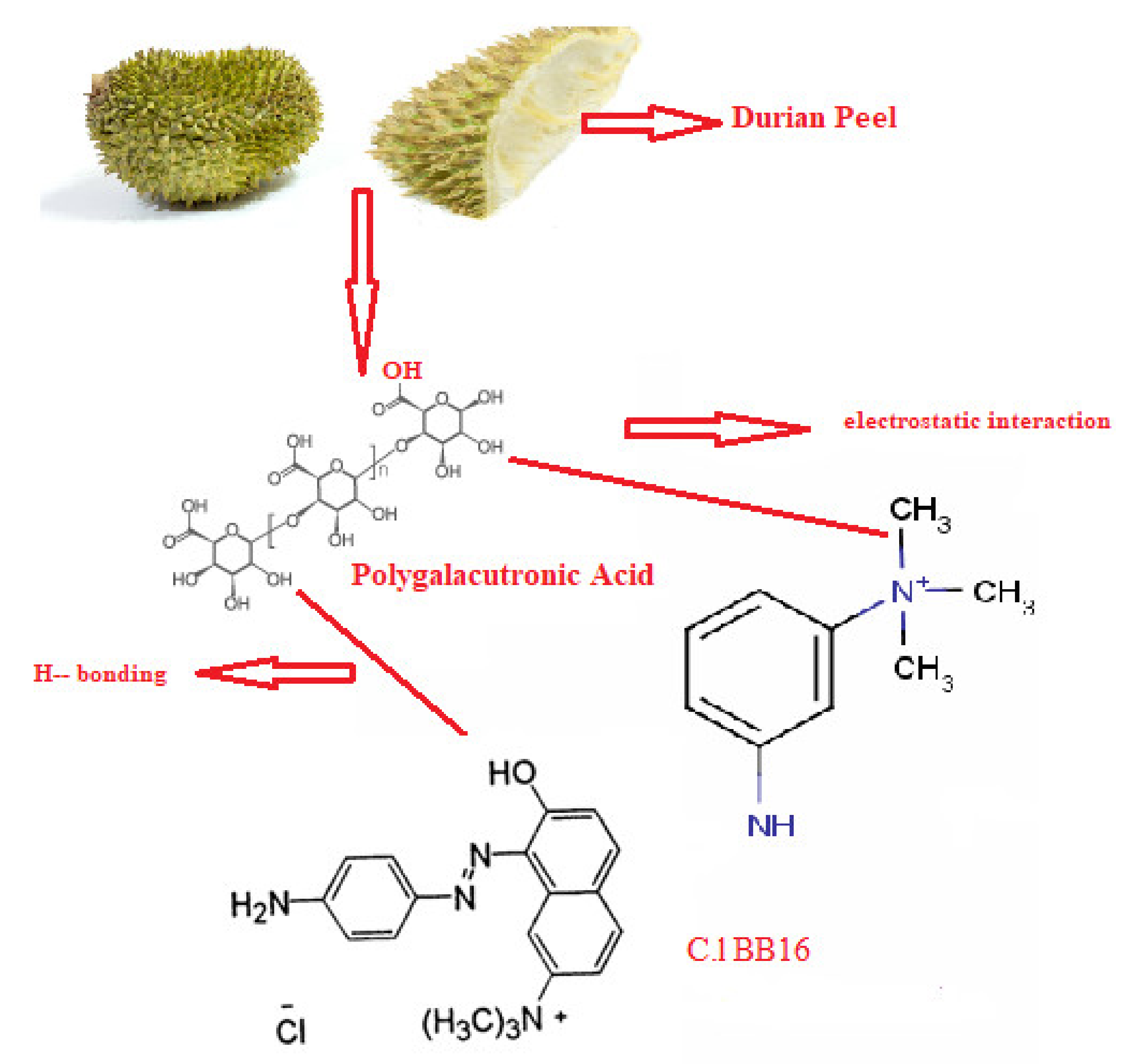

To describe the nature of adsorption, the mechanism of adsorption was studied by interpretation of the intraparticle diffusion (Figure 7).

The key factors that control the rate of adsorption can be affected by the adsorption at the internal and external surface which depends on the binding process, transfer of mass through the external boundary and the adsorbate diffusion to the adsorption site across liquid pores or solid surface. Therefore, the decolourisation (77.61%) and COD removal (80.60%) at pH 8, 30 min, 1 g/L of durian shell dosage and 15 ppm of C.I BB16 were achieved based on independent factors explored in the current investigation. The competition between hydroxyl ions, H+ and the cationic groups on the C.I BB16 dye for adsorption sites will change the surface of adsorbent charged molecule positively or negatively depends on pH value, which will improve the positively charged dye cations through electrostatic forces of attraction. Durian is the member of the Bombacaceae family which is largely found in Malaysia and Indonesia of Southeast Asia. Durian peels are the waste materials of durian and consist of a lot of polysaccharides, cellulose and lignin. Those ingredients have different active functional groups that relatively affect the adsorption of analyses (dye, metal), via interactions occurred between solid surfaces and adsorbate (Ahmad and Danish, 2018); structure of the adsorbate and the functional groups of the adsorbent surfaces. Durian adsorption of C.I BB16 molecules results from hydrogen bonding between OH and NH₂ groups of dye molecules and OH groups of durian peels and electrostatic interaction between the negatively charged durian surface and cationic dye. Referred to FTIR spectra, the results showed that carboxylic acids (-COOH) and the hydroxyl groups were available on the sites because of interactions of the surface of the peel. These functional groups could control the uptake of positively charged C.I BB16 molecule. Whereas, electrostatic attraction, h-bonding could occur between the negatively charged surface and positively charged +NH-CH₃-C.I BB16 molecules [45,46].

3.4. Techno-Economic Analysis for Preparation and Application of Durian Shell for Hair Dye Greywater Treatment

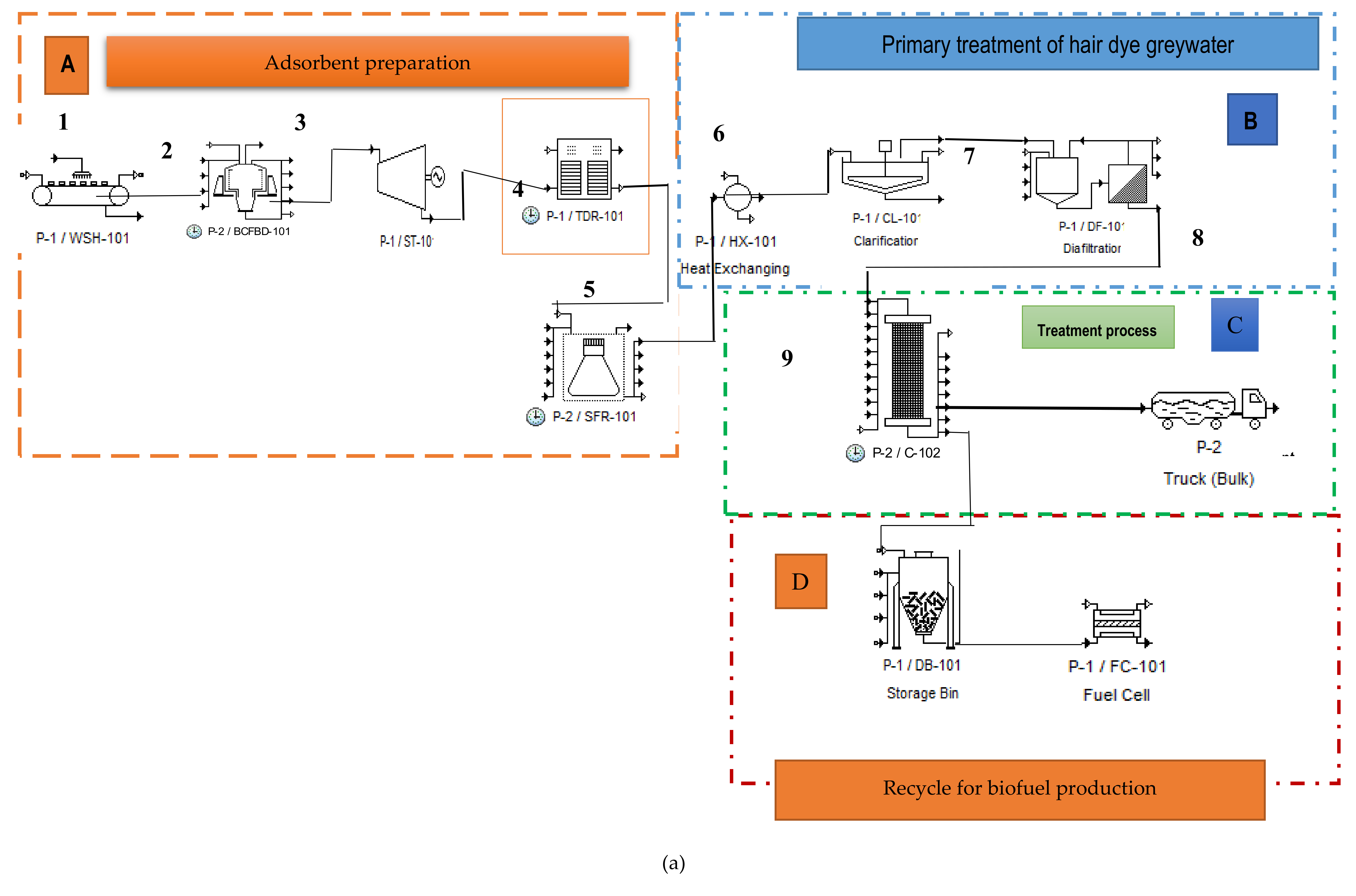

The durian shell adsorbent preparation and application diagram was designed using SuperPro Designer, as presented in Figure 8b. The suggested adsorbent preparation and application unit is proposed to have consisted of four stages. In stage A, the raw materials of durian shell adsorbent are collected, washed and granulated as well as adsorbent dose preparation is done. In stage B, the hair dye greywater is subjected to primary treatment to remove the large suspended solids, which might affect the adsorption process negatively. The main treatment process of the hair dye greywater by the adsorption using durian shell adsorbent is supposed to be performed in Stage C. Finally, the stage proposes the post-treatment process for the treated hair dye wastewater which is safe for disposal while the durian shell might be used as the substrate for fuel or biohydrogen production because of the high contents of the carbohydrates.

The FCE represents all equipment purchase cost, process piping, equipment installation, electrical systems, instrumentation and controls, buildings, construction and yard improvements as well as the WCC which might be up to 6.5% of FCE as described by Han et al. [46]. Therefore, the FCE for designing a preparation and coagulation unit for wastewater treatment with 1000 m³/day capacity could be up to USD 32,000.00 (

Table 5. Fixed capital estimate (FCE) for preparation and application of durian shell adsorbent for hair dye wastewater treatment.

No	Item Code *	Item	Percentage of FCE	Cost
1	P-1/WSH-101	Washing tank	62.5%	10,000.00
2	P-2/BCFBD-101	Basket centrifuge
3	P-1/ST-10	Straight flow steam Turbine Generator
4	P-1/TDR-101	Tray Drying
5	P-2/SFR-101	Shake flasks
6	P-1/HX-101	Heat Exchange		1000.00
7	P-1/CL-101	Clarification		2000.00
8	P-1/DF-101	Dia-filtration		3000.00
9	P-2/C-102 PBA	Adsorption unit		4000.00
	Total Equipment purchase cost			20,000.00
10	Equipment installation		3.13	1000.00
11	Process piping		3.13	1000.00
12	Instrumentation and controls		6.25	2000.00
13	Electrical systems		3.13	1000.00
14	Buildings		15.63	5000.00
15	Yard improvements		3.13	1000.00
16	Construction		3.13	1000.00
	TOTAL			32,000.00

* Refer the item code to Figure 8a.

).

The additional costs for the treatment process might reach 50% of the equipment cost, which was equivalent to USD 16,000.00 [47]. The TCI of the plant might go up to USD 48,000.00 WCC, which was estimated to be 6.5% of the FCE to the tune of about USD 3120.00 Therefore, according to Equation (1), the TCI of USD 51,120.00 could be calculated. The techno-economic analysis is one of the best methods for determining the effectiveness of any alternative method for treating environmental pollution because this process provides more details for the total cost of the treatment process for specific pollution in comparison to the current technologies [47]. It has also been used to estimate the H₂ production by fungi from food wastes and provided very accurate information on the total cost [44,48].

3.4.1. Annual Operation Cost

The $C_{RM}$ is the cost of durian shell. The durian shell as well as the chemicals required for preparation of the durian shell to be used as a coagulant was supplied by a local supplier. The $C_U$ include the cost of electricity and water which are required for the preparation of durian shell adsorbent and the wastewater treatment and was estimated based on the price for each unit in the local currency. The $C_{WG}$ represents the final solid waste generated from the coagulation treatment unit of the wastewater which is considered as a biomass yield with high concentrations of carbohydrates and could be used as bio-sorbents for wastewater treatment as well as for fuel production. Moreover, the generated wastewater from the adsorption unit could be safe for disposal.

Table 6. Annual operation cost of the preparation and application of durian shell adsorbent for hair dye wastewater treatment.

	Component	Price	Unit	Quantity	Cost (USD)
Raw material (chemicals)	Cassava peels	Free	USD/kg	48 ton/year	0
Utilities	Electricity	0.04	USD/kWh	100,000	4000.00
	Water	0.01	USD/m3	100,000	1000.00
Other costs	Labour	6000.00	USD/employee	1	6000.00
	Maintenance	2	% of FCE		640.00
	Insurance	1	% of FCE		320.00
Total					11,960.00

shows the annual operation cost for the preparation of durian shell adsorbent. The raw material cost ($C_{RM}$) was USD zero/year (since the durian shells are agriculture wastes and no chemical are required for the preparation). In the current study, the best dose for achieving high COS, turbidity and TSS removal are 1 g/L. The suggested design here manages with 1000 m³ per day for 240 days per year. The experiments confirmed that 1 kg of raw durian shell generates 500 g pure coagulant. In order to deal with 240,000 m³ per year, the process should deal with 480 tons of raw durian shell to generate 240 tons (1000 kg/day) of pure coagulant to treat the quantities required per year. The total cost of utilities is estimated to be USD 5000.00/year as estimated by Han et al. [48] in China, which has a similar cost for water and electricity as Malaysia. The costs of maintenance, insurance and labour as well as the operating labour cost, were based on the estimation that each process operation using 100 kg of raw durian shell to produce 50 kg of pure adsorbent daily required only one operator with an average salary of 6000.00 USD/year per operator (max 3 h/day). The maintenance and insurance were estimated at 2% and 1% of the FCC, respectively, according to Vlysidis et al. [47] and Ljunggren and Zacchi [49]. It can be concluded that the AOC is USD 11,960.00/year.

3.4.2. Annual Profitability and Revenue

The revenue for the preparation and application of durian shell adsorbent is generated from selling the adsorbent for the treatment of different wastewater. The current price of chemical adsorbent might reach USD 261.81.00 per tons of Honeydew peels-activated carbon (HDP-AC) and the commercial market of the activated carbon price is USD 1000.00/tons [50]. The machines in Table 5, have 100 kg of the capacity for each operation which takes place within a day. Therefore, the total capacity per year is to produce 240 tons of pure durian shell adsorbent. The total net of the raw durian shell in the current work was 500 g per 1000 g of the raw materials. Therefore, the revenue for each production process is 1000 kg of the pure durian shell adsorbent which gives USD 62834.00 of the revenue. The annual revenue of USD 62,834.00 could be estimated. Considering the 15% local tax in Malaysia, this is estimated to be USD 9425.00 and the annual operation cost is USD 11,960.00, the annual profitability (after the tax) of the durian shell adsorbent is USD 41,499.24 (

Table 7. (a) Annual profitability of the preparation and application of durian shell adsorbent for hair dye wastewater treatment. (b) Cost factors associated with the adsorption of C.I BB16 from the hair dye wastewater by durian shell adsorbent for hair dye wastewater in comparison to the physical and chemical treatment process.

(a)
	Price	Quantity	Value
Durian shell	USD 261.81/Ton	240 Ton	62,834.00
Annual revenue			62,834.00
Annual operation cost			11,960.00
Local tax			9425.00
Annual profitability			41,499.24
(b)
Cost Factor	Physical	Chemical	Durian Shell Adsorbent
Heat and energy requirement	2	1	0
Chemicals (acid/alkali/ammonia)	0	2	0
pH neutralisation	0	2	0
Detoxification/conditioning	1	2	0
Special reactor construction	2	2	0
Total	5	9	0

a). Based on Equation (9), the specific cost of pure durian shell adsorbent production is estimated to be USD 172.71 per ton which is lower than the market price of honeydew peels-activated carbon (HDP-AC) (USD 261.81) and the commercial market of activated carbon price which is USD 1000.00/tons.

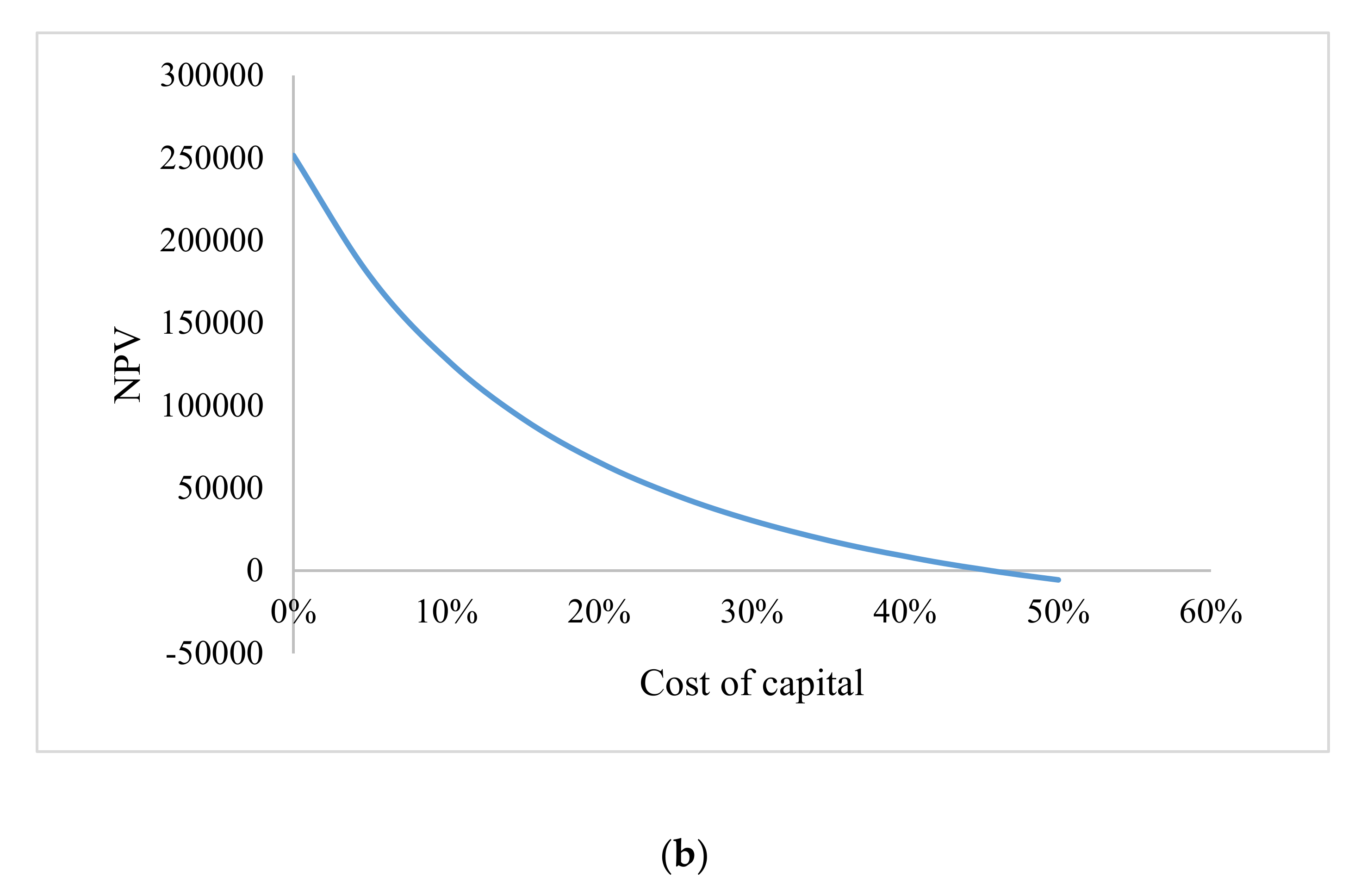

In this study, the pure durian shell adsorbent production unit was economically evaluated according to the internal rate of return (IRR), net present value (NPV) as well as the payback period (PBP) of 10 years of the lifetime. The IRR (the efficiency of the investment) was 45.62% in the current study (Figure 8b). Based on the analysis given above, the durian shell exhibited high efficiency for adsorption of hair dye wastewater. Therefore, the techno-economic analysis as described in the current work is economically feasible by 45.62% of the IRR. It might provide alternative methods for chemical and physical coagulation for wastewater treatment (Table 7b).

4. Conclusions

It can be concluded that an adsorbent was successfully produced via the durian shell and successfully showed high efficiency for the adsorption of C.I BB16—the optimal operating factors for adsorption C.I BB16 recorded at pH 8, time (30 min), durian shell dosage (1 g/L), and 15 mg /L of C.I BB16 concentrations where 77.61 vs. 74.26 (%) of C.I BB16 removal and 80.60 vs. 78.72 (%) of COD removal was the observed and predicted results recorded with an R² coefficient of 0.94, respectively. The process is very economically feasible with 45.62% of the internal rate of return (IRR). These findings indicate that the durian shell adsorbent has great potential to be applied as a low cost and eco-friendly adsorbent in the adsorption process of dyes in aqueous solution. The utilisation of durian shells as an adsorbent also helped in reducing solid waste in agriculture.
